6-3. Do-it-yourself maintenance

Check the wattage of the light
bulb to be replaced. (



P.524)

Rear turn signal lights

Back-up lights

License plate lights

■

Lights that need to be
replaced by your Toyota
dealer



Headlights



Daytime running lights



Front turn signal/parking
lights



Front side marker lights



Side turn signal lights



Tail lights



Stop lights



Fog lights (if equipped)



Rear side marker lights



High mounted stoplight



Outer foot lights (if equipped)

■

LED lights

The lights other than the following

lights each consist of a number of

LEDs. If any of the LEDs burn out,

take your vehicle to your Toyota

dealer to have the light replaced.

●

Rear turn signal lights

●

Back-up lights

●

License plate lights

■

Condensation build-up on the

inside of the lens

Temporary condensation build-up

on the inside of the light lens does

not indicate a malfunction. Contact

your Toyota dealer for more infor-

mation in the following situations:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the light.

■

When replacing light bulbs



P.447

■

Rear turn signal lights

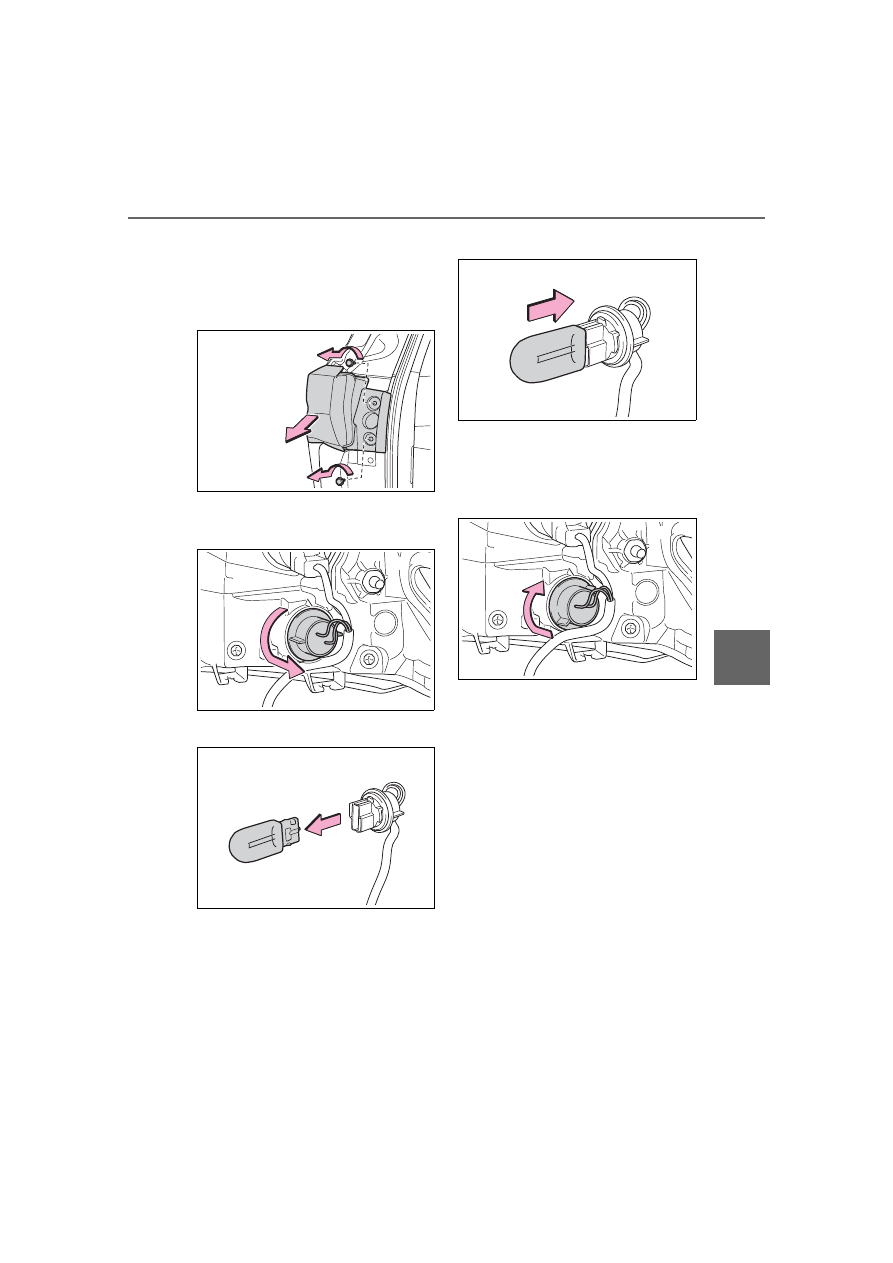

Open the back door.

Light bulbs

You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.
For more information about
replacing other light bulbs,
contact your Toyota dealer.

Preparing for light bulb
replacement

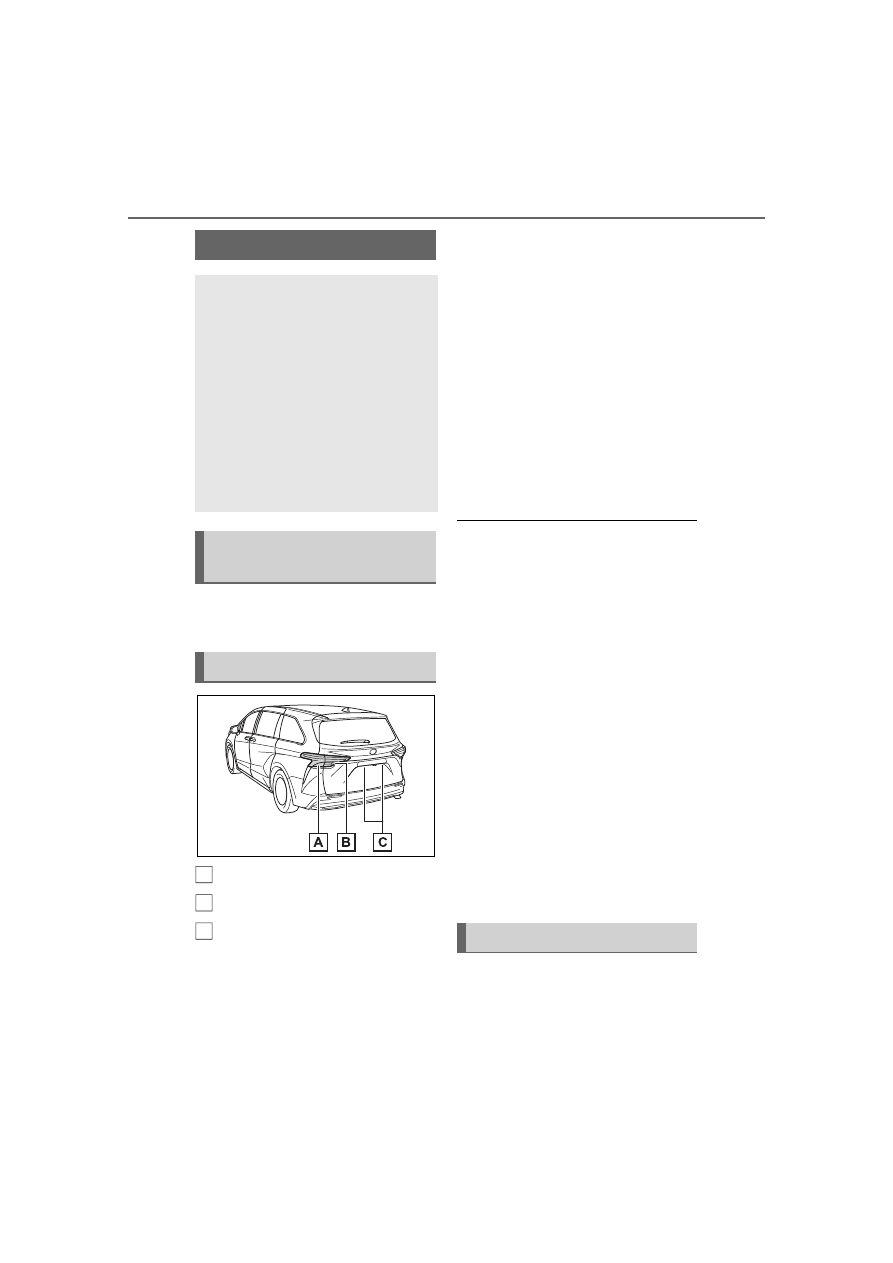

Bulb location

Replacing light bulb

449

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

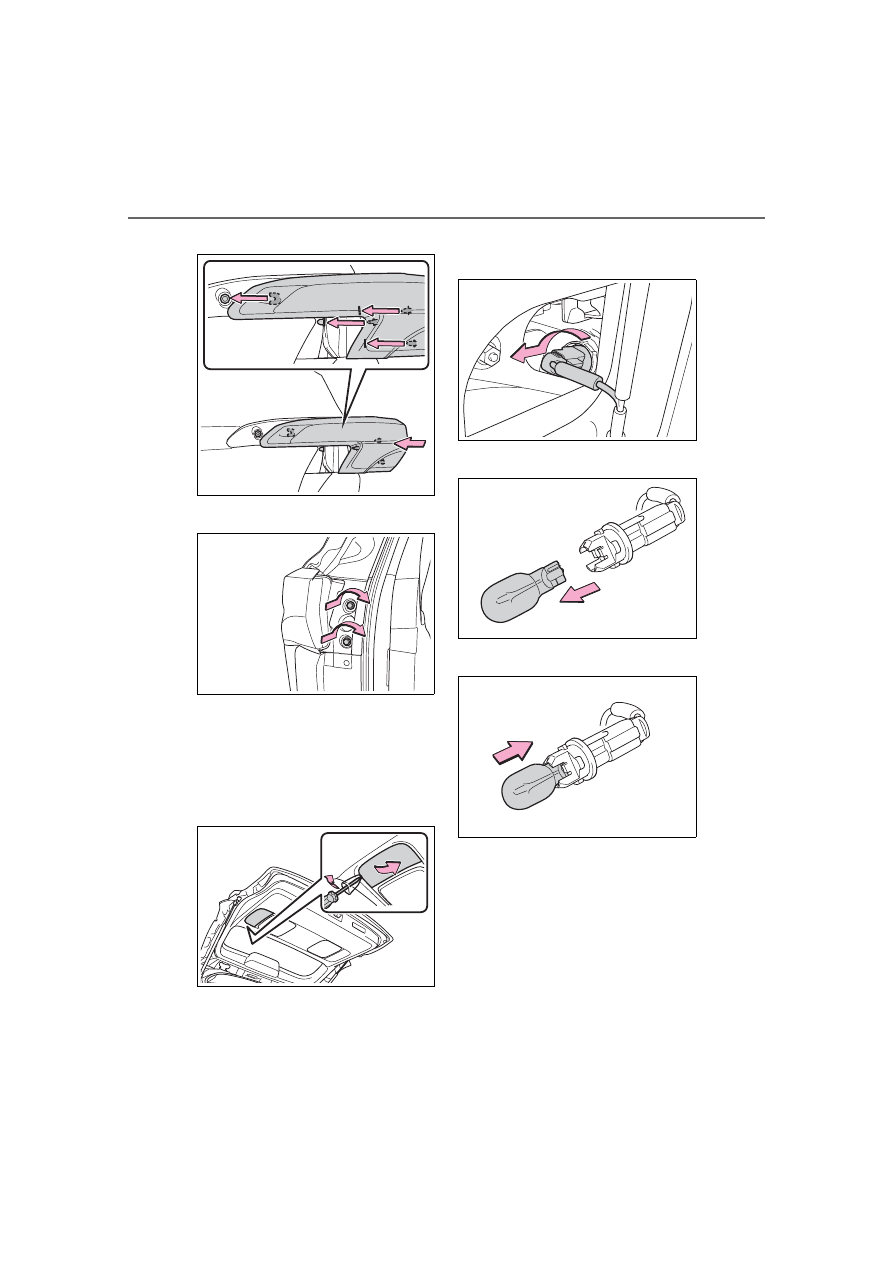

Remove the securing screws
and remove the unit.

Remove the lamp assembly by pull-

ing it directly backward from the

rear of the vehicle.

Turn the bulb base counter-
clockwise.

Remove the light bulb.

Install a new light bulb.

Install the bulb base to the
light unit by inserting it and
turning the bulb base clock-
wise.

Align the grooves on the light
unit with the claws, and insert
the light unit straight so that
the pin on the light unit fit into
the hole.

Confirm that the light unit is com-

450

6-3. Do-it-yourself maintenance

pletely secured.

Reinstall the screws.

■

Back-up lights

Open the back door and
remove the cover.

To prevent damage to the cover,

wrap the tip of the screwdriver with

a rag, etc.

Turn the bulb base counter-
clockwise.

Remove the light bulb.

Install a new light bulb.

Install the bulb base to the
light unit by inserting it and

451

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

turning the bulb base clock-
wise.

Reinstall the cover.

■

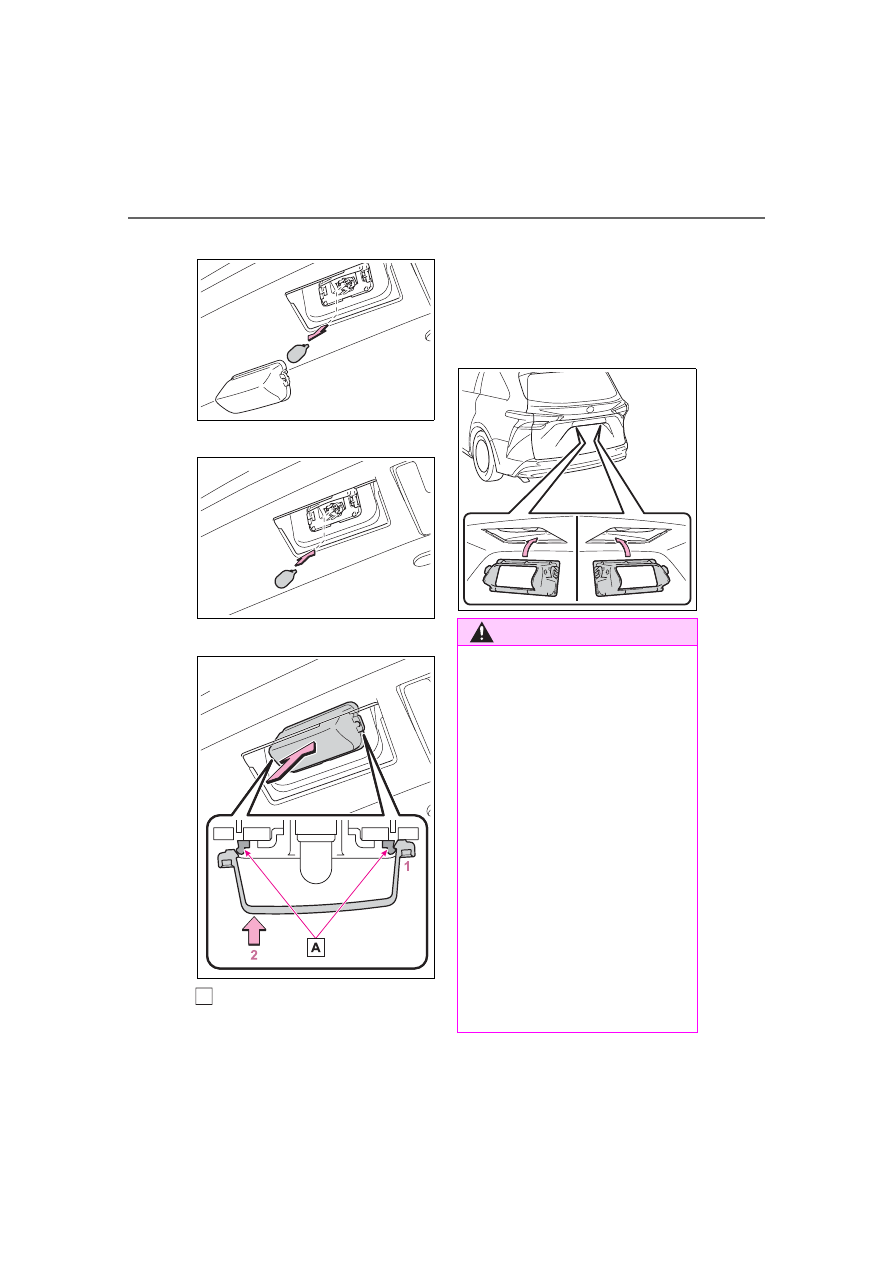

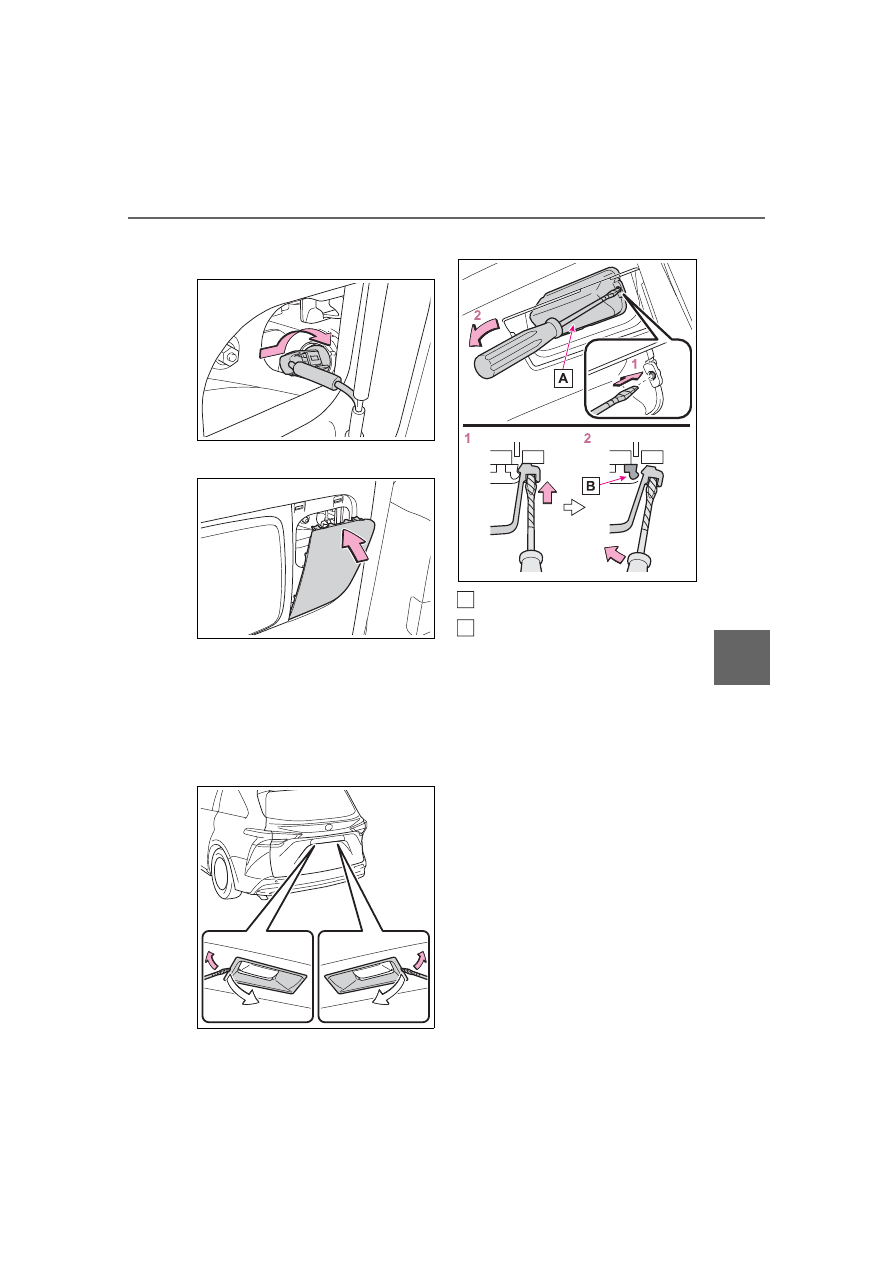

License plate lights

Remove the cover.

Using a flathead screwdriver,

remove the cover.
To prevent damage to the vehicle,

wrap the tip of the flathead screw-

driver with tape, etc.

Remove the lens.

Lens

Hook

Insert a small flathead screw-
driver, etc. into either the
right or left hole of the lens.

Push the screwdriver side-
ways in the direction of the
arrow shown in the illustra-
tion, disengage the hook, and
then remove the lens.

To prevent damage to the vehicle,
wrap the tip of the screwdriver with
tape, etc.

452

6-3. Do-it-yourself maintenance

Remove the light bulb.

Install a new light bulb.

Install the lens.

Hooks

Fit the lens into either the

right or left hooks.

Push the lens into place.

After installation, confirm that the
lens is properly installed by gently
pulling it.

Install the cover.

WARNING

■

Replacing light bulb

●

Turn off the light. Do not attempt

to replace the bulb immediately

after turning off the light.

The bulb becomes very hot and

may cause burns.

●

Do not touch the glass portion

of the light bulb with bare

hands. When it is unavoidable

to hold the glass portion, use

and hold with a clean dry cloth

to avoid getting moisture and

oils on the bulb.

Also, if the bulb is scratched or

dropped, it may blow out or

crack.

●

Fully install light bulb and any

parts used to secure it. Failure

to do so may result in heat dam-

age, fire, or water entering the

light unit. This may damage the

light or cause condensation to

build up on the lens.

453

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

WARNING

●

Do not attempt to repair or dis-

assemble light bulbs, connec-

tors, electric circuits or

component parts.

Doing so may result in death or

serious injury due to electric

shock.

■

To prevent damage or fire

●

Make sure bulb is fully seated

and locked.

●

Check the wattage of the bulb

before installing to prevent heat

damage.

455

Whe

n tr

ouble

rises

When trouble arises

7-1. Essential information

Emergency flashers ....

456

If your vehicle has to be

stopped in an emergency

..................................

457

If the vehicle is submerged

or water on the road is ris-
ing .............................

458

7-2. Steps to take in an emer-

gency

If your vehicle needs to be

towed.........................

460

If you think something is

wrong ........................

463

If a warning light turns on or

a warning buzzer sounds

..................................

464

If a warning message is dis-

played........................

475

If you have a flat tire (vehi-

cles without spare tire)

..................................

480

If you have a flat tire (vehi-

cles with spare tire) ...

490

If the hybrid system will not

start ...........................

499

If you lose your keys ...

500

If the fuel filler door cannot

be opened .................

501

If the electronic key does

not operate properly ..

502

If the 12-volt battery is dis-

charged .....................

504

If your vehicle overheats

..................................

509

If the vehicle becomes

stuck ..........................

512

456

7-1. Essential information

7-1.Essential information

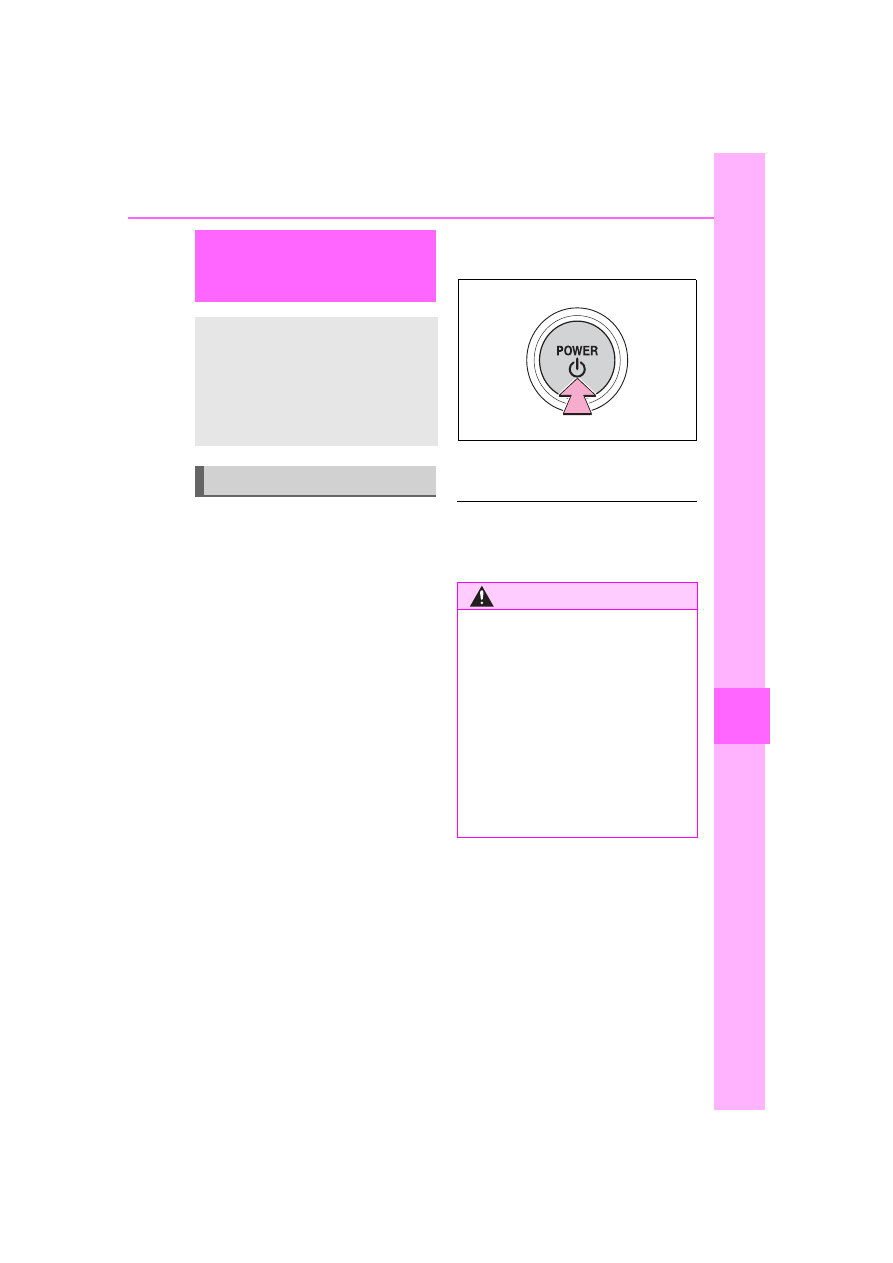

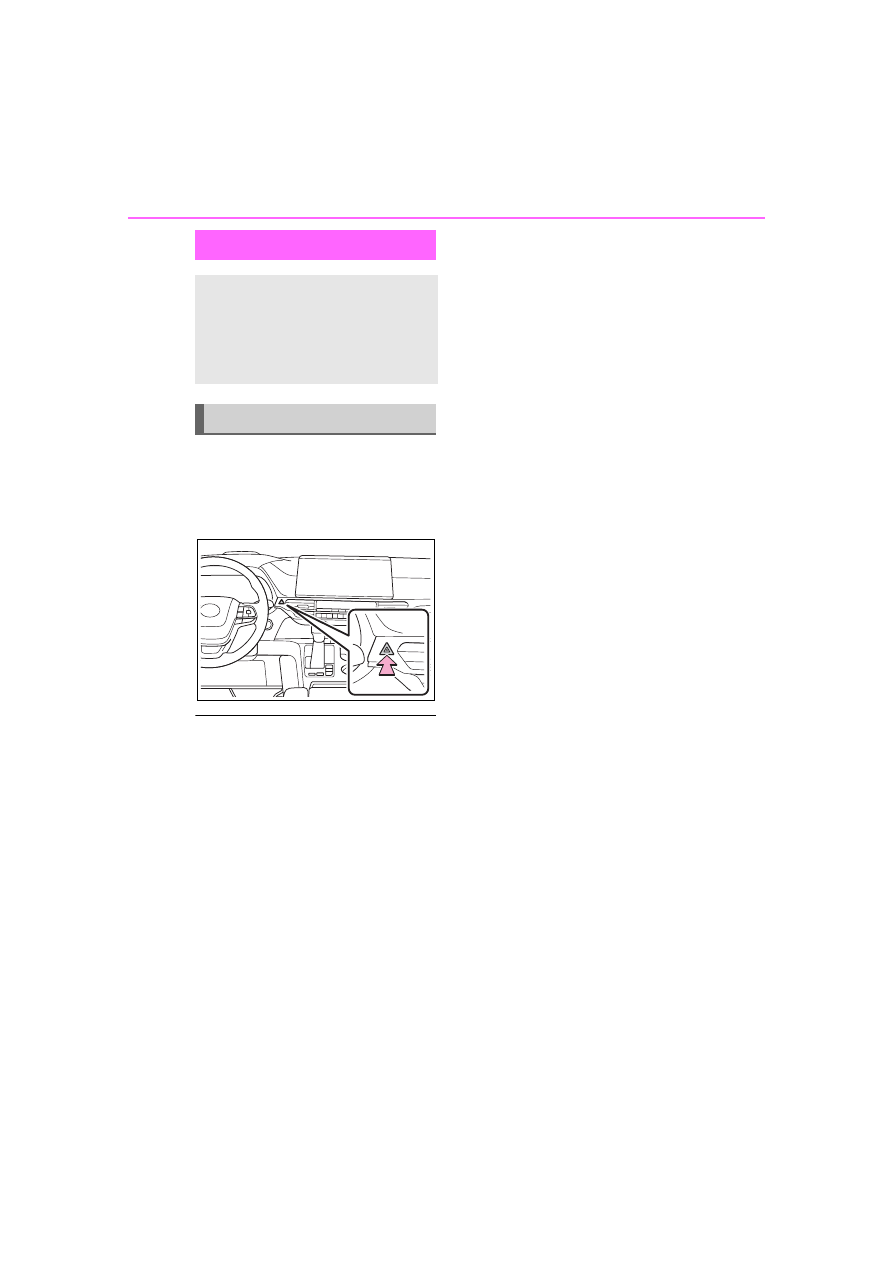

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are

used for a long time while the

hybrid system is not operating

(while the “READY” indicator is

not illuminated), the 12-volt bat-

tery may discharge.

●

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the emergency flash-

ers will turn on automatically.

The emergency flashers will turn

off automatically after operating

for approximately 20 minutes. To

manually turn the emergency

flashers off, press the switch

twice. (The emergency flashers

may not turn on automatically

depending on the force of the

impact and conditions of the colli-

sion.)

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped in the road due to a
breakdown, etc.

Operating instructions

457

7-1. Essential information

Whe

n tr

ouble

rises

Steadily step on the brake
pedal with both feet and
firmly depress it.

Do not pump the brake pedal

repeatedly as this will increase the

effort required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the
vehicle in a safe place by the
road.

Stop the hybrid system.



If the shift lever cannot be
shifted to N

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as
possible.

To stop the hybrid system,
press and hold the power
switch for 2 consecutive sec-
onds or more, or press it

briefly 3 times or more in suc-
cession.

Stop the vehicle in a safe
place by the road.

The functions of the air conditioning,

etc. may be partially limited in order

to reduce the power consumption of

the 12-volt battery.

If your vehicle has to

be stopped in an emer-

gency

Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehi-
cle using the following pro-
cedure:

Stopping the vehicle

WARNING

■

If the hybrid system has to be

turned off while driving

Turning the hybrid system off

while driving will not cause loss of

steering or braking control. How-

ever, power assist for the steering

wheel may be lost making it diffi-

cult to steer smoothly before stop-

ping the vehicle depending on the

remaining charge in the 12-volt

battery or usage conditions.

Decelerate as much as possible

before turning off the hybrid sys-

tem.

458

7-1. Essential information



If the door can be opened,
open the door and exit the
vehicle.



If the door can not be opened,
open the window using the
power window switch and
ensure an escape route.



If the window can be opened,
exit the vehicle through the
window.



If the door and window cannot
be opened due to the rising
water, remain calm, wait until
the water level inside the
vehicle rises to the point that
the water pressure inside of
the vehicle equals the water
pressure outside of the vehi-
cle and then open the door
after waiting for the rising
water to enter the vehicle, and
exit the vehicle. When the

outside water level exceeds
half the height of the door, the
door cannot be opened from
the inside due to water pres-
sure.

■

Water level exceeds the floor

When the water level exceeds the

floor and time has passed, the elec-

trical equipment will get damaged,

the power windows and power slid-

ing doors will not operate, the

engine and motor stop, and the

vehicle may not be able to get mov-

ing.

■

Using an emergency escape
hammer

Laminated glass

is used in the

windshield and the windows on this

vehicle.
Laminated glass cannot be shat-
tered with an emergency hammer

:Contact your Toyota dealer or

aftermarket accessory manufac-
turer for further information about
an emergency hammer.

:If equipped

■

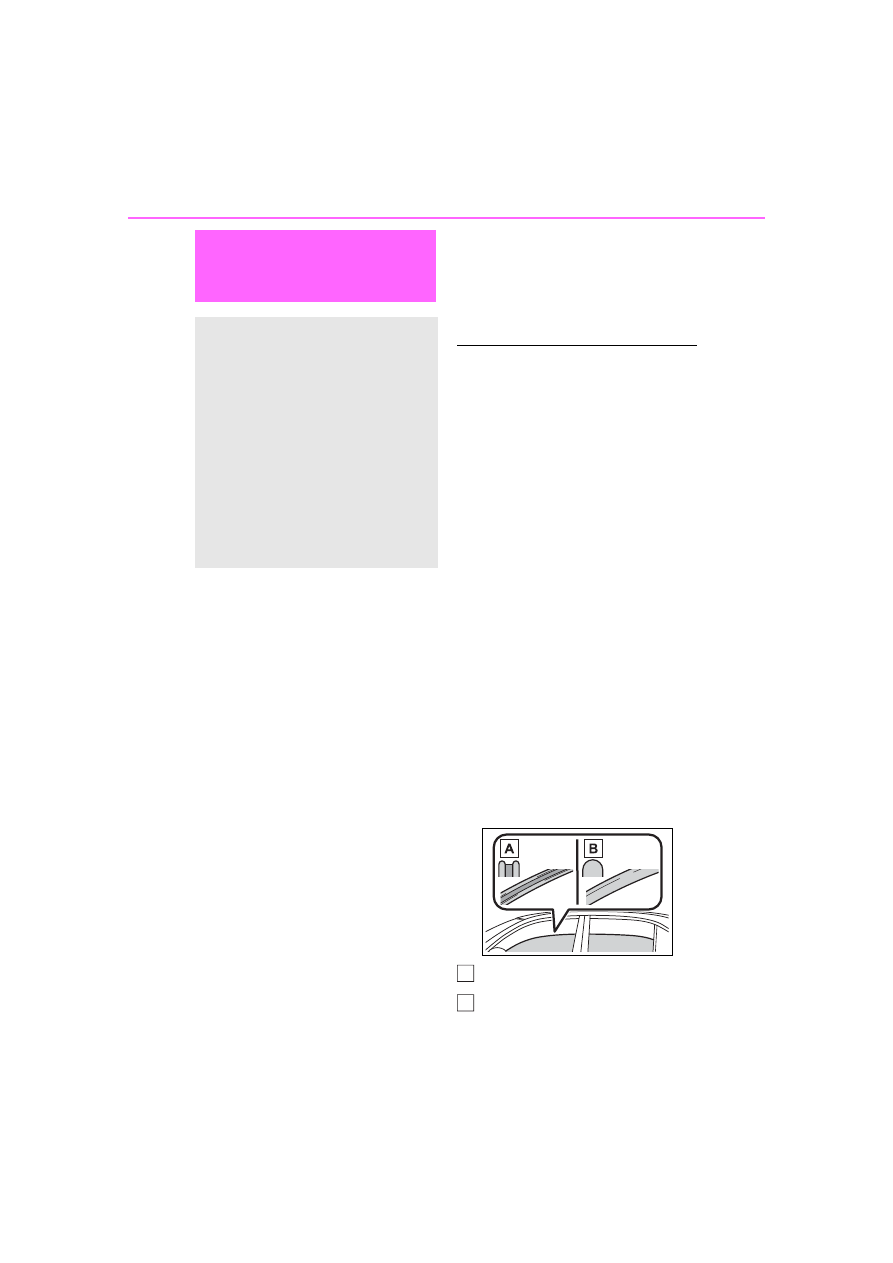

How to distinguish laminated

glass

When looking from the cross-sec-

tional view point, laminated glass is

two sheets of glass pasted together.

Laminated glass

Tempered glass

If the vehicle is sub-

merged or water on

the road is rising

This vehicle is not designed
to be able to drive on roads
that are deeply flooded with
water. Do not drive on roads
where the roads may be
submerged or the water
may be rising. It is danger-
ous to remain in the vehicle,
if it anticipated that the vehi-
cle will be flooded or set a
drift. Remain calm and fol-
low the following.

459

7-1. Essential information

Whe

n tr

ouble

rises

WARNING

■

Caution while driving

Do not drive on roads where the

roads may be submerged or the

water may be rising. Otherwise

the vehicle may be damaged and

cannot move, as well as become

flooded and set a drift, which may

lead to death.

460

7-2. Steps to take in an emergency

7-2.Steps to take in an emergency

If your vehicle needs

to be towed

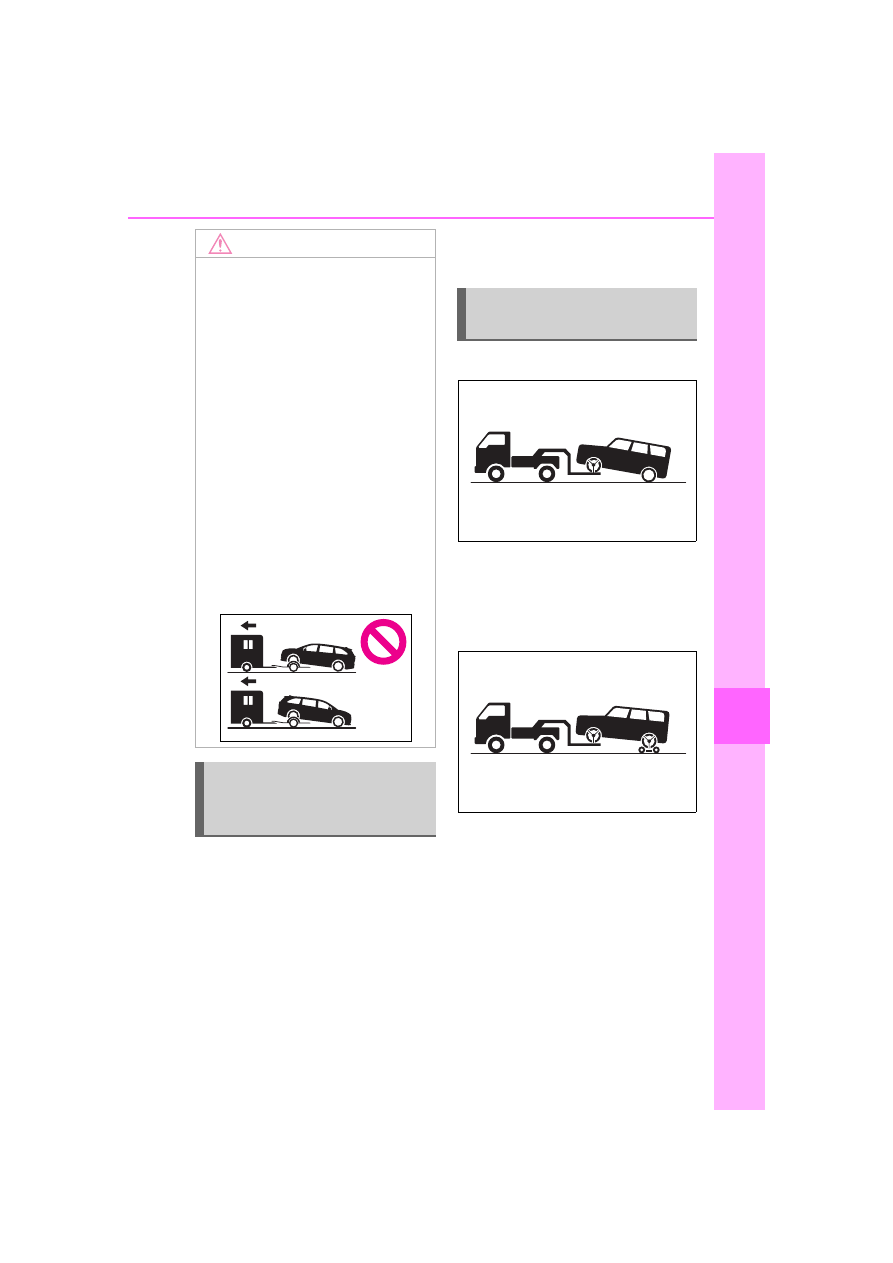

If towing is necessary, we
recommend having your
vehicle towed by your
Toyota dealer or commer-
cial towing service, using a
wheel-lift type truck or flat-
bed truck.

Use a safety chain system
for all towing, and abide by
all state/provincial and local
laws.

2WD models: If towing your
vehicle with a wheel-lift type
truck from the front, the
vehicle’s rear wheels and
axles must be in good con-
ditions. (



P.460, 461)

If they are damaged, use a
towing dolly or flatbed
truck.

AWD models: If towing your
vehicle with a wheel-lift type
truck, use a towing dolly.
(



P.460, 461)

WARNING

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

■

When towing the vehicle

2WD models: Be sure to transport

the vehicle with the front wheels

raised or with all four wheels

raised off the ground. If the vehi-

cle is towed with the front wheels

contacting the ground, the drive-

train and related parts may be

damaged or electricity generated

by the operation of the motor may

cause a fire to occur depending

on the nature of the damage or

malfunction.

AWD models: Be sure to transport

the vehicle with all four wheels

raised off the ground. If the vehi-

cle is towed with the tires contact-

ing the ground, the drivetrain or

related parts may be damaged,

the vehicle may fly off the truck, or

electricity generated by the opera-

tion of the motor may cause a fire

to occur depending on the nature

of the damage or malfunction.

461

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

The following may indicate a
problem with your transmission.
Contact your Toyota dealer or
commercial towing service
before towing.



The hybrid system warning
message is shown on the
multi-information display and
the vehicle does not move.



The vehicle makes an abnor-
mal sound.



From the front (2WD models)

Release the parking brake.
Turn automatic mode off.
(



P.247)



From the front (AWD models)

Use a towing dolly under the
rear wheels.

NOTICE

■

To prevent damage to the

vehicle when towing using a

wheel-lift type truck

When raising the vehicle, ensure

adequate ground clearance for

towing at the opposite end of the

raised vehicle. Without adequate

clearance, the vehicle could be

damaged while being towed.

■

To prevent damage to the

vehicle when towing with a

sling-type truck

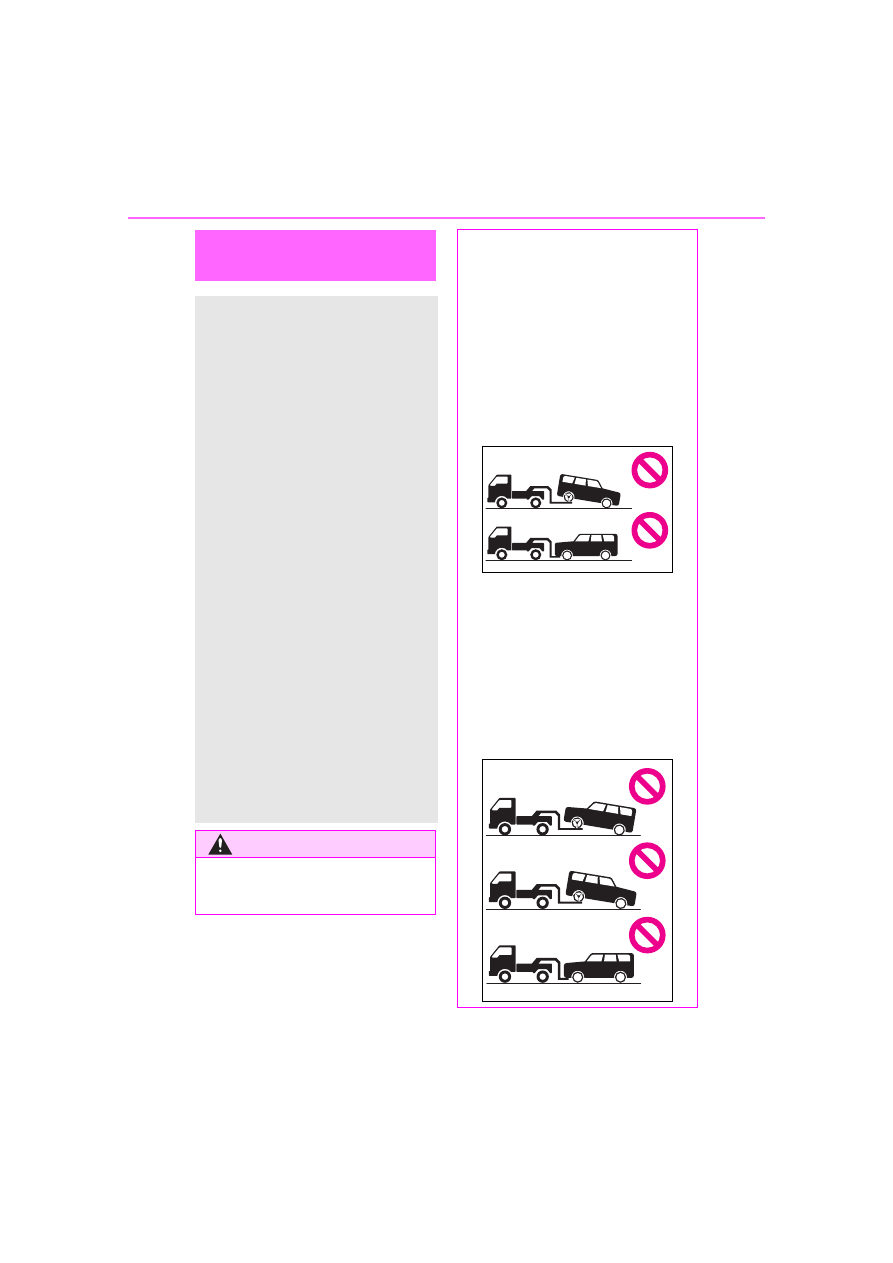

Do not tow with a sling-type truck,

either from the front or rear.

■

Recreational towing (behind

motor home, etc.)

Never dinghy tow your vehicle to

prevent causing serious damage

to the AWD system and transmis-

sion. (



P.232)

Situations when it is nec-
essary to contact dealers
before towing

Towing with a wheel-lift
type truck

462

7-2. Steps to take in an emergency



From the rear

Use a towing dolly under the
front wheels.

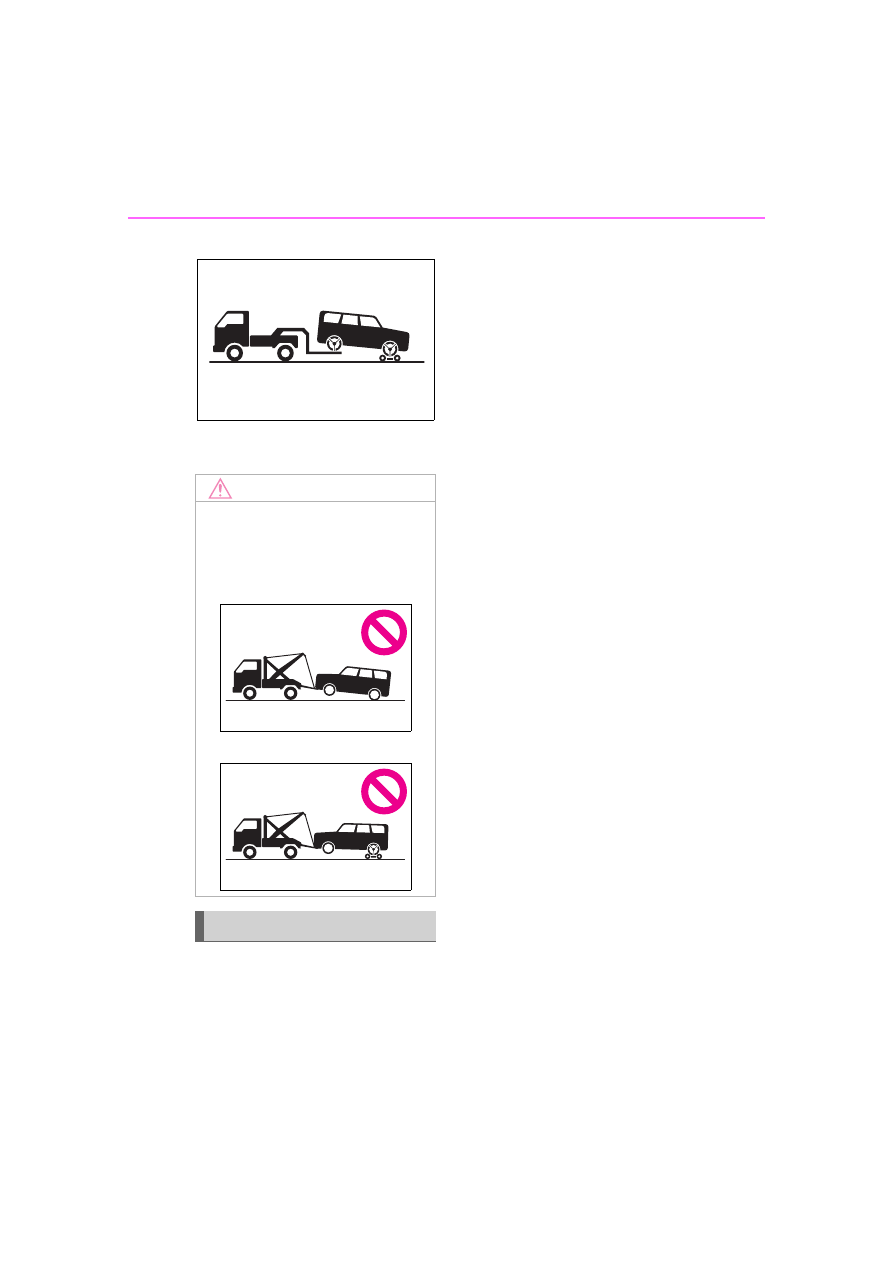

When using a flatbed truck to
transport the vehicle, use tire
strapping belts. Refer to the
owner’s manual of the flatbed

truck for the tire strapping
method.
In order to suppress vehicle
movement during transporta-
tion, set the parking brake and
turn the power switch off.

NOTICE

■

Towing with a sling-type

truck

Do not tow with a sling-type truck

to prevent body damage.



2WD models



AWD models

Using a flatbed truck

463

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises



Fluid leaks under the vehicle
(Water dripping from the air
conditioning after use or drip-
ping from the muffler is nor-
mal.)



Flat-looking tires or uneven
tire wear



Engine coolant temperature
gauge needle continually
points higher than normal.



Changes in exhaust sound



Excessive tire squeal when
cornering



Strange noises related to the
suspension system



Pinging or other noises
related to the hybrid system



Engine missing, stumbling or
running roughly



Appreciable loss of power



Vehicle pulls heavily to one
side when braking



Vehicle pulls heavily to one
side when driving on a level
road



Loss of brake effectiveness,
spongy feeling, pedal almost
touches the floor

If you think something

is wrong

If you notice any of the fol-
lowing symptoms, your
vehicle probably needs
adjustment or repair. Con-
tact your Toyota dealer as
soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

464

7-2. Steps to take in an emergency

■

Brake system warning light (warning buzzer)

■

Brake system warning light

■

Charging system warning light

: This light illuminates on the multi-information display with a message.

If a warning light turns on or a warning buzzer

sounds

Calmly perform the following actions if any of the warning
lights comes on or flashes. If a light comes on or flashes, but
then goes off, this does not necessarily indicate a malfunc-
tion in the system. However, if this continues to occur, have
the vehicle inspected by your Toyota dealer.

Actions to the warning lights or warning buzzers

Warning light

Details/Actions

(U.S.A.)

(Red)

(Canada)

Indicates that:



The brake fluid level is low; or



The brake system is malfunctioning



Immediately stop the vehicle in a safe place and
contact your Toyota dealer. Continuing to drive
the vehicle may be dangerous.

Warning light

Details/Actions

(Yellow)

Indicates a malfunction in:



The parking brake system;



The regenerative braking system; or



The electronically controlled brake system



Have the vehicle inspected by your Toyota
dealer immediately.

Warning light

Details/Actions

Indicates a malfunction in the vehicle’s charging sys-
tem



Immediately stop the vehicle in a safe place and
contact your Toyota dealer.

Toyota Sienna Hybrid (2023 year). Manual in english - page 28
