Toyota Sequoia Hybrid (2023 year). Manual in english - page 30

482

6-3. Do-it-yourself maintenance

■

Canceling ID code registration

●

To cancel ID code registration

after it has been started, select

“Change Wheel” on the multi-

information display and press and

hold again.

●

If ID code registration has been

canceled, the tire pressure warn-

ing light will blink for approxi-

mately 1 minute when the power

switch is turned to ON and then

illuminate. The tire pressure warn-

ing system will be operational

when the tire pressure warning

light turns off.

●

If the warning light does not turn

off even after several minutes

have elapsed, ID code registration

may not have been canceled cor-

rectly. To cancel registration, per-

form the ID code registration start

procedure again and then turn the

power switch off before driving.

■

If ID codes are not registered

properly

●

In the following situations, ID code

registration may take longer than

usual to be completed or may not

be possible. Normally, registration

completes within approximately

30 minutes.

If ID code registration is not com-

plete after driving for approxi-

mately 30 minutes, continue

driving for a while.

• Vehicle is not parked for approxi-

mately 20 minutes or more before

driving

• Vehicle is not driven at approxi-

mately 25 mph (40 km/h) or more

• Vehicle is driven on unpaved

roads

• Vehicle is driven near other vehi-

cles and system cannot recog-

nize tire pressure warning valve

and transmitters of your vehicle

over those of other vehicles

• Wheel with tire pressure warning

valve and transmitter installed is

inside or near the vehicle

If registration does not complete

after driving for 1 hour or more, per-
form the ID code registration proce-
dure again from the beginning.

●

If the vehicle is reversed during

registration, the data up to that

point is reset, so perform the reg-

istration procedure again from the

beginning.

●

In the following situations, ID code

registration will not be started or

was not completed properly and

the system will not operate prop-

erly. Perform the ID code registra-

tion procedure again.

• If, when attempting to start ID

code registration, the tire pressure

warning light does not blink slowly

3 times.

• If, when the vehicle has been

driven for about 20 minutes after

performing ID code registration,

the tire pressure warning light

blinks for approximately 1 minute

and then illuminates.

●

If ID code registration cannot be

completed after performing the

above procedure, contact your

Toyota dealer.

Your vehicle is equipped with
tire pressure warning system
with the function to have ID
codes registered for a second
wheel set, for example a winter
set. You can register a second
wheel set by yourself or your
Toyota dealer.
After registration of a second
wheel set, either of these two
wheel sets can be selected for
usage with the tire pressure
warning system.

Selecting wheel set

483

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

Operating conditions for
the function



This function will perform the
change of wheel set only if a
second wheel set has been
registered. If no second wheel
set has been registered, no
change will be made when
selecting this function in the
menu.



Only a change between both
registered wheel set is possi-
ble, mixing between these
wheel sets is not supported.

■

How to change between
wheel sets

Have the vehicle fitted with
the preferred wheel set.

Press

of the meter

control switches on the steer-
ing wheel and select

Press

of the meter

control switches and select
“Vehicle Settings”, and then
press and hold

Press

of the meter

control switches and select
“TPWS”, and then press

Press

of the meter

control switches and select
“Change Wheel”. Then press
and hold

until the tire

pressure warning light starts
slowly blinking 3 times.

Afterward, the tire pressure warning

light turns on after flashing for 1

minute.

After 2 minutes, registration of a

second wheel set is being per-

formed. The tire pressure warning

light will turn off and “--” will be dis-

played for the inflation pressure of

each tire on the multi-information

display.

Initialize the tire pressure
warning system. (



P.479)

If the tire inflation pressure settings

for the installed tires change, initial-

ization operations are required, but

if the tire inflation pressure settings

are the same, initialization is not

required.

Drive straight (with occa-
sional left and right turns) at
approximately 25 mph (40
km/h) or more for approxi-
mately 10 to 30 minutes.

Registration of a second wheel set

is complete when the tire pressure

warning light turns off and the infla-

tion pressure of each tire is dis-

played on the multi-information

display.

484

6-3. Do-it-yourself maintenance

The recommended cold tire
inflation pressure and tire size
are displayed on the tire and
loading information label.
(



P.555)

Tire valve

Tire pressure gauge

Remove the tire valve cap.

Press the tip of the tire pres-
sure gauge onto the tire
valve.

Read the pressure using the
gauge gradations.

If the tire inflation pressure is
not at the recommended
level, adjust the pressure.
If you add too much air, press
the center of the valve to
deflate.

After completing the tire infla-
tion pressure measurement
and adjustment, apply soapy
water to the valve and check
for leakage.

Put the tire valve cap back
on.

■

Tire inflation pressure check

interval

You should check tire inflation pres-

sure every two weeks, or at least

once a month. Do not forget to

check the spare.

■

Effects of incorrect tire inflation

pressure

Driving with incorrect tire inflation

pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor

handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drive train

If a tire needs frequent inflating,

have it checked by your Toyota

dealer.

Tire inflation pressure

Checking the specified
tire inflation pressure

Inspection and adjust-
ment procedure

485

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

Instructions for checking tire

inflation pressure

When checking tire inflation pres-

sure, observe the following:

●

Check only when the tires are

cold.

If your vehicle has been parked for

at least 3 hours or has not been

driven for more than 1 mile or 1.5

km, you will get an accurate cold

tire inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is

properly inflated based only on its

appearance.

●

It is normal for the tire inflation

pressure to be higher after driving

as heat is generated in the tire. Do

not reduce tire inflation pressure

after driving.

●

Never exceed the vehicle capacity

weight.

Passengers and luggage weight

should be placed so that the vehi-

cle is balanced.

WARNING

■

Proper inflation is critical to

save tire performance

Keep your tires properly inflated.

If the tires are not properly

inflated, the following conditions

may occur which could lead to an

accident resulting in death or seri-

ous injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting

from overheated tires

●

Air leaking from between tire

and wheel

●

Wheel deformation and/or tire

damage

●

Greater possibility of tire dam-

age while driving (due to road

hazards, expansion joints,

sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjust-

ing tire inflation pressure

Be sure to put the tire valve caps

back on.

If a valve cap is not installed, dirt

or moisture may get into the valve

and cause an air leak, resulting in

decreased tire inflation pressure.

486

6-3. Do-it-yourself maintenance

When replacing wheels, care
should be taken to ensure that
they are equivalent to those
removed in load capacity, diam-
eter, rim width and inset

Replacement wheels are avail-
able at your Toyota dealer.

: Conventionally referred to as off-

set.

Toyota does not recommend
using the following:



Wheels of different sizes or
types



Used wheels



Bent wheels that have been
straightened

■

When replacing wheels

The wheels of your vehicle are

equipped with tire pressure warning

valves and transmitters that allow

the tire pressure warning system to

provide advance warning in the

event of a loss in tire inflation pres-

sure. Whenever wheels are

replaced, the tire pressure warning

valves and transmitters must be

installed. (



P.478)

Wheels

If a wheel is bent, cracked or
heavily corroded, it should
be replaced. Otherwise, the
tire may separate from the
wheel or cause a loss of
handling control.

Wheel selection

WARNING

■

When replacing wheels

●

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual

or certification label, as this may

result in a loss of handling con-

trol.

●

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire.

Doing so may result in an acci-

dent, causing death or serious

injury.

■

When installing the wheel

nuts

Never use oil or grease on the

wheel bolts or wheel nuts. Oil and

grease may cause the wheel nuts

to be excessively tightened, lead-

ing to bolt or disc wheel damage.

In addition, the oil or grease can

cause the wheel nuts to loosen

and the wheel may fall off, caus-

ing an accident and resulting in

death or serious injury. Remove

any oil or grease from the wheel

bolts or wheel nuts.

■

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels. Doing so could cause the

tire to leak air during driving, pos-

sibly causing an accident.

487

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca



Use only Toyota wheel nuts
and wheel nut wrenches
designed for use with your
aluminum wheels.



When rotating, repairing or
changing your tires, check
that the wheel nuts are still
tight after driving 1000 miles
(1600 km).



Be careful not to damage the
aluminum wheels when using
tire chains.



Use only Toyota genuine bal-
ance weights or equivalent
and a plastic or rubber ham-
mer when balancing your
wheels.

Turn the power switch off.

Open the glove box.

Remove the panel.

Unlock the filter cover ( ),
pull the filter cover out of the

NOTICE

■

Replacing tire pressure warn-

ing valves and transmitters

●

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

●

Ensure that only genuine Toyota

wheels are used on your vehi-

cle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-
tions

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removing the air condi-
tioning filter

488

6-3. Do-it-yourself maintenance

claws ( ), and remove the
filter cover.

Remove the filter case.

Remove the air conditioning
filter from the filter case and
replace it with a new one.

The “

UP” marks shown on the

filter and the filter case should be
pointing up.

■

Checking interval

Inspect and replace the air condi-

tioning filter according to the mainte-

nance schedule. In dusty areas or

areas with heavy traffic flow, early

replacement may be required. (For

scheduled maintenance information,

please refer to the “Owner’s Manual

Supplement” or “Scheduled Mainte-

nance”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

NOTICE

■

When using the air condition-

ing system

Make sure that a filter is always

installed.

Using the air conditioning system

without a filter may cause damage

to the system.

■

To prevent damage to the fil-

ter cover

When moving the filter cover in

the direction of arrow to release

the fitting, pay attention not to

apply excessive force to the

claws. Otherwise, the claws may

be damaged.

489

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

Remove the dust from the air
intake vents with a vacuum
cleaner, etc.

Make sure to only use a vacuum to
suck out dust and clogs. Attempting
to blow out dust and clogs using an
airgun, etc. may push it into the air
intake vents. (



P.492)

If dust and clogs cannot be com-
pletely removed with the air
intake vent cover installed,
remove the cover and clean the
filter.

Turn the power switch off.

Using a flathead screwdriver,
remove the air intake vent
cover.

Vehicles with third seat
(power type): Remove the

Cleaning the hybrid

battery (traction bat-

tery) air intake vent

and filter

To prevent the fuel economy
from being affected, visually
inspect the hybrid battery
(traction battery) air intake
vent periodically for dust
and clogs. If it is dusty or
clogged or if “Maintenance
Required for Traction Bat-
tery Cooling Parts See
Owner’s Manual” is dis-
played on the multi-informa-
tion display, clean the air
intake vent using the follow-
ing procedures:

Cleaning the air intake
vents

If dust and clogs cannot
be completely removed

490

6-3. Do-it-yourself maintenance

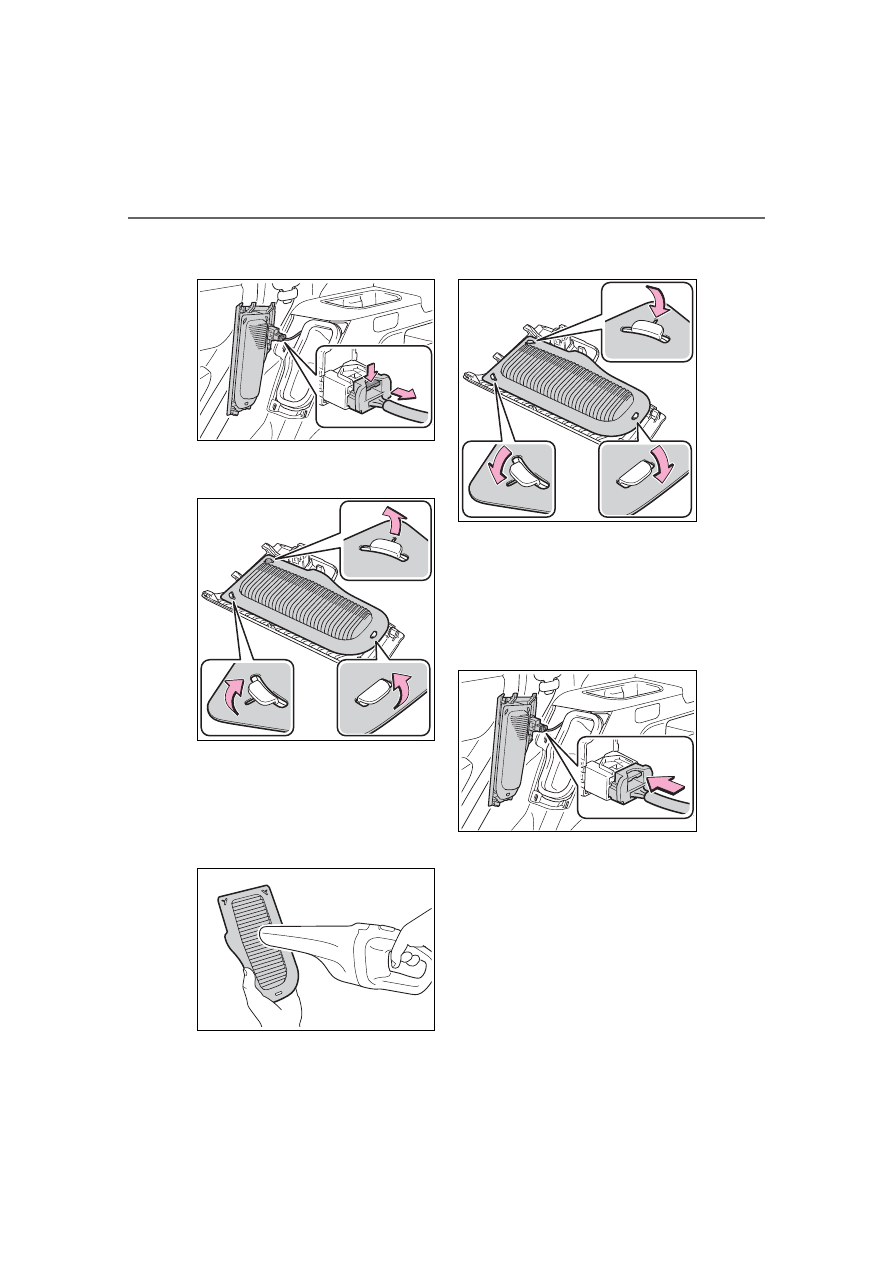

third seatback folding/return-
ing switch connector.

Remove the air intake vent
filter.

Remove the dust and clogs
from the filter using a vacuum
cleaner, etc.

Make sure to also remove the dust

and clogs from the inside of the air

intake vent cover.

Reinstall the filter to the
cover.

Make sure that the filter is not

crooked or deformed when install-

ing it.

Vehicles with third seat
(power type): Connect the
third seatback folding/return-
ing switch connector.

491

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

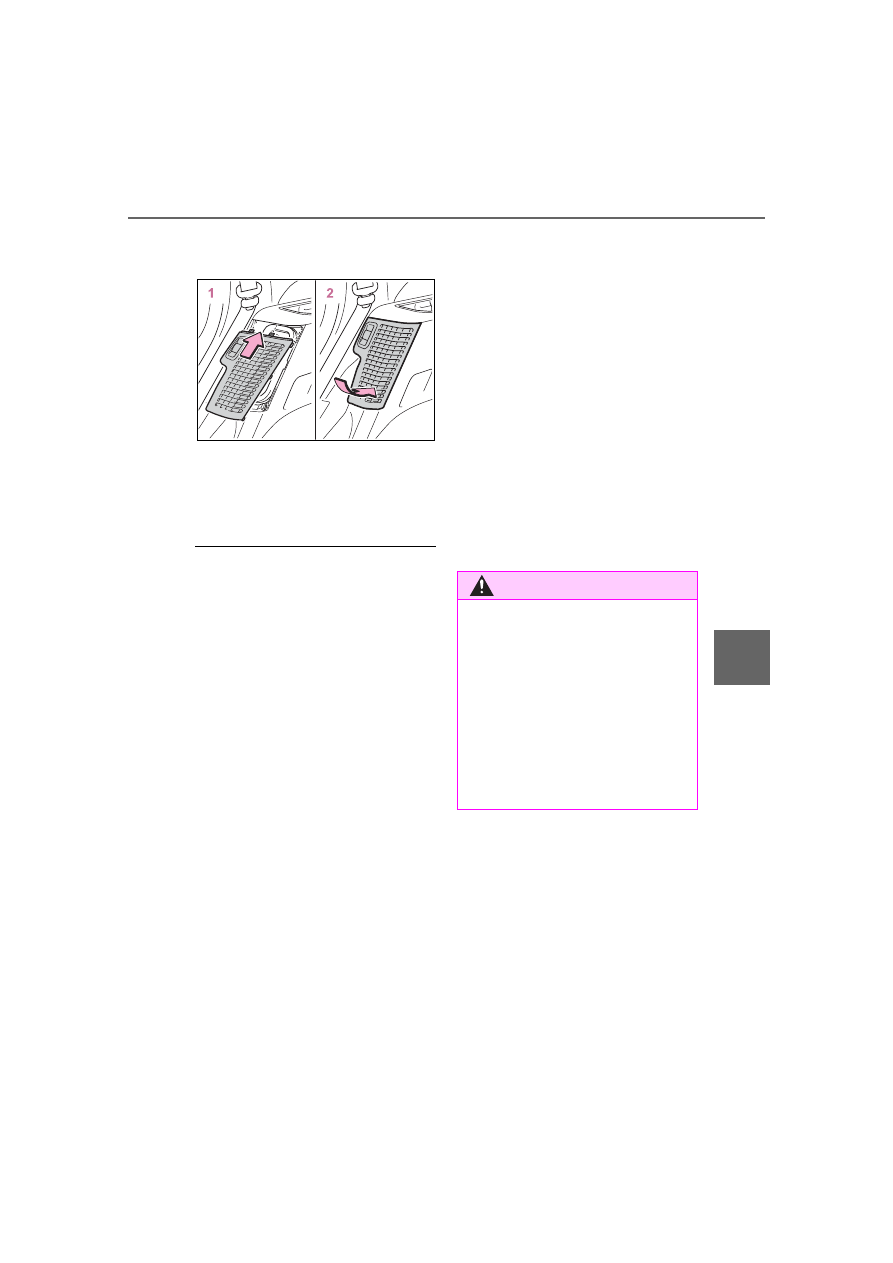

Install the air intake vent
cover.

Insert the cover to engage
the 2 claws.

Install the cover as shown in
the illustration.

■

Scheduled maintenance of the

air intake vents is necessary

when

In some situations such as when the

vehicle is used frequently or in

heavy traffic or dusty areas, the air

intake vents may need to be

cleaned more regularly. For details,

refer to the “Owner’s Warranty Infor-

mation Booklet” or “Owner’s Manual

Supplement”.

■

Cleaning the air intake vent

●

Dust in the air intake vent may

interfere with the cooling of the

hybrid battery (traction battery). If

charging/discharging of the hybrid

battery (traction battery) becomes

limited, the distance that the vehi-

cle can be driven using the electric

motor (traction motor) may be

reduced and the fuel economy

may be reduced.

Inspect and clean the air intake

vent periodically.

●

Improper handling of the air intake

vent cover and filter may result in

damage to them. If you have any

concerns about cleaning the filter,

contact your Toyota dealer.

■

If “Maintenance Required for

Traction Battery Cooling Parts

See Owner’s Manual” is dis-

played on the multi-information

display

●

If this warning message is dis-

played on the multi-information

display, remove the air intake vent

cover and clean the filter.

(



P.489)

●

After cleaning the air intake vent,

start the hybrid system and check

that the warning message is no

longer shown.

It may take approximately 20 min-

utes after the hybrid system is

started until the warning message

disappears. If the warning mes-

sage does not disappear, have the

vehicle inspected by your Toyota

dealer.

WARNING

■

When cleaning the air intake

vent

●

Do not use water or other liq-

uids to clean the air intake vent.

If water is applied to the hybrid

battery (traction battery) or

other components, a malfunc-

tion or fire may occur.

●

Before cleaning the air intake

vent, make sure to turn the

power switch off to stop the

hybrid system.

492

6-3. Do-it-yourself maintenance

NOTICE

■

When cleaning the air intake

vent

When cleaning the air intake vent,

make sure to only use a vacuum

to suck out dust and clogs. If a

compressed air blow gun, etc. is

used to blow out dust and clogs,

the dust or clogs may be pushed

into the air intake vent, which may

affect the performance of the

hybrid battery (traction battery)

and cause a malfunction.

■

To prevent damage to the

vehicle

●

Do not allow water or foreign

matter to enter the air intake

vent when the cover is

removed.

●

Carefully handle the removed

filter so that it will not be dam-

aged.

If the filter is damaged, have it

replaced with a new filter by

your Toyota dealer.

●

Make sure to reinstall the filter

and cover to their original posi-

tions after cleaning.

●

Do not install anything to the air

intake vent other than the exclu-

sive filter for this vehicle or use

the vehicle without the filter

installed.

■

If “Maintenance Required for

Traction Battery Cooling

Parts See Owner’s Manual” is

displayed on the multi-infor-

mation display

If the vehicle is continuously

driven with the warning message

(indicating that charging/discharg-

ing of the hybrid battery [traction

battery] may become limited) dis-

played, the hybrid battery (traction

battery) may malfunction. If the

warning message is displayed,

clean the air intake vent immedi-

ately.

493

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

If the electronic key battery is

depleted

The following symptoms may occur:

●

The smart key system and wire-

less remote control will not func-

tion properly.

●

The operational range will be

reduced.



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2450

■

Use a CR2450 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to local laws.

Take out the mechanical key.

Remove the cover.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a tape.

Remove the depleted battery.

Insert a new battery with the “+” ter-

minal facing up.

Electronic key battery

Replace the battery with a
new one if it is depleted.
As the key may be damaged
if the following procedure is
not performed properly, it is
recommended that key bat-
tery replacement be per-
formed by your Toyota
dealer.

Items to prepare

Replacing the battery

494

6-3. Do-it-yourself maintenance

WARNING

■

Removed battery and other

parts

These parts are small and if swal-

lowed by a child, they can cause

choking. Keep away from chil-

dren. Failure to do so could result

in death or serious injury.

■

Battery precautions

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

NOTICE

■

When replacing the battery

Use a flathead screwdriver of

appropriate size. Applying exces-

sive force may deform or damage

the cover.

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

495

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

Turn the power switch off.

Open the fuse box cover.



Engine compartment: type A
fuse box

Push the tabs in and lift the lid off.



Engine compartment: type B
fuse box

Push the tabs in and lift the lid off.



Passenger’ side instrument
panel

Remove the cover.

Vehicles with footwell lights:
Remove the footwell lights connec-
tor.

Remove the lid.
Make sure to push the claw when
removing/installing the lid.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

496

6-3. Do-it-yourself maintenance



Luggage compartment

Slide the third seats to the front-
most position. (



P.145)

Remove the left-hand side of the
luggage trim cover.

Remove the positive (+) battery ter-
minal cover.

Remove the fuse with the
pullout tool.
Only type A fuse can be

removed using the pullout
tool.

Check if the fuse is blown.

Type A and B:

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.
Type C and D:

Contact your Toyota dealer.



Type A

Normal fuse

Blown fuse



Type B

497

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse



Type D

Normal fuse

Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

tecting the wiring harness from

damage.

■

When replacing light bulbs

Toyota recommends that you use

genuine Toyota products designed

for this vehicle.

Because certain bulbs are con-

nected to circuits designed to pre-

vent overload, non-genuine parts or

parts not designed for this vehicle

may be unusable.

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

Content .. 28 29 30 31 ..
