241

4-2. Opening, closing and locking the doors

4

Before

driving

■

Antenna location

Antennas outside the cabin
(front)

Antennas outside the cabin
(rear) (if equipped)

Antenna outside the luggage
compartment

Antennas inside the cabin

■

Effective range (areas within

which the electronic key is

detected)

When locking or unlocking the
doors

The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of the front door handles,
rear door handles (if equipped) and
back door opener switch. (Only the
doors detecting the key can be
operated.)

When starting the hybrid system
or changing power switch modes

The system can be operated when
the electronic key is inside the vehi-
cle.

■

If an alarm sounds or a warning

message is displayed

An alarm sounds and warning mes-

sage displays shown on the multi-

information display are used to pro-

tect against unexpected accidents

or theft of the vehicle resulting from

erroneous operation. When a warn-

ing message is displayed, take

appropriate measures based on the

displayed message.
When only an alarm sounds, cir-

cumstances and correction proce-

dures are as follows.

Smart key system

The following operations
can be performed simply by
carrying the electronic key
on your person, for example
in your pocket. The driver
should always carry the
electronic key.



Locks and unlocks the
doors

*

 (



P.222)



Locks and unlocks the back
door

*

 (



P.229)



Starts the hybrid system
(



P.304)

*

: Charging port lid and charging

connector will also be locked
and unlocked. (



P.105)

A

B

C

D

A

B

242

4-2. Opening, closing and locking the doors

●

When an exterior alarm sounds

once for 5 seconds

●

When an interior alarm pings con-

tinuously

■

Battery-saving function

The battery-saving function will be

activated in order to prevent the

electronic key battery and the 12-

volt battery from being discharged

while the vehicle is not in operation

for a long time.

●

In the following situations, the

smart key system may take some

time to unlock the doors. Also, the

interior lights may not turn on

when the doors are unlocked.

• The electronic key has been left in

an area of approximately 11.5 ft.

(3.5 m) of the outside of the vehi-

cle for 40 seconds or longer.

• The smart key system has not

been used for 5 days or longer.

●

If the smart key system has not

been used for 14 days or longer,

the doors cannot be unlocked at

any doors except the driver’s

door. In this case, take hold of the

driver’s door handle, or use the

wireless remote control or the

mechanical key, to unlock the

doors.

■

Turning an electronic key to

battery-saving mode

●

When battery-saving mode is set,

battery depletion is minimized by

stopping the electronic key from

receiving radio waves.

Press

 twice while pressing

and holding

.

Confirm that the electronic key indi-
cator flashes 4 times.
While the battery-saving mode is
set, the smart key system cannot be
used. To cancel the function, press
any of the electronic key buttons.

●

Electronic keys that will not be

used for long periods of time can

be set to the battery-saving mode

in advance.

■

When electronic key function

stops

If the position of the electronic key

has not changed for a certain

amount of time such as when the

electronic key is left somewhere, the

function of the electronic key stops

to reduce depletion of the battery.

In this case, function can automati-

cally be restored by moving the

position of the key such as by lifting

it up.

■

Conditions affecting operation

The smart key system uses weak

radio waves. In the following situa-

tions, the communication between

Situation

Correction pro-

cedure

An attempt was
made to lock the
vehicle while a
door was open.

Close all of the
doors and lock
the doors again.

Situation

Correction pro-

cedure

The power
switch was
turned to ACC
while the driver’s
door was open
(or the driver’s
door was opened
while the power
switch was in
ACC).

Turn the power
switch to OFF
and close the
driver’s door.

243

4-2. Opening, closing and locking the doors

4

Before

driving

the electronic key and the vehicle

may be affected, preventing the

smart key system, wireless remote

control and immobilizer system from

operating properly.

●

When the electronic key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When the electronic key is in con-

tact with, or is covered by the fol-

lowing metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alumi-

num foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless key (that

emits radio waves) is being used

nearby

●

When carrying the electronic key

together with the following devices

that emit radio waves

• Portable radio, cellular phone,

cordless phone or other wireless

communication devices

• Another electronic key or a wire-

less key that emits radio waves

• Personal computers or personal

digital assistants (PDAs)

• Digital audio players

• Portable game systems

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window

●

When the electronic key is placed

near a battery charger or elec-

tronic devices

●

When the vehicle is parked in a

pay parking spot where radio

waves are emitted.

If the doors cannot be
locked/unlocked using the smart key
system, lock/unlock the doors by

performing any of the following:

●

Bring the electronic key close to

either front door handle and oper-

ate the entry function.

●

Operate the wireless remote con-

trol. If the doors cannot be

locked/unlocked using the above

methods, use the mechanical key.

(



P.220)

If the hybrid system cannot be
started using the smart key system,
refer to P.568.

■

Note for the entry function

●

Even when the electronic key is

within the effective range (detec-

tion areas), the system may not

operate properly in the following

cases:

• The electronic key is too close to

the window or outside door han-

dle, near the ground, or in a high

place when the doors are locked

or unlocked.

• The electronic key is on the instru-

ment panel, luggage cover or

floor, or in the door pockets or

glove box when the hybrid system

is started or power switch modes

are changed.

●

Do not leave the electronic key on

top of the instrument panel or near

the door pockets when exiting the

vehicle. Depending on the radio

wave reception conditions, it may

be detected by the antenna out-

side the cabin and the door will

become lockable from the outside,

possibly trapping the electronic

key inside the vehicle.

●

As long as the electronic key is

within the effective range, the

doors may be locked or unlocked

by anyone. However, only the

doors detecting the electronic key

can be used to lock or unlock the

vehicle. (For vehicles equipped

with sensors on the rear door han-

dles, it is possible to lock (but not

unlock) all the doors using a door

handle that is not being detected

244

4-2. Opening, closing and locking the doors

by the electronic key.)

●

Even if the electronic key is not

inside the vehicle, it may be possi-

ble to start the hybrid system if the

electronic key is near the window.

●

The doors may unlock if a large

amount of water splashes on the

door handle, such as in the rain or

in a car wash when the electronic

key is within the effective range.

(The doors will automatically be

locked after approximately 60 sec-

onds if the doors are not opened

and closed.)

●

If the wireless remote control is

used to lock the doors when the

electronic key is near the vehicle,

there is a possibility that the door

may not be unlocked by the entry

function. (Use the wireless remote

control to unlock the doors.)

●

Touching the door lock sensor

while wearing gloves may delay or

prevent lock operation. Remove

the gloves and touch the lock sen-

sor again.

●

When the lock operation is per-

formed using the lock sensor, rec-

ognition signals will be shown up

to two consecutive times. After

this, no recognition signals will be

given.

●

If the door handle becomes wet

while the electronic key is within

the effective range, the door may

lock and unlock repeatedly. In that

case, follow the following correc-

tion procedures to wash the vehi-

cle:

• Place the electronic key in a loca-

tion 6 ft. (2 m) or more away from

the vehicle. (Take care to ensure

that the key is not stolen.)

• Set the electronic key to battery-

saving mode to disable the smart

key system. (



P.243)

●

If the electronic key is inside the

vehicle and a door handle

becomes wet during a car wash, a

message may be shown on the

multi-information display and a

buzzer will sound outside the vehi-

cle. To turn off the alarm, lock all

the doors.

●

The lock sensor may not work

properly if it comes into contact

with ice, snow, mud, etc. Clean

the lock sensor and attempt to

operate it again, or use the lock

sensor on the lower part of the

door handle.

●

A sudden approach to the effec-

tive range or door handle may pre-

vent the doors from being

unlocked. In this case, return the

door handle to the original position

and check that the doors unlock

before pulling the door handle

again.

●

If there is another electronic key in

the detection area, it may take

slightly longer to unlock the doors

after the door handle is gripped.

■

When the vehicle is not driven

for extended periods

●

To prevent theft of the vehicle, do

not leave the electronic key within

6 ft. (2 m) of the vehicle.

●

The smart key system can be

deactivated in advance. (



P.606)

●

Battery-saving mode can reduce

the power consumption of elec-

tronic keys. (



P.243)

■

To operate the system properly

Make sure to carry the electronic

key when operating the system. Do

not get the electronic key too close

to the vehicle when operating the

system from the outside of the vehi-

cle.
Depending on the position and hold-

ing condition of the electronic key,

the key may not be detected cor-

rectly and the system may not oper-

ate properly. (The alarm may go off

accidentally, or the door lock pre-

vention may not operate.)

■

If the smart key system does

not operate properly

●

Locking and unlocking the doors:

245

4-2. Opening, closing and locking the doors

4

Before

driving

Use the mechanical key.

(



P.568)

●

Starting the hybrid system:



P.568

■

Customization

Settings (e.g. smart key system)

can be changed.

(Customizable features:



P.606)

If the smart key system has been

deactivated in a customized setting,

refer to the explanations for the fol-

lowing operations.

●

Locking and unlocking the doors:

Use the wireless remote control or

mechanical key. (



P.222, 568)

●

Starting the hybrid system and

changing power switch modes:



P.568

●

Stopping the hybrid system:



P.306

WARNING

■

Caution regarding interfer-

ence with electronic devices

●

People with implantable car-

diac pacemakers, cardiac

resynchronization therapy-

pacemakers or implantable car-

dioverter defibrillators should

keep away from the smart key

system antennas. (



P.241)

The radio waves may affect the

operation of such devices. If

necessary, the entry function

can be disabled. Ask your

Toyota dealer for details, such

as the frequency of radio waves

and timing of the emitted radio

waves. Then, consult your doc-

tor to see if you should disable

the entry function.

WARNING

●

User of any electrical medical

device other than implantable

cardiac pacemakers, cardiac

resynchronization therapy-

pacemakers or implantable car-

dioverter defibrillators should

consult the manufacturer of the

device for information about its

operation under the influence of

radio waves.

Radio waves could have unex-

pected effects on the operation

of such medical devices.

Ask your Toyota dealer for details

for disabling the entry function.

246

4-3. Adjusting the seats

4-3.Adjusting the seats



Manual seat

1

Seat position adjustment
lever

2

Seatback angle adjustment
lever



Power seat

1

Seat position adjustment
switch

2

Seatback angle adjustment
switch

3

Seat cushion (front) angle
adjustment switch

4

Vertical height adjustment
switch

5

Lumbar support adjustment
switch (driver’s side only)

■

When adjusting the seat

Take care when adjusting the seat

so that the head restraint does not

touch the ceiling and sun visor.

Front seats

The seats can be adjusted
(longitudinally, vertically,
etc.). Adjust the seat to
ensure the correct driving
posture.

Adjustment procedure

WARNING

■

When adjusting the seat posi-

tion

●

Take care when adjusting the

seat position to ensure that

other passengers are not

injured by the moving seat.

247

4-3. Adjusting the seats

4

Before

driving

Pull the seatback angle adjust-
ment lever

, and adjust the

seatback angle.

WARNING

●

Do not put your hands under the

seat or near the moving parts to

avoid injury.

Fingers or hands may become

jammed in the seat mechanism.

●

Make sure to leave enough

space around the feet so they

do not get stuck.

●

Manual seat only: After adjust-

ing the seat, make sure that the

seat is locked in position.

■

Seat adjustment

To reduce the risk of sliding under

the lap belt during a collision, do

not recline the seat more than

necessary.

If the seat is too reclined, the lap

belt may slide past the hips and

apply restraint forces directly to

the abdomen, or your neck may

contact the shoulder belt, increas-

ing the risk of death or serious

injury in the event of an accident.

Adjustments should not be made

while driving as the seat may

unexpectedly move and cause

the driver to lose control of the

vehicle.

Rear seats

Reclining adjustments and
folding the seatbacks can
be done with lever opera-
tion.

Adjustment procedure

WARNING

■

When operating the seatback

Observe the following precau-

tions.

Failure to do so may cause death

or serious injury.

●

Keep other passengers from

being hit with the seatback.

●

Do not bring your hands close

to the moving parts or between

the seats, as well as do not let

any part of your body get

caught.

A

248

4-3. Adjusting the seats

■

Before folding down the
seatbacks

1

Park the vehicle in a safe
place.

Apply the parking brake (



P.314)

and shift the shift lever to P.

(



P.310)

2

Adjust the position of the
front seat and the angle of
the seatback. (



P.247)

Depending on the position of the

front seat, if the seatback is folded

backward, it may interfere with the

operation of the rear seat.

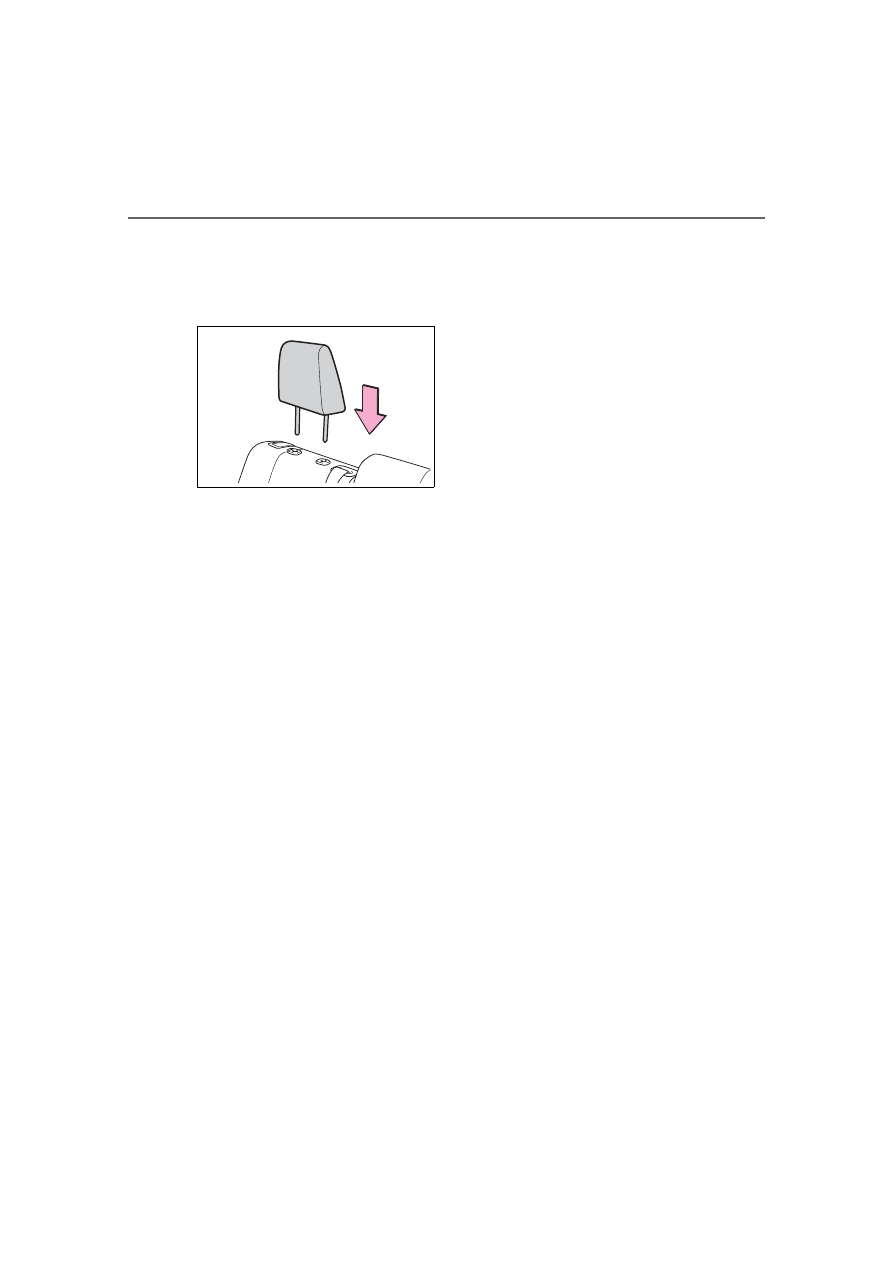

3

Lift up and push down the
head restraints of the rear
outboard seats, and lower
the head restraint of the rear
center seat. (



P.253)

4

Stow the armrest of the rear
seat if it is pulled out.
(



P.454)

This step is not necessary when

operating the left side seat only.

■

Folding down the seat-
backs

While pulling the seatback angle
adjustment lever

, fold the

seatback down.

■

Returning the rear seat-
backs

To avoid trapping the seat belt
between the seat and the inside
of the vehicle, pass the seat belt
outside the seat belt guide



and then return the seatback
securely to the locked position.

WARNING

●

After adjusting the seat, make

sure that the seat is locked in

position.

If the seatback is not securely

locked, the red marking will be

visible. Make sure that the red

marking is not visible.

Folding down the rear
seatbacks

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

A

A

249

4-3. Adjusting the seats

4

Before

driving

*

: If equipped

■

Recording procedure

1

Check that the shift lever is in
P.

2

Turn the power switch to ON.

3

Adjust the driver’s seat to the
desired positions.

4

While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button “1” or “2” until
the buzzer sounds.

If the selected button has already

been preset, the previously

recorded position will be overwrit-

WARNING

■

When folding the rear seat-

backs down

●

Do not fold the seatbacks down

while driving.

●

Stop the vehicle on level

ground, set the parking brake

and shift the shift lever to P.

●

Do not allow anyone to sit on a

folded seatback or in the lug-

gage compartment while driv-

ing.

●

Do not allow children to enter

the luggage compartment.

●

Do not operate the rear seat if it

is occupied.

●

Be careful not to get feet or

hands caught in the moving

parts or joints of the seats

during operation.

●

Do not allow children to operate

the seat.

■

After returning the rear seat-

back to the upright position

●

Make sure that the seatback is

securely locked in position by

lightly pushing it back and forth.

If the seatback is not securely

locked, the red marking will be

visible. Make sure that the red

marking is not visible.

●

Check that the seat belts are

not twisted or caught in the

seatback.

Driving position mem-

ory

*

This feature automatically
adjusts the driver’s seat to
suit your preferences.

Your preferred driving posi-
tion (the position of the
driver’s seat) can be
recorded and recalled by
pressing a button.

Two different driving posi-
tions can be recorded into
memory.

Each electronic key can be
registered to recall your pre-
ferred driving position.

Recording/recalling a
driving position

250

4-3. Adjusting the seats

ten.

■

Recall procedure

1

Check that the shift lever is in
P.

2

Turn the power switch to ON.

3

Press one of the buttons for
the driving position you want
to recall until the buzzer
sounds.

■

To stop the position recall oper-

ation part-way through

Perform any of the following:

●

Press the “SET” button.

●

Press button “1” or “2”.

●

Operate any of the seat adjust-

ment switches.

■

Seat positions that can be

memorized (



P.247)

The adjusted positions other than

the position adjusted by lumbar sup-

port switch can be recorded.

■

Operating the driving position

memory after turning the power

switch to OFF

Recorded seat positions can be

activated up to 180 seconds after

the driver’s door is opened and

another 60 seconds after it is closed

again.

■

In order to correctly use the

driving position memory func-

tion

If a seat position is already in the

furthest possible position and the

seat is operated in the same direc-

tion, the recorded position may be

slightly different when it is recalled.

■

When recalling the driving posi-

tion

Take care when recalling the driving

position so that the head restraint

does not touch the ceiling.

■

If the 12-volt battery is discon-

nected

The memorized positions are

erased.

■

When the recorded seat posi-

tion cannot be recalled

The seat position may not be

recalled in some situations when the

seat position is recorded in a certain

range. For details, contact your

Toyota dealer.

WARNING

■

Seat adjustment caution

Take care during seat adjustment

so that the seat does not strike

the rear passenger or squeeze

your body against the steering

wheel.

251

4-3. Adjusting the seats

4

Before

driving

■

Registering procedure

Record your driving position to
button “1” or “2” before perform-
ing the following:
Carry only the key you want to
register, and then close the
driver’s door.
If 2 or more keys are in the vehi-
cle, the driving position cannot
be recorded properly.

1

Check that the shift lever is in
P.

2

Turn the power switch to ON.

3

Recall the driving position
that you want to record.

4

While pressing the recalled
button, press and hold the
door lock switch (either lock
or unlock) until the buzzer
sounds.

If the button could not be regis-

tered, the buzzer sounds continu-

ously for approximately 3 seconds.

■

Recall procedure

Make sure that the doors are

locked before recalling the driv-
ing position. Carry the electronic
key that has been registered to
the driving position, and then
unlock and open the driver’s
door using the smart key system
or wireless remote control.

The driving position will move to the
recorded position.
If the driving position is in a position
that has already been recorded, the
seat will not move.

■

Cancelation procedure

Carry only the key you want to
cancel and then close the
driver’s door.
If 2 or more keys are in the vehi-
cle, the driving position cannot
be canceled properly.

1

Check that the shift lever is in
P.

2

Turn the power switch to ON.

3

While pressing the “SET” but-
ton, press and hold the door
lock switch (either lock or
unlock) until the buzzer
sounds twice.

If the button could not be canceled,

the buzzer sounds continuously for

approximately 3 seconds.

■

Recalling the driving position

using the memory recall func-

tion

●

Different driving positions can be

registered for each electronic key.

Therefore, the driving position that

is recalled may be different

depending on the key being car-

ried.

●

If a door other than the driver’s

Registering/recall/cancel-
ing a driving position to
an electronic key (mem-
ory recall function)

252

4-3. Adjusting the seats

door is unlocked with smart key

system, the driving position can-

not be recalled. In this case, press

the driving position button which

has been set.

■

Customization

Settings (e.g. the unlock door set-

tings of the memory recall function)

can be customized. (Customizable

features:



P.608)

■

Front seats

1

Up

Pull the head restraints up.

2

Down

Push the head restraint down while
pressing the lock release button

.

Head restraints

Head restraints are pro-
vided for all seats.

WARNING

■

Head restraint precautions

Observe the following precautions

regarding the head restraints.

Failure to do so may result in

death or serious injury.

●

Use the head restraints

designed for each respective

seat.

●

Adjust the head restraints to the

correct position at all times.

●

After adjusting the head

restraints, push down on them

and make sure they are locked

in position.

●

Do not drive with the head

restraints removed.

Vertical adjustment

A

253

4-3. Adjusting the seats

4

Before

driving

■

Center rear seat

1

Up

Pull the head restraints up.

2

Down

Push the head restraint down while
pressing the lock release button

.

■

Outboard rear seats

Head restraints cannot be
adjusted.

■

Adjusting the height of the head

restraints (front seats)

Make sure that the head restraints

are adjusted so that the center of

the head restraint is closest to the

top of your ears.

■

Adjusting the center rear seat

head restraint

Always raise the head restraint one

level from the stowed position when

using.

Pull the head restraint up while
pressing the lock release button

.

If the head restraint touches the
ceiling, making the removal difficult,
change the seat height or angle.
(



P.247)

■

Front and center rear seats

Align the head restraint with the
installation holes and push it
down to the lock position.
Press and hold the lock release
button

 when lowering the

head restraint.

A

Removing the head
restraints

Installing the head
restraints

A

A

254

4-3. Adjusting the seats

■

Outboard rear seats

Align the head restraint with the
installation holes and push it
down to the lowest lock position.

255

4-4. Adjusting the steering wheel and mirrors

4

Before

driving

4-4.Adjusting the steering wheel and mirrors

1

Hold the steering wheel and
push the lever down.

2

Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.

After adjustment, pull the lever up

to secure the steering wheel.

To sound the horn, press on or
close to the

 mark.

Steering wheel

Adjustment procedure

WARNING

■

Caution while driving

Do not adjust the steering wheel

while driving.

Doing so may cause the driver to

mishandle the vehicle and cause

an accident, resulting in death or

serious injury.

■

After adjusting the steering

wheel

Make sure that the steering wheel

is securely locked.

Otherwise, the steering wheel

may move suddenly, possibly

causing an accident, and resulting

in death or serious injury. Also,

the horn may not sound if the

steering wheel is not securely

locked.

Sounding the horn

256

4-4. Adjusting the steering wheel and mirrors

*

: If equipped

The height of the rear view mir-
ror can be adjusted to suit your
driving posture.
Adjust the height of the rear
view mirror by moving it up and
down.

Reflected light from the head-
lights of vehicles behind can be
reduced by operating the lever.

1

Normal position

2

Anti-glare position

Responding to the level of
brightness of the headlights of
vehicles behind, the reflected
light is automatically reduced.
Changing automatic anti-glare
function mode on/off

When the automatic anti-glare func-
tion is in ON mode, the indicator



illuminates.
The function will set to ON mode
each time the power switch is
turned to ON.
Pressing the button turns the func-
tion to OFF mode. (The indicator

 also turns off.)

Inside rear view mir-

ror

*

The rear view mirror’s posi-
tion can be adjusted to
enable sufficient confirma-
tion of the rear view.

Adjusting the height of
rear view mirror

WARNING

■

Caution while driving

Do not adjust the position of the

mirror while driving.

Doing so may lead to mishandling

of the vehicle and cause an acci-

dent, resulting in death or serious

injury.

Anti-glare function (vehi-
cles with manual anti-
glare inside rear view mir-
ror)

Anti-glare function (vehi-
cles with auto anti-glare
inside rear view mirror)

A

A
