6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re



Use only Toyota wheel nuts
and wrenches designed for
use with your aluminum
wheels.



When rotating, repairing or
changing your tires, check
that the wheel nuts are still
tight after driving 1000 miles
(1600 km).



Be careful not to damage the
aluminum wheels when using
tire chains.



Use only Toyota genuine bal-
ance weights or equivalent
and a plastic or rubber ham-
mer when balancing your
wheels.

WARNING

■

When replacing wheels

●

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual,

as this may result in a loss of

handling control.

●

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire. Doing so may

result in an accident, causing

death or serious injury.

■

When installing the wheel

nuts

●

Be sure to install the wheel nuts

with the tapered ends facing

inward. (



P.468) Installing the

nuts with the tapered ends fac-

ing outward can cause the

wheel to break and eventually

cause the wheel to come off

while driving, which could lead

to an accident resulting in death

or serious injury.

●

Never use oil or grease on the

wheel bolts or wheel nuts. Oil

and grease may cause the

wheel nuts to be excessively

tightened, leading to bolt or disc

wheel damage. In addition, the

oil or grease can cause the

wheel nuts to loosen and the

wheel may fall off, causing an

accident and resulting in death

or serious injury. Remove any

oil or grease from the wheel

bolts or wheel nuts.

■

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels.
Doing so could cause the tire to

leak air during driving, possibly

causing an accident.

NOTICE

■

Replacing tire pressure warn-

ing valves and transmitters

(vehicles with tire pressure

warning system)

●

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

●

Ensure that only genuine

Toyota wheels are used on your

vehicle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-
tions

420

6-3. Do-it-yourself maintenance

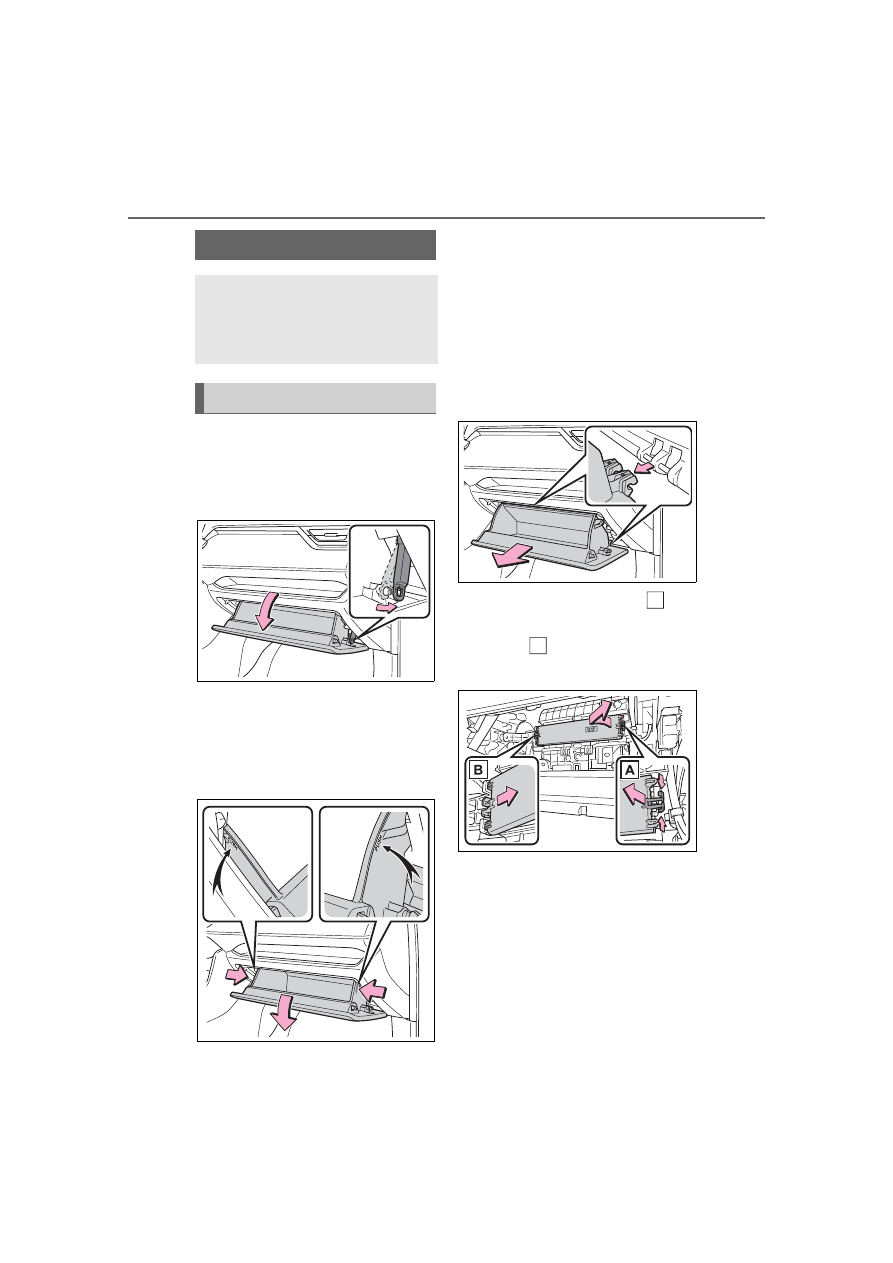

1

Turn the engine switch to
OFF.

2

Open the glove box and slide
off the damper.

3

Push in each side of the
glove box to disconnect the
claws, and then slowly and
fully open the glove box while
supporting it.

4

With the glove box fully open,
slightly lift up the glove box
and pull toward the seat to
detach the bottom of the
glove box.

Do not use excessive force if the

glove box does not detach when

lightly pulled. Instead, pull toward

the seat while slightly adjusting the

height of the glove box.

5

Unlock the filter cover (

),

pull the filter cover out of the
claws (

), and remove the

filter cover.

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removal method

A

B

421

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

6

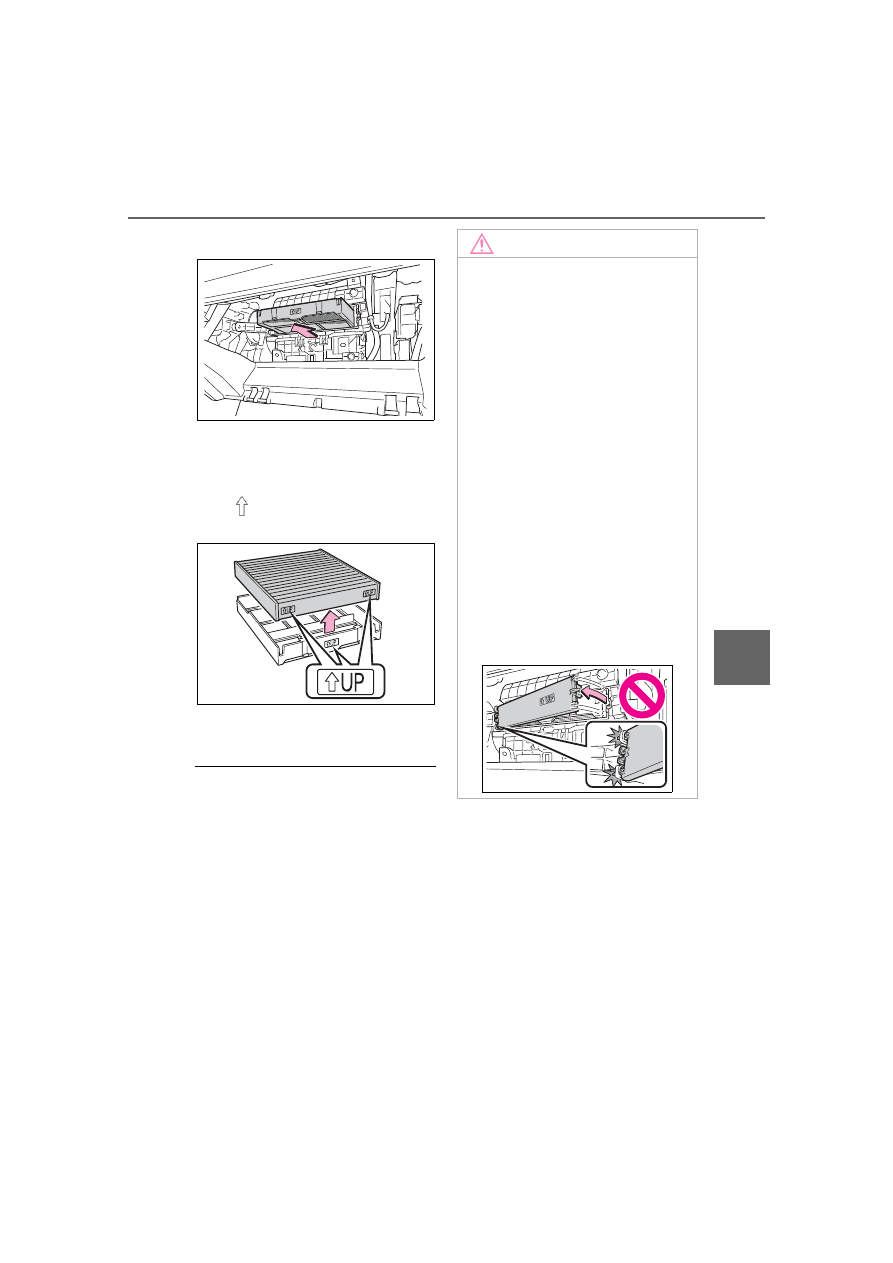

Remove the filter case.

7

Remove the air conditioning
filter from the filter case and
replace it with a new one.

The “

UP” marks shown on the

filter should be pointing up.

8

When installing, reverse the
steps listed.

■

Checking interval

Inspect and replace the air condi-

tioning filter according to the mainte-

nance schedule. In dusty areas or

areas with heavy traffic flow, early

replacement may be required. (For

scheduled maintenance information,

please refer to the “Owner’s Manual

Supplement” or “Scheduled Mainte-

nance”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

NOTICE

■

When using the air condition-

ing system

Make sure that a filter is always

installed.
Using the air conditioning system

without a filter may cause damage

to the system.

■

When removing the glove box

Always follow the specified proce-

dure to remove the glove box

(



P.420). If the glove box is

removed without following the

specified procedure, the hinge of

the glove box may become dam-

aged.

■

To prevent damage to the fil-

ter cover

When moving the filter cover in

the direction of arrow to release

the fitting, pay attention not to

apply excessive force to the

claws. Otherwise, the claws may

be damaged.

422

6-3. Do-it-yourself maintenance

■

Windshield wiper blade
removal and installation

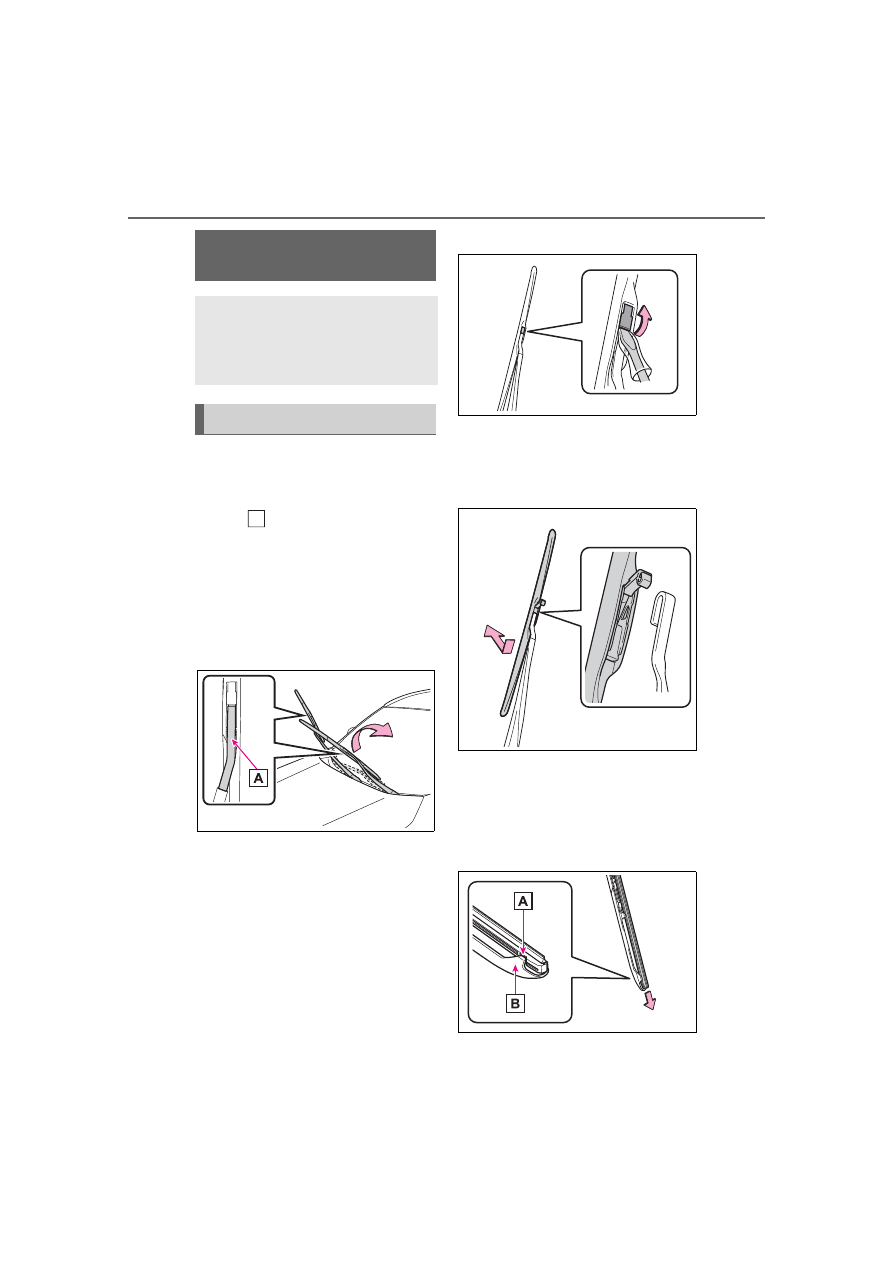

1

While holding the hook por-
tion

 of the wiper arm, first

lift up the driver side, and
then lift up the passenger
side.

When returning the wiper arms to

their original positions, first lower

the passenger side, and then lower

the driver side.

2

Lift the stopper using a flat-
head screwdriver as shown
in the illustration.

To prevent damage to the wiper

arm, protect the tip of the screw-

driver with a rag.

3

Slide the wiper blade to
remove it from the wiper arm.

When installing, reverse the steps

listed.

■

Wiper insert replacement

1

Pull the wiper insert to
remove the claw of the wiper
blade from the stopper, and
pull out the wiper insert.

Wiper insert replace-

ment

When replacing the wiper
insert, perform the following
procedure to operate each
wiper.

Windshield wipers

A

423

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

Stopper

Claw

2

Remove the 2 metal plates
from the wiper insert pulled
out, and install the plates to a
new wiper insert.

Make sure that the cutout location

and warp direction of the metal

blades are same as the original.

3

Install the wiper insert to the
wiper blade from the side
without the stopper.

4

Secure the stopper of the
wiper insert with the claw of
the wiper blade.

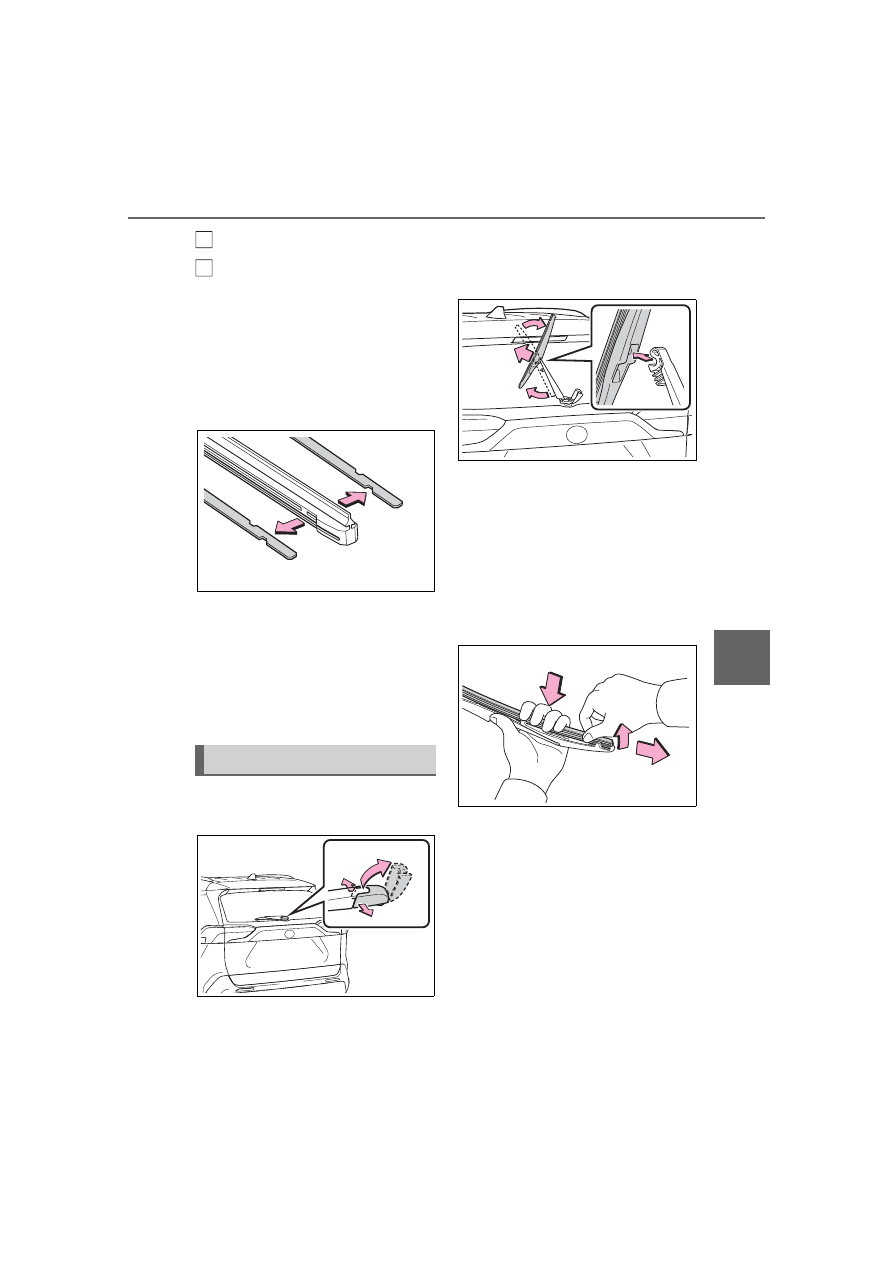

1

Lift up the rear window wiper
arm head cap.

2

Move the wiper blade until a
click sound can be heard and

the claw detaches, and then
remove the wiper blade from
the wiper arm.

3

Pull the wiper insert out past
the stopper on the wiper
blade, and then continue to
pull until it is completely
removed.

Lightly grasp between the claws of

the wiper blade to allow the wiper

insert to lift up, making it easier to

remove.

4

Remove the 2 metal plates
from the old wiper insert and

Rear window wiper

A

B

424

6-3. Do-it-yourself maintenance

install them to the replace-
ment wiper insert.

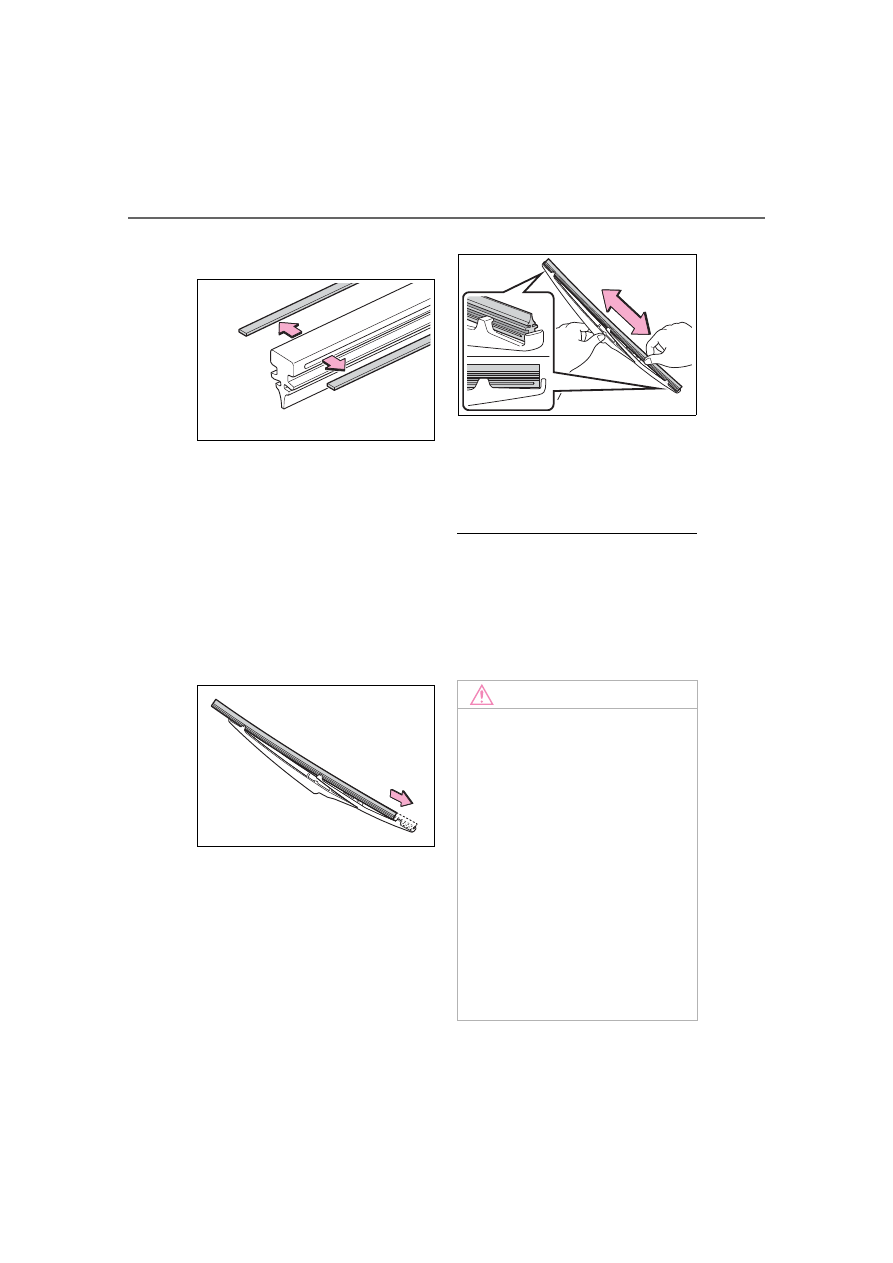

5

Insert the wiper insert starting
from the claw at the center of
the wiper blade. Pass the
wiper insert through the 3
claws so that it sticks out
from the stopper, and then
pass the wiper insert through
the final remaining claw.

Applying a small amount of washer

fluid to the wiper insert can make it

easier to insert the claws into the

grooves.

6

Check that the wiper blade
claws are fitted in the
grooves of the wiper insert.

If the wiper blade claws are not fit-

ted in the grooves of the wiper

insert, grasp the wiper insert and

slide it back and forth multiple times

to insert the claws into the grooves.
Lightly lift up the center of the wiper

insert to make the rubber easier to

slide.

7

When installing a wiper
blade, reverse the procedure
in step

1

.

After installing the wiper blade,

check that the connection is locked.

■

Wiper blade and wiper insert

handling

Improper handling may result in

damage to the wiper blades or wiper

insert. If you have any concerns

about replacing the wiper blades or

wiper insert yourself, contact your

Toyota dealer.

NOTICE

■

When lifting the windshield

wipers

●

When raising the wiper arms off

the windshield, lift up the driver

side first, and then lift up pas-

senger side. When returning the

wipers to their original position,

return the passenger side first.

●

Do not lift a windshield wiper by

the wiper blade. Otherwise, the

wiper blade may be deformed.

●

Do not operate the wiper lever

when the windshield wipers are

lifted. Otherwise, the wind-

shield wipers may contact the

hood, possibly resulting in dam-

age to the windshield wipers

and/or hood.

425

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

■

If the key battery is depleted

The following symptoms may occur:

●

The smart key system (if

equipped) and wireless remote

control will not function properly.

●

The operational range will be

reduced.

Prepare the following before
replacing the battery:



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2032

■

Use a CR2032 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to the local laws.



Vehicles without smart key
system

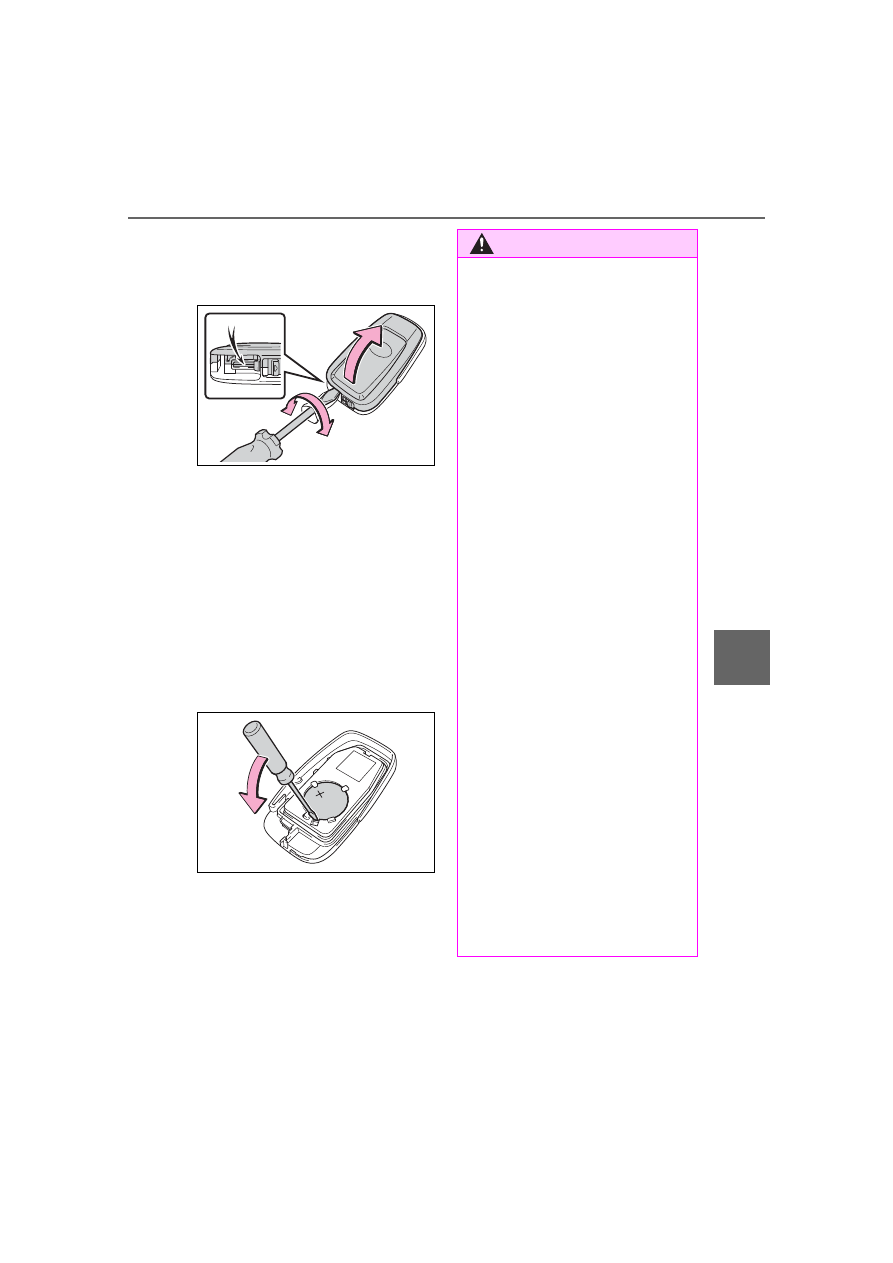

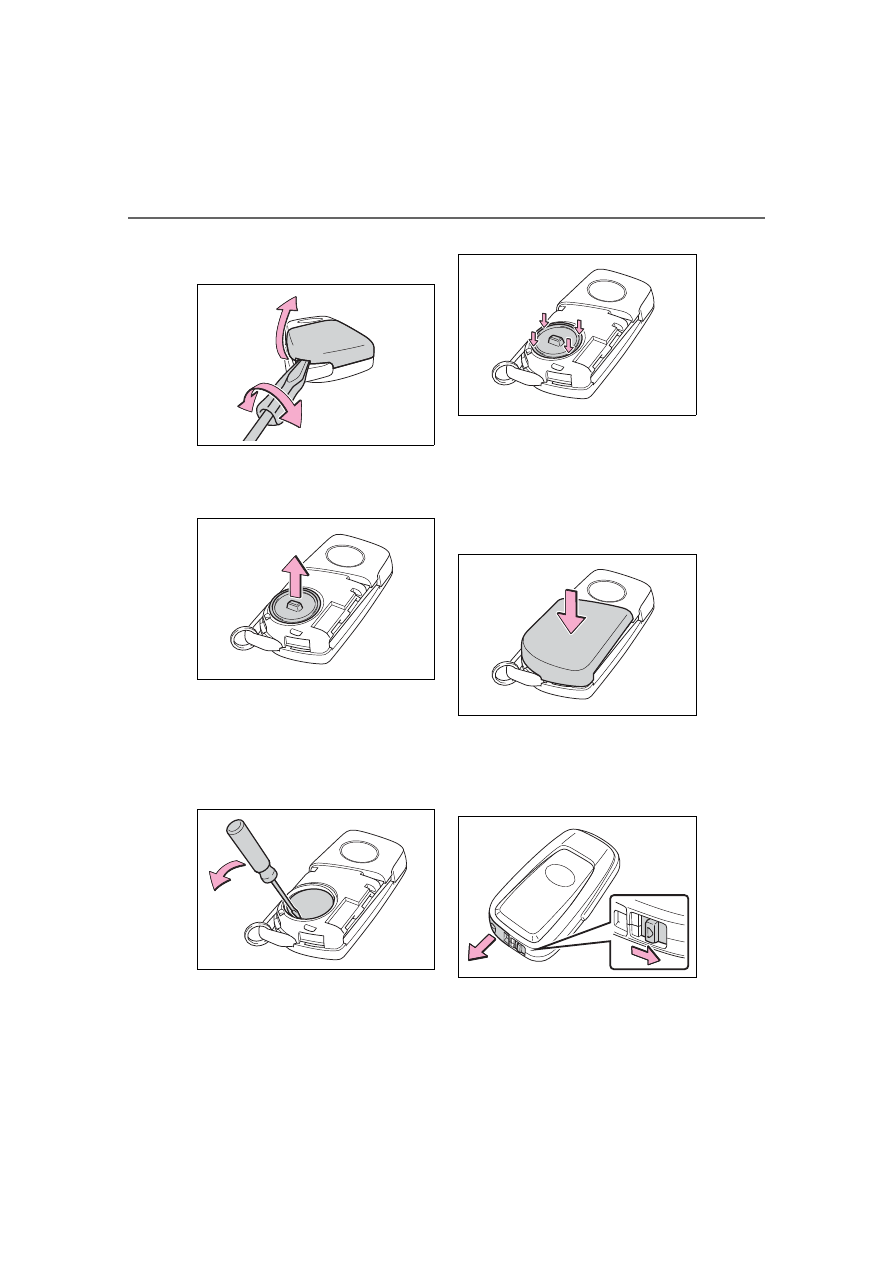

1

Remove the cover.

Use a screwdriver of an appropriate

size. Forcedly prying may cause

the cover damaged.

NOTICE

■

To prevent damage

●

Be careful not to damage the

claws when replacing the wiper

insert.

●

After the wiper blade is removed

from the wiper arm, place a

cloth, etc., between the rear

window and wiper arm to pre-

vent damage to the rear win-

dow.

●

Be sure not to pull excessively

on the wiper insert or deform its

metal plates.

Wireless remote con-

trol/electronic key bat-

tery

Replace the battery with a
new one if it is depleted.

Items to prepare

Replacing the battery

426

6-3. Do-it-yourself maintenance

To prevent damage to the key,

cover the tip of the screwdriver with

a rag.

2

Remove the battery cover.

If the battery cover is difficult to

remove, lift the edge to remove it.

3

Remove the depleted bat-
tery.

When removing the battery, use a

screwdriver of an appropriate size.
Insert a new battery with the “+” ter-

minal facing up.

4

Install the battery cover with
the tab facing up.

Push the entire edge of the battery

cover into the key.

5

Install the key cover.

Align the key cover with the key

and then press it straight into the

key.
Make sure that the key cover is

securely installed without any gaps

between it and the key.



Vehicles with smart key sys-
tem

1

Release the lock and remove
the mechanical key.

2

Remove the key cover.

Use a screwdriver of an appropriate

size. Forcedly prying may cause

427

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

the cover damaged.
To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

3

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the elec-

tronic key module may stick to the

cover and the battery may not be

visible. In this case, remove the

electronic key module in order to

remove the battery.
When removing the battery, use a

screwdriver of an appropriate size.
Insert a new battery with the “+” ter-

minal facing up.

4

When installing, reverse the
steps listed.

WARNING

■

Battery precautions

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

428

6-3. Do-it-yourself maintenance

1

Turn the engine switch to
OFF.

2

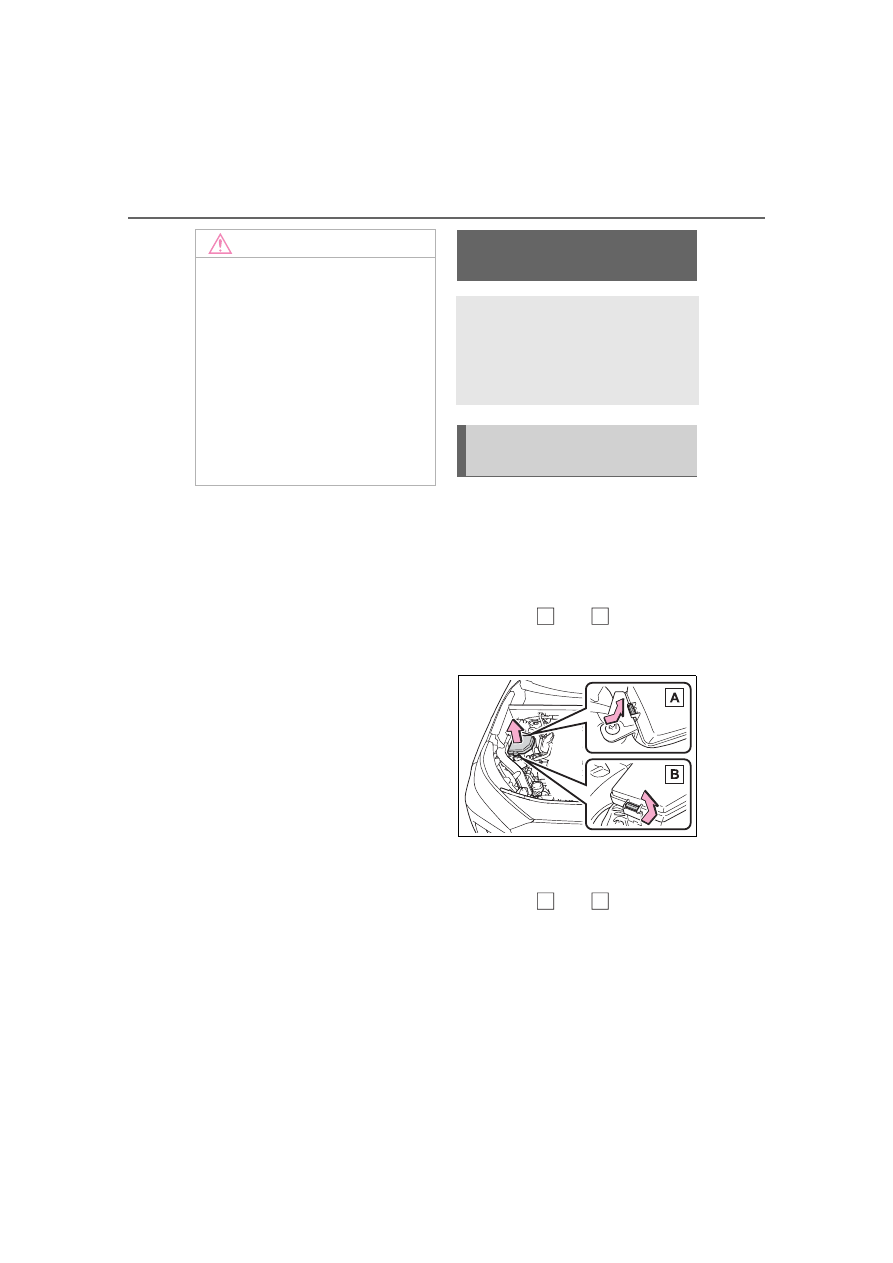

Open the fuse box cover.



Engine compartment: Type A
fuse box (if equipped)

Push claws

 and

 to com-

pletely release the lock, and then lift
up the cover.



Engine compartment: Type B
fuse box

Push claws

 and

 to com-

pletely release the lock, and then lift
up the cover.

NOTICE

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

A

B

A

B

429

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re



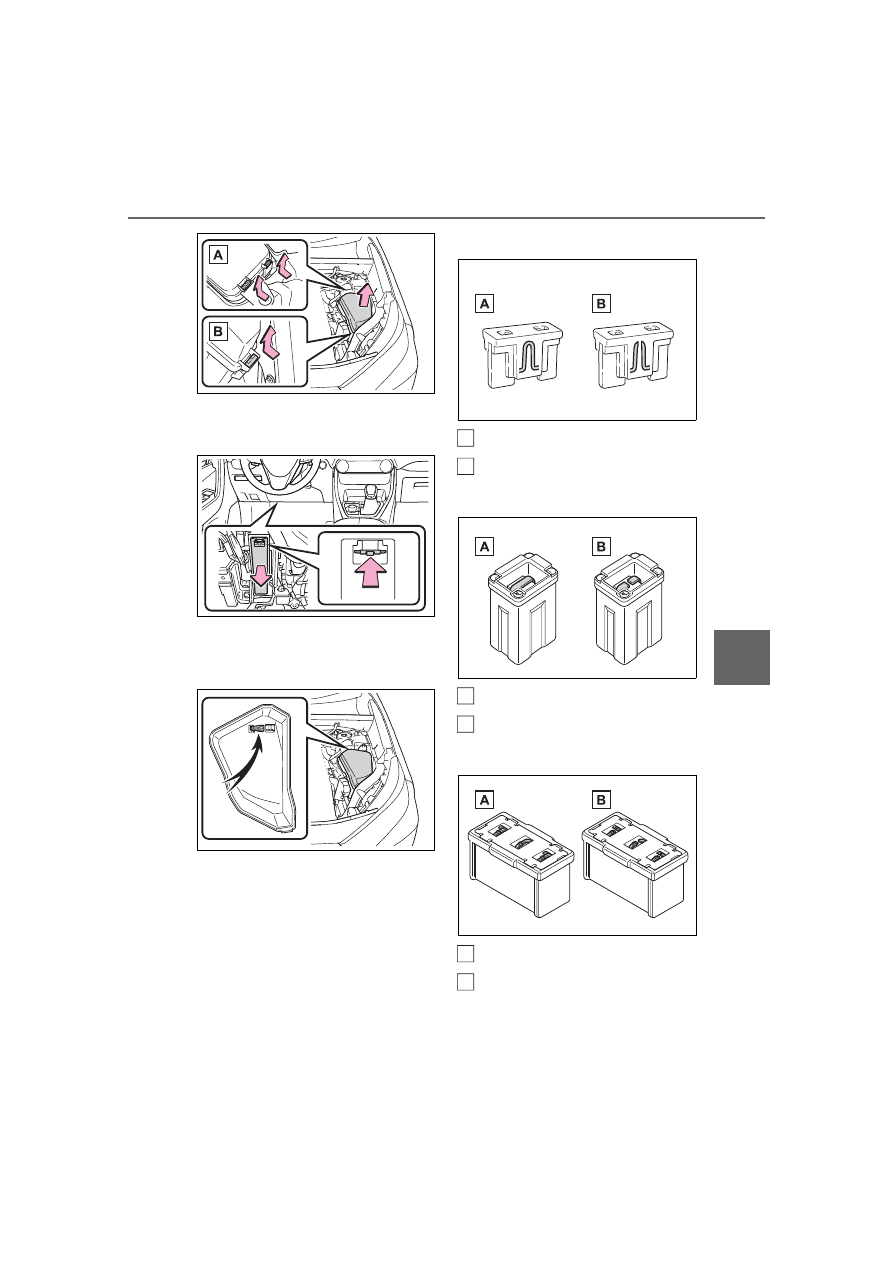

Left side instrument panel

Remove the lid.

3

Remove the fuse.

Only type A fuse can be removed

using the pullout tool.

4

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.



Type A

Normal fuse

Blown fuse



Type B

Normal fuse

Blown fuse



Type C

Normal fuse

Blown fuse

A

B

A

B

A

B

430

6-3. Do-it-yourself maintenance

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

(



P.432)

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow,

protecting the wiring harness from

damage.

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

■

To prevent damage to the

engine compartment fuse box

cover

When opening the fuse box, com-

pletely release the claw locks

before lifting up the cover. Other-

wise, the claws may be damaged.

431

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

*

: Vehicles with LED projector

headlights

Adjustment bolt A

Adjustment bolt B



Make sure the vehicle has a
full tank of gasoline and the
area around the headlight is
not deformed.



Park the vehicle on level
ground.



Make sure the tire inflation
pressure is at the specified
level.



Have someone sit in the
driver’s seat.



Bounce the vehicle several
times.

1

Using a Phillips-head screw-
driver, turn bolt A in either
direction.
Remember the turning direc-
tion and the number of turns.

2

Turn bolt B the same number
of turns and in the same
direction as step

1

.

If the headlight cannot be adjusted

using this procedure, take the vehi-

cle to your Toyota dealer to adjust

the headlight aim.

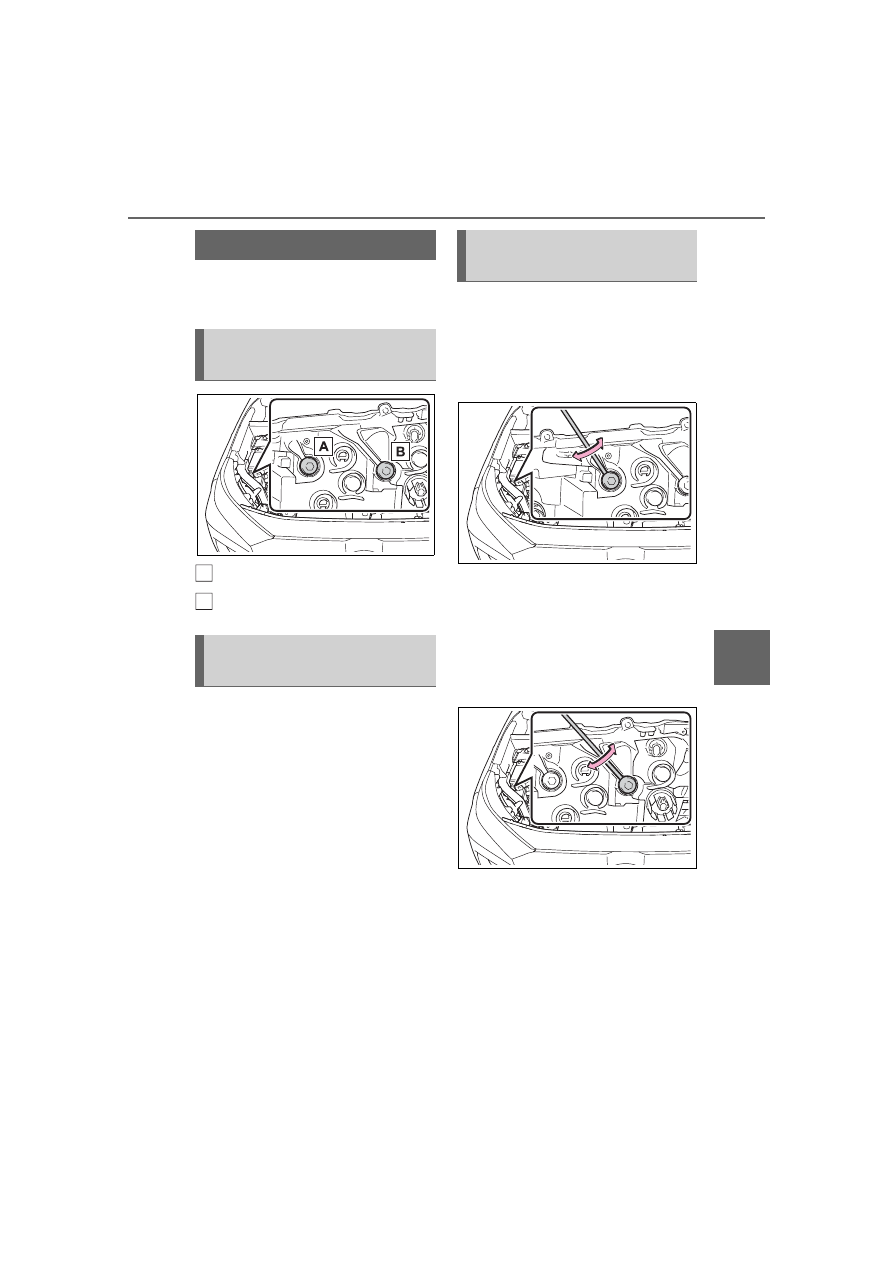

Headlight aim

*

Vertical movement adjust-
ing bolts

Before checking the head-
light aim

A

B

Adjusting the headlight
aim

432

6-3. Do-it-yourself maintenance

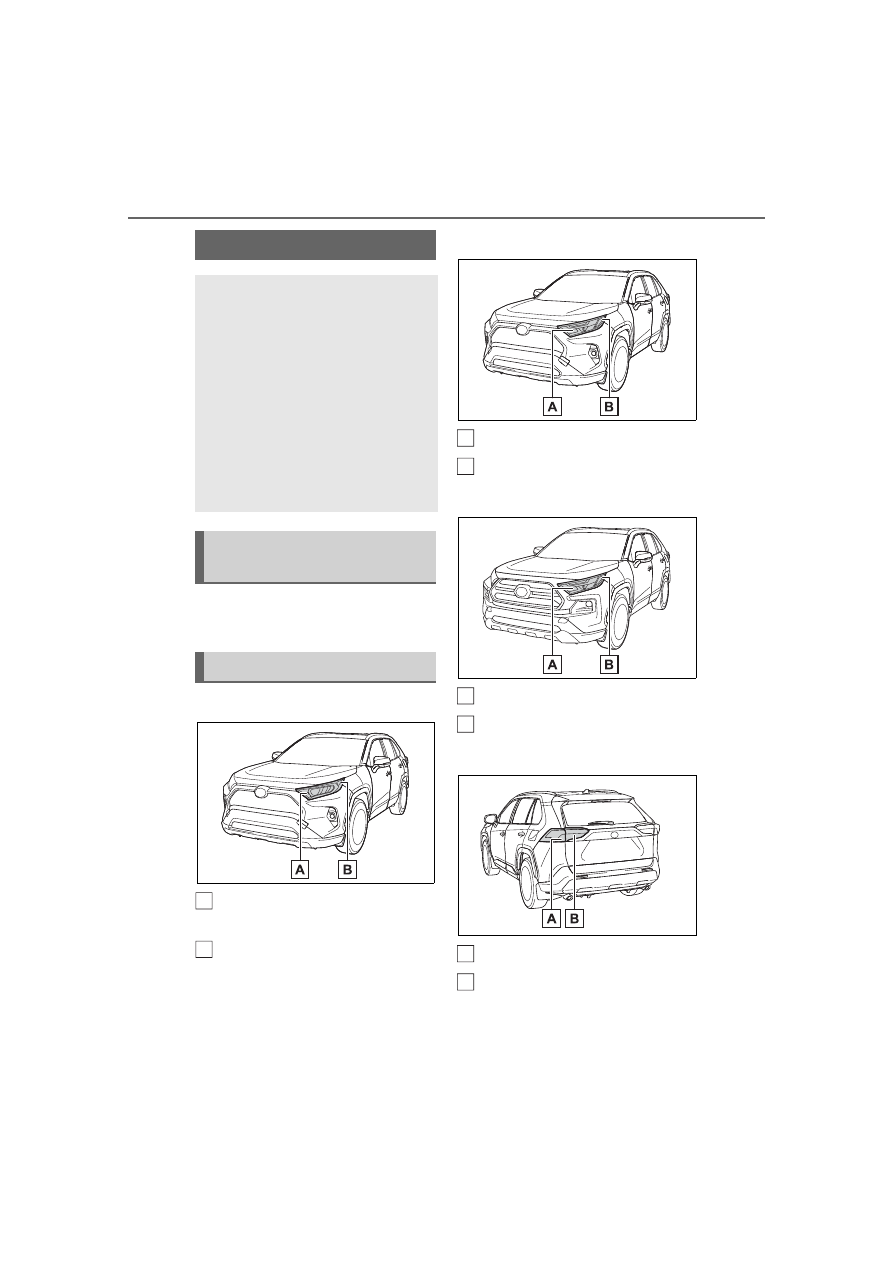

Check the wattage of the light
bulb to be replaced. (



P.496)



Front (type A)

Front turn signal/parking
lights

Front side marker lights



Front (type B)

Front turn signal lights

Front side marker lights



Front (type C)

Front turn signal lights

Front side marker lights



Rear

Rear turn signal lights

Back-up lights

Light bulbs

You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.
For more information about
replacing other light bulbs,
contact your Toyota dealer.

Preparing for light bulb
replacement

Bulb location

A

B

A

B

A

B

A

B

433

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

■

Lights that need to be
replaced by your Toyota
dealer



Headlights



Front turn signal lights (LED
type)



Daytime running lights



Parking lights (LED type)



Front side marker lights (LED
type)



Fog lights (if equipped)



Side turn signal lights (if
equipped)



Tail lights



Stop lights



Rear side marker lights



High mounted stoplight



License plate lights



Outer foot lights (if equipped)

■

LED lights

The lights other than the following

lights each consist of a number of

LEDs. If any of the LEDs burn out,

take your vehicle to your Toyota

dealer to have the light replaced.

●

Front turn signal lights (bulb type)

●

Parking lights (type A)

●

Front side marker lights (bulb

type)

●

Rear turn signal lights

●

Back-up lights

●

Outer foot lights (if equipped)

■

Condensation build-up on the

inside of the lens

Temporary condensation build-up

on the inside of the light lens does

not indicate a malfunction. Contact

your Toyota dealer for more infor-

mation in the following situations:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the light.

■

Front turn signal/parking
lights (type A)

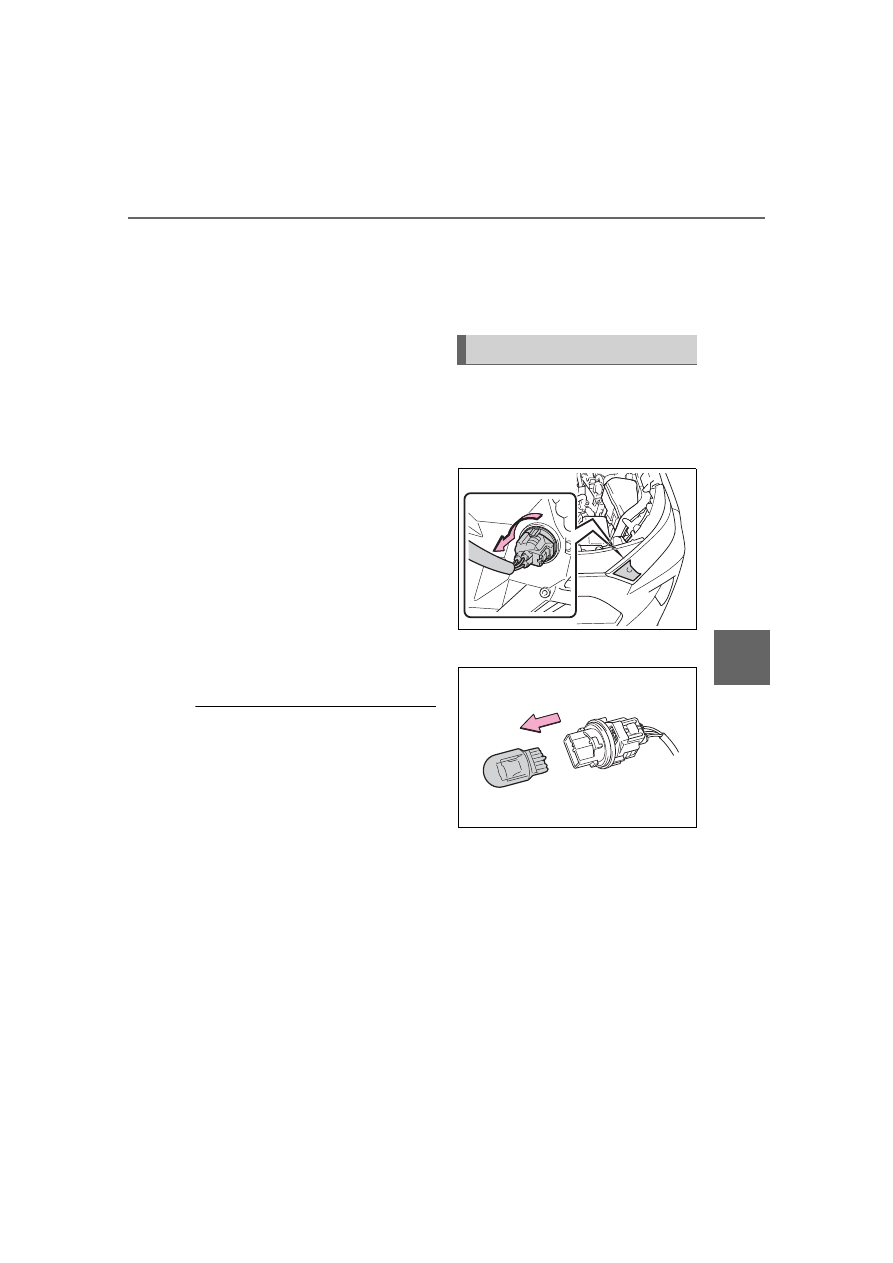

1

Turn the bulb base counter-
clockwise.

2

Remove the light bulb.

3

Install a new light bulb then
install the bulb base to the
light unit by inserting it and

Replacing light bulb

434

6-3. Do-it-yourself maintenance

turning the bulb base clock-
wise.

■

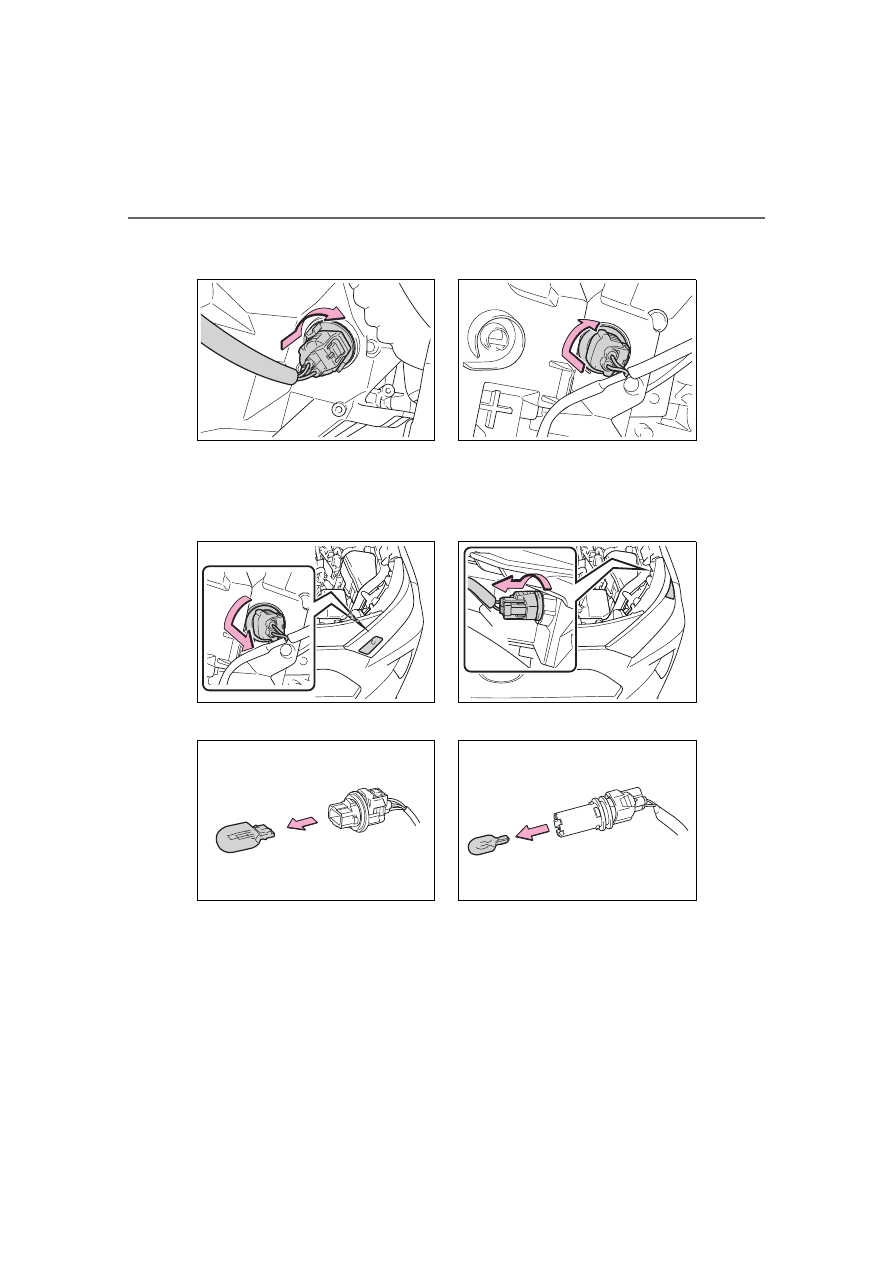

Front turn signal lights
(type B and C)

1

Turn the bulb base counter-
clockwise.

2

Remove the light bulb.

3

Install a new light bulb then
install the bulb base to the
light unit by inserting it and

turning the bulb base clock-
wise.

■

Front side marker lights
(type A)

1

Turn the bulb base counter-
clockwise.

2

Remove the light bulb.

3

Install a new light bulb then
install the bulb base to the
light unit by inserting it and
