6-2. Maintenance

6

Maintena

nce
 a

nd ca

re

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine

Toyota parts be used for repairs to

ensure performance of each sys-

tem. If non-Toyota parts are used in

replacement or if a repair shop other

than a Toyota dealer performs

repairs, confirm the warranty cover-

age.

■

Allow inspection and repairs to

be performed by a Toyota

dealer

●

Toyota technicians are well-

trained specialists and are kept up

to date with the latest service

information. They are well

informed about the operations of

all systems on your vehicle.

●

Keep a copy of the repair order. It

proves that the maintenance that

has been performed is under war-

ranty coverage. If any problem

should arise while your vehicle is

under warranty, your Toyota

dealer will promptly take care of it.

General maintenance should be
performed on a daily basis. This
can be done by yourself or by a
Toyota dealer.

Scheduled maintenance should
be performed at specified inter-
vals according to the mainte-
nance schedule.

For details about maintenance
items and schedules, refer to the
“Scheduled Maintenance Guide” or
“Owner’s Manual Supplement”.

Maintenance require-

ments

To ensure safe and econom-
ical driving, day-to-day care
and regular maintenance
are essential. It is the
owner’s responsibility to
perform regular checks.
Toyota recommends the fol-
lowing maintenance:

WARNING

■

If your vehicle is not properly

maintained

Improper maintenance could

result in serious damage to the

vehicle and possible death or seri-

ous injury.

■

Handling of the battery

●

Engine exhaust, some of its

constituents, and a wide variety

of automobile components con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects and

other reproductive harm. Work

in a well ventilated area.

●

Oils, fuels and fluids contained

in vehicles as well as waste pro-

duced by component wear con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects or

other reproductive harm. Avoid

exposure and wash any

affected area immediately.

●

Battery posts, terminals and

related accessories contain lead

and lead compounds which are

known to cause brain damage.

Wash your hands after han-

dling. (



P.403)

General maintenance

Scheduled maintenance

388

6-2. Maintenance

■

Resetting the message indicat-

ing maintenance is required

(with 7-inch display)

After the required maintenance is

performed according to the mainte-

nance schedule, please reset the

reminder light or message.

To reset the reminder light or mes-

sage, follow the procedure

described below:

1

Press

 or

 of the meter

control switches and select



on the multi-information display.

2

Press

 or

 of the meter

control switches and select
“Vehicle Settings”. Then press
and hold

.

3

Press

 or

 of the meter

control switches and select
“Scheduled Maintenance”. Then
press

.

4

Select “Yes” and press

.

A message will be displayed when

the reset procedure has been com-

pleted.

■

Resetting the message indicat-

ing maintenance is required

(with 12.3-inch display)

After the required maintenance is

performed according to the mainte-

nance schedule, please reset the

reminder light or message.

To reset the reminder light or mes-

sage, follow the procedure

described below:

1

Press and hold

 to display the

cursor on the content display
area (center) of the multi-infor-
mation display.

2

Press

 or

 of the meter

control switches to select



and then press

.

3

Press

 or

 of the meter

control switches and select
“

Vehicle Settings”. Then

press and hold

.

4

Press

 or

 of the meter

control switches and select
“Scheduled Maintenance”. Then
press

.

5

Select “Yes” and press

.

A message will be displayed when

the reset procedure has been com-

pleted.

You can perform some mainte-
nance procedures by yourself.
Please be aware that do-it-your-
self maintenance may affect
warranty coverage.

The use of Toyota Repair Manuals
is recommended.
For details about warranty cover-
age, refer to the separate “Owner’s
Warranty Information Booklet” or
“Owner’s Manual Supplement”.

Do-it-yourself mainte-
nance

389

6-2. Maintenance

6

Maintena

nce
 a

nd ca

re

General maintenance

Listed below are the general
maintenance items that
should be performed at the
intervals specified in the
“Owner’s Warranty Informa-
tion Booklet” or “Owner’s
Manual Supplement/Sched-
uled Maintenance Guide”. It
is recommended that any
problem you notice should
be brought to the attention
of your Toyota dealer or
qualified service shop for
advice.

WARNING

■

If the engine is running

Turn the engine off and ensure

that there is adequate ventilation

before performing maintenance

checks.

Engine compartment

Items

Check points

Battery

Check the connec-
tions. (



P.403)

Brake fluid

Is the brake fluid at
the correct level?
(



P.401)

Engine coolant

Is the engine cool-
ant at the correct
level? (



P.400)

Engine oil

Is the engine oil at
the correct level?
(



P.398)

Exhaust sys-
tem

There should not
be any fumes or
strange sounds.

Radiator/con-
denser

The radiator and
condenser should
be free from for-
eign objects.
(



P.401)

Washer fluid

Is there sufficient
washer fluid?
(



P.403)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should
move smoothly
(without uneven
pedal effort or
catching).

Automatic
transmission
“Park” mecha-
nism

• When parked on

a slope and the
shift position is in
P, is the vehicle
securely
stopped?

Brake pedal

• Does the brake

pedal move
smoothly?

• Does the brake

pedal have
appropriate
clearance from
the floor?

• Does the brake

pedal have the
correct amount
of free play?

Items

Check points

390

6-2. Maintenance

Brakes

• The vehicle

should not pull to
one side when
the brakes are
applied.

• The brakes

should work
effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get
too close to the
floor when the
brakes are
applied.

Head
restraints

• Do the head

restraints move
smoothly and
lock securely?

Indica-
tors/buzzers

• Do the indica-

tors and buzzers
function prop-
erly?

Lights

• Do all the lights

come on?

• Are the head-

lights aimed cor-
rectly?

Parking brake

• Does the park-

ing brake oper-
ate normally?

• When parked on

a slope and the
parking brake is
on, is the vehicle
securely
stopped?

Items

Check points

Seat belts

• Do the seat belts

operate
smoothly?

• The seat belts

should not be
damaged.

Seats

• Do the seat con-

trols operate
properly?

Steering wheel

• Does the steer-

ing wheel rotate
smoothly?

• Does the steer-

ing wheel have
the correct
amount of free
play?

• There should not

be any strange
sounds coming
from the steer-
ing wheel.

Vehicle exterior

Items

Check points

Doors

• Do the doors

operate
smoothly?

Engine hood

• Does the engine

hood lock system
work properly?

Fluid leaks

• There should not

be any signs of
fluid leakage
after the vehicle
has been parked.

Items

Check points

391

6-2. Maintenance

6

Maintena

nce
 a

nd ca

re

The OBD system determines
that a problem exists some-
where in the emission control
system. Your vehicle may not
pass the I/M test and may need
to be repaired. Contact your
Toyota dealer to service the
vehicle.



When the battery is discon-
nected or discharged
Readiness codes that are set
during ordinary driving are
erased.
Also, depending on your driv-
ing habits, the readiness
codes may not be completely
set.



When the fuel tank cap is

Tires

• Is the tire infla-

tion pressure
correct?

• The tires should

not be damaged
or excessively
worn.

• Have the tires

been rotated
according to the
maintenance
schedule?

• The wheel nuts

should not be
loose.

Windshield
wipers/rear
window wiper

• The wiper blades

should not show
any signs of
cracking, split-
ting, wear, con-
tamination or
deformation.

• The wiper blades

should clear the
windshield with-
out streaking or
skipping.

Items

Check points

Emission inspection

and maintenance (I/M)

programs

Some states have vehicle
emission inspection pro-
grams which include OBD
(On Board Diagnostics)
checks. The OBD system
monitors the operation of
the emission control sys-
tem.

If the malfunction indica-
tor lamp comes on

Your vehicle may not
pass the I/M test in the fol-
lowing situations:

392

6-2. Maintenance

loose
The malfunction indicator
lamp comes on indicating a
temporary malfunction and
your vehicle may not pass the
I/M test.

The error code in the OBD sys-
tem will not be cleared unless
the vehicle is driven 40 or more
times.

Contact your Toyota dealer to
prepare the vehicle for re-test-
ing.

When the malfunction
indicator lamp still
remains on after several
driving trips

If your vehicle does not
pass the I/M test

393

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

6-3.Do-it-yourself maintenance

Do-it-yourself service

precautions

If you perform maintenance
by yourself, be sure to fol-
low the correct procedure
as given in these sections.

Maintenance

Items

Parts and tools

Battery con-
dition
(



P.403)

• Grease
• Conventional

wrench (for termi-
nal clamp bolts)

Brake fluid
level
(



P.401)

• FMVSS No.116

DOT 3 or SAE
J1703 brake fluid

• FMVSS No.116

DOT 4 or SAE
J1704

• Rag or paper

towel

• Funnel (used only

for adding brake
fluid)

Engine cool-
ant level
(



P.400)

• “Toyota Super

Long Life Cool-
ant” or a similar
high quality eth-
ylene glycol-based
non-silicate, non-
amine, non-nitrite
and non-borate
coolant with long-
life hybrid organic
acid technology
For the U.S.A.:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 50% coolant
and 50% deion-
ized water.
For Canada:
“Toyota Super
Long Life Cool-
ant” is pre-mixed
with 55% coolant
and 45% deion-
ized water.

• Funnel (used only

for adding coolant)

Engine oil
level
(



P.398)

• “Toyota Genuine

Motor Oil” or
equivalent

• Rag or paper

towel

• Funnel (used only

for adding engine
oil)

Fuses
(



P.428)

• Fuse with same

amperage rating
as original

Items

Parts and tools

394

6-3. Do-it-yourself maintenance

Light bulbs
(



P.432)

• Bulb with same

number and watt-
age rating as origi-
nal

• Phillips-head

screwdriver

• Flathead screw-

driver

• Wrench

Headlight aim
(



P.431)

• Phillips-head

screwdriver

Radiator and
condenser
(



P.401)



Tire inflation
pressure
(



P.416)

• Tire pressure

gauge

• Compressed air

source

Washer fluid
(



P.404)

• Water or washer

fluid containing
antifreeze (for win-
ter use)

• Funnel (used only

for adding water or
washer fluid)

WARNING

The engine compartment contains

many mechanisms and fluids that

may move suddenly, become hot,

or become electrically energized.

To avoid death or serious injury,

observe the following precautions.

■

When working on the engine

compartment

●

Keep hands, clothing and tools

away from the moving fan and

engine drive belt.

Items

Parts and tools

●

Be careful not to touch the

engine, radiator, exhaust mani-

fold, etc., right after driving as

they may be hot. Oil and other

fluids may also be hot.

●

Do not leave anything that may

burn easily, such as paper and

rags, in the engine compart-

ment.

●

Do not smoke, cause sparks or

expose an open flame to fuel or

the battery. Fuel and battery

fumes are flammable.

●

Be extremely cautious when

working on the battery. It con-

tains poisonous and corrosive

sulfuric acid.

■

When working near the elec-

tric cooling fan or radiator

grille

Be sure the engine switch is off.

With the engine switch in ON, the

electric cooling fan may automati-

cally start to run if the air condi-

tioning is on and/or the coolant

temperature is high. (



P.401)

■

Safety glasses

Wear safety glasses to prevent

flying or falling material, fluid

spray, etc., from getting in your

eyes.

NOTICE

■

If you remove the air cleaner

filter

Driving with the air cleaner filter

removed may cause excessive

engine wear due to dirt in the air.

395

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

1

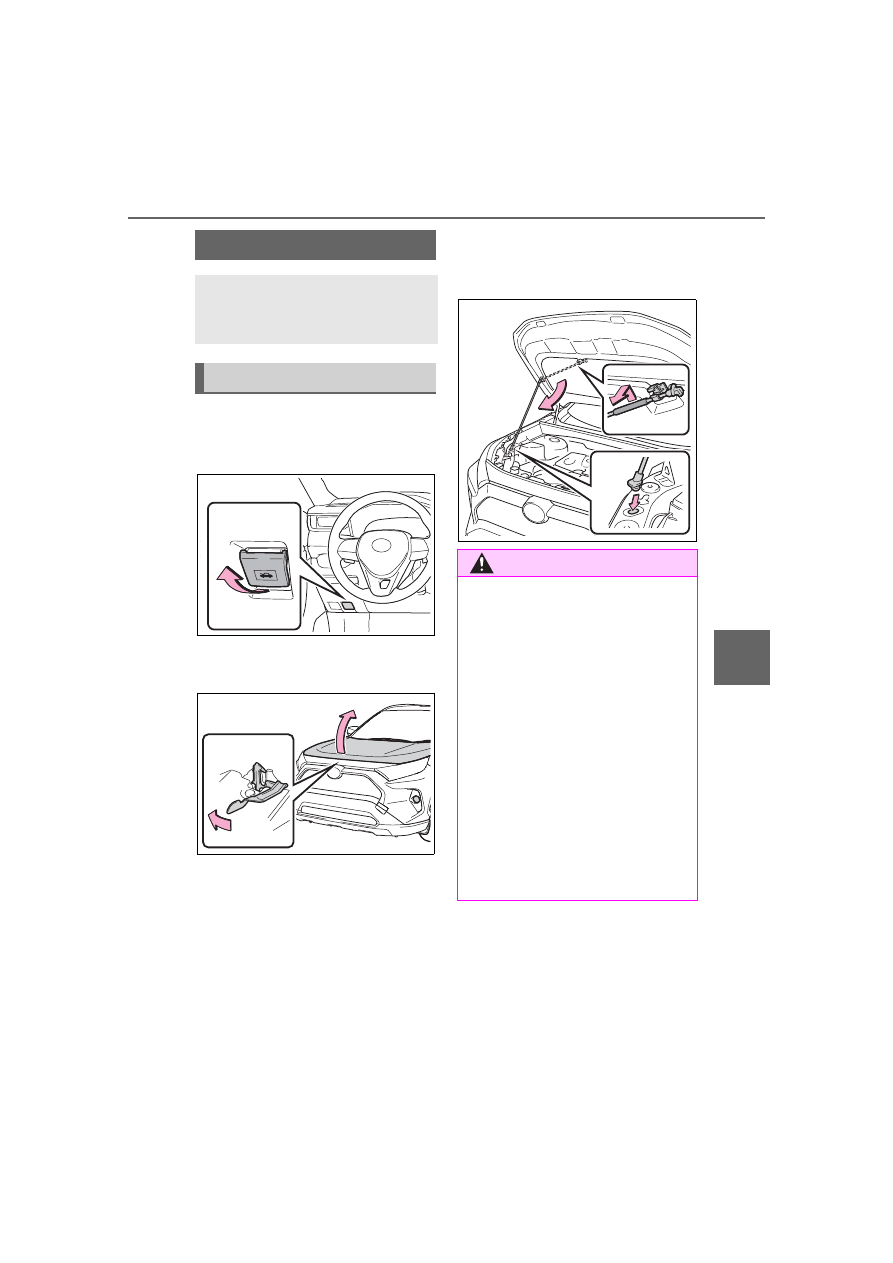

Pull the hood lock release
lever.

The hood will pop up slightly.

2

Push the auxiliary catch lever
to the left and lift the hood.

3

Hold the hood open by insert-
ing the supporting rod into
the slot.

Hood

Release the lock from the
inside of the vehicle to open
the hood.

Opening the hood

WARNING

■

Pre-driving check

Check that the hood is fully closed

and locked.

If the hood is not locked properly,

it may open while the vehicle is in

motion and cause an accident,

which may result in death or seri-

ous injury.

■

To prevent injuries

The support rod may be hot after

driving the vehicle. Touching the

hot support rod may lead to burns

or other serious injuries.

■

After installing the support

rod into the slot

Make sure the rod supports the

hood securely from falling down

on to your head or body.

396

6-3. Do-it-yourself maintenance

■

Front

WARNING

■

When closing the hood

When closing the hood, take extra

care to prevent your fingers etc.

from being caught.

NOTICE

■

When closing the hood

Be sure to return the support rod

to its clip before closing the hood.

Closing the hood without return-

ing the support rod properly could

cause the hood to bend.

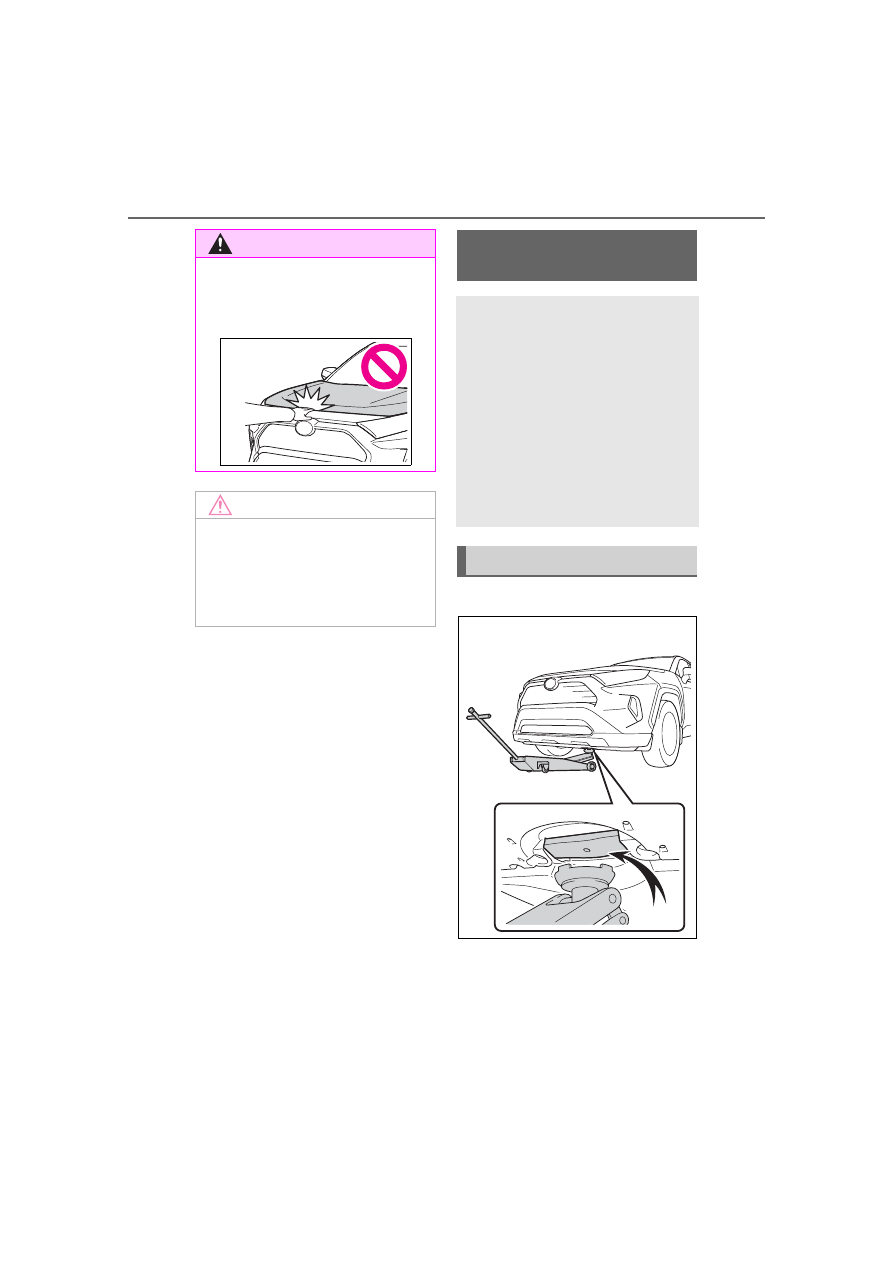

Positioning a floor

jack

When using a floor jack, fol-
low the instructions in the
manual provided with the
jack and perform the opera-
tion safely.
When raising your vehicle
with a floor jack, position
the jack correctly.
Improper placement may
damage your vehicle or
cause injury.

Location of the jack point

397

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

■

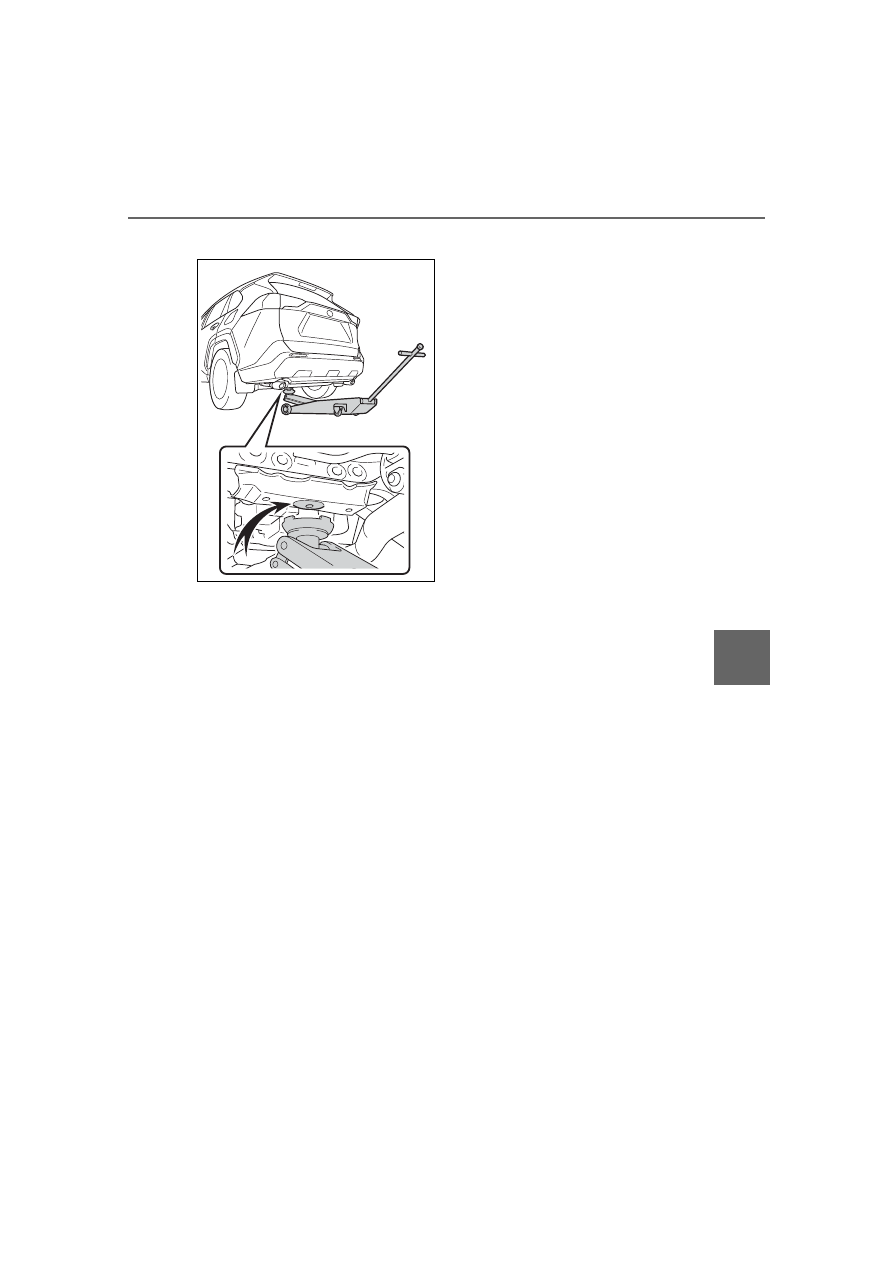

Rear

398

6-3. Do-it-yourself maintenance

Fuse boxes (



P.428)

Engine oil filler cap (



P.399)

Engine oil level dipstick (



P.398)

Battery (



P.403)

Brake fluid reservoir (



P.401)

Radiator (



P.401)

Electric cooling fan

Condenser (



P.401)

Washer fluid tank (



P.404)

Engine coolant reservoir (



P.400)

With the engine at operating
temperature and turned off,

check the oil level on the dip-
stick.

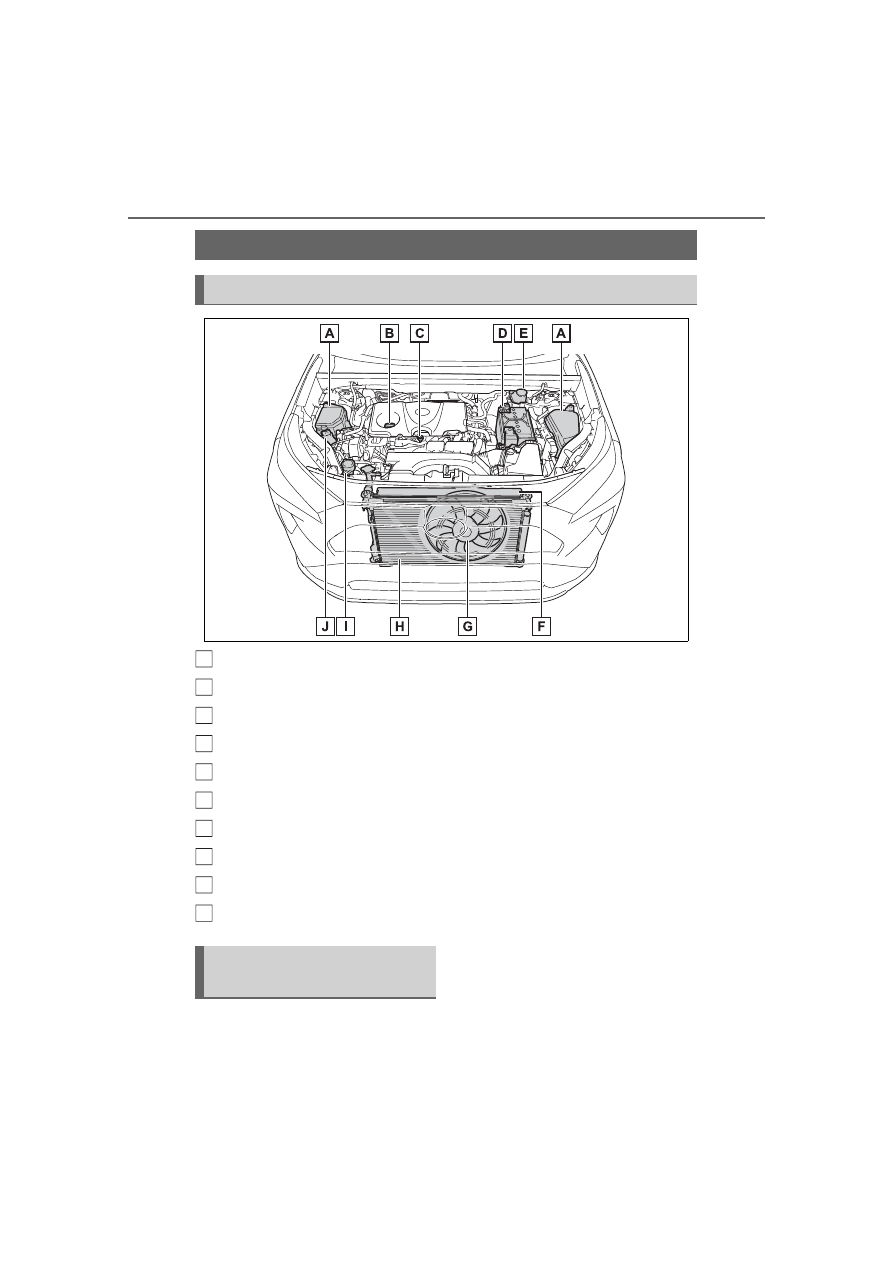

Engine compartment

Components

A

B

C

D

E

F

G

H

I

J

Checking and adding the
engine oil

399

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

■

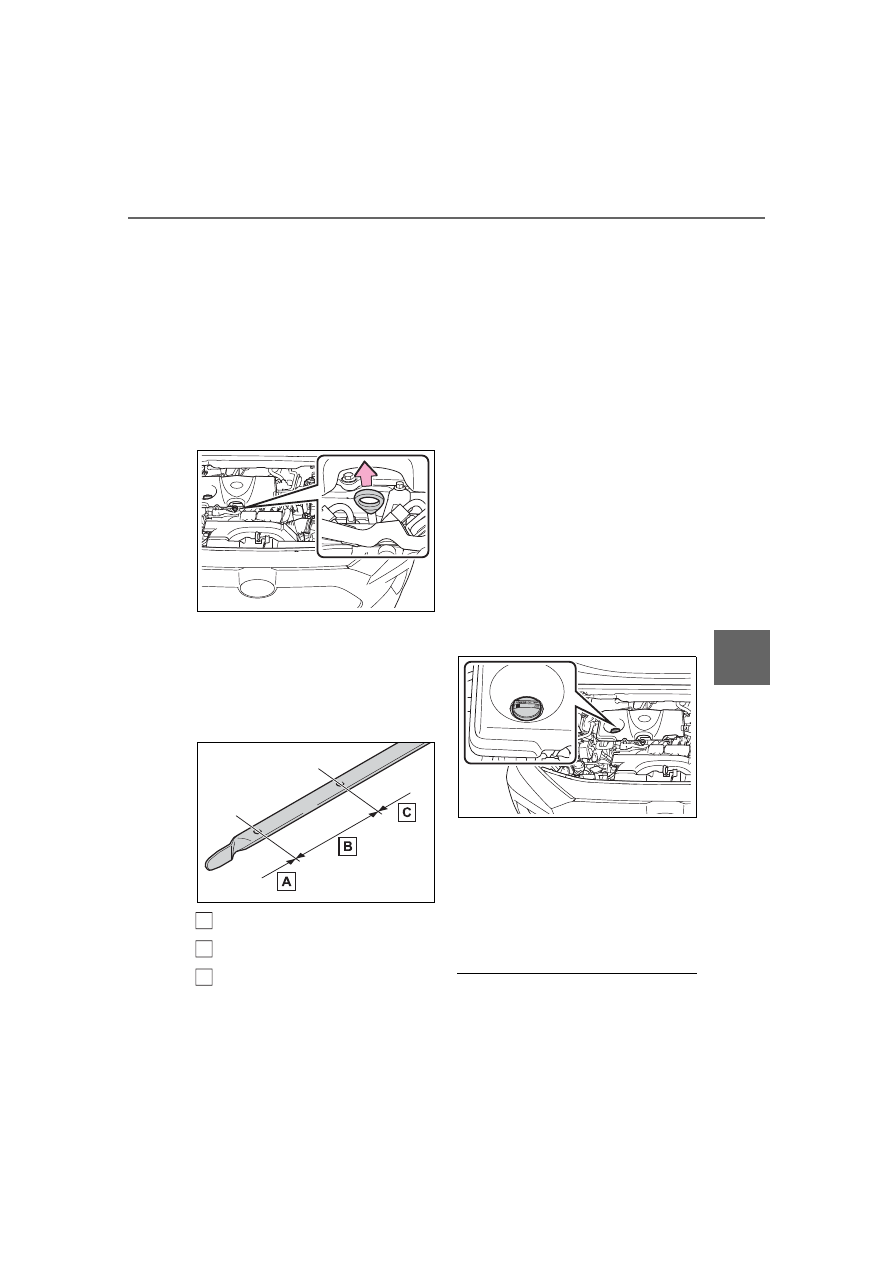

Checking the engine oil

1

Park the vehicle on level
ground. After warming up the
engine and turning off the
engine, wait more than 5
minutes for the oil to drain
back into the bottom of the
engine.

2

Holding a rag under the end,
pull the dipstick out.

3

Wipe the dipstick clean.

4

Reinsert the dipstick fully.

5

Holding a rag under the end,
pull the dipstick out and
check the oil level.

Low

Normal

Excessive

The shape of the dipstick may differ

depending on the type of vehicle or

engine.

6

Wipe the dipstick and reinsert
it fully.

■

Checking the oil type and
preparing the items needed

Make sure to check the oil type
and prepare the items needed
before adding oil.



Engine oil selection



P.488



Oil quantity (Low



 Full)

1.6 qt. (1.5 L, 1.3 Imp. qt.)



Item

Clean funnel

■

Adding engine oil

If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

1

Remove the oil filler cap by
turning it counterclockwise.

2

Add engine oil slowly, check-
ing the dipstick.

3

Install the oil filler cap by
turning it clockwise.

■

Engine oil consumption

A certain amount of engine oil will

be consumed while driving. In the

following situations, oil consump-

A

B

C

400

6-3. Do-it-yourself maintenance

tion may increase, and engine oil

may need to be refilled in between

oil maintenance intervals.

●

When the engine is new, for

example directly after purchasing

the vehicle or after replacing the

engine

●

If low quality oil or oil of an inap-

propriate viscosity is used

●

When driving at high engine

speeds or with a heavy load,

when towing, or when driving

while accelerating or decelerating

frequently

●

When leaving the engine idling for

a long time, or when driving fre-

quently through heavy traffic

The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir
when the engine is cold.

Reservoir cap

“FULL” line

“LOW” line

If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. (



P.480)

WARNING

■

Used engine oil

●

Used engine oil contains poten-

tially harmful contaminants

which may cause skin disorders

such as inflammation and skin

cancer, so care should be taken

to avoid prolonged and

repeated contact. To remove

used engine oil from your skin,

wash thoroughly with soap and

water.

●

Dispose of used oil and filters

only in a safe and acceptable

manner. Do not dispose of used

oil and filters in household trash,

in sewers or onto the ground.

Call your Toyota dealer, service

station or auto parts store for

information concerning recy-

cling or disposal.

●

Do not leave used engine oil

within the reach of children.

NOTICE

■

To prevent serious engine

damage

Check the oil level on a regular

basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil

on the vehicle components.

●

Avoid overfilling, or the engine

could be damaged.

●

Check the oil level on the dip-

stick every time you refill the

vehicle.

●

Be sure the engine oil filler cap

is properly tightened.

■

If oil is spilled on the engine

cover

To prevent the engine cover from

being damaged, remove any

engine oil from the engine cover

as soon as possible using a neu-

tral detergent. Do not use an

organic solvent such as brake

cleaner.

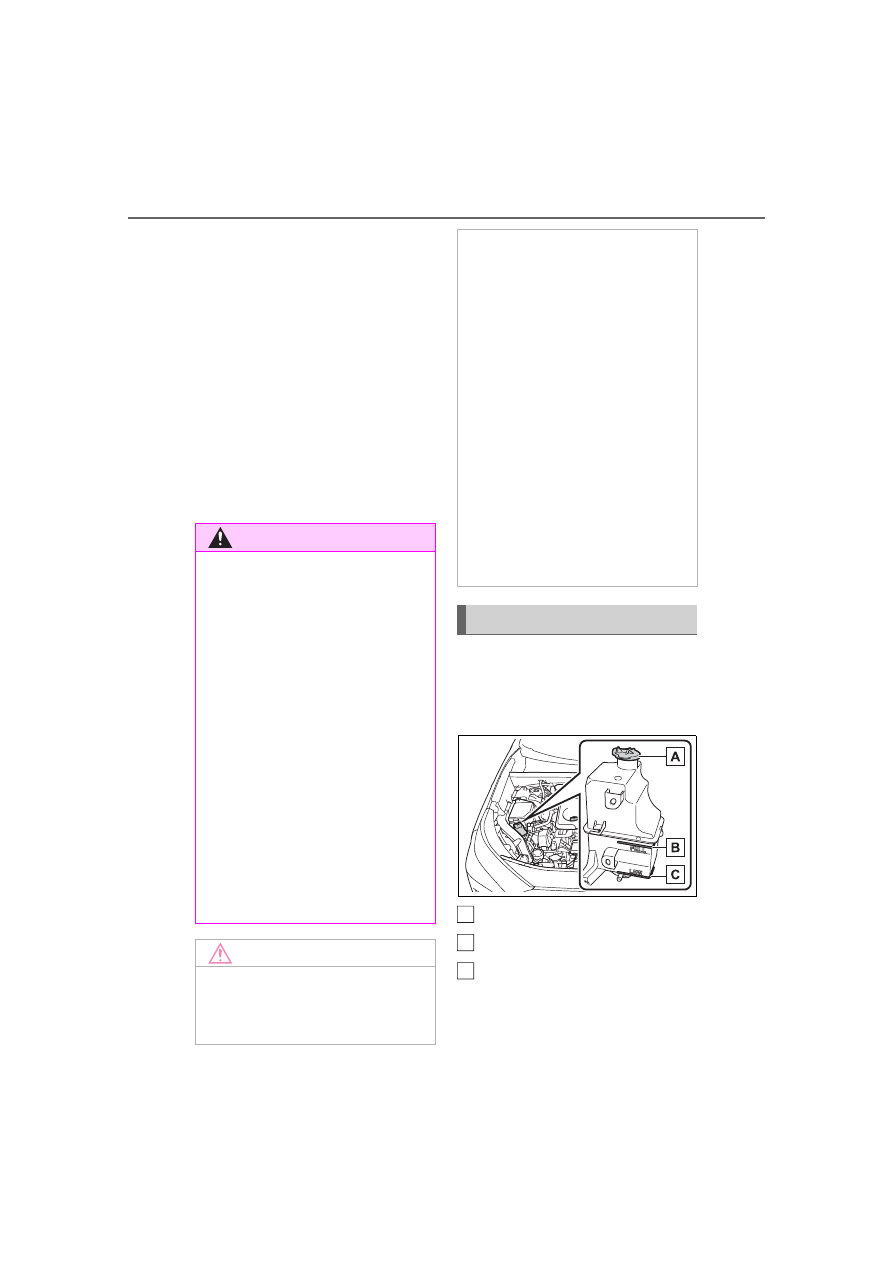

Checking the coolant

A

B

C

401

6-3. Do-it-yourself maintenance

6

Maintena

nce
 a

nd ca

re

■

Coolant selection

Only use “Toyota Super Long Life

Coolant” or a similar high quality

ethylene glycol based non-silicate,

non-amine, non-nitrite, and non-

borate coolant with long-life hybrid

organic acid technology.

U.S.A.:

“Toyota Super Long Life Coolant” is

a mixture of 50% coolant and 50%

deionized water. (Minimum tem-

perature: -31°F [-35°C])

Canada:

“Toyota Super Long Life Coolant” is

a mixture of 55% coolant and 45%

deionized water. (Minimum tem-

perature: -44°F [-42°C])

For more details about coolant, con-

tact your Toyota dealer.

■

If the coolant level drops within

a short time of replenishing

Visually check the radiators, hoses,

engine/power control unit coolant

reservoir caps, drain cock and water

pump.

If you cannot find a leak, have your

Toyota dealer, test the cap and

check for leaks in the cooling sys-

tem.

Check the radiator and con-
denser, and clear away any for-
eign objects.
If either of the above parts is
extremely dirty or you are not
sure of their condition, have
your vehicle inspected by your
Toyota dealer.

■

Checking fluid level

The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.

WARNING

■

When the engine is hot

Do not remove the engine coolant

reservoir cap.

The cooling system may be under

pressure and may spray hot cool-

ant if the cap is removed, causing

serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor

straight antifreeze. The correct

mixture of water and antifreeze

must be used to provide proper

lubrication, corrosion protection

and cooling. Be sure to read the

antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to

prevent it from damaging parts or

paint.

Checking the radiator and
condenser

WARNING

■

When the engine is hot

Do not touch the radiator or con-

denser as they may be hot and

cause serious injuries, such as

burns.

■

When the electric cooling fan

is operating

Do not touch the engine compart-

ment.
With the engine switch in ON, the

electric cooling fan may automati-

cally start to run if the air condi-

tioning is on and/or the coolant

temperature is high. Be sure the

engine switch is off when working

near the electric cooling fan or

radiator grille.

Checking and adding the
brake fluid

402

6-3. Do-it-yourself maintenance

■

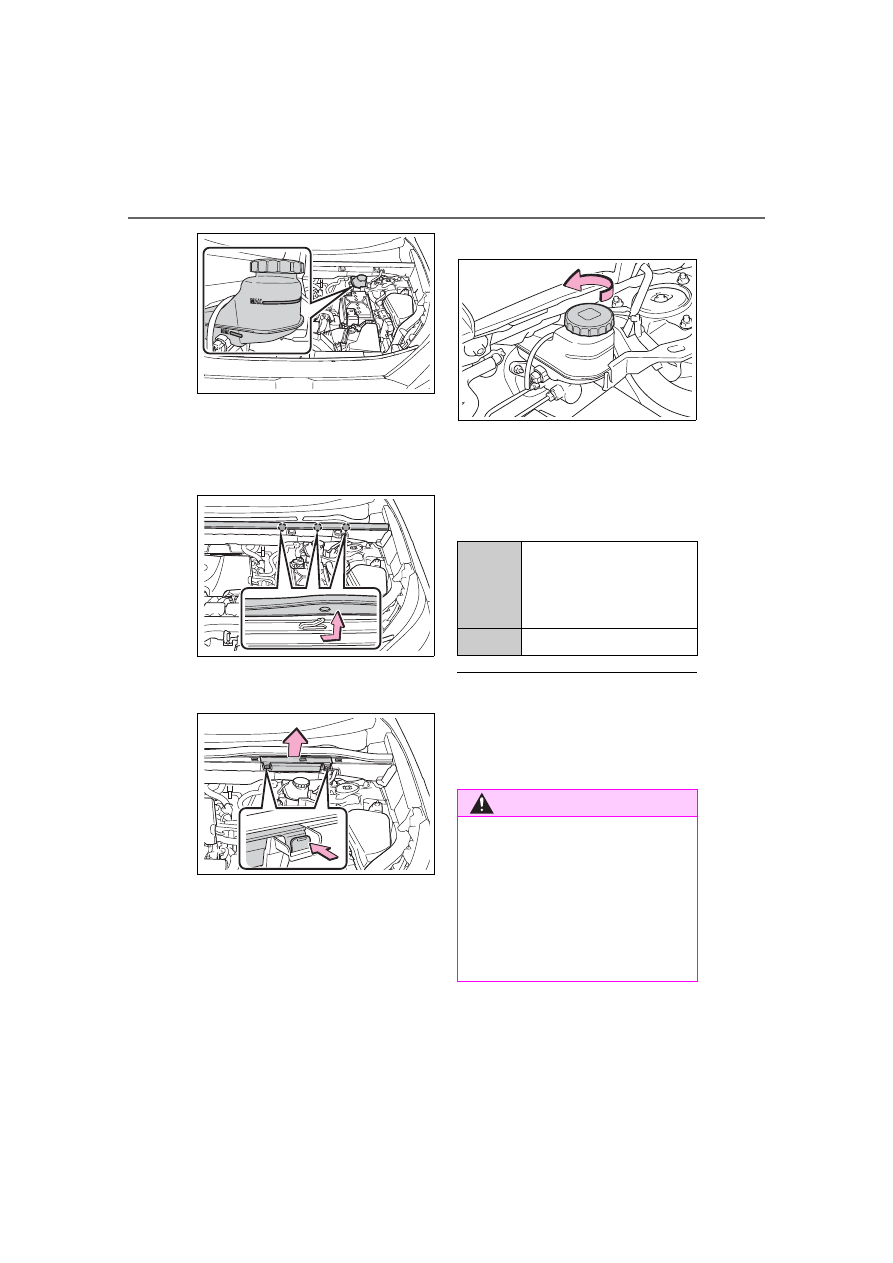

Adding fluid

1

Slide and lift up the rubber
strip to partly remove it as
shown.

2

Disconnect the claws and
remove the service cover.

3

Remove the reservoir cap.

4

Add brake fluid slowly while
checking the fluid level.

Make sure to check the fluid
type and prepare the necessary
item.

■

Brake fluid can absorb moisture

from the air

Excess moisture in the brake fluid

can cause a dangerous loss of brak-

ing efficiency. Use only newly

opened brake fluid.

Fluid
type

FMVSS No.116 DOT 3 or
SAE J1703 brake fluid
FMVSS No.116 DOT 4 or
SAE J1704 brake fluid

Item

Clean funnel

WARNING

■

When filling the reservoir

Take care as brake fluid can harm

your hands and eyes and damage

painted surfaces.
If fluid gets on your hands or in

your eyes, flush the affected area

with clean water immediately.
If you still experience discomfort,

see a doctor.
