3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

higher for a certain amount of
time when the surroundings are
dark, a suggestion message will
be displayed.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

The suggestion function can be

turned on/off. (Customizable fea-

tures:



P.512)

114

3-1. Instrument cluster

: If equipped

Illustrations used in this text are intended as examples, and may differ from
the image that is actually displayed by the head-up display.

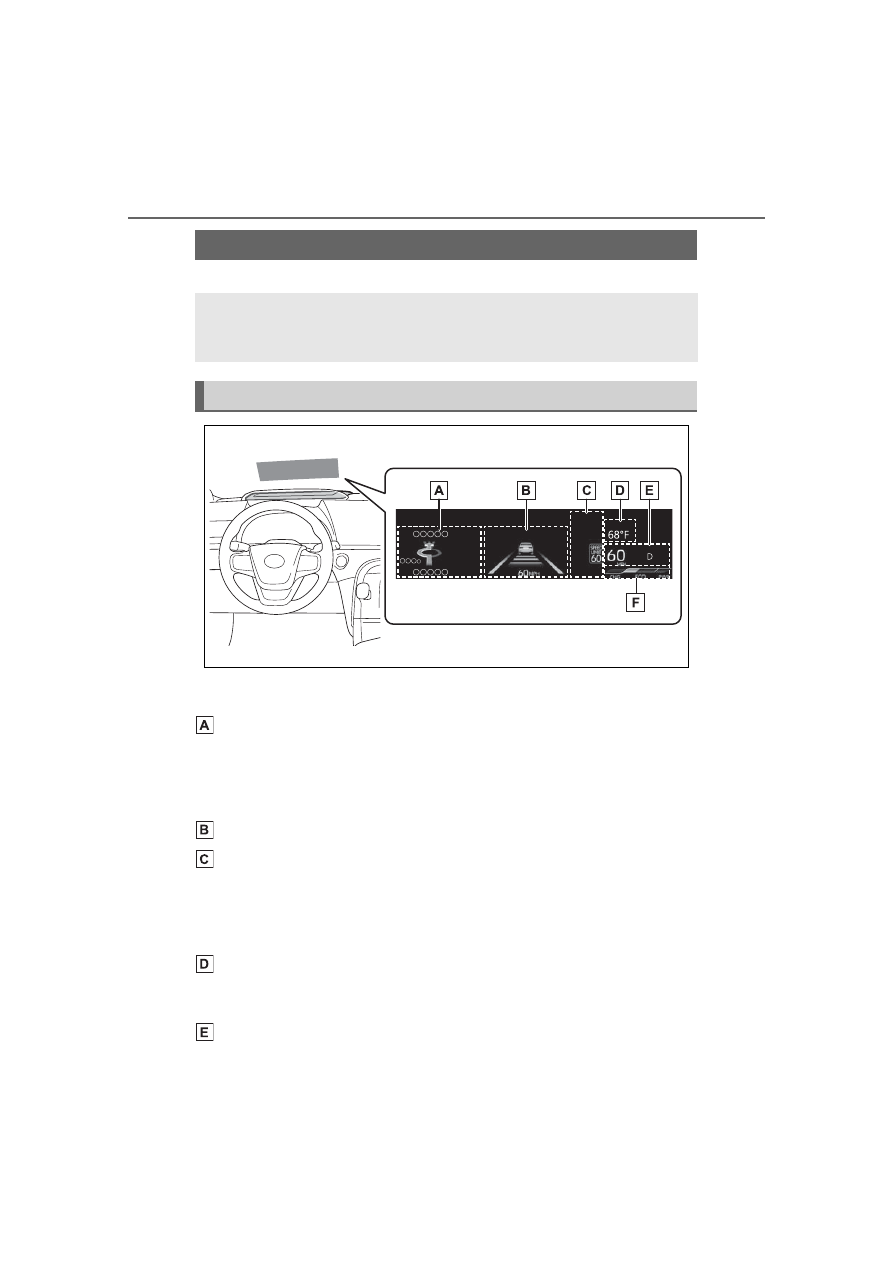

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Driving support system display area (



P.117)

Speed limit/RSA (Road Sign Assist) display area (if equipped)

Displays the following items:
• Speed limit of the current road (linked to the navigation system) (U.S.A.

only)

• RSA (Road Sign Assist) display (



P.241)

Outside temperature display area

Displayed when the power switch is turned to ON or when the low outside
temperature indicator is flashing.

Driving information display area

Head-up display

The head-up display projects a variety of driving-related infor-
mation and the operating state of the driving support systems
on the windshield.

System components

115

3-1. Instrument cluster

Vehicle

s information an

d in
dicat

Displays the following items:
• Speedometer
• Shift position (



P.185)

• Br mode (



P.185)

Fuel cell System Indicator display area (



P.118)

■

Displayed items when using

Advanced Drive (if equipped)

When using Advanced Drive, the

displayed items and their location

will differ. Refer to “Toyota Team-

mate Advanced Drive OWNER’S

MANUAL” at Toyota.com for details.

■

Head-up display will operate

when

The power switch is in ON.

■

When using the head-up dis-

play

The head-up display may seem

dark or hard to see when viewed

through sunglasses, especially

polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are

included in the map data will be dis-

played.

■

Outside temperature display

●

When the ambient temperature is

approximately 37°F (3°C) or

lower, the low outside temperature

indicator will flash for approxi-

mately 10 seconds and the out-

side temperature display will turn

off. In this case, the display will be

displayed again when the outside

temperature becomes approxi-

mately 41°F (5°C) or higher.

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

WARNING

■

When using the head-up dis-

play

●

Check that the position and

brightness of the head-up dis-

play image does not interfere

with safe driving. Incorrect

adjustment of the image’s posi-

tion or brightness may obstruct

the driver’s view and lead to an

accident, resulting in death or

serious injury.

●

Do not continuously look at the

head-up display while driving as

you may fail to see pedestrians,

objects on the road, etc., ahead

of the vehicle.

116

3-1. Instrument cluster

■

Enabling/disabling the
head-up display

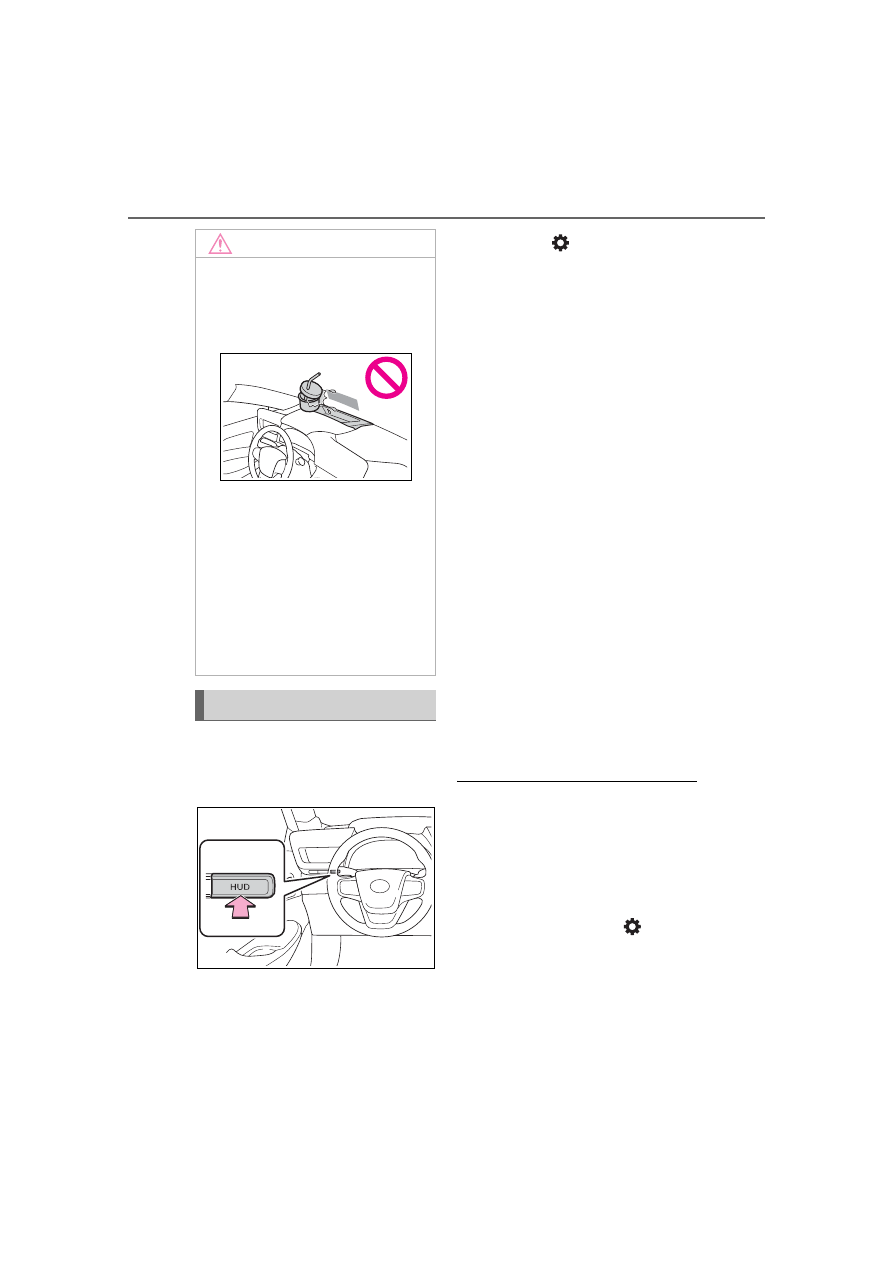

Press the “HUD” switch.

■

Changing settings of the
head-up display

The following settings can be

changed on

of the multi-

information display. (



P.512)



Brightness and vertical posi-
tion of the head-up display

Select to adjust the brightness or
vertical position of the head-up dis-
play.



Fuel cell System Indicator

Select to enable/disable the Fuel
cell System Indicator.



Display content

Select to enable/disable the follow-
ing items:
• Route guidance to destina-

tion/street name (vehicles with
navigation system)

• Driving support system display

• Compass (heading-up display)

(vehicles with navigation system)

• Audio system operation status

: Make sure to enable this display

when using the driving support
systems



Display angle

■

Enabling/disabling of the head-

up display

If the head-up display is disabled, it

will remain disabled when the power

switch is turned off then back to ON.

■

Display brightness

The brightness of the head-up dis-
play can be adjusted on

of the

multi-information display. Also, it is
automatically adjusted according to
the ambient brightness.

NOTICE

■

Head-up display projector

●

Do not place any drinks near

the head-up display projector. If

the projector gets wet, electrical

malfunctions may result.

●

Do not place anything on or put

stickers onto the head-up dis-

play projector.

Doing so could interrupt head-

up display indications.

●

Do not touch the inside of the

head-up display projector or

thrust sharp edges or the like

into the projector.

Doing so could cause mechani-

cal malfunctions.

Using the head-up display

117

3-1. Instrument cluster

Vehicle

s information an

d in
dicat

■

Head-up display automatic

position adjustment (if

equipped)

If the display position is recorded

into memory, the head-up display

will be automatically adjusted to the

desired position. (



P.142)

■

When the 12-volt battery is dis-

connected

The customize settings of the head-

up display will be reset.

Displays the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.230)



Dynamic radar cruise control
with full-speed range
(



P.244)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

Pop-up displays for the following
systems will be displayed when
necessary.

■

Driving support systems

Displays a warning/sugges-
tion/advice message or the
operating state of a relevant
system.



PCS (Pre-Collision System)
(



P.219)



FCTA (Front Cross Traffic
Alert)

(if equipped)



Parking Support Brake func-
tion (static objects front and
rear of the vehicle/static
objects around the vehicle [if
equipped]) (



P.286)



Brake Override System
(



P.170)



Drive-Start Control (



P.175)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

: Refer to “Toyota Teammate

Advanced Drive OWNER’S MAN-
UAL”.

■

icons

These icons are linked to the
multi-information display

: Master warning icon

Displayed when a warning mes-
sage is displayed on the multi-infor-
mation display. (



P.464)

: Information icon

Displayed when a suggestion pop-
up display (



P.112) or advice pop-

up display is displayed on the multi-

NOTICE

■

When changing the settings

of the head-up display

To prevent 12-volt battery dis-

charge, ensure that the fuel cell

system is operating while the

changing the settings of the head-

up display.

Driving support system
display area

Pop-up display

118

3-1. Instrument cluster

information display.

■

Warning message

Some warning messages are
displayed when necessary,
according to certain conditions.

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display.

■

Audio system operation
status

Displayed when an audio
remote control switch on the
steering wheel is operated.

■

Hands-free system status

Displayed when the hands-free
system is operated.

■

When a pop-up display is dis-

played

When a pop-up display is displayed,

a current display may no longer be

displayed. In this case, the display

will return after the pop-up display

disappears.

Charge area

Eco area

Power area

Displayed content is the same as
that displayed on the meter (Fuel
cell System Indicator). For details,
refer to P.108, 103.

Fuel cell System Indicator

119

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Multi-information display

Multimedia display

Meter control switches

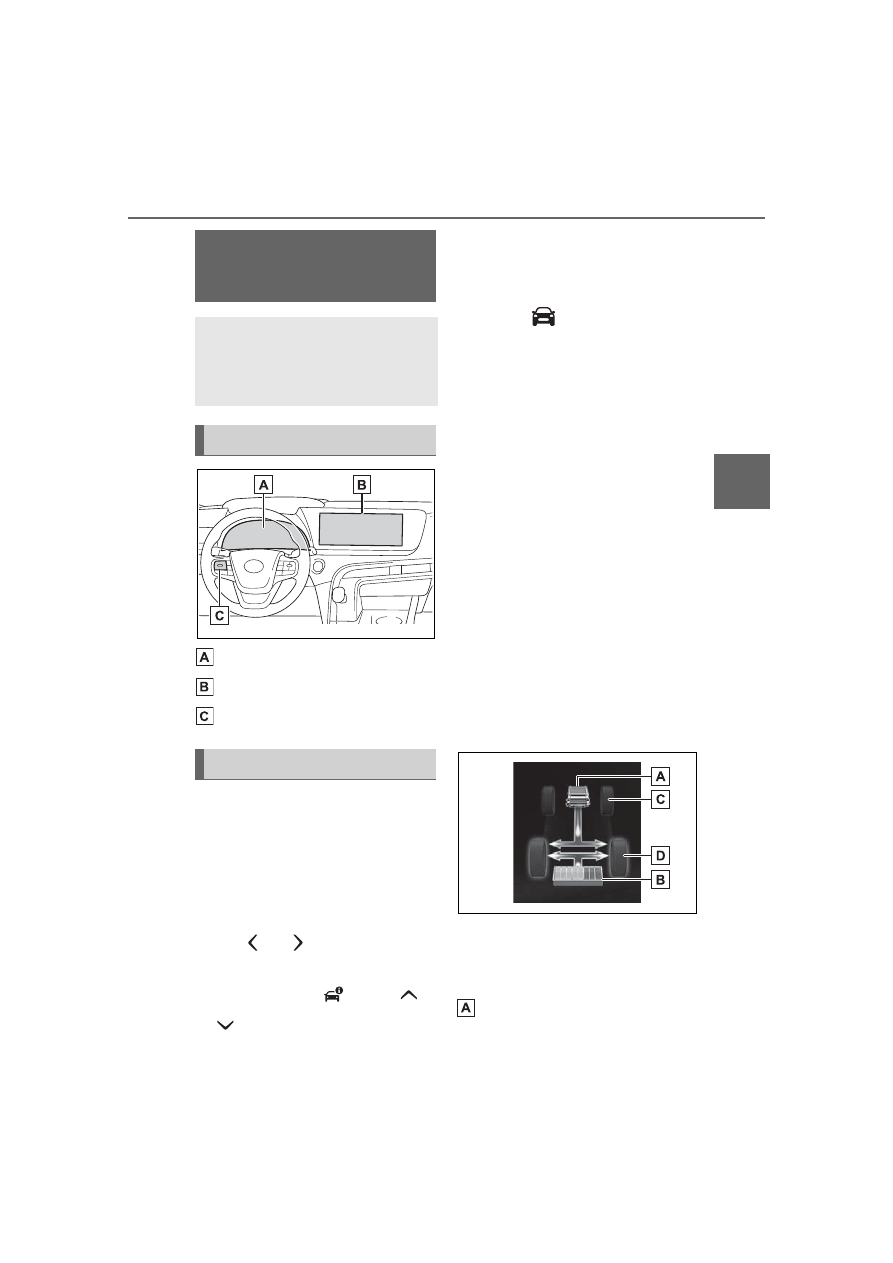

The energy monitor can be used
to check the vehicle drive status,
fuel cell system operation status
and energy regeneration status.

■

Display procedure



Multi-information display

Press

of the meter

control switches on the steering
wheel and select

, press

of the meter control

switches and select the energy
monitor.



Multimedia display

Select

on the main

menu.

Select “Energy flow”.

■

Display

When energy is flowing, an
arrow appears to show the
direction of the flow of energy.

When energy is not flowing, an
arrow is not displayed.

Green

/Blue

: Shows that the

electrical energy is charged or
recovered.

Yellow

/Orange

: Shows that the

electrical energy is used.
Red: Shows that the power of the
fuel cell system is used.

:Multi-information display

:Multimedia display



Multi-information display

The figure shows all the arrows for
the purpose of this explanation, but
the actual contents of the display
will differ.

Fuel cell system

Energy monitor/con-

sumption screen/air

purification screen

The state of the fuel cell
system can be viewed on
the multi-information dis-
play and multimedia display.

System components

Energy monitor

120

3-1. Instrument cluster

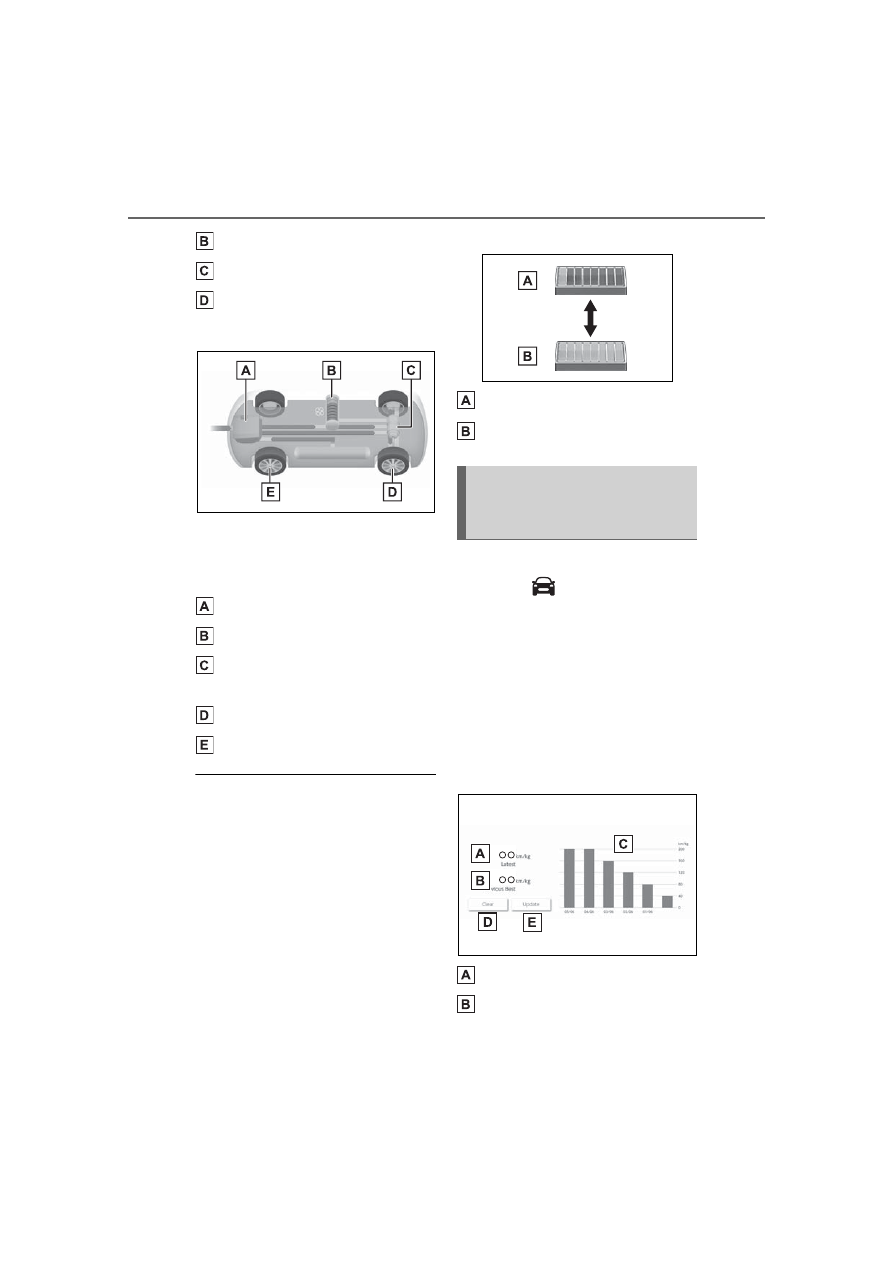

Traction battery

Front tires

Rear tires



Multimedia display

The figure shows all the arrows for
the purpose of this explanation, but
the actual contents of the display
will differ.

Fuel cell system

Traction battery

Electric motor (traction
motor)

Rear tires

Front tires

■

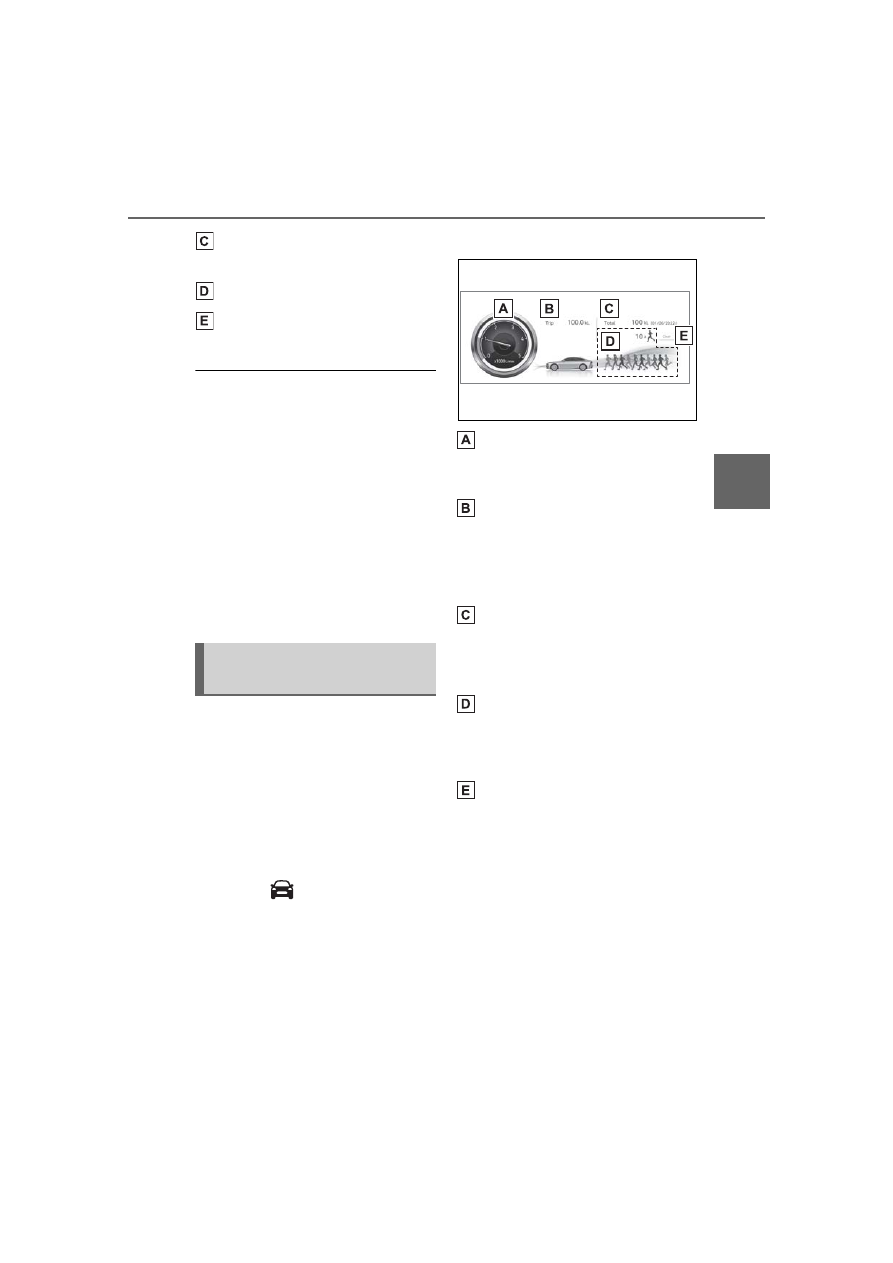

Traction battery status

The display changes in 8 levels

according to the remaining charge

amount of the traction battery.
• The figure shows the multi-infor-

mation display as an example for

explanation.

• These images are examples only,

and may vary slightly from actual

conditions.

• The electrical charge and dis-

charge arrow display for the fluc-

tuations of the remaining battery

charge display and Fuel cell Sys-

tem Indicator may not always

match. However, this is not a mal-

function.

Low

High

■

Display procedure

Select

on the main

menu.

Select “Trip information”.

■

Display

Use the displayed average fuel
consumption as a reference.
The image is an example only,
and may vary slightly from
actual conditions.

Latest fuel consumption

Best recorded fuel consump-
tion

History fuel consumption
screen (multimedia dis-
play only)

121

3-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Previous fuel consumption
record

Resetting the history data

Updating the latest fuel con-
sumption data

■

Updating the history data

Update the latest fuel consumption

by selecting “Update” to measure

the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear”.

■

Using the voice control system

Fuel consumption, trip range, etc.

can be checked using the voice con-

trol system.
For details regarding the voice con-

trol system, refer to “MULTIMEDIA

OWNER’S MANUAL”.

Displays the air amount that was
cleaned by fuel cell system this
time, with regards to optimal
power generated by fuel cell
system due to the accelerator
and fuel cell system operation
status.

■

Display procedure

Select

on the main

menu.

Select “Air Purification”.

■

Display

Instant air cleaning amount

Displays the instant air cleaning
amount per unit of time.

Air cleaning amount estima-
tion display

Displays the total amount of air
cleaning from starting the fuel cell
system.

Air cleaning amount between
resets

Displays the total air cleaning esti-
mated amount after resets.

Runner display

Runners increase depending on the
estimated amount of air cleaning
between resets.

Resetting the data

Clear all the history up to now.
The image is an example only, and
may vary slightly from actual condi-
tions.

Air Purification screen
(multimedia display)

122

3-1. Instrument cluster

■

Data in Air purification is

reseted when

“Clear” is selected to reset data in

air cleaning amount between resets

and runner display.

■

Display Runner

When ten runners are collected,

they are absorbed into a runner

mark.

■

Display

●

The actual amount of air may dif-

fer because the amount of air

required for power generation

changes due to usage environ-

ment (climate, altitude, etc.) and

the status of power generation, as

well as driving conditions.

●

The instant air cleaning amount

may operate slowly and may be

delayed in operating, but this is

not a malfunction.

123

Before

driving

Before driving

4-1. Key information

Keys ............................

124

4-2. Opening, closing and

locking the doors and
trunk

Doors ..........................

127

Trunk ...........................

132

Smart key system .......

136

4-3. Adjusting the seats

Front seats ..................

141

Driving position memory

..................................

142

Head restraints............

145

4-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

147

Inside rear view mirror

149

Digital Rear-view Mirror

150

Outside rear view mirrors

..................................

160

4-5. Opening, closing the win-

dows

Power windows ...........

162

4-6. Favorite settings

My Settings .................

165

124

4-1. Key information

4-1.Key information

The following keys are provided
with the vehicle.

Electronic keys

• Operating the smart key system

(



P.136)

• Operating the wireless remote

control function (



P.125)

Mechanical keys

Key number plate

■

When riding in an aircraft

When bringing an electronic key

onto an aircraft, make sure you do

not press any buttons on the elec-

tronic key while inside the aircraft

cabin. If you are carrying an elec-

tronic key in your bag, etc., ensure

that the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the electronic key

to emit radio waves that could inter-

fere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be shown on the

multi-information display when the

fuel cell system is stopped.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (



P.137)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

when necessary.

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Recharging cellular phones or

cordless phones

• Table lamps

• Induction cookers

■

Replacing the battery



P.436

■

Confirmation of the number of

registered keys

The number of keys already regis-

tered to the vehicle can be con-

firmed. Ask your Toyota dealer for

details.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is shown on the multi-

information display

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

Keys

The keys

125

4-1. Key information

Before

driving

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer to

check if an unknown electronic key

(other than those in your posses-

sion) has been registered.

The electronic keys are
equipped with the following
wireless remote control:

Locks the doors (



P.127)

Unlocks the doors (



P.127)

Opens the windows

(



P.127)

Opens the trunk (



P.134)

Sounds the alarm

: This setting must be customized

at your Toyota dealer.

■

Theft deterrent panic mode

When

is pressed for longer

than about one second, an alarm
will sound intermittently and the
vehicle lights will flash to deter any
person from trying to break into or
damage your vehicle.
To stop the alarm, press any button

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks, or bend

them.

●

Do not expose the keys to high

temperatures for a long period

of time.

●

Do not get the keys wet or wash

them in an ultrasonic washer,

etc.

●

Do not attach metallic or mag-

netic materials to the keys or

place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

electronic key.

●

Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers, or

medical electrical equipment,

such as low-frequency therapy

equipment.

■

Carrying the electronic key

on your person

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other key-

related problems



P.482

■

When an electronic key is lost



P.481

Wireless remote control

126

4-1. Key information

on the electronic key.

To take out the mechanical key,
slide the release lever and
take the key out.

The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cyl-
inder, turn it over and re-attempt to
insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(



P.482)

■

When required to leave the

vehicle’s key with a parking

attendant

Turn the trunk opener main switch

off (



P.135) and lock the glove box

(



P.358) as circumstances

demand.

Remove the mechanical key for

your own use and provide the atten-

dant with the electronic key only.

■

If you lose your mechanical

keys



P.481

■

If a wrong key is used

The key cylinder rotates freely, iso-

lated from the internal mechanism.

Using the mechanical key

127

4-2. Opening, closing and locking the doors and trunk

Before

driving

4-2.Opening, closing and locking the doors and trunk

■

Smart key system (entry
function)

Carry the electronic key to
enable this function.

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors. Grip
any passenger door handle
to unlock all the doors.

Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.

Touch the lock sensor (inden-
tation on the surface of the
door handle) to lock all the
doors.

Check that the door is securely
locked.

: The door unlock settings can be

changed.

■

Wireless remote control

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other door.
Press and hold to open the win-
dows.

: This setting must be customized

at your Toyota dealer.

■

Switching the door unlock func-

tion

It is possible to set which doors the

entry function unlocks using the

wireless remote control.

Turn the power switch off.

When the indicator light on the
key surface is not on, press and
hold

for

approximately 5 seconds while
pressing and holding

The setting changes each time an

operation is performed, as shown

below. (When changing the setting

continuously, release the buttons,

wait for at least 5 seconds, and

repeat step

Doors

Unlocking and locking the
doors from the outside

128

4-2. Opening, closing and locking the doors and trunk

To prevent unintended triggering of
the alarm, unlock the doors using
the wireless remote control and
open and close a door once after
the settings have been changed. (If
a door is not opened within 60 sec-
onds after

is pressed, the doors

will be locked again and the alarm
will automatically be set.)
In a case that the alarm is triggered,
immediately stop the alarm. (



P.71)

■

Impact detection door lock

release system

In the event that the vehicle is sub-

ject to a strong impact, all the doors

are unlocked. Depending on the

force of the impact or the type of

accident, however, the system may

not operate.

■

Operation signals

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked. (Locked: once;

Unlocked: twice)
A buzzer sounds to indicate that the

windows are operating.

■

Security feature

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked, the security fea-

ture automatically locks the vehicle

again.

■

When the doors cannot be

locked by the lock sensor on

the surface of the door handle

When the doors cannot be locked

even if the lock sensor on the sur-

face of the door handle is touched

by a finger, touch the lock sensor

with the palm.
If you are wearing gloves, remove

them.

■

Open door warning buzzer

If an attempt to lock the doors is

made when a door is not fully

closed, a buzzer sounds continu-

ously for 5 seconds. Fully close the

door to stop the buzzer, and lock the

vehicle once more.

■

Setting the alarm

Locking the doors will set the alarm

system. (



P.71)

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control



P.138

■

If the smart key system or the

wireless remote control does

not operate properly

Use the mechanical key to lock and

unlock the doors. (



P.483)

Multi-informa-

tion display/Beep

Unlocking func-

tion

Exterior: Beeps 3

times

Interior: Pings

once

Holding the
driver’s door
handle unlocks
only the driver’s
door.

Holding any of
the passenger
door handles
unlocks all the
doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding a door
handle unlocks
all the doors.

Toyota Mirai (2023 year). Manual in english - page 7
