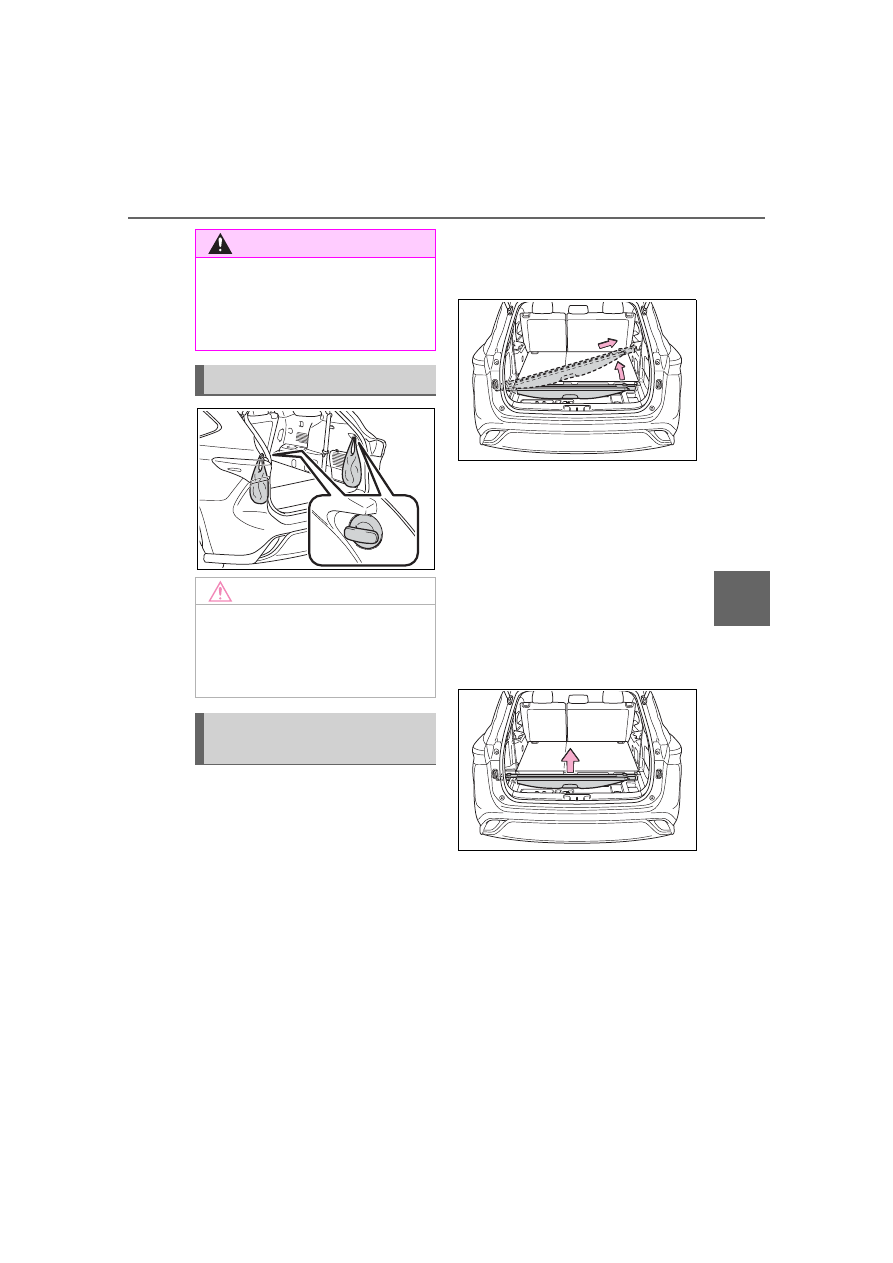

5-3. Using the storage features

5

Interior

 featur

es

■

Removing the luggage
cover unit (vehicles with-
out side deck board)

1

Fold down the third seats.
(



P.152)

2

Remove the center deck
board (



P.464) and take out

the luggage cover unit.

■

Removing the luggage
cover unit (vehicles with
side deck board)

1

Fold down the third seats.
(



P.152)

2

Remove the center deck
board (



P.464) and side

deck board (



P.354) and

take out the luggage cover
unit.

■

Installing the luggage cover

1

Fold down the third seats.
(



P.152)

WARNING

■

When the cargo net is not in

use

To avoid injury, always return the

hooks to their stowed positions

when not in use.

Grocery bag hooks

NOTICE

■

To prevent damage to the gro-

cery bag hooks

Do not hang any object heavier

than 6.6 lb. (3 kg) on the grocery

bag hooks.

Luggage cover (if
equipped)

352

5-3. Using the storage features

2

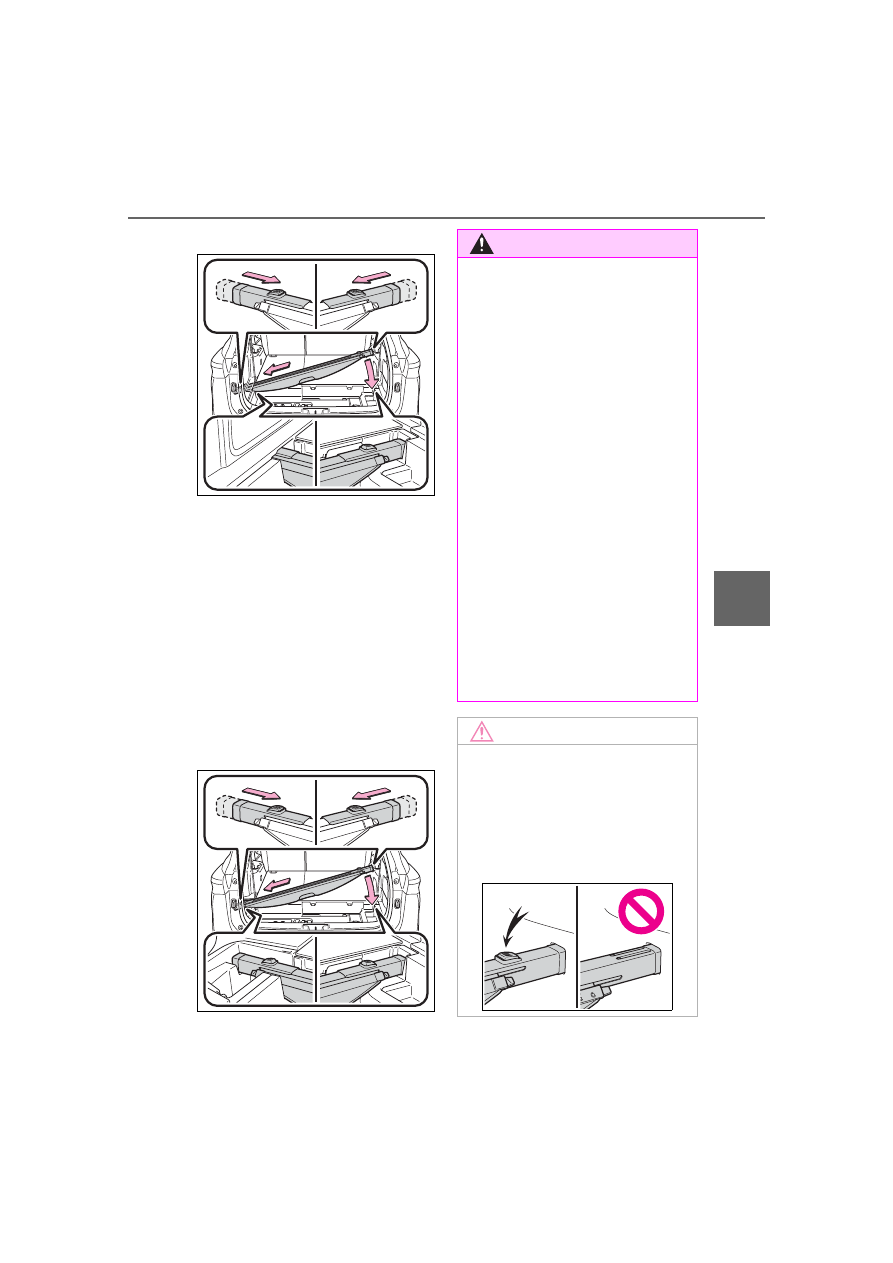

Press the lock release but-
tons to extend the ends of the
luggage cover unit.

3

To install the luggage cover
unit, with the lock release
buttons facing upward, insert
one end into the recess, then
compress the other end and
insert it into the other recess.

4

Pull out the luggage cover
and hook it onto the anchors.

■

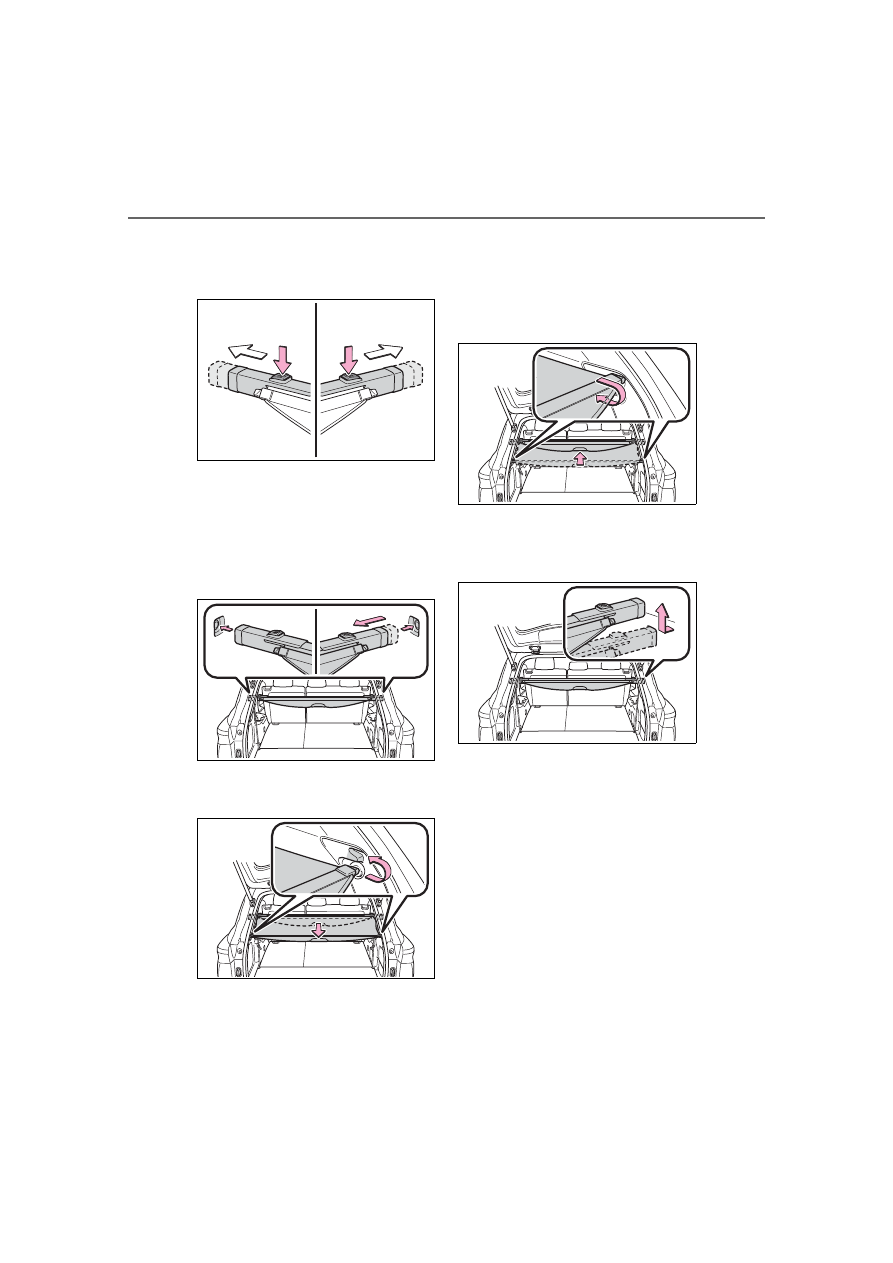

Removing the luggage
cover

1

Release the cover from the
left and right anchors and
allow it to retract.

2

Compress the end of the lug-
gage cover and lift the lug-
gage cover up.

■

Stowing the luggage cover
(vehicles without side deck
board)

1

Remove the center deck
board. (



P.464)

2

To store the luggage cover
unit, compress both ends
until they lock.

Store the unit with the lock release

buttons facing up and the cover

portion facing the rear of the vehi-

353

5-3. Using the storage features

5

Interior

 featur

es

cle.

■

Stowing the luggage cover
(vehicles with side deck
board)

1

Remove the center deck
board (



P.464) and the side

deck board. (



P.354)

2

To store the luggage cover
unit, compress both ends
until they lock.

Store the unit with the lock release

buttons facing up and the cover

portion facing the rear of the vehi-

cle.

WARNING

■

Luggage cover

●

When installing/stowing the lug-

gage cover, make sure that the

luggage cover is securely

installed/stowed. Failure to do

so may result in serious injury in

the event of sudden braking or a

collision.

●

Do not place anything on the

luggage cover. In the event of

sudden braking or turning, the

item may go flying and strike an

occupant. This could lead to an

unexpected accident, resulting

in death or serious injury.

●

Do not allow children to climb

on the luggage cover. Climbing

on the luggage cover could

result in damage to the luggage

cover, possibly causing death or

serious injury to the child.

●

Do not point the luggage cover

unit at your face or body, as

doing so may cause injuries if

the cover ends extend sud-

denly.

NOTICE

■

When using the luggage

cover

●

Do not put heavy items on the

luggage cover.

●

Install the cover unit in the cor-

rect direction so that the lock

release button faces upward.

354

5-3. Using the storage features



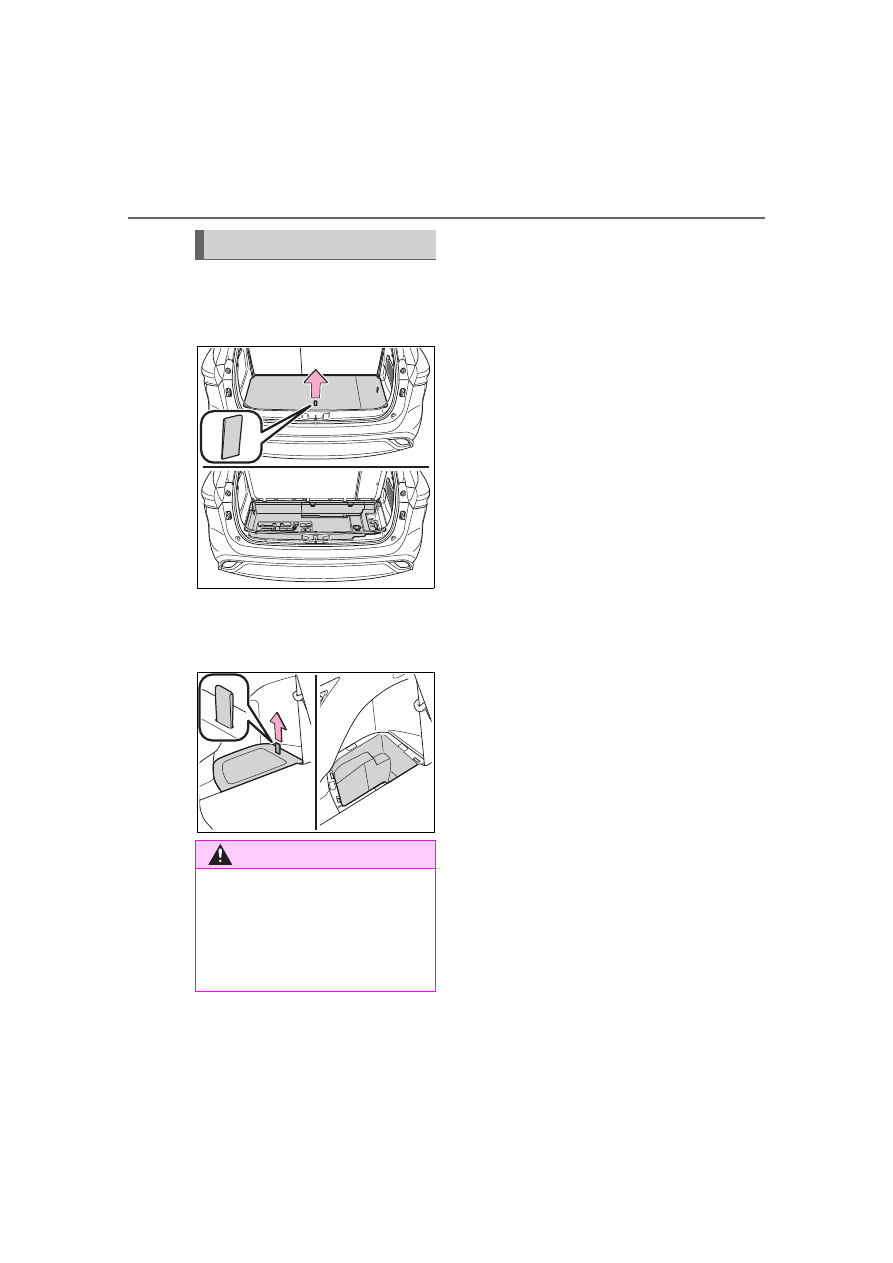

Center deck under tray

Pull the strap upwards to open
the center deck board.



Deck side box (if equipped)

Pull the strap upwards to open
the side deck board.

Auxiliary boxes

WARNING

■

Caution while driving

Keep the deck board closed. In

the event of sudden braking, an

accident may occur due to an

occupant being struck by the deck

board or the items stored under

the deck board.

355

5-4. Using the other interior features

5

Interior

 featur

es

5-4.Using the other interior features

The USB charging ports are
used to supply 3 A of electricity
at 5 V to external devices.
The USB charging ports are for
charging only. They are not
designed for data transfer or
other purposes.
Depending on the external
device, it may not charge prop-
erly. Refer to the manual
included with the device before
using a USB charging port.

■

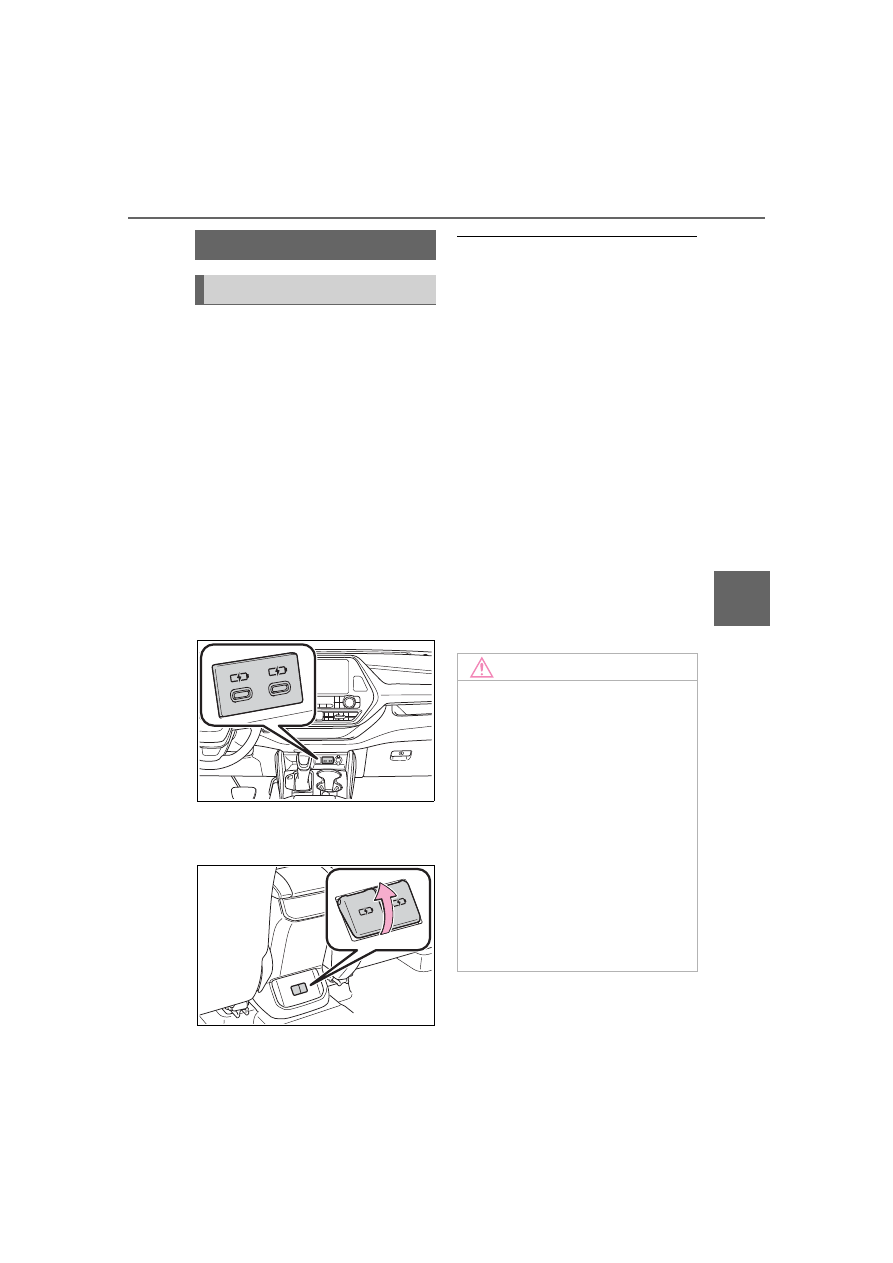

Using the USB charging
ports



On the instrument panel



Rear of console box

Open the lid.

■

The USB charging ports can be

used when

The power switch is in ACC or ON.

■

Situations in which the USB

charging ports may not operate

correctly

●

If a device which consumes more

than 3 A at 5 V is connected

●

If a device designed to communi-

cate with a personal computer,

such as a USB memory device, is

connected

●

If the connected external device is

turned off (depending on device)

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun

■

About connected external

devices

Depending on the connected exter-

nal device, charging may occasion-

ally be suspended and then start

again. This is not a malfunction.

Other interior features

USB charging ports

NOTICE

■

To prevent damage to the

USB charging ports

●

Do not insert foreign objects into

the ports.

●

Do not spill water or other liq-

uids into the ports.

●

When the USB charging ports

are not in use, close the lids. If a

foreign object or liquid enters a

port may cause a short circuit.

●

Do not apply excessive force to

or impact the USB charging

ports.

●

Do not disassemble or modify

the USB charging ports.

356

5-4. Using the other interior features

A portable device, such as a
smartphone or mobile battery,
can be charged by just placing it
on the charging area, provided
the device is compatible with the
Qi wireless charging standard
created by the Wireless Power
Consortium.
The wireless charger cannot be
used with a portable device that
is larger than the charging area.
Additionally, depending on the
portable device, the wireless
charger may not operate prop-
erly. Refer to the operation man-
ual of the portable device.

■

The “Qi” logo

The “Qi” logo is a trademark of
the Wireless Power Consortium.

■

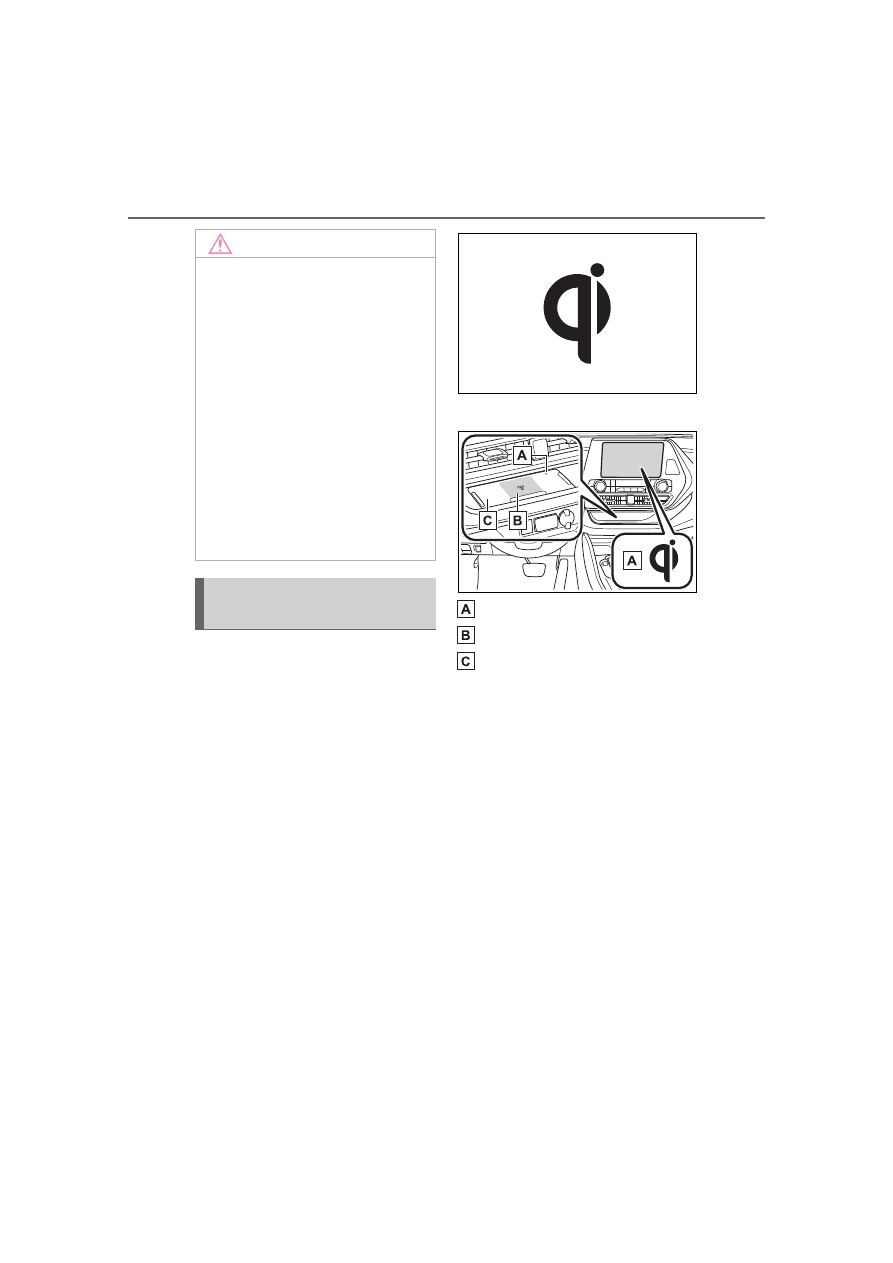

Name for all parts

Operation indicator light
Charge area
Charging tray

■

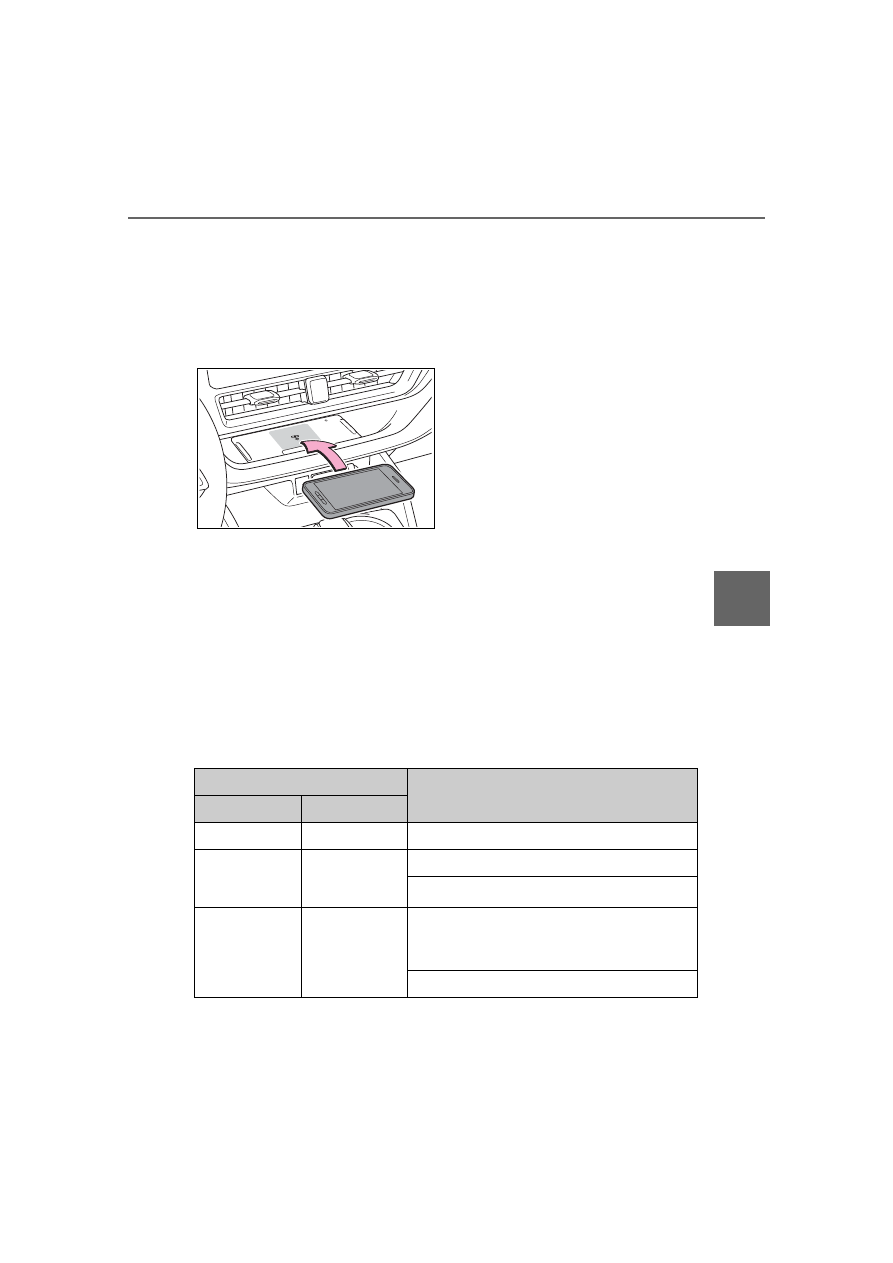

Using the wireless charger

Place a portable device on the
charging area with its charging
surface facing down. Depending
on the portable device, its
charging coil may not be in the
center of the device. In this
case, place the portable device
so that its charging coil is cen-
tered in the charging area.

While charging, the operation indi-
cator light (orange) will be illumi-
nated.
If charging does not begin, move
the portable device as close to the
center of the charging area as pos-
sible. If charging is not performed,
the operation indicator light will

NOTICE

■

To prevent damage to exter-

nal devices

●

Do not leave external devices in

the vehicle. The temperature

inside the vehicle may become

high, resulting in damage to an

external device.

●

Do not push down on or apply

unnecessary force to an exter-

nal device or the cable of an

external device while it is con-

nected.

■

To prevent 12-volt battery dis-

charge

Do not use the USB charging

ports for a long period of time with

the hybrid system stopped.

Wireless charger (if
equipped)

357

5-4. Using the other interior features

5

Interior

 featur

es

slowly illuminate in green and
orange alternatively and a sound of
charging coil operation may be
heard repeatedly.
When charging is complete, the
operation indicator light (green) will
illuminate.

■

Rapid charging function



The following portable
devices support rapid
charging.

• Portable devices compliant with

WPC Ver1.2.4 and compatible
with rapid charging

• iPhone’s with an iOS version that

supports 7.5 W charging (iPhone
8 and later models)



When a portable device that
supports rapid charging is
charged, charging automati-
cally switches to the rapid
charging function.

■

Recharging function



If a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the
wireless charger will restart
charging.



If a portable device is moved
significantly within the
charging area, the charging
coil may disconnect and
charging may temporarily be
stopped. However, if a
charging coil is detected
within the charging area, the
charging coil inside the wire-
less charger will move near
the other coil and charging
will resume.

■

Operation indicator light status

*

: Depending on the portable device, the operation indicator light may stay

illuminated (orange) after charging has completed.

Operation indicator light

State

Charging tray Center display

Off

Off

The wireless charger is off

Green (illumi-

nated)

Gray

Standby (charging is possible)

Charging is complete

*

Orange (illumi-

nated)

Blue

A portable device has been placed on the
charging area (identifying the portable
device)

Charging in progress

358

5-4. Using the other interior features

■

The wireless charger is not working properly.

The followings are situations in which the wireless charger does not
work properly and how to deal with the possible causes.

Operation indicator light

Suspected causes/Handling method

Charging tray Center display

Orange
(Flashing
repeatedly
once every
second)

Gray

Vehicle to wireless charger communica-
tion failure
→If the hybrid system is operating, stop
and then restart the hybrid system.

If the power switch is in ACC, start the
hybrid system.

Green (Flash-
ing repeatedly
once every
second)

Disappear

Wireless charger and multimedia sys-
tem communication failure
→If the hybrid system is operating, stop
and then restart the hybrid system.

If the power switch is in ACC, start the
hybrid system.

Green (illumi-
nates)

Blue

AM radio stations are being automati-
cally selected
→Wait until the system has completed
the automatic selection of AM radio sta-
tions. In the case that automatic selec-
tion cannot be completed, stop
automatic selection.

The smart key system is detecting the
key
→Please wait until the key detection is
complete.

359

5-4. Using the other interior features

5

Interior

 featur

es

■

The wireless charger can be

operated when

The power switch is in ACC or ON.

■

Portable devices that can be

charged

●

Portable devices compatible with

the Qi wireless charging standard

can be charged by the wireless

charger. However, compatibility

with all devices which meet the Qi

wireless charging standard is not

guaranteed.

●

The wireless charger is designed

to supply low power electricity (5

W or less) to a cellular phone,

smartphone, or other portable

device.

●

Failure to do so may result in the

possibility of fire, However, porta-

ble devices, such as the following,

can be charged with more than 5

W.

• 7.5 W charging compatible

iPhones can be charged at 7.5 W

or less.

• Portable devices which conform to

WPC Ver 1.2.4 (Extended Power

profile ) can be charged at 10 W or

less.

■

If a cover or accessory is

attached to the portable device

Do not charge a portable device if a

cover or accessory which is not Qi

compatible is attached. Depending

on the type of cover (including for

certain genuine manufacturer parts)

and/or accessory attached, it may

not be possible to charge the porta-

ble device. If the portable device is

placed on the charging area and

Orange
(Repeatedly
flashes 3 times
continuously)

Gray

Foreign substance detection:
A metallic foreign substance is in the
charge area, and so the abnormal heat-
ing prevention function of the charging
coil operated
→Remove the foreign substance from
the charge area.

Portable device misaligned:
→The charging coil in the portable
device moved outside of the charge
area, and so the abnormal heating pre-
vention function of the charging coil
operated

Orange
(Repeatedly
flashes 4 times
continuously)

Gray

Safety shutdown resulting when the
temperature within the wireless charger
exceeded the set value
→Stop charging, remove the portable
device from the charging tray, wait for
the temperature to drop, and then start
charging again.

Operation indicator light

Suspected causes/Handling method

Charging tray Center display

360

5-4. Using the other interior features

does not charge, remove the cover

and/or accessories.

■

AM radio cooperation function

during charging

●

When noise enters the AM radio

during charging, charging fre-

quency will be automatically

changed to reduce noise.

●

While the AM radio automatic tun-

ing, charging is temporarily

stopped in order to prevent tuning

error due to noise caused by

charging. When tuning is finished,

charging will be automatically

resumed.

■

Charging precautions

●

If the electronic key cannot be

detected in the cabin, charging

cannot be performed. When a

door is opened and closed,

charging may be temporarily sus-

pended.

●

While charging, the wireless char-

ger and the portable device will

become warm. This is not a mal-

function. If a portable device

becomes warm while charging

and charging stops due to the pro-

tection function of the portable

device, wait until the portable

device cools down and charge it

again.

The fan may start operating to

lower the temperature inside the

wireless charger, however this is

not a malfunction.

■

Sound generated during opera-

tion

When the power supply switch is

turned on or while a portable device

is being identified, operation sounds

may be heard. This is not a malfunc-

tion.

■

Cleaning the wireless charger



P.383

WARNING

■

Caution while driving

When charging a portable device,

for safety reasons, the driver

should not operate the main part

of the portable device while driv-

ing.

■

Caution while in motion

Do not charge lightweight devices

such as wireless headphones

while in motion. These devices

are very light and may be ejected

from the charging tray, which may

lead to unforeseen accidents.

■

Caution regarding interfer-

ence with electronic devices

People with implantable cardiac

pacemakers, cardiac resynchroni-

zation therapy pacemakers or

implantable cardioverter defibrilla-

tors, as well as any other electri-

cal medical device, should consult

their physician about the usage of

the wireless charger.

■

To prevent malfunctions or

burns

Observe the following precau-

tions.
Failure to do so may result in an

equipment failure and damage,

catch fire, burns due to overheat

or electric shock.

●

Do not insert any metallic

objects between the charging

area and the portable device

while charging.

●

Do not attach an aluminum

sticker or other metallic objects

to the charge area.

●

Do not attach an aluminum

sticker or other metallic objects

to the side of the portable

device (or to its case or cover)

that touches the charge area.

361

5-4. Using the other interior features

5

Interior

 featur

es

WARNING

●

Do not use the charging tray as

a small storage space.

●

Do not subject to a strong force

or impact.

●

Do not disassemble, modify or

remove the wireless charger.

●

Do not charge devices other

than specified portable devices.

●

Keep away from magnetic

items.

●

Do not charge devices if the

charge area is covered in dust.

●

Do not cover with a cloth or sim-

ilar material.

NOTICE

■

Situations in which the func-

tion may not operate normally

Devices may not be charged nor-

mally in the following situations.

●

The portable device is fully

charged

●

The portable device is being

charged with a cable connected

●

There is foreign matter between

the charge area and portable

device

●

Charging has caused the porta-

ble device to heat up

●

The temperature around the

charging tray is 95°F (35°C) or

higher, such as in extreme heat

●

The portable device is placed

with its charging side facing up

●

The portable device is placed in

an area misaligned from the

charge area

●

The portable device is larger

than the charging tray

●

A foldable and portable device

is placed outside the charge

area

●

The camera lens protrudes 0.12

in. (3 mm) or more from the sur-

face of the portal device

●

The vehicle is in an area where

strong electrical waves or noise

are emitted, such as near a tele-

vision tower, power plant, gaso-

line station, broadcasting

station, large display, airport,

etc.

●

Any of the following objects that

is protrudes 0.08 in. (2 mm) or

thicker is stuck or installed

between the charging side of

the portable device and the

charge area.

• Thick cases or covers

• A case or cover attached with

an uneven or tilted surface, so

that the charging side is not flat

• Thick decorations

• Accessories, such as finger-

rings, straps, etc.

●

When the portable device is in

contact with, or is covered by

any of the following metallic

objects:

• A card that has metal on it, such

as aluminum foil, etc.

• A pack of cigarettes that

includes aluminum foil

• A wallet or bag that is made of

metal

• Coins

• A heating pad

• CDs, DVDs or other media

362

5-4. Using the other interior features



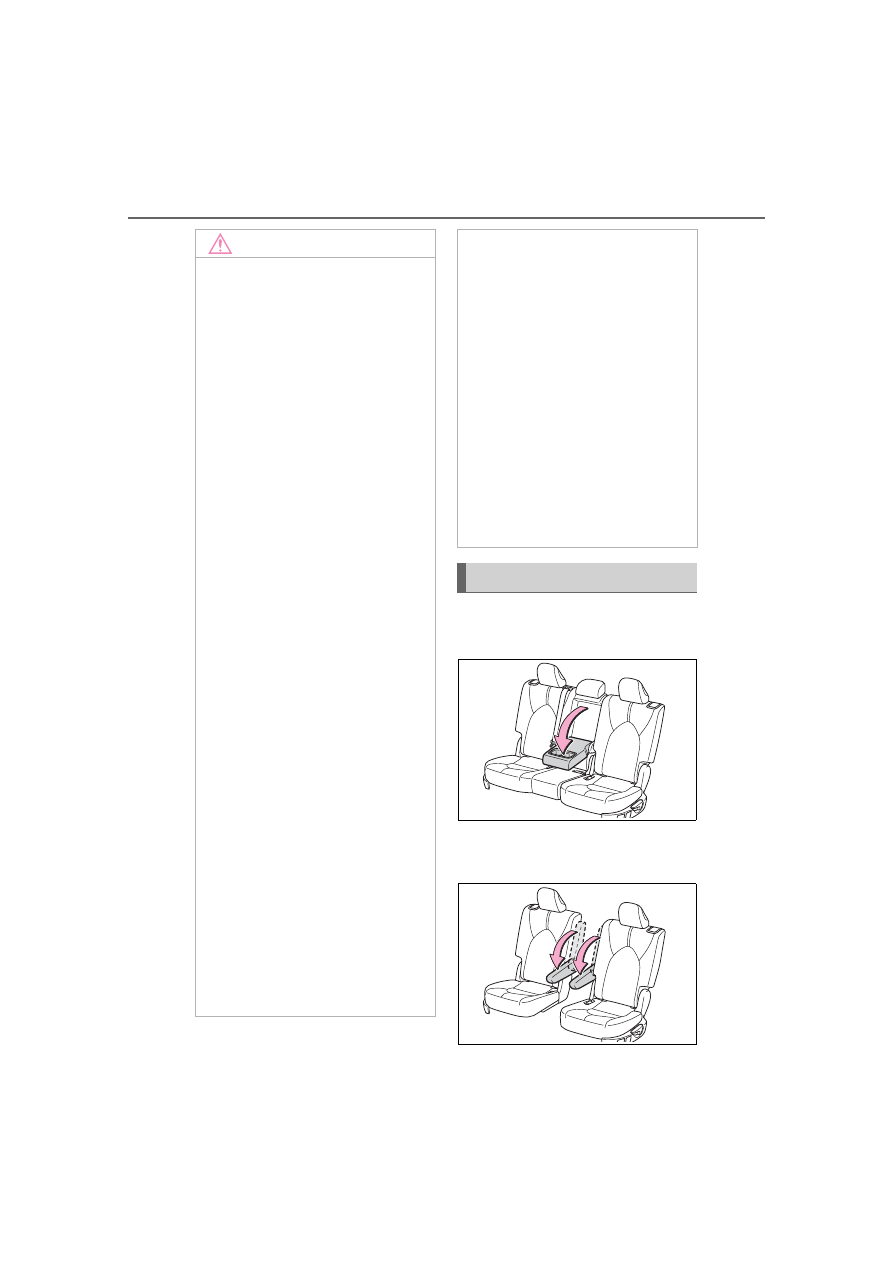

Second seats (8-seat models)

Pull the armrest down for use.



Second seats (7-seat models)

Pull the armrest down for use.

NOTICE

• A metal accessory

• A case or cover made of metal

• A case which has magnet in it

on the charging side of the por-

table device

●

Electric wave type wireless

remote controls are being used

nearby

●

The electronic key is not inside

the vehicle

●

2 or more portable devices are

placed on the charging tray at

the same time

If charging is abnormal or the

operation indicator light contin-

ues to flash for any other reason,

the wireless charger may be mal-

functioning. Contact your Toyota

dealer.

■

To prevent malfunctions and

data corruptions

●

When charging, bringing a

credit, or other magnetic card,

or magnetic storage media

close to the charge area may

clear any stored data due to

magnetic influence. Also, do not

bring a wristwatch or other pre-

cision instrument close to the

charge area since doing so may

cause it to malfunction.

●

Do not charge with a non-con-

tact IC card such as a transpor-

tation system IC card inserted

between the charging side of a

portable device and the charge

area. The IC chip may become

extremely hot and damage the

portable device or IC card. Be

especially careful not to charge

a portable device inside a case

or cover with a non-contact IC

card attached.

●

Do not leave portable devices

inside the vehicle. The inside of

the vehicle can become hot in

extreme heat, which could

cause a malfunction.

■

If the smartphone OS has

been updated

If the smartphone OS has been

updated to a newer version, its

charging specifications may have

changed significantly.

For details, check the information

on the manufacturer’s website.

■

To prevent 12-volt battery dis-

charge

Do not use the wireless charger

for a long period of time with the

hybrid system is stopped.

Armrest

363

5-4. Using the other interior features

5

Interior

 featur

es

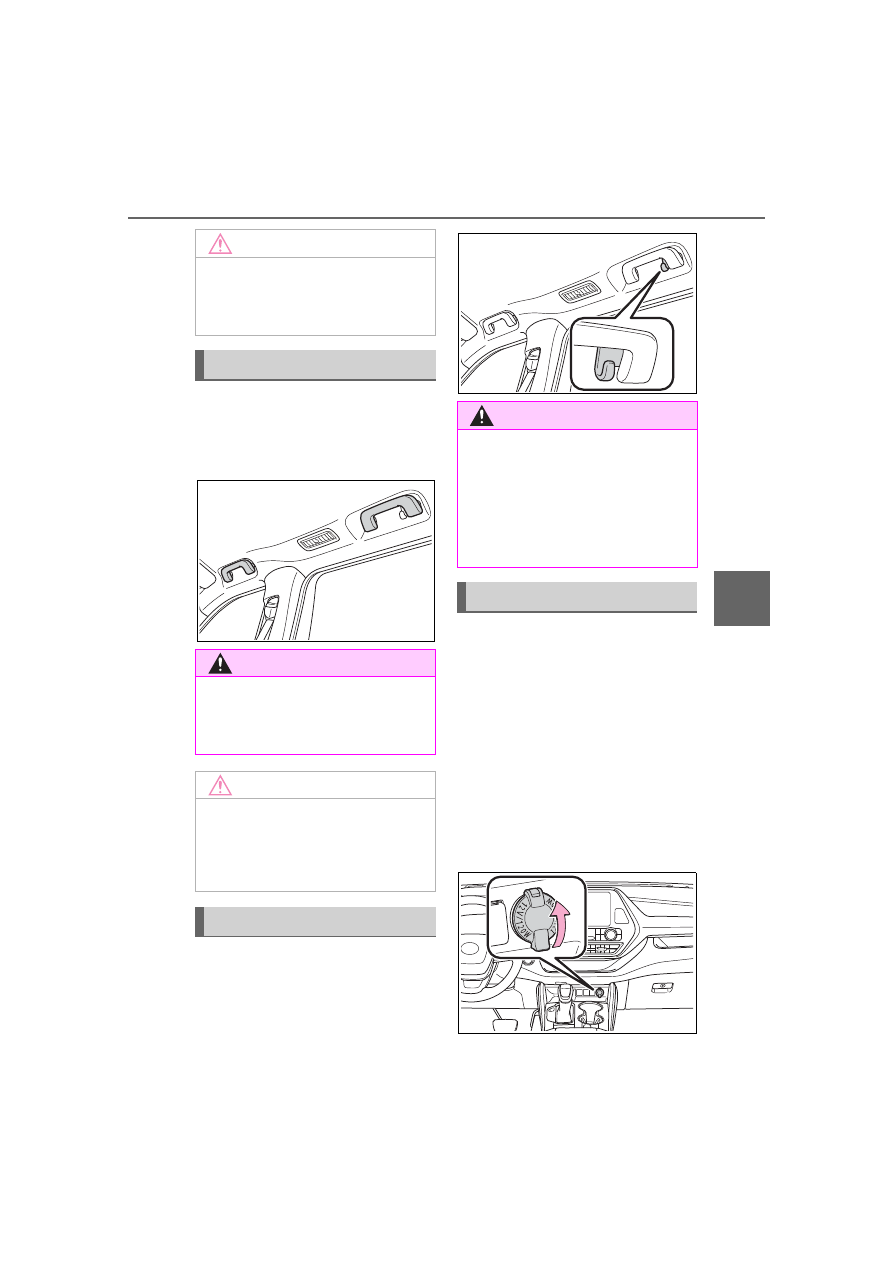

An assist grip installed on the
ceiling can be used to support
your body while sitting on the
seat.

The coat hooks are provided
with the rear assist grips.

Please use as a power supply
for electronic goods that use
less than 12 VDC/10 A (power
consumption of 120 W).
When using electronic goods,
make sure that the power con-
sumption of all the connected
power outlets is less than 120
W.



On the instrument panel

Open the lid.

NOTICE

■

To prevent damage to the

armrest

Do not apply too much load on the

armrest.

Assist grips

WARNING

■

Assist grip

Do not use the assist grip when

getting in or out of the vehicle or

rising from your seat.

NOTICE

■

To prevent damage to the

assist grip

Do not hang any heavy object or

put a heavy load on the assist

grip.

Coat hooks

WARNING

■

Items that must not be hung

on the hook

Do not hang coat hangers or

other hard or sharp objects on the

hook. If the SRS curtain shield air-

bags deploy, these items may

become projectiles, causing death

or serious injury.

Power outlets (12 VDC)

364

5-4. Using the other interior features



Inside the console box

Open the lid.

■

The power outlet can be used

when

The power switch is in ACC or ON.

■

When stopping the hybrid sys-

tem

Disconnect electrical devices with

charging functions, such as mobile

battery packs.

If such devices are left connected,

the hybrid system may not stop nor-

mally.

Please use as a power supply
for electronic devices that use
less than 120 VAC (power con-

sumption of 1500 W).

■

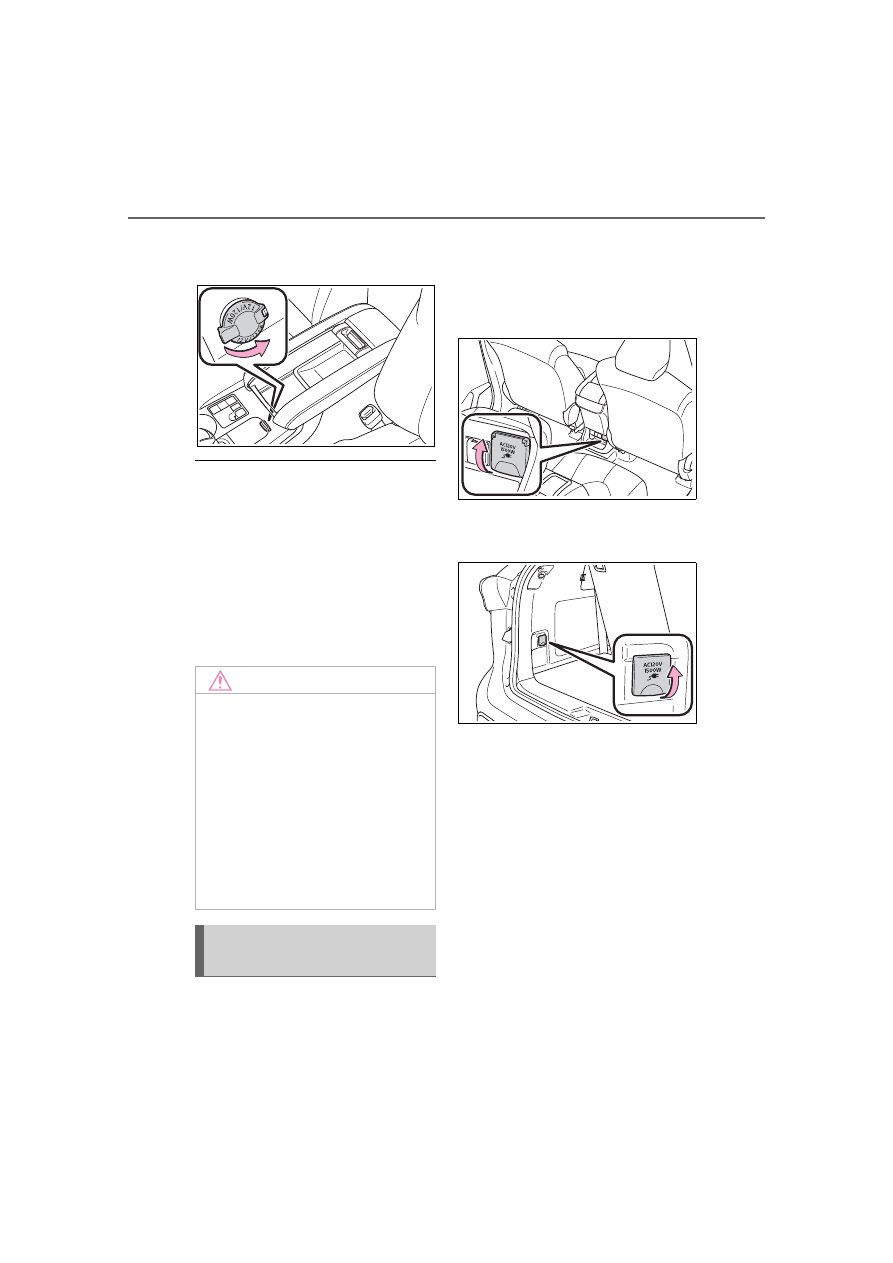

Using the power outlets



On the console box

Open the lid.



In the luggage compartment

Open the lid.

■

When turning the power
outlets on

1

Check that the parking brake
is engaged, securely depress
the brake pedal and press
the power switch.

2

Check that the READY indi-
cator is illuminated, and
press the “AC120V” switch.

The power outlets can be used

when the indicator on the “AC120V”

switch is illuminated.
The power outlets are turned off/on

each time the “AC120V” switch is

NOTICE

■

To avoid damaging the power

outlet

Close the power outlet lid when

the power outlet is not in use.

Foreign objects or liquids that

enter the power outlet may cause

a short circuit.

■

To prevent 12-volt battery dis-

charge

Do not use the power outlet lon-

ger than necessary when the

hybrid system is off.

Power outlets (120 VAC)
(if equipped)

365

5-4. Using the other interior features

5

Interior

 featur

es

pressed.

■

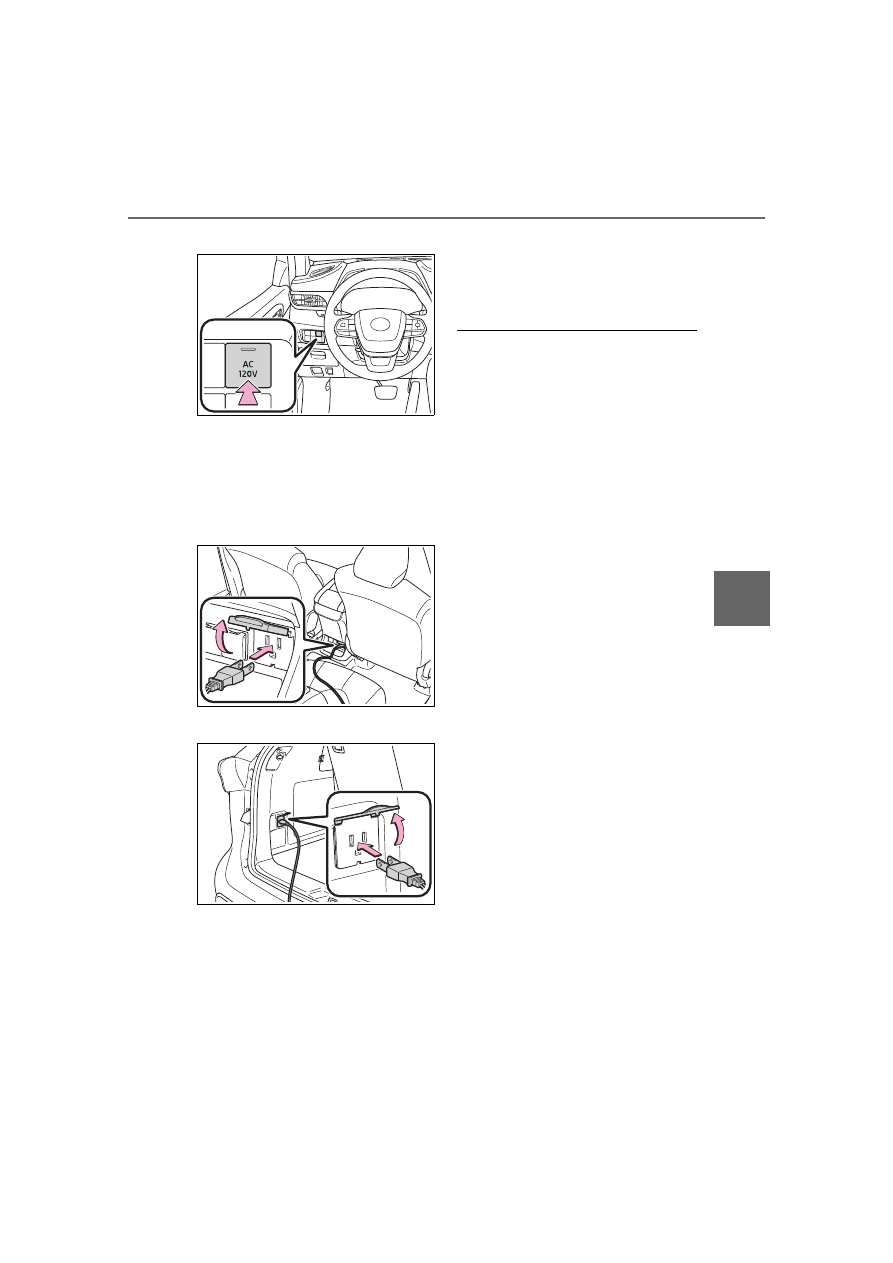

When connecting a device

Open the lid, and fully and
securely insert the plug of the
device into the power outlet.



Rear of console box



Luggage compartment

■

When turning the power
outlets off

1

Turn the connected devices
off.

2

Press the “AC120V” switch to
turn the power outlets off.

3

Disconnect each plug from
the power outlets.

4

Close the lid of each power
outlet.

■

The power outlet can be used

when

The READY indicator is illuminated.

■

Rules/regulations regarding

idling stop

The engine will start automatically to

charge the hybrid battery (traction

battery) if its charge becomes low.

In some municipalities, if the engine

starts while the vehicle is parked or

stopped, it may violate local rules or

regulations regarding idling stop and

you may be penalized. Make sure to

check the local rules and regula-

tions before using the power outlets

while the vehicle is parked or

stopped.

■

Power outlets

●

When connecting a device, make

sure that the total power con-

sumption of all devices connected

to the 120 VAC power outlets is

less than 1500 W. If a device is

connected and the power con-

sumption is exceeded, a protec-

tion circuit will cut the power

supply and the power outlets will

not be able to be used.

●

Depending on the device to be

used, the current flow may be high

and the initial peak wattage may

exceed 1500 W.

In this case, the protection circuit

may operate, and the power out-

lets may not be able to be used.

●

Depending on the connected

device, it may cause interference

with TV and radio broadcasts.

●

The voltage of the power outlets

cannot be measured with a com-

mercially available electrical tes-

ter. If it is necessary to check the

voltage, have the vehicle

366

5-4. Using the other interior features

inspected by your Toyota dealer.

●

While a power outlet is being

used, a cooling fan sound may be

heard from near a rear seat. This

does not indicate a malfunction.

■

Devices which may not operate

correctly

The following 120 VAC devices may

not operate properly even if their

power consumption is less than

1500 W:

●

Devices with high initial peak watt-

age

●

Measuring devices that process

precise data

●

Devices that require an extremely

stable power supply

●

Devices that require a constant

power supply from the power out-

let, such as a device with a timer.

■

When the 120 VAC power out-

lets cannot be used

If the “AC120V” switch is pressed

but the switch indicator does not illu-

minate, the protection circuit may

have operated.
In this case, perform the appropriate

procedures as follows.

●

Disconnect the plug of each

device from the power outlets,

check that the total power con-

sumption of all devices to be con-

nected to the power outlets is less

than 1500 W, reconnect the

devices and then press the

“AC120V” switch again.

●

Disconnect the plug of each

device from the power outlets,

check that the devices are not

malfunctioning, reconnect the

devices and then press the

“AC120V” switch again.

●

Check the charge of the hybrid

battery (traction battery) (



P.119).

If the charge is low, shift the shift

lever to P, allow the engine to run

to charge the hybrid battery (trac-

tion battery), and then press the

“AC120V” switch again.

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun,

use the air conditioning system to

sufficiently ventilate or cool the

interior, and then press the

“AC120V” switch again.

●

If the vehicle has been stopped in

a cold area, to protect the hybrid

battery (traction battery), the

power outlets may not be able to

be used. In this case, drive the

vehicle for a while to warm up the

hybrid battery (traction battery),

and then press the “AC120V”

switch again.

If the power outlets cannot be used

even after performing the appropri-

ate procedures above, have the

vehicle inspected by your Toyota

dealer.

WARNING

■

For safe use

Observe the following precau-

tions.

Failure to do so may lead to an

accident, resulting in death or

serious injury.

●

Do not use devices such as the

following when driving:

• Devices which cannot be prop-

erly secured within the vehicle.

• Devices which may distract the

driver and be a hindrance to

safe driving, such as a TV, DVD

player, etc.

• Unsecured devices which gen-

erate heat, such as a toaster,

microwave, electric heater, elec-

tric kettle, coffee maker, etc., as

they may cause burns or a fire

in the case of sudden braking or

an accident.
