322

5-1. Using the air conditioning system and defogger

5-1.Using the air conditioning system and defogger

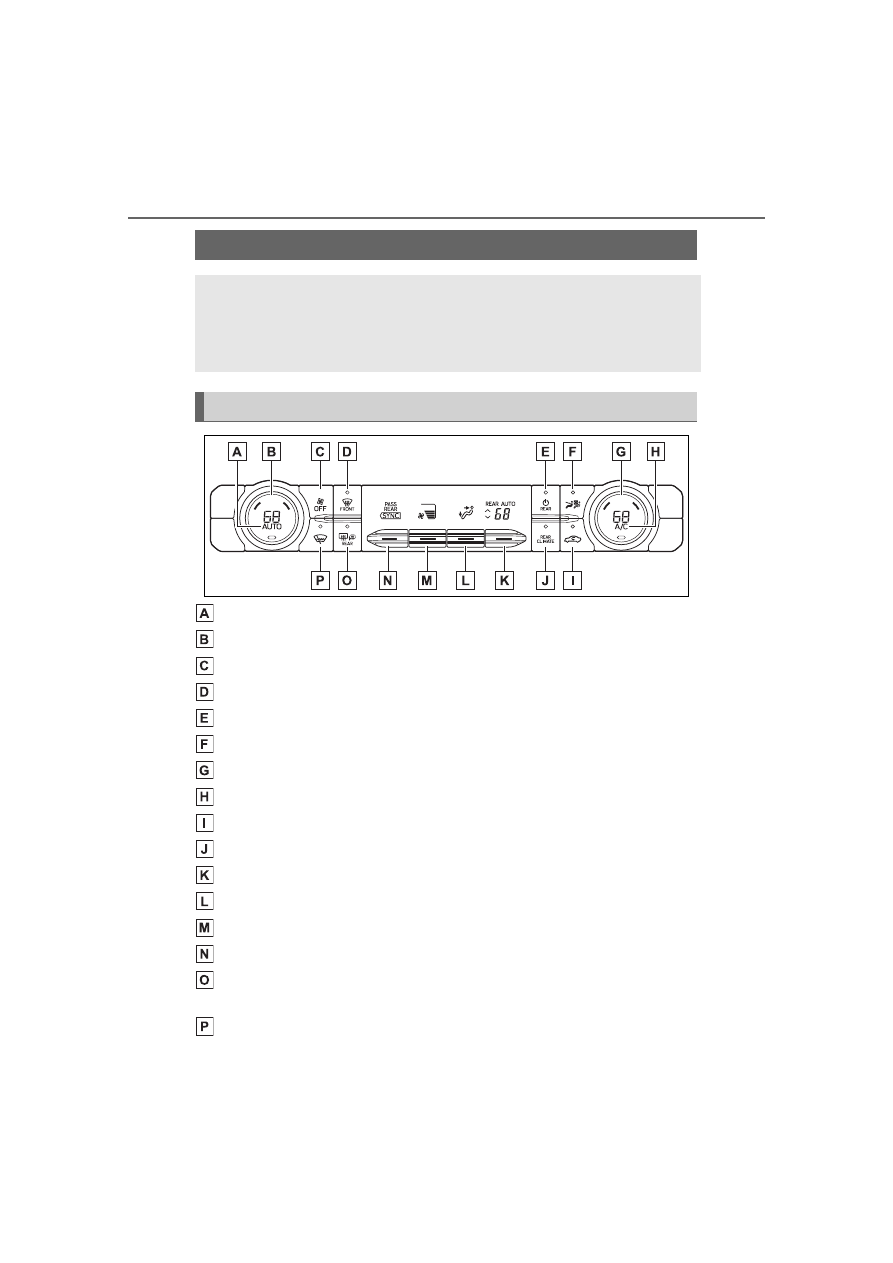

Automatic mode switch (



Left-hand side temperature control switch
“OFF” switch
Windshield defogger switch
Rear air conditioning system on/off switch (



P.332)

S-FLOW mode switch (



P.328)

Right-hand side temperature control switch
“A/C” switch
Outside/recirculated air mode switch
“REAR CLIMATE” switch (



P.332)

Rear seat temperature control knob (



P.332)

Airflow mode control knob
Fan speed control knob
“SYNC” control knob
Rear window defogger and outside rear view mirror defoggers
switch
Windshield wiper de-icer switch

Front automatic air conditioning system

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.

The air conditioning system can be displayed and operated on
the audio system screen.

Air conditioning controls

323

5-1. Using the air conditioning system and defogger

Interior

featur

■

Adjusting the temperature
setting

Turn driver’s side temperature
control switch clockwise to
increases the temperature and
turn the switch counterclockwise
to decreases the temperature.

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.

The temperature for the driver,
front passenger and rear seats
can be adjusted separately
when:



“SYNC” control knob is
moved upward or downward.
(The “PASS” and “REAR” dis-
plays disappear)



The passenger’s side tem-
perature control switch is
turned. (The “PASS” display
disappears)



The rear seat temperature
control knob is moved upward
or downward. (The “REAR”
display disappears)

To switch the air conditioning sys-
tem between individual and simul-
taneous modes, move “SYNC”
control knob upward or downward.

■

Setting the fan speed

To set the fan speed, move the
fan speed control knob upward
or downward.

Upward: Increases the fan speed
Downward: Decreases the fan
speed
Pressing the “OFF” switch turns off

the fan.

■

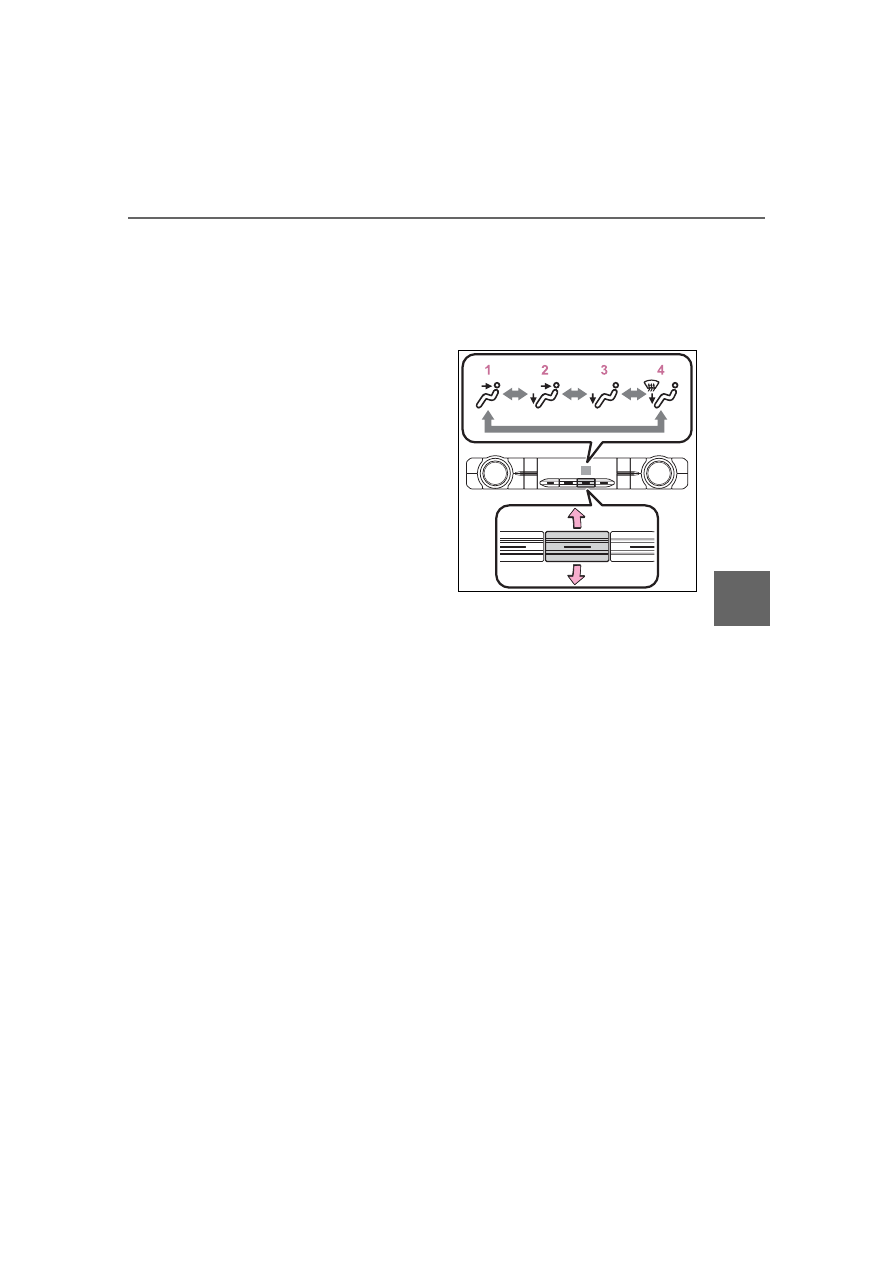

Change the airflow mode

To change the airflow mode,
move the airflow mode control
knob upward or downward.

Upper body

Upper body and feet

Feet

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.

The mode switches between out-
side air mode and recirculated air
mode each time the switch is oper-
ated.
When recirculated air mode is
selected, the indicator illuminates
on the outside/recirculated air
mode switch.

324

5-1. Using the air conditioning system and defogger

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Defogging the windshield

Defoggers are used to defog the
windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window and to remove rain-
drops, dew and frost from the
outside rear view mirrors.
Press the rear window defogger
and outside rear view mirror
defoggers switch.

When the rear window defogger
and outside rear view mirror defog-

gers switch is on, the indicator illu-
minates on the rear window
defogger and outside rear view mir-
ror defoggers switch.
The defoggers will automatically
turn off after a while.

■

Windshield wiper de-icer

This feature is used to prevent
ice from building up on the wind-
shield and wiper blades.
Press the windshield wiper
de-icer switch.

When the windshield wiper de-icer
switch is on, the indicator illumi-
nates on the windshield wiper
de-icer switch.
The windshield wiper de-icer will
automatically turn off after a period
of time.

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally. This may also reduce fuel

consumption.

●

Recirculated air mode is selected

as a default mode when the

engine switch is turned to ON.

●

It is possible to switch to outside

air mode at any time by pressing

the outside air mode switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” on will dehu-

midify the air from the outlets and

defog the windshield effectively.

●

If you turn “A/C” off, the windows

may fog up more easily.

●

The windows may fog up if the

325

5-1. Using the air conditioning system and defogger

Interior

featur

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Engine speed and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Adjust the fan speed

• Turn off Eco drive mode (



P.300)

■

When the outside temperature

is low

The dehumidification function may

not operate even when the “A/C”

switch is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

• It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

• The start timing of the blower may

be delayed for a short period of

time immediately after the air con-

ditioning system is started in auto-

matic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning system opera-

tions when the engine is

stopped due to the Stop & Start

system (vehicles with Stop &

Start system)

When the engine is stopped due to

Stop & Start system operations, the

automatic air conditioning cooling,

heating and dehumidification func-

tions turn off and the fan speed is

decreased according to the outside

temperature etc. or air blowing

stops. To stop the air conditioning

system from turning off, press the

Stop & Start cancel switch and

refrain from using the Stop & Start

system.

■

When the windshield is fogged

up and the engine is stopped

due to the Stop & Start system

(vehicles with Stop & Start sys-

tem)

Press the windshield defogger

switch to restart the engine and

defog the windshield.
If the windshield continuously fogs

up, press the Stop & Start cancel

switch and refrain from using the

Stop & Start system.

326

5-1. Using the air conditioning system and defogger

■

When an odor comes from the

air conditioning system while

the engine is stopped due to the

Stop & Start system (vehicles

with Stop & Start system)

Press the Stop & Start cancel switch

to restart the engine.

■

Air conditioning filter



P.408

■

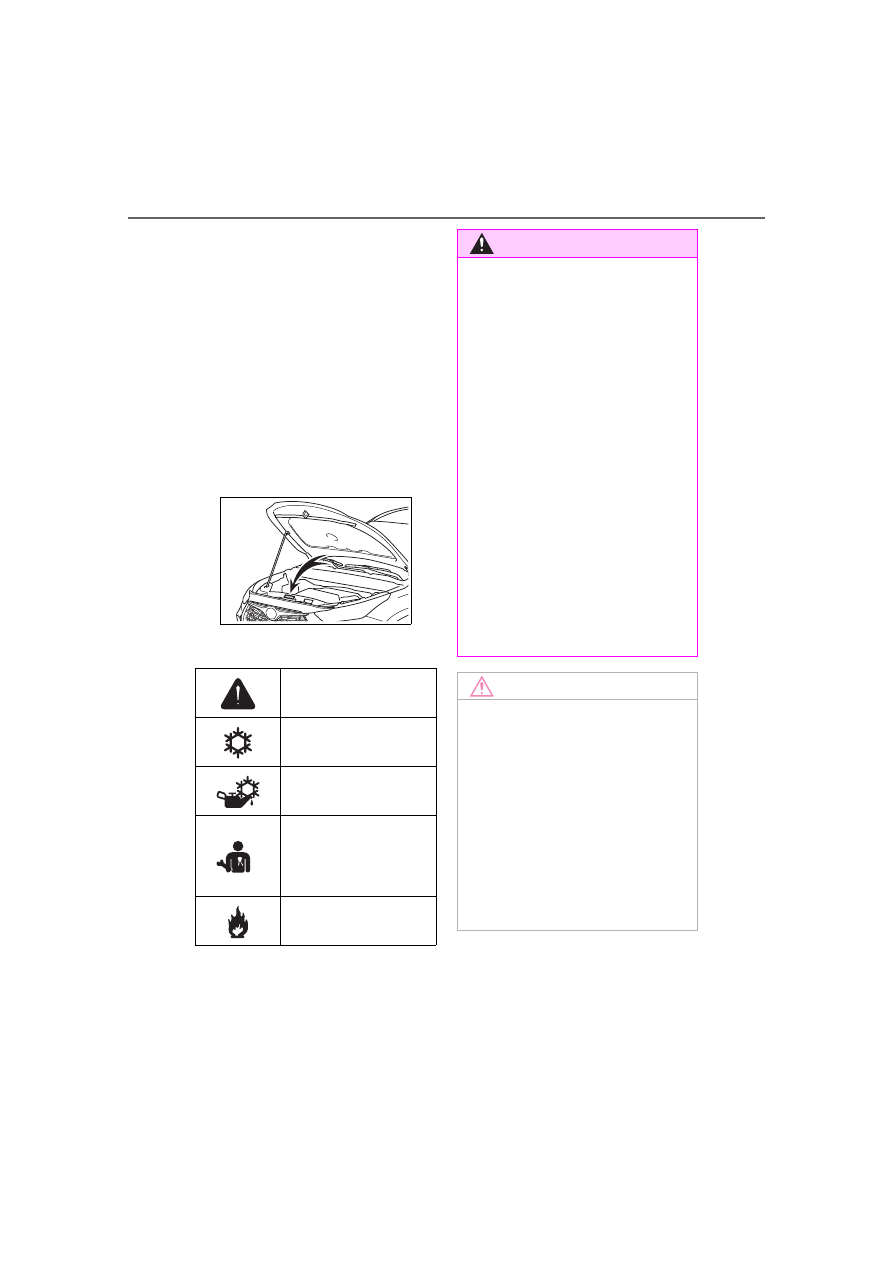

Air conditioning system refrig-

erant

●

A label regarding the refrigerant of

the air conditioning system is

attached to the location shown in

the following illustration.

●

The meaning of each symbol on

the label are as follows:

■

Customization

Some functions can be customized.

(



P.494)

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

■

When the windshield wiper

de-icer is operating

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper de-icer is on.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning

system on longer than necessary

when the engine is off.

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air conditioning

system, such as the evaporator, is

to be replaced, it must be

replaced with a new one.

327

5-1. Using the air conditioning system and defogger

Interior

featur

■

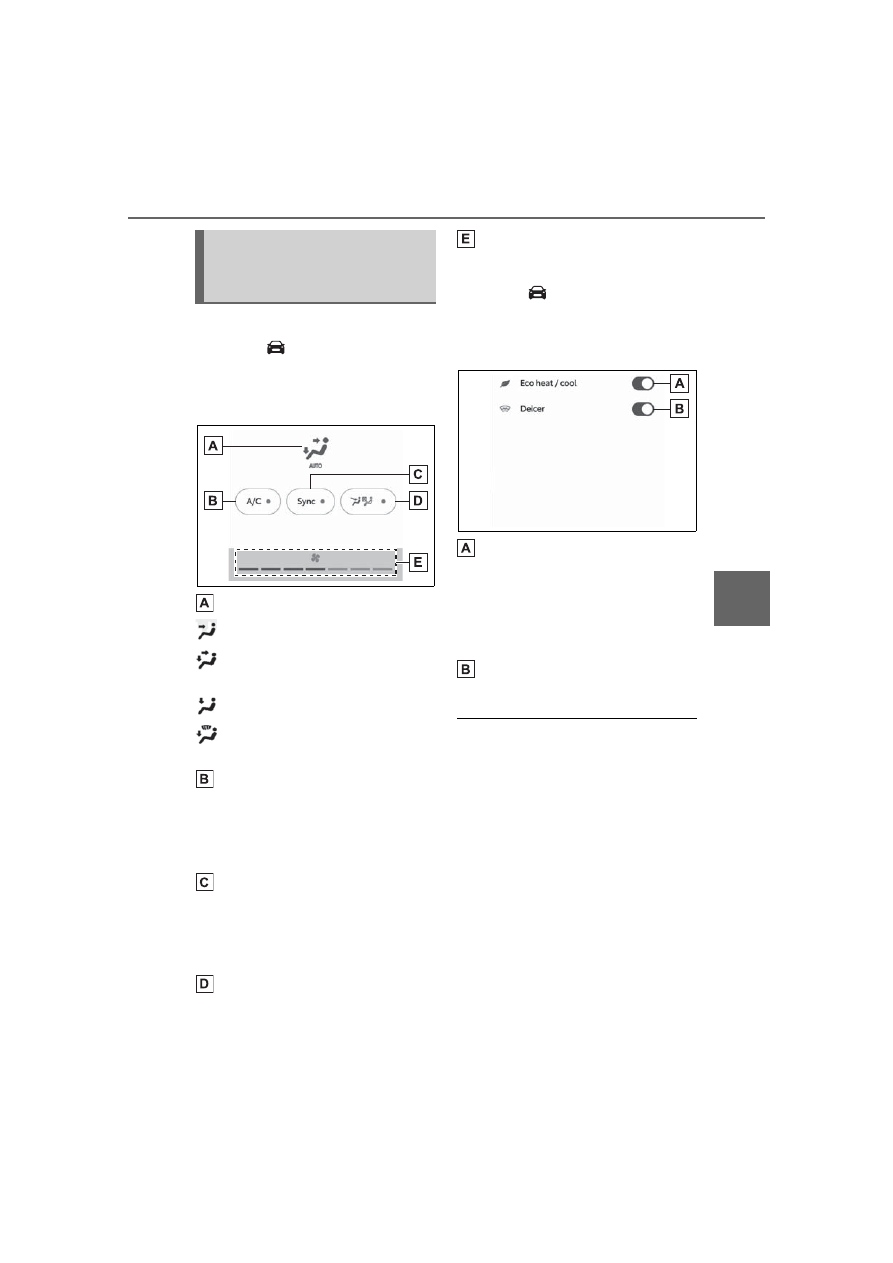

Main screen

Touch

on the main menu.

Select "Climate".

Select "Front".

Select the air flow mode

: Air flows to the upper body

: Air flows to the upper body and

feet

: Air flows to the feet

: Air flows to the feet and the

windshield defogger operates

Set cooling and dehumidifi-
cation function

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.

“Sync” switch

If the indicator on the “Sync” switch
is off, the temperature for the driver,
passenger and rear seats can be
adjusted separately.

Select front seat concen-
trated airflow mode
(S-FLOW) (



P.328)

Adjust the fan speed setting

■

Option screen

Touch

on the main menu.

Select "Climate".

Select "Options".

Set eco air conditioning
mode on/off. (



P.300)

The air conditioning is controlled
with low fuel consumption priori-
tized such as reducing fan speed,
etc.

Set windshield wiper de-icer
on/off. (



P.324)

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

In order to reduce the air condition-

ing power consumption, the air con-

ditioning system may switch to

recirculated air mode automatically.

This may also reduce fuel consump-

tion.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” on will dehu-

midify the air from the outlets and

defog the windshield effectively.

●

If you turn “A/C” off, the windows

may fog up more easily.

Front air conditioning
control screen (audio sys-
tem screen)

328

5-1. Using the air conditioning system and defogger

■

Eco air conditioning mode

When Eco drive mode is selected

using the driving mode select

switch, eco air conditioning mode

turns on.
When a drive mode other than Eco

drive mode is selected, eco air con-

ditioning mode may turn off.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Engine speed and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Adjust the fan speed

• Turn off Eco drive mode (



P.300)

• Turn off Eco air conditioning mode

●

When the driving mode is set to

Eco driving mode, the air condi-

tioning eco mode will be turned on

automatically. Even in this case,

the air conditioning eco mode can

be turned off by pressing the Eco

air conditioning mode switch.

■

When the outside temperature

is low

The dehumidification function may

not operate even when “A/C” is

pressed.

Press the automatic mode
switch.

The dehumidification function

begins to operate. Air outlets and

fan speed are automatically

adjusted according to the tempera-

ture setting and humidity.

Adjust the temperature set-
ting.

To stop the operation, press
the “OFF” switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

This function automatically con-
trols the air conditioning airflow
so that priority is given to the
front seats. Unnecessary air
conditioning is suppressed, con-
tributing to increased fuel effi-
ciency.
Front seat concentrated airflow
mode operates in the following
situations.



No passengers are detected
in the rear seats



The windshield defogger is
not operating

While operating, the indicator illumi-
nates on the S-FLOW mode switch.

Using automatic mode

Front seat concentrated
airflow mode (S-FLOW)

329

5-1. Using the air conditioning system and defogger

Interior

featur

■

Manually turning front seat
concentrated airflow mode
on/off

In front seat concentrated air-
flow mode, directing airflow to
the front seats only and to all
seats can be switched via switch
operation. When the mode has
been switched manually, auto-
matic airflow control stops oper-
ating.

Select

on the main con-

trol screen or press the S-FLOW
mode switch on the air condi-
tioning operation panel and
switch the airflow.



Indicator illuminated: Airflow
to the front seats only



Indicator off: Airflow to all the
seats

■

Operation of automatic airflow

control

●

In order to maintain a comfortable

interior, airflow may be directed to

seats without passengers immedi-

ately after the engine is started

and at other times depending on

the outside temperature.

●

After the engine is started, if pas-

sengers move around inside or

enter/exit the vehicle, the system

cannot accurately detect the pres-

ence of passengers and automatic

airflow control will not operate.

■

Operation of manual airflow

control

Even if the function is manually

switched to directing airflow to only

the front seats, when a rear seat is

occupied, it may automatically direct

airflow to all seats.

■

To return to automatic airflow

control

With the indicator off, turn the

engine switch off.

After 60 minutes or more elapse,

turn the engine switch to ON.

■

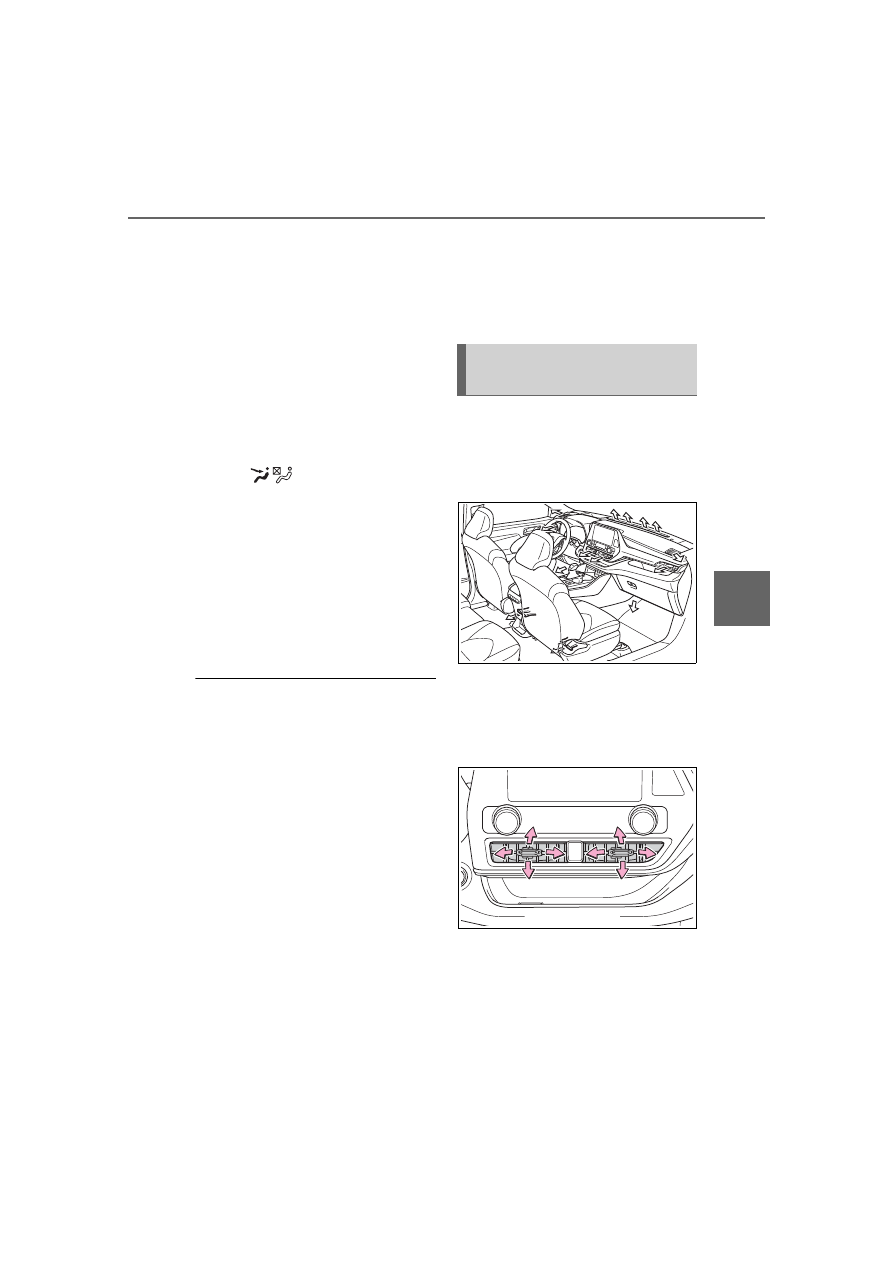

Location of air outlets

The air outlets and air volume
change according to the
selected air flow mode.

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front center outlets

Direct air flow to the left or right, up
or down

Air outlet layout and oper-
ations

330

5-1. Using the air conditioning system and defogger



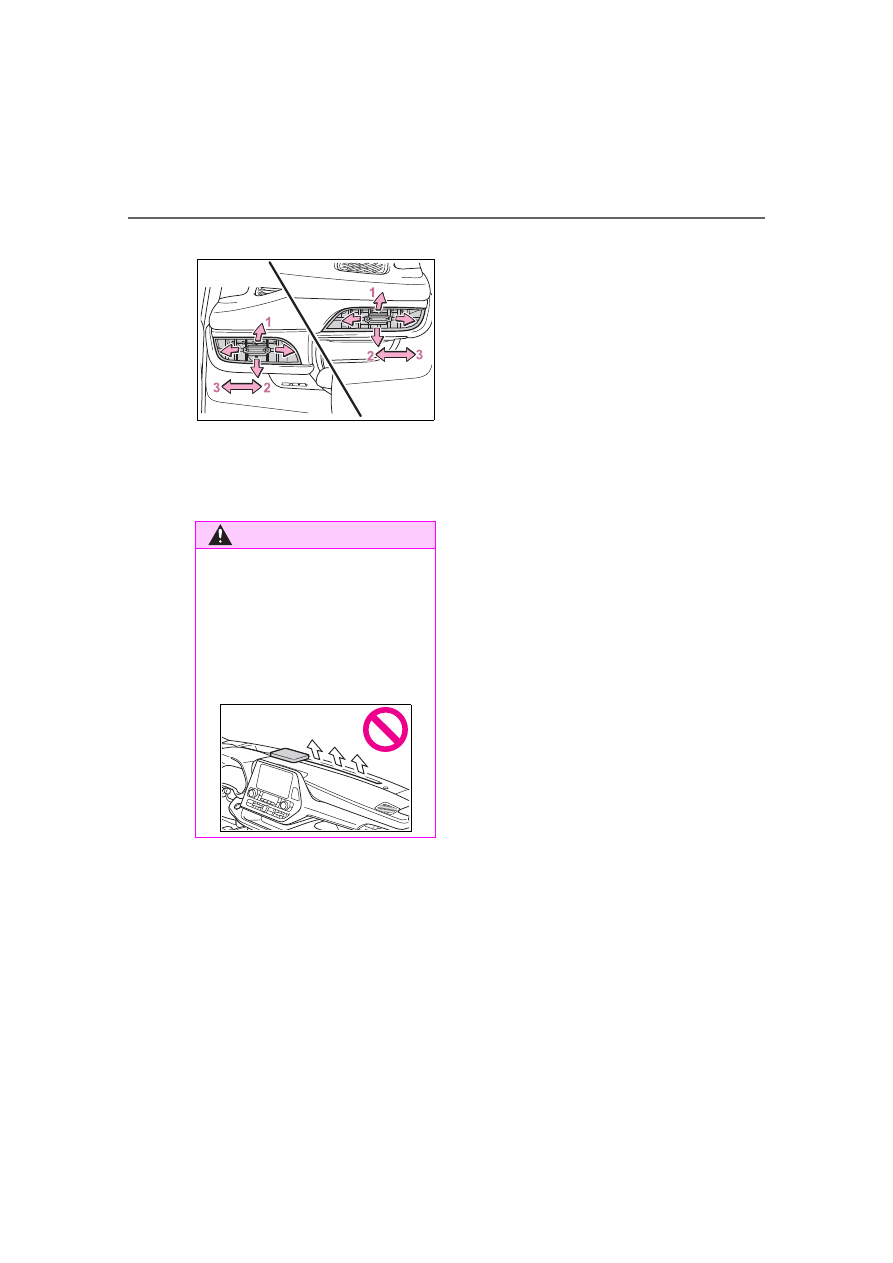

Front side outlets

Direct air flow to the left or
right, up or down

Open the vent

Close the vent

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

331

5-1. Using the air conditioning system and defogger

Interior

featur

■

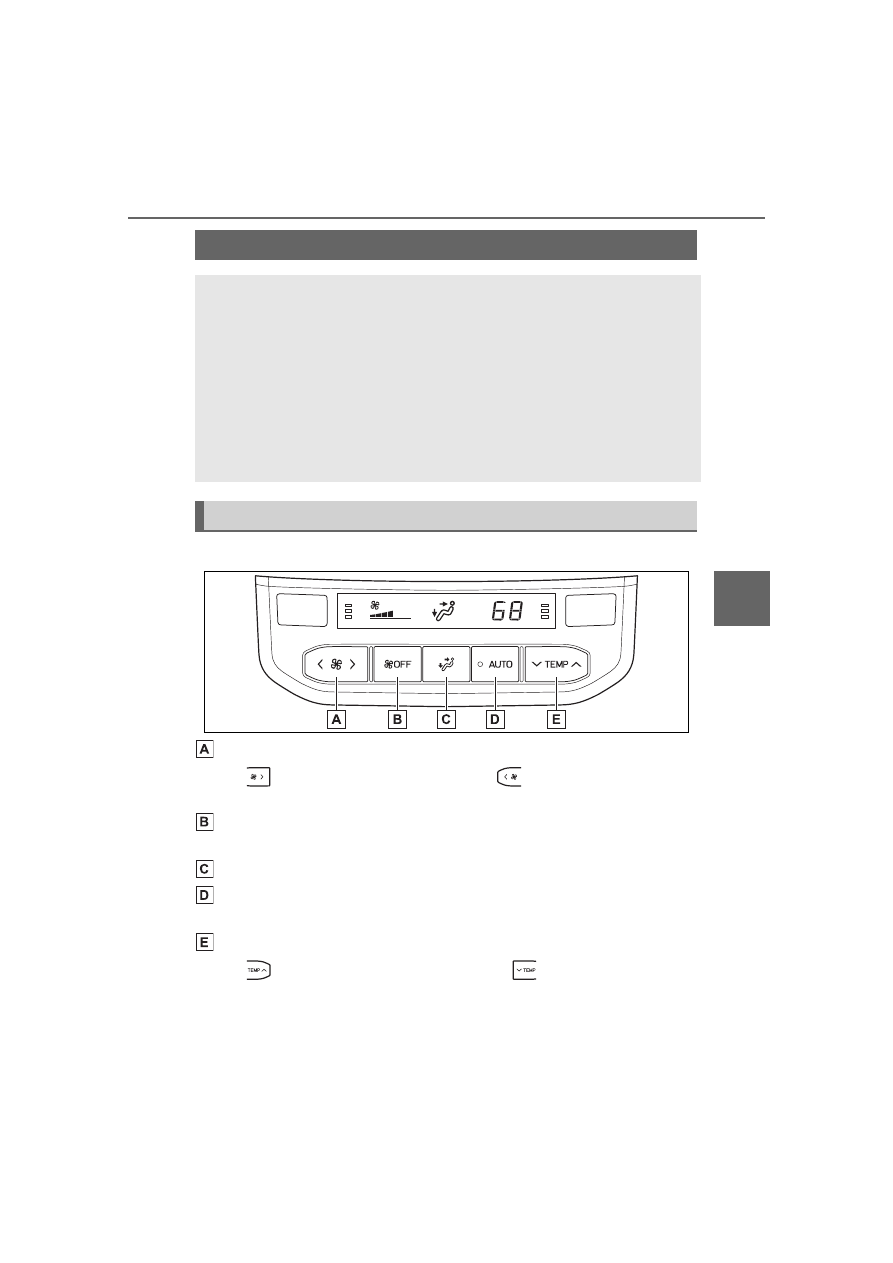

Rear air conditioning control panel

Adjust the rear seats fan speed setting

Press

to increase the fan speed and

to decrease the fan

speed.

“OFF” switch

Pressing the “OFF” switch turns off the fan.

Air flow mode control switch
Automatic mode switch

When the function is on, the indicator illuminates on the control screen.

Adjust the rear seats temperature setting

Press

to increase the temperature and

to decrease the tem-

perature.

Rear automatic air conditioning system

The air outlets and fan speed are automatically adjusted
according to the temperature setting.

The rear air conditioning system can be operated using the
front air conditioning control panel and rear air conditioning
control panel. Press the “REAR CLIMATE” switch on the front
air conditioning control panel to change the rear air condition-
ing control mode.

The rear air conditioning system can also be operated on the
audio system screen.

Rear air conditioning control operation

332

5-1. Using the air conditioning system and defogger

■

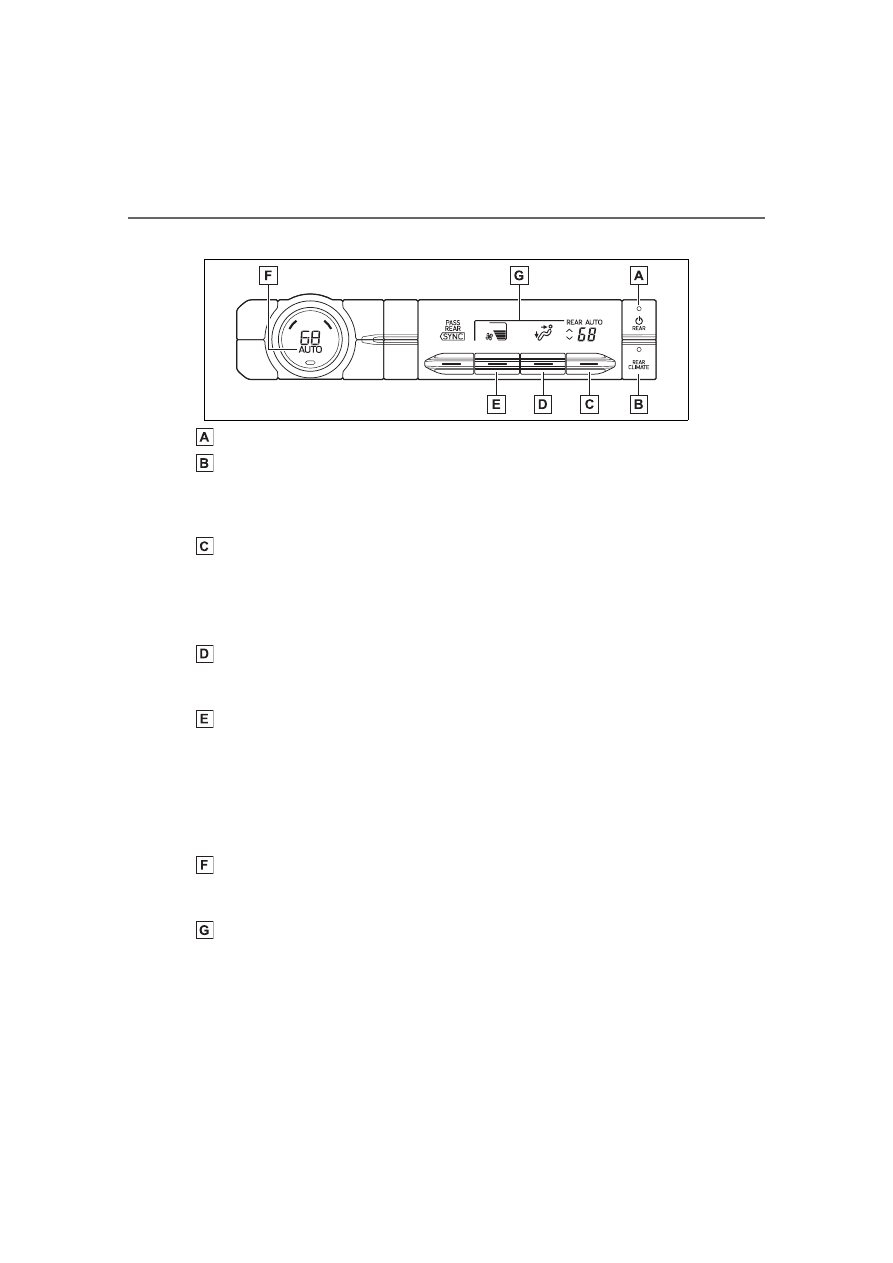

Front air conditioning control panel

Rear air conditioning system on/off switch
“REAR CLIMATE” switch

The mode switches between the rear air conditioning control mode and
front air conditioning control mode each time the “REAR CLIMATE” switch
is pressed.

Rear seat temperature control knob

To set temperature, move the rear seat temperature control knob upward or
downward.
Upward: Increases the temperature
Downward: Decreases the temperature

Airflow mode control knob

The airflow mode control knob can be operated while the rear air condition-
ing control indicator is appeared.

Adjust the rear seats fan speed setting

Rear seats fan speed setting can be adjusted while the rear air conditioning
control indicator is appeared.
To set the fan speed, move the fan speed control knob upward or down-
ward.
Upward: Increases the fan speed
Downward: Decreases the fan speed

Automatic mode switch (



P.334)

The automatic mode switch can be operated when the rear air conditioning
control indicator is displayed.

Rear air conditioning control indicator

When the “REAR CLIMATE” switch is pressed, the rear air conditioning
control indicator is displayed for several seconds.

333

5-1. Using the air conditioning system and defogger

Interior

featur

■

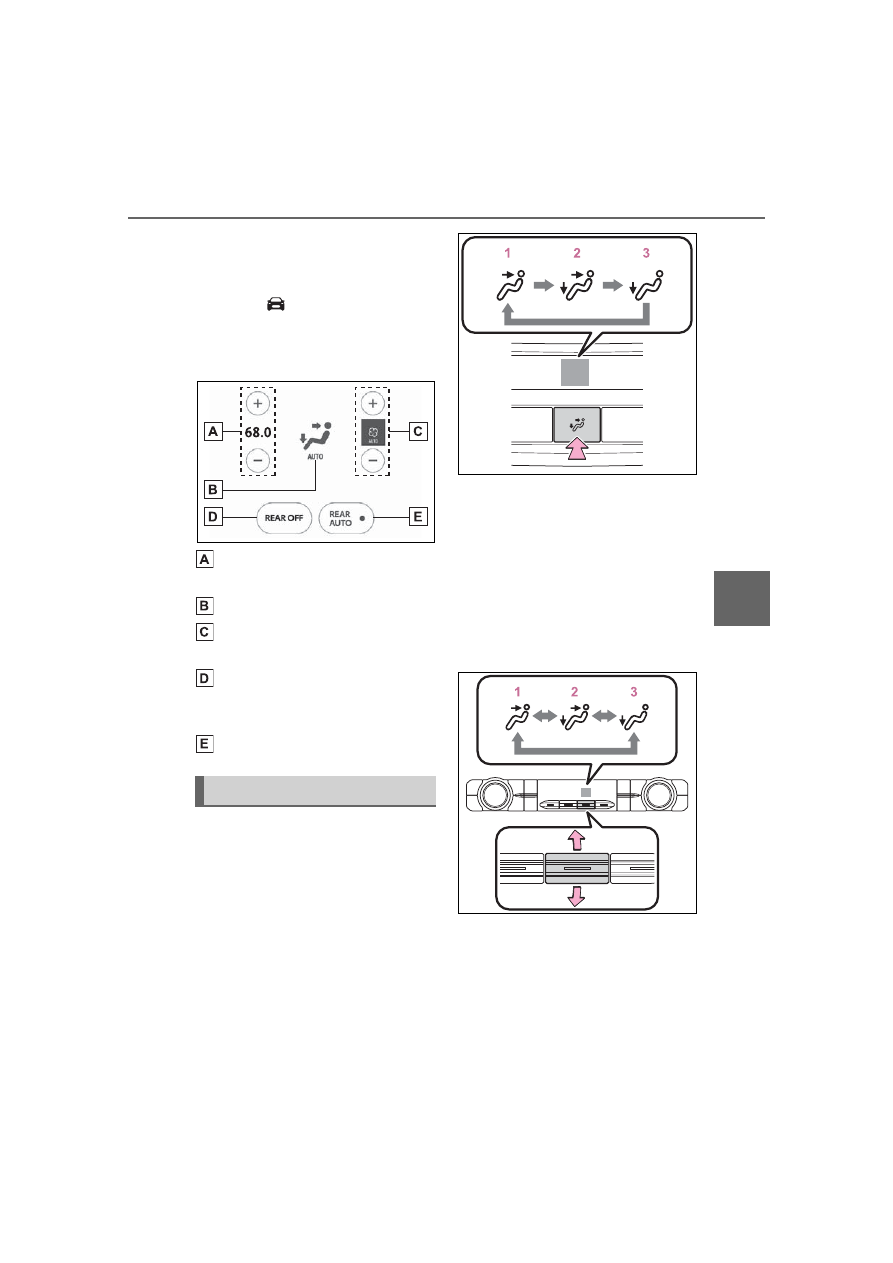

Rear air conditioning con-
trol screen (audio system
screen)

Touch

on the main menu.

Select "Climate".

Select "Rear".

Adjust the rear seats tem-
perature setting
Air flow mode control switch
Adjust the rear seats fan
speed setting
“OFF” switch

Pressing the “OFF” switch turns off
the fan.

Automatic mode switch

■

Rear air conditioning con-
trol panel

To change the airflow mode,
press the airflow mode control
switch.

The air outlets used are switched
each time the switch is pressed.

Upper body

Upper body and feet

Feet

■

Front air conditioning con-
trol panel

To change the airflow mode,
move the airflow mode control
knob upward or downward.

Upper body

Upper body and feet

Feet

Change the airflow mode

334

5-1. Using the air conditioning system and defogger

■

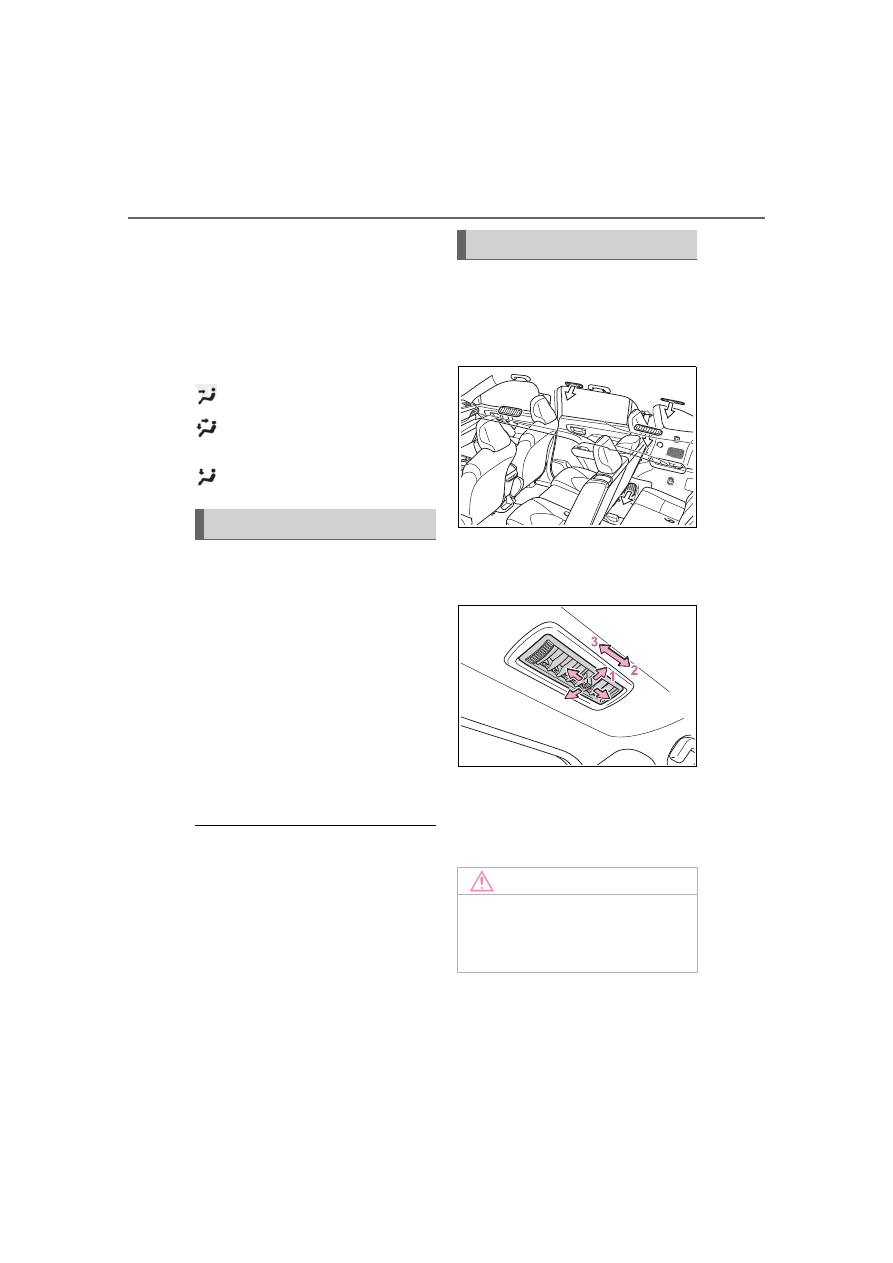

Rear air conditioning con-
trol screen

To change the airflow mode,
select the airflow mode control
switch.

The air outlets used are switched
each time the switch is selected.

: Air flows to the upper body

: Air flows to the upper body and

feet

: Air flows to the feet

Press the automatic mode
switch.

Adjust the temperature set-
ting.

To stop the operation, press
the “OFF” switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

■

Location of air outlets

The air outlets and air volume
changes according to the
selected air flow mode.

■

Adjusting the position of
and opening and closing
the air outlets

Direct air flow to the left or
right, up or down

Open the vent

Close the vent

Using automatic mode

Air outlets

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning

system on longer than necessary

when the engine is off.

335

5-1. Using the air conditioning system and defogger

Interior

featur

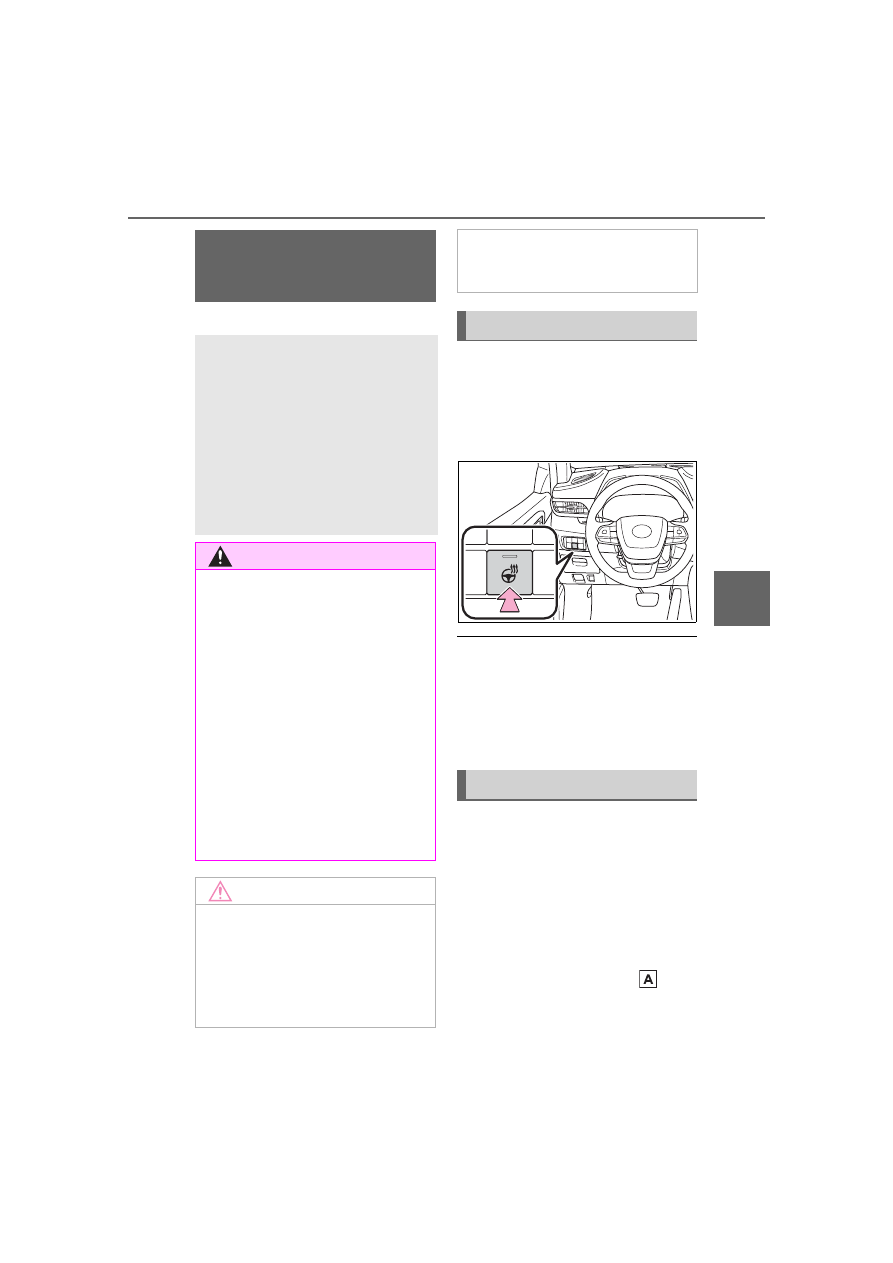

: If equipped

Turns the heated steering wheel
on/off

The indicator light comes on when
the heated steering wheel is oper-
ating.

■

Operation condition

The engine switch is in ON.

■

Timer function

The heated steering wheel will auto-

matically turn off after a period of

time.

■

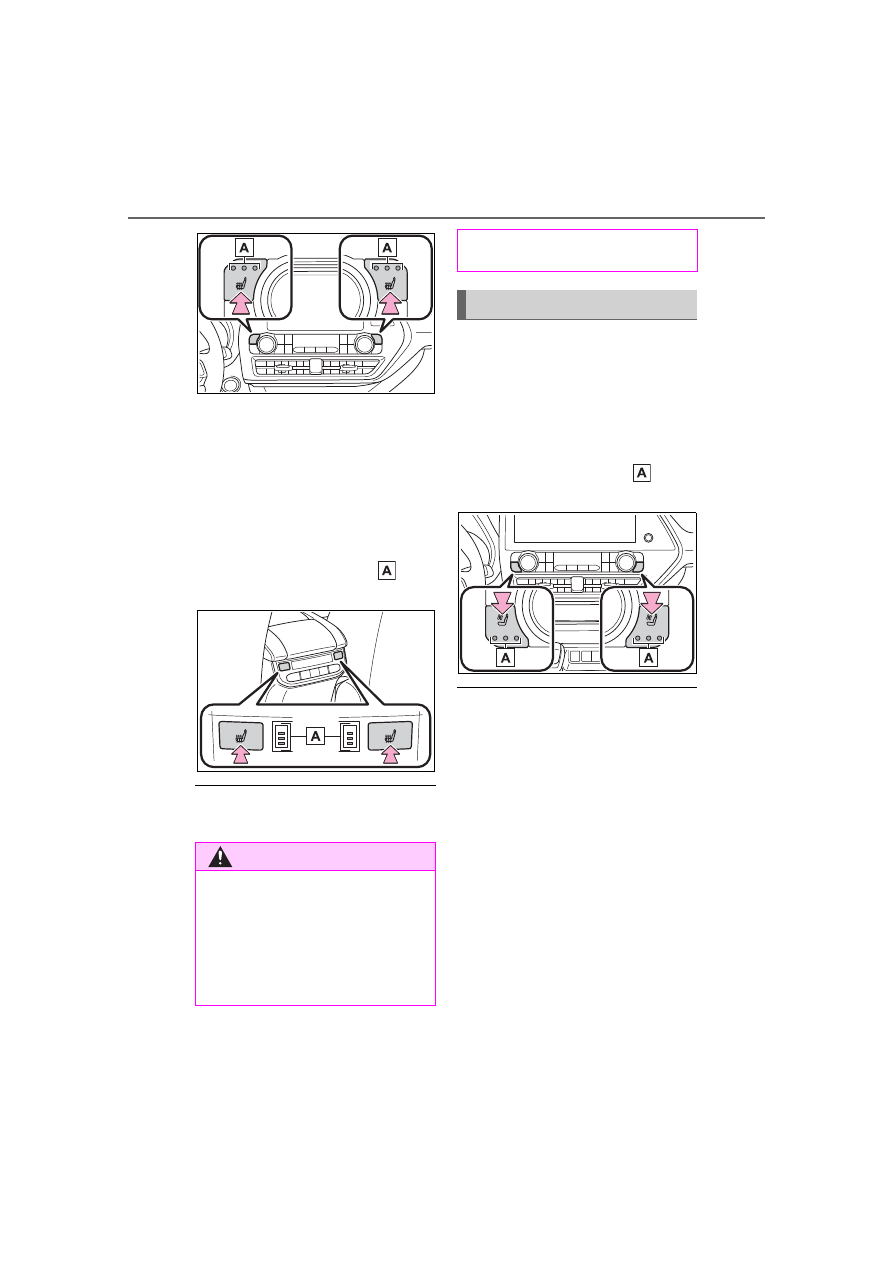

Front

Each time the switch is pressed,
the operation condition changes
as follows.
Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment

lit)



Off

The level indicator (amber)

lights up during operation.

Heated steering

wheel

/seat heat-

ers

/seat ventilators



Heated steering wheel

Warms up the grip of the
steering wheel



Seat heaters

Warm up the seat upholstery



Seat ventilators

Maintain good ventilation
using a fan built into the seat

WARNING

■

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the steering wheel or

seats when the heater is on:

●

Babies, small children, the

elderly, the sick and the physi-

cally challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

NOTICE

■

To prevent damage to the

seat heaters

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

■

To prevent battery discharge

Do not use the functions when the

engine is off.

Heated steering wheel

Seat heaters

336

5-1. Using the air conditioning system and defogger

■

Rear

Each time the switch is pressed,
the operation condition changes
as follows.
Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment

lit)



Off

The level indicator (amber)

lights up during operation.

■

Operation condition

The engine switch is in ON.

Each time the switch is pressed,
the operation condition changes
as follows.
Hi (3 segments lit)



Mid (2 seg-

ments lit)



Lo (1 segment

lit)



Off

The level indicator (green)

lights

up during operation.

■

Operation condition

The engine switch is in ON.

WARNING

■

To prevent overheating and

minor burn injuries

Observe the following precautions

when using the seat heaters.

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

Seat ventilators

337

5-2. Using the interior lights

Interior

featur

5-2.Using the interior lights

Front personal lights (



P.338)

Front interior lights (



P.338)

Shift lever light
Open tray lights (if equipped)
Door courtesy lights
Ambient lights (if equipped)
Rear personal lights (if equipped) (



P.338)

Rear personal lights (if equipped) (



P.338)

Rear interior light (



P.338)

Outer foot lights (if equipped)

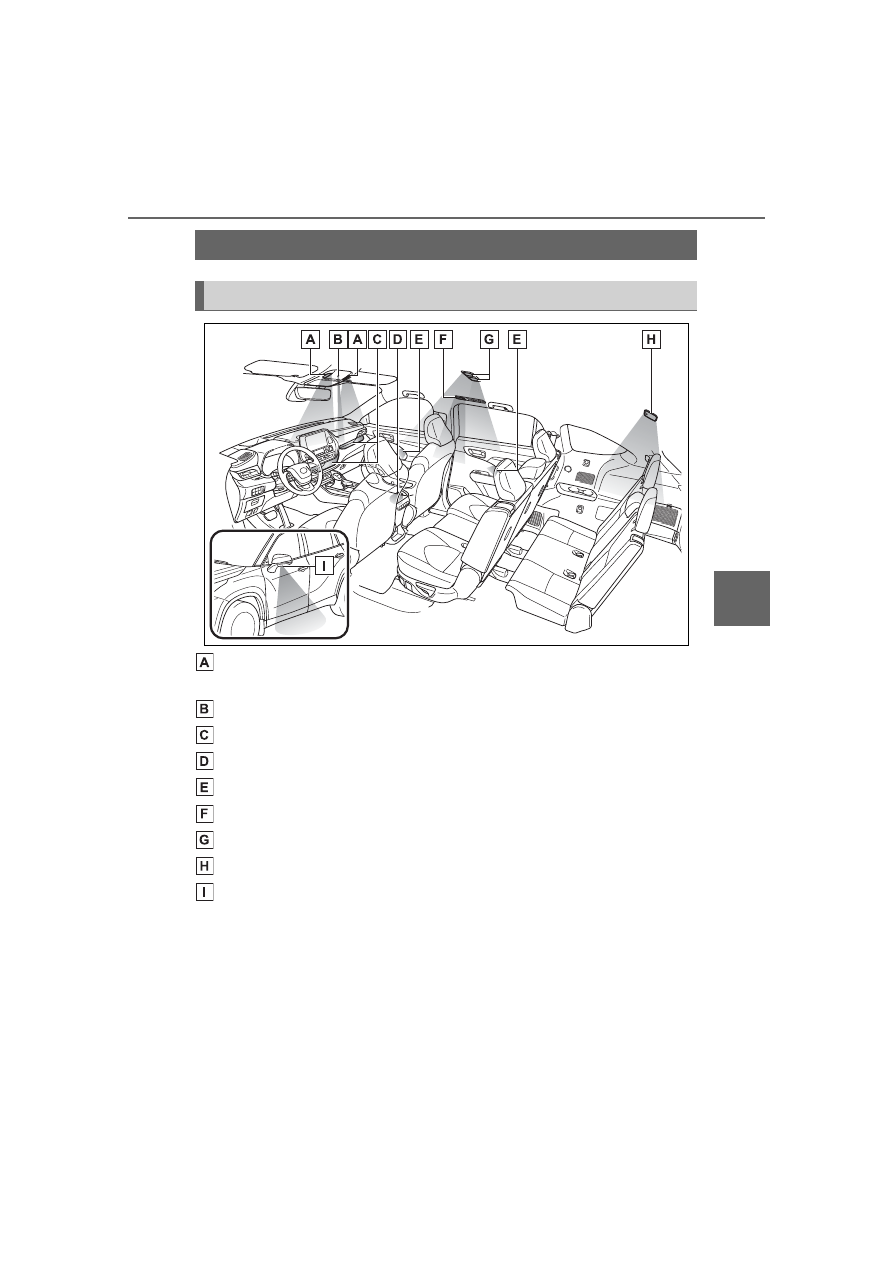

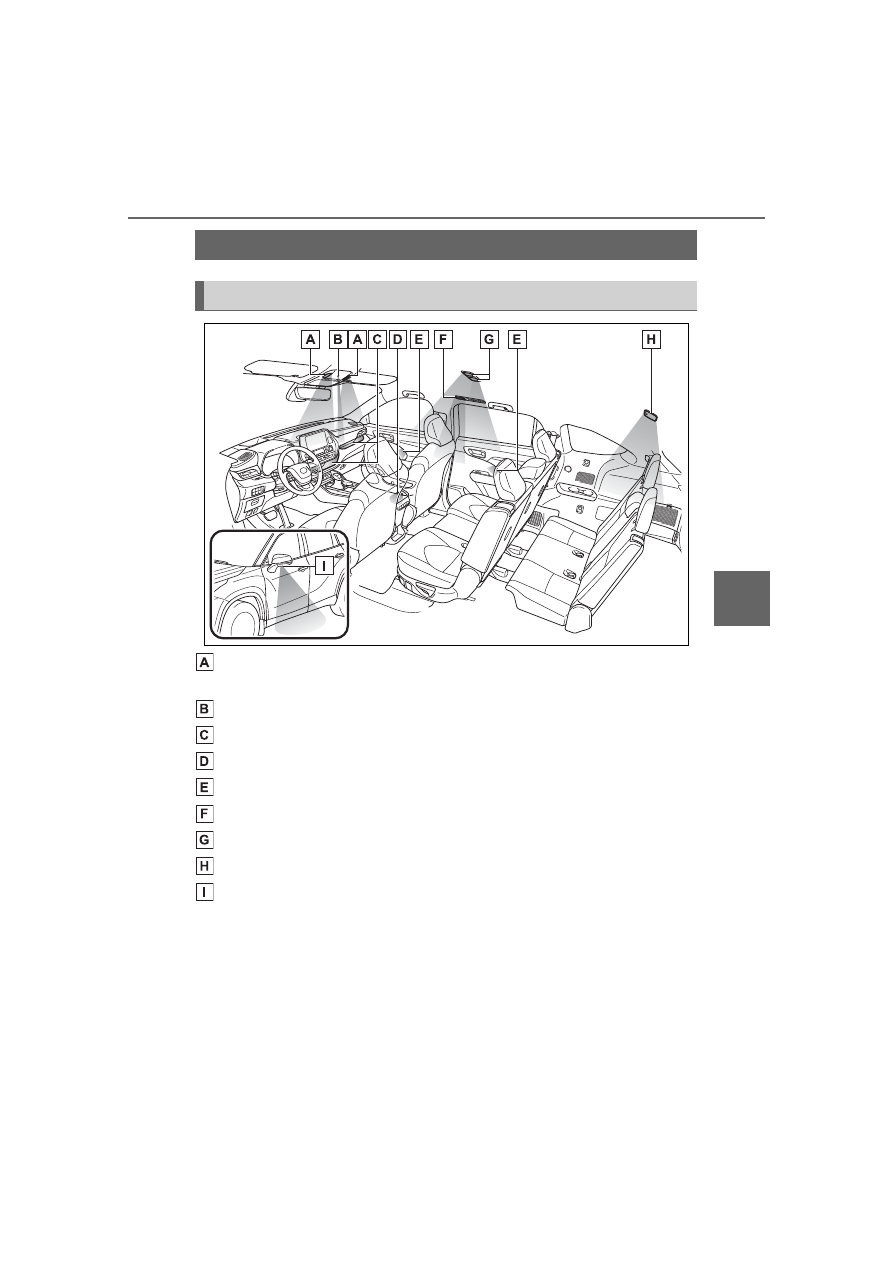

Interior lights list

Location of the interior lights

Content .. 18 19 20 21 ..
