Toyota Highlander (2023 year). Manual in english

289

4-5. Using the driving support systems

ing

●

When a sensor or the area around

a sensor is extremely hot or cold

●

If the suspension has been modi-

fied or tires of a size other than

specified are installed

●

If the front of the vehicle is raised

or lowered due to the carried load

: If equipped

■

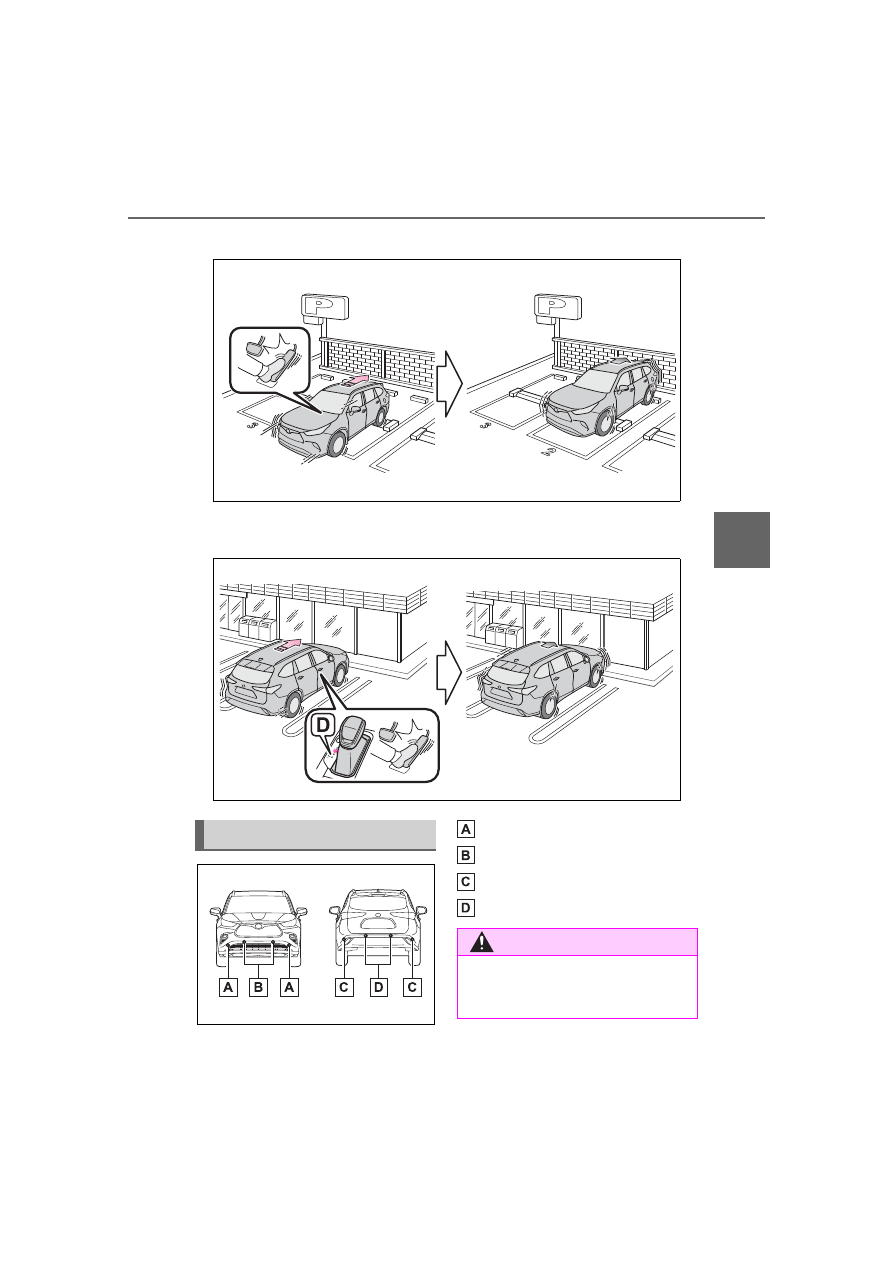

Parking Support Brake
function (static objects)

Ultrasonic sensors are used to
detect static objects, such as a
wall, in the detection area when
driving at a low speed or back-
ing up. (



P.296)

■

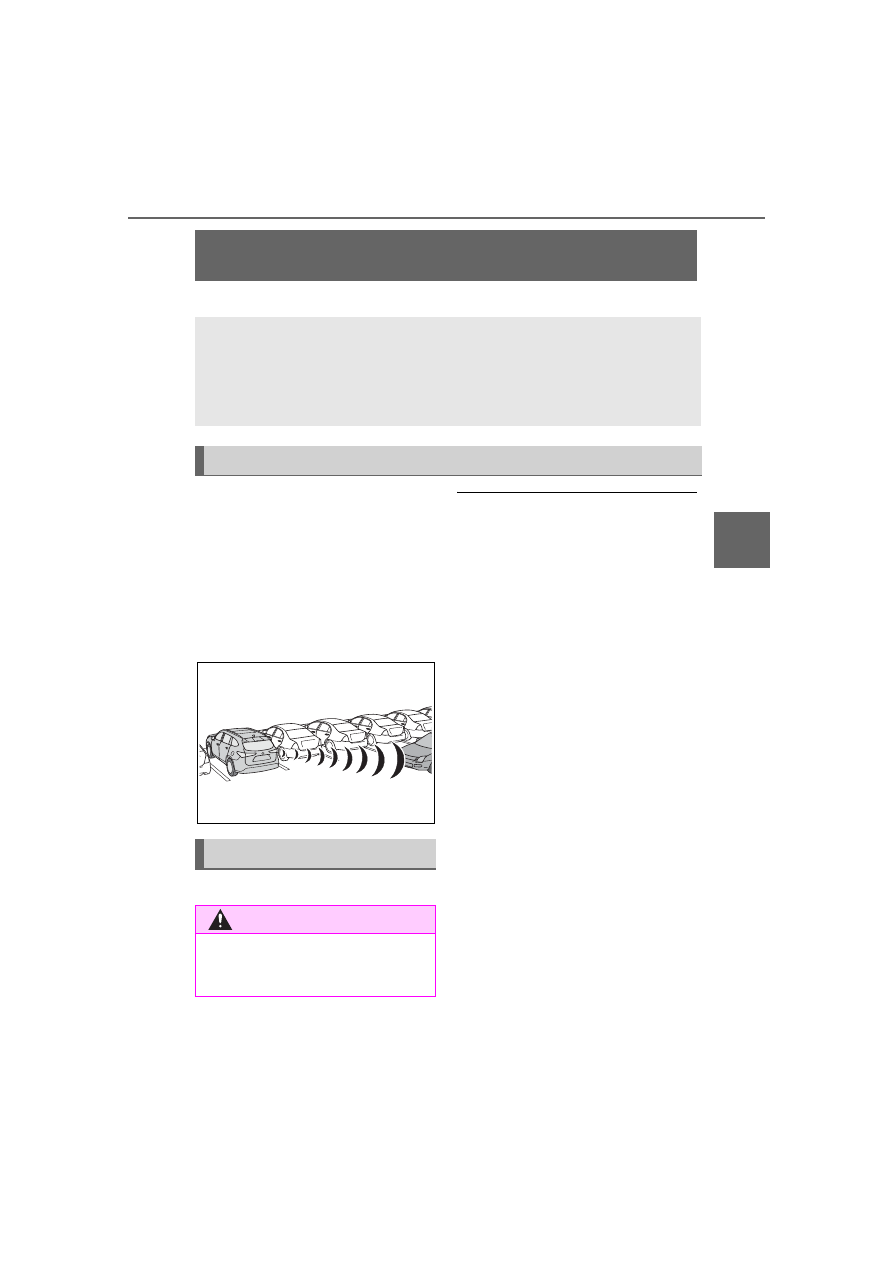

Parking Support Brake
function (rear-crossing
vehicles) (if equipped)

Rear radar sensors are used to

PKSB (Parking Sup-

port Brake)

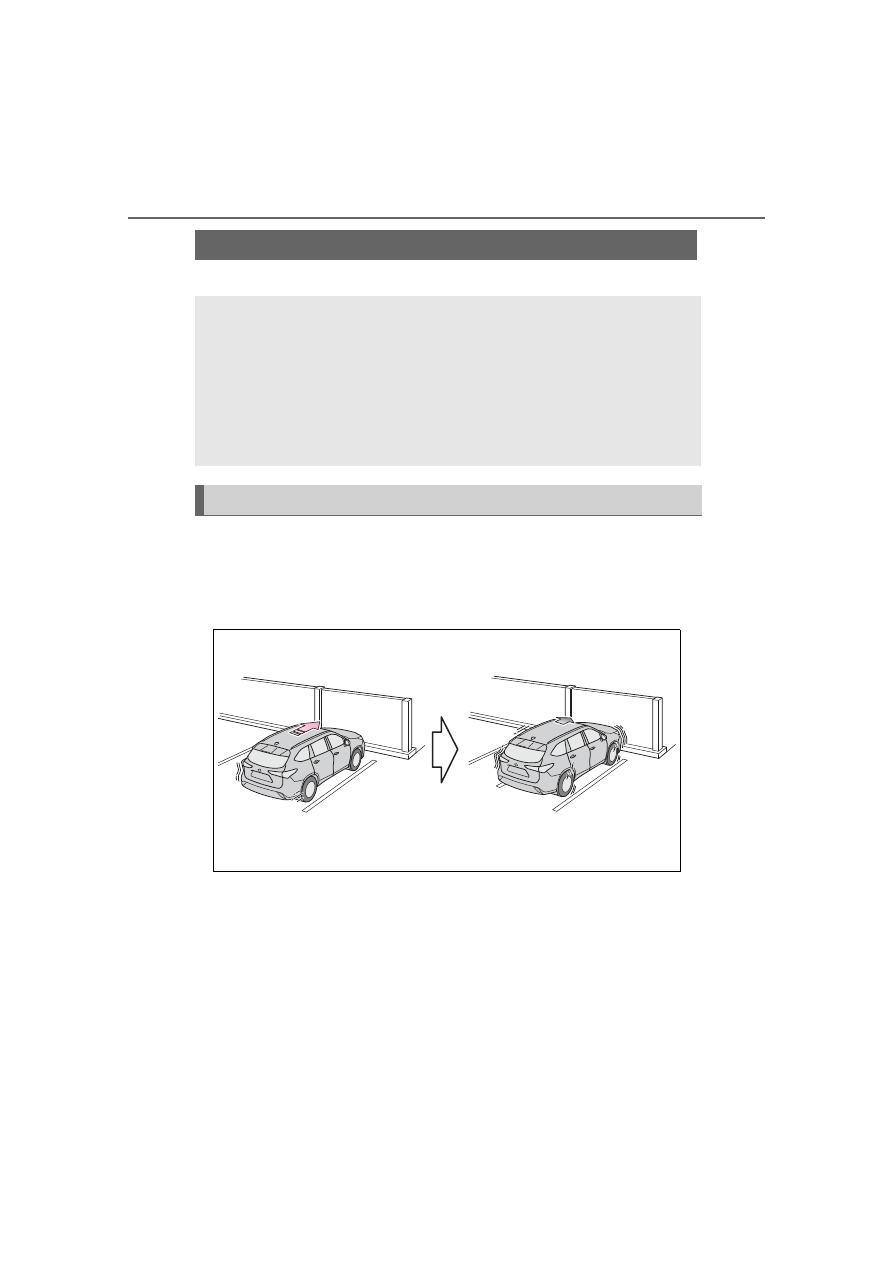

The Parking Support Brake
system consists of the fol-
lowing functions that oper-
ate when driving at a low
speed or backing up, such
as when parking. When the
system determines that the
possibility of a collision
with a detected object is
high, a warning operates to
urge the driver to take eva-
sive action. If the system
determines that the possi-
bility of a collision with a
detected object is extremely
high, the brakes are auto-
matically applied to help
avoid the collision or help
reduce the impact of the col-
lision.

PKSB (Parking Support
Brake) system

290

4-5. Using the driving support systems

detect approaching vehicles in
the detection area behind the
vehicle when backing up.
(



P.299)

WARNING

■

Cautions regarding the use of

the system

Do not overly rely on the system,

as doing so may lead to an acci-

dent.
Always drive while checking the

safety of the surroundings of the

vehicle.
Depending on the vehicle and

road conditions, weather, etc., the

system may not operate.
The detection capabilities of sen-

sors and radars are limited.

Always drive while checking the

safety of the surroundings of the

vehicle.

●

The driver is solely responsible

for safe driving. Always drive

carefully, taking care to observe

your surroundings. The Parking

Support Brake system is

designed to provide support to

lessen the severity of collisions.

However, it may not operate in

some situations.

●

The Parking Support Brake sys-

tem is not designed to stop the

vehicle completely. Additionally,

even if the system has stopped

the vehicle, it is necessary to

depress the brake pedal imme-

diately as brake control will be

canceled after approximately 2

seconds.

●

It is extremely dangerous to

check the system operations by

intentionally driving the vehicle

into the direction of a wall, etc.

Never attempt such actions.

■

When to disable the Parking

Support Brake

In the following situations, disable

the Parking Support Brake as the

system may operate even though

there is no possibility of a colli-

sion.

●

When inspecting the vehicle

using a chassis roller, chassis

dynamo or free roller

●

When loading the vehicle onto a

boat, truck or other transport

vessel

●

If the suspension has been

modified or tires of a size other

than specified are installed

●

If the front of the vehicle is

raised or lowered due to the

carried load

●

When equipment that may

obstruct a sensor is installed,

such as a towing eyelet, bumper

protector (an additional trim

strip, etc.), bicycle carrier, or

snow plow

●

When using automatic car

washing devices

●

If the vehicle cannot be driven in

a stable manner, such as when

the vehicle has been in an acci-

dent or is malfunctioning

●

When the vehicle is driven in a

sporty manner or off-road

●

When the tires are not properly

inflated

●

When the tires are very worn

●

When a tire chains, compact

spare tire or an emergency tire

puncture repair kit is used

●

When your vehicle is towing a

trailer or during emergency tow-

ing

291

4-5. Using the driving support systems

ing

The Parking Support Brake can
be enabled/disabled on the
multi-information display. All of
the Parking Support Brake func-
tions (static objects and
rear-crossing vehicles) are
enabled/disabled simultane-
ously.
Use the meter control switches
to enable/disable the parking
support brake. (



P.102)

Select

of the multi-infor-

mation display and then
press

Press

to select

and then press

When the Parking Support Brake is

disabled, the PKSB OFF indicator

(



P.76) illuminates on the instru-

ment cluster.
To re-enable the system when it

was disabled, select

on the

multi-information display, select

and turn it on. If the system is dis-

abled, it will remain off even if the

engine switch is turned to ON after

the engine switch has been turned

off.

If the engine output restriction con-
trol or brake control operates, a
buzzer will sound and a message
will be displayed on the audio sys-
tem screen and multi-information
display, to alert the driver.
Depending on the situation, engine
output restriction control will oper-
ate to either limit acceleration or
restrict output as much as possible.



Engine output restriction con-
trol is operating (acceleration
restriction)

Acceleration greater than a certain
amount is restricted by the system.
Audio system screen (Panoramic
view monitor) (if equipped): No
warning displayed
Multi-information display: “Object
Detected Acceleration Reduced”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Does not sound



Engine output restriction con-
trol is operating (output
restricted as much as possi-
ble)

The system has determined that
stronger-than-normal brake opera-

NOTICE

■

If “PKSB Unavailable” is dis-

played on the multi-informa-

tion display and the PKSB

OFF indicator is flashing

If this message is displayed

immediately after the engine

switch is changed to ON, operate

the vehicle carefully, paying atten-

tion to your surroundings. It may

be necessary to drive the vehicle

for a certain amount of time

before the system returns to nor-

mal. (If the system is not return to

normal after driving for a while,

clean the sensors and their sur-

rounding area on the bumpers.)

Enabling/Disabling the
Parking Support Brake

Displays and buzzers for
engine output restriction
control and brake control

292

4-5. Using the driving support systems

tion is necessary.
Audio system screen (Panoramic
view monitor) (if equipped):
“BRAKE!”
Multi-information display/Head-up
display (if equipped): “BRAKE!”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Brake control is operating

The system determined that emer-
gency braking is necessary.
Audio system screen (Panoramic
view monitor) (if equipped):
“BRAKE!”
Multi-information display/Head-up
display (if equipped): “BRAKE!”

PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Vehicle stopped by system
operation

The vehicle has been stopped by
brake control operation.
Audio system screen (Panoramic
view monitor) (if equipped): “Press
Brake Pedal”
Multi-information display/Head-up
display (if equipped): “Switch to
Brake” (If the accelerator pedal is
not depressed, “Press Brake Pedal”
will be displayed.)
PKSB OFF indicator: Illuminated
Buzzer: Short beep

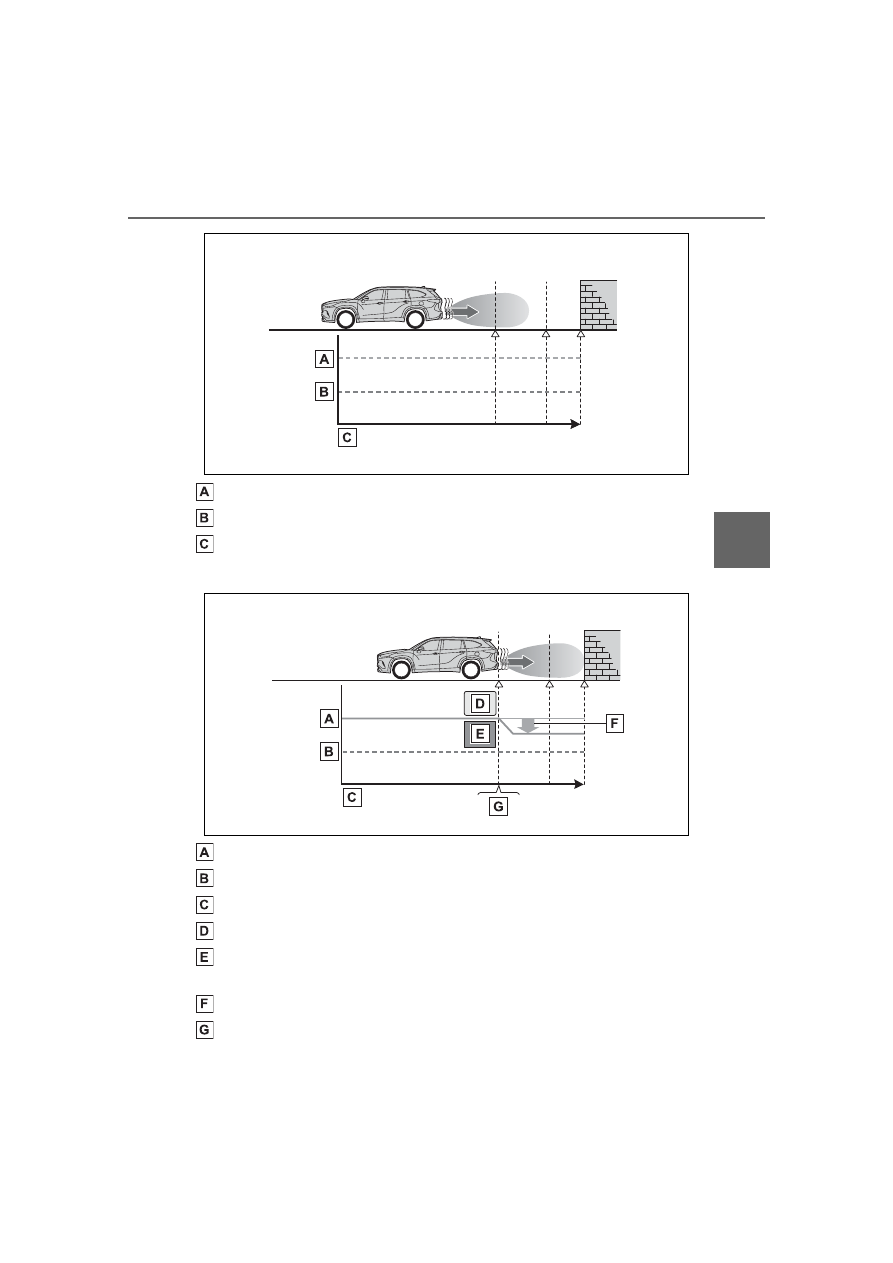

If the Parking Support Brake determines that a collision with a
detected object is possible, the engine output will be restricted to
restrain any increase in the vehicle speed. (Engine output restriction
control: See figure 2.)
Additionally, if the accelerator pedal continues to be depressed, the
brakes will be applied automatically to reduce the vehicle speed.
(Brake control: See figure 3.)



Figure 1 When the PKSB (Parking Support Brake) is disabled

System overview

294

4-5. Using the driving support systems



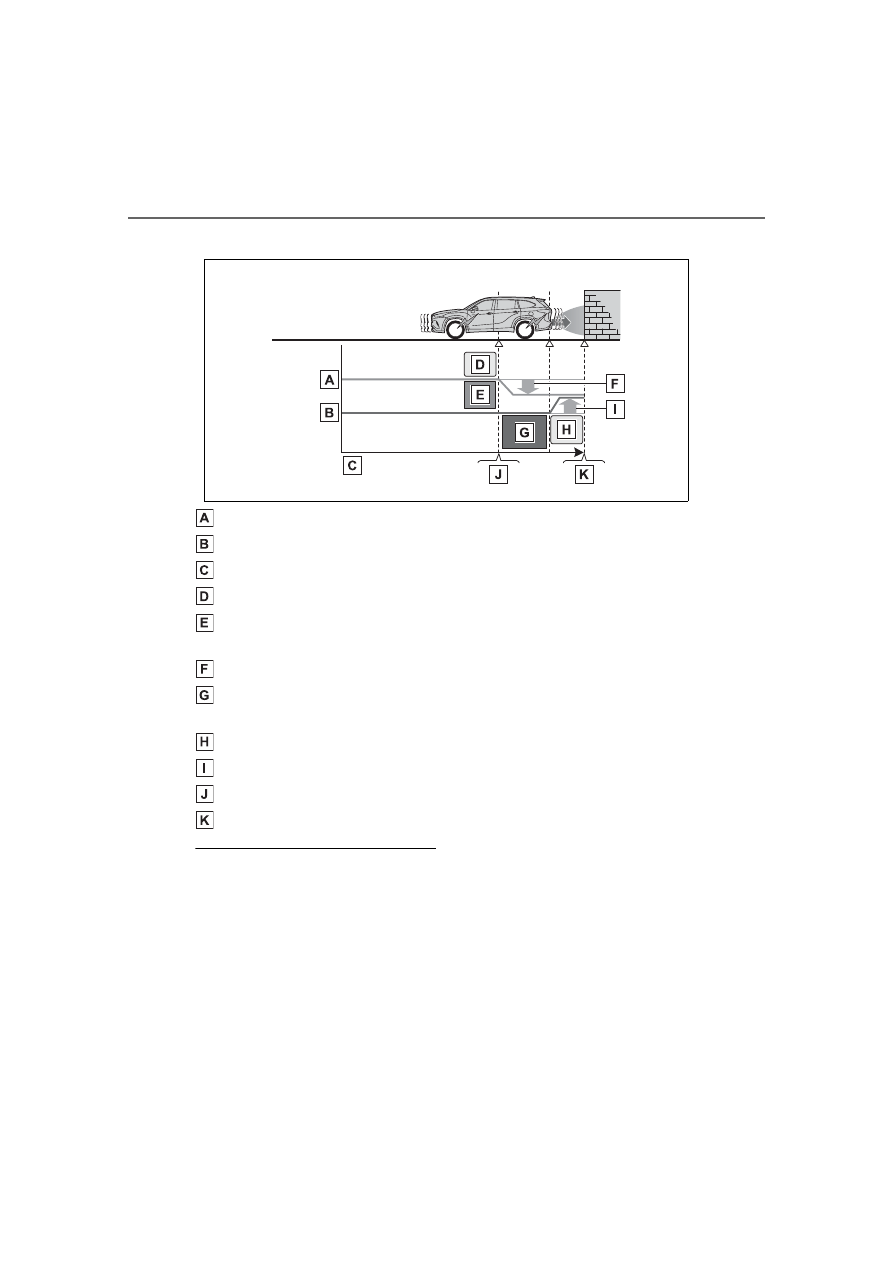

Figure 3 When brake control operates

Engine output
Braking force
Time
Engine output restriction control begins operating
System determines that possibility of collision with detected
object is high
Engine output reduced
System determines that possibility of collision with detected
object is extremely high
Brake control begins operating
Brake control strength increased
Example: Multi-information display: “BRAKE!”
Example: Multi-information display: “Switch to Brake”

■

If the Parking Support Brake

has operated

If the vehicle is stopped due to oper-

ation of the Parking Support Brake,

the Parking Support Brake will be

disabled and the PKSB OFF indica-

tor will illuminate. If the Parking Sup-

port Brake operates unnecessarily,

brake control can be canceled by

depressing the brake pedal or wait-

ing for approximately 2 seconds for

it to automatically be canceled.

Then, the vehicle can be operated

by depressing the accelerator pedal.

■

Re-enabling the Parking Sup-

port Brake

To re-enable the Parking Support

Brake when it has been disabled

due to system operation perform

any of the following operations.
At this time, the PKSB OFF indicator

will turn off. (



P.76)

●

Turn the PKSB (Parking Support

295

4-5. Using the driving support systems

ing

Brake) on (



P.291)

●

The shift lever is in P.

●

Drive with no operation targets in

the traveling direction of the vehi-

cle

●

Change the traveling direction of

the vehicle

■

If “PKSB Unavailable” is dis-

played on the multi-information

display and the PKSB OFF indi-

cator is flashing

●

If this message is displayed only

when the shift lever is in any posi-

tion other than R, a sensor on the

front or rear bumper may be dirty.

Clean the sensors and their sur-

rounding area on the bumpers.

■

If “PKSB Unavailable” and

“Parking Support Brake

Unavailable Remove the Dirt of

Rear Camera” is displayed on

the multi-information display

and the PKSB OFF indicator is

flashing

●

A sensor may be covered with ice,

snow, dirt, etc. Remove the ice,

snow, dirt, etc., from the sensor to

return the system to normal.

If this message is shown even

after removing dirt from the sen-

sor, or shown when the sensor

was not dirty to begin with, have

the vehicle inspected by your Toy-

ota dealer.

●

A sensor may be frozen. Once the

ice melts, the system will return to

normal.

●

Water may be continuously flow-

ing over the sensor surface, such

as in a heavy rain. When the sys-

tem determines that it is normal,

the system will return to normal.

■

If a battery terminal has been

disconnected and reconnected

The system needs to be initialized.

To initialize the system, drive the

vehicle straight ahead for 5 seconds

or more at a speed of approximately

22 mph (35 km/h) or more.

298

4-5. Using the driving support systems

■

The Parking Support Brake

function (static object) will

operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated or flashing (



P.75, 76) and all

of the following conditions are met:

●

Engine output restriction control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

mately 9 mph (15 km/h) or less.

• There is a static object in the trav-

eling direction of the vehicle and

approximately 6 to 13 ft. (2 to 4 m)

away.

• The Parking Support Brake deter-

mines that a stronger-than-nor-

mal brake operation is necessary

to avoid a collision.

●

Brake control

• Engine output restriction control is

operating.

• The Parking Support Brake deter-

mines that an immediate brake

operation is necessary to avoid a

collision.

■

The Parking Support Brake

function (static objects) will

stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Engine output restriction control

• The Parking Support Brake is dis-

abled.

• The system determines that the

collision has become avoidable

with normal brake operation.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

■

Detection range of the Parking

Support Brake function (static

objects)

The detection range of the Parking

Support Brake function (static

objects) differs from the detection

range of the intuitive parking assist.

(



P.280) Therefore, even if the intu-

itive parking assist detects an object

and provides a warning, the Parking

Support Brake function (static

objects) may not start operating.

■

Situations in which the system

may not operate properly



P.278

■

Situations in which the system

may operate even if there is no

possibility of a collision



P.279

WARNING

■

If the Parking Support Brake

function (static objects) oper-

ates unnecessarily, such as

at a railroad crossing



P.294

■

Notes when washing the vehi-

cle



P.277

299

4-5. Using the driving support systems

ing

: If equipped

This function will operate in situ-
ation such as the following if a
vehicle is detected in the travel-
ing direction of the vehicle.

■

When reversing, a vehicle is
approaching and the brake
pedal is not depressed, or
is depressed late



P.271

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated or flashing (



P.75, 76) and all

of the following conditions are met:

●

Engine output restriction control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

mately 9 mph (15 km/h) or less.

• Vehicles which are approaching

from the right or left at the rear of

the vehicle at a traveling speed of

approximately 5 mph (8 km/h) or

more.

• The shift lever is in R.

• The Parking Support Brake deter-

mines that a stronger than normal

brake operation is necessary to

avoid a collision with an approach-

ing vehicle.

●

Brake control

• Engine output restriction control is

operating.

• The Parking Support Brake deter-

mines that an emergency brake

operation is necessary to avoid a

collision with an approaching vehi-

cle.

Parking Support Brake function (rear-crossing

vehicles)

If a rear radar sensor detects a vehicle approaching from the
right or left at the rear of the vehicle and the system deter-
mines that the possibility of a collision is high, this function
will perform brake control to reduce the likelihood of an
impact with the approaching vehicle.

Example of function operation

Types of sensors

WARNING

■

To ensure the system can

operate properly



P.271

300

4-5. Using the driving support systems

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Engine output restriction control

• The Parking Support Brake is dis-

abled.

• The collision becomes avoidable

with normal brake operation.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

■

Detection area of the Parking

Support Brake function

(rear-crossing vehicles)

The detection area of the Parking

Support Brake function (rear-cross-

ing vehicles) differs from the detec-

tion area of the RCTA function

(



P.285). Therefore, even if the

RCTA function detects a vehicle and

provides an alert, the Parking Sup-

port Brake function (rear-crossing

vehicles) may not start operating.

■

Situations in which the system

may not operate properly



P.287

■

Situations in which the system

may operate even if there is no

possibility of a collision



P.288

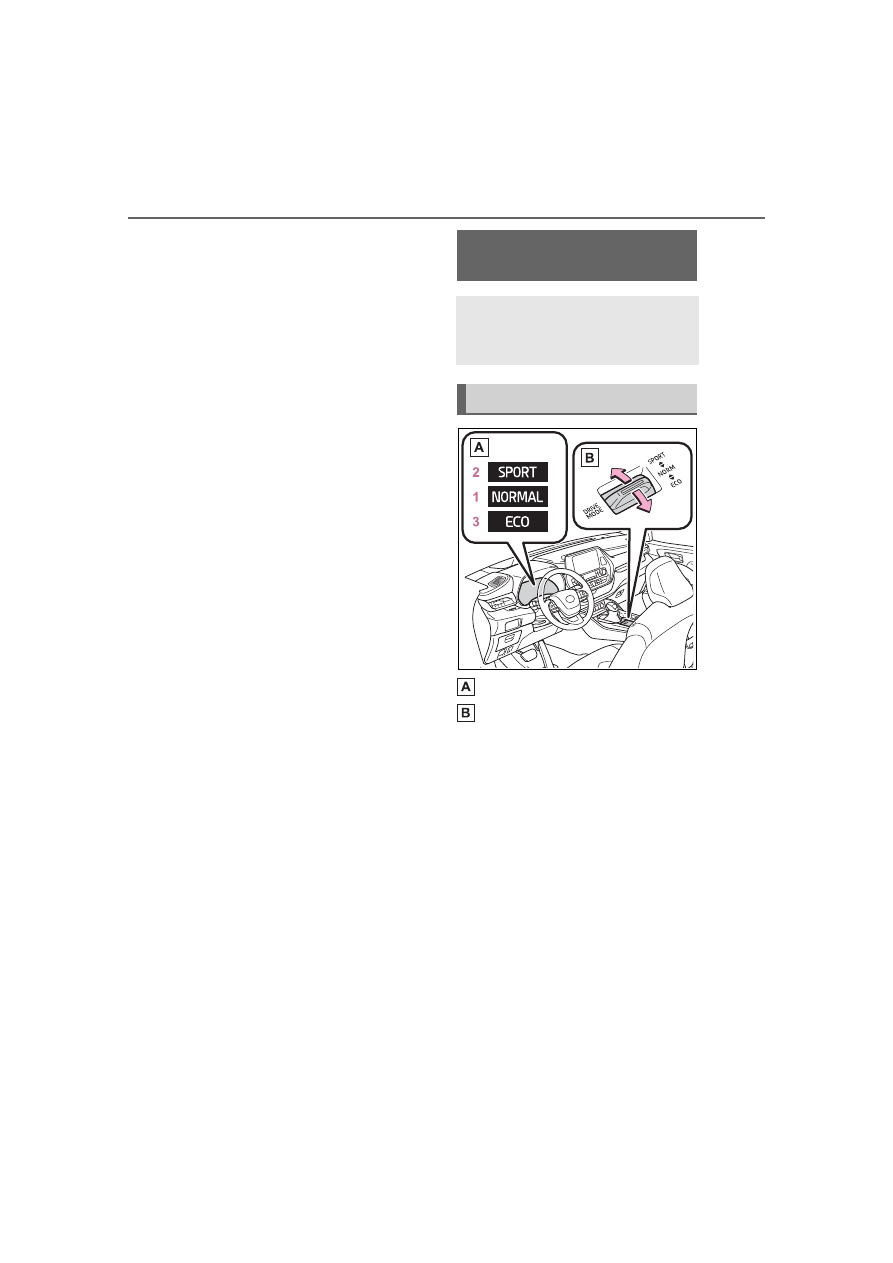

Multi-information display
Driving mode select switch

Operate the driving mode select
switch forward or backward to
select the desired driving mode on
the multi-information display.

Normal mode

Provides an optimal balance of fuel
economy, quietness, and dynamic
performance. Suitable for normal
driving.

Sport mode

Controls the transmission and
engine to provide quick, powerful
acceleration. This mode also
changes the steering feel, making it
suitable for when agile driving
response is desired, such as when

Driving mode select

switch

The driving modes can be
selected to suit the driving
and usage conditions.

Selecting a driving mode

301

4-5. Using the driving support systems

ing

driving on roads with many curves.
When Sport mode is selected,
Sport mode indicator comes on.

Eco drive mode

Helps the driver accelerate in an
eco-friendly manner and improve
fuel economy through moderate
throttle characteristics and by con-
trolling the operation of the air con-
ditioning system (heating/cooling).
When Eco drive mode is selected,
Eco drive mode indicator comes
on.

■

When changing to a driving

mode other than normal mode

Switches to AWD control suitable for

the selected mode. (for Dynamic

Torque Vectoring AWD vehicles

only)

■

Air conditioning system opera-

tion in Eco drive mode

In Eco drive mode, heating/cooling

operations and the fan speed is con-

trolled to improve fuel efficiency.

Perform the following procedures to

increase the air conditioning perfor-

mance.

●

Vehicle with 12.3-inch audio sys-

tem screen: Turn eco air condi-

tioning mode off (



P.328)

●

Adjust the fan speed (



P.323)

●

Cancel Eco drive mode

■

Canceling a driving mode

●

Sport mode is automatically can-

celed and the driving mode

returns to normal mode when the

engine switch is turned off.

●

Normal mode and Eco drive mode

are not canceled until another

driving mode is selected. (Even if

the engine switch is turned off,

normal mode and Eco drive mode

will not be automatically can-

celed.)

Multi-terrain Select

(AWD models)

Multi-terrain Select is a sys-
tem that improves drivabil-
ity in off-road situations.

When driving over muddy,
sandy or rough road sur-
faces, the system selects a
suitable driving mode to
switch AWD, brake and
drive force control to per-
form control suitable for the
road condition.

WARNING

■

Before using Multi-terrain

Select

Make sure to observe the follow-

ing precautions. Failure to

observe these precautions may

result in an unexpected accident.

●

Check that the Mud & Sand and

Rock & Dirt indicators are illumi-

nated before driving. Multi-ter-

rain Select will not operate

when the indicators are off.

●

Do not rely solely upon the

Multi-terrain Select. This func-

tion is not intended to expand

the limits of the vehicle. If the

system is continuously used for

a long period of time, the load

on related parts increases and

the system may be unable to

operate normally, which may

lead to an accident. Thoroughly

check the road conditions and

driving route before driving, and

drive with caution.

302

4-5. Using the driving support systems

Control that is suitable for the
following road conditions can be
performed by switching to either
of the two modes. Select a
mode that is appropriate for the
road condition.

■

Mud & Sand mode

Suitable for driving on roads
with increased driving resis-
tance such as sandy roads,
muddy roads, etc.

■

Rock & Dirt mode

Suitable for driving in bumpy
road conditions, such as on
unpaved forest roads.

■

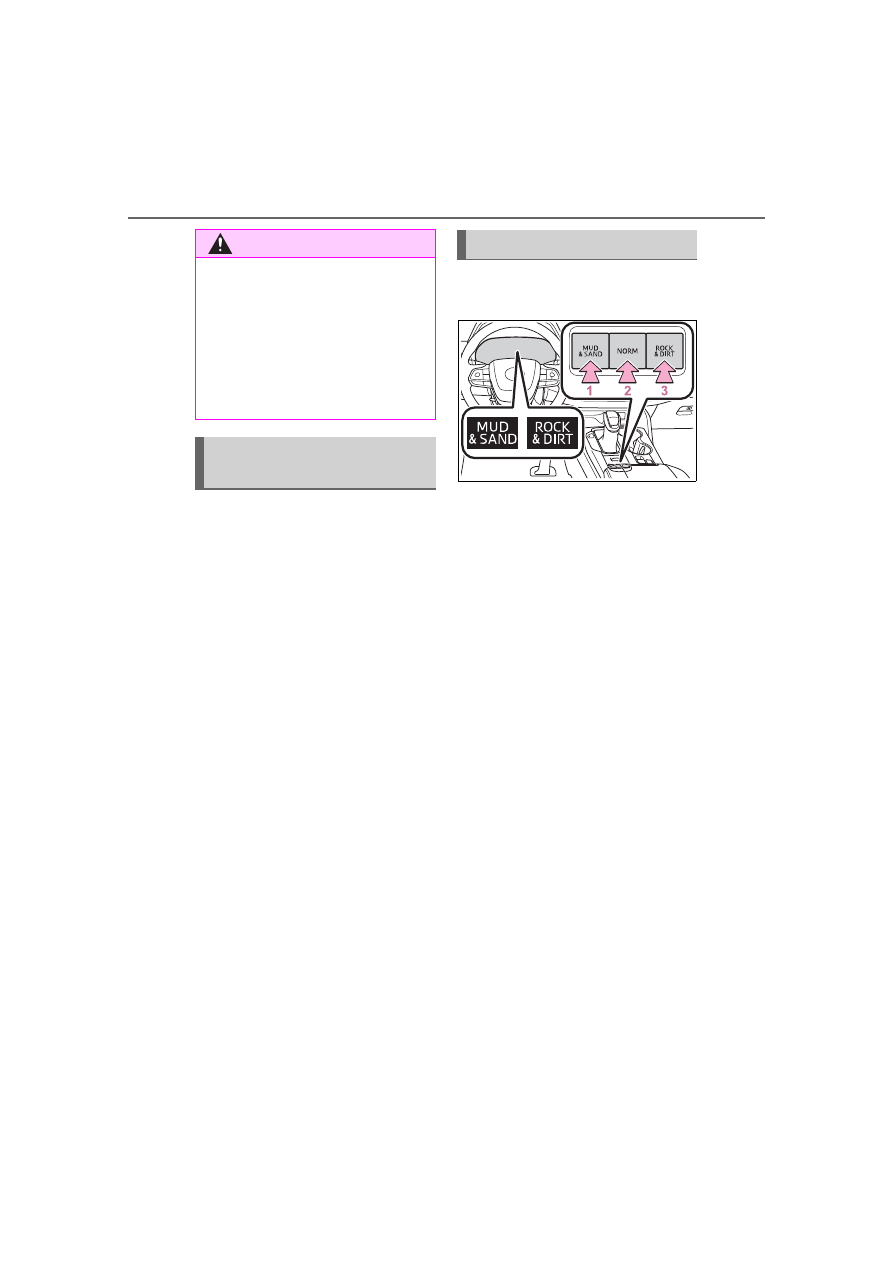

Dynamic Torque Control
AWD vehicles

Mud & Sand mode

When the switch is pressed while
not in Mud & Sand mode, the sys-
tem switches to Mud & Sand mode
and the Mud & Sand mode indica-
tor, VSC OFF indicator and PCS
warning light illuminate on the
multi-information display.

Normal mode

Mode that performs AWD, brake
and drive force control suitable for
driving on general roads. Use nor-
mal mode when not driving
off-road.
The driving mode returns to normal
mode if the switch is pressed while
in Mud & Sand mode or Rock & Dirt
mode.

Rock & Dirt mode

When the switch is pressed while
not in Rock & Dirt mode, the sys-
tem switches to Rock & Dirt mode
and the Rock & Dirt mode indicator
illuminates on the multi-information
display.

WARNING

●

The road conditions listed

(Guidelines for selecting each

mode:



P.302) are for reference

only. There is a chance that the

function may not be the most

appropriate in terms of road

conditions such as pitch, slip-

periness, undulation, etc. Thor-

oughly check the road

conditions before driving.

Guidelines for selecting
each mode

Changing the mode

303

4-5. Using the driving support systems

ing

■

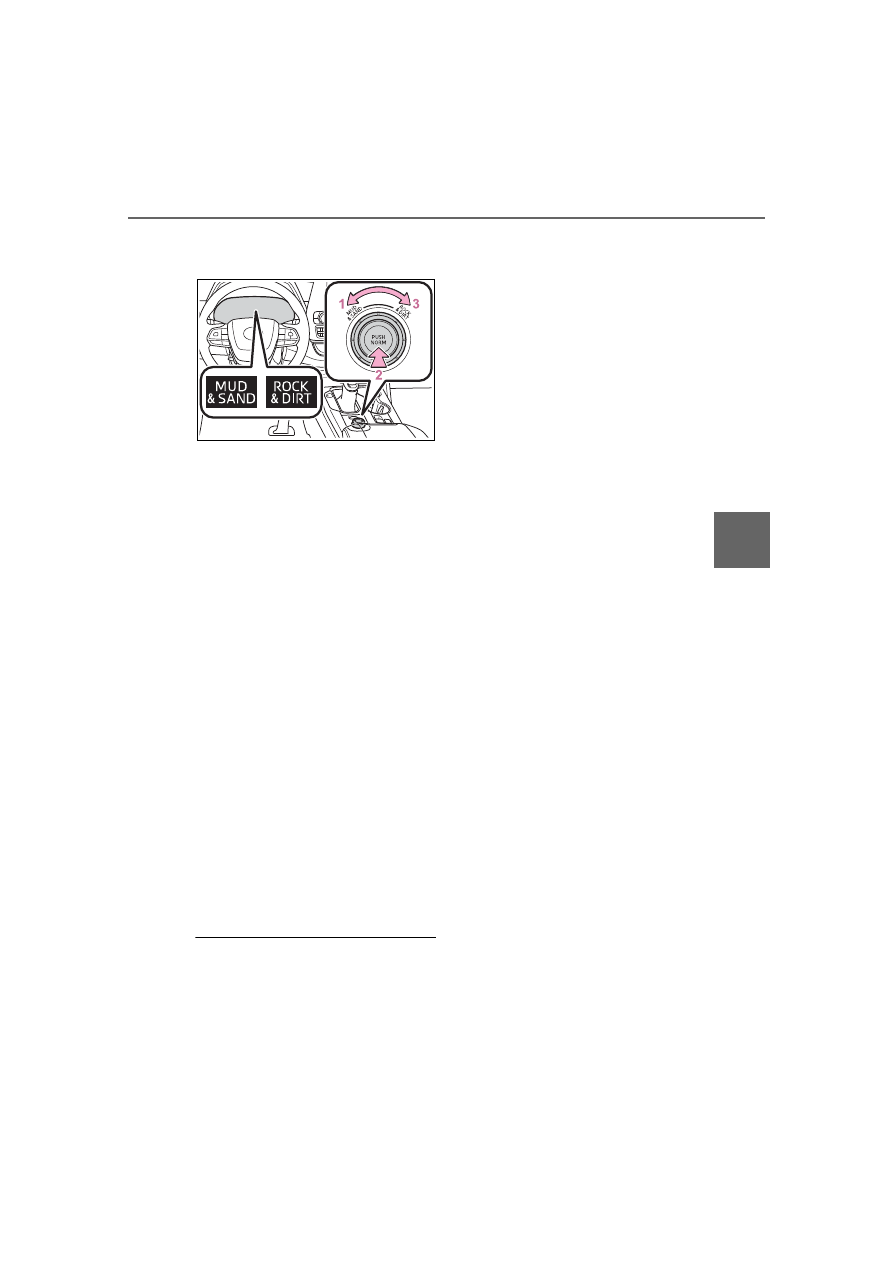

Dynamic Torque Vectoring
AWD vehicles

Mud & Sand mode

When the switch is turned to the left
while not in Mud & Sand mode, the
system switches to Mud & Sand
mode and the Mud & Sand mode
indicator, VSC OFF indicator and
PCS warning light illuminate on the
multi-information display.

Normal mode

Rock & Dirt mode

When the switch is turned to the
right while not in Rock & Dirt mode,
the system switches to Rock & Dirt
mode and the Rock & Dirt mode
indicator illuminates on the
multi-information display.

■

Multi-terrain Select

●

Multi-terrain Select is intended for

use when driving on rough roads.

Drive in normal mode during nor-

mal driving.

●

The Mud & Sand and Rock & Dirt

modes control the vehicle so that

it can maximize the drive force

and improve drivability on rough

roads. As a result, fuel efficiency

may diminish when compared to

driving in normal mode.

■

If Mud & Sand or Rock & Dirt

mode is selected

The AWD operation status display

will automatically switch on the

multi-information display.

■

AWD control for Mud & Sand

and Rock & Dirt modes

If the vehicle speed exceeds the

speeds listed below, the same level

of AWD control for Normal mode is

performed, even if Mud & Sand or

Rock & Dirt mode is selected.

●

Mud & Sand mode: Vehicle speed

is approximately 25 mph (40

km/h) or more

●

Rock & Dirt mode: Vehicle speed

is approximately 16 mph (25

km/h) or more

If the vehicle speed drops below the

above speeds, the system automati-

cally returns to the AWD control for

each mode.

■

When Multi-terrain Select brake

control temporarily stops oper-

ating

If Mud & Sand or Rock & Dirt mode

is continuously used for a long

period of time, the brakes may over-

heat, and Multi-terrain Select brake

control may temporarily stop operat-

ing.

●

At this time, the buzzer sounds

intermittently and “Traction Con-

trol Turned OFF” is displayed on

the multi-information display.

●

If Multi-terrain Select brake control

stops operating, stop the vehicle

in a safe location as soon as pos-
sible

and wait until the system

temperature decreases. Once the

display message on the

multi-information display turns off,

the brake control returns to nor-

304

4-5. Using the driving support systems

mal. Note that normal driving is

still possible even when Multi-ter-

rain Select brake control is not

operating.

: After stopping the vehicle, do not

stop the engine until the display
message has turned off.

■

When Mud & Sand or Rock &

Dirt mode is canceled

In the following situations, Mud &

Sand mode or Rock & Dirt mode are

automatically canceled even if they

are selected.

●

When the driving mode is

changed (



P.300)

●

When the engine switch is turned

off

■

Driving in Mud & Sand or Rock

& Dirt mode

The following types of situations

may occur, but they are not malfunc-

tions.

●

Vibrations may be felt throughout

the vehicle or steering wheel

●

Operating noise may be heard

from the engine compartment

■

When an inspection at your

Toyota dealer is necessary

In the following situations, the sys-

tem may be malfunctioning. Have

the vehicle inspected by your Toyota

dealer immediately.

●

When the slip indicator light illumi-

nates while Mud & Sand or Rock

& Dirt mode is selected

●

When the indicator for each mode

does not illuminate even though

Mud & Sand or Rock & Dirt mode

is selected

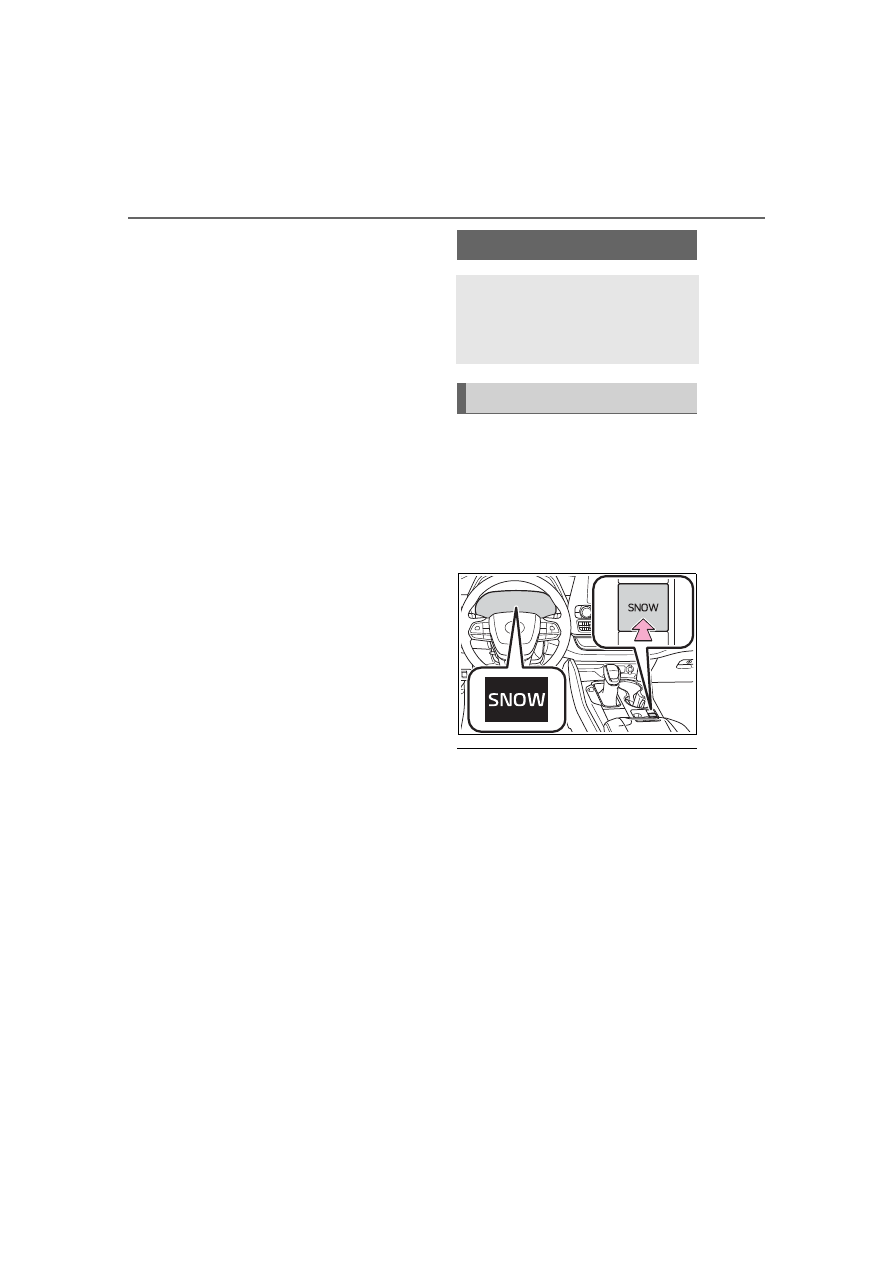

Press the snow mode switch.

When the switch is pressed, the
system switches to snow mode and
the snow mode indicator illuminates
on the multi-information display.
When the switch is pressed again,
the snow mode indicator turns off.

■

Canceling the snow mode

Snow mode is automatically can-

celed when the engine switch is

turned OFF or Mud & Sand or Rock

& Dirt mode is selected for Multi-ter-

rain Select.

Snow mode switch

Snow mode can be selected
to suit the conditions when
driving on slippery road sur-
faces, such as on snow.

System operation

Toyota Highlander (2023 year). Manual in english - page 18
