4-5. Using the driving support systems

ing

WARNING

●

When the follow-up cruising dis-

play is displayed (



P.245) and

the preceding vehicle changes

lanes. (Your vehicle may follow

the preceding vehicle and also

change lanes.)

●

When the follow-up cruising dis-

play is displayed (



P.245) and

the preceding vehicle is sway-

ing. (Your vehicle may sway

accordingly and depart from the

lane.)

●

When the follow-up cruising dis-

play is displayed (



P.245) and

the preceding vehicle departs

from its lane. (Your vehicle may

follow the preceding vehicle and

depart from the lane.)

●

When the follow-up cruising dis-

play is displayed (



P.245) and

the preceding vehicle is being

driven extremely close to the

left/right lane line. (Your vehicle

may follow the preceding vehi-

cle and depart from the lane.)

●

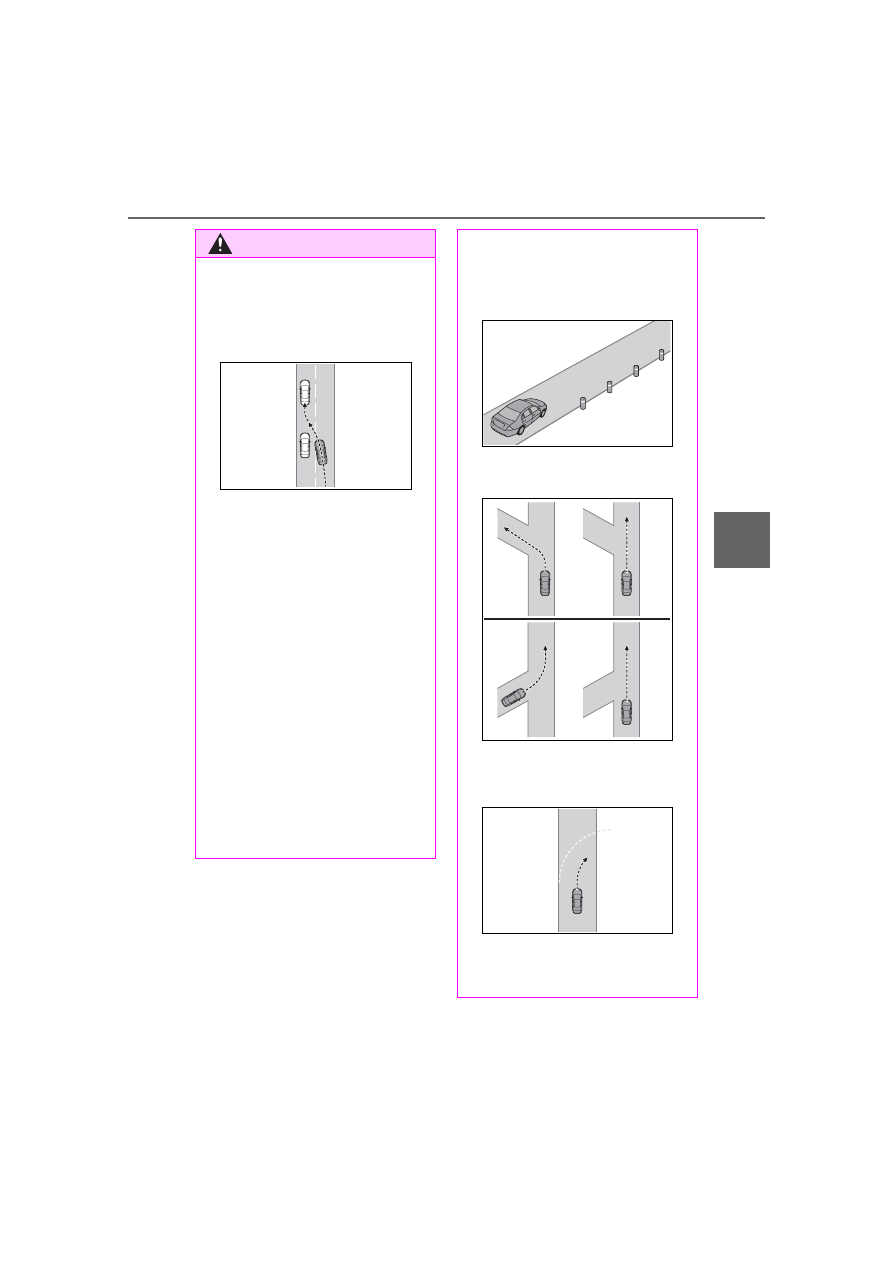

Vehicle is being driven around a

sharp curve.

●

Objects or patterns that could

be mistaken for white (yellow)

lines are present on the side of

the road (guardrails, reflective

poles, etc.).

●

Vehicle is driven where the road

diverges, merges, etc.

●

Repair marks of asphalt, white

(yellow) lines, etc. are present

due to road repair.

●

There are shadows on the road

that run parallel with, or cover,

the white (yellow) lines.

242

4-5. Using the driving support systems

WARNING

●

The vehicle is driven in an area

without white (yellow) lines,

such as in front of a tollgate or

checkpoint, or at an intersec-

tion, etc.

●

The white (yellow) lines are

cracked, “Botts’ dots”, “Raised

pavement marker” or stones are

present.

●

The white (yellow) lines cannot

be seen or are difficult to see

due to sand, etc.

●

The vehicle is driven on a road

surface that is wet due to rain,

puddles, etc.

●

The traffic lines are yellow

(which may be more difficult to

recognize than lines that are

white).

●

The white (yellow) lines cross

over a curb, etc.

●

The vehicle is driven on a bright

surface, such as concrete.

●

If the edge of the road is not

clear or straight.

●

The vehicle is driven on a sur-

face that is bright due to

reflected light, etc.

●

The vehicle is driven in an area

where the brightness changes

suddenly, such as at the

entrances and exits of tunnels,

etc.

●

Light from the headlights of an

oncoming vehicle, the sun, etc.

enters the camera.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road

which tilts left or right, or a wind-

ing road.

●

The vehicle is driven on an

unpaved or rough road.

●

The traffic lane is excessively

narrow or wide.

●

The vehicle is extremely tilted

due to carrying heavy luggage

or having improper tire pres-

sure.

●

The distance to the preceding

vehicle is extremely short.

●

The vehicle is moving up and

down a large amount due to

road conditions during driving

(poor roads or road seams).

●

When driving in a tunnel or at

night with the headlights off or

when a headlight is dim due to

its lens being dirty or it being

misaligned.

●

The vehicle is struck by a cross-

wind.

●

The vehicle is affected by wind

from a vehicle driven in a

nearby lane.

●

The vehicle has just changed

lanes or crossed an intersec-

tion.

●

Tires which differ by structure,

manufacturer, brand or tread

pattern are used.

●

When tires of a size other than

specified are installed.

●

Snow tires, etc. are equipped.

●

The vehicle is being driven at

extremely high speeds.

243

4-5. Using the driving support systems

ing

■

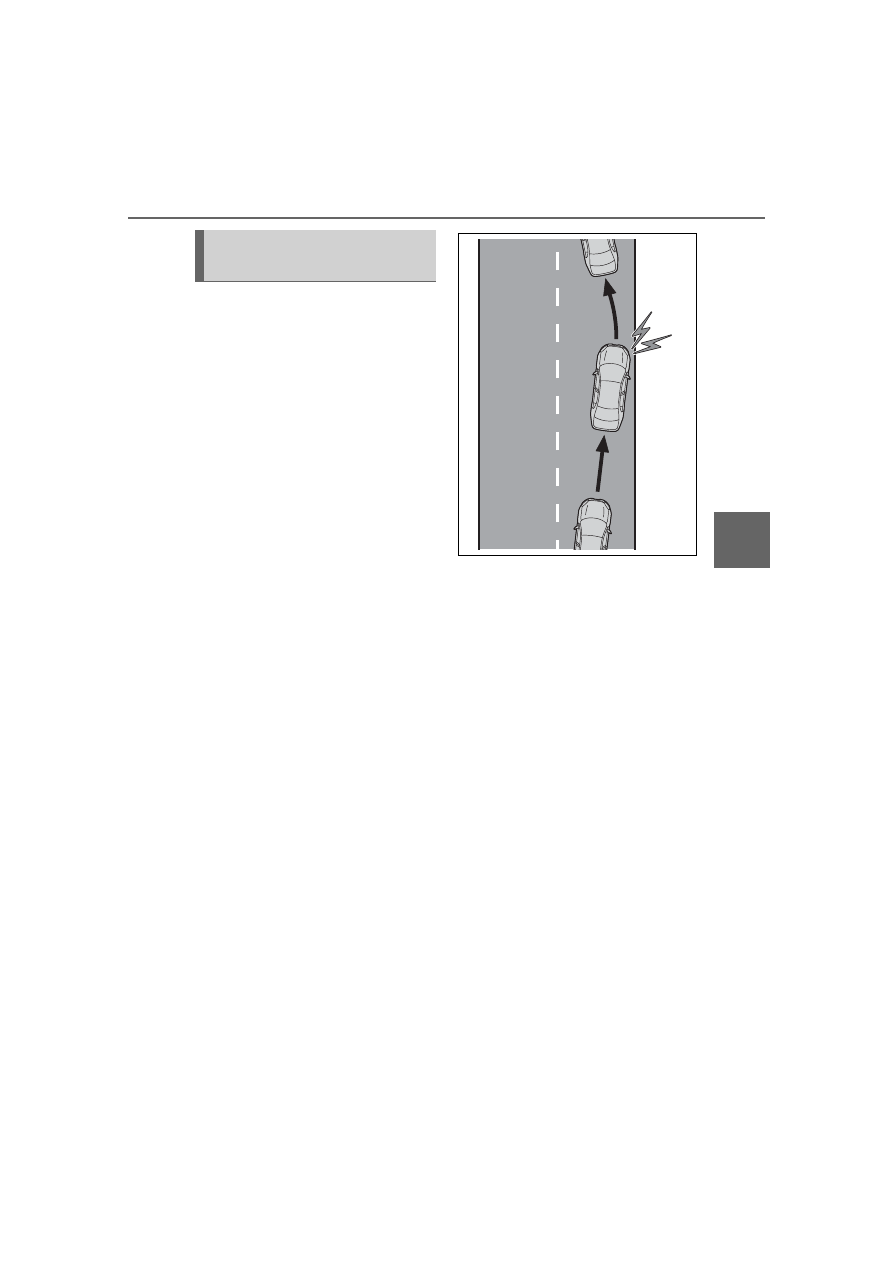

Lane departure alert func-
tion

When the system determines
that the vehicle might depart
from its lane or course

, a warn-

ing is displayed on the
multi-information display, and a
warning buzzer will sound to
alert the driver.

When the warning buzzer sounds,
check the area around your vehicle
and carefully operate the steering
wheel to move the vehicle back to
the center of the lane.
Vehicle with BSM: When the sys-
tem determines that the vehicle
might depart from its lane and that
the possibility of a collision with an
overtaking vehicle in the adjacent
lane is high, the lane departure
alert will operate even if the turn
signals are operating.

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Steering assist function

When the system determines
that the vehicle might depart
from its lane or course

, the sys-

tem provides assistance as nec-
essary by operating the steering
wheel in small amounts for a
short period of time to keep the
vehicle in its lane.

Vehicle with BSM: When the sys-
tem determines that the vehicle
might depart from its lane and that
the possibility of a collision with an
overtaking vehicle in the adjacent
lane is high, the steering assist
function will operate even if the turn
signals are operating.

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

Functions included in LTA
system

244

4-5. Using the driving support systems

■

Vehicle sway warning func-
tion

When the vehicle is swaying
within a lane, the warning
buzzer will sound and a mes-
sage will be displayed on the
multi-information display to alert
the driver.

■

Lane centering function

This function is linked with
dynamic radar cruise control
with full-speed range and pro-
vides the required assistance by
operating the steering wheel to
keep the vehicle in its current
lane.

When dynamic radar cruise control
with full-speed range is not operat-
ing, the lane centering function
does not operate.
In situations where the white (yel-
low) lane lines are difficult to see or
are not visible, such as when in a
traffic jam, this function will operate
to help follow a preceding vehicle
by monitoring the position of the
preceding vehicle.

245

4-5. Using the driving support systems

ing

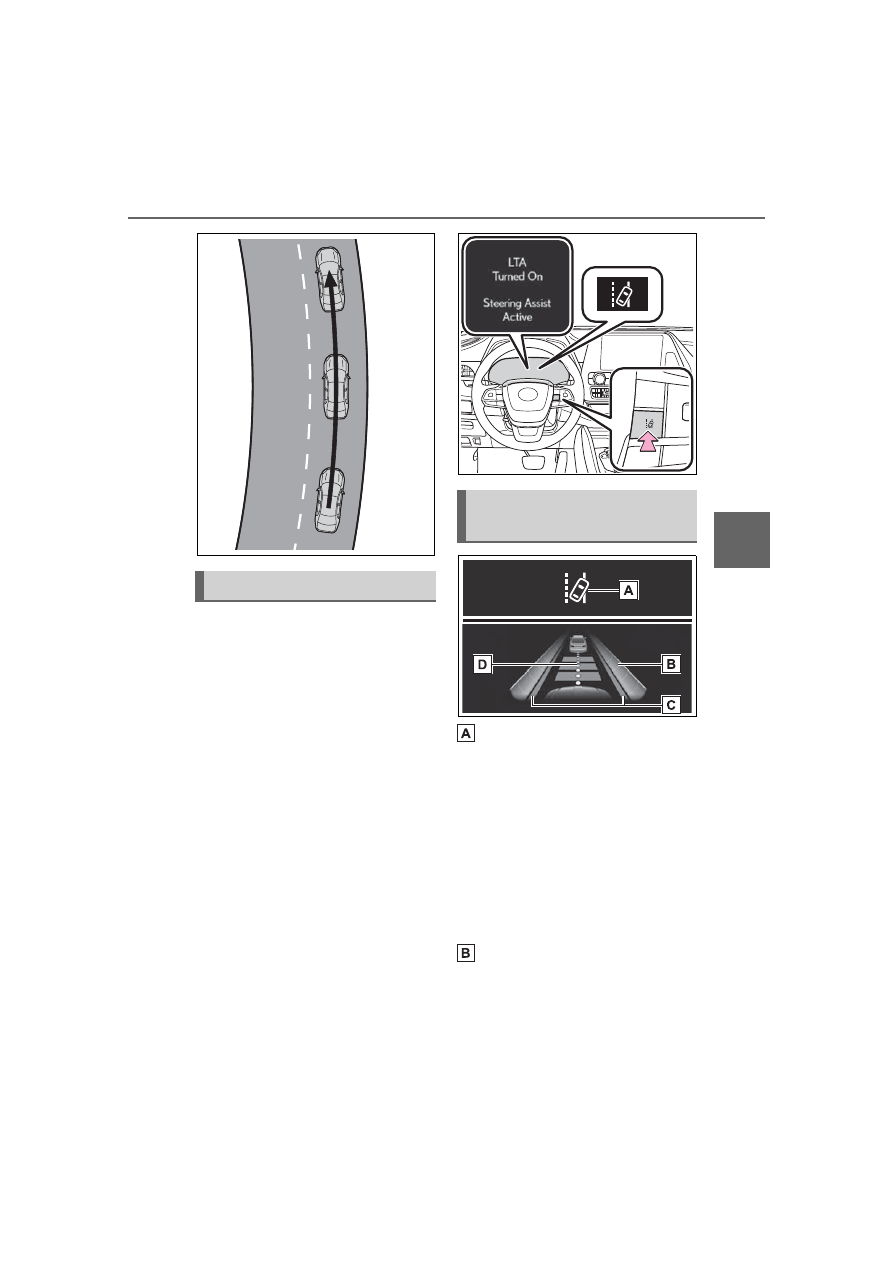

Press the LTA switch to turn the
LTA system on.

The LTA indicator illuminates and a
message is displayed on the
multi-information display.

Press the LTA switch again to
turn the LTA system off.
When the LTA system is turned
on or off, operation of the LTA
system continues in the same
condition the next time the
engine is started.

LTA indicator

The illumination condition of the

indicator informs the driver of the

system operation status.
Illuminated in white: LTA system is

operating.
Illuminated in green: Steering wheel

assistance of the steering assist

function or lane centering function

is operating.
Flashing in orange: Lane departure

alert function is operating.

Operation display of steering
wheel operation support

Displayed when the multi-informa-

tion display is switched to the driv-

ing support system information

Turning LTA system on

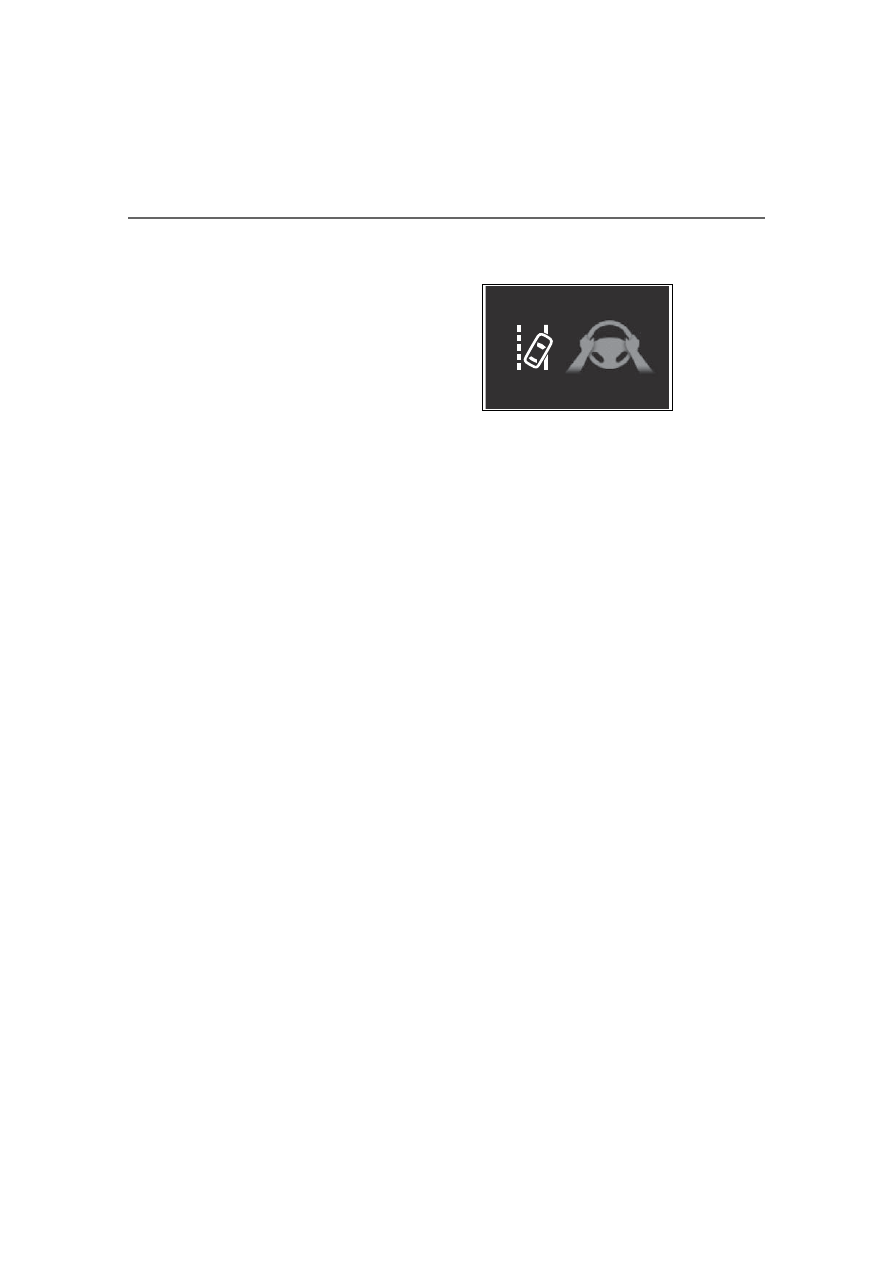

Indications on multi-infor-
mation display

246

4-5. Using the driving support systems

display.
Indicates that steering wheel assis-

tance of the steering assist function

or lane centering function is operat-

ing.
Both outer sides of the lane are dis-

played: Indicates that steering

wheel assist of the lane centering

function is operating.
One outer side of the lane is dis-

played: Indicates that steering

wheel assist of the steering assist

function is operating.
Both outer sides of the lane are

flashing: Alerts the driver that their

input is necessary to stay in the

center of the lane (lane centering

function).

Lane departure alert function
display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
display.



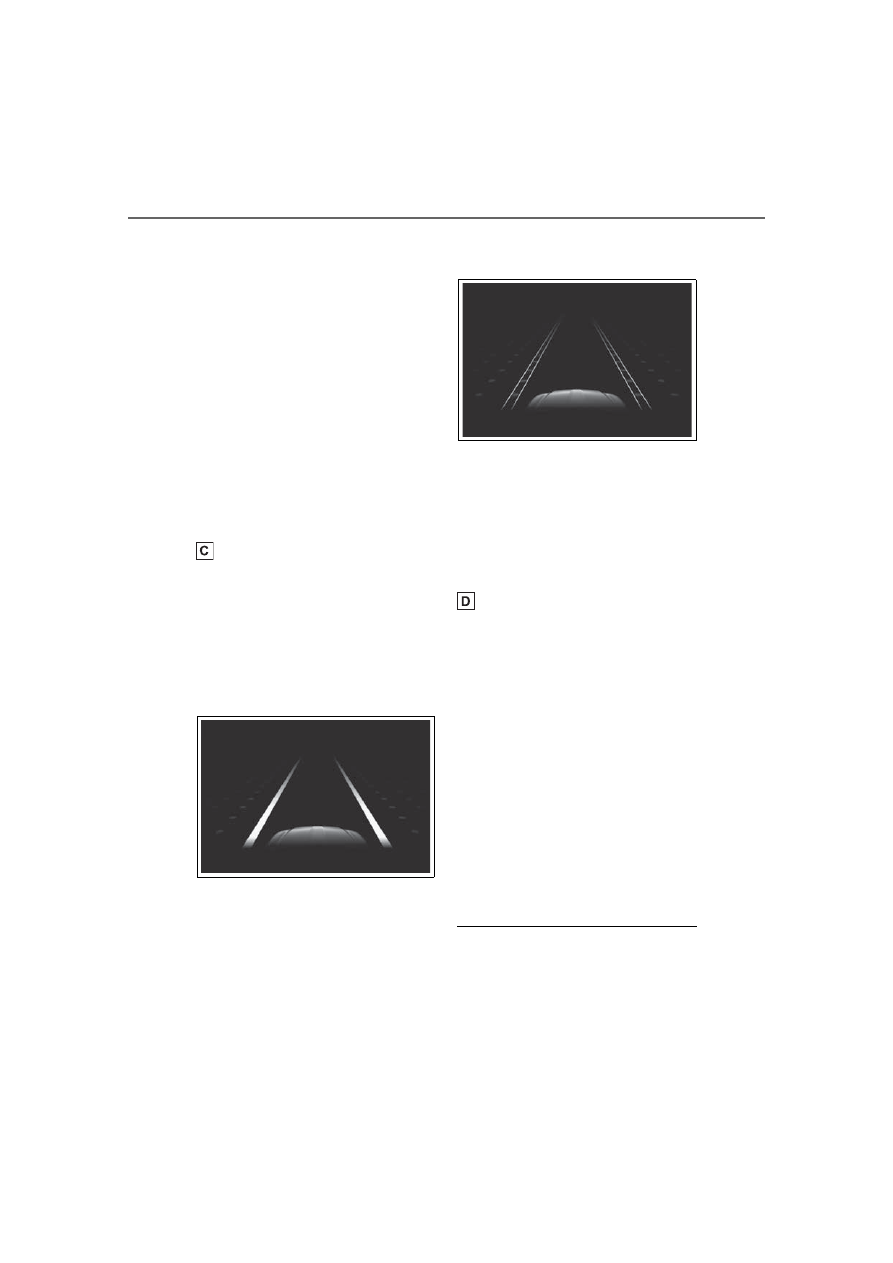

Inside of displayed lines is
white

Indicates that the system is rec-
ognizing white (yellow) lines or a
course

. When the vehicle

departs from its lane, the white
line displayed on the side the
vehicle departs from flashes
orange.



Inside of displayed lines is
black

Indicates that the system is not
able to recognize white (yellow)
lines or a course

or is temporar-

ily canceled.

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

Follow-up cruising display

Displayed when the multi-informa-
tion display is switched to the driv-
ing support system information
display.
Indicates that steering assist of the
lane centering function is operating
by monitoring the position of a pre-
ceding vehicle.
When the follow-up cruising display
is displayed, if the preceding vehi-
cle moves, your vehicle may move
in the same way. Always pay care-
ful attention to your surroundings
and operate the steering wheel as
necessary to correct the path of the
vehicle and ensure safety.

■

Operation conditions of each

function

●

Lane departure alert function

This function operates when all of

the following conditions are met.

• LTA is turned on.

247

4-5. Using the driving support systems

ing

• Vehicle speed is approximately 32

mph (50 km/h) or more.

• System recognizes white (yellow)

lane lines or a course

. (When a

white [yellow] line or course

recognized on only one side, the

system will operate only for the

recognized side.)

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• Turn signal lever is not operated.

(Vehicle with BSM: Except when

another vehicle is in the lane on

the side where the turn signal was

operated)

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.249)

:The function operates even if the

vehicle speed is less than
approximately 32 mph (50 km/h)
when the lane centering function
is operating.

:Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

●

Steering assist function

This function operates when all of

the following conditions are met in

addition to the operation conditions

for the lane departure alert function.

• Vehicle is not accelerated or

decelerated by a fixed amount or

more.

• Steering wheel is not operated

with a steering force level suitable

for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.

●

Vehicle sway warning function

This function operates when all of

the following conditions are met.
• Setting for “Sway Warning” in

of the multi-information display is

set to “ON”. (



P.92, 102)

• Vehicle speed is approximately 32

mph (50 km/h) or more.

• Width of traffic lane is approxi-

mately 9.8 ft. (3 m) or more.

• No system malfunctions are

detected. (



P.249)

●

Lane centering function

This function operates when all of

the following conditions are met.

• LTA is turned on.
• Setting for “Lane Center” in

the multi-information display are

set to “ON”. (



P.92, 102)

• This function recognizes white

(yellow) lane lines or the position

of a preceding vehicle (except

when the preceding vehicle is

small, such as a motorcycle).

• The dynamic radar cruise control

with full-speed range is operating

in vehicle-to-vehicle distance con-

trol mode.

• Width of traffic lane is approxi-

mately 10 to 13 ft. (3 to 4 m).

• Turn signal lever is not operated.

• Vehicle is not being driven around

a sharp curve.

• No system malfunctions are

detected. (



P.249)

• Vehicle does not accelerate or

decelerate by a fixed amount or

more.

• Steering wheel is not operated

with a steering force level suitable

for changing lanes.

• ABS, VSC, TRAC and PCS are

not operating.

• TRAC or VSC is not turned off.

• Hands off steering wheel warning

is not displayed. (



P.248)

• The vehicle is being driven in the

center of a lane.

• Steering assist function is not

operating.

■

Temporary cancelation of func-

tions

●

When operation conditions are no

longer met, a function may be

temporarily canceled. However,

when the operation conditions are

met again, operation of the func-

tion is automatically restored.

(



P.246)

248

4-5. Using the driving support systems

●

If the operation conditions

(



P.246) are no longer met while

the lane centering function is

operating, the buzzer may sound

to indicate that the function has

been temporarily canceled.

■

Steering assist function/lane

centering function

●

Depending on the vehicle speed,

lane departure situation, road con-

ditions, etc., the driver may not

feel the function is operating or

the function may not operate at

all.

●

The steering control of the func-

tion is overridden by the driver’s

steering wheel operation.

●

Do not attempt to test the opera-

tion of the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be diffi-

cult to hear due to external noise,

audio playback, etc.

●

If the edge of the course

is not

clear or straight, the lane depar-

ture alert function may not oper-

ate.

●

Vehicle with BSM: It may not be

possible for the system to deter-

mine if there is a danger of a colli-

sion with a vehicle in an adjacent

lane.

●

Do not attempt to test the opera-

tion of the lane departure alert

function.

: Boundary between asphalt and

the side of the road, such as
grass, soil, or a curb

■

Hands off steering wheel warn-

ing

In the following situations, a warning

message urging the driver to hold

the steering wheel and the symbol

shown in the illustration are dis-

played on the multi-information dis-

play to warn the driver. The warning

stops when the system determines

that the driver holds the steering

wheel. Always keep your hands on

the steering wheel when using this

system, regardless of warnings.

●

When the system determines the

driver is not holding the steering

wheel while the lane centering

function is operating.

If the driver continues to keep their
hands off of the steering wheel, the
buzzer sounds, the driver is warned
and the function is temporarily can-
celed. This warning also operates in
the same way when the driver con-
tinuously operates the steering
wheel only a small amount.

●

When the system determines that

the vehicle may deviate from the

lane while driving around a curve

while the lane centering function is

operating.

Depending on the vehicle condition

and road conditions, the warning

may not operate.

●

When the system determines that

the driver is driving without hold-

ing the steering wheel while the

steering wheel assist of the steer-

ing assist function is operating.

If the driver continues to keep their
hands off of the steering wheel and
the steering wheel assist is operat-
ing, the buzzer sounds and the
driver is warned. Each time the
buzzer sounds, the continuing time
of the buzzer becomes longer.

■

Vehicle sway warning function

When the system determines that

the vehicle is swaying while the

249

4-5. Using the driving support systems

ing

vehicle sway warning function is

operating, a buzzer sounds and a

warning message urging the driver

to rest and the symbol shown in the

illustration are simultaneously dis-

played on the multi-information dis-

play.

Depending on the vehicle and road

conditions, the warning may not

operate.

■

Warning message

If the following warning message is

displayed on the multi-information

display and the LTA indicator illumi-

nates in orange, follow the appropri-

ate troubleshooting procedure. Also,

if a different warning message is

displayed, follow the instructions

displayed on the screen.

●

“LTA Malfunction Visit Your

Dealer”

The system may not be operating

properly. Have the vehicle inspected

by your Toyota dealer.

●

“LTA Unavailable”

The system is temporarily canceled

due to a malfunction in a sensor

other than the front camera. Turn

the LTA system off, wait for a little

while, and then turn the LTA system

back on.

●

“LTA Unavailable at Current

Speed”

The function cannot be used as the

vehicle speed exceeds the LTA

operation range. Drive slower.

■

Customization

Function settings can be changed.

(Customizable features:



P.494)

■

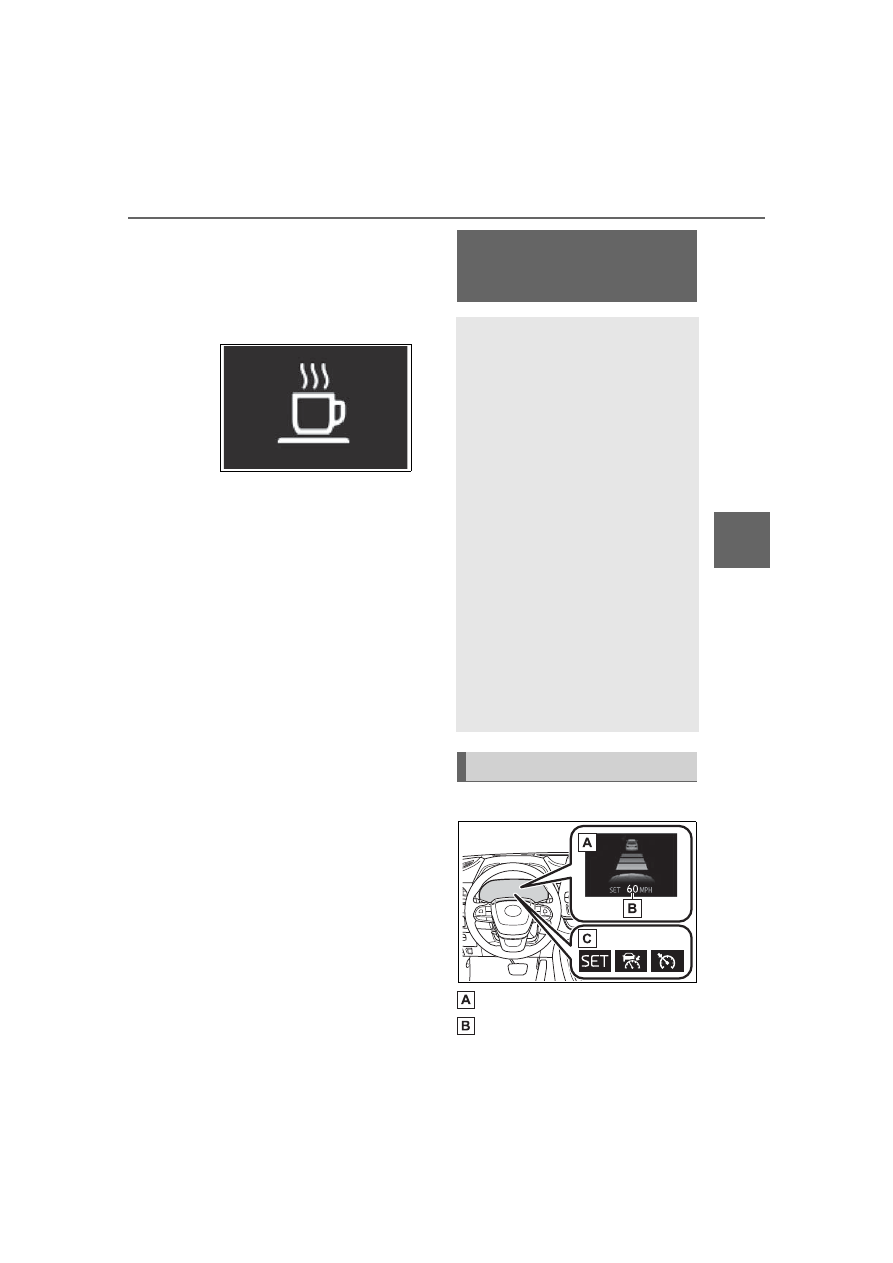

Meter display

Multi-information display
Set speed

Dynamic radar cruise

control with full-speed

range

In vehicle-to-vehicle dis-
tance control mode, the
vehicle automatically accel-
erates, decelerates and
stops to match the speed
changes of the preceding
vehicle even if the accelera-
tor pedal is not depressed.
In constant speed control
mode, the vehicle runs at a
fixed speed.

Use the dynamic radar
cruise control with
full-speed range on free-
ways and highways.



Vehicle-to-vehicle distance
control mode (



P.252)



Constant speed control
mode (



P.257)

System Components

250

4-5. Using the driving support systems

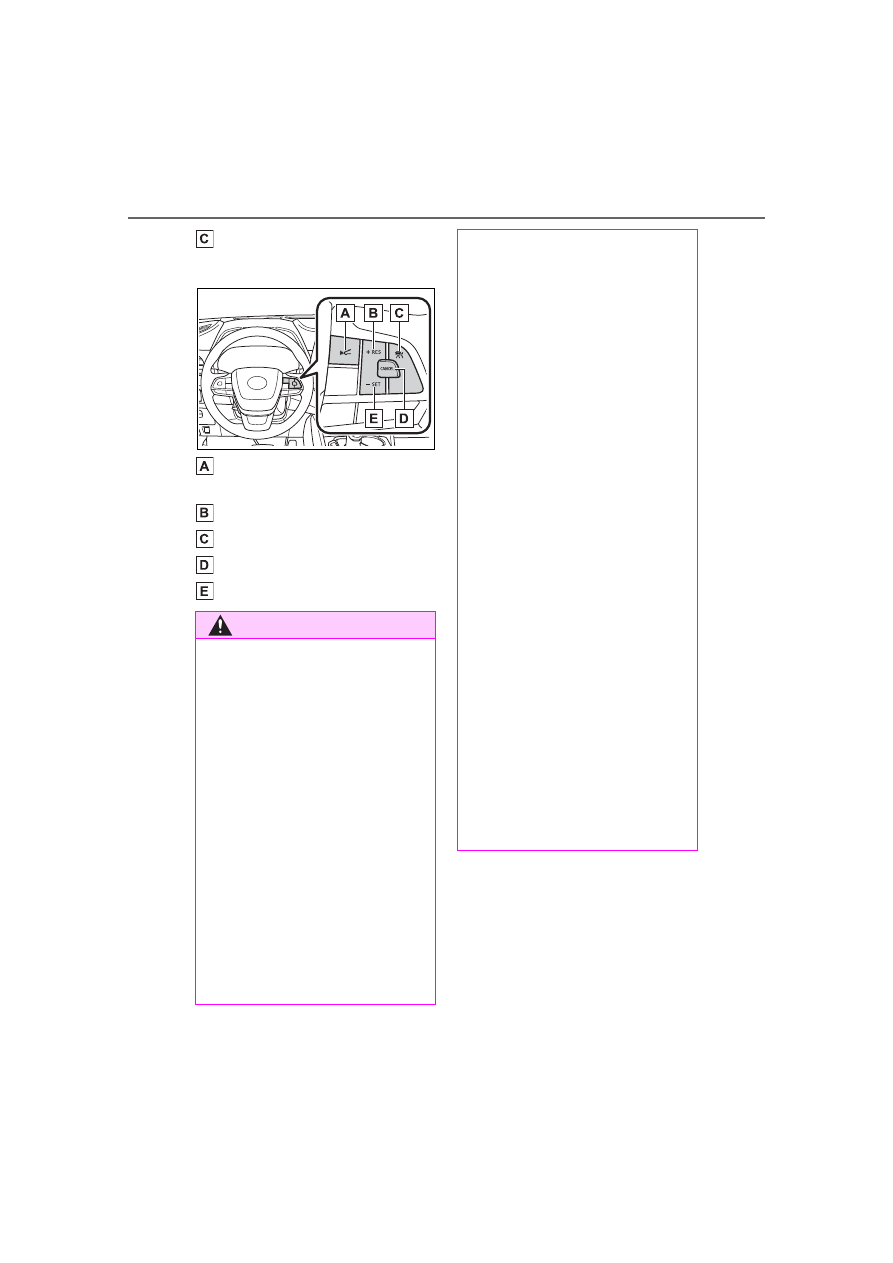

Indicators

■

Operation switches

Vehicle-to-vehicle distance
switch
“+RES” switch
Cruise control main switch
Cancel switch
“-SET” switch

WARNING

■

Before using dynamic radar

cruise control with full-speed

range

●

Driving safely is the sole

responsibility of the driver. Do

not rely solely on the system,

and drive safely by always pay-

ing careful attention to your sur-

roundings.

●

The dynamic radar cruise con-

trol with full-speed range pro-

vides driving assistance to

reduce the driver’s burden.

However, there are limitations to

the assistance provided.

Read the following conditions

carefully. Do not overly rely on

this system and always drive

carefully.

• When the sensor may not be

correctly detecting the vehicle

ahead:



P.259

• Conditions under which the

vehicle-to-vehicle distance con-

trol mode may not function cor-

rectly:



P.260

●

Set the speed appropriately

depending on the speed limit,

traffic flow, road conditions,

weather conditions, etc. The

driver is responsible for check-

ing the set speed.

●

Even when the system is func-

tioning normally, the condition of

the preceding vehicle as

detected by the system may dif-

fer from the condition observed

by the driver. Therefore, the

driver must always remain alert,

assess the danger of each situ-

ation and drive safely. Relying

solely on this system or assum-

ing the system ensures safety

while driving can lead to an

accident, resulting in death or

serious injury.

●

Switch the dynamic radar cruise

control with full-speed range

setting to off, using the cruise

control main switch when not in

use.

■

Cautions regarding the driv-

ing assist systems

Observe the following precau-

tions, as there are limitations to

the assistance provided by the

system. Failure to do so may

cause an accident resulting in

death or serious injury.

251

4-5. Using the driving support systems

ing

WARNING

●

Assisting the driver to measure

following distance

The dynamic radar cruise control

with full-speed range is only

intended to help the driver in

determining the following distance

between the driver’s own vehicle

and a designated vehicle traveling

ahead. It is not a mechanism that

allows careless or inattentive driv-

ing, and it is not a system that can

assist the driver in low-visibility

conditions.

It is still necessary for driver to

pay close attention to the vehi-

cle’s surroundings.

●

Assisting the driver to judge

proper following distance

The dynamic radar cruise control

with full-speed range determines

whether the following distance

between the driver’s own vehicle

and a designated vehicle traveling

ahead is within a set range. It is

not capable of making any other

type of judgement. Therefore, it is

absolutely necessary for the

driver to remain vigilant and to

determine whether or not there is

a possibility of danger in any

given situation.

●

Assisting the driver to operate

the vehicle

The dynamic radar cruise control

with full-speed range does not

include functions which will pre-

vent or avoid collisions with vehi-

cles ahead of your vehicle.

Therefore, if there is ever any

possibility of danger, the driver

must take immediate and direct

control of the vehicle and act

appropriately in order to ensure

the safety of all involved.

■

Situations unsuitable for

dynamic radar cruise control

with full-speed range

Do not use dynamic radar cruise

control with full-speed range in

any of the following situations.

Doing so may result in inappropri-

ate speed control and could

cause an accident resulting in

death or serious injury.

●

Roads where there are pedes-

trians, cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as

those covered with rain, ice or

snow

●

On steep downhills, or where

there are sudden changes

between sharp up and down

gradients

Vehicle speed may exceed the

set speed when driving down a

steep hill.

●

At entrances to freeways and

highways

●

When weather conditions are

bad enough that they may pre-

vent the sensors from detecting

correctly (fog, snow, sand-

storm, heavy rain, etc.)

●

When there is rain, snow, etc.

on the front surface of the radar

or front camera

●

In traffic conditions that require

frequent repeated acceleration

and deceleration

●

When your vehicle is towing a

trailer or during emergency tow-

ing

●

When an approach warning

buzzer is heard often

252

4-5. Using the driving support systems

This mode employs a radar to detect the presence of vehicles up to
approximately 328 ft. (100 m) ahead, determines the current vehi-
cle-to-vehicle following distance, and operates to maintain a suitable
following distance from the vehicle ahead. The desired vehi-
cle-to-vehicle distance can also be set by operating the vehi-
cle-to-vehicle distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may
become shorter.

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed
appears

When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is nec-
essary, the system applies the brakes (the stop lights will come on at this
time). The system will respond to changes in the speed of the vehicle
ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Approach warning warns you when the system cannot decelerate suffi-
ciently to prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is
stopped by system control). After the vehicle ahead starts off, pressing the
“+RES” switch or depressing the accelerator pedal (start-off operation) will
resume follow-up cruising. If the start-off operation is not performed, system
control continues to keep your vehicle stopped.

Driving in vehicle-to-vehicle distance control mode

253

4-5. Using the driving support systems

ing

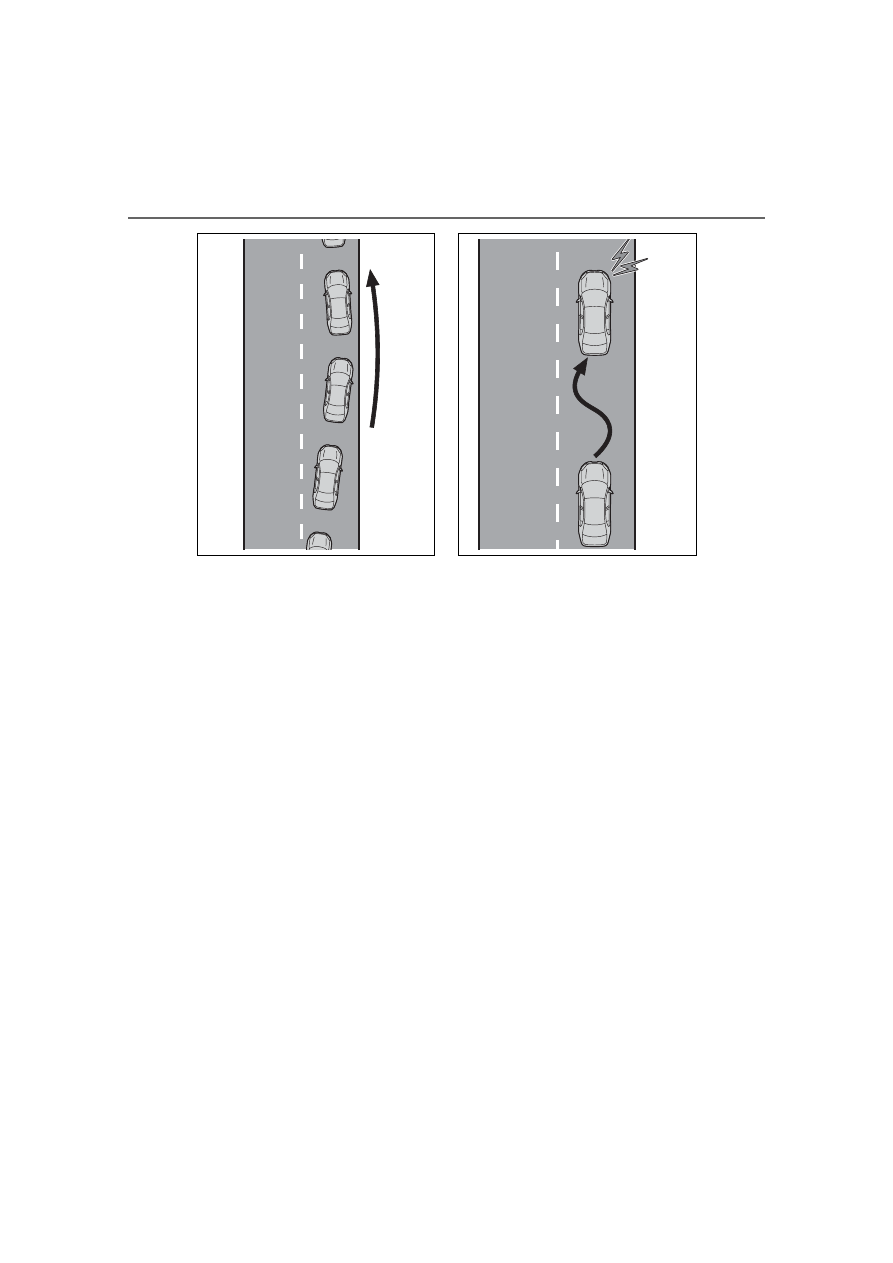

When the turn signal lever is operated and your vehicle moves to an over-
taking lane while driving at 50 mph (80 km/h) or more, the vehicle will accel-
erate to help to overtake a passing vehicle.
The system’s identification of what is an overtaking lane may be determined
solely based on the location of the steering wheel in the vehicle (left side
driver position versus right side driver position.) If the vehicle is driven to a
region where the overtaking lane is on a different side from where the vehi-
cle is normally driven, the vehicle may accelerate when the turn signal lever
is operated in the opposite direction to the overtaking lane (e.g., if the driver
normally operates the vehicle in a region where the overtaking lane is to the
right but then drives to a region where the overtaking lane is to the left, the
vehicle may accelerate when the right turn signal is activated).

Example of acceleration

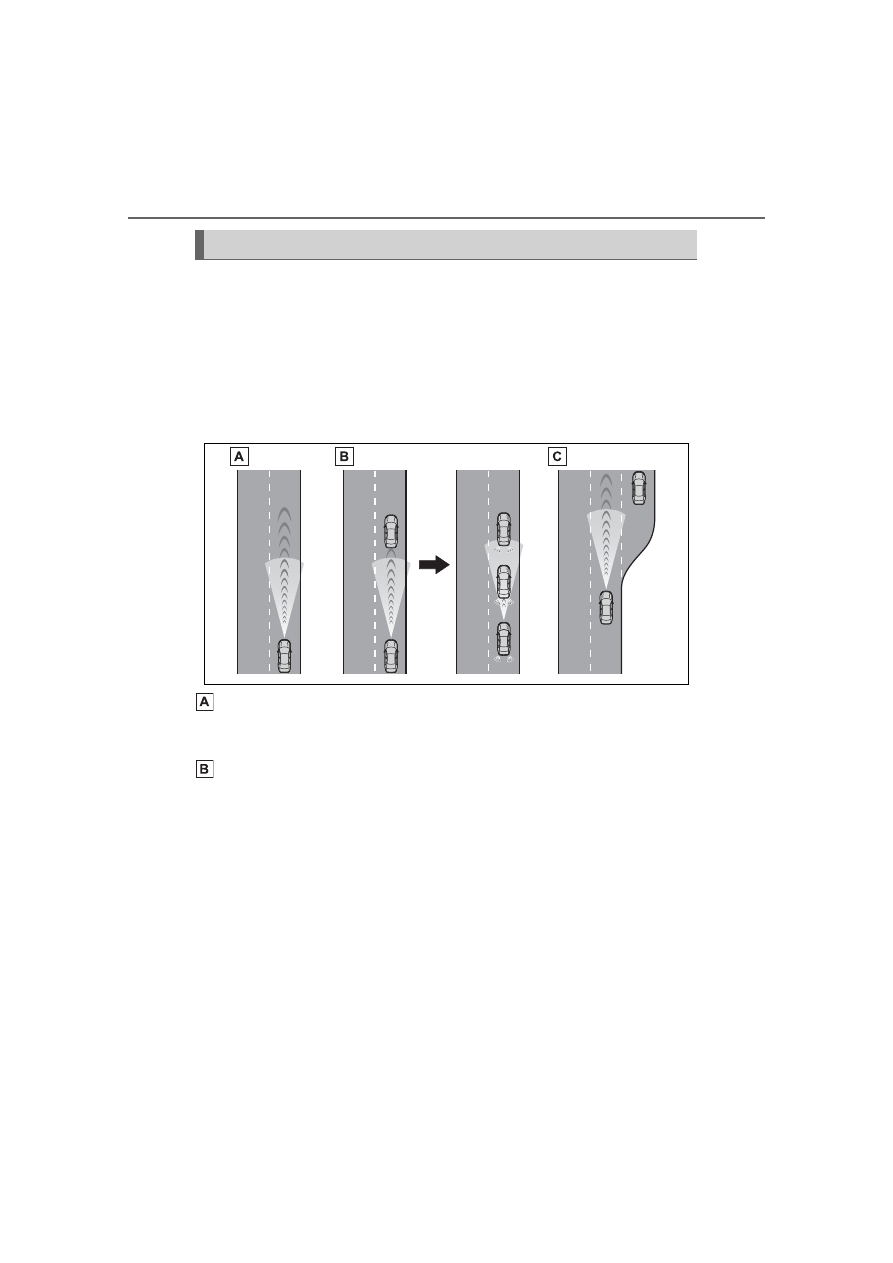

When there are no longer any preceding vehicles driving slower
than the set speed

The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.

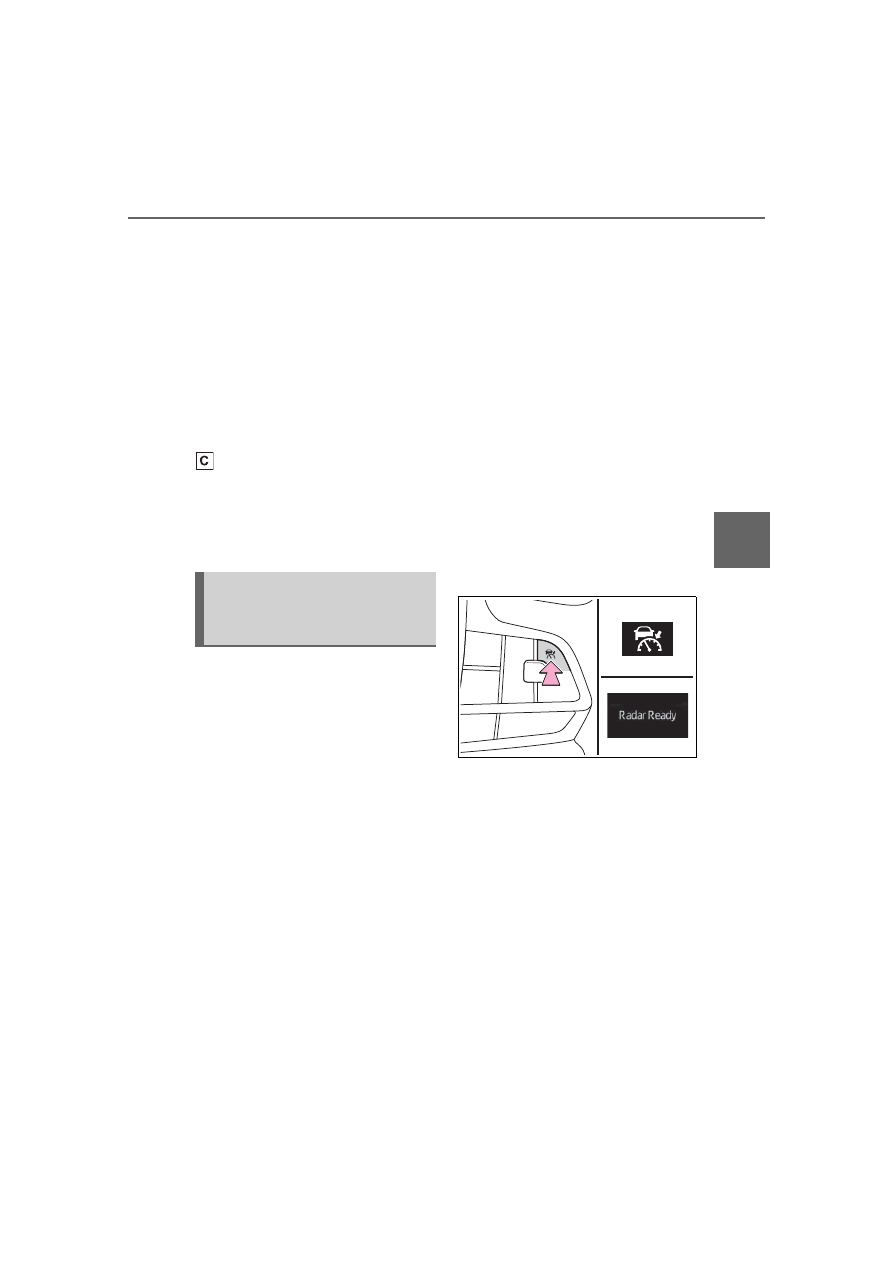

Press the cruise control main
switch to activate the cruise
control.

Dynamic radar cruise control indi-

cator will come on and a message

will be displayed on the multi-infor-

mation display. Press the switch

again to deactivate the cruise con-

trol.
If the cruise control main switch is

pressed and held for 1.5 seconds

or more, the system turns on in

constant speed control mode.

(



P.257)

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired vehicle
speed (at or above approxi-
mately 20 mph [30 km/h])
and press the “-SET” switch
to set the speed.

Cruise control “SET” indicator will

come on.
The vehicle speed at the moment

the switch is released becomes the

Setting the vehicle speed
(vehicle-to-vehicle dis-
tance control mode)

254

4-5. Using the driving support systems

set speed.



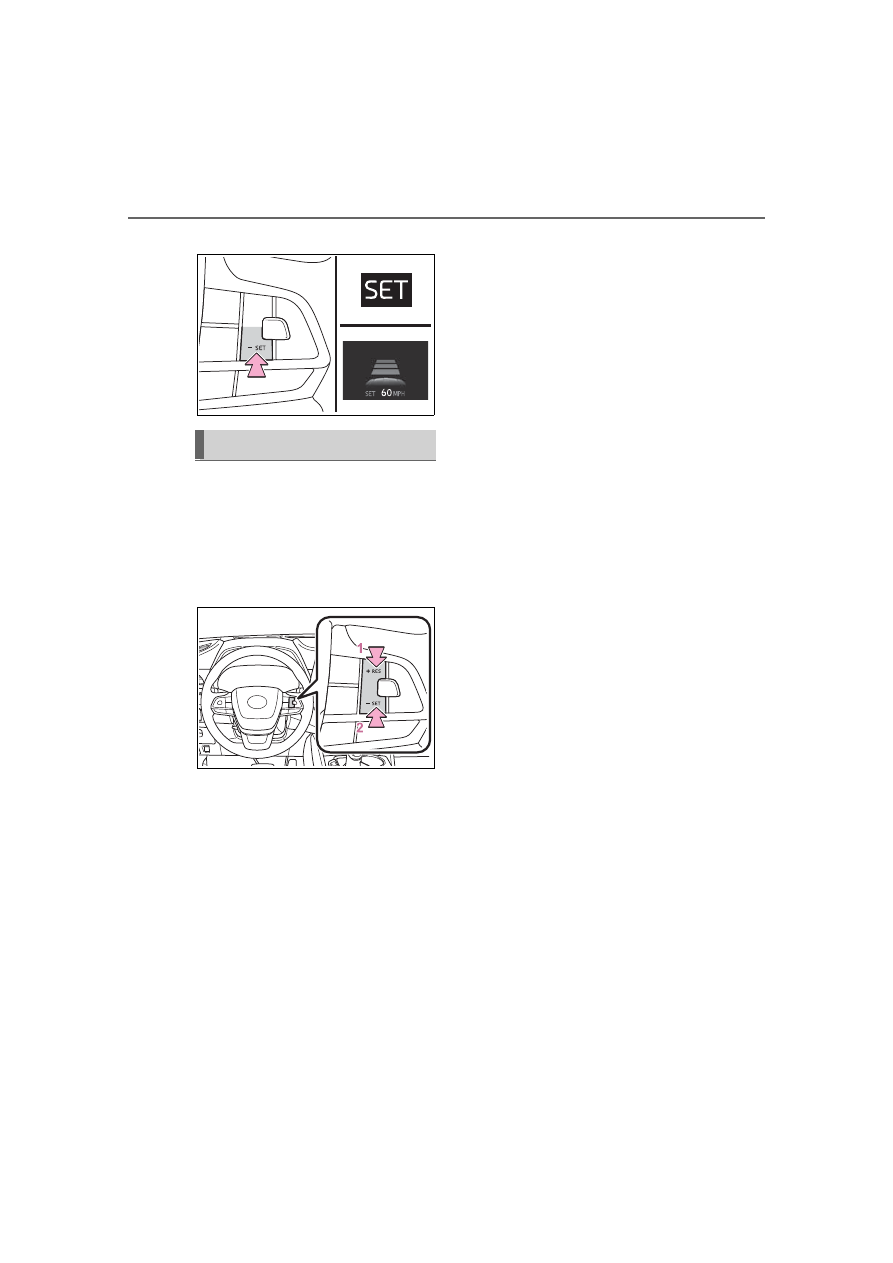

Adjusting the set speed by the
switch

To change the set speed, press
the “+RES” or “-SET” switch
until the desired set speed is
displayed.

Increases the speed (Except
when the vehicle has been
stopped by system control in
vehicle-to-vehicle distance
control mode)

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold
the switch to change the speed,
and release when the desired
speed is reached.

In the vehicle-to-vehicle dis-
tance control mode, the set

speed will be increased or
decreased as follows:



For the U.S. mainland and
Hawaii

Fine adjustment: By 1 mph (1.6
km/h)

or 1 km/h (0.6 mph)

each

time the switch is pressed
Large adjustment: Increases or
decreases in 1 mph (1.6 km/h)

1 km/h (0.6 mph)

increments for

as long as the switch is held



For Canada, Guam, Saipan,
Puerto Rico and A.Samoa

Fine adjustment: By 1 mph (1.6
km/h)

or 1 km/h (0.6 mph)

each

time the switch is pressed
Large adjustment: Increases or
decreases in 5 mph (8 km/h)

or 5

km/h (3.1 mph)

increments for as

long as the switch is held

In the constant speed control
mode (



P.257), the set speed

will be increased or decreased
as follows:

Fine adjustment: By 1 mph (1.6
km/h)

or 1 km/h (0.6 mph)

each

time the switch is pressed
Large adjustment: The speed will
continue to change while the switch
is held.

:When the set speed is shown in

“MPH”

:When the set speed is shown in

“km/h”



Increasing the set speed by
the accelerator pedal

Adjusting the set speed

255

4-5. Using the driving support systems

ing

Accelerate with accelerator
pedal operation to the
desired vehicle speed

Press the “-SET” switch

Pressing the switch changes the
vehicle-to-vehicle distance as
follows:

Long

Medium

Short

If a vehicle is running ahead of you,
the preceding vehicle mark

will

also be displayed.

Select a distance from the table
below. Note that the distances
shown correspond to a vehicle
speed of 50 mph (80 km/h).
Vehicle-to-vehicle distance

increases/decreases in accor-
dance with vehicle speed. When
the vehicle is stopped by system
control, the vehicle stops at a
certain vehicle-to-vehicle dis-
tance depending on the situa-
tion.

After the vehicle ahead of you
starts off, press the “+RES”
switch.
Your vehicle will also resume
follow-up cruising if the acceler-
ator pedal is depressed after the
vehicle ahead of you starts off.

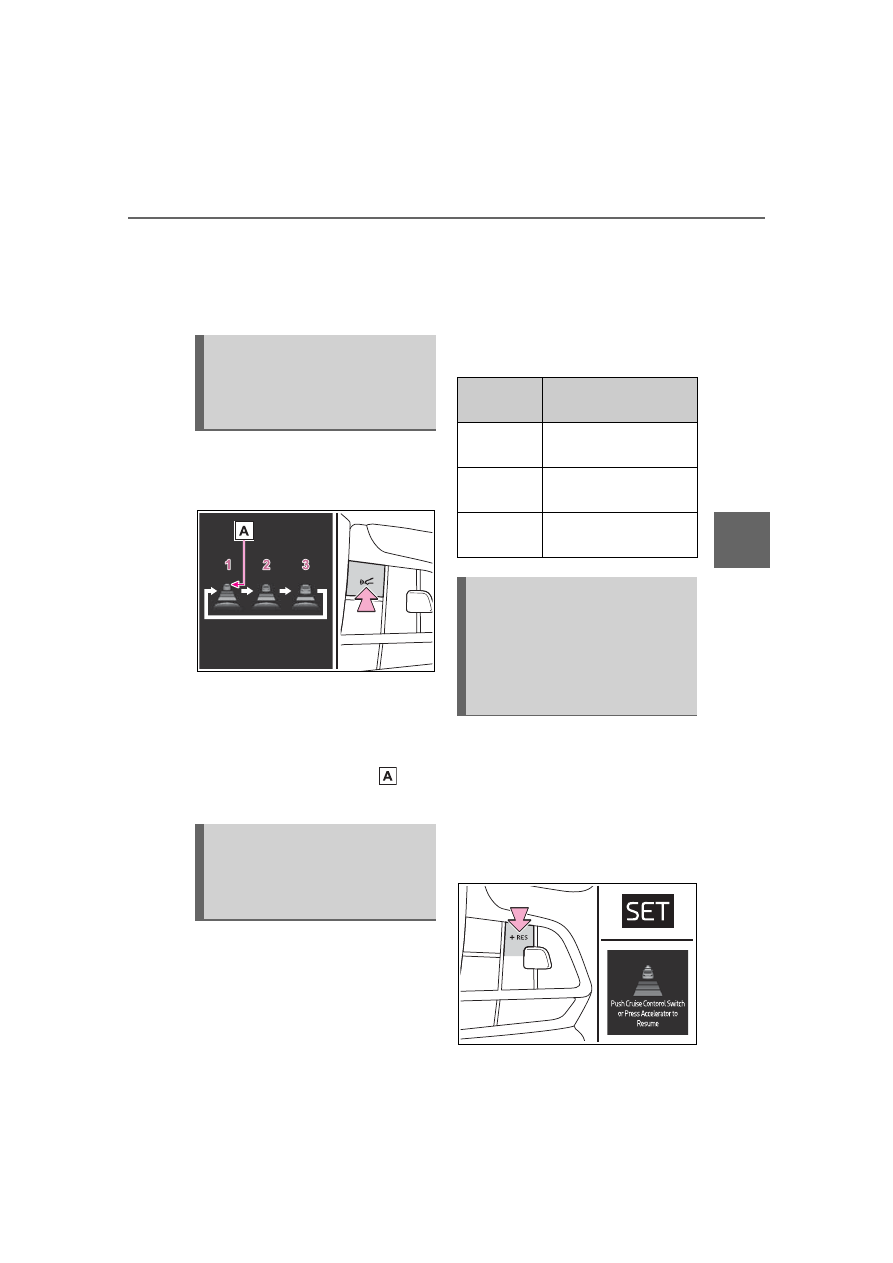

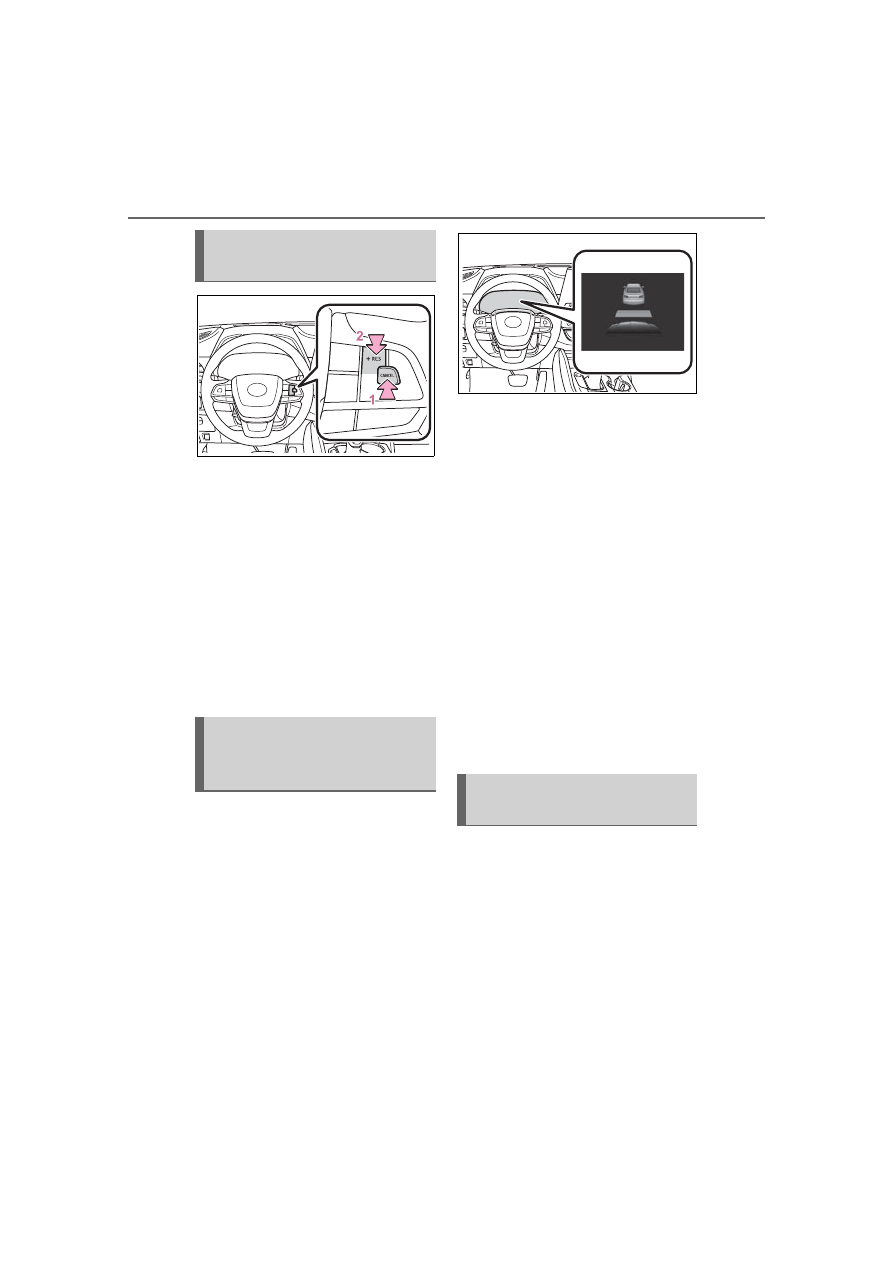

Changing the vehi-
cle-to-vehicle distance
(vehicle-to-vehicle dis-
tance control mode)

Vehicle-to-vehicle dis-
tance settings (vehi-
cle-to-vehicle distance
control mode)

Distance

options

Vehicle-to-vehicle dis-

tance

Long

Approximately 160 ft.

(50 m)

Medium

Approximately 130 ft.

(40 m)

Short

Approximately 100 ft.

(30 m)

Resuming follow-up
cruising when the vehicle
has been stopped by sys-
tem control (vehi-
cle-to-vehicle distance
control mode)

256

4-5. Using the driving support systems

Pressing the cancel switch
cancels the speed control.

The speed control is also canceled
when the brake pedal is depressed.
(When the vehicle has been
stopped by system control,
depressing the brake pedal does
not cancel the setting.)

Pressing the “+RES” switch
resumes the cruise control
and returns vehicle speed to
the set speed.

When your vehicle is too close
to a vehicle ahead, and suffi-
cient automatic deceleration via
the cruise control is not possi-
ble, the display will flash and the
buzzer will sound to alert the
driver. An example of this would
be if another driver cuts in front
of you while you are following a
vehicle. Depress the brake
pedal to ensure an appropriate
vehicle-to-vehicle distance.

■

Warnings may not occur
when

In the following instances, warn-
ings may not occur even when
the vehicle-to-vehicle distance is
small.



When the speed of the pre-
ceding vehicle matches or
exceeds your vehicle speed



When the preceding vehicle is
traveling at an extremely slow
speed



Immediately after the cruise
control speed was set



When depressing the acceler-
ator pedal

While driving in vehicle-to-vehi-
cle distance control mode, this
function will reduce the vehicle
speed, if it is determined to be
necessary.

■

Function operation

When the steering wheel begins
to be turned, the vehicle speed
will begin being reduced. When

Canceling and resuming
the speed control

Approach warning (vehi-
cle-to-vehicle distance
control mode)

Curve speed reduction
function

Content .. 13 14 15 16 ..
