6-4. Do-it-yourself maintenance

dure to step

, the procedure may

not have started. Perform the pro-

cedure again from the beginning.

●

If registration does not complete

after driving for 1 hour or more,

perform the ID code registration

procedure again from the begin-

ning.

●

If the ID codes cannot be regis-

tered even when performing the

above procedure, contact your

Toyota dealer.

■

Canceling ID code registration

To cancel ID code registration after

it has been started, select “Register

Valve / ID” again on the multi-infor-

mation display.

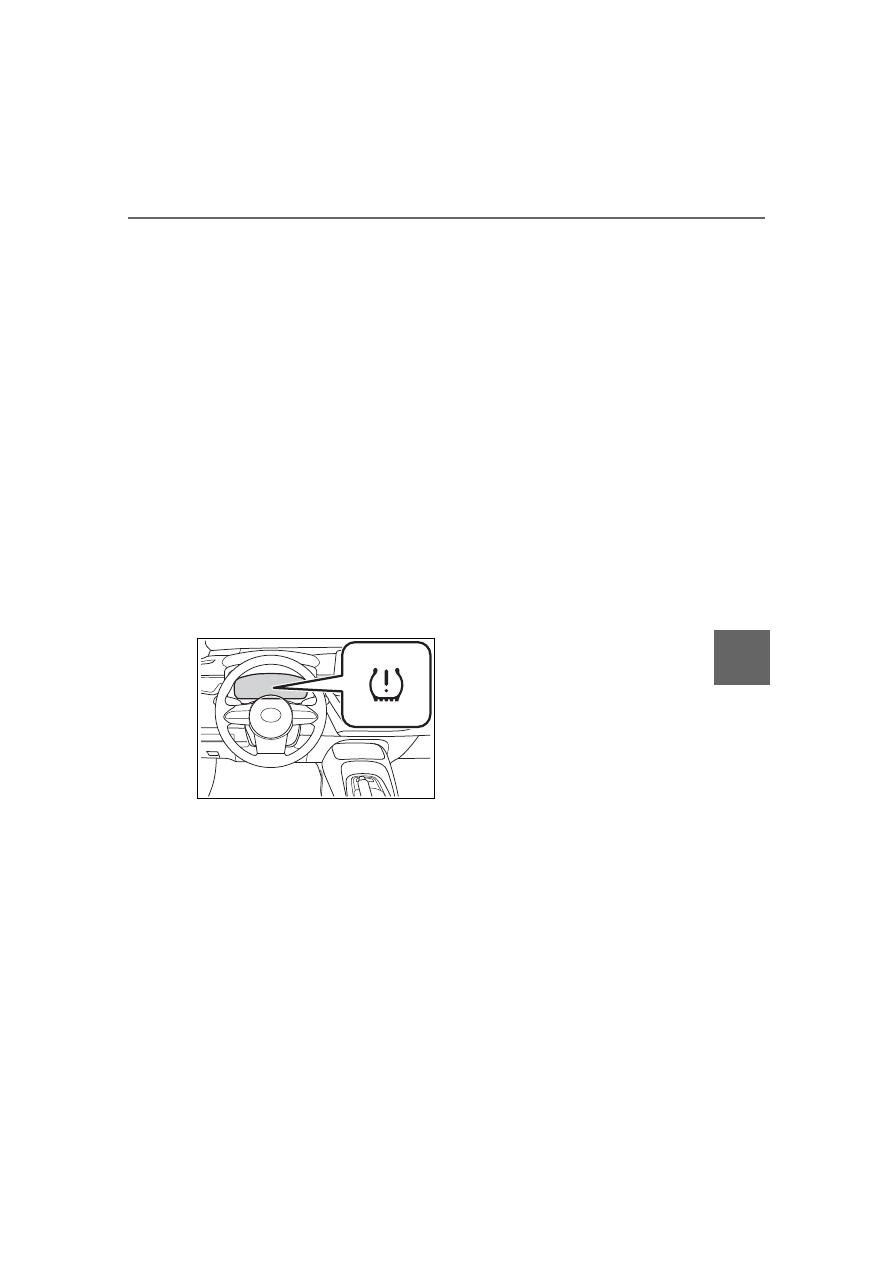

If ID code registration has been can-

celed, the tire pressure warning light

will turn off.
If the warning light does not turn off,

ID code registration may not have

been cancelled correctly. To cancel

registration, select “Register Valve /

ID” on the multi-information display.

Your vehicle is equipped with a
tire pressure warning system
with a function to register two
sets of ID codes. This allows for
registration of a second wheel
set, for example a winter set.
The wheel set can be changed
only if a second wheel set has
been registered to the system. If
a second wheel set has not
been registered, it will not be
possible to change to the
selected wheel set.
ID codes can be registered by
yourself.



Only a change between both

registered wheel set is possi-
ble, mixing between these
wheel sets is not supported.



While registering ID codes, it
may not be possible to
change between wheel sets
normally. Cancel registration
before changing between
wheel sets.

Install the desired wheel set.

Select

of the multi-infor-

mation display and then

press

Press

to select

“Vehicle Settings” and then

press

Press

to select

“TPWS setting” and then

press

Press

to select

“Tire Set Switching” and then

press

Press

to select

“Register Valve / ID” and then

press

Press

to select

“Tire Set 1” or “Tire Set 2”.

Then press

Select “OK” and then press

The tire pressure warning light will

slowly blink 3 times, a message

Selecting wheel set

289

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

indicating that change is occurring

will be displayed, and the wheel set

change will begin.
Wheel set change will begin and

the tire pressure warning light will

blink for 1 minute and then illumi-

nate. Also, while the change is

being performed, “---” will be dis-

played for the tire inflation pressure

of each tire on the multi-information

display.
After approximately 2 minutes, the

wheel set change will complete, the

tire pressure warning light will turn

off, and a completion message will

be displayed on the multi-informa-

tion display.
If changing does not complete after

approximately 4 minutes, a mes-

sage indicating that the change

could not be completed will be dis-

played.
Check which wheel set is installed

and perform the change procedure

again from the beginning.

If the specified tire inflation
pressure of the wheel set
installed differs from that of
the previous set, it will be
necessary to perform the tire
inflation pressure setting pro-
cedure of the tire pressure
warning system. (



P.283)

If the specified tire inflation pres-

sure is the same, it will not be nec-

essary to perform the tire inflation

pressure setting procedure.

wheel.

290

6-4. Do-it-yourself maintenance



Stop the vehicle in a safe
place on a hard, flat surface.



Set the parking brake.



Shift the shift lever to R.



Stop the engine.



Turn on the emergency flash-
ers. (



P.308)

■

Jack and tools

As your vehicle is equipped with an

emergency tire puncture repair kit,

the following tools for replacing a

tire are not included with your vehi-

cle. They can be purchased at your

Toyota dealer.

●

Wheel nut wrench

●

Jack

●

Jack handle

Replacing the tire

When raising your vehicle
with a jack, position the jack
correctly.
Improper placement may
damage your vehicle or
cause injury.
If necessary tire replace-
ment seems difficult to per-
form, contact your Toyota
dealer.

Before jacking up the
vehicle

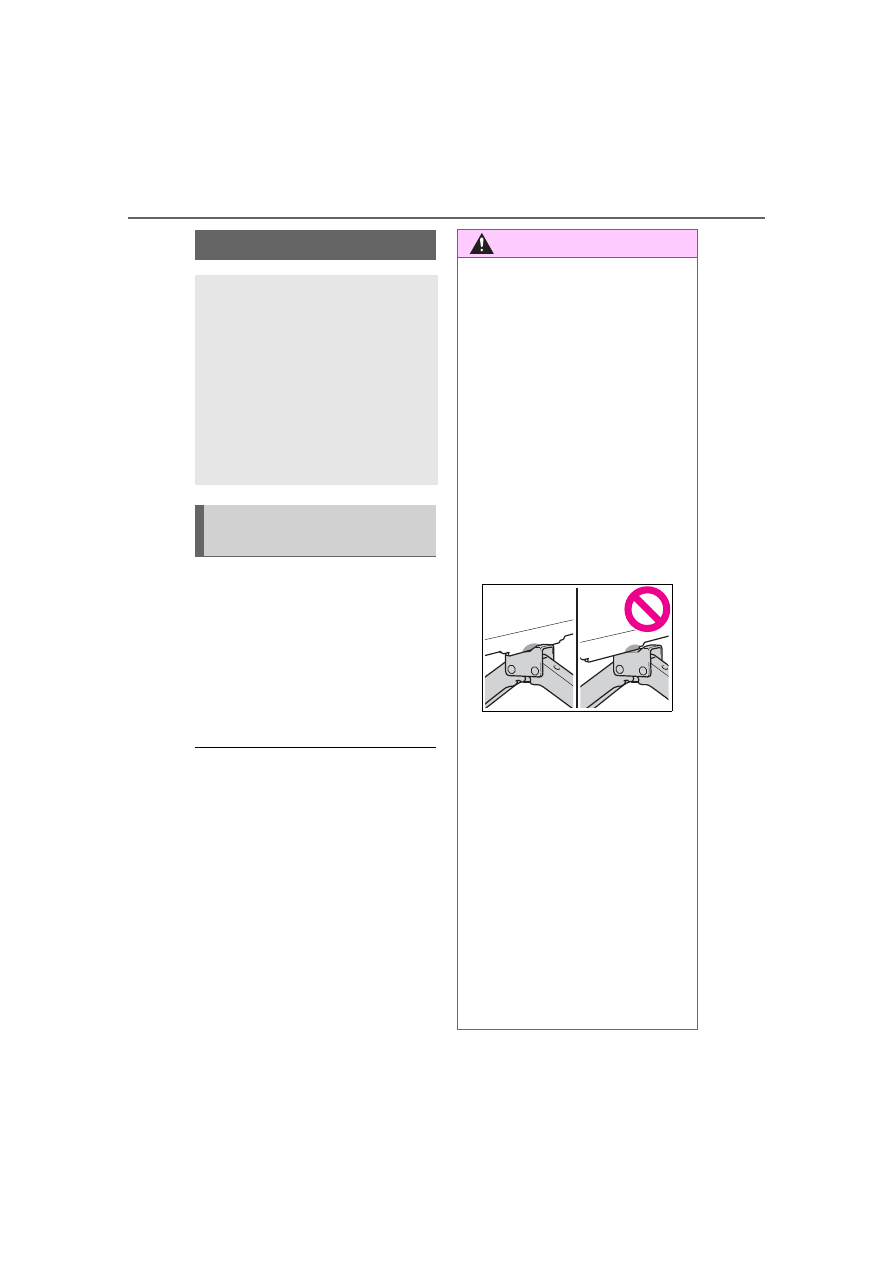

WARNING

■

Using the tire jack

Observe the following precau-

tions. Improper use of the tire jack

may cause the vehicle to sud-

denly fall off the jack, leading to

death or serious injury.

●

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

●

Only use the tire jack that

comes with this vehicle for

replacing a flat tire. Do not use it

on other vehicles, and do not

use other tire jacks for replacing

tires on this vehicle.

●

Put the jack properly in its jack

point.

●

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

●

Do not start the engine or drive

the vehicle while the vehicle is

supported by the jack.

●

Do not raise the vehicle while

someone is inside.

●

When raising the vehicle, do not

put an object on or under the

jack.

●

Do not raise the vehicle to a

height greater than that required

to replace the tire.

●

Use a jack stand if it is neces-

sary to get under the vehicle.

291

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

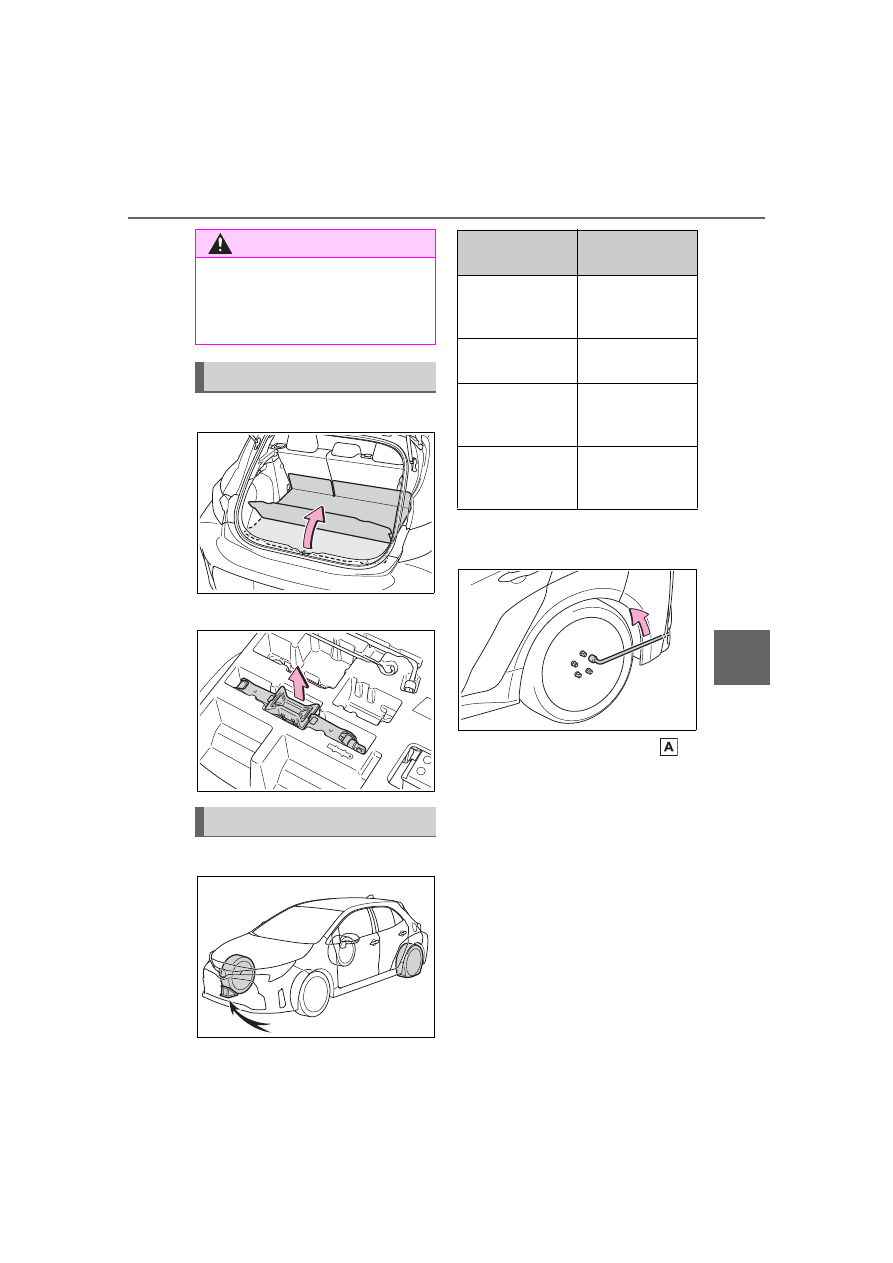

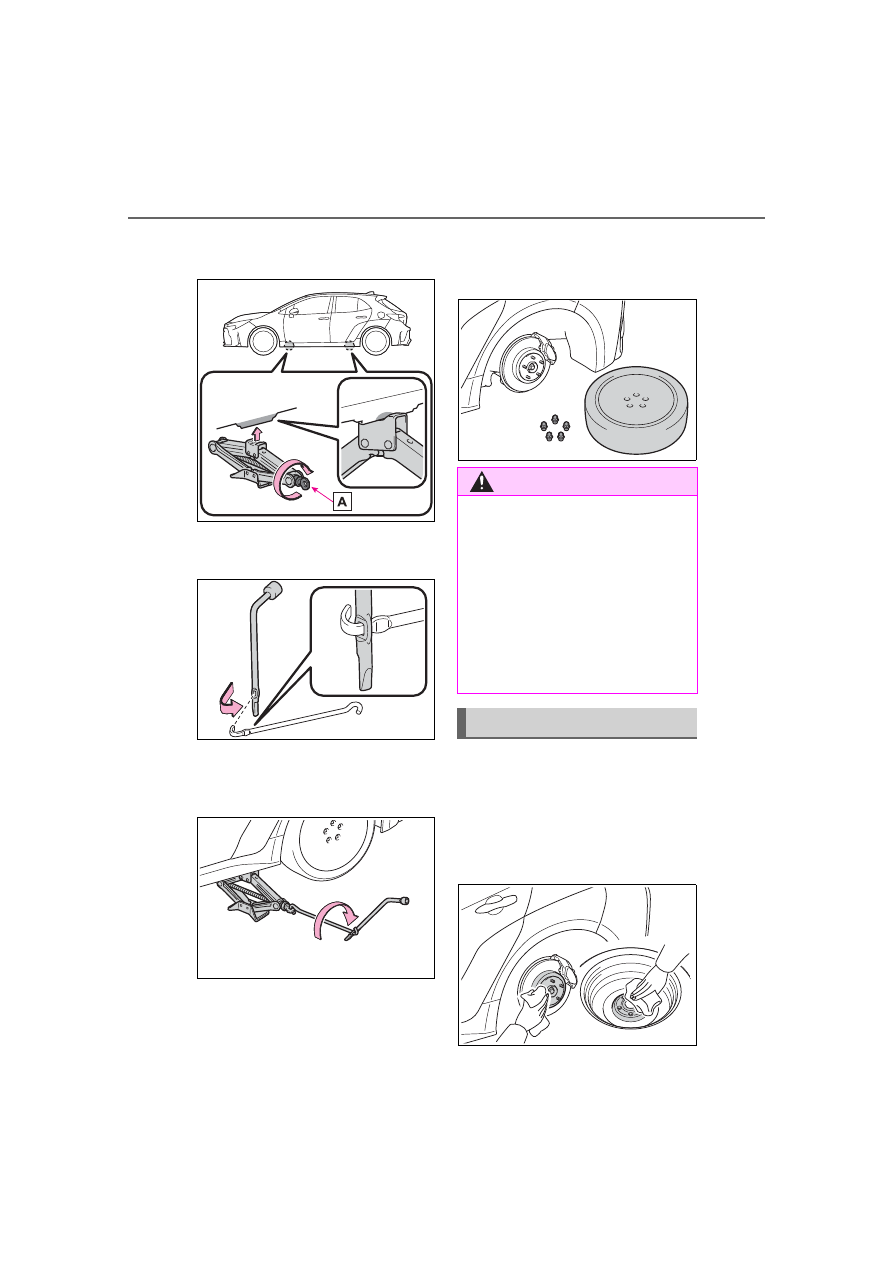

Remove the deck mat.

Take out the jack.

Chock the tires.

Slightly loosen the wheel
nuts (one turn).

Turn the tire jack portion
by hand until the center of the
recessed portion of the jack

WARNING

●

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

Taking out the jack

Removing a tire

Tire

Wheel chock

positions

Front left-hand
side

Behind the rear
right-hand side
tire

Front right-hand
side

Behind the rear
left-hand side tire

Rear left-hand
side

In front of the
front right-hand
side tire

Rear right-hand
side

In front of the
front left-hand
side tire

292

6-4. Do-it-yourself maintenance

is in contact with the center of
the jack point.

Assemble the jack handle
extension.

Raise the vehicle until the tire
is slightly raised off the
ground.

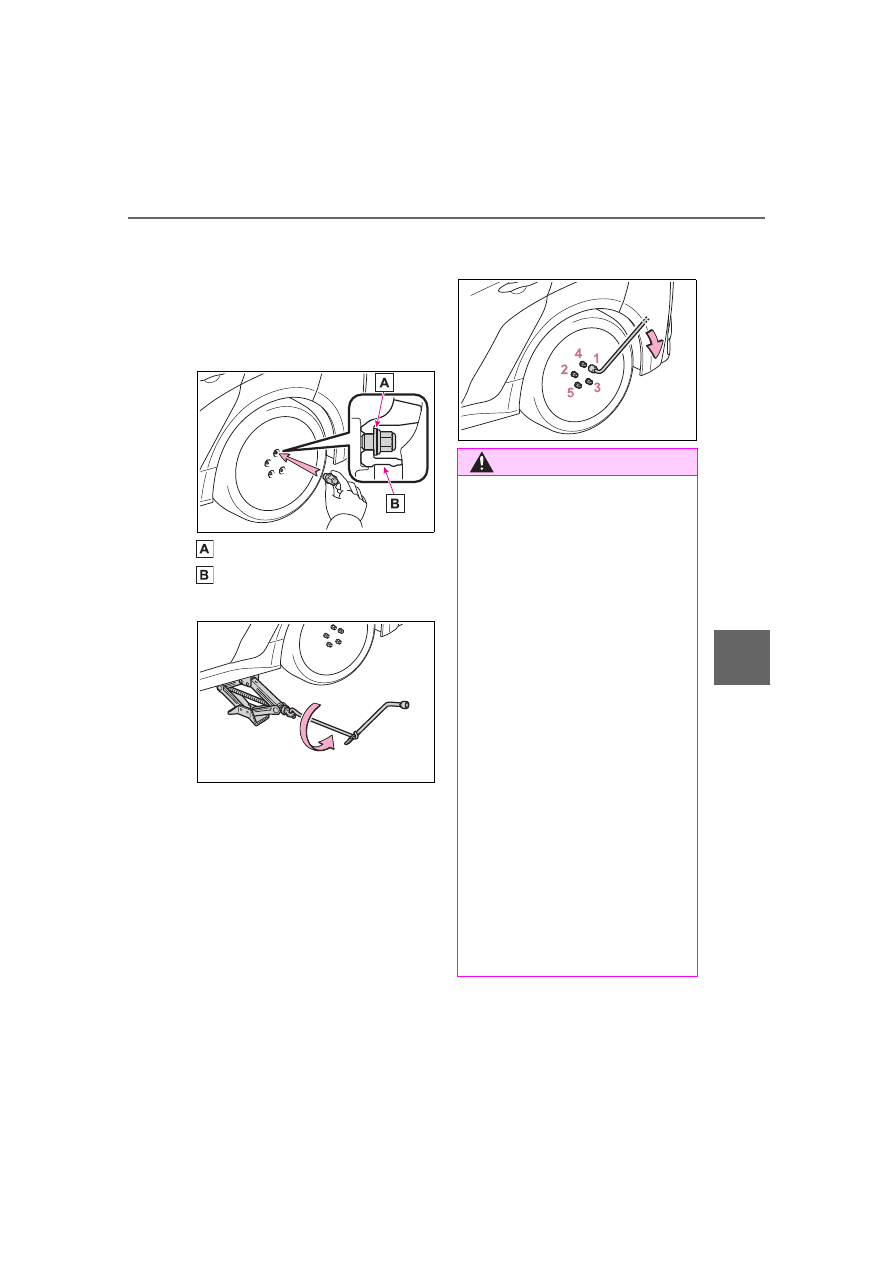

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

WARNING

■

Replacing a tire

Do not touch the disc wheels or

the area around the brakes imme-

diately after the vehicle has been

driven.

After the vehicle has been driven

the disc wheels and the area

around the brakes will be

extremely hot. Touching these

areas with hands, feet or other

body parts while changing a tire,

etc. may result in burns.

Installing the tire

293

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

Install the tire and loosely
tighten each wheel nut by
hand by approximately the
same amount.

Turn the wheel nuts until the wash-

ers come into contact with the disc

wheel.

Washer
Disc wheel

Lower the vehicle.

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.
Tightening torque:

76 ft•lbf (103 N•m, 10.5
kgf•m)

WARNING

■

When installing the tire

Failure to follow these precau-

tions could cause the wheel nuts

to loosen and the tire to fall off,

resulting in death or serious injury.

●

Never use oil or grease on the

wheel bolts or wheel nuts.

Oil and grease may cause the

wheel nuts to be excessively

tightened, leading to bolt or disc

wheel damage. In addition, the

oil or grease can cause the

wheel nuts to loosen and the

wheel may fall off, causing a

serious accident. Remove any

oil or grease from the wheel

bolts or wheel nuts.

●

Have the wheel nuts tightened

with a torque wrench to 76 ft•lbf

(103 N•m, 10.5 kgf•m) as soon

as possible after changing

wheels.

●

Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

●

When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

294

6-4. Do-it-yourself maintenance

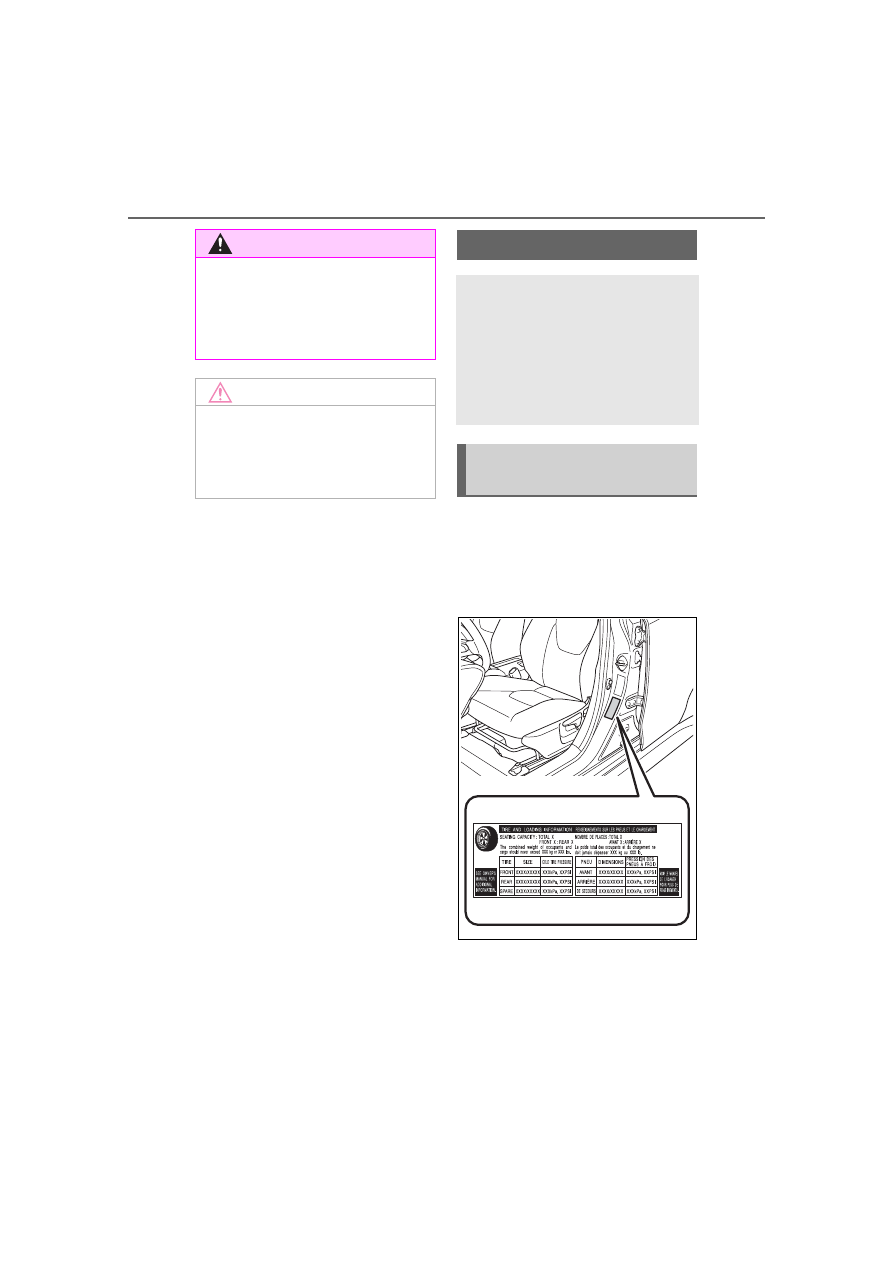

The recommended cold tire
inflation pressure and tire size
are displayed on the tire and
loading information label.
(



P.358)

WARNING

●

If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

NOTICE

■

Repairing or replacing tires,

wheels, tire pressure warn-

ing valves, transmitters and

tire valve caps



P.281

Tire inflation pressure

Your vehicle is equipped
with low profile tires. Make
sure to check the tire infla-
tion pressure once every
two weeks or before going
on a long distance drive.
(



P.358)

Checking the specified
tire inflation pressure

295

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

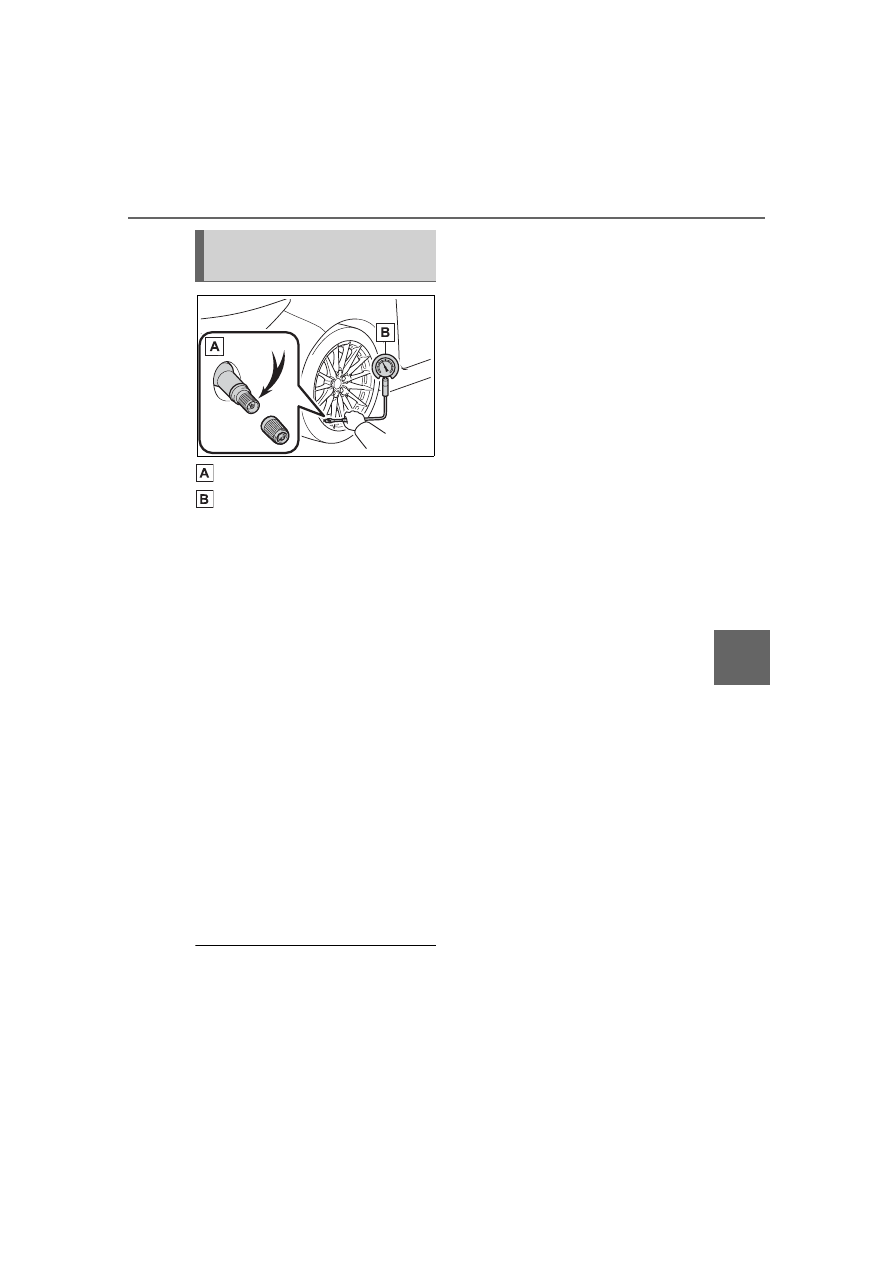

Tire valve
Tire pressure gauge

Remove the tire valve cap.

Press the tip of the tire pres-
sure gauge onto the tire
valve.

Read the pressure using the
gauge gradations.

If the tire inflation pressure is
not at the recommended
level, adjust the pressure.
If you add too much air, press
the center of the valve to
deflate.

After completing the tire infla-
tion pressure measurement
and adjustment, apply soapy
water to the valve and check
for leakage.

Put the tire valve cap back
on.

■

Tire inflation pressure check

interval

You should check tire inflation pres-

sure every two weeks, or at least

once a month. Do not forget to

check the spare.

■

Effects of incorrect tire inflation

pressure

Driving with incorrect tire inflation

pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor

handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drive train

If a tire needs frequent inflating,

have it checked by your Toyota

dealer.

■

Instructions for checking tire

inflation pressure

When checking tire inflation pres-

sure, observe the following:

●

Check only when the tires are

cold.

If your vehicle has been parked for

at least 3 hours or has not been

driven for more than 1 mile or 1.5

km, you will get an accurate cold

tire inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is

properly inflated based only on its

appearance.

●

It is normal for the tire inflation

pressure to be higher after driving

as heat is generated in the tire. Do

not reduce tire inflation pressure

after driving.

●

Never exceed the vehicle capacity

weight.

Passengers and luggage weight

should be placed so that the vehi-

cle is balanced.

Inspection and adjust-
ment procedure

296

6-4. Do-it-yourself maintenance

When replacing wheels, care
should be taken to ensure that
they are equivalent to those
removed in load capacity, diam-
eter, rim width and inset

Replacement wheels are avail-
able at your Toyota dealer.

: Conventionally referred to as off-

set.

Toyota does not recommend
using the following:



Wheels of different sizes or
types



Used wheels



Bent wheels that have been
straightened

■

When replacing wheels

The wheels of your vehicle are

equipped with tire pressure warning

valves and transmitters that allow

the tire pressure warning system to

provide advance warning in the

event of a loss in tire inflation pres-

sure. Whenever wheels are

replaced, the tire pressure warning

valves and transmitters must be

installed. (



P.281)

WARNING

■

Proper inflation is critical to

save tire performance

Keep your tires properly inflated.

If the tires are not properly

inflated, the following conditions

may occur which could lead to an

accident resulting in death or seri-

ous injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting

from overheated tires

●

Air leaking from between tire

and wheel

●

Wheel deformation and/or tire

damage

●

Greater possibility of tire dam-

age while driving (due to road

hazards, expansion joints,

sharp edges on the road, etc.)

NOTICE

■

When inspecting and adjust-

ing tire inflation pressure

Be sure to put the tire valve caps

back on.

If a valve cap is not installed, dirt

or moisture may get into the valve

and cause an air leak, resulting in

decreased tire inflation pressure.

Wheels

If a wheel is bent, cracked or
heavily corroded, it should
be replaced. Otherwise, the
tire may separate from the
wheel or cause a loss of
handling control.

Wheel selection

297

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca



Use only Toyota wheel nuts
and wheel nut wrenches
designed for use with your
aluminum wheels.



When rotating, repairing or
changing your tires, check
that the wheel nuts are still
tight after driving 1000 miles
(1600 km).



Be careful not to damage the
aluminum wheels when using
tire chains.



Use only Toyota genuine bal-
ance weights or equivalent
and a plastic or rubber ham-
mer when balancing your
wheels.

WARNING

■

When replacing wheels

●

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual,

as this may result in a loss of

handling control.

●

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire.

Doing so may result in an acci-

dent, causing death or serious

injury.

■

When installing the wheel

nuts

Never use oil or grease on the

wheel bolts or wheel nuts.

Oil and grease may cause the

wheel nuts to be excessively tight-

ened, leading to bolt or disc wheel

damage. In addition, the oil or

grease can cause the wheel nuts

to loosen and the wheel may fall

off, causing an accident and

resulting in death or serious injury.

Remove any oil or grease from

the wheel bolts or wheel nuts.

■

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels. Doing so could cause the

tire to leak air during driving, pos-

sibly causing an accident.

NOTICE

■

Replacing tire pressure warn-

ing valves and transmitters

●

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

●

Ensure that only genuine Toyota

wheels are used on your vehi-

cle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-
tions

298

6-4. Do-it-yourself maintenance

Turn the engine switch off.

Open the glove box. Slide off
the damper.

Push in the glove box on the
vehicle’s outer side to discon-
nect the claws. Then pull out
the glove box and disconnect
the lower claws.

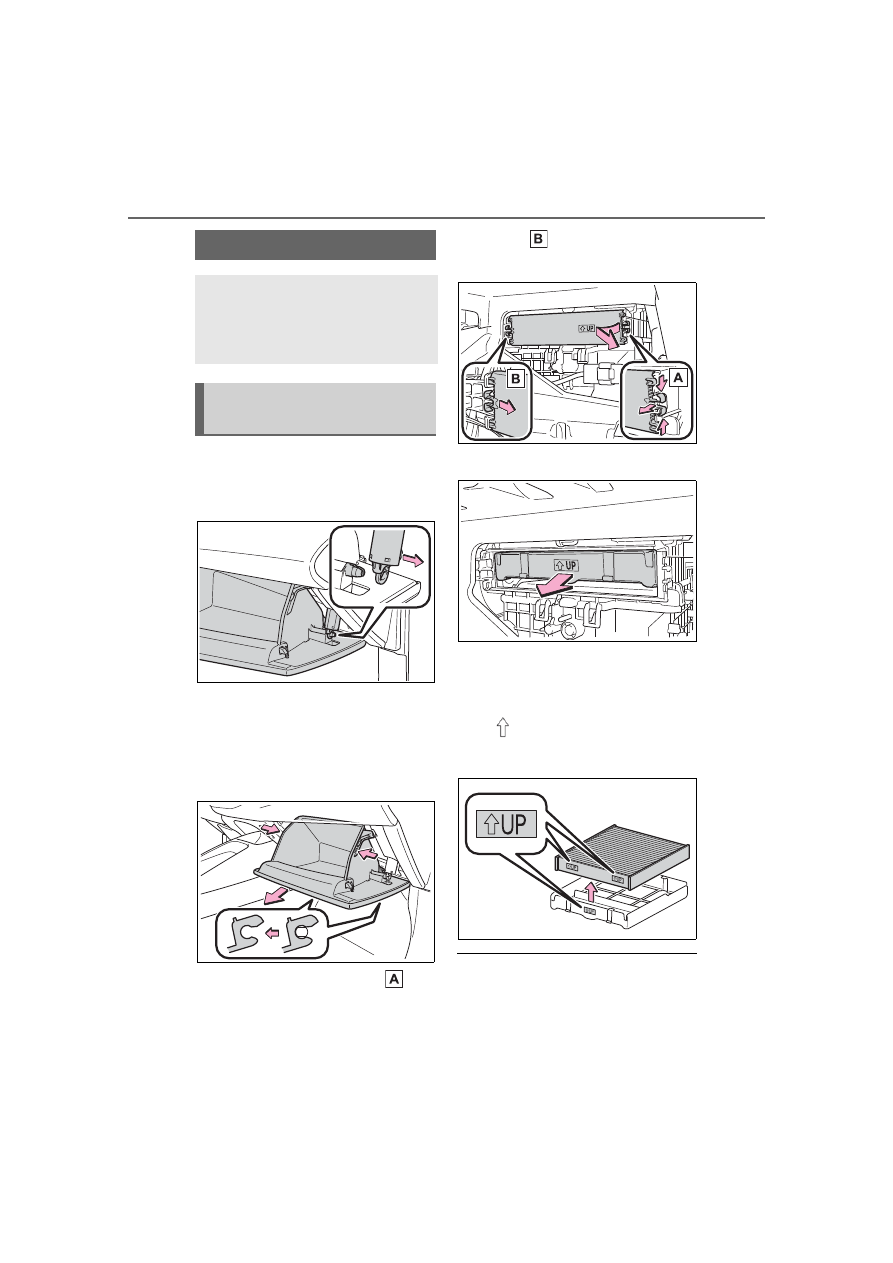

Unlock the filter cover ( ),
pull the filter cover out of the

claws ( ), and remove the
filter cover.

Remove the filter case.

Remove the air conditioning
filter from the filter case and
replace it with a new one.

The “

UP” marks shown on the

filter and the filter case should be

pointing up.

■

Checking interval

Inspect and replace the air condi-

tioning filter according to the mainte-

nance schedule. In dusty areas or

areas with heavy traffic flow, more

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removing the air condi-
tioning filter

299

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

frequent cleaning or early replace-

ment may be required. (For sched-

uled maintenance information,

please refer to the “Scheduled

Maintenance Guide” or “Owner’s

Manual Supplement”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

■

If the electronic key battery is

depleted

The following symptoms may occur:

●

The smart key system and wire-

less remote control will not func-

tion properly.

●

The operational range will be

reduced.



Flathead screwdriver



Lithium battery CR2450

■

Use a CR2450 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to local laws.

NOTICE

■

When using the air condition-

ing system

Make sure that a filter is always

installed.

Using the air conditioning system

without a filter may cause damage

to the system.

■

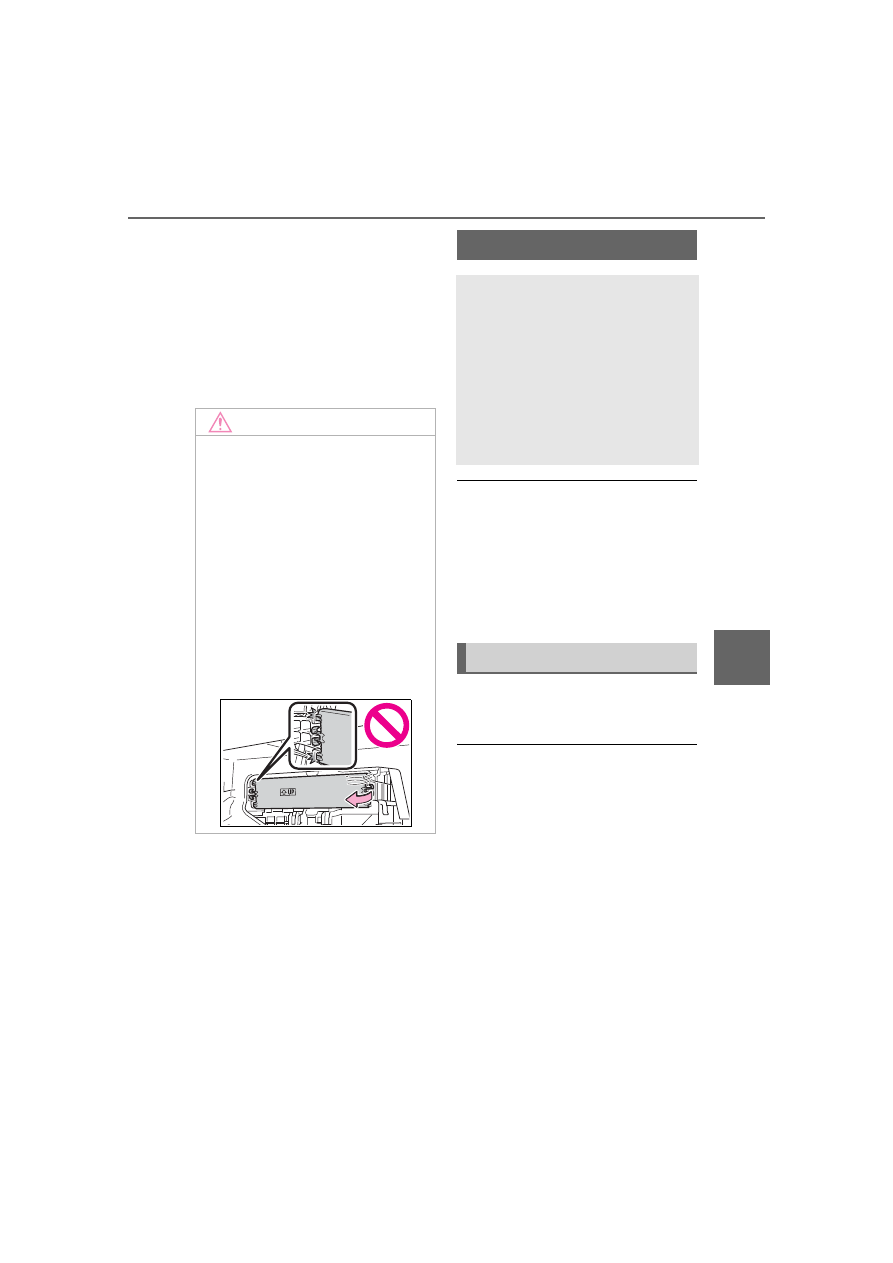

To prevent damage to the fil-

ter cover

When moving the filter cover in

the direction of arrow to release

the fitting, pay attention not to

apply excessive force to the

claws. Otherwise, the claws may

be damaged.

Electronic key battery

Replace the battery with a
new one if it is depleted.
As the key may be damaged
if the following procedure is
not performed properly, it is
recommended that key bat-
tery replacement be per-
formed by your Toyota
dealer.

Items to prepare

300

6-4. Do-it-yourself maintenance

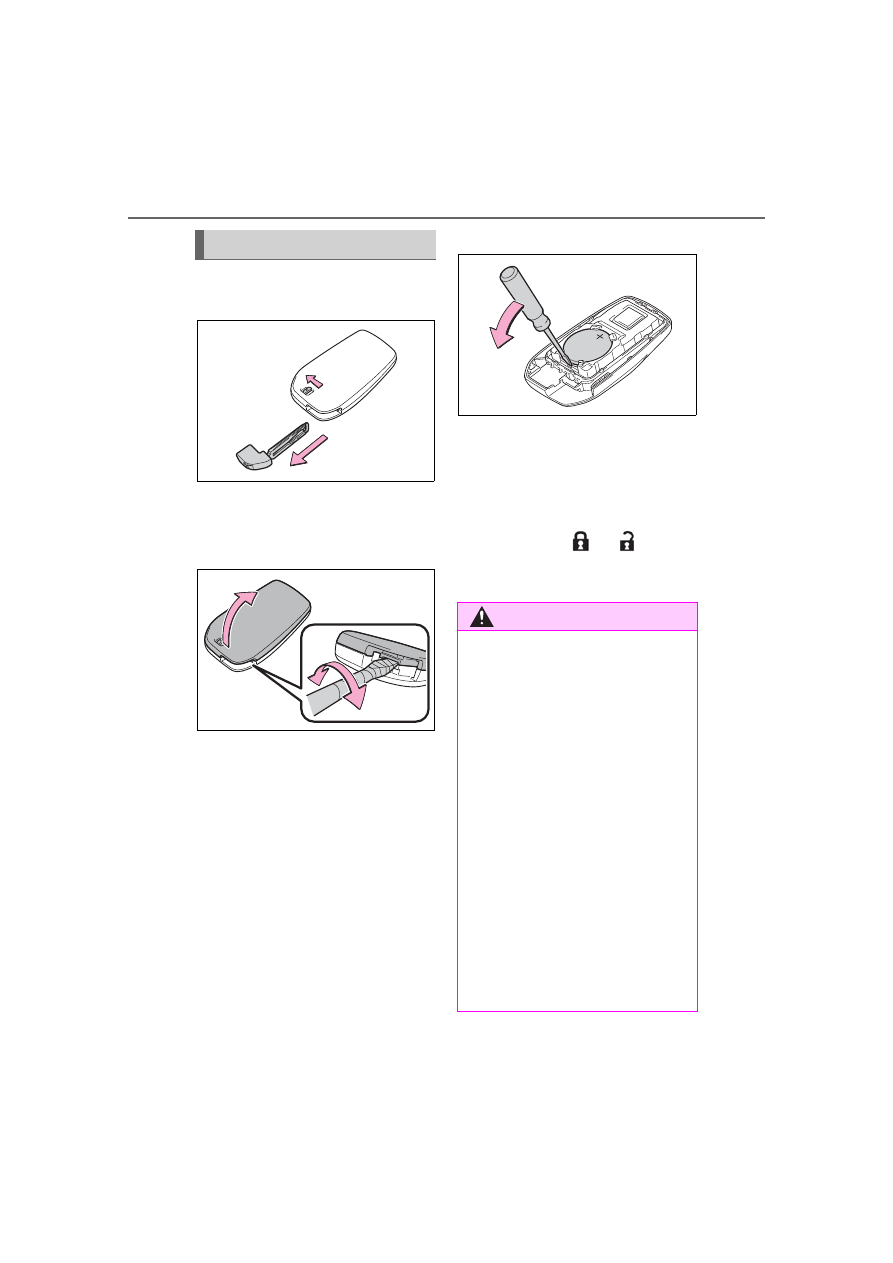

Release the lock and remove
the mechanical key.

Remove the key cover.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the elec-

tronic key module may stick to the

cover and the battery may not be

visible. In this case, remove the

electronic key module in order to

remove the battery.
Insert a new battery with the “+” ter-

minal facing up.

When installing the key cover
and mechanical key, install
by conducting step

and

step

with the directions

reversed.

Operate the

switch

and check that the doors can
be locked/unlocked.

Replacing the battery

WARNING

■

Battery precautions

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

301

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

Turn the engine switch off.

Open the fuse box cover.



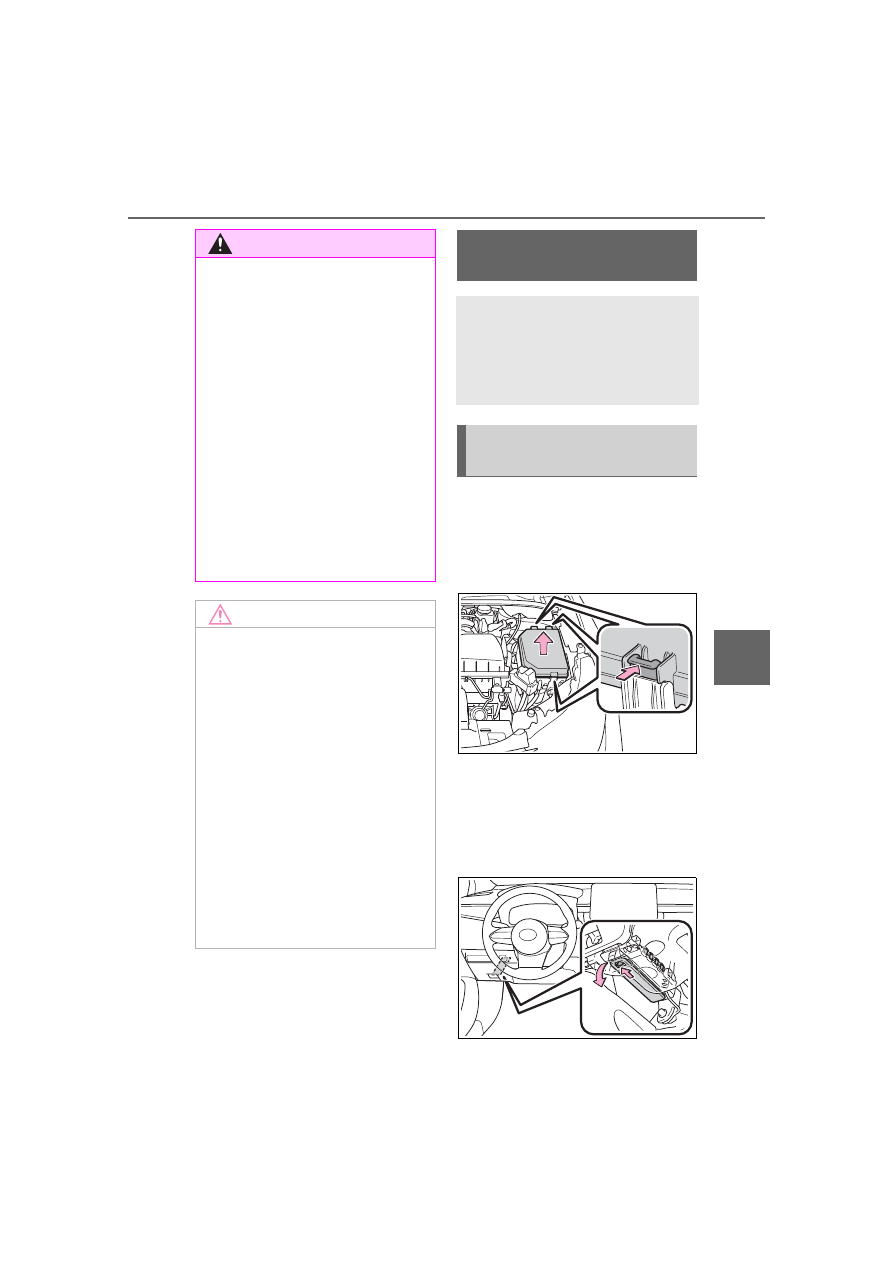

Engine compartment

Push the tabs in and lift the lid off.



Under the driver’s side instru-
ment panel

Remove the lid.
Make sure to push the claw when
removing/installing the lid.

WARNING

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

NOTICE

■

When replacing the battery

Use a flathead screwdriver of

appropriate size. Applying exces-

sive force may deform or damage

the cover.

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

302

6-4. Do-it-yourself maintenance

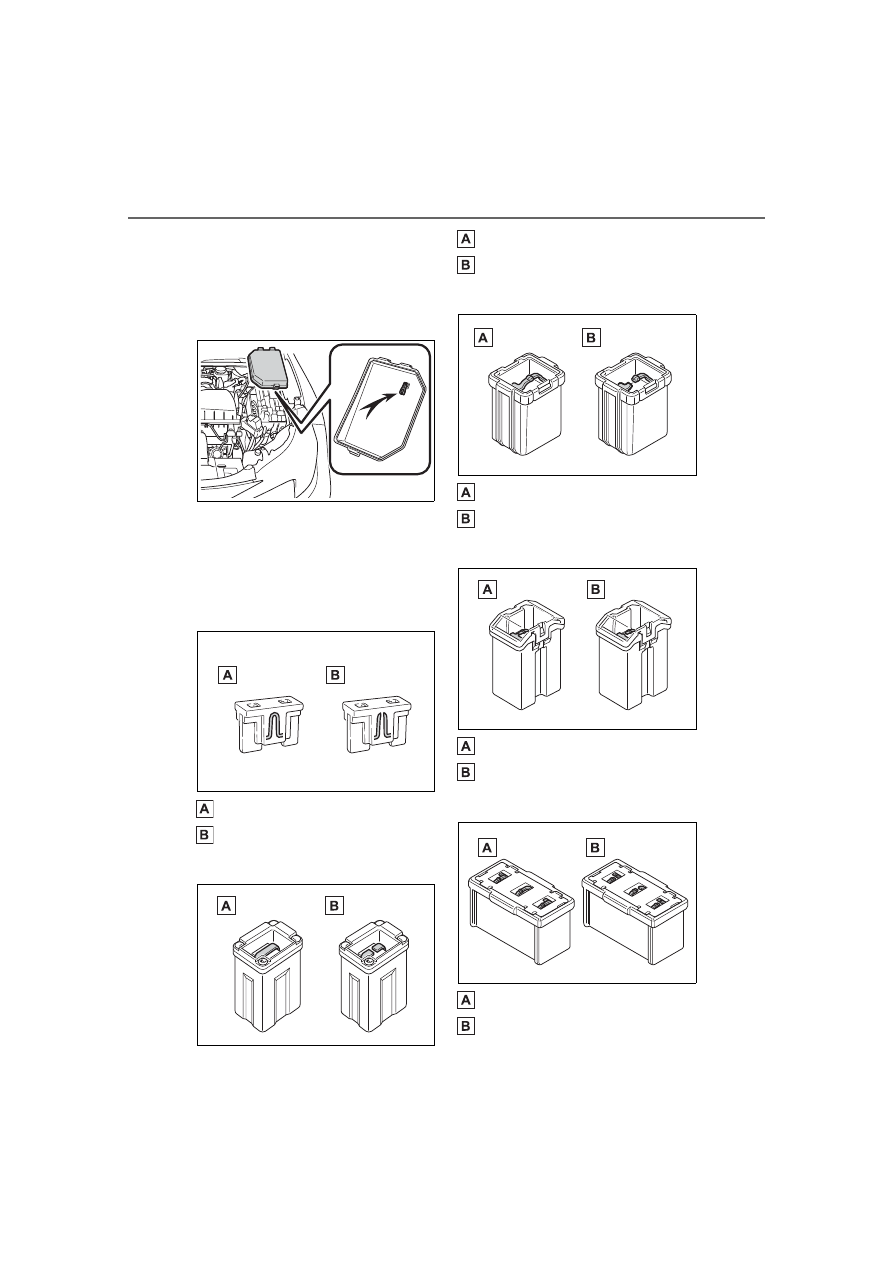

Remove the fuse with the
pullout tool.
Only type A fuse can be
removed using the pullout
tool.

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.



Type A

Normal fuse
Blown fuse



Type B

Normal fuse
Blown fuse



Type C

Normal fuse
Blown fuse



Type D

Normal fuse
Blown fuse



Type E

Normal fuse
Blown fuse

303

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

tecting the wiring harness from

damage.

■

When replacing light bulbs

Toyota recommends that you use

genuine Toyota products designed

for this vehicle.

Because certain bulbs are con-

nected to circuits designed to pre-

vent overload, non-genuine parts or

parts not designed for this vehicle

may be unusable.

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

Toyota GR Corolla (2023 year). Manual in english - page 18
