6-2. Matte paint care guide

■

Body coatings

■

Repairing the vehicle body (



P.249)

Are there genuine Toy-
ota vehicle washing
products available for
matte paint?

No. Use a soft chamois cloth for cleaning the
vehicle body. Use a neutral detergent which is
approved for car wash use or dilute citric acid
when necessary.

Are there any vehicle
washing product brands
that Toyota recom-
mends?

No. Use a soft chamois cloth for cleaning the
vehicle body. Use a neutral detergent which is
approved for car was use or dilute citric acid
when necessary.

Question

Answer

Can a body coating
available at a Toyota
dealer be applied?

No, as it may cause the matte clear coat to lose
its matte texture.

Can an aftermarket body
coating be applied?

Toyota does not recommend applying a coating
to the vehicle body, as it may cause the matte
clear coat to lose its matte texture.

Can an aftermarket body
coating designed for
matte paint be applied?

Toyota does not recommend applying a coating
to the vehicle body, as it may cause the matte
clear coat to lose its matte texture.

Question

Answer

Can damage to the paint
be repaired?

In order to maintain the matte finish when repair-
ing paint damage, it is necessary to repaint the
entire part. Consult your Toyota dealer for details.

Can I use rubbing or pol-
ishing compound (ex.
scratch remover)?

No. Using a rubbing or polishing compound or
touch up paint may damage the matte clear coat.
In order to maintain the matte finish when repair-
ing paint damage, it is necessary to repaint the
entire part. Consult your Toyota dealer for details.

Can I use touch up
paint?

Question

Answer

257

6-2. Matte paint care guide

Maintena

nce
a

nd ca

■

Attaching accessories and other objects to the vehicle

Question

Answer

Can a sticker or vinyl
wrap be attached to the
vehicle body?

No. They may damage matte clear coat when
they are installed and may cause the matte clear
coat to lose its matte texture when they are
removed.

Can a magnet be
attached to the vehicle
body?

Yes. Make sure to wash and thoroughly dry the
area around where the magnet is to be attached
before attaching it.

258

6-3. Maintenance

6-3.Maintenance

■

Repair and replacement

It is recommended that genuine

Toyota parts be used for repairs to

ensure performance of each sys-

tem. If non-Toyota parts are used in

replacement or if a repair shop other

than a Toyota dealer performs

repairs, confirm the warranty cover-

age.

■

Allow inspection and repairs to

be performed by a Toyota

dealer

●

Toyota technicians are

well-trained specialists and are

kept up to date with the latest ser-

vice information. They are well

informed about the operation of all

systems on your vehicle.

●

Keep a copy of the repair order. It

proves that the maintenance that

has been performed is under war-

ranty coverage. If any problem

should arise while your vehicle is

under warranty, your Toyota

dealer will promptly take care of it.

General maintenance should be
performed on a daily basis. This
can be done by yourself or by a
Toyota dealer.

Scheduled maintenance should
be performed at specified inter-
vals according to the mainte-
nance schedule.

For details about maintenance
items and schedules, refer to the
“Scheduled Maintenance Guide” or
“Owner’s Manual Supplement”.

Maintenance require-

ments

To ensure safe and econom-
ical driving, day-to-day care
and regular maintenance
are essential. It is the
owner’s responsibility to
perform regular checks.
Toyota recommends the
maintenance below.

WARNING

■

If your vehicle is not properly

maintained

Improper maintenance could

result in serious damage to the

vehicle and possible death or seri-

ous injury.

■

Handling of the battery

●

Engine exhaust, some of its

constituents, and a wide variety

of automobile components con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects and

other reproductive harm. Work

in a well ventilated area.

●

Oils, fuels and fluids contained

in vehicles as well as waste pro-

duced by component wear con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects or

other reproductive harm. Avoid

exposure and wash any

affected area immediately.

●

Battery posts, terminals and

related accessories contain lead

and lead compounds which are

known to cause brain damage.

Wash your hands after han-

dling. (



P.274)

General maintenance

Scheduled maintenance

259

6-3. Maintenance

Maintena

nce
a

nd ca

■

Resetting the message indicat-

ing maintenance is required

After the required maintenance is

performed according to the mainte-

nance schedule, please reset the

message.

To reset the message, follow the

procedure described below:

Select

of the multi-informa-

tion display.

Press the

meter con-

trol switch to select “Vehicle Set-

tings” and then press and hold

Press

to select

“Scheduled Maintenance” and
then press

Press

to select “Yes”

and then press

A message will be displayed on the

multi-information display when the

reset procedure has been com-

pleted.

You can perform some mainte-
nance procedures by yourself.
Please be aware that do-it-your-
self maintenance may affect
warranty coverage.

The use of Toyota repair manuals is
recommended.
For details about warranty cover-
age, refer to the separate “Owner’s
Warranty Information Booklet” or
“Owner’s Manual Supplement”.

Do-it-yourself mainte-
nance

General maintenance

Listed below are the general
maintenance items that
should be performed at the
intervals specified in the
“Owner’s Warranty Informa-
tion Booklet” or “Owner’s
Manual Supplement/Sched-
uled Maintenance Guide”. It
is recommended that any
problem you notice should
be brought to the attention
of your Toyota dealer or
qualified service shop for
advice.

WARNING

■

If the engine is running

Turn the engine off and ensure

that there is adequate ventilation

before performing maintenance

checks.

Engine compartment

Items

Check points

Brake fluid

Is the brake fluid at
the correct level?
(



P.272)

Engine coolant

Is the engine cool-
ant at the correct
level? (



P.271)

Engine oil

Is the engine oil at
the correct level?
(



P.268)

Exhaust sys-
tem

There should not
be any fumes or
strange sounds.

260

6-3. Maintenance

Radiator/con-
denser and
intercooler

The radiator, con-
denser and inter-
cooler should be
free from foreign
objects. (



P.272)

Washer fluid

Is there sufficient
washer fluid?
(



P.273)

Luggage compartment

Items

Check points

Battery

Check the connec-
tions. (



P.274)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should
move smoothly
(without uneven
pedal effort or
catching).

Brake pedal

• Does the brake

pedal move
smoothly?

• Does the brake

pedal have
appropriate
clearance from
the floor?
(



P.357)

• Does the brake

pedal have the
correct amount
of free play?
(



P.357)

Items

Check points

Clutch pedal

• Does the clutch

pedal move
smoothly?

• Does the clutch

pedal have
appropriate
clearance from
the floor?
(



P.356)

• Does the clutch

pedal have the
correct amount
of free play?
(



P.356)

Brakes

• The vehicle

should not pull to
one side when
the brakes are
applied.

• The brakes

should work
effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get
too close to the
floor when the
brakes are
applied.

Head
restraints

• Do the head

restraints move
smoothly and
lock securely?

Indica-
tors/buzzers

• Do the indica-

tors and buzzers
function prop-
erly?

Lights

• Do all the lights

come on?

Items

Check points

261

6-3. Maintenance

Maintena

nce
a

nd ca

Parking brake

• Does the park-

ing brake oper-
ate normally?

• When parked on

a slope and the
parking brake is
on, is the vehicle
securely
stopped?

Seat belts

• Do the seat belts

operate
smoothly?

• The seat belts

should not be
damaged.

Seats

• Do the seat con-

trols operate
properly?

Steering wheel

• Does the steer-

ing wheel rotate
smoothly?

• Does the steer-

ing wheel have
the correct
amount of free
play?

• There should not

be any strange
sounds coming
from the steer-
ing wheel.

Items

Check points

Vehicle exterior

Items

Check points

Doors

• Do the doors

operate
smoothly?

Engine hood

• Does the engine

hood lock system
work properly?

Fluid leaks

• There should not

be any signs of
fluid leakage
after the vehicle
has been parked.

Tires

• Is the tire infla-

tion pressure
correct?

• The tires should

not be damaged
or excessively
worn.

• Have the tires

been rotated
according to the
maintenance
schedule?

• The wheel nuts

should not be
loose.

Windshield
wipers/rear
window wiper

• The wiper blades

should not show
any signs of
cracking, split-
ting, wear, con-
tamination or
deformation.

• The wiper blades

should clear the
windshield/rear
window without
streaking or skip-
ping.

262

6-3. Maintenance

The OBD system determines
that a problem exists some-
where in the emission control
system. Your vehicle may not
pass the I/M test and may need
to be repaired. Contact your
Toyota dealer to service the
vehicle.



When the battery is discon-
nected or discharged

Readiness codes that are set
during ordinary driving are erased.
Also, depending on your driving
habits, the readiness codes may
not be completely set.



When the fuel tank cap is
loose

The malfunction indicator lamp
comes on indicating a temporary
malfunction and your vehicle may
not pass the I/M test.

The error code in the OBD sys-
tem will not be cleared unless
the vehicle is driven 40 or more
times.

Contact your Toyota dealer to
prepare the vehicle for re-test-
ing.

Emission inspection

and maintenance (I/M)

programs

Some states have vehicle
emission inspection pro-
grams which include OBD
(On Board Diagnostics)
checks. The OBD system
monitors the operation of
the emission control sys-
tem.

If the malfunction indica-
tor lamp comes on

Your vehicle may not pass
the I/M test in the follow-
ing situations:

When the malfunction
indicator lamp still
remains on after several
driving trips

If your vehicle does not
pass the I/M test

263

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

6-4.Do-it-yourself maintenance

Do-it-yourself service

precautions

If you perform maintenance
by yourself, be sure to fol-
low the correct procedure
as given in these sections.

Maintenance

Items

Parts and tools

Battery
condition
(



P.274)

• Warm water
• Baking soda
• Grease
• Conventional

wrench (for terminal
clamp bolts)

Brake fluid
level
(



P.272)

• “TOYOTA GENU-

INE BRAKE FLUID
DOT4, CLASS6”

FMVSS No.116
DOT4 or SAE
J1704LV

: If a fluid type with

“TOYOTA GENU-
INE BRAKE FLUID
DOT4, CLASS6”,
FMVSS No.116
DOT4 or SAE
J1704LV is not
available, fluid type
with TOYOTA GEN-
UINE BRAKE
FLUID DOT3,
FMVSS No.116
DOT3 or SAE
J1703 may be used
with no detriment to
brake durability.

• Rag or paper towel
• Funnel (used only

for adding brake
fluid)

264

6-4. Do-it-yourself maintenance

Engine
coolant
level
(



P.271)

• “Toyota Super Long

Life Coolant” or a
similar high quality
ethylene gly-
col-based non-sili-
cate, non-amine,
non-nitrite and
non-borate coolant
with long-life hybrid
organic acid tech-
nology
For the U.S.A.:
“Toyota Super Long
Life Coolant” is
pre-mixed with 50%
coolant and 50%
deionized water.
For Canada:
“Toyota Super Long
Life Coolant” is
pre-mixed with 55%
coolant and 45%
deionized water.

• Funnel (used only

for adding coolant)

Engine oil
level
(



P.268)

• “Toyota Genuine

Motor Oil” or equiva-
lent

• Rag or paper towel
• Funnel (used only

for adding engine
oil)

Fuses
(



P.301)

• Fuse with same

amperage rating as
original

Light bulbs
(



P.304)

• Bulb with same

number and wattage
rating as original

• Flathead screw-

driver

• Wrench

Items

Parts and tools

Radiator,
condenser
and inter-
cooler
(



P.272)



Tire infla-
tion pres-
sure
(



P.294)

• Tire pressure gauge
• Compressed air

source

Washer
fluid
(



P.273)

• Water or washer

fluid containing anti-
freeze (for winter
use)

• Funnel (used only

for adding water or
washer fluid)

WARNING

The engine compartment contains

many mechanisms and fluids that

may move suddenly, become hot,

or become electrically energized.

To avoid death or serious injury,

observe the following precautions.

■

When working on the engine

compartment

●

Keep hands, clothing and tools

away from the moving fan and

engine drive belt.

●

Be careful not to touch the

engine, radiator, exhaust mani-

fold, etc. right after driving as

they may be hot. Oil and other

fluids may also be hot.

●

Do not leave anything that may

burn easily, such as paper and

rags, in the engine compart-

ment.

●

Do not smoke, cause sparks or

expose an open flame to fuel.

Fuel fumes are flammable.

Items

Parts and tools

265

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

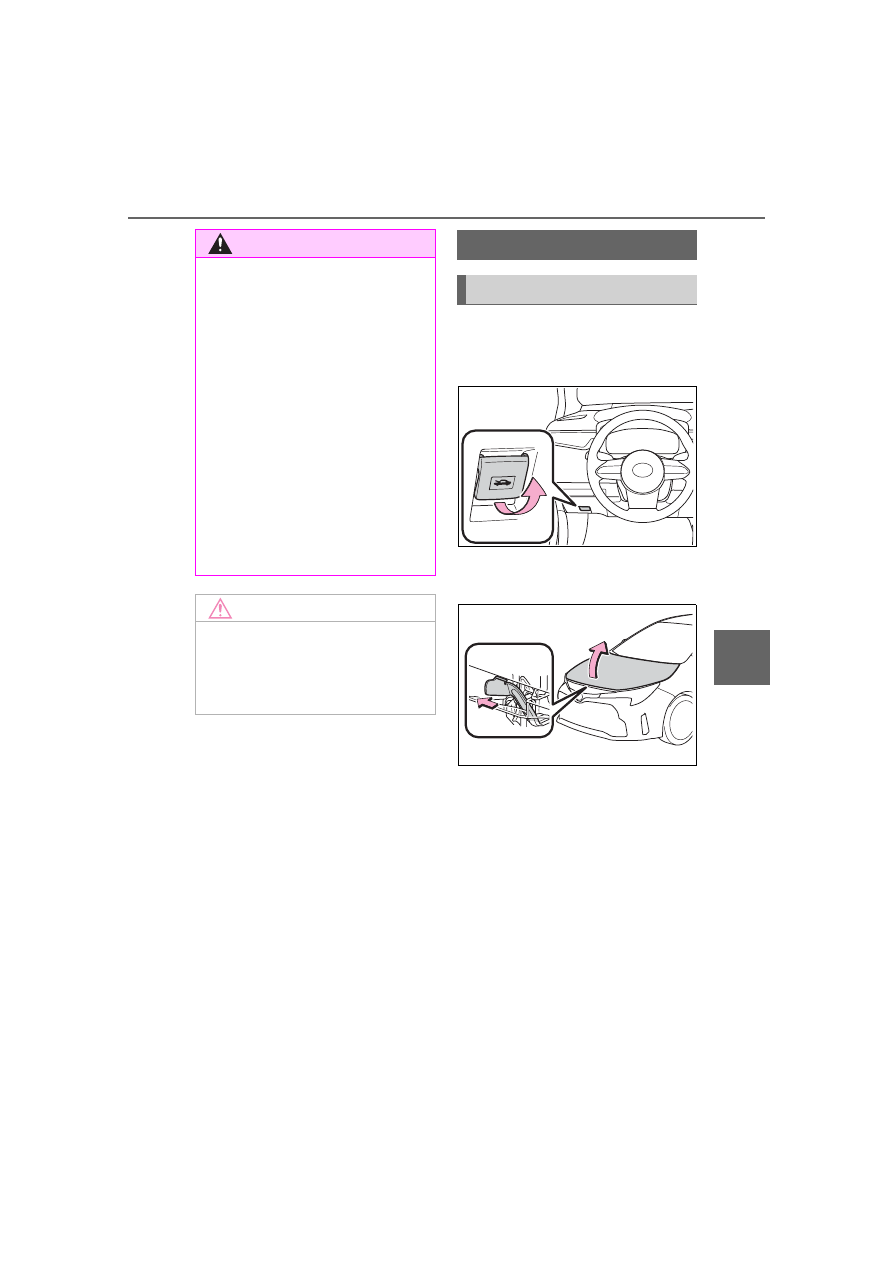

Pull the hood lock release
lever.

The hood will pop up slightly.

Pull the auxiliary catch lever
to the left and lift the hood.

WARNING

●

Be extremely cautious when

working on the battery. It con-

tains poisonous and corrosive

sulfuric acid.

■

When working near the elec-

tric cooling fan or radiator

grille

Be sure the engine switch is off.

With the engine switch in ON, the

electric cooling fan may automati-

cally start to run if the air condi-

tioning is on and/or the coolant

temperature is high. (



P.272)

■

Safety glasses

Wear safety glasses to prevent

flying or falling material, fluid

spray, etc. from getting in your

eyes.

NOTICE

■

If you remove the air cleaner

filter

Driving with the air cleaner filter

removed may cause excessive

engine wear due to dirt in the air.

Hood

Opening the hood

266

6-4. Do-it-yourself maintenance

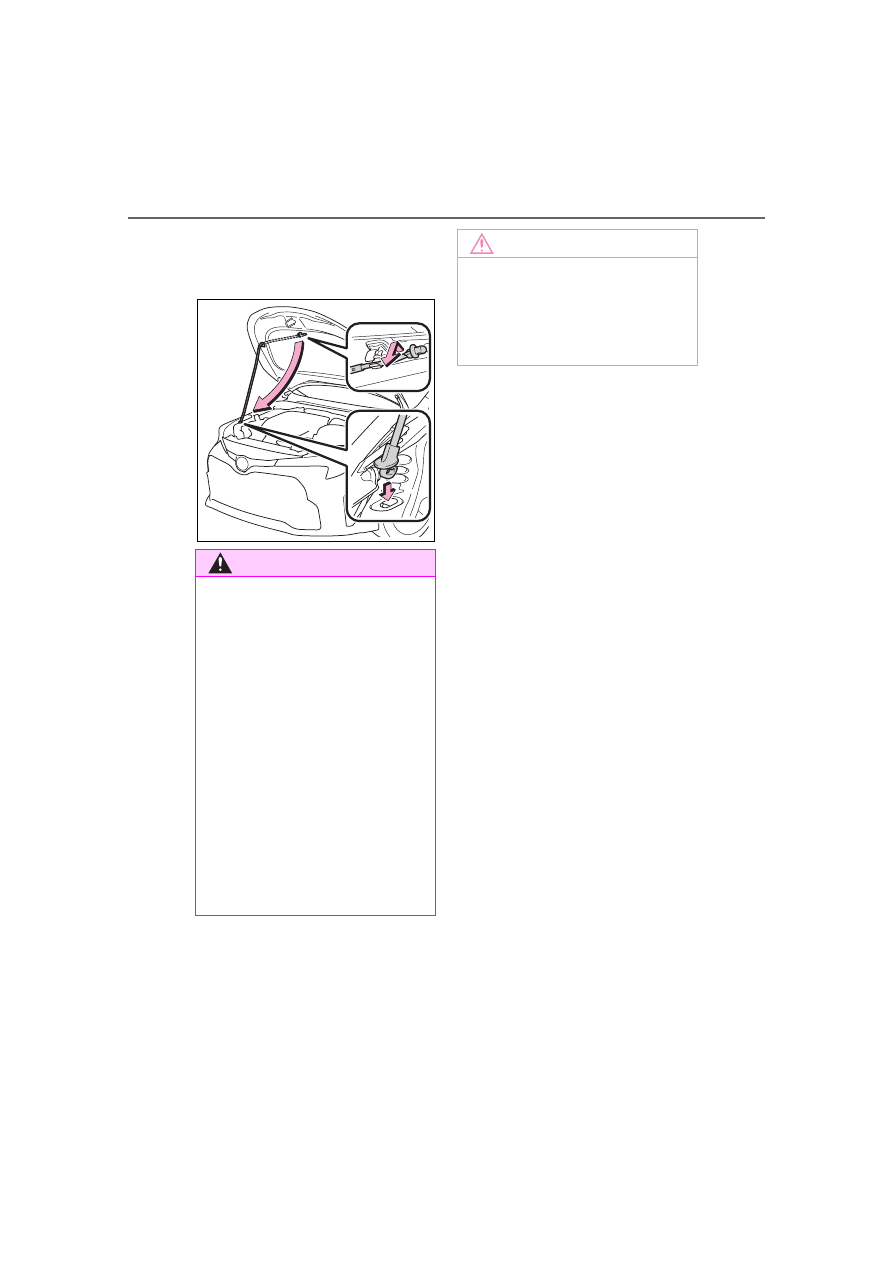

Hold the hood open by insert-
ing the support rod into the
slot.

WARNING

■

Pre-driving check

Check that the hood is fully closed

and locked.

If the hood is not locked properly,

it may open while the vehicle is in

motion and cause an accident,

which may result in death or seri-

ous injury.

■

To prevent a injuries

The support rod may be hot after

driving the vehicle. Touching the

hot support rod may lead to burns

or other serious injuries.

■

After installing the support

rod into the slot

Make sure the rod supports the

hood securely preventing it from

falling down onto your head or

body.

NOTICE

■

When closing the hood

Be sure to return the support rod

to its clip before closing the hood.

Closing the hood with the support

rod not clipped could cause the

hood to bend.

267

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

Front

■

Rear

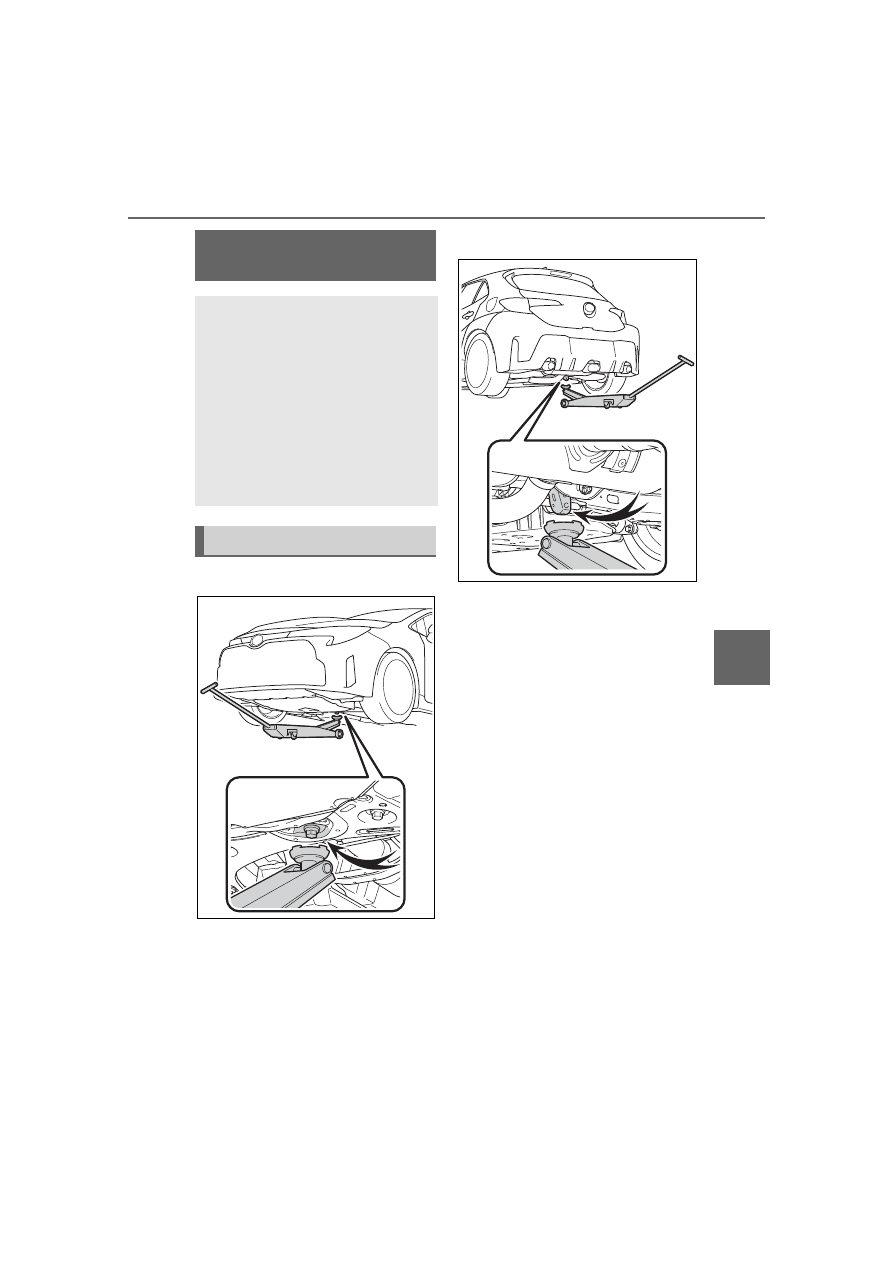

Positioning a floor

jack

When using a floor jack, fol-
low the instructions in the
manual provided with the
jack and perform the opera-
tion safely.
When raising your vehicle
with a floor jack, position
the jack correctly. Improper
placement may damage
your vehicle or cause injury.

Location of the jack point

268

6-4. Do-it-yourself maintenance

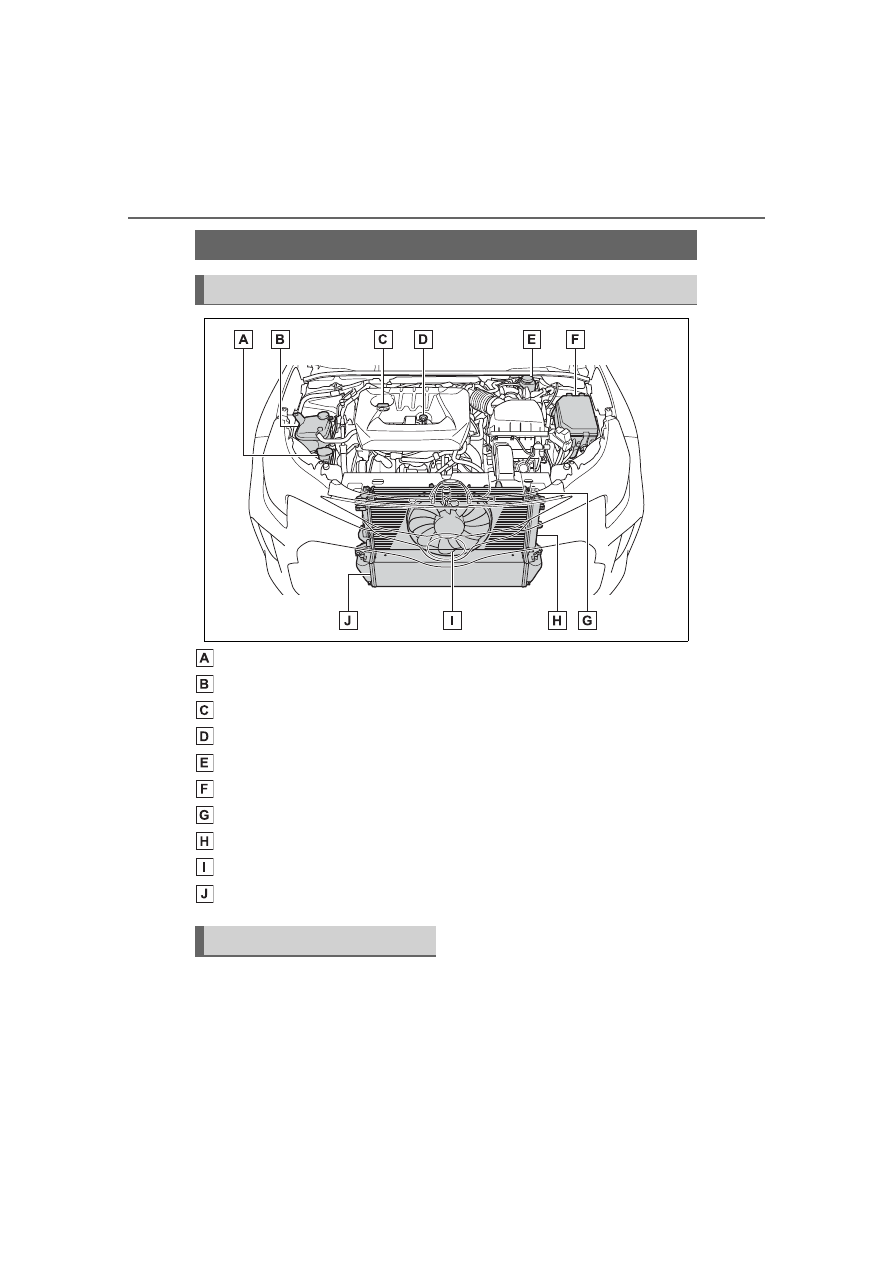

Washer fluid tank (



P.273)

Engine coolant reservoir (



P.268)

Engine oil filler cap (



P.270)

Engine oil level dipstick (



P.268)

Brake fluid reservoir (



P.272)

Fuse box (



P.301)

Radiator (



P.272)

Condenser (



P.272)

Electric cooling fan
Intercooler

With the engine at operating
temperature and turned off,
check the oil level on the dip-
stick.

Park the vehicle on level
ground. After warming up the
engine and turning it off, wait
about 8 minutes for the oil to
drain back into the bottom of
the engine.

Engine compartment

Components

Checking the engine oil

269

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

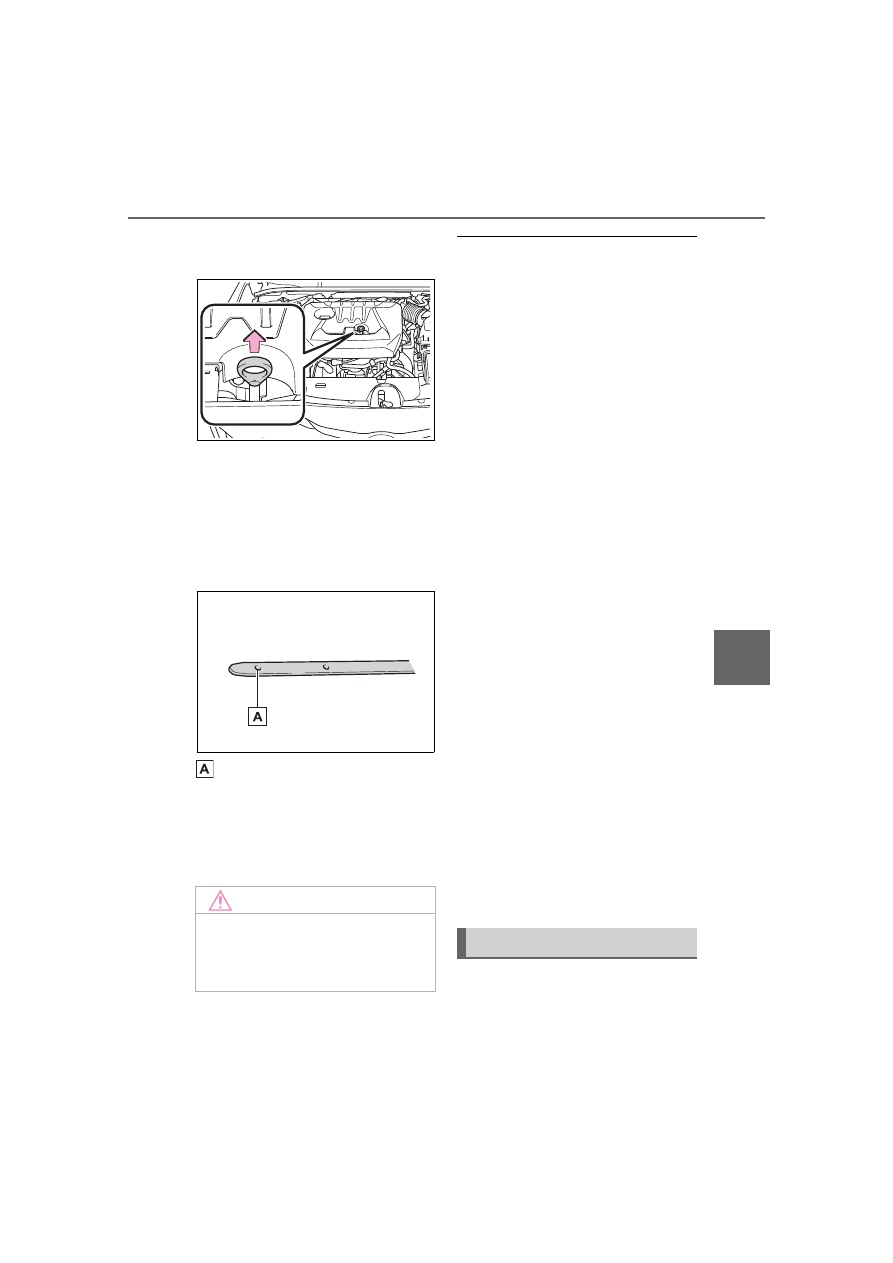

Holding a rag under the end,
pull the dipstick out.

Wipe the dipstick clean.

Reinsert the dipstick fully.

Holding a rag under the end,
pull the dipstick out and
check whether the oil level is
above low level mark.

Low level mark

The shape of the dipstick may differ

depending on the type of vehicle or

engine.

Wipe the dipstick and reinsert
it fully.

■

Engine oil consumption

A certain amount of engine oil will

be consumed while driving. In the

following situations, oil consump-

tion may increase, and engine oil

may need to be refilled in between

oil maintenance intervals.

●

When the engine is new, for

example directly after purchasing

the vehicle or after replacing the

engine

●

If low quality oil or oil of an inap-

propriate viscosity is used

●

When driving at high engine

speeds or with a heavy load, or

when driving while accelerating or

decelerating frequently

●

When leaving the engine idling for

a long time, or when driving fre-

quently through heavy traffic

■

Engine oil level rise

If the vehicle is repeatedly driven

without the engine warmed up,

moisture caused by dew condensa-

tion inside the engine or fuel which

did not burn mixes into the engine

oil, resulting in a rise in engine oil

level. However, this is not a mal-

function. For example, the engine

become difficult to be warmed up in

the following situations.

●

When driving a short distance

●

When driving at a low speed

●

When the outside temperature is

low

When checking the engine oil, make

sure that the engine is warmed up. If

the engine oil level exceeds the refill

upper limit mark, contact your Toy-

ota dealer.

■

Checking the oil type and
preparing the item needed

Make sure to check the oil type

NOTICE

■

To prevent serious engine

damage

Check the oil level on a regular

basis.

Adding engine oil

270

6-4. Do-it-yourself maintenance

and prepare the items needed
before adding oil.



Engine oil selection



P.354



Oil quantity (Low level mark



Refill upper limit mark)

1.1 qt. (1.0 L, 0.9 Imp. qt.)



Item
Clean funnel

■

Adding engine oil

If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

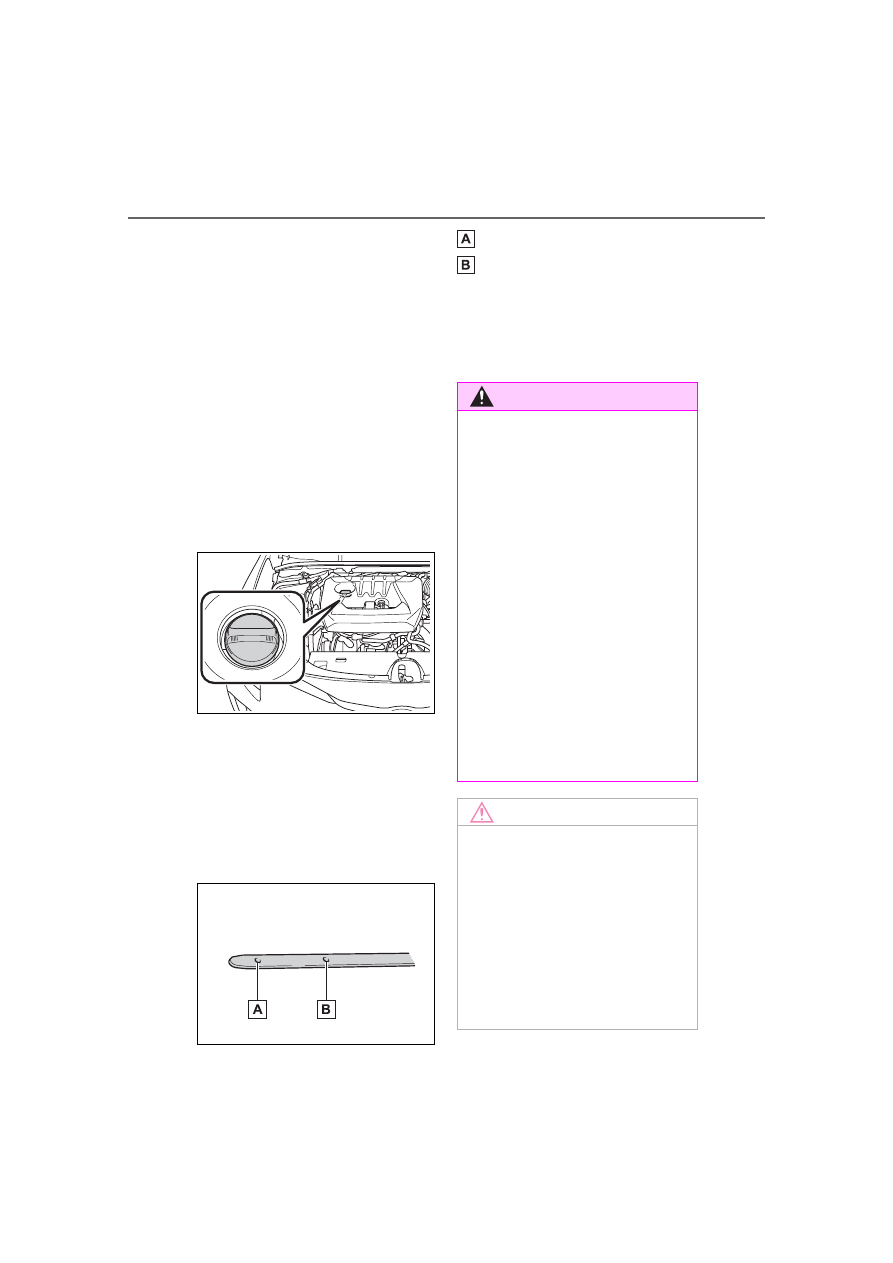

Remove the oil filler cap by
turning it counterclockwise.

Add engine oil slowly, check-
ing the dipstick.

Make sure that the oil level does

not exceed the refill upper limit

mark and is between the low level

mark and refill upper limit mark.

Low level mark
Refill upper limit mark

The shape of the dipstick may differ

depending on the type of vehicle or

engine.

Install the oil filler cap by
turning it clockwise.

WARNING

■

Used engine oil

●

Used engine oil contains poten-

tially harmful contaminants

which may cause skin disorders

such as inflammation and skin

cancer, so care should be taken

to avoid prolonged and

repeated contact. To remove

used engine oil from your skin,

wash thoroughly with soap and

water.

●

Dispose of used oil and filters

only in a safe and acceptable

manner. Do not dispose of used

oil and filters in household trash,

in sewers or onto the ground.

Call your Toyota dealer, service

station or auto parts store for

information concerning recy-

cling or disposal.

●

Do not leave used engine oil

within the reach of children.

NOTICE

■

When replacing the engine oil

●

Be careful not to spill engine oil

on the vehicle components.

●

Avoid overfilling, or the engine

could be damaged.

●

Check the oil level on the dip-

stick every time you refill the

vehicle.

●

Be sure the engine oil filler cap

is properly tightened.

271

6-4. Do-it-yourself maintenance

Maintena

nce
a

nd ca

■

Engine coolant reservoir

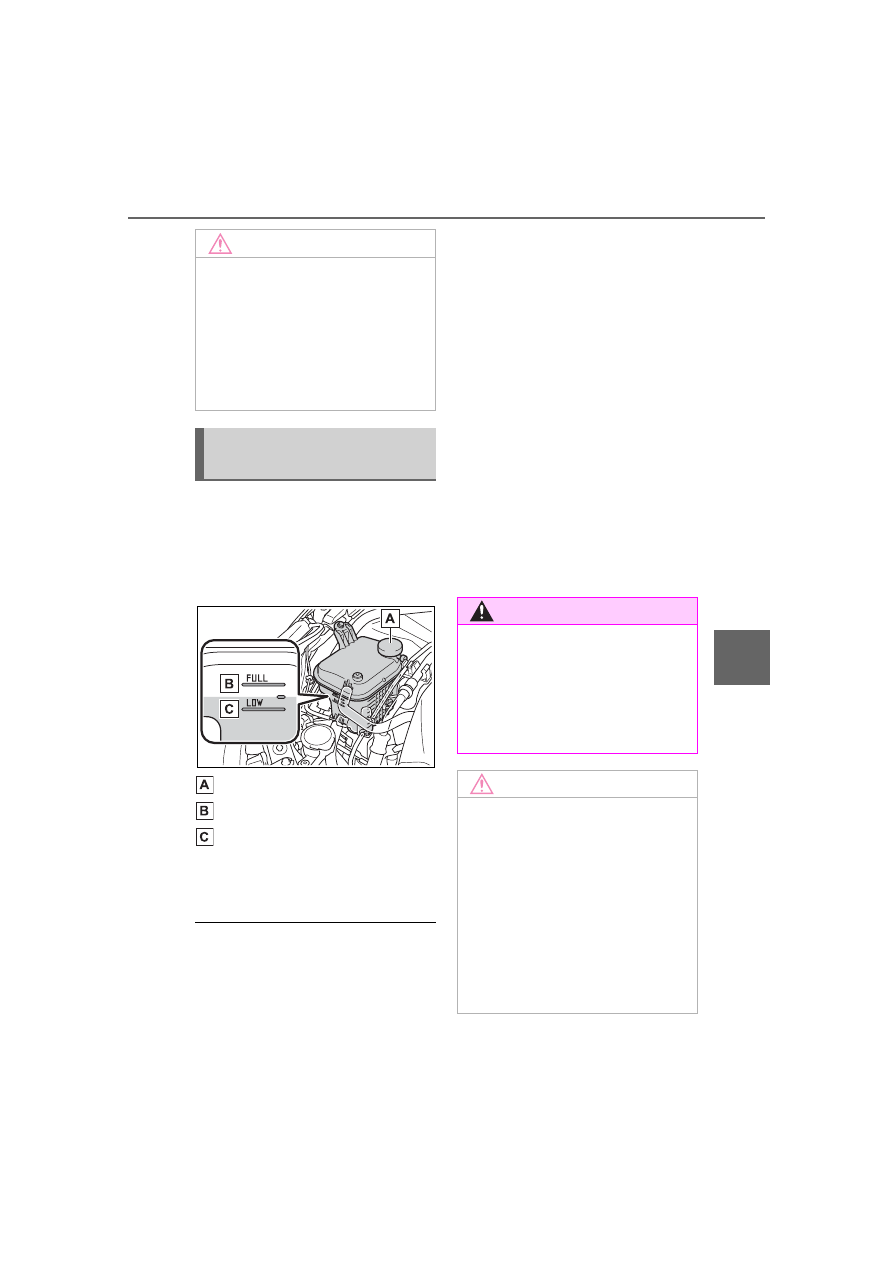

The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir
when the engine is cold.

Reservoir cap
“FULL” line
“LOW” line

If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. (



P.348)

■

Coolant selection

Only use “Toyota Super Long Life

Coolant” or a similar high quality

ethylene glycol based non-silicate,

non-amine, non-nitrite, and

non-borate coolant with long-life

hybrid organic acid technology.

U.S.A.:
“Toyota Super Long Life Coolant” is

a mixture of 50% coolant and 50%

deionized water. (Minimum tem-

perature: -31°F [-35°C])
Canada:
“Toyota Super Long Life Coolant” is

a mixture of 55% coolant and 45%

deionized water. (Minimum tem-

perature: -44°F [-42°C])
For more details about coolant, con-

tact your Toyota dealer.

■

If the coolant level drops within

a short time of replenishing

Visually check the radiator, hoses,

engine coolant reservoir caps, drain

cock and water pump.

If you cannot find a leak, have your

Toyota dealer test the cap and

check for leaks in the cooling sys-

tem.

NOTICE

■

If oil is spilled on the engine

cover

To prevent the engine cover from

being damaged, remove any

engine oil from the engine cover

as soon as possible using a neu-

tral detergent. Do not use an

organic solvent such as brake

cleaner.

Checking the engine cool-
ant

WARNING

■

When the engine is hot

Do not remove the engine coolant

reservoir cap. (



P.349)

The cooling system may be under

pressure and may spray hot cool-

ant if the cap is removed, causing

serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor

straight antifreeze. The correct

mixture of water and antifreeze

must be used to provide proper

lubrication, corrosion protection

and cooling. Be sure to read the

antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to

prevent it from damaging parts or

paint.

Content .. 14 15 16 17 ..
