207

4-5. Using the driving support systems

ing

the information continues to show,

contact your Toyota dealer.

■

Operating conditions of

hill-start assist control

When the following four conditions

are met, the hill-start assist control

will operate:

●

The shift lever is in a position

other than R when starting off for-

ward on an upward incline, or the

shift lever is in R when starting off

backward on an upward incline.

●

The vehicle is stopped

●

The accelerator pedal is not

depressed

●

The parking brake is not engaged

●

The engine switch is turned to ON

■

Automatic system cancelation

of hill-start assist control

The hill-start assist control will turn

off in any of the following situations:

●

The shift lever is shifted to R when

starting off forward on an upward

incline, or the shift lever is shifted

to other than R when starting off

backward on an upward incline.

●

The accelerator pedal is

depressed

●

The parking brake is engaged

●

A maximum of 2 seconds have

elapsed after the brake pedal is

released

●

The engine switch is turned to

OFF

■

Sounds and vibrations caused

by the ABS, brake assist, VSC,

TRAC and hill-start assist con-

trol systems

●

A sound may be heard from the

engine compartment when the

brake pedal is depressed repeat-

edly, when the engine is started or

just after the vehicle begins to

move. This sound does not indi-

cate that a malfunction has

occurred in any of these systems.

●

Any of the following conditions

may occur when the above sys-

tems are operating. None of these

indicates that a malfunction has

occurred.

• Vibrations may be felt through the

vehicle body and steering.

• A motor sound may be heard also

after the vehicle comes to a stop.

• The brake pedal may pulsate

slightly after the ABS is activated.

• The brake pedal may move down

slightly after the ABS is activated.

■

Automatic reactivation of TRAC

and VSC systems

After turning the TRAC and VSC

systems off, the systems will be

automatically re-enabled in the fol-

lowing situations:

●

When the engine switch is turned

off

●

If only the TRAC system is turned

off, the TRAC will turn on when

vehicle speed increases

If both the TRAC and VSC sys-

tems are turned off, automatic

re-enabling will not occur when

vehicle speed increases.

■

Reduced effectiveness of the

EPS system

The effectiveness of the EPS sys-

tem is reduced to prevent the sys-

tem from overheating when there is

frequent steering input over an

extended period of time. The steer-

ing wheel may feel heavy as a

result. Should this occur, refrain

from excessive steering input or

stop the vehicle and turn the engine

off. The EPS system should return

to normal within 10 minutes.

■

If a message about AWD is

shown on the multi-information

display

Perform the following actions.

●

“AWD System Overheated

Switching to 2WD Mode.” AWD

system is overheated. Stop the

vehicle in a safe place with the

engine running. If the message

disappears after a while, there is

208

4-5. Using the driving support systems

no problem. If the message

remains, have the vehicle

inspected by your Toyota dealer

immediately.

●

“AWD System Overheated 2WD

Mode Engaged.” AWD system

has been temporarily released

and switched to front-wheel drive

due to overheating. Stop the vehi-

cle in a safe place with the engine

running. If the message disap-

pears after a while, AWD system

will automatically recover. If the

message remains, have the vehi-

cle inspected by your Toyota

dealer immediately.

●

“AWD system Malfunction 2WD

Mode Engaged Visit Your Dealer.”

A malfunction occurs in the AWD

system. Have the vehicle

inspected by your Toyota dealer

immediately.

: When stopping the vehicle, do not

stop the engine until the display
message has turned off.

■

Secondary Collision Brake

operating conditions

The system operates when the SRS

airbag sensor detects a collision

while the vehicle is in motion.
However, the system does not oper-

ate when the components are dam-

aged.

■

Secondary Collision Brake

automatic cancellation

The system is automatically can-

celed in any of the following situa-

tions.

●

The vehicle speed drops below

approximately 0 mph (0 km/h)

●

A certain amount of time elapses

during operation

●

The accelerator pedal is

depressed a large amount

WARNING

■

The ABS does not operate

effectively when

●

The limits of tire gripping perfor-

mance have been exceeded

(such as excessively worn tires

on a snow covered road).

●

The vehicle hydroplanes while

driving at high speed on wet or

slick roads.

■

Stopping distance when the

ABS is operating may exceed

that of normal conditions

The ABS is not designed to

shorten the vehicle’s stopping dis-

tance. Always maintain a safe dis-

tance from the vehicle in front of

you, especially in the following sit-

uations:

●

When driving on dirt, gravel or

snow-covered roads

●

When driving with tire chains

●

When driving over bumps in the

road

●

When driving over roads with

potholes or uneven surfaces

■

TRAC/VSC may not operate

effectively when

Directional control and power may

not be achievable while driving on

slippery road surfaces, even if the

TRAC/VSC system is operating.

Drive the vehicle carefully in con-

ditions where stability and power

may be lost.

■

Hill-start assist control does

not operate effectively when

●

Do not overly rely on hill-start

assist control. Hill-start assist

control may not operate effec-

tively on steep inclines and

roads covered with ice.

209

4-5. Using the driving support systems

ing

WARNING

●

Unlike the parking brake,

hill-start assist control is not

intended to hold the vehicle sta-

tionary for an extended period

of time. Do not attempt to use

hill-start assist control to hold

the vehicle on an incline, as

doing so may lead to an acci-

dent.

■

When the TRAC/VSC is acti-

vated

The slip indicator light flashes.

Always drive carefully. Reckless

driving may cause an accident.

Exercise particular care when the

indicator light flashes.

■

When the TRAC/VSC systems

are turned off

Be especially careful and drive at

a speed appropriate to the road

conditions. As these are the sys-

tems to help ensure vehicle stabil-

ity and driving force, do not turn

the TRAC/VSC systems off

unless necessary.

■

Expert mode precautions

●

Do not use on public roads.

●

Use only when the road condi-

tions and safely of the surround-

ing area can be ensured.

●

Proper use of expert mode

requires a professional level of

driving skill. When using expert

mode, always check the road

conditions and surrounding area

and drive more carefully than

usual.

■

Replacing tires

Make sure that all tires are of the

specified size, brand, tread pat-

tern and total load capacity. In

addition, make sure that the tires

are inflated to the recommended

tire inflation pressure level.
The ABS, TRAC and VSC sys-

tems will not function correctly if

different tires are installed on the

vehicle.

Contact your Toyota dealer for fur-

ther information when replacing

tires or wheels.

■

Handling of tires and the sus-

pension

Using tires with any kind of prob-

lem or modifying the suspension

will affect the driving assist sys-

tems, and may cause a system to

malfunction.

■

Active Torque Split AWD sys-

tem

●

The Active Torque Split AWD

system is designed to ensure

driving stability on general

roads and not for off-road driv-

ing such as for rallying. Do not

subject the system to extreme

driving conditions.

●

Drive carefully on slippery road

surfaces.

■

Secondary Collision Brake

Do not overly rely on the Second-

ary Collision Brake. This system

is designed to help reduce the

possibility of further damage due

to a secondary collision, however,

that effect changes according to

various conditions. Overly relying

on the system may result in death

or serious injury.

210

4-6. Driving tips

4-6.Driving tips



Use fluids that are appropriate
to the prevailing outside tem-
peratures.

• Engine oil
• Engine coolant
• Washer fluid



Have a service technician
inspect the condition of the
battery.



Have the vehicle fitted with
four snow tires or purchase a
set of tire chains for the front
tires.

Ensure that all tires are the same
size and brand, and that chains
match the size of the tires.

Winter driving tips

Carry out the necessary
preparations and inspec-
tions before driving the
vehicle in winter. Always
drive the vehicle in a man-
ner appropriate to the pre-
vailing weather conditions.

Pre-winter preparations

WARNING

■

Driving with snow tires

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in a

loss of vehicle control and cause

death or serious injury.

●

Use tires of the size specified.

●

Maintain the recommended

level of air pressure.

●

Do not drive in excess of 75

mph (120 km/h), regardless of

the type of snow tires being

used.

●

Use snow tires on all, not just

some wheels.

■

Driving with tire chains

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in the

vehicle being unable to be driven

safely, and may cause death or

serious injury.

●

Do not drive in excess of the

speed limit specified for the tire

chains being used, or 30 mph

(50 km/h), whichever is lower.

●

Avoid driving on bumpy road

surfaces or over potholes.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

●

Slow down sufficiently before

entering a curve to ensure that

vehicle control is maintained.

●

Do not use LTA (Lane Tracing

Assist) system.

●

Do not use LDA (Lane Depar-

ture Alert) system.

NOTICE

■

Repairing or replacing snow

tires

Request repairs or replacement of

snow tires from Toyota dealers or

legitimate tire retailers.

This is because the removal and

attachment of snow tires affects

the operation of the tire pressure

warning valves and transmitters.

211

4-6. Driving tips

ing

Perform the following according
to the driving conditions:



Do not try to forcibly open a
window or move a wiper that
is frozen. Pour warm water
over the frozen area to melt
the ice. Wipe away the water
immediately to prevent it from
freezing.



To ensure proper operation of
the climate control system
fan, remove any snow that
has accumulated on the air
inlet vents in front of the wind-
shield.



Check for and remove any
excess ice or snow that may
have accumulated on the
exterior lights, vehicle’s roof,
chassis, around the tires or on
the brakes.



Remove any snow or mud
from the bottom of your shoes
before getting in the vehicle.

Accelerate the vehicle slowly,
keep a safe distance between
you and the vehicle ahead, and
drive at a reduced speed suit-
able to road conditions.

Park the vehicle and shift the
shift lever to 1 or R without set-

ting the parking brake. The park-
ing brake may freeze up,
preventing it from being
released. If the vehicle is parked
without setting the parking
brake, make sure to block the
wheels.
Failure to do so may be danger-
ous because it may cause the
vehicle to move unexpectedly,
possibly leading to an accident.

Use the correct tire chain size
when mounting the tire chains.
Chain size is regulated for each
tire size.

Side chain (0.12 in. [3 mm] in
diameter)
Side chain (0.39 in. [10 mm]
in width)
Side chain (1.18 in. [30 mm]
in length)
Cross chain (0.16 in. [4 mm]
in diameter)
Cross chain (0.55 in. [14 mm]
in width)
Cross chain (0.98 in. [25 mm]
in length)

Before driving the vehicle

When driving the vehicle

When parking the vehicle

Selecting tire chains

212

4-6. Driving tips

Regulations regarding the use
of tire chains vary depending on
location and type of road.
Always check local regulations
before installing chains.

■

Tire chain installation

Observe the following precautions

when installing and removing

chains:

●

Install and remove tire chains in a

safe location.

●

Install tire chains on the front tires

only. Do not install tire chains on

the rear tires.

●

Install tire chains on the front tires

as tightly as possible. Retighten

chains after driving 1/4



1/2 mile

(0.5



1.0 km).

●

Install tire chains following the

instructions provided with the tire

chains.

Regulations on the use of
tire chains

NOTICE

■

Fitting tire chains

The tire pressure warning valves

and transmitters may not function

correctly when tire chains are fit-

ted.

213

Interior

featur

Interior features

5-1. Using the air conditioning

system and defogger

Automatic air conditioning

system.......................

214

Heated steering wheel/seat

heaters ......................

221

5-2. Using the interior lights

Interior lights list ..........

223

5-3. Using the storage features

List of storage features

..................................

225

Luggage compartment fea-

tures ..........................

228

5-4. Other interior features

Other interior features .

230

214

5-1. Using the air conditioning system and defogger

5-1.Using the air conditioning system and defogger



Vehicles without DUAL mode air conditioning system

Temperature control switch
Fan speed control switch
“A/C” switch
Outside air mode switch
Recirculated air mode switch
Eco air conditioning mode switch
Airflow mode control switch
Rear window defogger and outside rear view mirror defoggers
switch
Windshield defogger switch
Off switch
Automatic mode switch

Automatic air conditioning system

Air outlets are automatically selected and fan speed is auto-
matically adjusted according to the set temperature setting.

Air conditioning controls

215

5-1. Using the air conditioning system and defogger

Interior

featur



Vehicles with DUAL mode air conditioning system

Driver’s side temperature control switch
Passenger’s side temperature control switch
“SYNC” switch
“A/C” switch
Outside air mode switch
Recirculated air mode switch
Airflow mode control switch
Fan speed increases switch
Fan speed decreases switch
Eco air conditioning mode switch
Rear window defogger and outside rear view mirror defoggers
switch
Windshield defogger switch
Off switch
Automatic mode switch

■

Adjusting the temperature
setting

To adjust the temperature set-
ting, turn the temperature con-
trol switch clockwise (warm) or
counterclockwise (cool).

If “A/C” switch is not pressed, the
system will blow ambient tempera-
ture air or heated air.



Vehicles with DUAL mode air
conditioning system

The air conditioning system
switches between individual and
synchronized modes each time
“SYNC” switch is pressed.

Synchronized modes (indicator on):
The driver’s side temperature con-
trol switch can be used to adjust the
temperature for the driver’s and
front passenger’s side. At this time,

216

5-1. Using the air conditioning system and defogger

operate the passenger’s side tem-
perature control switch to enter
individual mode.
Individual modes (indicator off):
The temperature for the driver’s
and front passenger’s side can be
adjusted separately.

■

Setting the fan speed



Vehicles without DUAL mode
air conditioning system

To adjust the fan speed, turn the
fan speed control switch clock-
wise (increase) or counterclock-
wise (decrease).

Pressing the off switch to turns off
the fan.



Vehicles with DUAL mode air
conditioning system

Operate the fan speed
increases switch to increase the
fan speed and the fan speed
decrease switch to decrease the
fan speed.

Pressing the off switch to turns off
the fan.

■

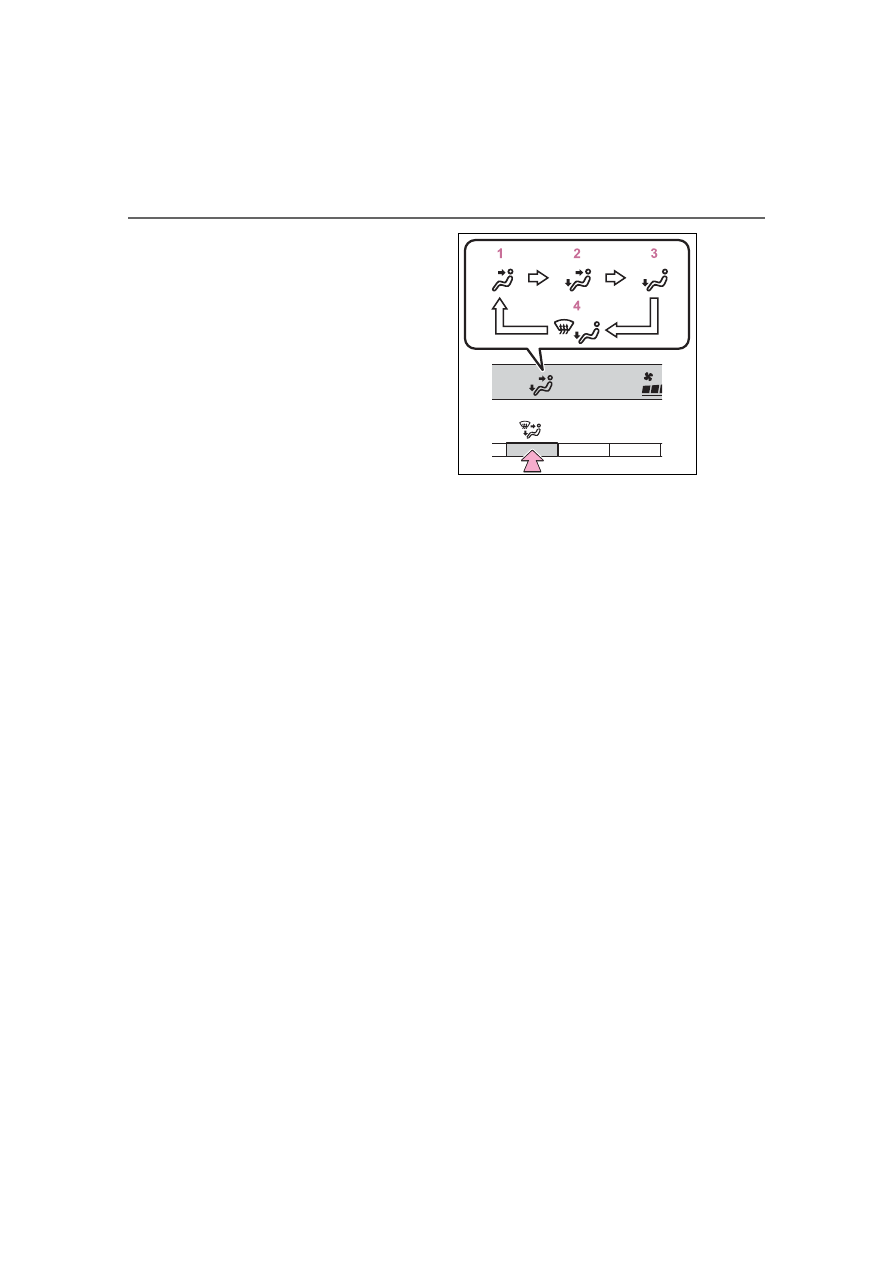

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

Upper body

Upper body and feet

Feet

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes



To change to recirculated air
mode, press the recirculated
air mode switch.

The indicator illuminates on the
recirculated air mode switch.



To change to outside air
mode, press the outside air
mode switch.

The indicator illuminates on the out-
side air mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Defogging the windshield

Defoggers are used to defog the

217

5-1. Using the air conditioning system and defogger

Interior

featur

windshield and front side win-
dows.
Press the windshield defogger
switch.

Set the outside/recirculated air
mode switch to outside air mode if
the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the
side windows quickly, turn the air
flow and temperature up.
To return to the previous mode,
press the windshield defogger
switch again when the windshield is
defogged.
When the windshield defogger
switch is on, the indicator illumi-
nates on the windshield defogger
switch.

■

Defogging the rear window
and outside rear view mir-
rors

Defoggers are used to defog the
rear window, and to remove
raindrops, dew and frost from
the outside rear view mirrors.
Press the rear window and out-
side rear view mirror defoggers
switch.

The defoggers will automatically
turn off after a while.
When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view
mirror defoggers switch.

■

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-

tized such as reducing fan
speed, etc.
Press the eco air conditioning
mode switch.

When the eco air conditioning
mode is on, the indicator illumi-
nates on the eco air conditioning
mode switch.

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally. This may also reduce fuel

consumption.

●

Recirculated air mode is selected

as a default mode when the

engine switch is turned to ON.

●

It is possible to switch to outside

air mode at any time by pressing

the outside air mode switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning “A/C” on will dehu-

midify the air from the outlets and

defog the windshield effectively.

●

If you turn “A/C” off, the windows

may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

218

5-1. Using the air conditioning system and defogger

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

Eco air conditioning mode

When Eco drive mode is selected

using the driving mode select

switch, eco air conditioning mode

turns on.
When a drive mode other than Eco

drive mode is selected, eco air con-

ditioning mode may turn off.

■

Operation of the air condition-

ing system in Eco drive mode

●

In Eco drive mode, the air condi-

tioning system is controlled as fol-

lows to prioritize fuel efficiency:

• Engine speed and compressor

operation controlled to restrict

heating/cooling capacity

• Fan speed restricted when auto-

matic mode is selected

●

To improve air conditioning perfor-

mance, perform the following

operations:

• Turn off eco air conditioning mode

(



P.217)

• Adjust the fan speed

• Turn off Eco drive mode (



P.202)

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

To reduce potential odors from

occurring:

• It is recommended that the air

conditioning system be set to out-

side air mode prior to turning the

vehicle off.

• The start timing of the blower may

be delayed for a short period of

time immediately after the air con-

ditioning system is started in auto-

matic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning filter



P.298

■

Air conditioning system refrig-

erant

●

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

219

5-1. Using the air conditioning system and defogger

Interior

featur

■

Using the voice command sys-

tem

Air conditioning system can be

operated using voice commands.
For details, refer to the “MULTIME-

DIA OWNER’S MANUAL”.

■

Customization

Some functions can be customized.

(



P.371)

Press the automatic mode
switch.

Adjust the temperature set-
ting.

To stop the operation, press
the off switch.

If the fan speed setting or air
flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch pressed.

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the outside rear view

mirror surfaces, as they can

become very hot and burn you.

NOTICE

■

To prevent battery discharge

Do not leave the air conditioning

system on longer than necessary

when the engine is off.

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air conditioning

system, such as the evaporator, is

to be replaced, it must be

replaced with a new one.

Using automatic mode

220

5-1. Using the air conditioning system and defogger

Prevent ice from building up on
the windshield and wiper
blades.

When the windshield wiper de-icer
switch is on, the indicator illumi-
nates on the windshield wiper
de-icer switch.
The windshield wiper de-icer will
automatically turn off after a period
of time.

■

Location of air outlets

The air outlets and air volume
changes according to the
selected air flow mode.

:If equipped

■

Adjusting the position of
and opening and closing
the air outlets



Front center

Direct air flow to the left or right, up
or down



Front right-hand side

Direct air flow to the left or
right, up or down

Open the vent

Close the vent

Windshield wiper de-icer
(if equipped)

WARNING

■

To prevent burns

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper de-icer is on.

Air outlet layout and oper-
ations

221

5-1. Using the air conditioning system and defogger

Interior

featur



Front left-hand side

Direct air flow to the left or
right, up or down

Close the vent

Open the vent

: If equipped

WARNING

■

To prevent the windshield

defogger from operating

improperly

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

Heated steering

wheel

/seat heaters



Heated steering wheel

Warms up the grip of the
steering wheel



Seat heaters

Warm up the seat upholstery

WARNING

■

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the steering wheel or

seats when the heater is on:

●

Babies, small children, the

elderly, the sick and the physi-

cally challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

NOTICE

■

To prevent damage to the

seat heaters

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

■

To prevent battery discharge

Do not use the functions when the

engine is off.

222

5-1. Using the air conditioning system and defogger

■

Heated steering wheel

Turns heated steering wheel
on/off

When the heated steering wheel is
on, the indicator illuminates on the
heated steering wheel switch.

■

Seat heaters

Turns seat heaters on/off

High temperature

Low temperature

When the seat heater is on, the
indicator illuminates on the seat
heater switch.
When not in use, put the switch in
the neutral position. The indicator
will turn off.

■

The heated steering wheel and

seat heaters can be used when

The engine switch is in ON.

Operation instructions

WARNING

■

To prevent overheating and

minor burn injuries

Observe the following precautions

when using the seat heaters.

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

Content .. 11 12 13 14 ..
