Toyota Camry Hybrid (2023 year). Manual in english - page 22





352

4-5. Using the driving support systems

The system will operate in situations such as the following if an object
is detected in the traveling direction of the vehicle.

■

When reversing, a vehicle is approaching and the brake pedal
is not depressed, or is depressed late

Parking Support Brake function (rear-

crossing vehicles)

: If equipped

If a radar sensor detects a vehicle approaching from the right or
left at the rear of the vehicle and the system determines that the
possibility of a collision is high, this function will perform brake
control to reduce the likelihood of an impact with the approach-
ing vehicle.

Examples of system operation

353

4-5. Using the driving support systems

4

Dr

ivi

ng

■

The Parking Support Brake function (rear-crossing vehicles) will operate
when

The  function  will  operate  when  the  PKSB  OFF  indicator  is  not  illuminated
(

P. 341, 345) and all of the following conditions are met:

●

Hybrid system output restriction control
• The Parking Support Brake is enabled.
• The vehicle speed is approximately 9 mph (15 km/h) or less.
• Vehicles  which  are  approaching  from  the  right  or  left  at  the  rear  of  the

vehicle at a traveling speed of approximately 5 mph (8 km/h) or more.

• The shift lever is in R.
• The  system  determines  that  a  stronger  than  normal  brake  operation  is

necessary to avoid a collision with an approaching vehicle.

●

Brake control
• Hybrid system output restriction control is operating.
• The system determines that an emergency brake operation is necessary

to avoid a collision with an approaching vehicle.

■

The  Parking  Support  Brake  function  (rear-crossing  vehicles)  will  stop
operating when

The function will stop operating if any of the following conditions are met:

●

Hybrid system output restriction control
• The Parking Support Brake is disabled.
• The collision becomes avoidable with normal brake operation.
• A vehicle is no longer approaching from the right or left at the rear of the

vehicle.

●

Brake control
• The Parking Support Brake is disabled.
• Approximately  2  seconds  elapse  after  the  vehicle  is  stopped  by  brake

control.

• The brake pedal is depressed after the vehicle is stopped by brake con-

trol.

• A vehicle is no longer approaching from the right or left at the rear of the

vehicle.

■

Detection  area  of  the  Parking  Support  Brake  function  (rear-crossing
vehicles)

The detection area of the Parking Support Brake function (rear-crossing vehi-
cles) differs from the detection area of the RCTA function (

P. 330).

Therefore, even if the RCTA function detects a vehicle and provides an alert,
the  Parking  Support  Brake  function  (rear-crossing  vehicles)  may  not  start
operating.

■

Situations in which the system may not operate properly

P. 331

■

Situations in which the system may operate even if there is no possibil-
ity of a collision

P. 333

354

4-5. Using the driving support systems

WARNING

■

To ensure the system can operate properly

P. 312

355

4-5. Using the driving support systems

4

Dr

ivi

ng

Normal mode
Use for normal driving.

While  in  Eco  drive  mode  or  sport  mode,  press  the  switch  to  change  the
driving mode to normal mode.

Eco drive mode
Use Eco drive mode to help achieve low fuel consumption during
trips that involve frequent accelerating.

When the “ECO” switch is pressed, the “ECO MODE” indicator comes on
in the instrument cluster.

Sport mode
Use sport mode when increased acceleration response and precise
handling is desired, for example, when driving on mountain roads.

When the “SPORT” switch is pressed, the “SPORT” indicator comes on in
the instrument cluster.

Driving mode select switches

The driving modes can be selected to suit driving condition.

1

2

3

356

4-5. Using the driving support systems

■

Operation of the air conditioning system in Eco drive mode

Eco drive mode controls the heating/cooling operations and fan speed of the
air conditioning system to enhance fuel efficiency (

P. 366). To improve air

conditioning performance, adjust the fan speed or turn off Eco drive mode.

■

Auto Glide Control

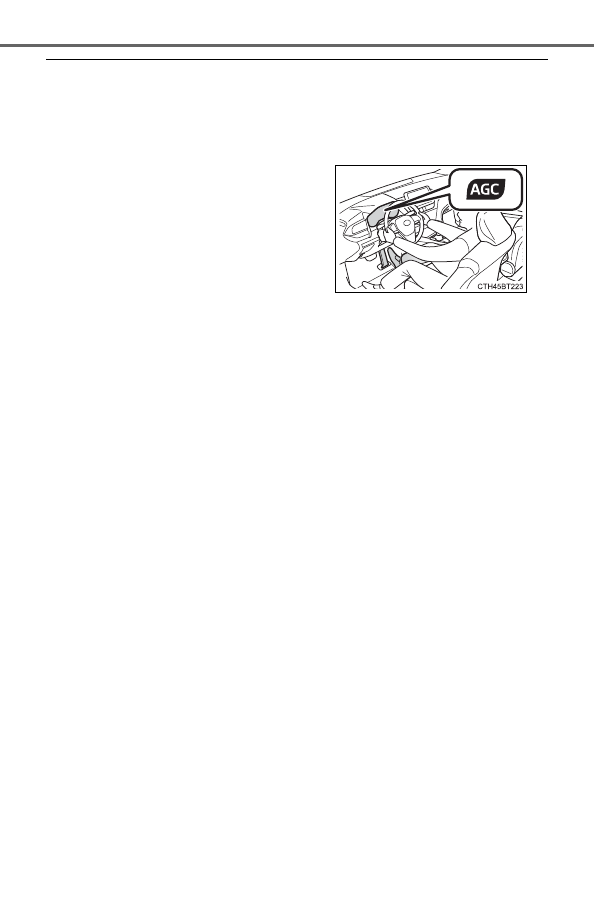

When Auto Glide Control operates, the AGC indicator light will illuminate.

●

Auto Glide Control may not operate in the following situations:
• When the brake pedal is depressed
• When a shift position other than D is selected
• When the vehicle speed is approximately 10 mph (15 km/h) or lower
• When the vehicle is accelerating on a downward slope
• When the PCS (Pre-Collision System) is operating
• When the dynamic radar cruise control with full-speed range is operating
• When the Parking Support Brake system is operating
• When the TRAC or VSC system is operating
• When  the TRAC  or  VSC  system  is  disabled  by  pressing  the  VSC  OFF

switch

■

Sport mode automatic deactivation

Sport mode is automatically deactivated if the power switch is turned off after
driving in sport mode.

●

While driving in Eco drive mode with D
selected,  releasing  the  accelerator
pedal  will  activate  Auto  Glide  Control
under  certain  conditions.  (Auto  Glide
Control may activate before the acceler-
ator pedal is fully released.)
When Auto Glide Control operates, the
electric  motor  (traction  motor)  will  be
controlled,  reducing  the  deceleration
force and allowing the vehicle to coast,
enhancing fuel economy.

357

4

Dr

ivi

ng

4-6. Driving tips

◆

Using Eco drive mode

When using Eco drive mode, the torque corresponding to the accel-
erator pedal depression amount can be generated more smoothly
than it is in normal conditions. In addition, the operation of the air
conditioning system (heating/cooling) will be minimized, improving
the fuel economy. (

P. 355)

◆

Use of Hybrid System Indicator

The Eco-friendly driving is possible by keeping the needle of Hybrid
System Indicator within Eco area. (

P. 102)

◆

Shift lever operation

Shift the shift lever to D when stopped at a traffic light, or driving in
heavy traffic etc. Shift the shift lever to P when parking. When using
the N, there is no positive effect on fuel consumption. In the N, the
gasoline engine operates but electricity cannot be generated. Also,
when  using  the  air  conditioning  system,  etc.,  the  hybrid  battery
(traction battery) power is consumed.

◆

Accelerator pedal/brake pedal operation

●

Drive  your  vehicle  smoothly.  Avoid  abrupt  acceleration  and
deceleration.  Gradual  acceleration  and  deceleration  will  make
more effective use of the electric motor (traction motor) without
having to use gasoline engine power.

●

Avoid  repeated  acceleration.  Repeated  acceleration  consumes
hybrid battery (traction battery) power, resulting in poor fuel con-
sumption.  Battery  power  can  be  restored  by  driving  with  the
accelerator pedal slightly released.

Hybrid Electric Vehicle driving tips

For economical and ecological driving, pay attention to the fol-
lowing points:

358

4-6. Driving tips

◆

When braking

Make sure to operate the brakes gently and in a timely manner. A
greater amount of electrical energy can be regenerated when slow-
ing down.

◆

Delays

Repeated  acceleration  and  deceleration,  as  well  as  long  waits  at
traffic  lights,  will  lead  to  bad  fuel  economy.  Check  traffic  reports
before leaving and avoid delays as much as possible. When driving
in a traffic jam, gently release the brake pedal to allow the vehicle to
move  forward  slightly  while  avoiding  overuse  of  the  accelerator
pedal. Doing so can help control excessive gasoline consumption.

◆

Highway driving

Control and maintain the vehicle at a constant speed. Before stop-
ping  at  a  toll  booth  or  similar,  allow  plenty  of  time  to  release  the
accelerator and gently apply the brakes. A greater amount of elec-
trical energy can be regenerated when slowing down.

◆

Air conditioning

Use  the  air  conditioning  only when necessary.  Doing  so  can  help
reduce excessive gasoline consumption.
In summer: When the ambient temperature is high, use the recircu-
lated air mode. Doing so will help to reduce the burden on the air
conditioning system and reduce fuel consumption as well.
In winter: Because the gasoline engine will not automatically cut out
until it and the interior of the vehicle are warm, it will consume fuel.
Also, fuel consumption can be improved by avoiding overuse of the
heater.

◆

Checking tire inflation pressure

Make sure to check the tire inflation pressure frequently. Improper
tire inflation pressure can cause poor fuel economy.
Also, as snow tires can cause large amounts of friction, their use on
dry roads can lead to poor fuel economy. Use tires that are appro-
priate for the season.

359

4-6. Driving tips

4

Dr

ivi

ng

◆

Luggage

Carrying heavy luggage will lead to poor fuel economy. Avoid carry-
ing unnecessary luggage. Installing a large roof rack will also cause
poor fuel economy.

◆

Warming up before driving

Since  the  gasoline  engine  starts  up  and  cuts  out  automatically
when cold, warming up the engine is unnecessary. Moreover, fre-
quently driving short distances will cause the engine to repeatedly
warm up, which can lead to excess fuel consumption.

360

4-6. Driving tips

●

Use  fluids  that  are  appropriate  to  the  prevailing  outside  tempera-
tures.

• Engine oil
• Engine/power control unit coolant
• Washer fluid

●

Have a service technician inspect the condition of the 12-volt bat-
tery.

●

Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.

Ensure  that  all tires are the specified  size and brand, and that chains
match the size of the tires.

Perform the following according to the driving conditions:

●

Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.

●

To  ensure  proper  operation  of  the  climate  control  system  fan,
remove  any  snow  that  has  accumulated  on  the  air  inlet  vents  in
front of the windshield.

●

Check for and remove any excess ice or snow that may have accu-
mulated  on  the  exterior  lights,  vehicle’s  roof,  chassis,  around  the
tires or on the brakes.

●

Remove  any  snow  or  mud  from  the  bottom  of  your  shoes  before
getting in the vehicle.

Winter driving tips

Carry  out  the  necessary  preparations  and  inspections  before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.

Preparation for winter

Before driving the vehicle

361

4-6. Driving tips

4

Dr

ivi

ng

Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.

●

Park the vehicle and move the shift lever to P without setting  the
parking brake. The parking brake may freeze up, preventing it from
being released. If the vehicle is parked without setting the parking
brake, make sure to block the wheels.
Failure to do so may be dangerous because it may cause the vehi-
cle to move unexpectedly, possibly leading to an accident.

●

If  the  vehicle  is  parked  without  setting  the  parking  brake,  confirm
that the shift lever cannot be moved out of P

*

.

*

: The shift lever will be locked if it is attempted to be shifted from P to any

other position without depressing the brake pedal. If the shift lever can be
shifted from P, there may be a problem with the shift lock system. Have the
vehicle inspected by your Toyota dealer immediately.

Vehicles with 16 and 17-inch tires

Use the correct tire chain size when mounting the snow chains.
Chain size is regulated for each tire size.

Side chain:

0.12 in. (3 mm) in diameter
0.39 in. (10 mm) in width
1.18 in. (30 mm) in length

Cross chain:

0.16 in. (4 mm) in diameter
0.55 in. (14 mm) in width
0.98 in. (25 mm) in length

Vehicles with 18-inch tires

Tire chains cannot be mounted.

Snow tires should be used instead.

When driving the vehicle

When parking the vehicle

Selecting tire chains

1

2

3

4

5

6

362

4-6. Driving tips

Regulations regarding the use of tire chains vary depending on loca-
tion and type of road. Always check local regulations before installing
chains.

■

Tire chain installation

Observe the following precautions when installing and removing chains:

●

Install and remove tire chains in a safe location.

●

Install tire chains on the front tires. Do not install tire chains on the rear tires.

●

Install tire chains on front tires as tightly as possible. Retighten chains after
driving 1/4

 1/2 mile (0.5

 1.0 km).

●

Install tire chains following the instructions provided with the tire chains.

Regulations on the use of tire chains

WARNING

■

Driving with snow tires

Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.

●

Use tires of the specified size.

●

Maintain the recommended level of air pressure.

●

Do  not  drive  in  excess  of  75  mph  (120  km/h),  regardless  of  the  type  of
snow tires being used.

●

Use snow tires on all, not just some wheels.

■

Driving with tire chains (vehicles with 16 and 17-inch tires)

Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.

●

Do not drive in excess of the speed limit specified for the tire chains being
used, or 30 mph (50 km/h), whichever is lower.

●

Avoid driving on bumpy road surfaces or over potholes.

●

Avoid  sudden  acceleration,  abrupt  steering,  sudden  braking  and  shifting
operations that cause sudden engine braking.

●

Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.

●

Do not use LTA (Lane Tracing Assist) system.

363

4-6. Driving tips

4

Dr

ivi

ng

NOTICE

■

Repairing or replacing snow tires

Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.

■

Fitting tire chains (vehicles with 16 and 17-inch tires)

The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.

366

5-1. Using the air conditioning system and defogger

■

Adjusting the temperature setting

To adjust the temperature setting, turn

 clockwise to increase

the  temperature  and  counterclockwise  to  decrease  the  tempera-
ture.

If

 is not pressed, the system will blow ambient temperature air or

heated air.
The air conditioning system switches between individual and synchro-

nized modes each time

 is pressed.

Synchronized modes (indicator on):

The driver’s side



dial can be used to adjust the temperature for

the  driver’s  and  front  passenger’s  side. At  this  time,  operate  the  front

passenger’s side



dial to enter individual mode.

Individual modes (indicator off):
The  temperature  for  the  driver’s  and  front  passenger’s  side  can  be
adjusted separately.

Automatic air conditioning system

Air outlets and fan speed are automatically adjusted according
to the temperature setting.

Air conditioning controls

367

5-1. Using the air conditioning system and defogger

5

Interio

r features

■

Fan speed setting

To adjust the fan speed, press

 to increase the fan speed

and

 to decrease the fan speed.

Press

 to turn the fan off.

■

Change the airflow mode

To  change  the  airflow  mode,

press

.

The  air  outlets  used  are
switched each time the button is
pressed.

Air flows to the upper body.
Air  flows  to  the  upper  body
and feet.
Air flows to the feet.
Air  flows  to  the  feet  and  the
windshield  defogger  oper-
ates.

1

2

3

4

368

5-1. Using the air conditioning system and defogger

This function automatically controls the air conditioning airflow so that
priority is given to the front seats. Unnecessary air conditioning is sup-
pressed, contributing to increased fuel efficiency.
Front seat concentrated airflow mode operates in the following situa-
tions.

●

No passengers are detected in the rear seats

●

The windshield defogger is not operating

While operating,

 indicator illuminates.

■

Manually turning front seat concentrated airflow mode on/off

In front seat concentrated airflow mode, directing airflow to the front
seats  only  and  to  all  seats  can  be  switched  via  switch  operation.
When  the  mode  has  been  switched  manually,  automatic  airflow
control stops operating.

Press

 on the air conditioning operation panel and switch the

airflow.

●

Indicator illuminated: Airflow to the front seats only

●

Indicator off: Airflow to all the seats

Front seat concentrated airflow mode (S-FLOW) (if equipped)















Content      ..     20      21      22      23     ..
