Toyota Camry Hybrid (2023 year). Manual in english - page 21

336

4-5. Using the driving support systems



Vehicles with 7-inch multi-information display
Press

of the meter control switches, select

Press

of the meter control switches, select

Press

of the meter control switch.

When the RCD function is disabled, the RCD OFF indicator (



97) illuminates.

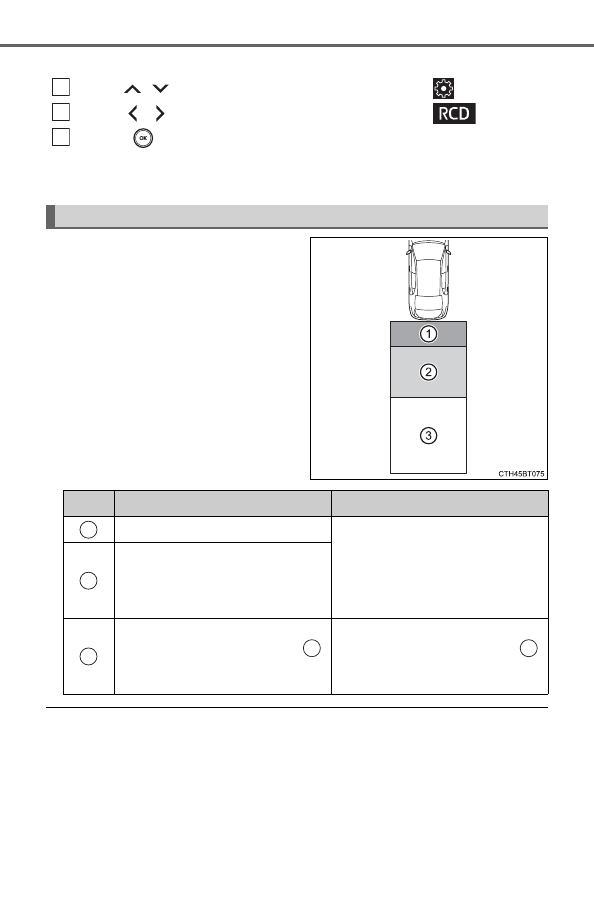

If the rear camera detection func-
tion  detects  a  pedestrian  in  the
detection  area,  the  buzzer  and
icon  will  operate  as  shown  in  the
following table:

■

The rear camera detection function is operational when

The rear camera detection function is operational when the following condi-
tions are met:

●

The power switch is in the ON mode.

●

RCD function is on.

●

The shift lever is in R.

When a pedestrian is detected

Area

Buzzer

Icon

Sounds repeatedly

Blinks 3 times and then stays on

When the vehicle is stationary:
Sounds 3 times
When the vehicle is backing up:
Sounds repeatedly

When  it  is  determined  that  a
pedestrian  will  enter  area
within  a  few  seconds:  Sounds
repeatedly

When  it  is  determined  that  a
pedestrian  will  enter  area
within  a  few  seconds:  Blinks  3
times and then stays on

337

4-5. Using the driving support systems

ivi

■

Setting the buzzer volume

The buzzer volume can be adjusted with the RCTA buzzer volume on the
multi-information display. (



P. 112, 128)

■

Muting the buzzer sound

The buzzer can be temporarily muted by pressing

of the meter control

switches while an object detection display is shown on the multi-information
display.

■

If “Rear Camera Detection Unavailable Remove the Dirt of Rear Camera”
is displayed on the multi-information display

A rear camera lens may be dirty or covered with snow or ice. In such cases, if
it is removed from the rear camera lens, the system should return to normal.
(It may be necessary to drive the vehicle for some time before the system
returns to normal.)

■

If “Rear Camera Detection Unavailable” is displayed on the multi-infor-
mation display

●

If this message is displayed after the 12-volt battery has been disconnected
and reconnected, fully turn the steering wheel to the left and then the right
on level ground.

●

If this message is displayed only when the R shift position is selected, the
rear camera lens may be dirty. Clean the rear camera lens.

■

Situations in which the system may not operate properly

●

Some pedestrians, such as the following, may not be detected by the rear
camera detection function, preventing the function from operating properly:
• Pedestrians who are squatting
• Pedestrians who are lying down
• Pedestrians who are running
• Pedestrians who suddenly enter the detection area
• Pedestrians riding a bicycle, skateboard, or other light vehicle
• Pedestrians wearing unusual clothing, such as a costume
• Pedestrians whose body is partially hidden by a cart or other object
• Pedestrians which are obscured by darkness, such as at night

●

In some situations, such as the following, pedestrians may not be detected
by the rear camera detection function, preventing the function from operat-
ing properly:
• When backing up in inclement weather (rain, snow, fog, etc.)
• When the rear camera is obscured (dirt, snow, ice, etc. are attached) or

scratched

• When a very bright light, such as the sun, or the headlights of another

vehicle, shines directly into the rear camera

• When backing up in a place where the surrounding brightness changes

suddenly, such as at the entrance or exit of a garage or underground
parking lot

• When backing up in a dim environment such as during dusk or in an

underground parking lot

• When the camera position and direction are deviated
• When a towing hook is attached

338

4-5. Using the driving support systems

• When water droplets are flowing on the camera lens
• When the vehicle height is extremely changed (nose up, nose down)
• When tire chains is used

■

Situations in which the system may operate unexpectedly

●

Even though there are no pedestrians in the detection area, some objects,
such as the following, may be detected, possibly causing the rear camera
detection function to operate.
• Three dimensional objects, such as a pole, traffic cone, fence, or parked

vehicle

• Moving objects, such as a car or motorcycle
• Objects moving toward your vehicle when backing up, such as flags or

puddles (or airborne matter, such as smoke, steam, rain, or snow)

• Cobblestone or gravel roads, tram rails, road repairs, white lines, pedes-

trian crossings or fallen leaves on the road

• Metal covers (gratings), such as those used for drainage ditches
• Objects reflected in a puddle or on a wet road surface
• Shadows on the road

●

In some situations, such as the following, the rear camera detection function
may operate even though there are no pedestrians in the detection area.
• When backing up toward the roadside or a bump on the road
• When backing up toward an incline/decline
• If the rear of the vehicle is raised or lowered due to the carried load
• If a bumper protector, such as an additional trim strip, is installed to the

rear bumper

• If the orientation of the rear camera has been changed
• If a towing eyelet is installed to the rear of the vehicle
• When the rear camera is obscured (dirt, snow, ice, etc. are attached) or

scratched

• When water is flowing over the rear camera lens
• If there is a flashing light in the detection area, such as the emergency

flashers of another vehicle

• When a tire chains is used

●

Situations in which the rear camera detection function may be difficult to
notice
• If buzzer may be difficult to hear if the surrounding area is noisy, the vol-

ume of the audio system volume is high, the air conditioning system is
being used, etc.

• If the temperature in the cabin is extremely high or low, the audio system

screen may not operate correctly.

339

4-5. Using the driving support systems

ivi

WARNING

■

Cautions regarding the use of the system

The recognition and control capabilities for this system are limited.
The driver should always drive safely by always being responsible without
over relying on the system and have a understanding of the surrounding sit-
uations.

■

To ensure the system can operate properly

Observe the following, otherwise there is the danger that could lead to an
accident.

●

Always clean the camera without damaging it.

●

Do not install market electronic parts (such as Illuminated license plate,
fog lamps, etc.) in the camera vicinity.

●

Do not subject the camera vicinity to strong impacts. If the vicinity is sub-
jected to a strong impact, have the vehicle inspected at your Toyota dealer.

●

Do not disassemble, remodel or paint the camera.

●

Do not attach accessories or stickers to the camera.

●

Do not install market protection parts (bumper trim, etc.) to the rear
bumper.

●

Maintain suitable tire air pressure.

●

Make sure the trunk is completely closed.

■

RCD function is turned off

In the following situations the system turns off. The RCD function may not
operate properly and thus there is the danger that an accident may occur.

●

The contents mentioned above are not observed.

●

Suspensions other than Toyota genuine parts are installed.

340

4-5. Using the driving support systems

■

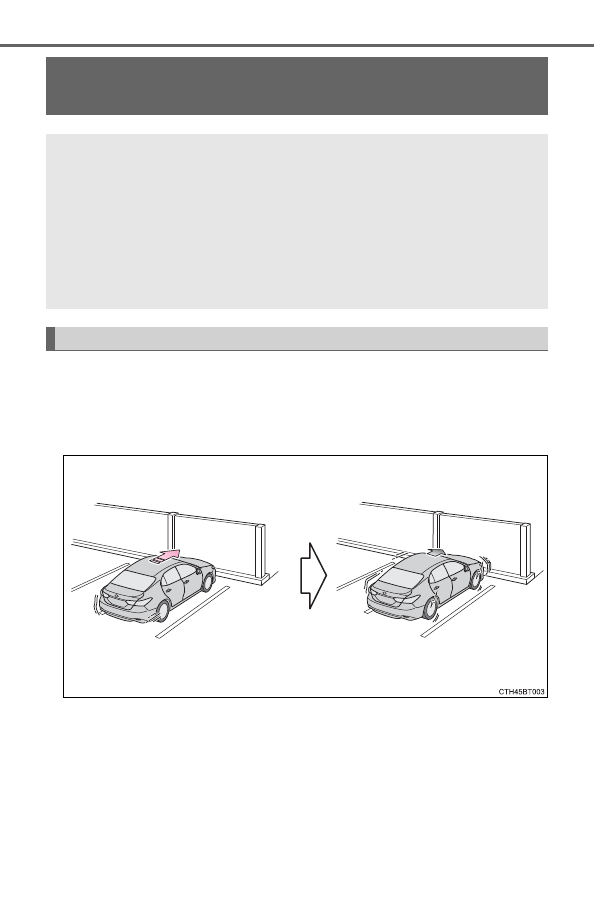

Parking Support Brake function (static objects)

Ultrasonic sensors are used to detect static objects, such as a wall,
in the detection area when driving at a low speed or backing up.
(



P. 348)

■

Parking Support Brake function (rear-crossing vehicles)

Rear radar sensors are used to detect approaching vehicles in the
detection area behind the vehicle when backing up. (



P. 352)

PKSB (Parking Support Brake)



: If equipped

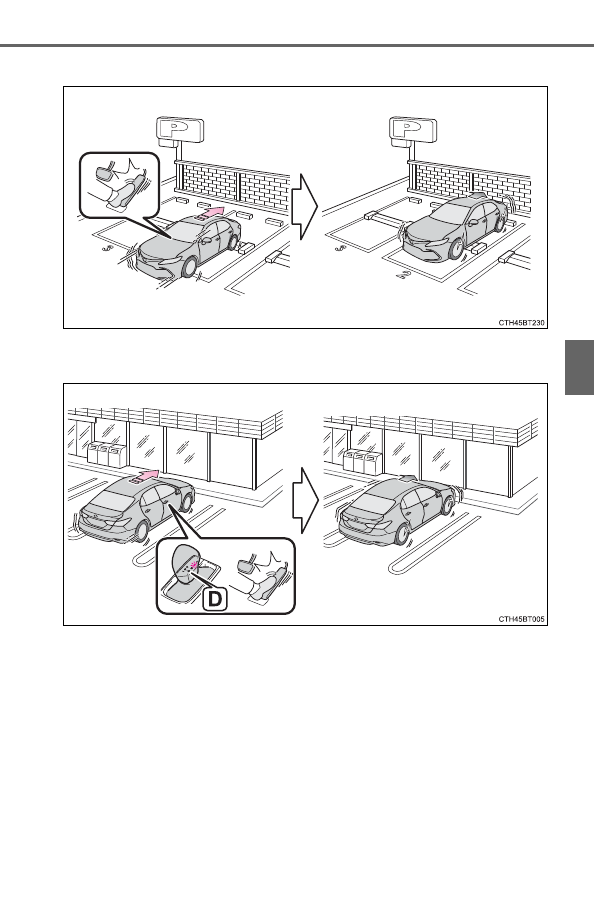

The  Parking  Support  Brake  system  consists  of  the  following
functions  that  operate  when  driving  at  a  low  speed  or  backing
up, such as when parking. When the system determines that the
possibility of a collision with a detected object is high, a warning
operates to urge the driver to take evasive action. If the system
determines  that  the  possibility  of  a  collision  with  a  detected
object is extremely high, the brakes are automatically applied to
help  avoid  the  collision  or  help  reduce  the  impact  of  the  colli-
sion.

PKSB (Parking Support Brake) system

341

4-5. Using the driving support systems

ivi

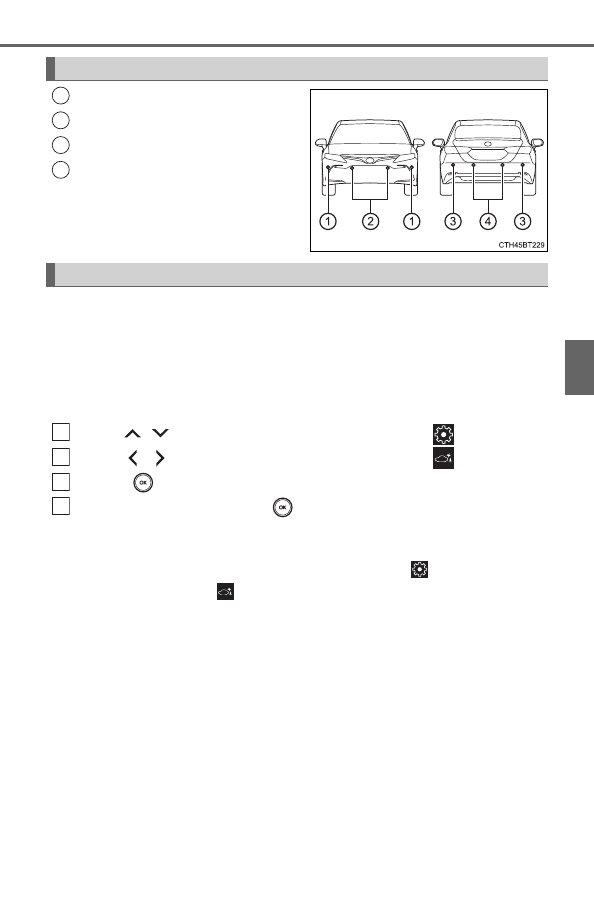

Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors

The Parking Support Brake can be enabled/disabled on the multi-
information display. All of the Parking Support Brake functions (static
objects and rear-crossing vehicles) are enabled/disabled simultane-
ously.
Use the meter control switches to enable/disable the parking support
brake. (



P. 109, 126)

Press

of the meter control switches, select

Press

of the meter control switches, select

Press

of the meter control switch.

Select the “Yes” and push

When the Parking Support Brake is disabled, the PKSB OFF indicator illu-
minates.
To re-enable the system when it was disabled, select

on the multi-infor-

mation display, select

and then “On”. If disabled using this method, the

system will not be re-enabled by turning the power switch off and then to
ON mode.

Types of sensors

Turning the Parking Support Brake on/off

342

4-5. Using the driving support systems

If the hybrid system output restriction control or brake control oper-
ates, a buzzer will sound and a message will be displayed on the
multi-information display to alert the driver.

Depending on the situation, hybrid system output restriction control will
operate to either limit acceleration or restrict output as much as possible.

Displays and buzzers for hybrid system output restriction con-
trol and brake control

Control

Situation

Multi-information

display

PKSB

OFF

Indicator

Buzzer

Hybrid system
output restriction
control is operat-
ing (acceleration
restriction)

Acceleration
greater than a
certain amount is
not possible.

“Object Detected
Acceleration
Reduced”

Not illu-
minated

No
beep

Hybrid system
output restriction
control is operat-
ing (output
restricted as
much as possi-
ble)

Stronger-than-
normal brake
operation is nec-
essary.

“Brake!”

Not illu-
minated

Short
beep

Brake control is
operating

Emergency brak-
ing is necessary.

Vehicle stopped
by system opera-
tion
(When accelera-
tor is stepped on)

The vehicle has
been stopped by
brake control
operation.

“Switch to
Brake”

Illumi-
nated

Short
beep

Vehicle stopped
by system opera-
tion
(When accelera-
tor is not stepped
on)

The vehicle has
been stopped by
brake control
operation.

“Brake”

Illumi-
nated

Short
beep

343

4-5. Using the driving support systems

ivi

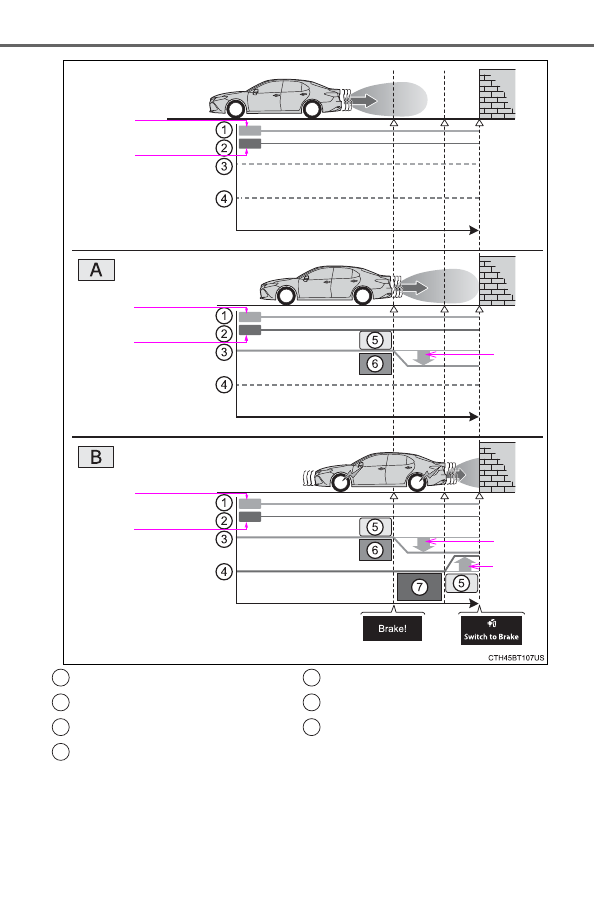

If the Parking Support Brake function detects that a collision with an
object  is  possible,  the  hybrid  system  output  will  be  restricted  to
restrain  any  increase  in  the  vehicle  speed.  (Hybrid  system  output
restriction control: See A below.)
Additionally,  if  the  accelerator  pedal  continues  to  be  depressed,  the
brakes  will  be  applied  automatically  to  reduce  the  vehicle  speed.
(Brake control: See B below.)

Parking Support Brake function

344

4-5. Using the driving support systems

Off

Time

Down

Off

Time

Off

Time

Down

Accelerator pedal
Brake pedal
Hybrid system output
Braking force

Start of control
High possibility of a collision
Extremely high possibility of a
collision

345

4-5. Using the driving support systems

ivi

■

If the Parking Support Brake function has operated

If the vehicle is stopped due to operation of the Parking Support Brake func-
tion, the Parking Support Brake system will be disabled and the PKSB OFF
indicator will illuminate. If the Parking Support Brake operates unnecessarily,
brake control can be canceled by depressing the brake pedal or waiting for
approximately 2 seconds for it to automatically be canceled. Then, the vehicle
can be operated by depressing the accelerator pedal.

■

Re-enabling the Parking Support Brake system

To re-enable the Parking Support Brake system when it is disabled due to
operation of the Parking Support Brake function, either enable the system
again (



P. 341), or turn the power switch off and then back to ON mode.

Additionally, if the object becomes no longer in the traveling direction of the
vehicle or if the traveling direction of the vehicle changes (such as changing
from moving forward to backing up, or from backing up to moving forward),
the system will be re-enabled automatically.

■

If “PKSB Unavailable” and “Parking Assist Unavailable Clean Parking
Assist Sensor” are displayed on the multi-information display and the
PKSB OFF indicator is illuminating

●

A sensor may be covered with ice, snow, dirt, etc. In this case, remove the
ice, snow, dirt, etc., from the sensor to return the system to normal. If this
message is shown even after removing dirt from the sensor, or shown when
the sensor was not dirty to begin with, have the vehicle inspected at your
Toyota dealer.

●

A sensor may be frozen. Once the ice melts, the system will return to nor-
mal.

●

Water may be continuously flowing over the sensor surface, such as in a
heavy rain. When the system determines that it is normal, the system will
return to normal.

346

4-5. Using the driving support systems

WARNING

■

Cautions regarding the use of the system

Do not overly rely on the system, as doing so may lead to an accident.
Always drive while checking the safety of the surroundings of the vehicle.
Depending on the vehicle and road conditions, weather, etc., the system
may not operate.
The detection capabilities of sensors and radars are limited. Always drive
while checking the safety of the surroundings of the vehicle.

●

The driver is solely responsible for safe driving. Always drive carefully, tak-
ing care to observe your surroundings. The Parking Support Brake system
is designed to provide support to lessen the severity of collisions. How-
ever, it may not operate in some situations.

●

The Parking Support Brake system is not designed to stop the vehicle
completely. Additionally, even if the system has stopped the vehicle, it is
necessary to depress the brake pedal immediately as brake control will be
canceled after approximately 2 seconds.

●

It is extremely dangerous to check the system operations by intentionally
driving the vehicle into the direction of a wall, etc. Never attempt such
actions.

■

When to disable the Parking Support Brake

In the following situations, disable the Parking Support Brake as the system
may operate even though there is no possibility of a collision.

●

When inspecting the vehicle using a chassis roller, chassis dynamo or free
roller

●

When loading the vehicle onto a boat, truck or other transport vessel

●

If the suspension has been modified or tires of a size other than specified
are installed

●

If the front of the vehicle is raised or lowered due to the carried load

●

When equipment that may obstruct a sensor is installed, such as a towing
eyelet, bumper protector (an additional trim strip, etc.), bicycle carrier, or
snow plow

●

When using automatic car washing devices

●

If the vehicle cannot be driven in a stable manner, such as when the vehi-
cle has been in an accident or is malfunctioning

●

When the vehicle is driven in a sporty manner or off-road

●

When the tires are not properly inflated

●

When the tires are very worn

●

When a tire chains or compact spare tire is used

347

4-5. Using the driving support systems

ivi

NOTICE

■

If “PKSB Unavailable” is displayed on the multi-information display
and the PKSB OFF indicator is illuminating

If this message is displayed immediately after the power switch is turned to
ON mode, operate the vehicle carefully, paying attention to your surround-
ings. It may be necessary to drive the vehicle for a certain amount of time
before the system returns to normal. (If the system is not return to normal
after driving for a while, clean the sensors and their surrounding area on the
bumpers.)

348

4-5. Using the driving support systems

The system will operate in situations such as the following if an object
is detected in the traveling direction of the vehicle.

■

When traveling at a low speed and the brake pedal is not
depressed, or is depressed late

Parking Support Brake function (static

objects)



: If equipped

If  a  collision  with  an  object  may  occur  due  to  the  vehicle  sud-
denly  moving  forward  due  to  an  accidental  accelerator  pedal
operation,  the  vehicle  moving  the  unintended  direction  due  to
the wrong shift position being selected, or while parking or trav-
eling at low speeds, the sensors detect objects, such as a wall,
in the traveling direction of the vehicle, and the system operates
to lessen an impact with an object and reduce the resulting dam-
age.

Examples of system operation

349

4-5. Using the driving support systems

ivi

■

When the accelerator pedal is depressed excessively

■

When the vehicle moves in the unintended direction due to the
wrong shift position being selected

350

4-5. Using the driving support systems

■

The Parking Support Brake function (static objects) will operate when

The function will operate when the PKSB OFF indicator is not illuminated
(



P. 341, 345) and all of the following conditions are met:

●

Hybrid system output restriction control
• The Parking Support Brake system is enabled.
• The vehicle speed is approximately 10 mph (15 km/h) or less.
• There is an object in the traveling direction of the vehicle and approxi-

mately 6 to 13 ft. (2 to 4 m) away.

• The system determines that a stronger-than-normal brake operation is

necessary to avoid a collision.

●

Brake control
• Hybrid system output restriction control is operating.
• The system determines that an emergency brake operation is necessary

to avoid a collision.

■

The Parking Support Brake function (static objects) will stop operating
when

The function will stop operating if any of the following conditions are met:

●

Hybrid system output restriction control
• The Parking Support Brake system is disabled.
• The collision becomes avoidable with normal brake operation.
• The object is no longer approximately 6 to 13 ft. (2 to 4 m) away in the

traveling direction of the vehicle.

●

Brake control
• The Parking Support Brake system is disabled.
• Approximately 2 seconds elapse after the vehicle is stopped by brake

control.

• The brake pedal is depressed after the vehicle is stopped by brake con-

trol.

• The object is no longer approximately 6 to 13 ft. (2 to 4 m) away in the

traveling direction of the vehicle.

■

Detection range of the Parking Support Brake function (static objects)

The detection range of the Parking Support Brake function differs from the
detection range of the intuitive parking assist. (


