Toyota Camry Hybrid (2023 year). Manual in english - page 9





142

2. Instrument cluster

Audio system screen
Multi-information display
Meter control switches
(

P. 105, 119)

The  energy  monitor  can  be  used  to  check  the  vehicle  drive  status,
hybrid system operation status and energy regeneration status.

■

Display procedure

Multi-information display

Operate the meter control switches on the steering wheel to select
the energy monitor display.

Audio or Audio Plus (vehicles without Data Communication Mod-
ule)
Press the “MENU” button.
Select “Info” on the “Menu” screen.

If a screen other than “Energy monitor” is displayed, select “Energy”.

Audio or Audio Plus (vehicles with Data Communication Module)/
Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If a screen other than “Energy monitor” is displayed, select “Energy”.

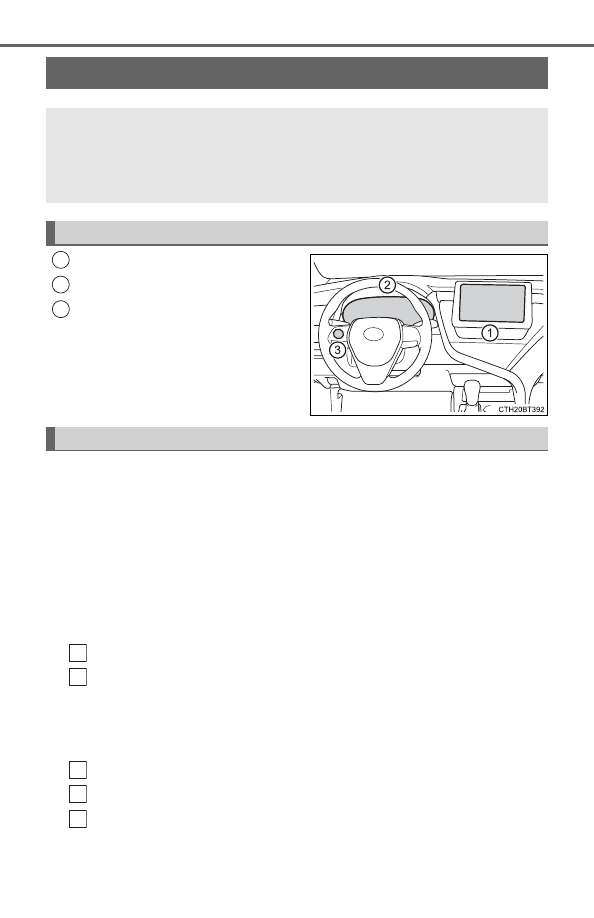

Energy monitor/consumption screen

The state of the hybrid system can be viewed on the multi-infor-
mation display and navigation or multimedia system screen.
The  energy  monitor  and  fuel  consumption  screen  can  be  dis-
played on the “Home” screen of the multimedia screen.

System components

1

2

3

Energy monitor

1

2

1

2

3

143

2. Instrument cluster

2

Instrument cluster

■

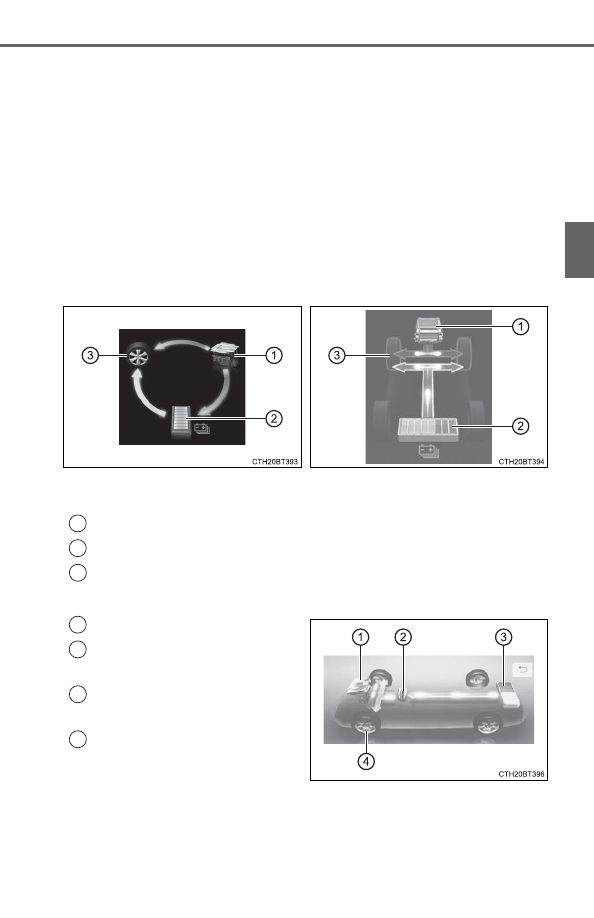

Reading the display

The arrows will appear in accordance with the energy flow.
When there is no energy flow, arrows will not be displayed.
The color of the arrows will change as follows.
Green: When the hybrid battery (traction battery) is regenerated or
charged.
Yellow: When the hybrid battery (traction battery) is in use.
Red: When the gasoline engine is in use.

Multi-information display

The image shows the arrows as an example. The actual display will
vary depending on conditions.

Gasoline engine

Hybrid battery (traction battery)
Front tires

Audio system screen

Gasoline engine
Electric

motor

(traction

motor)
Hybrid  battery  (traction  bat-
tery)
Front tires

The image shows the arrows as an example. The actual display will
vary depending on conditions.

Vehicles with 4.2-inch display:

Vehicles with 7-inch display:

1

2

3

1

2

3

4

144

2. Instrument cluster

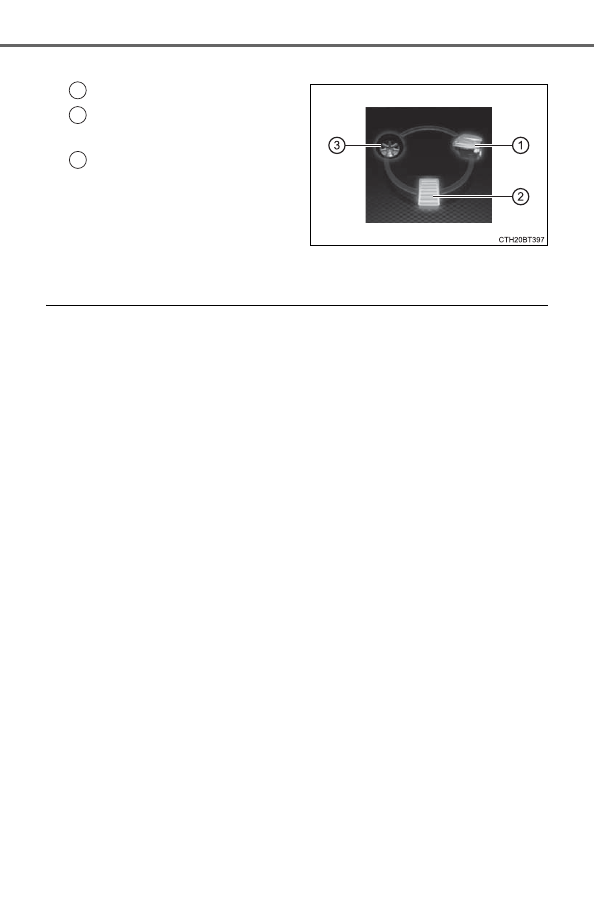

Audio system screen (“Home” screen)

Gasoline engine
Hybrid  battery  (traction  bat-
tery)
Front tires

The image shows the arrows as an example. The actual display will
vary depending on conditions.

■

Remaining charge amount warning of hybrid battery (traction battery)

●

The buzzer sounds intermittently when the hybrid battery (traction battery)
remains  without  charging  while  the  shift  lever  is  in  N,  or  the  remaining
charge amount drops below a certain level. If the remaining charge amount
drops further, the buzzer sounds continuously.

●

When a warning message is shown on the multi-information display and the
buzzer  sounds,  follow  the  instructions  displayed  on  the  screen to  perform
troubleshooting.

1

2

3

145

2. Instrument cluster

2

Instrument cluster

■

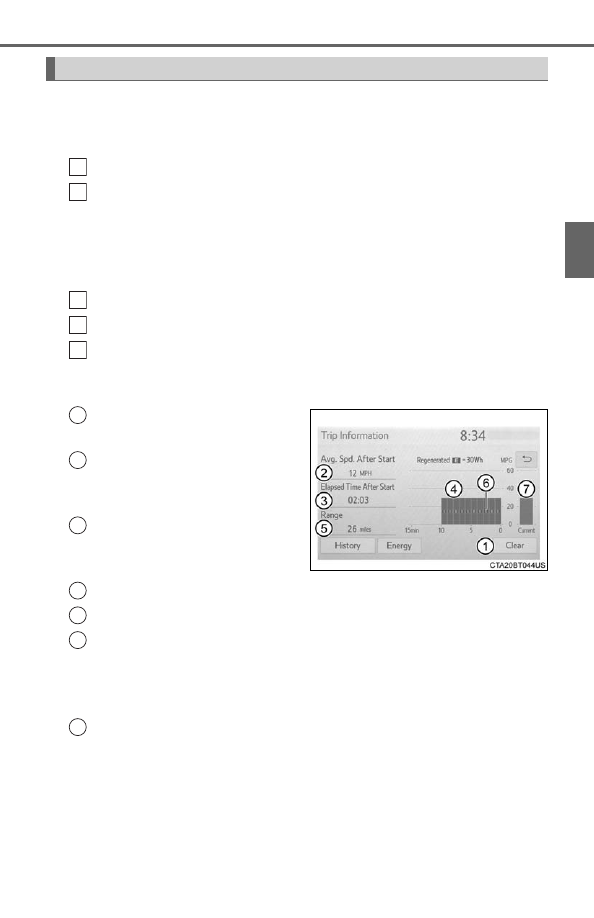

Trip information

Audio  (vehicles  without  Data  Communication  Module)  or Audio
Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on the “Menu” screen.

If  the  “Energy  Monitor”  or  “History”  screen  is  displayed,  select  “Trip
Information”.

Audio  (vehicles  with  Data  Communication  Module), Audio  Plus
(vehicles with Data Communication Module) and Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If “Energy Monitor” or “History” screen is displayed, select “Trip Informa-
tion”.

Resetting  the  consumption
data
Displays the average vehicle
speed  since  the  hybrid  sys-
tem was started
Displays  the  elapsed  time
since the  hybrid  system  was
started
Fuel consumption in the past 15 minutes
Cruising range
Regenerated energy in the past 15 minutes
One symbol indicates 30 Wh. Up to 5 symbols are shown.

The  image  is  example  only,  and  may  vary  slightly  from  actual  condi-
tions.

Current fuel consumption

Fuel consumption screen

1

2

1

2

3

1

2

3

4

5

6

7

146

2. Instrument cluster

■

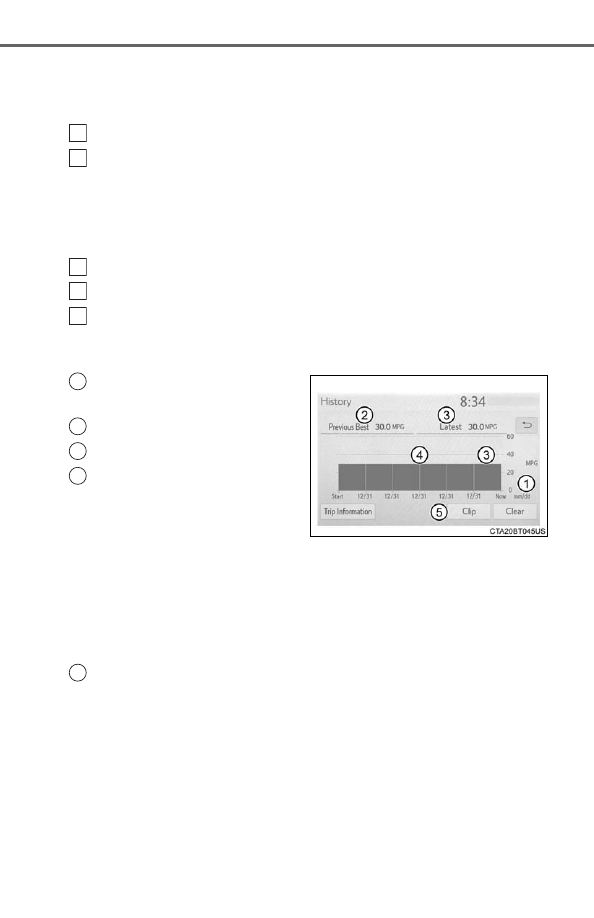

History

Audio  (vehicles  without  Data  Communication  Module)  or Audio
Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on the “Menu” screen.

If the “Energy Monitor” or “Trip Information” screen is displayed, select
“History”.

Audio  (vehicles  with  Data  Communication  Module), Audio  Plus
(vehicles with Data Communication Module) and Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If “Energy Monitor” or “Trip Information” screen is displayed, select “His-
tory”.

Resetting  the  past  record
data
Best past fuel consumption
Current fuel economy
Previous  fuel  consumption
record

Audio or Audio Plus

Displays the daily average fuel consumption. (Instead of the date,
“Trip 1” through “Trip 5” will be displayed.)

Premium Audio

Displays the daily average fuel consumption.

Updating the average fuel consumption data

Displays a maximum of five past record of the average fuel consump-
tion.
The  image  is  example  only,  and  may  vary  slightly  from  actual  condi-
tions.

1

2

1

2

3

1

2

3

4

5

147

2. Instrument cluster

2

Instrument cluster

■

Resetting the consumption data

Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “History” screen will reset the past records and best past fuel consump-
tion. Selecting “Yes” on the following  screen will confirm resetting of all the
data.

150

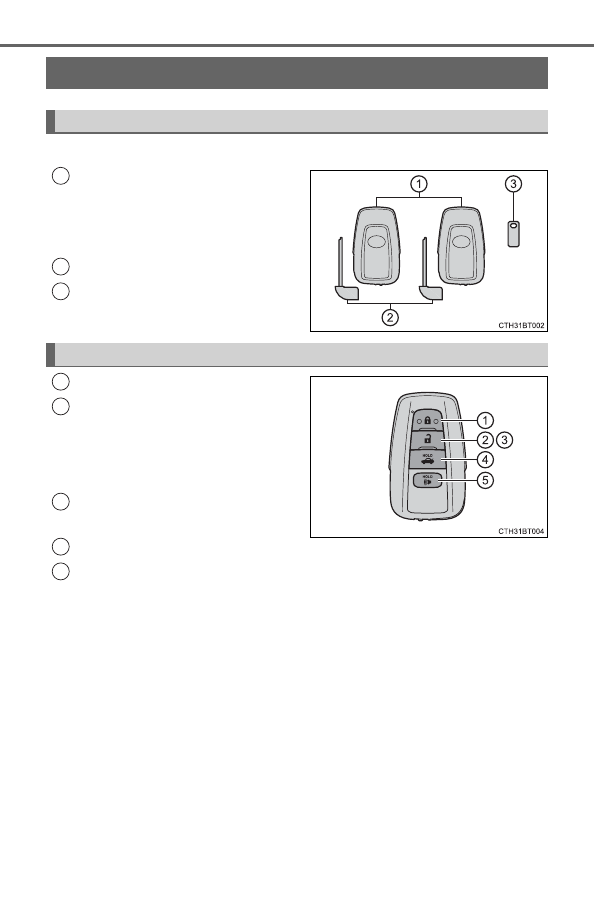

3-1. Key information

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart key system

(

P. 164)

• Operating  the  wireless  remote

control function (

P. 150)

Mechanical keys
Key number plate

Locks all the doors (

P. 154)

Unlocks all the doors (

P. 154)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Opens  the  windows

*

1

  and  the

moon roof

*

1, 2

 (

P. 154)

Opens the trunk (

P. 160)

Sounds the alarm (

P. 151)

*

1

: This setting must be customized at your Toyota dealer.

*

2

: If equipped

Keys

The keys

1

2

3

Wireless remote control

1

2

3

4

5

151

3-1. Key information

3

Opera

tion of e

ach compon

ent

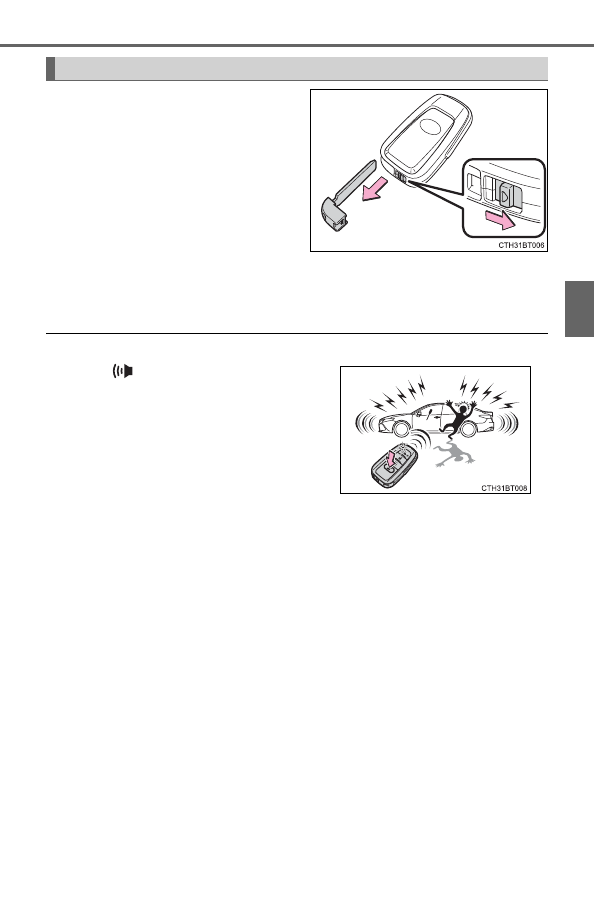

To  take  out  the  mechanical  key,
slide  the  release  lever  and  take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock  cylinder,  turn  it  over  and  re-
attempt to insert it.
After  using  the  mechanical  key,  store  it  in  the  electronic  key.  Carry  the
mechanical key together with the electronic key. If the electronic key bat-
tery  is  depleted  or  the  entry  function  does  not  operate  properly,  you  will
need the mechanical key. (

P. 527)

■

Panic mode

■

If you lose your keys

New  genuine  keys  can  be  made  by  your  Toyota  dealer  using  the  other
mechanical  key  and  the  key  number  stamped  on  your  key  number  plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.

Using the mechanical key

When

  is  pressed  for  longer  than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

152

3-1. Key information

■

When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press
any button on the electronic key while inside the aircraft cabin. If you are car-
rying an electronic key in your bag etc., ensure that the buttons are not likely
to be pressed accidentally. Pressing a button may cause the electronic key to
emit radio waves that could interfere with the operation of the aircraft.

■

Conditions affecting operation

P. 167

■

Electronic key battery depletion

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin when the hybrid
system stops.

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate  that  the  electronic  key  battery  may  be  depleted.  Replace  the  battery
when necessary. (

P. 470)

• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.

●

To reduce key battery depletion when the electronic key is to not be used for
long periods of time, set the electronic key to the battery-saving mode.
(

P. 166)

●

To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers

■

Replacing the battery

P. 470

■

Confirmation of the registered key number

The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.

■

If a wrong key is used

The key cylinder rotates freely to isolate inside mechanism.

153

3-1. Key information

3

Opera

tion of e

ach compon

ent

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key.

●

Do not place the keys near objects that produce magnetic fields, such as
TVs,  audio  systems  and  induction  cookers,  or  medical  electrical  equip-
ment, such as low-frequency therapy equipment.

■

Carrying the electronic key on your person

Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances  that  are  turned  on.  Radio  waves  emitted  from  electric  appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart key system malfunction or other key-related prob-
lems

Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.

■

When an electronic key is lost

If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly.  Visit  your  Toyota  dealer  immediately  with  all  remaining  electronic
keys that were provided with your vehicle.

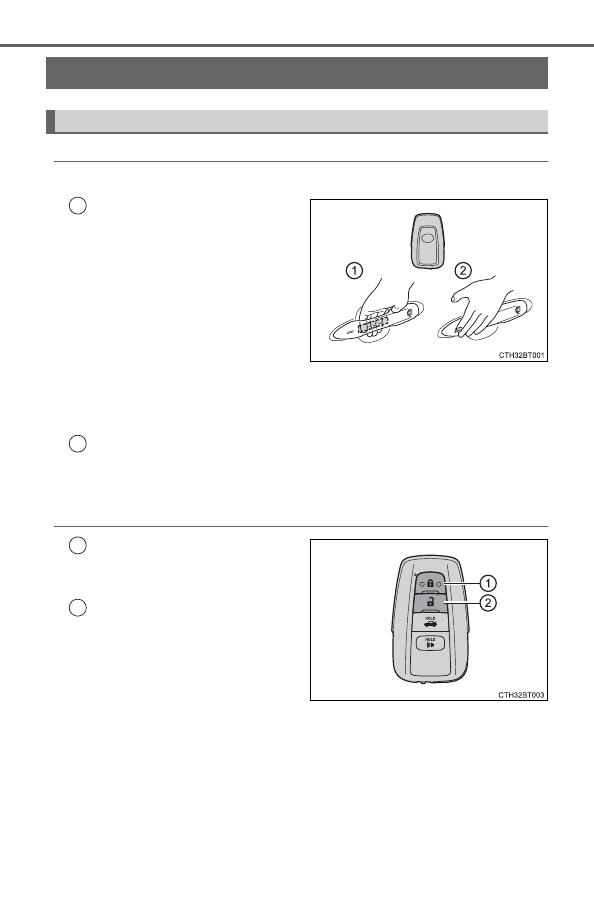

154

3-2. Opening, closing and locking the doors

◆

Smart key system

Carry the electronic key to enable this function.

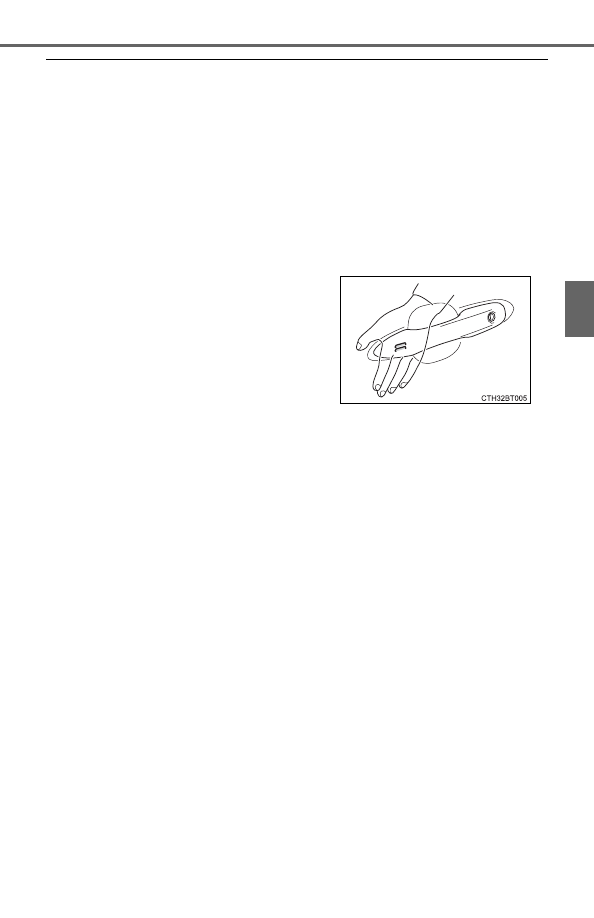

Grip the driver’s door handle
to  unlock  the  door.  Holding
the  driver’s  door  handle  for
approximately  2  seconds
unlocks  all  the  doors.  Grip
the  front  passenger’s  door
handle  to  unlock  all  the
doors.

*

Make sure to touch the sensor on the back of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.

*

: The door unlock settings can be changed. (

P. 158)

Touch  the  lock  sensor  (the  indentation  on  the  side  of  the  door
handle) to lock the doors.

Check that the door is securely locked.

◆

Wireless remote control

Locks all the doors

Check  that  the  door  is  securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s  door.  Pressing  the  but-
ton  again  within  3  seconds
unlocks the other doors.
Press and hold to open the win-
dows

*

1

 and the moon roof.

*

1, 2

(

P. 183, 187)

*

1

: This setting must be customized at your Toyota dealer.

*

2

: If equipped

Doors

Unlocking and locking the doors from the outside

1

2

1

2

155

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

Operation signals

Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Windows and moon roof:
A buzzer sounds to indicate that the windows and moon roof are opening.

■

Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

■

When the door cannot be locked by the lock sensor on the surface of the
door handle

■

Door lock buzzer

If an attempt to lock the doors using the smart key system is made when a
door is not fully closed, a buzzer sounds continuously. Fully close the door to
stop the buzzer, and lock the vehicle once more.

■

Alarm

Locking the doors will set the alarm system. (

P. 90)

■

If the smart key system or the wireless remote control does not operate
properly

Use the mechanical key to lock and unlock the doors. (

P. 527)

Replace the key battery with a new one if it is depleted. (

P. 470)

When  the  door  cannot  be  locked  even  if
the lock sensor on the surface of the door
handle  is  touched  by  a  finger,  touch  the
lock sensor with the palm.
When gloves are being worn, remove the
gloves.

156

3-2. Opening, closing and locking the doors

◆

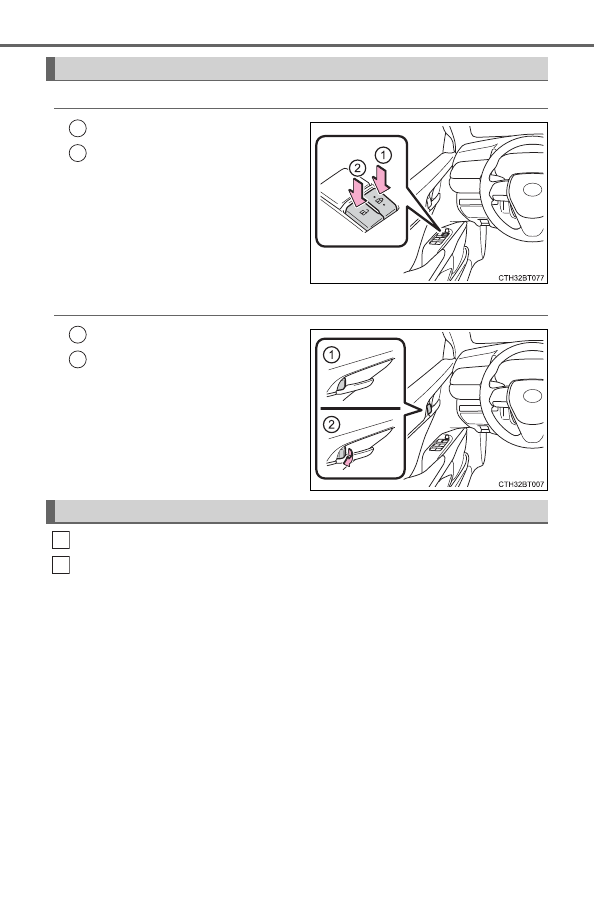

Door lock switches

Locks all the doors
Unlocks all the doors

◆

Inside lock buttons

Locks the door
Unlocks the door

The  front  doors  can  be  opened
by  pulling  the  inside  handle
even  if  the  lock  buttons  are  in
the lock position.

Move the inside lock button to the lock position.
Close the door.

The door cannot be locked if the power switch is in ACCESSORY or
ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

Unlocking and locking the doors from the inside

1

2

1

2

Locking the front doors from the outside without a key

1

2

157

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

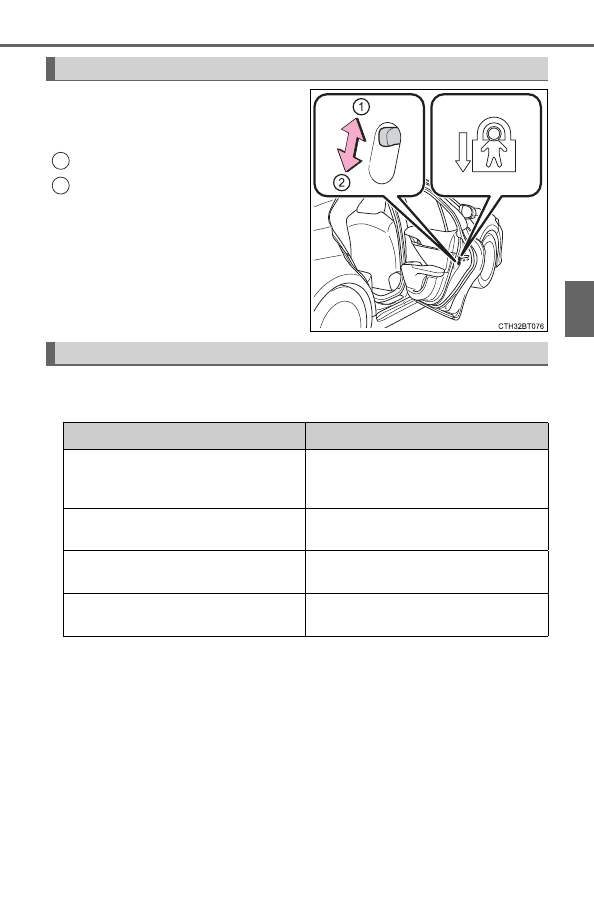

The door cannot be opened from
inside the vehicle when the lock is
set.

Unlock
Lock

These locks can be set to prevent
children  from  opening  the  rear
doors.  Push  down  on  each  rear
door switch to lock both rear doors.

The following functions can be set or cancelled:

For instructions on customizing, refer to P. 571.

Rear door child-protector lock

1

2

Automatic door locking and unlocking systems

Function

Operation

Speed linked door locking function

All  doors  are  automatically  locked
when  vehicle  speed  is  approxi-
mately 12 mph (20 km/h) or higher.

Shift position linked door locking
function

All  doors  are  automatically  locked
when shifting the shift lever out of P.

Shift position linked door unlocking
function

All doors are automatically unlocked
when shifting the shift lever to P.

Driver’s door linked door unlocking
function

All doors are automatically unlocked
when driver’s door is opened.

158

3-2. Opening, closing and locking the doors

■

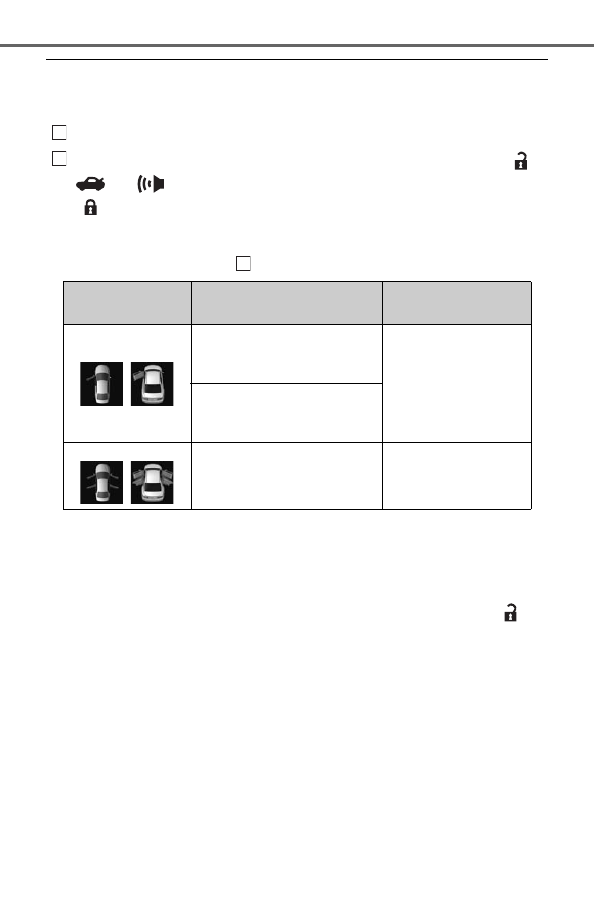

Switching the door unlock function

It is possible to set which doors the entry function unlocks using the wireless
remote control.

Turn the power switch off.

When the indicator light on the key surface is not on, press and hold

,

  or

  for  approximately  5  seconds  while  pressing  and  holding

.

The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step

.)

*

1

: 4.2-inch display

*

2

: 7-inch display

To  prevent  unintended  triggering  of  the  alarm,  unlock  the  doors  using  the
wireless  remote  control  and  open  and  close  a  door  once  after  the  settings
have been changed. (If a door is not opened within 60 seconds after

 is

pressed, the doors will be locked again and the alarm will automatically be
set.)
In case that the alarm is triggered, immediately stop the alarm. (

P. 90)

■

Impact detection door lock release system

In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.

■

Open door warning buzzer

If the vehicle reaches a speed of 3 mph (5 km/h), the master warning light
flashes  and  a  buzzer  sounds  to  indicate  that  the  door(s)  are  not  yet  fully
closed.
The open door(s) is displayed on the multi-information display.

1

2

2

Multi-information

display

Unlocking function

Beep



Holding  the  driver’s  door
handle  unlocks  only  the
driver’s door.

Exterior:  Beeps  3
times
Interior: Pings once

Holding  the  front  passen-
ger’s  door  handle  unlocks
all the doors.



Holding  either  front  door
handle  unlocks  all  the
doors.

Exterior:

Beeps

twice
Interior: Pings once

*

1

*

2

*

1

*

2















Content      ..     7      8      9      10     ..
