Toyota C-HR (2023 year). Manual in english

502

4-5. Using the driving support systems

■

Parallel parking assist mode operating conditions

●

In order to operate the parallel parking assist mode correctly, drive slowly (at
a speed at which the vehicle can be quickly stopped) parallel to the road (or
shoulder) while maintaining a distance of approximately 1 m (3.3 ft.) to any
parked vehicles.

●

The function cannot be used when the vehicle speed is approximately
30 km/h (19 mph) or higher.

●

The front side sensors and rear side sensors are used to detect parked
vehicles and determine the parking spot. Therefore, when detection is not
possible (



P. 528), guidance is not issued.

●

If there are no parked vehicles, the parking spot cannot be determined.
Therefore, the parallel parking assist mode cannot be operated.

●

If unable to detect the environment surrounding the parking space, the par-
allel parking assist mode may not be able to operate.

●

Guidance will continue until the vehicle speed meets or exceeds approxi-
mately 30 km/h (19 mph) or the function is turned off using the S-IPA switch.

■

Timing for pressing the S-IPA switch

In the following cases, the assist mode may also operate during the steps
taken to park using the parallel parking assist mode. However, in these
cases, conduct parking procedures according to the information on the multi-
information display.

●

In step

the S-IPA switch is pressed after already passing over the target

parking spot.
If the vehicle is not stopped in step

, pressing the S-IPA switch 1 time

while the vehicle is in motion allows you to select “Parallel Parking” and pro-
ceed directly to step

●

The vehicle is moved up to the position in step

without the S-IPA switch

being pressed. Then the S-IPA switch is pressed after having changed the
shift lever to R.

503

4-5. Using the driving support systems

riv

NOTICE

●

If the road surface has any dips or inclines, the target parking spot cannot
be correctly set. Therefore, the vehicle may be parked at an angle or may
deviate from the parking spot. In these cases, do not use the parallel park-
ing assist mode.

●

When there is a wall or other obstacle on the inner side of the parking
space, or when another parked vehicle extends into the road from its park-
ing spot, the target parking spot may be set in a position that juts out
slightly into the road.

●

Depending on the surrounding environment, such as other parked vehi-
cles, the vehicle may be parked at an angle or may deviate from the park-
ing spot. Manually adjust vehicle alignment as necessary.

●

The system provides assistance to guide the vehicle based on position of
adjacent vehicles, even if there are obstacles, bumps, drops or curb
stones in the parking space.
If it seems the vehicle may make contact, stop the vehicle by depressing
the brake pedal, and then press the S-IPA switch to turn off the system.

●

It may not be possible to detect objects that are low to the ground.
Directly confirm the safety of your surroundings and, if it seems the vehicle
may make contact with an obstacle, stop the vehicle by depressing the
brake pedal.

●

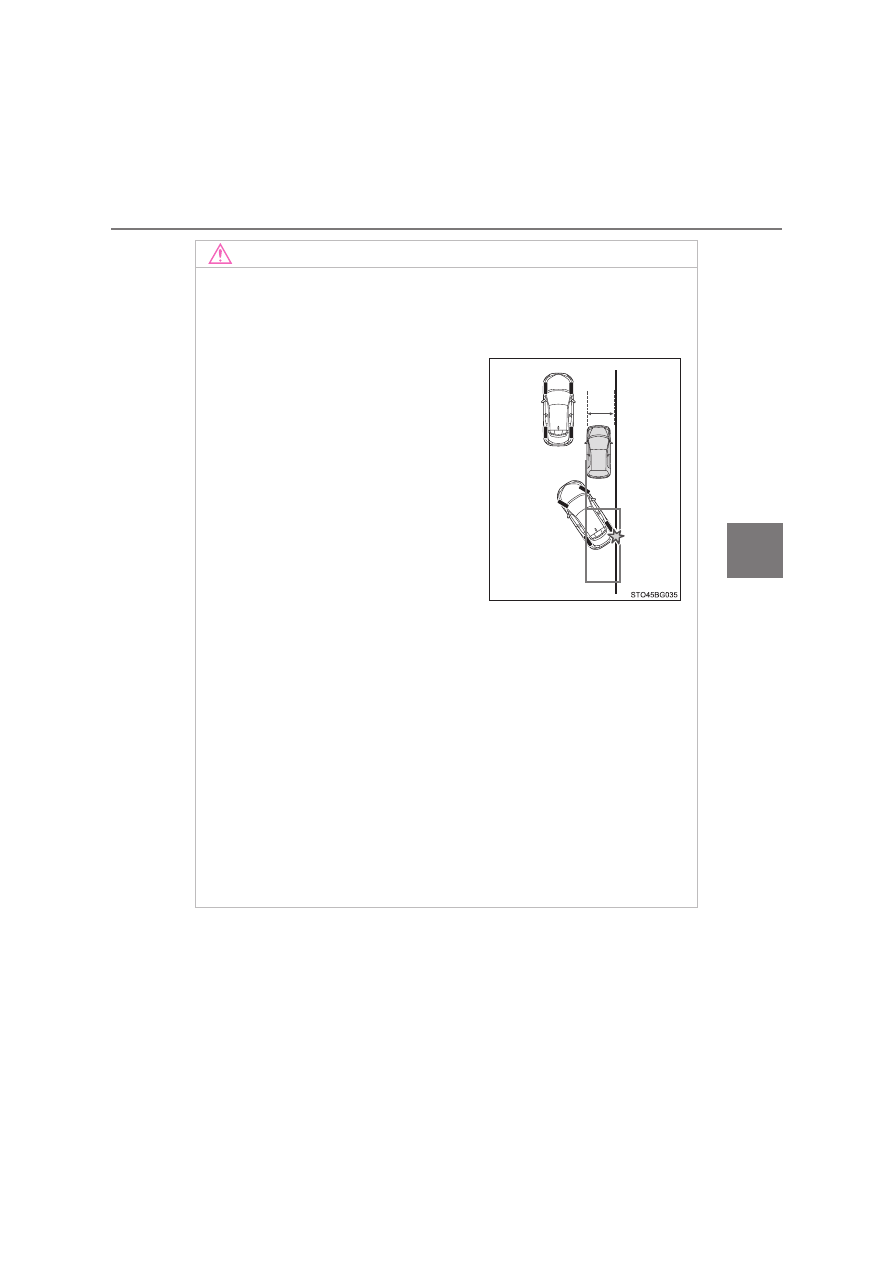

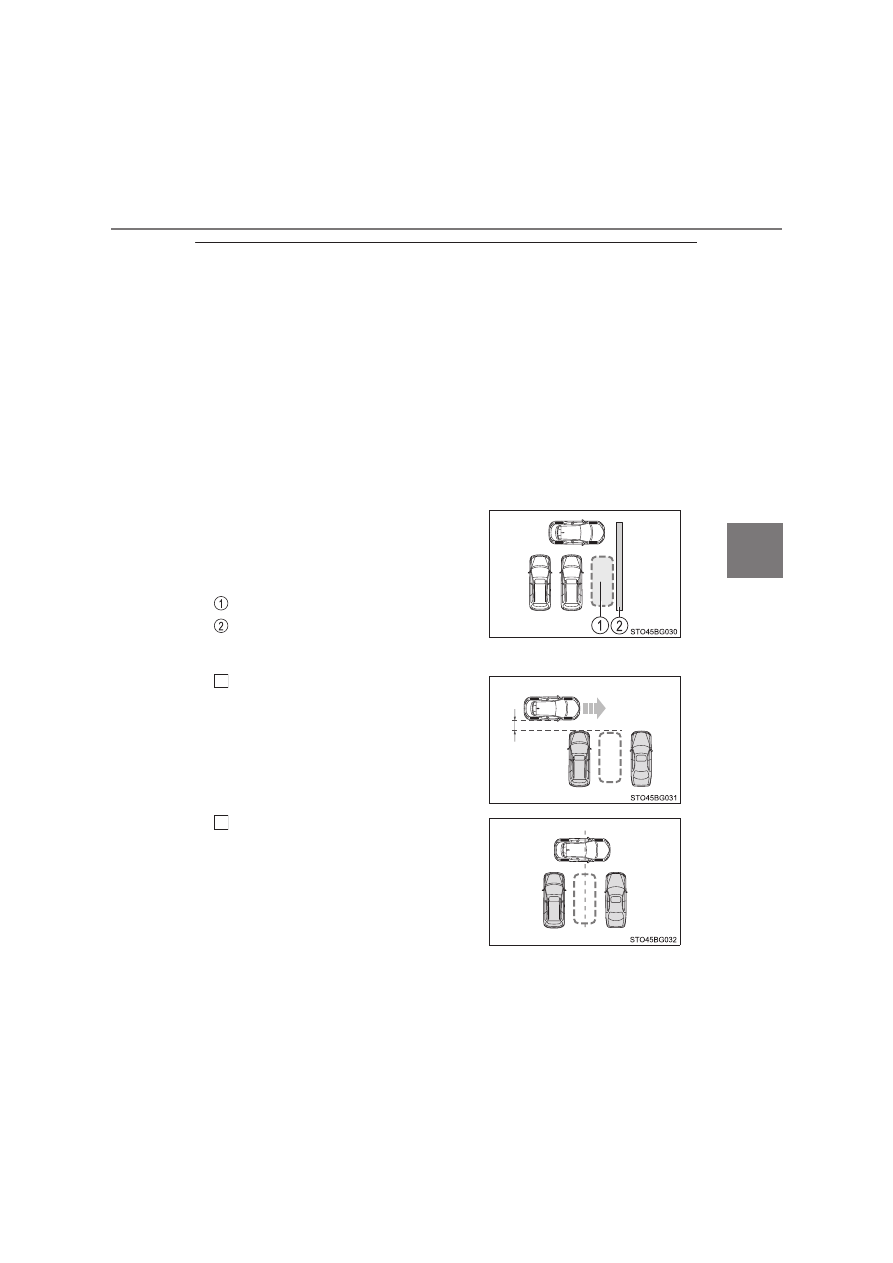

When  the  other  parked  vehicle  is  nar-
row  or  parked  extremely  close  to  the
curb,  assist  control  will  also  guide  the
vehicle to a position close to the curb.
If  it  seems  the  vehicle  may  make  con-
tact  with  the  curb  or  any  other  obsta-
cles,  or  if it  seems  the tire  position will
deviate from the intended parking spot,
stop  the  vehicle  by  depressing  the
brake  pedal,  and  then  press  the  S-IPA
switch to turn off the system.

504

4-5. Using the driving support systems

■

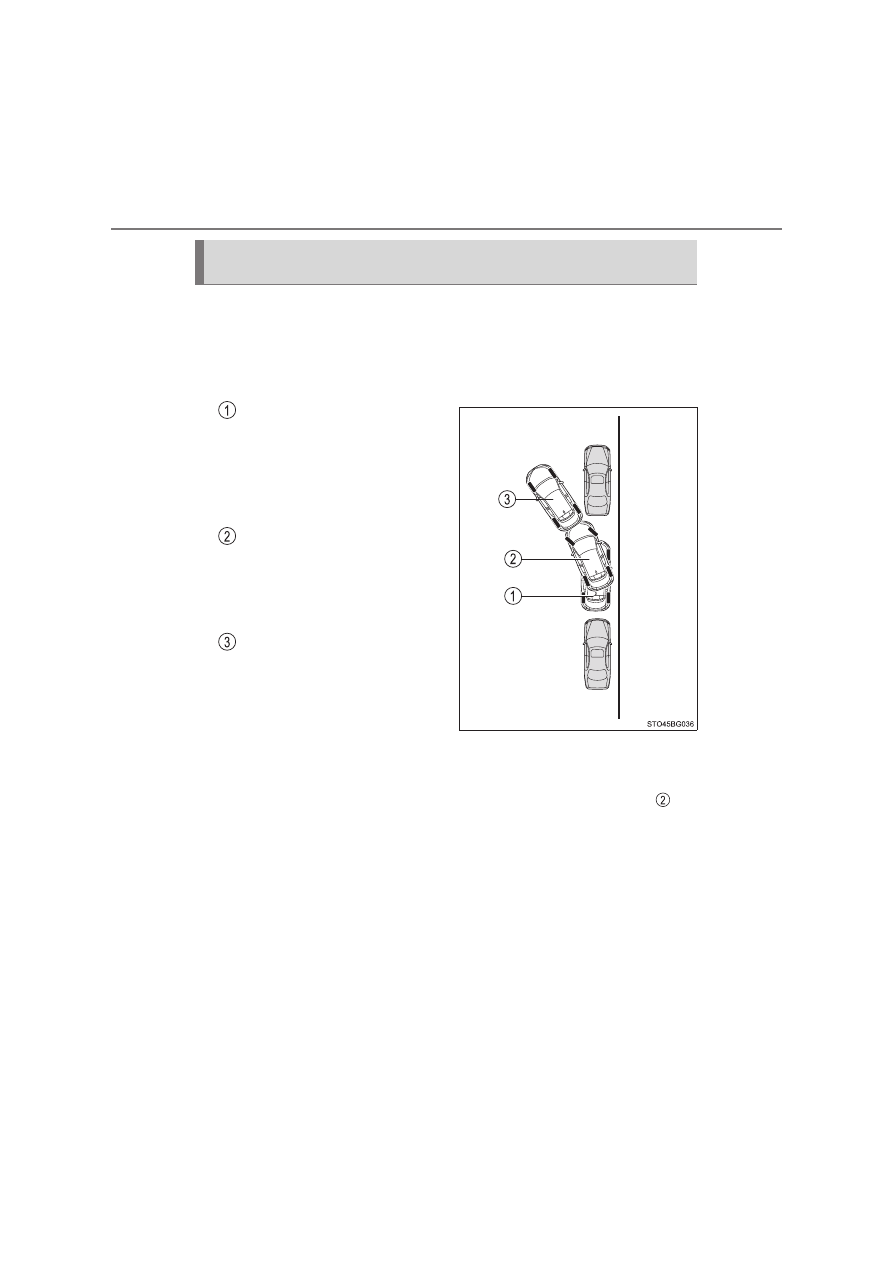

Function summary

When departing from a parallel parking position, select the direction
you would like to depart in, and steering wheel operation assist con-
trol will be provided to guide the vehicle to a position from which
you can take off.

With the shift lever in P, press
the  S-IPA  switch,  select  exit
parallel parking assist mode,
and  then  operate  the  turn
signal  lever  to  select  the
desired departure direction.
Steering  wheel  auto  opera-
tion  starts  when  the  shift
lever is changed according to
guidance  provided  by  the
system.
A sound is issued and a dis-
play  is  shown  to  notify  you
when  the  vehicle  reaches  a
position  from  which  you  can
take off.

Depending on the condition of the parking space, guidance to starting
points for moving forward and backing up, as well as the steering wheel
auto operation, are repeated any time multi-turn maneuvering is neces-
sary from the time the steering wheel auto operation begins in

until the vehicle reaches a position from which it can take off.

How to depart from a parallel parking position (exit parallel park-
ing assist mode)

505

4-5. Using the driving support systems

riv

■

Using the exit parallel parking assist mode to depart

With the shift lever in P, press
the S-IPA switch and check
that the display on the multi-
information display switches
to “Exit Parallel Parking”.

Operate the turn signal lever (



P. 322) to select whether you

would like to depart to the left or right.

If there are any obstacles in the direction the vehicle is departing in, the
system determines that it is not possible to depart, and assist control is
stopped.

When the shift lever is changed to R (or D) according to the
advice display on the screen (



P. 493), a high-pitched beep is

emitted and assist control will start.

Step

and onward is for cases in which the advice display shows

“Back up” after operating the turn signal lever to select a departure
direction.

●

When the steering wheel auto operation starts, the steering
wheel auto operation display and assistance level indicator
(



P. 493) will be shown in the display area.

●

To stop assist control, press the S-IPA switch.

506

4-5. Using the driving support systems

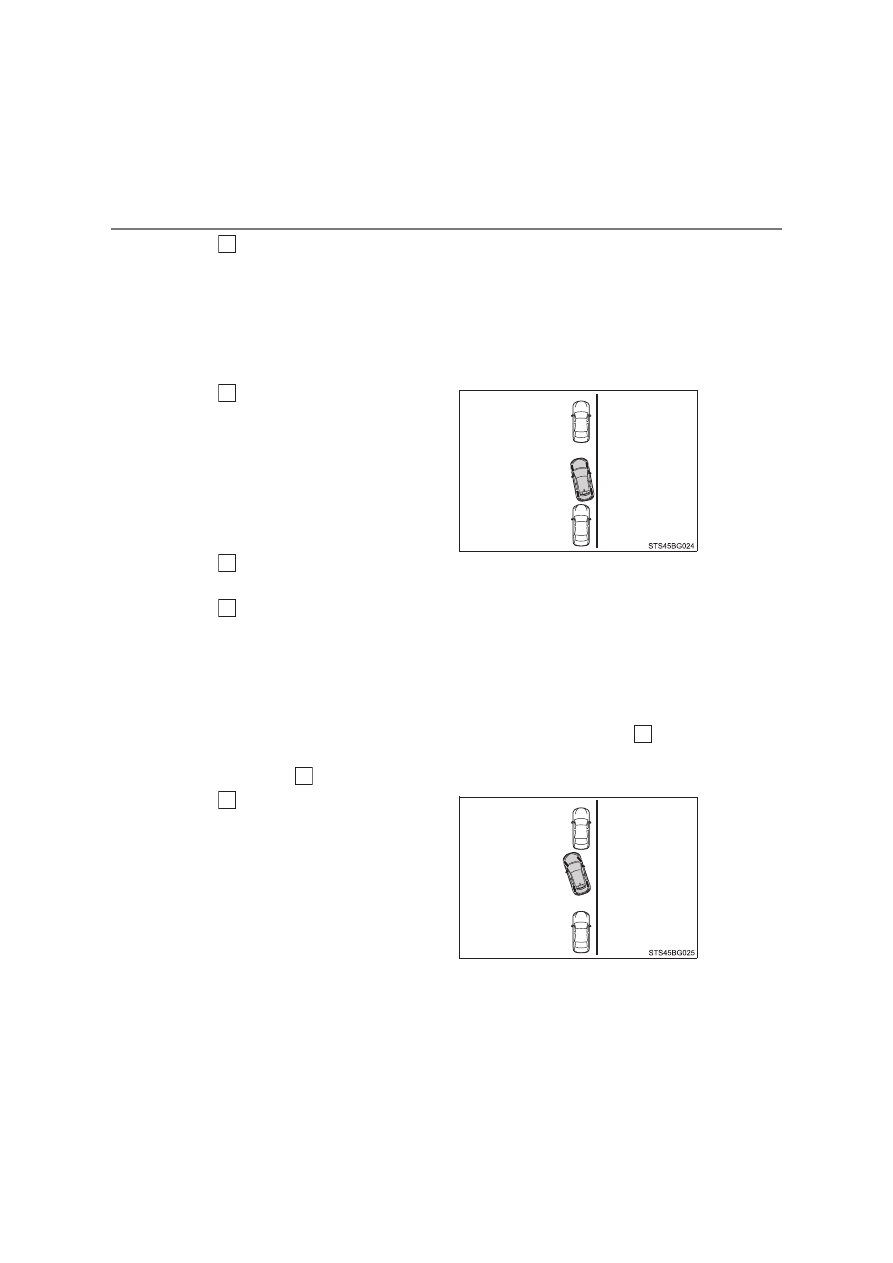

Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel without applying any force, directly
confirm the safety of the area to the rear and around the vehicle
and slowly back up while adjusting your speed by depressing the
brake pedal.

●

When backing up too quickly, a sharp beeping sound is emit-
ted and assist control is stopped. (



P. 493)

When a level beep is emitted
and the stop display
(



P. 493) is shown on the

display, stop the vehicle.

Change  the  shift  lever  to  D,  S  (M20A-FXS  engine)  or  B
(2ZR-FXE engine).
Assume  an  ordinary  driving  posture,  rest  your  hands  lightly  on
the  steering  wheel  without  applying  any  force,  directly  confirm
the  safety  of  the  area  to  the  front  and  around  the  vehicle  and
slowly proceed forward while adjusting your speed by depressing
the brake pedal.

●

When departure cannot be accomplished on the first try and
multi-turn maneuvering is necessary, proceed to step

●

When multi-turn maneuvering is not necessary, proceed to
step

When a level beep is emitted
and the stop display
(



P. 493) is shown on the

display, stop the vehicle.

507

4-5. Using the driving support systems

riv

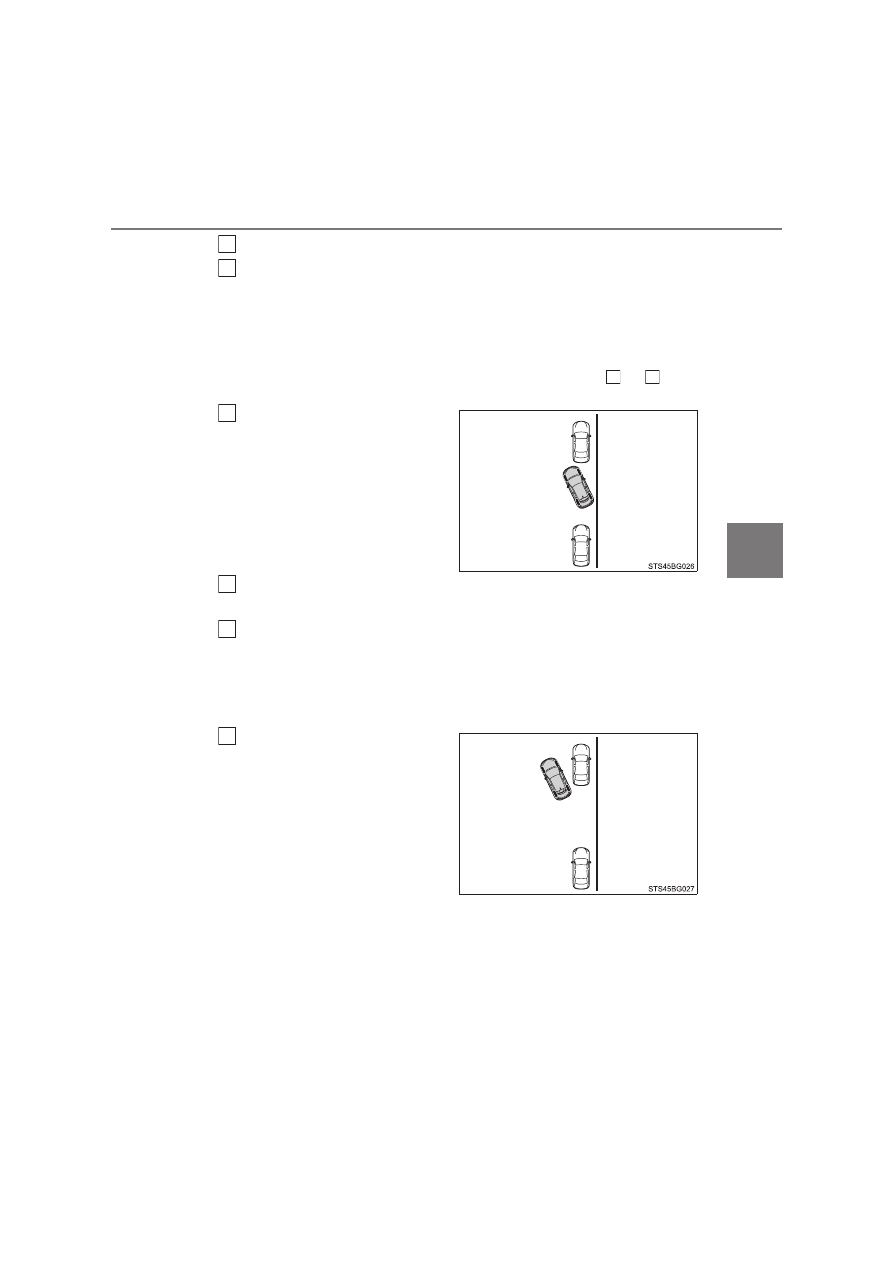

Change the shift lever to R.
Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel without applying any force, directly
confirm the safety of the area to the rear and around the vehicle
and slowly back up while adjusting your speed by depressing the
brake pedal.

Depending on the condition of the parking space, steps

may

need to be repeated.

When a level beep is emitted
and the stop display
(



P. 493) is shown on the

display, stop the vehicle.

When  the vehicle  has nearly
reached  the  take-off  point,  a
high-pitched  beep  is  emitted
and  assist  control  finishes.
From  there,  grasp  the  steer-
ing  wheel  and  proceed  for-
ward.

508

4-5. Using the driving support systems

■

Exit parallel parking assist mode

●

During assist control, if the driver determines that they are at a position
where take-off is possible and operates the steering wheel, assist control is
stopped at that position.

●

Assist control cannot be used if there are no parked vehicles ahead, or if the
gap between the front of your vehicle and the vehicle parked ahead is too
large.

●

When using the exit parallel parking assist mode, the assist mode may be
not be able to operate depending on the surrounding environment.

■

When using the exit parallel parking assist mode

Do not use exit parallel parking assist mode in the following situations as it
may not operate properly:

●

When the road surface is not paved or is rough, such as gravel.

●

When there is a rut or other depression in the road to the side of your vehi-
cle.

●

When the road to the side of your vehicle is sloped.

●

When any of the following are behind the vehicle, within the area that the
vehicle will move to depart:
• Trees or poles
• Fire hydrants
• Tall grass, flower beds, etc.
• Walls which would surround the vehicle
• Vehicles waiting near the parking spot
• Metal I-beams
• Walls with protrusions
• Holes

509

4-5. Using the driving support systems

riv

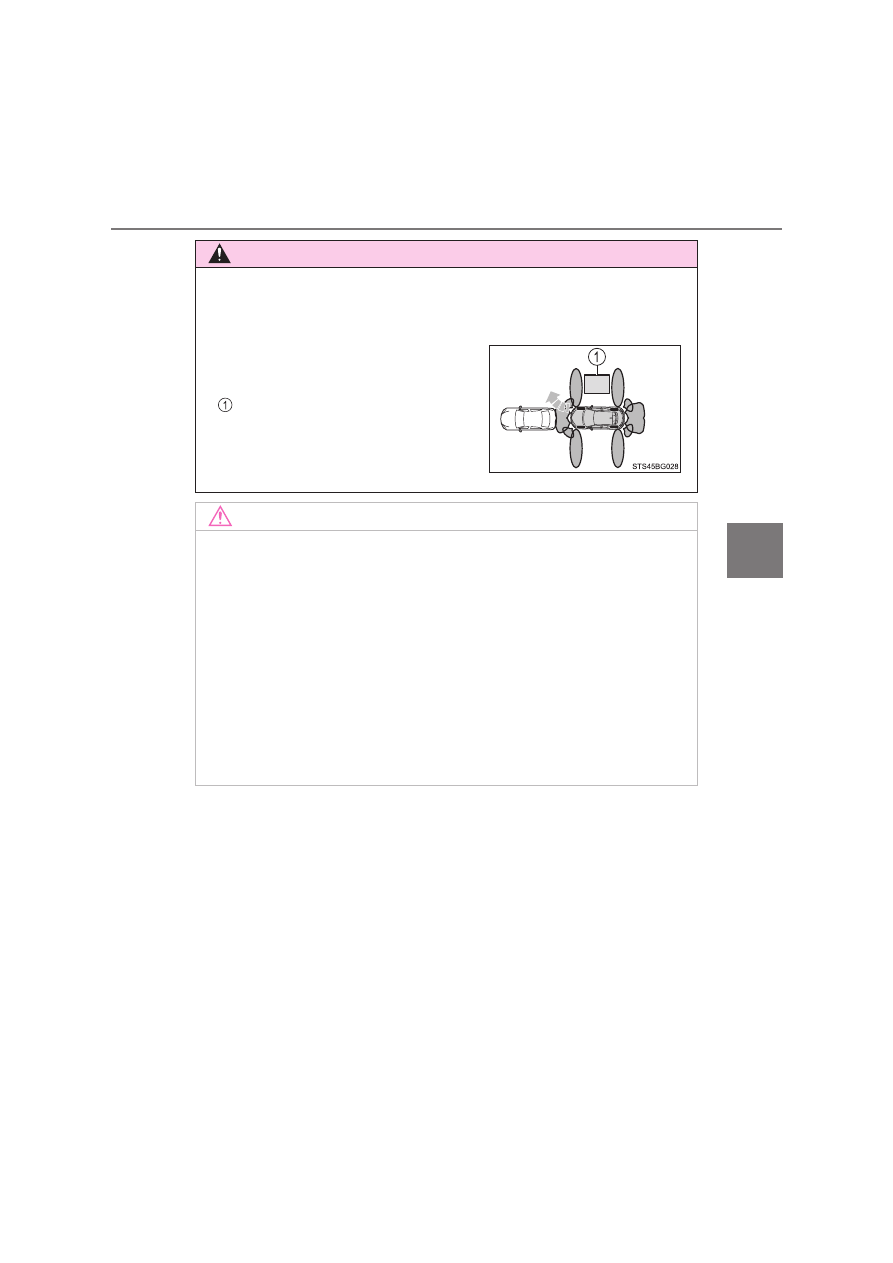

WARNING

■

When using exit parallel parking assist mode

In the following situation, be sure to drive carefully as the side sensors may
not be able to correctly detect objects, possibly leading to an accident.

NOTICE

●

Do not use exit parallel parking assist mode in any situation other than
when departing a parallel parking spot.
If assist control is started unintentionally, depress the brake pedal and stop
the vehicle, then press the S-IPA switch to cancel the assist control.

●

The detection range of the sensors (



P. 459) is limited. Directly confirm

the safety of your surroundings, and if there is a possibility of a contact
accident, stop the vehicle by depressing the brake pedal.

●

It may not be possible to detect objects that are low to the ground. Directly
confirm the safety of your surroundings and, if it seems the vehicle may
make contact with an obstacle, stop the vehicle by depressing the brake
pedal.

●

When departing for a position from which you can take off, directly confirm
the safety of your surroundings.

When an object is in an area which is out
of the detection range of the side sen-
sors.

Object

510

4-5. Using the driving support systems

■

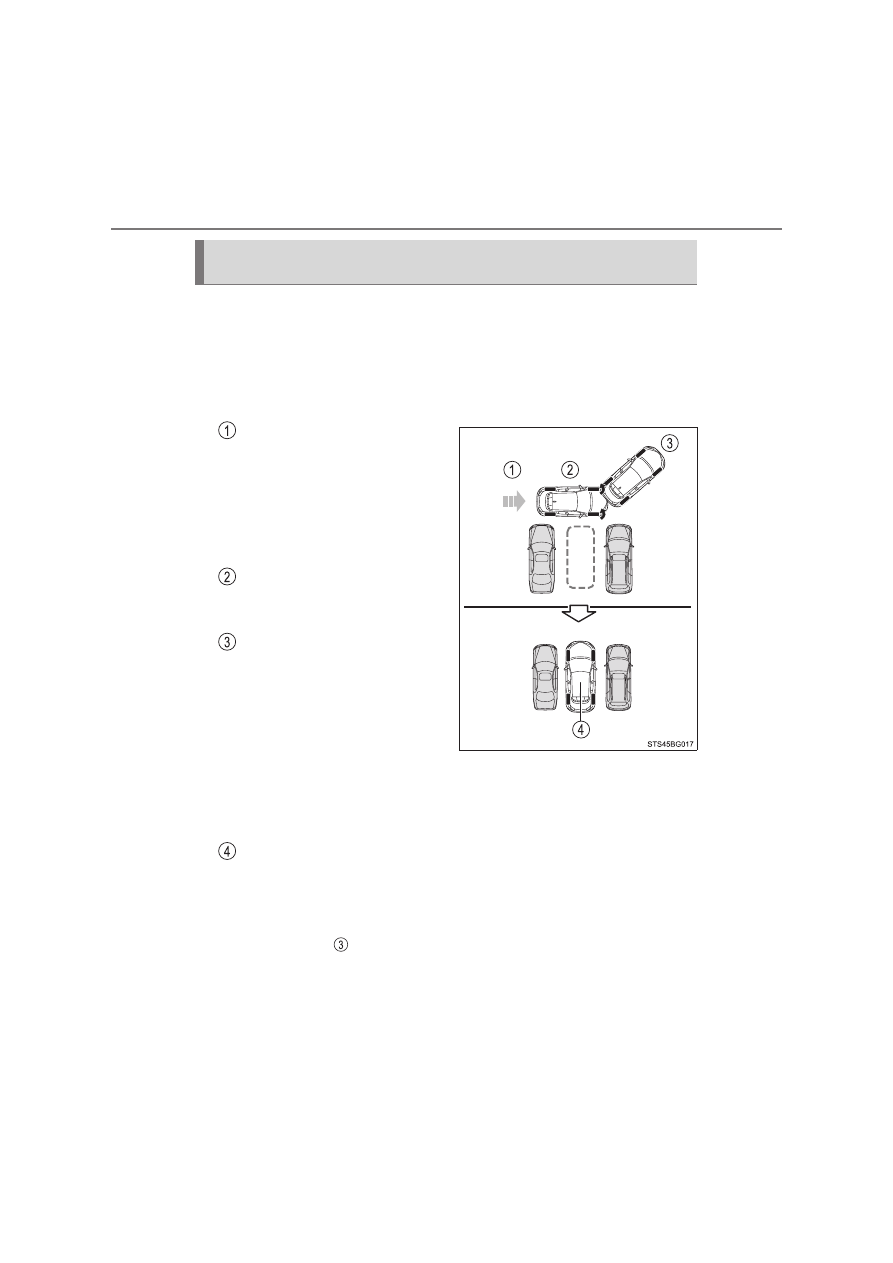

Function summary

Stop so that the center of the target parking spot appears nearly
perpendicular to the vehicle. If the space is detectable, the forward
guidance function can be used. Furthermore, depending on the
parking space and other conditions, multi-turn maneuvering assist
control is also provided if necessary.

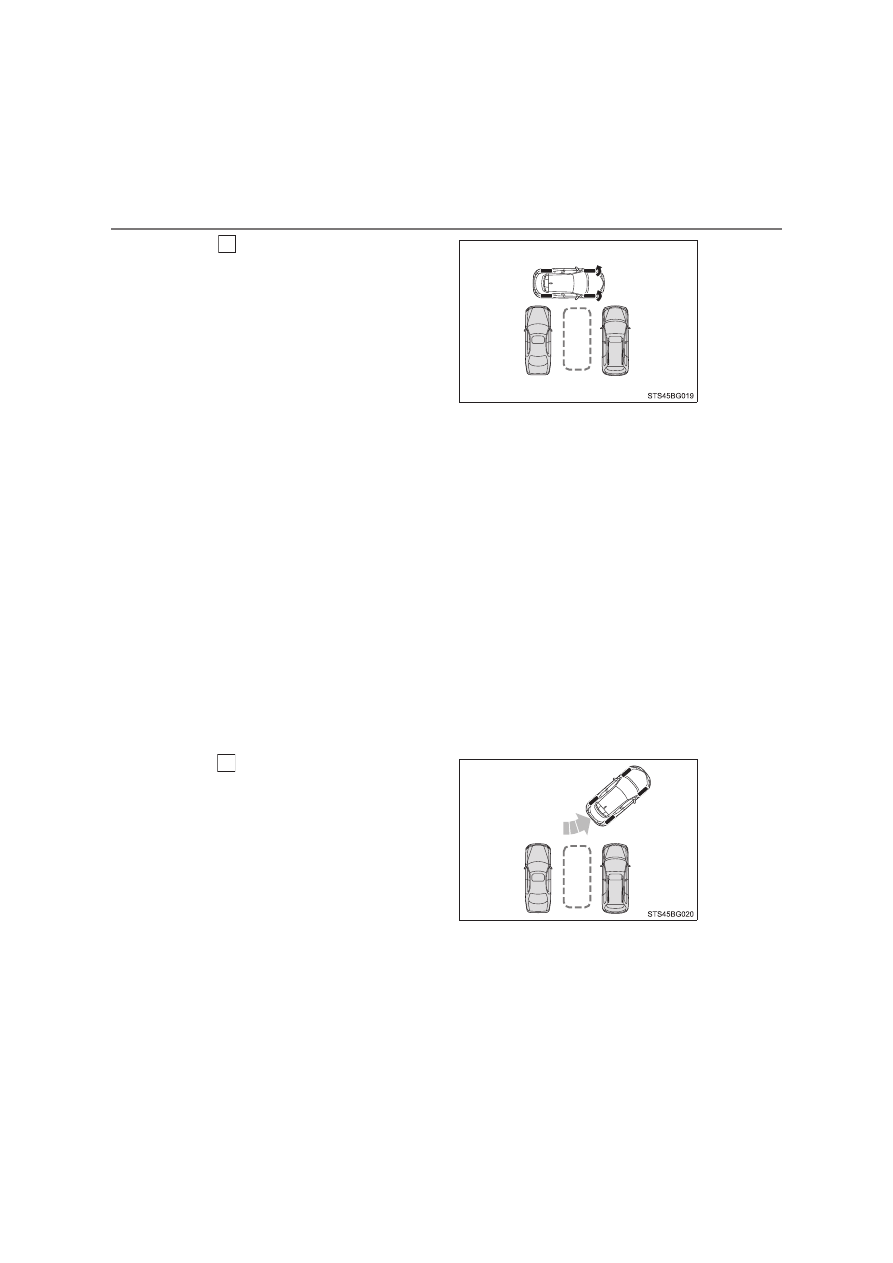

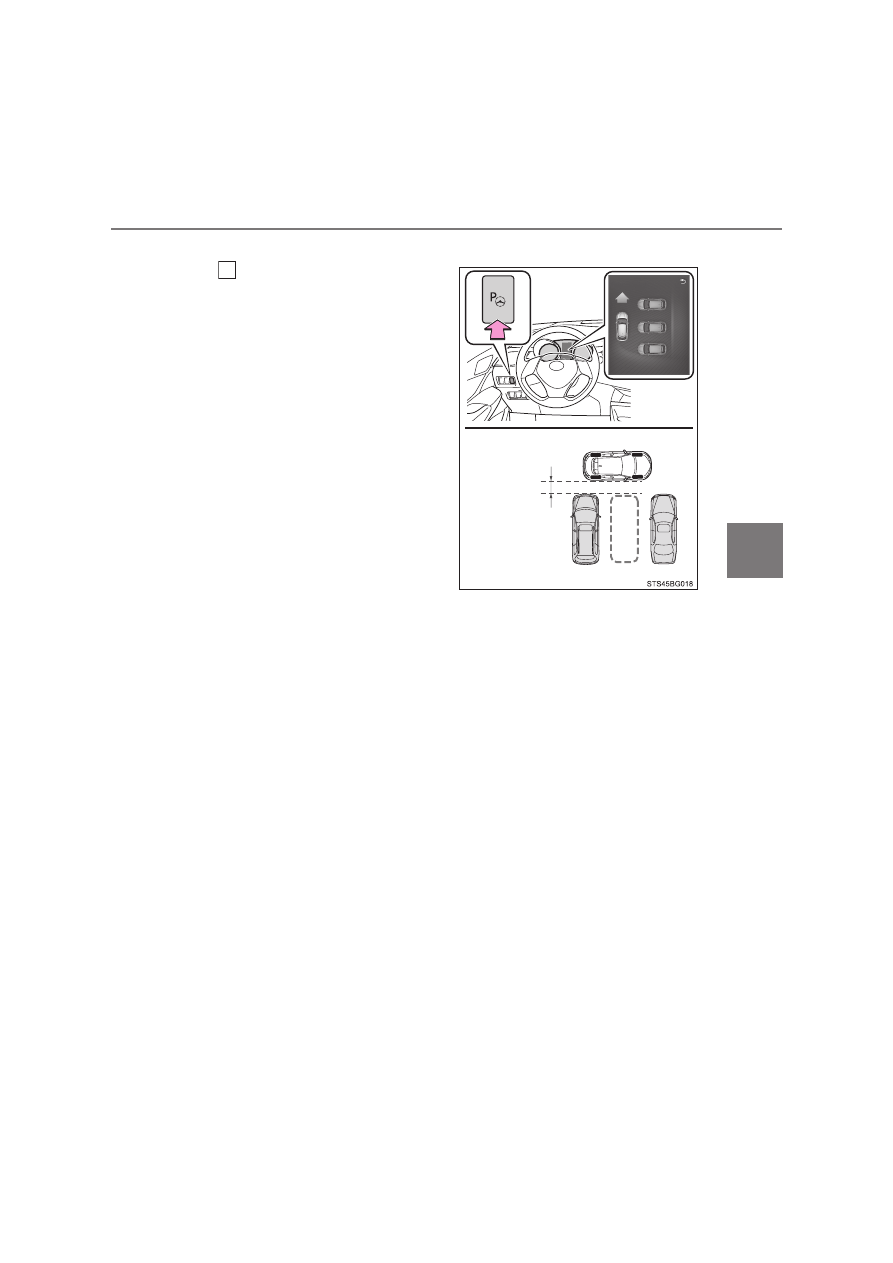

Stop so that the center of the
target  parking  spot  appears
nearly  perpendicular  to  the
vehicle. Then, press the S-IPA
switch  2  times  to  select  per-
pendicular  parking  assist
mode.
Steering  wheel  auto  opera-
tion  starts  when  the  vehicle
begins to move.
A sound is issued and a dis-
play  is  shown  to  notify  you
when the vehicle reaches the
position  to  start  backing  up
from.

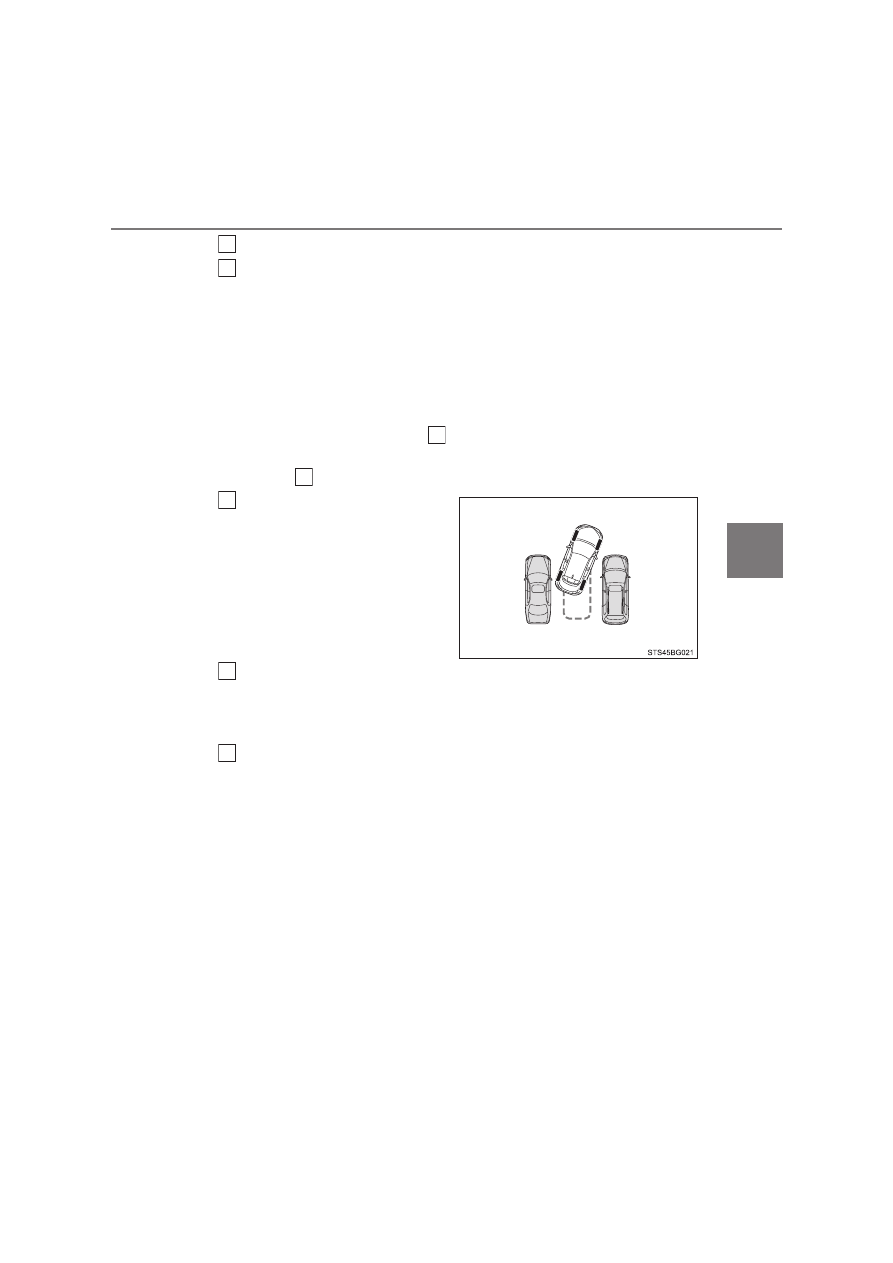

If the detected parking space or
road width (distance to the side
of the road across from the park-
ing space) is narrow, or if there
are obstacles in front of the vehi-
cle, guidance will not be issued.

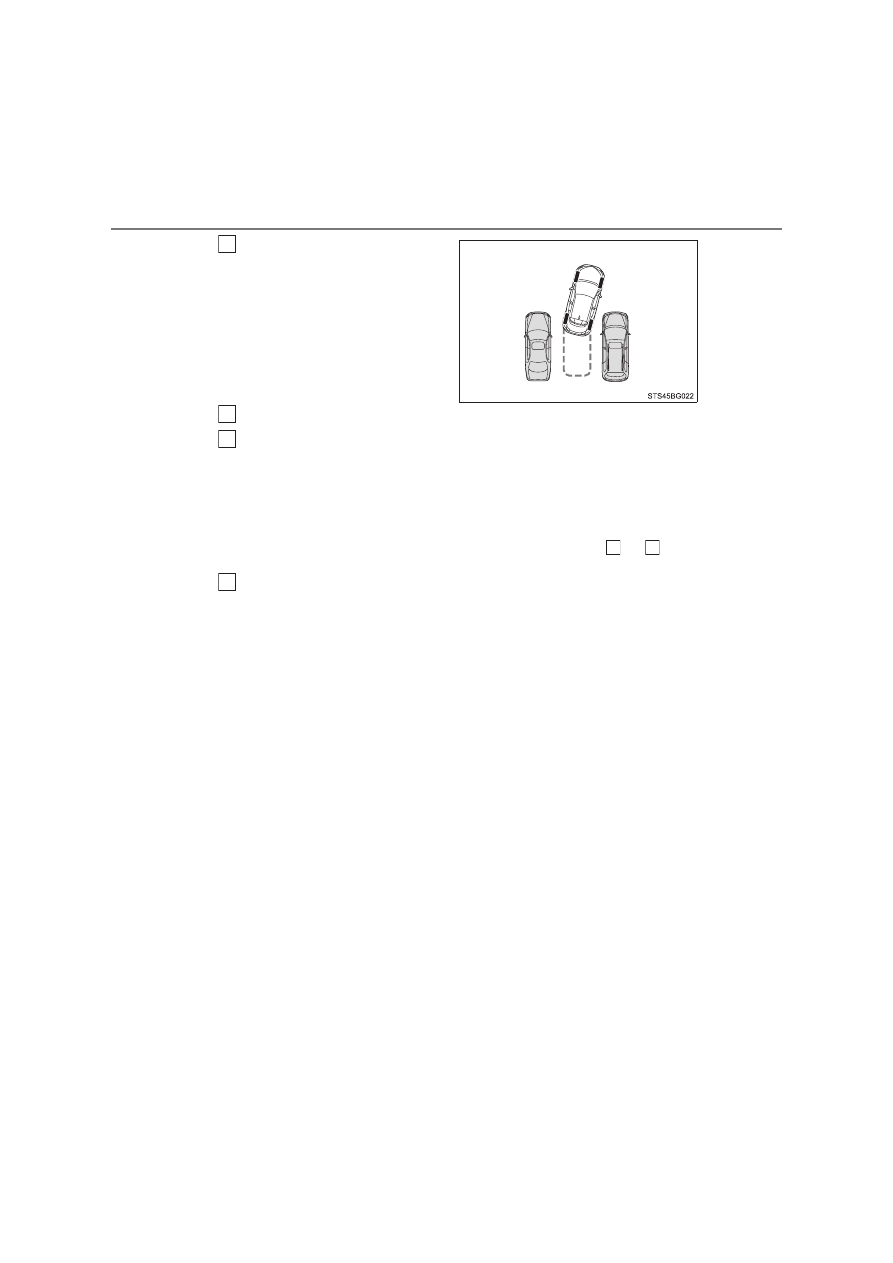

Parking is complete.

This completes the assist mode.
Depending on the condition of the parking space, guidance to starting
points for moving forward and backing up, as well as the steering wheel
auto operation, are repeated any time multi-turn maneuvering is neces-
sary following

from the time the vehicle begins backing up until park-

ing completes.

How to park next to other vehicles (perpendicular parking assist
mode)

511

4-5. Using the driving support systems

riv

■

Parking

Stop so that the center of the
target  parking  spot  appears
nearly  perpendicular  to  vehi-
cle.  Then,  press  the  S-IPA
switch 2 times and check that
the display on the multi-infor-
mation  display  switches  to
“Back-in Parking”.

●

Visually  check  the  area  in
the  direction  of  the  arrow
indicating  the  direction  of
the  steering  wheel  auto
operation  and  the  target
parking  spot  on  the  dis-
play.

●

The mode switches each
time the S-IPA switch is
pressed. (



P. 492)

●

When the shift lever is not in D, S (M20A-FXS engine) or B
(2ZR-FXE engine), or when the vehicle speed has been
detected, pressing the S-IPA switch will not cause the screen
to switch to the “Back-in Parking” display.

●

The turn signal lever (



P. 322) can be operated to select

whether you would like to park to the left or right.

●

The system cannot be used when the parking space is narrow
or there is not a sufficient enough area for assist control to
operate. Please refer to the information shown on the multi-
information display to use a different parking space.

Approx. 1 m
(3.3 ft.)

512

4-5. Using the driving support systems

Assume  an  ordinary  driving
posture,  rest  your  hands
lightly  on  the  steering  wheel
without  applying  any  force,
directly  confirm  the  safety  of
the  area  to  the  front  and
around  the  vehicle  and
slowly proceed forward while
adjusting  your  speed  by
depressing the brake pedal.
When  this  is  done,  a  high-
pitched  beep  is  emitted  and
an indicator on the meter illu-
minates  at  the  same  time,
after which assist control will
start.

●

When the steering wheel auto operation starts, the steering
wheel auto operation display and assistance level indicator
(



P. 493) will be shown in the display area.

●

To stop assist control, press the S-IPA switch.

●

When the vehicle speed is too high, a sharp beeping sound is
emitted and assist control is stopped. (



P. 493)

●

If the space turns out to be too narrow after assist control
starts, a sharp beeping sound is emitted and assist control is
stopped.

When a level beep is emitted
and the stop display
(



P. 493) is shown on the

display, stop the vehicle.

513

4-5. Using the driving support systems

riv

Change the shift lever to R.
Assume  an  ordinary  posture  for  backing  up,  rest  your  hands
lightly on the steering wheel without applying any force, directly
confirm the safety of the area to the rear and around the vehicle,
confirm  that  there  are  no  obstacles  in  the  parking  space,  and
slowly  back  up  while  adjusting  your  speed  by  depressing  the
brake pedal.

●

When the vehicle cannot be cleanly entered within the target
parking spot on the first try and multi-turn maneuvering is nec-
essary, proceed to step

●

When multi-turn maneuvering is not necessary, proceed to
step

When a level beep is emitted
and the stop display
(



P. 493) is shown on the

display, stop the vehicle.

Change the shift lever to D, S (M20A-FXS engine) or B
(2ZR-FXE engine).

When you would like to end assist control at your current position,
change the shift lever to P.

4
5

514

4-5. Using the driving support systems

When a level beep is emitted
and the stop display
(



P. 493) is shown on the

display, stop the vehicle.

Change the shift lever to R.
Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel without applying any force, directly
confirm the safety of the area to the rear and around the vehicle
slowly back up while adjusting your speed by depressing the
brake pedal.

Depending on the condition of the parking space, steps

may

need to be repeated.

When the vehicle is almost entirely within the target parking spot,
a high-pitched beep is emitted and the stop display is shown on
the display (



P. 493), stop the vehicle.

This completes the perpendicular parking assist mode.

●

For  safety,  the  buzzer  sounds  slightly  before  the  vehicle  is
completely  entered  within  the  target  parking  spot.  Further-
more,  at  that  point,  system  operation  will  also  finish.  Firmly
hold  the  steering  wheel  and  slowly  back  up  while  adjusting
your  speed  by  depressing  the  brake  pedal,  to  reach  the
desired parking spot.

●

Be sure to back up while checking the area to the front and
rear of the vehicle directly and by using the mirrors.

10
11

515

4-5. Using the driving support systems

riv

■

Perpendicular parking assist mode operating conditions

●

In order to operate the function correctly, drive slowly (at a speed at which
the vehicle can be quickly stopped). Come to a full stop so that the center of
the parking space is nearly perpendicular to the vehicle, and then operate
the S-IPA switch.

●

The function cannot be used when the vehicle speed is approximately
30 km/h (19 mph) or higher.

●

The front side sensors and rear side sensors are used to detect parked
vehicles and determine the parking spot. Therefore, when detection is not
possible (



P. 528), guidance is not issued.

●

If there are no parked vehicles, the parking spot cannot be determined.
Therefore, the perpendicular parking assist mode cannot be operated.

●

If unable to detect the environment surrounding the parking space, the per-
pendicular parking assist mode may not be able to operate.

■

Tips for using the perpendicular parking assist mode

●

Depending on the condition of the park-
ing space, if there is not enough space
in front of the vehicle required to perform
the parking operation, the target parking
spot may not be reachable.

Intended parking spot
Wall

Leave  a  gap  of  approximately  1  m
(3.3 ft.) from any parked vehicles and
approach  the  target  parking  spot.  If
the gap between your vehicle and any
parked vehicles is too large, the front
side  sensors  and  rear  side  sensors
may not be able to detect the parked
vehicles.

Stop  so  that  the  center  of  the  target
parking  spot  is  perpendicular  to  the
vehicle.  Furthermore,  only  push  the
S-IPA switch when the vehicle is at a
complete stop.

Approx. 1m
(3.3 ft.)

516

4-5. Using the driving support systems

NOTICE

●

When parking in a narrow space, the vehicle will come close to adjacent
vehicles. If it seems the vehicle may make contact, stop the vehicle by
depressing the brake pedal.

●

It may not be possible to detect objects that are low to the ground. Directly
confirm the safety of your surroundings and, if it seems the vehicle may
make contact with an obstacle, stop the vehicle by depressing the brake
pedal.

●

517

4-5. Using the driving support systems

riv

When the Simple Intelligent Parking Assist System cannot be oper-
ated, or when operation is stopped, canceled, etc., the one of the fol-
lowing message is displayed on the multi-information display. Take
appropriate action according to the display.

■

When it is not possible to operate

Multi-information display messages

Message

Situation/Handling method

“IPA System Check Visit
Your Dealer”

The system may be malfunctioning.



Turn the power switch off and then start
the hybrid system.
Have  the  vehicle  inspected  by  any
authorized  Toyota  retailer  or  Toyota
authorized  repairer,  or  any  reliable
repairer  if  the  message  is  displayed
again.

“Currently Unavailable”

There may be a system failure.

Power steering equipment is temporarily
overheating.



Turn the power switch off, wait for a lit-
tle while, and then start the hybrid sys-
tem again.

The hybrid system is not operating.



Start the hybrid system.

Ice, snow, dirt, etc., has adhered to a sensor.



Remove any ice, snow, dirt, etc.

The sensor is frozen.



Once the sensor thaws, the system will
return to normal.

The 12-volt battery has been removed and
reinstalled.



Drive the vehicle straight ahead for 5
seconds or more at a speed of approxi-
mately 35 km/h (22 mph) or higher.

Toyota C-HR (2023 year). Manual in english - page 26
