8-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

420

Fuel information ..........

429

Tire information ...........

431

8-2. Customization

Customizable features

..................................

442

8-3. Initialization

Items to initialize .........

452

420

8-1. Specifications

8-1.Specifications

:Unladen vehicles

:Vehicles without 225/40R18 tires

:Vehicles with 225/40R18 tires

■

Vehicle identification num-
ber

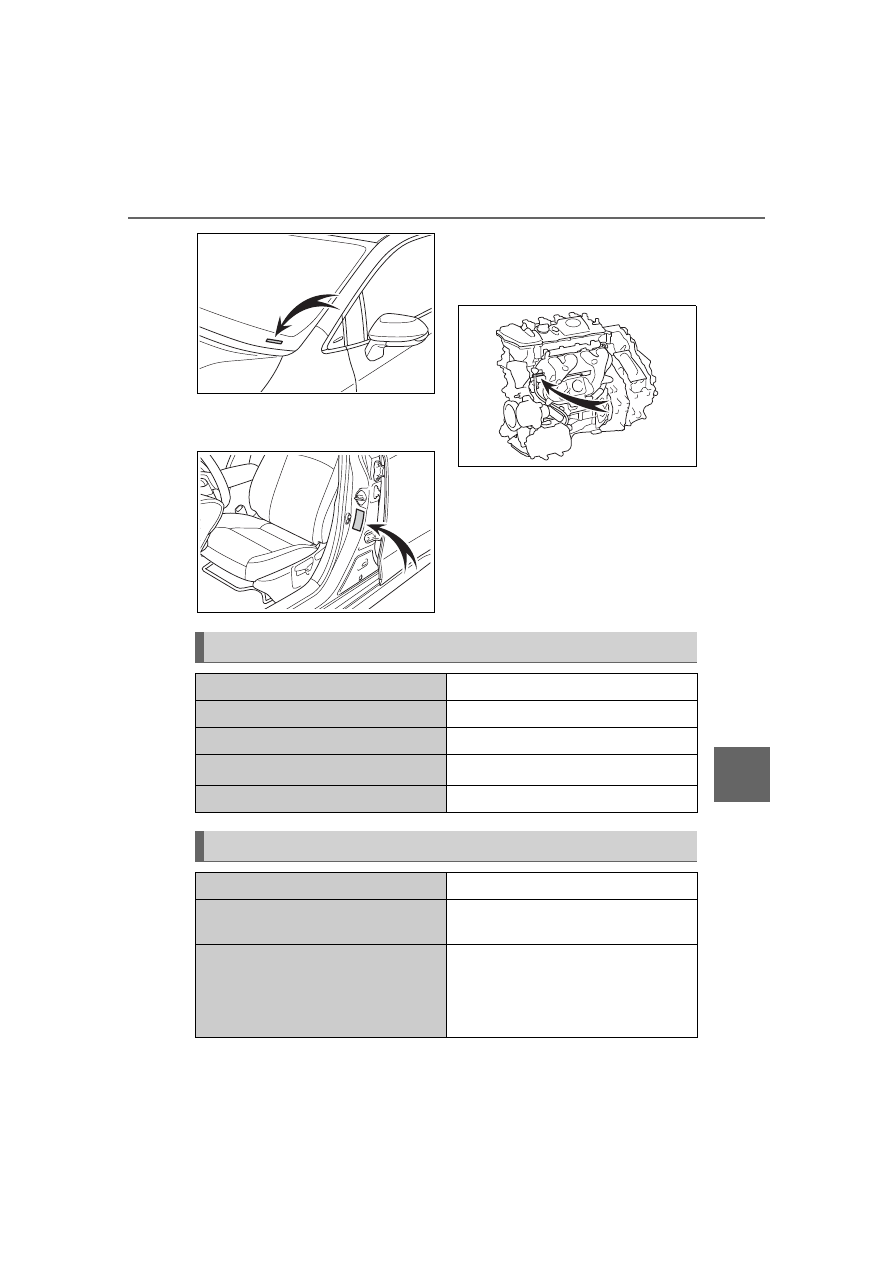

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.

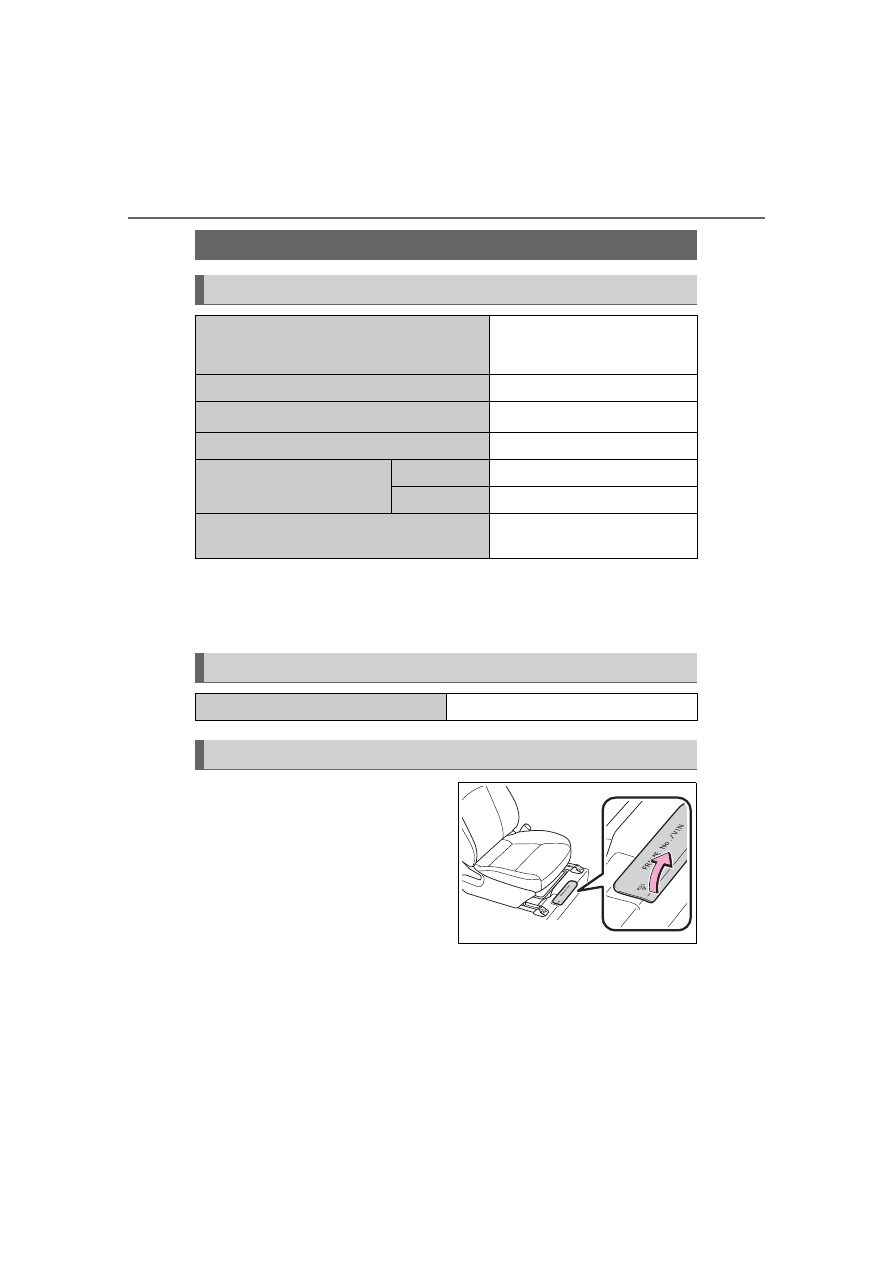

This number is stamped under
the right-hand front seat.

This number is also stamped on
the top left of the instrument
panel.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

182.3 in. (4630 mm)

182.5 in. (4635 mm)

Overall width

70.1 in. (1780 mm)

Overall height

56.5 in. (1435 mm)

Wheelbase

106.3 in. (2700 mm)

Tread

Front

60.3 in. (1531 mm)

Rear

60.4 in. (1534 mm)

Vehicle capacity weight
(Occupants + luggage)

860 lb. (390 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

421

8-1. Specifications

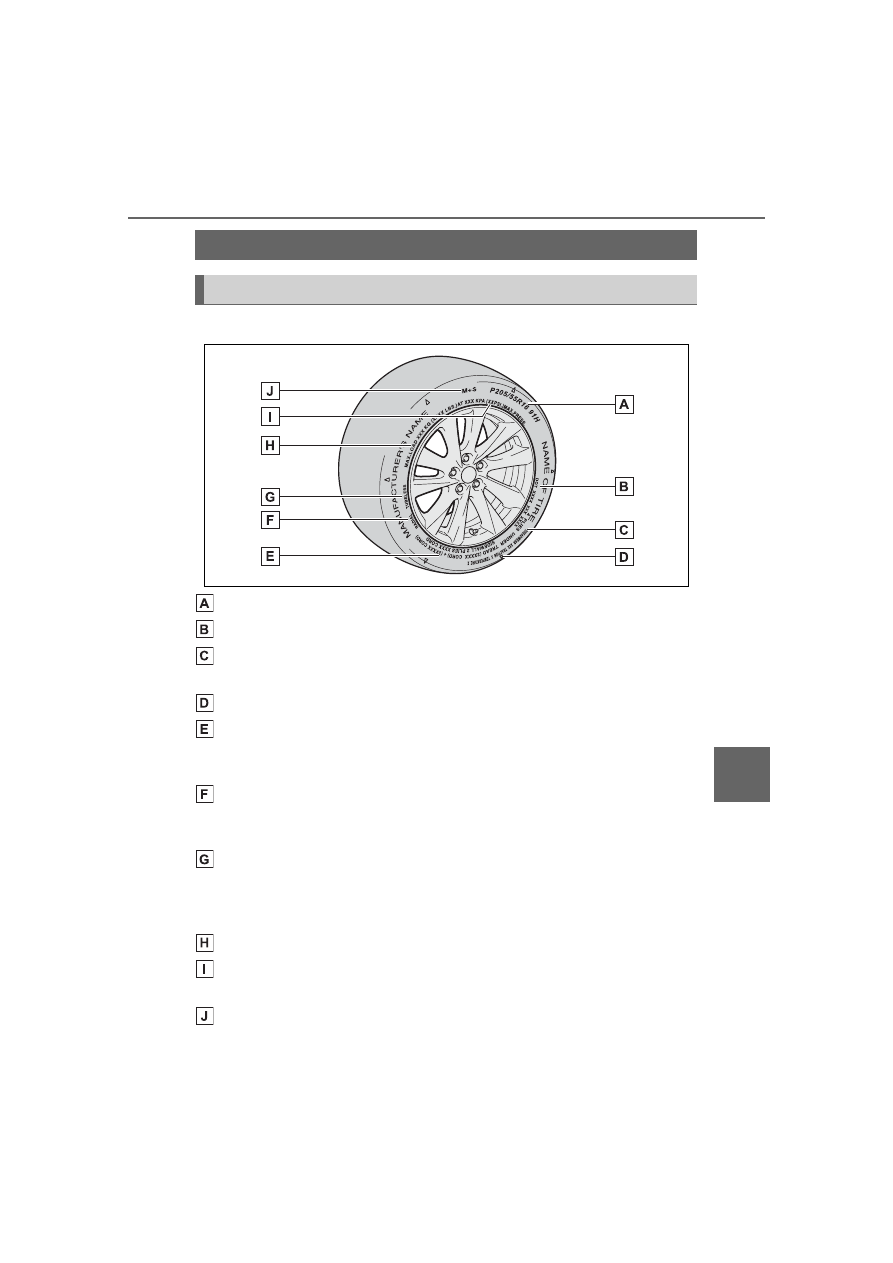

Vehicle

specificatio

This number is also on the Certi-
fication Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

Engine

Model

1.8 L 4-cylinder (2ZR-FXE)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.17



3.48 in. (80.5



88.3 mm)

Displacement

109.7 cu. in. (1798 cm

)

Valve clearance

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity
(Reference)



AWD models

10.6 gal. (40.0 L, 8.8 Imp. gal.)



2WD models

11.4 gal. (43.0 L, 9.5 Imp. gal.)

422

8-1. Specifications



Front (2WD models)



Rear (AWD models)

■

Oil capacity (Drain and refill
[Reference

])

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. Warm up
the engine and turn off the hybrid
system, wait more than 5 min-
utes, and check the oil level on

the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6B multi-
grade engine oil
Recommended viscosity: SAE
0W-16

Electric motor (traction motor)

Type

Permanent magnet synchronous
motor

Maximum output

70 kW

Maximum torque

136.4 ft•lbf (185 N•m, 168.9 kgf•m)

Type

Permanent magnet synchronous
motor

Maximum output

30 kW

Maximum torque

62 ft•lbf (84 N•m, 8.6 kgf•m)

Hybrid battery (traction battery)

Type

Lithium-ion battery

Voltage

3.7 V/cell

Capacity

4.08 Ah

Quantity

56 cells

Nominal voltage

207.2 V

Lubrication system

With filter

4.4 qt. (4.2 L, 3.7 Imp.
qt.)

Without
filter

4.1 qt. (3.9 L, 3.4 Imp.
qt.)

423

8-1. Specifications

Vehicle

specificatio

Outside temperature

SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.

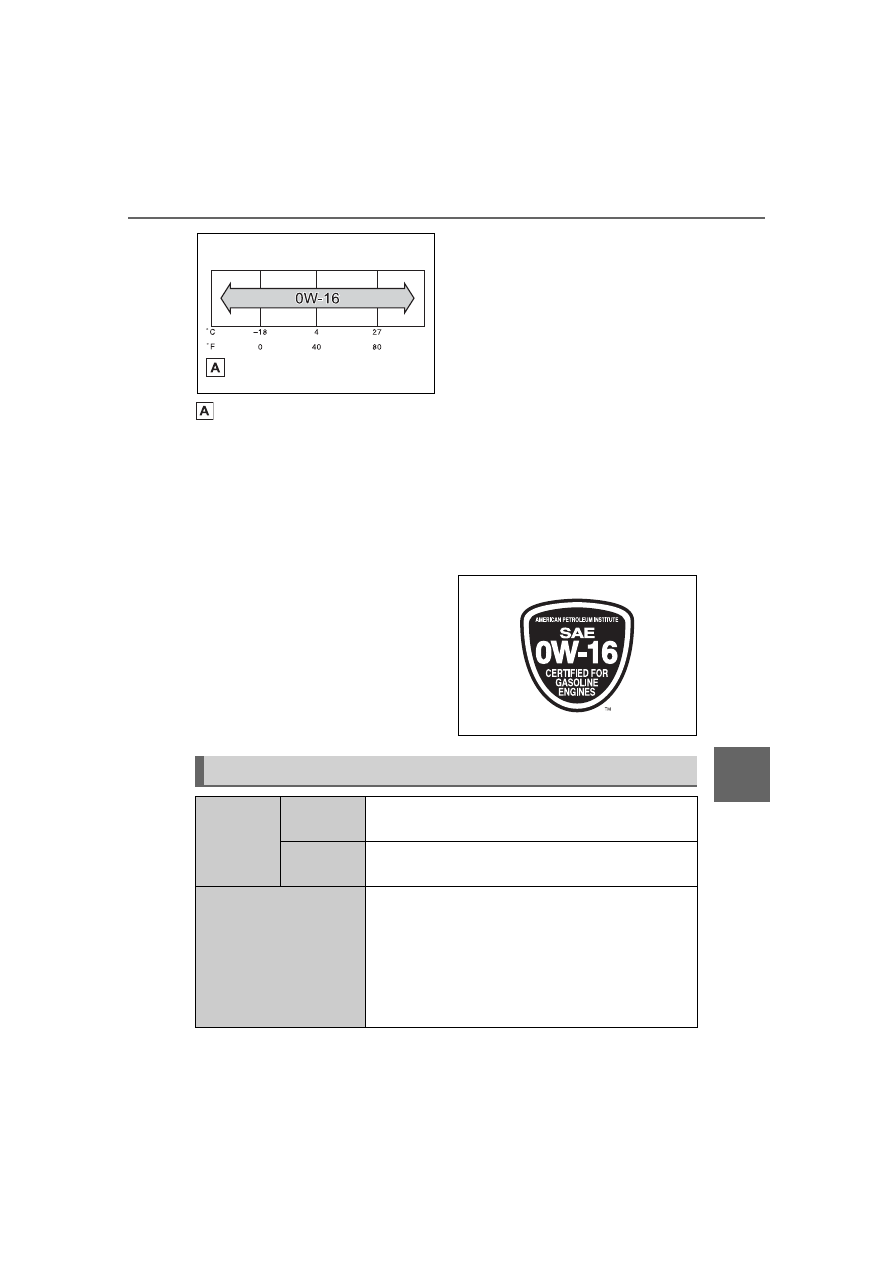

Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before

the W allow for easier starting
of the engine in cold weather.

• The 16 in 0W-16 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

How to read oil container label:
API registered marks is added
to some oil containers to help
you select the oil you should
use.

Cooling system

Capacity
(Refer-
ence)

Gasoline
engine

5.9 qt. (5.6 L, 4.9 Imp. qt.)

Power con-
trol unit

1.6 qt. (1.5 L, 1.3 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology

Do not use plain water alone.

424

8-1. Specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Ignition system (spark plug)

Make

DENSO FC16HR-CY9

Gap

0.035 in. (0.9 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (12-volt battery)

Open voltage at 68°F (20°C):

12.0 V or higher
(Turn the power switch off and turn on the
high beam headlights for 30 seconds.)

Charging rates

5 A max.

Hybrid transmission

Fluid capacity

3.1 qt. (3.0 L, 2.6 Imp. qt.)

Fluid type

Toyota Genuine e-Transaxle fluid TE

NOTICE

■

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal

noise or vibration, or ultimately damage the transmission of your vehicle.

Rear differential (AWD models)

Fluid capacity

1.3 qt. (1.2 L, 1.1 Imp. qt.)

Fluid type

Toyota Genuine e-Transaxle fluid TE

425

8-1. Specifications

Vehicle

specificatio

:Minimum pedal clearance when depressed with a force of 67.4 lbf (300

N, 30.6 kgf) while the hybrid system is operating.

:Make sure to confirm that the brake system warning light (yellow) does

not illuminate. (If the brake system warning light illuminates, refer to
P.372.)

NOTICE

■

Transmission fluid type

Using transmission fluid other than the above type may cause abnormal

noise or vibration, or ultimately damage the transmission of your vehicle.

Brakes

Pedal clearance

4.1 in. (103 mm) Min.

Pedal free play

0.04



0.24 in. (1



6 mm)

Brake pad wear limit



Front

0.07 in. (1.8 mm)



Rear

0.08 in. (2.0 mm)

Parking brake indicator

When pulling the parking brake switch for
1 to 2 seconds: comes on
When pushing the parking brake switch for
1 to 2 seconds: turns off

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

426

8-1. Specifications



Type A



Type B



Type C

Tires and wheels

Tire size

195/65R15 91S, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

38 psi (260 kPa, 2.6 kgf/cm

or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size



6 1/2J, 17



4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

205/55R16 91H, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

35 psi (240 kPa, 2.4 kgf/cm

or bar)



Rear

33 psi (230 kPa, 2.3 kgf/cm

or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size



7J, 17



4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/40R18 88V, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

33 psi (230 kPa, 2.3 kgf/cm

or bar)



Rear

30 psi (210 kPa, 2.1 kgf/cm

or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

or bar)

427

8-1. Specifications

Vehicle

specificatio



Type D



Type E



Type F

Wheel size



8J, 17



4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

195/65R15 91S

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

38 psi (260 kPa, 2.6 kgf/cm

or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

or bar)



Spare

None

Wheel size



6 1/2J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

205/55R16 91H

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

35 psi (240 kPa, 2.4 kgf/cm

or bar)



Rear

33 psi (230 kPa, 2.3 kgf/cm

or bar)



Spare

None

Wheel size



Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

225/40R18 88V

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

33 psi (230 kPa, 2.3 kgf/cm

or bar)



Rear

30 psi (210 kPa, 2.1 kgf/cm

or bar)



Spare

None

428

8-1. Specifications

A: Wedge base bulbs (clear)
B: Wedge base bulbs (amber)

Wheel size



Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Rear side marker lights (bulb
type)

—

Rear turn signal lights

—

Back-up lights

—

Interior

Trunk light

—

429

8-1. Specifications

Vehicle

specificatio

■

Gasoline quality

In very few cases, driveability prob-

lems may be caused by the brand of

gasoline you are using. If driveability

problems persist, try changing the

brand of gasoline. If this does not

correct the problem, consult your

Toyota dealer.

■

Recommendation of the use of

gasoline containing detergent

additives

●

Toyota recommends the use of

gasoline that contains detergent

additives to avoid the build-up of

engine deposits.

●

All gasoline sold in the U.S.A. con-

tains minimum detergent additives

to clean and/or keep clean intake

systems, per EPA’s lowest addi-

tives concentration program.

●

Toyota strongly recommends the

use of Top Tier Detergent Gaso-

line. For more information on Top

Tier Detergent Gasoline and a list

of marketers, please go to the offi-

cial website www.toptiergas.com.

■

Recommendation of the use of

low emissions gasoline

Gasolines containing oxygenates

such as ethers and ethanol, as well

as reformulated gasolines, are avail-

able in some cities. These fuels are

typically acceptable for use, provid-

ing they meet other fuel require-

ments.
Toyota recommends these fuels,

since the formulations allow for

reduced vehicle emissions.

■

Non-recommendation of the

use of blended gasoline

●

Use only gasoline containing up to

15% ethanol.

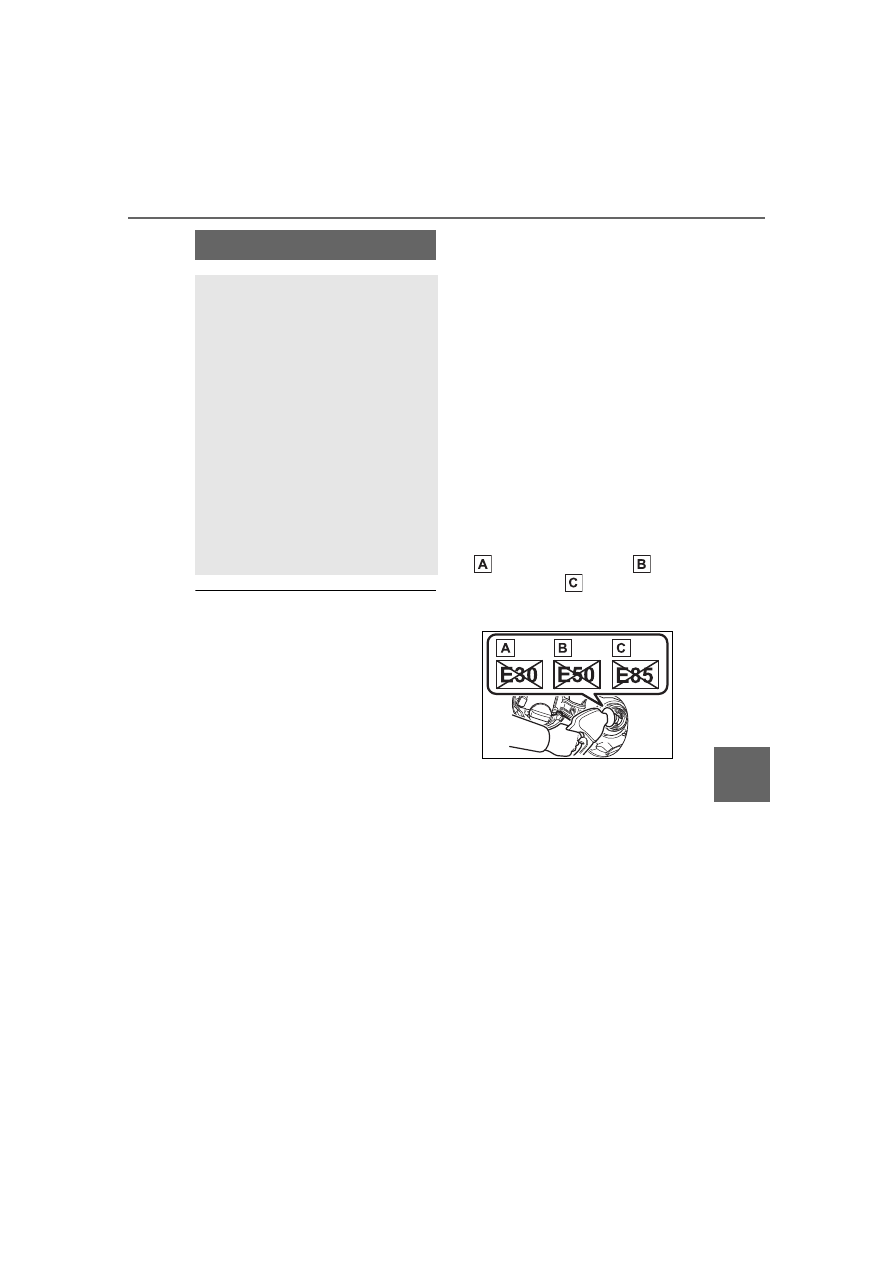

DO NOT use any flex-fuel or gas-

oline that could contain more than

15% ethanol, including from any

pump labeled E30 (30% ethanol
[

]), E50 (50% ethanol [

]), E85

(85% ethanol [

]) (which are only

some examples of fuel containing

more than 15% ethanol).

●

If you use gasohol in your vehicle,

be sure that it has an octane rat-

ing no lower than 87.

●

Toyota does not recommend the

use of gasoline containing metha-

nol.

■

Non-recommendation of the

use of gasoline containing MMT

Some gasoline contains an octane

enhancing additive called MMT

(Methylcyclopentadienyl Manga-

nese Tricarbonyl).
Toyota does not recommend the use

of gasoline that contains MMT. If

fuel containing MMT is used, your

emission control system may be

Fuel information

You must only use unleaded
gasoline.
Select octane rating of 87
(Research Octane Number
91) or higher. Use of
unleaded gasoline with an
octane rating lower than 87
may result in engine knock-
ing. Persistent knocking
can lead to engine damage.

At minimum, the gasoline you
use should meet the specifica-
tions of ASTM D4814 in the
U.S.A.

430

8-1. Specifications

adversely affected.
The malfunction indicator lamp on

the instrument cluster may come on.

If this happens, contact your Toyota

dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light

knocking for a short time while

accelerating or driving uphill. This

is normal and there is no need for

concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If

improper fuels are used, the

engine will be damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause

damage to your vehicle’s

three-way catalytic converters

causing the emission control

system to malfunction.

●

Do not use gasohol other than

the type previously stated.

Other gasohol may cause fuel

system damage or vehicle per-

formance problems.

●

Using unleaded gasoline with

an octane number or rating

lower than the level previously

stated will cause persistent

heavy knocking.

At worst, this will lead to engine

damage.

■

Fuel-related poor driveability

If poor driveability (poor hot start-

ing, vaporization, engine knock-

ing, etc.) is encountered after

using a different type of fuel, dis-

continue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It

can damage your vehicle’s paint.

431

8-1. Specifications

Vehicle

specificatio



Full-size tire

Tire size (



P.433)

DOT and Tire Identification Number (TIN) (



P.433)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Location of treadwear indicators (



P.325)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Load limit at maximum cold tire inflation pressure (



P.326)

Maximum cold tire inflation pressure (



P.426)

This means the pressure to which a tire may be inflated.

Summer tires or all season tires (



P.326)

Tire information

Typical tire symbols

432

8-1. Specifications

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.



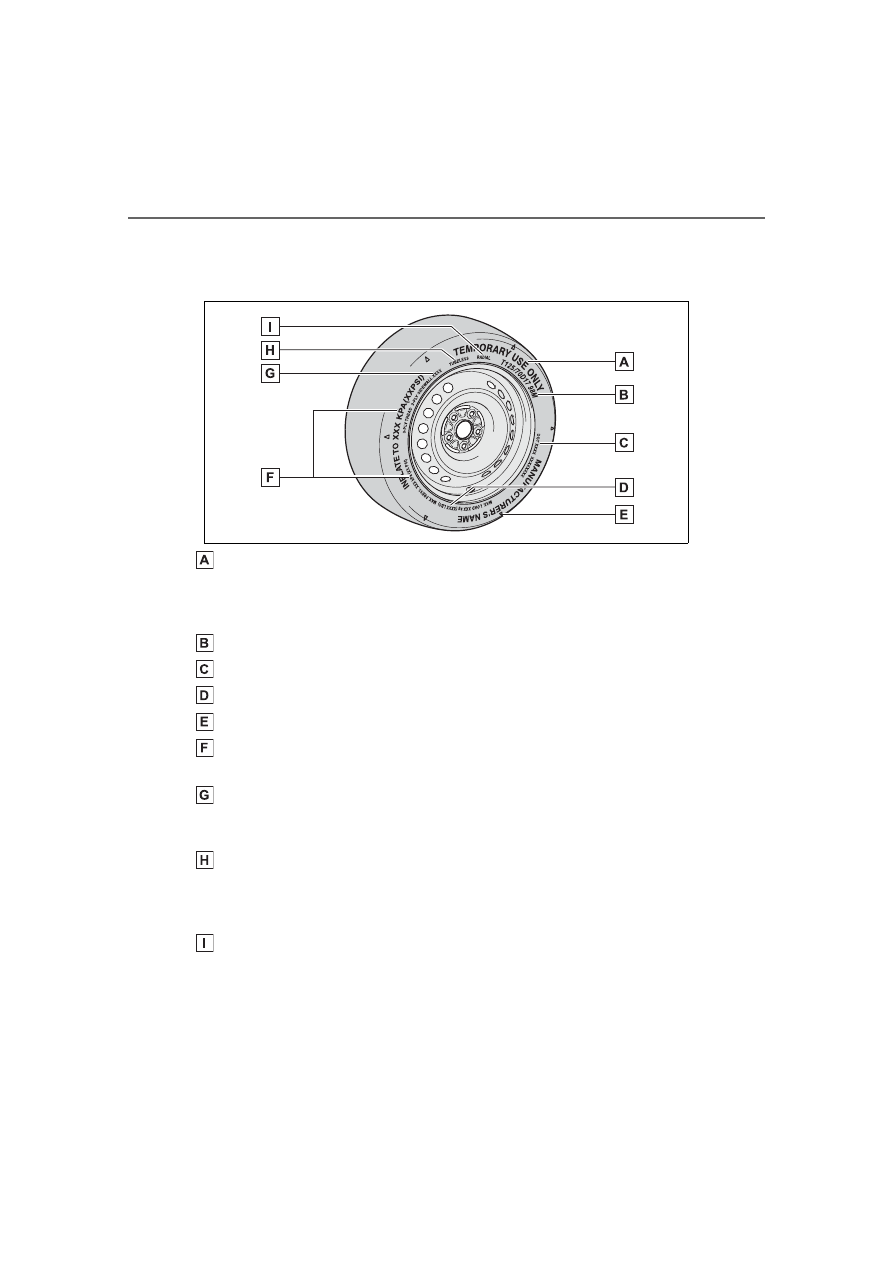

Compact spare tire

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE ONLY”
molded on its sidewall. This tire is designed for temporary emergency use
only.

Tire size (



P.433)

DOT and Tire Identification Number (TIN) (



P.433)

Load limit at maximum cold tire inflation pressure (



P.326)

Location of treadwear indicators (



P.325)

Maximum cold tire inflation pressure (



P.426)

This means the pressure to which a tire may be inflated.

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

433

8-1. Specifications

Vehicle

specificatio



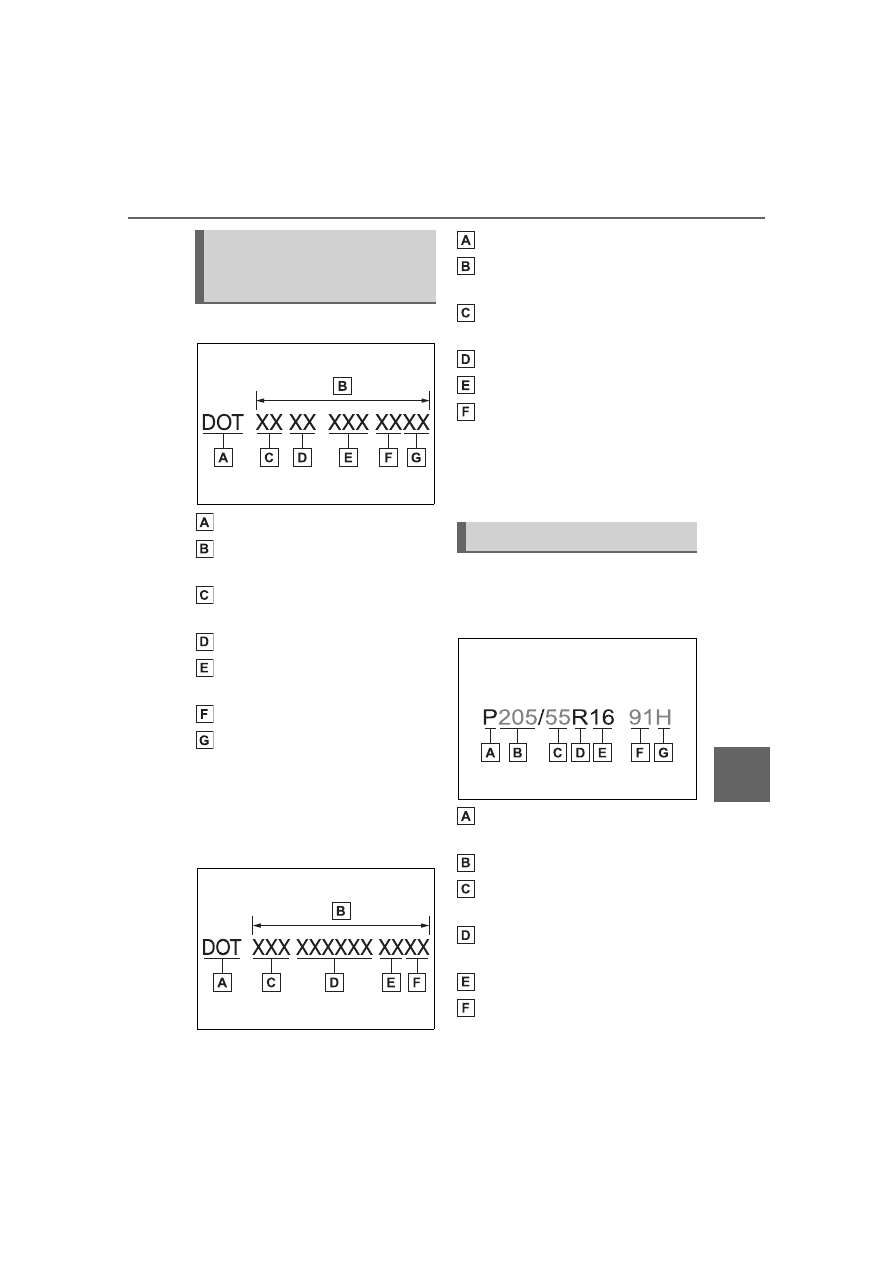

Type A

DOT symbol

Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.



Type B

DOT symbol

Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Manufacturer’s code
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio (tire height to
section width)
Tire construction code (R =
Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 dig-
its)

Typical DOT and Tire
Identification Number
(TIN)

Tire size

Content .. 24 25 26 27 ..
