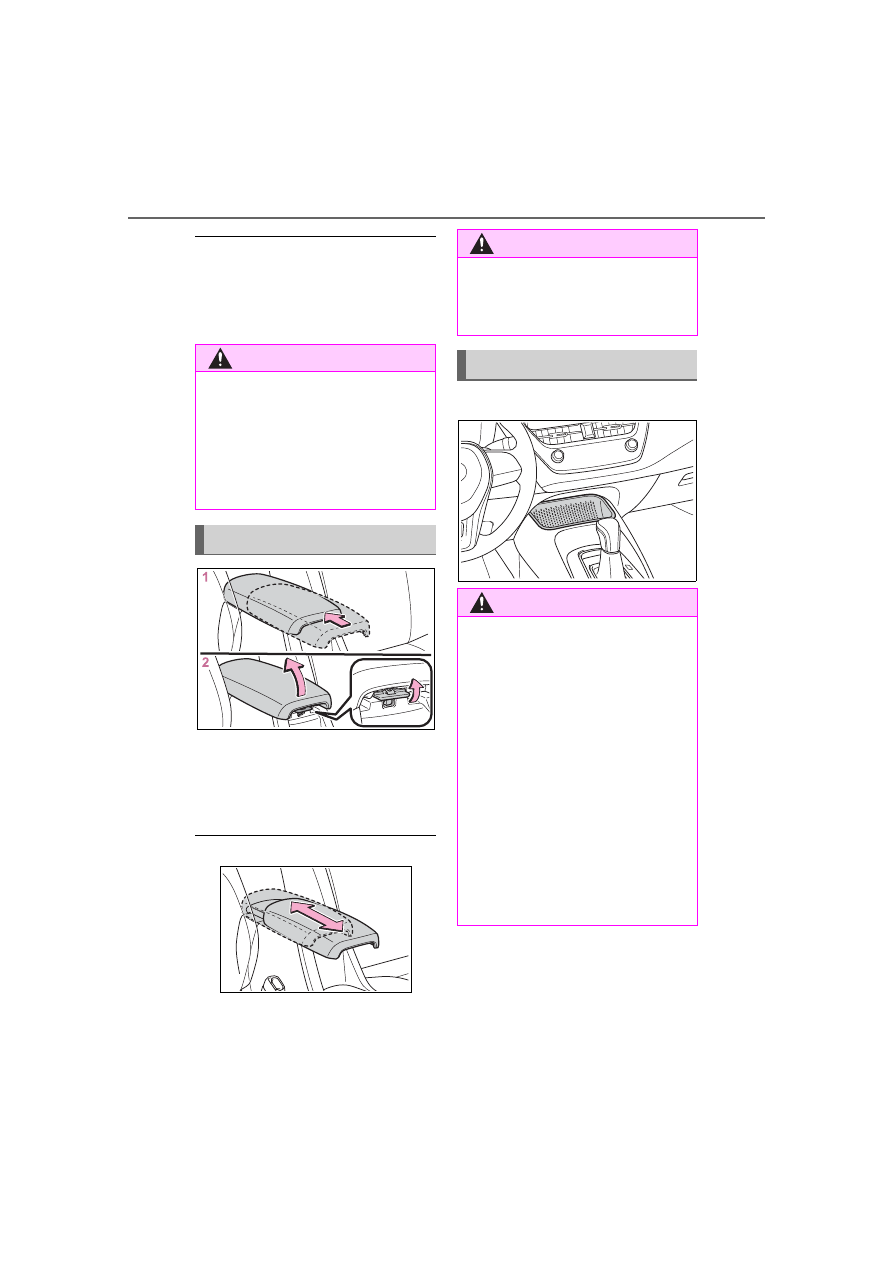

5-3. Using the storage features

■

Bottle holders

●

When storing a bottle, close the

cap.

●

The bottle may not be stored

depending on its size or shape.

Slide the lid to the rear most
position.

Lift the lid while pulling up the
knob.

■

Slide function

The console box lid can be slid for-

ward or backward.



Front

WARNING

■

Items unsuitable for the bottle

holders

Do not place anything other than

a bottle in the bottle holders.

Other items may be thrown out of

the holders in the event of an

accident or sudden braking and

cause injury.

Console box

WARNING

■

Caution while driving

Keep the console box closed.

Injuries may result in the event of

an accident or sudden braking.

Open tray (if equipped)

WARNING

■

Caution while driving

Observe the following precautions

when putting items in the open

tray. Failure to do so may cause

items to be thrown out of the tray

in the event of sudden braking or

steering. In these cases, the items

may interfere with pedal operation

or cause driver distraction, result-

ing in an accident.

●

Do not store items in the tray

that can easily shift or roll out.

●

Do not stack items in the tray

higher than the tray’s edge.

●

Do not put items in the tray that

may protrude over the tray’s

edge.

291

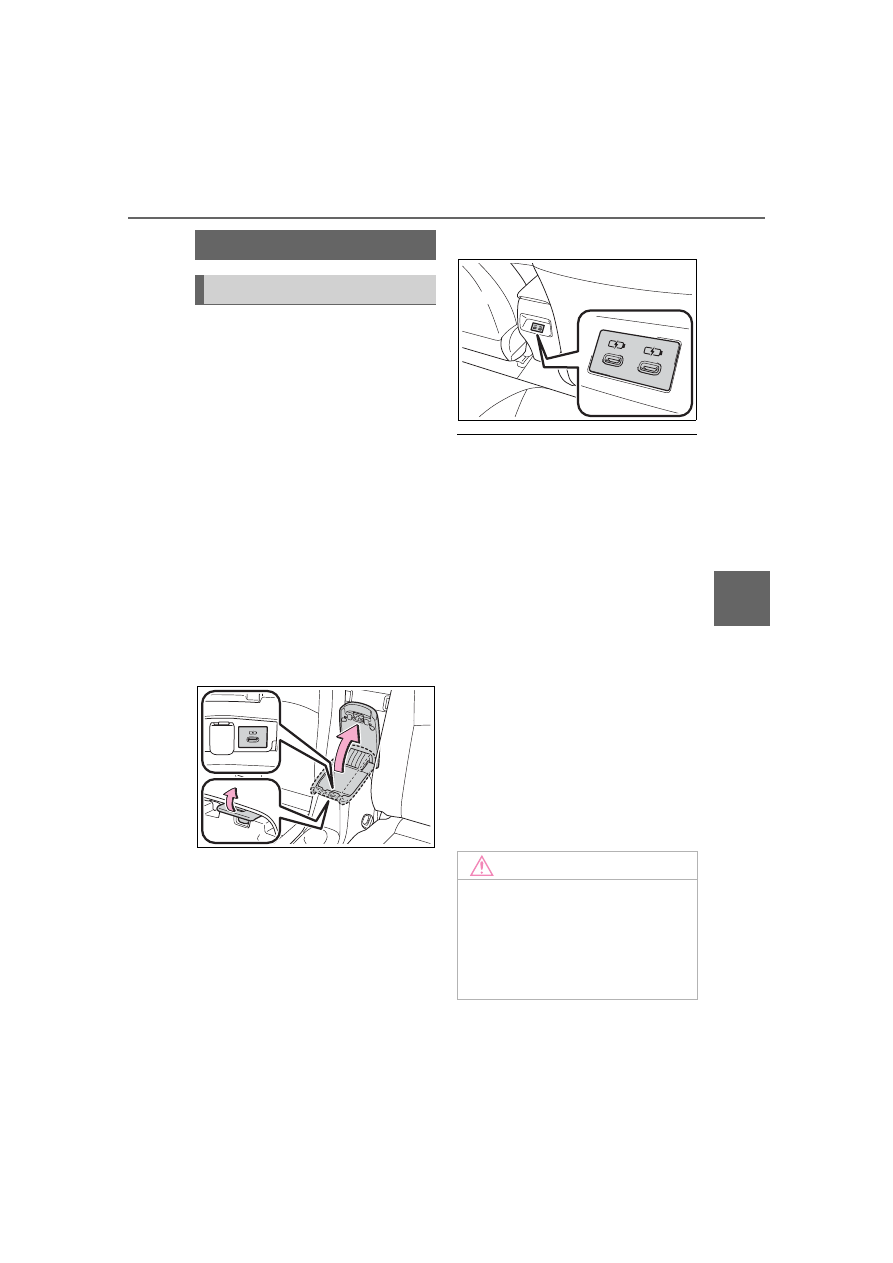

5-4. Other interior features

Interior

featur

5-4.Other interior features

The USB charging port are used
to supply 3.0 A of electricity at 5
V to external devices.
The USB charging port are for
charging only. They are not
designed for data transfer or
other purposes.
Depending on the external
device, it may not charge prop-
erly. Refer to the manual
included with the device before
using a USB charging port.

■

Using the USB charging
port



Front

Lift the lid while pulling up the
knob.



Rear

■

The USB charging port can be

used when

The power switch is in ACC or ON.

■

Situations in which the USB

charging port may not operate

correctly

●

If a device which consumes more

than 3.0 A at 5 V is connected

●

If a device designed to communi-

cate with a personal computer,

such as a USB memory device, is

connected

●

If the connected external device is

turned off (depending on device)

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun

■

About connected external

device

Depending on the connected exter-

nal device, charging may occasion-

ally be suspended and then start

again. This is not a malfunction.

Other interior features

USB charging port

NOTICE

■

To prevent damage to the

USB charging port

●

Do not insert foreign objects into

the port.

●

Do not spill water or other liq-

uids into the port.

292

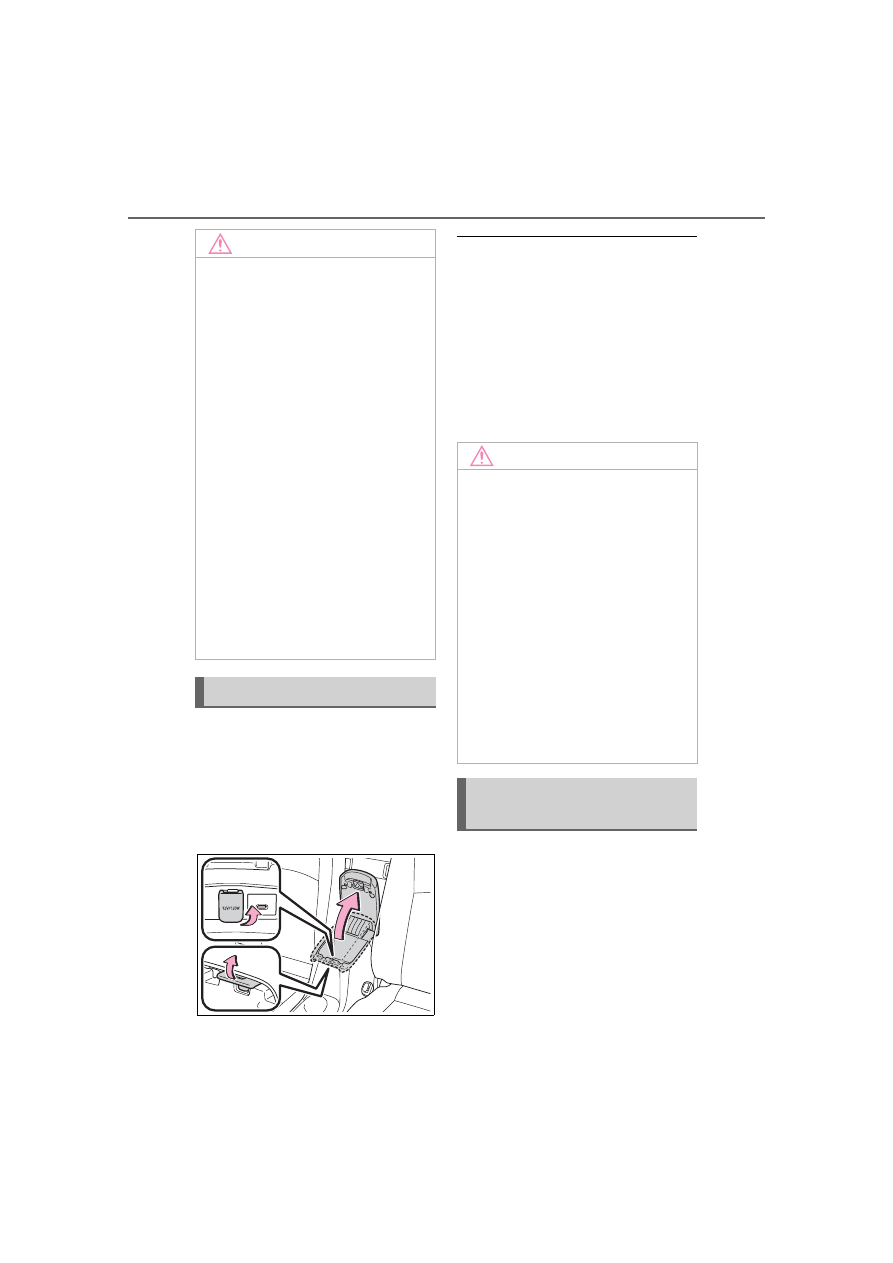

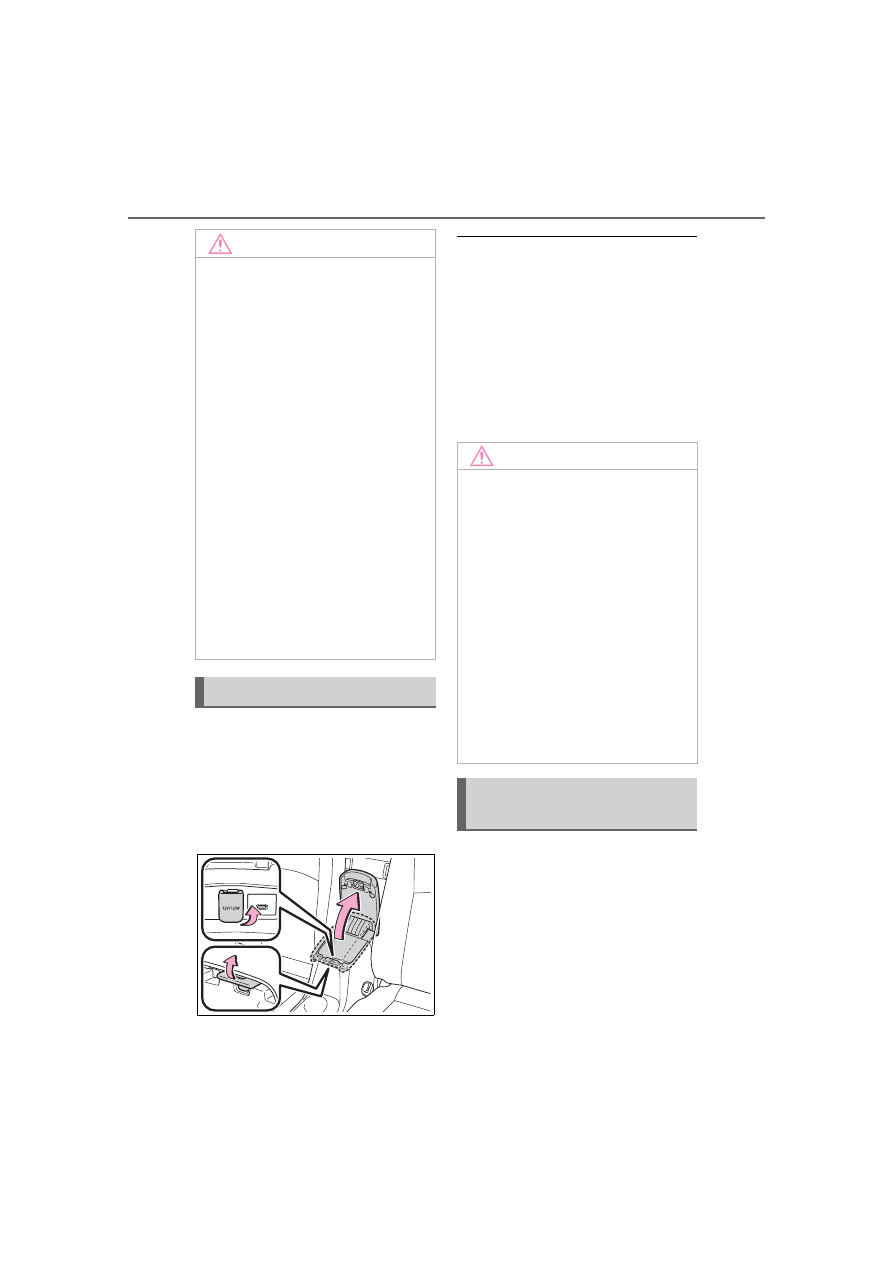

5-4. Other interior features

The power outlet can be used
for 12 V accessories that run on
less than 10 A.
Lift the lid while pulling up the
knob and open the power outlet
lid.

■

The power outlet can be used

when

The power switch is in ACC or ON.

■

When stopping the hybrid sys-

tem

Disconnect electrical devices with

charging functions, such as mobile

battery packs.

If such devices are left connected,

the hybrid system may not stop nor-

mally.

A portable device, such as a
smartphone or mobile battery,
can be charged by just placing it
on the charging area, provided
the device is compatible with the
Qi wireless charging standard
created by the Wireless Power
Consortium.
The wireless charger cannot be
used with a portable device that

NOTICE

●

Do not apply excessive force to

or impact the USB charging

port.

●

Do not disassemble or modify

the USB charging port.

■

To prevent damage to exter-

nal devices

●

Do not leave external devices in

the vehicle. The temperature

inside the vehicle may become

high, resulting in damage to an

external device.

●

Do not push down on or apply

unnecessary force to an exter-

nal device or the cable of an

external device while it is con-

nected.

■

To prevent 12-volt battery dis-

charge

Do not use the USB charging port

for a long period of time with the

hybrid system stopped.

Power outlet

NOTICE

■

To prevent the fuse from

being blown

Do not use an accessory that

uses more than 12 V 10 A.

■

To avoid damaging the power

outlet

Close the power outlet lid when

the power outlet is not in use.

Foreign objects or liquids that

enter the power outlet may cause

a short circuit.

■

To prevent 12-volt battery dis-

charged

Do not use the power outlet lon-

ger than necessary when the

hybrid system is off.

Wireless charger (if
equipped)

293

5-4. Other interior features

Interior

featur

is larger than the charging area.
Additionally, depending on the
portable device, the wireless
charger may not operate prop-
erly. Refer to the operation man-
ual of the portable device.

■

The “Qi” symbol

The “Qi” symbol is a trademark
of the Wireless Power Consor-
tium.

■

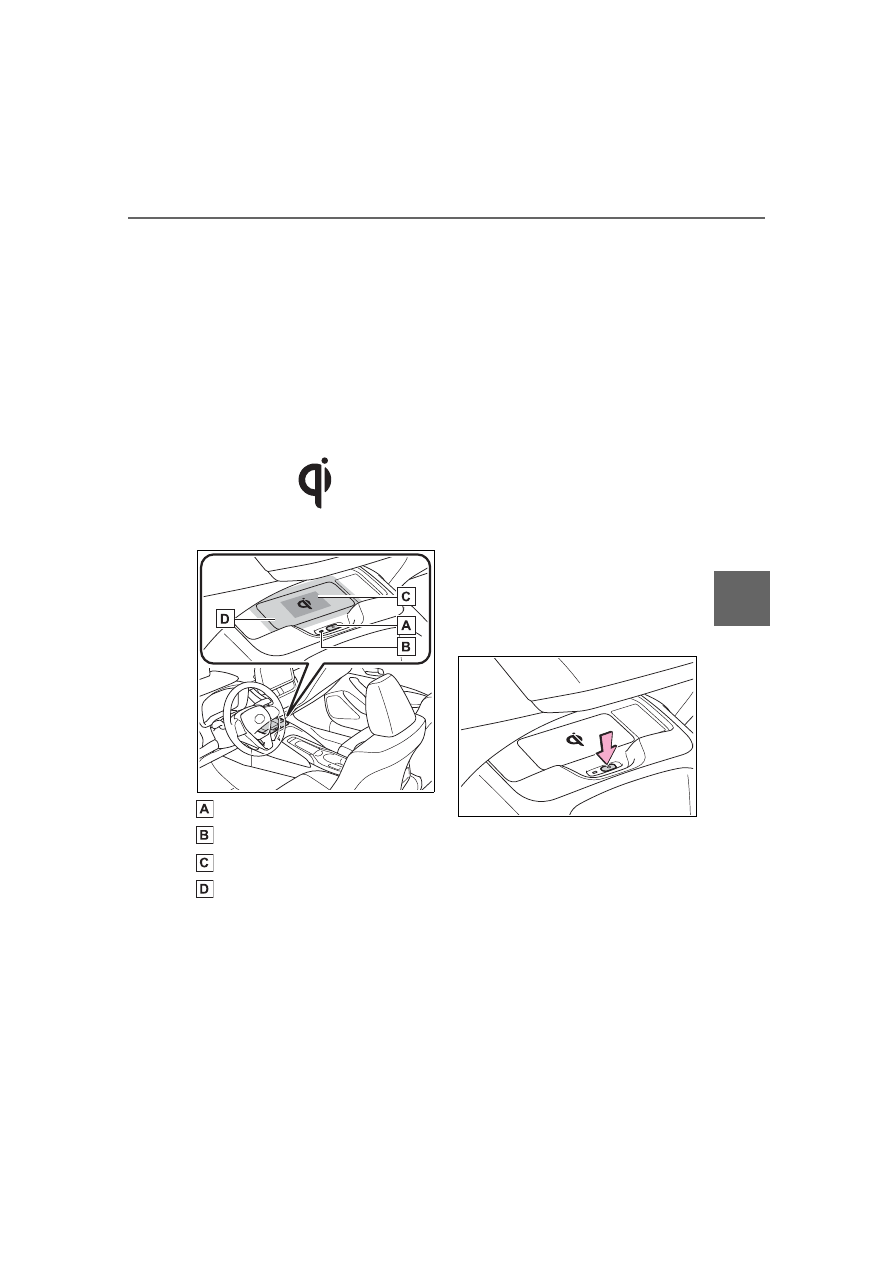

Name for all parts

Power supply switch
Operation indicator light

Charge area

Charging tray

: Portable devices and wireless

chargers contain charging coils.
The charging coil in the wireless
charger can be moved within the
charge area near the center of
the charging tray. If the charging
coil inside a portable device is

detected in the charge area, the
charging coil inside the wireless
charger will move toward it and
start charging. If the charging coil
inside a portable device moves
outside of the charge area,
charging will automatically stop.
If 2 or more portable devices are
placed on the charging tray, their
charging coils may not be prop-
erly detected and they may not
be charged.

■

Using the wireless charger

Press the power supply
switch of the wireless char-
ger.

Pressing the switch again turns the

wireless charger off.

When turned on, the operation indi-

cator light (green) comes on.

When the power switch is turned

off, the on/off state of the wireless

charger will be memorized.

Place a portable device on
the charging area with its
charging surface facing
down.

While charging, the operation indi-

cator light (orange) will be illumi-

nated.

If charging does not begin, move

the portable device as close to the

center of the charging area as pos-

sible.

If charging is not performed, the

294

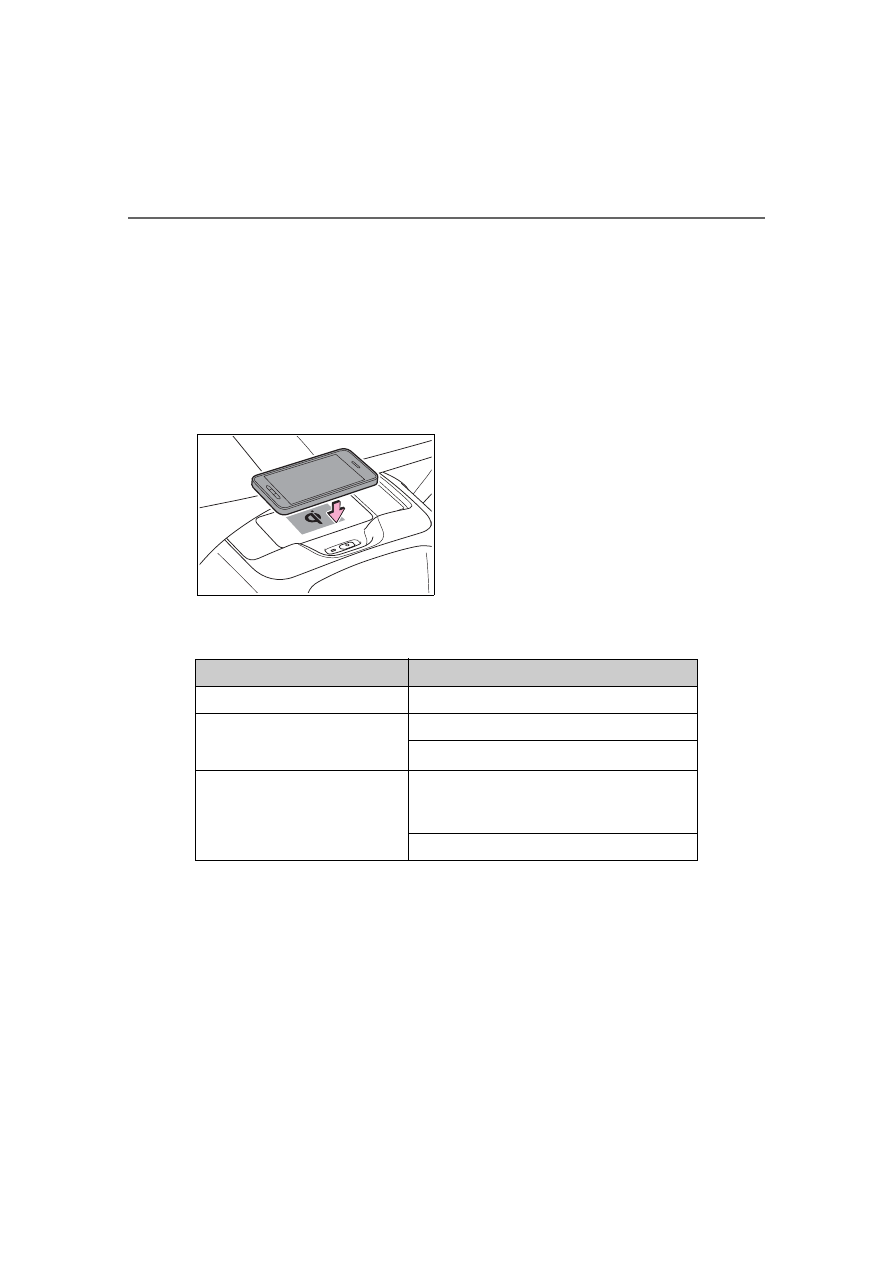

5-4. Other interior features

operation indicator light will slowly

illuminate in green and orange

alternatively and a sound of

charging coil operation may be

heard repeatedly. Depending on

the portable device, its charging coil

may not be in the center of the

device. In this case, place the por-

table device so that its charging coil

is centered in the charging area.

When charging is complete, the

operation indicator light (green) will

illuminate.

■

Recharging function



If a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the
wireless charger will restart
charging.



If a portable device is moved
significantly within the
charging area, the charging
coil may disconnect and
charging may temporarily be
stopped. However, if a
charging coil is detected
within the charging area, the
charging coil inside the wire-
less charger will move near
the other coil and charging
will resume.

■

Operation indicator light status

: Depending on the portable device, the operation indicator light may stay

illuminated (orange) after charging has completed.



If the operation indicator light blinks

If an error is detected, the operation indicator light will blink (orange). Take
the appropriate measures according to the table below.

Operation indicator light

State

Off

The Wireless charger is off

Green (illuminated)

Standby (charging is possible)

Charging is complete

Orange (illuminated)

A portable device has been placed on the
charging area (identifying the portable
device)

Charging in progress

295

5-4. Other interior features

Interior

featur

■

The wireless charger can be

operated when

The power switch is in ACC or ON.

■

Portable devices that can be

charged

●

Portable devices compatible with

the Qi wireless charging standard

can be charged by the wireless

charger. However, compatibility

with all devices which meet the Qi

wireless charging standard is not

guaranteed.

●

The wireless charger is designed

to supply low power electricity (5

W or less) to a cellular phone,

smartphone, or other portable

device.

■

If a cover or accessory is

attached to the portable device

Do not charge a portable device if a

cover or accessory which is not Qi

compatible is attached. Depending

on the type of cover (including for

certain genuine manufacture parts)

and/or accessory attached, it may

not be possible to charge the porta-

ble device. If the portable device is

placed on the charging area and

does not charge, remove the cover

and/or accessories.

■

If interference is heard in AM

radio broadcasts while

charging

Turn off the wireless charger and

check if the noise is reduced. If

noise is reduced, press and hold the

power supply switch of the wireless

charger for 2 seconds. The fre-

quency of the wireless charger is

changed and noise may be

reduced. When the frequency is

changed, the operation indicator

light will blink (orange) 2 times.

Operation indicator light Suspected cause

Measure

Blinks (orange) at a one
second interval continu-
ously

Vehicle to charger com-
munication failure.

If the hybrid system is
turned on, off and then
restart the hybrid sys-
tem.
If the power switch is in
ACC, start the hybrid
system.

Blinks (orange) 3 times
repeatedly

A foreign object exists
between the portable
device and charging
area.

Remove the foreign
object.

Portable device is not
positioned properly on
the charging area.

If there is a case or
cover attached to the
portable device, remove
it.

Blinks (orange) 4 times
repeatedly

The temperature of the
wireless charger is
excessively high.

Stop charging, remove
the portable device from
the charging tray, wait
for the temperature to
drop, and then start
charging again.

296

5-4. Other interior features

■

Charging precautions

●

If the electronic key cannot be

detected in the cabin, charging

cannot be performed. When a

door is opened and closed,

charging may be temporarily sus-

pended.

●

While charging, the wireless char-

ger and the portable device will

become warm.

This is not a malfunction.If a porta-

ble device becomes warm while

charging and charging stops due

to the protection function of the

portable device, wait until the por-

table device cools down and

charge it again.

■

Sound generated during opera-

tion

When the power supply switch is

turned on or while a portable device

is being identified, operation sounds

may be heard. This is not a malfunc-

tion.

■

Cleaning the wireless charger



P.305

WARNING

■

Caution while driving

When charging a portable device,

for safety reasons, the driver

should not operate the main part

of the portable device while driv-

ing.

■

Caution while in motion

Do not charge lightweight devices

such as wireless headphones

while in motion. These devices

are very light and may be ejected

from the charging tray, which may

lead to unforeseen accidents.

■

Caution regarding interfer-

ence with electronic devices

People with implantable cardiac

pacemakers, cardiac resynchroni-

zation therapy pacemakers or

implantable cardioverter defibrilla-

tors, as well as any other electri-

cal medical device, should consult

their physician about the usage of

the wireless charger.

■

To prevent damage or burns

Observe the following precau-

tions.

Failure to do so may result in a

equipment failure and damage,

catch fire, burns due to overheat

or electric shock.

●

Do not insert any metallic

objects between the charge

area and the portable device

while charging

●

Do not attach an aluminum

sticker or other metallic object to

the charge area.

●

Do not attach an aluminum

sticker or other metallic object to

the side of the portable device

(or to its case or cover) that

touches the charge area.

●

Do not use the charging tray as

a small storage space.

●

Do not subject to a strong force

or impact.

●

Do not disassemble, modify or

remove.

●

Do not charge devices other

than specified portable devices.

●

Keep away from magnetic

items.

●

Do not charge devices if the

charge area is covered in dust.

●

Do not cover with a cloth or sim-

ilar material.

297

5-4. Other interior features

Interior

featur

NOTICE

■

Situations in which the func-

tion may not operate normally

Devices may not be charged nor-

mally in the following situations.

●

The portable device is fully

charged

●

The portable device is being

charged with a cable connected

●

There is foreign matter between

the charge area and portable

device

●

Charging has caused the porta-

ble device to heat up

●

The temperature around the

charging tray is 95°F (35°C) or

higher, such as in extreme heat

●

The portable device is placed

with its charging side facing up

●

The portable device is placed in

an area misaligned from the

charge area

●

The portable device is larger

than the charging tray

●

A foldable and portable device

is placed outside the charge

area

●

The camera lens protrudes 0.12

in (3 mm) or more from the sur-

face of the portable device

●

The vehicle is in an area where

strong electrical waves or noise

are emitted, such as near a tele-

vision tower, power plant, gaso-

line station, broadcasting

station, large display, airport,

etc.

●

Any of the following objects that

is 0.08 in (2 mm) or thicker is

between the charging side of

the portable device and the

charge area

• Thick cases or covers

• A case or cover attached with

an uneven or tilted surface, so

that the charging side is not flat

• Thick decorations

• Accessories, such as finger

rings, straps, etc.

●

When the portable device is in

contact with, or is covered by

any of the following metallic

objects:

• A card that has metal on it, such

as aluminum foil, etc.

• A pack of cigarettes that

includes aluminum foil

• A wallet or bag that is made of

metal

• Coins

• A heating pad

• CDs, DVDs or other media

• A metal accessory

• A case or cover made of metal

• A case which has magnet in it

on the charging side of the por-

table device.

●

Electric wave type wireless

remote controls are being used

nearby

298

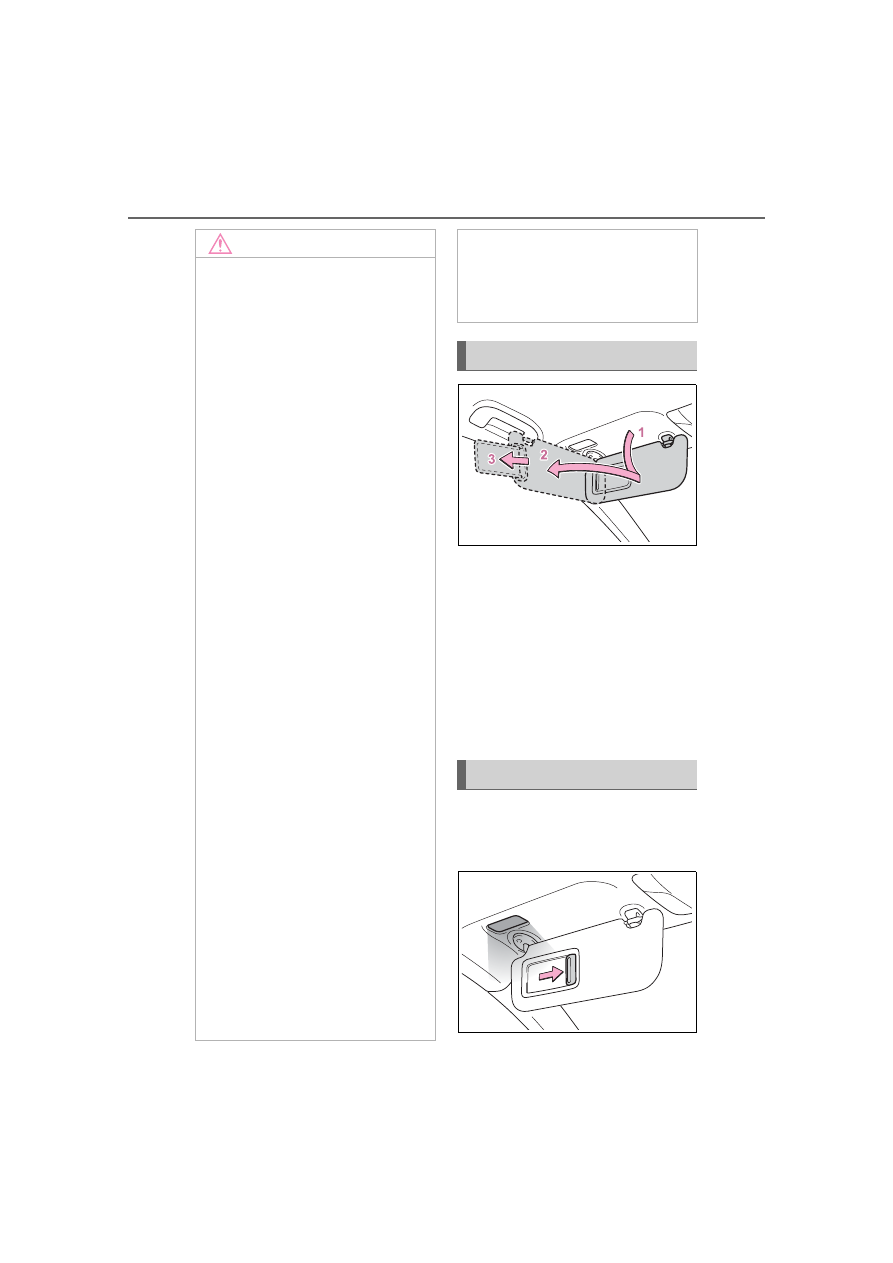

5-4. Other interior features

To set the visor in the forward
position, flip it down.

To set the visor in the side
position, flip down, unhook,
and swing it to the side.

To use the side extender,
place the visor in the side
position, then slide it back-
ward.

Slide the cover to open.

The vanity light turns on. (if
equipped)

NOTICE

●

2 or more portable devices are

placed on the charging tray at

the same time

If charging is abnormal or the
operation indicator light contin-
ues to flash for any other reason,
the wireless charger may be mal-
functioning. Contact your Toyota
dealer.

■

To prevent malfunctions and

data corruptions

●

When charging, bringing a

credit, or other magnetic card,

or magnetic storage media

close to the charge area may

clear any stored data due to

magnetic influence. Also, do not

bring a wristwatch or other pre-

cision instrument close to the

charge area since doing so may

cause it to malfunction.

●

Do not charge with a non-con-

tact IC card such as a transpor-

tation system IC card inserted

between the charging side of a

portable device and the charge

area. The IC chip may become

extremely hot and damage the

portable device or IC card. Be

especially careful not to charge

a portable device inside a case

or cover with a non-contact IC

card attached.

●

Do not leave portable devices

inside the vehicle. The inside of

the vehicle can become hot in

extreme heat, which could

cause a malfunction.

■

If the smartphone OS has

been updated

If the smartphone OS has been

updated to a newer version, its

charging specifications may have

changed significantly. For details,

check the information on the man-

ufacturer’s website.

■

To prevent 12-volt battery dis-

charge

Do not use the wireless charger

for a long period of time with the

hybrid system stopped.

Sun visors

Vanity mirrors

299

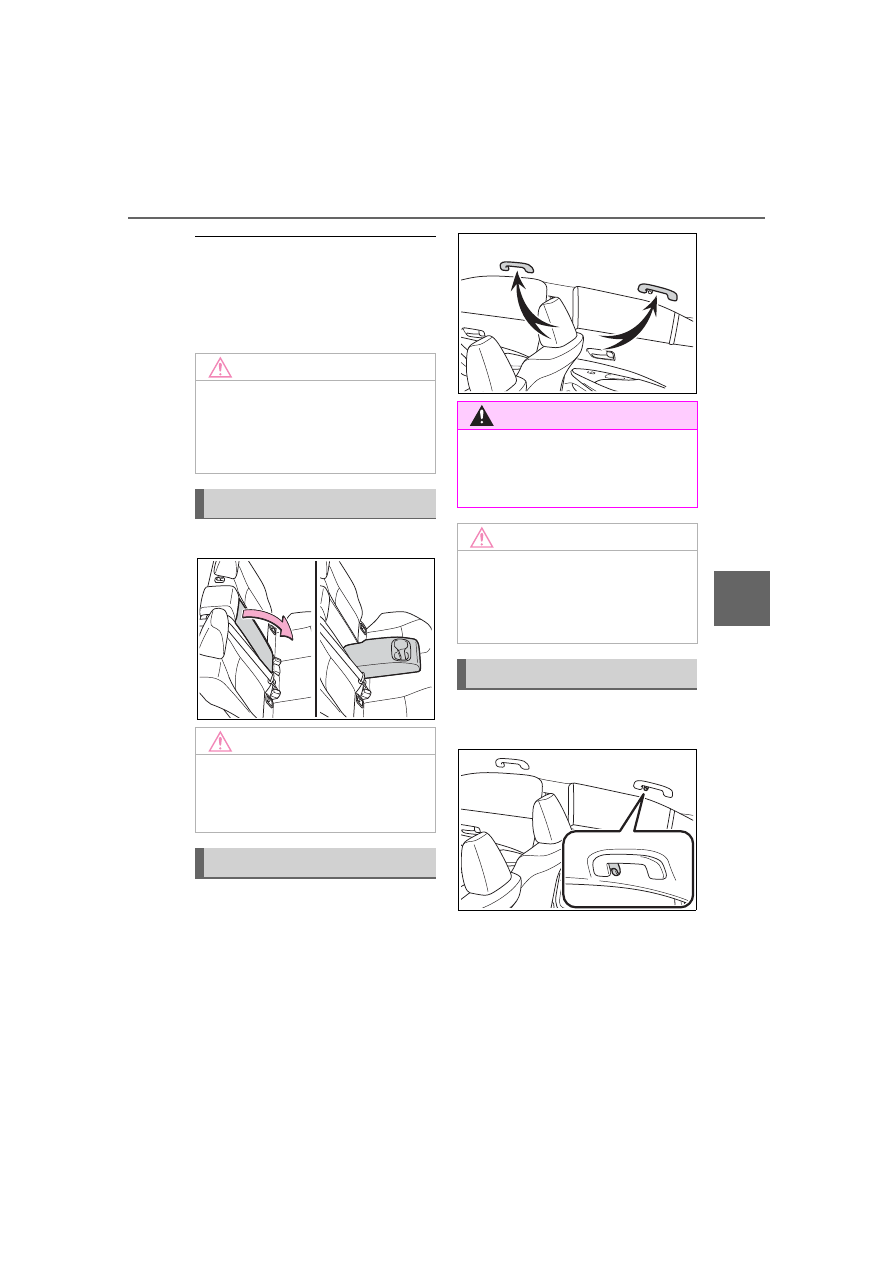

5-4. Other interior features

Interior

featur

■

To prevent 12-volt battery dis-

charge

If the vanity lights remain on when

the power switch is OFF, the lights

will go off automatically after 20 min-

utes.

Fold down the armrest for use.

An assist grip installed on the
ceiling can be used to support
your body while sitting on the
seat.

The coat hooks are provided
with the rear assist grips.

NOTICE

■

To prevent the 12-volt battery

from being discharged

Do not leave the vanity lights on

for extended periods while the

hybrid system is off.

Armrest

NOTICE

■

To prevent damage to the

armrest

Do not apply too much load on the

armrest.

Assist grips

WARNING

■

Assist grip

Do not use the assist grip when

getting in or out of the vehicle or

rising from your seat.

NOTICE

■

To prevent damage to the

assist grip

Do not hang any heavy object or

put a heavy load on the assist

grip.

Coat hooks

301

Maintena

nce
a

nd ca

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting the

vehicle exterior ..........

302

Cleaning and protecting the

vehicle interior ...........

305

6-2. Maintenance

Maintenance requirements

..................................

308

General maintenance..

310

Emission inspection and

maintenance (I/M) pro-
grams ........................

312

6-3. Do-it-yourself mainte-

nance

Do-it-yourself service pre-

cautions.....................

314

Hood ...........................

316

Positioning a floor jack

..................................

317

Engine compartment...

318

Tires ............................

325

Tire inflation pressure..

342

Wheels ........................

344

Air conditioning filter....

346

Cleaning the hybrid battery

(traction battery) air intake
vents..........................

347

Wireless remote con-

trol/electronic key battery

..................................

350

Checking and replacing

fuses..........................

354

Light bulbs...................

356

302

6-1. Maintenance and care

6-1.Maintenance and care



Working from top to bottom,
liberally apply water to the
vehicle body, wheel wells and
underside of the vehicle to
remove any dirt and dust.



Wash the vehicle body using
a sponge or soft cloth, such
as a chamois.



For hard-to-remove marks,
use car wash soap and rinse
thoroughly with water.



Wipe away any water.



Wax the vehicle when the
waterproof coating deterio-
rates.

If water does not bead on a clean
surface, apply wax when the vehi-
cle body is cool.

■

Automatic car washes

●

Fold the mirrors before washing

the vehicle. Start washing from the

front of the vehicle. Make sure to

extend the mirrors before driving.

●

Brushes used in automatic car

washes may scratch the vehicle

surface, parts (wheel, etc.) and

harm your vehicle’s paint.

●

Vehicles with a rear spoiler: In cer-

tain automatic car washes, the

rear spoiler may interfere with

machine operation. This may pre-

vent the vehicle from being

cleaned properly or result in dam-

age to the rear spoiler.

■

High pressure car washes

As water may enter the cabin, do

not bring the nozzle tip near the

gaps around the doors or perimeter

of the windows, or spray these

areas continuously.

■

When using a car wash (vehi-

cles with a smart key system)

If the door handle becomes wet

while the electronic key is within the

effective range, the door may lock

and unlock repeatedly. In that case,

follow the following correction pro-

cedures to wash the vehicle:

●

Place the key in a position 6 ft. (2

m) or more separate from the

vehicle while the vehicle is being

washed. (Take care to ensure that

the key is not stolen.)

●

Set the electronic key to bat-

tery-saving mode to disable the

smart key system. (



P.137)

■

Wheels and wheel ornaments

●

Remove any dirt immediately by

using a neutral detergent.

●

Wash detergent off with water

immediately after use.

●

To protect the paint from damage,

make sure to observe the follow-

ing precautions.

• Do not use acidic, alkaline or

abrasive detergent

• Do not use hard brushes

• Do not use detergent on the

wheels when they are hot, such

as after driving or parking in hot

weather

■

Brake pads and calipers

Rust may form if the vehicle is

parked with wet brake pads or disc

rotors, causing them to stick. Before

parking the vehicle after it is

washed, drive slowly and apply the

brakes several times to dry the

Cleaning and protect-

ing the vehicle exte-

rior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Cleaning instructions

303

6-1. Maintenance and care

Maintena

nce
a

nd ca

parts.

■

Bumpers

Do not scrub with abrasive cleaners.

■

Plated portions

If dirt cannot be removed, clean the

parts as follows:

●

Use a soft cloth dampened with an

approximately 5% solution of neu-

tral detergent and water to clean

the dirt off.

●

Wipe the surface with a dry, soft

cloth to remove any remaining

moisture.

●

To remove oily deposits, use alco-

hol wet wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of

the engine compartment. Doing

so may cause the electrical com-

ponents, etc. to catch fire.

■

Precautions regarding the

exhaust pipe

Exhaust gasses cause the

exhaust pipe to become quite hot.

When washing the vehicle, be

careful not to touch the pipe until it

has cooled sufficiently, as touch-

ing a hot exhaust pipe can cause

burns.

■

Precaution regarding the rear

bumper

If the paint of the rear bumper is

chipped or scratched, the follow-

ing systems may not function cor-

rectly. If this occurs, consult your

Toyota dealer.

●

BSM (if equipped)

●

RCTA (if equipped)

●

SEA (if equipped)

NOTICE

■

To prevent paint deteriora-

tion and corrosion on the

body and components (alumi-

num wheels, etc.)

●

Wash the vehicle immediately in

the following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present

on the paint surface

• If dead insects, insect droppings

or bird droppings are present on

the paint surface

• After driving in an area contami-

nated with soot, oily smoke,

mine dust, iron powder or chem-

ical substances

• If the vehicle becomes heavily

soiled with dust or mud

• If liquids such as benzene and

gasoline are spilled on the paint

surface

●

If the paint is chipped or

scratched, have it repaired

immediately.

●

To prevent the wheels from cor-

roding, remove any dirt and

store in a place with low humid-

ity when storing the wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use

organic substances or scrub

with a hard brush.

This may damage the surfaces

of the lights.

●

Do not apply wax to the sur-

faces of the lights.

Wax may cause damage to the

lenses.

304

6-1. Maintenance and care

NOTICE

■

To prevent damage to the

windshield wiper arms

When lifting the wiper arms away

from the windshield, pull the driver

side wiper arm upward first, and

repeat for the passenger side.

When returning the wipers to their

original position, do so from the

passenger side first.

■

When using a high pressure

car wash

●

When washing the vehicle, do

not spray the camera or its sur-

rounding area directly with a

high pressure washer. Shock

applied from high pressure

water may cause the device to

not operate normally.

●

Do not spray water directly on

the radar which is equipped

behind the emblem. Otherwise

it may cause the device to be

damaged.

●

Do not bring the nozzle tip close

to boots (rubber or resin manu-

factured cover), connectors or

the following parts. The parts

may be damaged if they come

into contact with high-pressure

water.

• Traction related parts

• Steering parts

• Suspension parts

• Brake parts

●

Keep the cleaning nozzle at

least 11.9 in. (30 cm) away from

the vehicle body. Otherwise

resin section, such as moldings

and bumpers, may be deformed

and damaged. Also, do not con-

tinuously hold the nozzle in the

same place.

●

Do not spray the lower part of

the windshield continuously. If

water enters the air conditioning

system intake located near the

lower part of the windshield, the

air conditioning system may not

operate correctly.

●

Do not wash the underside of

the vehicle using a high pres-

sure car washer.

305

6-1. Maintenance and care

Maintena

nce
a

nd ca



Remove dirt and dust using a
vacuum cleaner. Wipe dirty
surfaces with a cloth damp-
ened with lukewarm water.



If dirt cannot be removed,
wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.
Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

■

Shampooing the carpets

There are several commercial foam-

ing-type cleaners available. Use a

sponge or brush to apply the foam.

Rub in overlapping circles. Do not

use water. Wipe dirty surfaces and

let them dry. Excellent results are

obtained by keeping the carpet as

dry as possible.

■

Handling the seat belts

Clean with mild soap and lukewarm

water using a cloth or sponge. Also

check the belts periodically for

excessive wear, fraying or cuts.

Cleaning and protect-

ing the vehicle interior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Protecting the vehicle
interior

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in

the vehicle, such as on the floor,

in the hybrid battery (traction

battery) air intake vent, and in

the trunk. (



P.305)

Doing so may cause the hybrid

battery, electrical components,

etc. to malfunction or catch fire.

●

Do not get any of the SRS com-

ponents or wiring in the vehicle

interior wet.

(



P.31)

An electrical malfunction may

cause the airbags to deploy or

not function properly, resulting

in death or serious injury.

●

Vehicles with wireless charger:

Do not let the wireless charger

(



P.292) get wet. Failure to do

so may cause the charger to

become hot and cause burns or

could cause electric shock

resulting in death or serious

injury.

■

Cleaning the interior (espe-

cially instrument panel)

Do not use polish wax or polish

cleaner. The instrument panel

may reflect off the windshield,

obstructing the driver’s view and

leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following types

of detergent, as they may dis-

color the vehicle interior or

cause streaks or damage to

painted surfaces:

• Areas other than the seats and

steering wheel: Organic sub-

stances such as benzene or

gasoline, alkaline or acidic solu-

tions, dye, and bleach

Toyota Corolla Hybrid (2023 year). Manual in english - page 18
