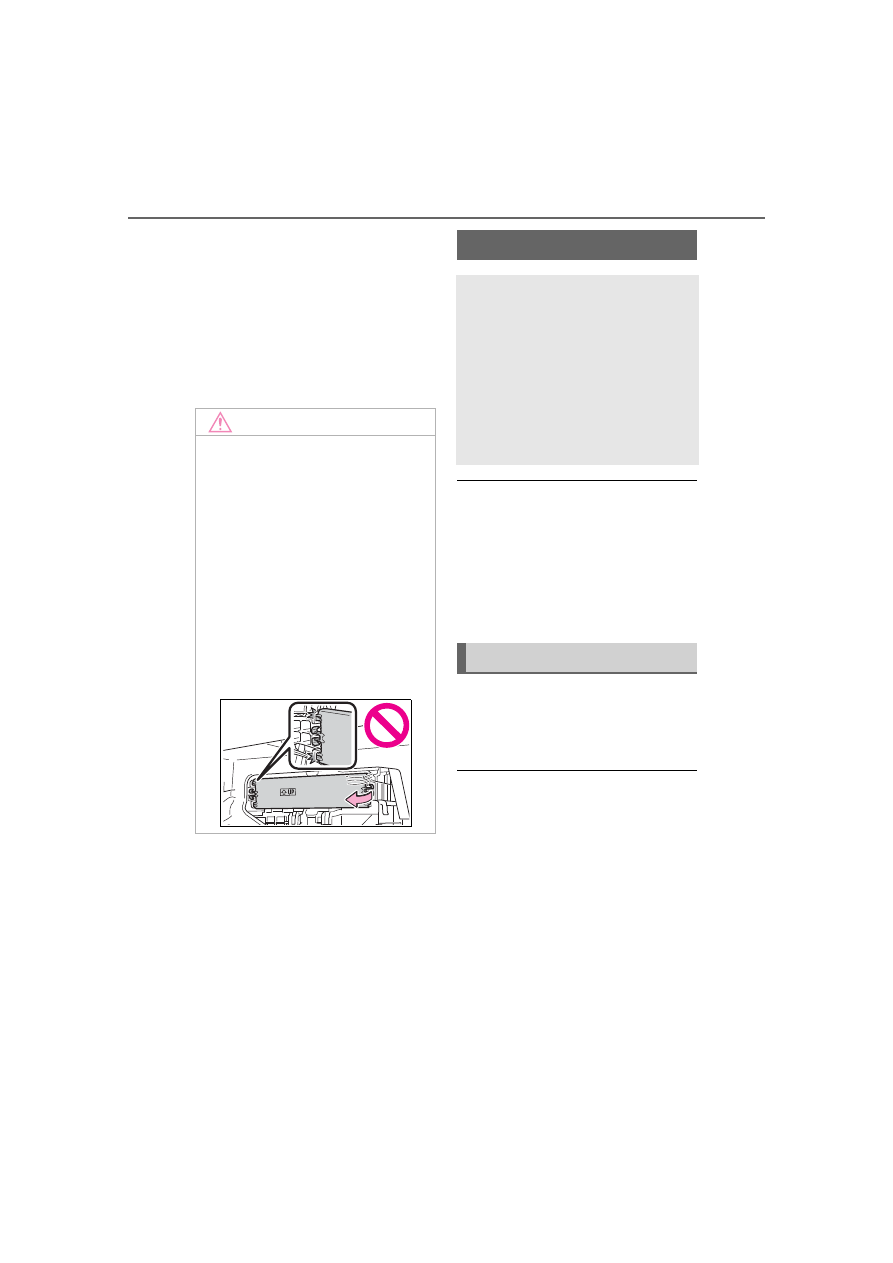

6-3. Do-it-yourself maintenance

frequent cleaning or early replace-

ment may be required. (For sched-

uled maintenance information,

please refer to the “Scheduled

Maintenance Guide” or “Owner’s

Manual Supplement”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

■

If the electronic key battery is

depleted

The following symptoms may occur:

●

The smart key system and wire-

less remote control will not func-

tion properly.

●

The operational range will be

reduced.



Flathead screwdriver



Small flathead screwdriver



Lithium battery CR2450

■

Use a CR2450 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to local laws.

NOTICE

■

When using the air condition-

ing system

Make sure that a filter is always

installed.

Using the air conditioning system

without a filter may cause damage

to the system.

■

To prevent damage to the fil-

ter cover

When moving the filter cover in

the direction of arrow to release

the fitting, pay attention not to

apply excessive force to the

claws. Otherwise, the claws may

be damaged.

Electronic key battery

Replace the battery with a
new one if it is depleted.
As the key may be damaged
if the following procedure is
not performed properly, it is
recommended that key bat-
tery replacement be per-
formed by your Toyota
dealer.

Items to prepare

305

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

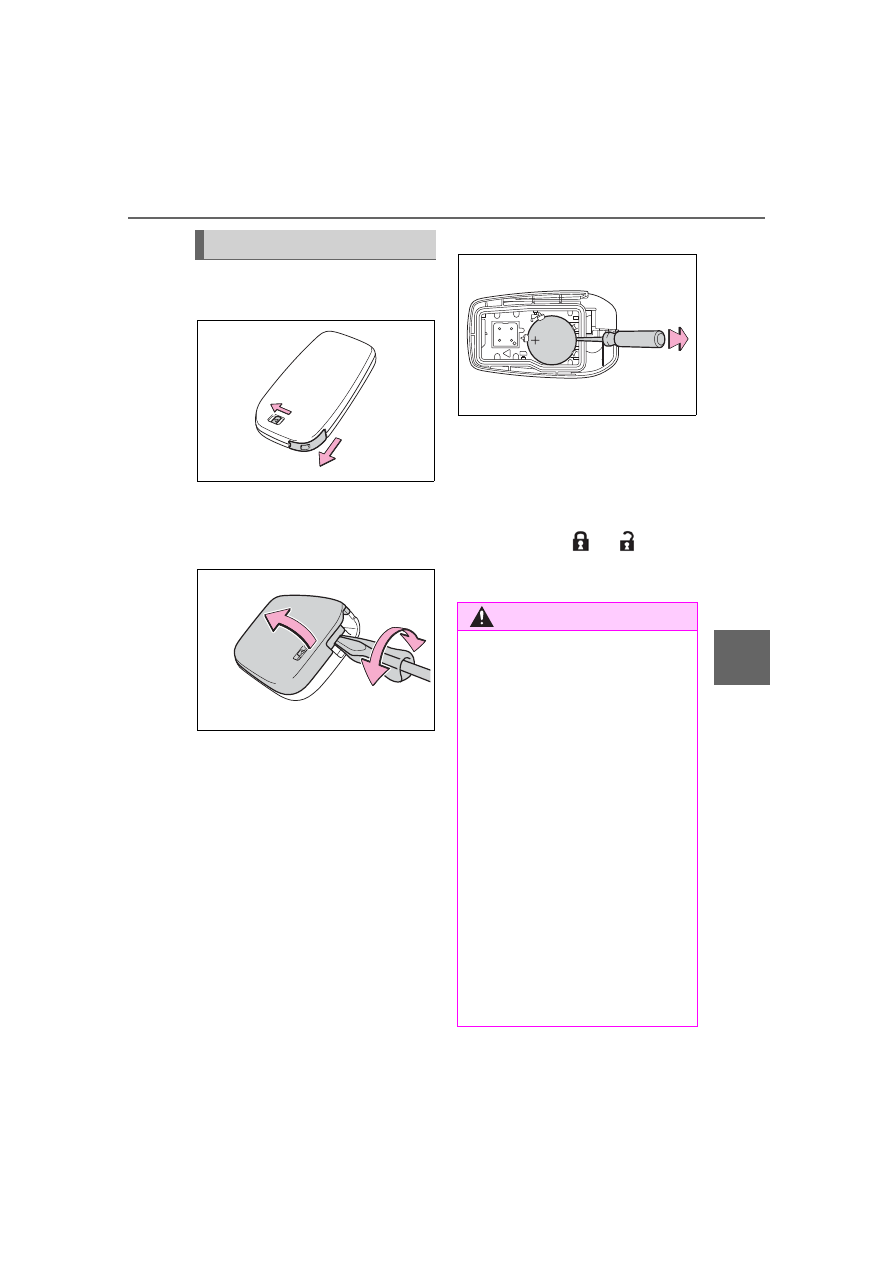

Release the lock and remove
the mechanical key.

Remove the key cover.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

Remove the depleted battery
using a small flathead screw-
driver.

When removing the cover, the elec-

tronic key module may stick to the

cover and the battery may not be

visible. In this case, remove the

electronic key module in order to

remove the battery.
Insert a new battery with the “+” ter-

minal facing up.

When installing the key cover
and mechanical key, install
by conducting step

and

step

with the directions

reversed.

Operate the

switch

and check that the doors can
be locked/unlocked.

Replacing the battery

WARNING

■

Battery precautions

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

306

6-3. Do-it-yourself maintenance

Turn the engine switch off.

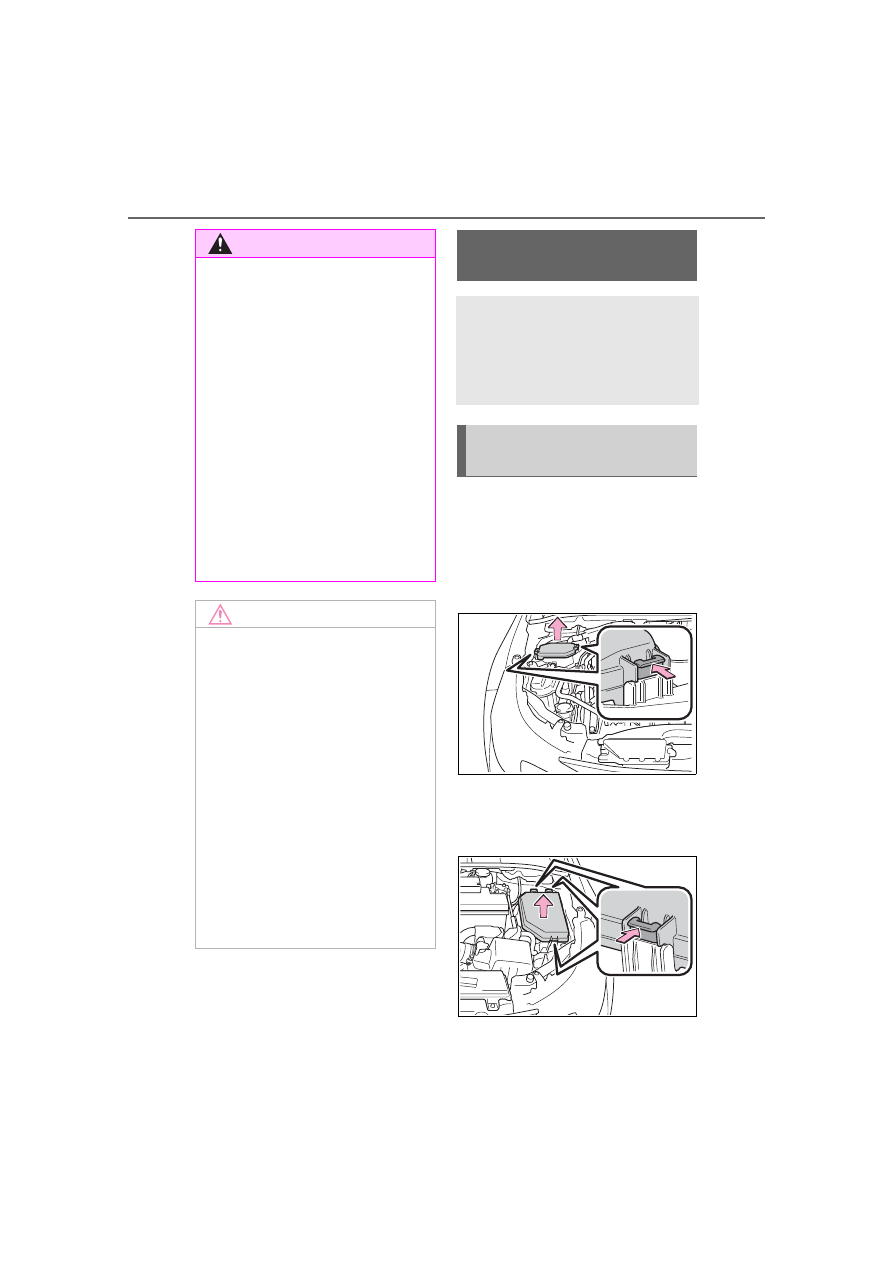

Open the fuse box cover.



Engine compartment: type A
fuse box

Push the tabs in and lift the lid off.



Engine compartment: type B
fuse box

Push the tabs in and lift the lid off.

WARNING

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

NOTICE

■

When replacing the battery

Use a flathead screwdriver of

appropriate size. Applying exces-

sive force may deform or damage

the cover.

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

307

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca



Under the driver’s side instru-
ment panel

Remove the lid.
Make sure to push the claw when
removing/installing the lid.

Remove the fuse with the
pullout tool.
Only type A fuse can be
removed using the pullout
tool.

Check if the fuse is blown.

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.



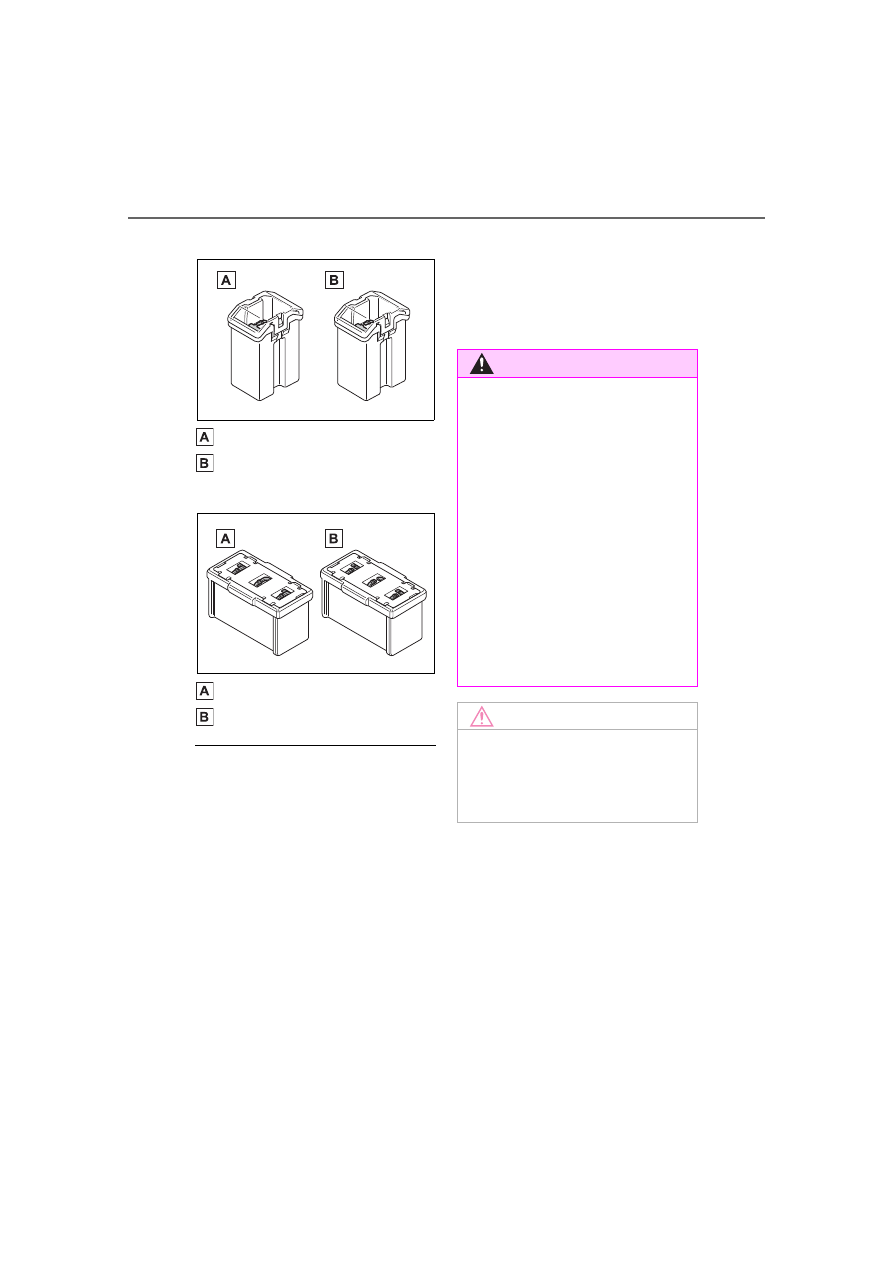

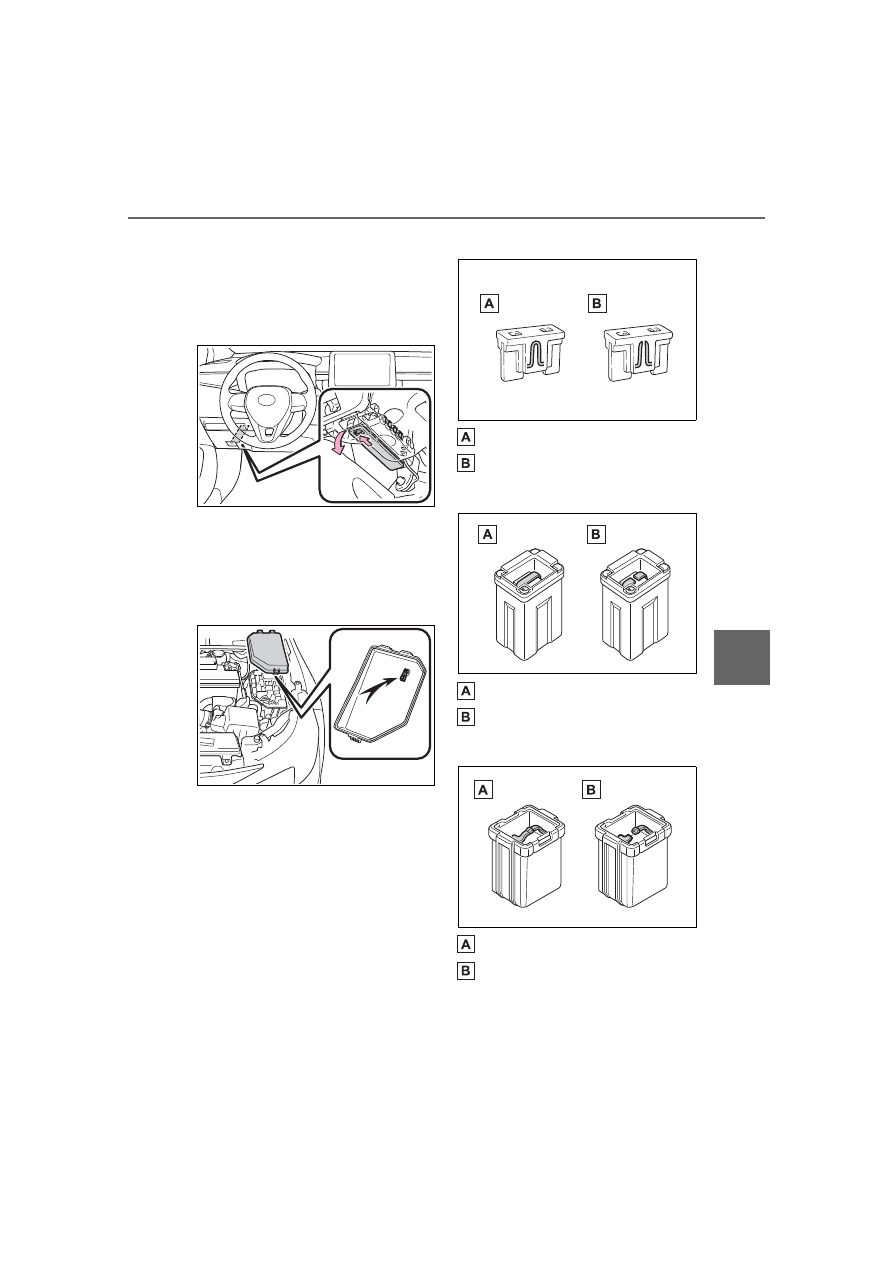

Type A

Normal fuse
Blown fuse



Type B

Normal fuse
Blown fuse



Type C

Normal fuse
Blown fuse

308

6-3. Do-it-yourself maintenance



Type D

Normal fuse
Blown fuse



Type E

Normal fuse
Blown fuse

■

After a fuse is replaced

●

When installing the lid, make sure

that the tab is installed securely.

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

tecting the wiring harness from

damage.

■

When replacing light bulbs

Toyota recommends that you use

genuine Toyota products designed

for this vehicle.

Because certain bulbs are con-

nected to circuits designed to pre-

vent overload, non-genuine parts or

parts not designed for this vehicle

may be unusable.

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

309

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

Check the wattage of the light
bulb to be replaced. (



P.372)

■

Rear

License plate lights

■

Bulbs that need to be
replaced by your Toyota
dealer



Headlights



Parking lights



Front side marker lights



Daytime running lights



Turn signal lights



Front fog lights (if equipped)



Tail lights



Stop lights



Back-up light



High mounted stoplight

■

LED light bulbs

The lights other than the license

plate lights consist of a number of

LEDs. If any of the LEDs burn out,

take your vehicle to your Toyota

dealer to have the light replaced.

■

Condensation build-up on the

inside of the lens

Temporary condensation build-up

on the inside of the headlight lens

does not indicate a malfunction.

Contact your Toyota dealer for more

information in the following situa-

tions:

●

Large drops of water have built up

on the inside of the lens.

●

Water has built up inside the

headlight.

■

When replacing light bulbs



P.308

■

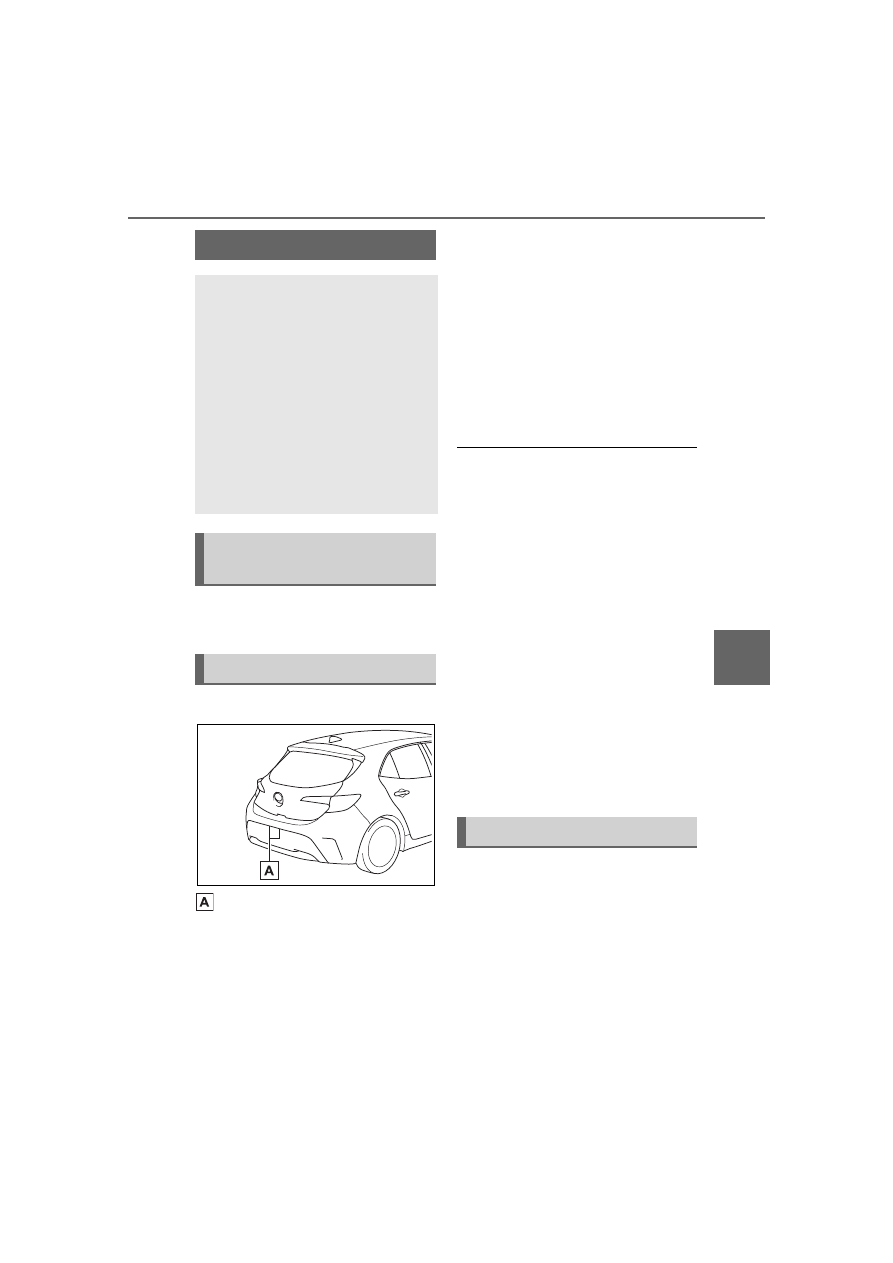

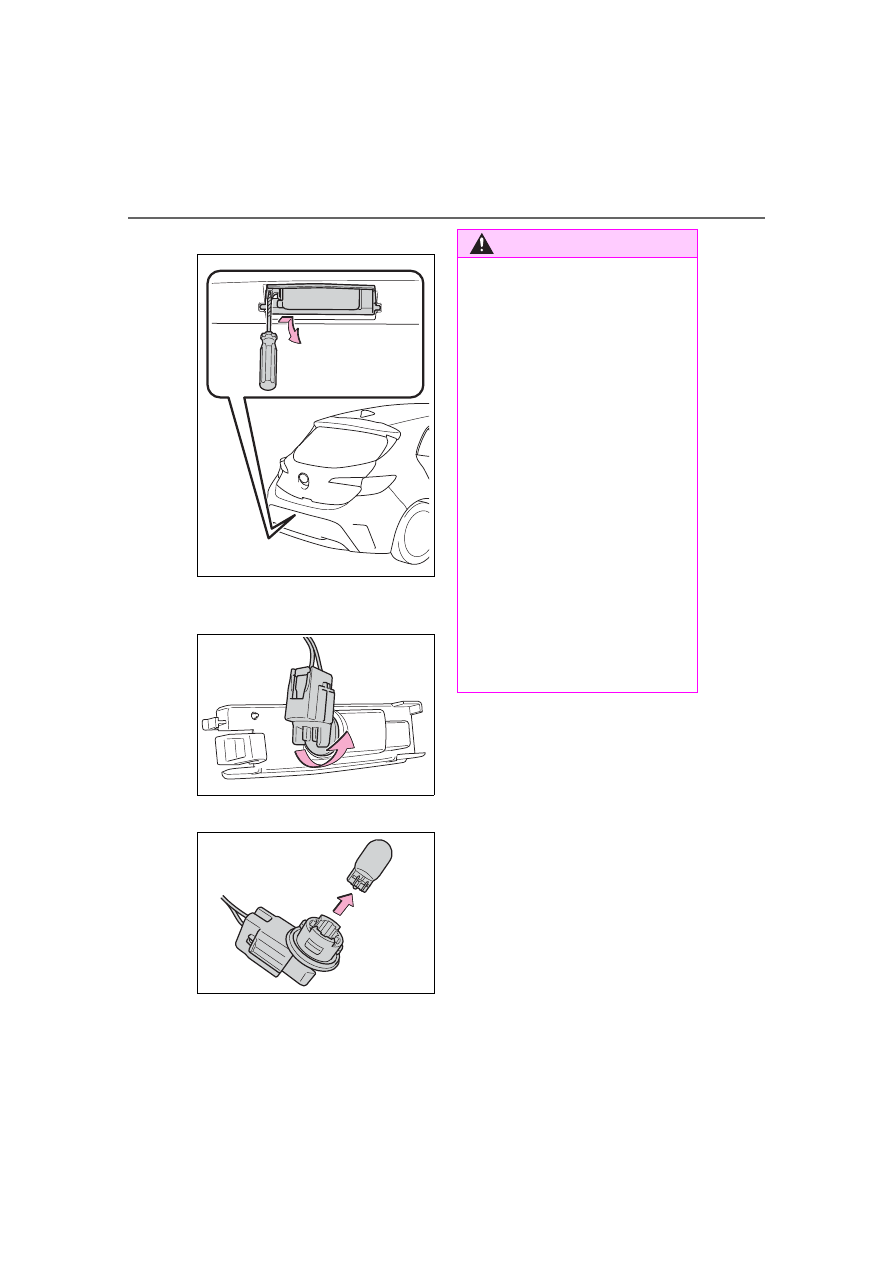

License plate lights

Remove the light unit.

Insert a flathead screwdriver or

similar into the hole next to the light

and remove it as shown in the illus-

tration.
To prevent damaging the vehicle,

wrap the flathead screwdriver with

Light bulbs

You may replace the follow-
ing bulbs yourself. The diffi-
culty level of replacement
varies depending on the
bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.

For more information about
replacing other light bulbs,
contact your Toyota dealer.

Preparing for light bulb
replacement

Bulb locations

Replacing light bulbs

310

6-3. Do-it-yourself maintenance

a tape.

Turn the bulb base counter-
clockwise and remove it.

Remove the light bulb.

When installing, reverse the
steps listed.

WARNING

■

Replacing light bulbs

●

Turn off the lights. Do not

attempt to replace the bulb

immediately after turning off the

lights. The bulbs become very

hot and may cause burns.

●

Do not touch the glass portion

of the light bulb with bare

hands. When it is unavoidable

to hold the glass portion, use

and hold with a clean dry cloth

to avoid getting moisture and

oils on the bulb. Also, if the bulb

is scratched or dropped, it may

blow out or crack.

●

Fully install light bulbs and any

parts used to secure them. Fail-

ure to do so may result in heat

damage, fire, or water entering

the light unit. This may damage

the lights or cause condensa-

tion to build up on the lens.

■

To prevent damage or fire

Make sure bulbs are fully seated

and locked.

311

Whe

n tr

ouble

ises

When trouble arises

7-1. Essential information

Emergency flashers ....

312

If your vehicle has to be

stopped in an emergency

..................................

312

If the vehicle is submerged

or water on the road is ris-
ing .............................

313

7-2. Steps to take in an emer-

gency

If your vehicle needs to be

towed.........................

315

If you think something is

wrong ........................

318

Fuel pump shut off system

..................................

319

If a warning light turns on or

a warning buzzer sounds

..................................

320

If a warning message is dis-

played........................

330

If you have a flat tire (vehi-

cles without spare tire)

..................................

334

If you have a flat tire (vehi-

cles with a spare tire)

..................................

346

If the engine will not start

..................................

354

If you lose your keys ...

356

If the electronic key does

not operate properly ..

356

If the vehicle battery is dis-

charged .....................

358

If your vehicle overheats

..................................

362

If the vehicle becomes stuck

..................................

364

312

7-1. Essential information

7-1.Essential information

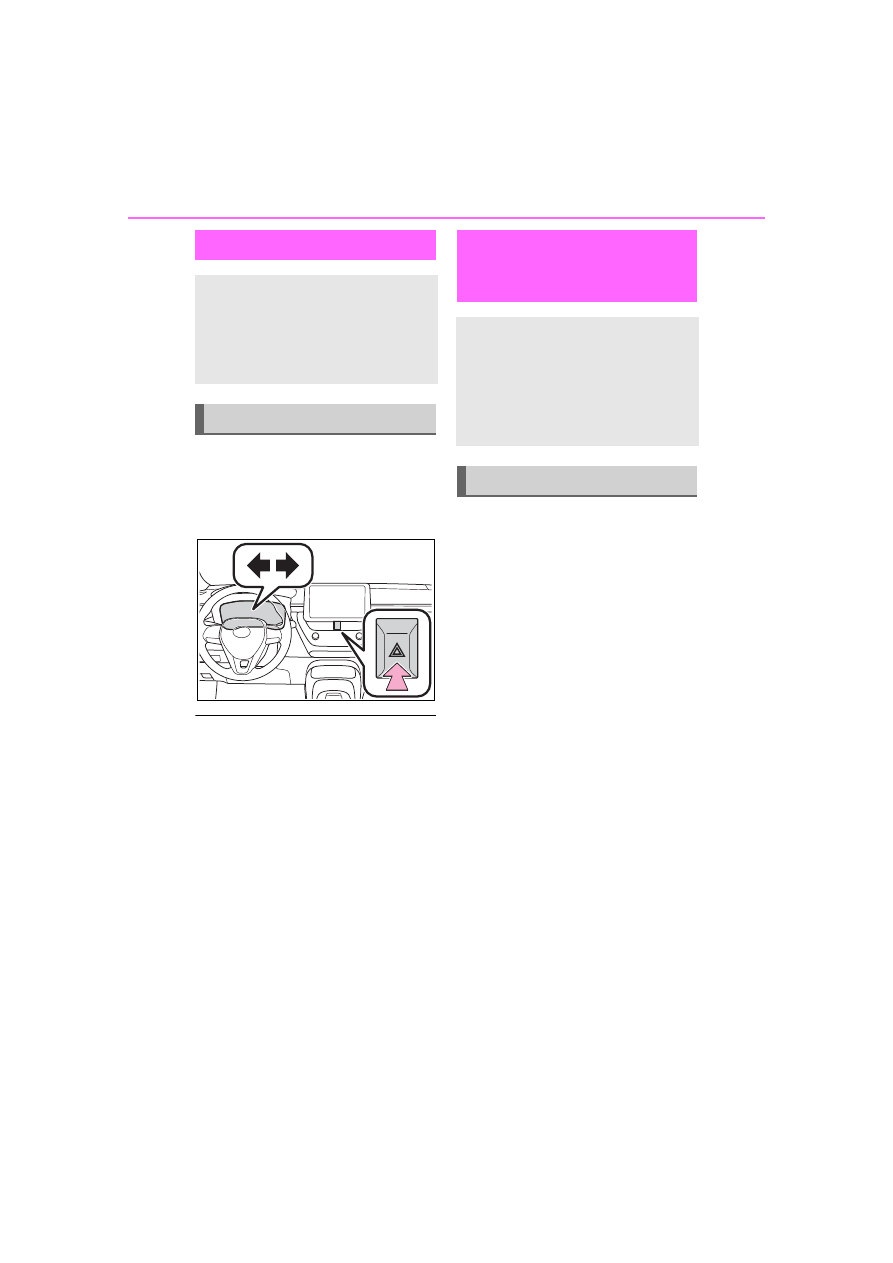

Press the switch.

All the turn signal lights will flash.
To turn them off, press the switch
once again.

■

Emergency flashers

●

If the emergency flashers are

used for a long time while the

engine is not operating, the bat-

tery may discharge.

●

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the emergency flash-

ers will turn on automatically.

The emergency flashers will turn

off automatically after operating

for approximately 20 minutes. To

manually turn the emergency

flashers off, press the switch

twice.

(The emergency flashers may not

turn on automatically depending

on the force of the impact and

conditions of the collision.)

Steadily step on the brake
pedal with both feet and
firmly depress it.

Do not pump the brake pedal

repeatedly as this will increase the

effort required to slow the vehicle.

Shift the shift lever to N.



If the shift lever is shifted to N

After slowing down, stop the
vehicle in a safe place by the
road.

Stop the engine.



If the shift lever cannot be
shifted to N

Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as
possible.

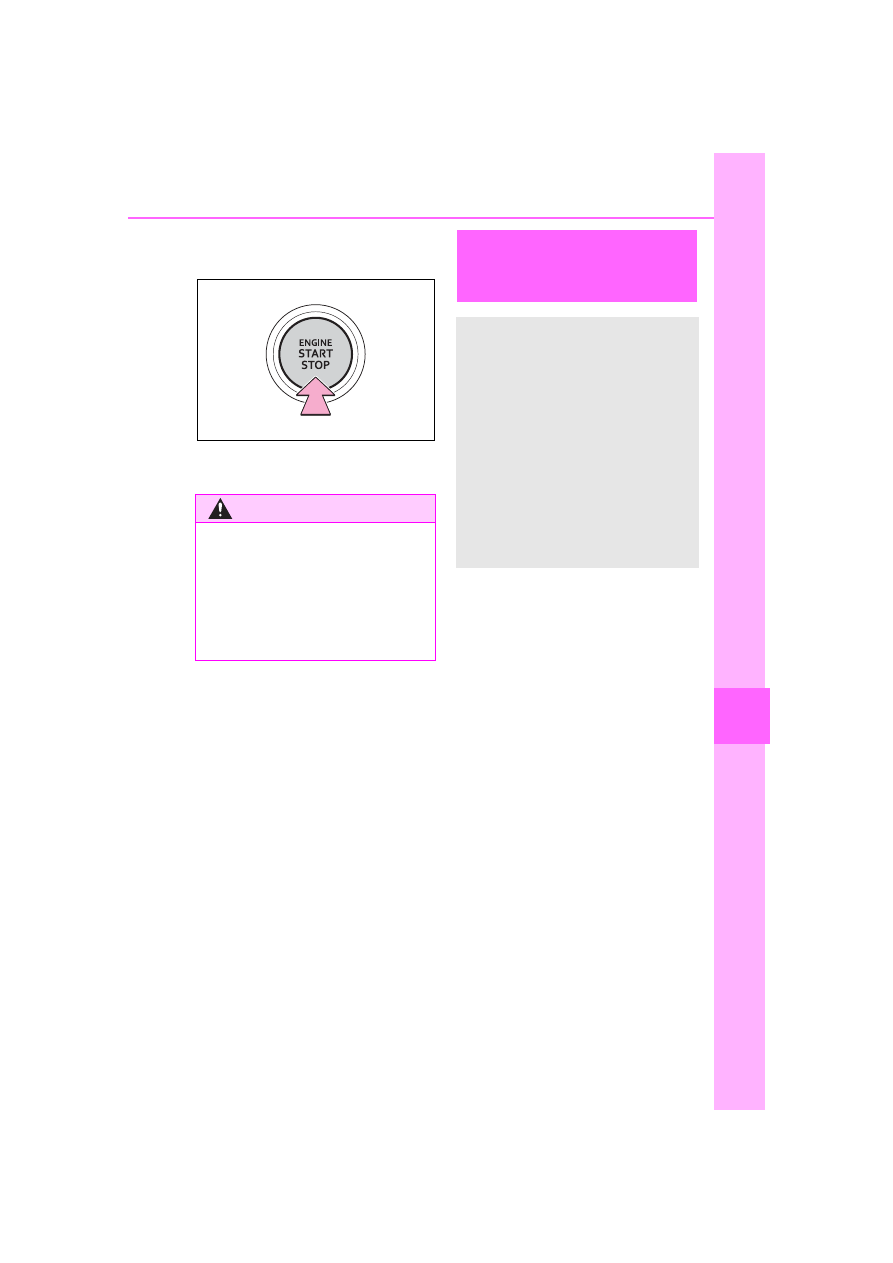

To stop the engine, press and
hold the engine switch for 2
consecutive seconds or

Emergency flashers

The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped on the road due to
a breakdown, etc.

Operating instructions

If your vehicle has to

be stopped in an emer-

gency

Only in an emergency, such
as if it becomes impossible
to stop the vehicle in the
normal way, stop the vehicle
using the following proce-
dure:

Stopping the vehicle

313

7-1. Essential information

tro

more, or press it briefly 3
times or more in succession.

Stop the vehicle in a safe
place by the road.



If the door can be opened,
open the door and exit the
vehicle.



If the door can not be opened,
open the window using the
power window switch and
ensure an escape route.



If the window can be opened,
exit the vehicle through the
window.



If the door and window cannot
be opened due to the rising
water, remain calm, wait until
the water level inside the
vehicle rises to the point that
the water pressure inside of
the vehicle equals the water
pressure outside of the vehi-
cle and then open the door
after waiting for the rising
water to enter the vehicle, and
exit the vehicle. When the

WARNING

■

If the engine has to be turned

off while driving

Power assist for the brakes and

steering wheel will be lost, making

the brake pedal harder to depress

and the steering wheel heavier to

turn. Decelerate as much as pos-

sible before turning off the engine.

If the vehicle is sub-

merged or water on

the road is rising

This vehicle is not designed
to be able to drive on roads
that are deeply flooded with
water. Do not drive on roads
where the roads may be
submerged or the water
may be rising. It is danger-
ous to remain in the vehicle,
if it anticipated that the vehi-
cle will be flooded or set a
drift. Remain calm and fol-
low the following.

314

7-1. Essential information

outside water level exceeds
half the height of the door, the
door cannot be opened from
the inside due to water pres-
sure.

■

Water level exceeds the floor

When the water level exceeds the

floor and time has passed, the elec-

trical equipment will get damaged,

the power windows will not operate,

the engine stop, and the vehicle

may not be able to get moving.

■

Using an emergency escape
hammer

Laminated glass is used in the wind-

shield on this vehicle.

Laminated glass cannot be shat-
tered with an emergency hammer

Tempered glass is used in the win-

dows on this vehicle.

: Contact your Toyota dealer or

aftermarket accessory manufac-
turer for further information about
an emergency hammer.

WARNING

■

Caution while driving

Do not drive on roads where the

roads may be submerged or the

water may be rising. Otherwise

the vehicle may be damaged and

cannot move, as well as become

flooded and set a drift, which may

lead to death.

315

7-2. Steps to take in an emergency

tro

7-2.Steps to take in an emergency

If your vehicle needs

to be towed

If towing is necessary, we
recommend having your
vehicle towed by your Toy-
ota dealer or commercial
towing service, using a
wheel-lift type truck or flat-
bed truck.

Use a safety chain system
for all towing, and abide by
all state/provincial and local
laws.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

When towing the vehicle

Be sure to transport the vehicle

with the front wheels raised or

with all four wheels raised off the

ground. If the vehicle is towed

with the front wheels contacting

the ground, the drivetrain and

related parts may be damaged.

■

While towing

●

When towing using cables or

chains, avoid sudden starts, etc.

which place excessive stress on

the towing eyelets, cables or

chains. The towing eyelets,

cables or chains may become

damaged, broken debris may hit

people, and cause serious dam-

age.

●

Do not turn the engine switch

off.

There is a possibility that the

steering wheel is locked and

cannot be operated.

■

Installing towing eyelets to

the vehicle

Make sure that towing eyelets are

installed securely.

If not securely installed, towing

eyelets may come loose during

towing.

NOTICE

■

To prevent damage to the

vehicle when towing using a

wheel-lift type truck

●

Do not tow the vehicle from the

rear when the engine switch is

off.

●

When raising the vehicle,

ensure adequate ground clear-

ance for towing at the opposite

end of the raised vehicle. With-

out adequate clearance, the

vehicle could be damaged while

being towed.

■

To prevent damage to the

vehicle when towing with a

sling-type truck

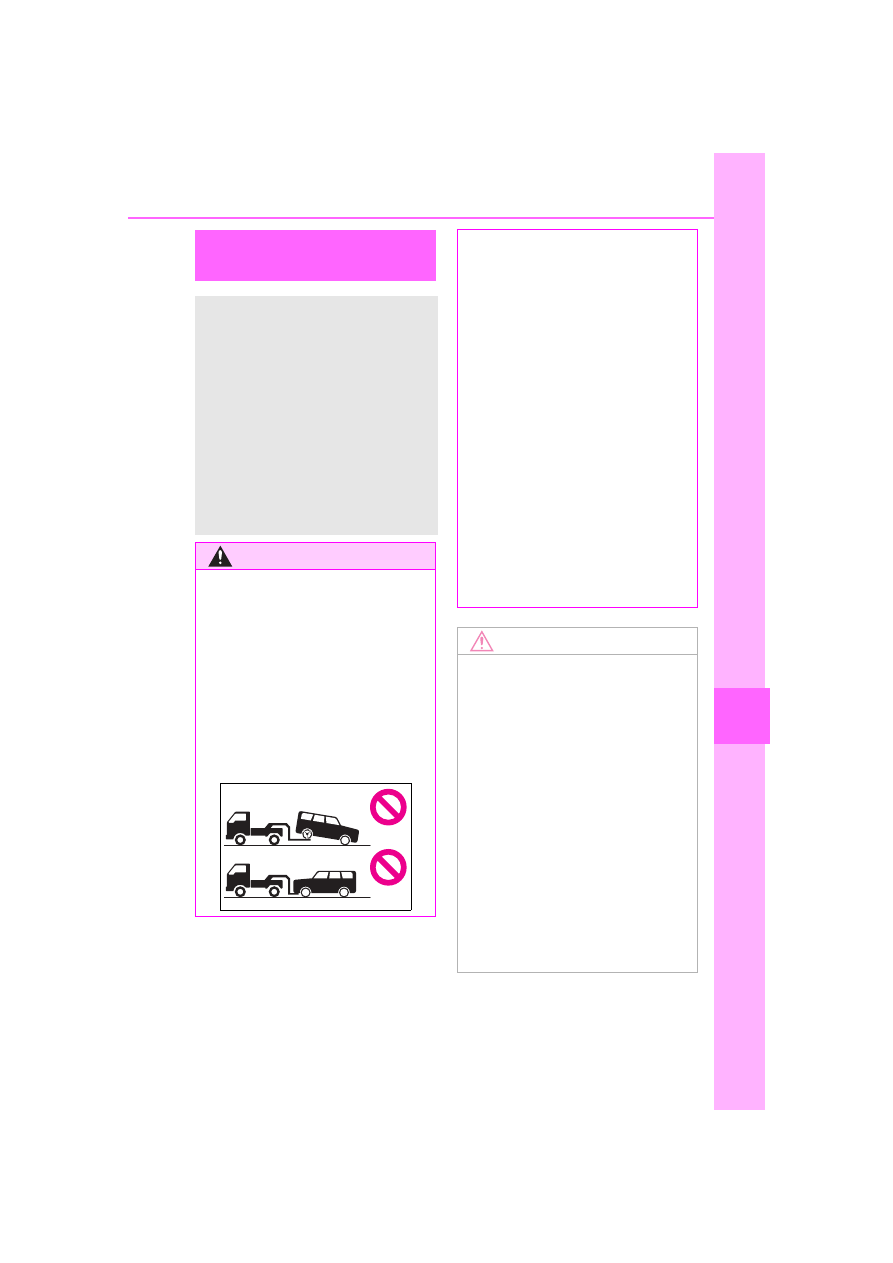

Do not tow with a sling-type truck,

either from the front or rear.

316

7-2. Steps to take in an emergency

The following may indicate a
problem with your transmission.
Contact your Toyota dealer or
commercial towing service
before towing.



The engine is running but the
vehicle does not move.



The vehicle makes an abnor-
mal sound.



From the front

Release the parking brake.
Turn automatic mode off.
(



P.143)



From the rear

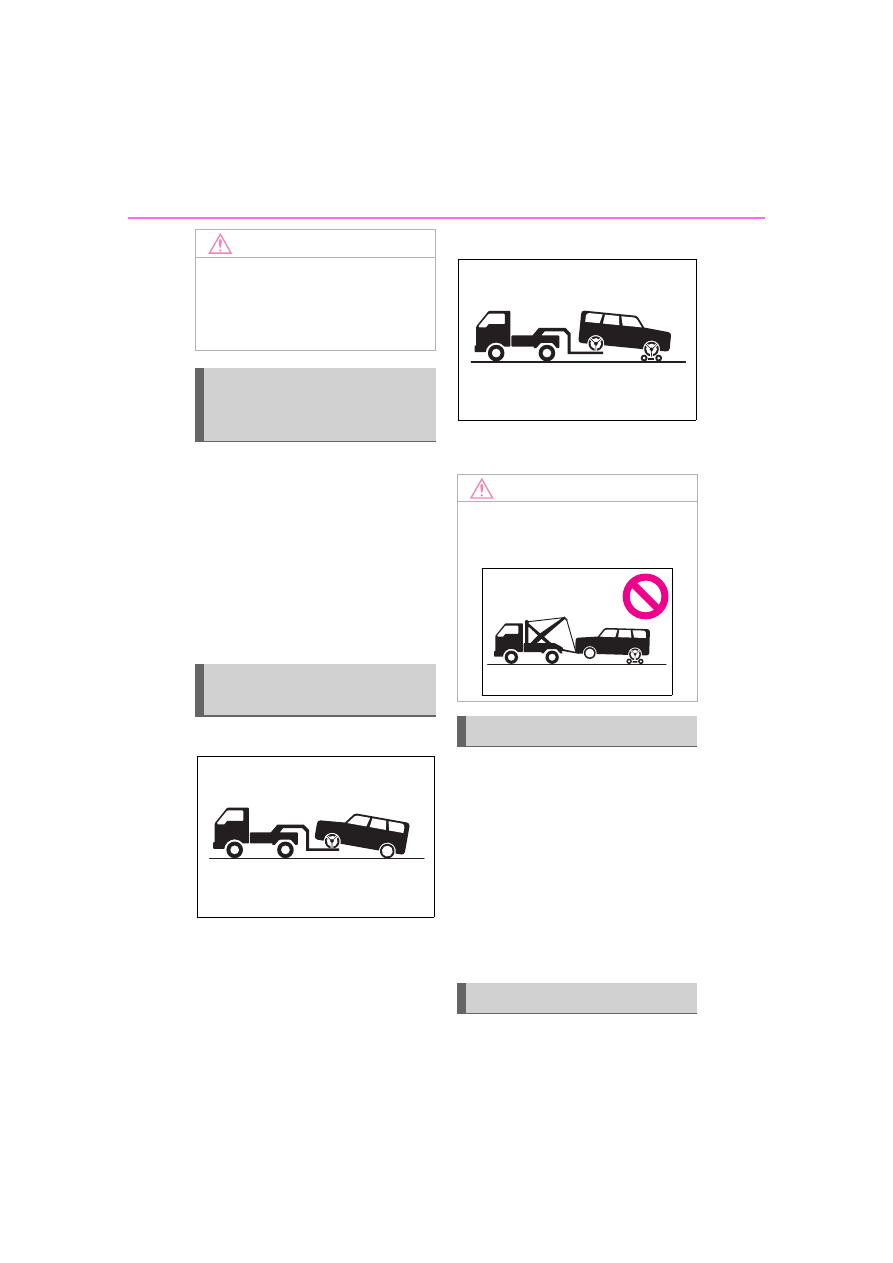

Use a towing dolly under the
front wheels.

When using a flat-bed truck to
transport the vehicle, use tire
strapping belts. Refer to the
owner's manual of the flat-bed
truck for the tire strapping
method.
In order to suppress vehicle
movement during transporta-
tion, set the parking brake and
turn the engine switch off.

If a tow truck is not available in

NOTICE

■

To prevent damage to the

vehicle during emergency

towing

Do not secure cables or chains to

the suspension components.

Situations when it is nec-
essary to contact dealers
before towing

Towing with a wheel-lift
type truck

NOTICE

■

Towing with a sling-type truck

Do not tow with a sling-type truck

to prevent body damage.

Using a flatbed truck

Emergency towing

317

7-2. Steps to take in an emergency

Whe

n tr

ouble

ises

an emergency, your vehicle may
be temporarily towed using
cables or chains secured to the
emergency towing eyelets. This
should only be attempted on
hard surfaced roads for at most
50 miles (80 km) at under 18
mph (30 km/h).
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.
Only the front towing eyelets
may be used.

To have your vehicle towed by
another vehicle, the towing eye-
let must be installed to your
vehicle. Install the towing eyelet
using the following procedure.

Take out the wheel nut
wrench, flathead screwdriver
and towing eyelet. (



P.336,

347)

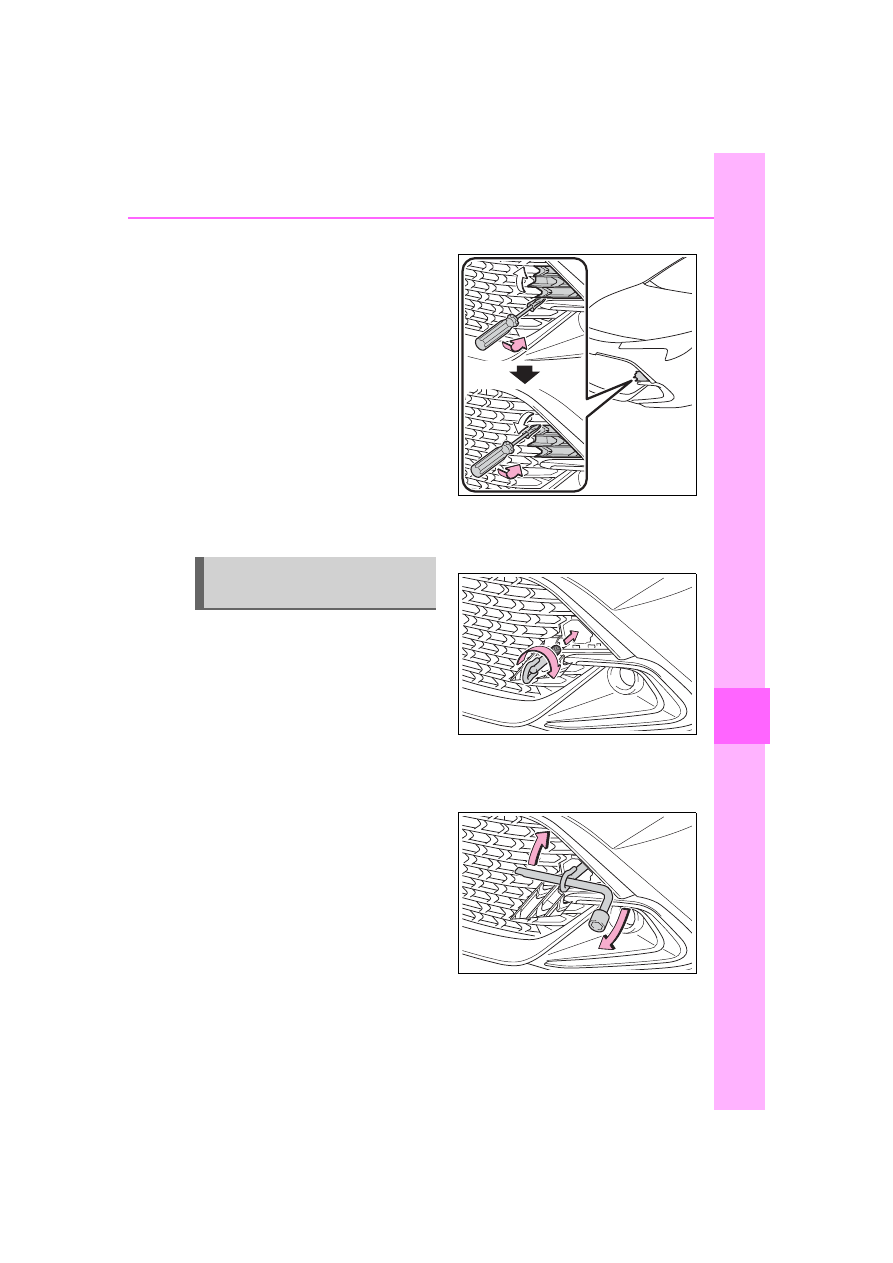

Remove the eyelet cover
using a flathead screwdriver.

To protect the bodywork, place a

rag between the screwdriver and

the vehicle body as shown in the

illustration.

Insert the towing eyelet into
the hole and tighten partially
by hand.

Tighten down the towing eye-
let securely using a wheel nut
wrench or hard metal bar.

Securely attach cables or
chains to the towing eyelet.

Take care not to damage the vehi-

Emergency towing proce-
dure

318

7-2. Steps to take in an emergency

cle body.

Enter the vehicle being towed
and start the engine.

If the engine does not start, turn the

engine switch to ON.

Shift the shift lever to N and
release the parking brake.
Turn automatic mode off.
(



P.143)

When the shift lever cannot
be shifted:



P.139

■

While towing

If the engine is not running, the

power assist for the brakes and

steering will not function, making

steering and braking more difficult.

■

Wheel nut wrench

Wheel nut wrench is installed in lug-

gage compartment. (



P.336, 347)



Fluid leaks under the vehicle.
(Water dripping from the air
conditioning after use is nor-
mal.)



Flat-looking tires or uneven
tire wear



Engine coolant temperature
gauge needle continually
points higher than normal.



Changes in exhaust sound



Excessive tire squeal when
cornering



Strange noises related to the
suspension system



Pinging or other noises
related to the engine



Engine missing, stumbling or
running roughly



Appreciable loss of power



Vehicle pulls heavily to one

If you think something

is wrong

If you notice any of the fol-
lowing symptoms, your
vehicle probably needs
adjustment or repair. Con-
tact your Toyota dealer as
soon as possible.

Visible symptoms

Audible symptoms

Operational symptoms

319

7-2. Steps to take in an emergency

tro

side when braking



Vehicle pulls heavily to one
side when driving on a level
road



Loss of brake effectiveness,
spongy feeling, pedal almost
touches the floor

Follow the procedure below to
restart the engine after the sys-
tem is activated.

Turn the engine switch to
ACC or OFF.

Restart the engine.

Fuel pump shut off

system

To minimize the risk of fuel
leakage when the engine
stalls or when an airbag
inflates upon collision, the
fuel pump shut off system
stops the supply of fuel to
the engine.

Restarting the engine

NOTICE

■

Before starting the engine

Inspect the ground under the

vehicle.

If you find that fuel has leaked

onto the ground, the fuel system

has been damaged and is in need

of repair. Do not restart the

engine.

Toyota Corolla Hatchback (2023 year). Manual in english - page 19
