5-4. Other interior features

NOTICE

●

Charging has caused the porta-

ble device to heat up

●

The temperature around the

charging tray is 95°F (35°C) or

higher, such as in extreme heat

●

The portable device is placed

with its charging side facing up

●

The portable device is placed in

an area misaligned from the

charge area

●

The portable device is larger

than the charging tray

●

A foldable and portable device

is placed outside the charge

area

●

The vehicle is in an area where

strong electrical waves or noise

are emitted, such as near a tele-

vision tower, power plant, gaso-

line station, broadcasting

station, large display, airport,

etc.

●

Any of the following objects that

is 0.08 in (2 mm) or thicker is

between the charging side of

the portable device and the

charge area

• Thick cases or covers

• A case or cover attached with

an uneven or tilted surface, so

that the charging side is not flat

• Thick decorations

• Accessories, such as finger

rings, straps, etc.

●

When the portable device is in

contact with, or is covered by

any if the following metallic

objects

• A card that has metal on it, such

as aluminum foil, etc.

• A pack of cigarettes that

includes aluminum foil

• A wallet or bag that is made of

metal

• Coins

• A heating pad

• CDs, DVDs or other media

• A metal accessory

• A case or cover made of metal

• A case which has magnet in it

on the charging side of the por-

table device.

●

Electric wave type wireless

remote controls are being used

nearby

●

2 or more portable devices are

placed on the charging tray at

the same time

If charging is abnormal or the
operation indicator light contin-
ues to flash for any other reason,
the wireless charger may be mal-
functioning. Contact your Toyota
dealer.

■

To prevent malfunctions and

data corruptions

●

When charging, bringing a

credit, or other magnetic card,

or magnetic storage media

close to the charge area may

clear any stored data due to

magnetic influence. Also, do not

bring a wristwatch or other pre-

cision instrument close to the

charge area since doing so may

cause it to malfunction.

257

5-4. Other interior features

Interior

featur

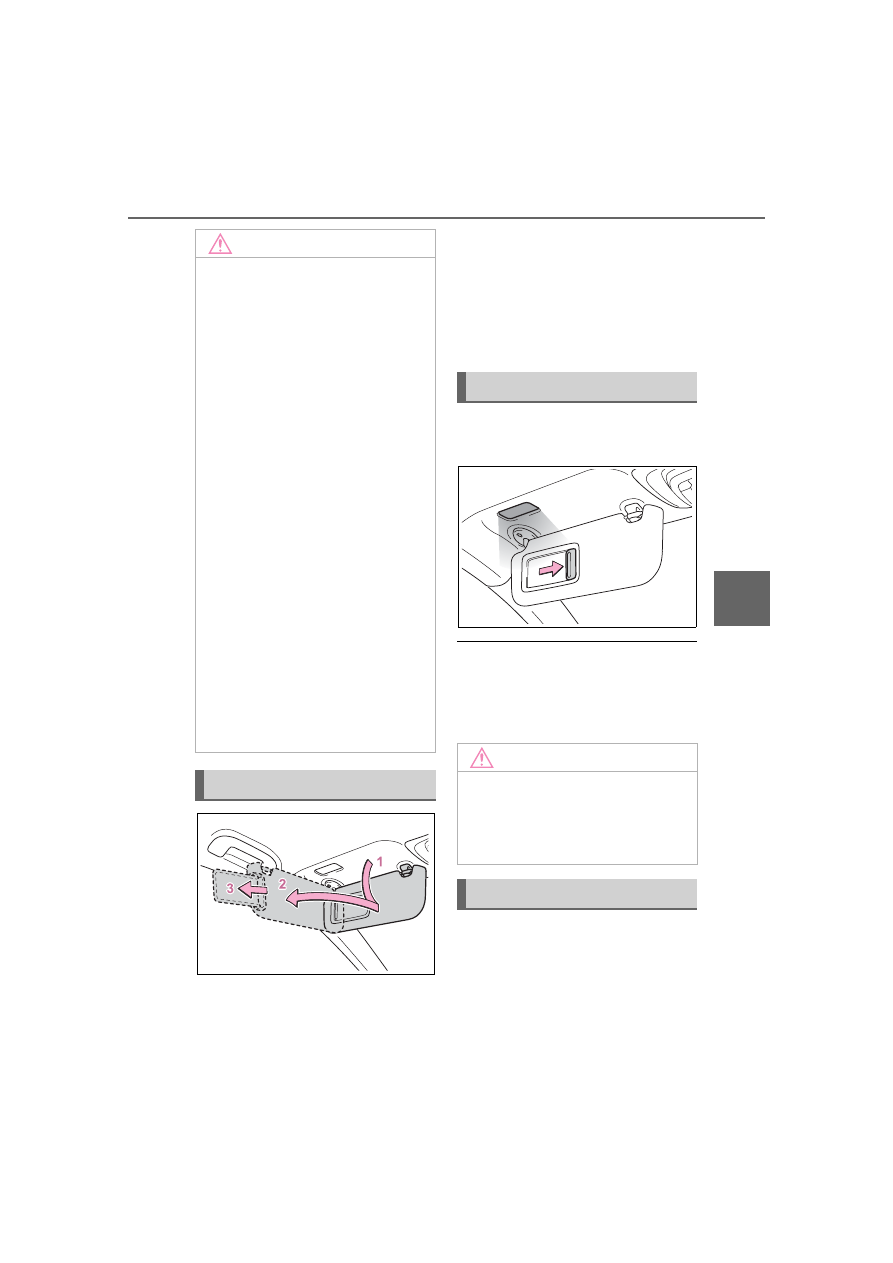

To set the visor in the forward
position, flip it down.

To set the visor in the side

position, flip down, unhook,
and swing it to the side.

To use the side extender,
place the visor in the side
position, then slide it back-
ward.

Slide the cover to open.

The vanity light turns on.

■

To prevent battery discharge

If the vanity lights remain on when

the engine switch is OFF, the lights

will go off automatically after 20 min-

utes.

Fold down the armrest for use.

NOTICE

●

Do not charge with a non-con-

tact IC card such as a transpor-

tation system IC card inserted

between the charging side of a

portable device and the charge

area. The IC chip may become

extremely hot and damage the

portable device or IC card. Be

especially careful not to charge

a portable device inside a case

or cover with a non-contact IC

card attached.

●

Do not leave portable devices

inside the vehicle. The inside of

the vehicle can become hot in

extreme heat, which could

cause a malfunction.

■

If the smartphone OS has

been updated

If the smartphone OS has been

updated to a newer version, its

charging specifications may have

changed significantly. For details,

check the information on the man-

ufacturer’s website.

■

To prevent battery discharge

Do not use the wireless charger

for a long period of time with the

engine stopped.

Sun visors

Vanity mirrors

NOTICE

■

To prevent the battery from

being discharged

Do not leave the vanity lights on

for extended periods while the

engine is stopped.

Armrest

258

5-4. Other interior features

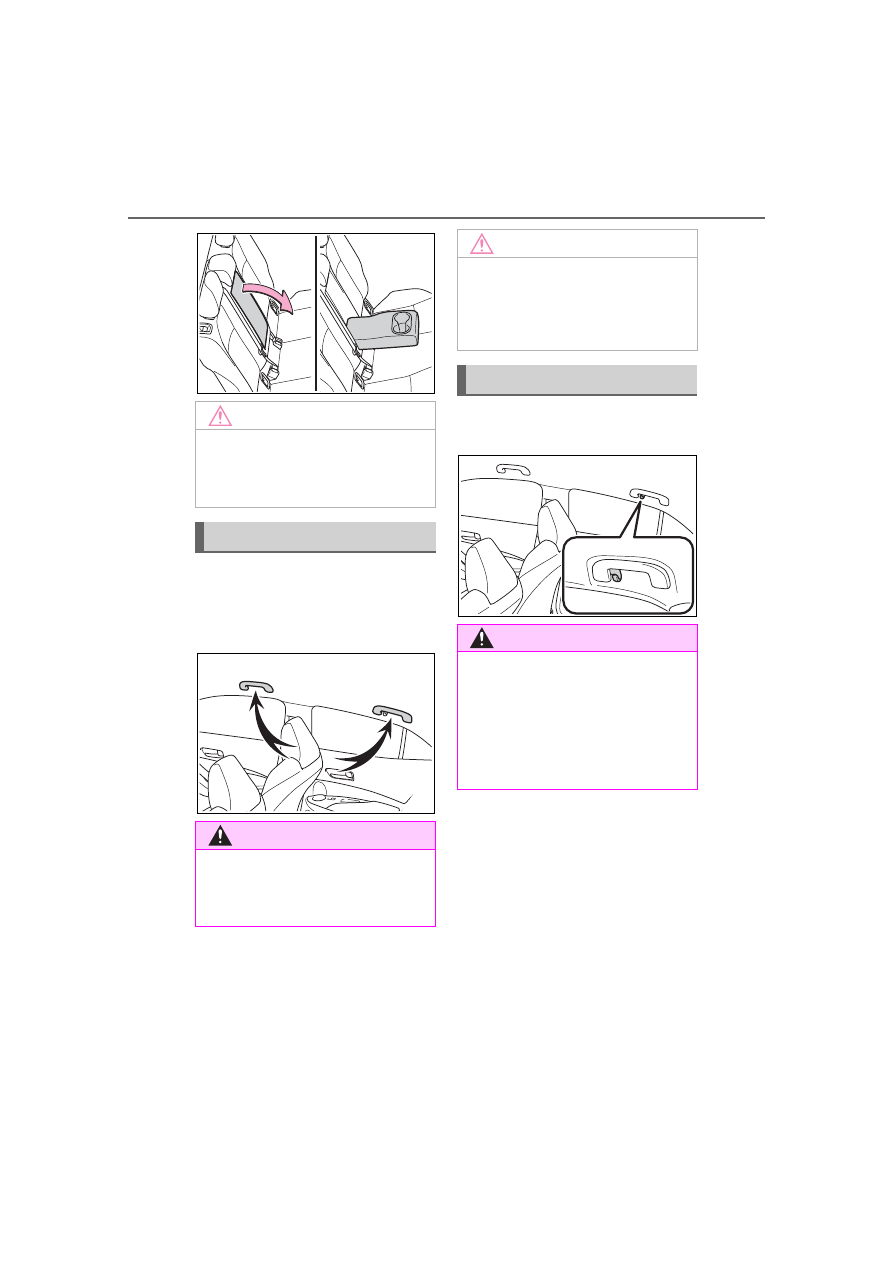

An assist grip installed on the
ceiling can be used to support
your body while sitting on the
seat.

The coat hooks are provided
with the rear assist grips.

NOTICE

■

To prevent damage to the

armrest

Do not apply too much load on the

armrest.

Assist grips

WARNING

■

Assist grip

Do not use the assist grip when

getting in or out of the vehicle or

rising from your seat.

NOTICE

■

To prevent damage to the

assist grip

Do not hang any heavy object or

put a heavy load on the assist

grip.

Coat hooks

WARNING

■

Items that cannot be hung on

the coat hook

Do not hang coat hangers or

other hard or sharp objects on the

hook. If the SRS curtain shield air-

bags deploy, these items may

become projectiles, causing death

or serious injury.

259

Maintena

nce
a

nd ca

Maintenance and care

6-1. Maintenance and care

Cleaning and protecting the

vehicle exterior ..........

260

Cleaning and protecting the

vehicle interior ...........

262

6-2. Maintenance

Maintenance requirements

..................................

265

General maintenance..

267

Emission inspection and

maintenance (I/M) pro-
grams ........................

270

6-3. Do-it-yourself mainte-

nance

Do-it-yourself service pre-

cautions.....................

271

Hood ...........................

273

Positioning a floor jack

..................................

274

Engine compartment...

275

Tires ............................

282

Tire inflation pressure..

299

Wheels ........................

301

Air conditioning filter....

303

Electronic key battery..

304

Checking and replacing

fuses..........................

306

Light bulbs...................

309

260

6-1. Maintenance and care

6-1.Maintenance and care



Working from top to bottom,
liberally apply water to the
vehicle body, wheel wells and
underside of the vehicle to
remove any dirt and dust.



Wash the vehicle body using
a sponge or soft cloth, such
as a chamois.



For hard-to-remove marks,
use car wash soap and rinse
thoroughly with water.



Wipe away any water.



Wax the vehicle when the
waterproof coating deterio-
rates.

If water does not bead on a clean
surface, apply wax when the vehi-
cle body is cool.

■

Automatic car washes

●

Fold the mirrors before washing

the vehicle. Start washing from the

front of the vehicle. Make sure to

extend the mirrors before driving.

●

Brushes used in automatic car

washes may scratch the vehicle

surface, parts (wheel, etc.) and

harm your vehicle’s paint.

●

In certain automatic car washes,

the rear spoiler may interfere with

machine operation. This may pre-

vent the vehicle from being

cleaned properly or result in dam-

age to the rear spoiler.

■

High pressure car washes

As water may enter the cabin, do

not bring the nozzle tip near the

gaps around the doors or perimeter

of the windows, or spray these

areas continuously.

■

When using a car wash

If the door handle becomes wet

while the electronic key is within the

effective range, the door may lock

and unlock repeatedly. In that case,

follow the following correction pro-

cedures to wash the vehicle:

●

Place the key in a position 6 ft. (2

m) or more separate from the

vehicle while the vehicle is being

washed. (Take care to ensure that

the key is not stolen.)

●

Set the electronic key to bat-

tery-saving mode to disable the

smart key system. (



P.103)

■

Wheels and wheel ornaments

●

Remove any dirt immediately by

using a neutral detergent.

●

Wash detergent off with water

immediately after use.

●

To protect the paint from damage,

make sure to observe the follow-

ing precautions.

• Do not use acidic, alkaline or

abrasive detergent

• Do not use hard brushes

• Do not use detergent on the

wheels when they are hot, such

as after driving or parking in hot

weather

■

Brake pads and calipers

Rust may form if the vehicle is

parked with wet brake pads or disc

rotors, causing them to stick. Before

parking the vehicle after it is

washed, drive slowly and apply the

brakes several times to dry the

parts.

Cleaning and protect-

ing the vehicle exte-

rior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Cleaning instructions

261

6-1. Maintenance and care

Maintena

nce
a

nd ca

■

Bumpers

Do not scrub with abrasive cleaners.

■

Plated portions

If dirt cannot be removed, clean the

parts as follows:

●

Use a soft cloth dampened with an

approximately 5% solution of neu-

tral detergent and water to clean

the dirt off.

●

Wipe the surface with a dry, soft

cloth to remove any remaining

moisture.

●

To remove oily deposits, use alco-

hol wet wipes or a similar product.

WARNING

■

When washing the vehicle

Do not apply water to the inside of

the engine compartment. Doing

so may cause the electrical com-

ponents, etc. to catch fire.

■

Precautions regarding the

exhaust pipe

Exhaust gasses cause the

exhaust pipe to become quite hot.

When washing the vehicle, be

careful not to touch the pipe until it

has cooled sufficiently, as touch-

ing a hot exhaust pipe can cause

burns.

■

Precaution regarding the

front bumper and rear

bumper

If the paint of the front bumper

and rear bumper is chipped or

scratched, the following systems

may not function correctly. If this

occurs, consult your Toyota

dealer.

●

BSM (if equipped)

●

RCTA (if equipped)

●

SEA (if equipped)

NOTICE

■

To prevent paint deteriora-

tion and corrosion on the

body and components (alumi-

num wheels, etc.)

●

Wash the vehicle immediately in

the following cases:

• After driving near the sea coast

• After driving on salted roads

• If coal tar or tree sap is present

on the paint surface

• If dead insects, insect droppings

or bird droppings are present on

the paint surface

• After driving in an area contami-

nated with soot, oily smoke,

mine dust, iron powder or chem-

ical substances

• If the vehicle becomes heavily

soiled with dust or mud

• If liquids such as benzene and

gasoline are spilled on the paint

surface

●

If the paint is chipped or

scratched, have it repaired

immediately.

●

To prevent the wheels from cor-

roding, remove any dirt and

store in a place with low humid-

ity when storing the wheels.

■

Cleaning the exterior lights

●

Wash carefully. Do not use

organic substances or scrub

with a hard brush.

This may damage the surfaces

of the lights.

●

Do not apply wax to the sur-

faces of the lights.

Wax may cause damage to the

lenses.

262

6-1. Maintenance and care



Remove dirt and dust using a
vacuum cleaner. Wipe dirty
surfaces with a cloth damp-
ened with lukewarm water.



If dirt cannot be removed,
wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.
Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

■

Shampooing the carpets

There are several commercial foam-

ing-type cleaners available. Use a

sponge or brush to apply the foam.

Rub in overlapping circles. Do not

use water. Wipe dirty surfaces and

let them dry. Excellent results are

obtained by keeping the carpet as

dry as possible.

■

Handling the seat belts

Clean with mild soap and lukewarm

water using a cloth or sponge. Also

check the belts periodically for

excessive wear, fraying or cuts.

NOTICE

■

When using a high pressure

car wash

●

When washing the vehicle, do

not spray the camera or its sur-

rounding area directly with a

high pressure washer. Shock

applied from high pressure

water may cause the device to

not operate normally.

●

Do not spray water directly on

the radar which is equipped

behind the emblem. Otherwise

it may cause the device to be

damaged.

●

Do not bring the nozzle tip close

to boots (rubber or resin manu-

factured cover), connectors or

the following parts. The parts

may be damaged if they come

into contact with high-pressure

water.

• Traction related parts

• Steering parts

• Suspension parts

• Brake parts

●

Keep the cleaning nozzle at

least 11.9 in. (30 cm) away from

the vehicles body. Otherwise

resin section, such as moldings

and bumpers, may be deformed

and damaged. Also, do not con-

tinuously hold the nozzle in the

same place.

●

Do not spray the lower part of

the windshield continuously. If

water enters the air conditioning

system intake located near the

lower part of the windshield, the

air conditioning system may not

operate correctly.

●

Do not wash the underside of

the vehicle using a high pres-

sure car washer.

Cleaning and protect-

ing the vehicle interior

Perform cleaning in a man-
ner appropriate to each
component and its material.

Protecting the vehicle
interior

263

6-1. Maintenance and care

Maintena

nce
a

nd ca

WARNING

■

Water in the vehicle

●

Do not splash or spill liquid in

the vehicle.

Doing so may cause electrical

components, etc. to malfunc-

tion or catch fire.

●

Do not get any of the SRS com-

ponents or wiring in the vehicle

interior wet. (



P.32)

An electrical malfunction may

cause the airbags to deploy or

not function properly, resulting

in death or serious injury.

●

Vehicles with wireless charger:

Do not let the wireless charger

(



P.251) get wet. Failure to do

so may cause the charger to

become hot and cause burns or

could cause electric shock

resulting in death or serious

injury.

■

Cleaning the interior (espe-

cially instrument panel)

Do not use polish wax or polish

cleaner. The instrument panel

may reflect off the windshield,

obstructing the driver’s view and

leading to an accident, resulting in

death or serious injury.

NOTICE

■

Cleaning detergents

●

Do not use the following types

of detergent, as they may dis-

color the vehicle interior or

cause streaks or damage to

painted surfaces:

• Non-seat portions: Organic sub-

stances such as benzene or

gasoline, alkaline or acidic solu-

tions, dye, and bleach

• Seats: Alkaline or acidic solu-

tions, such as thinner, benzene,

and alcohol

●

Do not use polish wax or polish

cleaner. The instrument panel’s

or other interior part’s painted

surface may be damaged.

■

Preventing damage to leather

surfaces

Observe the following precautions

to avoid damage to and deteriora-

tion of leather surfaces:

●

Remove any dust or dirt from

leather surfaces immediately.

●

Do not expose the vehicle to

direct sunlight for extended peri-

ods of time. Park the vehicle in

the shade, especially during

summer.

●

Do not place items made of

vinyl, plastic, or containing wax

on the upholstery, as they may

stick to the leather surface if the

vehicle interior heats up signifi-

cantly.

■

Water on the floor

Do not wash the vehicle floor with

water.

Vehicle systems such as the

audio system may be damaged if

water comes into contact with

electrical components such as the

audio system above or under the

floor of the vehicle. Water may

also cause the body to rust.

■

When cleaning the inside of

the windshield

Do not allow glass cleaner to con-

tact the lens. Also, do not touch

the lens. (



P.162)

264

6-1. Maintenance and care



Remove dirt using a
water-dampened soft cloth or
synthetic chamois.



Wipe the surface with a dry,
soft cloth to remove any
remaining moisture.

■

Cleaning the areas with

satin-finish metal accents

The metal areas use a layer of real

metal for the surface. It is necessary

to clean them regularly. If dirty areas

are left uncleaned for long periods

of time, they may be difficult to

clean.



Remove dirt and dust using a
vacuum cleaner.



Wipe off any excess dirt and
dust with a soft cloth damp-
ened with diluted detergent.

Use a diluted water solution of
approximately 5% neutral wool
detergent.



Wring out any excess water
from the cloth and thoroughly
wipe off all remaining traces
of detergent.



Wipe the surface with a dry,
soft cloth to remove any
remaining moisture. Allow the
leather to dry in a shaded and
ventilated area.

■

Caring for leather areas

Toyota recommends cleaning the

interior of the vehicle at least twice a

year to maintain the quality of the

vehicle’s interior.



Remove dirt and dust using a
vacuum cleaner.



Wipe it off with a soft cloth
dampened with neutral deter-
gent diluted to approximately
1%.



Wring out any excess water
from the cloth and thoroughly
wipe off remaining traces of
detergent and water.

NOTICE

■

Cleaning the inside of the rear

window

●

Do not use glass cleaner to

clean the rear window, as this

may cause damage to the rear

window defogger heater wires

or antenna. Use a cloth damp-

ened with lukewarm water to

gently wipe the window clean.

Wipe the window in strokes run-

ning parallel to the heater wires

or antenna.

●

Be careful not to scratch or

damage the heater wires or

antenna.

Cleaning the areas with
satin-finish metal accents

Cleaning the leather areas

Cleaning the synthetic
leather areas

265

6-2. Maintenance

Maintena

nce
a

nd ca

6-2.Maintenance

■

Repair and replacement

It is recommended that genuine

Toyota parts be used for repairs to

ensure performance of each sys-

tem. If non-Toyota parts are used in

replacement or if a repair shop other

than a Toyota dealer performs

repairs, confirm the warranty cover-

age.

■

Allow inspection and repairs to

be performed by a Toyota

dealer

●

Toyota technicians are

well-trained specialists and are

kept up to date with the latest ser-

vice information. They are well

informed about the operation of all

systems on your vehicle.

●

Keep a copy of the repair order. It

proves that the maintenance that

has been performed is under war-

ranty coverage. If any problem

should arise while your vehicle is

under warranty, your Toyota

dealer will promptly take care of it.

General maintenance should be
performed on a daily basis. This
can be done by yourself or by a
Toyota dealer.

Scheduled maintenance should
be performed at specified inter-
vals according to the mainte-
nance schedule.

For details about maintenance
items and schedules, refer to the
“Scheduled Maintenance Guide” or
“Owner’s Manual Supplement”.

Maintenance require-

ments

To ensure safe and econom-
ical driving, day-to-day care
and regular maintenance
are essential. It is the
owner’s responsibility to
perform regular checks.
Toyota recommends the
maintenance below.

WARNING

■

If your vehicle is not properly

maintained

Improper maintenance could

result in serious damage to the

vehicle and possible death or seri-

ous injury.

■

Handling of the battery

●

Engine exhaust, some of its

constituents, and a wide variety

of automobile components con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects and

other reproductive harm. Work

in a well ventilated area.

●

Oils, fuels and fluids contained

in vehicles as well as waste pro-

duced by component wear con-

tain or emit chemicals known to

the State of California to cause

cancer and birth defects or

other reproductive harm. Avoid

exposure and wash any

affected area immediately.

●

Battery posts, terminals and

related accessories contain lead

and lead compounds which are

known to cause brain damage.

Wash your hands after han-

dling. (



P.279)

General maintenance

Scheduled maintenance

266

6-2. Maintenance

■

Resetting the message indicat-

ing maintenance is required

After the required maintenance is

performed according to the mainte-

nance schedule, please reset the

message.

To reset the message, follow the

procedure described below:



4.2-inch display

Press

of the meter

control switch to select

Press

to select “Vehi-

cle Settings” and then press and
hold

Press

to select

“Scheduled Maintenance” and
then press

Press

to select “Yes”

and then press

A message will be displayed on the

multi-information display when the

reset procedure has been com-

pleted.



7-inch display

Press

of the meter

control switch to select

Press

to select “Vehi-

cle Settings” and then press and
hold

Press

to select

“Scheduled Maintenance” and
then press

Press

to select “Yes”

and then press

A message will be displayed on the

multi-information display when the

reset procedure has been com-

pleted.

You can perform some mainte-
nance procedures by yourself.
Please be aware that do-it-your-
self maintenance may affect
warranty coverage.

The use of Toyota repair manuals is
recommended.
For details about warranty cover-
age, refer to the separate “Owner’s
Warranty Information Booklet” or
“Owner’s Manual Supplement”.

Do-it-yourself mainte-
nance

267

6-2. Maintenance

Maintena

nce
a

nd ca

General maintenance

Listed below are the general
maintenance items that
should be performed at the
intervals specified in the
“Owner’s Warranty Informa-
tion Booklet” or “Owner’s
Manual Supplement/Sched-
uled Maintenance Guide”. It
is recommended that any
problem you notice should
be brought to the attention
of your Toyota dealer or
qualified service shop for
advice.

WARNING

■

If the engine is running

Turn the engine off and ensure

that there is adequate ventilation

before performing maintenance

checks.

Engine compartment

Items

Check points

Battery

Check the connec-
tions. (



P.279)

Brake fluid

Is the brake fluid at
the correct level?
(



P.278)

Engine coolant

Is the engine cool-
ant at the correct
level? (



P.277)

Engine oil

Is the engine oil at
the correct level?
(



P.275)

Exhaust sys-
tem

There should not
be any fumes or
strange sounds.

Radiator/con-
denser

The radiator and
condenser should
be free from for-
eign objects.
(



P.278)

Washer fluid

Is there sufficient
washer fluid?
(



P.281)

Vehicle interior

Items

Check points

Accelerator
pedal

• The accelerator

pedal should
move smoothly
(without uneven
pedal effort or
catching).

Continuously
variable trans-
mission “Park”
mechanism

• When parked on

a slope and the
shift lever is in P,
is the vehicle
securely
stopped?

Items

Check points

268

6-2. Maintenance

Brake pedal

• Does the brake

pedal move
smoothly?

• Does the brake

pedal have
appropriate
clearance from
the floor?
(



P.370)

• Does the brake

pedal have the
correct amount
of free play?
(



P.370)

Brakes

• The vehicle

should not pull to
one side when
the brakes are
applied.

• The brakes

should work
effectively.

• The brake pedal

should not feel
spongy.

• The brake pedal

should not get
too close to the
floor when the
brakes are
applied.

Items

Check points

Head
restraints

• Do the head

restraints move
smoothly and
lock securely?

Indica-
tors/buzzers

• Do the indica-

tors and buzzers
function prop-
erly?

Lights

• Do all the lights

come on?

Parking brake

• Does the park-

ing brake oper-
ate normally?

• When parked on

a slope and the
parking brake is
on, is the vehicle
securely
stopped?

Seat belts

• Do the seat belts

operate
smoothly?

• The seat belts

should not be
damaged.

Items

Check points

269

6-2. Maintenance

Maintena

nce
a

nd ca

Seats

• Do the seat con-

trols operate
properly?

Steering wheel

• Does the steer-

ing wheel rotate
smoothly?

• Does the steer-

ing wheel have
the correct
amount of free
play?

• There should not

be any strange
sounds coming
from the steer-
ing wheel.

Vehicle exterior

Items

Check points

Doors

• Do the doors

operate
smoothly?

Engine hood

• Does the engine

hood lock system
work properly?

Fluid leaks

• There should not

be any signs of
fluid leakage
after the vehicle
has been parked.

Items

Check points

Tires

• Is the tire infla-

tion pressure
correct?

• The tires should

not be damaged
or excessively
worn.

• Have the tires

been rotated
according to the
maintenance
schedule?

• The wheel nuts

should not be
loose.

Windshield
wipers/rear
window wiper

• The wiper blades

should not show
any signs of
cracking, split-
ting, wear, con-
tamination or
deformation.

• The wiper blades

should clear the
windshield/rear
window without
streaking or skip-
ping.

Items

Check points

270

6-2. Maintenance

The OBD system determines
that a problem exists some-
where in the emission control
system. Your vehicle may not
pass the I/M test and may need
to be repaired. Contact your
Toyota dealer to service the
vehicle.



When the battery is discon-
nected or discharged

Readiness codes that are set
during ordinary driving are erased.
Also, depending on your driving
habits, the readiness codes may
not be completely set.



When the fuel tank cap is
loose

The malfunction indicator lamp
comes on indicating a temporary
malfunction and your vehicle may
not pass the I/M test.

The error code in the OBD sys-
tem will not be cleared unless
the vehicle is driven 40 or more
times.

Contact your Toyota dealer to
prepare the vehicle for re-test-
ing.

Emission inspection

and maintenance (I/M)

programs

Some states have vehicle
emission inspection pro-
grams which include OBD
(On Board Diagnostics)
checks. The OBD system
monitors the operation of
the emission control sys-
tem.

If the malfunction indica-
tor lamp comes on

Your vehicle may not pass
the I/M test in the follow-
ing situations:

When the malfunction
indicator lamp still
remains on after several
driving trips

If your vehicle does not
pass the I/M test

271

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

6-3.Do-it-yourself maintenance

Do-it-yourself service

precautions

If you perform maintenance
by yourself, be sure to fol-
low the correct procedure
as given in these sections.

Maintenance

Items

Parts and tools

Battery
condition
(



P.279)

• Warm water
• Baking soda
• Grease
• Conventional

wrench (for terminal
clamp bolts)

Brake fluid
level
(



P.278)

• FMVSS No.116

DOT 3 or SAE
J1703 brake fluid

• Rag or paper towel
• Funnel (used only

for adding brake
fluid)

Engine
coolant
level
(



P.277)

• “Toyota Super Long

Life Coolant” or a
similar high quality
ethylene gly-
col-based non-sili-
cate, non-amine,
non-nitrite and
non-borate coolant
with long-life hybrid
organic acid tech-
nology
For the U.S.A.:
“Toyota Super Long
Life Coolant” is
pre-mixed with 50%
coolant and 50%
deionized water.
For Canada:
“Toyota Super Long
Life Coolant” is
pre-mixed with 55%
coolant and 45%
deionized water.

• Funnel (used only

for adding coolant)

Engine oil
level
(



P.275)

• “Toyota Genuine

Motor Oil” or equiva-
lent

• Rag or paper towel
• Funnel (used only

for adding engine
oil)

Fuses
(



P.306)

• Fuse with same

amperage rating as
original

Light bulbs
(



P.309)

• Bulb with same

number and wattage
rating as original

• Flathead screw-

driver

• Wrench

Items

Parts and tools

Toyota Corolla Hatchback (2023 year). Manual in english - page 16
