127

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem



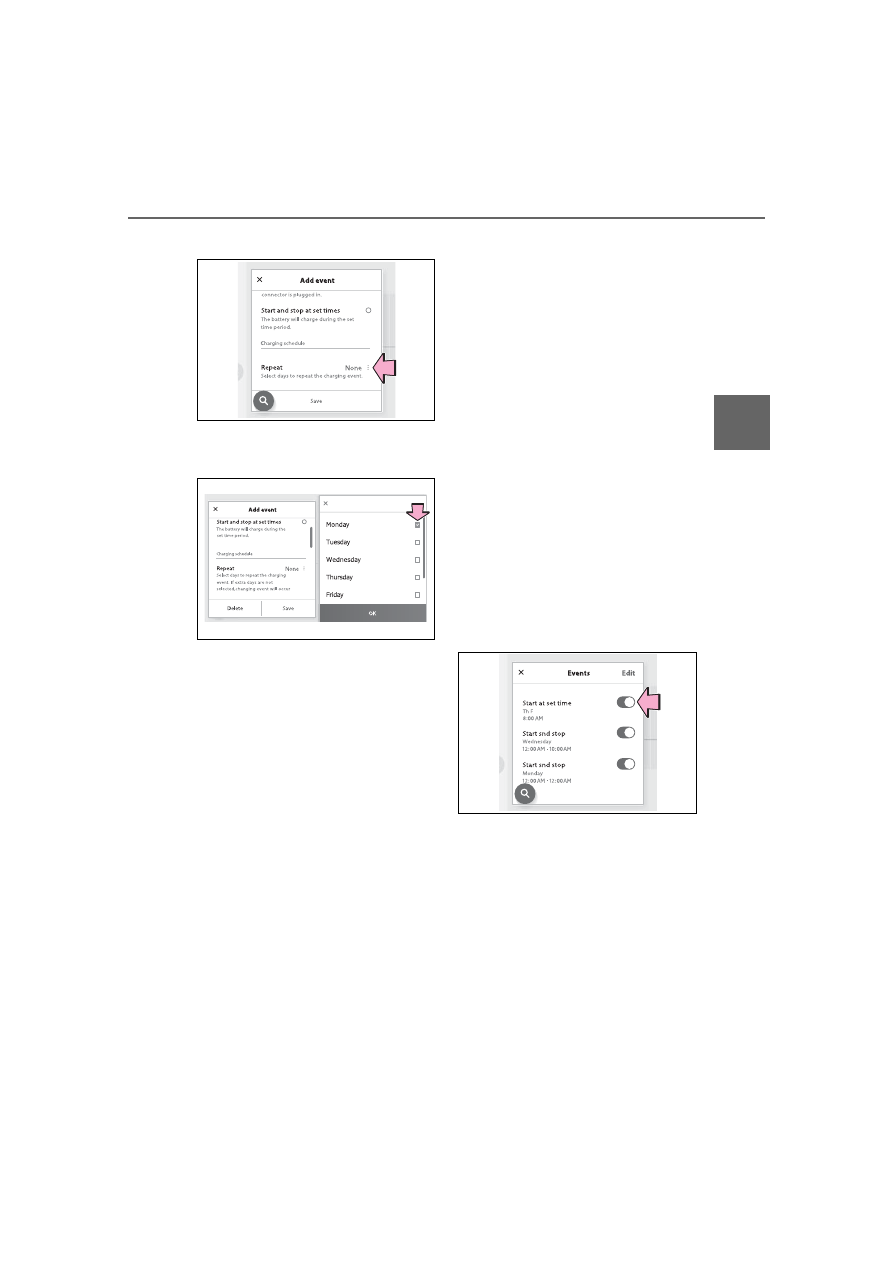

Repeated settings

Select the day of the week and
press OK.

When turned on, the charging
schedule is repeated on that
day. It is possible to turn more
than one day on.

After setting operations are
complete, press “Save”.

The charging schedule is regis-
tered and an icon is added to
the schedule.
To cancel registration of the
charging schedule, press the
return button.
After setting operations are
complete, when the power
switch is turned off and the AC
charging connector is connected
to the vehicle, charging is car-
ried out according to the

charging schedule settings.

■

Switching charging sched-
ules between on and off

Display the “Charging sched-
ule” screen. (



P.125)

Press “Edit”.

The “Events” screen will be dis-

played on the screen.

From the items displayed on
the screen, press on or off in
the row of the charging
schedule you wish to change.

If the charging schedule you
wish to change is not displayed
on the screen, scroll the list up
and down to display it.
Each time the button is pressed,
the charging schedule switches
between on and off.

■

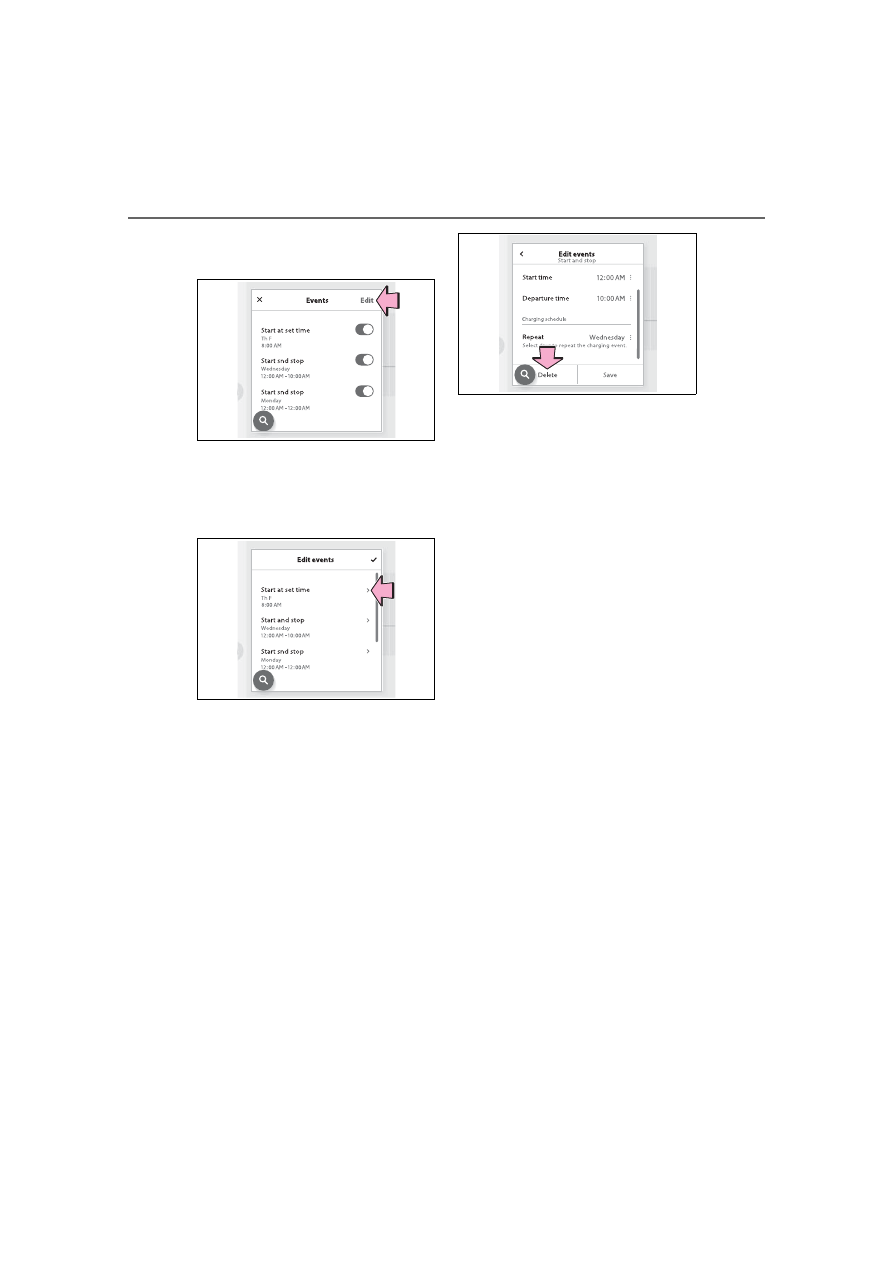

Changing the registered
charging schedules

Display the “Charging sched-
ule” screen. (



P.125)

Press “Edit”.

The “Events” screen will be dis-

played on the screen.

Repeat

128

2-2. Charging

Press “Edit” on the “Events”
screen.

From the items displayed on
the screen, press the
charging schedule you wish
to change.



Changing registered items:

Change the desired settings as
described in step

to step

the “Registering the charging
schedule” procedure. (



P.126)

When a setting is changed, its
icon on the calendar also
changes.



Deleting registered items:

Press “Delete”.

A deletion confirmation mes-
sage will be displayed.
Press “Delete” to delete the
selected charging schedule.
To cancel deletion, press “Can-
cel” or the return button.
When a charging schedule is
deleted, its icon is also deleted
from the calendar.

■

Turning “Charge now” on

Display the “Charging sched-
ule” screen. (



P.125)

Press “Charge now”.

Each time the button is pressed,
“Charge now” switches between
on and off.
After setting operations are
complete, charging starts when
the AC charging connector is
connected.

■

Changing Next Event

If the multimedia customize con-
tent “ACC customize” is not set
to OFF, the ending screen will
not be displayed. If it is this
case, check the settings of the
multimedia.
Turn the power switch off.

129

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

Next event will be displayed
according to the charging
schedule settings.

When press “OK”, close Next
charging event screen.
When press “Charge Now”,
charge now is turned on.

■

When all charging schedules

are turned off

The icon is not displayed on the

“Charging schedule” screen.
The icon will be displayed by turning

it ON on the “Events” screen.

■

When charging schedule set-

ting operations are canceled

When the vehicle is in the following

conditions, charging schedule set-

ting operations are canceled.

●

The power switch is turned off

before the settings are confirmed

●

The vehicle starts off

●

A display with a higher priority

than that of the charging schedule

setting is shown

Connect the charge cable to
the vehicle to start charging.

AC Charging:



P.105

DC Charging:



P.113

Turn the power switch to ON
while charging.

My Room Mode settings is auto-

matically displayed on the multi-

information display.

Operate the meter control
switches to select “Yes”, and
then press “OK”.

My Room Mode is started and it is

possible to use the air conditioning

system, audio system, etc.
Select “No” and press “OK” when

My Room Mode is not being used.
To disable My Room Mode, turn the

power switch off.
My Room Mode will automatically

be off when DC charging is com-

pleted.

When starting My Room Mode,

NOTICE

■

While performing the setting

operation

When performing the setting

operation while the EV system is

stopped, be careful that the

12-volt battery will not be dis-

charged.

Using My Room Mode

When the charging cable is
connected to the vehicle,
electrical components such
as the air conditioning sys-
tem and audio system can
be used by the power sup-
ply from an external power
source.

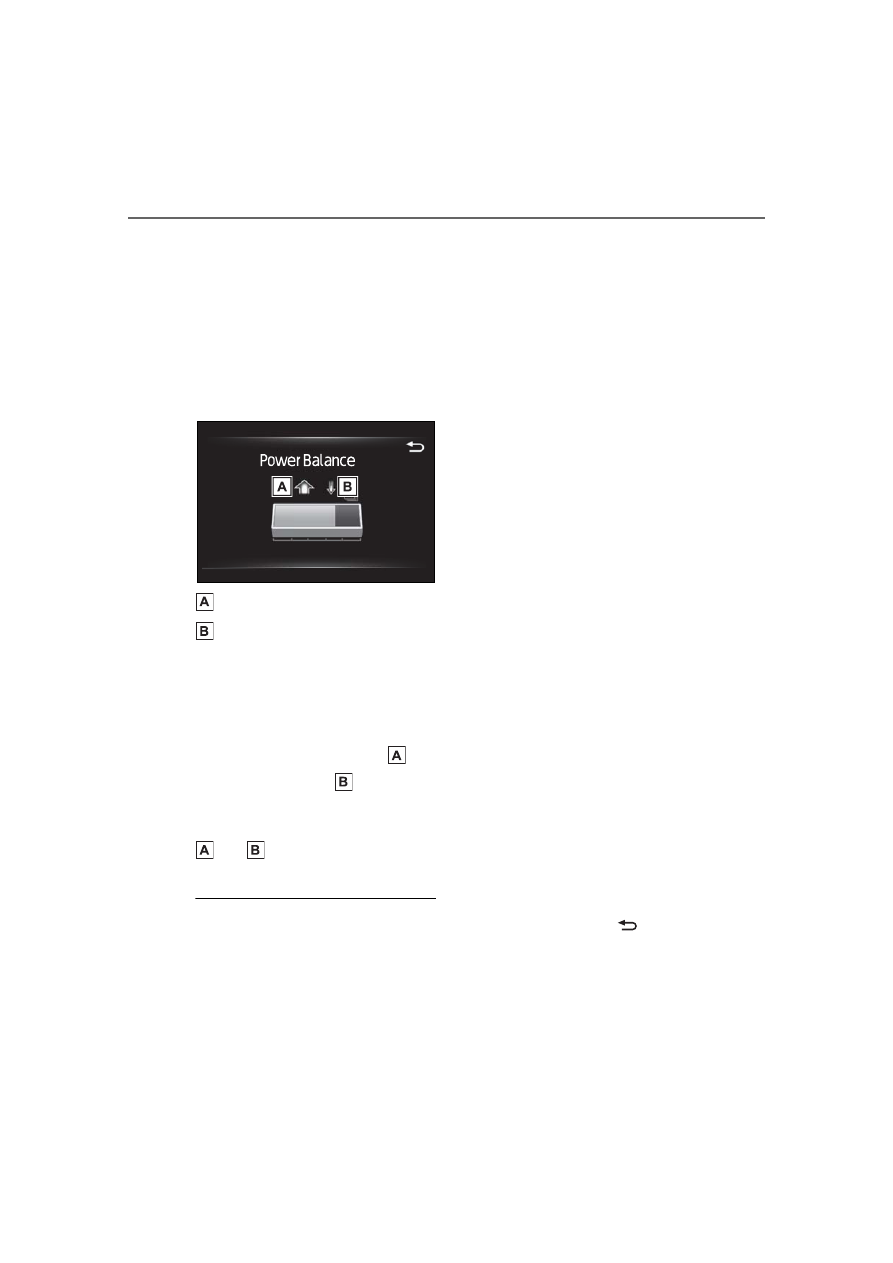

Starting My Room Mode

Display information for
electric power balance
during My Room Mode

130

2-2. Charging

the electric power balance will
be automatically displayed on
the multi-information display,
and an approximation of the
electricity balance (the balance
between the amount of electric-
ity provided and electricity con-
sumed) during My Room Mode
can be checked.

Discharging (-)

Charging (+)

The size of the arrow symbol
changes depending on the power
supply and electricity consumption
amounts.
If the electricity consumption is
more than the power supply,

displayed more than

If the power supply and electricity
consumption amounts are equal,

and

are displayed as the

same size.

■

Meter display while charging

After turning the power switch to ON

while charging, the power switch

automatically turns off if My Room

Mode is not selected within approxi-

mately 100 seconds.

■

When using My Room Mode the

following may occur

●

When the remaining charge of the

traction battery drops to the lower

limit, the air conditioning system

automatically stops. In that case,

the air conditioning system can

not operate until the remaining

charge of the traction battery

increases. Turn off the power

switch once, then use My Room

Mode after the remaining charge

of the traction battery increases.

●

The charging time of the traction

battery gets longer.

●

Noise may be heard from the

radio depending on conditions of

the radio wave.

●

The surrounding area of the

onboard traction battery charger

in the motor compartment may

become hot.

●

The electric power steering sys-

tem warning light (yellow) may

turn on, but this is not a malfunc-

tion.

■

Using My Room Mode during

DC charging

When using My Room mode during

DC charging, the state of charge

completion will be lower than when

not using My Room Mode.

■

When “My Room Mode” is used

while the traction battery is fully

charged

When the power switch is turned on
while the traction battery is fully
charged and the charging connector
that supplies power is connected,
“Charging Port Lid is Open” is dis-
played on the multi-information dis-
play. In this case, press

on the

meter control switches to display the
setting screen of “My Room Mode”,
and then select “My Room Mode”.
When “My Room Mode” is used

while the traction battery is fully

charged, the electric power of the

131

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

traction battery may be consumed.

In this case, charging may be per-

formed again.

■

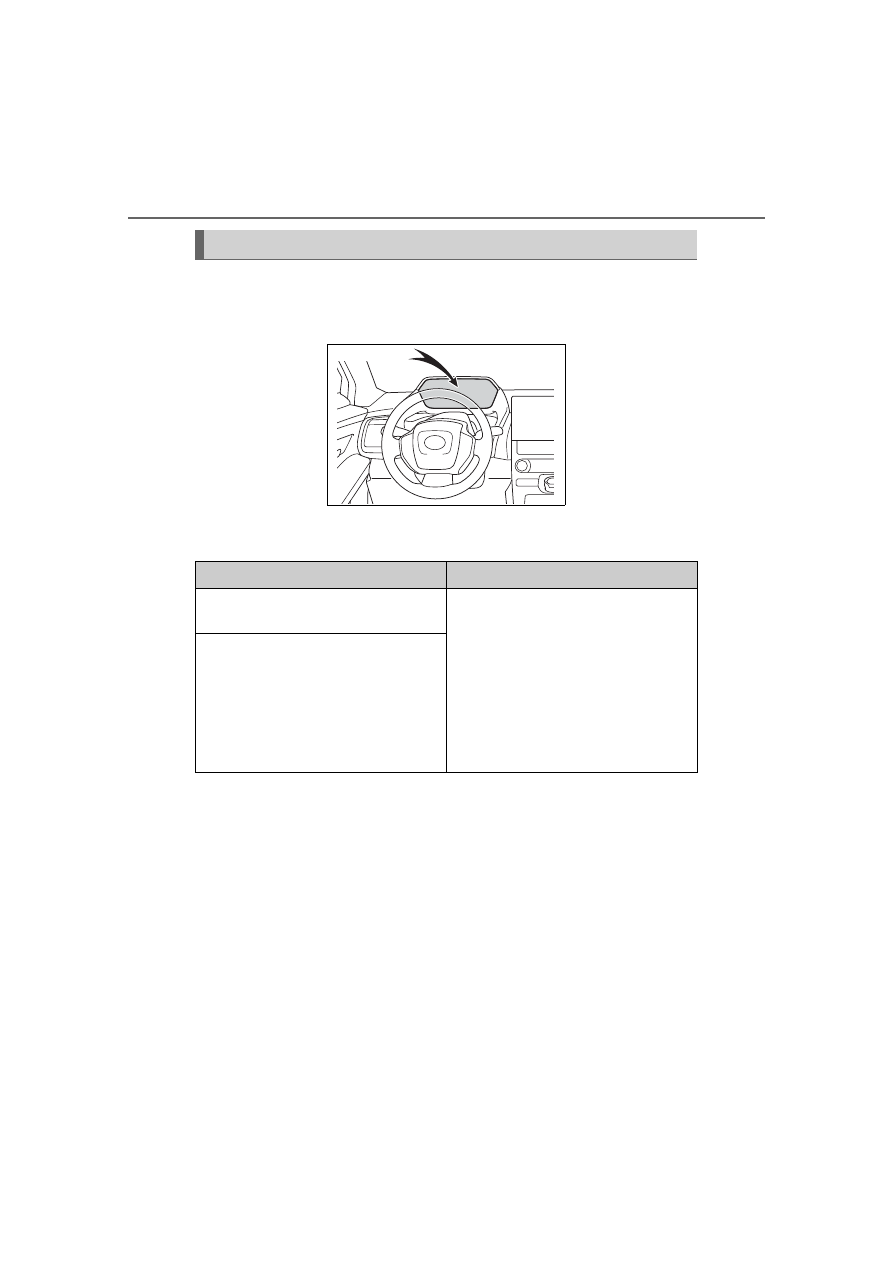

Warning message display

When trying to start My Room Mode or My Room Mode is being used, if a

message is displayed on the multi-information display, refer to the corre-

sponding table and perform the appropriate correction procedures.

: During My Room Mode, the information for electric power balance can be

checked on the multi-information display.

Message

Correction procedure

“Traction Battery is too
Low for “My Room
Mode””

There is no remaining charge of the traction bat-
tery to start My Room Mode. Wait until the
remaining charge of the traction battery
increases, start My Room Mode.

““My Room Mode” has
stopped due to low trac-
tion battery level”

The remaining charge of the traction battery is
insufficient. Stop using My Room Mode and
charge the traction battery.

““My Room Mode” will
stop when traction bat-
tery level is too low
Reduce power usage to
continue using “My
Room Mode””

When My Room mode electricity consumption
exceeds the charge amount, the traction battery
charge level becomes too low.

• If the electricity consumption of the vehicle can

not be improved, My Room Mode will be off.

• When My Room Mode continuation is desired,

turn off the air conditioning system, audio sys-
tem, etc., to increase the remaining charge of
the traction battery.

132

2-2. Charging

WARNING

■

Warnings for using My Room

Mode

Observe the following precau-

tions.
Failure to do so may result in

death or a serious health hazard.

●

Do not leave children, people

who need care, or pets inside

the vehicle. The temperature

inside the vehicle may become

high or low due to features such

as the automatic shut-off. The

children, people who need care,

or pets left inside the vehicle

may suffer heatstroke dehydra-

tion or hypothermia. Also, since

the wipers, etc., can be oper-

ated, there may be accidental

operation, possibly leading to

an accident.

●

Use the mode after sufficiently

checking the vicinity of the vehi-

cle for safety hazards.

133

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

Refer to the following table and carry out the appropriate correction
procedure.

■

The error warning indicator on the CCID (Charging Circuit
Interrupting Device) flashes

■

Charging indicator of the charging port does not illuminate,
even though charging connector is connected.

When charging cannot be carried out

When charging does not start, even though the normal proce-
dure is followed, check each of the following items. If a mes-
sage is shown on the multi-information display, also refer to
P.140.

When charging cannot be carried out

Likely cause

Correction procedure

Electrical leakage detection function
or self-diagnostic function operates
and power is cut off

When the voltage is insufficient, the
error warning indicator may flash
when there is noise interference.
Perform a reset and connect to a
proper power source. (



P.90)

If charging does not start, immedi-
ately stop charging and contact your
Toyota dealer.

Likely cause

Correction procedure

Plug is not properly connected to
outlet

Check that the plug is properly con-
nected to the outlet.

Power is out

After power is restored, carry out the
charging procedure again.

Remote switch is off

If the remote switch is equipped, turn
the switch on.

134

2-2. Charging

Building breaker is tripped and
power is cut off

Check that the breaker is connected
and if there is no malfunction, check
if the vehicle can be charged through
another outlet.
If charging is possible, the first outlet
may have a malfunction. Contact the
building or facility manager, or an
electrician.

Short circuit between CCID
(Charging Circuit Interrupting
Device) and plug

Immediately stop charging and con-
tact your Toyota dealer.

AC charging connector is not
securely connected to AC charging
inlet

Check the connection status of the
AC charging connector.
• When connecting the AC charging

connector, make sure not to touch
the latch release button. Insert the
AC charging connector securely
until you hear a click. The AC
charging connector may not be
connected correctly if the latch
release button is pressed while
inserting.

• After connecting the AC charging

connector, check that the latch
release button is not pressed and
the charging indicator of the
charging port is turned on.

If the charging indicator of the
charging port does not illuminate,
even though the AC charging con-
nector is securely connected, there
may be a malfunction in the system.
Immediately stop charging and con-
tact your Toyota dealer.

Traction battery is already fully
charged

When the traction battery is fully
charged, charging is not performed.

The AC charger does not operate

Please contact the facility manager
when there is a problem with AC
charger.

Likely cause

Correction procedure

135

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

■

Charging indicator of the charging port flashes and charging
cannot be carried out.

: Refer to P.86 for details regarding charging indicator of the charging port

illumination and flashing.

■

DC charging does not start

Likely cause

Correction procedure

When charging indicator of the
charging port flashes normally

Charging schedule is registered

When you wish to charge according
to the charging schedule, wait until
the set time.
To start charging, set “Charge Now”
to on. (



P.124, 128)

When charging indicator of the
charging port rapidly flashes

: Mal-

function occurred in an external
power source or the vehicle

A message will be displayed on the
multi-information display when the
power switch is off. Follow the
instructions displayed on the multi-
information display.

When DC charging cannot be performed normally

Likely cause

Correction procedure

The DC charging connector is not
properly connected to the vehicle.

Check the connection status of the
DC charging connector and be sure
that it is locked.
If the DC charging does not start,
even though the DC charging con-
nector is securely connected, there
may be a malfunction with the DC
charger or charging system.

The DC charging connector is not
securely locked.

• If there is a malfunction with the

DC charger, contact the charging
station manager.

• If there is not a malfunction with

the DC charger, there may be a
malfunction in the system. Contact
your Toyota dealer.

136

2-2. Charging

■

When DC charging is interrupted

Error is detected by the DC charger
or vehicle’s system check.

There may be a malfunction with the
DC charger or charging system.
• If there is a malfunction with the

DC charger, contact the facility
manager.

• If there is not a malfunction with

the DC charger, there may be a
malfunction in the system. Contact
your Toyota dealer.

• If the EV system can not be

started, contact your Toyota dealer.

The DC charger power goes off.

Contact the charging station man-
ager and check the power status.

Traction battery is already fully
charged

When the traction battery is fully
charged, DC charging cannot be per-
formed.

AC charging connector is also con-
nected.

DC charging and AC charging can
not be performed together.

The EV system is started.

When the EV system is started, DC
charging cannot be started.
Also, if the shift position is not in P,
DC charging cannot be performed.

Likely cause

Correction procedure

Likely cause

Correction procedure

The timer for the DC charger oper-
ates.

Depending on the type of the DC
charger, the timer may be set to stop
charging after a certain time.
Check with the charging station man-
ager.

The power for the DC charger is off.

Check the power status of the DC
charger. If there are uncertainties
with the power status, contact the
charging station manager.

137

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

■

EV system does not start after DC charging

The temperature of the traction bat-
tery is extremely high or low.

DC charging may not be performed
in extremely high or extremely low
temperature environments. Charge
the traction battery after the tem-
perature has been stabilized.

Error is detected by the DC charger
or vehicle’s system check.

There may be a malfunction with the
DC charger or charging system.
• If there is a malfunction with the

DC charger, contact the facility
manager.

• If there is not a malfunction with

the DC charger, there may be a
malfunction in the system. Contact
your Toyota dealer.

• If the EV system can not be

started, contact your Toyota dealer.

High temperature of charging related
parts

If the temperature of charging related
parts is high, DC charging may not
be possible. Wait for a while and
then charge again.

The electrical components such as
the air conditioning system stop
operating while the traction battery is
approximately fully charged.

Keep the electrical components such
as the air conditioning system in the
OFF state, and then perform the
charging procedure again.

Likely cause

Correction procedure

Likely cause

Correction procedure

System check is not completed prop-
erly after charging.

Do a system check following the pro-
cedures on P.115. If the system
check can not be completed properly
even after these procedures are per-
formed, contact your Toyota dealer.

138

2-2. Charging

Refer to the following tables and carry out the appropriate correction
procedures.

■

Cannot charge at desired time

The DC charging connector is still
connected.

For safety, the EV system can not be
started when the DC charging con-
nector is connected. (



P.102)

Remove the DC charging connector
immediately after the charging is
completed.

The DC charging system is malfunc-
tioning

• Depending on the type of malfunc-

tion, the EV system can be started
after closing the charging port lid.

• If the EV system can not be

started, contact your Toyota dealer.

When charging schedule function does not operate nor-
mally

Likely cause

Correction procedure

Likely cause

Correction procedure

The vehicle calendar and clock are
not set correctly.

Check the calendar setting and set it
to the correct date. (



P.158)

AC charging connector is not con-
nected to vehicle

Before using the charging schedule,
connect the AC charging connector.

AC charging connector was con-
nected after set time

Connect the AC charging connector
before the time set in “Start”.
When the charging mode is set to
“Start-Stop”, the traction battery will
charge even if the start time has
passed, if the AC charging connector
is connected before the stop time.

139

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

■

Charging starts, even though the charging schedule is regis-
tered

Likely cause

Correction procedure

“Charge Now” is set to on

When charging according to the
charging schedule, set “Charge
Now” to off. (



P.124, 128)

Charging schedule is set to off

Check that charging schedule is not
set to off. (



P.118)

AC charging connector was removed
and reinserted while charging indica-
tor of the charging port was flashing

If the AC charging connector is
removed and reinserted while the
charging indicator is flashing, the
charging schedule is canceled. Tem-
porarily remove the AC charging
connector, and then reconnect it.

The Remote Air Conditioning Sys-
tem was operated

When the Remote Air Conditioning
System is operated, the system will
start charging, even if the charging
schedule is registered. To carry out
charging using the charging sched-
ule, stop the Remote Air Condition-
ing System, and then reconnect the
AC charging connector.

Outside temperature is low and trac-
tion battery warming control (



P.99)

operated



When traction battery warming
control operates, the charging
schedules are ignored and
charging starts. In order to protect
the traction battery, allow charging
to continue.



After removing and installing the
12-volt battery, the charging
schedule setting may become
invalid due to the initial setting of
the traction battery warming con-
trol system even when the outside
temperature is not low.
In this case, after a few runs, the
system’s initial settings will be
completed and the charging
schedule settings will take effect
when the outside temperature is
not low.

140

2-2. Charging

When a door is opened with the power switch off, after charging, a
message is displayed in the multi-information display.

When this occurs, follow the instructions displayed on the screen.

■

If “Charging Stopped Due to Pulled Charging Connector” is
shown

When charging related message is displayed

Likely cause

Correction procedure

AC charging connector is removed
while AC charging

When the AC charging connector is
removed while AC charging,
charging stops. If you want to fully
charge the traction battery, recon-
nect the AC charging connector.

After the traction battery is fully
charged, the AC charging connector
is removed while the traction battery
is being recharged again because
electricity-consuming functions

have

been used and the remaining charge
is now reduced.

141

2-2. Charging

Elec

tric
V

ehi
cle s
ys

tem

: Electricity is consumed when operating battery heater (



P.99), the

Remote Air Conditioning System (



P.409).

■

If “Charging Complete Limited Charge Due to Battery Temp”
is shown

AC charging connector is not
securely connected

Check the connection status of the
AC charging connector.
• When connecting the AC charging

• After connecting the AC charging

connector, check that the latch
release button is not pressed and
the charging indicator of the
charging port is turned on.

If charging cannot be carried out,
even though the proper procedures
were followed, have the vehicle
inspected by your Toyota dealer.

Latch release button of AC charging
connector was pressed while AC
charging

When the latch release button is
pressed while AC charging, charging
stops. To continue charging, recon-
nect the AC charging connector.

Likely cause

Correction procedure

Likely cause

Correction procedure

Charging was stopped to protect the
traction battery as it continued to
remain hot for a certain period of
time.

Allow the traction battery to cool
down and perform charging again if
the charging amount has not
reached the desired amount.

142

2-2. Charging

■

If “Charging Stopped Check Charging Source” is shown

Likely cause

Correction procedure

Problem in power supply
from external power source

Check the following items.
• The plug is securely inserted.
• Extension cord is not used and outlet is not

overloaded.

• The remote switch is not off.
• Connected to a dedicated power line.
• Power outage has occurred or not.
• The power indicator on the CCID (Charging

Circuit Interrupting Device) is illuminated.

• The circuit breakers have not tripped.
If all of the above conditions are met, the out-
let may be malfunctioning. Contact an electri-
cian and request an inspection.
Furthermore, if the error warning indicator on
the CCID (Charging Circuit Interrupting
Device) is flashing, there may be electrical
leakage. Contact your Toyota dealer.
If charging cannot be performed, even though
there is no problem with the power source
path, there may be a malfunction in the sys-
tem. Have the vehicle inspected by your Toy-
ota dealer.

Charging is stopped by AC
charger

Depending on the specifications of charger,
charging may be canceled by an interruption
of power supply. Charging may be stopped by
the following.
Refer to charger handling methods.
• The charging stop button of charger is

pressed.

• Charger with off timer function canceled

charging

• Charger that is not compatible with the

charging schedule function of the vehicle

• Check if it is possible to charge with the AC

charging cable equipped with the vehicle. If
charging cannot be carried out even when
using the genuine AC charging cable, con-
tact your Toyota dealer.

Content .. 6 7 8 9 ..
