Lane departure alert function

When  the  system  determines
that  the  vehicle  might  depart
from  its  lane  or  course

, a

warning is displayed on the
multi-information display, and a
warning buzzer will sound to
alert the driver.

When  the  warning  buzzer
sounds,  check  the  area  around
your vehicle and carefully  oper-
ate  the  steering  wheel  to  move
the vehicle back to the center of
the lane.

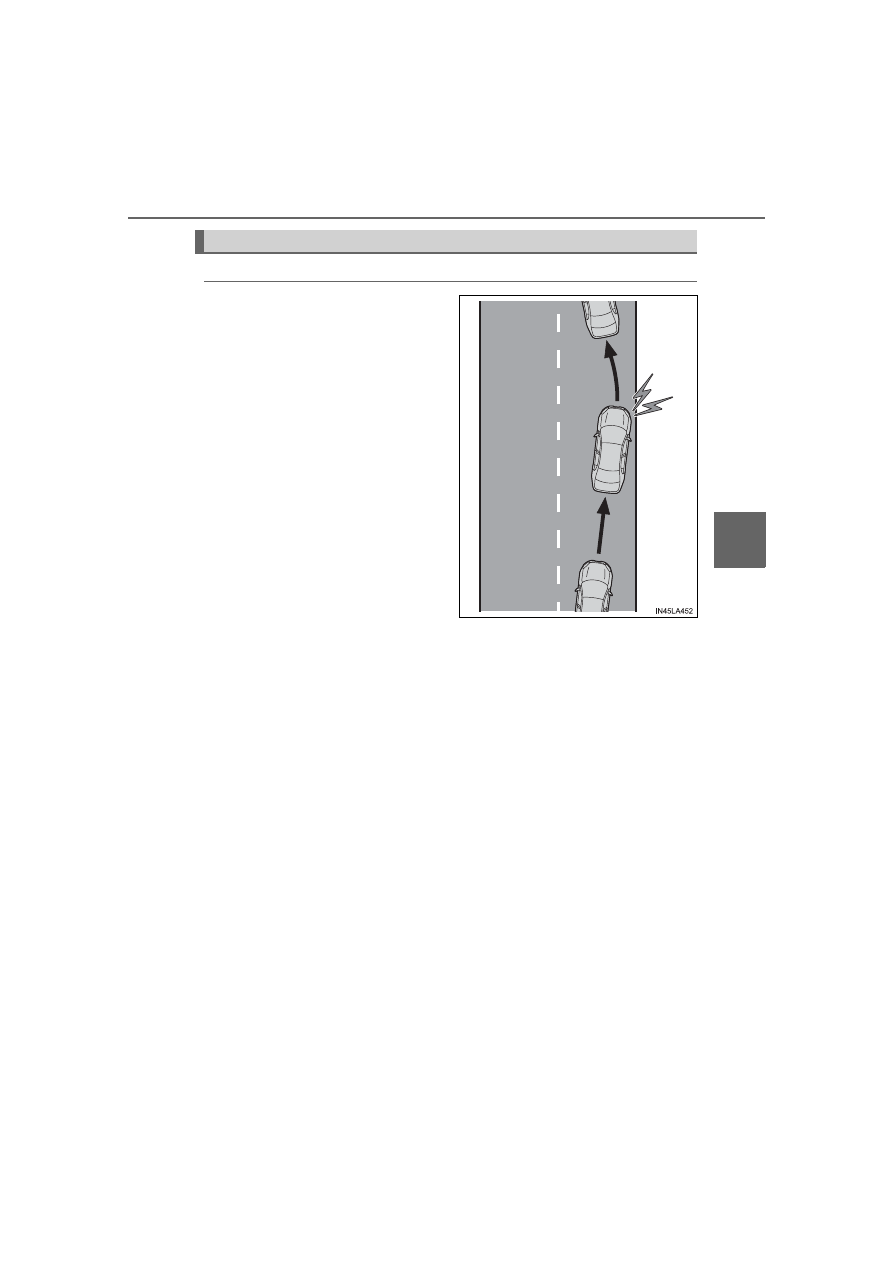

Vehicle  with  BSM:  When  the
system  determines  that  the
vehicle  might  depart  from  its
lane and that the possibility of a
collision with an overtaking vehi-
cle  in the  adjacent lane is high,
the  lane  departure  alert  will
operate  even  if  the  turn  signals
are operating.

: Boundary between asphalt and the side of the road, such as grass, soil,

or a curb

Functions included in LTA system

276

4-5. Using the driving support systems

◆

Steering assist function

When  the  system  determines
that  the  vehicle  might  depart
from  its  lane  or  course

, the

system provides assistance as
necessary by operating the
steering

wheel

small

amounts for a short period of
time to keep the vehicle in its
lane.

Vehicle  with  BSM:  When  the
system  determines  that  the
vehicle  might  depart  from  its
lane and that the possibility of a
collision with an overtaking vehi-
cle  in the  adjacent lane is high,
the  steering  assist  function  will
operate  even  if  the  turn  signals
are operating.

: Boundary between asphalt and the side of the road, such as grass, soil,

or a curb

277

4-5. Using the driving support systems

Drivin

◆

Vehicle sway warning function

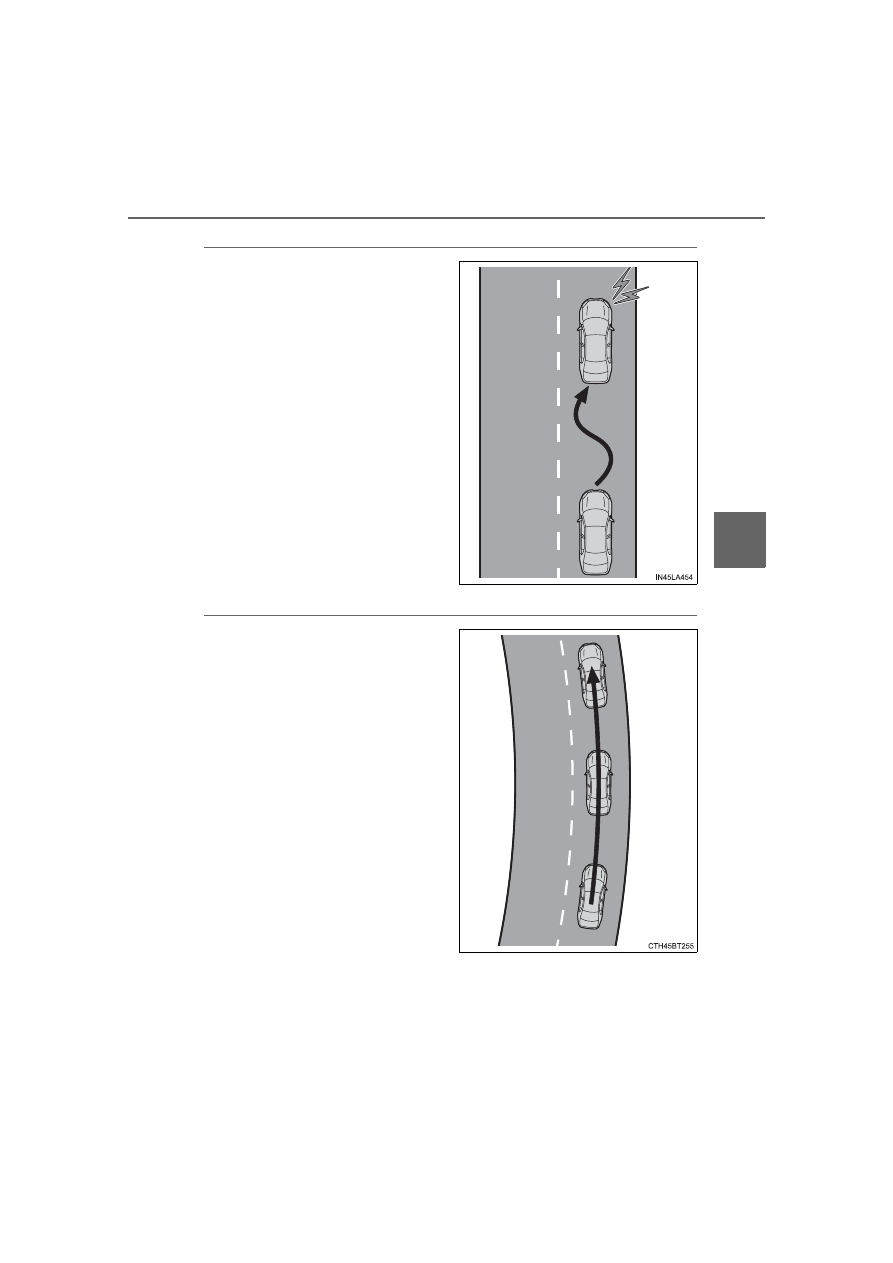

When  the  vehicle  is  swaying
within  a  lane,  the  warning
buzzer  will  sound  and  a  mes-
sage  will  be  displayed  on  the
multi-information display to alert
the driver.

◆

Lane centering function

This function is linked with
dynamic radar cruise control
with

full-speed

range

dynamic  radar  cruise  control
and  provides  the  required
assistance  by  operating  the
steering wheel to keep the vehi-
cle in its current lane.

When dynamic radar cruise con-
trol  with  full-speed  range  or
dynamic  radar  cruise  control  is
not operating, the lane centering
function does not operate.

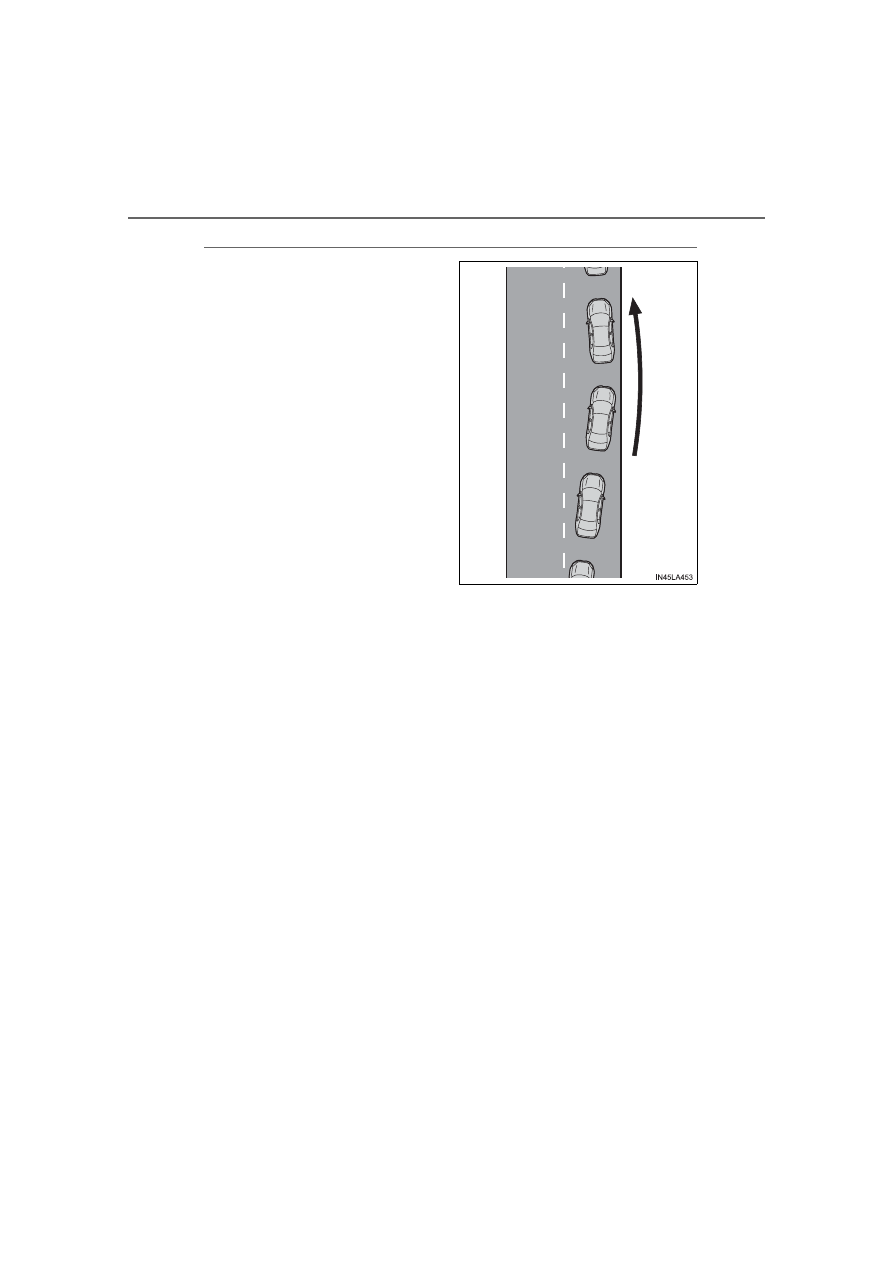

In  situations  where  the  white
(yellow) lane lines are difficult to
see  or  are  not  visible,  such  as
when  in  a  traffic  jam,  this  func-
tion will operate to help follow a
preceding vehicle by monitoring
the  position  of  the  preceding
vehicle.

278

4-5. Using the driving support systems

Press the LTA switch to turn the
LTA system on.

The LTA indicator illuminates and a
message is displayed on the multi-
information display.
Press the LTA switch again to turn
the LTA system off.
When the LTA system is turned on
or off, operation of the LTA system
continues in the same condition
the next time the engine is started.

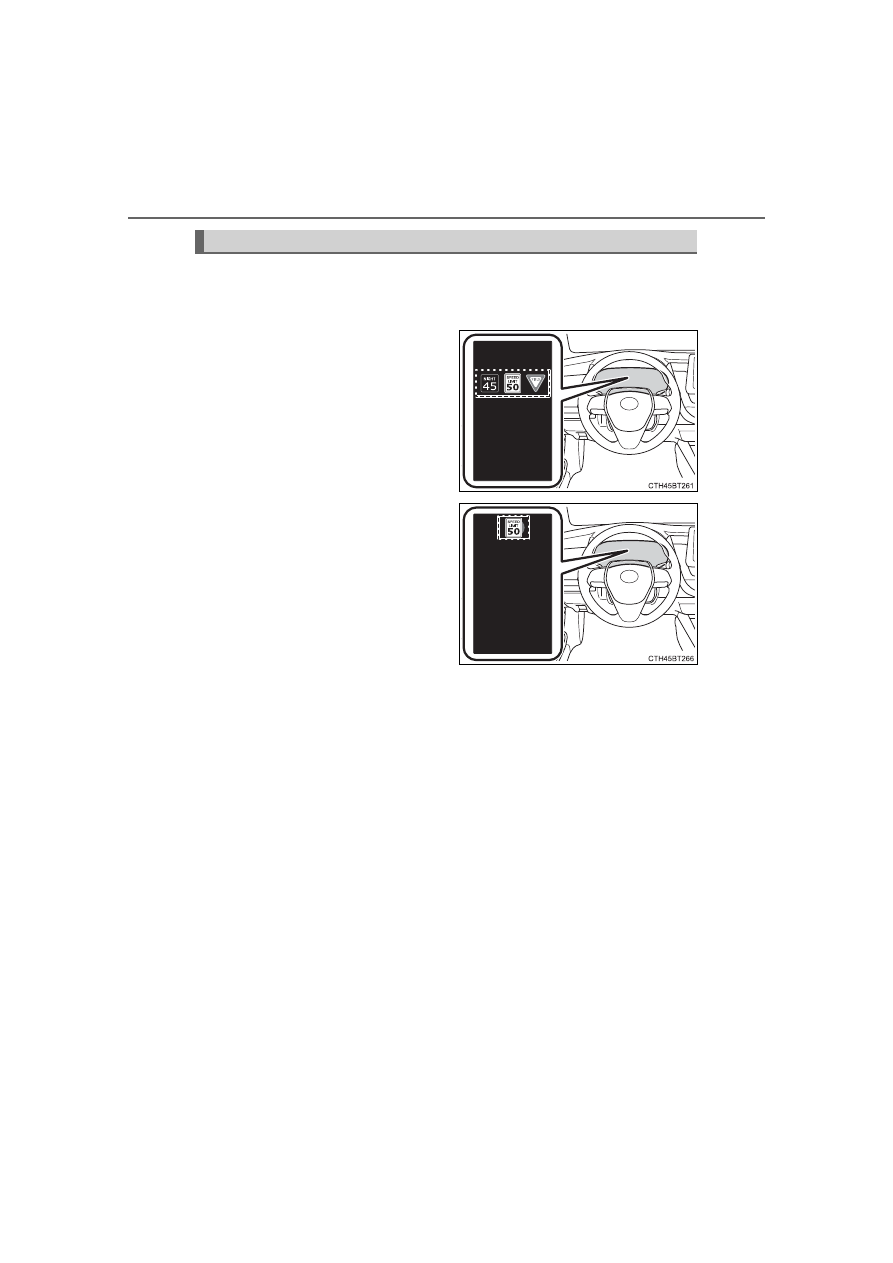

Turning LTA system on

279

4-5. Using the driving support systems

Drivin

The illustration used is intended as an example, and may differ from
the image that is actually displayed on the multi-information display.

LTA indicator
The illumination condition of the
indicator informs the driver of
the system operation status.

Illuminated in white:
LTA system is operating.
Illuminated in green:
Steering  wheel  assistance  of  the
steering  assist  function  or  lane
centering function is operating.
Flashing in yellow:
Lane  departure  alert  function  is
operating.

Operation display of steering wheel operation support
Displayed when the multi-information display is switched to the
driving assist system information display.
Indicates that steering wheel assistance of the steering assist func-
tion or lane centering function is operating.
Both outer sides of the lane are displayed: Indicates that steering
wheel assist of the lane centering function is operating.
One outer side of the lane is displayed: Indicates that steering
wheel assist of the steering assist function is operating.
Both outer sides of the lane are flashing: Alerts the driver that their
input is necessary to stay in the center of the lane (lane centering
function).

Indications on multi-information display

280

4-5. Using the driving support systems

Lane departure alert function display
Displayed when the multi-information display is switched to the
driving assist system information display.

: Boundary between asphalt and the side of the road, such as grass, soil, or

a curb

Follow-up cruising display
Displayed when the multi-information display is switched to the
driving assist system information display.

Indicates that steering assist of the lane centering function is operating
by monitoring the position of a preceding vehicle.
When the follow-up cruising display is displayed, if the preceding vehi-
cle moves, your vehicle may move in the same way. Always pay careful
attention to your surroundings and operate the steering wheel as neces-
sary to correct the path of the vehicle and ensure safety.



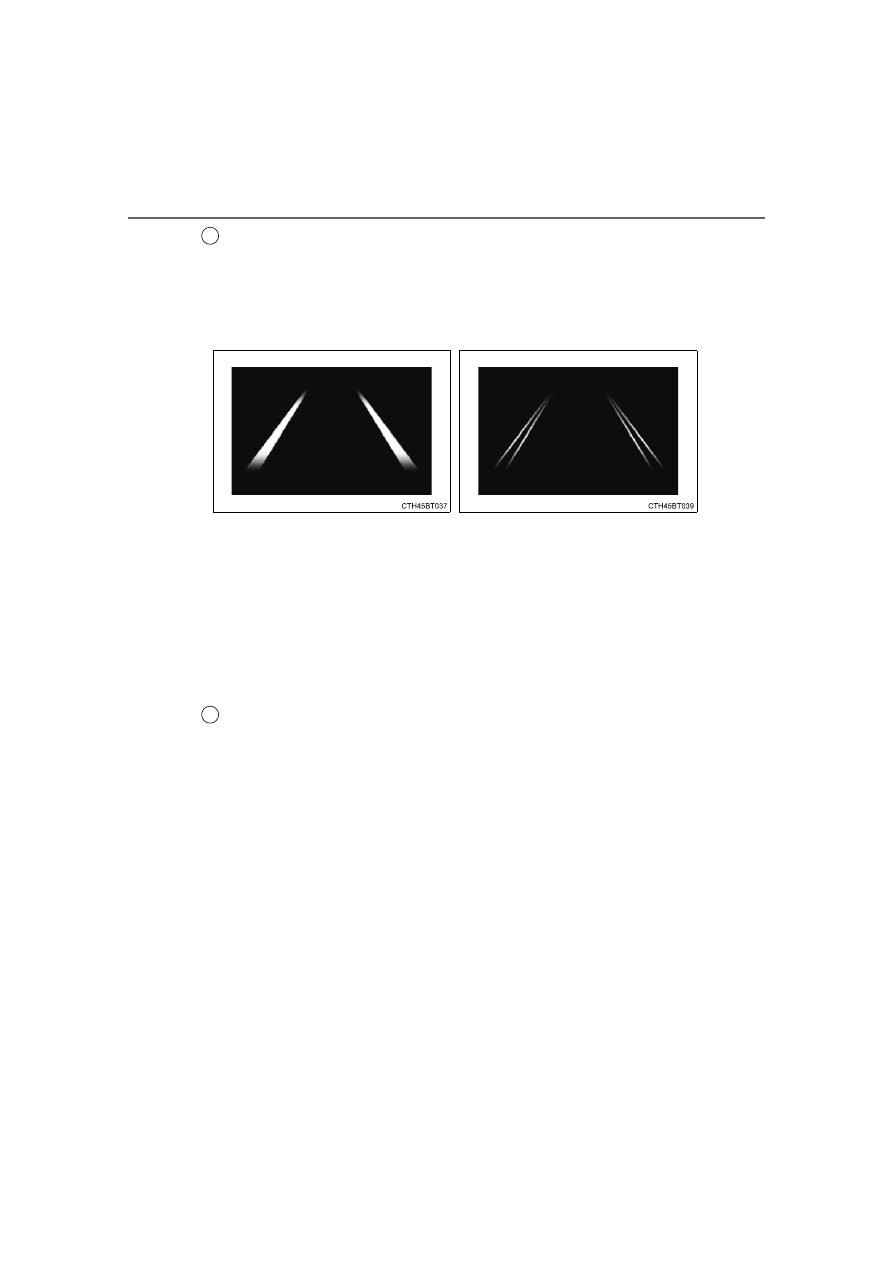

Inside of displayed lines is
white



Inside of displayed lines is
black

Indicates that the system is recog-
nizing white (yellow) lines or a
course

When

the

vehicle

departs  from  its  lane,  the  white
line  displayed  on  the  side  the
vehicle  departs  from  flashes  yel-
low.

Indicates that the system is not
able to recognize white (yellow)
lines or a course

or is temporar-

ily canceled.

281

4-5. Using the driving support systems

Drivin

■

Operation conditions of each function

●

Lane departure alert function
This function operates when all of the following conditions are met.
• LTA is turned on.
• Vehicle speed is approximately 32 mph (50 km/h) or more.

• System recognizes white (yellow) lane lines or a course

. (When a white

[yellow] line or course

is recognized on only one side, the system will

operate only for the recognized side.)

• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• Turn signal lever is not operated. (Vehicle with BSM: Except when

another vehicle is in the lane on the side where the turn signal was oper-
ated)

• Vehicle is not being driven around a sharp curve.
• No system malfunctions are detected. (



P. 284)

: The function operates even if the vehicle speed is less than approxi-

mately 32 mph (50 km/h) when the lane centering function is operating.

: Boundary between asphalt and the side of the road, such as grass, soil,

or a curb

●

Steering assist function
This function operates when all of the following conditions are met in addi-
tion to the operation conditions for the lane departure alert function.
• Vehicle is not accelerated or decelerated by a fixed amount or more.
• Steering wheel is not operated with a steering force level suitable for

changing lanes.

• ABS, VSC, TRAC and PCS are not operating.
• TRAC or VSC is not turned off.

●

Vehicle sway warning function
This function operates when all of the following conditions are met.
• Setting for “Sway Warning” in

(4.2-inch display) or

(7-inch display)

of the multi-information display is set to “On”. (



P. 98, 111)

• Vehicle speed is approximately 32 mph (50 km/h) or more.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• No system malfunctions are detected. (



P. 284)

●

Lane centering function
This function operates when all of the following conditions are met.
• LTA is turned on.
• Setting for “Lane Center” in

(4.2-inch display) or

(7-inch display)

of the multi-information display is set to “On”. (



P. 98, 111)

• This function recognizes white (yellow) lane lines or the position of a pre-

ceding vehicle (except when the preceding vehicle is small, such as a
motorcycle).

282

4-5. Using the driving support systems

• The dynamic radar cruise control with full-speed range or dynamic radar

cruise control is operating in vehicle-to-vehicle distance control mode.

• Width of traffic lane is approximately 10 to 13 ft. (3 to 4 m).
• Turn signal lever is not operated.
• Vehicle is not being driven around a sharp curve.
• No system malfunctions are detected. (



P. 284)

• Vehicle does not accelerate or decelerate by a fixed amount or more.
• Steering wheel is not operated with a steering force level suitable for

changing lanes.

• ABS, VSC, TRAC and PCS are not operating.
• TRAC or VSC is not turned off.
• Hands off steering wheel warning is not displayed. (



P. 283)

• The vehicle is being driven in the center of a lane.
• Steering assist function is not operating.

■

Temporary cancelation of functions

●

When operation conditions are no longer met, a function may be temporarily
canceled. However, when the operation conditions are met again, operation
of the function is automatically restored. (



P. 281)

●

If the operation conditions (



P. 281) are no longer met while the lane cen-

tering function is operating, the buzzer may sound to indicate that the func-
tion has been temporarily canceled.

■

Steering assist function/lane centering function

●

Depending on the vehicle speed, lane departure situation, road conditions,
etc., the driver may not feel the function is operating or the function may not
operate at all.

●

The steering control of the function is overridden by the driver’s steering
wheel operation.

●

Do not attempt to test the operation of the steering assist function.

■

Lane departure alert function

●

The warning buzzer may be difficult to hear due to external noise, audio
playback, etc.

●

If the edge of the course

is not clear or straight, the lane departure alert

function may not operate.

●

Vehicle with BSM: It may not be possible for the system to determine if there
is a danger of a collision with a vehicle in an adjacent lane.

●

Do not attempt to test the operation of the lane departure alert function.

: Boundary between asphalt and the side of the road, such as grass, soil, or

a curb

283

4-5. Using the driving support systems

Drivin

■

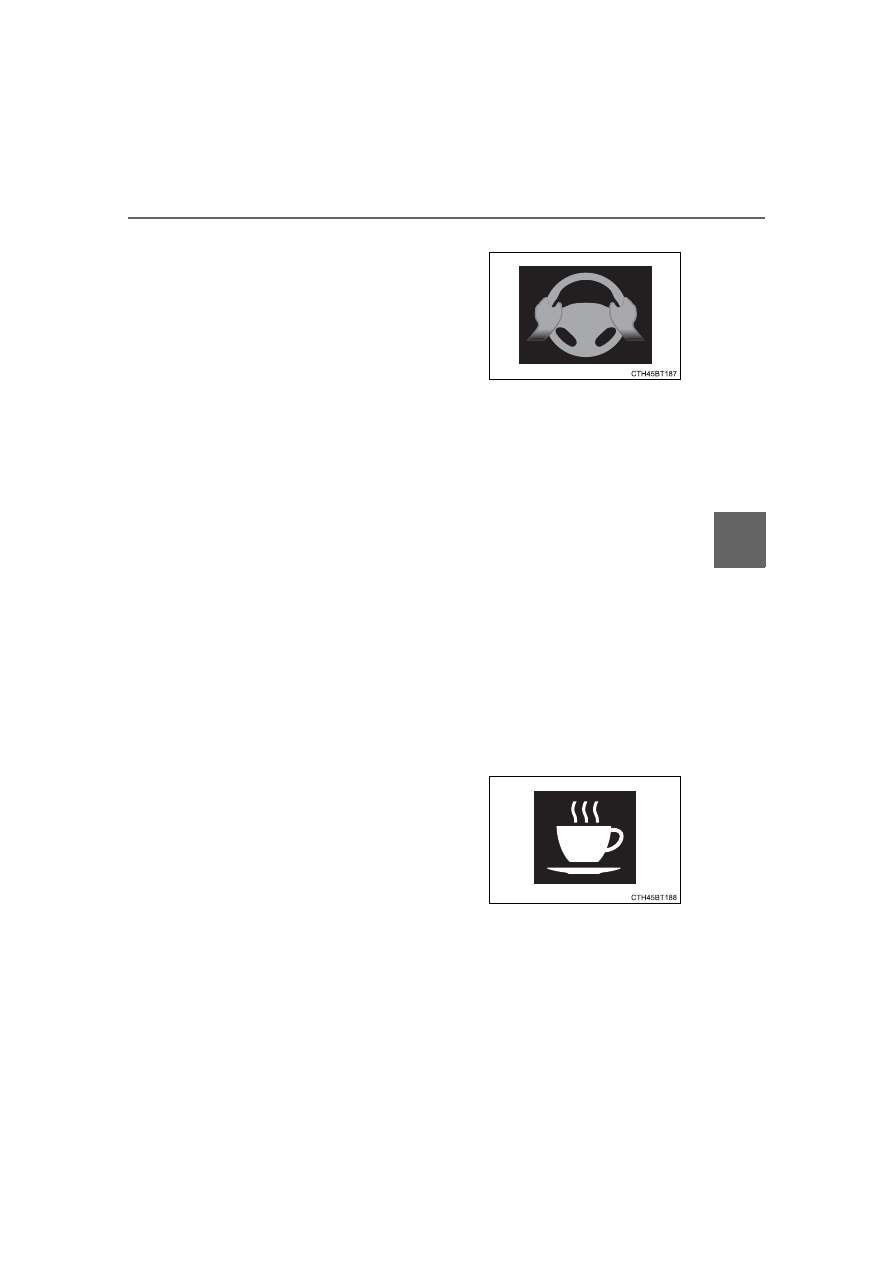

Hands off steering wheel warning

●

When the system determines the driver is not holding the steering wheel
while the lane centering function is operating.

If the driver continues to keep their hands off of the steering wheel, the
buzzer sounds, the driver is warned and the function is temporarily canceled.
This warning also operates in the same way when the driver continuously
operates the steering wheel only a small amount.

●

When the system determines that the vehicle may deviate from the lane
while driving around a curve while the lane centering function is operating.

Depending on the vehicle condition and road conditions, the warning may not
operate. Also, if the system determines that the vehicle is driving around a
curve, warnings will occur earlier than during straight-lane driving.

●

When the system determines that the driver is driving without holding the
steering wheel while the steering wheel assist of the steering assist function
is operating.

If the driver continues to keep their hands off of the steering wheel and the
steering wheel assist is operating, the buzzer sounds and the driver is
warned. Each time the buzzer sounds, the continuing time of the buzzer
becomes longer.

■

Vehicle sway warning function

Depending on the vehicle and road conditions, the warning may not operate.

In the following situations, a warning mes-
sage urging the driver to hold the steering
wheel and the symbol shown in the illus-
tration are displayed on the multi-informa-
tion  display  to  warn  the  driver.  The
warning  stops  when  the  system  deter-
mines  that  the  driver  holds  the  steering
wheel.  Always  keep  your  hands  on  the
steering  wheel  when  using  this  system,
regardless of warnings.

When  the  system  determines  that  the
vehicle is swaying while the vehicle sway
warning  function  is  operating,  a  buzzer
sounds  and  a  warning  message  urging
the driver to rest and the symbol shown in
the  illustration  are  simultaneously  dis-
played on the multi-information display.

284

4-5. Using the driving support systems

■

Warning message

If the following warning message is displayed on the multi-information display
and the LTA indicator illuminates in yellow, follow the appropriate trouble-
shooting procedure. Also, if a different warning message is displayed, follow
the instructions displayed on the screen.

●

“LTA Malfunction Visit Your Dealer”

The system may not be operating properly. Have the vehicle inspected by
your Toyota dealer.

●

“LTA Unavailable”

The system is temporarily canceled due to a malfunction in a sensor other
than the front camera. Turn the LTA system off, wait for a little while, and then
turn the LTA system back on.

●

“LTA Unavailable at Current Speed”

The function cannot be used as the vehicle speed exceeds the LTA operation
range. Drive slower.

■

Customization

Function settings can be changed. (



P. 103, 117)

285

4-5. Using the driving support systems

riv

The RSA system recognizes spe-
cific  road  signs  using  the  front
camera  and/or  navigation  system
(when  speed  limit  information  is
available)  to  provide  information
to the driver via the display.

If the system judges that the vehicle is being driven over the speed
limit, performing prohibited actions, etc. according to the recognized
road signs, it notifies the driver through a visual notification and notifi-
cation buzzer

: This setting needs to be customized.

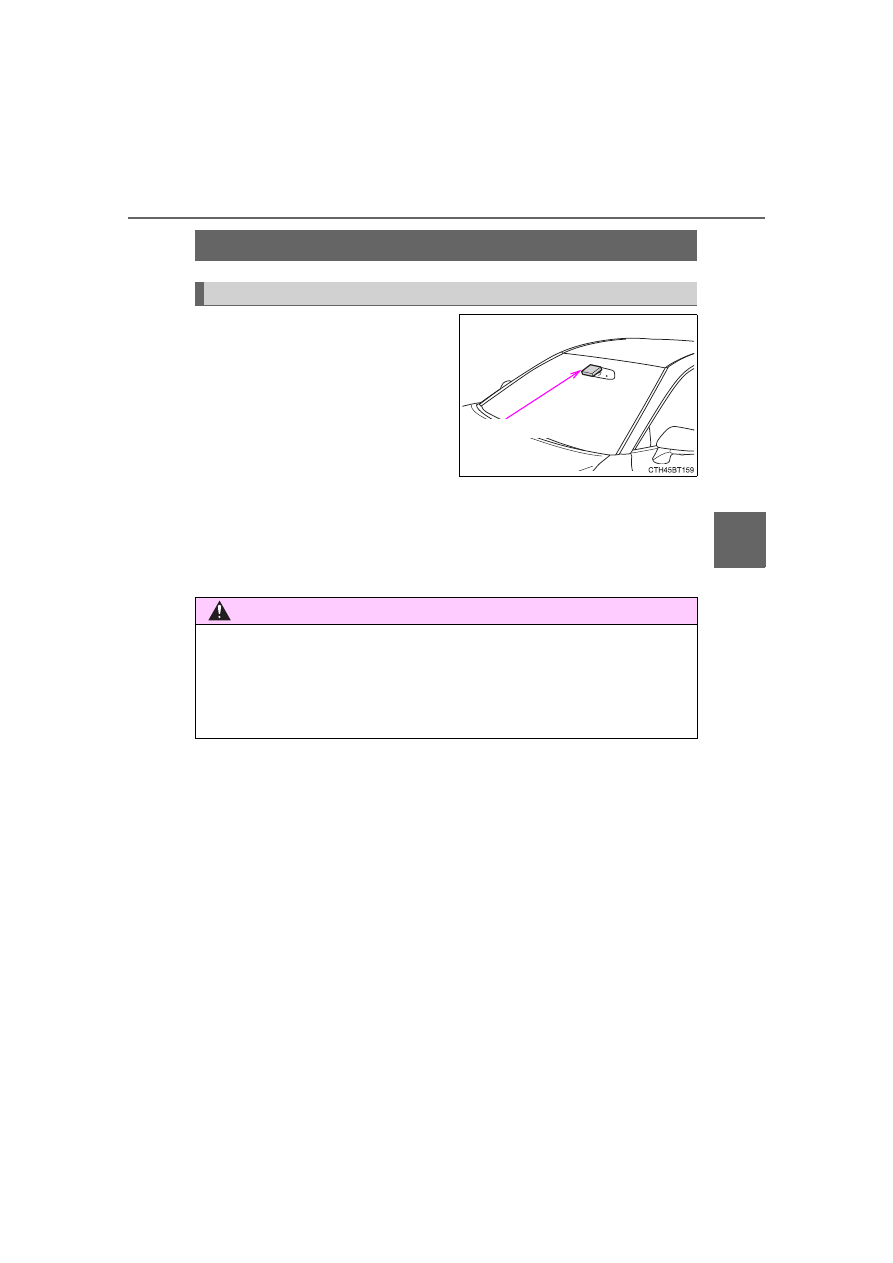

RSA (Road Sign Assist)



: If equipped

Summary of function

Front camera

WARNING

■

Before using the RSA

Do not rely solely upon the RSA system. RSA is a system which supports
the driver by providing information, but it is not a replacement for a driver’s
own vision and awareness. Drive safely by always paying careful attention
to the traffic rules.

286

4-5. Using the driving support systems

When the front camera recognizes a sign and/or information of a sign
is available from the navigation system, the sign will be displayed on
the multi-information display.

●

When the driving assist system
information is selected, a maxi-
mum of 3 signs can be dis-
played. (



P. 98, 111)

●

When a tab other than the driv-
ing assist system information is
selected, the following types of
road signs will be displayed.
(



P. 98, 111)

• Speed limit sign
• Do Not Enter sign (when

notification is necessary)

If signs other than speed limit signs are recognized, they will be dis-
played in an overlapping stack under the current speed limit sign.

Indication on the multi-information display

287

4-5. Using the driving support systems

Drivin

The following types of road signs, including electronic signs and blink-
ing signs, are recognized.

A non-official or a recently introduced traffic sign may not be recognized.

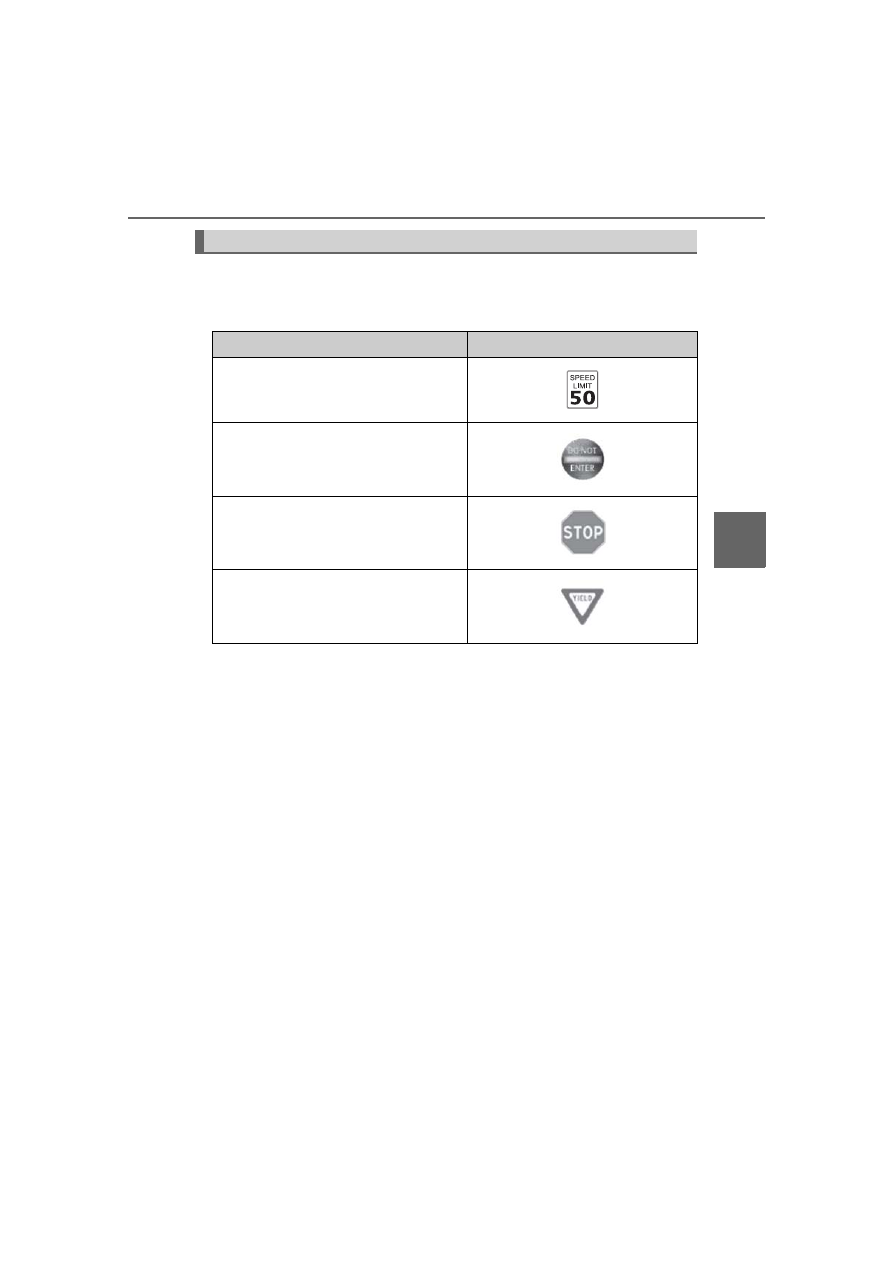

Supported types of road signs

Type

Multi-information display

Speed limit

Do Not Enter

Stop

Yield

288

4-5. Using the driving support systems

In the following situations, the RSA system will notify the driver.

●

When the vehicle speed exceeds the speed notification threshold of
the speed limit sign displayed, the sign display will be emphasized
and a buzzer will sound.

●

When the RSA system recognizes a do not enter sign and deter-
mines that your vehicle has entered a no-entry area, the displayed
sign will flash and a buzzer will sound.

Depending on the situation, a notification function may not operate
properly.

■

Setting procedure



Vehicles with 4.2-inch multi-information display
Press

of the meter control switches, select

Press

of the meter control switches, select

Press

of the meter control switch.

Each time

is pressed, the function changes on/off.



Vehicles with 7-inch multi-information display
Press

of the meter control switches, select

Press

of the meter control switches, select

Press

of the meter control switch.

Each time

is pressed, the function changes on/off.

■

Automatic turn-off of RSA sign display

In the following situations, a displayed speed limit sign and/or do not enter
sign will stop being displayed automatically:

●

No sign has been recognized for a certain distance.

●

The road changes due to a left or right turn, etc.

In the following situations, stop and yield signs will stop being displayed auto-
matically:

●

The system determines that your vehicle has passed the sign.

●

The road changes due to a left or right turn, etc.

Notification function

289

4-5. Using the driving support systems

Drivin

■

Conditions in which the function may not operate or detect correctly

In the following situations, RSA does not operate normally and may not rec-
ognize signs, display the incorrect sign, etc. However, this does not indicate a
malfunction.

●

The front camera is misaligned due to a strong impact being applied to the
sensor, etc.

●

Dirt, snow, stickers, etc. are on the windshield near the front camera.

●

In inclement weather such as heavy rain, fog, snow or sand storms

●

Light from an oncoming vehicle, the sun, etc. enters the front camera.

●

The sign is dirty, faded, tilted or bent.

●

The contrast of electronic sign is low.

●

All or part of the sign is hidden by the leaves of a tree, a pole, etc.

●

The sign is only visible to the front camera for a short amount of time.

●

The driving scene (turning, lane change, etc.) is judged incorrectly.

●

If a sign not appropriate for the currently traveled lane, but the sign exists
directly after a freeway branches, or in an adjacent lane just before merging.

●

Stickers are attached to the rear of the preceding vehicle.

●

A sign resembling a system compatible sign is recognized.

●

Side road speed signs may be detected and displayed (if positioned in sight
of the front camera) while the vehicle is traveling on the main road.

●

Roundabout exit road speed signs may be detected and displayed (if posi-
tioned in sight of the front camera) while traveling on a roundabout.

●

The front of the vehicle is raised or lowered due to the carried load

●

The surrounding brightness is not sufficient or changes suddenly.

●

When a sign intended for trucks, etc. is recognized.

●

The navigation system map data is outdated.

●

The navigation system is not operating.

●

The speed information displayed on the meter and on the navigation system
may be different due to the navigation system using map data.

■

Speed limit sign display

If the engine switch was last turned off while a speed limit sign was displayed
on the multi-information display, the same sign displays again when the
engine switch is turned to ON.

■

If “Road Sign Assist System Malfunction” is shown

The system may be malfunctioning. Have the vehicle inspected by your Toy-
ota dealer.

■

Customization

Some functions can be customized. (



P. 103, 117)

290

4-5. Using the driving support systems

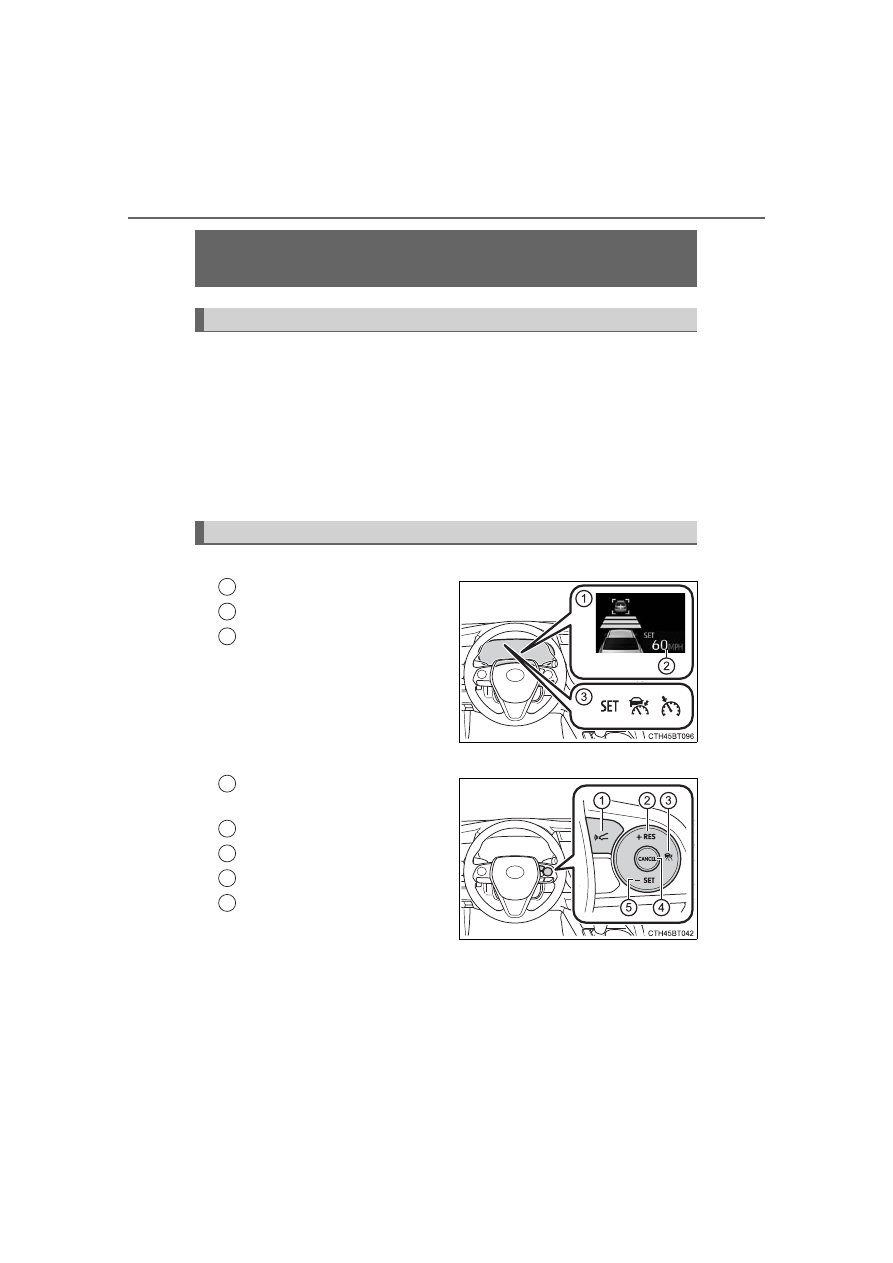

In vehicle-to-vehicle distance control mode, the vehicle automatically
accelerates, decelerates and stops to match the speed changes of the
preceding vehicle even if the accelerator pedal is not depressed. In
constant speed control mode, the vehicle runs at a fixed speed.
Use the dynamic radar cruise control with full-speed range on free-
ways and highways.

●

Vehicle-to-vehicle distance control mode (



P. 294)

●

Constant speed control mode (



P. 301)

■

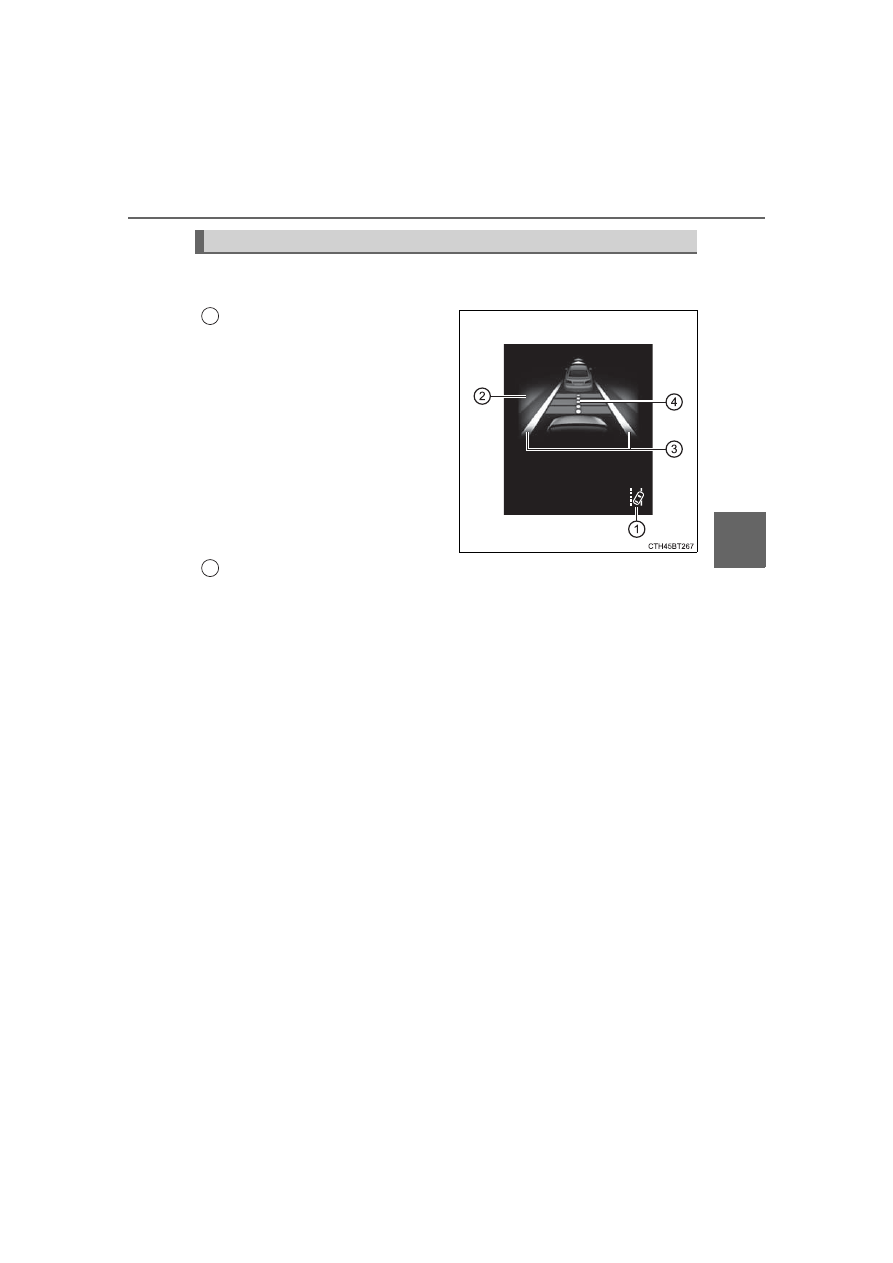

Meter display

Multi-information display
Set speed
Indicators

■
