305

4-5. Using the driving support systems

riv

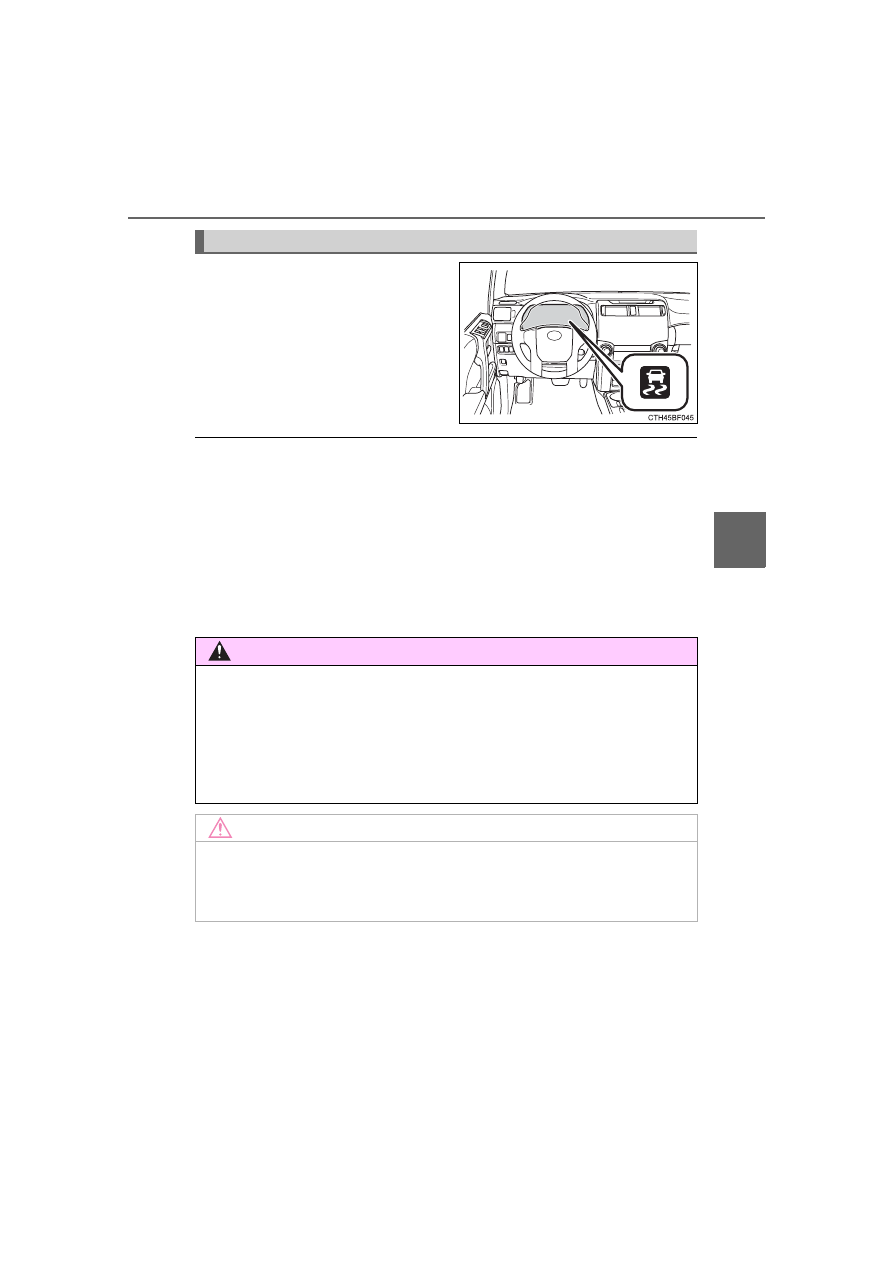

If  the  drive  wheels  spin,  the  slip
indicator  flashes  to  indicate  that
the AUTO  LSD  system  has  con-
trolled  the  spinning  of  the  drive
wheels.

■

If the engine is turned off and restarted

The AUTO LSD system and the indicators are automatically turned off.

■

Reactivation of the VSC system linked to vehicle speed

When the AUTO LSD system is turned on, the VSC, TRAC and Trailer Sway
Control systems will turn on automatically if vehicle speed increase.

■

If the brake system overheats

The system will cease operation and a buzzer will alert the driver. At this time,
the “AUTO LSD” indicator will flash and the “TRAC OFF” indicator will come
on. Stop the vehicle in a safe place. (There is no problem with continuing nor-
mal driving.) The system will be automatically restored after a short time.

When the AUTO LSD system is operating

WARNING

■

To avoid an accident

Failure to do so, a much greater steering effort and more careful cornering
control will be required.

●

Do not use the AUTO LSD system in conditions other than when one of
the drive wheels spinning occurs in a ditch or rough surface.

●

Do not drive with the AUTO LSD system continuously turned on.

NOTICE

■

Activating while driving

Do not activate the AUTO LSD system if the wheel is slipping.
Stop the slipping or spinning before activating.

306

4-5. Using the driving support systems

The rear differential lock system is effective in case one of the rear
wheels is spinning.

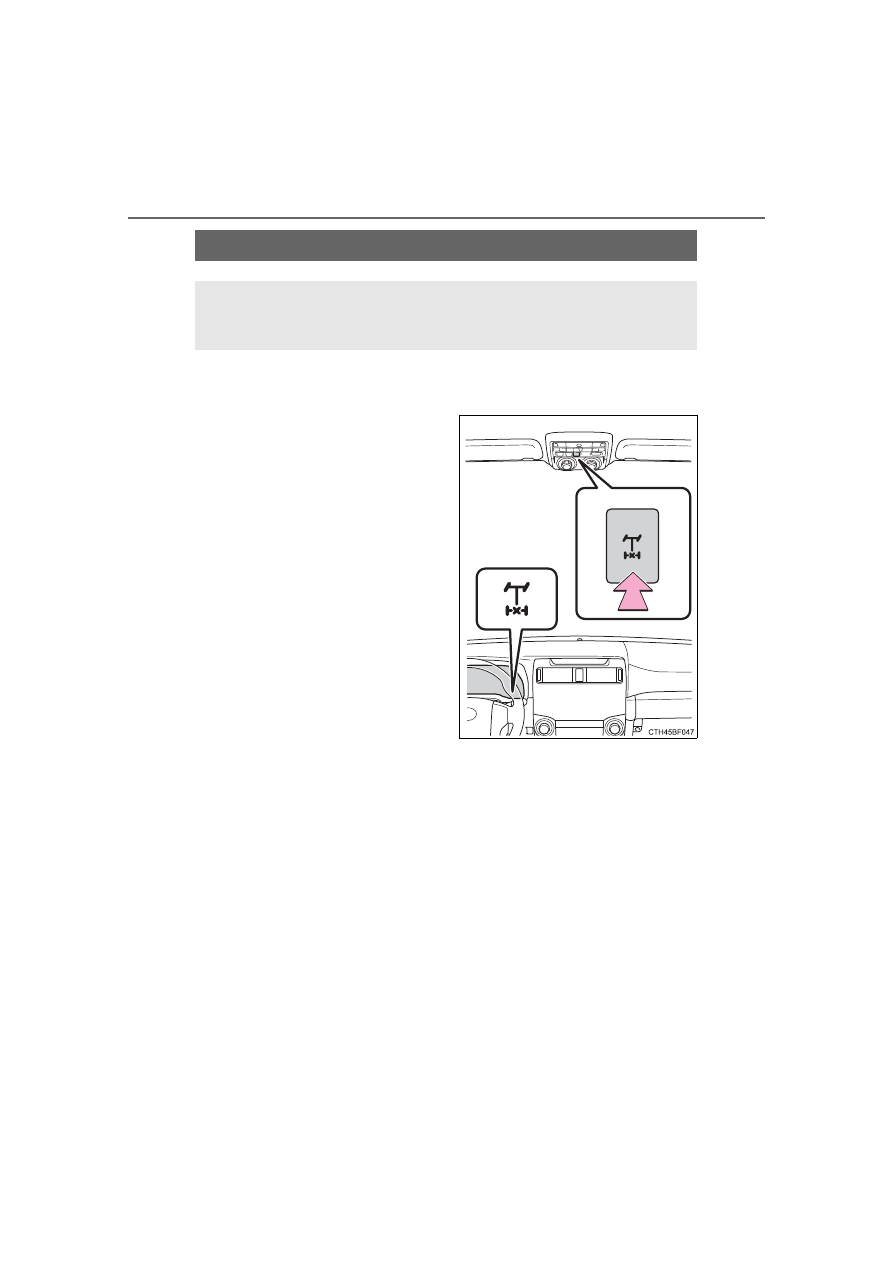

Press the switch to lock the rear
differential.

At  this  time,  the  rear  differential
lock indicator will flash. Wait a few
seconds  for  the  system  to  com-
plete  operation. After  the  rear  dif-
ferential is locked, the indicator will
stop flashing and remain on.
To  unlock  the  rear  differential,
press the switch again.

Rear differential lock system



: If equipped

The rear differential lock system is provided for use only when
wheel spinning occurs in a ditch or on a slippery or rugged sur-
face.

307

4-5. Using the driving support systems

Drivin

Before using the rear differential lock system:
Stop the vehicle, shift the shift lever to N and shift the front-wheel
drive control lever into L4 to see if this is sufficient. If this has no
effect, additionally use the rear differential lock system.
Be sure the wheels have stopped spinning.
Press the rear differential lock switch.
Gently depress the accelerator pedal.

After the rear differential is locked, the indicator will come on.

Unlock the rear differential as soon as the vehicle moves.
To unlock the rear differential, press the switch again.

■

Locking the rear differential

The following systems do not operate when the rear differential is locked. It is
normal operation for the ABS warning light and VSC OFF indicator to be on at
this time.

• ABS
• Multi Terrain ABS
• Brake assist system
• VSC
• Hill-start assist control

■

The rear differential lock is disengaged when

The front-wheel drive control lever or switch is shifted to H2 or H4.
Never forget to turn off the switch after using this feature.

■

After unlocking the rear differential

Check that the indicator goes off.

■

If the rear differential lock indicator flashes rapidly

There may be a malfunction in the rear differential lock system. Have the
vehicle inspected by your Toyota dealer immediately.

Using the rear differential lock system

308

4-5. Using the driving support systems

WARNING

■

To avoid an accident

●

Do not use the rear differential lock system except when wheel spinning
occurs in a ditch or on a slippery or rugged surface. Large steering effort
and careful cornering control will be required.

●

Do not lock the rear differential until the wheels have stopped spinning.
Otherwise, the vehicle may move in an unexpected direction when the dif-
ferential lock is engaged, resulting in an accident. This may also lead to
possible damage to rear differential lock component parts.

●

Do not drive over 5 mph (8 km/h) when the rear differential is locked.

●

Do not keep driving with the rear differential lock switch on.

309

4-5. Using the driving support systems

Drivin

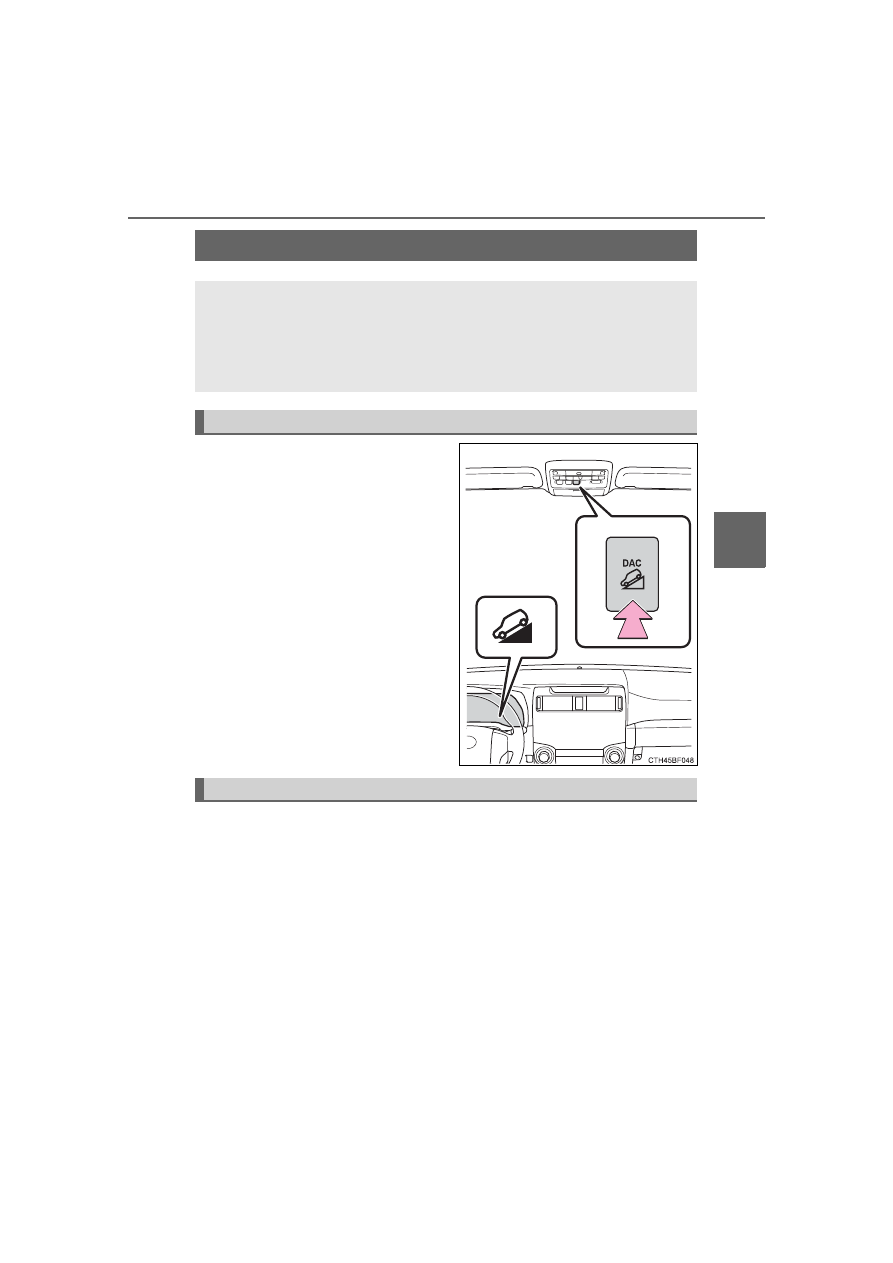

Press the “DAC” switch.
The downhill assist control system
indicator  will  comes  on  and  the
system  will  operate.  When  the
system  is  in  operation,  the  slip
indicator  will  flash,  and  the  stop
lights/high mounted stop lights will
be  lit.  A  sound  may  also  occur
during  the  operation.  This  does
not indicated a malfunction.

Press the “DAC” switch while the system is in operation. The downhill
assist control system indicator will flash as the system gradually
ceases operation, and will turn off when the system is fully off. Press
the “DAC” switch while the downhill assist control system indicator is
flashing to start the system again.

Downhill assist control system



: If equipped

The downhill assist control system helps to prevent excessive
speed on steep downhill slopes. The system will operate when
the vehicle is traveling under 15 mph (25 km/h) with the acceler-
ator and brake pedals released and the transfer mode is in L4
(part-time 4WD models) or L4L (full-time 4WD models).

System operation

Turning off the system

310

4-5. Using the driving support systems

■

Operating tips

The system will operate when the shift lever is in a position other than P, how-
ever to make effective use of the system it is recommended to select a lower
shift range.

■

The system will not operate when

●

Part-time 4WD models: The transfer mode is in H2 or H4.

●

Full-time 4WD models: The transfer mode is in H4L or H4F.

■

If the downhill assist control system indicator flashes

●

In the following situations, the indicator flashes and the system will not oper-
ate:
• The transfer mode is not in L4 (part-time 4WD models) or L4L (full-time

4WD models).

• The shift lever is in P.
• The accelerator or brake pedal is depressed.
• The vehicle speed exceeds approximately 15 mph (25 km/h).
• The brake system overheats.

●

In the following situations, the indicator flashes to alert the driver, but the
system will operate:
• The shift lever is in N.
• The “DAC” switch is turned off while the system is operating.

The system will gradually ceases operation. The indicator will flash during
operation, and then go off when the system is fully off.

■

When the downhill assist control system is operated continuously

This may cause the brake actuator to overheat. In this case, the downhill
assist control system will stop operating, a buzzer will sound and the downhill
assist control system indicator will start flashing, and the “TRAC OFF” indica-
tor light will come on. Refrain from using the system until the downhill assist
control system indicator stays on and “TRAC OFF” indicator light turns off.
(The vehicle can be driven normally during this time.)

311

4-5. Using the driving support systems

riv

■

Sounds and vibrations caused by the downhill assist control system

●

A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate
that a malfunction has occurred in downhill assist control system.

●

Either of the following conditions may occur when the downhill assist control
system is operating. None of these are indicators that a malfunction has
occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.

■

System malfunction

In the following cases, have your vehicle checked by your Toyota dealer.

●

The downhill assist control system indicator does not come on when the
engine switch is turned to IGNITION ON mode.

●

The downhill assist control system indicator does not come on when the
“DAC” switch is pressed.

●

The slip indicator comes on.

WARNING

■

When using downhill assist control system

Do not rely overmuch on the downhill assist control system. This function
does not extend the vehicle’s performance limitations. Always thoroughly
check the road conditions, and drive safely.

■

The system may not operate on the following surfaces, which may lead
to an accident causing death or serious injury

●

Slippery surfaces such as wet or muddy roads

●

Icy surface

●

Unpaved roads

312

4-5. Using the driving support systems

■

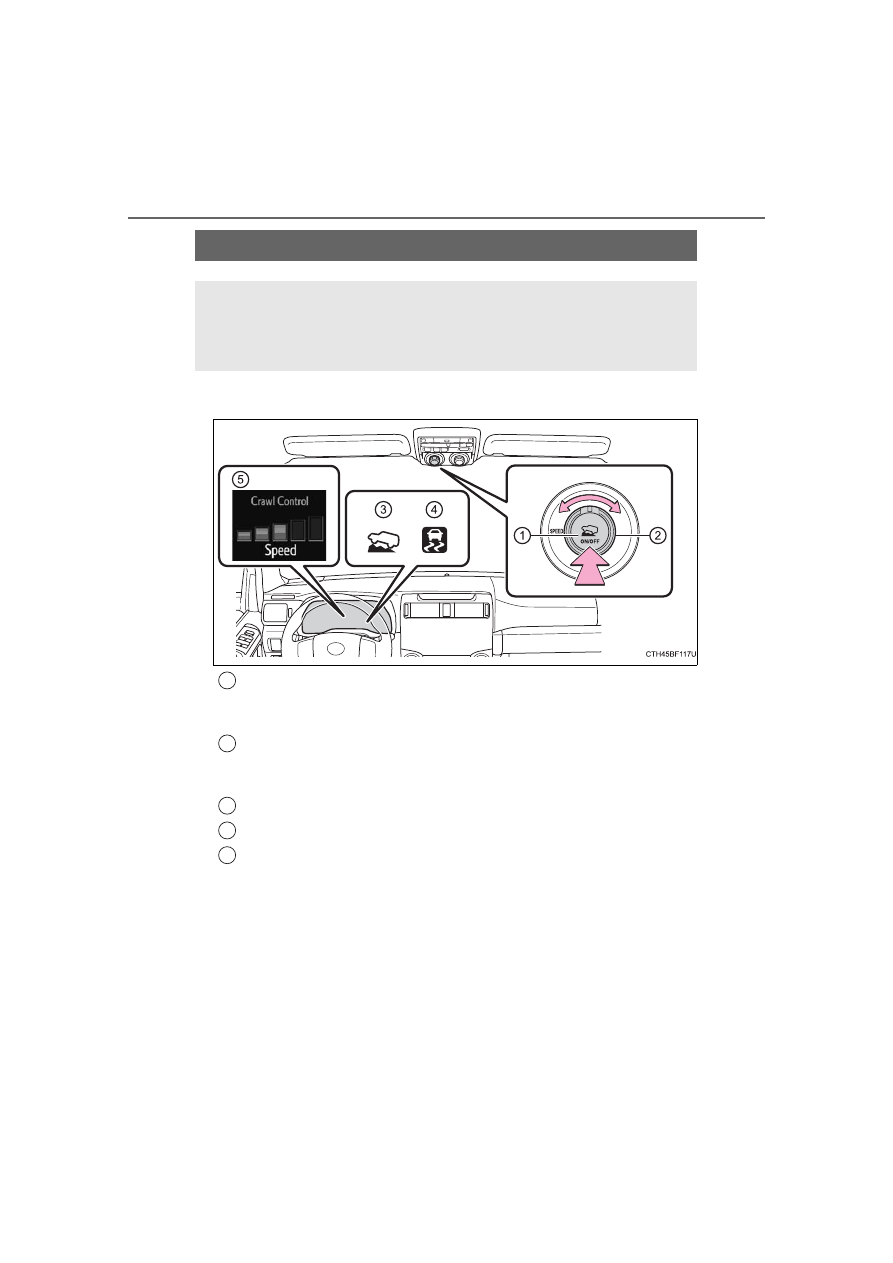

Crawl Control switch

“ON/OFF” switch

The Crawl Control indicator comes on and the slip indicator flashes
when operating.

Speed selector dial

Turn the dial clockwise to increase the speed and counterclockwise to
decrease the speed.

Crawl Control indicator
Slip indicator
Multi-information display

The operating status and speed select status of the Crawl Control are
shown on the multi-information display.

Crawl Control



: If equipped

Allows travel on extremely rough off-road surfaces at a fixed low
speed without pressing the accelerator or brake pedal. Mini-
mizes loss of traction or vehicle slip when driving on slippery
road surfaces, allowing for stable driving.

313

4-5. Using the driving support systems

Drivin

■

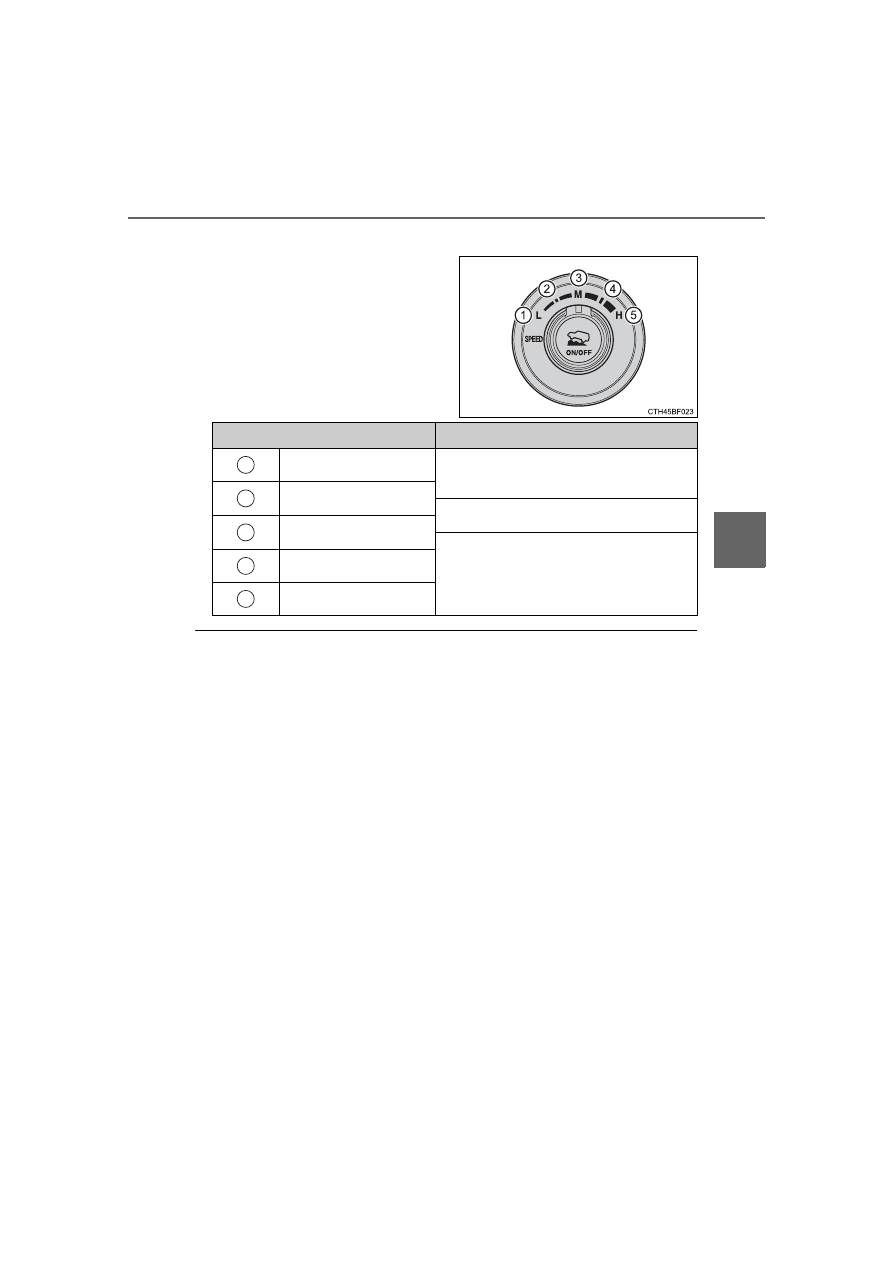

Speed modes

The following table shows
some typical terrains and the
recommended speed modes.

■

Crawl Control can be operated when

●

The engine is running.

●

The shift lever is in any position other than P or N.

●

The front-wheel drive control lever or switch is in L4.

●

The driver’s door is closed.

■

Crawl Control is temporarily canceled when

Vehicle speed exceeds 15 mph (25 km/h). The Crawl Control indicator
flashes until the vehicle speed is reduced.

Mode

Road condition

L (Low)

Rock, mogul (downhill) and gravel
(downhill)

Between L and M

Mogul (uphill)

M (Medium)

Snow, mud, gravel (uphill), sand, dirt,
mogul (uphill) and grass

Between M and H

H (High)

314

4-5. Using the driving support systems

■

Automatic system cancelation

In the following situations, the system will cease operation and a buzzer will
sound to alert the driver. The Crawl Control indicator will flash until the system
is turned off completely.

●

When the shift lever is shifted to P or N

●

When the front-wheel drive control lever or switch is shifted to H4

●

When the driver’s door is opened

●

When the system is malfunctioning

●

When the brake system overheats
Stop the vehicle in a safe place. (There is no problem with continuing normal
driving.)

●

When the automatic transmission system overheats
Stop the vehicle in a safe place until the automatic transmission fluid tem-
perature warning light goes off.

■

Sounds and vibrations caused by the Crawl Control system

●

A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate
that a malfunction has occurred in Crawl Control system.

●

Either of the following conditions may occur when the Crawl Control system
is operating. None of these indicates that a malfunction has occurred.
• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.

■

When there is a malfunction in the system

Warning lights and/or warning messages will turn on. (



P. 477, 488)

WARNING

■

When using Crawl Control

●

Do not overly rely on Crawl Control. This function does not extend the
vehicle’s performance limitations. Always check the terrain thoroughly and
drive safely.

●

The recommended speed modes for the listed terrains (



P. 313) are only

a reference. The selected mode may not be suitable to actual off-road con-
ditions due to factors such as the type or unevenness of the terrain or the
degree of incline. Check the actual terrain thoroughly and drive safely.

●

After activating Crawl Control, make sure that the Crawl Control indicator
comes on. If the indicator flashes, the vehicle is not under system control.

■

Conditions under which the system may not operate correctly

When driving on the following surfaces, the system may not be able to
maintain a fixed low speed, which may result in an accident:

●

Extremely steep inclines

●

Extremely uneven surfaces

●

Snow-covered roads, or other slippery surfaces

315

4-5. Using the driving support systems

Drivin

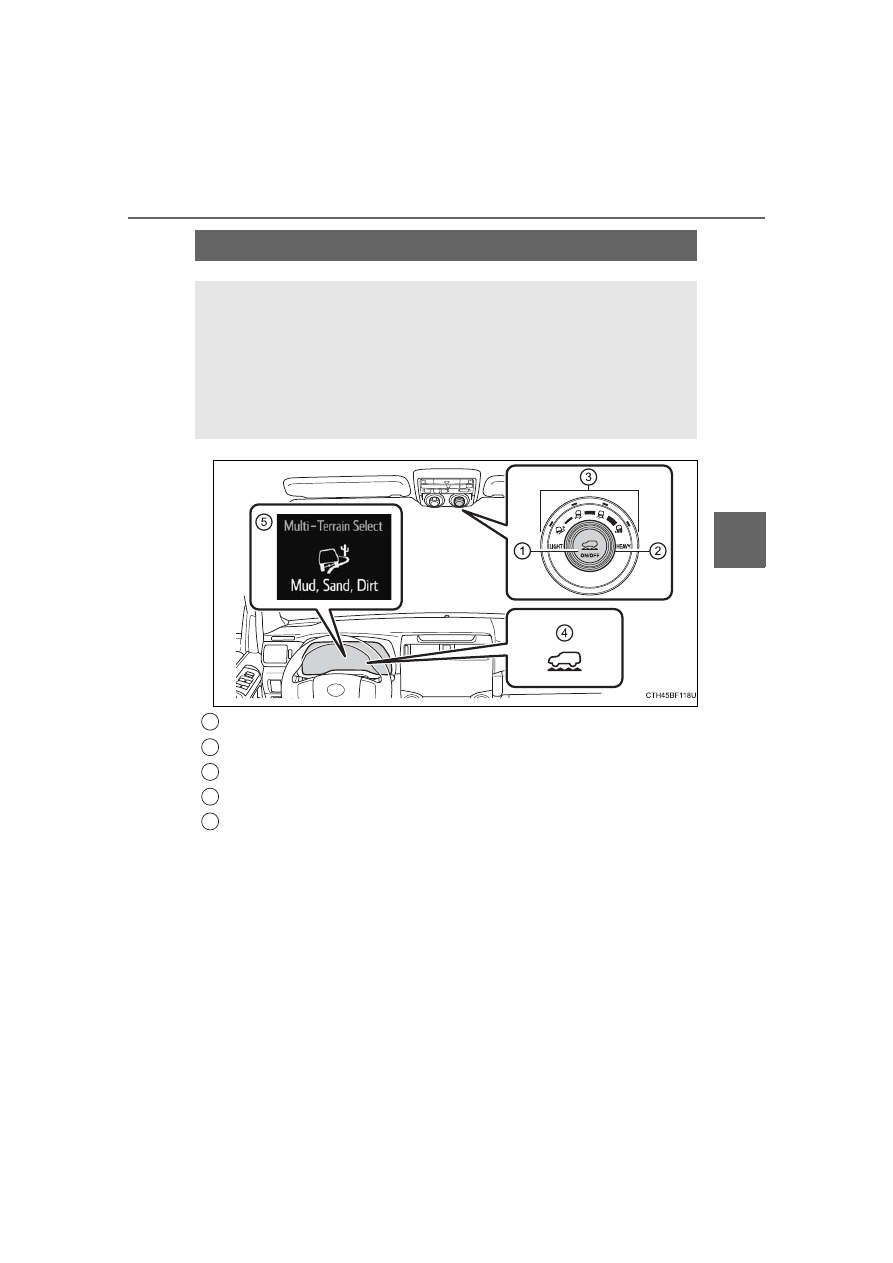

“ON/OFF” switch
Mode selector dial
Mode indicators
Multi-terrain Select indicator
Multi-information display

Displays status information including operating status and road type selec-
tion.

Multi-terrain Select



: If equipped

The Multi-terrain Select system has 4 terrain modes. When a ter-
rain  mode  is  selected  in  accordance  with  terrain  conditions,
engine power and active traction control system is controlled to
enhance off-road drivability.
Additionally,  guidance messages such  as  transfer mode  selec-
tion  advice  are  displayed  on  the  multi-information  display  to
assist the driver in operating the vehicle.

316

4-5. Using the driving support systems

■

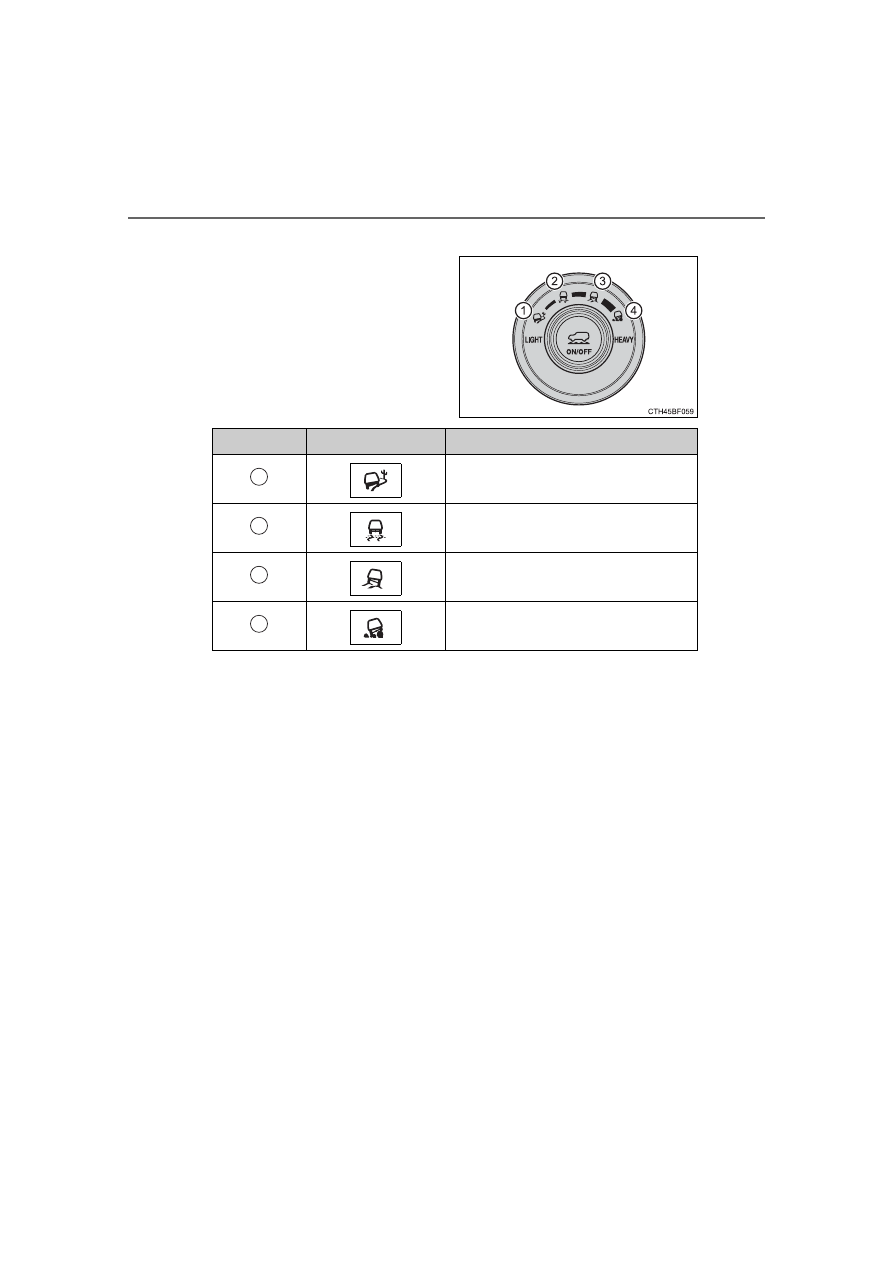

Multi-terrain Select modes

Symbol

Mode

MUD & SAND

LOOSE ROCK

MOGUL

ROCK

317

4-5. Using the driving support systems

Drivin

The following table shows some typical terrains and the recom-
mended Multi-terrain Select modes.

■

Multi-terrain Select can be activated when

●

Vehicle speed is approximately 7 mph (12 km/h) or less.

●

MUD & SAND: The front-wheel drive control lever is in L4 or H4.
LOOSE ROCK, MOGUL and ROCK: The front-wheel drive con-
trol lever is in L4.

●

Crawl Control is not operating.

ROCK

MOGUL

LOOSE

ROCK

MUD &

SAND

Rock

Mogul

Bump,

groove

Slope/

V-ditch

Uphill/

downhill

Riverbed

Gravel

Bush

Deep snow

Sand

Mud

Dirt

Mode

Road
condition

318

4-5. Using the driving support systems

Press the “ON/OFF” switch.

All of the mode indicators will turn
on and then off except the indicator
for the current mode. The Multi-ter-
rain  Select  indicator  on  the  instru-
ment cluster will remain illuminated
while  this  system  is  enabled.  The
applicable  road  conditions  will  be
displayed  on  the  multi-information
display  for  10  seconds  and  then
will go off.
When  the  “ON/OFF”  switch  is
pressed  to  disable  the  system,  a
beep will sound.

Turn the dial to select the
desired mode.

The  indicator  for  the  selected
mode will turn on and the applica-
ble  road  conditions  will  be  dis-
played  on  the  multi-information
display  for  10  seconds  and  then
will go off.
If the mode indicator flashes, Multi-
terrain  Select  cannot  be  operated.
Follow  the  instructions  displayed
on  the  multi-information  display
and check that the mode indicator
stops flashing. (



P. 319)

Selecting modes

319

4-5. Using the driving support systems

Drivin

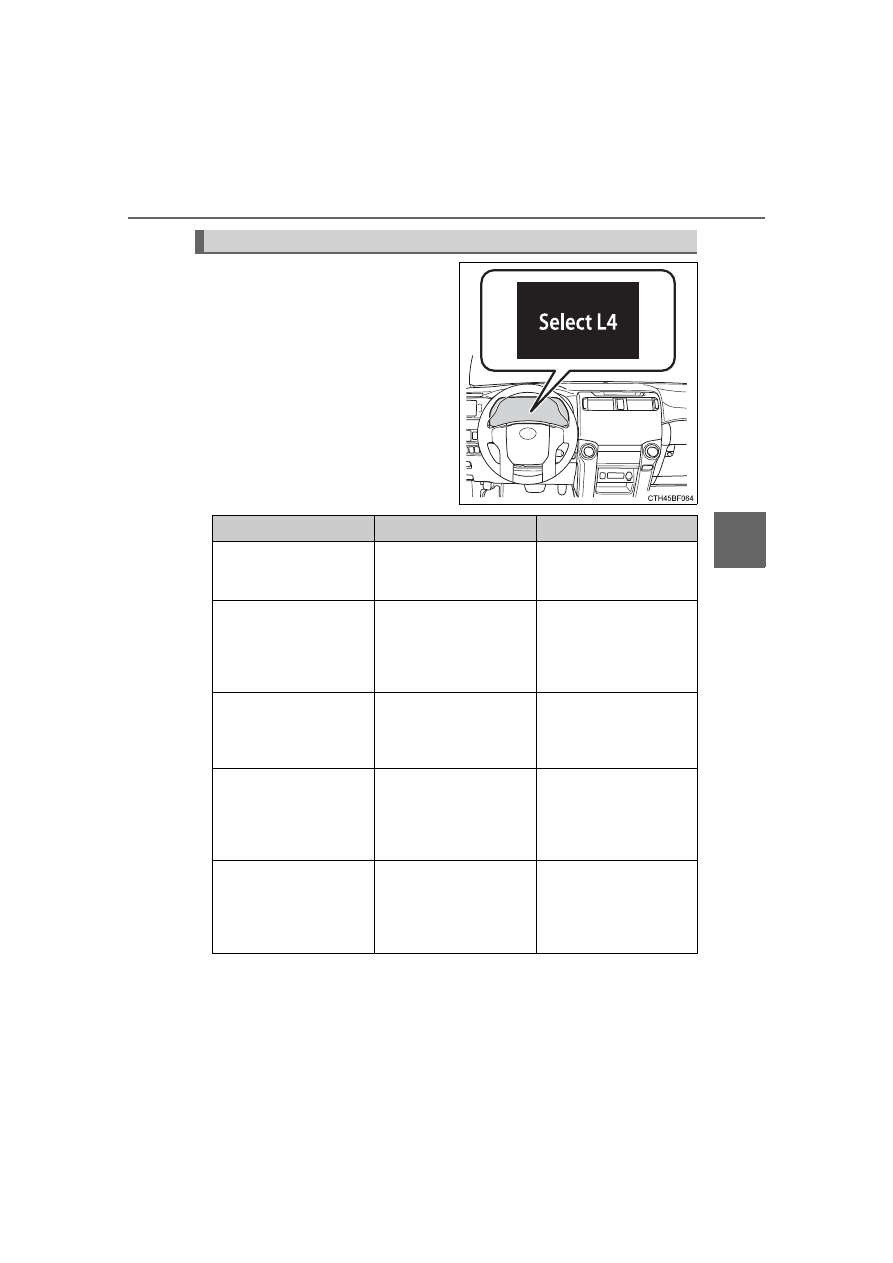

Depending  on  switch  operation,
one  of  the  following  messages
may appear on the multi-informa-
tion  display  to  provide  guidance
on transfer mode selection etc:

Messages displayed on the multi-information display

Message

Details

Procedure

“Select 4WD”
(When selecting MUD
& SAND mode)

Indicates that the trans-
fer mode needs to be
changed to H4 or L4.

Shift the front-wheel
drive control lever to H4
or L4.

“Select L4”
(When

selecting

LOOSE

ROCK,

MOGUL

ROCK

mode)

Indicates that the trans-
fer mode needs to be
changed to L4.

Shift the front-wheel
drive control lever to
L4.

“Stop the Vehicle. Shift
to N”
(When selecting any
mode)

Indicates that the trans-
fer mode cannot be
changed to H4 or L4.

Stop the vehicle com-
pletely and/or shift the
shift lever to N.

“Accelerate or Deceler-
ate”
(When

shifting

the

front-wheel

control

lever to H4 or H2)

Indicates that the trans-
fer mode may not suc-
cessfully change.

Drive straight ahead
while accelerating or
decelerating, or drive in
reverse.

“Drive  the  Vehicle  a
Short Distance”
(When  pressing  the
rear  differential  lock
switch)

Indicates that the rear
differential

not

locked.

Drive the vehicle for-
ward or backward a
short distance.

320

4-5. Using the driving support systems

“Operation  not  avail-
able  while  multi-terrain
select active”
(When  pressing  the
VSC  off  switch  or  “A-
TRAC” switch)

Indicates that VSC and
active traction control
cannot be disabled
while

Multi-terrain

Select is operating.

“Return the Four-Wheel
Drive Control Switch”
(When

shifting

the

front-wheel

control

lever)

Indicates that the trans-
fer mode cannot be
changed to H4 or L4.

Return the front-wheel
control lever to H4 or
L4.

“Cannot be Selected”
(When pressing the
“ON/OFF” switch)

Indicates  that  Multi-ter-
rain  Select  cannot  be
operated because vehi-
cle  speed  exceeds
approximately 7 mph
(12 km/h).

Reduce vehicle speed.

“Operation  Not  Possi-
ble  When  Crawl  Con-
trol Activated”
(When  pressing  the
“ON/OFF” switch)

Indicates that Multi-ter-
rain Select cannot be
operated

because

Crawl Control is operat-
ing.

Turn Crawl Control off.

“Multi-terrain select has
been cancelled”
(When pressing the
“ON/OFF” switch)

Indicates,  along  with  a
beep,  that  Multi-terrain
Select  has  been  dis-
abled.

“Multi-terrain select not
available”
(When pressing the
“ON/OFF” switch)

Indicates  that  Multi-ter-
rain  Select  cannot  be
operated  because  the
VSC  and/or  4WD  sys-
tem  may  be  malfunc-
tioning.

Contact your Toyota
dealer.

Message

Details

Procedure

Content .. 17 18 19 20 ..
