3-2. Opening, closing and locking the doors

●

Locks and unlocks the doors (



P. 106)

●

Starts the engine (



P. 199)

■

Antenna location

Antennas outside the cabin
Antennas inside the cabin
Antenna outside the luggage
compartment

Smart key system

Function summary

The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)

114

3-2. Opening, closing and locking the doors

■

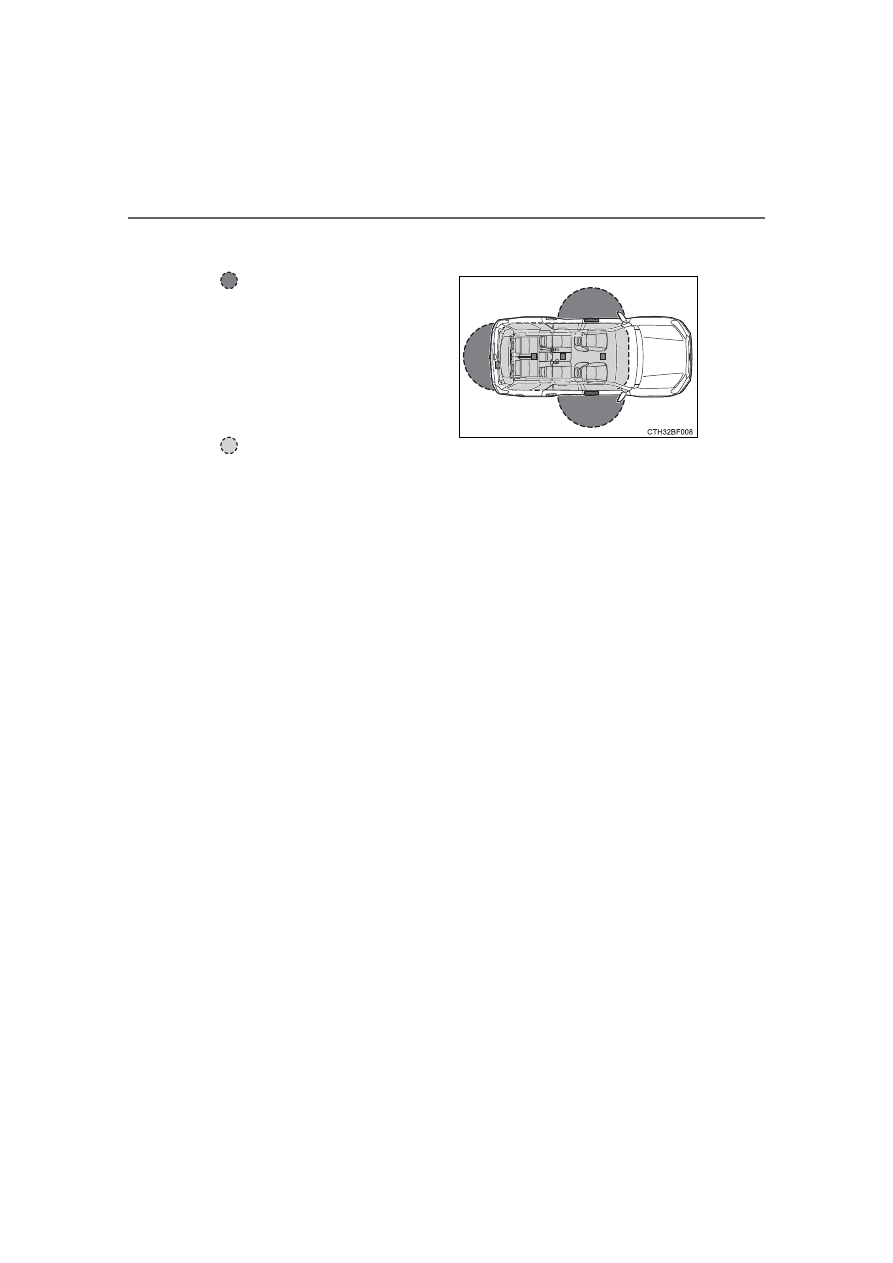

Effective range (areas within which the electronic key is
detected)

When locking or unlocking
the doors

The  system  can  be  operated
when the electronic key is within
about 2.3 ft. (0.7 m) either of the
outside  front  door  handles  and
back  door.  (Only  the  doors
detecting  the  key  can  be  oper-
ated.)

When starting the engine or
changing

engine

switch

modes

The system can be operated
when the electronic key is inside
the vehicle.

115

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

■

Alarms and warning indicators

A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehicle
and accidents resulting from erroneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
The following table describes circumstances and correction procedures when
only alarms are sounded.

Alarm

Situation

Correction procedure

Exterior alarm sounds
once for 5 seconds

An  attempt  was  made
to  lock  the doors  using
the  smart  key  system
while the electronic key
was still inside the vehi-
cle.

Retrieve  the  electronic
key  from  the  vehicle
and  lock  the  doors
again.

An  attempt  was  made
to lock either front door
by  opening  a  door  and
putting  the  inside  lock
button  into  the  lock
position,  then  closing
the  door  by  pulling  on
the outside door handle
with  the  electronic  key
still inside the vehicle.

An attempt was made
to lock the vehicle while
a door was open.

Close all of the doors
and lock the doors
again.

Interior alarm sounds
continuously

An  attempt  was  made
to  open  the  door  and
exit  the  vehicle  when
the  shift  lever  was  not
in P.

Shift the shift lever to P.

Interior alarm pings
repeatedly

The engine switch was
turned to ACCESSORY
mode while the driver's
door was open
(The driver's door was
opened

when

the

engine switch was in
ACCESSORY mode.)

Turn the engine switch
off and close the
driver's door.

116

3-2. Opening, closing and locking the doors

■

Battery-saving function

The battery-saving function will be activated in order to prevent the electronic
key battery and the vehicle battery from being discharged while the vehicle is
not in operation for a long time.

●

In the following situations, the smart key system may take some time to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of

the outside of the vehicle for 10 minutes or longer.

• The smart key system has not been used for 5 days or longer.

●

If the smart key system has not been used for 14 days or longer, the doors
cannot be unlocked at any doors except the driver’s door. In this case, take
hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.

■

Electronic key battery-saving function

When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.

Interior alarm sounds
once.

The engine switch was
pressed after the doors
were unlocked with the
mechanical key.

Touch the electronic
key to the engine
switch while depressing
the brake pedal.

The engine  switch was
pressed  two  consecu-
tive  times  without  the
electronic  key  being
present.

Alarm

Situation

Correction procedure

Press

twice while pressing and

holding

. Confirm that the electronic

key indicator flashes 4 times.
While the battery-saving mode is set, the
smart key system cannot be used. To
cancel the function, press any of the
electronic key buttons.

117

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

■

Conditions affecting operation

The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system, wireless remote control and engine immobi-
lizer system from operating properly. (Ways of coping:



P. 512)

●

When the electronic key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device

●

When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When multiple electronic keys are in the vicinity

●

When other wireless keys (that emit radio waves) are being used nearby

●

When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems

●

If window tint with a metallic content or metallic objects are attached to the
back window

●

When the electronic key is placed near a battery charger or electronic
devices

●

When the vehicle is parked in a pay parking spot where radio waves are
emitted.

If the doors cannot be locked/unlocked using the smart key system, lock/
unlock the doors by performing any of the following:

●

Bring the electronic key close to either front door handle and operate the
entry function.

●

Operate the wireless remote control.

If the doors cannot be locked/unlocked using the above methods, use the
mechanical key. (



P. 512)

If the engine cannot be started using the smart key system, refer to P. 513.

118

3-2. Opening, closing and locking the doors

■

Note for the entry function

●

Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near

the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is on the instrument panel or floor, in the glove box, or

in the auxiliary box of the instrument panel.

●

Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.

●

As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.

●

The doors may lock or unlock if the electronic key is within the effective
range and a large amount of water splashes on the door handle, such as in
the rain or in a car wash. The doors will automatically be locked after
approximately 60 seconds if a door is not opened and closed.

●

If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)

●

Whether or not the electronic key is inside the vehicle, the engine could be
started if the electronic key is near the window.

■

Note for locking the doors

●

Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.

●

When the lock operation is performed using the lock sensor, recognition sig-
nals will be shown up to two consecutive times. After this, no recognition
signals will be given.

●

If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. Place the electronic
key in a location 6 ft. (2 m) or more away from the vehicle while the vehicle
is being washed. (Take care to ensure that the key is not stolen.)

●

If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a buzzer will sound outside the vehicle. To turn off the
alarm, lock all the doors.

●

The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again, or
use the lock sensor on the lower part of the door handle.

●

Fingernails may scrape against the door during operation of the door han-
dle. Be careful not to injure fingernails or damage the surface of the door.

119

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

■

Note for the unlocking function

●

Gripping the door handle when wearing a glove may not unlock the door.

●

A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.

●

If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.

■

When the vehicle is not driven for extended periods

●

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle.

●

The smart key system can be deactivated in advance. Ask your Toyota
dealer for details.

●

Setting the electronic key to battery- saving mode helps to reduce key bat-
tery depletion. (



P. 116)

■

To operate the system properly

●

Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from
the outside of the vehicle.

●

Depending on the position and holding condition of the electronic key, the
key may not be detected correctly and the system may not operate properly.
(The alarm may go off accidentally, or the door lock prevention function may
not operate.)

■

If the smart key system does not operate properly

●

Locking and unlocking the doors: Use the mechanical key. (



P. 512)

●

Starting the engine:



P. 513

■

Customization

Settings (e. g. operation signal) can be changed.
(Customizable features:



P. 549)

■

If the smart key system has been deactivated in a customized setting

●

Locking and unlocking the doors:



P. 512

●

Starting the engine and changing engine switch modes:



P. 513

●

Stopping the engine:



P. 200

120

3-2. Opening, closing and locking the doors

WARNING

■

Caution regarding interference with electronic devices

●

People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should keep
away from the smart key system antennas.
(



P. 113)

The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as the frequency of radio waves and timing of the emitted radio waves.
Then, consult your doctor to see if you should disable the entry function.

●

Users  of  any  electrical  medical  device  other  than  implantable  cardiac
pacemakers,  cardiac  resynchronization  therapy-pacemakers  or  implant-
able  cardioverter  defibrillators  should  consult  the  manufacturer  of  the
device  for  information  about  its  operation  under  the  influence  of  radio
waves.
Radio  waves  could  have  unexpected  effects  on  the  operation  of  such
medical devices.

Ask your Toyota dealer for details on disabling the entry function.

121

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

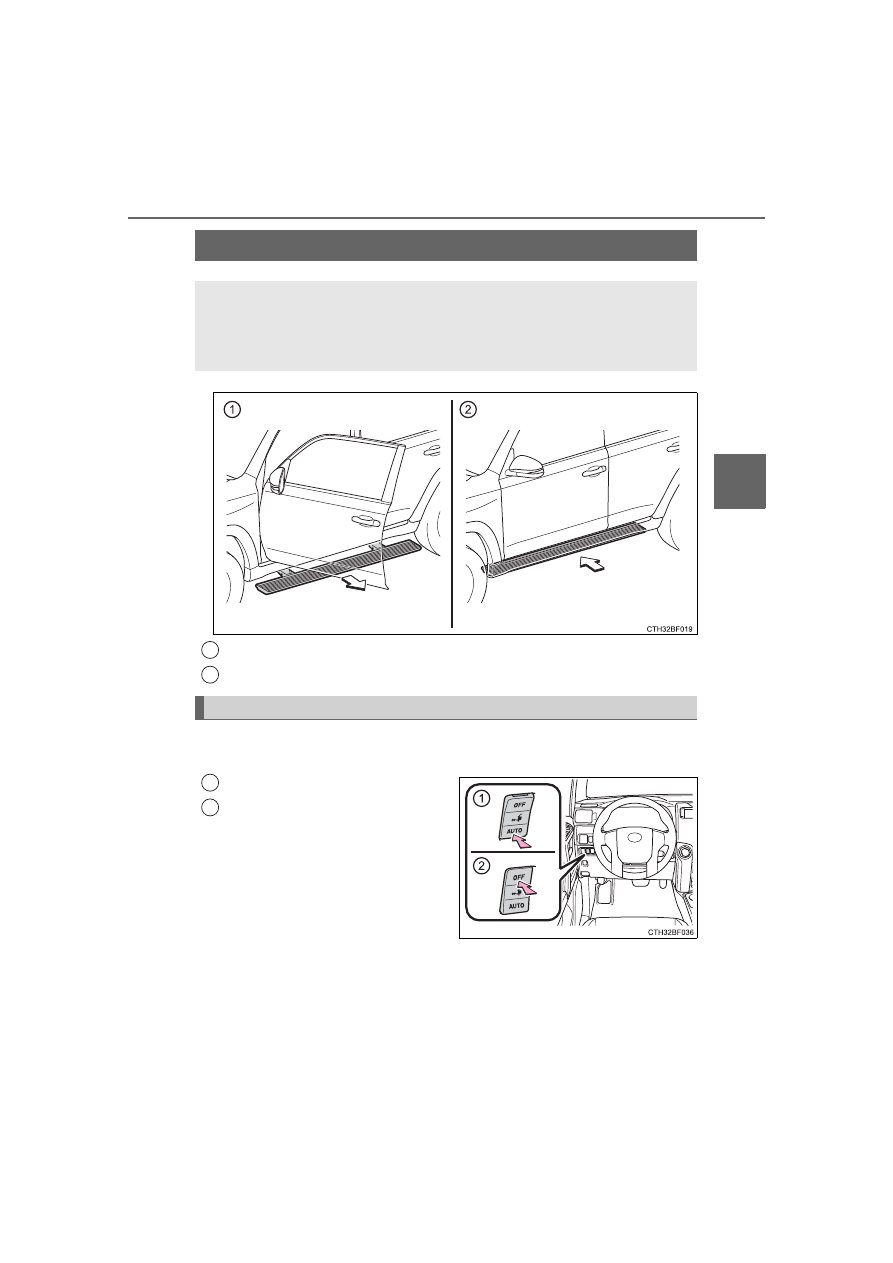

Opening a door: The appropriate board extends
Closing a door: The appropriate board retracts

Press “OFF” on the Automatic running boards switch to turn off the
Automatic running boards system.

On (Automatic mode)
Off

The  orange  line  at  the  top  of  the
switch  illuminates  to  indicate  that
the Automatic  running boards sys-
tem is on.
When  extension  of  the  boards  is
not  necessary,  or  extension  of  a
board  is  not  desirable  due  to  an
obstacle,  turn  the  Automatic  run-
ning boards switch off before open-
ing the side door.

Automatic running boards



: If equipped

The Automatic running boards are linked to the side door opera-
tions, extending and retracting when a side door is opened and
closed. When a door is opened or closed, the board on the same
side extends or retracts.

Turning off the Automatic running boards system

122

3-2. Opening, closing and locking the doors

■

Jam protection function

During Automatic running boards operation:
If a board contacts an obstacle when extending, it will retract. If an obstacle
gets caught between a board and the vehicle when retracting, the board will
extend.
If an obstacle is detected 3 times in a row during Automatic running boards
operation, the board will stop at the position it contacts the obstacle. When a
side door on the same side as the board is opened and closed one more
time, the board will extend and retract, or retract and extend. After this, the
board will resume normal operation.

■

Automatic retraction function

The boards will be automatically retracted, for safety, under the following con-
ditions:

●

A board is not completely retracted

●

Vehicle speed is approximately 5 mph (8 km/h) or higher

The boards will not automatically extend again when vehicle speed returns to
less than 5 mph (8 km/h).

■

If the Automatic running boards indicator comes on when driving first
commences

A board has not completely retracted. Check that nothing is caught between
the board and the vehicle.
Additionally, if the engine is started immediately after a door has been closed,
the automatic running board may not retract completely and the automatic
running boards indicator may illuminate. In this case, open and close the door
to retract the running board and turn off the indicator.

■

If the Automatic running boards indicator light flashes

There may be a malfunction in the Automatic running boards system. Have
the vehicle inspected by your Toyota dealer immediately.

■

When snow or mud is attached to the board or the board is frozen

The Automatic running boards may not operate correctly. Before stepping on
a board, check that it is completely extended. If the Automatic running boards
are not operating correctly, turn the Automatic running boards switch off and
refrain from use.
When removing snow or mud, turn the Automatic running boards switch off.

■

After recharging/reconnecting the battery

If the Automatic running boards have not completely extended or retracted,
the boards may not move in the intended direction the first time they are oper-
ated. However, from the second time onwards, the boards will resume normal
operation.

■

When getting in and out of the vehicle

Take care because clothes and shoes may become dirty due to contact with
the lower part of the vehicle body.

123

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

WARNING

■

Jam protection function

Observe the following precautions.
Failure to do so may cause serious injury.
Never use any part of your body to intentionally activate the jam protection
function.
The jam protection function may not work depending on the shape of the
object that is caught. Be careful not to get fingers or other body parts
caught.

■

Cautions regarding the Automatic running boards

Observe the following precautions.
Failure to do so may cause serious injury.

●

Check to make sure that all passengers and people in the vehicle’s sur-
rounding area do not have a hand on a board or any part of their body in a
position where it could be caught between a board and the vehicle when
an Automatic running board is being operated.

●

Confirm that the boards have completely extended or retracted before get-
ting in or out of the vehicle. If someone gets in or out of the vehicle during
Automatic running board operation, the boards may stop extending or
retracting.

●

Drive the vehicle after confirming that the boards have completely
retracted. Driving with a board extended is dangerous because it may hit
other people or objects.

●

Take care when pressing the Automatic running boards switch. The board
will extend or retract and may hit other people or objects.

●

Always check that the Automatic running boards switch is turned off when
cleaning a board.

●

Do not allow children to operate the Automatic running boards.
Operating Automatic running boards in a manner so that a board contacts
someone can cause serious injury, and in some instances, even death.

124

3-2. Opening, closing and locking the doors

◆

Smart key system

Carry the electronic key to enable this function.

Press the button to unlock
the door.
Press the button to lock the
door.

Check that the door is securely
locked.

◆

Wireless remote control



P. 106

Locks all the doors
Unlocks all the doors

Back door

Unlocking and locking the back door from the outside

Unlocking and locking the back door from the inside

125

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

Raise the back door while pushing
up the back door opener switch.

The rear step bumper is intended
for rear end protection and easier
step-up loading.

Lower  the  back  door  using  the
back  door  strap  and/or  the  back
door  handle,  and  make  sure  to
push the back door down from the
outside to close it.

Opening the back door from outside the vehicle

Rear step bumper

When closing the back door

126

3-2. Opening, closing and locking the doors

■

Luggage compartment lights

Each luggage compartment light has the following 3 positions:

If the luggage compartment lights remain on, the lights will go off automati-
cally after 20 minutes.

■

If the back door opener is inoperative or the battery is discharged



P. 511

Turns the light off
Turns the light on
Turns the light on/off linked to back door
position

WARNING

■

Before driving

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving and hit near-by objects or
luggage in the luggage compartment may be thrown out, causing an acci-
dent.

●

Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.

●

Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.

●

Do not get on the rear step bumper.

■

Important points while driving

Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.

127

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

WARNING

■

Operating the back door

Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.

●

Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.

●

When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.

●

If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.

●

Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.

●

Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.

●

If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.

●

The back door may suddenly shut if it is
not  opened  fully.  It  is  more  difficult  to
open  or  close  the  back  door  on  an
incline  than  on  a  level  surface,  so
beware  of  the  back  door  unexpectedly
opening or closing by itself. Make sure
that  the  back  door  is  fully  open  and
secure  before  using  the  luggage  com-
partment.

●

When closing the back door, take extra
care to prevent your fingers etc. from
being caught.

●

When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle or back door strap
is used to fully close the back door, it
may result in hands or arms being
caught.

128

3-2. Opening, closing and locking the doors

NOTICE

■

To prevent damage to the back door components

Do not allow more than one person to get on the rear step bumper at a time.

■

Back door damper stays

The back door is equipped with damper stays that hold the back door in
place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, resulting
in malfunction.

●

Do not place your hand on the damper stay or apply lateral forces to it.

●

Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.

●

Do not touch the damper stay rod with
gloves or other fabric items.

●

Do not attach any accessories other
than genuine Toyota parts to the back
door.

Toyota 4Runner (2023 year). Manual in english - page 7
