2-1. Instrument cluster

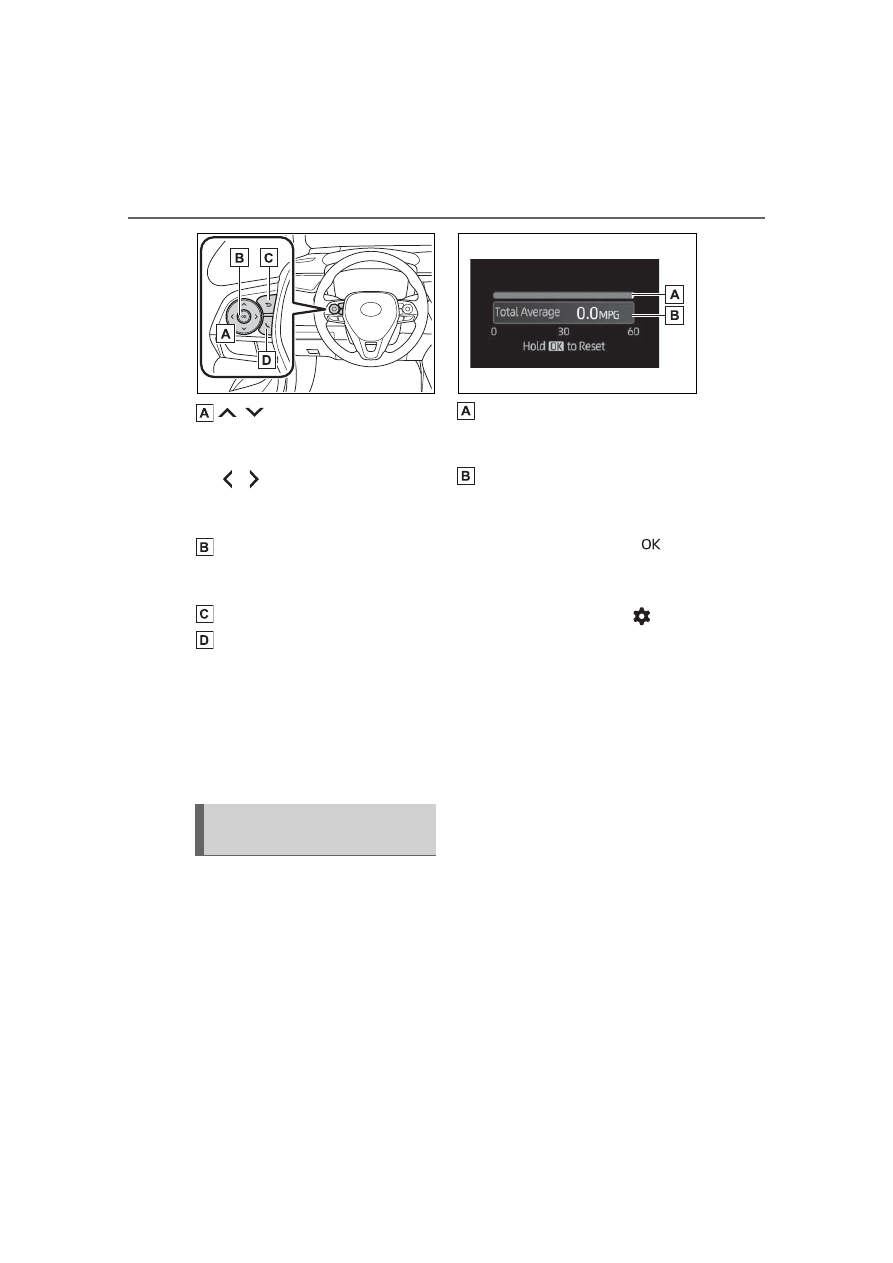

: Select menu icons,

scroll the screen and move
the cursor

: Change displayed

content, scroll the screen and
move the cursor
Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items
Return to the previous screen
Call sending/receiving and
history display

Linked with the hands-free system,
sending or receiving call is dis-
played. For details regarding the
hands-free system, refer to the
“MULTIMEDIA OWNER’S MAN-
UAL”.

■

Display items



Fuel economy



Eco Driving Indicator/Driving
range

■

Fuel economy

Use the displayed values as a ref-
erence only.

Current fuel consumption

Displays instantaneous current fuel
consumption.

Average fuel economy (after
reset)

To reset the average fuel economy

display, press and hold the

meter control switch.

The average fuel economy dis-
play can be changed in

(



P.100)



Average fuel economy (after
start)

Displays the average fuel con-
sumption since engine start.



Average fuel economy (after
refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

■

Eco Driving Indicator/Driv-
ing range



Eco Driving Indicator

Content of driving infor-
mation

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

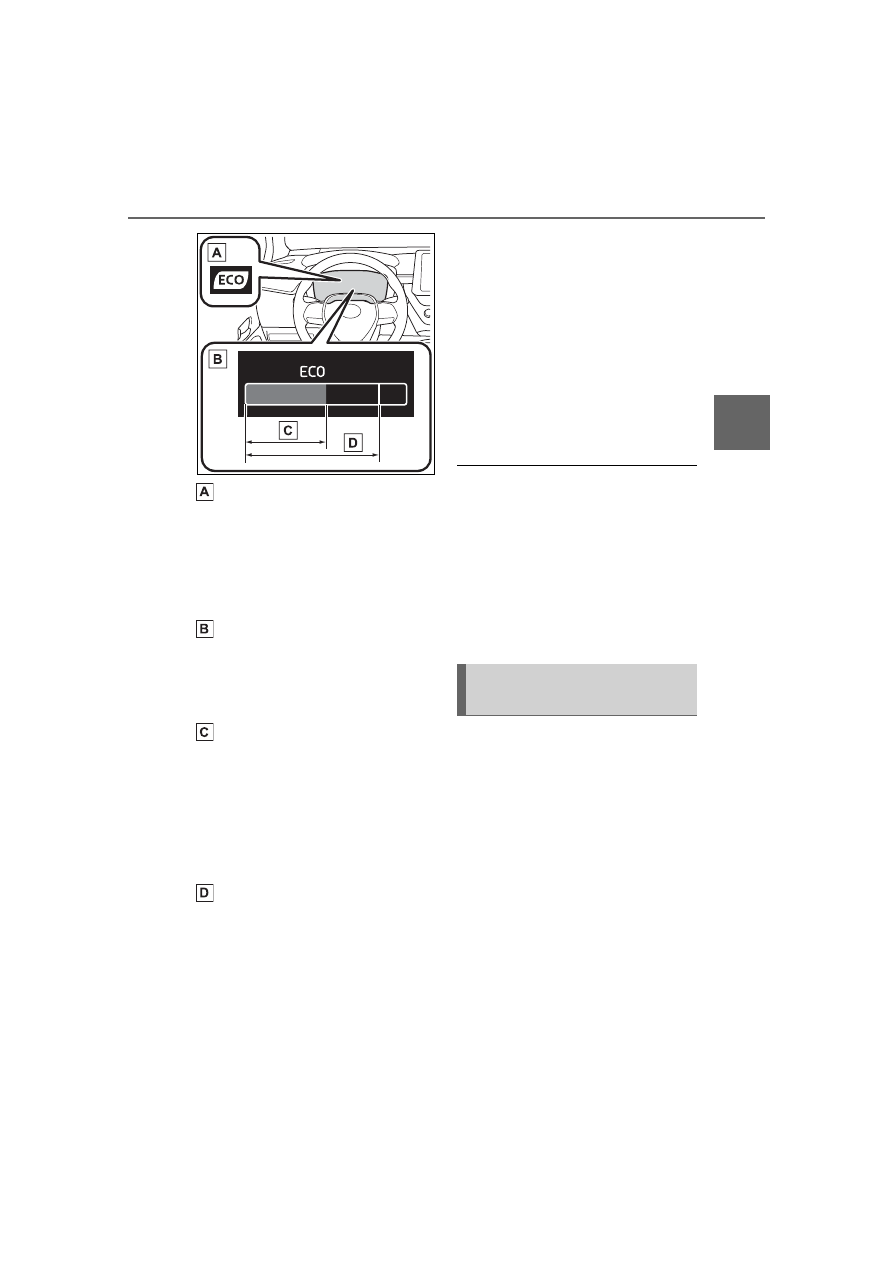

Eco Driving Indicator Light

During Eco-friendly acceleration
(Eco driving), the Eco Driving Indi-
cator Light will turn on. When the
acceleration exceeds the Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds the
Zone of Eco driving, the right side
of the Eco Driving Indicator Zone
Display will illuminate.
At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.

This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

■

Eco Driving Indicator

Eco Driving Indicator will not oper-

ate under the following conditions:

●

The shift lever is in any position

other than D.

●

The driving mode is set to Sport

mode.

●

The vehicle speed is approxi-

mately 80 mph (130 km/h) or

higher.

■

Driving support system
information

Select to display the operational
status of the following systems:



Dynamic radar cruise control
(



P.219)



LTA (Lane Tracing Assist)
(



P.201)



LDA (Lane Departure Alert)
(



P.206)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-

Driving support system
information display

100

2-1. Instrument cluster

mation:



Route guidance to destination



Compass display (head-
ing-up display)

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

■

Drive information

Displays drive information such as
the following:

Drive information 1
Drive information 2

Displays the following depend-
ing on which drive information
type and drive information items
were selected in

. (



P.100)



After start

• Distance: Displays the distance

driven since engine start

• Elapsed time: Displays the

elapsed time since engine start

• Average vehicle speed: Displays

the average vehicle speed since
engine start



After reset

• Distance: Displays the distance

driven since the display was
reset

• Elapsed time: Displays the

elapsed time since the display
was reset

• Average vehicle speed: Displays

the average vehicle speed since
the display was reset

: To reset, display the desired item

and press and hold the

meter control switch.

■

Meter display settings that
can be changed



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



Meter Type

Select to change the meter type.



Dial Type

Select to change the display of the
speedometer or tachometer.



Eco Driving Indicator Light

Select to enable/disable the Eco

Audio system-linked dis-
play

Vehicle information dis-
play

Settings display

101

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

Driving Indicator Light.



Fuel economy display
Select to change the average fuel
consumption display to any of the
following: trip average/total aver-
age/tank average. (



P.98)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:
• Drive information type
Select to change the drive informa-
tion type display between trip infor-
mation/total information.
• Drive information items
Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Select to turn the multi-information
display off.
To turn the multi-information display
on again, press any of the following
meter control switches



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed



P.412

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

WARNING

■

Cautions during setting up

the display

If the engine is running when

changing the display settings,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

102

2-1. Instrument cluster

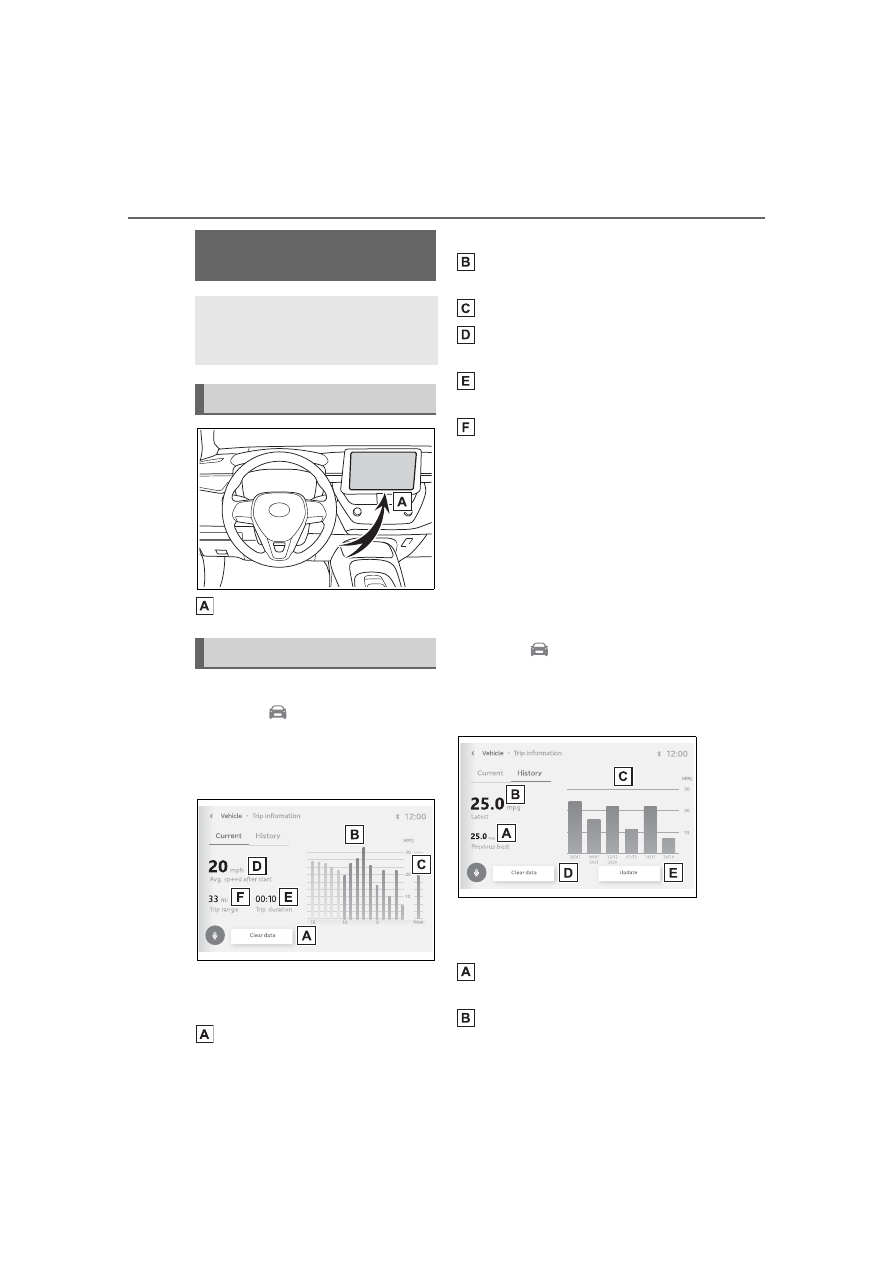

Audio system screen

■

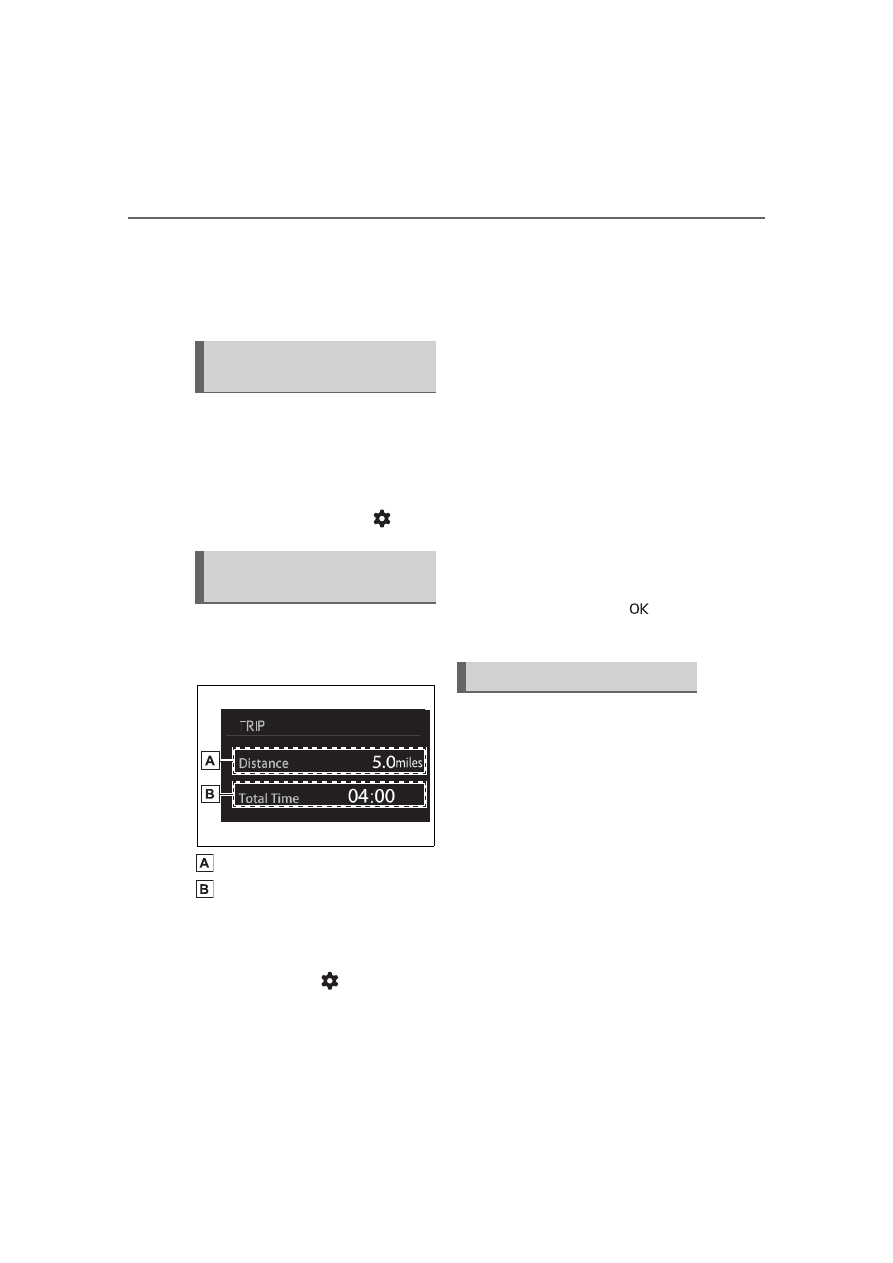

Trip information

Select

on the main menu.

Select “Trip information”.

If a screen other than “Current” is

displayed, select “Current”.

The image is an example only, and
may vary slightly from actual condi-
tions.

Resetting the consumption

data
Fuel consumption in the past
15 minutes
Current fuel consumption
Average vehicle speed since
the engine was started.
Elapsed time since the
engine was started.
Cruising range

Average fuel consumption for
the past 15 minutes is divided
by color into past averages and
averages attained since the
engine switch was last turned to
ON. Use the displayed average
fuel consumption as a refer-
ence.

■

History

Select

on the main menu.

Select “Trip information”.

If a screen other than “History” is

displayed, select “History”.

The image is an example only, and
may vary slightly from actual condi-
tions.

Best recorded fuel consump-
tion
Latest fuel consumption

Fuel consumption

information

Fuel consumption informa-
tion can be displayed on the
audio system screen.

System components

Consumption

103

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Previous fuel consumption
record
Resetting the history data
Updating the latest fuel con-
sumption data

The average fuel consumption
history is divided by color into
past averages and the average
fuel consumption since the last
updated. Use the displayed
average fuel consumption as a
reference.

■

Updating the history data

Update the latest fuel consumption

by selecting “Update” to measure

the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear data”.

■

Cruising range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
This distance is computed based on

your average fuel consumption.

As a result, the actual distance that

can be driven may differ from that

displayed.

105

Before driv

ing

Before driving

3-1. Key information

Keys ............................

106

3-2. Opening, closing and

locking the doors

Doors ..........................

111

Trunk ...........................

117

Smart key system .......

120

3-3. Adjusting the seats

Front seats ..................

125

Rear seats...................

126

Head restraints............

128

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

130

Inside rear view mirror

..................................

131

Outside rear view mirrors

..................................

132

3-5. Opening and closing the

windows

Power windows ...........

134

Moon roof....................

137

3-6. Favorite settings

My Settings .................

140

106

3-1. Key information

3-1.Key information

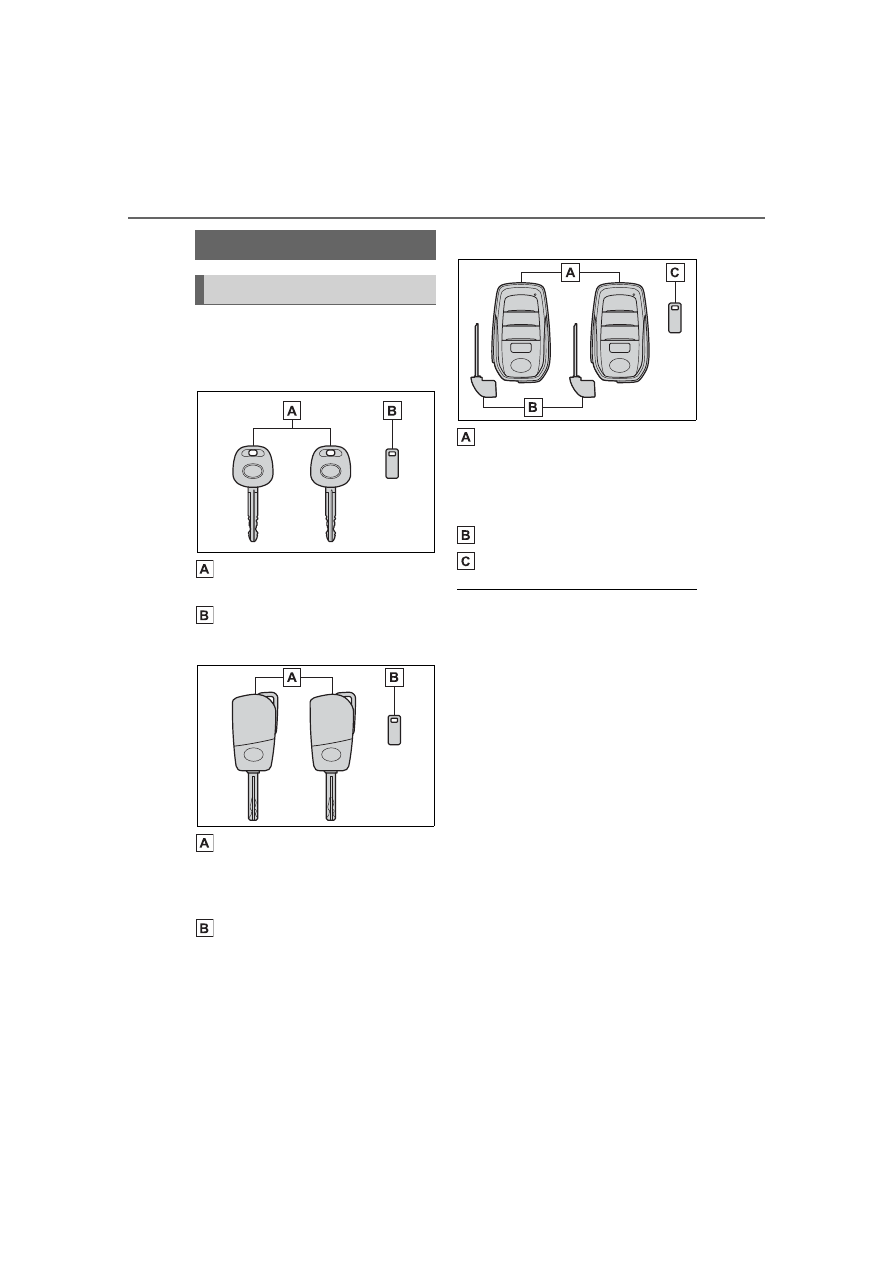

The following keys are provided
with the vehicle.



Type A

Keys (without a wireless
remote control function)
Key number plate



Type B

Keys (with a wireless remote
control function)

Operating the wireless remote con-
trol function (



P.108)

Key number plate



Type C

Electronic keys

• Operating the smart key system

(



P.120)

• Operating the wireless remote

control function (



P.108)

Mechanical keys
Key number plate

■

When riding in an aircraft (with

a wireless remote control func-

tion)

When bringing a key with wireless

remote control function onto an air-

craft, make sure you do not press

any buttons on the key while inside

the aircraft cabin. If you are carrying

the key in your bag, etc., ensure that

the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the key to emit

radio waves that could interfere with

the operation of the aircraft.

■

Key battery depletion (with a

wireless remote control func-

tion)



Vehicles without a smart key sys-

tem

●

The standard battery life is 1 to 2

years.

●

The battery will become depleted

even if the key is not used. The

following symptoms indicate that

the key battery may be depleted.

Replace the battery when neces-

sary. (



P.333)

Keys

The keys

107

3-1. Key information

Before driv

ing

• The wireless remote control does

not operate.

• The detection area becomes

smaller.



Vehicles with a smart key system

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be shown on the

multi-information display when the

engine is stopped.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (



P.121)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

when necessary. (



P.333)

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Recharging cellular phones or

cordless phones

• Table lamps

• Induction cookers

●

If the electronic key is near the

vehicle for longer than necessary,

even if the smart key system is not

operated, the key battery may

become depleted faster than nor-

mal.

■

Replacing the battery (with a

wireless remote control func-

tion)



P.333

■

The electronic key function is

suspended when (vehicles with

a smart key system)

The electronic key function may be

suspended when the electronic key

is kept unmoved in a same location

for a certain period, such as it is left

on a same place. This is to reduce

battery consumption. The function

will be restored automatically when

the electronic key is moved, such as

it is picked up.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is shown on the

multi-information display (vehi-

cles with a smart key system)

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer to

check if an unknown electronic key

(other than those in your posses-

sion) has been registered.

■

If a wrong key is used (with a

wireless remote control func-

tion)

The key cylinder rotates freely, iso-

lated from the internal mechanism.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

108

3-1. Key information

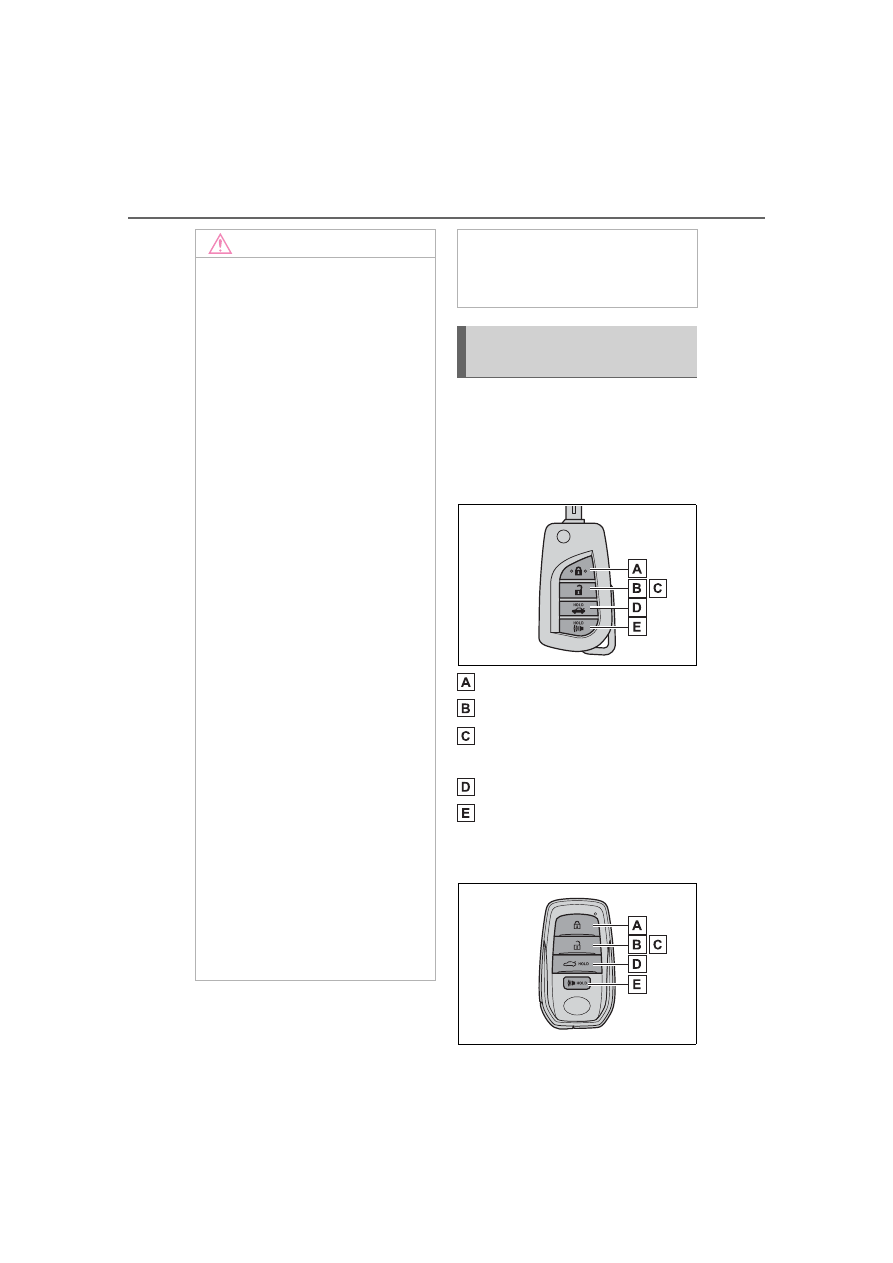

The keys are equipped with the
following wireless remote con-
trol:



Vehicles without a smart key
system

Locks the doors (



P.111)

Unlocks the doors (



P.111)

Opens the windows

and

moon roof

*1, 2

(



P.111)

Opens the trunk (



P.118)

Sounds the alarm (



P.109)



Vehicles with a smart key sys-
tem

NOTICE

●

Do not get the keys wet or wash

them in an ultrasonic washer

etc.

●

Vehicles with a smart key sys-

tem: Do not attach metallic or

magnetic materials to the keys

or place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

key.

●

Vehicles with a smart key sys-

tem: Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers.

●

Vehicles with a smart key sys-

tem: Do not place the keys near

medical electrical equipment

such as low-frequency therapy

equipment or microwave ther-

apy equipment, and do not

receive medical attention with

the keys on your person.

■

Carrying the electronic key

on your person (vehicles with

a smart key system)

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other

key-related problems (vehi-

cles with a smart key system)



P.381

■

When an electronic key is lost

(vehicles with a smart key

system)



P.381

Wireless remote control
(if equipped)

109

3-1. Key information

Before driv

ing

Locks the doors (

Unlocks the doors (

Opens the windows

and

moon roof

*1, 2

(

Opens the trunk (

Sounds the alarm (

:This setting must be customized

at your Toyota dealer.

:If equipped

■

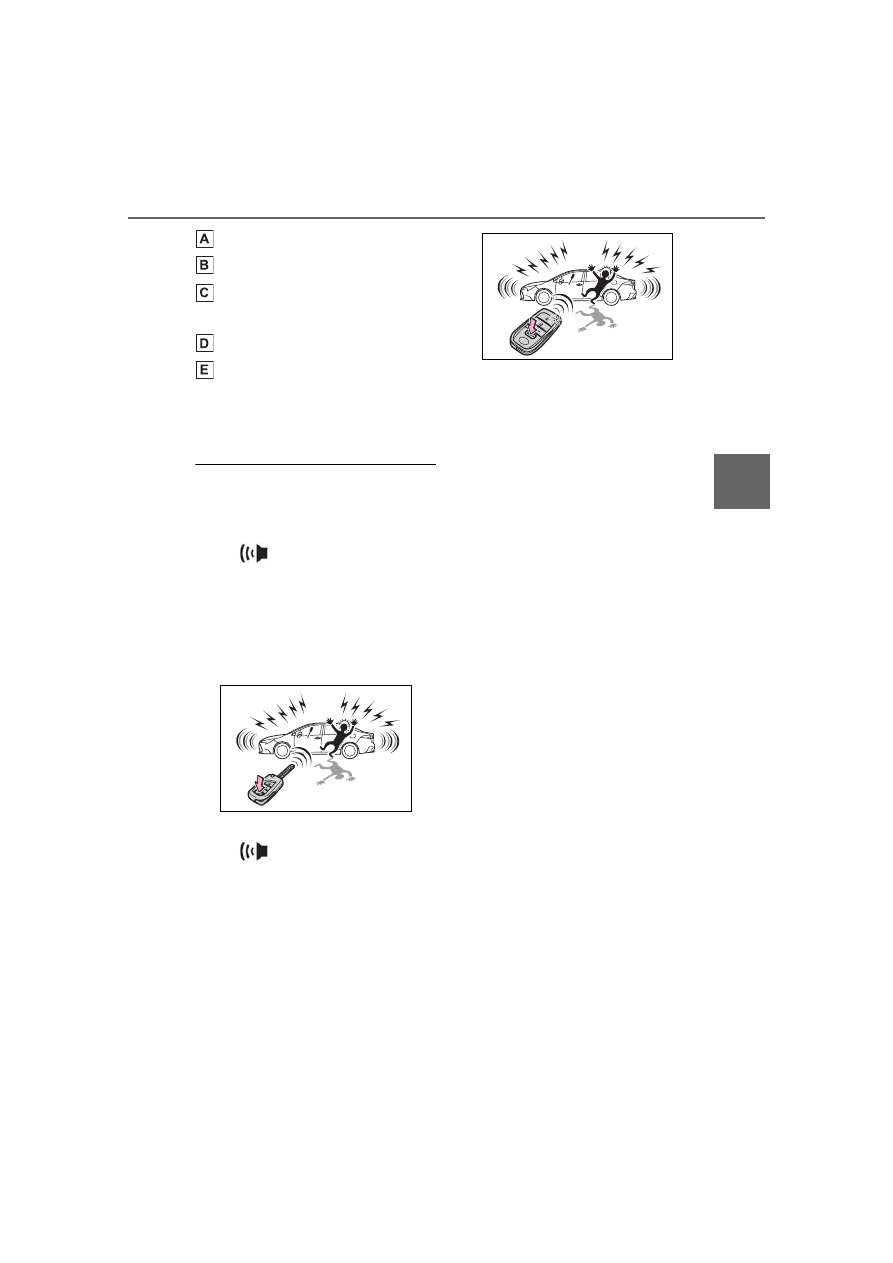

Panic mode (with a wireless

remote control function)



Vehicles without a smart key sys-

tem

When

is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the wireless remote control.



Vehicles with a smart key system

When

is pressed for longer

than about one second, an alarm

will sound intermittently and the

vehicle lights will flash to deter any

person from trying to break into or

damage your vehicle.
To stop the alarm, press any button

on the electronic key.

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control (with a

wireless remote control func-

tion)



Vehicles without a smart key sys-

tem

The wireless remote control function

may not operate normally in the fol-

lowing situations:

●

When the wireless key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When carrying a portable radio,

cellular phone or other wireless

communication devices

●

When the wireless key is in con-

tact with, or is covered by a metal-

lic object

●

When a wireless key (that emits

radio waves) is being used nearby

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window



Vehicles with a smart key system



P.121

110

3-1. Key information

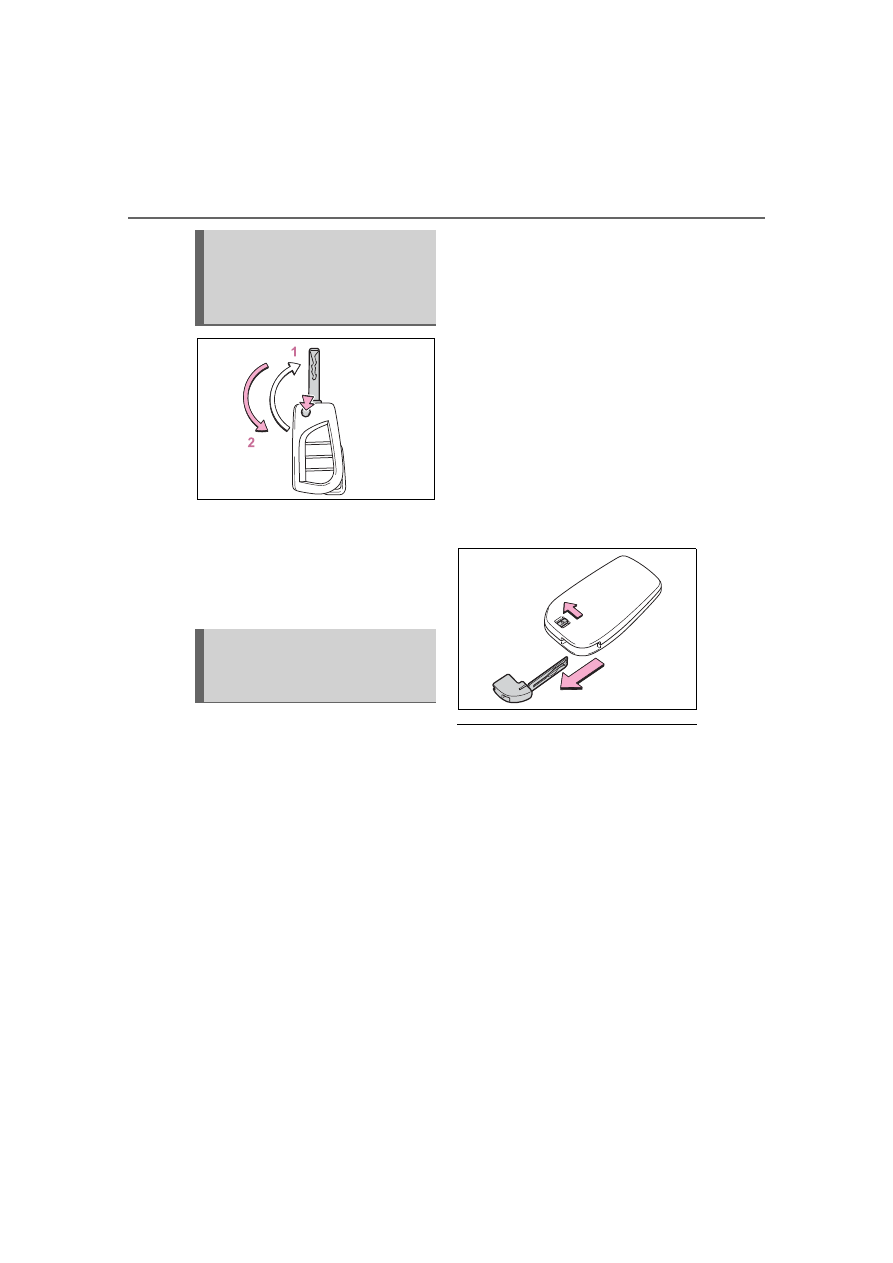

Releasing

To release the key, press the button

Folding

To stow the key, press the button
then fold the key.

To take out the mechanical key,
slide the release button and take
the key out.

The mechanical key can only be
inserted in one direction, as the
key only has grooves on one
side. If the key cannot be
inserted in a lock cylinder, turn it
over and re-attempt to insert it.
After using the mechanical key,
store it in the electronic key.
Carry the mechanical key
together with the electronic key.
If the electronic key battery is
depleted or the entry function
does not operate properly, you
will need the mechanical key.
(



P.381)

■

If you lose your mechanical

keys



P.381

■

Certification for the wireless remote control



P.451

Using the key (vehicles
without a smart key sys-
tem and with a wireless
remote control function)

Using the mechanical key
(vehicles with a smart key
system)

111

3-2. Opening, closing and locking the doors

Before driv

ing

3-2.Opening, closing and locking the doors

■

Smart key system (if
equipped)

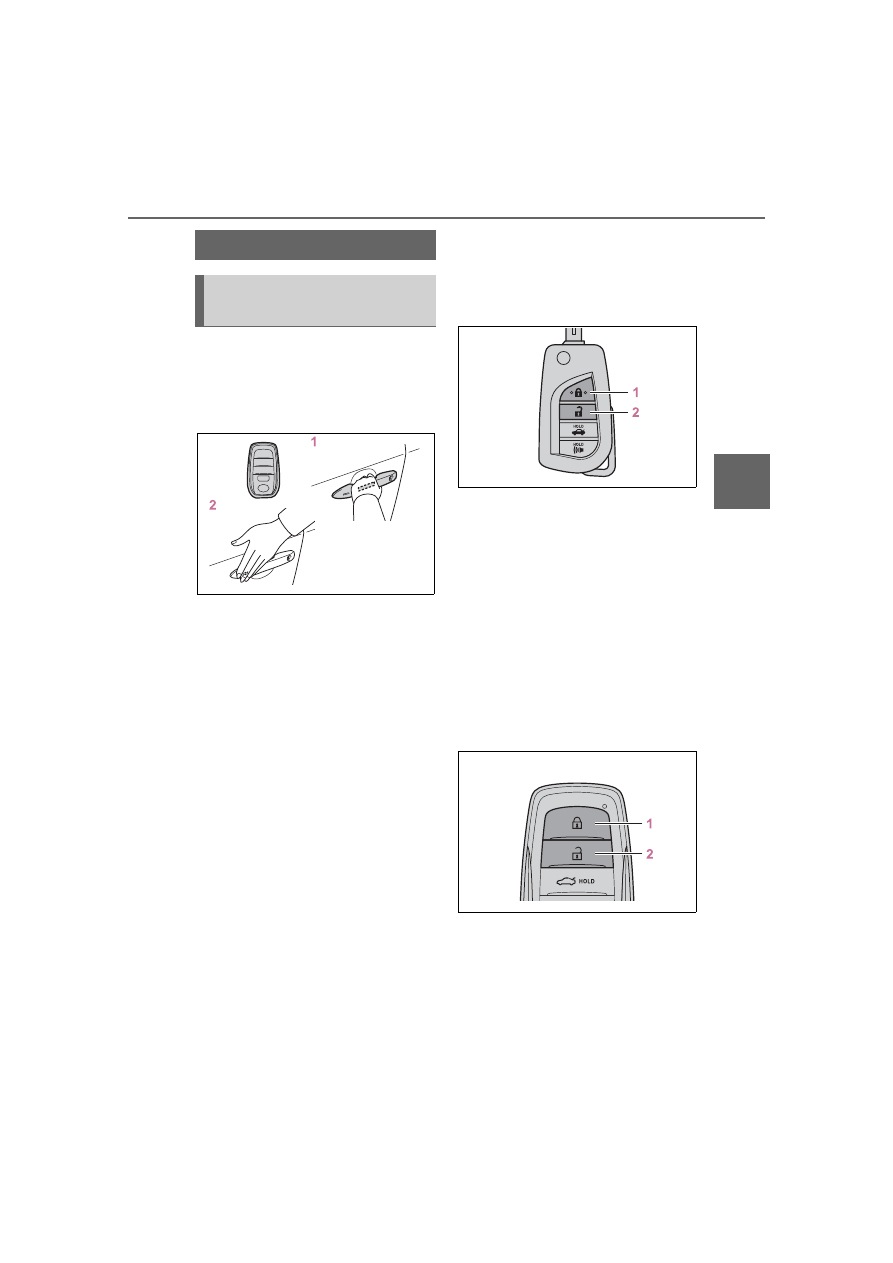

Carry the electronic key to
enable this function.

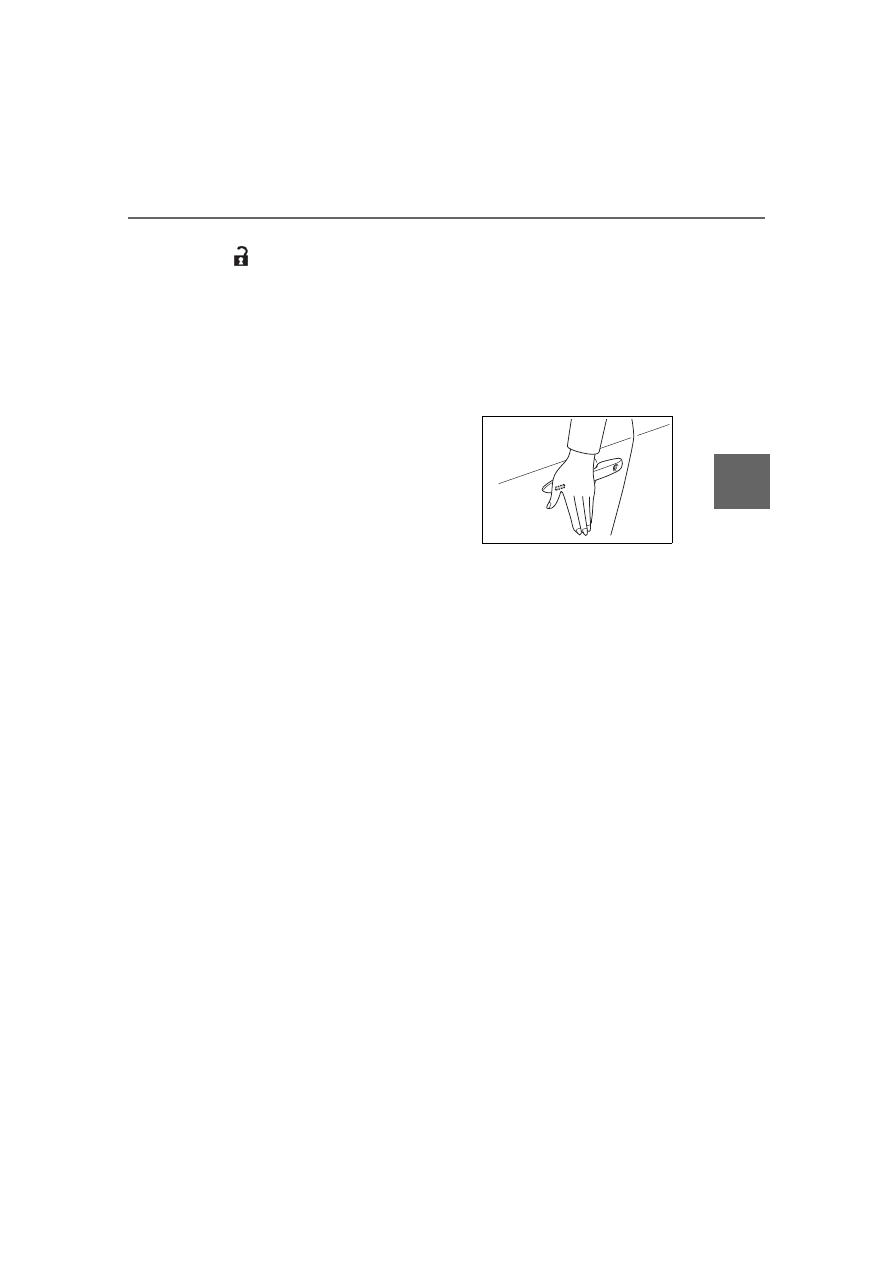

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors. Grip
the front passenger’s door
handle to unlock all the
doors.

Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.

: The door unlock settings can be

changed. (



P.112, 412)

Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all
the doors.

Check that the door is securely
locked.

■

Wireless remote control (if
equipped)



Vehicles without a smart key
system

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Press and hold to open the win-
dows

and moon roof

*1, 2



Vehicles with a smart key sys-
tem

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button

Doors

Unlocking and locking the
doors from the outside

112

3-2. Opening, closing and locking the doors

again within 3 seconds unlocks the
other doors.
Press and hold to open the win-
dows

and moon roof.

*1, 2

:This setting must be customized

at your Toyota dealer.

:If equipped

■

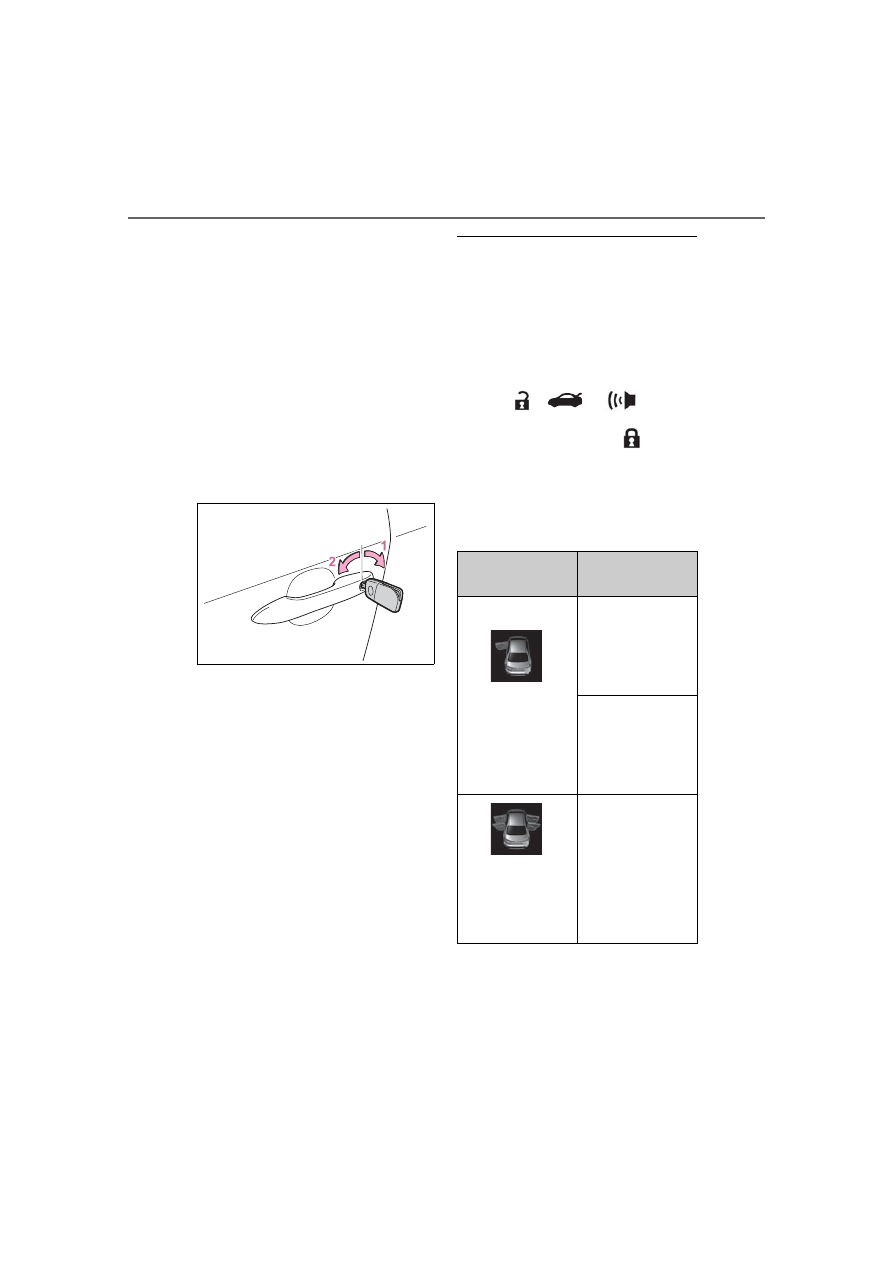

Key

Turning the key operates the
doors as follows:



Vehicles without a smart key
system

Unlocks all the doors

Turning the key unlocks the driver’s
door. Turning the key again unlocks
the other doors.
Turn and hold to open the win-
dows

and moon roof.

*1, 2

Locks all the doors

Turn and hold to close the win-
dows

and moon roof.

*1, 2

:This setting must be customized

at your Toyota dealer.

:If equipped



Vehicles with a smart key sys-
tem

The doors can also be locked
and unlocked with the mechani-
cal key. (



P.382)

■

Switching the door unlock func-

tion (vehicles with a smart key

system)

It is possible to set which doors the

entry function unlocks using the

wireless remote control.

Turn the engine switch off.

When the indicator light on the

key surface is not on, press and
hold

for

approximately 5 seconds while
pressing and holding

The setting changes each time an

operation is performed, as shown

below. (When changing the setting

continuously, release the buttons,

wait for at least 5 seconds, and

repeat step

For vehicles with an alarm: To pre-

vent unintended triggering of the

alarm, unlock the doors using the

wireless remote control and open

and close a door once after the set-

tings have been changed. (If a door

Multi-informa-

tion display/Beep

Unlocking func-

tion

Exterior: Beeps 3

times

Interior: Pings

once

Holding the
driver’s door
handle unlocks
only the driver’s
door.

Holding the front
passenger’s
door handle
unlocks all the
doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding either
front door handle
unlocks all the
doors.

113

3-2. Opening, closing and locking the doors

Before driv

ing

is not opened within 60 seconds
after

is pressed, the doors will

be locked again and the alarm will

automatically be set.)

In case that the alarm is triggered,

immediately stop the alarm. (



P.78)

■

Operation signals (with a wire-

less remote control function)



Vehicles without a smart key sys-

tem

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked using the wireless

remote control. (Locked: Once;

Unlocked: Twice)



Vehicles with a smart key system

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked using the entry

function or wireless remote control.

(Locked: Once; Unlocked: Twice)
A buzzer sounds to indicate that the
windows and moon roof

are operat-

ing.

: If equipped

■

Security feature (with a wireless

remote control function)



Vehicles without a smart key sys-

tem

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the wire-

less remote control, the security fea-

ture automatically locks the vehicle

again.



Vehicles with a smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the entry

function or wireless remote control,

the security feature automatically

locks the vehicle again.

■

When the door cannot be

locked by the lock sensor on

the surface of the front door

handle (vehicles with a smart

key system)

If the doors cannot be locked by

touching the lock sensor with a fin-

ger, touch the lock sensor with the

palm of your hand.
If you are wearing gloves, remove

them.

■

Door lock buzzer (vehicles with

a smart key system)

If an attempt to lock the doors using

the entry function or wireless remote

control is made when a door is not

fully closed, a buzzer will sound

continuously for 5 seconds. Fully

close the door to stop the buzzer,

and lock the doors again.

■

Alarm (if equipped)

Locking the doors will set the alarm

system. (



P.78)

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control (if

equipped)



Vehicles without a smart key sys-

tem



P.109



Vehicles with a smart key system



P.121

114

3-2. Opening, closing and locking the doors

■

If the smart key system or the

wireless remote control does

not operate properly (if

equipped)



Vehicles without a smart key sys-

tem

Replace the key battery with a new

one if it is depleted. (



P.333)



Vehicles with a smart key system

Use the mechanical key to lock and

unlock the doors. (



P.381)

Replace the key battery with a new

one if it is depleted. (



P.333)

■

If the battery is discharged

(vehicles with a smart key sys-

tem)

The doors cannot be locked and

unlocked using the smart key sys-

tem or wireless remote control. Lock

or unlock the doors using the

mechanical key. (



P.382)

■

Rear seat reminder function

In order to remind you not to forget

luggage, etc. in the rear seat, when

the engine switch is turned off after

any of the following conditions are

met, a buzzer will sound and a mes-

sage will be displayed on the

multi-information display for approx-

imately 6 seconds.

●

The engine is started within

approximately 10 minutes after

opening and closing a rear door.

●

A rear door has been opened and

closed after the engine was

started.

However, if a rear door is opened

and then closed within approxi-

mately 2 seconds, the rear seat

reminder function may not operate.
The rear seat reminder function

determines that luggage, etc. has

been placed in a rear seat based on

opening and closing of a rear door.

Therefore, depending on the situa-

tion, the rear seat reminder function

may not operate and you may still

forget luggage, etc. in the rear seat,

or it may operate unnecessarily.

■

Customization

Some functions can be customized.

(



P.412)

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

being thrown out of the vehicle,

resulting in death or serious injury.

●

Ensure that all doors are prop-

erly closed and locked.

●

Do not pull the inside door han-

dle while driving.

Be especially careful of the front

doors, as the doors may be

opened even if the inside lock

buttons are in the locked posi-

tion.

●

Set the rear door child-protector

locks when children are seated

in the rear seats.

■

When opening or closing a

door

Check the surroundings of the

vehicle such as whether the vehi-

cle is on an incline, whether there

is enough space for a door to

open and whether a strong wind

is blowing. When opening or clos-

ing the door, hold the door handle

tightly to prepare for any unpre-

dictable movement.

Content .. 5 6 7 8 ..
