1-2. Child safety

For safety and secu

rity

■

When installing in the rear
outboard seats

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.



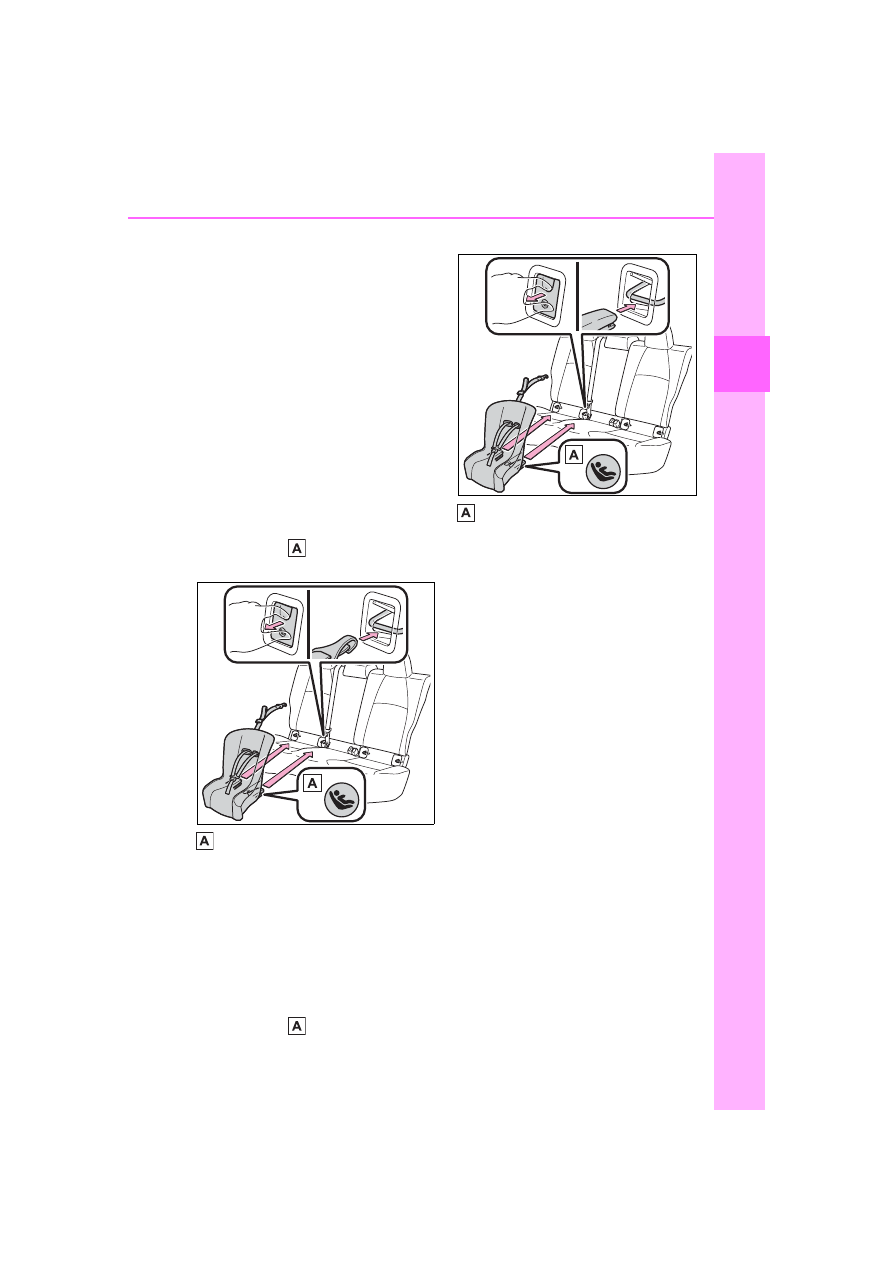

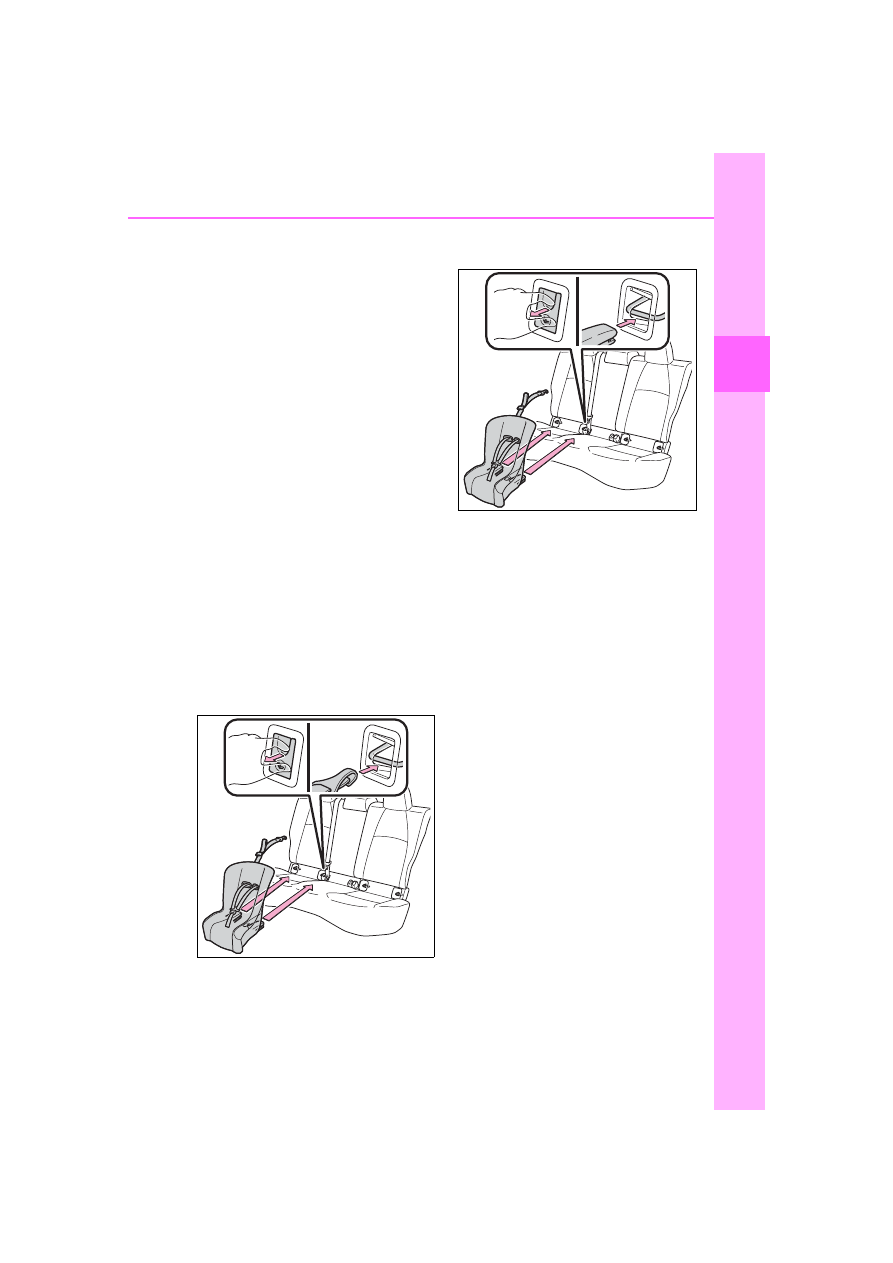

With flexible lower attach-
ments

Remove the anchor covers,
and install the child restraint
system to the seat.

The bars are installed behind the

anchor covers.
For owners in Canada:

The symbol on a child restraint sys-
tem indicates

the presence of a

lower connector system.

Canada only



With rigid lower attachments

Remove the anchor covers,
and install the child restraint
system to the seat.

The bars are installed behind the

anchor covers.
For owners in Canada:

The symbol on a child restraint sys-
tem indicates

the presence of a

lower connector system.

Canada only

If the child restraint has a top
tether strap, follow the child
restraint manufacturer’s
operation manual regarding
the installation, using the top
tether strap to latch onto the
top tether strap anchor.
(



P.68)

After installing the child
restraint system, rock it back
and forth to ensure that it is
installed securely. (



P.64)

■

When installing in the rear
center seat

There are no LATCH anchors
behind the rear center seat.
However, the inboard LATCH
anchors of the outboard seats,
which are 15.6 in. (396 mm)
apart, can be used if the child
restraint system manufacturer’s
instructions permit use of those
anchors with the anchor spacing
stated.

1-2. Child safety

Child restraint systems with rigid
lower attachments cannot be
installed in the center seat. This
type of child restraint system
can only be installed in the out-
board seat.

■

Laws and regulations pertain-

ing to anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming

to FMVSS213 or CMVSS213 speci-

fications can be used.

This vehicle is designed to conform

to SAE J1819.

■

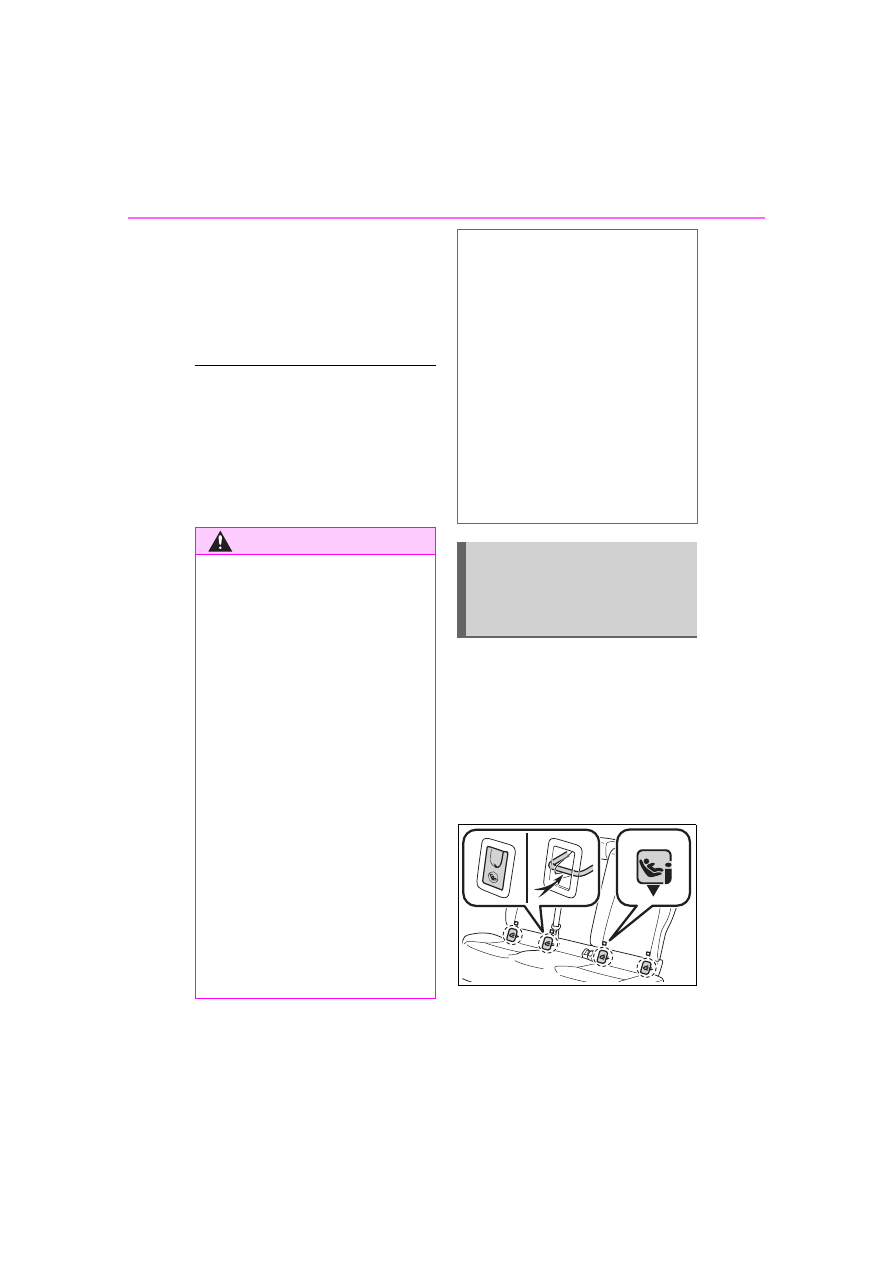

ISOFIX lower anchorages
(ISOFIX child restraint sys-
tem)

Lower anchorages are provided
for the outboard rear seats.
(Marks displaying the location of
the anchorages are attached to
the seats.)

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

When using the LATCH

anchors, be sure that there are

no foreign objects around the

anchors and that the seat belt is

not caught behind the child

restraint system.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

Never attach two child restraint

system attachments to the

same anchor. In a collision, one

anchor may not be strong

enough to hold two child

restraint system attachments

and may break. If the LATCH

anchors are already in use, use

the seat belt to install a child

restraint system in the center

seat.

●

When securing some types of

child restraint systems in rear

seats, it may not be possible to

properly use the seat belts in

positions next to the child

restraint without interfering with

it or affecting seat belt effective-

ness. Be sure your seat belt fits

snugly across your shoulder

and low on your hips. If it does

not, or if it interferes with the

child restraint, move to a differ-

ent position. Failure to do so

may result in death or serious

injury.

●

If the seat is adjusted, reconfirm

the security of the child restraint

system.

Child restraint system
fixed with an ISOFIX lower
anchorage (for Puerto
Rico)

1-2. Child safety

For safety and secu

rity

■

When installing in the rear
outboard seats

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.
If the child restraint system on
hand is not within the “universal”
category (or the necessary infor-
mation is not in the table), refer
to the “Vehicle List” provided by
the child restraint system maker
for various possible installation
positions, or check the compati-
bility after asking the retailer of
the child seat. (



P.55, 56)



With flexible lower attach-
ments

Remove the anchorage cov-
ers, and install the child
restraint system to the seat.

The bars are installed behind the

anchorage covers.



With rigid lower attachments

Remove the anchorage cov-
ers, and install the child
restraint system to the seat.

The bars are installed behind the

anchorage covers.

If the child restraint has a top
strap, follow the child
restraint manufacturer’s
operation manual regarding
the installation, using the top
strap to latch onto the top
strap anchorage. (



P.68)

After installing the child
restraint system, rock it back
and forth to ensure that it is
installed securely. (



P.64)

■

When installing in the rear
center seat

There are no lower anchorages
behind the rear center seat.
However, the inboard lower
anchorages of the outboard
seats, which are 15.6 in. (396
mm) apart, can be used if the
child restraint system manufac-
turer’s instructions permit use of
those anchorages with the
anchorage spacing stated.
Child restraint systems with rigid
lower attachments cannot be

1-2. Child safety

installed in the center seat. This
type of child restraint system
can only be installed in the out-
board seat.

■

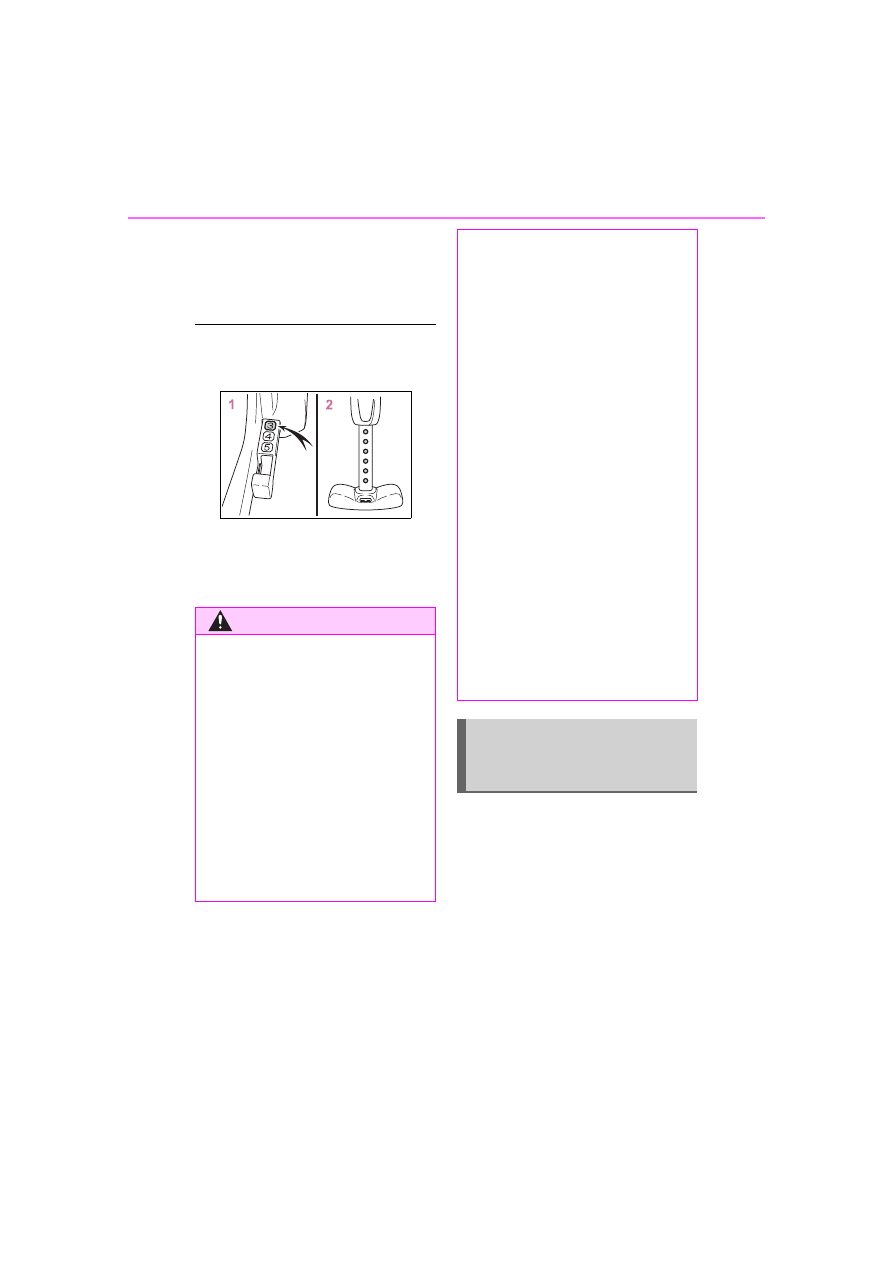

When using a “MIDI 2”

Adjust the support leg and ISOFIX

connectors as follows:

Lock the ISOFIX connectors
where number 3 can be seen.

Lock the support leg where 6
holes can be seen.

■

Anchor brackets (for top
tether strap)

Anchor brackets are provided
for each rear seat.
Use anchor brackets when fix-
ing the top tether strap.

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

When using the lower anchor-

ages, be sure that there are no

foreign objects around the

anchorages and that the seat

belt is not caught behind the

child restraint system.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

●

Never attach two child restraint

system attachments to the

same anchorage. In a collision,

one anchorage may not be

strong enough to hold two child

restraint system attachments

and may break. If the lower

anchorages are already in use,

use the seat belt to install a

child restraint system in the cen-

ter seat.

●

When securing some types of

child restraint systems in rear

seats, it may not be possible to

properly use the seat belts in

positions next to the child

restraint without interfering with

it or affecting seat belt effective-

ness. Be sure your seat belt fits

snugly across your shoulder

and low on your hips. If it does

not, or if it interferes with the

child restraint, move to a differ-

ent position. Failure to do so

may result in death or serious

injury.

●

If the seat is adjusted, reconfirm

the security of the child restraint

system.

Using an anchor bracket
(for top tether strap)
(except for Puerto Rico)

1-2. Child safety

For safety and secu

rity

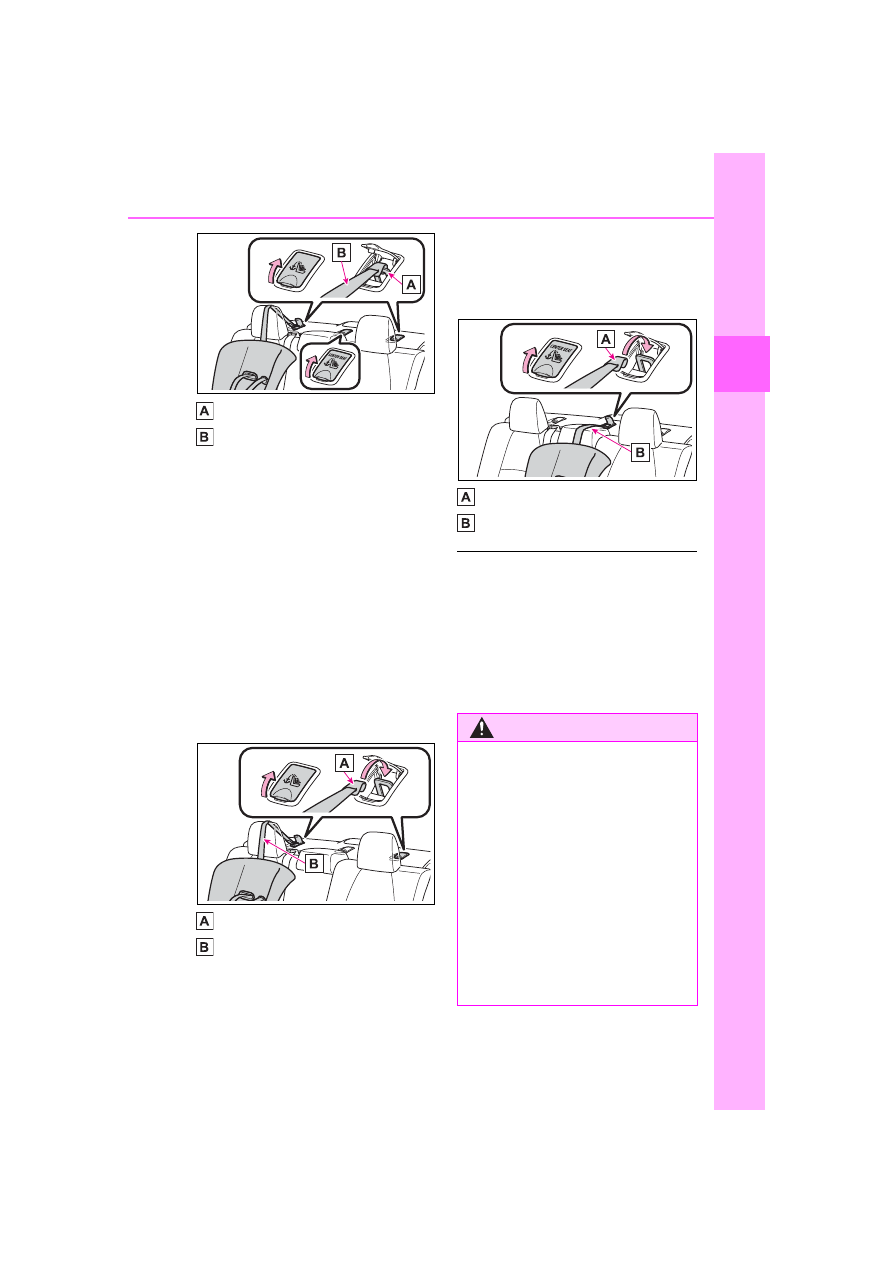

Anchor brackets
Top tether strap

■

Fixing the top tether strap
to the anchor bracket

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.



Rear outboard seats

Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top
tether strap.

Make sure the top tether strap is

securely latched. (



P.63)

Hook
Top tether strap



Rear center seat

Latch the hook onto the anchor
bracket and tighten the top

tether strap.

Make sure the top tether strap is
securely latched. (



P.63)

Hook
Top tether strap

■

Laws and regulations pertain-

ing to anchors

The LATCH system conforms to

FMVSS225 or CMVSS210.2.

Child restraint systems conforming

to FMVSS213 or CMVSS213 speci-

fications can be used.

This vehicle is designed to conform

to SAE J1819.

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Firmly attach the top tether

strap and make sure that the

belt is not twisted.

●

Do not attach the top tether

strap to anything other than the

anchor bracket.

●

After securing a child restraint

system, never adjust the seat.

1-2. Child safety

■

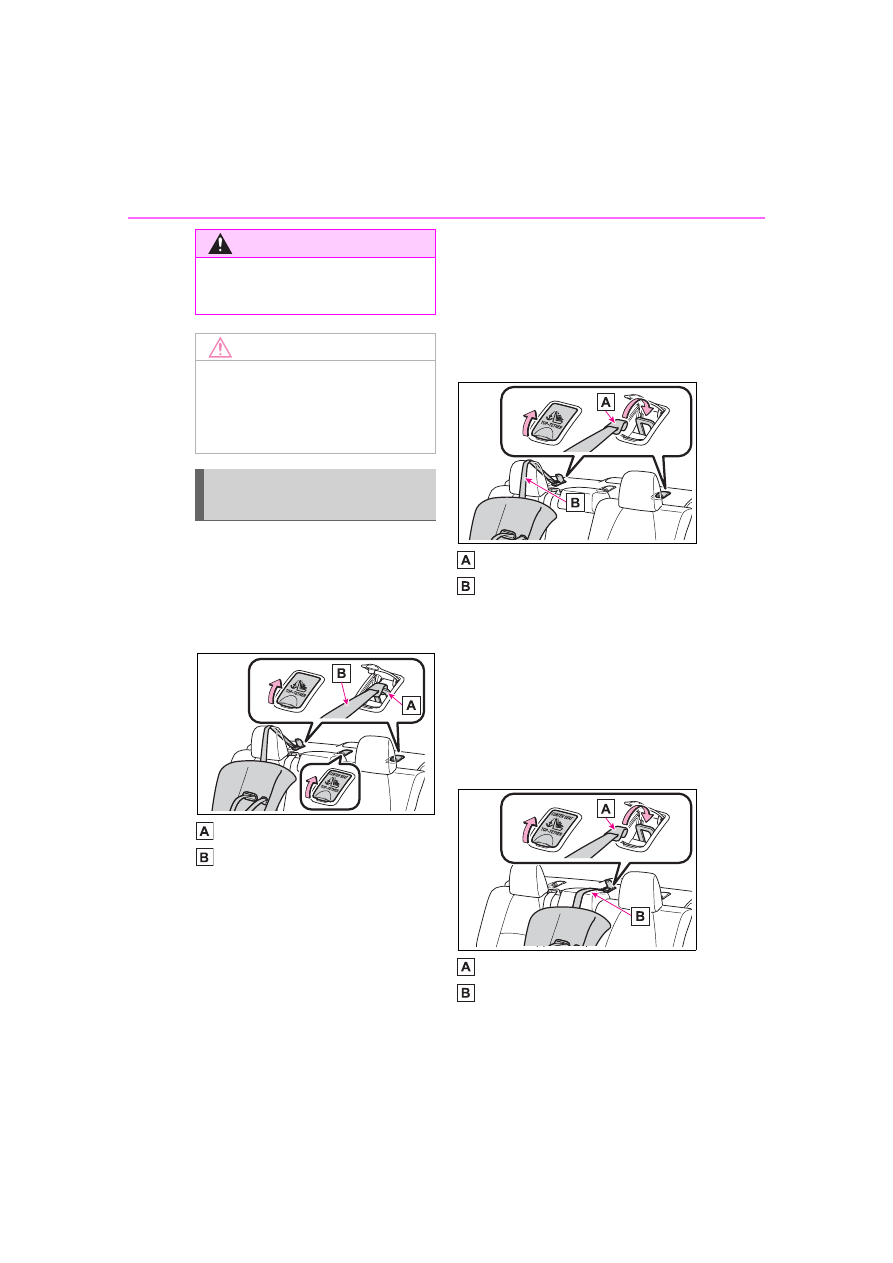

Top tether anchorages

Top tether anchorages are pro-
vided for each rear seat.
Use top tether anchorages
when fixing the top strap.

Top tether anchorages
Top strap

■

Fixing the top strap to the
top tether anchorages

Install the child restraint system
in accordance to the operation
manual enclosed with the child
restraint system.



Rear outboard seats

Open the top tether anchorage
cover, latch the hook onto the
top tether anchorage and
tighten the top strap.

Make sure the top strap is securely

latched. (



P.63)

Hook
Top strap



Rear center seat

Latch the hook onto the top
tether anchorage and tighten
the top strap.

Make sure the top strap is securely
latched. (



P.63)

Hook
Top strap

WARNING

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

NOTICE

■

Anchor brackets (for top

tether strap)

When not in use, make certain to

close the lid. If it remains open,

the lid may be damaged.

Using a top tether anchor-
age (for Puerto Rico)

1-2. Child safety

For safety and secu

rity

WARNING

■

When installing a child

restraint system

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

●

Firmly attach the top strap and

make sure that the belt is not

twisted.

●

Do not attach the top strap to

anything other than the top

tether anchorages.

●

After securing a child restraint

system, never adjust the seat.

●

Follow all installation instruc-

tions provided by the child

restraint system manufacturer.

NOTICE

■

Top tether anchorages

When not in use, make certain to

close the lid. If it remains open,

the lid may be damaged.

1-3. Emergency assistance

1-3.Emergency assistance

: If equipped



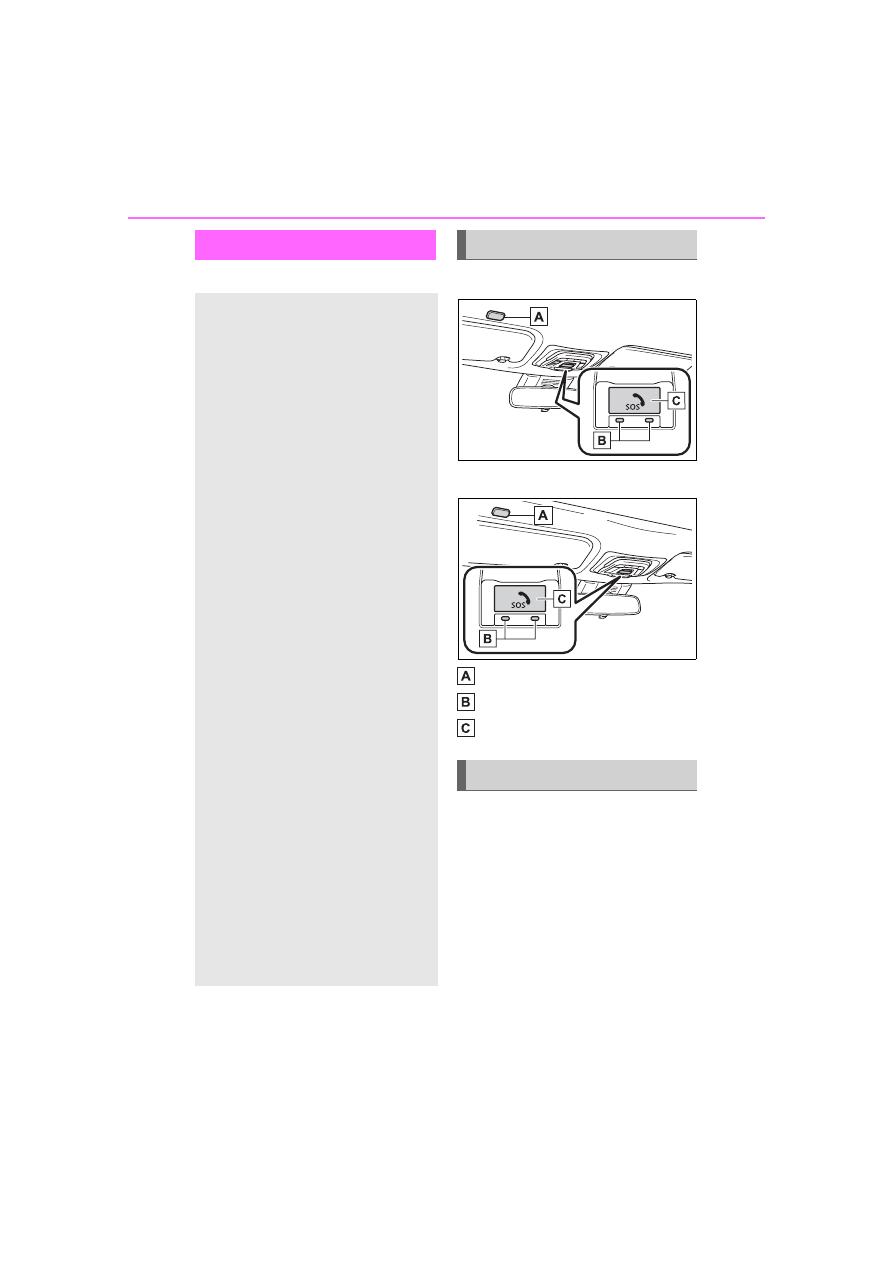

Type A



Type B

Microphone (driver’s side)
LED light indicators
“SOS” button

Subscribers have the following
Safety Connect services avail-
able:



Automatic Collision Notifica-
tion

Helps drivers receive necessary
response from emergency service
providers. (



P.74)

: U.S. Patent No. 7,508,298 B2



Stolen Vehicle Location

Safety Connect

Safety Connect is a sub-
scription-based telematics
service that uses Global
Positioning System (GPS)
data and embedded cellular
technology to provide
safety and security features
to subscribers. Safety Con-
nect is supported by Toy-
ota’s designated response
center, which operates 24
hours per day, 7 days per
week.

Safety Connect service is
available by subscription on
select, telematics hard-
ware-equipped vehicles.

By using the Safety Connect
service, you are agreeing to
be bound by the Telematics
Subscription Service Agree-
ment and its Terms and
Conditions, as in effect and
amended from time to time,
a current copy of which is
available at Toyota.com in
the United States, Toy-
otapr.com in Puerto Rico
and Toyota.ca in Canada. All
use of the Safety Connect
service is subject to such
then-applicable Terms and
Conditions.

System components

Services

1-3. Emergency assistance

For safety and secu

rity

Helps drivers in the event of vehicle
theft. (



P.74)



Emergency Assistance Button
(“SOS”)

Connects drivers to response-cen-
ter support. (



P.74)



Enhanced Roadside Assis-
tance

Provides drivers various on-road
assistance. (



P.75)

After you have signed the
Telematics Subscription Service
Agreement and are enrolled,
you can begin receiving ser-
vices.
A variety of subscription terms
are available for purchase. Con-
tact your Toyota dealer, call the
following appropriate Customer
Experience Center or push the
“SOS” button in your vehicle for
further subscription details.
• The United States

1-800-331-4331

• Canada

1-888-869-6828

• Puerto Rico

1-877-855-8377

■

Safety Connect Services Infor-

mation

●

Phone calls using the vehicle’s
Bluetooth

technology will not be

possible when Safety Connect is

active and in use.

●

Safety Connect is available begin-

ning Fall 2009 on select Toyota

models (in the contiguous United

States only). Contact with the

Safety Connect response center

is dependent upon the telematics

device being in operative condi-

tion, cellular connection availabil-

ity, and GPS satellite signal

reception, which can limit the abil-

ity to reach the response center or

receive emergency service sup-

port. Enrollment and Telematics

Subscription Service Agreement

are required. A variety of subscrip-

tion terms are available; charges

vary by subscription term selected

and location.

●

Automatic Collision Notification,

Emergency Assistance and Stolen

Vehicle Location are available in

the United States, including

Hawaii and Alaska, Puerto Rico

and Canada, and Enhanced

Roadside Assistance are avail-

able in the United States, Puerto

Rico and Canada.

●

Automatic Collision Notification,

Emergency Assistance, Stolen

Vehicle and Enhanced Road

Assistance are not available in the

U.S. Virgin Islands.

For vehicles first sold in the U.S.

Virgin Islands, no Safety Connect

services will function in or outside

the U.S. Virgin Islands.

●

Safety Connect services are not

subject to section 255 of the Tele-

communications Act and the

device is not TTY compatible.

■

Languages

The Safety Connect response cen-

ter will offer support in multiple lan-

guages.

The Safety Connect system will

offer voice prompts in English,

Spanish, and French. Please indi-

cate your language of choice when

enrolling.

■

When contacting the response

center

You may be unable to contact the

response center if the network is

Subscription

1-3. Emergency assistance

busy.

When the engine switch is
turned to ON, the red indicator
light comes on for 2 seconds
then turns off. Afterward, the
green indicator light comes on,
indicating that the service is
active.
The following indicator light pat-
terns indicate specific system
usage conditions:



Green indicator light on =
Active service



Green indicator light flashing
= Safety Connect call in pro-
cess



Red indicator light (except at
vehicle start-up) = System
malfunction (contact your Toy-
ota dealer)



No indicator light (off) =
Safety Connect service not
active

■

Automatic Collision Notifi-
cation

In case of either airbag deploy-
ment or severe rear-end colli-
sion, the system is designed to
automatically call the response
center. The responding agent
receives the vehicle’s location
and attempts to speak with the

vehicle occupants to assess the
level of emergency. If the occu-
pants are unable to communi-
cate, the agent automatically
treats the call as an emergency,
contacts the nearest emer-
gency services provider to
describe the situation, and
requests that assistance be sent
to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety
Connect can work with local
authorities to assist them in
locating and recovering the
vehicle. After filing a police
report, call the Customer Experi-
ence Center at 1-800-331-4331
in the United States,
1-877-855-8377 in Puerto Rico
or 1- 888-869-6828 in Canada,
and follow the prompts for
Safety Connect to initiate this
service.
In addition to assisting law
enforcement with recovery of a
stolen vehicle, Safety-Con-
nect-equipped vehicle location
data may, under certain circum-
stances, be shared with third
parties to locate your vehicle.
Further information is available
at Toyota.com in the United
States, Toyotapr.com in Puerto
Rico and Toyota.ca in Canada.

■

Emergency Assistance But-
ton (“SOS”)

In the event of an emergency on
the road, push the “SOS” button

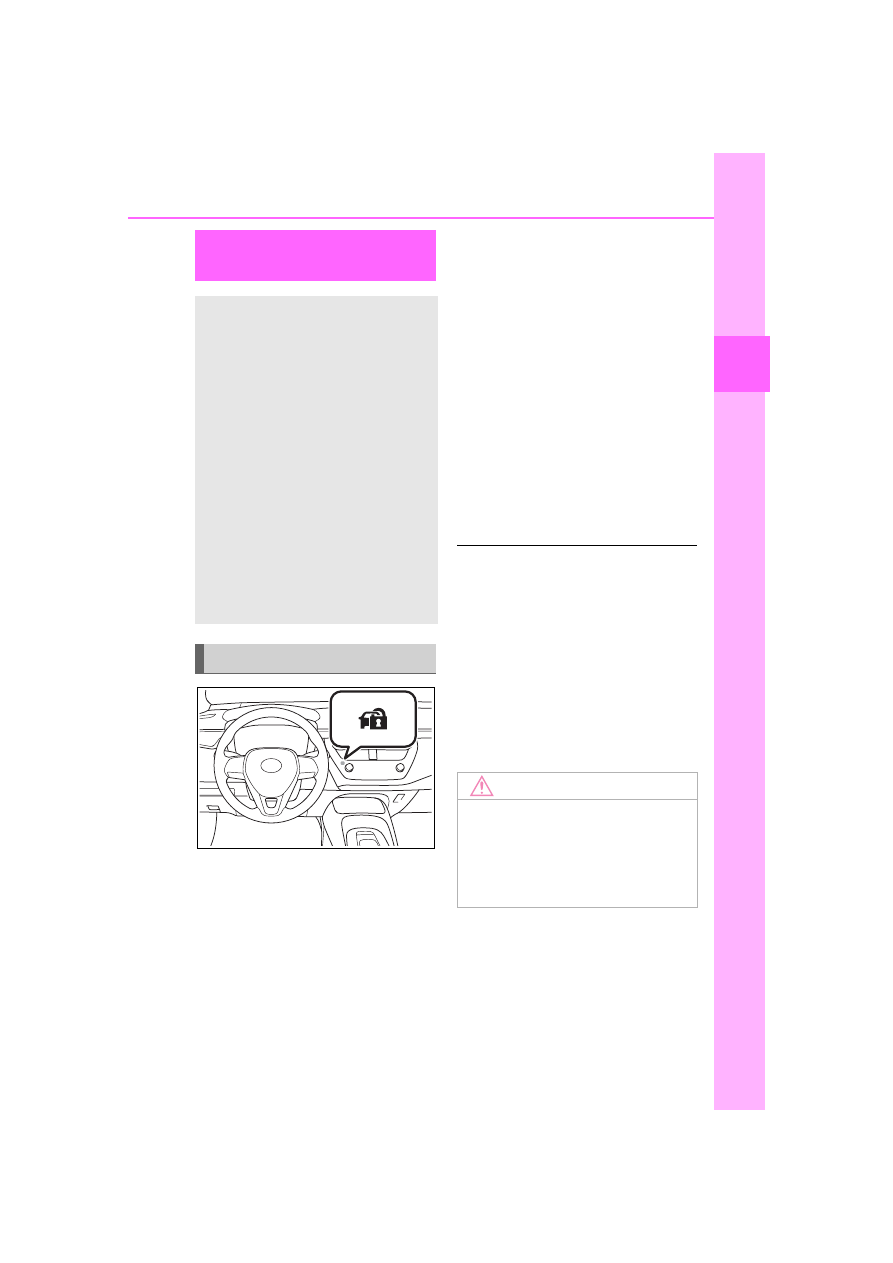

Safety Connect LED light
Indicators

Safety Connect services

1-3. Emergency assistance

For safety and secu

rity

to reach the Safety Connect
response center. The answer-
ing agent will determine your
vehicle’s location, assess the
emergency, and dispatch the
necessary assistance required.

If you accidentally press the “SOS”
button, tell the response-center
agent that you are not experiencing
an emergency.

■

Enhanced Roadside Assis-
tance

Enhanced Roadside Assistance
adds GPS data to the already
included warranty-based Toyota
roadside service.
Subscribers can press the
“SOS” button to reach a Safety
Connect response-center agent,
who can help with a wide range
of needs, such as: towing, flat
tire, fuel delivery, etc. For a
description of the Enhanced
Roadside Assistance services
and their limitations, please see
the Safety Connect Terms and
Conditions, which are available
at Toyota.com in the United
States, Toyotapr.com in Puerto
Rico and Toyota.ca in Canada.

Important! Read this informa-
tion before using Safety Con-
nect.

■

Exposure to radio fre-
quency signals

The Safety Connect system
installed in your vehicle is a
low-power radio transmitter and
receiver. It receives and also
sends out radio frequency (RF)
signals.
In August 1996, the Federal
Communications Commission
(FCC) adopted RF exposure
guidelines with safety levels for
mobile wireless phones. Those
guidelines are consistent with
the safety standards previously
set by the following U.S. and
international standards bodies.



ANSI (American National
Standards Institute) C95.1
[1992]



NCRP (National Council on
Radiation Protection and
Measurement) Report 86
[1986]



ICNIRP (International Com-
mission on Non-Ionizing Radi-
ation Protection) [1996]

Those standards were based on
comprehensive and periodic
evaluations of the relevant sci-
entific literature. Over 120 scien-
tists, engineers, and physicians
from universities, and govern-
ment health agencies and
industries reviewed the avail-
able body of research to
develop the ANSI Standard
(C95.1).

Safety information for
Safety Connect

1-3. Emergency assistance

The design of Safety Connect
complies with the FCC guide-
lines in addition to those stan-
dards.

■

Free/Open Source Software

Information

This product contains Free/Open

Source Software (FOSS).
The license information and/or the

source code of such FOSS can be

found at the following URL.
https://opensource.lge.com/osSch/

list?types=ALL&search=TL21BNU

1-4. Theft deterrent system

For safety and secu

rity

1-4.Theft deterrent system



Vehicles without a smart key
system

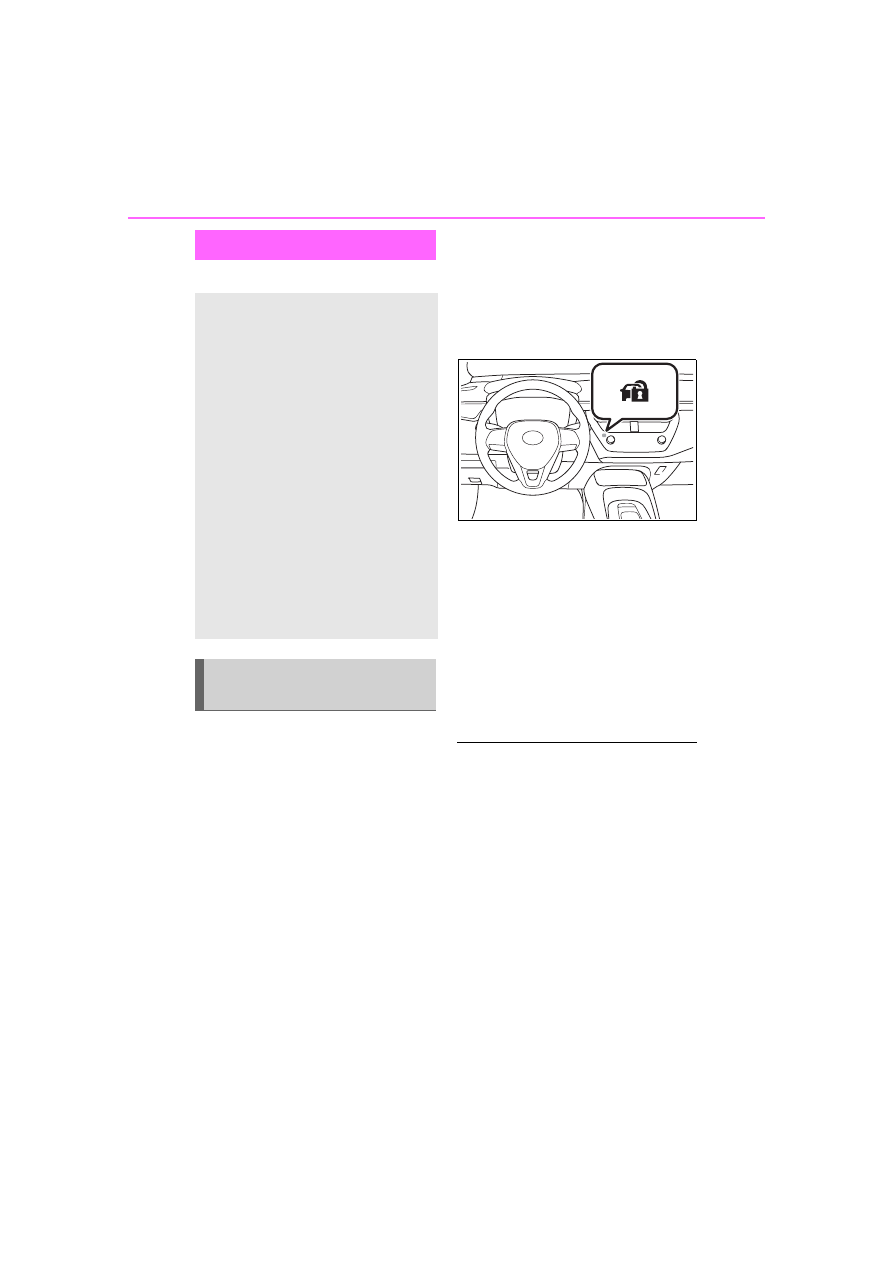

The indicator light flashes after
the key has been removed from
the engine switch to indicate
that the system is operating.
The indicator light stops flashing
after the registered key has

been inserted into the engine
switch to indicate that the sys-
tem has been canceled.



Vehicles with a smart key sys-
tem

The indicator light flashes after
the engine switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the engine switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a mainte-

nance-free type engine immobilizer

system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

Engine immobilizer

system

The vehicle’s keys have
built-in transponder chips
that prevent the engine from
starting if a key has not
been previously registered
in the vehicle’s on-board
computer.

Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft
but does not guarantee
absolute security against all
vehicle thefts.

Operating the system

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

1-4. Theft deterrent system

: If equipped

■

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The windows and moon roof
(if equipped) are closed
before the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors, trunk and

hood, and lock all the doors.
The system will set automati-
cally after 30 seconds.

The indicator light changes from
being on to flashing when the sys-
tem is set.

■

Deactivating or stopping

Do one of the following to deac-
tivate or stop the alarms:



Unlock the doors.



Turn the engine switch to
ACC or ON, or start the
engine. (The alarm will be
deactivated or stopped after a
few seconds.)

■

System maintenance

The vehicle has a mainte-

nance-free type alarm system.

■

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

●

A person inside the vehicle opens

a door, the trunk or hood, or

unlocks the vehicle using a door

lock switch or inside lock button.

Alarm

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:



A locked door or trunk is
unlocked or opened in any
way other than using the
entry function (if equipped),
wireless remote control,
mechanical key (if
equipped) or key (if
equipped). (The doors will
lock again automatically.)



The hood is opened.

Setting/deactivating/stop-
ping the alarm system

1-4. Theft deterrent system

For safety and secu

rity

●

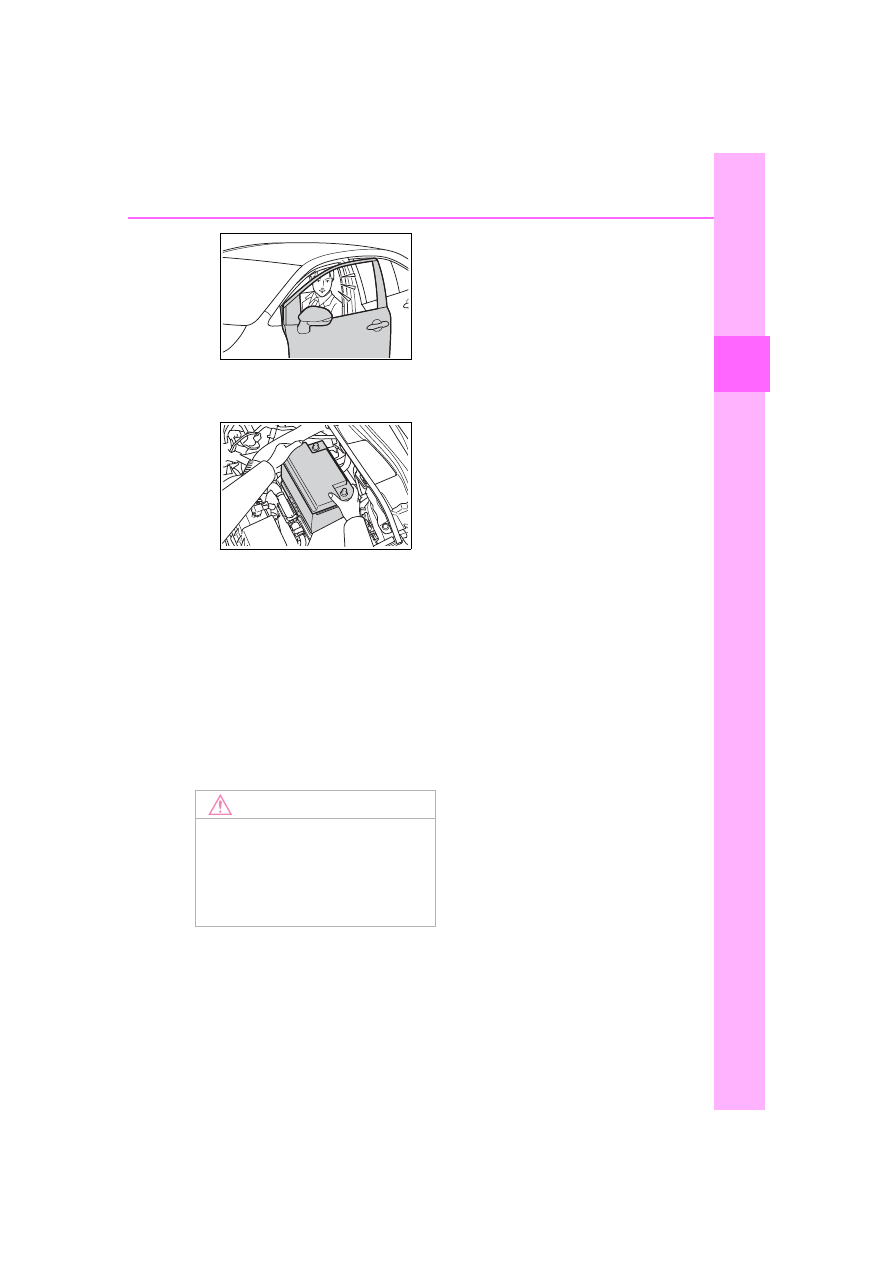

The battery is recharged or

replaced when the vehicle is

locked. (



P.385)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

battery

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

Vehicle

statu

s information an

d in
dicator

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indica-

tors ...............................

Gauges and meters

(4.2-inch display)..........

Gauges and meters (7-inch

display).........................

Multi-information display

(4.2-inch display)..........

Multi-information display

(7-inch display).............

Fuel consumption informa-

tion ............................

102

Content .. 3 4 5 6 ..
