Toyota Camry Hybrid (2022 year). Manual in english

544

8-1. Specifications

: Unladen vehicles

: For LE or XLE grade models

: For SE or XSE grade models

: 205/65R16 tires

: 215/55R17 tires

: 235/45R18 and 235/40R19 tires

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

192.1 in. (4880 mm)

192.7 in. (4895 mm)

Overall width

72.4 in. (1840 mm)

Overall height

56.9 in. (1445 mm)

Wheelbase

111.2 in. (2825 mm)

Tread

Front

63.0 in. (1600 mm)

62.6 in. (1590 mm)

62.2 in. (1580 mm)

Rear

63.2 in. (1605 mm)

62.8 in. (1595 mm)

62.6 in. (1590 mm)

Vehicle capacity weight
(occupants + luggage)

925 lb. (420 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

545

8-1. Specifications

Ve
hicle

spe
cifi

cations

■

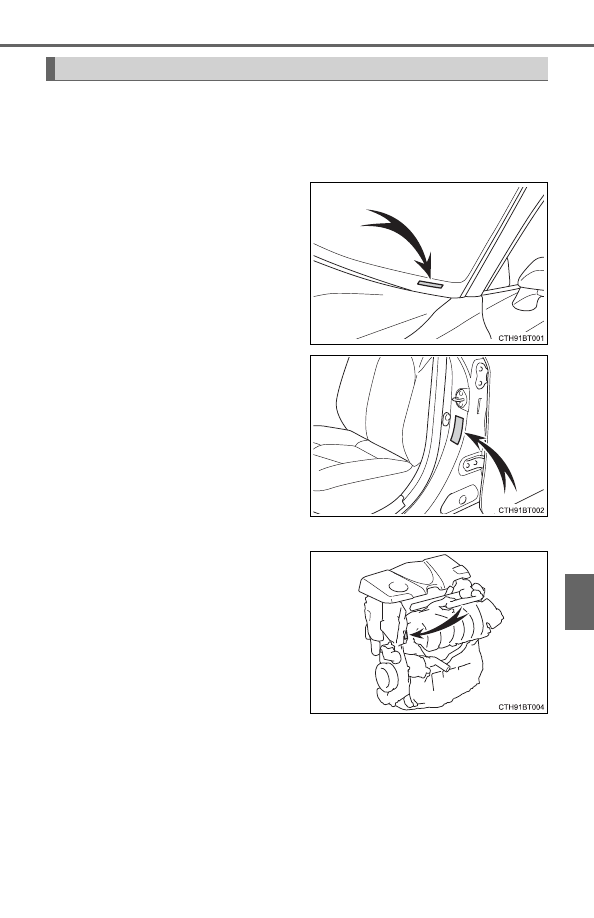

Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.

This number is also on the Cer-
tification Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

Vehicle identification

546

8-1. Specifications

: Checking your vehicle’s model:



P. 545

Engine

Model

A25A-FXS

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.44



4.07 in. (87.5



103.4 mm)

Displacement

151.8 cu. in. (2487 cm

)

Valve clearance

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane rating

87 (Research Octane Number 91) or higher

Fuel tank capacity
(Reference)

13 gal. (49.3 L, 10.8 Imp. gal.)

Electric motor (Traction motor)

Type

Permanent magnet synchronous motor

Maximum output

88 kW

Maximum torque

149 ft

•

lbf (202 N

•

m, 20.6 kgf

•

Hybrid battery (Traction battery)

AXVH70 model

AXVH71 models

Type

Lithium-ion battery

Nickel-metal hydride bat-
tery

Voltage

3.7 V/cell

7.2 V/module

Capacity

4.0 Ah

6.5 Ah (3HR)

Quantity

70 cells

34 modules

Nominal voltage

259 V

244.8 V

547

8-1. Specifications

Ve
hicle

spe
cifi

cations

■

Oil capacity (Drain and refill [Reference

])

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.

■

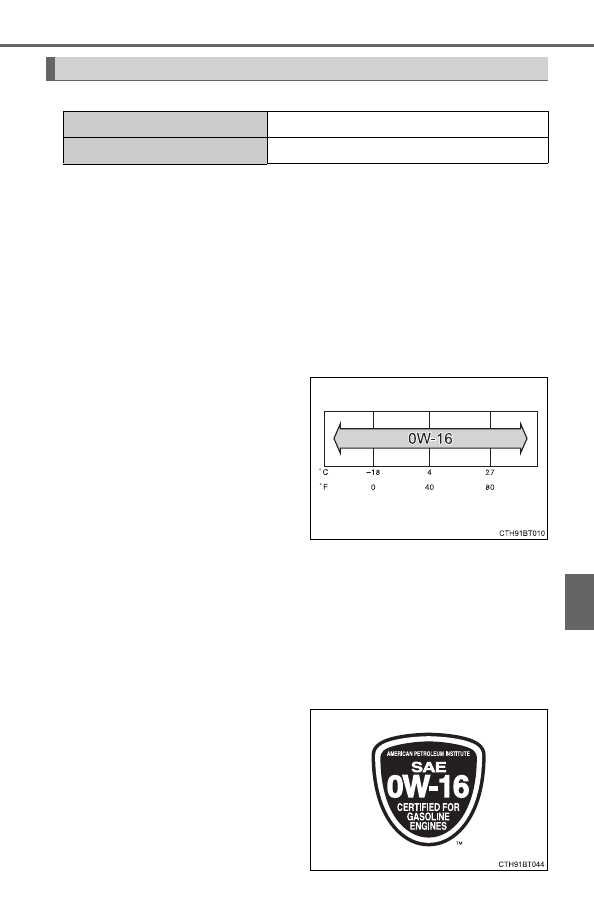

Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: ILSAC GF-6B multigrade engine oil
Recommended viscosity: SAE 0W-16

SAE  0W-16  is  the  best  choice  for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-16 is not available, SAE
0W-20  oil  may  be  used.  However,
it  must  be  replaced  with SAE 0W-
16 at the next oil change.

Oil viscosity (0W-16 is explained here as an example):

• The 0W in 0W-16 indicates the characteristic of the oil which allows cold

startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.

• The 16 in 0W-16 indicates the viscosity characteristic of the oil when the

oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.

How to read oil container label:
API registered mark is added to
some oil containers to help you
select the oil you should use.

Lubrication system

With filter

4.8 qt. (4.5 L, 4.0 Imp. qt.)

Without filter

4.4 qt. (4.2 L, 3.7 Imp. qt.)

Outside temperature

548

8-1. Specifications

Cooling system

Capacity
(Reference)



Gasoline engine

6.4 qt. (6.1 L, 5.4 Imp. qt.)



Power control unit

1.9 qt. (1.8 L, 1.6 Imp. qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based

non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make

DENSO FC16HR-Q8

Gap

0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

549

8-1. Specifications

Ve
hicle

spe
cifi

cations

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

: Minimum pedal clearance when depressed with a force of 67 lbf (300 N, 31

kgf) while the hybrid system is operating.

Electrical system

12-volt battery

Open voltage at
68



F (20



C):

12.0 V or higher
If  the  voltage  is  lower  than  the  standard  value,
charge the battery.
(When  checking  the  voltage,  after  turning  the
power  switch  off,  wait  for  30  seconds  with  the
high  beam  headlights  illuminated,  then  turn  the
high beam headlights off and check the voltage.)

Charging rates

5 A max.

Hybrid transmission

Fluid capacity

4.1 qt. (3.9 L, 3.4 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal
noise or vibration, or ultimately damage the transmission of your vehicle.

Brakes

Pedal clearance

3.3 in. (85 mm)

Pedal free play

0.04



0.24 in. (1



6 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

550

8-1. Specifications



Type A



Type B

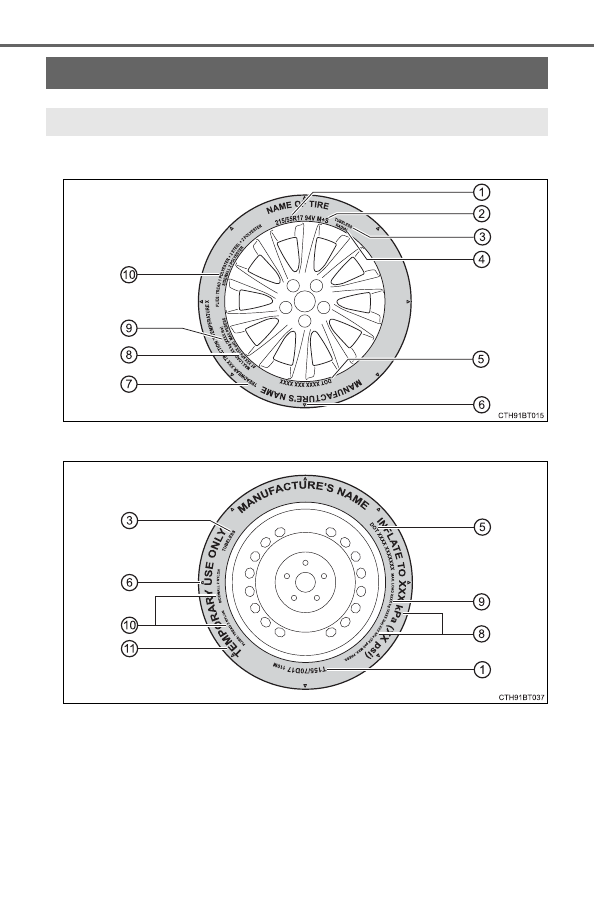

Tires and wheels

Tire size

205/65R16 95H, T155/70D17 110M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph

[160 km/h]) (in countries where such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to

the front tires and rear tires. Never

exceed the maximum cold tire inflation

pressure indicated on the tire sidewall.

Wheel size



6 1/2 J, 17



4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

215/55R17 94V, T155/70D17 110M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph

[160 km/h]) (in countries where such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to

the front tires and rear tires. Never

exceed the maximum cold tire inflation

pressure indicated on the tire sidewall.

Wheel size



7 1/2 J, 17



4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

551

8-1. Specifications

Ve
hicle

spe
cifi

cations



Type C



Type D

Tire size

235/45R18 94V, T155/70D17 110M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph

[160 km/h]) (in countries where such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to

the front tires and rear tires. Never

exceed the maximum cold tire inflation

pressure indicated on the tire sidewall.

Wheel size



8 J, 17



4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Tire size

235/40R19 92V, T155/70D17 110M

Tire inflation pressure

(Recommended cold tire

inflation pressure)

Driving under normal conditions

Front:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Rear:

35 psi (240 kPa, 2.4 kgf/cm

or bar)

Spare:

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Driving at high speeds (above 100 mph

[160 km/h]) (in countries where such

speeds are permitted by law)

Add 5 psi (30 kPa, 0.3 kgf/cm

or bar) to

the front tires and rear tires. Never

exceed the maximum cold tire inflation

pressure indicated on the tire sidewall.

Wheel size



8 J, 17



4 T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

552

8-1. Specifications

: Light bulbs not listed in this table are LED bulbs.

: If equipped

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Front side marker
lights (bulb type)

W5W

Front turn signal/
parking lights
(bulb type)

7444NA

28/8

Rear turn signal lights
(bulb type)

WY21W

Rear

side

marker

lights (bulb type)

W5W

Back-up lights
(bulb type)

921

Interior

Rear interior light



Door courtesy lights



Trunk light



A: Wedge base bulbs (clear)

C: Double end bulbs

B: Wedge base bulbs (amber)

553

8-1. Specifications

Ve
hicle

spe
cifi

cations

■

Gasoline quality

In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.

■

Recommendation of the use of gasoline containing detergent additives

●

Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives concen-
tration program.

●

Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.

■

Recommendation of the use of low emissions gasoline

Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.
Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.

Fuel information

You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.

At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..

554

8-1. Specifications

■

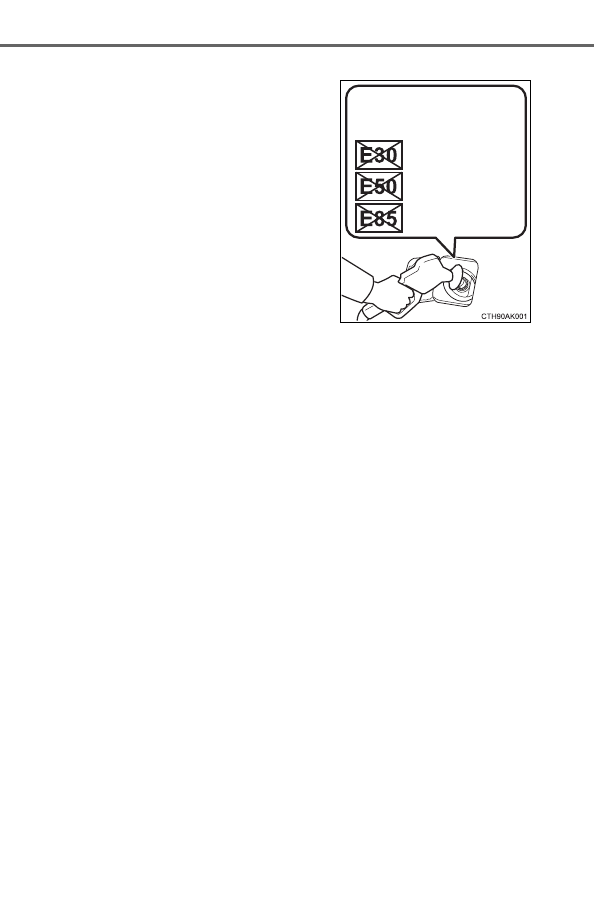

Non-recommendation of the use of blended gasoline

●

If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.

●

Toyota does not recommend the use of gasoline containing methanol.

■

Non-recommendation of the use of gasoline containing MMT

Some gasoline contains an octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If this
happens, contact your Toyota dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.

●

Use only gasoline containing up to 15%
ethanol.
DO  NOT  use  any  flex-fuel  or  gasoline
that could contain more than 15% etha-
nol,  including  from  any  pump  labeled
E30,  E50,  E85  (which  are  only  some
examples  of  fuel  containing  more  than
15% ethanol).

DO NOT use gasoline contain-
ing more than 15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

555

8-1. Specifications

Ve
hicle

spe
cifi

cations

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be
damaged.

●

Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.

●

Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.

●

Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

■

Fuel-related poor driveability

If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is
encountered after using a different type of fuel, discontinue the use of that
type of fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It can damage your vehicle’s paint.
