7-2. Steps to take in an emergency

■

If “Hybrid System Overheated Output Power Reduced” is shown

This message may be displayed when driving under severe operating condi-
tions. (For example, when driving up a long steep hill.)
Handling method:



P. 537

■

If “Maintenance Required for Traction Battery Cooling Parts See Owner’s
Manual” is shown

The filter may be clogged, the air intake vent may be blocked or there may be
a gap in the duct.

●

If the air intake vent or filter is dirty, refer to P. 465 for cleaning the air intake
vent and filter.

●

If the message is being displayed and the air intake vent and filter are not
dirty, have the vehicle inspected at your Toyota dealer.

■

If “Traction Battery Needs to Be Protected. Refrain from the Use of N
Position.” is shown

This message may be displayed when the shift lever is in N.
As the hybrid battery (traction battery) cannot be charged when the shift lever
is in N, shift the shift lever to P when the vehicle is stopped.

■

If “Traction Battery Needs to Be Protected. Shift into P to Restart.” is
shown

This message is displayed when the hybrid battery (traction battery) charge
has become extremely low because the shift lever has been left in N for a cer-
tain amount of time.
When operating the vehicle, shift to P and restart the hybrid system.

■

If “Shift to P Before Exiting Vehicle” is shown

Message is displayed when the driver’s door is opened without turning the
power switch off with the shift lever in any position other than P.
Shift the shift lever to P.

■

If “Shift Is in N Release Accelerator Before Shifting” is shown

Message is displayed when the accelerator pedal has been depressed and
the shift lever is in N. Release the accelerator pedal and shift the shift lever to
D or R.

■

If “Press Brake When Vehicle Is Stopped Hybrid System May Overheat”
is shown

Message is displayed when the accelerator pedal is depressed to maintain
the vehicle position when stopped on a upward slope, etc.
If this continues, the hybrid system may overheat.
Release the accelerator pedal and depress the brake pedal.

511

7-2. Steps to take in an emergency

hen
troub

le arises

■

If “Auto Power Off to Conserve Battery” is displayed

This message is displayed when the power was cut off due to the automatic
power off function.
The next time the hybrid system is started, keep the hybrid system operating
for approximately 5 minutes to recharge the 12-volt battery.

■

If “A New Key has been Registered Contact Your Dealer for Details” is
displayed

This message will be displayed each time the driver’s door is opened when
the doors are unlocked from the outside for approximately one week after a
new electronic key has been registered.
If this message is displayed but you have not had a new electronic key regis-
tered, ask your Toyota dealer to check if an unknown electronic key (other
than those in your possession) has been registered.

■

If “Headlight System Malfunction Visit Your Dealer” is displayed

The following systems may be malfunctioning. Have the vehicle inspected by
your Toyota dealer immediately.

●

The LED headlight system

●

The automatic headlight leveling system (if equipped)

●

AHB (Automatic High Beam)

●

AFS (Adaptive Front-lighting System) (if equipped)

■

If “Radar Cruise Control Unavailable See Owner's Manual” is shown

The dynamic radar cruise control with full-speed range system is suspended
temporarily or until the problem shown in the message is resolved. (causes
and coping methods:



P. 250)

■

If “Radar Cruise Control Unavailable” is shown

The dynamic radar cruise control with full-speed range system cannot be
used temporarily. Use the system when it becomes available again.

■

If a message that indicates the malfunction of front camera is displayed

The following systems may be suspended until the problem shown in the
message is resolved. (



P. 250, 497)

●

PCS (Pre-Collision System)

●

LTA (Lane Tracing Assist)

●

AHB (Automatic High Beam)

●

RSA (Road Sign Assist) (if equipped)

●

Dynamic radar cruise control with full-speed range

■

If a message that indicates the malfunction of radar sensor is displayed

The following systems may be suspended until the problem shown in the
message is resolved. (



P. 250, 497)

●

PCS (Pre-Collision System)

●

LTA (Lane Tracing Assist)

●

Dynamic radar cruise control with full-speed range

512

7-2. Steps to take in an emergency

■

If “Maintenance Required Soon” is displayed

Indicates that all maintenance according to the driven distance on the mainte-
nance schedule

should be performed soon.

Comes on approximately 4500 miles (7200 km) after the message has been
reset.
If necessary, perform maintenance. Please reset the message after the main-
tenance is performed. (



P. 420)

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual

Supplement” for the maintenance interval applicable to your vehicle.

■

If “Maintenance Required Visit Your Dealer” is displayed

Indicates that all maintenance is required to correspond to the driven distance
on the maintenance schedule

Comes on approximately 5000 miles (8000 km) after the message has been
reset.
(The indicator will not work properly unless the message has been reset.)
Perform the necessary maintenance. Please reset the message after the
maintenance is performed. (



P. 420)

: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual

Supplement” for the maintenance interval applicable to your vehicle.

■

If “Engine Oil Level Low Add or Replace” is displayed

The engine oil level may be low. Check the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the vehicle is
stopped on a slope. Move the vehicle to a level surface and check if the mes-
sage disappears.

■

Warning buzzer



P. 503

NOTICE

■

If “High Power Consumption Power to Climate Temporarily Limited” is
frequently shown

There is a possible malfunction relating to the charging system or the 12-
volt battery may be deteriorating. Have the vehicle inspected by your Toyota
dealer.

■

If “Maintenance Required For Traction Battery At Your Dealer” is
shown (AXVH70 model

)

The hybrid battery (traction battery) is scheduled to be inspected or
replaced. Have the vehicle inspected by your Toyota dealer immediately.

●

Continuing to drive the vehicle without having the hybrid battery (traction
battery) inspected will cause the hybrid system not to start.

●

If the hybrid system does not start, contact your Toyota dealer immedi-
ately.

: The model code is indicated on the Certification Label. (



P. 545)

513

7-2. Steps to take in an emergency

hen
troub

le arises

●

Stop the vehicle in a safe place on a hard, flat surface.

●

Set the parking brake.

●

Shift the shift lever to P.

●

Stop the hybrid system.

●

Turn on the emergency flashers. (



P. 490)

If you have a flat tire

Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires:



P. 444

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.

Driving even a short distance with a flat tire can damage the tire and the

wheel beyond repair, which could result in an accident.

Before jacking up the vehicle

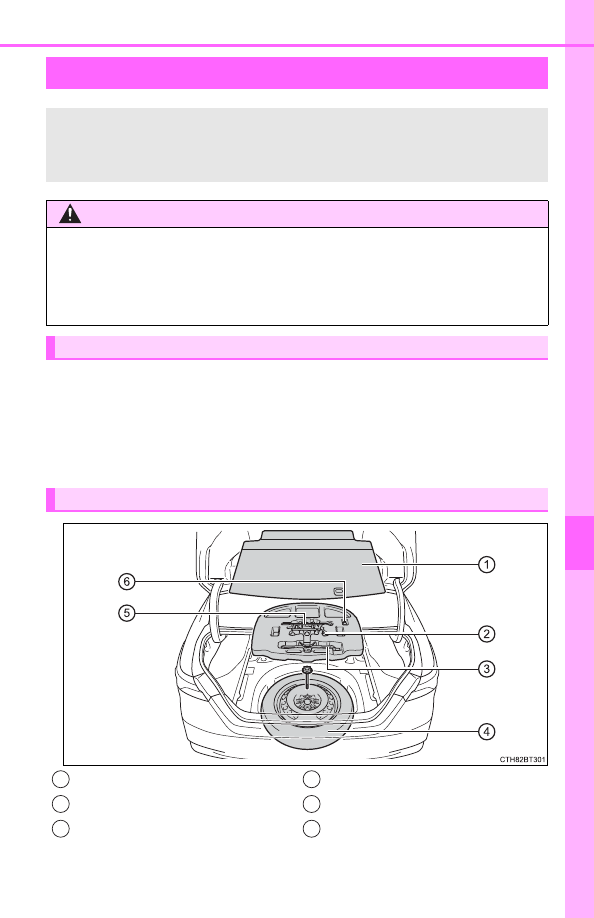

Location of the spare tire, jack and tools

Luggage floor cover
Wheel nut wrench
Jack

Spare tire
Jack handle
Wheel lock key (if equipped)

1
2
3

4
5
6

514

7-2. Steps to take in an emergency

WARNING

■

Using the tire jack

Observe the following precautions.

Improper use of the tire jack may cause the vehicle to suddenly fall off

the jack, leading to death or serious injury.

●

Do not use the tire jack for any purpose other than replacing tires or

installing and removing tire chains.

●

Only use the tire jack that comes with this vehicle for replacing a flat

tire.

Do not use it on other vehicles, and do not use other tire jacks for

replacing tires on this vehicle.

●

Put the jack properly in its jack point.

●

Do not put any part of your body under the vehicle while it is supported

by the jack.

●

Do not start the hybrid system or drive the vehicle while the vehicle is

supported by the jack.

●

Do not raise the vehicle while someone is inside.

●

When raising the vehicle, do not put an object on or under the jack.

●

Do not raise the vehicle to a height greater than that required to

replace the tire.

●

Use a jack stand if it is necessary to get under the vehicle.

●

When lowering the vehicle, make sure that there is no-one near the

vehicle. If there are people nearby, warn them vocally before lowering.

NOTICE

■

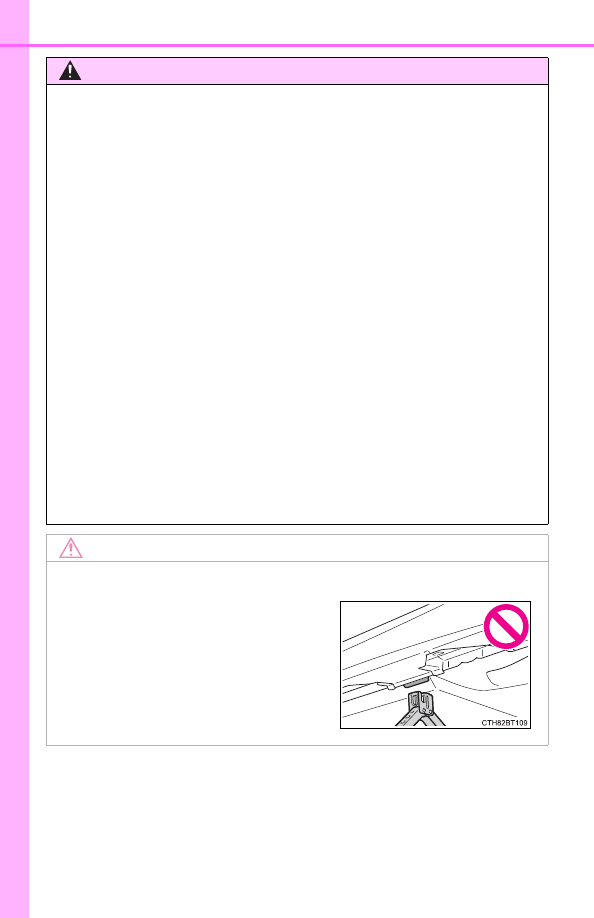

To prevent damage to the vehicle when using a jack

When jacking up the rear of the vehi-

cle, make sure not to position the jack

under the bracket shown in the illustra-

tion near the rear jack point, as the

vehicle body may be damaged.

515

7-2. Steps to take in an emergency

hen
troub

le arises

When replacing tires on a vehicle with wheel lock nuts, use the follow-
ing procedures to remove and install the wheel lock nuts. The wheel
lock key is stored in the tray inside the luggage compartment. Always
return the wheel lock key to its original position after use, so that it
does not get lost. (



P. 513)

■

Removal

For ease of removal, the wheel lock nut should always be the first
one loosened.

Place the wheel lock key on top of the wheel lock nut, turning
until the wheel lock key and wheel lock nut patterns engage.
Place the wheel nut wrench on the wheel lock key, and while
applying pressure on the wheel lock key, loosen the wheel lock
nut.

■

Installation

For ease of installation, the wheel lock nut should always be the
last one tightened.

By hand, install a wheel lock nut on the wheel to be installed.
Place the wheel lock key on top of the wheel lock nut, turning
until the wheel lock key and wheel lock nut patterns engage.
Place the wheel nut wrench on the wheel lock key, and while
applying pressure on the wheel lock key, tighten the wheel lock
nut to the recommended torque.

Wheel lock nut (if equipped)

NOTICE

■

When using a wheel lock key

Do not use an impact wrench. Using an impact wrench may cause perma-
nent damage to wheel lock nut and wheel lock key. If in doubt about wheel
lock application, contact your Toyota dealer.

1
2

517

7-2. Steps to take in an emergency

hen
troub

le arises

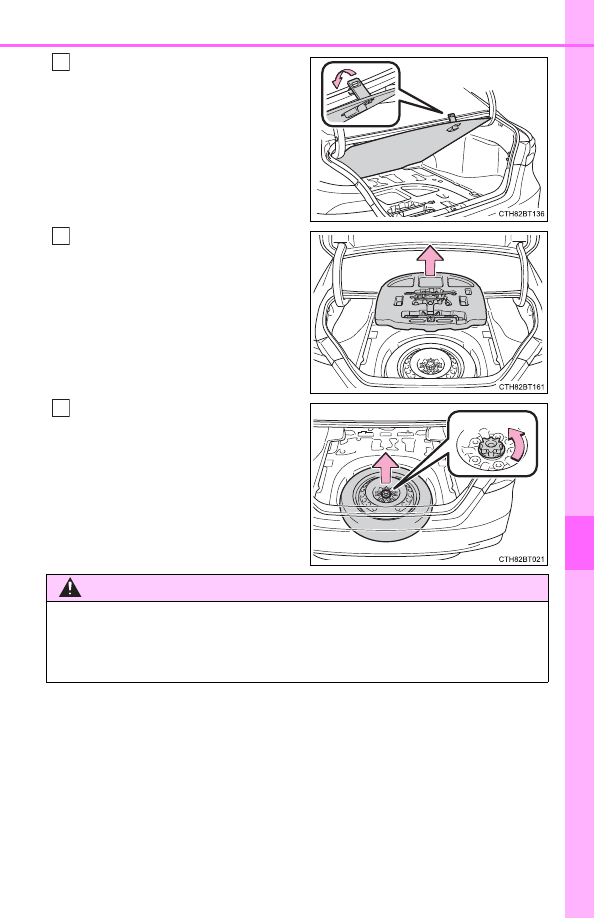

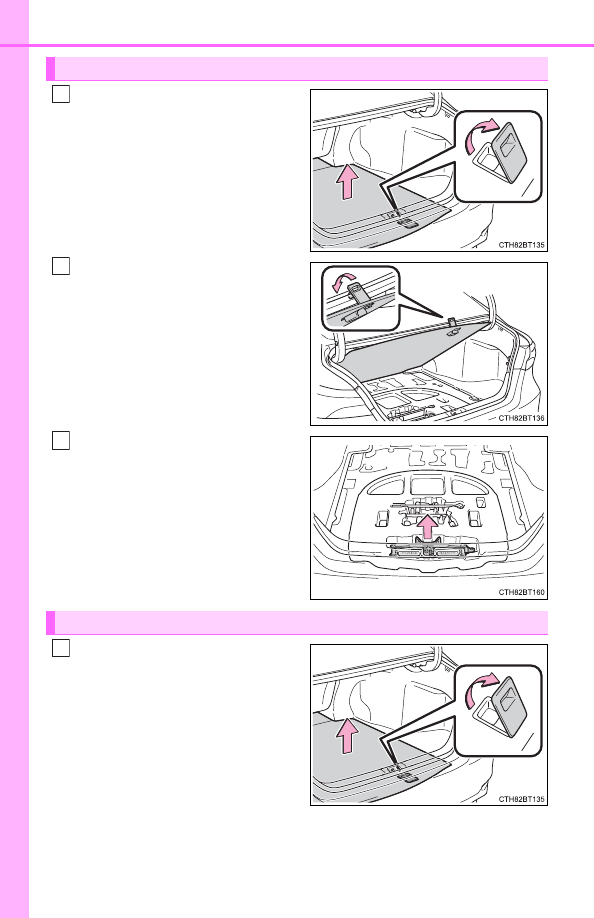

Secure the luggage floor cover
using the hook provided.

Remove the tool tray.

Loosen the center fastener that
secures the spare tire.

When taking out or stowing the

spare tire, make sure to firmly

hold opposite end of the tire.

WARNING

■

When storing the spare tire

Be careful not to catch fingers or other body parts between the spare

tire and the body of the vehicle.

518

7-2. Steps to take in an emergency

Chock the tires.

For vehicles with steel wheels,
remove the wheel ornament
using the wrench.

To protect the wheel ornament,

place a rag between the wrench

and the wheel ornament, as

shown in the illustration.

Slightly loosen the wheel nuts
(one turn).

Vehicles with wheel locks: Use

the wheel lock key to loosen the

wheel lock.

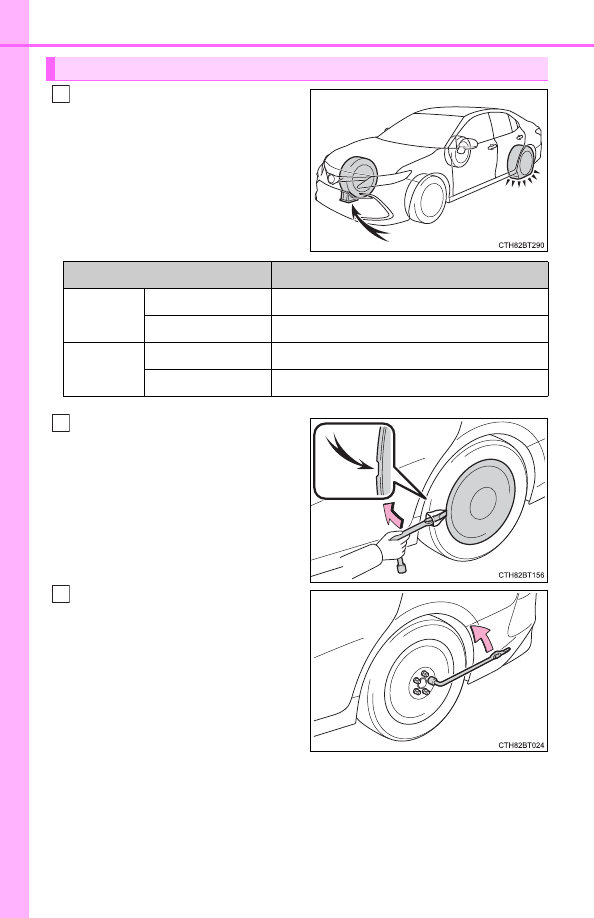

Replacing a flat tire

Flat tire

Wheel chock positions

Front

Left-hand side

Behind the rear right-hand side tire

Right-hand side

Behind the rear left-hand side tire

Rear

Left-hand side

In front of the front right-hand side tire

Right-hand side

In front of the front left-hand side tire

519

7-2. Steps to take in an emergency

hen
troub

le arises

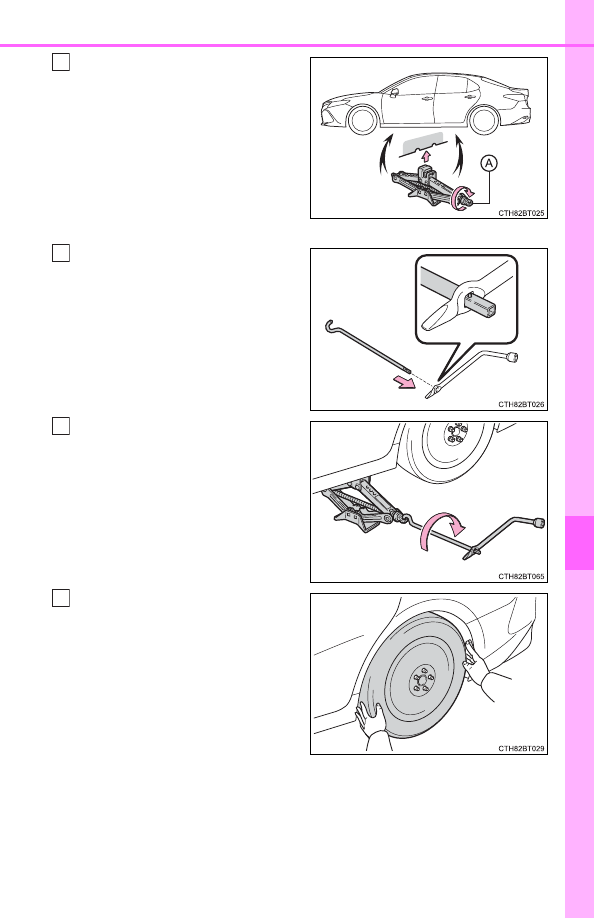

Turn the tire jack portion “A” by
hand until the notch of the jack
is in contact with the jack point.

To prevent damage to the vehicle

when using the jack, position the

jack in the correct location.

(



P. 514)

The jack point guides are located

under the rocker panel. They

indicate the jack point positions.

Assemble the jack handle.

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and
the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

520

7-2. Steps to take in an emergency

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or the area around the brakes immedi-

ately after the vehicle has been driven.

After the vehicle has been driven the disc wheels and the area around

the brakes will be extremely hot. Touching these areas with hands, feet

or other body parts while changing a tire, etc. may result in burns.

●

Failure to follow these precautions could cause the wheel nuts to

loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103

N•m, 10.5 kgf•m) as soon as possible after changing wheels.

• Do not attach a heavily damaged wheel ornament, as it may fly off

the wheel while the vehicle is moving.

• When installing a tire, only use wheel nuts that have been specifi-

cally designed for that wheel.

• If there are any cracks or deformations in the bolt screws, nut

threads or bolt holes of the wheel, have the vehicle inspected by

your Toyota dealer.

• When installing the wheel nuts, be sure to install them with the

tapered ends facing inward.

521

7-2. Steps to take in an emergency

hen
troub

le arises

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come

off.

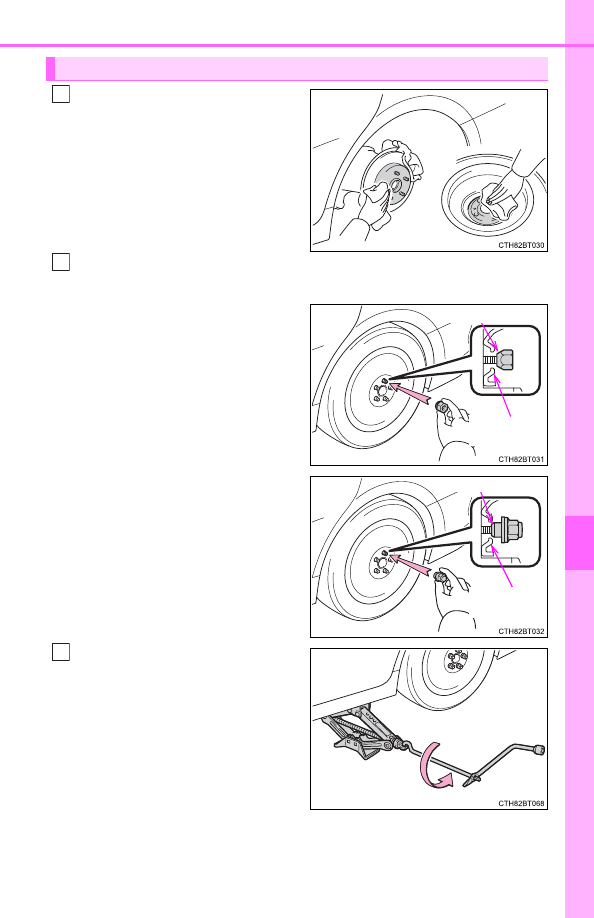

Install  the  tire  and  loosely  tighten  each  wheel  nut  by  hand  by
approximately the same amount.
When  replacing  a  steel  wheel
with  a  steel  wheel,  tighten  the
wheel  nuts  until  the  tapered
portion  comes  into  loose  con-
tact with the disc wheel seat.

When  replacing  an  aluminum
wheel  with  a  steel  wheel,
tighten the wheel nuts until the
tapered  portion  comes  into
loose  contact  with  the  disc
wheel seat.

Lower the vehicle.

Installing the spare tire

Tapered portion

Disc wheel

seat

Tapered portion

Disc wheel

seat

522

7-2. Steps to take in an emergency

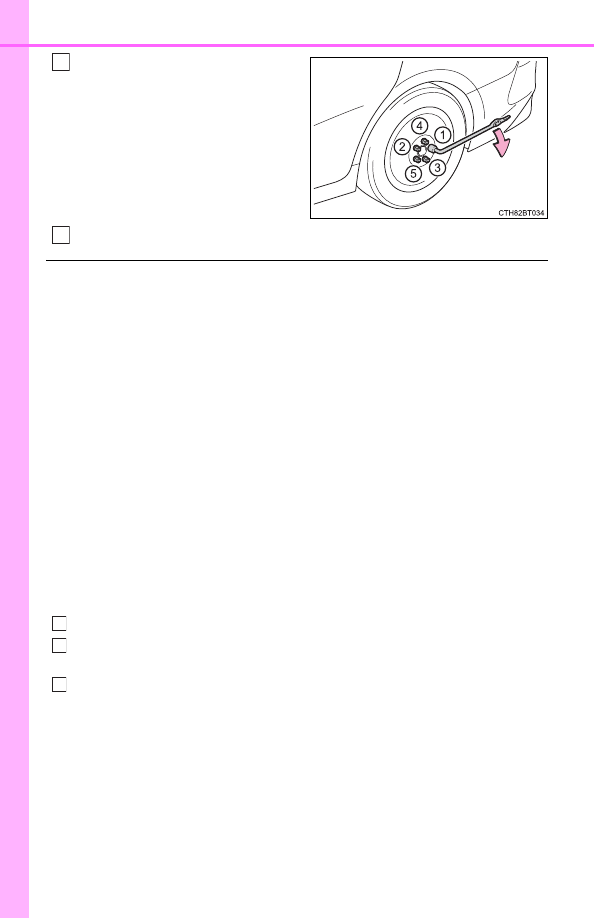

Firmly tighten each wheel nut
two or three times in the order
shown in the illustration.

Vehicles with wheel locks:

Tighten the wheel lock using the

wheel lock key after tightening

the other wheel nuts.
Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

Stow the flat tire, tire jack and all tools.

■

The compact spare tire

●

The compact spare tire is identified by the label “TEMPORARY USE

ONLY” on the tire sidewall.

Use the compact spare tire temporarily, and only in an emergency.

●

Make sure to check the tire inflation pressure of the compact spare tire.

(



P. 550)

■

When using the compact spare tire

As the compact spare tire is not equipped with a tire pressure warning

valve and transmitter, low inflation pressure of the spare tire will not be

indicated by the tire pressure warning system. Also, if you replace the

compact spare tire after the tire pressure warning light comes on, the light

remains on.

■

When the compact spare tire is equipped

When driving with the compact spare tire installed, the vehicle height will

be different than when driving with standard tires.

■

If you have a flat front tire on a road covered with snow or ice (vehi-

cles with 16 or 17-inch wheels)

Install the compact spare tire on one of the rear wheels of the vehicle.

Perform the following steps and fit tire chains to the front tires:

Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehi-

cle.
Fit tire chains to the front tires.

523

7-2. Steps to take in an emergency

hen
troub

le arises

WARNING

■

When using the compact spare tire

●

Remember that the compact spare tire provided is specifically

designed for use with your vehicle. Do not use your compact spare tire

on another vehicle.

●

Do not use more than one compact spare tires simultaneously.

●

Replace the compact spare tire with a standard tire as soon as possi-

ble.

●

Avoid sudden acceleration, abrupt steering, sudden braking and shift-

ing operations that cause sudden engine braking.

■

When the compact spare tire is attached

The vehicle speed may not be correctly detected, and the following sys-

tems may not operate correctly:

If equipped

■

Speed limit when using the compact spare tire

Do not drive at speeds in excess of 50 mph (80 km/h) when a compact

spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Fail-

ure to observe this precaution may lead to an accident causing death or

serious injury.

■

After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in

their storage location to reduce the possibility of personal injury during a

collision or sudden braking.

• ABS & Brake assist

• VSC

• TRAC

• EPS

• AHB (Automatic High Beam)

•

AFS (Adaptive Front-lighting

System)

• Dynamic radar cruise control

with full-speed range

• LTA (Lane Tracing Assist)

• PCS (Pre-Collision System)

• Tire pressure warning system

• BSM (Blind Spot Monitor)

• Intuitive parking assist

• PKSB

(Parking

Support

Brake)

• Rear view monitor system

• Toyota parking assist monitor

• Panoramic view monitor

• Navigation system

524

7-2. Steps to take in an emergency

NOTICE

■

Be careful when driving over bumps with the compact spare tire

installed on the vehicle.

The vehicle becomes lower when driving with the compact spare tire

compared to when driving with standard tires. Be careful when driving

over uneven road surfaces.

■

Driving with tire chains and the compact spare tire

Do not fit tire chains to the compact spare tire.

Tire chains may damage the vehicle body and adversely affect driving

performance.

■

When replacing the tires

When removing or fitting the wheels, tires or the tire pressure warning

valve and transmitter, contact your Toyota dealer as the tire pressure

warning valve and transmitter may be damaged if not handled correctly.

■

To avoid damage to the tire pressure warning valve and transmit-

ters

When a tire is repaired with liquid sealants, the tire pressure warning

valve and transmitter may not operate properly. If a liquid sealant is

used, contact your Toyota dealer or other qualified service shop as soon

as possible. Make sure to replace the tire pressure warning valve and

transmitter when replacing the tire. (



P. 446)

525

7-2. Steps to take in an emergency

hen
troub

le arises

One of the following may be the cause of the problem:

●

The electronic key may not be functioning properly. (



P. 528)

●

There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.

●

There may be a malfunction in the immobilizer system.
(



P. 89)

●

There may be a malfunction in the steering lock system.

●

The hybrid system may be malfunctioning due to an electrical prob-
lem such as electronic key battery depletion or a blown fuse. How-
ever, depending on the type of malfunction, an interim measure is
available to start the hybrid system. (



P. 526)

●

AXVH70 model

only: The temperature of the hybrid battery (traction

battery) may be extremely low (below approximately -22°F [-30°C]).
(



P. 84, 209)

:The model code is indicated on the Certification Label. (



P. 545)

One of the following may be the cause of the problem:
