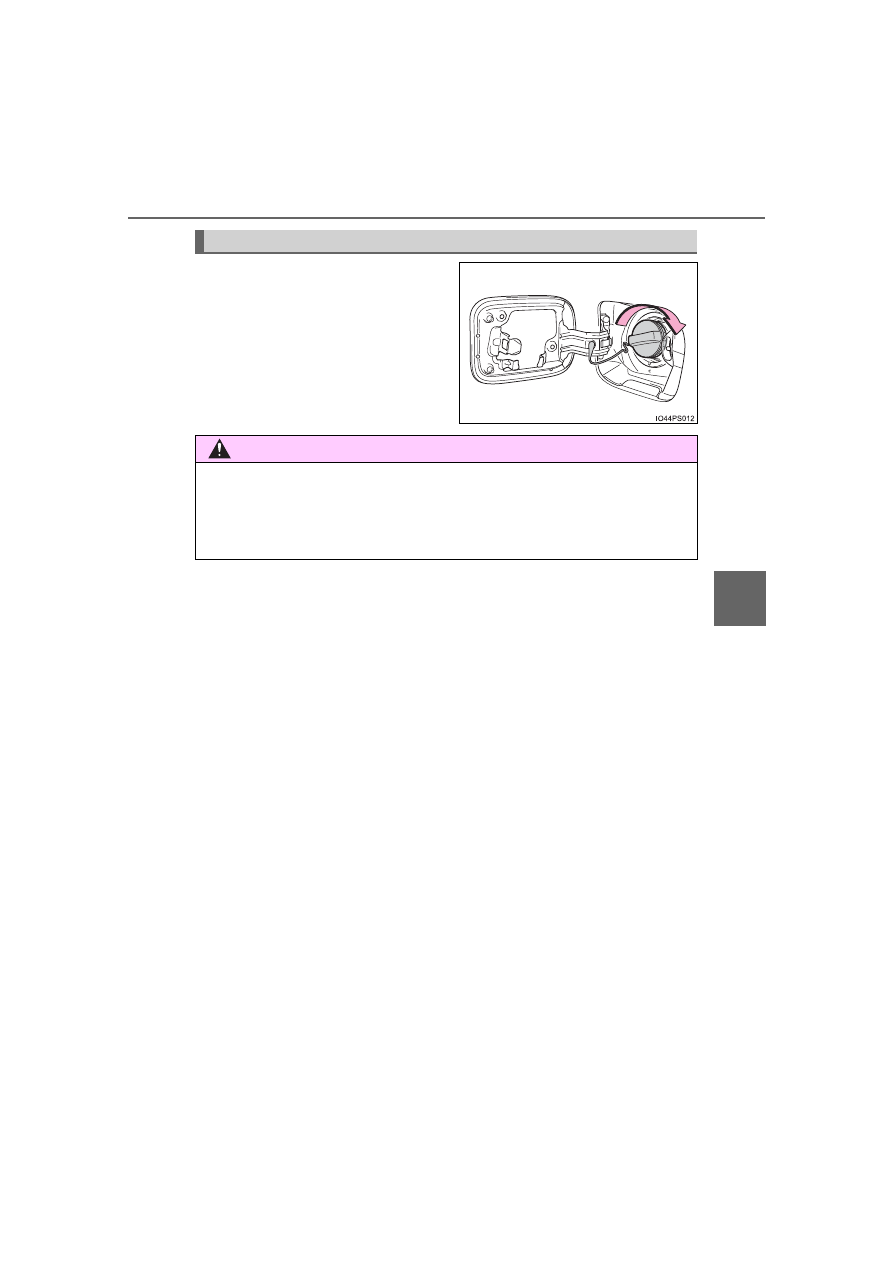

After  refueling,  turn  the  fuel  tank
cap  until  you  hear  a  click.  Once
the  cap  is  released,  it  will  turn
slightly in the opposite direction.

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank cap

Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.

370

5-5. Using the driving support systems

Toyota Safety Sense 2.0

◆

PCS (Pre-Collision System)



P. 379

◆

LTA (Lane Tracing Assist)



P. 390

◆

AHB (Automatic High Beam)



P. 352

◆

RSA (Road Sign Assist)



P. 405

◆

Dynamic radar cruise control with full-speed range



P. 409

The Toyota Safety Sense 2.0 consists of the following drive
assist systems and contributes to a safe and comfortable driv-
ing experience:

Driving assist system

: If equipped

WARNING

■

Toyota Safety Sense 2.0

The Toyota Safety Sense 2.0 is designed to operate under the assumption
that the driver will drive safely, and is designed to help reduce the impact to
the occupants and the vehicle in the case of a collision or assist the driver in
normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The
driver is always responsible for paying attention to the vehicle’s surround-
ings and driving safely.

371

5-5. Using the driving support systems

Drivin

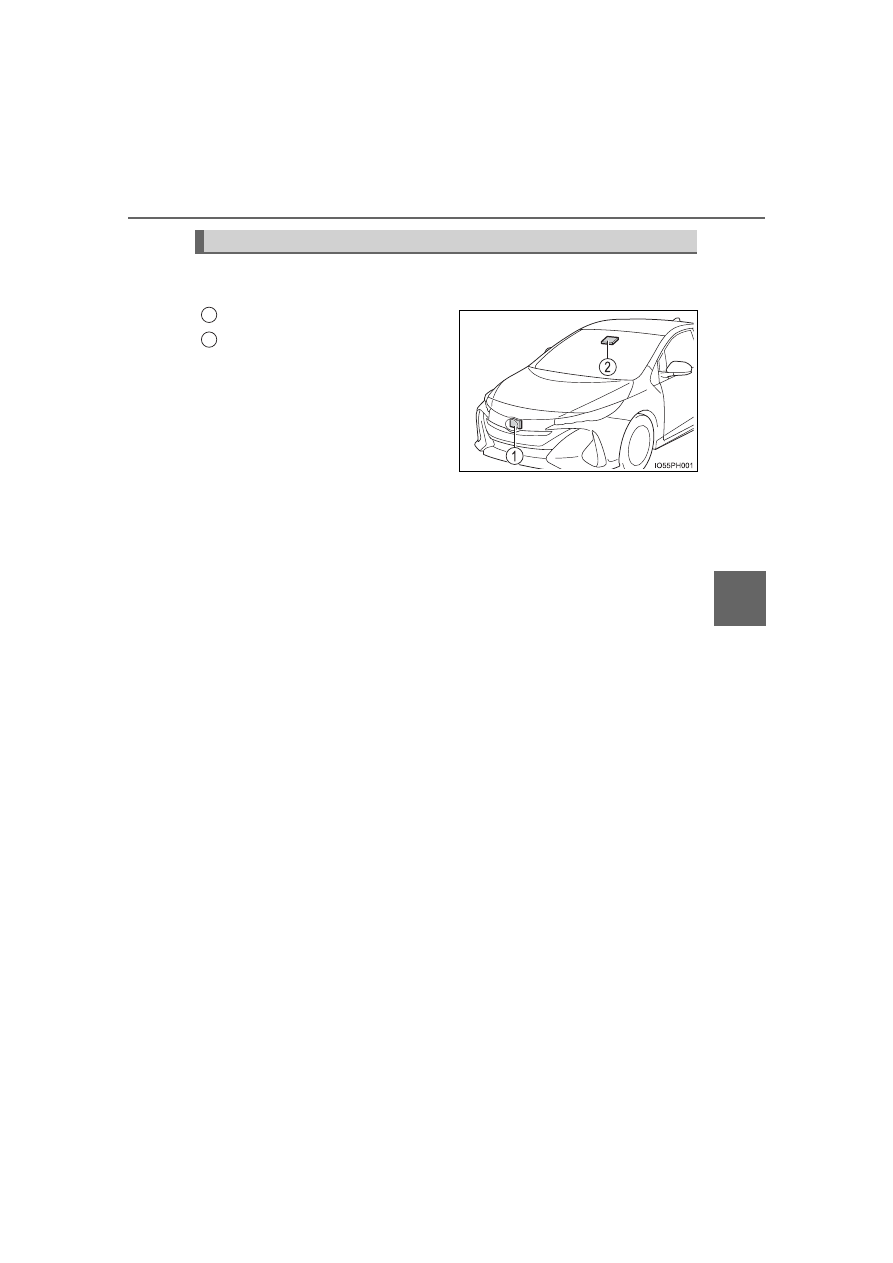

Two types of sensors, located behind the front grille and windshield,
detect information necessary to operate the drive assist systems.

Radar sensor
Front camera

Sensors

1
2

372

5-5. Using the driving support systems

WARNING

■

To avoid malfunction of the radar sensor

Observe the following precautions.
Otherwise, the radar sensor may not operate properly, possibly leading to
an accident resulting in death or serious injury.

●

Keep the radar sensor and the radar sensor cover clean at all times.

●

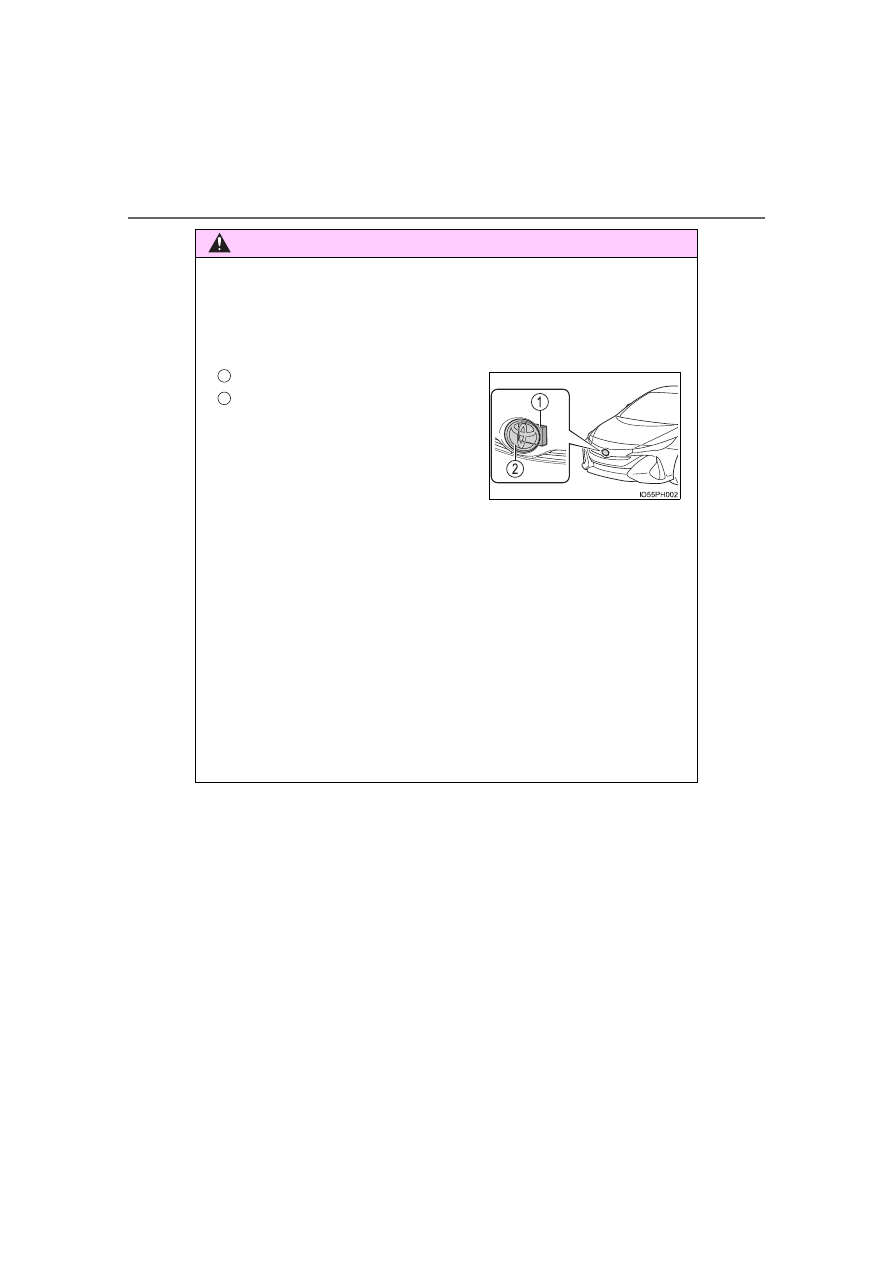

Do not attach accessories, stickers (including transparent stickers) or
other items to the radar sensor, radar sensor cover or surrounding area.

●

Do not subject the radar sensor or its surrounding area to a strong impact.
If the radar sensor, front grille, or front bumper has been subjected to a
strong impact, have the vehicle inspected by your Toyota dealer.

●

Do not disassemble the radar sensor.

●

Do not modify or paint the radar sensor or radar sensor cover.

●

In the following cases, the radar sensor must be recalibrated. Contact your
Toyota dealer for details.
• When the radar sensor or front grille are removed and installed, or

replaced

• When the front bumper is replaced

Radar sensor
Radar sensor cover

If the front of the radar sensor or the
front or back of the radar sensor cover
is dirty or covered with water droplets,
snow, etc., clean it.
Clean the radar sensor and radar sen-
sor cover with a soft cloth to avoid
damaging them.

373

5-5. Using the driving support systems

riv

WARNING

■

To avoid malfunction of the front camera

Observe the following precautions.
Otherwise, the front camera may not operate properly, possibly leading to
an accident resulting in death or serious injury.

●

Keep the windshield clean at all times.
• If the windshield is dirty or covered with an oily film, water droplets,

snow, etc., clean the windshield.

• If a glass coating agent is applied to the windshield, it will still be neces-

sary to use the windshield wipers to remove water droplets, etc. from
the area of the windshield in front of the front camera.

• If the inner side of the windshield where the front camera is installed is

dirty, contact your Toyota dealer.

●

If the part of the windshield in front of the front camera is fogged up or cov-
ered with condensation, or ice, use the windshield defogger to remove the
fog, condensation, or ice. (



P. 511, 523)

●

If water droplets cannot be properly removed from the area of the wind-
shield in front of the front camera by the windshield wipers, replace the
wiper insert or wiper blade.

●

Do not attach window tint to the windshield.

●

Replace the windshield if it is damaged or cracked.
After replacing the windshield, the front camera must be recalibrated. Con-
tact your Toyota dealer for details.

●

Do not allow liquids to contact the front camera.

●

Do not allow bright lights to shine into the front camera.

●

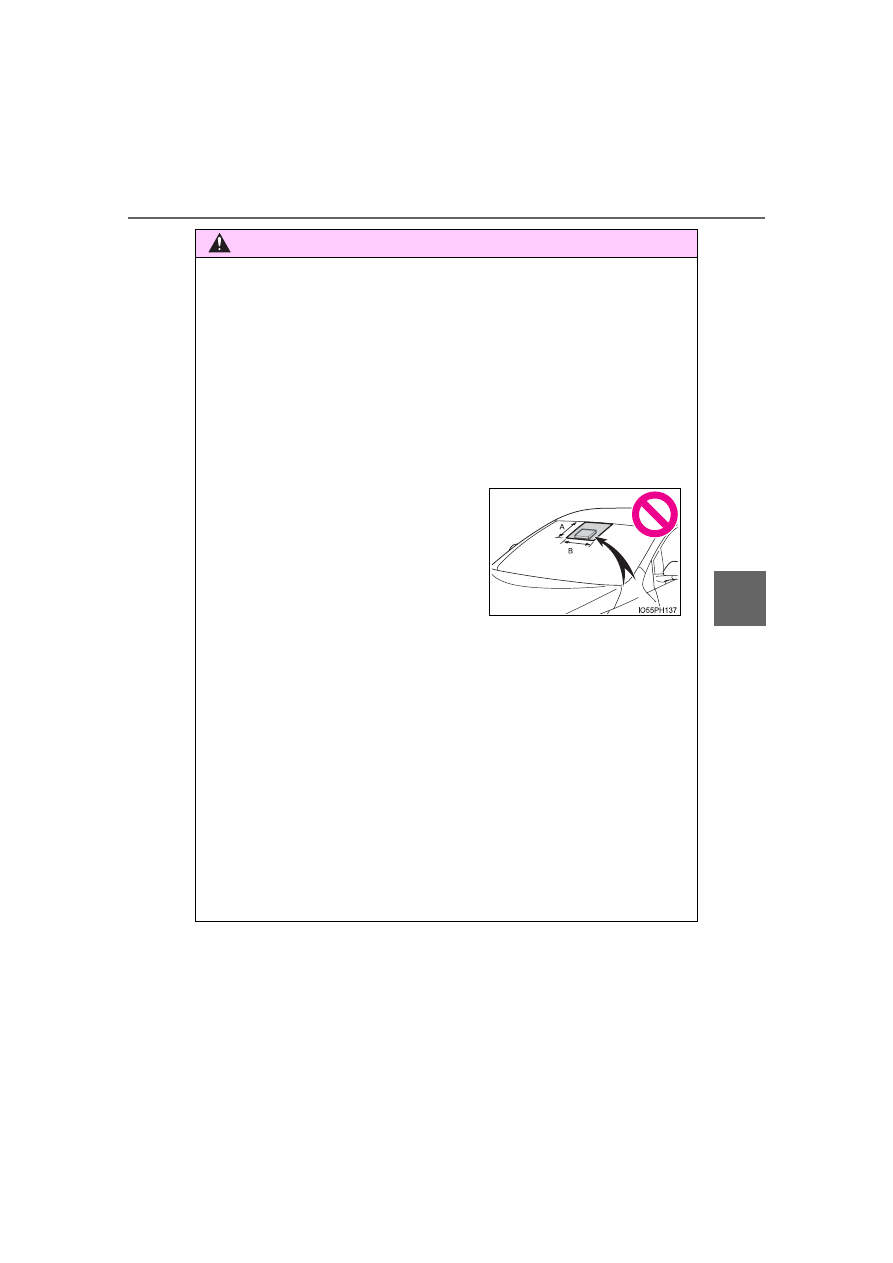

Do not attach objects, such as stickers,
transparent  stickers,  etc.,  to  the  outer
side  of  the  windshield  in  front  of  the
front  camera  (shaded  area  in  the  illus-
tration).
A:  From  the  top  of  the  windshield  to
approximately  0.4  in.  (1  cm)  below  the
bottom of the front camera
B:  Approximately  7.9  in.  (20  cm)
(Approximately  4.0  in.  [10  cm]  to  the
right and left from the center of the front
camera)

374

5-5. Using the driving support systems

WARNING

●

Do not dirty or damage the front camera.
When cleaning the inside of the windshield, do not allow glass cleaner to
contact the lens of the front camera. Also, do not touch the lens.
If the lens is dirty or damaged, contact your Toyota dealer.

●

Do not subject the front camera to a strong impact.

●

Do not change the installation position or direction of the front camera or
remove it.

●

Do not disassemble the front camera.

●

Do not modify any components of the vehicle around the front camera
(inside rear view mirror, etc.) or ceiling.

●

Do not attach any accessories to the hood, front grille or front bumper that
may obstruct the front camera. Contact your Toyota dealer for details.

●

If a surfboard or other long object is to be mounted on the roof, make sure
that it will not obstruct the front camera.

●

Do not modify the headlights or other lights.

375

5-5. Using the driving support systems

Drivin

■

Certifications



For vehicles sold in the U.S.A. and Hawaii

376

5-5. Using the driving support systems



For vehicles sold in Canada

■

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in
the system.

●

In the following situations, perform the actions specified in the table. When
the normal operating conditions are detected, the message will disappear
and the system will become operational.

If the message does not disappear, contact your Toyota dealer.

377

5-5. Using the driving support systems

Drivin

Situation

Actions

When  the  area  around  a  cam-
era  is  covered  with  dirt,  mois-
ture  (fogged  up,  covered  with
condensation,  ice,  etc.),  or
other foreign matter

Using the wiper and A/C function,
remove the dirt and other attached mat-
ter. (



P. 511, 523)

When  the  temperature  around
the  front  camera  is  outside  of
the  operational  range,  such  as
when the vehicle is in the sun or
in  an  extremely  cold  environ-
ment

If  the  front  camera  is  hot,  such  as  after
the vehicle  had  been parked  in the sun,
use  the  air  conditioning  system  to
decrease  the  temperature  around  the
front camera.

If a sunshade was used when the vehi-
cle was parked, depending on its type,
the sunlight reflected from the surface
of the sunshade may cause the tem-
perature of the front camera to become
excessively high.

If the front camera is cold, such after the
vehicle  is  parked  in  an  extremely  cold
environment,  use  the  air  conditioning
system  to  increase  the  temperature
around the front camera.

The  area  in  front  of  the  front
camera  is  obstructed,  such  as
when  the  hood  is  open  or  a
sticker is attached to the part of
the  windshield  in  front  of  the
front camera.

Close the hood, remove the sticker, etc.
to clear the obstruction.

When “Pre-Collision System
Unavailable” is displayed.

Check whether there is attached materi-
als on the radar sensor and radar sensor
cover, and if there is, remove it.

378

5-5. Using the driving support systems

●

In the following situations, if the situation has changed (or the vehicle has
been driven for some time) and the normal operating conditions are
detected, the message will disappear and the system will become opera-
tional.

If the message does not disappear, contact your Toyota dealer.

• When the temperature around the radar sensor is outside of the opera-

tional range, such as when the vehicle is in the sun or in an extremely
cold environment

• When the front camera cannot detect objects in front of the vehicle, such

as when driving in the dark, snow, or fog, or when bright lights are shining
into the front camera

• Depending on the conditions in the vicinity of the vehicle, the radar may

judge the surrounding environment can not be properly recognized. In
that case, “Pre-Collision System Unavailable” is displayed.

379

5-5. Using the driving support systems

Drivin

PCS (Pre-Collision System)

The system can detect the following:

●

Vehicles

●

Bicyclists

●

Pedestrians

The pre-collision system uses a radar sensor and front camera
to detect objects (



P. 379) in front of the vehicle. When the sys-

tem determines that the possibility of a frontal collision with an
object is high, a warning operates to urge the driver to take eva-
sive action and the potential brake pressure is increased to help
the driver avoid the collision. If the system determines that the
possibility of a frontal collision with an object is extremely high,
the brakes are automatically applied to help avoid the collision
or help reduce the impact of the collision.

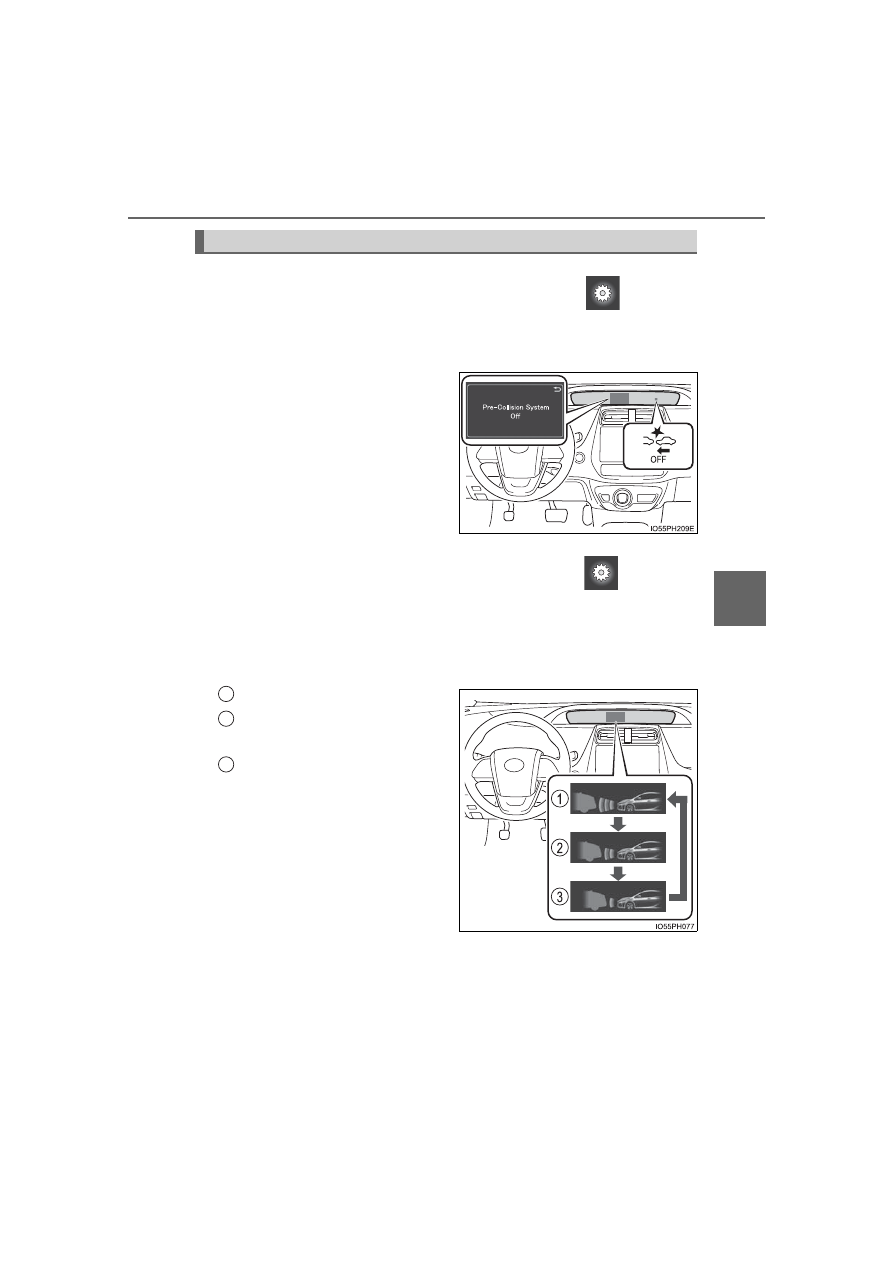

The pre-collision system can be disabled/enabled and the warning
timing can be changed. (



P. 383)

Detectable objects

380

5-5. Using the driving support systems

■

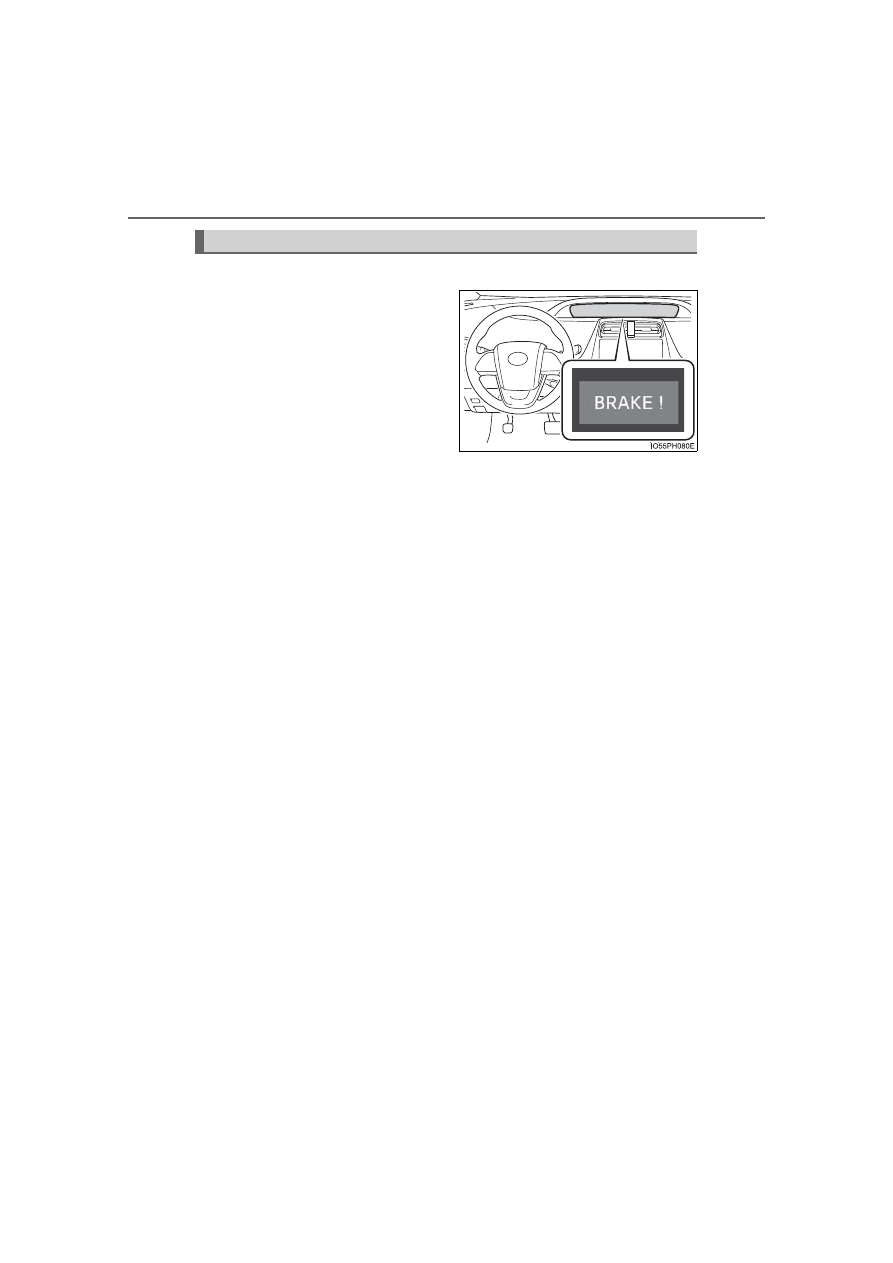

Pre-collision warning

When  the  system  determines
that  the  possibility  of  a  frontal
collision  is  high,  a  buzzer  will
sound and a warning message
will  be  displayed  on  the  multi-
information  display  to  urge  the
driver to take evasive action.

■

Pre-collision brake assist

When the system determines that the possibility of a frontal colli-
sion is high, the system applies greater braking force in relation to
how strongly the brake pedal is depressed.

■

Pre-collision braking

If the system determines that the possibility of a frontal collision is
extremely high, the brakes are automatically applied to help avoid
the collision or reduce the impact of the collision.

System functions

381

5-5. Using the driving support systems

riv

WARNING

■

Limitations of the pre-collision system

●

The driver is solely responsible for safe driving. Always drive safely, taking
care to observe your surroundings.
Do not use the pre-collision system instead of normal braking operations
under any circumstances. This system will not prevent collisions or lessen
collision damage or injury in every situation. Do not overly rely on this sys-
tem. Failure to do so may lead to an accident, resulting in death or serious
injury.

●

Although this system is designed to help avoid a collision or help reduce
the impact of the collision, its effectiveness may change according to vari-
ous conditions, therefore the system may not always be able to achieve
the same level of performance.
Read the following conditions carefully. Do not overly rely on this system
and always drive carefully.
• Conditions under which the system may operate even if there is no pos-

sibility of a collision:



P. 385

• Conditions under which the system may not operate properly:



P. 387

●

Do not attempt to test the operation of the pre-collision system yourself.
Depending on the objects used for testing (dummies, cardboard objects
imitating detectable objects, etc.), the system may not operate properly,
possibly leading to an accident.

■

Pre-collision braking

●

When the pre-collision braking function is operating, a large amount of
braking force will be applied.

●

If the vehicle is stopped by the operation of the pre-collision braking func-
tion, the pre-collision braking function operation will be canceled after
approximately 2 seconds. Depress the brake pedal as necessary.

●

The pre-collision braking function may not operate if certain operations are
performed by the driver. If the accelerator pedal is being depressed
strongly or the steering wheel is being turned, the system may determine
that the driver is taking evasive action and possibly prevent the pre-colli-
sion braking function from operating.

●

In some situations, while the pre-collision braking function is operating,
operation of the function may be canceled if the accelerator pedal is
depressed strongly or the steering wheel is turned and the system deter-
mines that the driver is taking evasive action.

●

If the brake pedal is being depressed, the system may determine that the
driver is taking evasive action and possibly delay the operation timing of
the pre-collision braking function.

382

5-5. Using the driving support systems

WARNING

■

When to disable the pre-collision system

In the following situations, disable the system, as it may not operate prop-
erly, possibly leading to an accident resulting in death or serious injury:

●

When the vehicle is being towed

●

When your vehicle is towing another vehicle

●

When transporting the vehicle via truck, boat, train or similar means of
transportation

●

When the vehicle is raised on a lift with the hybrid system on and the tires
are allowed to rotate freely

●

When inspecting the vehicle using a drum tester such as a chassis dyna-
mometer or speedometer tester, or when using an on vehicle wheel bal-
ancer

●

When a strong impact is applied to the front bumper or front grille, due to
an accident or other reasons

●

If the vehicle cannot be driven in a stable manner, such as when the vehi-
cle has been in an accident or is malfunctioning

●

When the vehicle is driven in a sporty manner or off-road

●

When the tires are not properly inflated

●

When the tires are very worn

●

When tires of a size other than specified are installed

●

When tire chains are installed

●

When a compact spare tire or an emergency tire puncture repair kit is used

●

If equipment (snow plow, etc.) that may obstruct the radar sensor or front
camera is temporarily installed to the vehicle

383

5-5. Using the driving support systems

Drivin

■

Enabling/disabling the pre-collision system

The pre-collision system can be enabled/disabled on

(



P. 246)

of the multi-information display.

The system is automatically enabled each time the power switch is
turned to ON mode.

If  the  system  is  disabled,  the
PCS  warning  light  will  turn  on
and  a  message  will  be  dis-
played  on  the  multi-information
display.

■

Changing the pre-collision warning timing

The pre-collision warning timing can be changed on

(



P. 246)

of the multi-information display.

The warning timing setting is retained when the power switch is turned
off.
However, if the pre-collision system is disabled and re-enabled, the
operation timing will return to the default setting (middle).

Early
Middle

This is the default setting.

Late

Changing settings of the pre-collision system

1
2

384

5-5. Using the driving support systems

■

Operational conditions

The pre-collision system is enabled and the system determines that the pos-
sibility of a frontal collision with a detected object is high.
Each function is operational at the following speed

●

Pre-collision warning

●

Pre-collision brake assist

●

Pre-collision braking

The system may not operate in the following situations:

●

If a 12-volt battery terminal has been disconnected and reconnected and
then the vehicle has not been driven for a certain amount of time

●

If the shift position is in R

●

When the VSC OFF indicator is illuminated (only the pre-collision warning
function will be operational)

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 7 to 110 mph
(10 to 180 km/h)

Bicyclists and pedestri-
ans

Approx. 7 to 50 mph
(10 to 80 km/h)

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 20 to 110 mph
(30 to 180 km/h)

Bicyclists and pedestri-
ans

Approx. 20 to 50 mph
(30 to 80 km/h)

Detectable objects

Vehicle speed

Relative speed between

your vehicle and object

Vehicles

Approx. 7 to 110 mph
(10 to 180 km/h)

Bicyclists and pedestri-
ans

Approx. 7 to 50 mph
(10 to 80 km/h)

Content .. 21 22 23 24 ..
