5-1. MOBILITY

MOBILITY

This chapter describes all stan-

dard, country-specific and

optional features offered with

the series. It also describes fea-

tures that are not necessarily

available in your vehicle, for

instance, due to the selected

options or country versions. This

also applies to safety-related

functions and systems. When

using these functions and sys-

tems, the applicable laws and

regulations must be observed.

Depending on the region, many

gas stations sell fuel that has

been customized to winter or

summer conditions. Fuel that is

available in winter,for instance

helps make a cold start easier.

For the best fuel efficiency, the

gasoline should be sulfur-free or

very low in sulfur content.
Fuels that are marked on the

gas pump as containing metal

must not be used.
Fuels with a maximum ethanol

content of 25 %, i. e. E10 or

E25, may be used for refueling.
Ethanol should meet the follow-

ing quality standards:
US: ASTM 4806–xx
CAN: CGSB-3.511–xx
xx: comply with the current stan-

dard in each case.

Operating materials

Vehicle features and

options

Fuel recommendation

General information

Gasoline

General information

Safety information

WARNING

The use of poor-quality fuels may

result in harmful engine deposits

or damage. Additionally, problems

relating to drivability, starting and

stalling, especially under certain

environmental conditions such as

high ambient temperature and

high altitude, may occur.
If drivability problems are encoun-

tered, we recommend switching

to a high quality gasoline brand

and a higher octane grade - AKI

number - for a few tank fills. To

avoid harmful engine deposits, it

is highly recommended to pur-

chase gasoline from Top Tier

retailers.
Failure to comply with these rec-

ommendations may result in the

need for unscheduled mainte-

nance.

294

5-1. MOBILITY



2.0 models

Toyota recommends AKI 91.



3.0 and 3.0 Premium models

Toyota recommends AKI 93.
Refuel with this gasoline to

achieve the rated performance

and consumption values.

Toyota recommends AKI 89.
If you use gasoline with this min-

imum AKI Rating, the engine

may produce knocking sounds

when starting at high external

temperatures. This has no effect

on the engine life.

This chapter describes all stan-

dard, country-specific and

optional features offered with

the series. It also describes fea-

tures that are not necessarily

available in your vehicle, for

instance, due to the selected

options or country versions. This

also applies to safety-related

functions and systems. When

using these functions and sys-

tems, the applicable laws and

regulations must be observed.

The engine oil consumption is

dependent on your driving style

and driving conditions.
Therefore, regularly check the

engine oil level after refueling by

taking a detailed measurement.

NOTICE

Even small quantities of the

wrong fuel or wrong fuel additives

can damage the fuel system and

engine. Furthermore, the catalytic

converter is permanently dam-

aged. There is a risk of damage to

property. Do not refuel or add the

following in the case of gasoline

engines:
• Leaded gasoline.
• Metallic additives, for instance

manganese or iron.

Do not press the Start/Stop button

after refueling with the wrong fuel.

Contact your Toyota dealer.

NOTICE

Incorrect fuels can damage the

fuel system and the engine. There

is a risk of damage to property. Do

not use fuels with a higher per-

centage of ethanol than recom-

mended. Do not refuel with fuels

containing methanol, e.g. M5 to

M100.

NOTICE

Fuel that does not comply with the

minimum quality can compromise

engine function or cause engine

damage. There is a risk of dam-

age to property. Do not fill with

fuel that does not comply with the

minimum quality.

Recommended fuel grade

Minimum fuel grade

Engine oil

Vehicle features and

options

General information

295

5-1. MOBILITY

MOBILITY

The engine oil consumption can

increase in the following situa-

tions, for example:

• Sporty driving style.

• Break-in of the engine.

• Idling of the engine.

• With use of engine oil types

that are classified as not suit-

able.

Different vehicle messages

appear on the Control Display

depending on the engine oil

level.

The electronic oil measurement

has two measuring principles:

• Monitoring.

• Detailed measurement.

When making frequent

short-distance trips or using a

sporty driving style, for instance

when taking curves aggres-

sively, regularly perform a

detailed measurement.

■

Concept

The engine oil level is monitored

electronically while driving and

can be shown on the Control

Display.
If the engine oil level is outside

its permissible operating range,

a vehicle message is displayed.

A red indicator light indi-

cates that the engine oil pres-

sure is too low.

■

Functional requirements

A current measured value is

available after approx. 30 min-

utes of normal driving.

■

Displaying the engine oil

level

Via Toyota Supra Command:

"My Vehicle"

"Vehicle status"

"Engine oil level"

The engine oil level is displayed.

■

System limits

When making frequent

short-distance trips or using a

sporty driving style, it may not

be possible to calculate a mea-

Safety information

NOTICE

An engine oil level that is too low

causes engine damage. There is

a risk of damage to property.

Immediately add engine oil.

NOTICE

Too much engine oil can damage

the engine or the catalytic con-

verter. There is a risk of damage

to property. Do not add too much

engine oil. When too much engine

oil is added, have the engine oil

level corrected by your Toyota

dealer.

Electronic oil measure-

ment

General information

Monitoring

296

5-1. MOBILITY

sured value. In this case, the

measured value for the last, suf-

ficiently long trip is displayed.

■

Concept

The engine oil level is checked

when the vehicle is stationary

and displayed via a scale.
If the engine oil level is outside

its permissible operating range,

a vehicle message is displayed.

■

General information

During the measurement, the

idle speed is increased some-

what.

■

Functional requirements

• Vehicle is parked in a horizon-

tal position.

• Selector lever in selector lever

position N or P and accelera-

tor pedal not depressed.

• Engine is running and is at

operating temperature.

■

Performing a detailed mea-

surement

Via Toyota Supra Command:

"My Vehicle"

"Vehicle status"

"Engine oil level"

"Measure engine oil level"

"Start measurement"

The engine oil level is checked

and displayed via a scale.

Only add engine oil when the

message is displayed in the

instrument cluster. The quantity

to be added is indicated in the

message shown on the Control

Display.
Only add suitable types of

engine oil, refer to page 297.
Safely park the vehicle and

switch off drive-ready state

before adding engine oil.
Take care not to add too much

engine oil.

Detailed measurement

Adding engine oil

General information

Safety information

WARNING

Operating materials, for instance

oils, greases, coolants, fuels, can

contain harmful ingredients.

There is a risk of injuries or dan-

ger to life. Follow the instructions

on the containers. Avoid the con-

tact of articles of clothing, skin or

eyes with operating materials. Do

not refill operating materials into

different bottles. Store operating

materials out of reach of children.

NOTICE

An engine oil level that is too low

causes engine damage. There is

a risk of damage to property.

Immediately add engine oil.

297

5-1. MOBILITY

MOBILITY

The oil filler neck is located in

the engine compartment, refer

to page 291.

Open the hood, refer to page

292.

Open the lid counterclock-

wise.

Add engine oil.

Close the cap.

The engine oil quality is critical

for the life of the engine.
Only add the types of engine oil

which are listed.

Add engine oils that meet the

following oil rating standards:

If an engine oil suitable for con-

tinuous use is not available, up

to 1 US quart/liter of an engine

oil with the following oil rating

can be added:

■

API grade

NOTICE

Too much engine oil can damage

the engine or the catalytic con-

verter. There is a risk of damage

to property. Do not add too much

engine oil. When too much engine

oil is added, have the engine oil

level corrected by your Toyota

dealer.

Overview

Adding engine oil

Engine oil types to add

General information

Safety information

NOTICE

Oil additives can damage the

engine. There is a risk of damage

to property. Do not use oil addi-

tives.

NOTICE

Incorrect engine oil can cause

malfunctions in the engine or

damage it. There is a risk of dam-

age to property. When selecting

an engine oil, make sure that the

engine oil has the correct oil rat-

ing.

Suitable engine oil types

Gasoline Engine

Toyota Genuine Motor Oil SN

0W-20 C5 for GR Toyota Supra

BMW Longlife-17 FE+ 0W-20

Alternative engine oil types

API SN PLUS

API SP

298

5-1. MOBILITY

■

Viscosity grade (SAE)

More information about suitable

oil ratings and viscosity grades

of engine oils can be requested

from your Toyota dealer.

The vehicle manufacturer rec-

ommends that you have your

Toyota dealer change the

engine oil.

This chapter describes all stan-

dard, country-specific and

optional features offered with

the series. It also describes fea-

tures that are not necessarily

available in your vehicle, for

instance, due to the selected

options or country versions. This

also applies to safety-related

functions and systems. When

using these functions and sys-

tems, the applicable laws and

regulations must be observed.

Coolant consists of water and

additives.
Not all commercially available

additives are suitable for the

vehicle. Do not mix additives of

different colors. Observe the

water - additive mixing ratio of

50:50. Information about suit-

able additives is available from

your Toyota dealer.

Depending on the motorization,

there are up to two coolant res-

SAE 0W-20.
SAE 0W-30.

Engine oil change

NOTICE

Engine oil that is not changed in

timely fashion can cause

increased engine wear and thus

engine damage. There is a risk of

damage to property. Do not

exceed the service data indicated

in the vehicle.

Coolant

Vehicle features andop-

tions

General information

Safety information

WARNING

With the engine hot and the cool-

ing system open, coolant can

escape and lead to scalding.

There is a risk of injury. Only open

the cooling system with the

engine cooled down.

WARNING

Additives are harmful and incor-

rect additives can damage the

engine. There is a risk of injury

and risk of damage to property.

Do not allow additives to come

into contact with skin, eyes or arti-

cles of clothing. Use suitable addi-

tives only.

Coolant level

General information

299

5-1. MOBILITY

MOBILITY

ervoirs in the engine compart-
ment. Check and top up the
coolant levels on a regular
basis.

The coolant level is indicated
using the Max mark in the filler
neck of the coolant reservoir.

Additional information:

For an overview, refer to page
291.

Let the engine cool.

Open the hood, refer to page
292.

Turn the lid of the coolant
reservoir slightly counter-
clockwise to allow any
excess pressure to dissi-
pate, then open it.

Open the coolant reservoir
lid.

The coolant level is correct
when it is just below the max-
imum mark in the filler neck.

Close the cap.

Let the engine cool.

Open the hood, refer to page
292.

Turn the lid of the coolant
reservoir slightly counter-
clockwise to allow any
excess pressure to dissi-
pate, then open it.

Open the coolant reservoir
lid.

If the coolant is low, slowly
add coolant up to the speci-
fied level; do not overfill.

Close the cap.

Have the cause of the cool-
ant loss eliminated as soon
as possible.

Comply with the relevant envi-
ronmental protection regulations
when disposing of coolant and
coolant additives.

All washer nozzles are supplied
from one reservoir.

Use a mixture of tap water and
windshield washer concentrate.
If desired, a windshield washer

Checking the coolant level

Adding

Disposal

Washer fluid

General information

300

5-1. MOBILITY

concentrate containing anti-

freeze can be used.
Recommended minimum fill

quantity:0.2 US gal/1 liter.

The washer fluid reservoir is

located in the engine compart-

ment.

The use of undiluted windshield

washer concentrate or alco-

hol-based antifreeze can lead to

incorrect readings at tempera-

tures below +5°F/-15°C.

Safety information

WARNING

Some antifreeze agents can con-

tain harmful substances and are

flammable. There is a risk of fire

and a risk of injury. Follow the

instructions on the containers.

Keep antifreeze away from igni-

tion sources. Do not refill operat-

ing materials into different bottles.

Store operating materials out of

reach of children.
United States: the washer fluid

mixture ratio is regulated by the

U.S. EPA and many individual

states; do not exceed the allow-

able washer fluid dilution ratio lim-

its that apply. Follow the usage

instructions on the washer fluid

container.

WARNING

Washer fluid can ignite and catch

fire on contact with hot engine

parts. There is a risk of injury or

risk of damage to property. Only

add washer fluid when the engine

is cooled down. Next, fully close

the lid of the washer fluid reser-

voir.

NOTICE

Silicon-containing additives in the

washer fluid for the water-repel-

ling effect on the windows can

lead to damage to the washing

system. There is a risk of damage

to property. Do not add sili-

con-containing additives to the

washer fluid.

NOTICE

Mixing different windshield

washer concentrates or antifreeze

can damage the washing system.

There is a risk of damage to prop-

erty. Do not mix different wind-

shield washer concentrates or

antifreeze. Follow the information

and mixing ratios provided on the

containers.

Overview

Malfunction

301

5-1. MOBILITY

MOBILITY

This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures and functions that are not
necessarily available in your
vehicle, e.g., due to the selected
options or country versions. This
also applies to safety-related
functions and systems. When
using these functions and sys-
tems, the applicable laws and
regulations must be observed.

The maintenance system pro-
vides service notifications and
thereby provides support in
maintaining road safety and the
operational reliability of the vehi-
cle.

In some cases, scopes and
intervals of the maintenance
system may vary according to
the country version. Replace-
ment work, spare parts, fuels
and lubricants, and wear materi-
als are calculated separately.
Further information is available
from a Toyota dealer.

Sensors and special algorithms
take into account the driving
conditions of the vehicle. CBS
uses these to calculate the need
for maintenance.

The system makes it possible to
adapt the amount of mainte-
nance corresponding to your
user profile.

Information on service notifica-
tions, refer to page 141, can be
displayed on the Control Dis-
play.

Storage periods during which
the vehicle battery was discon-
nected are not taken into
account.

If this occurs, have a Toyota
dealer update the time-depen-
dent maintenance procedures,
such as checking brake fluid
and, if necessary, changing the
engine oil and the microfil-
ter/activated-charcoal filter.

Maintenance

Vehicle features and
options

Maintenance system

Condition Based Service
CBS

Concept

General information

Storage periods

302

5-1. MOBILITY

Please consult “Owner's War-

ranty Information Booklet” or

“Owner's Manual Supplement”

for additional information on ser-

vice and maintenance work.
The manufacturer of your vehi-

cle recommends that mainte-

nance and repair be performed

by a Toyota dealer. Records of

regular maintenance and repair

work should be retained.

Scheduled maintenance should

be performed at specified inter-

vals according to the mainte-

nance schedule.
For details about maintenance

items and schedules, refer to

the "Scheduled Maintenance

Guide" or "Owner's Manual Sup-

plement".

Devices connected to the OBD

socket trigger the alarm system

when the vehicle is locked.

Remove any devices con-

nected at the OBD socket

before locking the vehicle.

There is an OBD socket on the

driver's side for checking the pri-

mary components in the vehi-

cle's emissions.

"Owner's Warranty Infor-

mation Booklet" or

"Owner's Manual Supple-

ment"

Scheduled maintenance

Socket for OBD Onboard

Diagnosis

General information

Safety information

NOTICE

The socket for Onboard Diagno-

sis is an intricate component

intended to be used in conjunction

with specialized equipment to

check the vehicle’s primary emis-

sions system. Improper use of the

socket for Onboard Diagnosis, or

contact with the socket for

Onboard Diagnosis for other than

its intended purpose, can cause

vehicle malfunctions and creates

risks of personal and property

damage. Given the foregoing, the

manufacture of your vehicle

strongly recommends that access

to the socket for Onboard Diagno-

sis be limited to your Toyota

dealer or other persons that have

the specialized training and

equipment for purposes of prop-

erly utilizing the socket for

Onboard Diagnosis.

Position

303

5-1. MOBILITY

MOBILITY

The onboard vehicle tool kit is
located under a cover on the
right side of the cargo area.

Unlock the cover of the right
side panel, arrow

, and fold

open, arrow

Emissions

• The warning light

lights up:

Emissions are deterio-
rating. Have the vehi-
cle checked as soon
as possible.
• The warning light

flashes under certain
circumstances:

This indicates that
there is excessive mis-
firing in the engine.

Reduce the vehicle
speed and have the
system checked imme-
diately; otherwise, seri-
ous engine misfiring
within a brief period
can seriously damage
emission control com-
ponents, in particular
the catalytic converter.

Replacing components

Vehicle features and
options

Onboard vehicle tool kit

304

5-1. MOBILITY

To change the wiper blades,

fold up the wiper arms, refer

to page 125.

Stop the vehicle.

Lift the wiper all the way off of

the windshield.

Press the button, arrow

and pull out the wiper blade,

arrow

Insert the new wiper blade

and press it on until it you

hear it snap into the holder.

Fold down the wipers.

Lights and bulbs make an

essential contribution to vehicle

safety.
All headlights and lights are

made using LED technology.
Some items of equipment use

light-emitting diodes installed

Wiper blades

Safety information

NOTICE

The window may sustain damage

if the wiper falls onto it without the

wiper blade installed. There is a

risk of damage to property. Hold

the wiper firmly when changing

the wiper blade. Do not fold or

switch on the wiper without a

wiper blade installed.

NOTICE

Folded-away wipers can be

jammed when the hood is

opened. There is a risk of damage

to property. Make sure that the

wipers with the wiper blades

mounted are folded down onto the

windshield before opening the

hood.

NOTICE

When replacing the wiper blades,

perform the procedure quickly

and do not leave the wiper arms

lifted without the wiper blades for

longer than necessary.

Replacing the front wiper

blades

Lights and bulbs

General information

305

5-1. MOBILITY

MOBILITY

behind a cover as a light source.

These light-emitting diodes are

related to conventional lasers

and are officially designated as

Class 1 light-emitting diodes.
The manufacturer of the vehicle

recommends that you let your

Toyota dealer perform the work

in case of a malfunction.
Follow the safety information,

refer to page 305.

Condensation can form on the

inside of the headlight glass in

cool or humid weather. When

driving with the lights switched

on, the condensation evapo-

rates after a short time. The

headlight glass does not need to

be changed.
If despite driving with the head-

lights switched on, increasing

humidity forms, for instance

water droplets in the light, have

the headlights checked.

The battery is maintenance-free.
More information regarding the

battery can be requested from

your Toyota dealer.
The manufacturer of your vehi-

cle recommends that you have

your Toyota dealer register the

vehicle battery to the vehicle

after the battery has been

replaced. Once the battery has

been registered again, all com-

fort features will be available

without restriction and any vehi-

cle messages displayed which

relate to comfort features will

disappear.

The installed battery is designed

specifically for this vehicle. If an

inappropriate battery is used,

operation of the Auto Start Stop

function may be restricted in

order to protect the battery.

Also, the battery may deterio-

rate faster than normal and the

Headlight glass

Safety information

WARNING

Focused laser light can irritate or

permanently damage the retina of

the eye. There is a risk of injury.

The manufacturer of your vehicle

recommends that the work on the

lighting system including bulb

replacement be performed by

your Toyota dealer.

WARNING

Intensive brightness can irritate or

damage the retina of the eye.

There is a risk of injury. Do not

look directly into the headlights or

other light sources. Do not

remove the LED covers.

Vehicle battery

General information

When replacing the bat-

tery

306

5-1. MOBILITY

engine may not be able to be

restarted. Contact your Toyota

dealer for details.

Make sure that the battery is

always sufficiently charged to

guarantee that the battery

remains usable for its full ser-

vice life.

Charge the battery when accel-

eration is insufficient.
The following circumstances

can have a negative effect on

the performance of the battery:



Frequent short-distance

drives.



The vehicle is not used for

more than a month.

Charge the battery only when

the engine is off and via the

starting aid terminals, refer to

page 317, in the engine com-

partment.

After a power loss, some equip-

ment needs to be newly initial-

ized or individual settings

updated, for example:



Memory function: store the

positions again.



Time: update.



Date: update.

Maintain the battery in an

upright position for transport and

Safety information

WARNING

Vehicle batteries that are not com-

patible can damage vehicle sys-

tems and impair vehicle functions.

There is a risk of personal and

property damage. Only vehicle

batteries that are compatible with

your vehicle type should be

installed in your vehicle. Informa-

tion on compatible vehicle batter-

ies is available at your Toyota

dealer.

Charging the battery

General information

A discharged battery is

indicated by a red indi-

cator light.

Safety information

NOTICE

Battery chargers for the vehicle

battery can work with high volt-

ages and currents, which means

that the 12 volt on-board network

can be overloaded or damaged.

There is a risk of damage to prop-

erty. Only connect battery char-

gers for the vehicle battery to the

starting aid terminals in the

engine compartment.

Charging the battery

Power failure

Disposing of old batteries

Have old batteries dis-

posed of by your Toyota

dealer or take them to a

collection point.

307

5-1. MOBILITY

MOBILITY

storage. Secure the battery so

that it does not tip over during

transport.

The fuses are located at differ-

ent places in the vehicle.

The fuses are located in the

car's interior in the front passen-

ger floor area behind a cover.

Loosen fasteners, arrows, and

open cover.

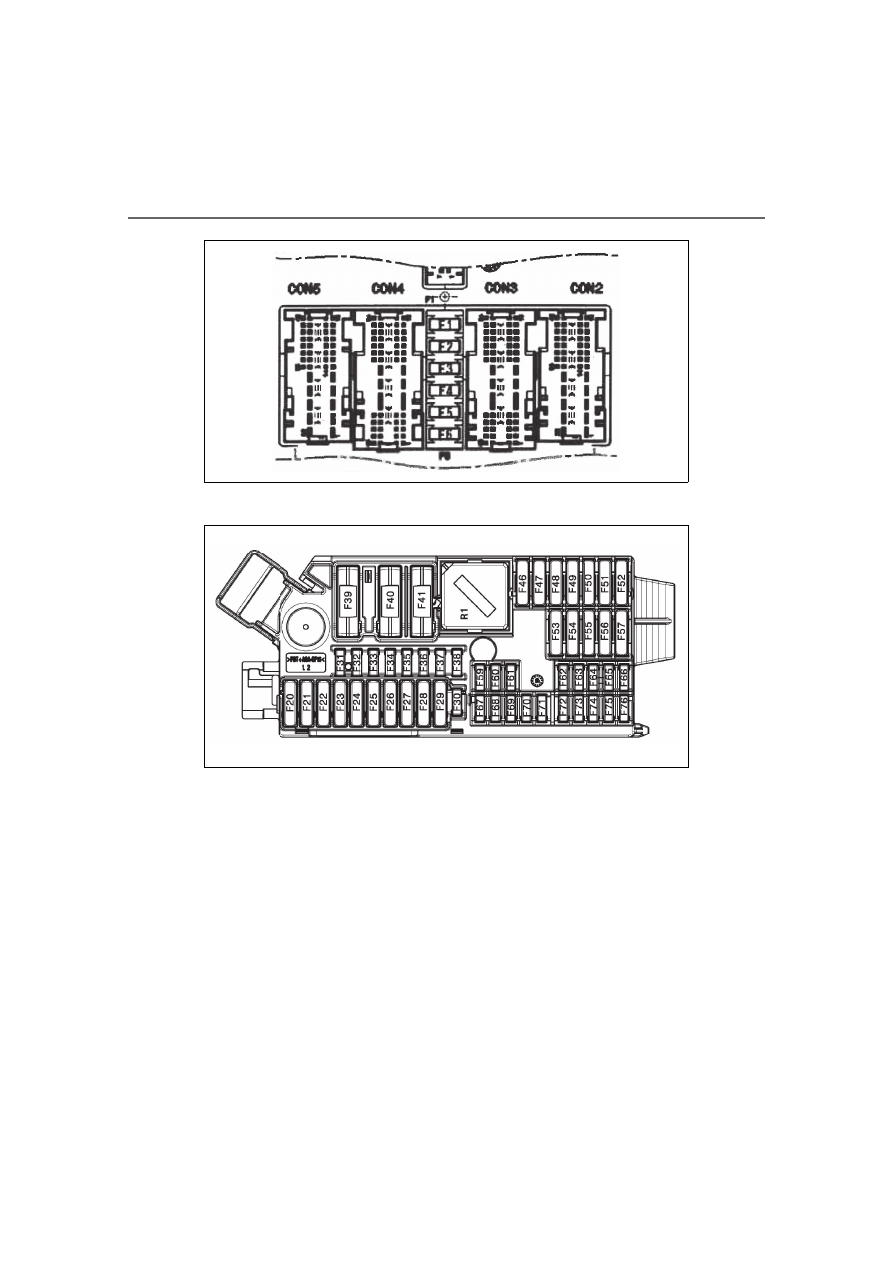

The fuse box is located on the

front right.

The fuses are located in the

cargo area on the right side

behind a cover.

Unlock the cover of the right

side panel, arrow

, and fold

open, arrow

Additional fuse boxes are

located in the vehicle. In the

case of a malfunction, contact

your Toyota dealer.

The vehicle manufacturer rec-

ommends that you have your

Toyota dealer replace the fuses.



BDC

Fuses

General information

Safety information

WARNING

Incorrect and repaired fuses can

overload electrical lines and com-

ponents. There is a risk of fire.

Never attempt to repair a blown

fuse. Do not replace a nonworking

fuse with a substitute of another

color or amperage rating.

In the car's interior

In the cargo area

Additional fuse boxes

Replacing fuses

Fuse informations

Toyota GR Supra (2022 year). Manual in english - page 19
