3-1. CONTROLS

Via Toyota Supra Command:

"My Vehicle"

"Vehicle settings"

"Climate functions"

"Temperature adjustment,
upper body"

Set the desired temperature.

Do not rapidly switch between
different temperature settings.
Otherwise, the automatic air
conditioning will not have suffi-
cient time to adjust the set tem-
perature.

The air in the car's interior will
be cooled and dehumidified
and, depending on the tempera-
ture setting, warmed again.

The car's interior can only be
cooled with the drive-ready state
switched on.

Air conditioning is switched on
with the engine running.

Depending on the weather, the
windshield and side windows
may fog up briefly when
drive-ready state is switched on.

The air conditioning is switched
on automatically with the AUTO
program.

When using the automatic air
conditioning, condensation
water develops and collects
underneath the vehicle.

The system is set to the lowest
temperature, optimum air flow
and recirculated-air mode with
the drive-ready state switched
on.

The function is available with
external temperatures above
approx. 32 °F/0 °C and with the
drive-ready state switched on.

Adjusting

Turn the dial clockwise
to increase the tempera-
ture and counterclock-
wise to decrease the
temperature.

Air conditioning

Concept

Switching on/off

Press the button.

Maximum cooling

Concept

General information

229

3-1. CONTROLS

CON

ROLS

The LED is illuminated with the
system switched on.

Air flows out of the vents to the
upper body region. The vents
need to be open for this.

The air flow can be adjusted
with the program active.

The AUTO program cools, venti-
lates or heats the car's interior
automatically.

The air flow, air distribution and
temperature will be controlled
automatically depending on the
interior temperature and the set-
ting for the desired temperature.

The LED is illuminated with the
AUTO program switched on.

Depending on the selected tem-
perature and outside influ-
ences, the air is directed to the
windshield, side windows, upper

body, and into the floor area.

The air conditioning, refer to
page 228, is switched on auto-
matically with the AUTO pro-
gram.

The AUTO program is switched
off automatically, when manual
air distribution is set.

You may react to unpleasant
odors or pollutants in the imme-
diate environment by temporar-
ily suspending the supply of
outside air. The system then
recirculates the air flow within
the vehicle.

The LED is illuminated when the
recirculated-air mode is
switched on.

When the left LED is illuminated:
Automatic recirculated air mode

If the pollution sensor detects pol-
lutants in the outside air, the air
mode is automatically changed
from outside air mode to recircu-
lated air mode.

When the right LED is illumi-
nated: Recirculated air mode

The air in the cabin is continuously

Switching on/off

Press the button.

AUTO program

Concept

Switching on/off

Press the button.

Recirculated-air mode

Concept

Operation

Press the button repeat-
edly to select an operat-
ing mode.

230

3-1. CONTROLS

recirculated.

To prevent window fogging,
recirculated-air mode switches
off automatically after a certain
amount of time, depending on
the environmental conditions.

With constant recirculated-air
mode, the air quality in the car's
interior deteriorates and the fog-
ging of the windows increases.

If there is window condensation,
switch off recirculated-air mode
or defog the windows, refer to
page 230.

The air flow for climate control
can be adjusted manually.

To manually adjust air flow
switch off AUTO program first.

The selected air flow is shown
on the climate control display.

The air flow may be reduced
automatically to save battery
power.

The air distribution for climate
control can be adjusted manu-
ally.



Windows, upper body region,
and floor area.



Upper body region and floor
area.



Floor area.



Windows and floor area.



Windows.



Windows and upper body.



Upper body region.

The selected air distribution is
shown on the climate control
display.

If there is window condensation,
defog the windows, refer to
page P.230.

Ice and condensation are

Controlling the air flow
manually

Concept

General information

Operation

Press the left or right
side of the button:
decrease or increase air
flow.

Controlling the air distri-
bution manually

Concept

Operation

Press the button repeat-
edly to select a program:

Defrost windshield and
remove condensation

Concept

231

3-1. CONTROLS

CON

ROLS

quickly removed from the wind-
shield and the front side win-
dows.

The LED is illuminated with the
system switched on.

The air flow can be adjusted
manually with the system
switched on.

The function is available with the
engine running.

The rear window defroster
switches off automatically after a
certain period of time.

The microfilter removes dust
and pollen from the incoming air.

Have this filter changed during
vehicle maintenance, refer to
page 301.

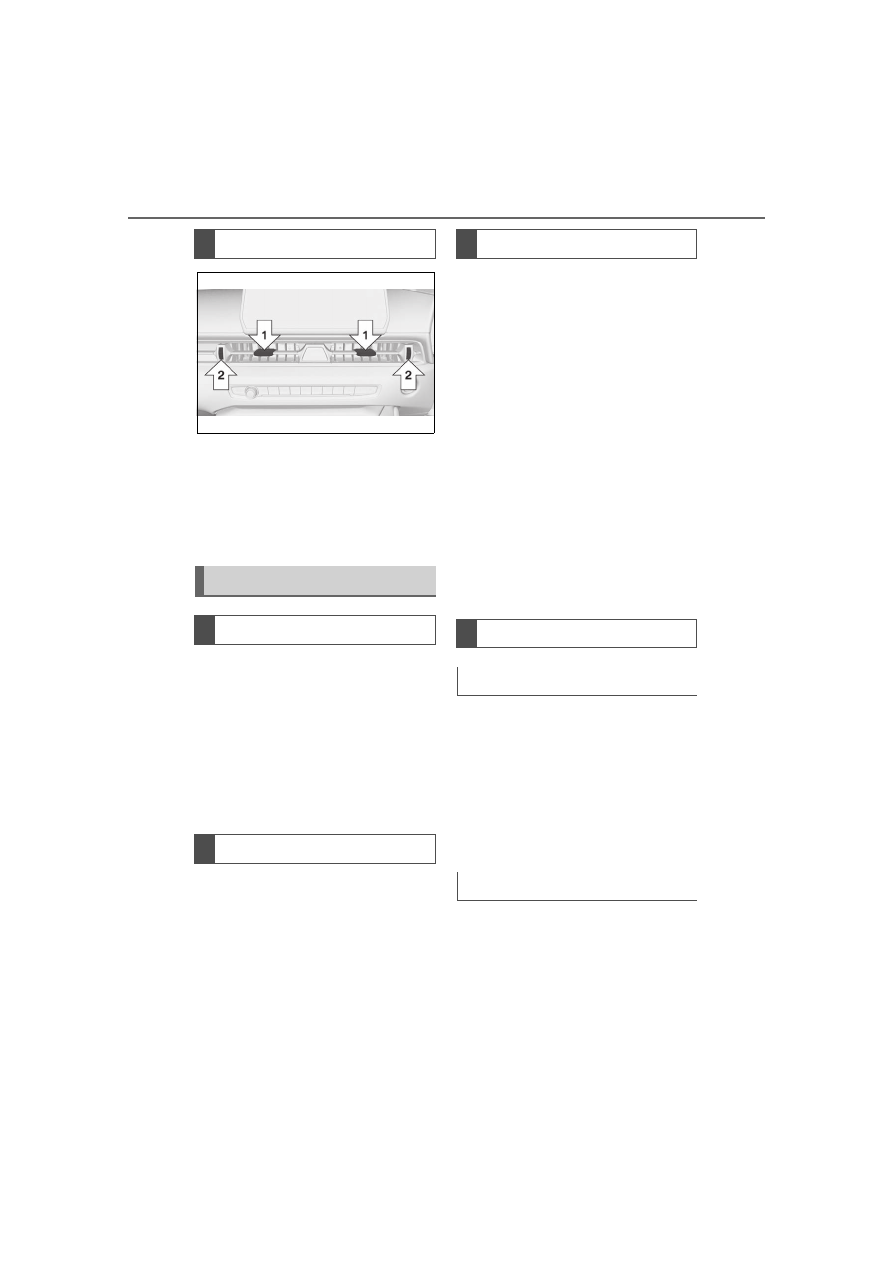

The air flow directions can be
individually adjusted.

The air flow directions can be
adjusted for direct or indirect
ventilation.

Open the vents and position
them to ensure effective climate
control.

The air flow is directed towards
the passengers. The air flow
heats or cools noticeably,
depending on the adjusted tem-
perature.

The air flow is not directed
towards the passengers. The
car's interior is warmed or
cooled indirectly, depending on
the set temperature.

Switching on/off

Press the button.

If there is any window
condensation, press the
button on the driver's
side or switch on the air
conditioning. Make sure
that air can flow to the
windshield.

Rear window defroster

Press the button. The
LED lights up.

Microfilter

Ventilation

Concept

Adjusting the ventilation

General information

Direct ventilation

Indirect ventilation

232

3-1. CONTROLS



Lever for changing the air flow
direction, arrow



Thumbwheel for variable
opening and closing of the
vents, arrow

The car's interior can be cooled
or heated before driving off with
the parked-car ventilation.
Depending on set temperature
and ambient temperature, the
car's interior is ventilated or pos-
sibly heated using the residual
engine heat.

The system can be switched on
and off directly or via a preset
departure time.

The activation time is deter-
mined based on the external
temperature. The system
promptly switches on before the
selected departure time.



The vehicle is in idle state or
standby state and not in
drive-ready state.



Battery is sufficiently charged.

If parked-car ventilation is switched
on, the vehicle battery will be dis-
charged. Thus, limit the maximum
activation time to save the vehicle
battery. The system will be avail-
able again after the engine is
started or after a short trip.



Make sure that the vehicle's
date and time are set cor-
rectly.



Open the vents to allow air to
flow out.

There are different ways to
switch the system on or off.

The system switches off auto-
matically after a certain period of
time. The system continues to
run for some time after being
switched off.

■

General information

When the vehicle is in standby
state, the parked-car ventilation
can be switched on or off via the
automatic air conditioning but-
tons.

Front ventilation

Parked-car ventilation

Concept

General information

Functional requirements

Switching on/off directly

General information

Using the button

233

3-1. CONTROLS

CON

ROLS

■

Switching on

Press any button except:



Rear window defroster.



Lower air flow button side.



Seat heating.



Menu.

■

Switching off

The system switches off after
leaving and locking the vehicle.

Press and hold the bot-

tom button.

"My Vehicle"

"Vehicle settings"

"Climate functions"

"Comfort ventilation"

"Activate now"

Different departure times can be
adjusted to ensure a comfort-
able interior temperature in the
vehicle at the time of departure.



One-time departure time: the
time can be set.

The system is switched on once.



Departure time with week-
day: time and day of the week
can be set.

On the desired weekdays, the sys-
tem will be switched on promptly
before the set departure time.

The departure time is prese-
lected in two steps:



Set departure times.



Activate departure times.

A minimum of 10 minutes
should pass between set-
ting/activating the departure
time and the planned departure
time to allow a sufficient period
of time for the climate control.

■

Via Toyota Supra Command

"My Vehicle"

"Vehicle settings"

"Climate functions"

"Comfort ventilation"

Select the desired departure
time.

Via Toyota Supra Command

Display

Symbol

Description

Symbol on the auto-
matic air conditioning
indicates the system is
switched on.

REST is displayed on
the automatic air condi-
tioning. The residual
engine heat is used.

Departure time

Concept

Setting the departure time

234

3-1. CONTROLS

Set the departure time.

Select day of the week, if
needed.

■

Functional requirement

If a departure time is to influ-
ence the switching on of
parked-car ventilation, the
respective departure time must
be activated first.

■

Via Toyota Supra Command

"My Vehicle"

"Vehicle settings"

"Climate functions"

"Comfort ventilation"

"For departure time"

Activate the desired depar-
ture time.

The symbol on the automatic

air conditioning signals an acti-
vated departure time.

This chapter describes all stan-
dard, country-specific and
optional features offered with
the series. It also describes fea-
tures and functions that are not
necessarily available in your
vehicle, e.g., due to the selected
options or country versions. This
also applies to safety-related
functions and systems. When
using these functions and sys-
tems, the applicable laws and
regulations must be observed.

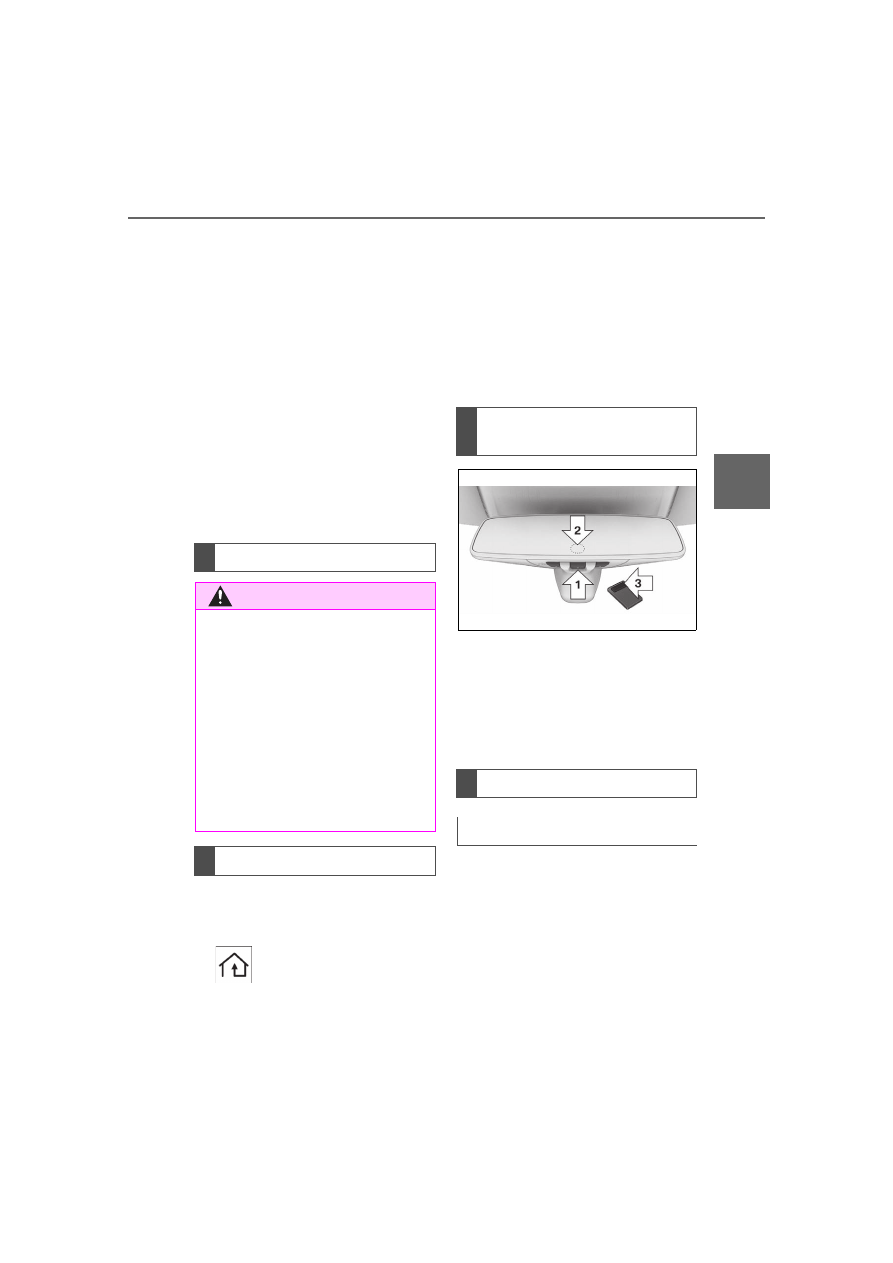

The integrated Universal
Remote Control in the interior
mirror can operate up to 3 func-
tions of remote-controlled sys-
tems such as garage door
drives, barriers, or lighting sys-
tems.

The Integrated Universal
Remote Control replaces up to 3
different hand-held transmitters.
To operate the remote control,
the buttons on the interior mirror
must be programmed with the

Activating the departure time

Display

Interior equipment

Vehicle features and
options

Integrated Universal
Remote Control

Concept

General information

235

3-1. CONTROLS

CON

TROLS

desired functions. The

hand-held transmitter for the

particular system is required in

order to program the remote

control.
Before selling the vehicle, delete

the stored functions for the sake

of security.
If possible, do not install the

antenna of the remote-con-

trolled system, e.g. the garage

door drive, near metal objects to

ensure the best possible opera-

tion.

Additional questions are

answered by:



Your Toyota dealer.



www.homelink.com on the

Internet.

HomeLink is a registered trade-

mark of Gentex Corporation.



Buttons, arrow



LED, arrow



The hand-held transmitter,

arrow

, is required for pro-

gramming.

The battery of the hand-held

transmitter must be fully

charged at the time of program-

ming to ensure an optimal range

of the integrated universal

remote control.

Switch on standby state.

Initial setup: Press and hold

the two outer buttons on the

Safety information

WARNING

The operation of remote-con-

trolled systems with the integrated

universal remote control, such as

the garage door, may result in

injury, for example, body parts

becoming jammed in a garage

door. There is a risk of injury or

risk of damage to property. Make

sure that the area of movement of

the respective system is clear

during programming and opera-

tion. Also follow the safety infor-

mation of the hand-held

transmitter.

Compatibility

If this symbol is printed

on the packaging or in

the owner's manual of

the system to be con-

trolled, the system is

generally compatible

with the integrated Uni-

versal Remote Control.

Control elements on the

interior mirror

Programming

General information

236

3-1. CONTROLS

interior mirror simultaneously
for approximately 10 seconds
until the LED flashes green
rapidly. This erases all pro-
gramming of the buttons on
the interior mirror.

Press the interior mirror but-
ton to be programmed. The
LED on the interior mirror will
slowly begin flashing orange.

Hold the hand-held transmit-
ter for the system to be used
approx. 1 to 12 in/2.5 to 30
cm away from the buttons on
the interior mirror. The
required distance depends
on the hand-held transmitter.

Press and hold the button of
the desired function on the
hand-held transmitter.

Canada: if programming with the
hand-held transmitter was inter-
rupted, hold down the interior mirror
button and repeatedly press and
release the hand-held transmitter
button for 2 seconds.



The LED lights up green: pro-
gramming completed.

Release the button.



The LED flashes fast: pro-
gramming is not complete.

Press the button on the interior mir-
ror for 2 seconds and release. Per-
form this procedure three times to
complete the programming proce-
dure.

If the integrated universal remote
control remains nonoperational,
continue with the special features

for change code wireless systems.



LED does not flash green
after 60 seconds: program-
ming not completed.

Repeat steps

To program other functions on
other buttons, repeat steps

If you are unable to operate the
remote-controlled system after
repeated programming, please
check if the system to be con-
trolled features a rolling code
radio system.

Refer to the owner's manual for
the system.

For systems with a rolling code
radio system, the integrated
Universal Remote Control and
the system also have to be syn-
chronized.

Please read the owner's manual
to find out how to synchronize
the system.

Synchronizing is easier with the
aid of a second person.

Synchronizing the universal
remote control with the system:

Park the vehicle within range
of the remote-controlled sys-
tem.

Program the relevant button
on the interior mirror as
described.

Special feature of the rolling
code wireless system

237

3-1. CONTROLS

CON

ROLS

Locate and press the syn-
chronizing button on the sys-
tem being programmed, e.g.
at the garage gate. You have
approx. 30 seconds for the
next step.

Hold down the programmed
button on the interior mirror
for approximately 3 seconds
and then release it. If neces-
sary, repeat this step up to
three times in order to finish
synchronization. Once syn-
chronization is complete, the
programmed function will be
carried out.

Switch on standby state.

Press and hold the interior
mirror button to be pro-
grammed.

As soon as the LED on the
interior mirror flashes orange
after approx. 20 seconds,
release the button.

Hold the hand-held transmit-
ter for the system to be used
approx. 1 to 12 in/2.5 to 30
cm away from the buttons on
the interior mirror. The
required distance depends
on the hand-held transmitter.

Press and hold the button of
the desired function on the
hand-held transmitter.

Canada: if programming with the

hand-held transmitter was inter-
rupted, hold down the interior mirror
button and repeatedly press and
release the hand-held transmitter
button for 2 seconds.

The LED can light up in dif-
ferent ways.



The LED lights up green: the
programming procedure is
completed.

Release the button.



The LED flashes fast: the
hand-held transmitter was
detected but programming is
not complete.

Press the button on the interior mir-
ror for 2 seconds and release. Per-
form this procedure three times to
complete the programming proce-
dure.

If the universal remote control
remains nonoperational, continue
with the special features for change
code wireless systems.



LED does not flash green
after 60 seconds: program-
ming not completed.

Repeat steps

If the programming procedure is
not completed, the previous pro-
gramming will remain
unchanged.

Reprogramming individ-
ual buttons

238

3-1. CONTROLS

The system, such as the garage

door, can be operated using the

button on the interior mirror

while the drive-ready or standby

state is switched on. To do this,

hold down the button within

receiving range of the system

until the function is activated.

The interior mirror LED stays lit

while the wireless signal is being

transmitted.

All stored functions will be

deleted. The functions cannot

be deleted individually.
Press and hold the two outer

buttons on the interior mirror

simultaneously for approxi-

mately 10 seconds until the LED

on the interior mirror flashes

green rapidly.

Fold the sun visor down or up.

A vanity mirror is located in the

sun visor behind a cover. When

the cover is opened, the mirror

lighting switches on.

The lighter socket can be used

as a socket for electrical equip-

ment when standby and

drive-ready state are switched

on.

The total load of all sockets

must not exceed 140 watts at 12

volts.
Do not damage the socket by

using non-compatible connec-

tors.

Operation

WARNING

The operation of remote-con-

trolled systems with the integrated

universal remote control, such as

the garage door, may result in

injury, for example, body parts

becoming jammed in a garage

door. There is a risk of injury or

risk of damage to property. Make

sure that the area of movement of

the respective system is clear

during programming and opera-

tion. Also follow the safety infor-

mation of the hand-held

transmitter.

Deleting stored functions

Sun visor

Glare shield

Vanity mirror

Sockets

Concept

General information

239

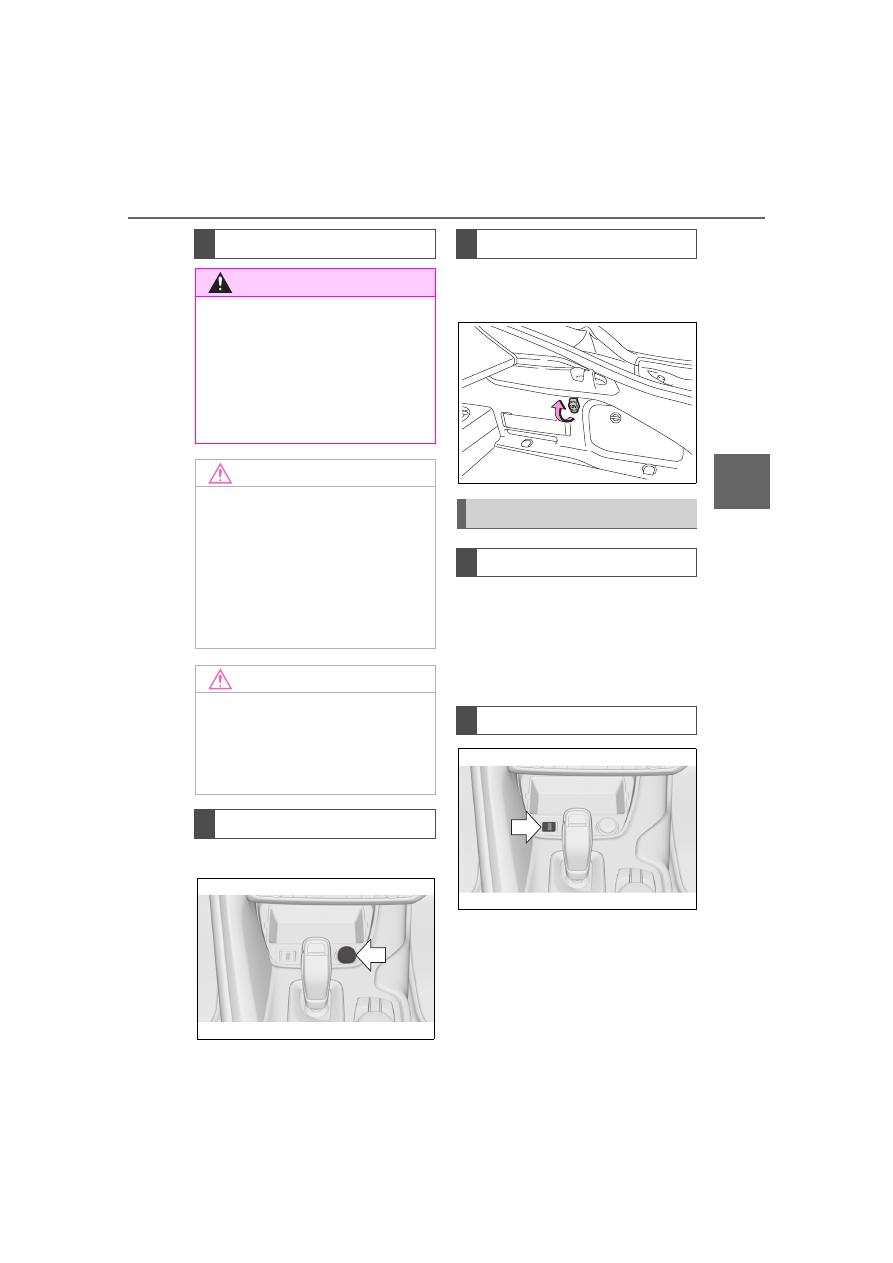

3-1. CONTROLS

CON

TROLS

Pull off the cover.

: if equipped

Open the cover.

Follow the information regarding

the connection of mobile

devices to the USB port in the

section on USB connections,

refer to page 72.

The USB port is located on the

center console.
Properties:



USB port Type A.



For charging external

Safety information

WARNING

Devices and cables in the unfold-

ing area of the airbags, such as

portable navigation devices, can

hinder the unfolding of the airbag

or be thrown around in the car's

interior during unfolding. There is

a risk of injury. Make sure that

devices and cables are not in the

airbag's area of unfolding.

NOTICE

Battery chargers for the vehicle

battery can work with high volt-

ages and currents, which means

that the 12 volt on-board network

can be overloaded or damaged.

There is a risk of damage to prop-

erty. Only connect battery char-

gers for the vehicle battery to the

starting aid terminals in the

engine compartment.

NOTICE

If metal objects fall into the

socket, they can cause a short cir-

cuit. There is a risk of damage to

property. Replace the socket

cover again after using the

socket.

Center console

Cargo area*

USB port

General information

In the center console

240

3-1. CONTROLS

devices.



Charging current:

max. 1.5 A (vehicles without wire-
less charger)

max. 2.1 A (vehicles with wireless
charger)



For data transfer.

The wireless charging tray
enables the following functions
to be performed without cables:



Charging the rechargeable
battery of a mobile phone with
Qi capability and of other
mobile devices, which support
the Qi standard.



Connect the mobile phone to
the external antenna.

Depending on the country, this pro-
vides for better network reception
and a consistent reproduction qual-
ity.

When inserting the mobile
phone, make sure there are no
objects between it and the wire-
less charging tray.

During charging, the surface of
the tray and the mobile phone
may become warm. Higher tem-
peratures may lead to a reduc-
tion in the charge current

through the mobile phone, and
in isolated cases the charging
process is paused temporarily.
Follow the relevant instructions
in the mobile phone owner's
manual.

If the vehicle is equipped

with a charge indicator, the Con-
trol Display shows whether a
mobile phone with Qi capability
is being charged.

This device has been tested for
human exposure limits and found
compliant at a minimum distance of
4 in/10 cm during operation.

Therefore, a distance of 4 in/10 cm
must be maintained in every direc-
tion when operating the device.

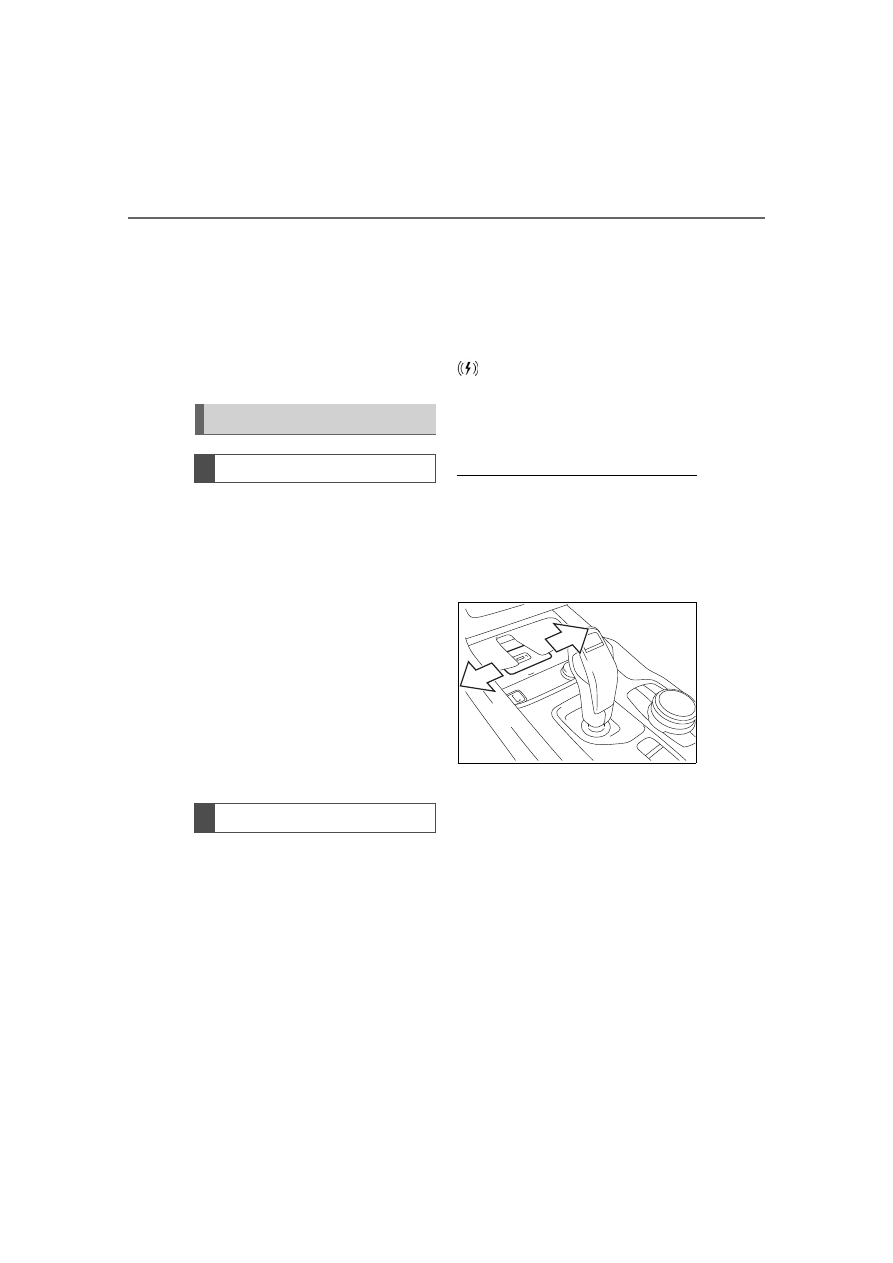

Mounting position of the product.

Wireless charging tray

Concept

General information

241

3-1. CONTROLS

CON

TROLS



The mobile phone must com-

patibly support the required Qi

standard.

If the mobile phone does not sup-

port the Qi standard, the mobile

phone can be charged using a spe-

cial Qi-compatible charging case.



Standby state is switched on.



Observe the maximum

dimensions of the mobile

phone.



Use only protective jackets

and covers up to a maximum

thickness of 0.07 in/2 mm.

Otherwise, the charging func-

tion may be impaired.



The mobile phone to be

charged is located in the cen-

ter of the tray.

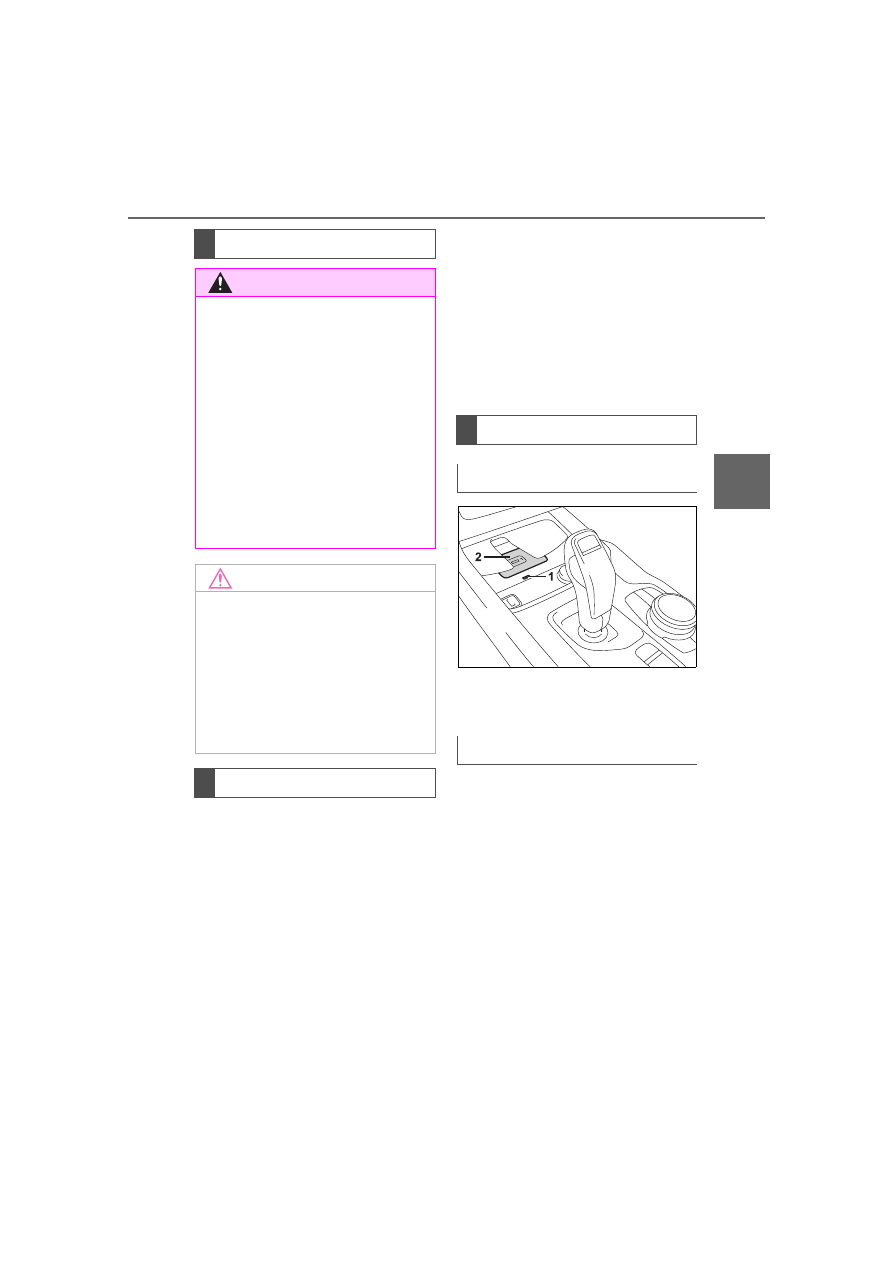

LED

Storage area

Place the mobile phone cen-

tered in the storage tray with the

display facing up.

The mobile phone must not exceed

the maximum size of approximately

6.0 x 3.1 x 0.7 in/154.5 x 80 x 18

mm.

Safety information

WARNING

When charging a device that

meets the Qi standard in the wire-

less charging tray, any metal

objects located between the

device and the tray can become

very hot. Placing storage devices

or electronic cards, such as chip

cards, cards with magnetic strips

or cards for signal transmission,

between the device and the tray

may impair the card function.

There is a risk of injury and risk of

damage to property. When

charging mobile devices, make

sure there are no objects between

the device and the tray.

NOTICE

The tray is intended for mobile

phones up to a particular size.

Forceful inserting of the mobile

phone into the tray can damage

the tray or the mobile phone.

There is a risk of damage to prop-

erty. Observe the maximum

dimensions for mobile phones. Do

not force the mobile phone into

the tray.

Functional requirements

Operation

Overview

Inserting the mobile phone

242

3-1. CONTROLS

If the vehicle is equipped with
the forgotten warning function, a
warning can be output if a
mobile phone with Qi capability
was forgotten in the wireless
charging tray when leaving the
vehicle.

The forgotten warning is dis-
played in the instrument cluster.

Via Toyota Supra Command:

“My Vehicle”

“System settings”

“Wireless charging tray”

“Forgotten mobile device
alert”

At high temperatures on the
mobile phone or in the vehicle,
the charging functions of the
mobile phone may be limited
and some functions may no lon-
ger work.

Your car is equipped with a wire-
less charging tray (WCA) to
charge your mobile phone and
connect it to the mobile network.
To ensure the best possible con-
nection a signal booster
(LTE-Compensator) is used in
conjunction with the WCA. The
following paragraphs refer to
this booster:

This is a CONSUMER device.

BEFORE USE, you MUST
REGISTER THIS DEVICE with
your wireless provider and have
your provider's consent. Most
wireless providers consent to
the use of Compensators. Some
providers may not consent to

LED displays

Color

Meaning

Blue

The mobile phone is
charging.

Depending on the model
and the vehicle, the blue
LED is no longer illumi-
nated once the inserted
mobile phone with Qi
capability is fully charged.

Orange

The mobile phone is not
charging.

Temperature on the
mobile phone possibly
too high or foreign object
in the charging tray.

Red

The mobile phone is not
charging.

Contact a dealer’s ser-
vice center or another
qualified service center or
repair shop.

Forgotten warning

General information

Activating

System limits

LTE-Compensator - Infor-
mation and User Manual

243

3-1. CONTROLS

CON

ROLS

the use of this device on their
network. If you are unsure, con-
tact your provider. You MUST
operate this device with
approved antennas and cables
as specified by the manufac-
turer. Antennas MUST be
installed at least 20 cm (8
inches) from any person. You
MUST cease operating this
device immediately if requested
by the FCC or a licensed wire-
less service provider. Warning
E911 location information may
not be provided or may be inac-
curate for calls served by using
this device.

Please observe additionally the
following information



Sprint Nextel will allow con-
sumers to register their signal
boosters by calling their
toll-free number.



T-Mobile online registration
link:
(www.T-Mobile.com/Booster-
Registration);
(https://saqat.t-mobile.com/sit
es/SignalBooster#).



Verizon’s online registration
link: (http://www.verizonwire-
less.com/wcms/con-
sumer/register-signal-booster.
html).



AT&T online registration link
(https://secu-
rec45.securewebses-
sion.com/attsignal-booster.co
m/).



U.S.Cellular online registra-
tion link (http://www.uscellu-
lar.com/uscellular/support/fcc-
booster-registration.jsp).

Before use you must register
your booster device with your
wireless provider.

If you should be requested by
the FCC to cease operating your
booster you are not allowed to
insert your mobile phone in the
charging tray anymore unless
the booster is permanently
deactivated by your Toyota
dealer.

You must not remove the
booster from the car nor use it
with any other than the prein-
stalled coupling device or
antenna. Any modification of the
existing antenna or coupling
device as well as the use of
other antennas or coupling
devices will cause the cease of
the booster’s operating license.

The booster device fulfills the
network protections tandards as
required by the FCC, such as
intermodulation limits, oscillation
detection and gainlimits.

Booster Manufacturer: Kathrein
Automotive

Model Number: LTECOMPB0

Part Number: 6803145-01

FCC-ID: 2ACC7LTECOMPB0

Toyota GR Supra (2022 year). Manual in english - page 15
