Toyota 86 (2023 year). Manual in english - page 23

367

7-2. Steps to take in an emergency

tro

One of the following may be the
cause of the problem:



There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle.



The engine may be flooded.
Try to restart the engine again
following correct starting pro-
cedures. (



P.145)



There may be a malfunction
in the engine immobilizer sys-
tem. (



P.80)

One of the following may be the
cause of the problem:



The battery may be dis-
charged. (



P.372)

NOTICE

●

Make sure to stand the kit with

the bottle vertical. The kit can-

not work properly if it is laid on

its side.

■

Handling the emergency tire

puncture repair kit

●

The compressor power source

should be 12 V DC suitable for

vehicle use. Do not connect the

compressor to any other

source.

●

If gasoline splatters on the kit,

the kit may deteriorate. Take

care not to allow gasoline to

contact it.

●

Store the emergency tire punc-

ture repair kit in the trunk. The

kit may be thrown around during

sudden braking and so forth,

damaging the kit.

Place the repair kit in a storage to

prevent it from being exposed to

dirt or water.

●

Store the kit in its assigned

place out of reach of children.

●

Do not disassemble or modify

the kit. Do not subject parts

such as the air pressure indica-

tor to impacts. This may cause a

malfunction.

■

To avoid damage to the tire

pressure warning valves and

transmitters

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer as soon as possible. After

use of liquid sealant, make sure to

replace the tire pressure warning

valve and transmitter when repair-

ing or replacing the tire. (



P.316)

If the engine will not

start

If the engine will not start
even though correct starting
procedures are being fol-
lowed (



P.145), consider

each of the following points:

The engine will not start
even though the starter
motor operates normally.

The starter motor turns
over slowly, the interior
lights and headlights are
dim, or the horn does not
sound or sounds at a low
volume.

368

7-2. Steps to take in an emergency



The battery terminal connec-
tions may be loose or cor-
roded. (



P.309)

The engine starting system may
be malfunctioning due to an
electrical problem such as elec-
tronic key battery depletion or a
blown fuse. However, an interim
measure is available to start the
engine. (



P.368)

One of the following may be the
cause of the problem:



One or both of the battery ter-
minals may be disconnected.
(



P.309)



The battery may be dis-
charged. (



P.372)



There may be a malfunction
in the steering lock system.

Contact your Toyota dealer if the
problem cannot be repaired, or if
repair procedures are unknown.

When the engine does not start,
the following steps can be used
as an interim measure to start

the engine if the engine switch is
functioning normally:

Set the parking brake.

Shift the shift lever to P (auto-
matic transmission) or N
(manual transmission).

Turn the engine switch to
ACC.

Press and hold the engine
switch for about 10 seconds
while depressing the brake
pedal (automatic transmis-
sion) or clutch pedal (manual
transmission) firmly.

Even if the engine can be
started using the above steps,
the system may be malfunction-
ing. Have the vehicle inspected
by your Toyota dealer.

The starter motor does
not turn over

The starter motor does
not turn over, the interior
lights and headlights do
not turn on, or the horn
does not sound.

Emergency start function

369

7-2. Steps to take in an emergency

tro

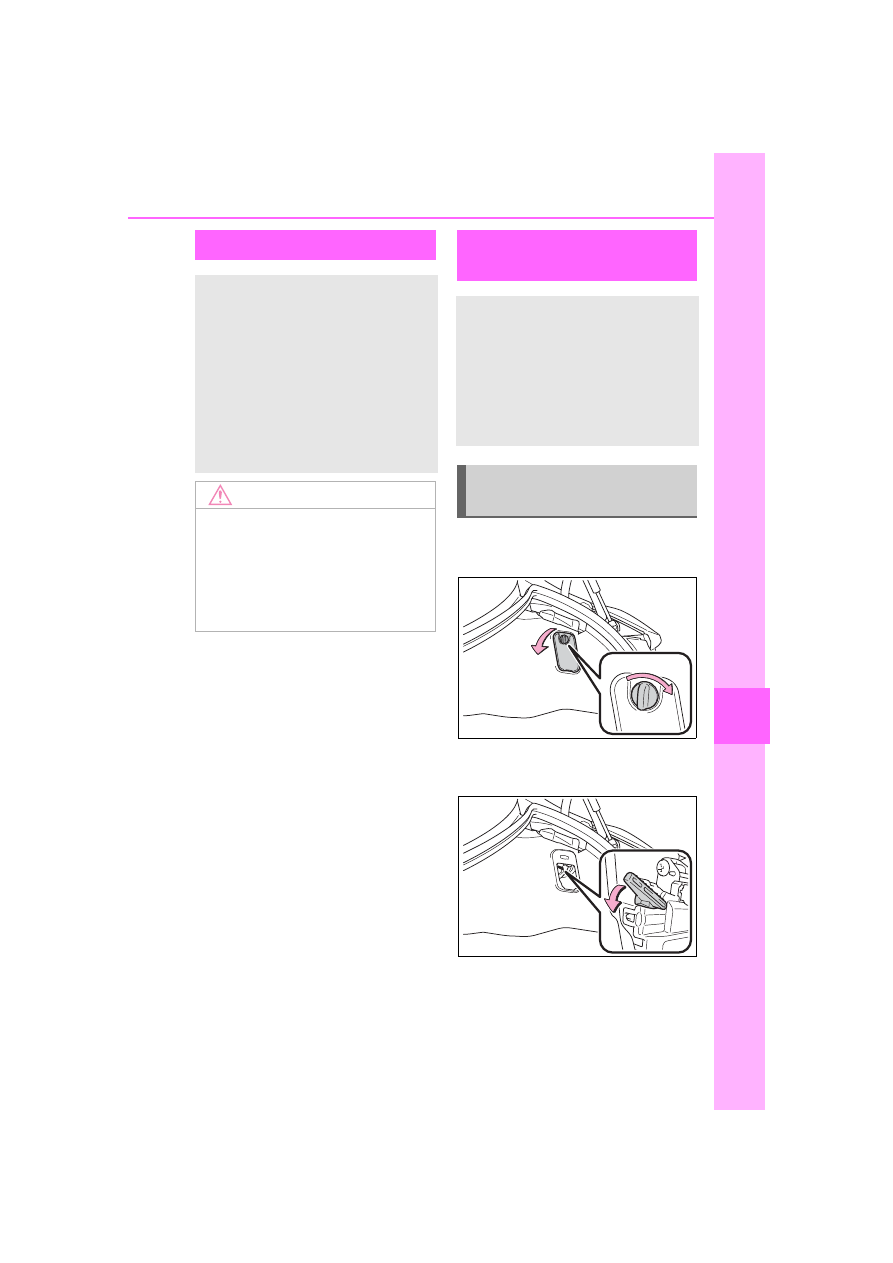

Remove the access cover at the
rightside of the trunk trim.

Push the yellow lever to unlock
the fuel filler lid.

If you lose your keys

New genuine mechanical
keys can be made by your
Toyota dealer using another
mechanical key and the key
number stamped on your
key number plate.

Keep the plate in a safe
place such as your wallet,
not in the vehicle.

NOTICE

■

When an electronic key is lost

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

If the fuel filler door

cannot be opened

If the fuel filler door cannot
be opened by pressing the
center of the rear edge of
the fuel filler door with the
doors unlocked, the follow-
ing procedure can be used
to open the fuel filler door.

Opening the fuel filler
door

370

7-2. Steps to take in an emergency

■

When the electronic key does

not work properly

●

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on.

●

Check if battery-saving mode is

set. If it is set, cancel the function.

(



P.112)

■

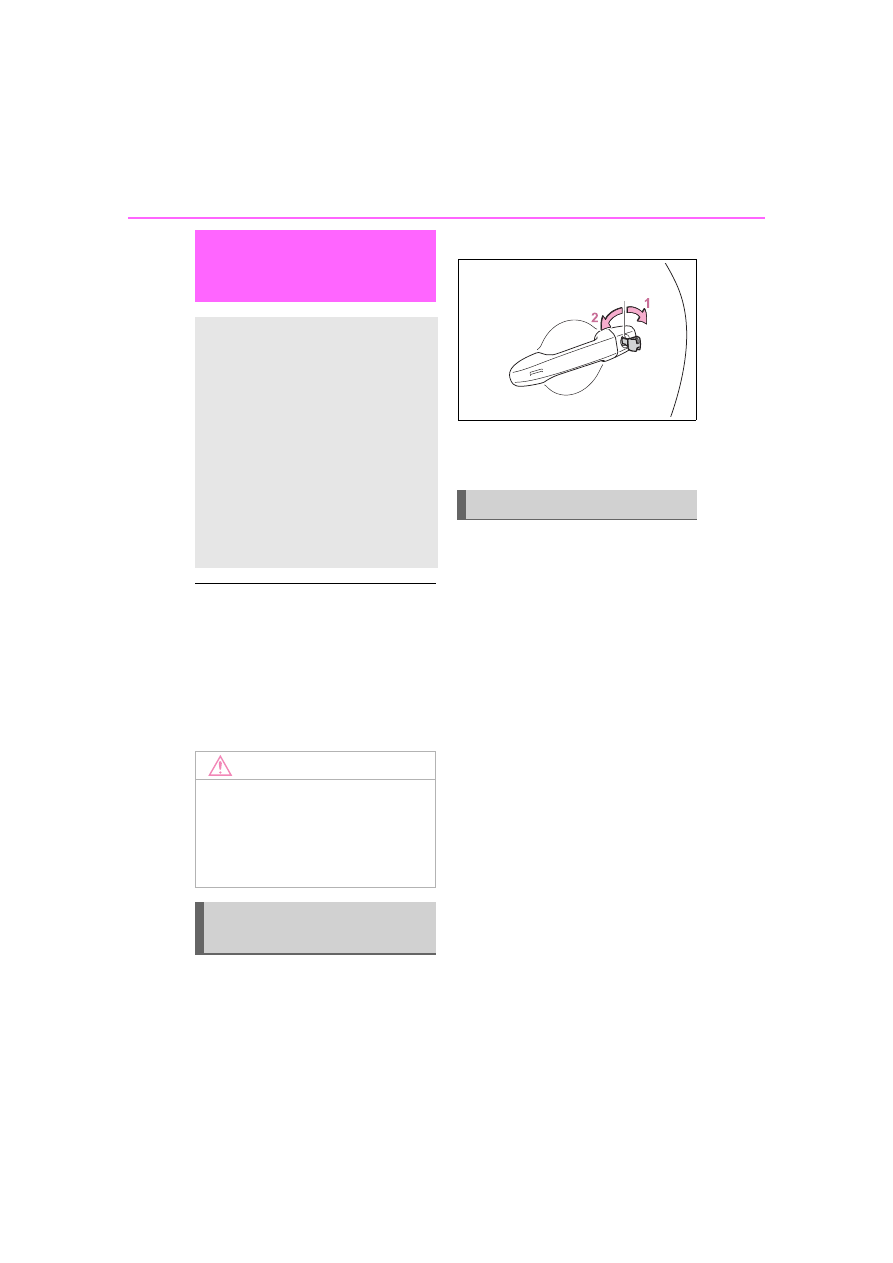

Unlocking the door

Use the mechanical key
(



P.102) in order to perform the

following operations:

Unlocks driver’s door

Locks driver’s door

Vehicles with an automatic
transmission: Ensure that the
shift lever is in P and depress
the brake pedal.
Vehicles with a manual trans-
mission: Shift the shift lever
to N and depress the clutch
pedal.

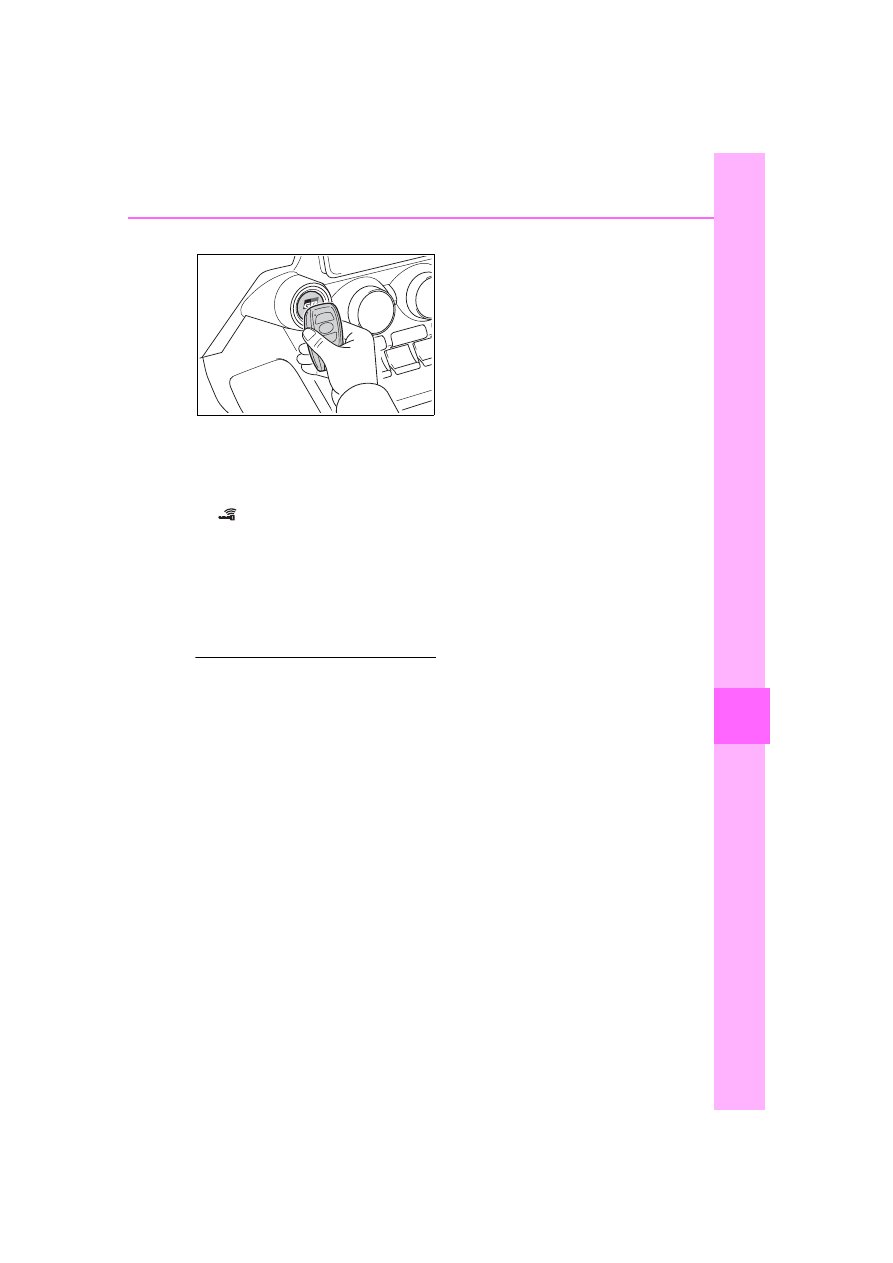

Touch the area behind the
lock button and unlock button
on the electronic key to the
engine switch.

When the electronic key is

detected, a buzzer sounds and the

engine switch will turn to ON.
When the smart key system is

deactivated in customization set-

ting, the engine switch will turn to

If the electronic key

does not operate prop-

erly

If communication between
the electronic key and vehi-
cle is interrupted (



P.112)

or the electronic key cannot
be used because the battery
is depleted, the smart key
system and wireless remote
control cannot be used. In
such cases, the doors can
be opened and the engine
can be started by following
the procedure below.

NOTICE

■

In case of a smart key system

malfunction or other

key-related problems

Take your vehicle with all the elec-

tronic keys provided with your

vehicle to your Toyota dealer.

Locking and unlocking
the doors

Starting the engine

371

7-2. Steps to take in an emergency

Whe

n tr

ouble

ises

ACC.

Firmly depress the brake
pedal (automatic transmis-
sion) or clutch pedal (manual
transmission) and check that

is shown on the

multi-information display.

Press the engine switch.

In the event that the engine still
cannot be started, contact your
Toyota dealer.

■

Stopping the engine

Vehicles with an automatic trans-

mission: Shift the shift lever to P and

press the engine switch as you nor-

mally do when stopping the engine.

Vehicles with a manual transmis-

sion: Shift the shift lever to N and

press the engine switch as you nor-

mally do when stopping the engine.

■

Electronic key battery

As the above procedure is a tempo-

rary measure, it is recommended

that the electronic key battery be

replaced immediately when the bat-

tery is depleted. (



P.328)

■

Alarm

Using the mechanical key to lock

the doors will not set the alarm sys-

tem.

If a door is unlocked using the

mechanical key when the alarm sys-

tem is set, the alarm may be trig-

gered.

■

Changing engine switch modes

Release the brake pedal (automatic

transmission) or clutch pedal (man-

ual transmission) and press the

engine switch in step

above.

The engine does not start and

modes will be changed each time

the switch is pressed. (



P.147)

372

7-2. Steps to take in an emergency

If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle

by following the steps below.

Confirm that the electronic
key is being carried.

When connecting the jumper (or

booster) cables, depending on the

situation, the alarm may activate

and doors locked.

Open the hood. (



P.302)

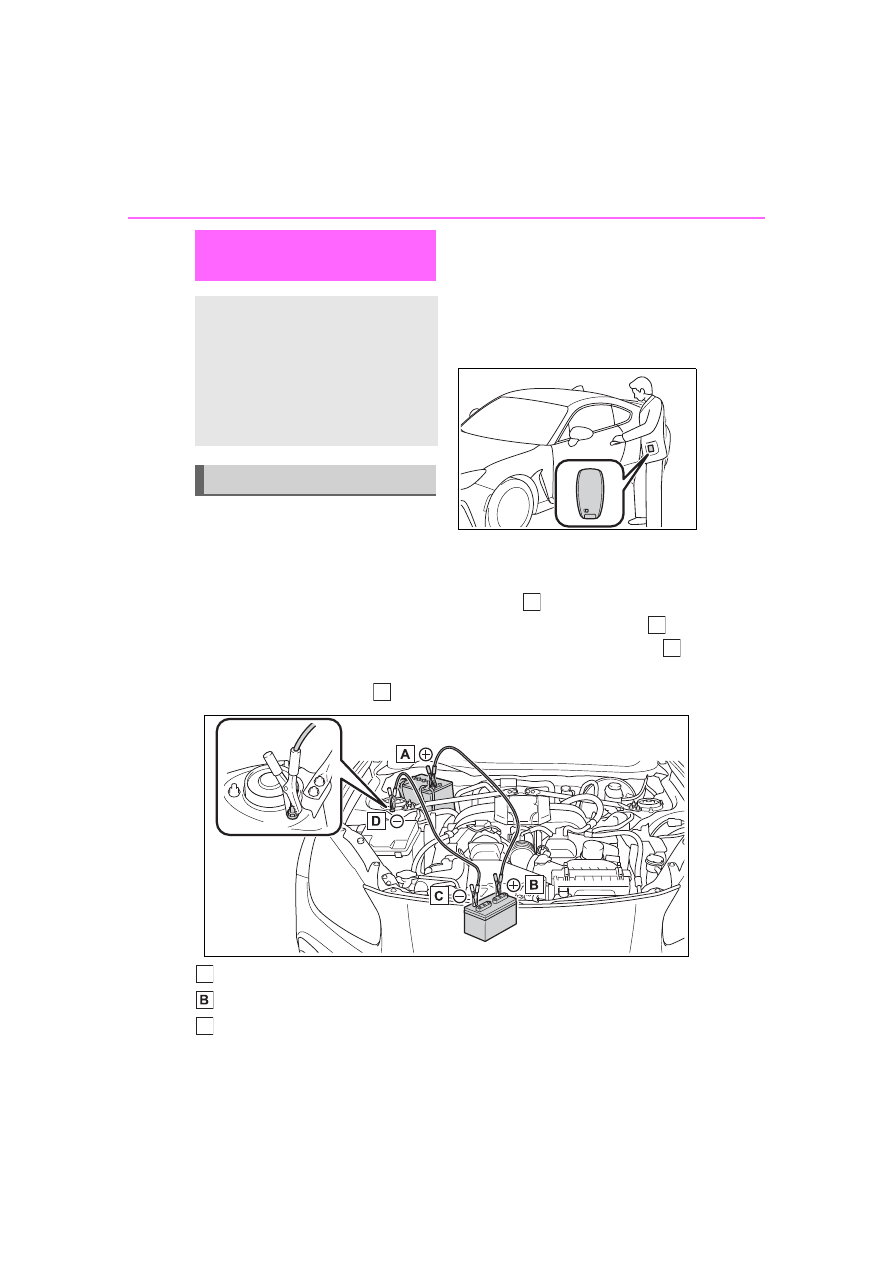

Connect a positive jumper cable clamp to   on your vehicle and
connect the clamp on the other end of the positive cable to   on
the second vehicle. Then, connect a negative cable clamp to
on the second vehicle and connect the clamp at the other end of
the negative cable to  .

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)

If the vehicle battery

is discharged

The following procedures
may be used to start the
engine if the vehicle’s bat-
tery is discharged.
You can also call your Toy-
ota dealer or a qualified
repair shop.

Restarting the engine

373

7-2. Steps to take in an emergency

Whe

n tr

ouble

ises

Connect the jumper cable to ground on your vehicle as shown in
the illustration.

Start the engine of the sec-
ond vehicle. Increase the
engine speed slightly and
maintain at that level for
approximately 5 minutes to
recharge the battery of your
vehicle.

Open and close any of the
door of your vehicle with the
engine switch off.

Maintain the engine speed of
the second vehicle and start
the engine of your vehicle by
turning the engine switch to
ON.

Once the vehicle’s engine
has started, remove the
jumper cables in the exact
reverse order from which
they were connected.

Once the engine starts, have the
vehicle inspected at your Toyota
dealer as soon as possible.

■

Starting the engine when the

battery is discharged

The engine cannot be started by

push-starting.

■

To prevent battery discharge

●

Turn off the headlights and the

audio system while the engine is

off.

●

Turn off any unnecessary electri-

cal components when the vehicle

is running at a low speed for an

extended period, such as in heavy

traffic.

■

When the battery is removed or

discharged

Information stored in the ECU is

cleared. When the battery is

depleted, have the vehicle

inspected at your Toyota dealer.

■

When removing the battery ter-

minals

When the battery terminals are

removed, the information stored in

the ECU is cleared. Before remov-

ing the battery terminals, contact

your Toyota dealer.

■

Charging the battery

The electricity stored in the battery

will discharge gradually even when

the vehicle is not in use, due to nat-

ural discharge and the draining

effects of certain electrical appli-

ances. If the vehicle is left for a long

time, the battery may discharge,

and the engine may be unable to

start. (The battery recharges auto-

matically during driving.)

■

When recharging or replacing

the battery

●

In some cases, it may not be pos-

sible to unlock the doors using the

smart key system when the bat-

tery is discharged. Use the wire-

less remote control or the

mechanical key to lock or unlock

the doors.

●

The engine may not start on the

first attempt after the battery has

recharged but will start normally

after the second attempt. This is

not a malfunction.

●

The engine switch mode is memo-

rized by the vehicle. When the

battery is reconnected, the system

will return to the mode it was in

before the battery was dis-

charged. Before disconnecting the

battery, turn the engine switch off.

If you are unsure what mode the

engine switch was in before the

374

7-2. Steps to take in an emergency

battery discharged, be especially

careful when reconnecting the

battery.

WARNING

■

When removing the battery

terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding battery fires or

explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the battery.

■

Battery precautions

The battery contains poisonous

and corrosive acidic electrolyte,

while related parts contain lead

and lead compounds. Observe

the following precautions when

handling the battery:

●

When working with the battery,

always wear safety glasses and

take care not to allow any bat-

tery fluids (acid) to come into

contact with skin, clothing or the

vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention. Place a

wet sponge or cloth over the

affected area until medical

attention can be received.

●

Always wash your hands after

handling the battery support,

terminals, and other bat-

tery-related parts.

●

Do not allow children near the

battery.

■

To prevent damage to the

vehicle

Do not pull- or push-start the vehi-

cle as the three-way catalytic con-

verter may overheat and become

a fire hazard.

NOTICE

■

When handling jumper cables

Be careful that the jumper cables

do not become tangled in the

cooling fans or any of the belts

when connecting or disconnecting

them.

■

When closing the doors

While pushing the door glass

towards the inside of the vehicle,

slowly close the door.

Because the side window

open/close function linked to door

operation will not operate, the

window may interfere with the

vehicle body, possibly scratching

both the vehicle body and win-

dow, or even shattering the win-

dow.

375

7-2. Steps to take in an emergency

Whe

n tr

ouble

ises

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the engine.

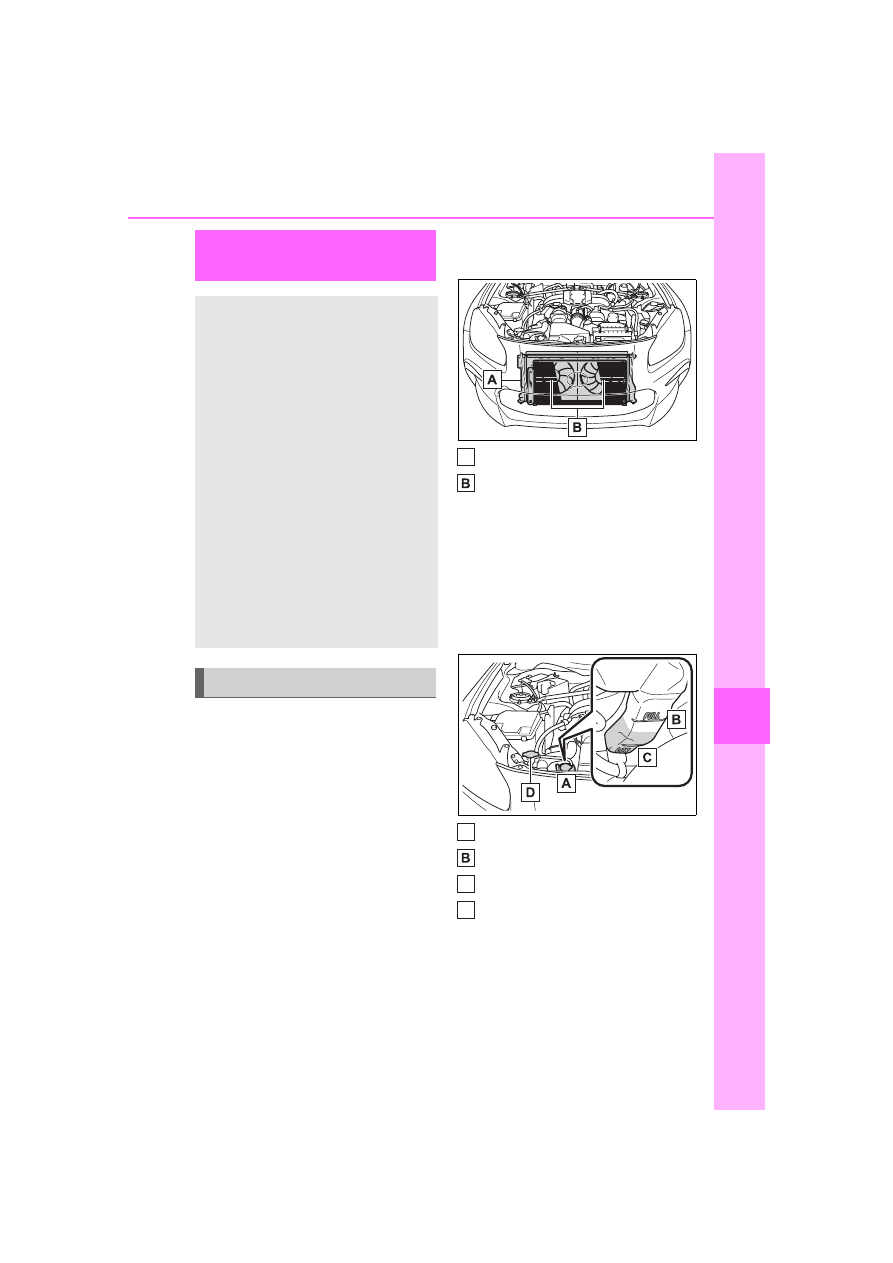

If you see steam: Carefully lift
the hood after the steam sub-
sides.
If you do not see steam:
Carefully lift the hood.

After the engine has cooled
down sufficiently, inspect the

hoses and radiator core (radi-
ator) for any leaks.

Radiators
Cooling fans

If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.

Reservoir
“FULL” line
“LOW” line
Radiator cap

Add engine coolant if neces-
sary.

Water can be used in an emer-

gency if engine coolant is unavail-

If your vehicle over-

heats

The following may indicate
that your vehicle is over-
heating.



The engine coolant tem-
perature gauge (



P.88) is

in the red zone or a loss of
engine power is experi-
enced. (For example, the
vehicle speed does not
increase.)



“High Coolant Temperature
Check Owner's Manual” is
shown on the multi-informa-
tion display.



Steam comes out from
under the hood.

Correction procedures

C
D

376

7-2. Steps to take in an emergency

able.

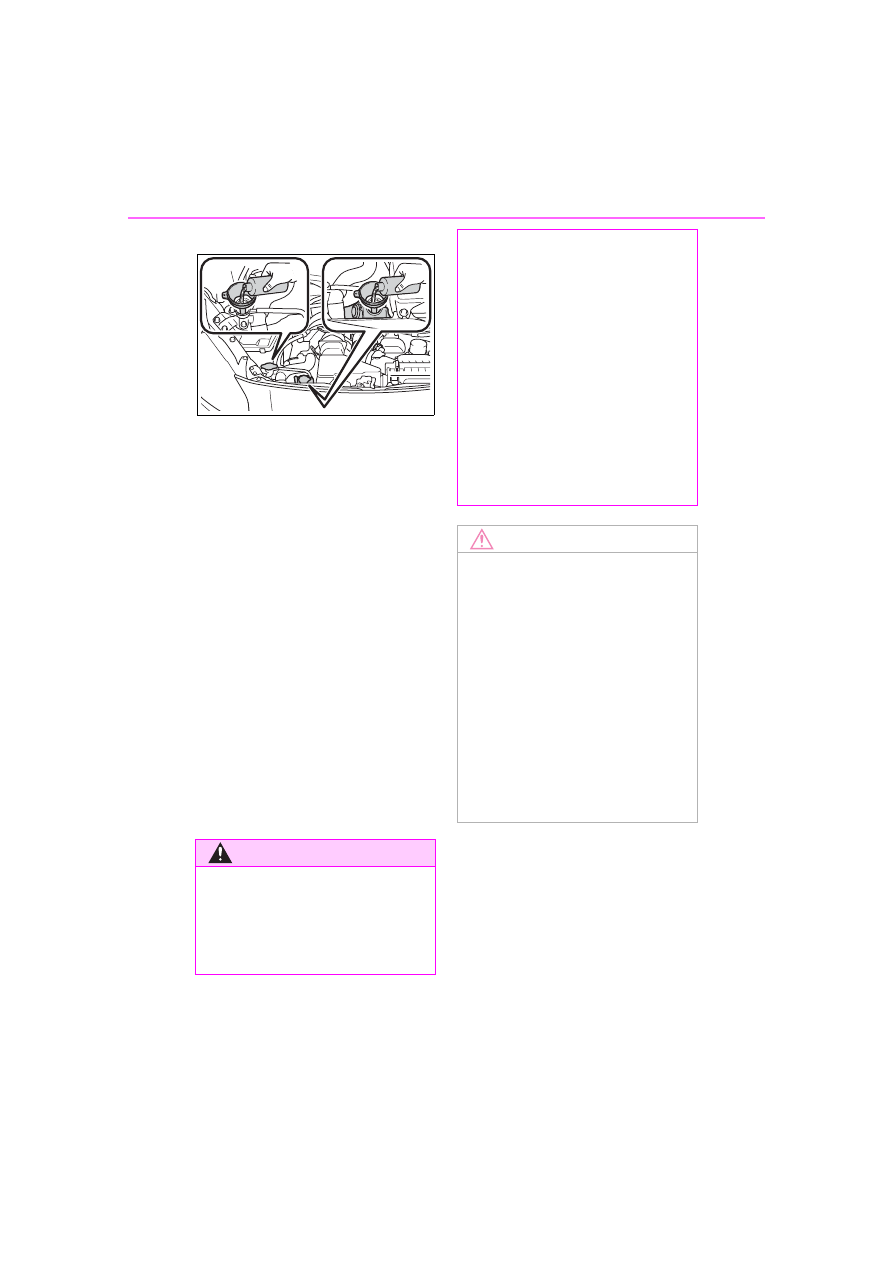

Start the engine and turn the
air conditioning system on to
check that the radiator cool-
ing fans operate and to check
for coolant leaks from the
radiator or hoses.

The fans operate when the air con-

ditioning system is turned on imme-

diately after a cold start. Confirm

that the fans are operating by

checking the fan sound and air flow.

If it is difficult to check these, turn

the air conditioning system on and

off repeatedly. (The fans may not

operate in freezing temperatures.)

If the fans are not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fans are operating:
Have the vehicle inspected at
the nearest Toyota dealer.

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions.

Failure to do so may result in seri-

ous injury such as burns.

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

Keep hands and clothing (espe-

cially a tie, a scarf or a muffler)

away from the fans and belts.

Failure to do so may cause the

hands or clothing to be caught,

resulting in serious injury.

●

Do not loosen the coolant reser-

voir caps while the engine and

radiator are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the

engine has cooled down suffi-

ciently. Adding cool coolant to a

hot engine too quickly can cause

damage to the engine.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust etc.).

●

Do not use any coolant additive.

377

7-2. Steps to take in an emergency

tro

Stop the engine. Set the
parking brake and shift the
shift lever to P (automatic
transmission) or N (manual
transmission).

Remove the mud, snow or
sand from around the rear
wheels.

Place wood, stones or some
other material under the rear
wheels to help provide trac-
tion.

Restart the engine.

Shift the shift lever to D or R
(automatic transmission) or 1
or R (manual transmission)
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.

■

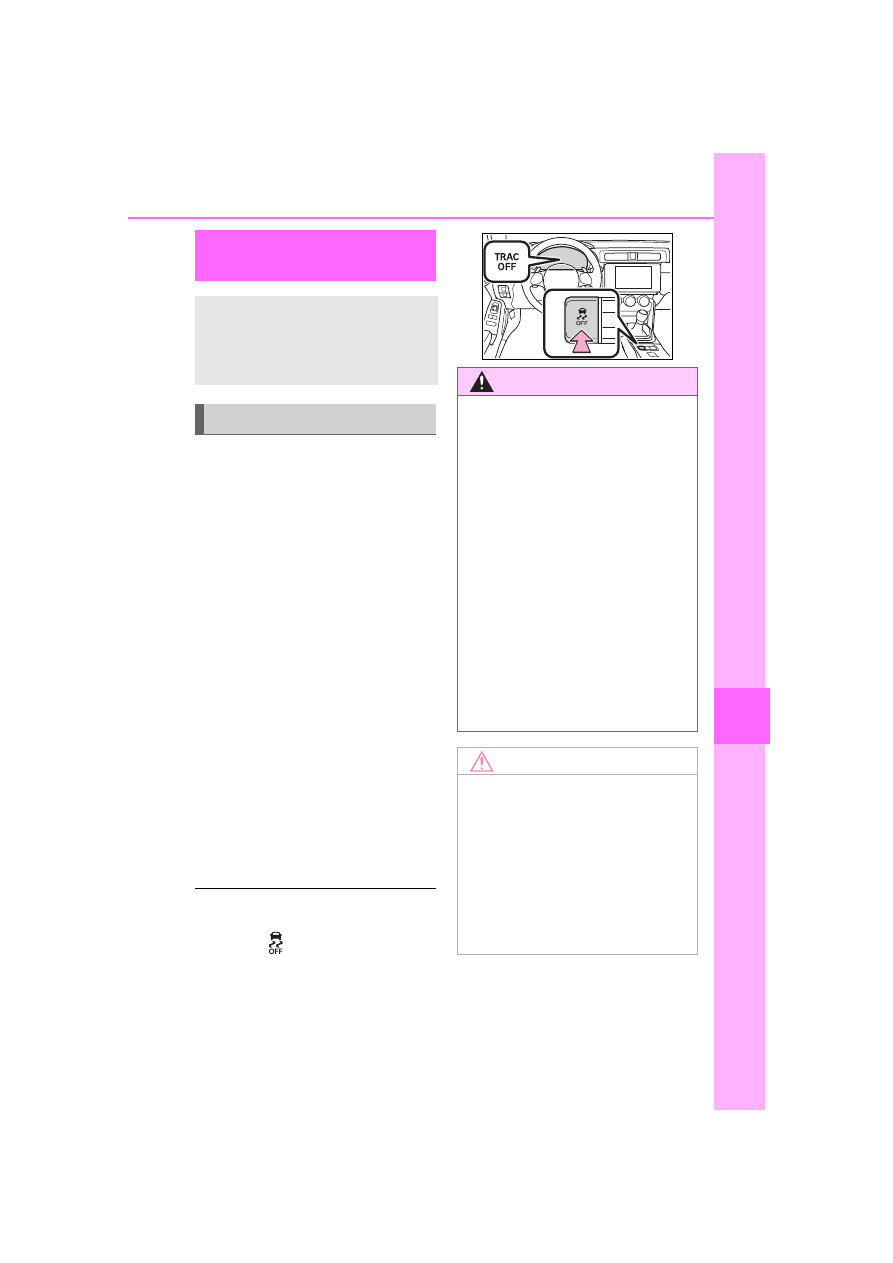

When it is difficult to free the

vehicle

Press the

switch to turn off

TRAC.

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

(vehicles with an automatic

transmission)

Be careful not to shift the shift

lever with the accelerator pedal

depressed.

This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the rear wheels

and depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

379

Vehicle

specificatio

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

380

Fuel information ..........

388

Tire information ...........

390

8-2. Customization

Customizable features

..................................

400

380

8-1. Specifications

8-1.Specifications

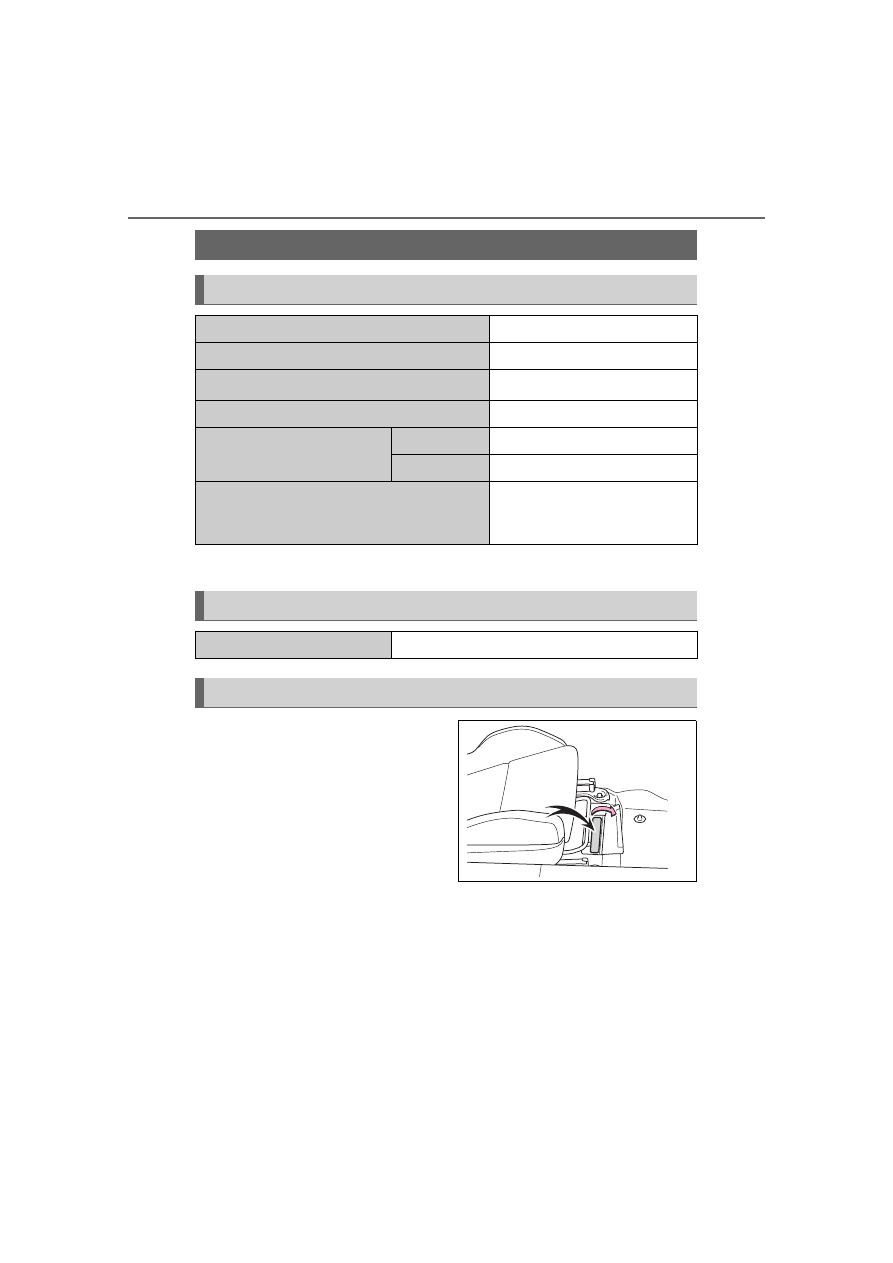

: Unladen vehicle

■

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
This number is stamped under
the right-hand front seat.

This number is located on the
top left of the body panel.

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

167.9 in. (4265 mm)

Overall width

69.9 in. (1775 mm)

Overall height

51.6 in. (1310 mm)

Wheelbase

101.4 in. (2575 mm)

Tread

Front

59.8 in. (1520 mm)

Rear

61.0 in. (1550 mm)

Vehicle capacity weight (Occupants + lug-
gage)

Details are described on the
tire and loading information
label. (



P.323)

Seating capacity

Seating capacity

4 (Front 2, Rear 2)

Vehicle identification

381

8-1. Specifications

Vehicle

specificatio

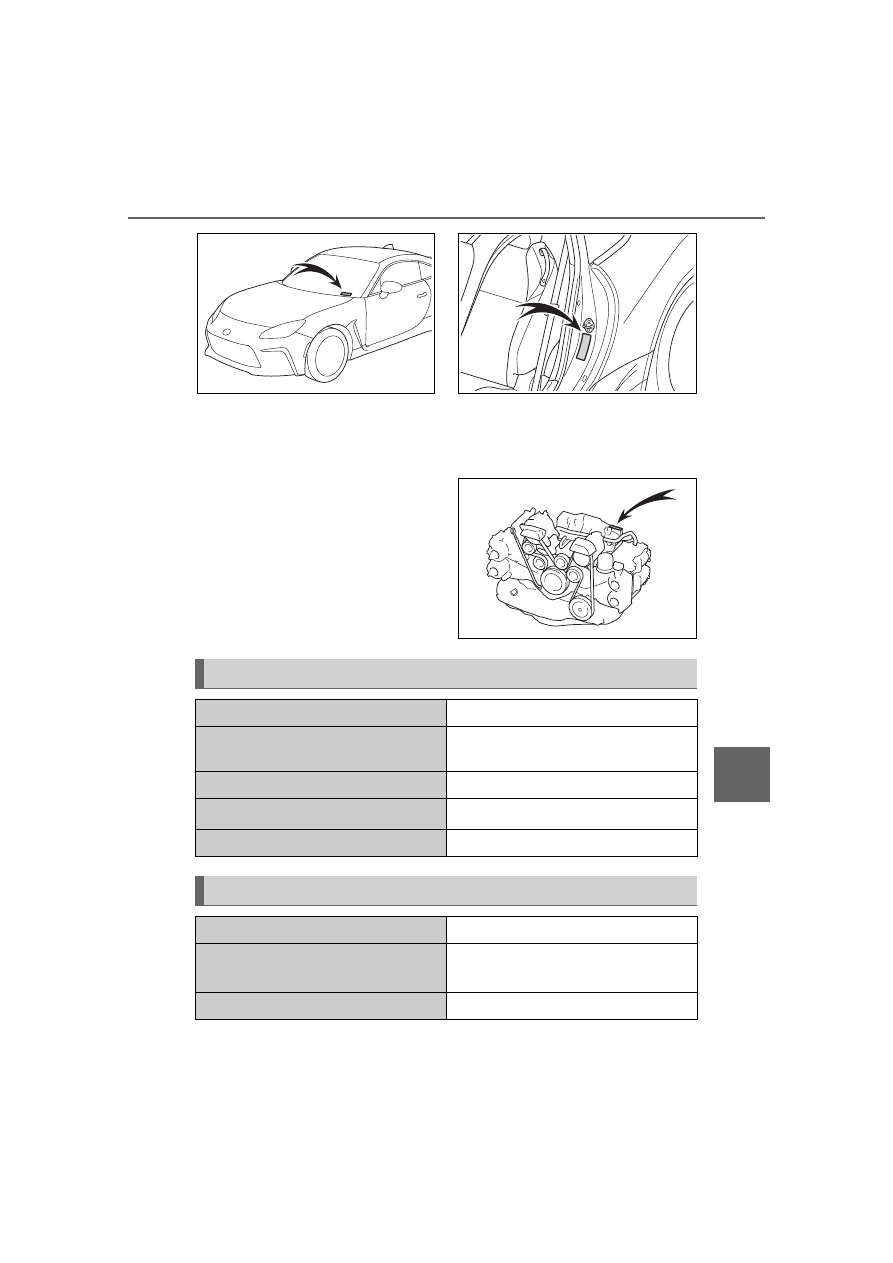

This number is also on the Certi-
fication Label.

The vehicle model type, vehicle
identification number, etc. are on
the manufacturer’s label.

■

Engine number

The engine number is stamped
on the engine block as shown.

: If unleaded gasoline with an octane rating of 93 (98 RON) is not available,

Engine

Model

FA24

Type

Horizontally opposed, liquid cooled 4
cylinder, 4-stroke gasoline

Bore and stroke

3.70



3.39 in. (94.0



86.0 mm)

Displacement

146 cu. in. (2387 cm

)

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

93 (Research octane number 98) or
higher

Fuel tank capacity (Reference)

13.2 gal. (50.0 L, 11.0 Imp. gal.)

382

8-1. Specifications

unleaded gasoline with an octane rating of 91 (95 RON) may be used
with no detriment to engine durability or driveability.

■

Oil capacity (Drain and refill [Reference

])

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the engine, wait more than 5 min-
utes, and check the oil level on the dipstick.

■

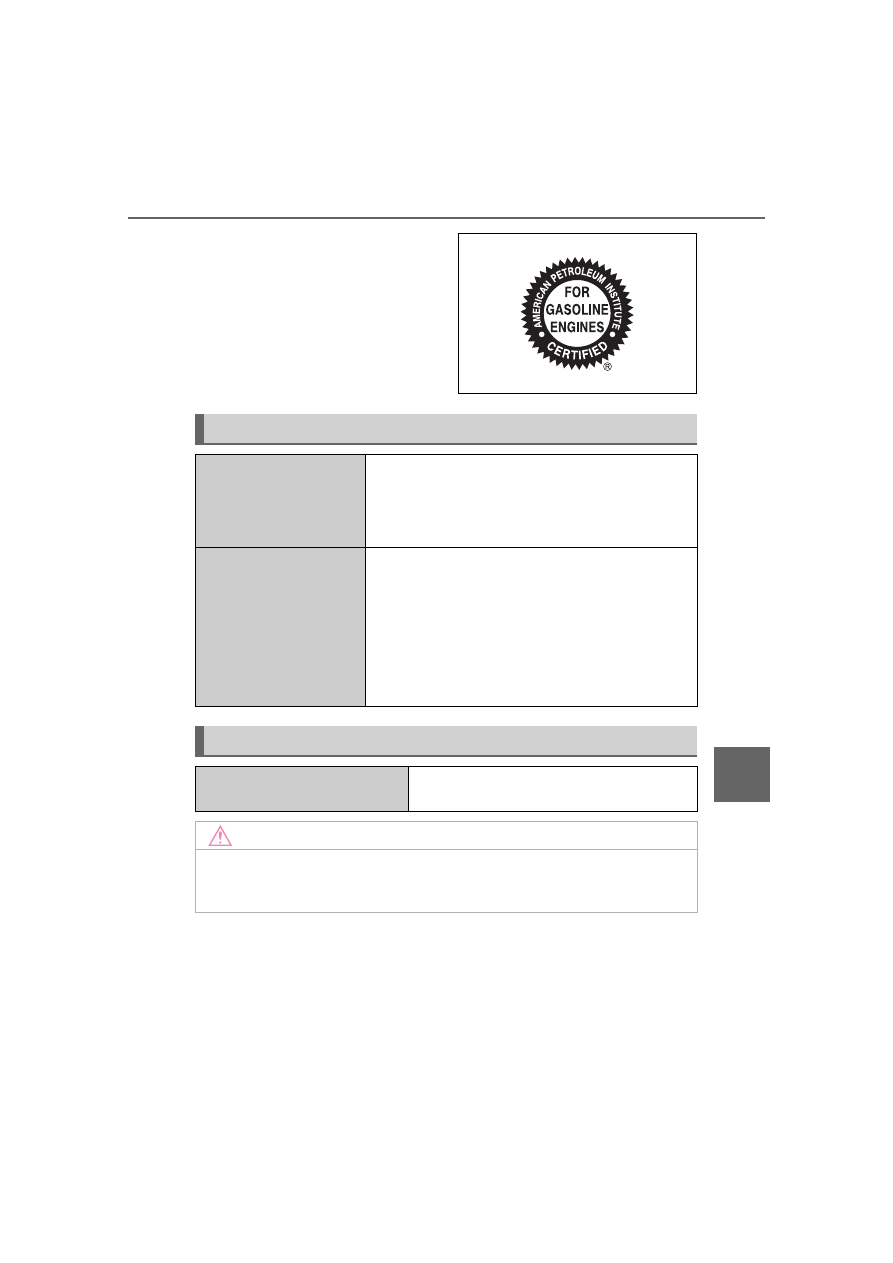

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6A multi-
grade engine oil
Recommended viscosity: SAE
0W-20
SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

Outside temperature

Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 20 in 0W-20 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.

Lubrication system

With filter

5.3 qt. (5.0 L, 4.4 Imp. qt.)

Without filter

5.1 qt. (4.8 L, 4.2 Imp. qt.)

383

8-1. Specifications

Vehicle

specificatio

How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you
should use.

Cooling system

Capacity



Vehicles with an automatic transmission

8.1 qt. (7.7 L, 6.8 Imp. qt.)



Vehicles with a manual transmission

7.8 qt. (7.4 L, 6.5 Imp. qt.)

Coolant type

Use either of the following.



“TOYOTA Genuine 50/50 Pre-mixed Super
Long Life Coolant BLUE”



Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make
Gap

DENSO ZXE27HBR8
0.031 in. (0.8 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust gap when tuning

engine.

Content .. 21 22 23 24 ..
