318

6-3. Do-it-yourself maintenance

then turn the engine switch
off.

■

If you press the tire pressure

warning reset switch acciden-

tally

If initialization is performed, adjust

the tire inflation pressure to the

specified level and initialize the tire

pressure warning system again.

■

Initialization procedure

●

Make sure to carry out initializa-

tion after adjusting the tire inflation

pressure.

Also, make sure the tires are cold

before carrying out initialization or

tire inflation pressure adjustment.

●

If you have accidentally turned the

engine switch off during initializa-

tion, it is not necessary to press

the reset switch again as initializa-

tion will restart automatically when

the engine switch has been turned

to ON for the next time.

●

If you accidentally press the reset

switch when initialization is not

necessary, adjust the tire inflation

pressure to the specified level

when the tires are cold, and con-

duct initialization again.

■

When initialization of the tire

pressure warning system has

failed

Initialization can be completed in a

few minutes. However, in the follow-

ing cases, the settings have not

been recorded and the system will

not operate properly. If repeated

attempts to record tire inflation pres-

sure settings are unsuccessful,

have the vehicle inspected by your

Toyota dealer.

●

When operating the tire pressure

warning reset switch, tire pressure

warning light does not blink 3

times.

●

After carrying out the initialization

procedure, the tire pressure warn-

ing light blinks for 1 minute then

stays on after driving for 20 min-

utes.

The tire pressure warning valve
and transmitter is equipped with
a unique ID code. When replac-
ing a tire pressure warning valve
and transmitter, it is necessary
to register the ID code. Have the
ID code registered by your Toy-
ota dealer.

■

Registering ID codes

The ID codes of the tire pressure

warning valve and transmitters for

two sets of wheels can be regis-

tered.
It is not necessary to register the ID

codes when replacing normal tires

with snow tires, if the ID codes for

the wheels of both normal tires and

snow tires are registered before-

hand.
In addition to the set of tire pressure

warning system sensor ID codes ini-

tially registered to the vehicle, a sec-

ond set of ID codes can be

registered.
A second set of tire pressure warn-

ing system sensor ID codes can be

registered at your Toyota dealer.

WARNING

■

When initializing the tire pres-

sure warning system

Do not operate the tire pressure

warning reset switch without first

adjusting the tire inflation pres-

sure to the specified level. Other-

wise, the tire pressure warning

light may not come on even if the

tire inflation pressure is low, or it

may come on when the tire infla-

tion pressure is actually normal.

Registering ID codes

319

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

When 2 sets of ID codes have been

registered, either ID code set can be

selected.

Park the vehicle in a safe
place and turn the engine
switch to ON.

Press the tire pressure warn-
ing reset switch 3 times
within 3 seconds.

The tire pressure warning
light will illuminate for 3 sec-
onds and then blink 3 times.

The tire pressure warning
light will blink for 1 minute
and then illuminate.

When the ID code change
has completed, the tire pres-
sure warning light will turn off.

Check that tire pressures are dis-

played on the multi-information dis-

play.



Stop the vehicle in a safe
place on a hard, flat surface.



Set the parking brake.



Shift the shift lever to P (auto-
matic transmission) or R
(manual transmission).



Stop the engine.

■

Jack and Jack handle

As your vehicle is equipped with an

emergency tire puncture repair kit, a

jack and jack handle for replacing a

tire are not included with your vehi-

cle. To purchase a jack and jack

handle, contact your Toyota dealer.

●

Jack

●

Jack handle

Changing the ID code set

Replacing the tire

When raising your vehicle
with a jack, position the jack
correctly.
Improper placement may
damage your vehicle or
cause injury.
If necessary tire replace-
ment seems difficult to per-
form, contact your Toyota
dealer.

Before jacking up the
vehicle

320

6-3. Do-it-yourself maintenance

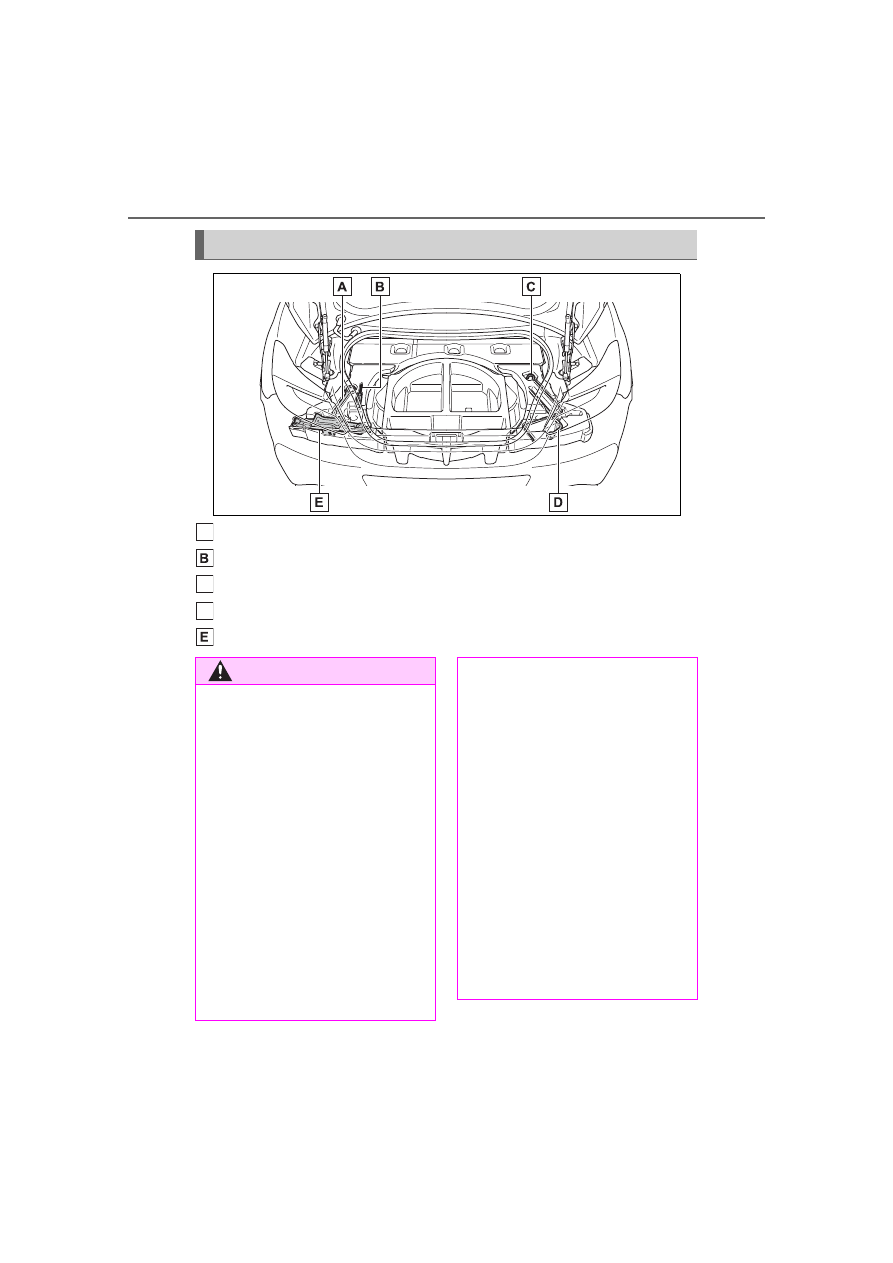

Towing eyelet
Screwdriver
Jack handle (if equipped)
Wheel nut wrench
Jack (if equipped)

Location of the jack and tools

WARNING

■

Using the tire jack

Observe the following precau-

tions.

Improper use of the tire jack may

cause the vehicle to suddenly fall

off the jack, leading to death or

serious injury.

●

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

●

Do not use other tire jacks for

replacing tires on this vehicle.

●

Always check that the tire jack

is securely set to the jack point.

●

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

●

Do not start the engine or drive

the vehicle while the vehicle is

supported by the jack.

●

Do not raise the vehicle while

someone is inside.

●

When raising the vehicle, do not

put an object on or under the

jack.

●

Do not raise the vehicle to a

height greater than that required

to replace the tire.

●

Use a jack stand if it is neces-

sary to get under the vehicle.

●

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

321

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

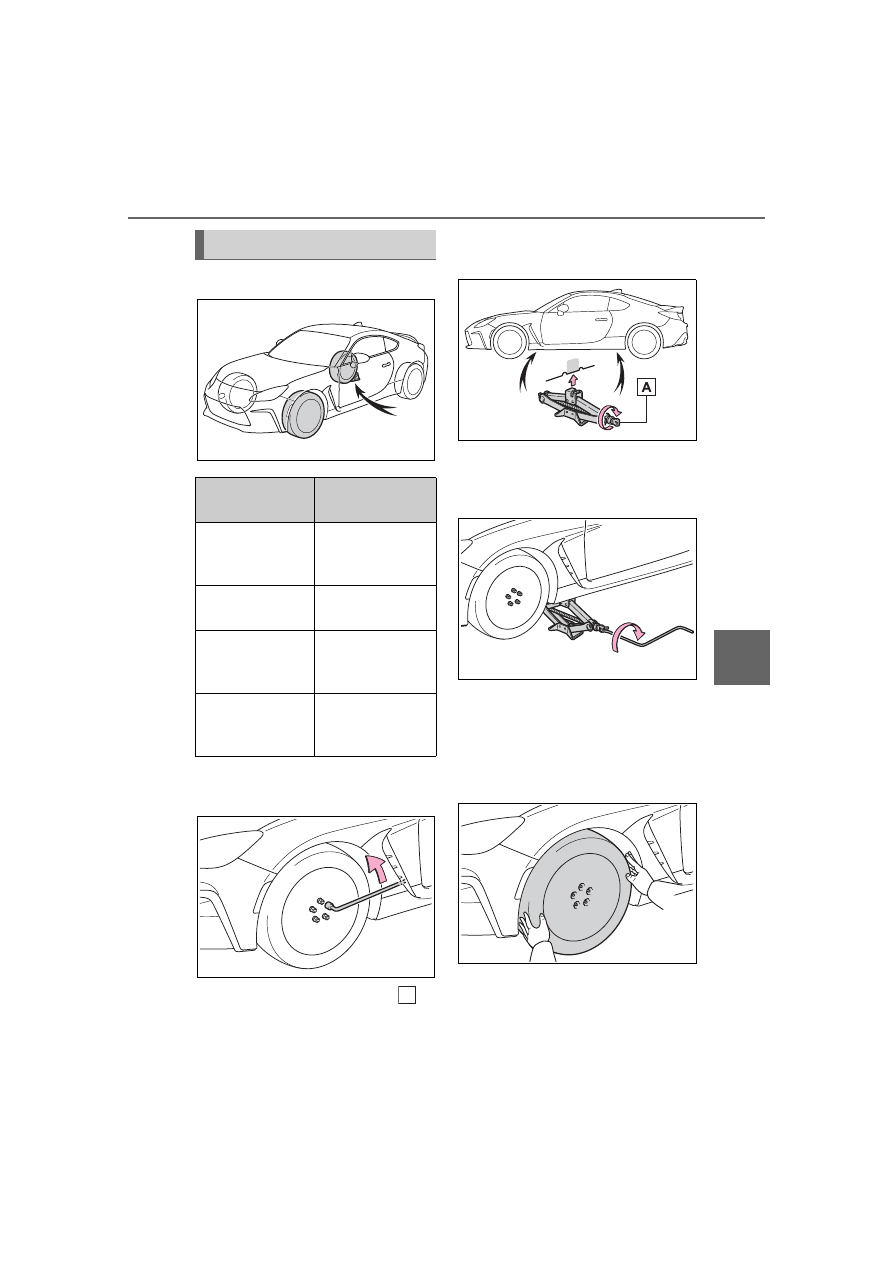

Chock the tires.

Slightly loosen the wheel
nuts (one turn).

Turn the tire jack portion
by hand until the notch of the

jack is in contact with the jack
point.

Raise the vehicle until the tire
is slightly raised off the
ground.

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

Removing a tire

Flat tire

Wheel chock

positions

Front left-hand
side

Behind the rear
right-hand side
tire

Front right-hand
side

Behind the rear
left-hand side tire

Rear left-hand
side

In front of the
front right-hand
side tire

Rear right-hand
side

In front of the
front left-hand
side tire

322

6-3. Do-it-yourself maintenance

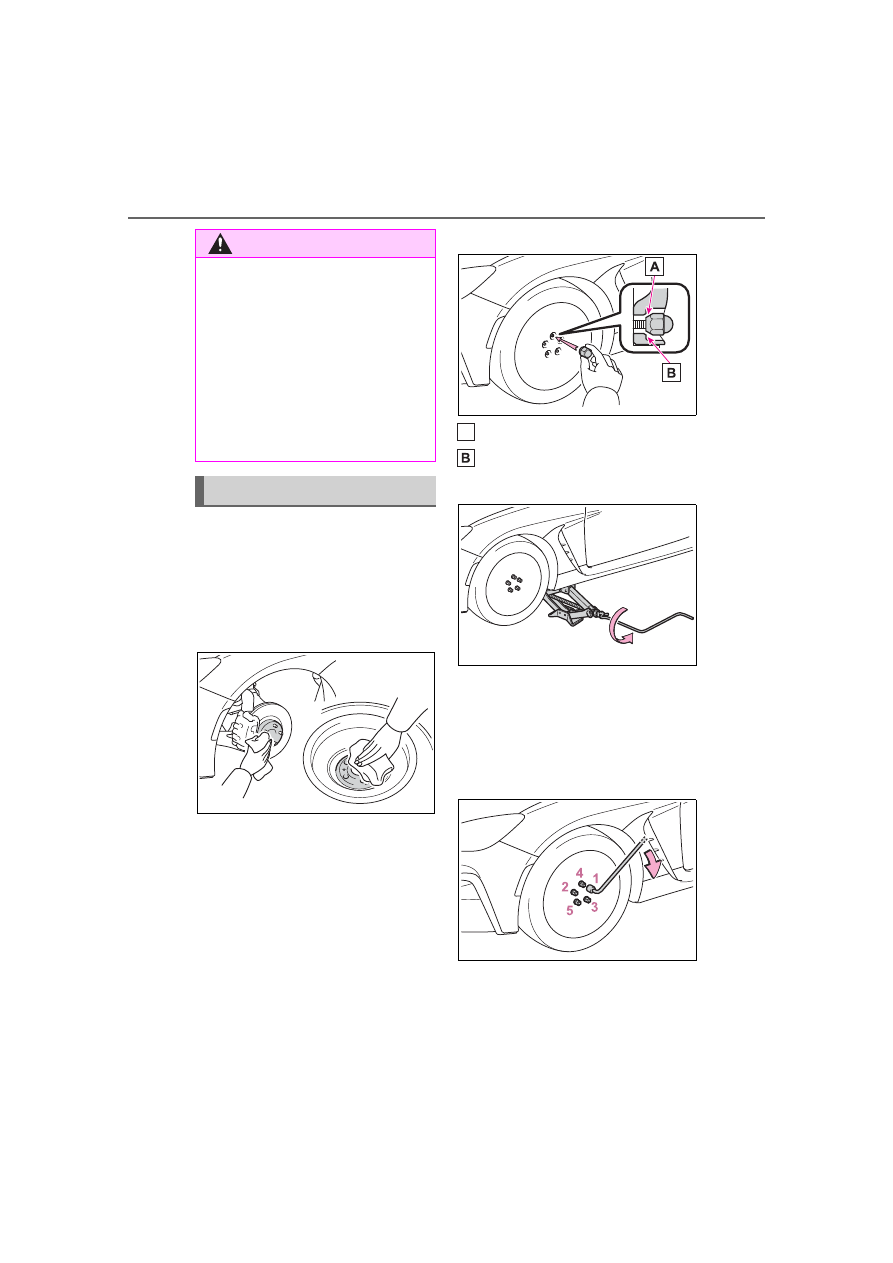

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

Install the tire and loosely
tighten each wheel nut by
hand by approximately the
same amount.

Turn the wheel nuts until the wash-

ers come into contact with the disc

wheel.

Tapered portion
Disc wheel

Lower the vehicle.

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.

Tightening torque:

89 ft•lbf (120 N•m, 12.2 kgf•m)

Stow the jack and all tools.

WARNING

■

Replacing a flat tire

Do not touch the disc wheels or

the area around the brakes imme-

diately after the vehicle has been

driven.
After the vehicle has been driven

the disc wheels and the area

around the brakes will be

extremely hot. Touching these

areas with hands, feet or other

body parts while changing a tire,

etc. may result in burns.

Installing the tire

323

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

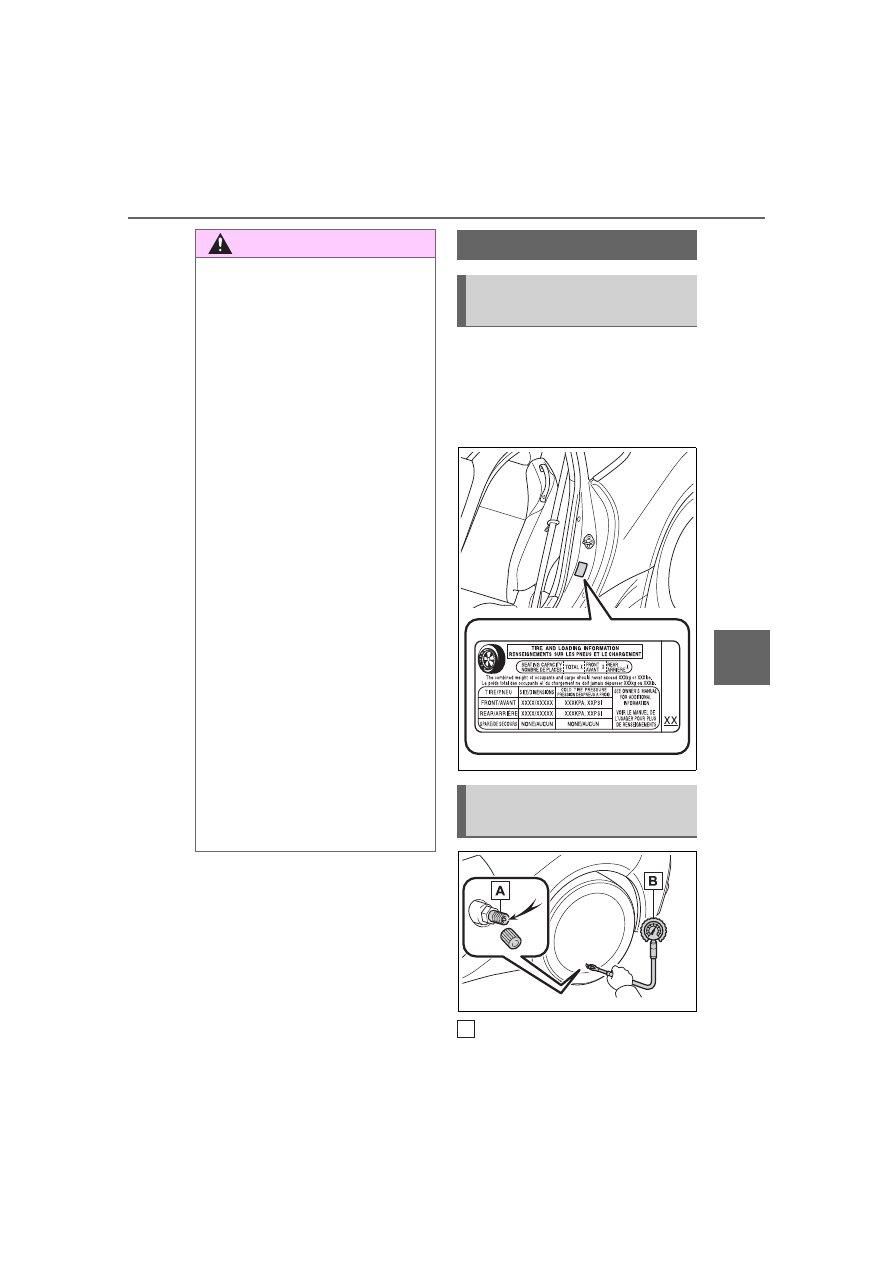

The recommended cold tire
inflation pressure and tire size
are displayed on the tire and
loading information label.
(



P.386)

Tire valve

WARNING

■

When installing the tire

Failure to follow these precau-

tions could cause the wheel nuts

to loosen and the tire to fall off,

resulting in death or serious injury.

●

Never use oil or grease on the

wheel bolts or wheel nuts.

Oil and grease may cause the

wheel nuts to be excessively tight-

ened, leading to bolt or disc wheel

damage. In addition, the oil or

grease can cause the wheel nuts

to loosen and the wheel may fall

off, causing a serious accident.

Remove any oil or grease from

the wheel bolts or wheel nuts.

●

Have the wheel nuts tightened

with a torque wrench to 89 ft•lbf

(120 N•m, 12.2 kgf•m) as soon

as possible after changing

wheels.

●

Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

●

When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

●

If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

Tire inflation pressure

Checking the specified
tire inflation pressure

Inspection and adjust-
ment procedure

324

6-3. Do-it-yourself maintenance

Tire pressure gauge

Remove the tire valve cap.

Press the tip of the tire pres-
sure gauge onto the tire
valve.

Read the pressure using the
gauge gradations.

If the tire inflation pressure is
not at the recommended
level, adjust the pressure.
If you add too much air, press
the center of the valve to
deflate.

After completing the tire infla-
tion pressure measurement
and adjustment, apply soapy
water to the valve and check
for leakage.

Put the tire valve cap back
on.

■

Tire inflation pressure check

interval

You should check tire inflation pres-

sure every two weeks, or at least

once a month.

■

Effects of incorrect tire inflation

pressure

Driving with incorrect tire inflation

pressure may result in the following:

●

Reduced fuel economy

●

Reduced driving comfort and poor

handling

●

Reduced tire life due to wear

●

Reduced safety

●

Damage to the drivetrain

If a tire needs frequent inflating,

have it checked by your Toyota

dealer.

■

Instructions for checking tire

inflation pressure

When checking tire inflation pres-

sure, observe the following:

●

Check only when the tires are

cold.

If your vehicle has been parked for

at least 3 hours or has not been

driven for more than 1 mile or 1.5

km, you will get an accurate cold

tire inflation pressure reading.

●

Always use a tire pressure gauge.

It is difficult to judge if a tire is

properly inflated based only on its

appearance.

●

It is normal for the tire inflation

pressure to be higher after driving

as heat is generated in the tire. Do

not reduce tire inflation pressure

after driving.

●

Never exceed the vehicle capacity

weight.

Passengers and luggage weight

should be placed so that the vehi-

cle is balanced.

WARNING

■

Proper inflation is critical to

save tire performance

Keep your tires properly inflated.

If the tires are not properly

inflated, the following conditions

may occur which could lead to an

accident resulting in death or seri-

ous injury:

●

Excessive wear

●

Uneven wear

●

Poor handling

●

Possibility of blowouts resulting

from overheated tires

●

Air leaking from between tire

and wheel

●

Wheel deformation and/or tire

damage

325

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

When replacing wheels, care
should be taken to ensure that
they are equivalent to those
removed in load capacity, diam-
eter, rim width and inset

Replacement wheels are avail-
able at your Toyota dealer.

: Conventionally referred to as off-

set.

Toyota does not recommend
using the following:



Wheels of different sizes or
types



Used wheels



Bent wheels that have been
straightened

■

When replacing wheels

The wheels of your vehicle are

equipped with tire pressure warning

valves and transmitters that allow

the tire pressure warning system to

provide advance warning in the

event of a loss in tire inflation pres-

sure. Whenever wheels are

replaced, tire pressure warning

valves and transmitters must be

installed. (



P.316)

WARNING

●

Greater possibility of tire dam-

age while driving (due to road

hazards, expansion joints,

sharp edges in the road, etc.)

NOTICE

■

When inspecting and adjust-

ing tire inflation pressure

Be sure to put the tire valve caps

back on.

If a valve cap is not installed, dirt

or moisture may get into the valve

and cause an air leak, resulting in

decreased tire inflation pressure.

Wheels

If a wheel is bent, cracked or
heavily corroded, it should
be replaced. Otherwise, the
tire may separate from the
wheel or cause a loss of
handling control.

Wheel selection

326

6-3. Do-it-yourself maintenance



Use only Toyota wheel nuts
and wrenches designed for
use with your aluminum
wheels.



When rotating, repairing or
changing your tires, check
that the wheel nuts are still
tight after driving 1000 miles
(1600 km).



Be careful not to damage the
aluminum wheels when using
tire chains.



Use only Toyota genuine bal-
ance weights or equivalent
and a plastic or rubber ham-
mer when balancing your
wheels.

WARNING

■

When replacing wheels

●

Do not use wheels that are a dif-

ferent size from those recom-

mended in the Owner’s Manual,

as this may result in a loss of

handling control.

●

Never use an inner tube in a

leaking wheel which is designed

for a tubeless tire. Doing so may

result in an accident, causing

death or serious injury.

■

When installing the wheel

nuts

Never use oil or grease on the

wheel bolts or wheel nuts. Oil and

grease may cause the wheel nuts

to be excessively tightened, lead-

ing to bolt or disc wheel damage.

In addition, the oil or grease can

cause the wheel nuts to loosen

and the wheel may fall off, caus-

ing an accident and resulting in

death or serious injury. Remove

any oil or grease from the wheel

bolts or wheel nuts.

■

Use of defective wheels pro-

hibited

Do not use cracked or deformed

wheels. Doing so could cause the

tire to leak air during driving, pos-

sibly causing an accident.

NOTICE

■

Replacing tire pressure warn-

ing valves and transmitters

●

Because tire repair or replace-

ment may affect the tire pres-

sure warning valves and

transmitters, make sure to have

tires serviced by your Toyota

dealer or other qualified service

shop. In addition, make sure to

purchase your tire pressure

warning valves and transmit-

ters at your Toyota dealer.

●

Ensure that only genuine Toyota

wheels are used on your vehi-

cle.

Tire pressure warning valves

and transmitters may not work

properly with non-genuine

wheels.

Aluminum wheel precau-
tions

327

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

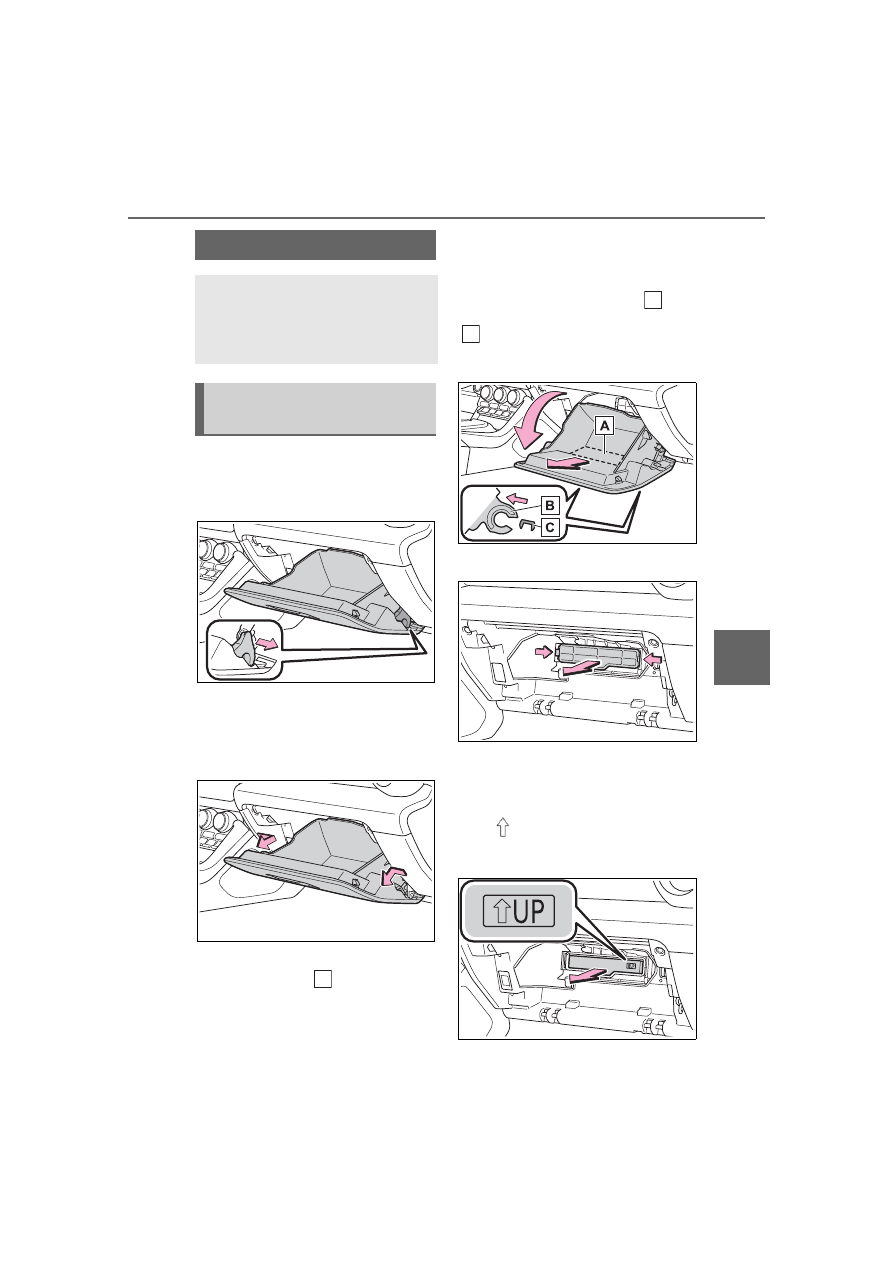

Turn the engine switch off.

Open the glove box. Slide off
the damper.

Push in each side of the
glove box and pull the glove
box toward you to disconnect
the claws.

Lower the glove box slowly
until surface ( ) is horizontal
with the floor, then pull it out.
(Simply pulling with gentle

force will disengage the lower
claws.)

Do not forcibly pull the glove box.
Otherwise, the lower claws (

) or

the lower claw engagement points
(

) may be deformed, making it

difficult to reinstall or close the

glove box.

Remove the filter cover.

Remove the air conditioning
filter and replace it with a new
one.

The “

UP” marks shown on the

filter and the filter case should be

pointing up.

Air conditioning filter

The air conditioning filter
must be changed regularly
to maintain air conditioning
efficiency.

Removing the air condi-
tioning filter

328

6-3. Do-it-yourself maintenance

When installing, reverse the
steps listed.

■

Checking interval

Inspect and replace the air condi-

tioning filter according to the mainte-

nance schedule. In dusty areas or

areas with heavy traffic flow, early

replacement may be required. (For

scheduled maintenance information,

please refer to the “Owner’s Manual

Supplement” or “Scheduled Mainte-

nance”.)

■

If air flow from the vents

decreases dramatically

The filter may be clogged. Check

the filter and replace if necessary.

■

If the electronic key battery is

depleted

The following symptoms may occur:

●

The smart key system and wire-

less remote control will not func-

tion properly.

●

The operational range will be

reduced.



Flathead screwdriver



Lithium battery CR2032

■

Use a CR2032 lithium battery

●

Batteries can be purchased at

your Toyota dealer, local electrical

appliance shops or camera stores.

●

Replace only with the same or

equivalent type recommended by

the manufacturer.

●

Dispose of used batteries accord-

ing to local laws.

NOTICE

■

When removing the glove box

Do not forcibly pull the glove box.

Otherwise, the lower claws or the

lower claw engagement points

may be deformed, making it diffi-

cult to reinstall or close the glove

box.

■

When using the air condition-

ing system

Make sure that a filter is always

installed.

Using the air conditioning system

without a filter may cause damage

to the system.

Electronic key battery

Replace the battery with a
new one if it is depleted.
As the key may be damaged
if the following procedure is
not performed properly, it is
recommended that key bat-
tery replacement be per-
formed by your Toyota
dealer.

Items to prepare

329

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

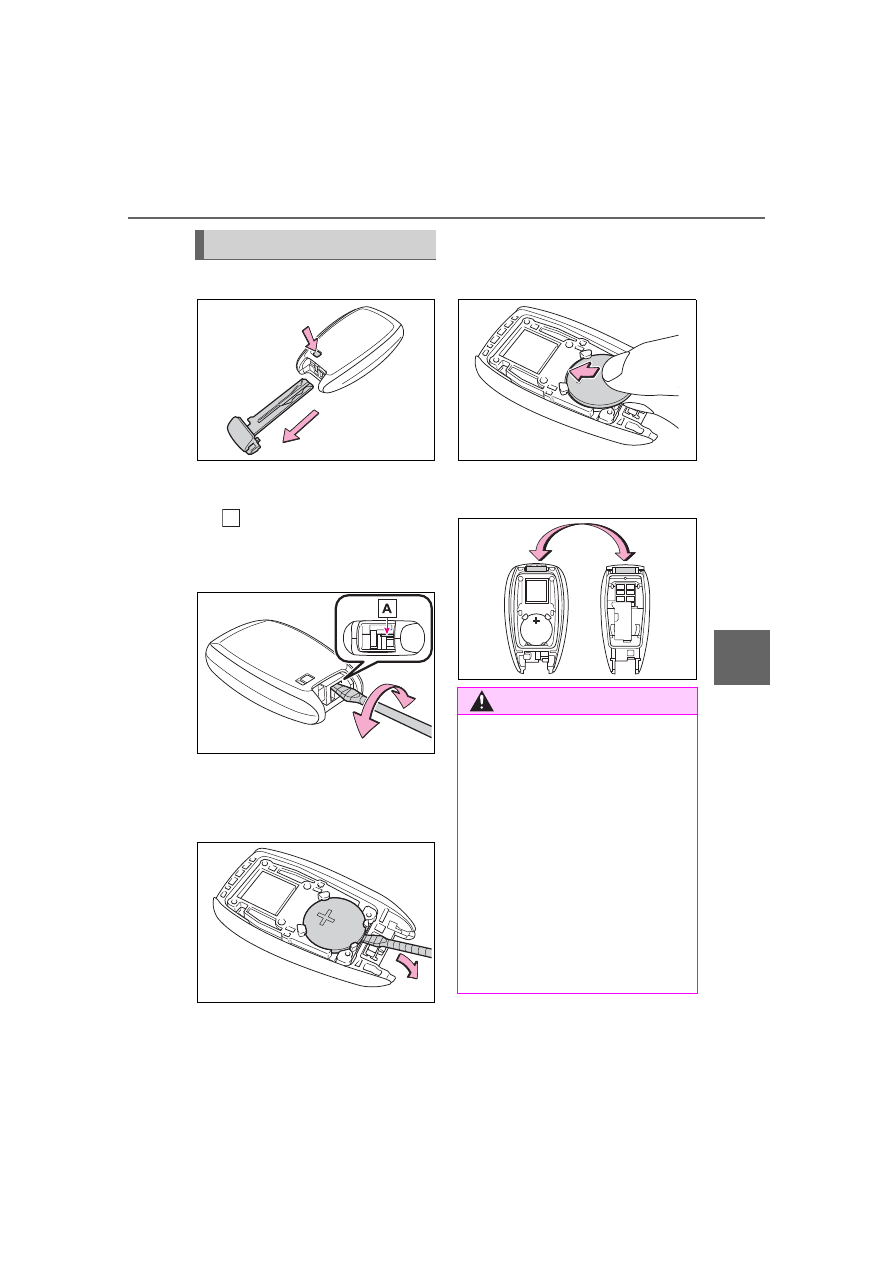

Take out the mechanical key.

Insert the tip of a flathead
screwdriver into the groove
( ) and remove the cover.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

Remove the depleted battery.

To prevent damage to the key,

cover the tip of the flathead screw-

driver with a rag.

Install a new battery with the
“+” terminal facing up, as
shown in the illustration.

Align the protruding part with
the slot and install the cover.

Replacing the battery

WARNING

■

Battery precautions

Observe the following precau-

tions. Failure to do so may result

in death or serious injury.

●

Do not swallow the battery.

Doing so may cause chemical

burns.

●

A coin battery or button battery

is used in the electronic key. If a

battery is swallowed, it may

cause severe chemical burns in

as little as 2 hours and may

result in death or serious injury.

●

Keep away new and removed

batteries from children.

330

6-3. Do-it-yourself maintenance

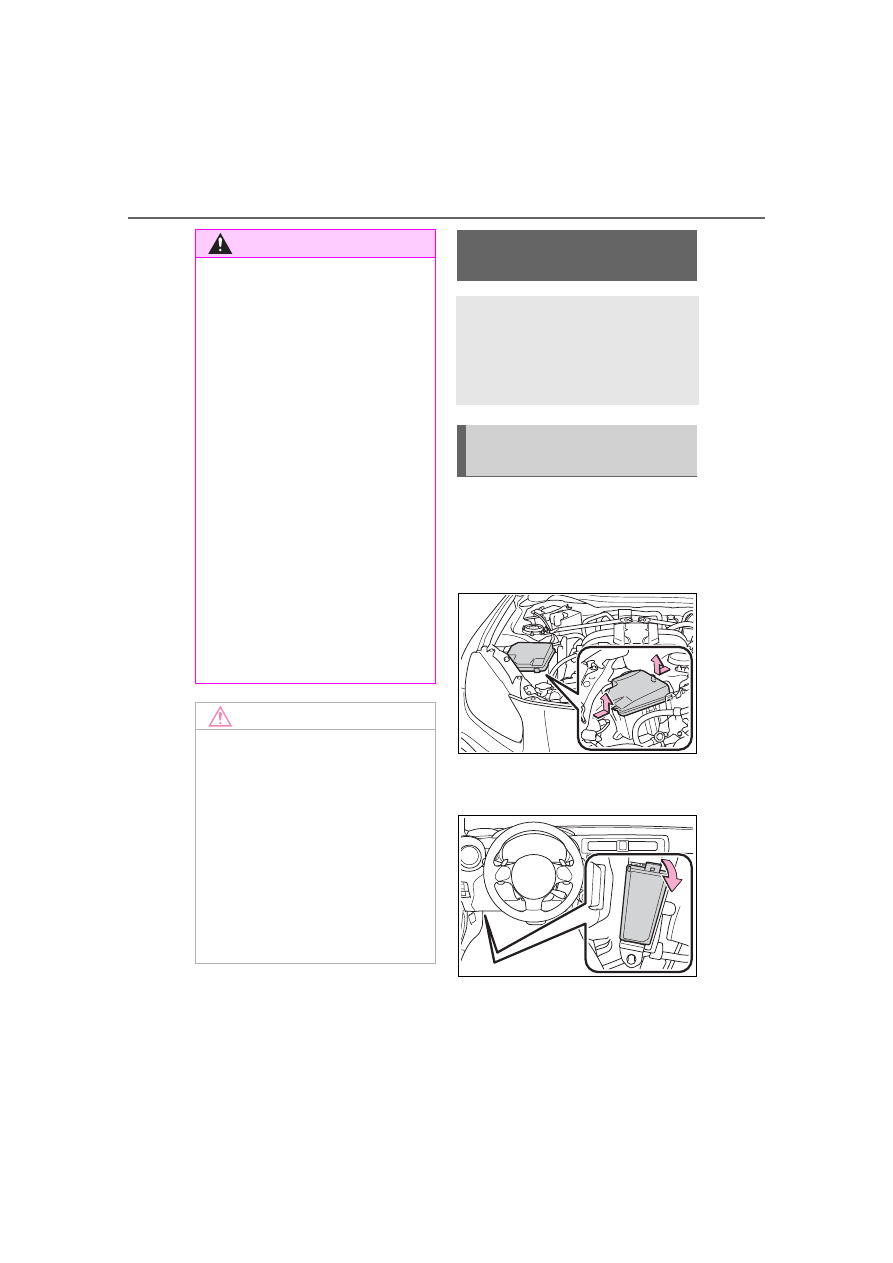

Turn the engine switch off.

Open the fuse box cover.



Engine compartment

Push the tab in and lift the lid off.



Instrument panel

Remove the lid.

Remove the fuse with the
pullout tool.

Only type A fuses can be removed

WARNING

●

If the cover cannot be firmly

closed, stop using the electronic

key and stow the key in the

place where children cannot

reach, and then contact your

Toyota dealer.

●

If you accidentally swallow a

battery or put a battery into a

part of your body, get emer-

gency medical attention imme-

diately.

■

To prevent battery explosion

or leakage of flammable liq-

uid or gas

●

Replace the battery with a new

battery of the same type. If a

wrong type of battery is used, it

may explode.

●

Do not expose batteries to

extremely low pressure due to

high altitude or extremely high

temperatures.

●

Do not burn, break or cut a bat-

tery.

NOTICE

■

For normal operation after

replacing the battery

Observe the following precautions

to prevent accidents:

●

Always work with dry hands.

Moisture may cause the battery

to rust.

●

Do not touch or move any other

component inside the remote

control.

●

Do not bend either of the battery

terminals.

Checking and replac-

ing fuses

If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.

Checking and replacing
fuses

331

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

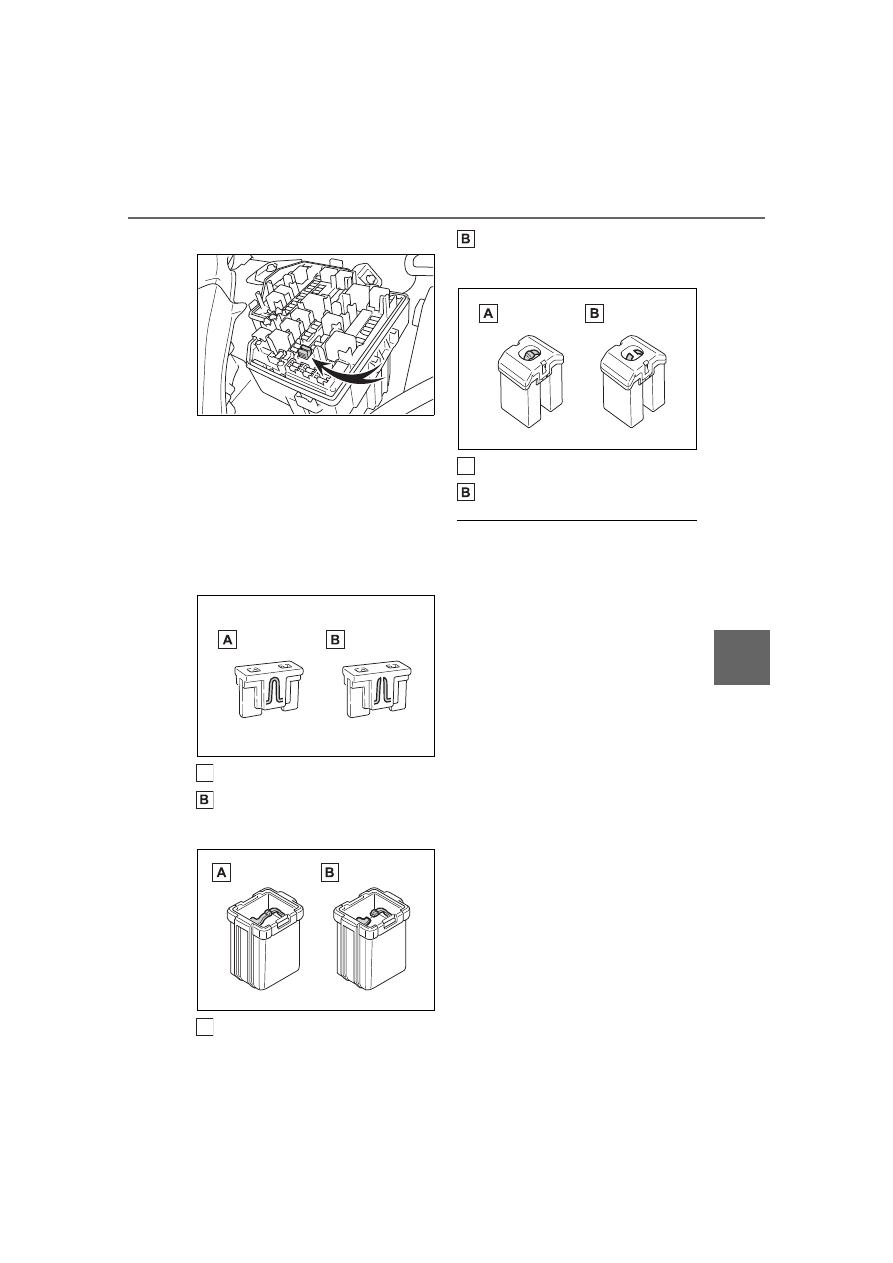

using the pullout tool.

Check if the fuse is blown.

Type A and B:

Replace the blown fuse with a new

fuse of an appropriate amperage

rating. The amperage rating can be

found on the fuse box lid.
Type C:

Contact your Toyota dealer.



Type A

Normal fuse
Blown fuse



Type B

Normal fuse

Blown fuse



Type C

Normal fuse
Blown fuse

■

After a fuse is replaced

●

If the lights do not turn on even

after the fuse has been replaced,

a bulb may need replacement.

●

If the replaced fuse blows again,

have the vehicle inspected by

your Toyota dealer.

■

If there is an overload in a cir-

cuit

The fuses are designed to blow, pro-

tecting the wiring harness from

damage.

■

When replacing light bulbs

Toyota recommends that you use

genuine Toyota products designed

for this vehicle.

Because certain bulbs are con-

nected to circuits designed to pre-

vent overload, non-genuine parts or

parts not designed for this vehicle

may be unusable.

332

6-3. Do-it-yourself maintenance

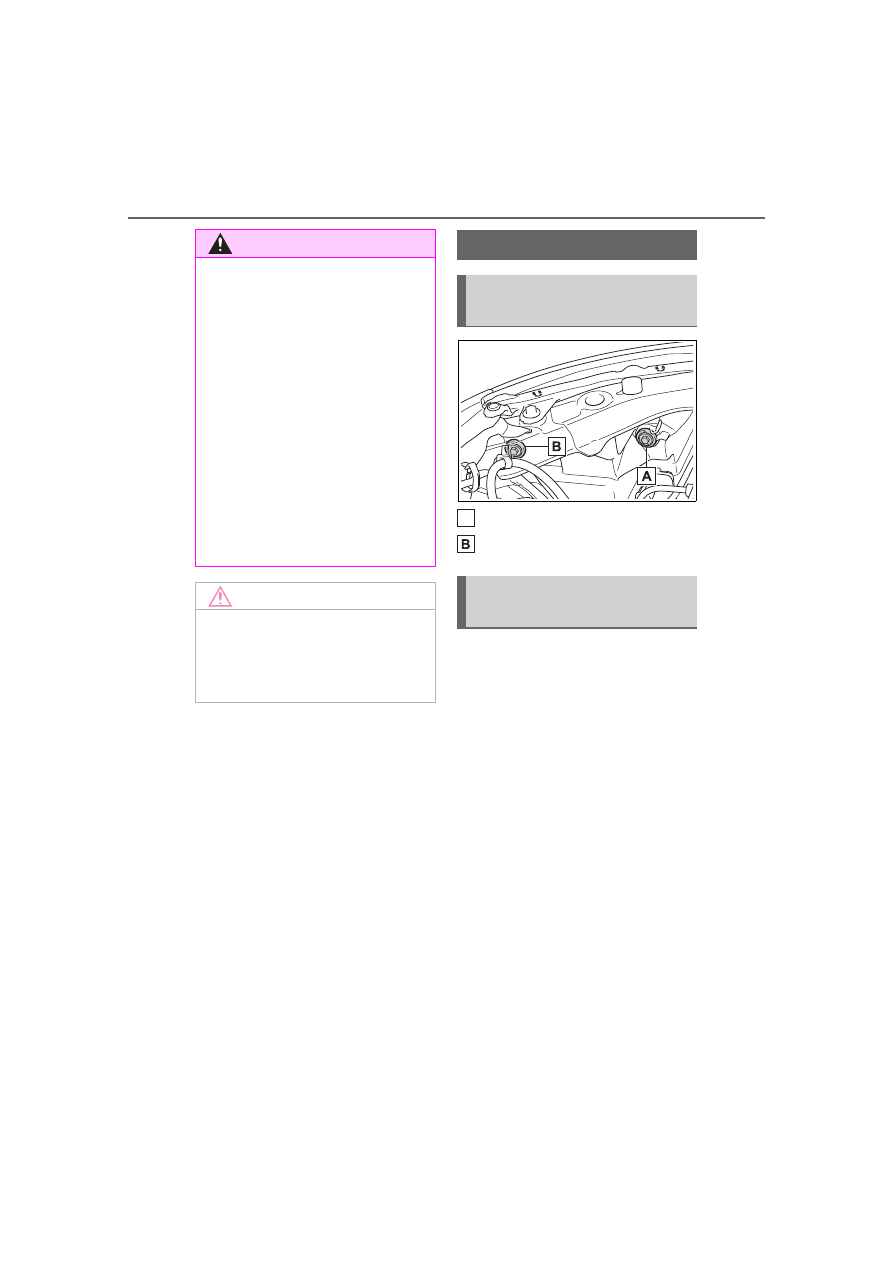

Adjustment bolt A
Adjustment bolt B



Make sure the vehicle has a
full tank of gasoline and the
area around the headlight is
not deformed.



Park the vehicle on level
ground.



Make sure the tire inflation
pressure is at the specified
level.



Have someone sit in the
driver’s seat.



Bounce the vehicle several
times.

WARNING

■

To prevent system break-

downs and vehicle fire

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the vehicle, and possibly a

fire or injury.

●

Never use a fuse of a higher

amperage rating than that indi-

cated, or use any other object in

place of a fuse.

●

Always use a genuine Toyota

fuse or equivalent.

Never replace a fuse with a

wire, even as a temporary fix.

●

Do not modify the fuses or fuse

boxes.

NOTICE

■

Before replacing fuses

Have the cause of electrical over-

load determined and repaired by

your Toyota dealer as soon as

possible.

Headlight aim

Vertical movement adjust-
ing bolts

Before checking the head-
light aim

333

6-3. Do-it-yourself maintenance

Maintena

nce
a

nd ca

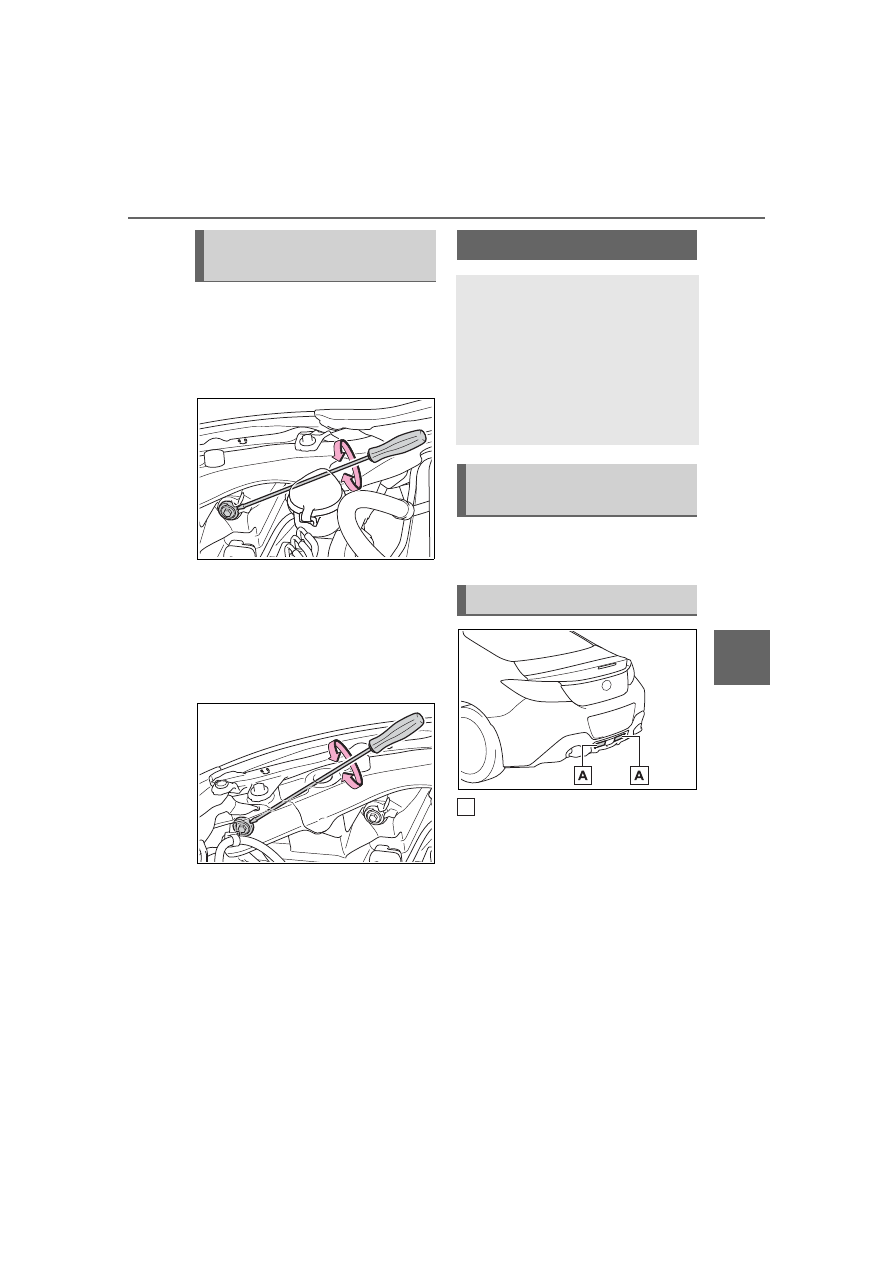

Using a Phillips-head screw-
driver, turn bolt A in either
direction.

Remember the turning direction

and the number of turns.

Turn bolt B the same number
of turns and in the same
direction as step

If the headlight cannot be adjusted

using this procedure, take the vehi-

cle to your Toyota dealer to adjust

the headlight aim.

Check the wattage of the light
bulb to be replaced. (



P.387)

Back-up light

■

Bulbs that need to be
replaced by your Toyota
dealer



Headlights



Parking lights/daytime run-
ning lights



Front turn signal lights



Side marker lights



Stop/tail lights

Adjusting the headlight
aim

Light bulbs

You may replace the follow-
ing bulbs by yourself. The
difficulty level of replace-
ment varies depending on
the bulb. If necessary bulb
replacement seems difficult
to perform, contact your
Toyota dealer.

Preparing for light bulb
replacement

Bulb locations

Content .. 18 19 20 21 ..
