8-2. Steps to take in an emergency

tro

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift

lever with the accelerator pedal

depressed.

This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the front wheels

and depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

507

Vehicle

specificatio

Vehicle specifications

9-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

508

Fuel information ..........

515

Tire information ...........

517

9-2. Customization

Customizable features

..................................

528

9-3. Initialization

Items to initialize .........

536

508

9-1. Specifications

9-1.Specifications

:Unladen vehicles

:For Guam and Saipan

■

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.

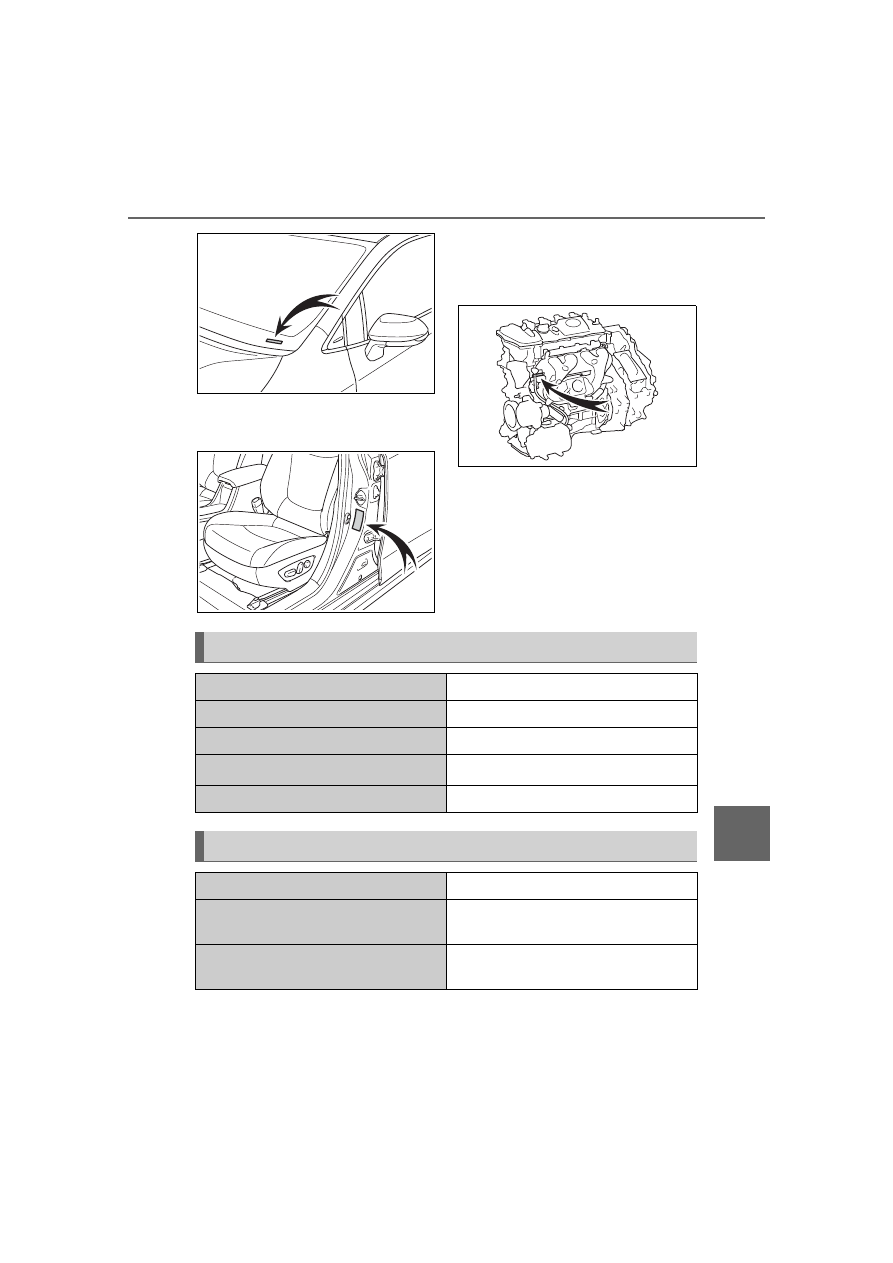

This number is stamped under
the right-hand front seat.

This number is also stamped on
the top left of the instrument
panel.

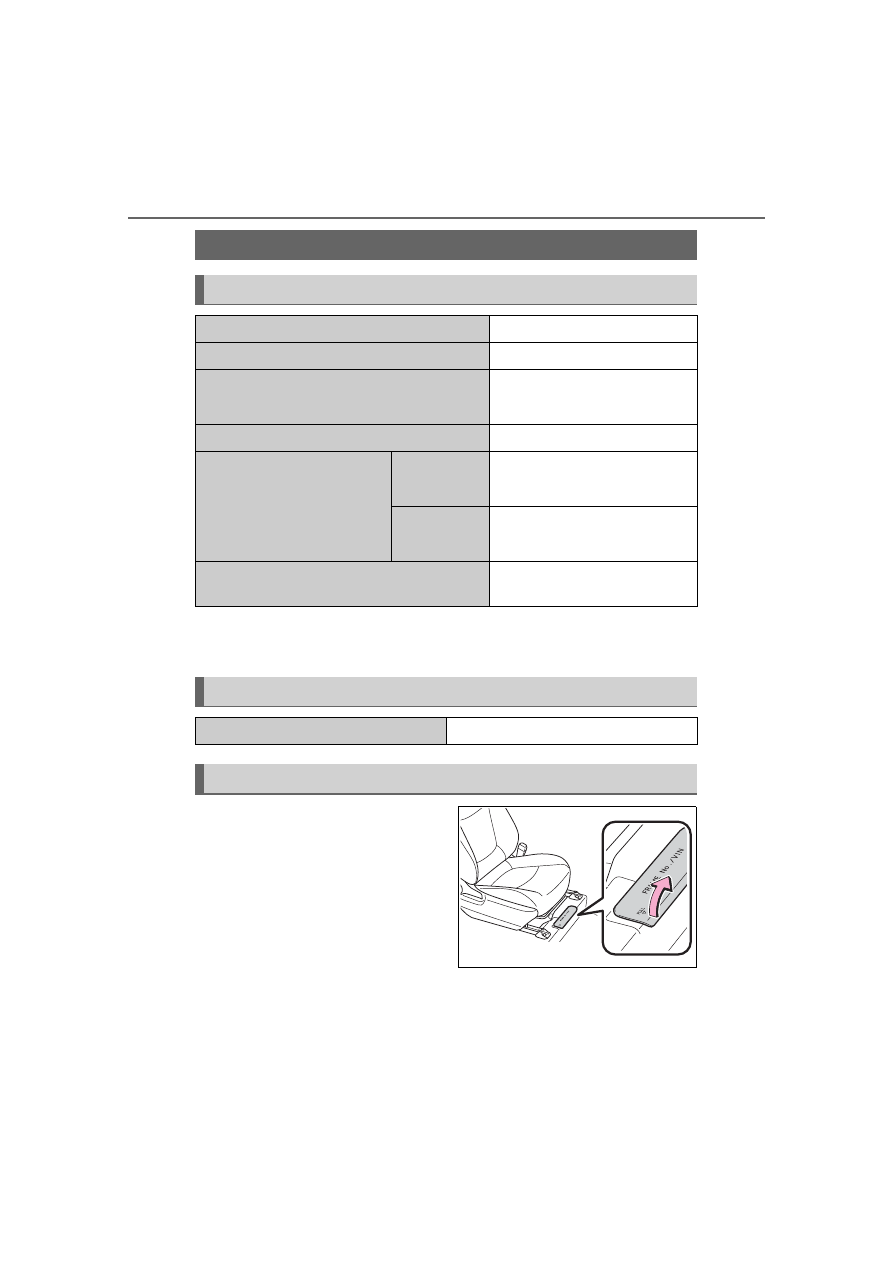

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

182.3 in. (4630 mm)

Overall width

70.1 in. (1780 mm)

Overall height

56.5 in. (1435 mm)

57.3 in. (1455 mm)

Wheelbase

106.3 in. (2700 mm)

Tread

Front

60.1 in. (1527 mm)

60.3 in. (1531 mm)

Rear

60.1 in. (1526 mm)

60.4 in. (1534 mm)

Vehicle capacity weight
(Occupants + luggage)

825 lb. (375 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

509

9-1. Specifications

Vehicle

specificatio

This number is also on the Certi-
fication Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

Engine

Model

1.8 L 4-cylinder (2ZR-FXE)

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

3.17



3.48 in. (80.5



88.3 mm)

Displacement

109.7 cu. in. (1798 cm

)

Valve clearance

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane Rating

87 (Research Octane Number 91) or
higher

Fuel tank capacity
(Reference)

11.4 gal. (43.0 L, 9.5 Imp. gal.)

510

9-1. Specifications

■

Oil capacity (Drain and refill
[Reference

])

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. Warm up
the engine and turn off the hybrid
system, wait more than 5 min-
utes, and check the oil level on
the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to

satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-6B multi-
grade engine oil
Recommended viscosity: SAE
0W-16

Outside temperature

SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.

Electric motor (traction motor)

Type

Permanent magnet synchronous
motor

Maximum output

53 kW

Maximum torque

120.2 ft•lbf (163 N•m, 16.6 kgf•m)

Hybrid battery (traction battery)

Type

Nickel-Metal hydride
battery

Lithium-ion battery

Voltage

7.2 V/module

3.7 V/cell

Capacity

6.5 Ah

4.0 Ah

Quantity

28 modules

56 cells

Nominal voltage

201.6 V

207.2 V

Lubrication system

With filter

4.4 qt. (4.2 L, 3.7 Imp.
qt.)

Without
filter

4.1 qt. (3.9 L, 3.4 Imp.
qt.)

511

9-1. Specifications

Vehicle

specificatio

However, it must be replaced
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 16 in 0W-16 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
value) may be better suited if

the vehicle is operated at high
speeds, or under extreme
load conditions.

How to read oil container label:
API registered marks is added
to some oil containers to help
you select the oil you should
use.

Cooling system

Capacity
(Refer-
ence)

Gasoline
engine

5.9 qt. (5.6 L, 4.9 Imp. qt.)

Power con-
trol unit

1.5 qt. (1.4 L, 1.2 Imp. qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based
non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid organic
acid technology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO FC16HR-CY9

Gap

0.035 in. (0.9 mm)

512

9-1. Specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system (12-volt battery)

Open voltage at 68°F (20°C):

12.0 V or higher
(Turn the power switch off and turn on the
high beam headlights for 30 seconds.)

Charging rates
Quick charge
Slow charge

15 A max.
5 A max.

Hybrid transmission

Fluid capacity

3.8 qt. (3.6 L, 3.2 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Hybrid transmission fluid type

Using transmission fluid other than the above type may cause abnormal

noise or vibration, or ultimately damage the transmission of your vehicle.

Brakes

Pedal clearance

5.2 in. (133 mm) Min.

Pedal free play

0.04



0.24 in. (1



6 mm)

Brake pad wear limit



Front

0.07 in. (1.8 mm)



Rear

0.08 in. (2.0 mm)

513

9-1. Specifications

Vehicle

specificatio

:Minimum pedal clearance when depressed with a force of 67.4 lbf (300

N, 30.6 kgf) while the hybrid system is operating.

:Make sure to confirm that the brake system warning light (yellow) does

not illuminate. (If the brake system warning light illuminates, refer to
P.462.)



Type A

Parking brake indicator

When pulling the parking brake switch for
1 to 2 seconds: comes on
When pushing the parking brake switch for
1 to 2 seconds: turns off

Fluid type

FMVSS No.116 DOT 3 or SAE J1703
FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

Tires and wheels

Tire size

195/65R15 91S, T125/70D17 98M

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

38 psi (260 kPa, 2.6 kgf/cm

or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

or bar)



Spare

60 psi (420 kPa, 4.2 kgf/cm

or bar)

Wheel size



6 1/2J, 17



4T (compact spare)

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

514

9-1. Specifications



Type B

A: Wedge base bulbs (clear)
B: Wedge base bulbs (amber)
C: Double end bulbs

Tire size

195/65R15 91S

Tire inflation pressure
(Recommended cold tire
inflation pressure)



Front

38 psi (260 kPa, 2.6 kgf/cm

or bar)



Rear

36 psi (250 kPa, 2.5 kgf/cm

or bar)



Spare

None

Wheel size



6 1/2J

Wheel nut torque

76 ft•lbf (103 N•m, 10.5 kgf•m)

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Front side marker lights

—

Rear side marker lights

—

Rear turn signal lights

—

Back-up lights

—

Interior

Front interior lights/personal
lights

—

Vanity lights

—

Rear interior light

—

Trunk light

—

515

9-1. Specifications

Vehicle

specificatio

■

Gasoline quality

In very few cases, driveability prob-

lems may be caused by the brand of

gasoline you are using. If driveability

problems persist, try changing the

brand of gasoline. If this does not

correct the problem, consult your

Toyota dealer.

■

Recommendation of the use of

gasoline containing detergent

additives

●

Toyota recommends the use of

gasoline that contains detergent

additives to avoid the build-up of

engine deposits.

●

All gasoline sold in the U.S.A. con-

tains minimum detergent additives

to clean and/or keep clean intake

systems, per EPA’s lowest addi-

tives concentration program.

●

Toyota strongly recommends the

use of Top Tier Detergent Gaso-

line. For more information on Top

Tier Detergent Gasoline and a list

of marketers, please go to the offi-

cial website www.toptiergas.com.

■

Recommendation of the use of

low emissions gasoline

Gasolines containing oxygenates

such as ethers and ethanol, as well

as reformulated gasolines, are avail-

able in some cities. These fuels are

typically acceptable for use, provid-

ing they meet other fuel require-

ments.
Toyota recommends these fuels,

since the formulations allow for

reduced vehicle emissions.

■

Non-recommendation of the

use of blended gasoline

●

Use only gasoline containing up to

15% ethanol.

DO NOT use any flex-fuel or gas-

oline that could contain more than

15% ethanol, including from any

pump labeled E30 (30% ethanol
[

]), E50 (50% ethanol [

]), E85

(85% ethanol [

]) (which are only

some examples of fuel containing

more than 15% ethanol).

●

If you use gasohol in your vehicle,

be sure that it has an octane rat-

ing no lower than 87.

●

Toyota does not recommend the

use of gasoline containing metha-

nol.

■

Non-recommendation of the

use of gasoline containing MMT

Some gasoline contains an octane

enhancing additive called MMT

(Methylcyclopentadienyl Manga-

nese Tricarbonyl).
Toyota does not recommend the use

of gasoline that contains MMT. If

fuel containing MMT is used, your

emission control system may be

Fuel information

You must only use unleaded
gasoline.
Select octane rating of 87
(Research Octane Number
91) or higher. Use of
unleaded gasoline with an
octane rating lower than 87
may result in engine knock-
ing. Persistent knocking
can lead to engine damage.

At minimum, the gasoline you
use should meet the specifica-
tions of ASTM D4814 in the
U.S.A.

516

9-1. Specifications

adversely affected.
The malfunction indicator lamp on

the instrument cluster may come on.

If this happens, contact your Toyota

dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light

knocking for a short time while

accelerating or driving uphill. This

is normal and there is no need for

concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If

improper fuels are used, the

engine will be damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause

damage to your vehicle’s

three-way catalytic converters

causing the emission control

system to malfunction.

●

Do not use gasohol other than

the type previously stated.

Other gasohol may cause fuel

system damage or vehicle per-

formance problems.

●

Using unleaded gasoline with

an octane number or rating

lower than the level previously

stated will cause persistent

heavy knocking.

At worst, this will lead to engine

damage.

■

Fuel-related poor driveability

If poor driveability (poor hot start-

ing, vaporization, engine knock-

ing, etc.) is encountered after

using a different type of fuel, dis-

continue the use of that type of

fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It

can damage your vehicle’s paint.

517

9-1. Specifications

Vehicle

specificatio



Full-size tire

Tire size (



P.519)

DOT and Tire Identification Number (TIN) (



P.519)

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

Location of treadwear indicators (



P.427)

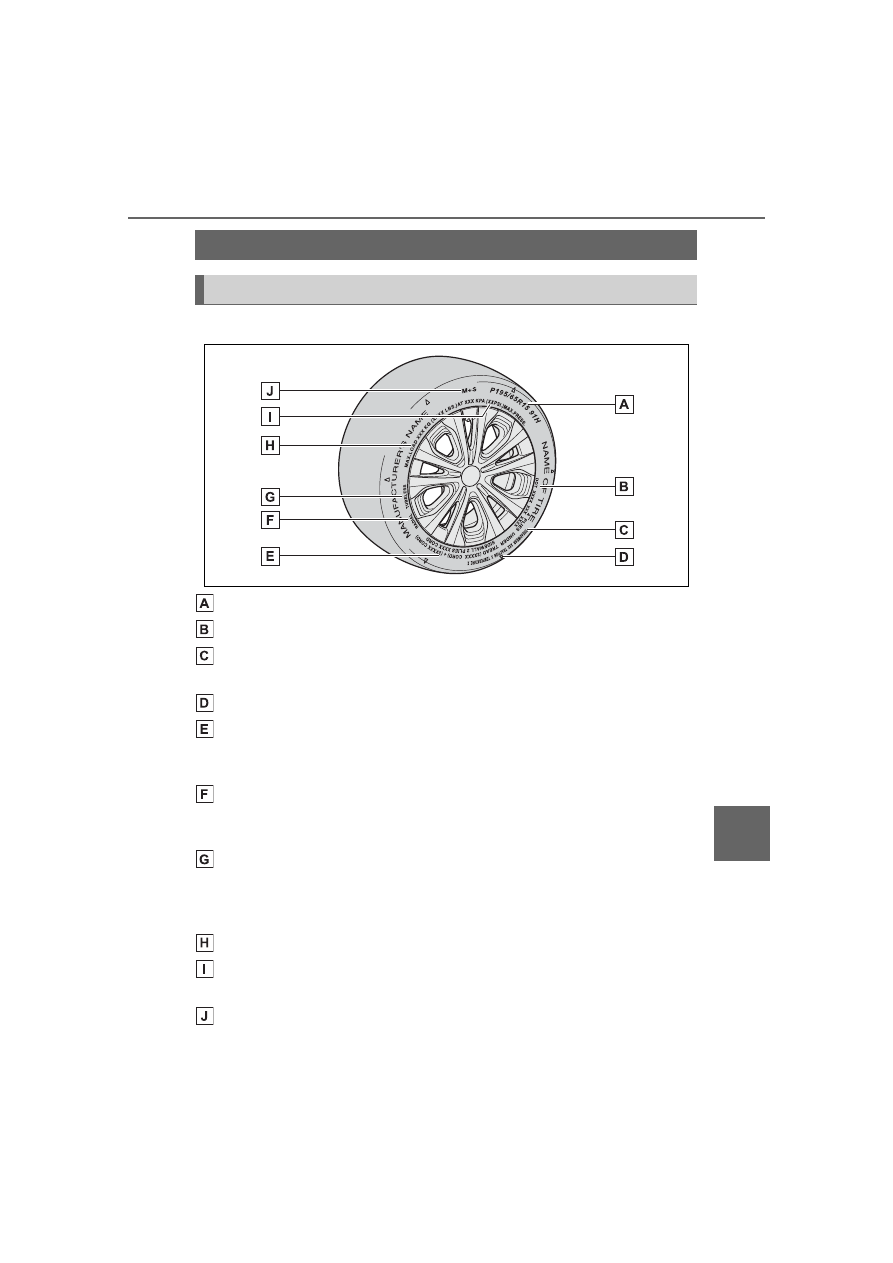

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Load limit at maximum cold tire inflation pressure (



P.428)

Maximum cold tire inflation pressure (



P.513)

This means the pressure to which a tire may be inflated.

Summer tires or all season tires (



P.428)

Tire information

Typical tire symbols

518

9-1. Specifications

An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.



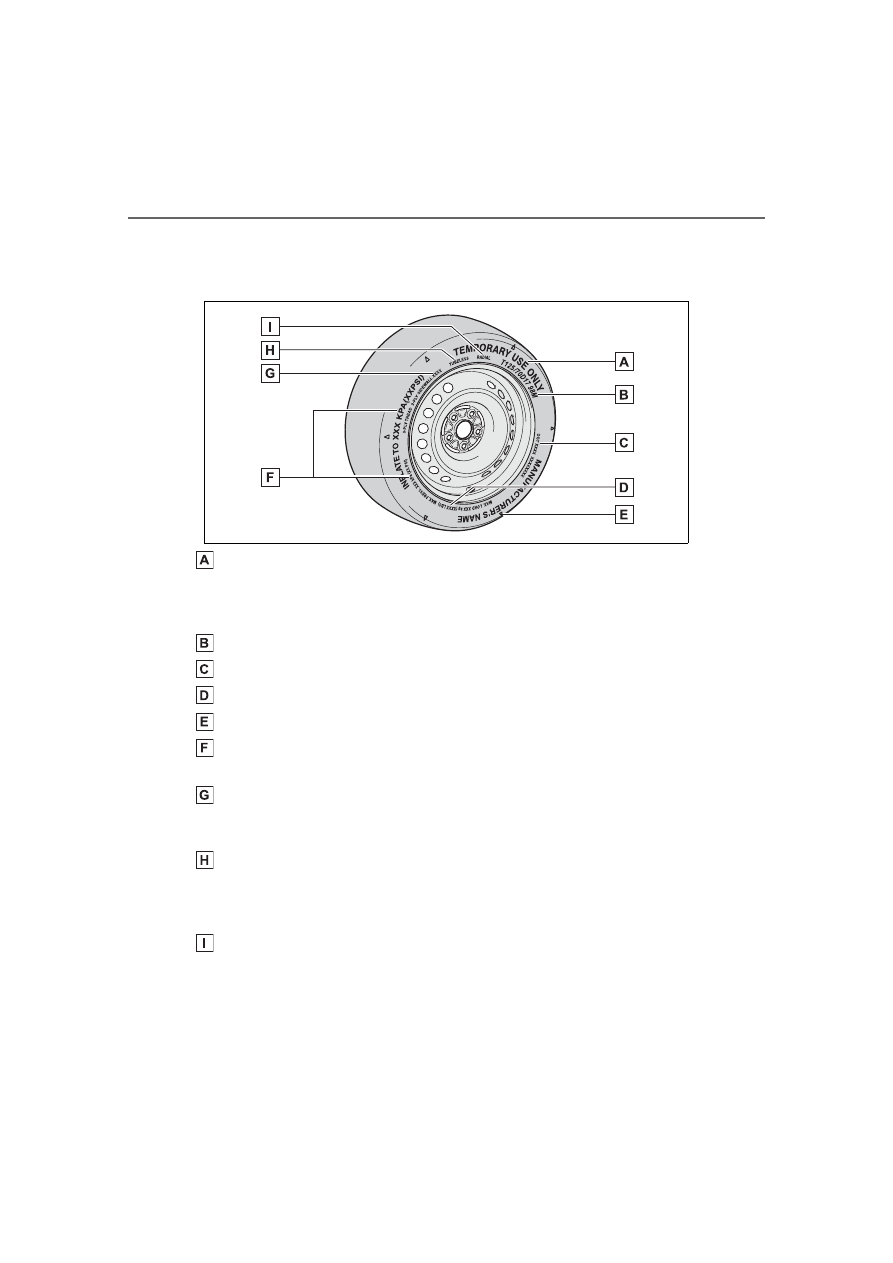

Compact spare tire

“TEMPORARY USE ONLY”

A compact spare tire is identified by the phrase “TEMPORARY USE ONLY”
molded on its sidewall. This tire is designed for temporary emergency use
only.

Tire size (



P.519)

DOT and Tire Identification Number (TIN) (



P.519)

Load limit at maximum cold tire inflation pressure (



P.428)

Location of treadwear indicators (



P.427)

Maximum cold tire inflation pressure (



P.513)

This means the pressure to which a tire may be inflated.

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pres-
sure.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL” is a
bias-ply tire.

519

9-1. Specifications

Vehicle

specificatio



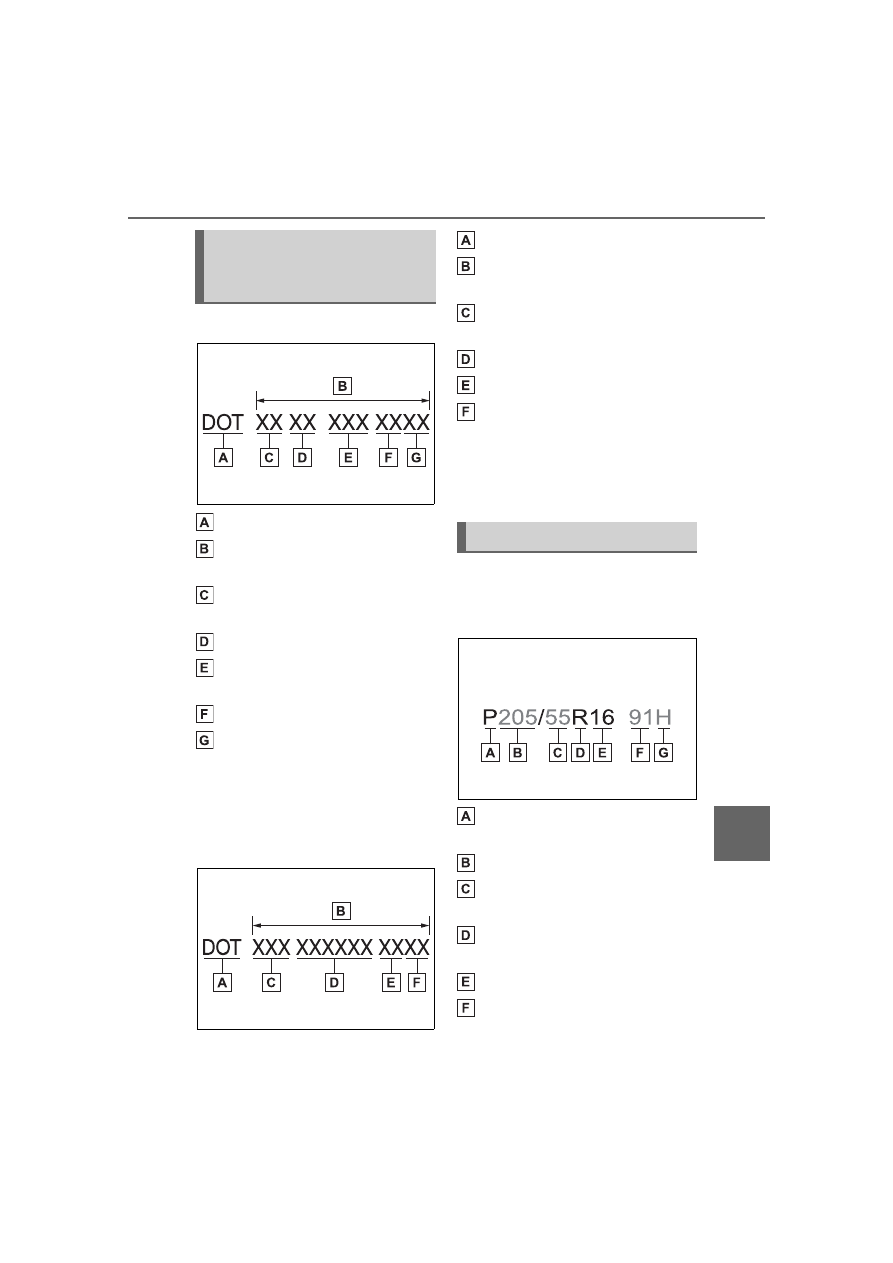

Type A

DOT symbol

Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.



Type B

DOT symbol

Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Manufacturer’s code
Manufacturing week
Manufacturing year

: The DOT symbol certifies that the

tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio (tire height to
section width)
Tire construction code (R =
Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 dig-
its)

Typical DOT and Tire
Identification Number
(TIN)

Tire size

520

9-1. Specifications

Speed symbol (alphabet with
one letter)

■

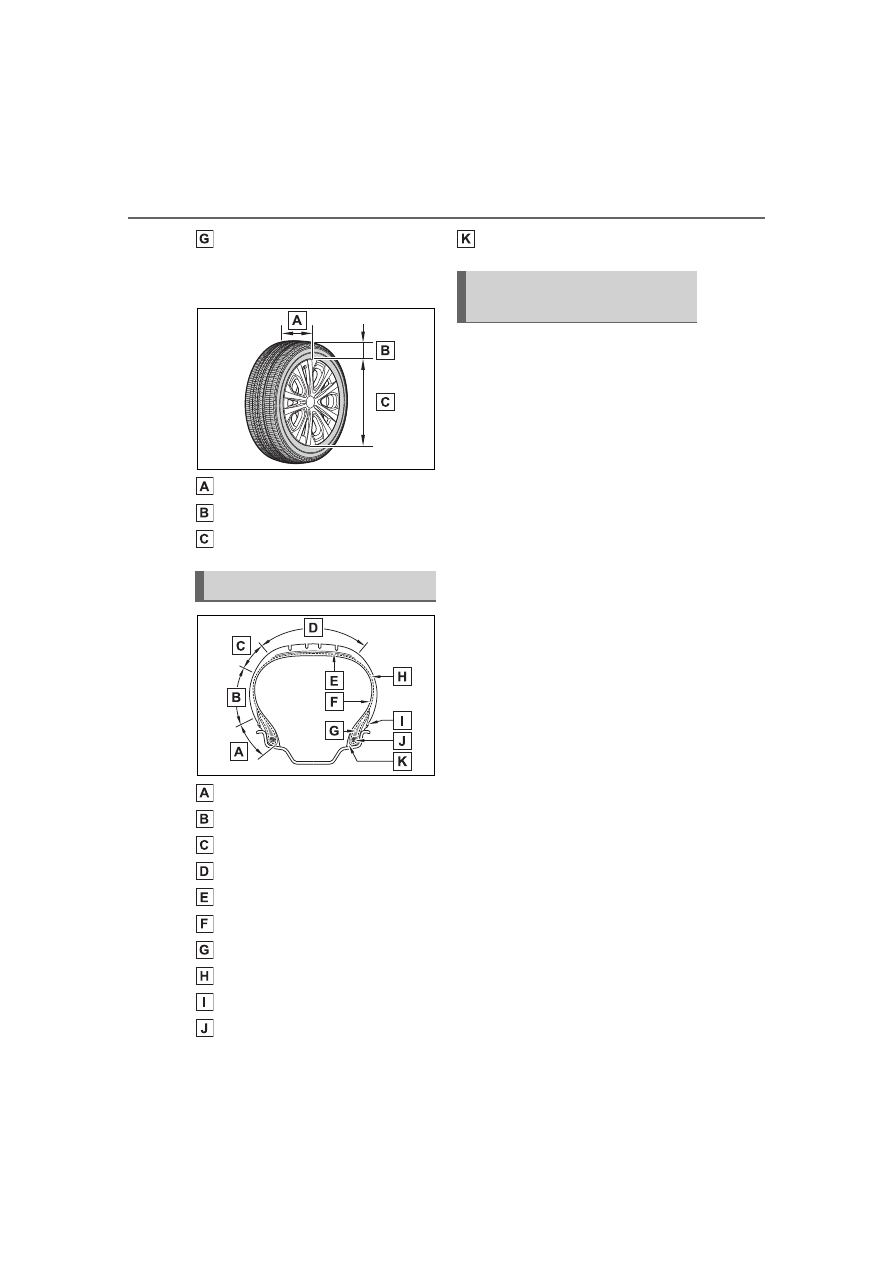

Tire dimensions

Section width
Tire height
Wheel diameter

Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires

Chafer

This information has been pre-
pared in accordance with regu-
lations issued by the National
Highway Traffic Safety Adminis-
tration of the U.S. Department of
Transportation.
It provides the purchasers
and/or prospective purchasers
of Toyota vehicles with informa-
tion on uniform tire quality grad-
ing.

Your Toyota dealer will help answer
any questions you may have as you
read this information.

■

DOT quality grades

All passenger vehicle tires must
conform to Federal Safety
Requirements in addition to
these grades. Quality grades
can be found where applicable
on the tire sidewall between
tread shoulder and maximum
section width.

For example: Treadwear 200 Trac-
tion AA Temperature A

■

Treadwear

The treadwear grade is a com-
parative rating based on the
wear rate of the tire when tested
under controlled conditions on a
specified government test
course.

For example, a tire graded 150

Tire section names

Uniform Tire Quality
Grading

521

9-1. Specifications

Vehicle

specificatio

would wear one and a half (1 - 1/2)
times as well on the government
course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use. Performance may differ
significantly from the norm due to
variations in driving habits, service
practices and differences in road
characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from high-
est to lowest, are AA, A, B and
C, and they represent the tire’s
ability to stop on wet pavement
as measured under controlled
conditions on specified govern-
ment test surfaces of asphalt
and concrete.

A tire marked C may have poor
traction performance.
Warning: The traction grade
assigned to this tire is based on
braking (straight ahead) traction
tests and does not include corner-
ing (turning) traction.

■

Temperature A, B, C

The temperature grades are A

(the highest), B, and C, repre-
senting the tire’s resistance to
the generation of heat and its
ability to dissipate heat when
tested under controlled condi-
tions on a specified indoor labo-
ratory test wheel.

Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure.
Grade C corresponds to a level of
performance which all passenger
car tires must meet under the Fed-
eral Motor Vehicle Safety Standard
No. 109.
Grades B and A represent higher
levels of performance on the labo-
ratory test wheel than the minimum
required by law.
Warning: The temperature grades
of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can cause
heat buildup and possible tire fail-
ure.

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pressure

Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km
under that condition

Maximum inflation pressure

The maximum cold inflated pressure to
which a tire may be inflated, shown on the
sidewall of the tire

Content .. 29 30 31 32 ..
