Toyota Corolla Hybrid (2022 year). Manual in english - page 30

489

8-2. Steps to take in an emergency

tro

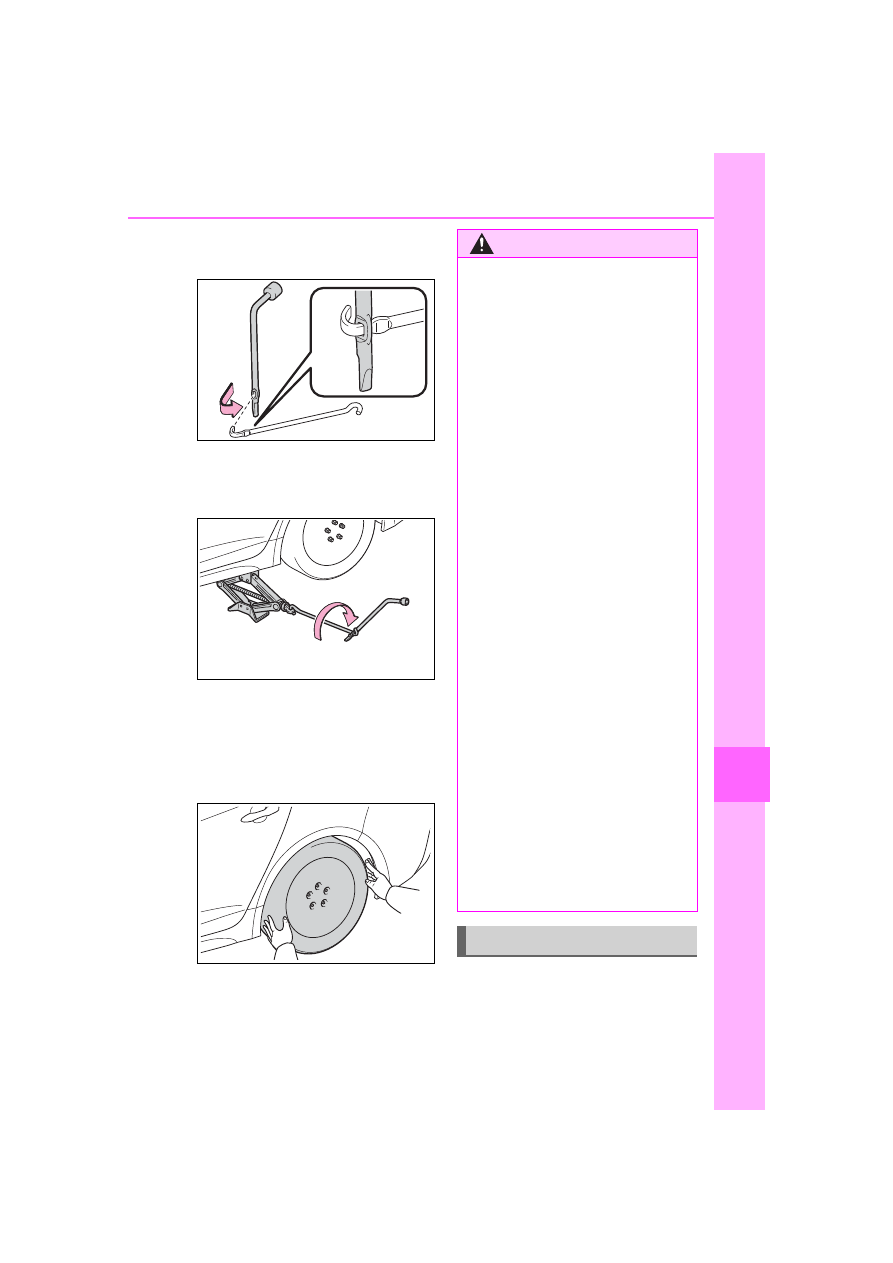

Assemble the jack handle
extension.

Raise the vehicle until the tire
is slightly raised off the
ground.

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

Remove any dirt or foreign
matter from the wheel con-
tact surface.

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven. After the vehi-

cle has been driven the disc

wheels and the area around the

brakes will be extremely hot.

Touching these areas with

hands, feet or other body parts

while changing a tire, etc. may

result in burns.

●

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• Have the wheel nuts tightened

with a torque wrench to 76 ft•lbf

(103 N•m, 10.5 kgf•m) as soon

as possible after changing

wheels.

• Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• When installing the wheel nuts,

be sure to install them with the

tapered ends facing inward.

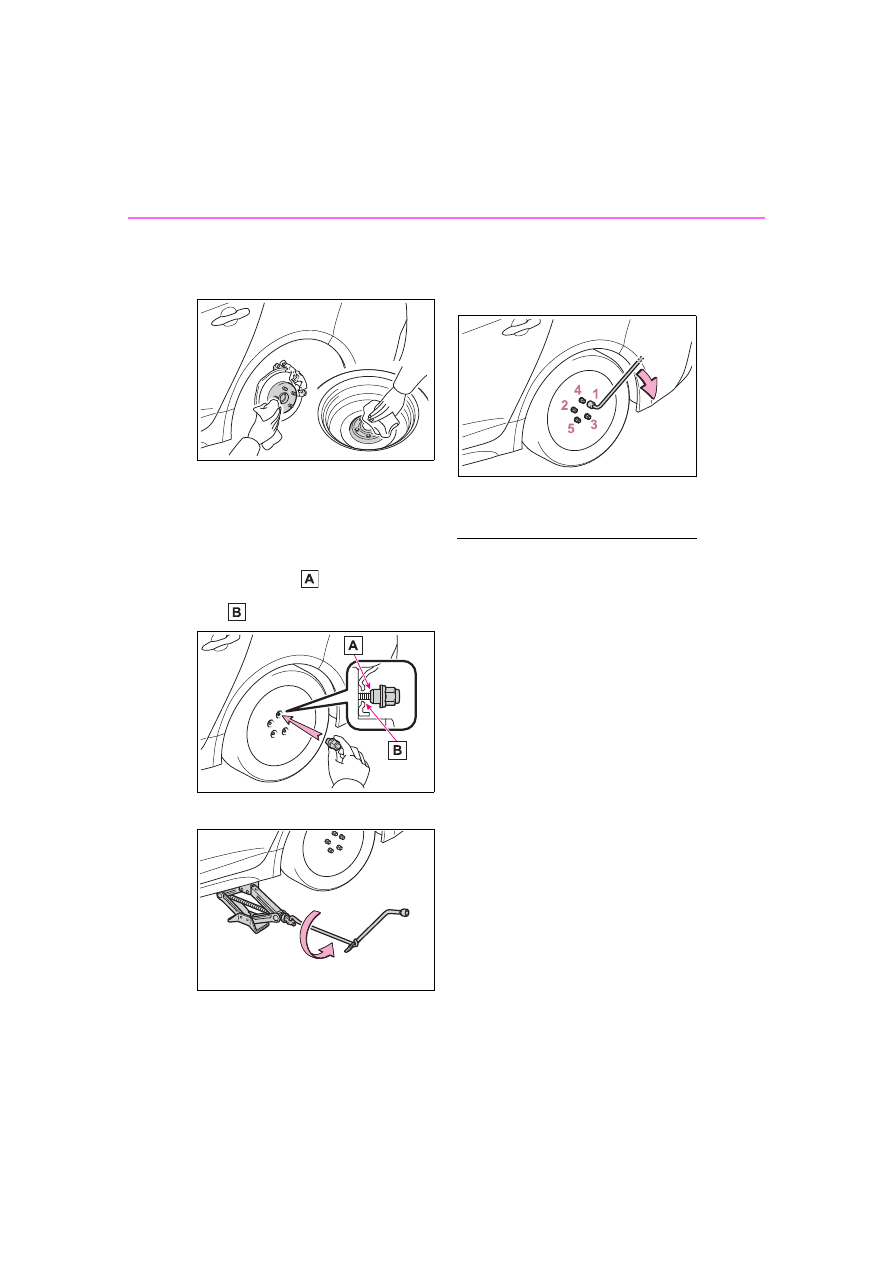

Installing the spare tire

490

8-2. Steps to take in an emergency

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

Install the tire and loosely
tighten each wheel nut by
hand by approximately the
same amount.

Tighten the wheel nuts until the
tapered portion

comes into

loose contact with the disc wheel
seat

Lower the vehicle.

Firmly tighten each wheel nut
two or three times in the

order shown in the illustra-
tion.

Tightening torque:

76 ft•lbf (103 N•m, 10.5 kgf•m)

Stow the flat tire, tire jack and
all tools.

■

The compact spare tire

●

The compact spare tire is identi-

fied by the label “TEMPORARY

USE ONLY” on the tire sidewall.

Use the compact spare tire tempo-

rarily, and only in an emergency.

●

Make sure to check the tire infla-

tion pressure of the compact

spare tire. (



P.513)

■

When the compact spare tire is

equipped

The vehicle becomes lower when

driving with the compact spare tire

compared to when driving with stan-

dard tires.

■

After completing the tire

change (vehicles with a tire

pressure warning system)

The tire pressure warning system

must be reset. (



P.431)

■

When using the compact spare

tire (vehicles with a tire pres-

sure warning system)

As the compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter, low infla-

tion pressure of the spare tire will

not be indicated by the tire pressure

warning system. Also, if you replace

491

8-2. Steps to take in an emergency

tro

the compact spare tire after the tire

pressure warning light comes on,

the light remains on.

■

If you have a flat front tire on a

road covered with snow or ice

Install the compact spare tire on one

of the rear wheels of the vehicle.

Perform the following steps and fit

tire chains to the front tires:

Replace a rear tire with the com-

pact spare tire.

Replace the flat front tire with the

tire removed from the rear of the

vehicle.

Fit tire chains to the front tires.

■

When reinstalling the wheel

ornament (except compact

spare tire)

Align the cutout of the wheel orna-

ment with the valve stem as shown

in the illustration.

WARNING

■

When using the compact

spare tire

●

Remember that the compact

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your com-

pact spare tire on another vehi-

cle.

●

Do not use more than one com-

pact spare tires simultaneously.

●

Replace the compact spare tire

with a standard tire as soon as

possible.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

■

When the compact spare tire

is attached

The vehicle speed may not be

correctly detected, and the follow-

ing systems may not operate cor-

rectly:

• ABS & Brake assist

• VSC

• TRAC

• Automatic High Beam

• Dynamic radar cruise control

with full-speed range

• EPS

• PCS (Pre-Collision System)

• LTA (Lane Tracing Assist)

• Tire pressure warning system (if

equipped)

• BSM (Blind Spot Monitor) (if

equipped)

• RCTA (Rear Cross Traffic Alert)

function (if equipped)

• Rear view monitor system

■

Speed limit when using the

compact spare tire

Do not drive at speeds in excess

of 50 mph (80 km/h) when a com-

pact spare tire is installed on the

vehicle.

The compact spare tire is not

designed for driving at high

speeds. Failure to observe this

precaution may lead to an acci-

dent causing death or serious

injury.

492

8-2. Steps to take in an emergency

WARNING

■

After using the tools and jack

Before driving, make sure all the

tools and jack are securely in

place in their storage location to

reduce the possibility of personal

injury during a collision or sudden

braking.

NOTICE

■

Be careful when driving over

bumps with the compact

spare tire installed on the

vehicle.

The vehicle becomes lower when

driving with the compact spare tire

compared to when driving with

standard tires. Be careful when

driving over uneven road sur-

faces.

■

Driving with tire chains and

the compact spare tire

Do not fit tire chains to the com-

pact spare tire. Tire chains may

damage the vehicle body and

adversely affect driving perfor-

mance.

■

When replacing the tires

(vehicles with a tire pressure

warning system)

When removing or fitting the

wheels, tires or the tire pressure

warning valve and transmitter,

contact your Toyota dealer as the

tire pressure warning valve and

transmitter may be damaged if not

handled correctly.

■

To avoid damage to the tire

pressure warning valves and

transmitters (vehicles with a

tire pressure warning system)

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. Make

sure to replace the tire pressure

warning valve and transmitter

when replacing the tire.

493

8-2. Steps to take in an emergency

Whe

n tr

ouble

ises

One of the following may be the
cause of the problem:



The electronic key may not be
functioning properly.
(



P.495)



There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle.



There may be a malfunction
in the immobilizer system.
(



P.88)



There may be a malfunction
in the steering lock system.



The hybrid system may be
malfunctioning due to an elec-
trical problem such as elec-
tronic key battery depletion or
a blown fuse. However,
depending on the type of mal-
function, an interim measure
is available to start the hybrid
system. (



P.493)

One of the following may be the
cause of the problem:



The 12-volt battery may be
discharged. (



P.497)



The 12-volt battery terminal
connections may be loose or
corroded. (



P.425)

One of the following may be the
cause of the problem:



The 12-volt battery may be
discharged. (



P.497)



One or both of the 12-volt bat-
tery terminals may be discon-
nected. (



P.425)

Contact your Toyota dealer if the
problem cannot be repaired, or if
repair procedures are unknown.

When the hybrid system does
not start, the following steps can
be used as an interim measure
to start the hybrid system if the
power switch is functioning nor-
mally.
Do not use this starting proce-
dure except in case of emer-

If the hybrid system

will not start

Reasons for the hybrid sys-
tem not starting vary
depending on the situation.
Check the following and
perform the appropriate
procedure:

The hybrid system will not
start even though the cor-
rect starting procedure is
being followed. (



P.153)

The interior lights and
headlights are dim, or the
horn does not sound or
sounds at a low volume.

The interior lights and
headlights do not turn on,
or the horn does not
sound.

Emergency start function

494

8-2. Steps to take in an emergency

gency.

Set the parking brake.
(



P.163)

Check that the shift lever is in
P.

Turn the power switch to
ACC.

Press and hold the power
switch for about 15 seconds
while depressing the brake
pedal firmly.

Even if the hybrid system can be
started using the above steps, the
system may be malfunctioning.
Have the vehicle inspected by your
Toyota dealer.

If you lose your keys

New genuine keys can be
made by your Toyota dealer
using another mechanical
key and the key number
stamped on your key num-
ber plate.

Keep the plate in a safe
place such as your wallet,
not in the vehicle.

NOTICE

■

When an electronic key is lost

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

495

8-2. Steps to take in an emergency

tro

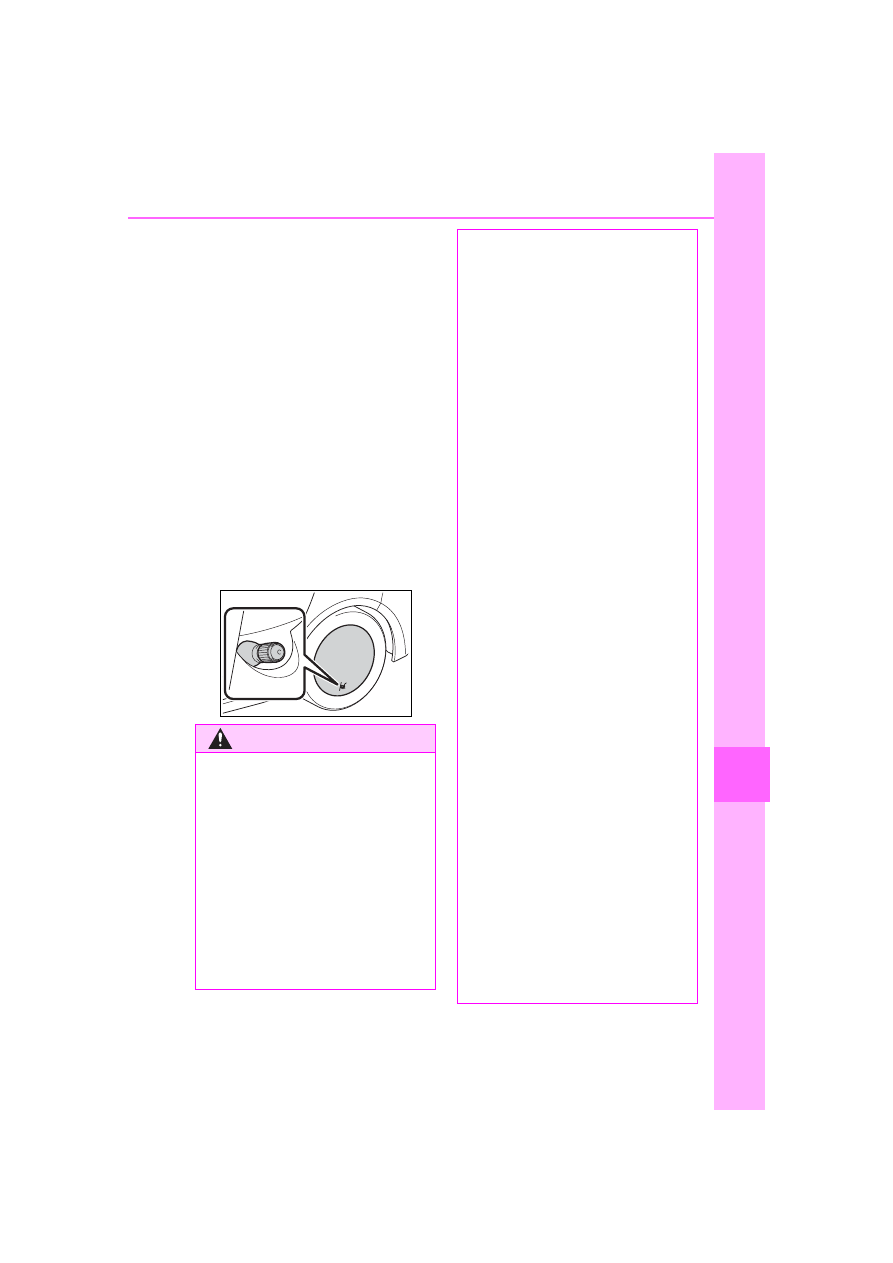

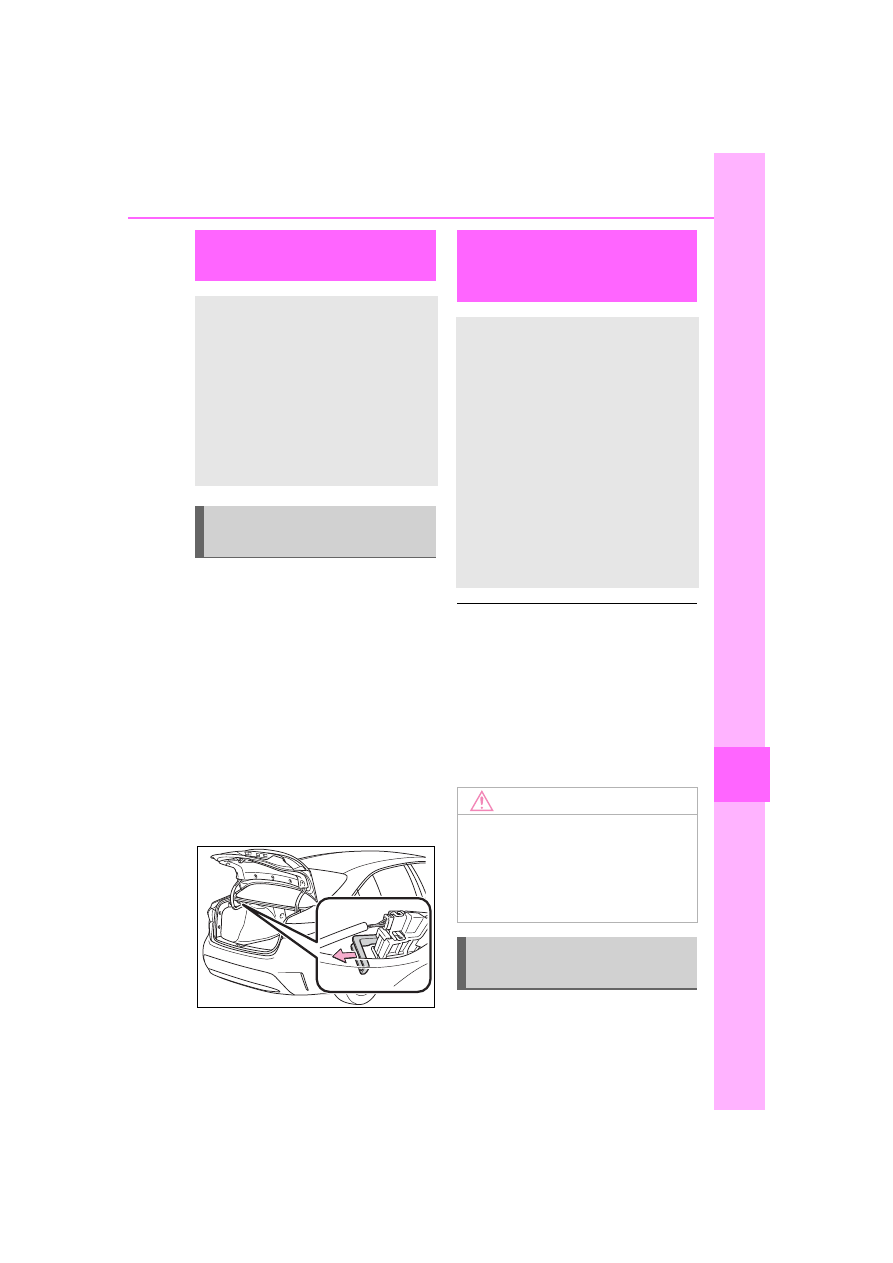

Pull the lever.
Using the lever to open the fuel
filler door may not allow for an
adequate reduction in fuel tank
pressure before refueling. To
prevent fuel from spilling out,
turn the cap slowly when remov-
ing it. During refueling, fuel may
spill out from the filler opening
due to air being discharged from
inside the fuel tank. Therefore,
fill the fuel tank carefully and
slowly.

■

When the electronic key does

not work properly

●

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on. (Custom-

izable features:



P.528)

●

Check if battery-saving mode is

set. If it is set, cancel the function.

(



P.125)

Use the mechanical key
(



P.116) in order to perform the

If the fuel filler door

cannot be opened

If the fuel filler door opener
switch cannot be operated,
contact your Toyota dealer
to service the vehicle. In
case where refueling is
urgently necessary, the fol-
lowing procedure can be
used to open the fuel filler
door.

Opening the fuel filler
door

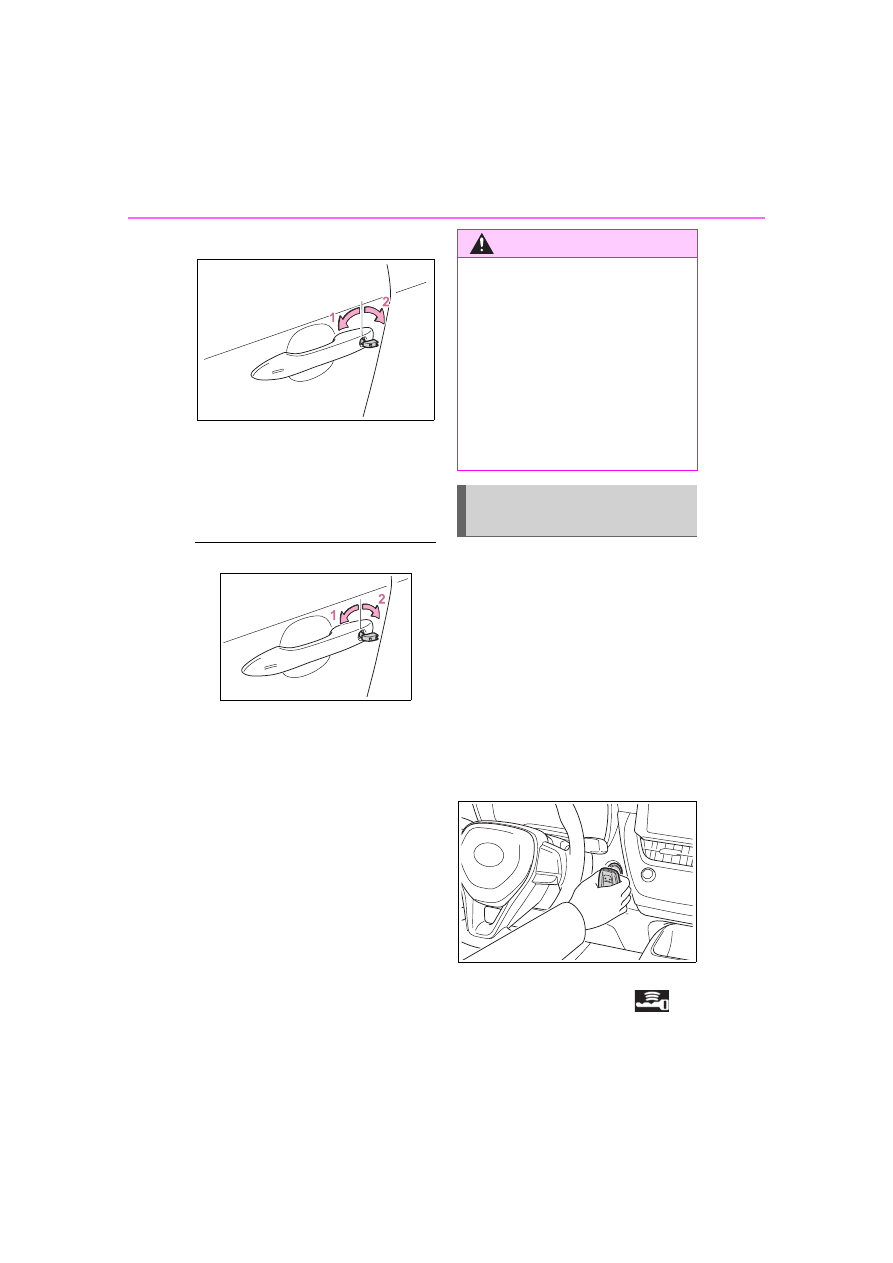

If the electronic key

does not operate prop-

erly

If communication between
the electronic key and vehi-
cle is interrupted (



P.125)

or the electronic key cannot
be used because the battery
is depleted, the smart key
system and wireless remote
control cannot be used. In
such cases, the doors can
be opened and the hybrid
system can be started by
following the procedure
below.

NOTICE

■

In case of a smart key system

malfunction or other

key-related problems

Take your vehicle with all the elec-

tronic keys provided with your

vehicle to your Toyota dealer.

Locking and unlocking
the doors

496

8-2. Steps to take in an emergency

following operations:

Locks all the doors

Unlocks all the doors

Turning the key unlocks the driver’s
door. Turning the key again unlocks
the other doors.

■

Key linked functions

Closes the windows (turn and
hold)

Opens the windows (turn and
hold)

: This setting must be customized

at your Toyota dealer.

Ensure that the shift lever is
in P and depress the brake
pedal.

Touch the Toyota emblem
side of the electronic key to
the power switch.

When the electronic key is

detected, a buzzer sounds and the

power switch will turn to ON.
When the smart key system is

deactivated in customization set-

ting, the power switch will turn to

ACC.

Firmly depress the brake
pedal and check that

WARNING

■

When using the mechanical

key and operating the power

windows

Operate the power window after

checking to make sure that there

is no possibility of any passenger

having any of their body parts

caught in the window.

Also, do not allow children to

operate the mechanical key. It is

possible for children and other

passengers to get caught in the

power window.

Starting the hybrid sys-
tem

497

8-2. Steps to take in an emergency

Whe

n tr

ouble

ises

shown on the multi-informa-
tion display.

Press the power switch
shortly and firmly.

In the event that the hybrid sys-
tem still cannot be started, con-
tact your Toyota dealer.

■

Stopping the hybrid system

Shift the shift lever to P and press

the power switch as you normally do

when stopping the hybrid system.

■

Electronic key battery

As the above procedure is a tempo-

rary measure, it is recommended

that the electronic key battery be

replaced immediately when the bat-

tery is depleted. (



P.443)

■

Changing power switch modes

Release the brake pedal and press

the power switch in step

above.

The hybrid system does not start

and modes will be changed each

time the switch is pressed. (



P.156)

If the 12-volt battery is

discharged

The following procedures
may be used to start the
hybrid system if the 12-volt
battery is discharged.
You can also call your Toy-
ota dealer or a qualified
repair shop.

498

8-2. Steps to take in an emergency

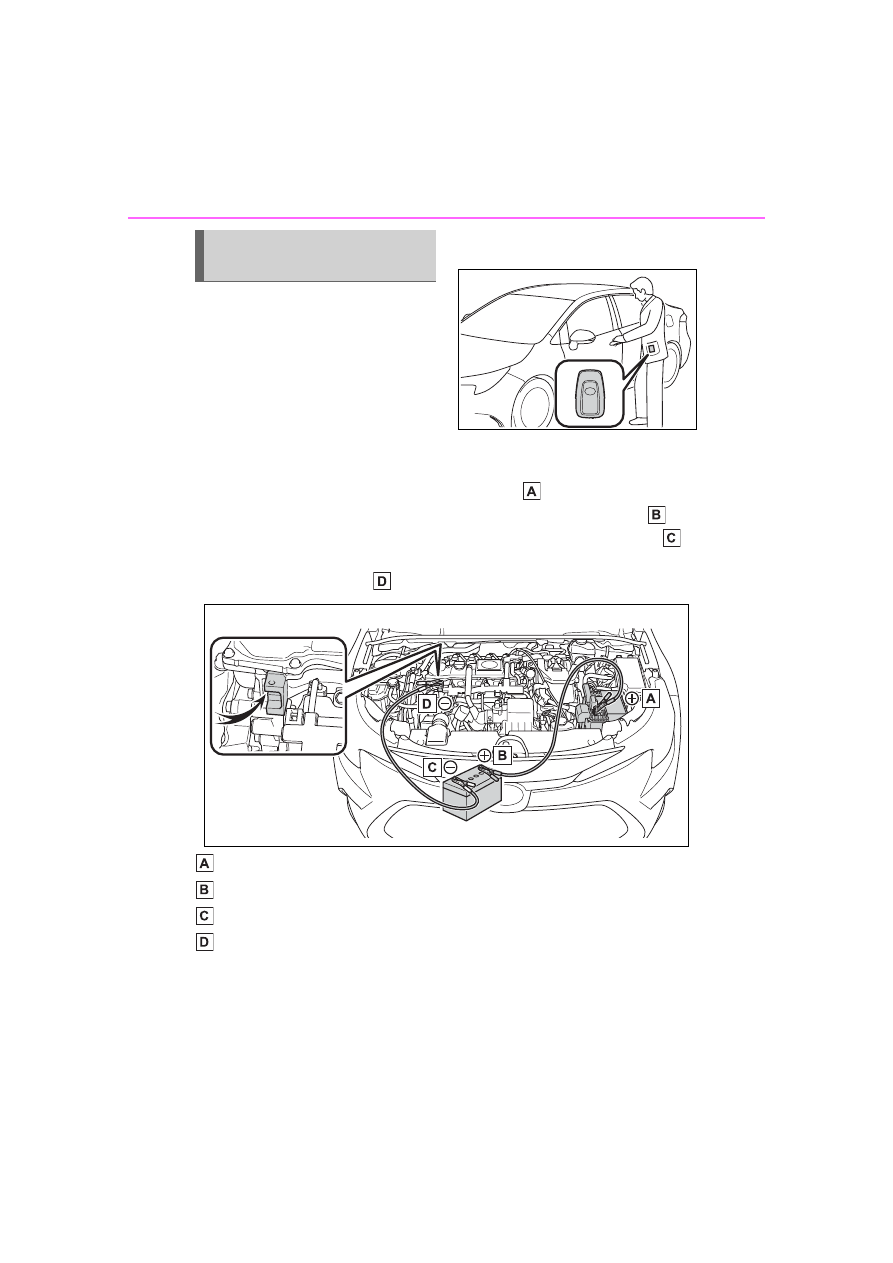

If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.

Confirm that the electronic
key is being carried.

When connecting the jumper (or

booster) cables, depending on the

situation, the alarm may activate

and doors locked. (

Open the hood. (

Connect a positive jumper cable clamp to   on your vehicle and
connect the clamp on the other end of the positive cable to   on
the second vehicle. Then, connect a negative cable clamp to
on the second vehicle and connect the clamp at the other end of
the negative cable to  .

Positive (+) battery terminal (your vehicle)
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the battery
and any moving parts as shown in the illustration

Start the engine of the sec-
ond vehicle. Increase the
engine speed slightly and

maintain at that level for
approximately 5 minutes to

Restarting the hybrid sys-
tem

499

8-2. Steps to take in an emergency

Whe

n tr

ouble

ises

recharge the 12-volt battery
of your vehicle.

Open and close any of the
doors of your vehicle with the
power switch OFF.

Maintain the engine speed of
the second vehicle and start
the hybrid system of your
vehicle by turning the power
switch to ON.

Make sure the “READY” indi-
cator comes on. If the indica-
tor does not come on, contact
your Toyota dealer.

Once the hybrid system has
started, remove the jumper
cables in the exact reverse
order from which they were
connected.

Once the hybrid system starts,
have the vehicle inspected at
your Toyota dealer as soon as
possible.

■

Starting the hybrid system

when the 12-volt battery is dis-

charged

The hybrid system cannot be started

by push-starting.

■

To prevent 12-volt battery dis-

charge

●

Turn off the headlights and the

audio system while the hybrid sys-

tem is off.

●

Turn off any unnecessary electri-

cal components when the vehicle

is running at a low speed for an

extended period, such as in heavy

traffic.

■

When the 12-volt battery is

removed or discharged

●

Information stored in the ECU is

cleared. When the 12-volt battery

is depleted, have the vehicle

inspected at your Toyota dealer.

●

Some systems may require initial-

ization. (



P.536)

■

When removing the 12-volt bat-

tery terminals

When the 12-volt battery terminals

are removed, the information stored

in the ECU is cleared. Before

removing the 12-volt battery termi-

nals, contact your Toyota dealer.

■

Charging the 12-volt battery

The electricity stored in the 12-volt

battery will discharge gradually even

when the vehicle is not in use, due

to natural discharge and the drain-

ing effects of certain electrical appli-

ances. If the vehicle is left for a long

time, the 12-volt battery may dis-

charge, and the hybrid system may

be unable to start. (The 12-volt bat-

tery recharges automatically while

the hybrid system is operating.)

■

When recharging or replacing

the 12-volt battery

●

In some cases, it may not be pos-

sible to unlock the doors using the

smart key system when the

12-volt battery is discharged. Use

the wireless remote control or the

mechanical key to lock or unlock

the doors.

●

The hybrid system may not start

on the first attempt after the

12-volt battery has recharged but

will start normally after the second

attempt. This is not a malfunction.

●

The power switch mode is memo-

rized by the vehicle. When the

12-volt battery is reconnected, the

system will return to the mode it

was in before the 12-volt battery

was discharged. Before discon-

necting the 12-volt battery, turn

the power switch off.

If you are unsure what mode the

500

8-2. Steps to take in an emergency

power switch was in before the

12-volt battery discharged, be

especially careful when recon-

necting the 12-volt battery.

■

When replacing the 12-volt bat-

tery

●

Use a 12-volt battery that con-

forms to European regulations.

●

Use a 12-volt battery with the

same case size as the previous

12-volt battery and an equivalent

20 hour rate capacity (20HR) or

greater.

• If the sizes differ, the 12-volt bat-

tery cannot be properly secured.

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the 12-volt battery may discharge

and the hybrid system may not be

able to start.

●

For details, consult your Toyota

dealer.

WARNING

■

When removing the 12-volt

battery terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding 12-volt battery fires

or explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the 12-volt battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the 12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poi-

sonous and corrosive acidic elec-

trolyte, while related parts contain

lead and lead compounds.

Observe the following precautions

when handling the 12-volt battery:

●

When working with the 12-volt

battery, always wear safety

glasses and take care not to

allow any battery fluids (acid) to

come into contact with skin,

clothing or the vehicle body.

●

Do not lean over the 12-volt bat-

tery.

●

In the event that battery fluid

comes into contact with the skin

or eyes, immediately wash the

affected area with water and

seek medical attention. Place a

wet sponge or cloth over the

affected area until medical

attention can be received.

●

Always wash your hands after

handling the 12-volt battery sup-

port, terminals, and other bat-

tery-related parts.

●

Do not allow children near the

12-volt battery.

501

8-2. Steps to take in an emergency

tro



If the engine coolant tempera-
ture gauge enters the red
zone or “Engine Coolant
Temp High Stop in a Safe
Place See Owner’s Manual”
is shown on the multi-informa-
tion display

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the hybrid system.

If you see steam: Carefully lift
the hood after the steam sub-

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fans, etc.

If your vehicle over-

heats

The following may indicate
that your vehicle is over-
heating.



The engine coolant tem-
perature gauge (



P.96) is

in the red zone or a loss of
hybrid system power is
experienced. (For example,
the vehicle speed does not
increase.)



“Engine Coolant Temp High
Stop in a Safe Place See
Owner’s Manual” or “Hybrid
System Overheated Output
Power Reduced” is shown
on the multi-information dis-
play.



Steam comes out from
under the hood.

Correction procedures

502

8-2. Steps to take in an emergency

sides.
If you do not see steam:
Carefully lift the hood.

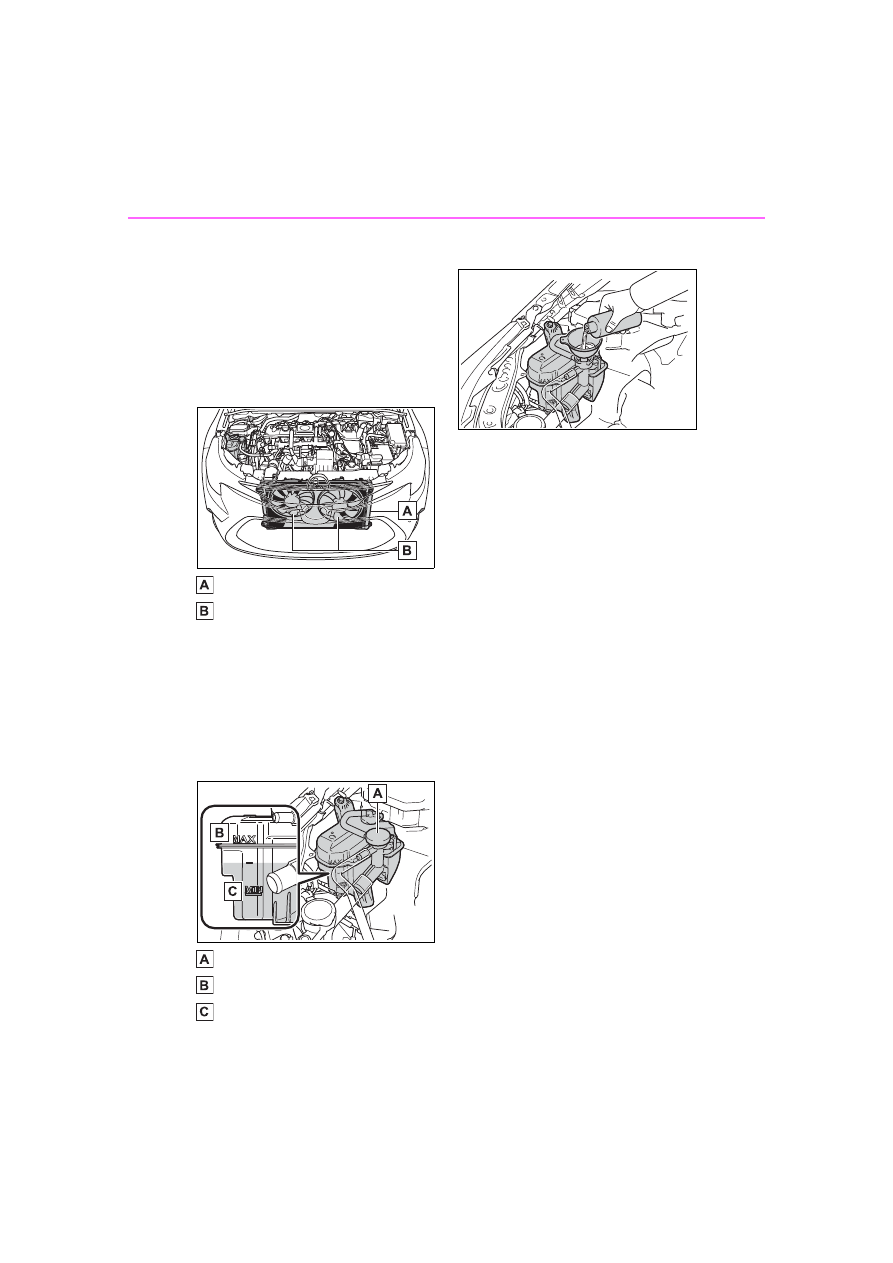

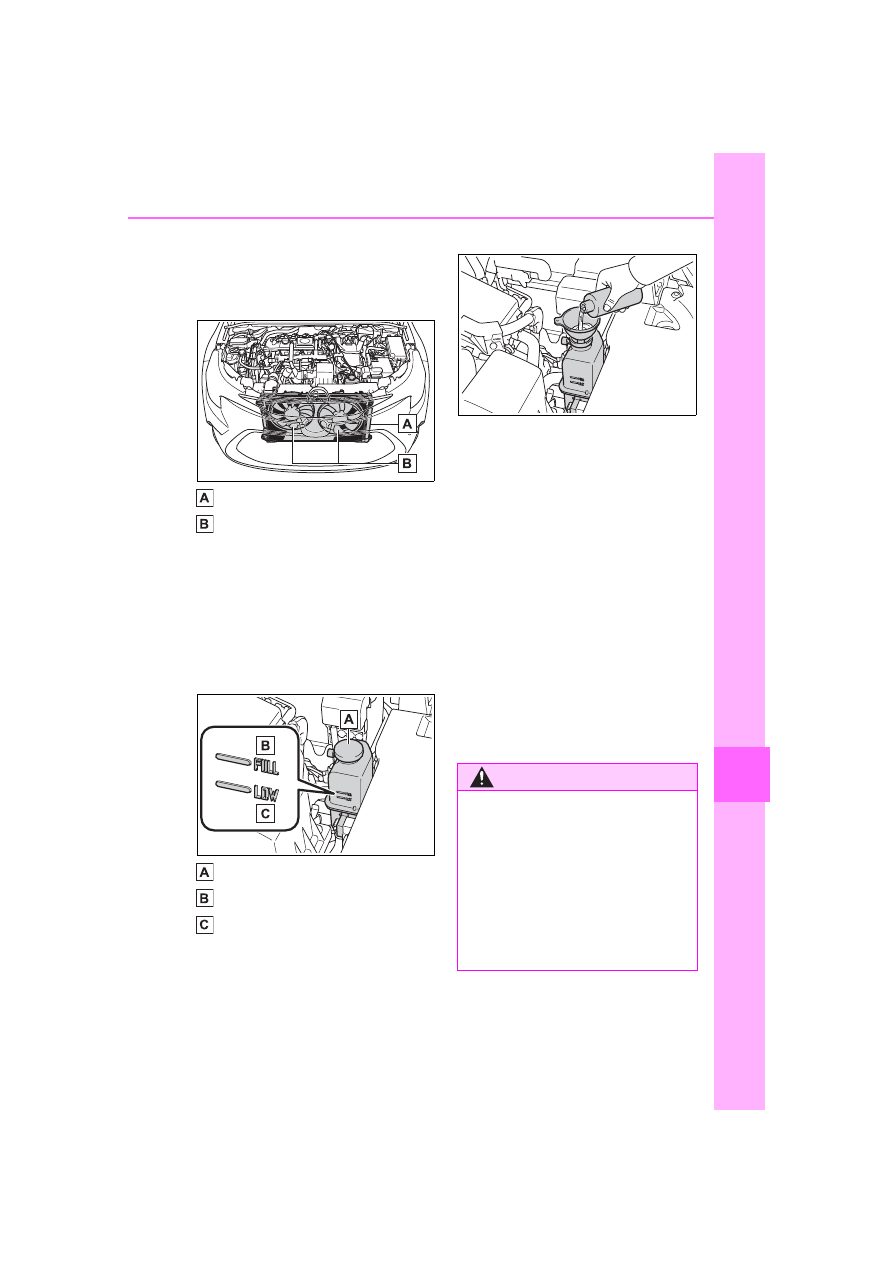

After the hybrid system has
cooled down sufficiently,
inspect the hoses and radia-
tor core (radiator) for any
leaks.

Radiator
Cooling fans

If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

The coolant level is satisfac-
tory if it is between the “MAX”
and “MIN” lines on the reser-
voir.

Reservoir
“MAX” line
“MIN” line

Add coolant if necessary.

Water can be used in an emer-

gency if coolant is unavailable.

Start the hybrid system and
turn the air conditioning sys-
tem on to check that the radi-
ator cooling fans operate and
to check for coolant leaks
from the radiator or hoses.

The fans operate when the air con-

ditioning system is turned on imme-

diately after a cold start. Confirm

that the fans are operating by

checking the fan sound and air flow.

If it is difficult to check these, turn

the air conditioning system on and

off repeatedly. (The fans may not

operate in freezing temperatures.)

If the fans are not operating:
Stop the hybrid system
immediately and contact your
Toyota dealer.
If the fans are operating:
Have the vehicle inspected at
the nearest Toyota dealer.



If “Hybrid System Over-
heated Output Power
Reduced” is shown on the
multi-information display

Stop the vehicle in a safe
place.

Stop the hybrid system and
carefully lift the hood.

503

8-2. Steps to take in an emergency

tro

After the hybrid system has
cooled down, inspect the
hoses and radiator core (radi-
ator) for any leaks.

Radiator
Cooling fans

If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.

Reservoir
“FULL” line
“LOW” line

Add coolant if necessary.

Water can be used in an emer-

gency if coolant is unavailable.

After stopping the hybrid sys-
tem and waiting for 5 minutes
or more, start the hybrid sys-
tem again and check for the
multi-information display.
If the message does not dis-
appear: Stop the hybrid sys-
tem and contact your Toyota
dealer.
If the message is not dis-
played: The hybrid system
temperature has dropped
and the vehicle may be
driven normally.

However, if the message appears

again frequently, contact your Toy-

ota dealer.

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions. Failure to do so may result

in serious injury such as burns.

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

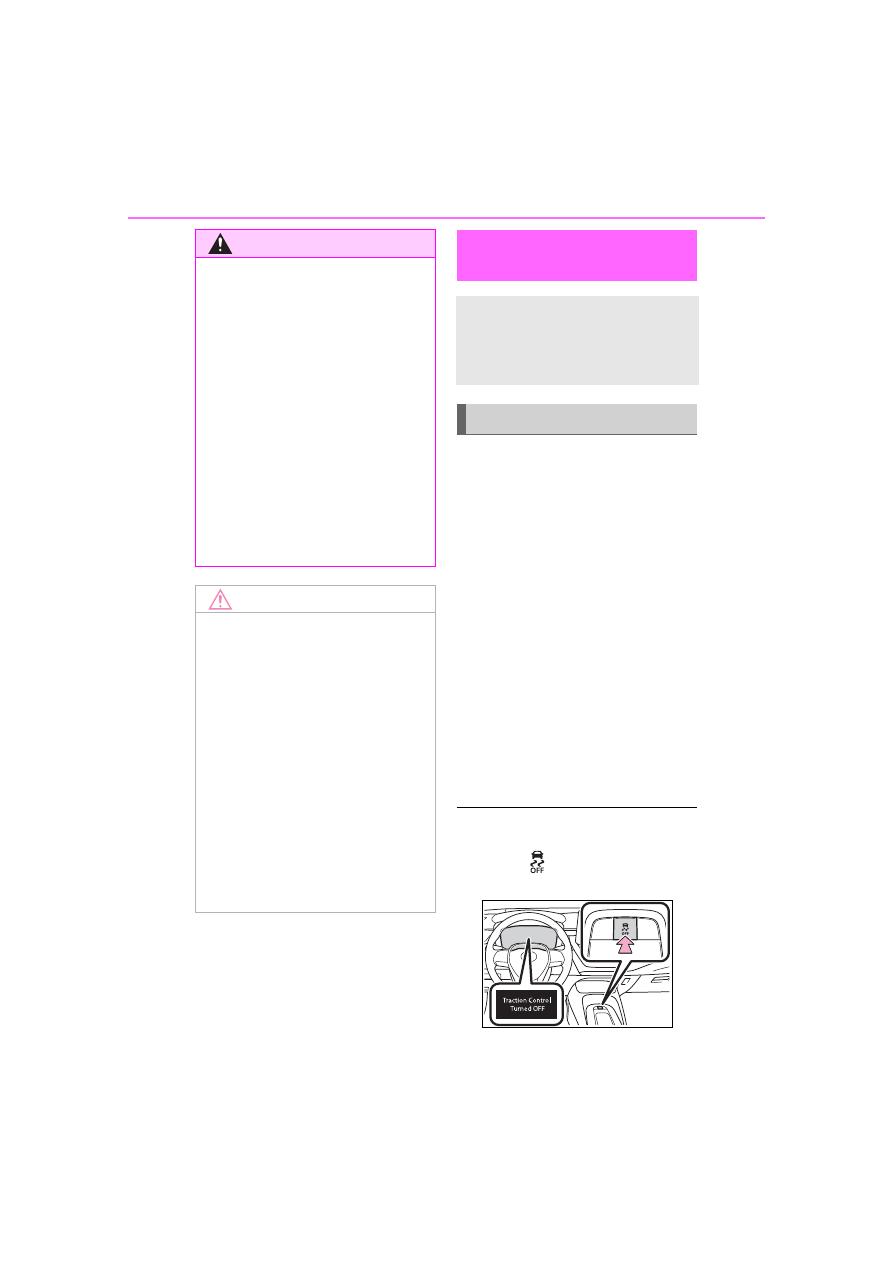

504

8-2. Steps to take in an emergency

Stop the hybrid system. Set
the parking brake and shift
the shift lever to P.

Remove the mud, snow or
sand from around the front
wheels.

Place wood, stones or some
other material under the front
wheels to help provide trac-
tion.

Restart the hybrid system.

Shift the shift lever to D or R
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.

■

When it is difficult to free the

vehicle

Press the

switch to turn off

TRAC.

WARNING

●

After the hybrid system has

been turned off, check that the

“READY” indicator is off. When

the hybrid system is operating,

the gasoline engine may auto-

matically start, or the cooling

fans may suddenly operate

even if the gasoline engine

stops. Do not touch or approach

rotating parts such as the fan,

which may lead to fingers or

clothing (especially a tie, a scarf

or a muffler) getting caught,

resulting in serious injury.

●

Do not loosen the coolant reser-

voir caps while the hybrid sys-

tem and radiator are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding engine/power

control unit coolant

Add coolant slowly after the

hybrid system has cooled down

sufficiently. Adding cool coolant to

a hot hybrid system too quickly

can cause damage to the hybrid

system.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust etc.).

●

Do not use any coolant additive.

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

Content .. 28 29 30 31 ..
