1-4. Hybrid system

1-4.Hybrid system

■

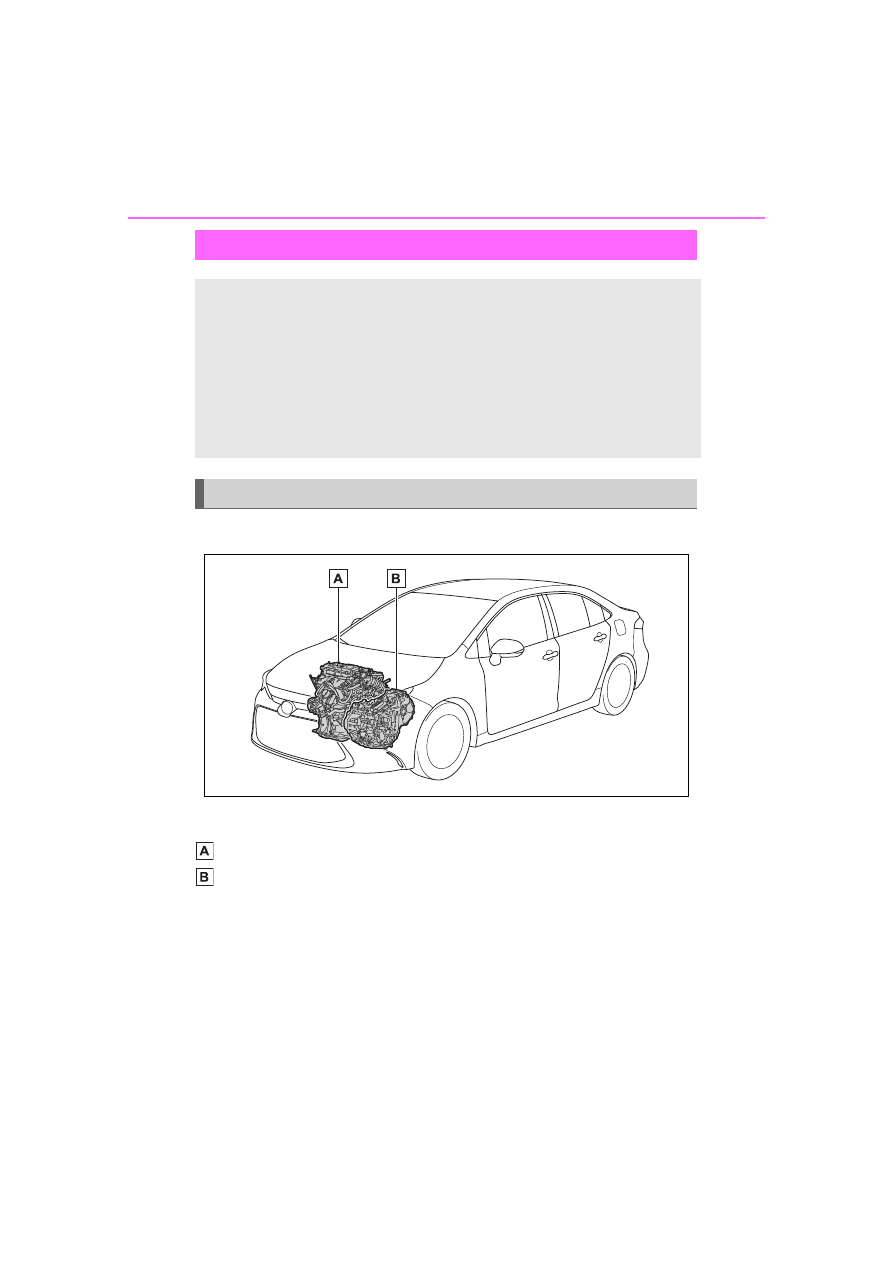

System components

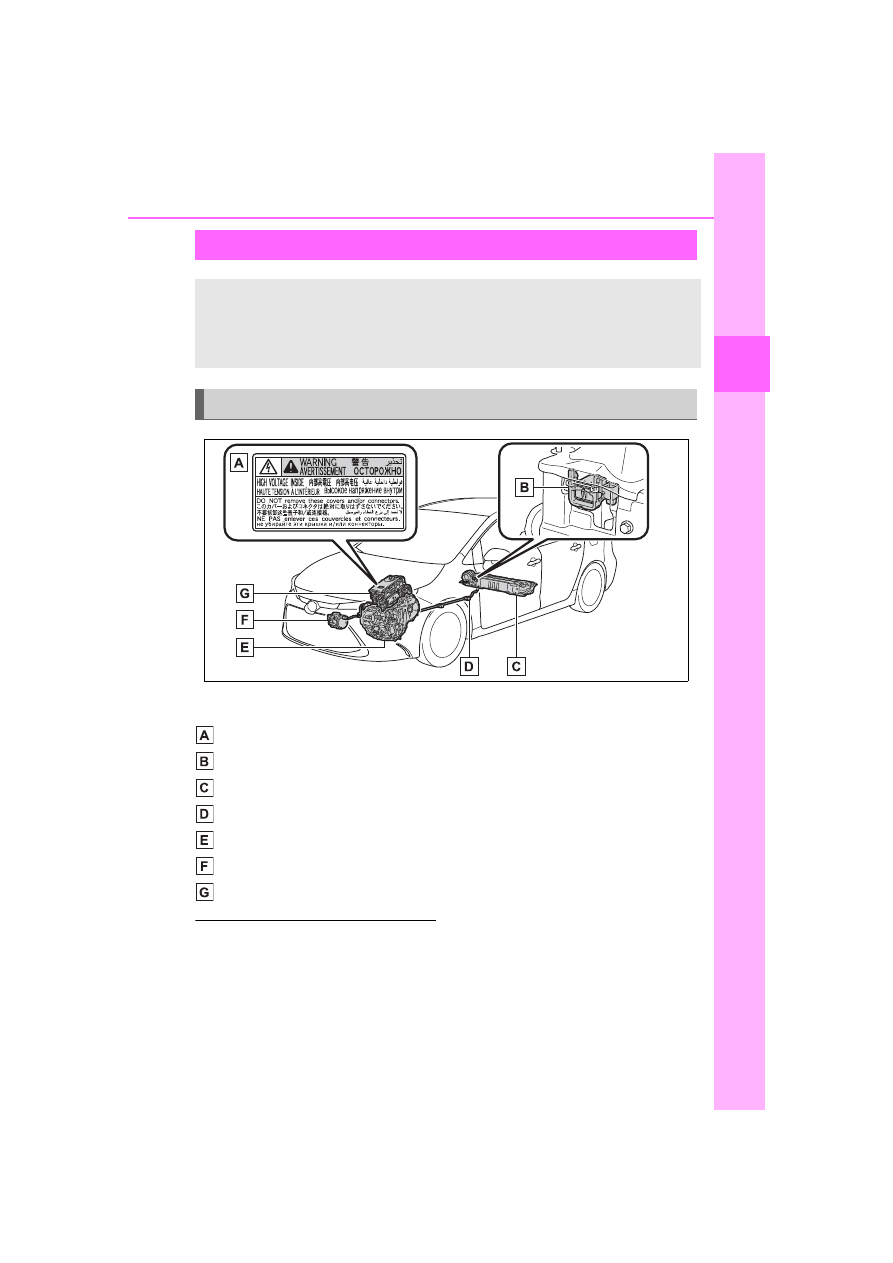

The illustration is an example for explanation and may differ from the actual
item.

Gasoline engine
Electric motor (traction motor)

■

When stopped/during start
off

The gasoline engine stops

*



when the vehicle is stopped.
During start off, the electric
motor (traction motor) drives the
vehicle. At slow speeds or when

traveling down a gentle slope,
the engine is stopped

*

 and the

electric motor (traction motor) is
used.
When the shift lever is in N, the
hybrid battery (traction battery)
is not being charged.

Hybrid system features

Your vehicle is a hybrid vehicle. It has characteristics different
from conventional vehicles. Be sure you are closely familiar
with the characteristics of your vehicle, and operate it with
care.

The hybrid system combines the use of a gasoline engine and
an electric motor (traction motor) according to driving condi-
tions, improving fuel efficiency and reducing exhaust emis-
sions.

System components

81

1-4. Hybrid system

1

For safety and secu

rity

*

: When the hybrid battery (traction

battery) requires charging or the
engine is warming up, etc., the
gasoline engine will not automati-
cally stop. (



P.81)

■

During normal driving

The gasoline engine is predomi-
nantly used. The electric motor
(traction motor) charges the
hybrid battery (traction battery)
as necessary.

■

When accelerating sharply

When the accelerator pedal is
depressed heavily, the power of
the hybrid battery (traction bat-
tery) is added to that of the gas-
oline engine via the electric
motor (traction motor).

■

When braking (regenera-
tive braking)

The wheels operate the electric
motor (traction motor) as a
power generator, and the hybrid
battery (traction battery) is
charged.

■

Regenerative braking

In the following situations, kinetic

energy is converted to electric

energy and deceleration force can

be obtained in conjunction with the

recharging of the hybrid battery

(traction battery).

●

The accelerator pedal is released

while driving with the shift lever in

D or B.

●

The brake pedal is depressed

while driving with the shift lever in

D or B.

■

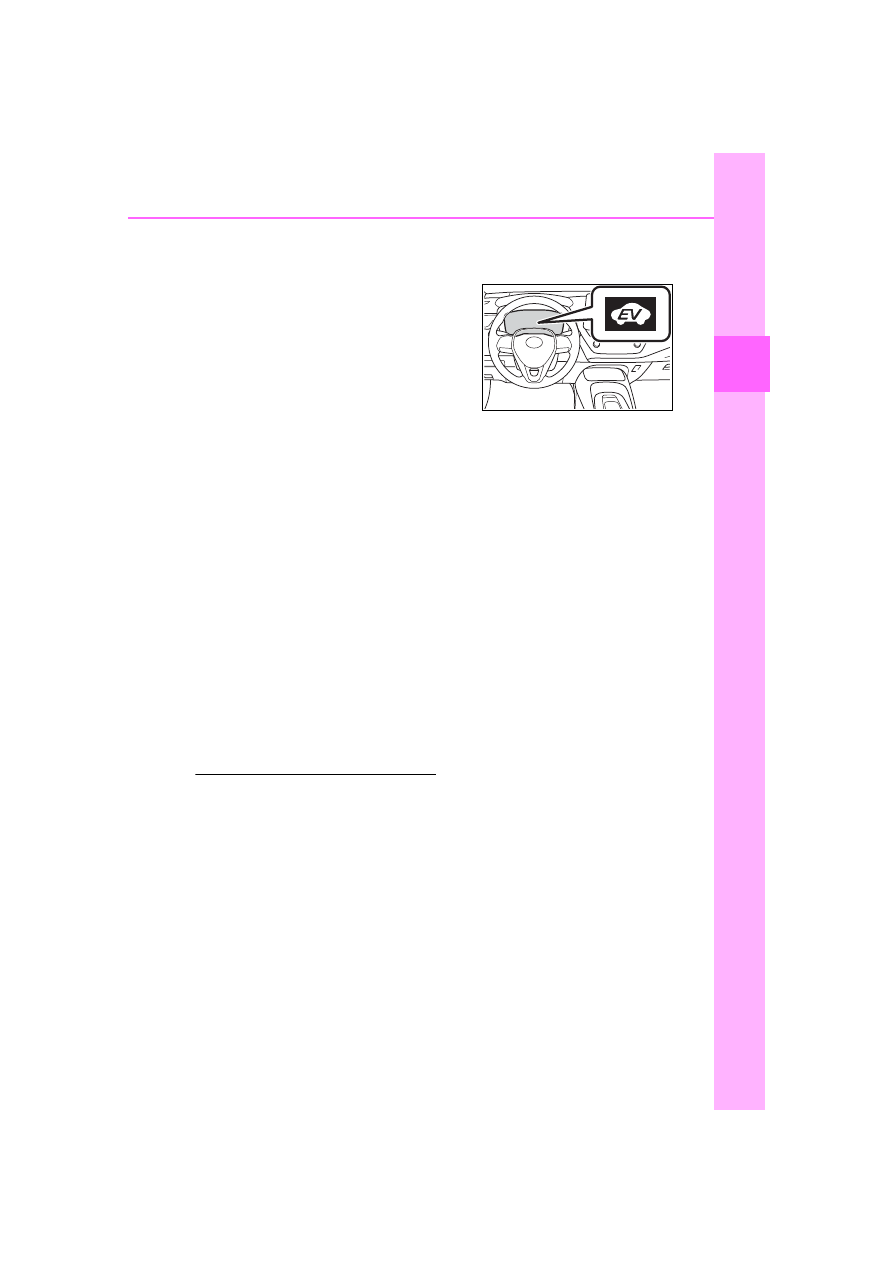

EV indicator

The EV indicator comes on when

the vehicle is driven using only the

electric motor (traction motor) or the

gasoline engine is stopped.

■

Conditions in which the gaso-

line engine may not stop

The gasoline engine starts and

stops automatically. However, it may

not stop automatically in the follow-

ing conditions:

●

During gasoline engine warm-up

●

During hybrid battery (traction bat-

tery) charging

●

When the temperature of the

hybrid battery (traction battery) is

high or low

●

When the heater is switched on

Depending on the circumstances,

the gasoline engine may also not

stop automatically in other situa-

tions.

■

Charging the hybrid battery

(traction battery)

As the gasoline engine charges the

hybrid battery (traction battery), the

battery does not need to be charged

from an outside source. However, if

the vehicle is left parked for a long

time the hybrid battery (traction bat-

tery) will slowly discharge. For this

reason, be sure to drive the vehicle

at least once every few months for

at least 30 minutes or 10 miles (16

km). If the hybrid battery (traction

battery) becomes fully discharged

and you are unable to start the

hybrid system, contact your Toyota

dealer.

■

Charging the 12-volt battery



P.499

82

1-4. Hybrid system

■

After the 12-volt battery has dis-

charged or when the terminal

has been removed and installed

during exchange, etc.

The gasoline engine may not stop

even if the vehicle is being driven by

the hybrid battery (traction battery).

If this continues for a few days, con-

tact your Toyota dealer.

■

Sounds and vibrations specific

to a hybrid vehicle

There may be no engine sound or

vibration even though the vehicle is

able to move with the “READY” indi-

cator is illuminated. For safety, apply

the parking brake and make sure to

shift the shift lever to P when

parked.
The following sounds or vibrations

may occur when the hybrid system

is operating and are not a malfunc-

tion:

●

Motor sounds may be heard from

the engine compartment.

●

Sounds may be heard from the

hybrid battery (traction battery)

under the rear seats when the

hybrid system starts or stops.

●

Relay operating sounds such as a

snap or soft clank will be emitted

from the hybrid battery (traction

battery), under the rear seats,

when the hybrid system is started

or stopped.

●

Sounds from the hybrid system

may be heard when the trunk lid is

open.

●

Sounds may be heard from the

transmission when the gasoline

engine starts or stops, when driv-

ing at low speeds, or during idling.

●

Engine sounds may be heard

when accelerating sharply.

●

Sounds may be heard due to

regenerative braking when the

brake pedal is depressed or as

the accelerator pedal is released.

●

Vibration may be felt when the

gasoline engine starts or stops.

●

Cooling fan sounds may be heard

from the air intake vent on the side

of the lower part of the rear right

seat.

■

Maintenance, repair, recycling,

and disposal

Contact your Toyota dealer regard-

ing maintenance, repair, recycling

and disposal. Do not dispose of the

vehicle yourself.

■

Customization

Some functions can be customized.

(



P.528)

When driving with the gasoline
engine stopped, a sound, which
changes in accordance with the
driving speed, will be played in
order to warn people nearby of
the vehicle’s approach. The
sound will stop when the vehicle
speed exceeds approximately
22 mph (35 km/h).

■

Vehicle proximity notification

system

In the following cases, the vehicle

proximity notification system may be

difficult for surrounding people to

hear.

●

In very noisy areas

●

In the wind or the rain

Also, as the vehicle proximity notifi-

cation system is installed on the

front of the vehicle, it may be more

difficult to hear from the rear of the

vehicle compared to the front.

Vehicle proximity notifica-
tion system

83

1-4. Hybrid system

1

For safety and secu

rity

The illustration is an example for explanation and may differ from the actual
item.

Warning label
Service plug
Hybrid battery (traction battery)
High voltage cables (orange)
Electric motor (traction motor)
Air conditioning compressor
Power control unit

■

Running out of fuel

When the vehicle has run out of fuel

and the hybrid system cannot be

started, refuel the vehicle with at

least enough gasoline to make the

low fuel level warning light (



P.465)

go off. If there is only a small

amount of fuel, the hybrid system

may not be able to start. (The stan-

dard amount of fuel is about 2.0 gal.

[7.6 L, 1.7 Imp. gal.] when the vehi-

cle is on a level surface. This value

may vary when the vehicle is on a

slope. Add extra fuel when the vehi-

cle is inclined.)

Hybrid system precautions

Take care when handling the hybrid system, as it is a high
voltage system (about 600 V at maximum) as well as contains
parts that become extremely hot when the hybrid system is
operating. Obey the warning labels attached to the vehicle.

System components

84

1-4. Hybrid system

■

Electromagnetic waves

●

High voltage parts and cables on

hybrid vehicles incorporate elec-

tromagnetic shielding, and there-

fore emit approximately the same

amount of electromagnetic waves

as conventional gasoline pow-

ered vehicles or home electronic

appliances.

●

Your vehicle may cause sound

interference in some third

party-produced radio parts.

■

Hybrid battery (traction battery)

The hybrid battery (traction battery)

has a limited service life. The lifes-

pan of the hybrid battery (traction

battery) can change in accordance

with driving style and driving condi-

tions.

■

Starting the hybrid system in an

extremely cold environment

When the hybrid battery (traction

battery) is extremely cold (below

approximately -22°F [-30°C]) under

the influence of the outside tem-

perature, it may not be possible to

start the hybrid system. In this case,

try to start the hybrid system again

after the temperature of the hybrid

battery increases due to the outside

temperature increasing, etc.

WARNING

■

High voltage precautions

This vehicle has high voltage DC

and AC systems as well as a

12-volt system. DC and AC high

voltage is very dangerous and

can cause severe burns and elec-

tric shock that may result in death

or serious injury.

●

Never touch, disassemble,

remove or replace the high volt-

age parts, cables or their con-

nectors.

●

The hybrid system will become

hot after starting as the system

uses high voltage. Be careful of

both the high voltage and the

high temperature, and always

obey the warning labels

attached to the vehicle.

●

Never try to open the service

plug access hole located under

the right side of the rear seat.

The service plug is used only

when the vehicle is serviced

and is subject to high voltage.

■

Road accident cautions

Observe the following precautions

to reduce the risk of death or seri-

ous injury:

●

Pull your vehicle off the road,

apply the parking brake, shift

the shift lever to P, and turn the

hybrid system off.

●

Do not touch the high voltage

parts, cables and connectors.

●

If electric wires are exposed

inside or outside your vehicle,

an electric shock may occur.

Never touch exposed electric

wires.

●

If a fire occurs in the hybrid

vehicle, leave the vehicle as

soon as possible. Never use a

fire extinguisher that is not

meant for electric fires. Using

even a small amount of water

may be dangerous.

85

1-4. Hybrid system

1

For safety and secu

rity

WARNING

●

If your vehicle needs to be

towed, do so with the front

wheels raised. If the wheels

connected to the electric motor

(traction motor) are on the

ground when towing, the motor

may continue to generate elec-

tricity. This may cause a fire.

(



P.457)

●

Carefully inspect the ground

under the vehicle. If you find

that liquid has leaked onto the

ground, the fuel system may

have been damaged. Leave the

vehicle as soon as possible.

●

Nickel-Metal hydride battery: If

a fluid leak occurs, do not touch

the fluid as it may be strong

alkaline electrolyte from the

hybrid battery (traction battery).

If it comes into contact with your

skin or eyes, wash it off immedi-

ately with a large amount of

water or, if possible, boric acid

solution. Seek immediate medi-

cal attention.

●

Lithium-ion battery: Do not

touch the battery if liquid is leak-

ing from or adhering to it.

If electrolyte (carbonic-based

organic electrolyte) from the

hybrid battery (traction battery)

comes into contact with the

eyes or skin, it could cause

blindness or skin wounds. In the

unlikely event that it comes into

contact with the eyes or skin,

wash it off immediately with a

large amount of water, and seek

immediate medical attention.

●

Lithium-ion battery: If electrolyte

is leaking from the hybrid bat-

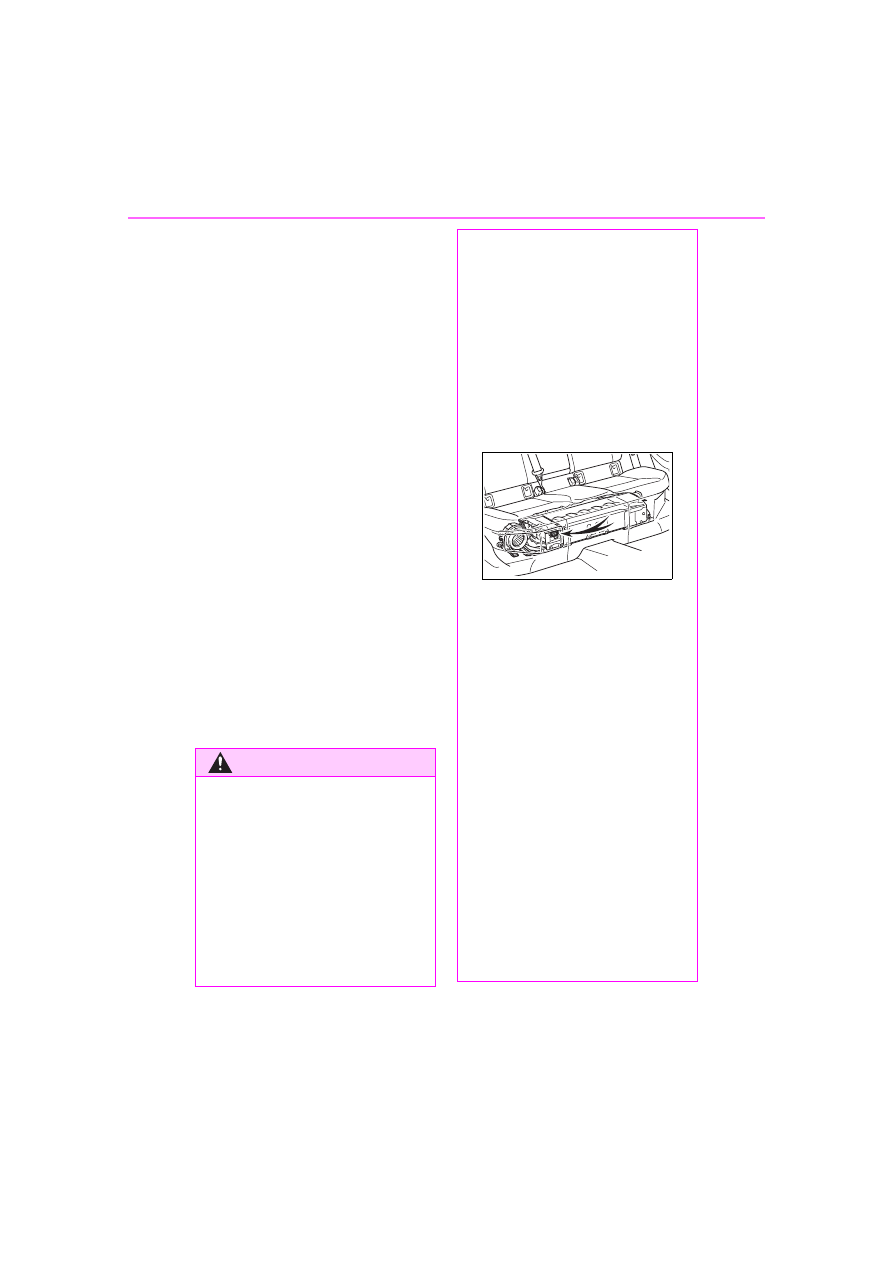

tery (traction battery), do not

approach the vehicle.

Even in the unlikely event that

the hybrid battery (traction bat-

tery) is damaged, the internal

construction of the battery will

prevent a large amount of elec-

trolyte from leaking out. How-

ever, any electrolyte that does

leak out will give off a vapor.

This vapor is an irritant to skin

and eyes and could cause acute

poisoning if inhaled.

●

Lithium-ion battery: Do not bring

burning or high-temperature

items close to the electrolyte.

The electrolyte may ignite and

cause a fire.

■

Hybrid battery (traction bat-

tery)

●

Lithium-ion battery: Your vehicle

contains a sealed lithium-ion

battery.

●

Never resell, hand over or mod-

ify the hybrid battery. To prevent

accidents, hybrid batteries that

have been removed from a dis-

posed vehicle are collected

through Toyota dealer. Do not

dispose of the battery yourself.

Unless the battery is properly col-

lected, the following may occur,

resulting in death or serious

injury:
• The hybrid battery may be ille-

gally disposed of or dumped,

and it is hazardous to the envi-

ronment or someone may touch

a high voltage part, resulting in

an electric shock.

86

1-4. Hybrid system

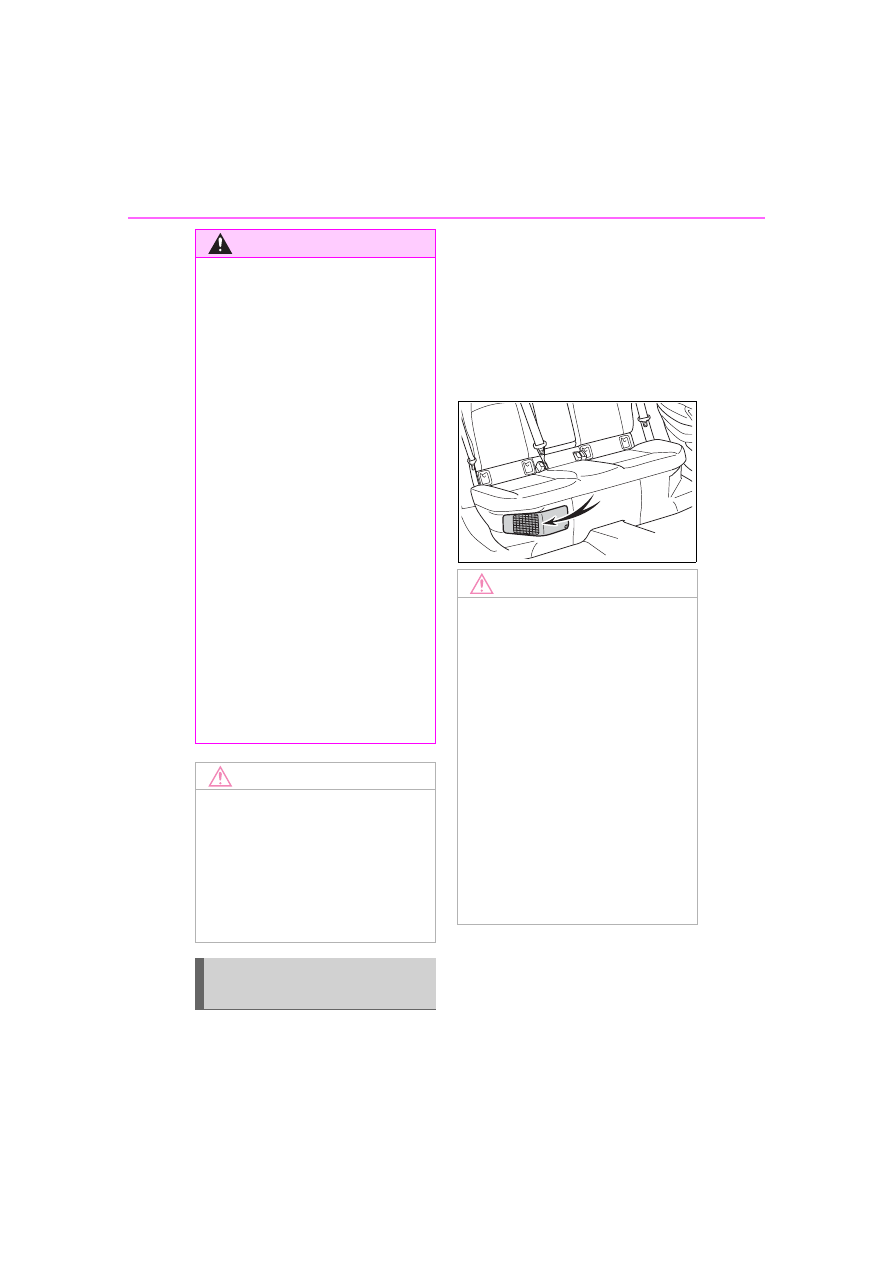

There is an air intake vent under

the right side of the rear seat for
the purpose of cooling the
hybrid battery (traction battery).
If the vent becomes blocked, the
hybrid battery may overheat,
charging/discharging of the
hybrid battery (traction battery)
may become limited.

WARNING

• The hybrid battery is intended to

be used exclusively with your

hybrid vehicle. If the hybrid bat-

tery is used outside of your

vehicle or modified in any way,

accidents such as electric

shock, heat generation, smoke

generation, an explosion and

electrolyte leakage may occur.

When reselling or handing over

your vehicle, the possibility of an

accident is extremely high

because the person receiving the

vehicle may not be aware of these

dangers.

●

If your vehicle is disposed of

without the hybrid battery hav-

ing been removed, there is a

danger of serious electric shock

if high voltage parts, cables and

their connectors are touched. In

the event that your vehicle must

be disposed of, the hybrid bat-

tery must be disposed of by

your Toyota dealer or a qualified

service shop. If the hybrid bat-

tery is not disposed of properly,

it may cause electric shock that

can result in death or serious

injury.

NOTICE

■

Hybrid battery (traction bat-

tery) air intake vent

Do not carry large amounts of

water such as water cooler bottles

in the vehicle. If water spills onto

the hybrid battery (traction bat-

tery), the battery may be dam-

aged. Have the vehicle inspected

by your Toyota dealer.

Hybrid battery (traction
battery) air intake vent

NOTICE

■

Hybrid battery (traction bat-

tery) air intake vent

●

Make sure that the air intake

vent is not blocked, such as by

a seat cover, plastic cover, or

luggage. If the vent is blocked,

charging/discharging of the

hybrid battery (traction battery)

may become limited, possibly

leading to a malfunction.

●

Clean the air intake vent regu-

larly to prevent the hybrid bat-

tery (traction battery) from

overheating.

●

Do not allow liquid or foreign

material to enter the air intake

vent as this may cause a short

circuit and damage the hybrid

battery (traction battery).

87

1-4. Hybrid system

1

For safety and secu

rity

When a certain level of impact is
detected by the impact sensor,
the emergency shut off system
blocks the high voltage current
and stops the fuel pump to mini-
mize the risk of electrocution
and fuel leakage. If the emer-
gency shut off system activates,
your vehicle will not restart. To
restart the hybrid system, con-
tact your Toyota dealer.

A message is automatically dis-
played when a malfunction
occurs in the hybrid system or
an improper operation is
attempted.
If a warning message is shown
on the multi-information display,
read the message and follow the
instructions.

■

If a warning light comes on, a

warning message is displayed,

or the 12-volt battery is discon-

nected

The hybrid system may not start. In

this case, try to start the system

again. If the “READY” indicator does

not come on, contact your Toyota

dealer.

NOTICE

●

A filter is installed to the air

intake vent. When the filter

remains noticeably dirty even

after cleaning the air intake

vent, filter cleaning or replace-

ment is recommended. Refer to

P.439 for details on how to clean

the filters.

Emergency shut off sys-
tem

Hybrid warning message

88

1-5. Theft deterrent system

1-5.Theft deterrent system

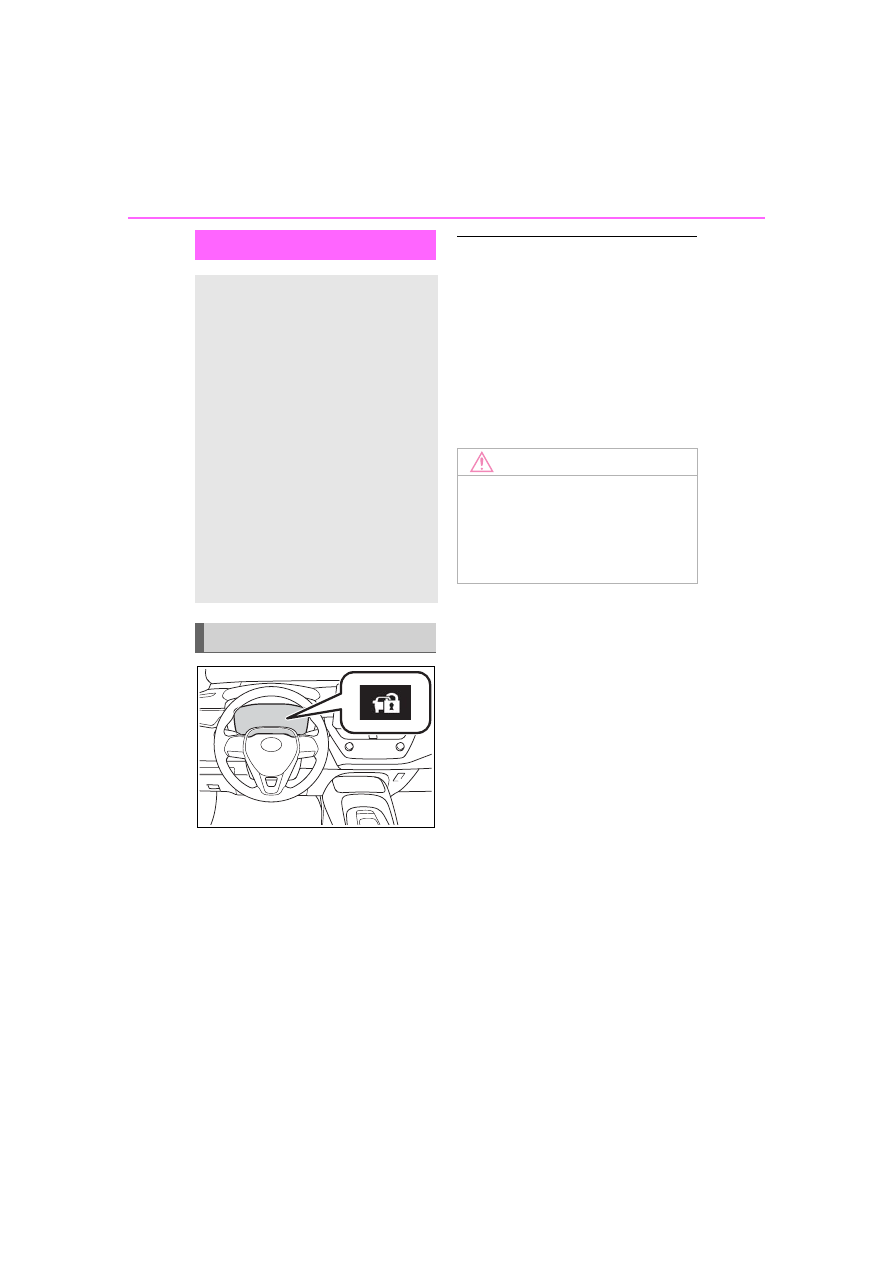

The indicator light flashes after
the power switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.

■

System maintenance

The vehicle has a mainte-

nance-free type immobilizer system.

■

Conditions that may cause the

system to malfunction

●

If the grip portion of the key is in

contact with a metallic object

●

If the key is in close proximity to or

touching a key to the security sys-

tem (key with a built-in transpon-

der chip) of another vehicle

Immobilizer system

The vehicle’s keys have
built-in transponder chips
that prevent the hybrid sys-
tem from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.

Never leave the keys inside
the vehicle when you leave
the vehicle.

This system is designed to
help prevent vehicle theft
but does not guarantee
absolute security against all
vehicle thefts.

Operating the system

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

89

1-5. Theft deterrent system

1

For safety and secu

rity

■

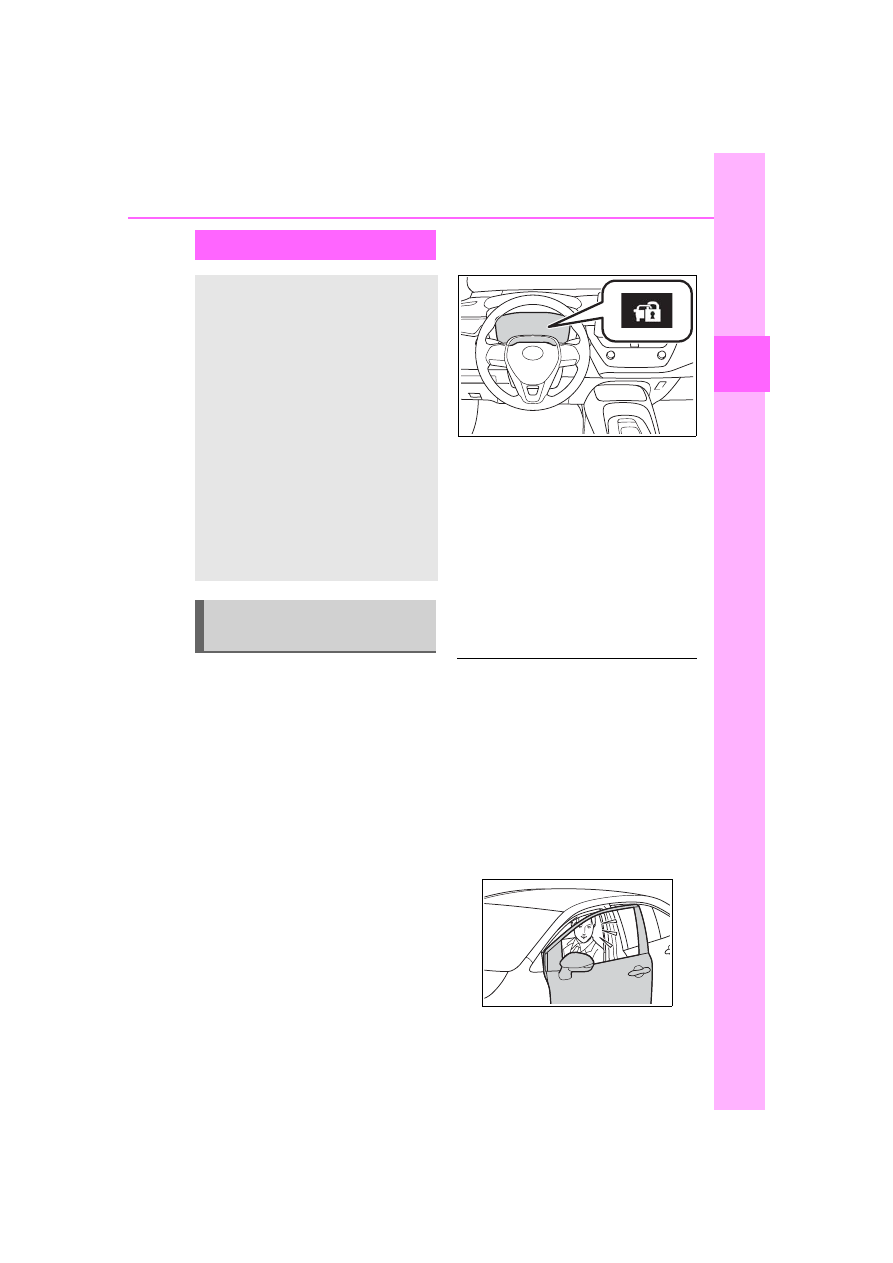

Items to check before lock-
ing the vehicle

To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:



Nobody is in the vehicle.



The windows are closed
before the alarm is set.



No valuables or other per-
sonal items are left in the
vehicle.

■

Setting

Close the doors, trunk and
hood, and lock all the doors.
The system will set automati-
cally after 30 seconds.

The indicator light changes from

being on to flashing when the sys-
tem is set.

■

Deactivating or stopping

Do one of the following to deac-
tivate or stop the alarms:



Unlock the doors.



Turn the power switch to ACC
or ON, or start the hybrid sys-
tem. (The alarm will be deacti-
vated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a mainte-

nance-free type alarm system.

■

Triggering of the alarm

The alarm may be triggered in the

following situations:

(Stopping the alarm deactivates the

alarm system.)

●

A person inside the vehicle opens

a door, the trunk or hood, or

unlocks the vehicle using a door

lock switch or inside lock button.

●

The 12-volt battery is recharged or

replaced when the vehicle is

Alarm

The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:



A locked door or trunk is
unlocked or opened in any
way other than using the
entry function, wireless
remote control or mechani-
cal key. (The doors will lock
again automatically.)



The hood is opened.

Setting/deactivating/stop-
ping the alarm system

90

1-5. Theft deterrent system

locked. (



P.499)

■

Alarm-operated door lock

In the following cases, depending

on the situation, the door may auto-

matically lock to prevent improper

entry into the vehicle:

●

When a person remaining in the

vehicle unlocks the door and the

alarm is activated.

●

While the alarm is activated, a

person remaining in the vehicle

unlocks the door.

●

When recharging or replacing the

12-volt battery

NOTICE

■

To ensure the system oper-

ates correctly

Do not modify or remove the sys-

tem. If modified or removed, the

proper operation of the system

cannot be guaranteed.

91

2

2

Vehicle

 statu

s information an

d in
dicator

s

Vehicle status information

and indicators

.

2-1. Instrument cluster

Warning lights and indica-

tors ...............................

92

Gauges and meters .......

96

Multi-information display

..................................

101

Energy monitor/consump-

tion screen.................

107

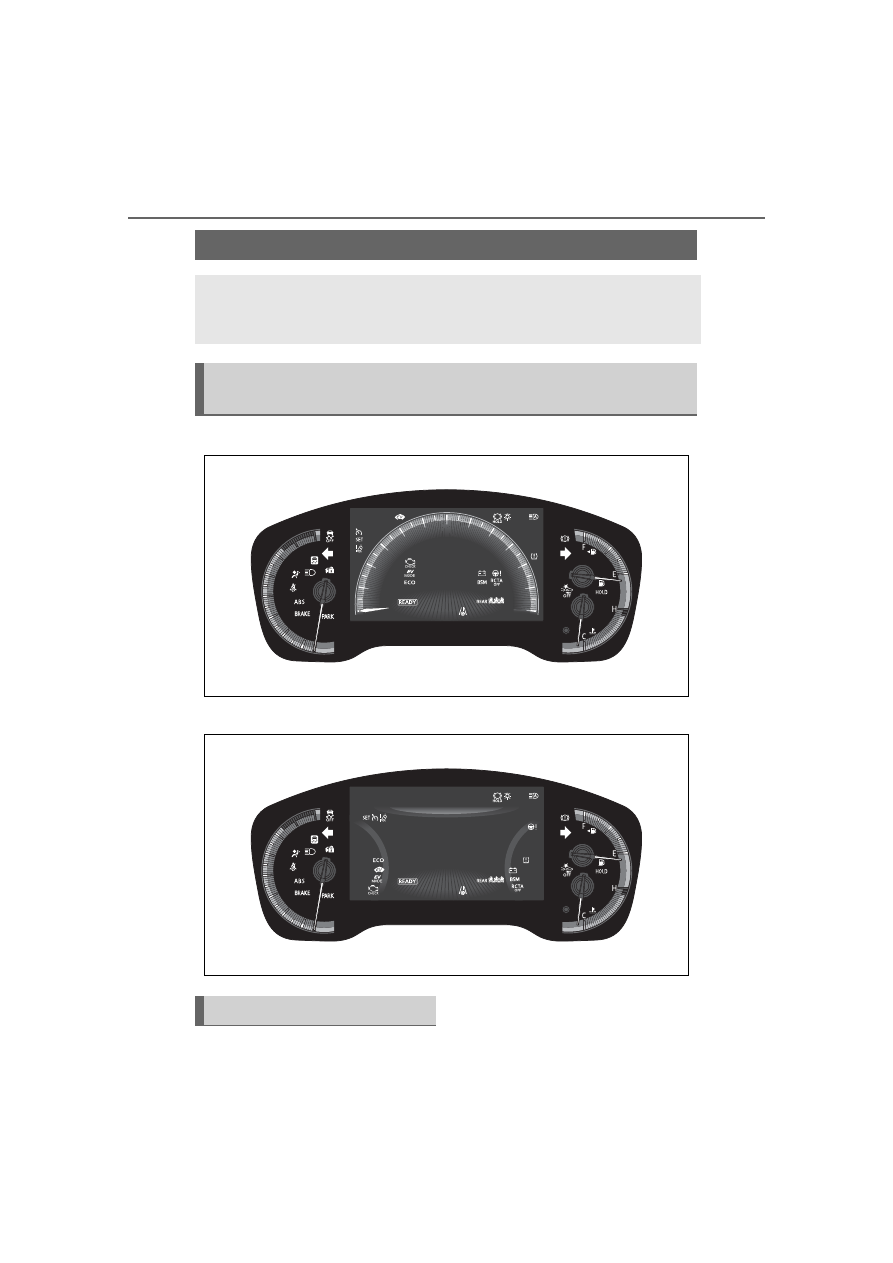

92

2-1. Instrument cluster

2-1.Instrument cluster



7-inch display (when analog speedometer is displayed)



7-inch display (when digital speedometer is displayed)

Warning lights inform the driver
of malfunctions in the indicated

Warning lights and indicators

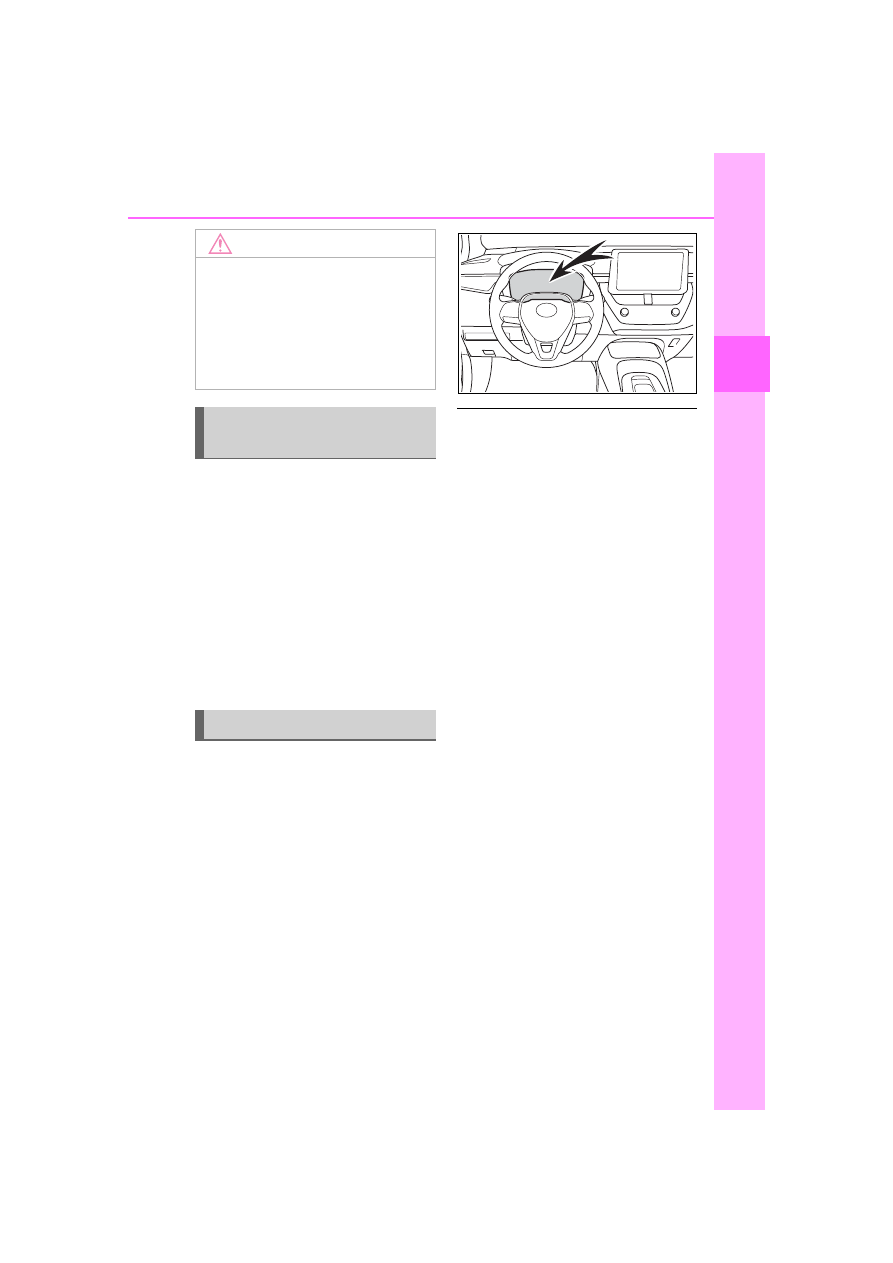

The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver of
the status of the vehicle’s various systems.

Warning lights and indicators displayed on the instru-
ment cluster

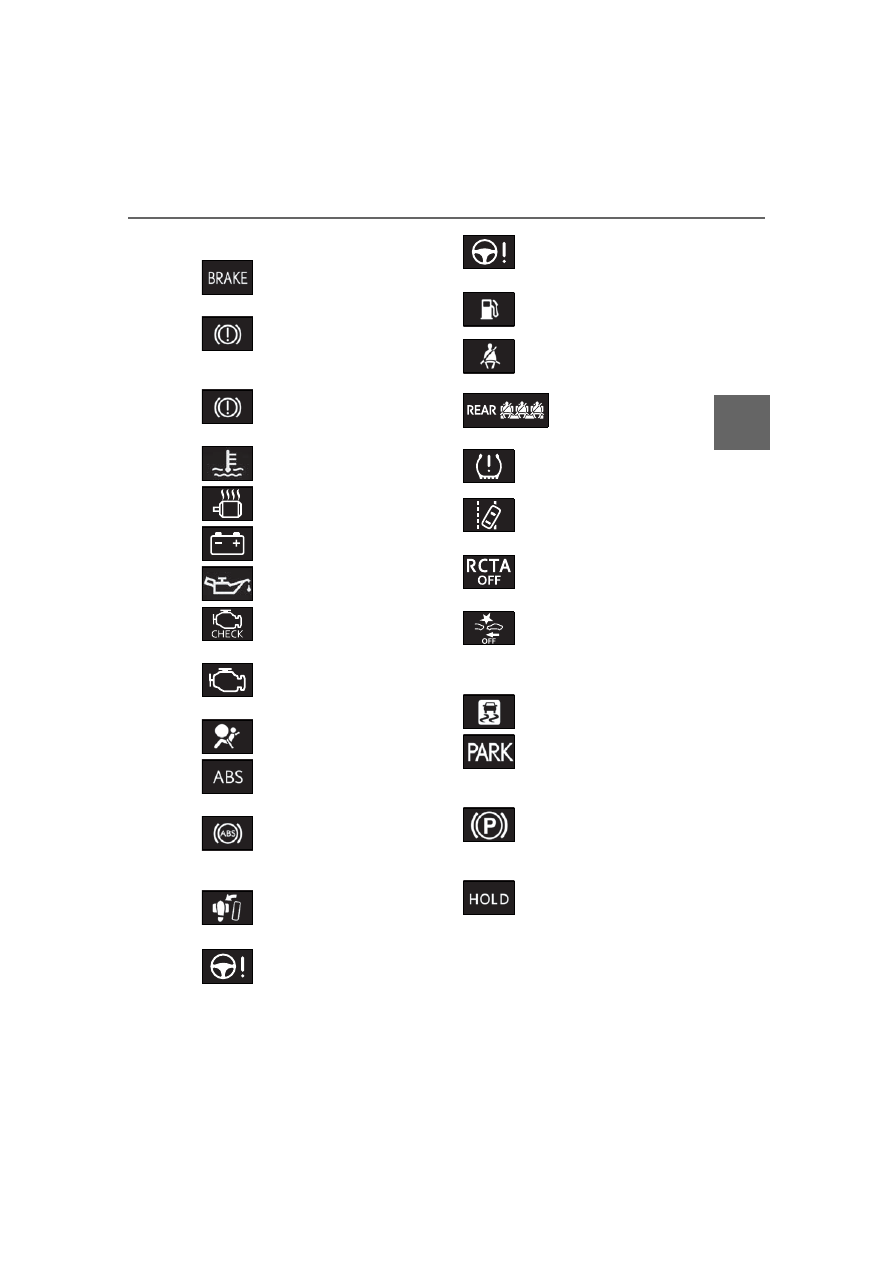

Warning lights

93

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

vehicle’s systems.

*1

:These lights come on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is
started, or after a few seconds.

(U.S.A.)

Brake system warning
light

*1

 (



P.462)

(Red)

(Canada)

Brake system warning
light

*1

 (



P.462)

(Yellow)

Brake system warning
light

*1

 (



P.462)

High coolant temperature
warning light

*2

 (



P.462)

Hybrid system overheat
warning light

*2

 (



P.463)

Charging system warning
light

*1

 (



P.463)

Low engine oil pressure
warning light

*2

 (



P.463)

(U.S.A.)

Malfunction indicator
lamp

*1

 (



P.463)

(Canada)

Malfunction indicator
lamp

*1

 (



P.463)

SRS warning light

*1



(



P.464)

(U.S.A.)

ABS warning light

*1



(



P.464)

(Canada)

ABS warning light

*1



(



P.464)

Brake Override System
warning light/Drive-Start
Control warning light

*2



(



P.464)

(Red)

Electric power steering
system warning light

*1



(



P.465)

(Yellow)

Electric power steering
system warning light

*1



(



P.465)

Low fuel level warning
light (



P.465)

Driver’s and front passen-
ger’s seat belt reminder
light (



P.465)

Rear passengers’
seat belt reminder
lights (



P.466)

Tire pressure warning
light

*1

 (if equipped)

(



P.466)

(Orange)

LTA indicator (



P.466)

(Flashes)

RCTA OFF indicator

*1

 (if

equipped) (



P.467)

(Flashes

or illumi-

nates)

PCS warning light

*1



(



P.467)

Slip indicator

*1

 (



P.467)

(Flashes)

(U.S.A.)

Parking brake indicator
(



P.468)

(Flashes)
(Canada)

Parking brake indicator
(



P.468)

(Flashes)

Brake hold operated indi-
cator

*1

(



P.468)

94

2-1. Instrument cluster

There may be a malfunction in a
system if the lights do not come
on, or turn off. Have the vehicle
inspected by your Toyota dealer.

*2

:This light illuminates on the

multi-information display.

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

hybrid system, this could mean

that these systems are not avail-

able to help protect you in an acci-

dent, which could result in death

or serious injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

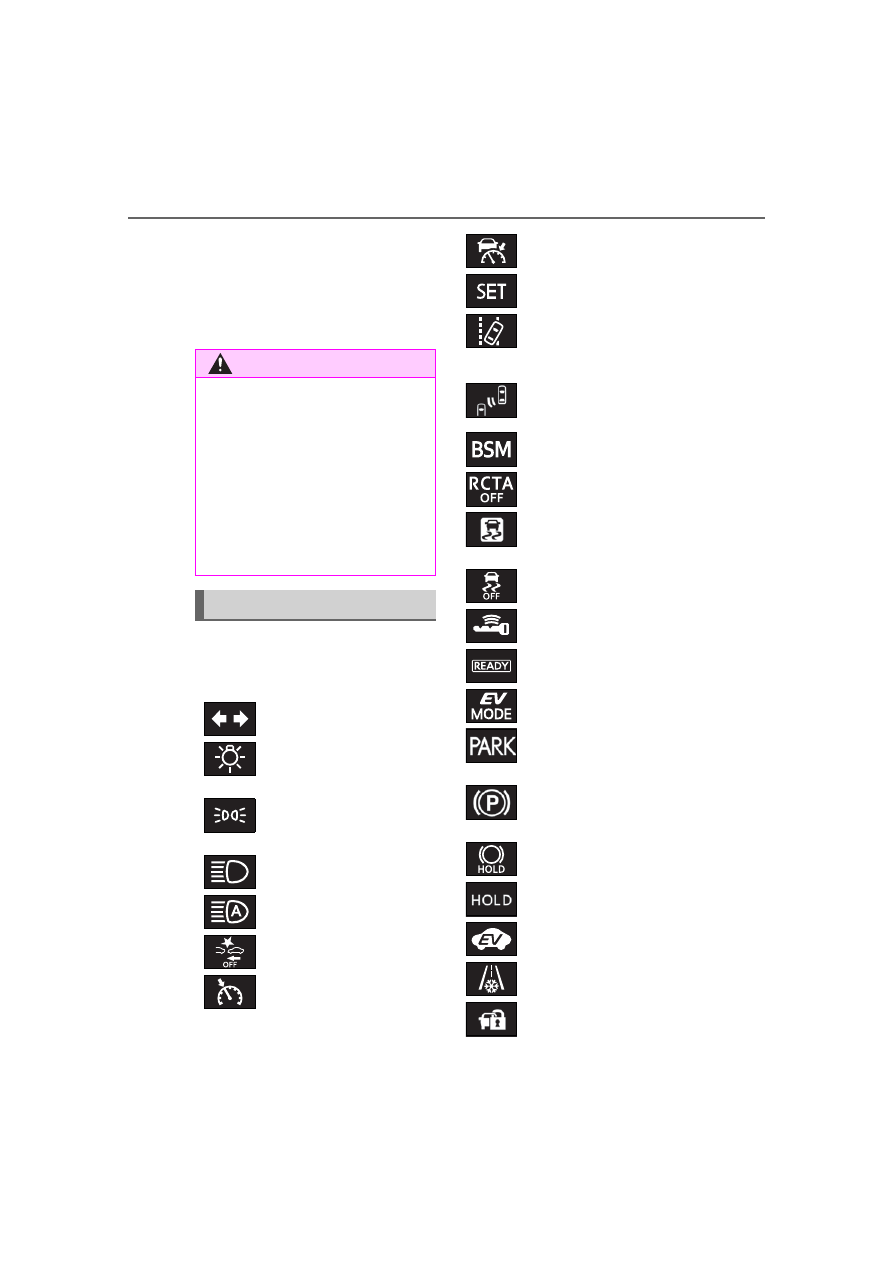

Indicators

Turn signal indicator
(



P.162)

(U.S.A.)

Headlight indicator
(



P.169)

(Canada)

Tail light indicator
(



P.169)

Headlight high beam indi-
cator (



P.171)

Automatic High Beam
indicator (



P.171)

PCS warning light

*1, 2



(



P.186)

Cruise control indicator
(



P.202)

Dynamic radar cruise con-
trol indicator (



P.202)

Cruise control “SET” indi-
cator (



P.202)

*3

LTA indicator (



P.197)

BSM outside rear view
mirror indicators

*4, 5

 (if

equipped) (



P.216)

BSM indicator (if
equipped) (



P.216)

RCTA OFF indicator

*1, 2



(if equipped) (



P.221)

(Flashes)

Slip indicator

*1

 (



P.236)

VSC OFF indicator

*1, 2



(



P.237)

Smart key system indica-
tor

*6

 (



P.153)

“READY” indicator
(



P.153)

EV drive mode indicator
(



P.158)

(U.S.A.)

Parking brake indicator
(



P.163)

(Canada)

Parking brake indicator
(



P.163)

Brake hold standby indi-
cator

*1

 (



P.166)

Brake hold operated indi-
cator

*1

 (



P.166)

EV indicator (



P.81)

Low outside temperature
indicator

*7

 (



P.96)

Security indicator (



P.88,

89)

95

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

*1

:These lights come on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is
started, or after a few seconds.
There may be a malfunction in a
system if the lights do not come
on, or turn off. Have the vehicle
inspected by your Toyota dealer.

*2

:This light comes on when the

system is turned off.

*3

:Depending on the operating con-

dition, the color and illuminat-
ing/flashing state of the light
change.

*4

:In order to confirm operation, the

BSM outside rear view mirror
indicators illuminate in the follow-
ing situations:

• When the power switch is in

ON, the BSM function is
enabled on

 of the

multi-information display.

• When the BSM function is

enabled on

 of the

multi-information display, the
power switch is turned to ON.

If the system is functioning cor-
rectly, the BSM outside rear view
mirror indicators will turn off after a
few seconds.

If the BSM outside rear view mirror
indicators do not illuminate or do
not turn off, there may be a mal-
function in the system.
If this occurs, have the vehicle
inspected by your Toyota dealer.

*5

:This light illuminates on the out-

side rear view mirrors.

*6

:This light illuminates on the

multi-information display.

*7

:When the outside temperature is

approximately 37°F (3°C) or
lower, this indicator will flash for
approximately 10 seconds, then
stay on.

*8

:This light illuminates on the cen-

ter panel.

“AIR BAG ON/OFF”
indicator

*1, 8

 (



P.41)

Eco drive mode indicator
(



P.234)

Power mode indicator
(



P.234)
