5-3. Operating the lights and wipers

ing

• When driving in inclement weather

(heavy rain, snow, fog, sand-

storms, etc.)

• When the windshield is obscured

by fog, mist, ice, dirt, etc.

• When the windshield is cracked or

damaged

• When the front camera is

deformed or dirty

• When the temperature of the front

camera is extremely high

• When the surrounding brightness

level is equal to that of headlights,

tail lights or fog lights

• When headlights or tail lights of

vehicles ahead are turned off,

dirty, changing color, or not aimed

properly

• When the vehicle is hit by water,

snow, dust, etc., from a preceding

vehicle

• When driving through an area of

intermittently changing brightness

and darkness

• When frequently and repeatedly

driving ascending/descending

roads, or roads with rough, bumpy

or uneven surfaces (such as

stone-paved roads, gravel roads,

etc.)

• When frequently and repeatedly

taking curves or driving on a wind-

ing road

• When there is a highly reflective

object ahead of the vehicle, such

as a sign or mirror

• When the back of a preceding

vehicle is highly reflective, such as

a container on a truck

• When the vehicle’s headlights are

damaged or dirty, or are not aimed

properly

• When the vehicle is listing or titling

due to a flat tire, a trailer being

towed, etc.

• When the headlights are changed

between the high beams and low

beams repeatedly in an abnormal

manner

• When the driver believes that the

high beams may be flashing or

dazzling pedestrians or other driv-

ers

■

Temporarily lowering sensor

sensitivity

The sensitivity of the sensor can be

temporarily lowered.

Turn the power switch off while

the following conditions are met.

●

The headlight switch is in

●

The headlight switch lever is in

low beam position.

●

Automatic High Beam switch is

on.

Turn the power switch to ON.

Within 60 seconds after step

repeat pushing the headlight

switch lever to the high beam

position then pulling it to the orig-

inal position quickly 10 times,

then leave the lever in the origi-

nal position.

If the sensitivity is changed, the

AHB indicator is turn on and off 3

times.

■

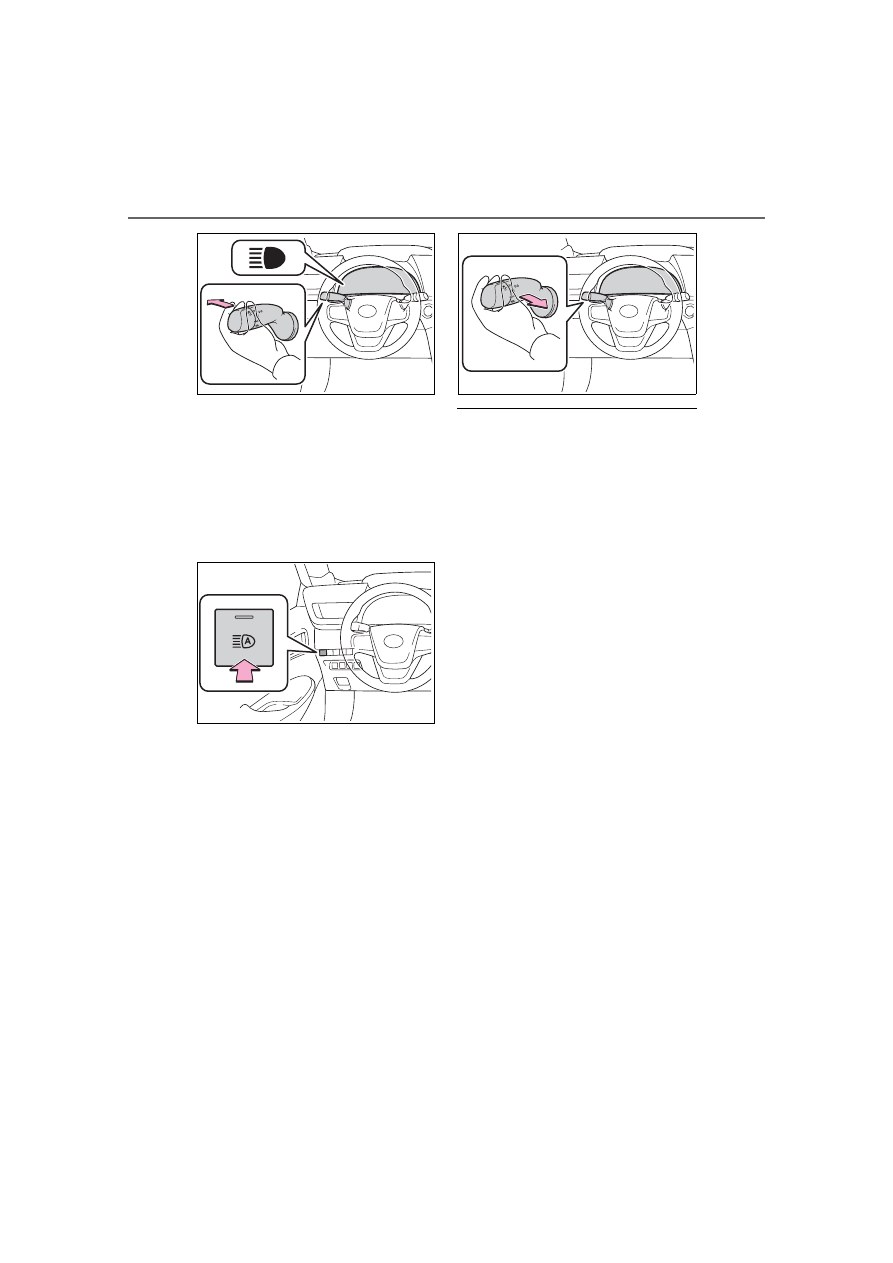

Switching to the high
beams

Push the lever away from you.

The AHB indicator will turn off and
the high beam indicator will turn on.
Pull the lever to its original position
to activate the Automatic High
Beam system.

Turning the high beams
on/off manually

196

5-3. Operating the lights and wipers

■

Switching to the low beams

Press the Automatic High Beam
switch.

The AHB indicator will turn off.
Press the switch to activate the
Automatic High Beam system
again.

■

Temporarily switching to
the low beams

Pull the lever toward you and
then return it to its original posi-
tion.

The high beams are on while the
lever is pulled toward you. How-
ever, after the lever is returned to its
original position, the low beams
remain on for a certain period of
time. Afterwards, the Automatic
High Beam system will be activated
again.

■

Temporarily switching to the

low beams

It is recommended to switch to the

low beams when the high beam

may cause problems or distress to

other drivers or pedestrians nearby.

197

5-3. Operating the lights and wipers

ing

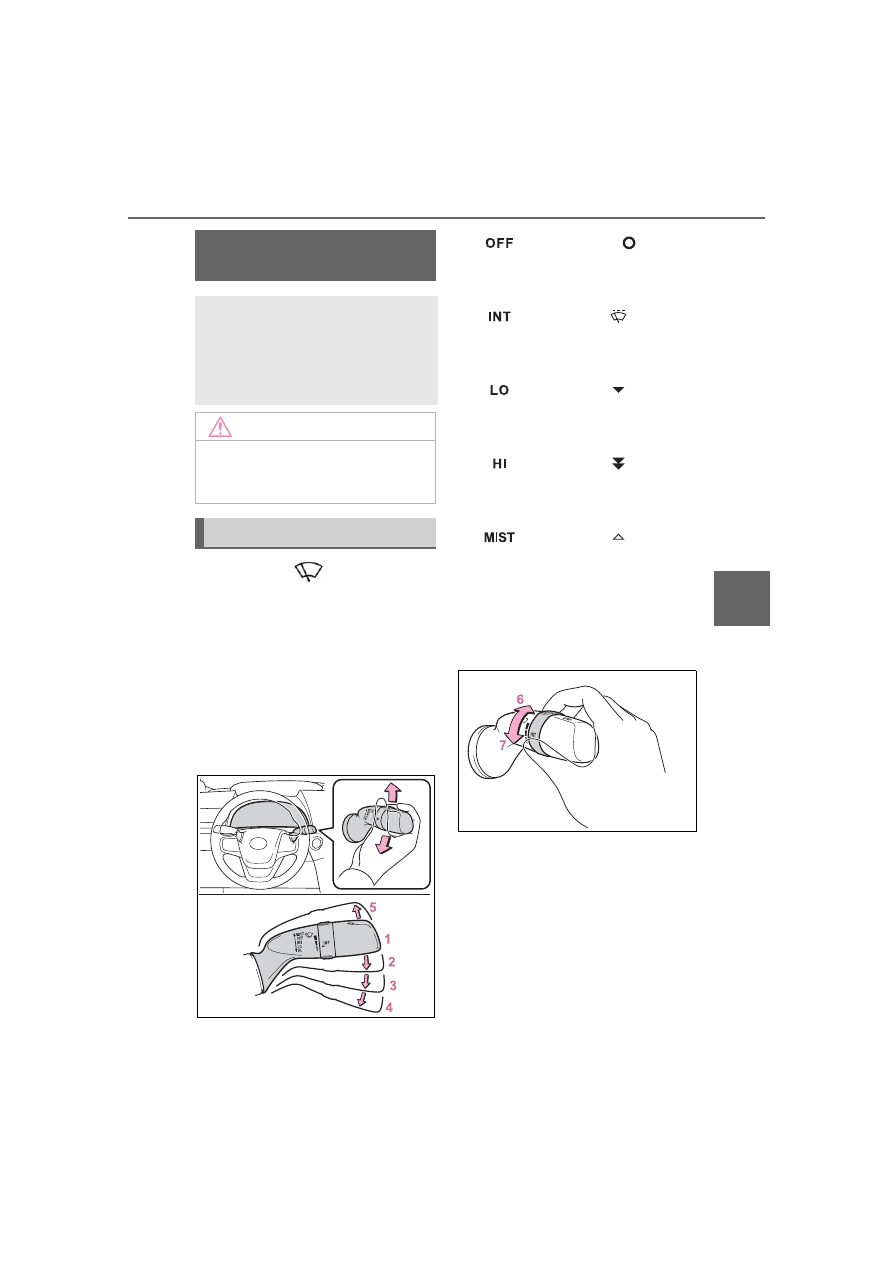

Operate the

lever oper-

ates the wipers or washer as fol-
lows:



Intermittent windshield wip-
ers with interval adjuster

When intermittent windshield
wiper operation is selected, the
wiper interval can be also
adjusted.

(U.S.A.) or

(Canada)
Off

(U.S.A.) or

(Can-

ada)
Intermittent operation

(U.S.A.) or

(Can-

ada)
Low speed wiper operation

(U.S.A.) or

(Can-

ada)
High speed wiper operation

(U.S.A.) or

(Can-

ada)
Temporary operation

Wiper intervals can be adjusted
when intermittent operation is
selected.

Increases the intermittent
windshield wiper frequency

Decreases the intermittent
windshield wiper frequency

Windshield wipers and

washer

Operating the lever can
switch between automatic
operation and manual oper-
ation, or can use the
washer.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they

may damage the windshield.

Operating the wiper lever

198

5-3. Operating the lights and wipers

Washer/wiper dual

operation

Pulling the lever operates the wip-
ers and washer.
(After operating several times, the
wipers operate once more time
after a short delay to prevent drip-
ping. However, the dripping preven-
tion does not operate while the
vehicle is moving.)



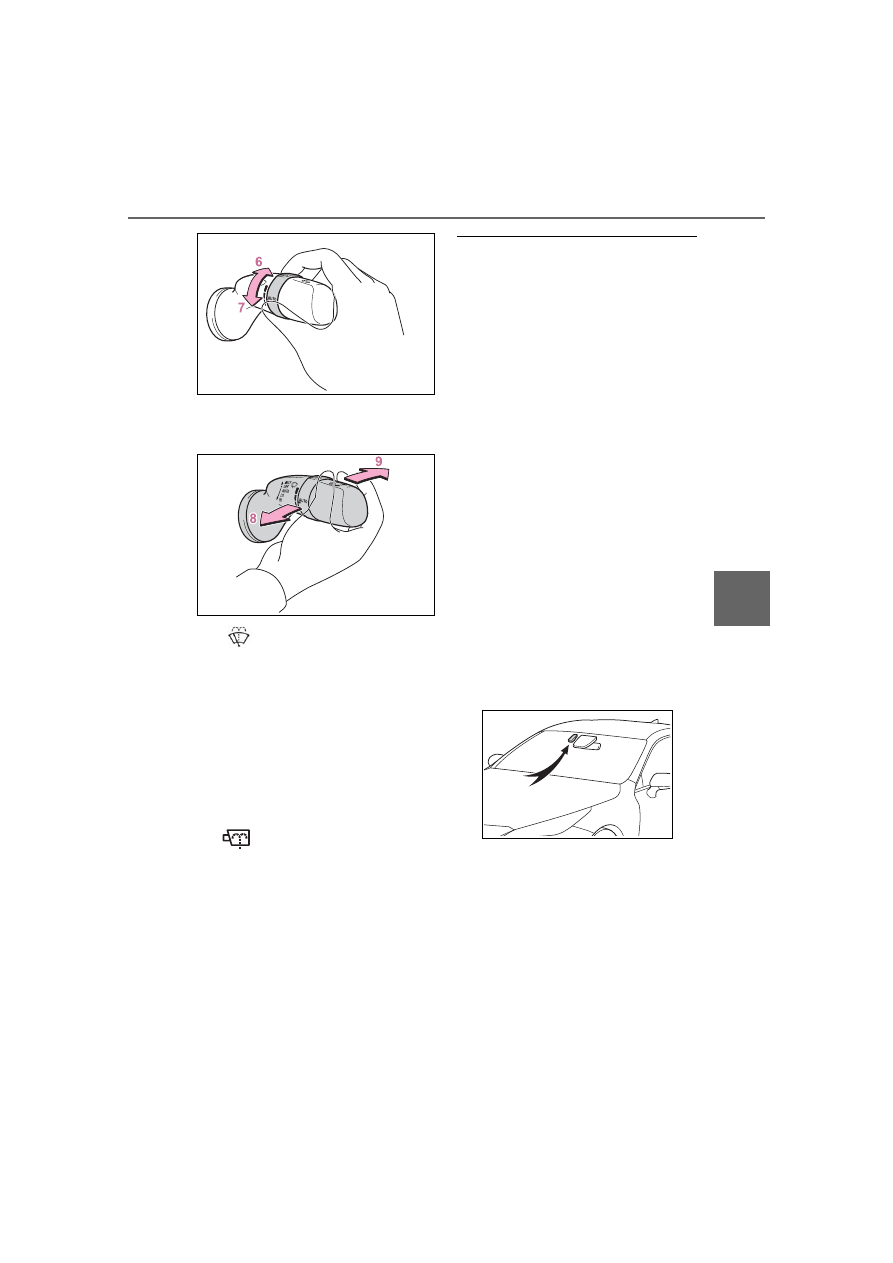

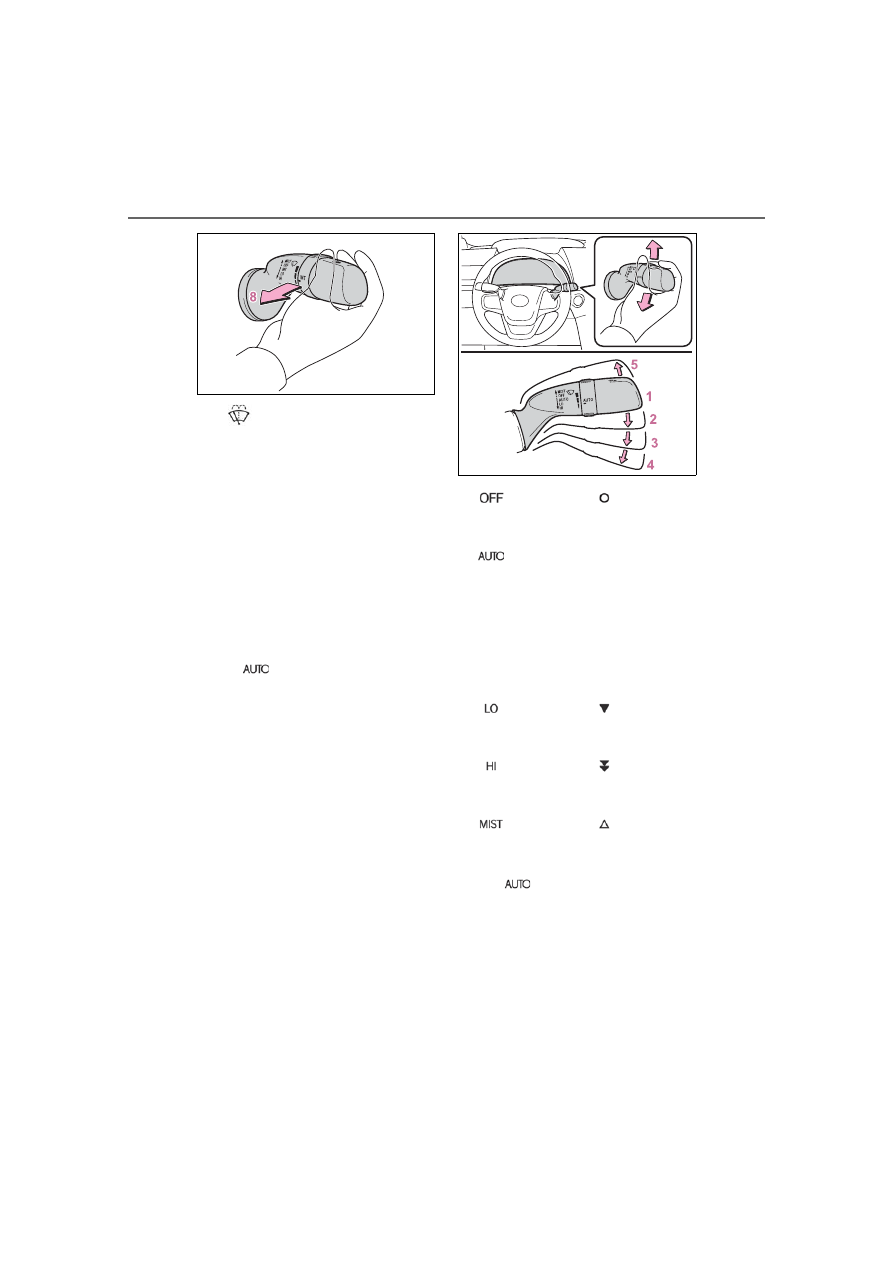

Rain-sensing windshield wip-
ers

When

is selected, the wip-

ers will operate automatically
when the sensor detects falling
rain. The system automatically
adjusts wiper timing in accor-
dance with rain volume and
vehicle speed.

(U.S.A.) or

(Canada)

Off

Rain-sensing wiper oper-

ation

The wipers will operate automati-
cally when the sensor detects fall-
ing rain. The system automatically
adjusts wiper timing in accordance
with rain volume and vehicle speed.

(U.S.A.) or

(Canada)

Low speed wiper operation

(U.S.A.) or

(Canada)

High speed wiper operation

(U.S.A.) or

(Canada)

Temporary operation

When

is selected, the sen-

sor sensitivity can be adjusted
by turning the switch ring.

199

5-3. Operating the lights and wipers

ing

Increases the sensitivity

Decreases the sensitivity

Washer/wiper dual

operation

Rear camera washer

operation

Pushing the lever operates the rear
camera washer and cleans the rear
camera and the camera for the Dig-
ital Rearview Mirror.

: Vehicles with Digital Rearview

Mirror

■

The windshield wiper and

washer can be operated when

The power switch is in ON.

■

Effects of vehicle speed on

wiper operation (vehicles with

rain-sensing windshield wipers)

Even when the wipers are not in

AUTO mode, vehicle speed affects

the time until the drip prevention

wiper sweep occurs.
With low speed windshield wiper

operation selected, wiper operation

will be switched from low speed to

intermittent wiper operation only

when the vehicle is stationary.

(However, when the sensor sensitiv-

ity is adjusted to the highest level,

the mode cannot be switched.)

■

Raindrop sensor (vehicles with

rain-sensing windshield wipers)

●

The raindrop sensor judges the

amount of raindrops.

An optical sensor is adopted. It

may not operate properly when

sunlight from the rising or setting

of the sun intermittently strikes the

windshield, or if bugs, etc., are

present on the windshield.

●

If the wiper is turned to AUTO

mode while the power switch is in

ON, the wipers will operate once

to show that AUTO mode is acti-

vated.

●

If the temperature of the raindrop

sensor is 185°F (85°C) or higher,

or 5°F (-15°C) or lower, automatic

operation may not occur. In this

case, operate the wipers in any

mode other than AUTO mode.

200

5-3. Operating the lights and wipers

■

If no windshield washer fluid

sprays

Check that the washer nozzles are

not blocked if there is washer fluid in

the windshield washer fluid reser-

voir.

■

Front door opening linked wind-

shield wiper stop function

(vehicles with rain-sensing

windshield wipers)

When

is selected and the wind-

shield wipers are operating, if a front
door is opened while the vehicle is
stopped and the P shift position is
selected, operation of the wind-
shield wipers will be stopped to pre-
vent anyone near the vehicle from
being sprayed by water from the
wipers. When the front door is
closed, wiper operation will resume.

■

When stopping fuel cell system

in an emergency while driving

If the windshield wipers are operat-

ing when fuel cell system is

stopped, the windshield wipers will

operate in high speed operation.

After the vehicle is stopped, opera-

tion will return to normal when the

power switch is turned to ON, or

operation will stop when the driver’s

door is opened.

When the windshield wipers are
not being used, they retract to
below the hood. To enable the
windshield wipers to be lifted

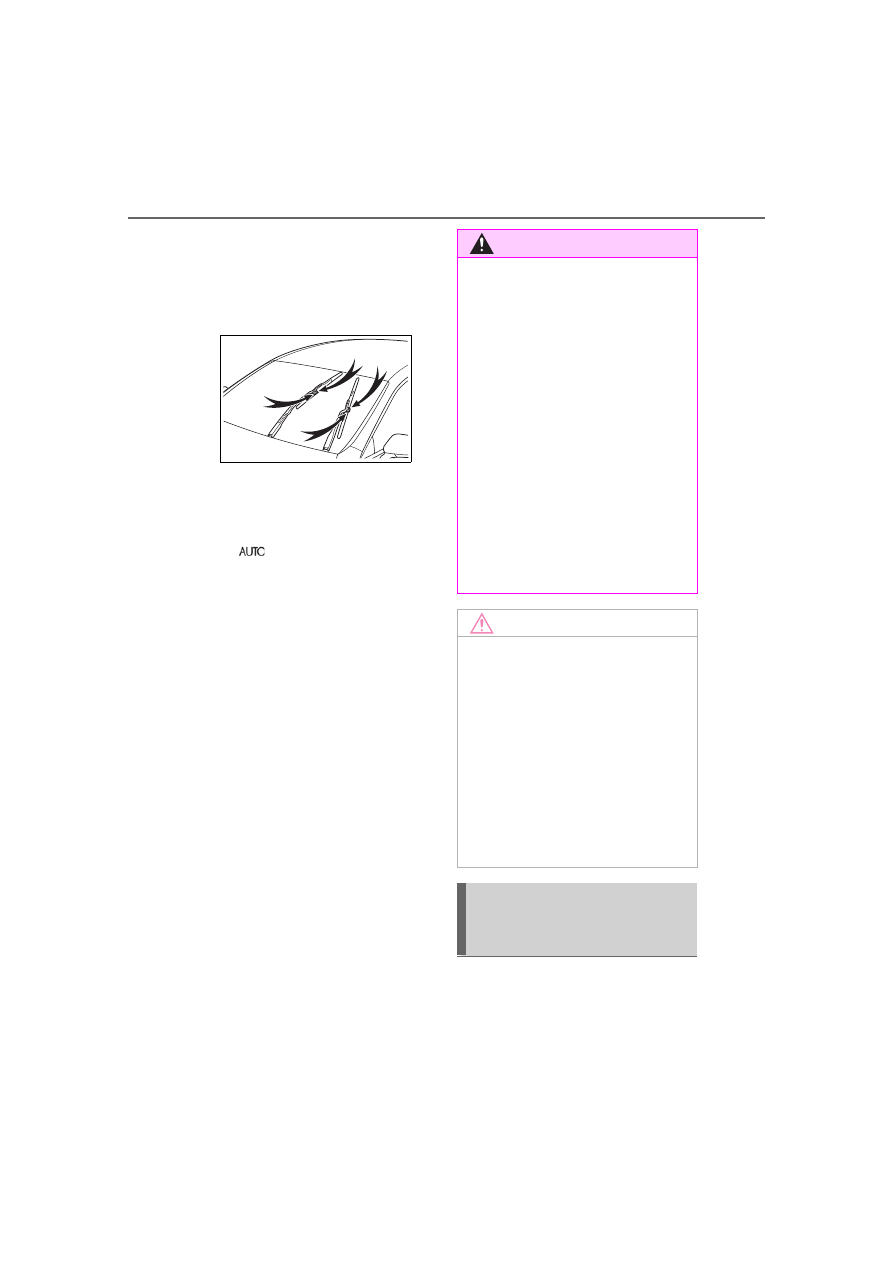

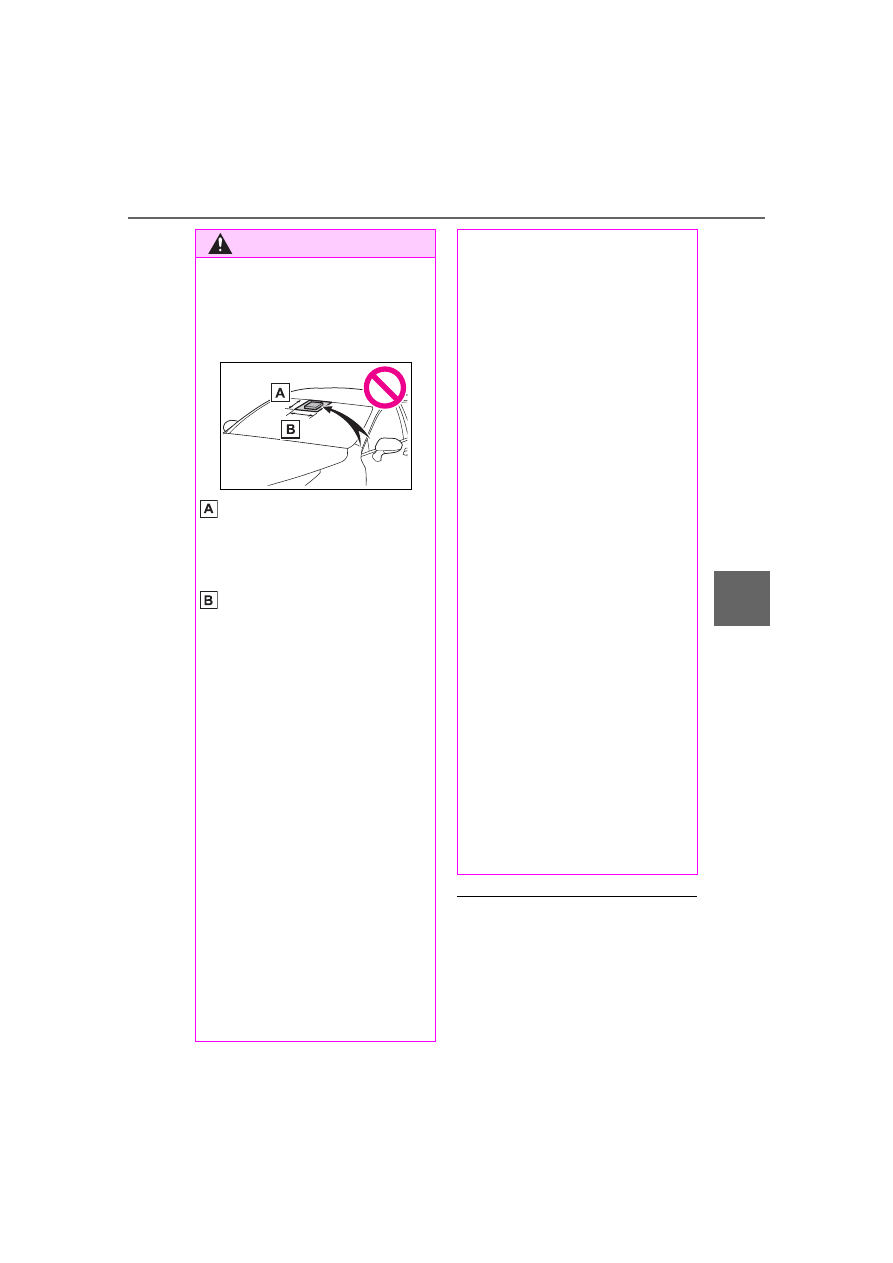

WARNING

■

Caution regarding the use of

windshield wipers in AUTO

mode (vehicles with rain-

sensing windshield wipers)

The windshield wipers may oper-

ate unexpectedly if the sensor is

touched or the windshield is sub-

ject to vibration in AUTO mode.

Take care that your fingers or any-

thing else do not become caught

in the windshield wipers.

■

Caution regarding the use of

washer fluid

When it is cold, do not use the

washer fluid until the windshield

becomes warm. The fluid may

freeze on the windshield and

cause low visibility. This may lead

to an accident, resulting in death

or serious injury.

NOTICE

■

When there is no washer fluid

spray from the nozzle

Damage to the washer fluid pump

may be caused if the lever is

pulled toward you and held con-

tinually.

■

When a nozzle becomes

blocked

In this case, contact your Toyota

dealer.

Do not try to clear it with a pin or

other object. The nozzle will be

damaged.

Changing the windshield
wiper rest position/Lifting
the windshield wipers

201

5-3. Operating the lights and wipers

ing

when parking in cold conditions
or when replacing a windshield
wiper insert, change the rest
position of the windshield wipers
to the service position using the
wiper lever.

■

Raising the wipers to the
service position

Within approximately 45 sec-
onds of turning the power switch
off, move the wiper lever to the

(U.S.A.) or

(Canada)

position and hold it for approxi-
mately 2 seconds or more.

The wipers will move to the service
position.

■

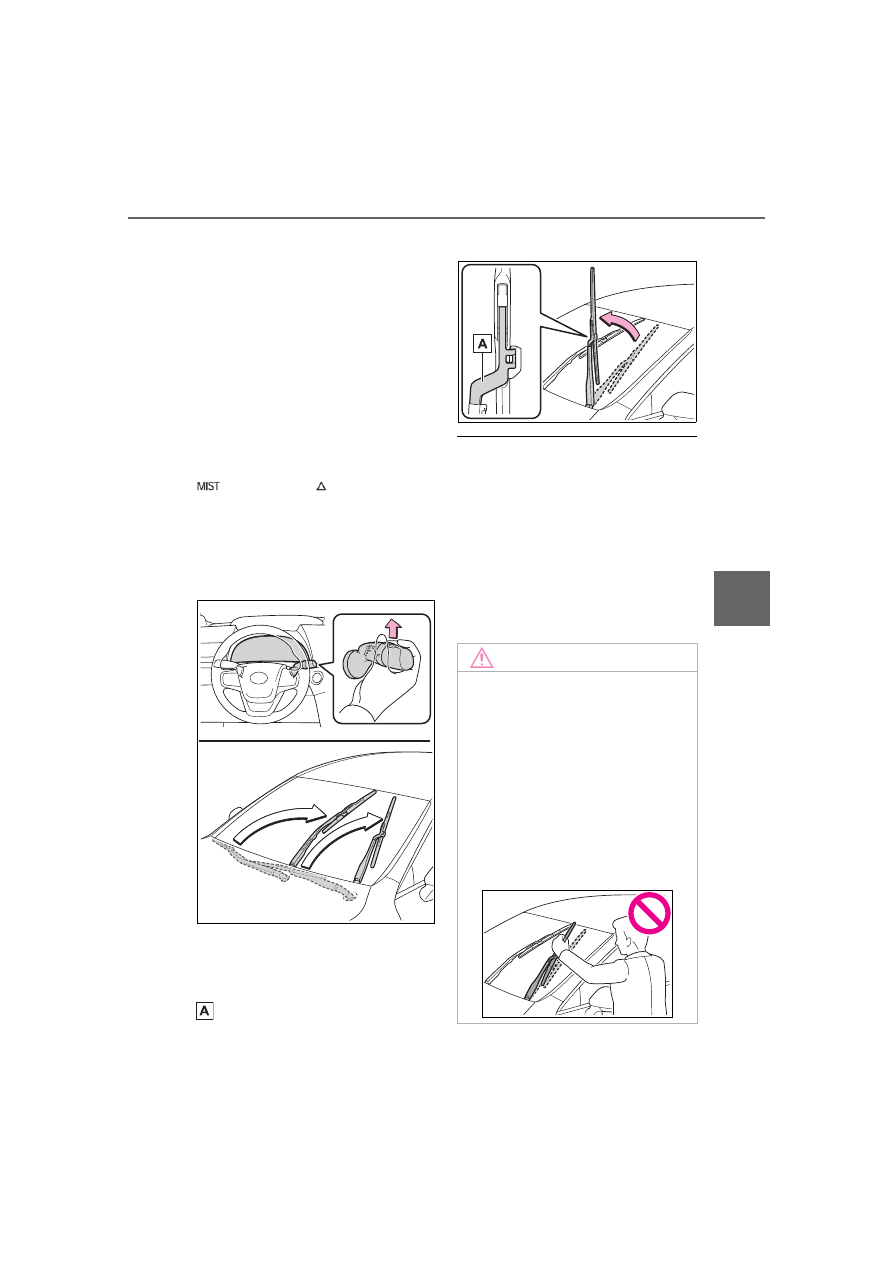

Lifting the windshield wip-
ers

While holding the hook portion

of the wiper arm, lift the wind-

shield wiper from the wind-

shield.

■

Lowering the windshield wipers

to the retracted position

With the windshield wipers placed

on the windshield, turn the power

switch to ON and then move the

wiper lever to an operating position.

When the wiper switch is turned off,

the windshield wipers will stop at the

retracted position. Even if the wipers

deviate while the power switch is off,

the wipers will return to the normal

position.

NOTICE

■

When lifting the windshield

wipers

●

Do not lift the windshield wipers

when they are in the retracted

position below the hood. Other-

wise, they may contact the

hood, possibly resulting in dam-

age to a windshield wiper and/or

the hood.

●

Do not lift a windshield wiper by

the wiper blade. Otherwise, the

wiper blade may be deformed.

203

5-4. Refueling

ing

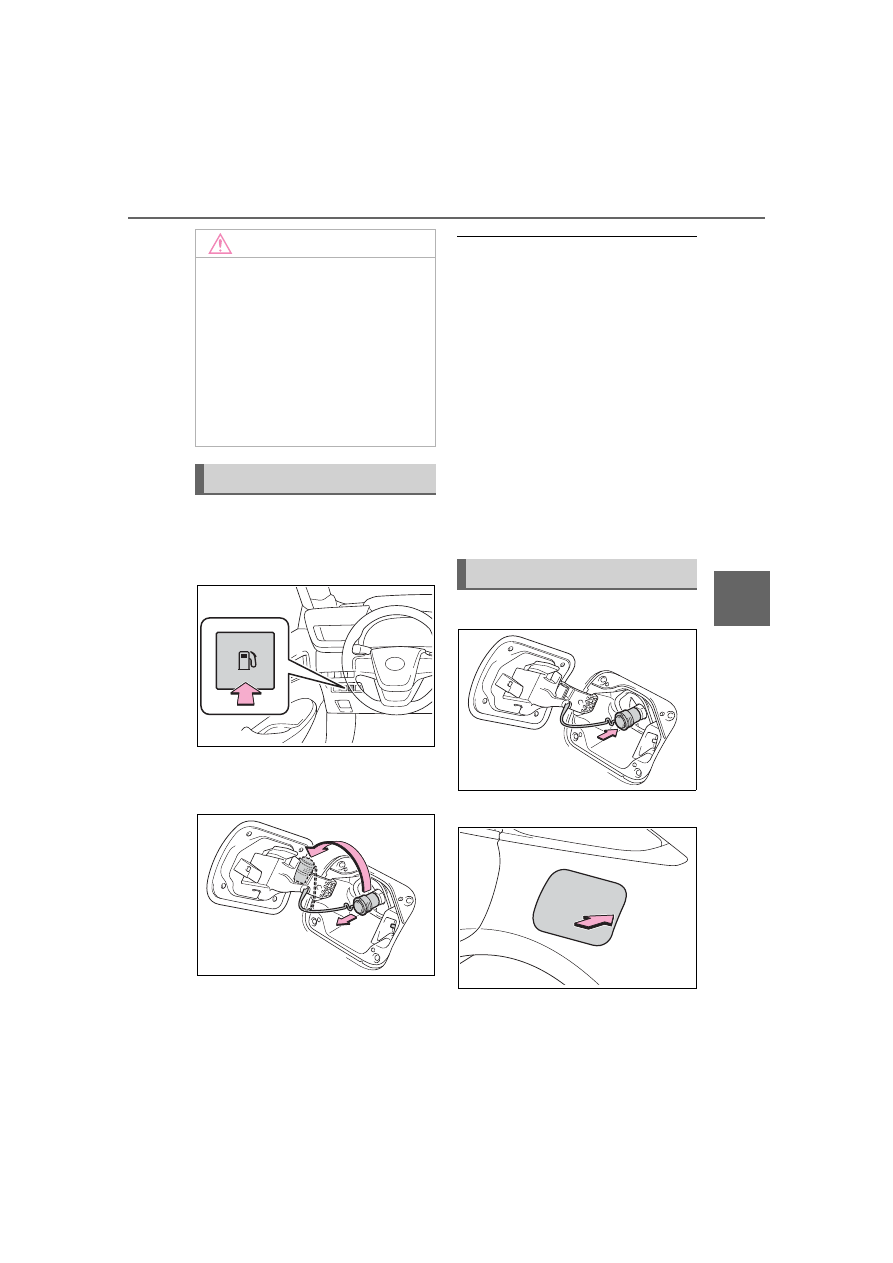

5-4.Refueling



Close the all the doors and
windows.



Set the parking brake.



Shift the shift position to P.



Turn the power switch off.



Turn off the headlights.

■

Fuel types



P.483

■

Notes on fueling

●

Fueling will not be possible if the

pressure inside the vehicle’s

hydrogen tanks is higher than the

supply pressure of the hydrogen

station. If the hydrogen tanks are

more than half full, the vehicle will

be unable to fuel at a H35 dis-

penser. A hydrogen station with a

H70 dispenser (supply pressure of
10150 psi) [70 MPa, 714 kgf/cm

700 bar] is necessary to com-

pletely fill hydrogen tanks.

●

If the fueling cannot be completed

due to trouble with the station

equipment, call the number indi-

cated on the equipment.

Opening the fuel door



Fuel with compressed
hydrogen gas only at hydro-
gen stations.



Fuel at hydrogen stations
conforming with the Society
of Automotive Engineers
(SAE) J2601 fueling proto-
col or laws that may super-
sede such SAE protocols.



Refer to the Mirai Station
Finder Application in Con-
nected services,
https://www.toyota.com/
connected-services/ (for
U.S. owners) or
https://www.toyota.ca/
toyota/en/about/
connected-services (for
Canadian owners), or call 1-
800-331-4331 (for U.S.
owners) or 1-888-869-6828
(for Canadian owners).



Observe any notices or
instructions shown at hydro-
gen stations.



The filling time and amount
of fuel may depend on out-
side temperature and the
equipment at that hydrogen
station.



Vehicles with expired hydro-
gen tanks must not be used.
Check P.81 to learn how
and when to check the expi-
ration. Consult your Toyota
dealer.

Before filling

WARNING

■

When filling

Observe the following precautions

while fueling the vehicle. Failure

to do so may result in death or

serious injury.

204

5-4. Refueling

WARNING

●

Turn the power switch off before

fueling.

●

Ensure the hydrogen gas noz-

zle is locked onto the vehicle

receptacle before filling. This

can be done by pulling on the

hydrogen gas nozzle to check

that it cannot be pulled off. Fail-

ure to do so may result in injury

or damage to the hydrogen gas

nozzle or vehicle.

●

Do not smoke while fueling.

●

Because the fuel is cold, the

hydrogen gas nozzle and vehi-

cle receptacle surface will

become cold, and frost may

develop. After fueling is com-

pleted, remove the hydrogen

gas nozzle by the plastic handle

only. Do not touch any other

parts of the hydrogen gas noz-

zle or vehicle receptacle with

bare hands immediately after

fueling, as frostbite may occur.

●

Be sure to use hydrogen gas

nozzles at 350 bar/700 bar for

passenger vehicles.

Do not use hydrogen gas noz-

zles designed for commercial

vehicles. Check the instructions

at hydrogen station or ask the

station operator for assistance.

●

Only fuel the vehicle at hydro-

gen stations designed for pas-

senger vehicles. Do not fuel the

vehicle at hydrogen stations

designed for forklifts, buses, or

trucks. Ask the station operator

for assistance.

NOTICE

■

When filling

●

Fuel only with compressed

hydrogen gas at stations com-

pliant with the Society of Auto-

motive Engineers (SAE) J2601

fueling protocol or laws that may

supersede such SAE protocols.

If improper fuels are used, the

fuel cell stack will be damaged.

●

Do not swing or drop the hydro-

gen gas nozzle, or subject it to a

large amount of force. Doing so

may cause damage.

●

If the hydrogen gas nozzle can-

not be removed after fueling, it

may be frozen to the vehicle

receptacle. Wait for the hydro-

gen gas nozzle to thaw before

attempting to remove. Do not

pull or rotate the hydrogen gas

nozzle forcibly. Failure to follow

these precautions may cause

damage.

●

Be sure to replace the cap after

filling. If foreign material gets in

the vehicle receptacle, it may

cause damage.

●

Do not put anything sharp, such

as a screwdriver, blade, or any

foreign object into the opening

of the vehicle receptacle. If the

vehicle receptacle is damaged,

hydrogen gas may leak during

fueling.

●

If you notice anything unusual

about the vehicle receptacle,

please notify your Toyota

dealer.

●

If you notice anything unusual

with the hydrogen dispenser or

hydrogen gas nozzle, please

notify the hydrogen station

operator. Contact information is

usually displayed on the dis-

penser.

205

5-4. Refueling

ing

Press the opener switch.

If the “READY” indicator is on or the

power switch is in ON, the fuel door

will not be unlocked.

Remove the cap and attach it
to the holder.

■

If “Stop in a Safe Place Turn

Power OFF Open Hydrogen

Filler Door” is displayed on the

multi-information display

Stop the vehicle in a safe place and

press the fuel door opener switch

once more with the following proce-

dure:

Shift the shift position to P.

Turn the power switch off.

Press the fuel door opener

switch.

■

Sounds during filling

When fueling with compressed

hydrogen gas, noises from gas flow-

ing through the hydrogen gas noz-

zle and hydrogen tank valves can

sometimes be heard. (



P.75)

Replace the cap.

Close the fuel door.

NOTICE

●

Do not put anti-freeze in the fuel

inlet opening. If foreign materi-

als enter the fuel inlet opening,

it may lead to damage.

●

Do not use a hydrogen gas fuel-

ing nozzle that has water drop-

lets attached to it, when fueling.

The attached water droplets will

freeze and the hydrogen gas

fueling nozzle may no be able to

be removed.

Opening the fuel door

Closing the fuel door

206

5-4. Refueling

■

Error operation prevention

function

When the fuel door is open, the fuel

cell system will not start. When the

“READY” indicator is on, the fuel

door will not open.

■

If “Open Filler Door Detected

Stop in a Safe Place Close

Hydrogen Filler Door” is dis-

played on the multi-information

display

The fuel door is open. Stop the vehi-

cle in a safe place and close the fuel

door.

■

If “Open Filler Door Detected

Close Hydrogen Filler Door

Restart Vehicle” is displayed on

the multi-information display

The fuel door is open and the fuel

cell system cannot be started. Shift

the shift position to P and, turn the

power switch off, then:

Check whether the cap has been

reinstalled.

Close the fuel door.

If the warning message on the multi-

information display turns off at this

time, there is no malfunction. How-

ever, if the display continues to

show, the sensor may be damaged.

Have the vehicle inspected by your

Toyota dealer.
It can be started 1 time at intervals

of repeating the starting operations

5 times (With the brake pedal

depress, press the power switch

operations 9 times within the inter-

val of 2 seconds). Operate the vehi-

cle after checking to be sure that the

hydrogen fueling nozzle is not con-

nected to the vehicle.

207

5-5. Using the driving support systems

ing

5-5.Using the driving support systems

■

PCS (Pre-Collision System)



P.212

■

LTA (Lane Tracing Assist)



P.223

■

AHB (Automatic High
Beam)



P.193

■

RSA (Road Sign Assist)



P.234

: If equipped

■

Dynamic radar cruise con-
trol with full-speed range



P.237

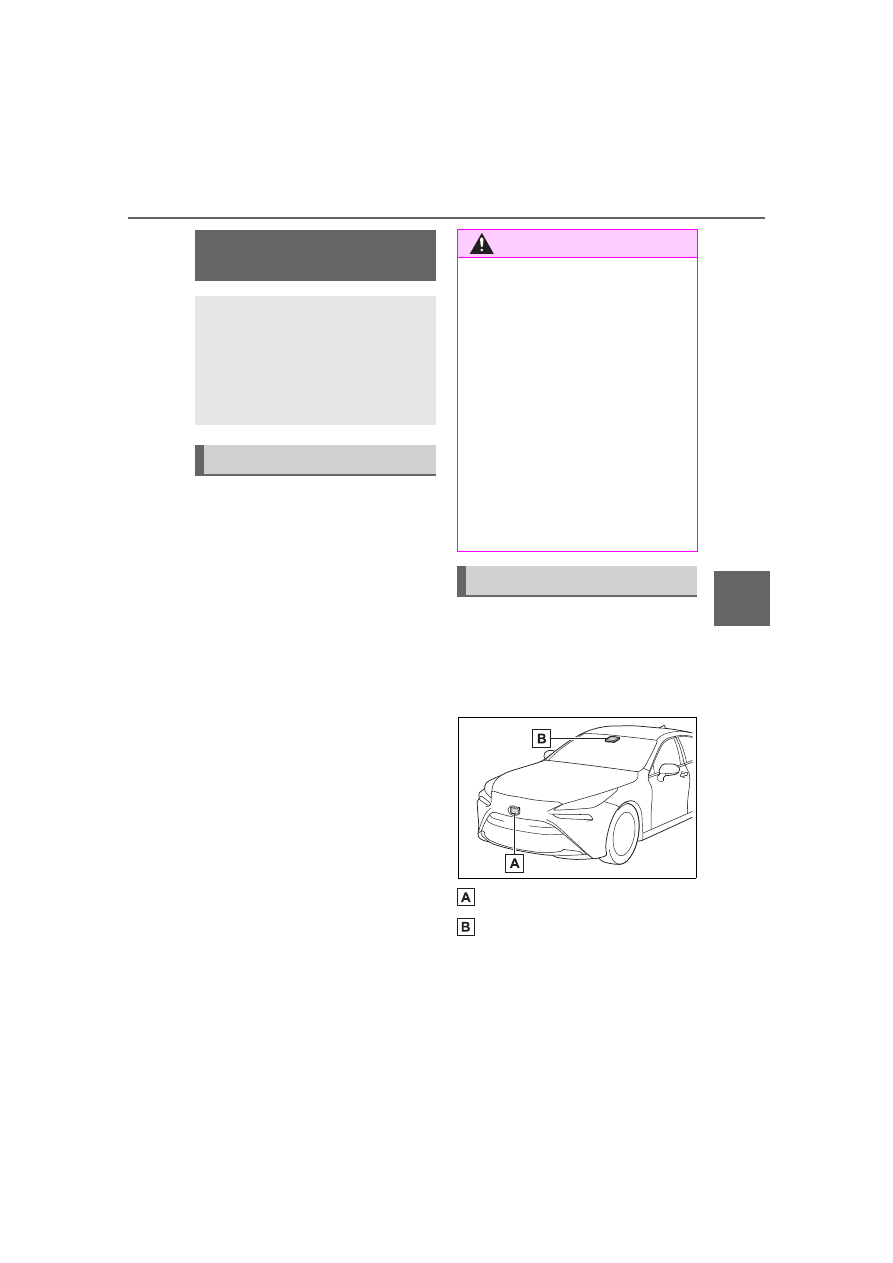

Two types of sensors, located
behind the front grille and wind-
shield, detect information neces-
sary to operate the drive assist
systems.

Radar sensor

Front camera

Toyota Safety Sense

2.5 +

The Toyota Safety Sense
2.5 + consists of the follow-
ing drive assist systems
and contributes to a safe
and comfortable driving
experience:

Driving assist system

WARNING

■

Toyota Safety Sense 2.5 +

The Toyota Safety Sense 2.5 + is

designed to operate under the

assumption that the driver will

drive safely, and is designed to

help reduce the impact to the

occupants and the vehicle in the

case of a collision or assist the

driver in normal driving condi-

tions.
As there is a limit to the degree of

recognition accuracy and control

performance that this system can

provide, do not overly rely on this

system. The driver is always

responsible for paying attention to

the vehicle’s surroundings and

driving safely.

Sensors

208

5-5. Using the driving support systems

WARNING

■

To avoid malfunction of the

radar sensor

Observe the following precau-

tions.
Otherwise, the radar sensor may

not operate properly, possibly

leading to an accident resulting in

death or serious injury.

●

Keep the radar sensor and the

radar sensor cover clean at all

times.

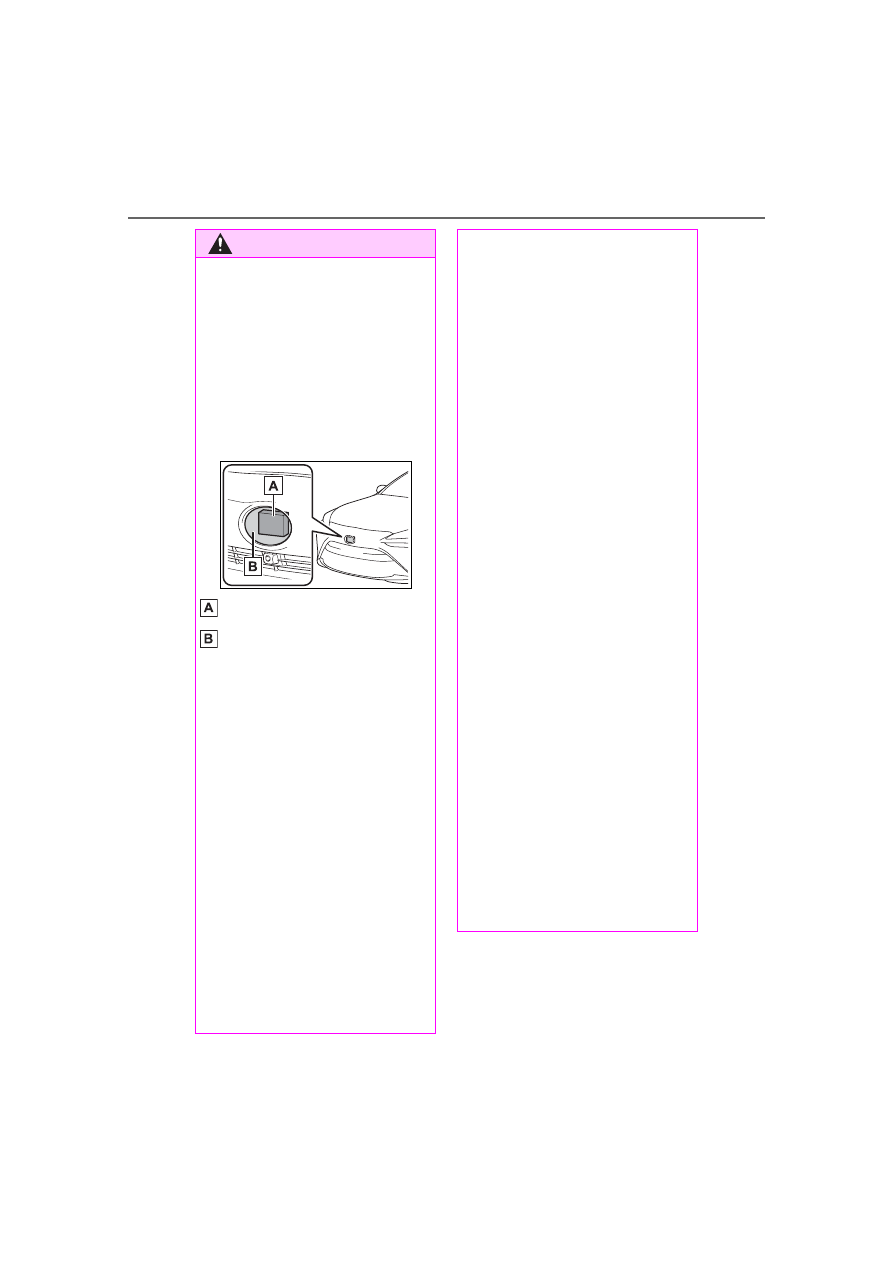

Radar sensor

Radar sensor cover

If the front of the radar sensor or
the front or back of the radar sen-
sor cover is dirty or covered with
water droplets, snow, etc., clean
it.
Clean the radar sensor and radar
sensor cover with a soft cloth to
avoid damaging them.

●

Do not attach accessories,

stickers (including transparent

stickers) or other items to the

radar sensor, radar sensor

cover or surrounding area.

●

Do not subject the radar sensor

or its surrounding area to a

strong impact.

If the radar sensor, front grille,

or front bumper has been sub-

jected to a strong impact, have

the vehicle inspected by your

Toyota dealer.

●

Do not disassemble the radar

sensor.

●

Do not modify or paint the radar

sensor or radar sensor cover.

●

In the following cases, the radar

sensor must be recalibrated.

Contact your Toyota dealer for

details.

• When the radar sensor or front

grille are removed and installed,

or replaced

• When the front bumper is

replaced

■

To avoid malfunction of the

front camera

Observe the following precau-

tions.
Otherwise, the front camera may

not operate properly, possibly

leading to an accident resulting in

death or serious injury.

●

Keep the windshield clean at all

times.

• If the windshield is dirty or cov-

ered with an oily film, water

droplets, snow, etc., clean the

windshield.

• If a glass coating agent is

applied to the windshield, it will

still be necessary to use the

windshield wipers to remove

water droplets, etc., from the

area of the windshield in front of

the front camera.

• If the inner side of the wind-

shield where the front camera is

installed is dirty, contact your

Toyota dealer.

209

5-5. Using the driving support systems

ing

■

Certification



P.546

WARNING

●

Do not attach objects, such as

stickers, transparent stickers,

etc., to the outer side of the

windshield in front of the front

camera (shaded area in the

illustration).

From the top of the windshield
to approximately 0.4 in. (1 cm)
below the bottom of the front
camera

Approximately 7.9 in. (20 cm)
(Approximately 4.0 in. [10 cm]
to the right and left from the
center of the front camera)

●

If the part of the windshield in

front of the front camera is

fogged up or covered with con-

densation or ice, use the wind-

shield defogger to remove the

fog, condensation or ice.

(



P.326, 334)

●

If water droplets cannot be

properly removed from the area

of the windshield in front of the

front camera by the windshield

wipers, replace the wiper insert

or wiper blade.

●

Do not attach window tint to the

windshield.

●

Replace the windshield if it is

damaged or cracked.

After replacing the windshield,

the front camera must be recali-

brated. Contact your Toyota

dealer for details.

●

Do not allow liquids to contact

the front camera.

●

Do not allow bright lights to

shine into the front camera.

●

Do not dirty or damage the front

camera.

When cleaning the inside of the

windshield, do not allow glass

cleaner to contact the lens of

the front camera. Also, do not

touch the lens.

If the lens is dirty or damaged,

contact your Toyota dealer.

●

Do not subject the front camera

to a strong impact.

●

Do not change the installation

position or direction of the front

camera or remove it.

●

Do not disassemble the front

camera.

●

Do not modify any components

of the vehicle around the front

camera (inside rear view mirror,

etc.) or ceiling.

●

Do not attach any accessories

to the hood, front grille or front

bumper that may obstruct the

front camera. Contact your Toy-

ota dealer for details.

●

If a surfboard or other long

object is to be mounted on the

roof, make sure that it will not

obstruct the front camera.

●

Do not modify the headlights or

other lights.

210

5-5. Using the driving support systems

■

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in

the system.

●

In the following situations, perform the actions specified in the table. When

the normal operating conditions are detected, the message will disappear

and the system will become operational.

If the message does not disappear, contact your Toyota dealer.

●

In the following situations, if the situation has changed (or the vehicle has

been driven for some time) and the normal operating conditions are

detected, the message will disappear and the system will become opera-

tional.

If the message does not disappear, contact your Toyota dealer.

Situation

Actions

When the area around a camera is
covered with dirt, moisture (fogged
up, covered with condensation, ice,
etc.), or other foreign matter

Using the wiper and A/C function,
remove the dirt and other attached
matter (



P.326, 334).

When the temperature around the
front camera is outside of the opera-
tional range, such as when the vehi-
cle is in the sun or in an extremely
cold environment

If the front camera is hot, such as
after the vehicle had been parked in
the sun, use the air conditioning sys-
tem to decrease the temperature
around the front camera.
If a sunshade was used when the
vehicle was parked, depending on its
type, the sunlight reflected from the
surface of the sunshade may cause
the temperature of the front camera
to become excessively high.

If the front camera is cold, such after
the vehicle is parked in an extremely
cold environment, use the air condi-
tioning system to increase the tem-
perature around the front camera.

The area in front of the front camera
is obstructed, such as when the
hood is open or a sticker is attached
to the part of the windshield in front
of the front camera.

Close the hood, remove the sticker,
etc., to clear the obstruction.

When “Pre-Collision System Radar
In Self Calibration Unavailable See
Owner’s Manual” is displayed.

Check whether there is attached
materials on the radar sensor and
radar sensor cover, and if there is,
remove it.

Toyota Mirai (2022 year). Manual in english - page 12
