4-1. Before driving

4

Dr

iv

ing

WARNING

■

Overloading the vehicle

Do not overload the vehicle. It

may not only cause damage to

the tires, but also degrade steer-

ing and braking ability, resulting in

an accident.

Trailer towing

Your vehicle is designed
primarily as a passenger-
and-load-carrying vehicle.
Towing a trailer can have an
adverse impact on handling,
performance, braking, dura-
bility, and fuel consump-
tion. For your safety and the
safety of others, you must
not overload your vehicle or
trailer. You must also
ensure that you are using
appropriate towing equip-
ment, that the towing equip-
ment has been installed
correctly and used properly,
and that you employ the
requisite driving habits.

Vehicle-trailer stability and
braking performance are
affected by trailer stability,
brake performance and set-
ting, trailer brakes, the hitch
and hitch systems (if
equipped).

To tow a trailer safely, use
extreme care and drive the
vehicle in accordance with
your trailer’s characteris-
tics and operating condi-
tions.

178

4-1. Before driving

■

Before towing

Check that the following conditions

are met:

●

Ensure that your vehicle’s tires

are properly inflated. (



P.667)

●

Trailer tires are inflated according

to the trailer manufacturer’s rec-

ommendation.

●

All trailer lights work as required

by law.

●

All lights work each time you con-

nect them.

●

The trailer ball is set at the proper

height for the coupler on the

trailer.

●

The trailer is level when it is

hitched.

Do not drive if the trailer is not

level, and check for improper

tongue weight, overloading, worn

suspension, or other possible

causes.

●

The trailer cargo is securely

loaded.

●

The rear view mirrors conform to

all applicable federal, state/provin-

cial or local regulations. If they do

not, install rear view mirrors

appropriate for towing purposes.

Toyota warranties do not
apply to damage or mal-
function caused by towing a
trailer for commercial pur-
poses.

Contact your Toyota dealer for
further information about addi-
tional requirements such as a
towing kit, etc.

WARNING

■

Trailer towing precautions

To tow a trailer safely, use

extreme care and drive the vehi-

cle in accordance with the trailer’s

characteristics and operating con-

ditions. Failure to do so could

cause an accident resulting in

death or serious injury. Vehicle

stability and braking performance

are affected by trailer stability,

brake setting and performance,

and the hitch. Your vehicle will

handle differently when towing a

trailer.

■

To avoid accident or injury

●

Do not exceed the TWR,

unbraked TWR, GCWR, GVWR

or GAWR.

●

Vehicles with towing package: If

the gross trailer weight is over

2000 lb. (907 kg), a sway con-

trol device with sufficient capac-

ity is required.

●

Adjust the tongue weight within

the appropriate range. Place

heavier loads as close to the

trailer axle as possible.

●

Do not exceed 65 mph (104

km/h), the posted towing speed

limit or the speed limit for your

trailer as set forth in your trailer

owner’s manual, whichever is

lowest. Slow down sufficiently

before making a turn, in cross

winds, on wet or slippery sur-

face, etc. to help avoid an acci-

dent. If you experience a

vehicle-trailer instability from

reducing a certain speed, slow

down and make sure you keep

your vehicle speed under the

speed of which you experience

the instability.

●

Do not make jerky, abrupt or

sharp turns.

179

4-1. Before driving

4

Dr

iv

ing

■

GCWR (Gross Combination
Weight Rating)

The maximum allowable gross
combination weight. The gross
combination weight is the sum
of the total vehicle weight
(including the occupants, cargo
and any optional equipment
installed on the vehicle) and the
weight of the trailer being towed
(including the cargo in the
trailer).

WARNING

●

Do not apply the brakes sud-

denly as you may skid, resulting

in jackknifing and loss of vehicle

control. This is especially true

on wet or slippery surfaces.

●

Do not exceed the trailer hitch

assembly weight, gross vehicle

weight, gross axle weight and

trailer tongue weight capacities.

●

Do not use dynamic radar

cruise control with full-speed

range when towing.

●

Slow down and downshift

before descending steep or long

downhill grades. Do not make

sudden downshifts while

descending steep or long down-

hill grades.

●

Vehicle-trailer instability is more

likely on steep long downhills.

Before descending steep or

long downhill grades, slow

down and downshift. Do not

make sudden downshifts when

descending steep or long down-

hill grades. Avoid holding the

brake pedal down too long or

applying the brakes too fre-

quently. This could cause the

brakes to overheat and result in

reduced braking efficiency.

●

Do not tow a trailer when the

compact spare tire is installed

on your vehicle.

■

When towing a trailer

Toyota recommends trailers with

brakes that conform to any appli-

cable federal and state/provincial

regulations.

●

If the gross trailer weight

exceeds unbraked TWR, trailer

brakes are required. Toyota rec-

ommends trailers with brakes

that conform to all applicable

federal and state/provincial reg-

ulations.

●

Never tap into your vehicle’s

hydraulic system, as this will

lower the vehicle’s braking

effectiveness.

●

Never tow a trailer without using

a safety chain securely attached

to both the trailer and the vehi-

cle. If damage occurs to the

coupling unit or hitch ball, there

is danger of the trailer wander-

ing into another lane.

Towing related terms

180

4-1. Before driving



Vehicles without towing pack-
age



Vehicles with towing package

■

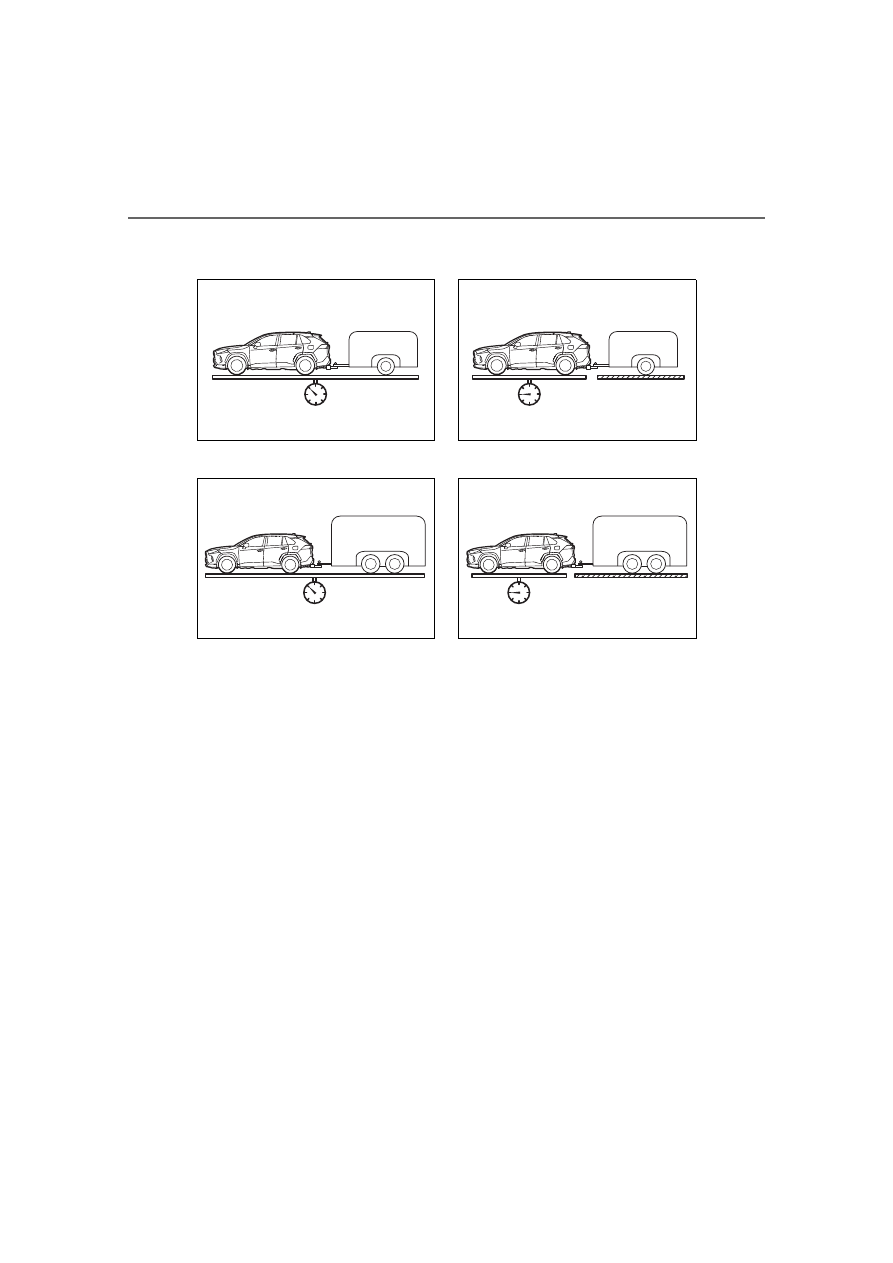

GVWR (Gross Vehicle
Weight Rating)

The maximum allowable gross
vehicle weight. The gross vehi-
cle weight is the total weight of
the vehicle. When towing a
trailer, it is the sum of the vehi-
cle weight (including the occu-
pants, cargo and any optional
equipment installed on the vehi-
cle) and the tongue weight.



Vehicles without towing pack-
age



Vehicles with towing package

■

GAWR (Gross Axle Weight
Rating)

The maximum allowable gross
axle weight. The gross axle
weight is the load placed on
each axle (front and rear).

181

4-1. Before driving

4

Dr

iv

ing



Vehicles without towing pack-
age

Front GAWR

Rear GAWR



Vehicles with towing package

Front GAWR

Rear GAWR

■

TWR (Trailer Weight Rating)

The maximum allowable gross
trailer weight. The gross trailer
weight is the sum of the trailer
weight and the weight of the

cargo in the trailer.
TWR is calculated assuming
base vehicle with one driver,
one front passenger, towing
package (if available), hitch and
hitch systems (if required).

Additional optional equipment, pas-
sengers and cargo in the vehicle
will reduce the trailer weight rating
so as not to exceed GCWR, GVWR
and GAWR.
Vehicles with towing package: If the
gross trailer weight exceeds 3000
lb. (1360 kg), it is recommended to
use a trailer with 2 or more axles.



Vehicles without towing pack-
age

(With brakes)



Vehicles with towing package

(With brakes)

A

B

A

B

A

A

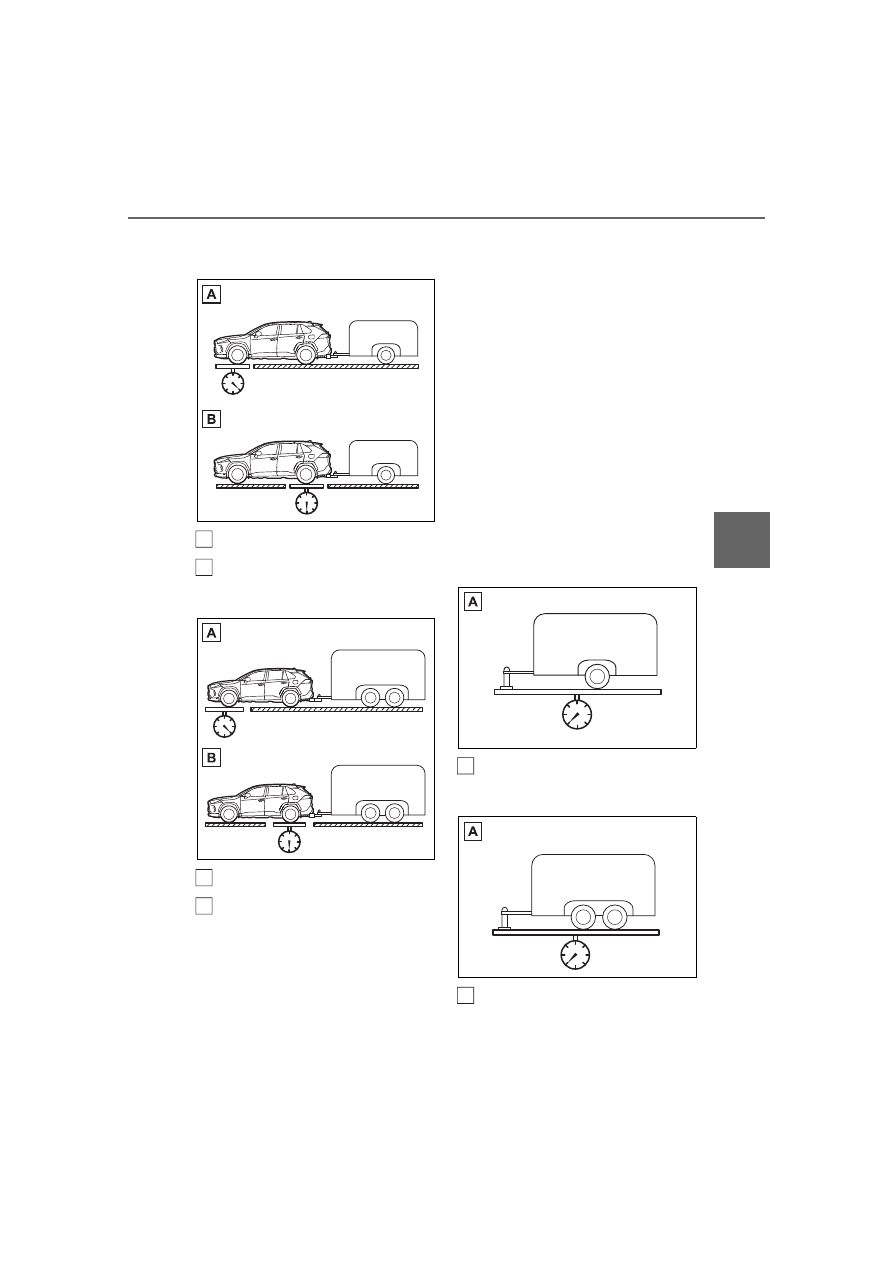

182

4-1. Before driving

■

Unbraked TWR (Unbraked
Trailer Weight Rating)

The trailer weight rating for tow-
ing a trailer without a trailer ser-
vice brake system.

(Without brakes)

■

Tongue Weight

The load placed on the trailer
hitch ball. (



P.184)



Vehicles without towing pack-
age



Vehicles with towing package



The gross trailer weight must
never exceed the TWR
described below.



Without towing package

1500 lb. (680 kg)



With towing package

3500 lb. (1590 kg)



The gross combination weight
must never exceed the
GCWR described below.



Without towing package

Vehicles without Dynamic Torque
Vectoring AWD system: 6110 lb.
(2770 kg)
Vehicles with Dynamic Torque Vec-
toring AWD system: 6205 lb. (2815
kg)



With towing package

8205 lb. (3725 kg)



The gross vehicle weight
must never exceed the
GVWR indicated on the Certi-
fication Regulation Label.



The gross axle weight on
each axle must never exceed
the GAWR indicated on the
Certification Regulation Label.

A

Weight limits

183

4-1. Before driving

4

Dr

iv

ing



If the gross trailer weight is
over the unbraked TWR,
trailer service brakes are
required.



Vehicles with towing package:
If the gross trailer weight is
over 2000 lb. (907 kg), a sway
control device with sufficient
capacity is required.

Confirm that the gross trailer
weight, gross combination
weight, gross vehicle weight,
gross axle weight and tongue
weight are all within the limits.

■

GCWR

*



Without towing package

Vehicles without Dynamic
Torque Vectoring AWD system:
6110 lb. (2770 kg)
Vehicles with Dynamic Torque
Vectoring AWD system: 6205 lb.
(2815 kg)



With towing package

8205 lb. (3725 kg)

*

: These models meet the tow-vehi-

cle trailering requirement of SAE
International per SAE J2807.

■

TWR

*



Without towing package

1500 lb. (680 kg)



With towing package

3500 lb. (1590 kg)

*

: These models meet the tow-vehi-

cle trailering requirement of SAE
International per SAE J2807.

■

Unbraked TWR

*

1000 lb. (450 kg)

*

: These models meet the tow-vehi-

cle trailering requirement of SAE
International per SAE J2807.



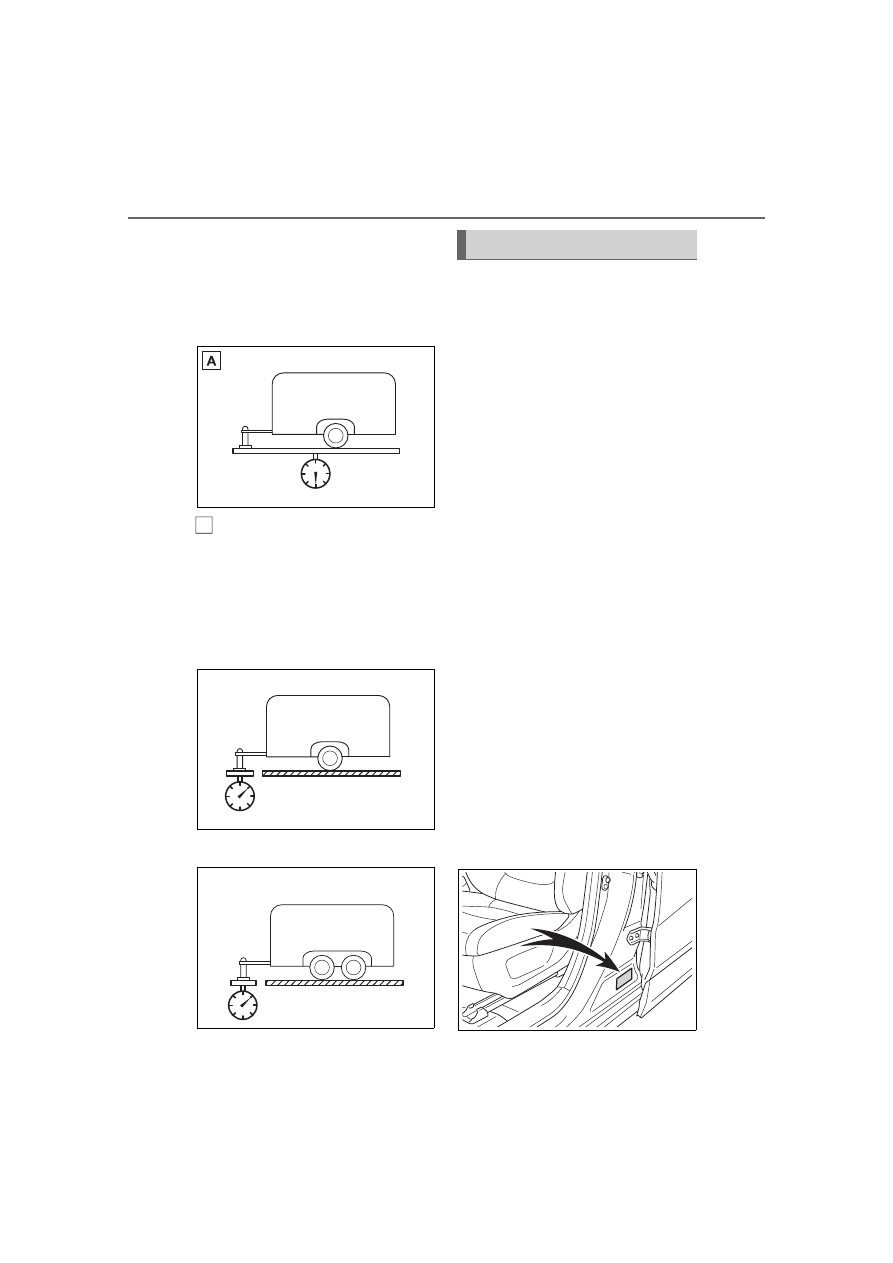

A recommended tongue
weight varies in accordance
with the types of trailers or
towing as described below.



To ensure the recommended
values shown below, the
trailer must be loaded by
referring to the following
instructions.

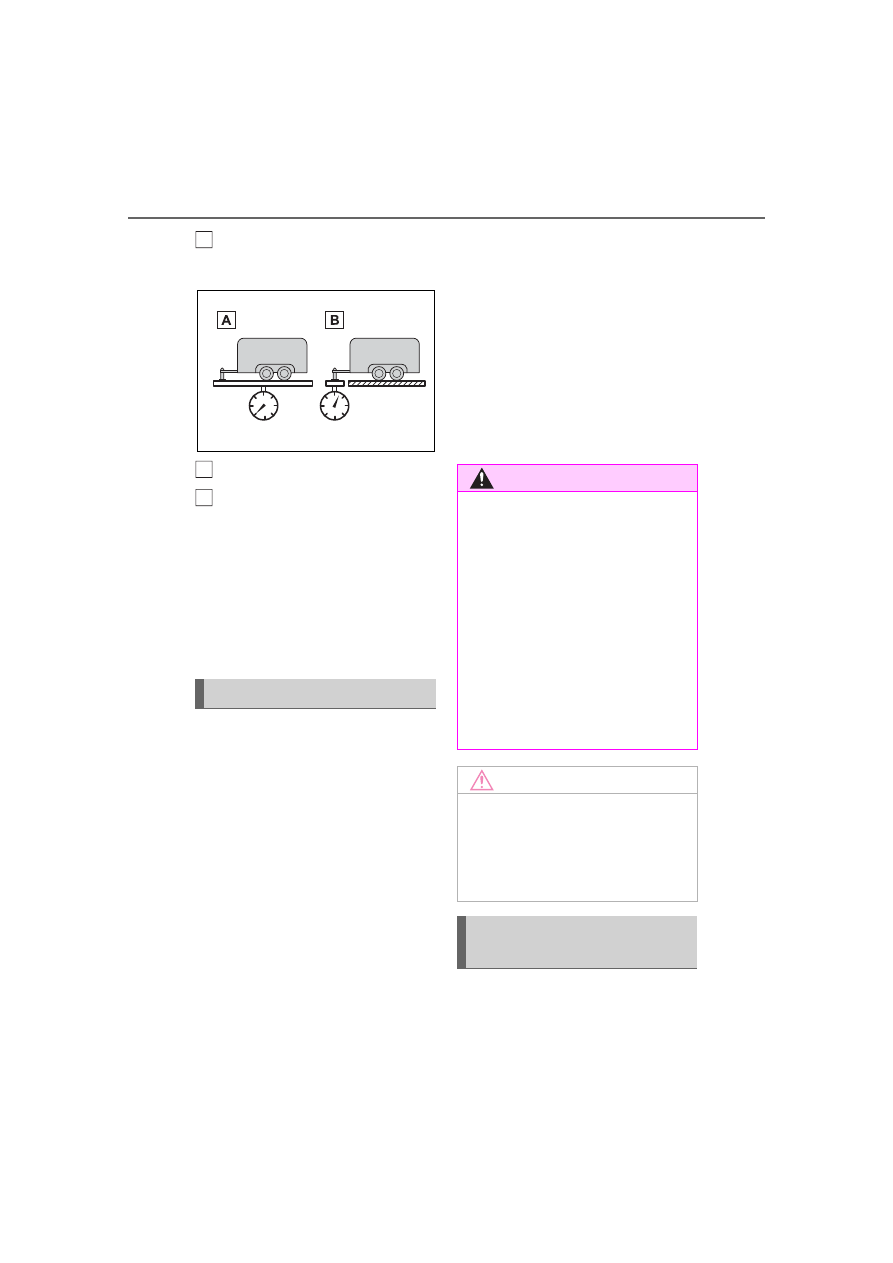

• Tongue Weight
The gross trailer weight should be
distributed so that the tongue
weight is 9% to 11%.
(Tongue weight /Gross trailer
weight x 100 = 9% to 11%)



Vehicles without towing pack-
age

Gross trailer weight

GCWR, TWR and
Unbraked TWR

Trailer Tongue Weight

A

184

4-1. Before driving

Tongue weight



Vehicles with towing package

Gross trailer weight

Tongue weight

The gross trailer weight, gross
axle weight and tongue weight
can be measured with platform
scales found at a highway
weighing station, building supply
company, trucking company,
junk yard, etc.

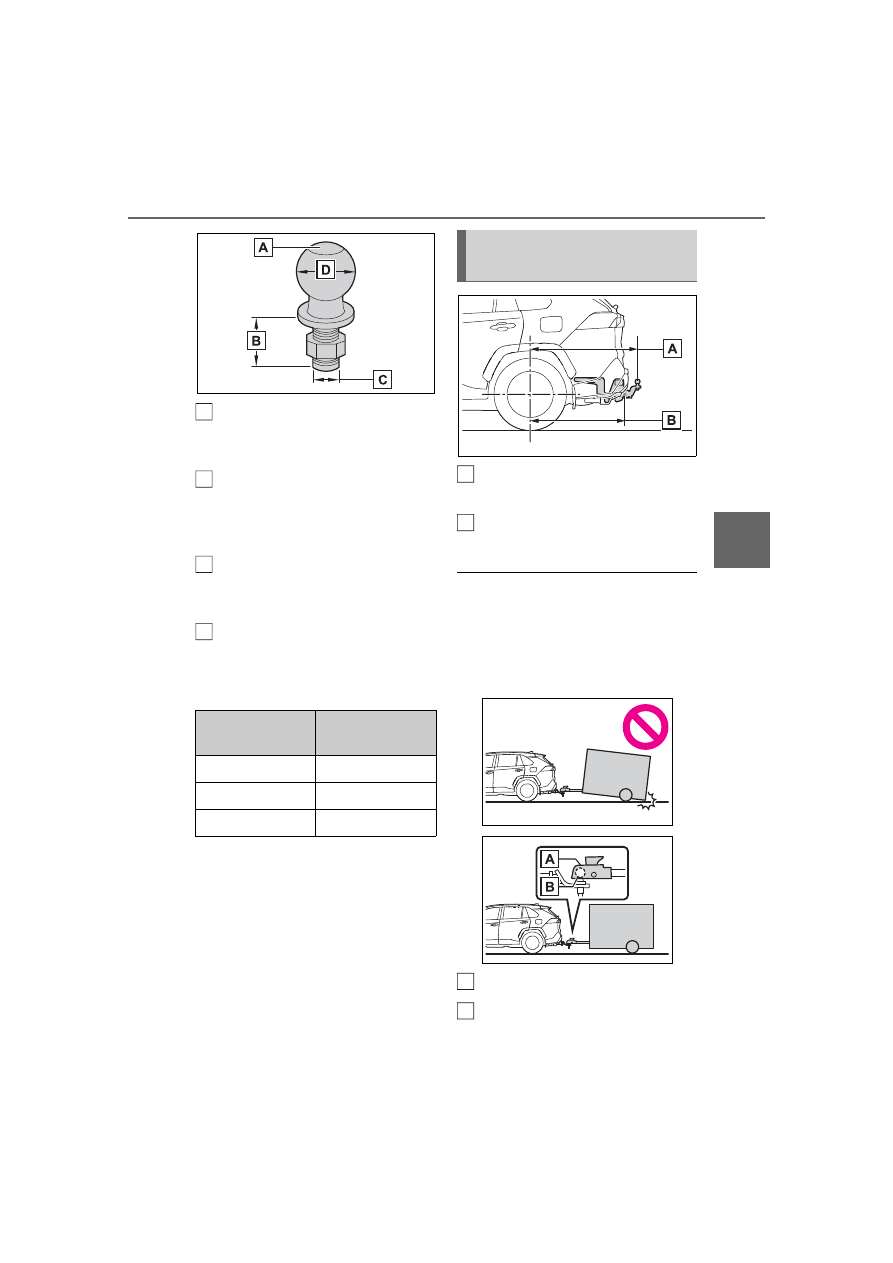

Trailer hitch assemblies have
different weight capacities.
Toyota recommends the use of
Toyota hitch/bracket for your
vehicle. For details, contact your
Toyota dealer.



If you wish to install a trailer
hitch, contact your Toyota
dealer.



Use only a hitch that con-
forms to the gross trailer
weight requirement of your
vehicle.



Follow the directions supplied
by the hitch manufacturer.



Lubricate the hitch ball with a
light coating of grease.



Remove the hitch ball when-
ever you are not towing a
trailer. Remove the trailer
hitch if you do not need it.
After removing the hitch, seal
any mounting holes in the
vehicle body to prevent entry
of any substances into the
vehicle.

Use the correct trailer ball for
your application.

Hitch

B

A

B

WARNING

■

Hitch

Trailer hitch assemblies have dif-

ferent weight capacities estab-

lished by the hitch manufacturer.

Even though the vehicle may be

physically capable of towing a

higher weight, the operator must

determine the maximum weight

rating of the particular hitch

assembly and never exceed the

maximum weight rating specified

for the trailer-hitch. Exceeding the

maximum weight rating set by the

trailer-hitch manufacturer can

cause an accident resulting in

death or serious personal injuries.

NOTICE

■

When installing a trailer hitch

Use only the position recom-

mended by your Toyota dealer.

Do not install the trailer hitch on

the bumper; this may cause body

damage.

Selecting trailer ball (vehi-
cles with towing package)

185

4-1. Before driving

4

Dr

iv

ing

Trailer ball load rating

Matches or exceeds the gross
trailer weight rating of the trailer.

Shank length

Protrudes beyond the bottom of the
lock washer and nut by at least 2
threads.

Shank diameter

Matches the ball mount hole diame-
ter size.

Ball diameter

Matches the size of the trailer cou-
pler. Most couplers are stamped
with the required trailer ball size.

Weight carrying ball position:
43.3 in. (1100 mm)

Hitch receiver pin hole posi-
tion: 38.1 in. (969 mm)

■

Matching trailer ball height to

trailer coupler height

No matter which class of tow hitch

applies, for a more safe trailer

hookup, the trailer ball setup must

be the proper height for the coupler

on the trailer.

Coupler

Trailer ball

Trailer class

Typical trailer

ball size

IV

2 5/16 in.

II and III

2 in.

I

1 7/8 in.

A

B

C

D

Positions for towing hitch
receiver and hitch ball

A

B

A

B

186

4-1. Before driving

Please consult your dealer
when installing trailer lights, as
incorrect installation may cause
damage to the vehicle’s lights.
Please take care to comply with
your state’s laws when installing
trailer lights.

Your vehicle will handle differ-
ently when towing a trailer. Help
to avoid an accident, death or
serious injury, keep the follow-
ing in mind when towing:



Speed limits for towing a
trailer vary by state or prov-
ince. Do not exceed the
posted towing speed limit.



Toyota recommends that the
vehicle-trailer speed limit is 65
mph (104 km/h) on a flat,
straight, dry road. Do not
exceed this limit, the posted
towing speed limit or the
speed limit for your trailer as
set forth in your trailer owner’s
manual, whichever is lowest.
Instability of the towing vehi-
cle-trailer combination (trailer
sway) increases as speed

increases. Exceeding speed
limits may cause loss of con-
trol.



Before starting out, check the
trailer lights, tires and the
vehicle-trailer connections.
Recheck after driving a short
distance.



Practice turning, stopping and
reversing with the trailer
attached in an area away
from traffic until you become
accustomed to the feel of the
vehicle-trailer combination.



Reversing with a trailer
attached is difficult and
requires practice. Grip the
bottom of the steering wheel
and move your hand to the
left to move the trailer to the
left. Move your hand to the
right to move the trailer to
right. (This is generally oppo-
site to reversing without a
trailer attached.) Avoid sharp
or prolonged turning. Have
someone guide you when
reversing to reduce the risk of
an accident.



As stopping distance is
increased when towing a
trailer, vehicle-to vehicle dis-
tance should be increased.
For each 10 mph (16 km/h) of
speed, allow at least one
vehicle and trailer length.



Avoid sudden braking as you
may skid, resulting in the
trailer jackknifing and a loss of

Connecting trailer lights

NOTICE

■

Do not directly splice trailer

lights

Do not directly splice trailer lights.

Directly splicing trailer lights may

damage your vehicle’s electrical

system and cause a malfunction.

Trailer towing tips

187

4-1. Before driving

4

Dr

iv

ing

vehicle control. This is espe-
cially true on wet or slippery
surfaces.



Avoid jerky starts or sudden
acceleration.



Avoid jerky steering and
sharp turns, and slow down
before making turn.



Note that when making a turn,
the trailer wheels will be
closer than the vehicle wheels
to the inside of the turn. Com-
pensate by making a wider
than normal turning radius.



Slow down before making a
turn, in cross winds, on wet or
slippery surfaces, etc.

Increasing vehicle speed can
destabilize the trailer.



Take care when passing other
vehicles. Passing requires
considerable distance. After
passing a vehicle, do not for-
get the length of your trailer,
and be sure you have plenty
of room before changing
lanes.



To maintain engine braking
efficiency and charging sys-
tem performance when using
engine braking, do not put the
transmission in D. If in the S
mode, the transmission shift
range position must be in 6 or
lower.



Instability happens more fre-
quently when descending
steep or long downhill grades.

Before descending, slow
down and downshift. Do not
make sudden downshifts
while descending steep or
long downhill grades.



Avoid holding the brake pedal
down too long or applying the
brakes too frequently. This
could cause the brakes to
overheat and result in
reduced braking efficiency.



Due to the added load of the
trailer, your vehicle’s engine
may overheat on hot days (at
temperatures over 85°F
[30°C]) when driving up a long
or steep grade. If the engine
coolant temperature gauge
indicates overheating, imme-
diately turn off the air condi-
tioning (if in use), pull your
vehicle off the road and stop
in a safe spot. (



P.654)



Always place wheel blocks
under both the vehicle’s and
the trailer’s wheels when
parking. Apply the parking
brake firmly, and put the
transmission in P. Avoid park-
ing on a slope, but if unavoid-
able, do so only after
performing the following:

1

Apply the brakes and keep
them applied.

2

Have someone place wheel
blocks under both the vehi-
cle’s and trailer’s wheels.

188

4-1. Before driving

3

When the wheel blocks are in
place, release the brakes
slowly until the blocks absorb
the load.

4

Apply the parking brake
firmly.

5

Shift into P and turn off the
engine.



When restarting after parking
on a slope:

1

With the transmission in P,
start the engine. Be sure to
keep the brake pedal
depressed.

2

Shift into a forward gear. If
reversing, shift into R.

3

If the parking brake is in man-
ual mode, release the park-
ing brake. (



P.201)

4

Release the brake pedal, and
slowly pull or back away from
the wheel blocks. Stop and
apply the brakes.

5

Have someone retrieve the
blocks.

■

Break-in schedule

If your vehicle is new or equipped

with any new power train compo-

nents (such as an engine, transmis-

sion, differential or wheel bearing),

Toyota recommends that you do not

tow a trailer until the vehicle has

been driven for over 500 miles (800

km).
After the vehicle has been driven for

over 500 miles (800 km), you can

start towing. However, for the next

500 miles (800 km), drive the vehi-

cle at a speed of less than 45 mph

(72 km/h) when towing a trailer, and

avoid full throttle acceleration.

■

Maintenance

●

If you tow a trailer, your vehicle

will require more frequent mainte-

nance due to the additional load.

(See “Scheduled Maintenance

Guide” or “Owner’s Manual Sup-

plement”.)

●

Retighten the fixing bolts of the

towing ball and bracket after

approximately 600 miles (1000

km) of trailer towing.

■

If trailer sway occurs

One or more factors (crosswinds,

passing vehicles, rough roads, etc.)

can adversely affect handling of

your vehicle and trailer, causing

instability.

●

If trailer swaying occurs:

• Firmly grip the steering wheel.

Steer straight ahead.

Do not try to control trailer sway-

ing by turning the steering wheel.

• Begin releasing the accelerator

pedal immediately but very gradu-

ally to reduce speed.

Do not increase speed. Do not

apply vehicle brakes.

If you make no extreme correction
with the steering or brakes, your
vehicle and trailer should stabilize (if
enabled, Trailer Sway Control can
also help to stabilize the vehicle and
trailer.).

●

After the trailer swaying has

stopped:

• Stop in a safe place. Get all occu-

pants out of the vehicle.

• Check the tires of the vehicle and

the trailer.

• Check the load in the trailer.

Make sure the load has not

shifted.

Make sure the tongue weight is

appropriate, if possible.

• Check the load in the vehicle.

Make sure the vehicle is not over-

loaded after occupants get in.

If you cannot find any problems, the

189

4-1. Before driving

4

Dr

iv

ing

speed at which trailer swaying
occurred is beyond the limit of your
particular vehicle-trailer combina-
tion. Drive at a lower speed to pre-
vent instability. Remember that
swaying of the towing vehicle-trailer
increases as speed increases.

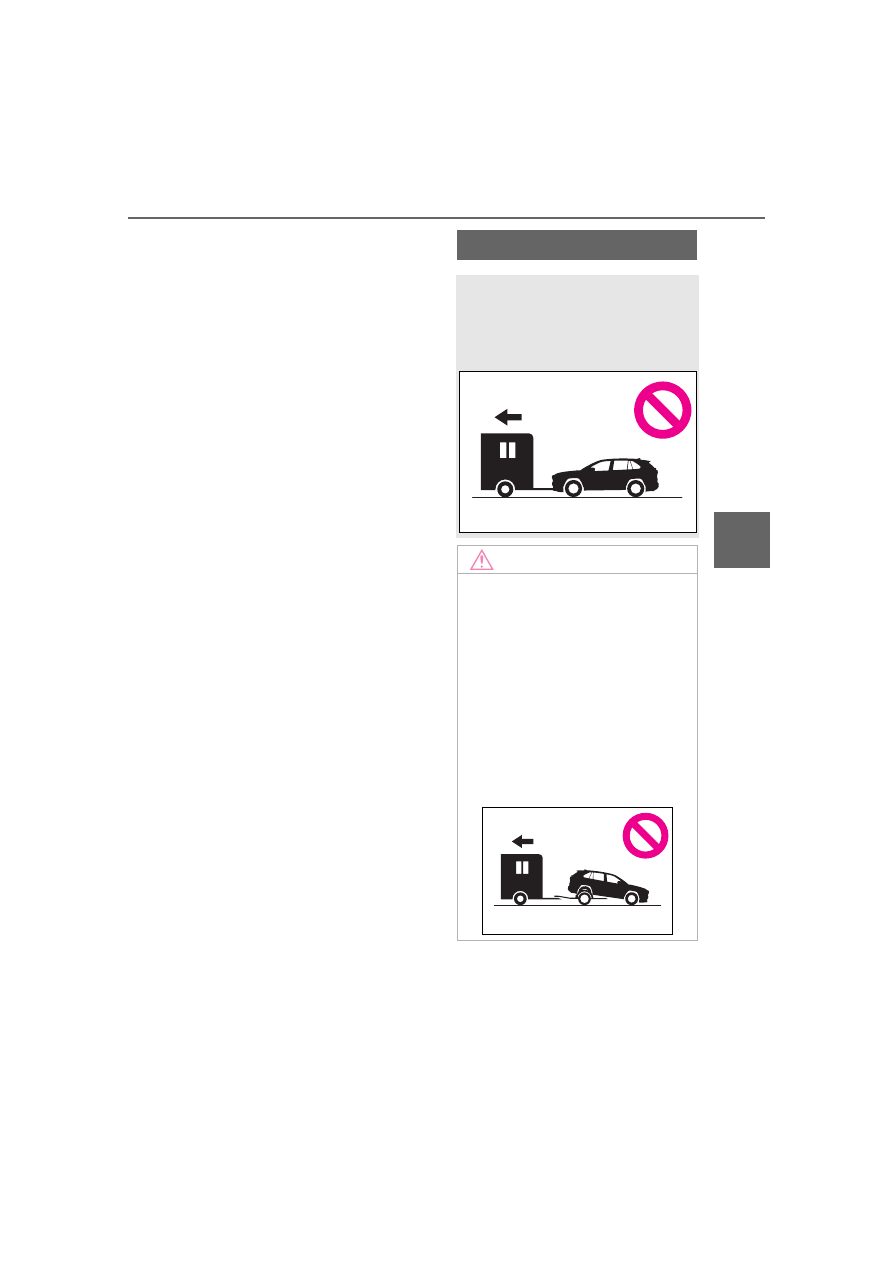

Dinghy towing

Your vehicle is not designed
to be dinghy towed (with 4
wheels on the ground)
behind a motor home.

NOTICE

■

To avoid serious damage to

your vehicle

Do not tow your vehicle with 4

wheels on the ground.

■

To prevent causing serious

damage to the transmission

and AWD system (AWD mod-

els)

2WD models: Never tow this vehi-

cle from the rear with the front

wheels on the ground. This may

cause serious damage to the

transmission.

190

4-1. Before driving

NOTICE

AWD models: Never tow this vehi-

cle with any of the wheels on the

ground. This may cause serious

damage to the transmission and

AWD system.

191

4-2. Driving procedures

4

Dr

iv

ing

4-2.Driving procedures

1

Pull the parking brake switch
to check that the parking
brake is set. (



P.201)

The parking brake indicator will

come on.

2

Check that the shift lever is
set in P.

3

Firmly depress the brake
pedal.

4

Turn the engine switch to
START to start the engine.

■

If the engine does not start

The engine immobilizer system may

not have been deactivated. (



P.71)

Contact your Toyota dealer.

■

When the steering lock cannot

be released

When starting the engine, the

engine switch may seem stuck in

OFF. To free it, turn the key while

turning the steering wheel slightly

left and right.

■

When “Check Fuel Cap” is dis-

played on the multi-information

display



P.220

OFF (“LOCK” position)

The steering wheel is locked and
the key can be removed. (The key
can be removed only when the shift
lever is in P.)

ACC (“ACC” position)

Engine (ignition)

switch (vehicles with-

out smart key system)

Starting the engine

WARNING

■

When starting the engine

Always start the engine while sit-

ting in the driver’s seat. Do not

depress the accelerator pedal

while starting the engine under

any circumstances.
Doing so may cause an accident

resulting in death or serious

injury.

NOTICE

■

When starting the engine

●

Do not crank the engine for

more than 30 seconds at a time.

This may overheat the starter

and wiring system.

●

Do not race a cold engine.

●

If the engine becomes difficult to

start or stalls frequently, have

your vehicle checked by your

Toyota dealer immediately.

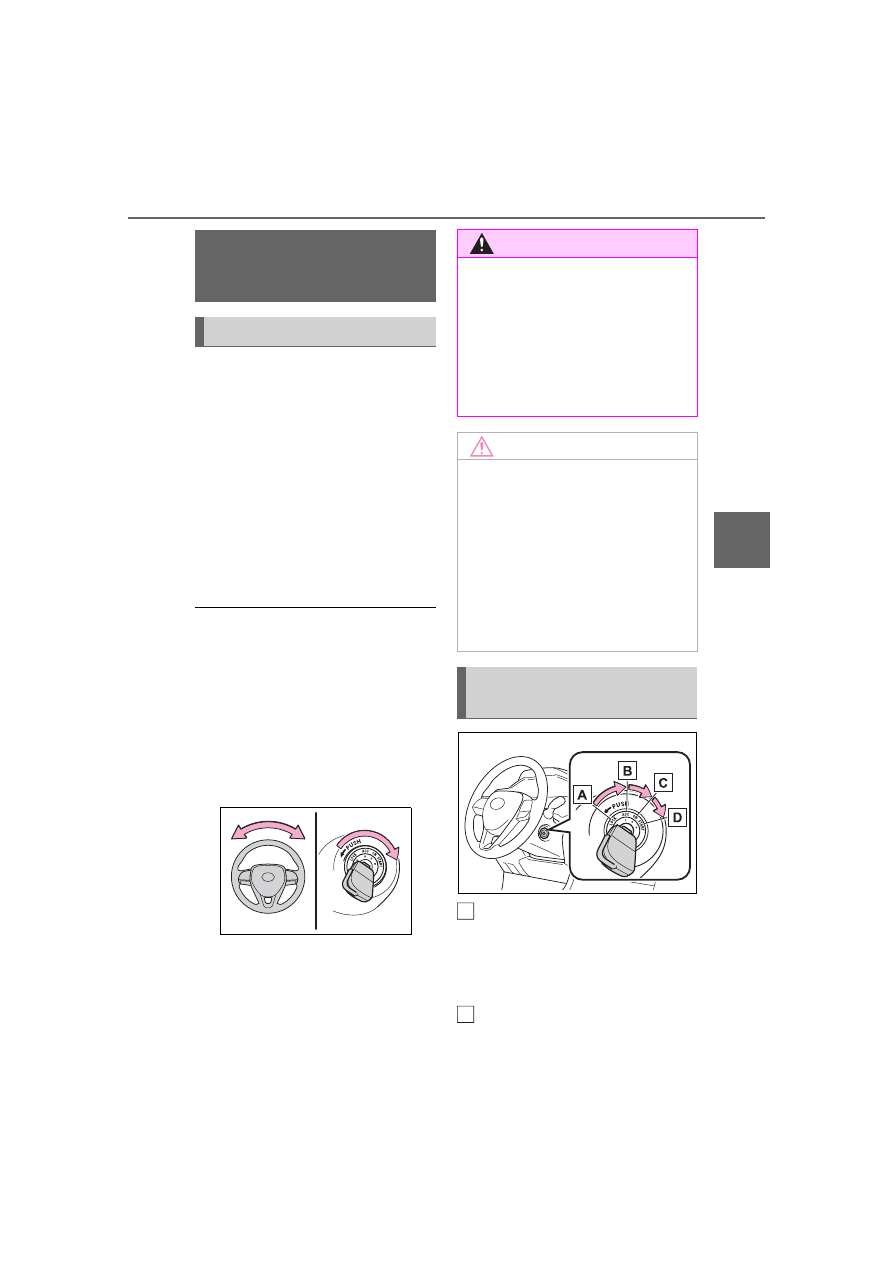

Changing the engine
switch positions

A

B

192

4-2. Driving procedures

Some electrical components such
as the audio system can be used.

ON (“ON” position)

All electrical components can be
used.

START (“START” position)

For starting the engine.

■

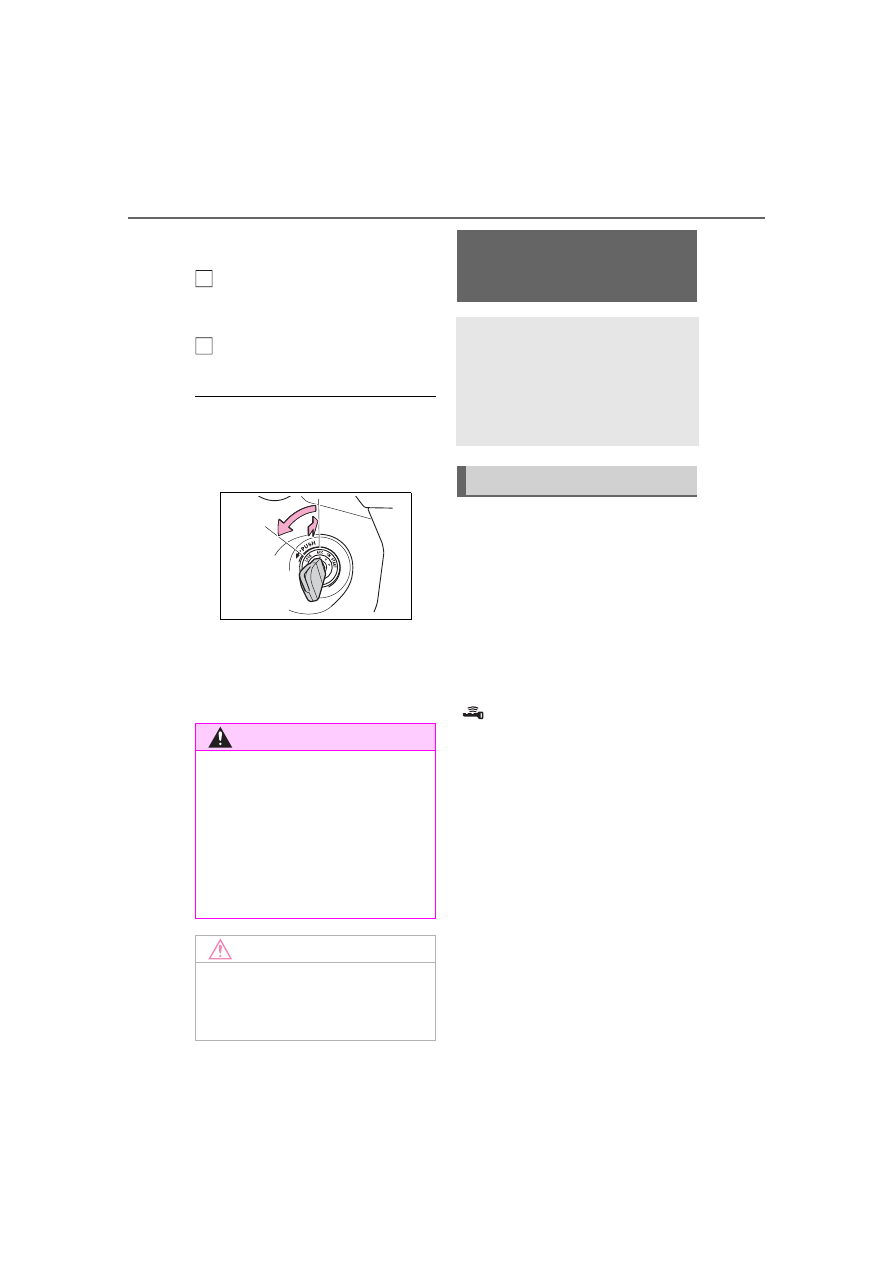

Turning the key from ACC to

OFF

1

Shift the shift lever to P.

2

Push in the key and turn it to

OFF.

■

Key reminder function

A buzzer sounds if the driver’s door

is opened while the engine switch is

in OFF or ACC to remind you to

remove the key.

1

Pull the parking brake switch
to check that the parking
brake is set. (



P.201)

The parking brake indicator will

come on.

2

Check that the shift lever is
set in P.

3

Firmly depress the brake
pedal.

 and a message will be dis-

played on the multi-information dis-

play.
If it is not displayed, the engine

cannot be started.

4

Press the engine switch
shortly and firmly.

When operating the engine switch,

one short, firm press is enough. It is

not necessary to press and hold the

switch.
The engine will crank until it starts

or for up to 30 seconds, whichever

is less.
Continue depressing the brake

pedal until the engine is completely

started.
The engine can be started from any

WARNING

■

Caution when driving

Do not turn the engine switch to

OFF while driving. If, in an emer-

gency and you must turn the

engine off while the vehicle is

moving, turn the engine switch

only to ACC to stop the engine.

An accident may result if the

engine is stopped while driving.

(



P.612)

NOTICE

■

To prevent battery discharge

Do not leave the engine switch in

ACC or ON for long periods of

time without the engine running.

C

D

Engine (ignition)

switch (vehicles with

smart key system)

Performing the following
operations when carrying
the electronic key on your
person starts the engine or
changes engine switch
modes.

Starting the engine
