P.81)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (

Odometer and trip meter display (



Multi-information display

Presents the driver with a variety of vehicle data (



P.82)

Displays warning messages if a malfunction occurs (



Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)

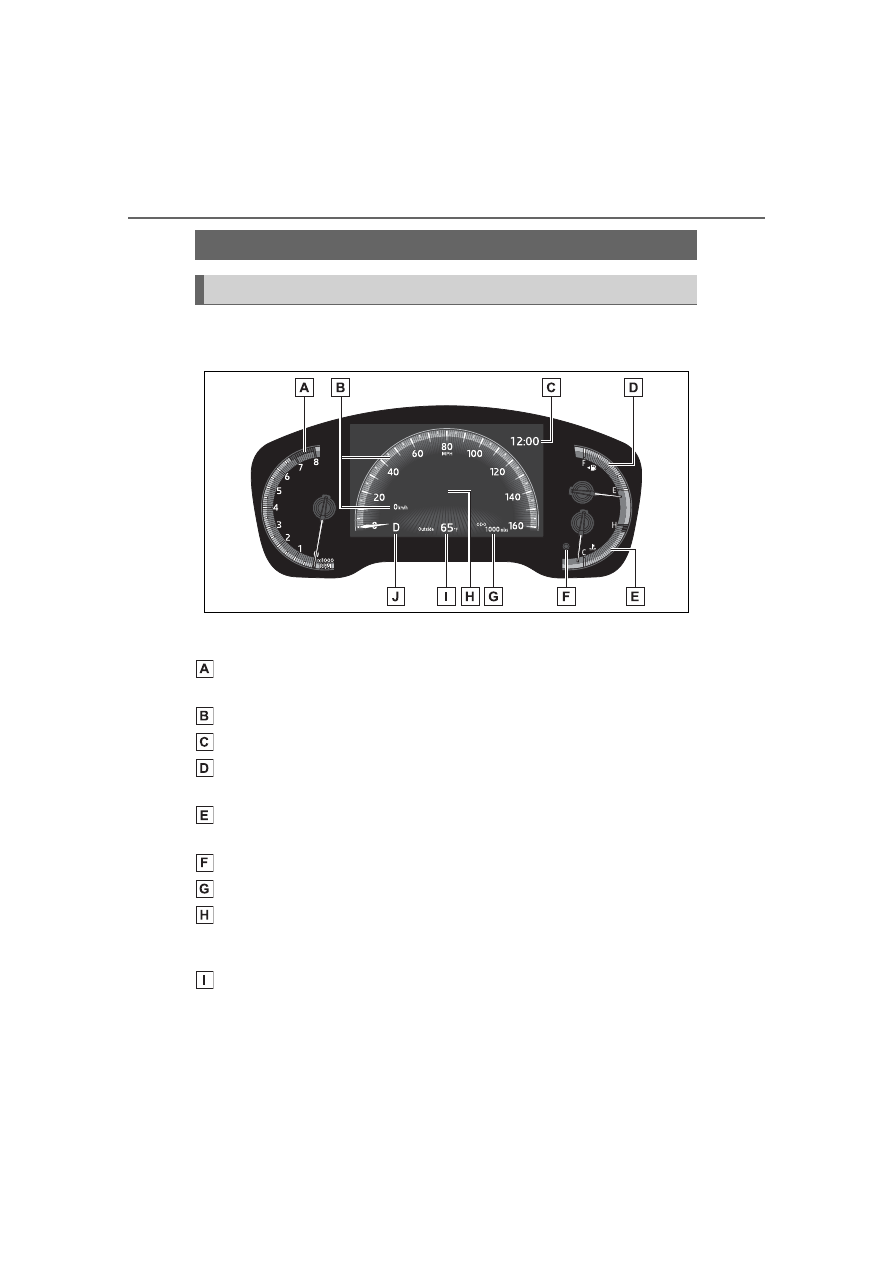

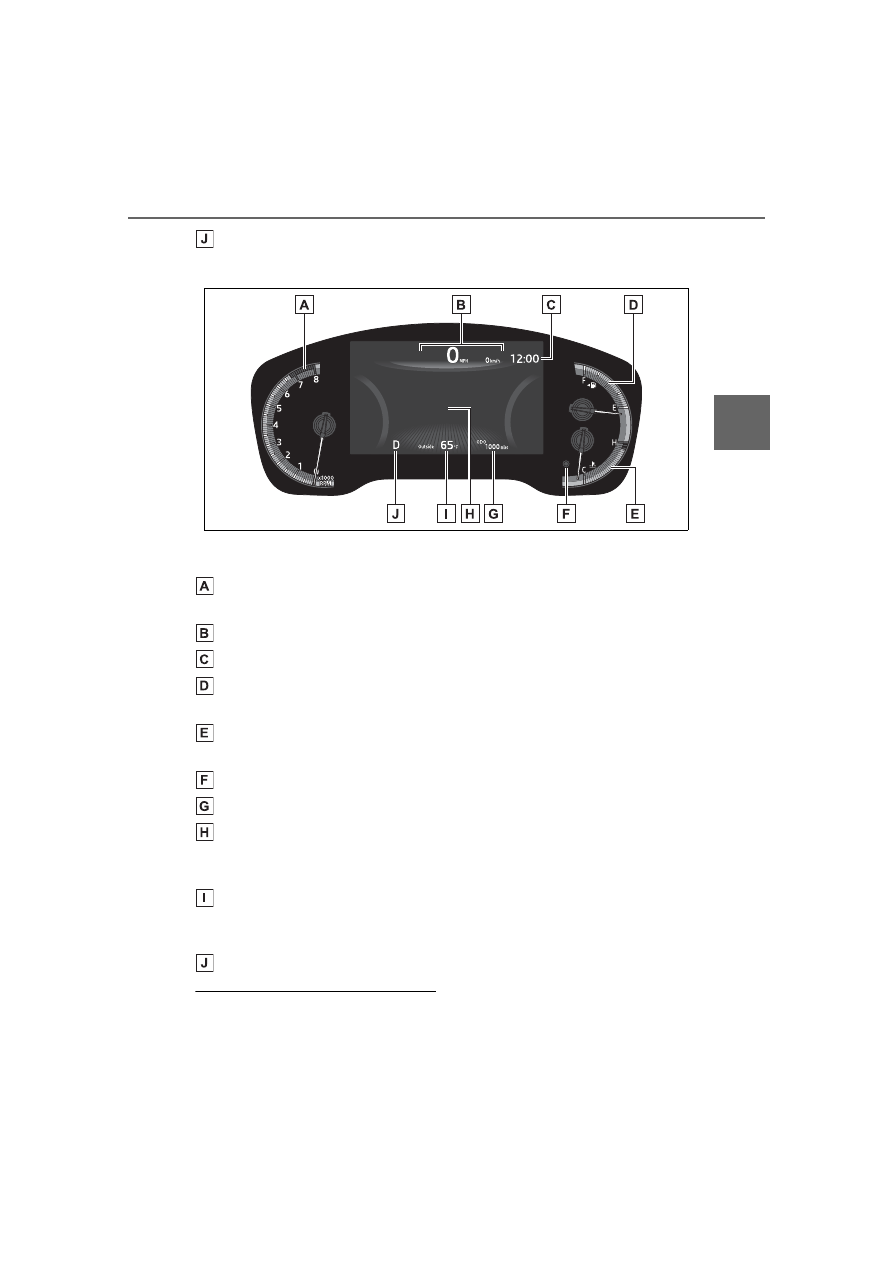

Gauges and meters (7-inch display)

Meter display

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

Shift position indicator (

P.145)



Digital speedometer

The units of measure may differ depending on the intended destination of
the vehicle.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer
Clock (

P.81)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Display change button (

Odometer and trip meter display (



Multi-information display

Presents the driver with a variety of vehicle data (



P.82)

Displays warning messages if a malfunction occurs (



Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C)

Shift position indicator (

P.145)

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

2-1. Instrument cluster

• When stopped, or driving at low

speeds (less than 16 mph [25

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

■

Liquid crystal display

P.83

■

Customization

The gauges and meters can be cus-
tomized in

of the multi-informa-

tion display. (



■

Changing the display

Press the display change button
until the desired item is dis-
played.

■

Display items



Odometer

Displays the total distance the vehi-
cle has been driven.



Trip meter A/Trip meter B

Displays the distance the vehicle
has been driven since the meter
was last reset. Trip meters A and B
can be used to record and display
different distances independently.
To reset, display the desired trip
meter and press and hold the dis-
play change button.

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

information display monitor may

respond slowly, and display

changes may be delayed.

For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(H). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.509)

Odometer and trip meter
display

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

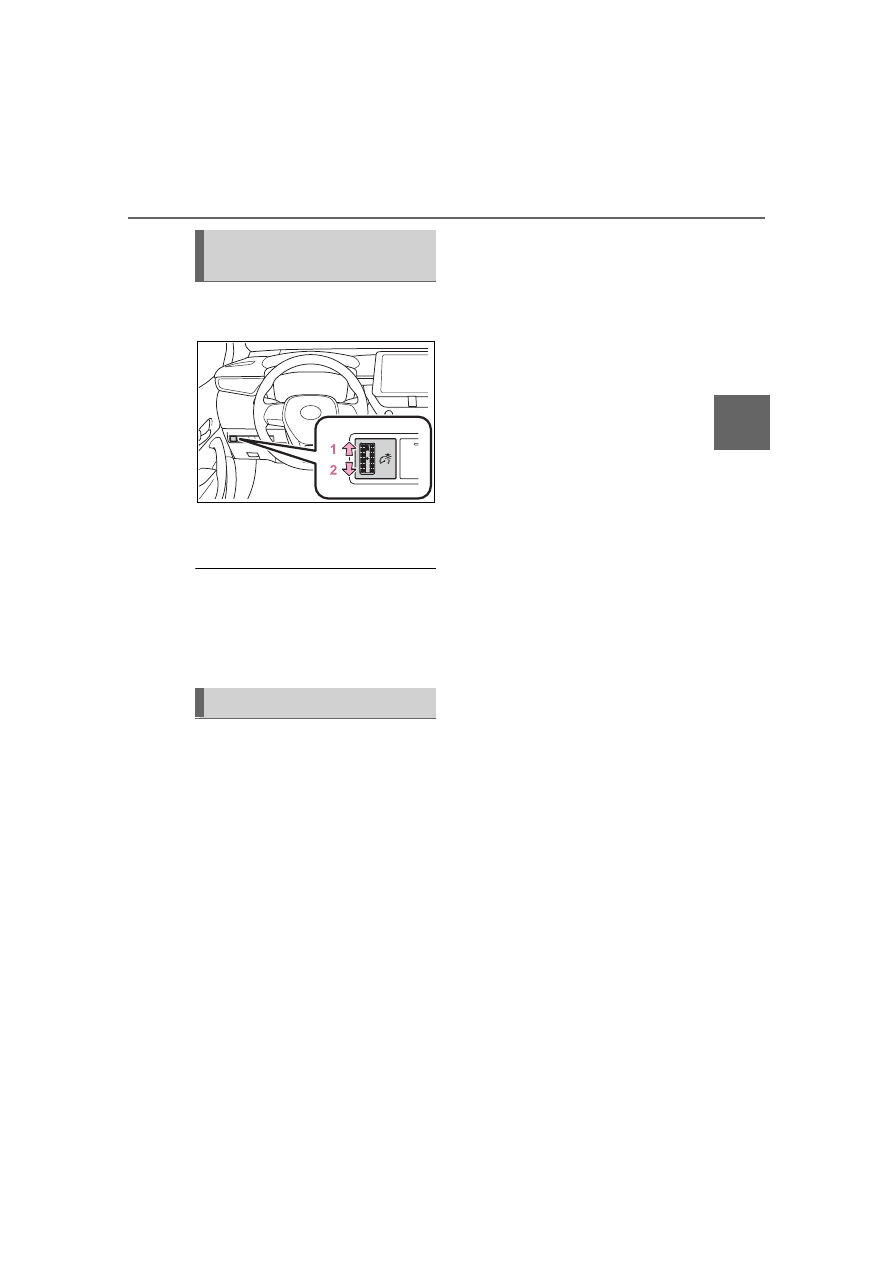

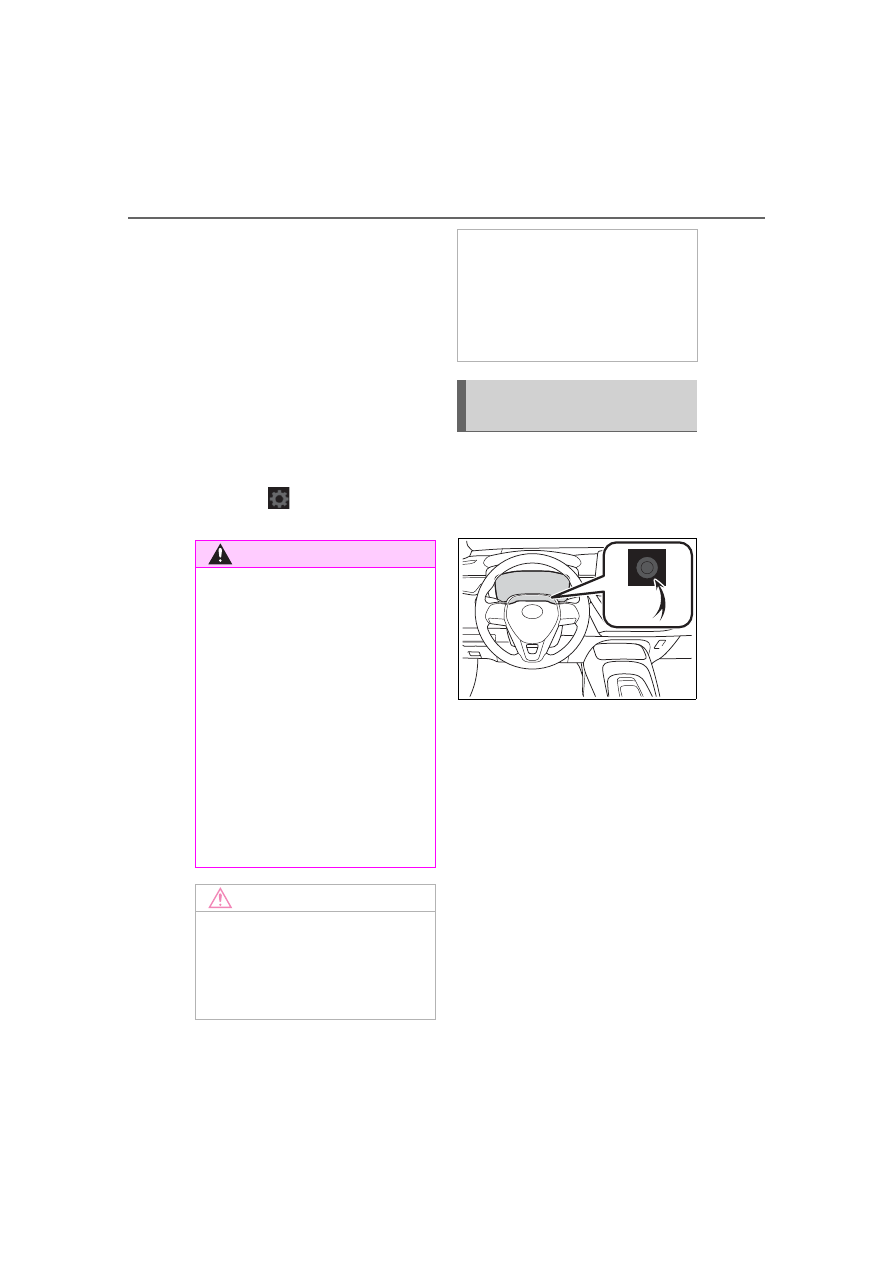

The brightness of the instrument
panel lights can be adjusted.

Brighter

Darker

■

Instrument panel light bright-

ness adjustment

The brightness of the instrument

panel lights can be adjusted sepa-

rately for when the tail lights are on

and off.

■

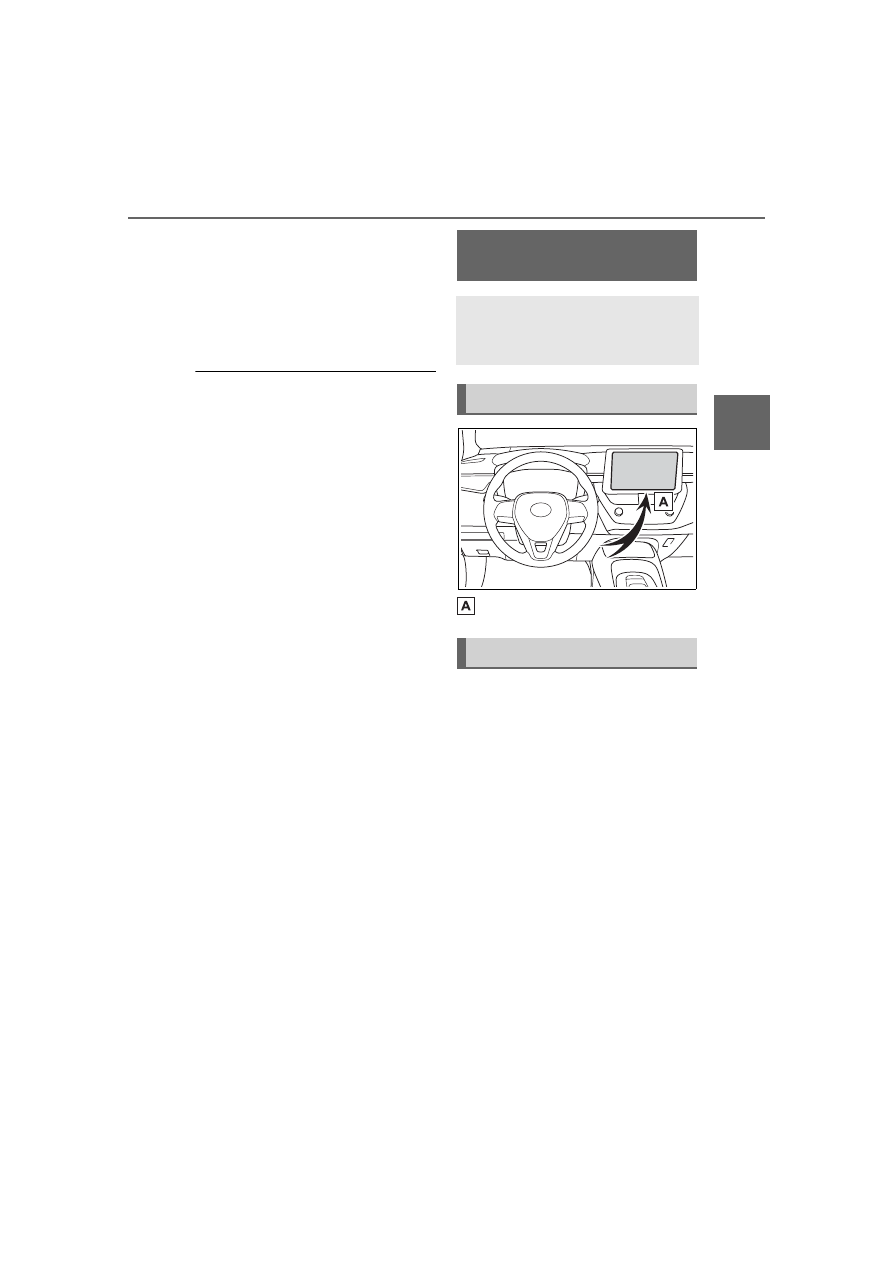

Clock adjustment

The clocks on the following can
be adjusted on the audio system
screen.



Multi-information display



Audio system screen

■

Setting the clock to be
adjusted automatically by
GPS

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS”
to set to on.

■

Adjusting the clock manu-
ally

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Auto Adjust by GPS”
to set to off.

Adjust the displayed time.



Hour: Select “-” or “+” of
“Hours” to adjust the hour.



Minute: Select “-” or “+” of
“Minutes” to adjust the min-
ute.



“:00”: Select to set the clock to
the beginning of the nearest
hour.

e.g.
1:00 to 1:29



1:00

1:30 to 1:59



2:00

■

Setting the time zone

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Changing the instrument
panel light brightness

Adjusting the clock

2-1. Instrument cluster

Select “Time Zone”.

Select the desired time zone.

Premium Audio only:
If “Auto” is selected, the time zone
is selected automatically by current
vehicle position.

■

Setting daylight saving time

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “Daylight Saving
Time” then on/off/auto

: Premium Audio only

■

Changing the clock
between 12-hour/24-hour
format

Press the “MENU” button.

Select “Setup” on the “Menu”
screen.

Select “General” on the
“Setup” screen.

Select “Clock”.

Select “24-Hour Time For-
mat” and then on/off.

When set to off, the clock is dis-
played in 12 hour time format.

■

Clock settings screen

If “Clock : 00” is displayed when

is selected on the multi-information

display, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer.

■

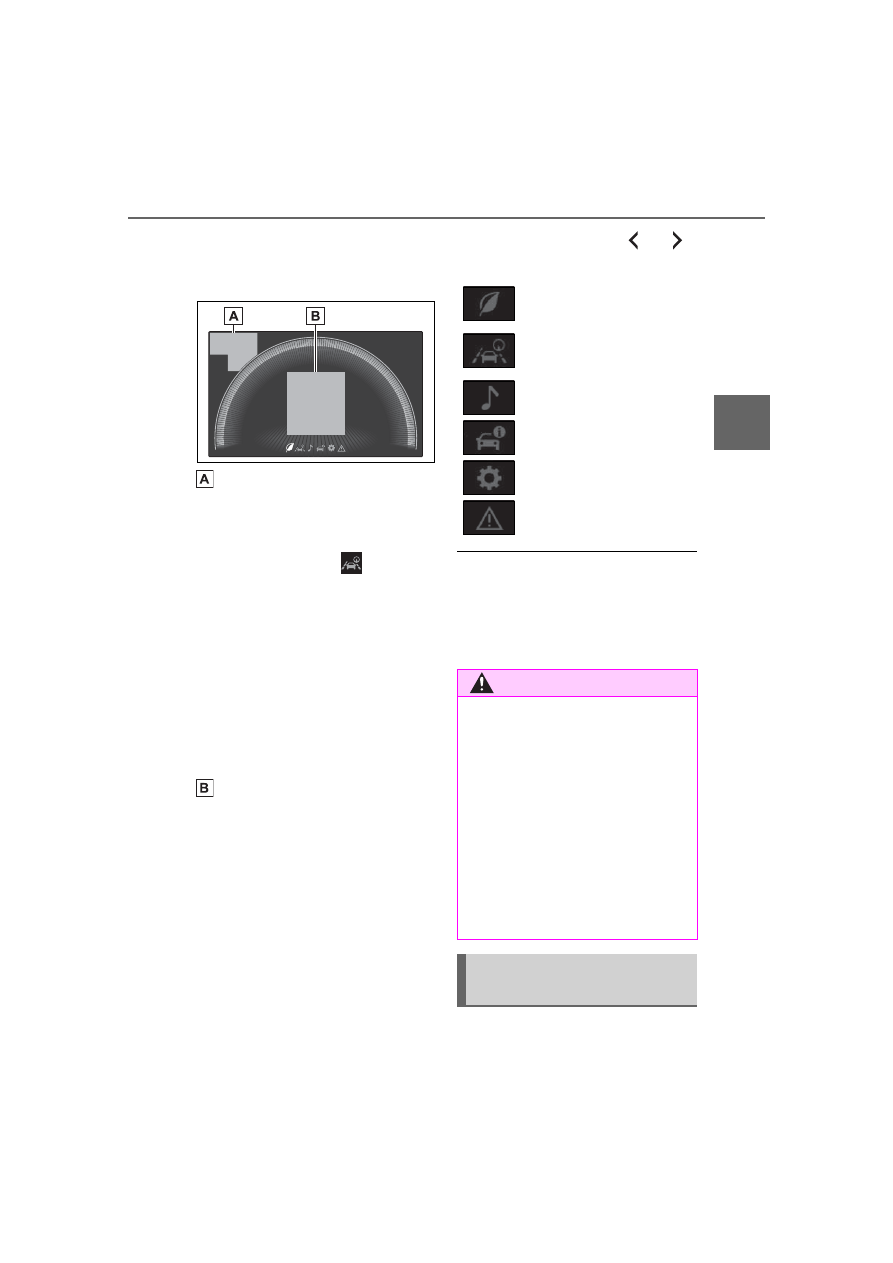

Display



4.2-inch display

Driving assist system status
display area

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist) (if

equipped)

• LDA (Lane Departure Alert with

steering control) (if equipped)

• Dynamic radar cruise control (if

equipped)

• Dynamic radar cruise control with

full-speed range (if equipped)

• RSA (Road Sign Assist) (if

equipped) (

P.221)

Content display area

By selecting menu icons on the
multi-information display, a variety
of driving-related information can
be displayed. The multi-information
display can also be used to change
display settings and other vehicle
settings.
Warning or advice pop-up displays

Multi-information dis-

play

Display and menu icons

2-1. Instrument cluster

Vehicle

s information an

d in
dicat

are also displayed in certain situa-
tions.



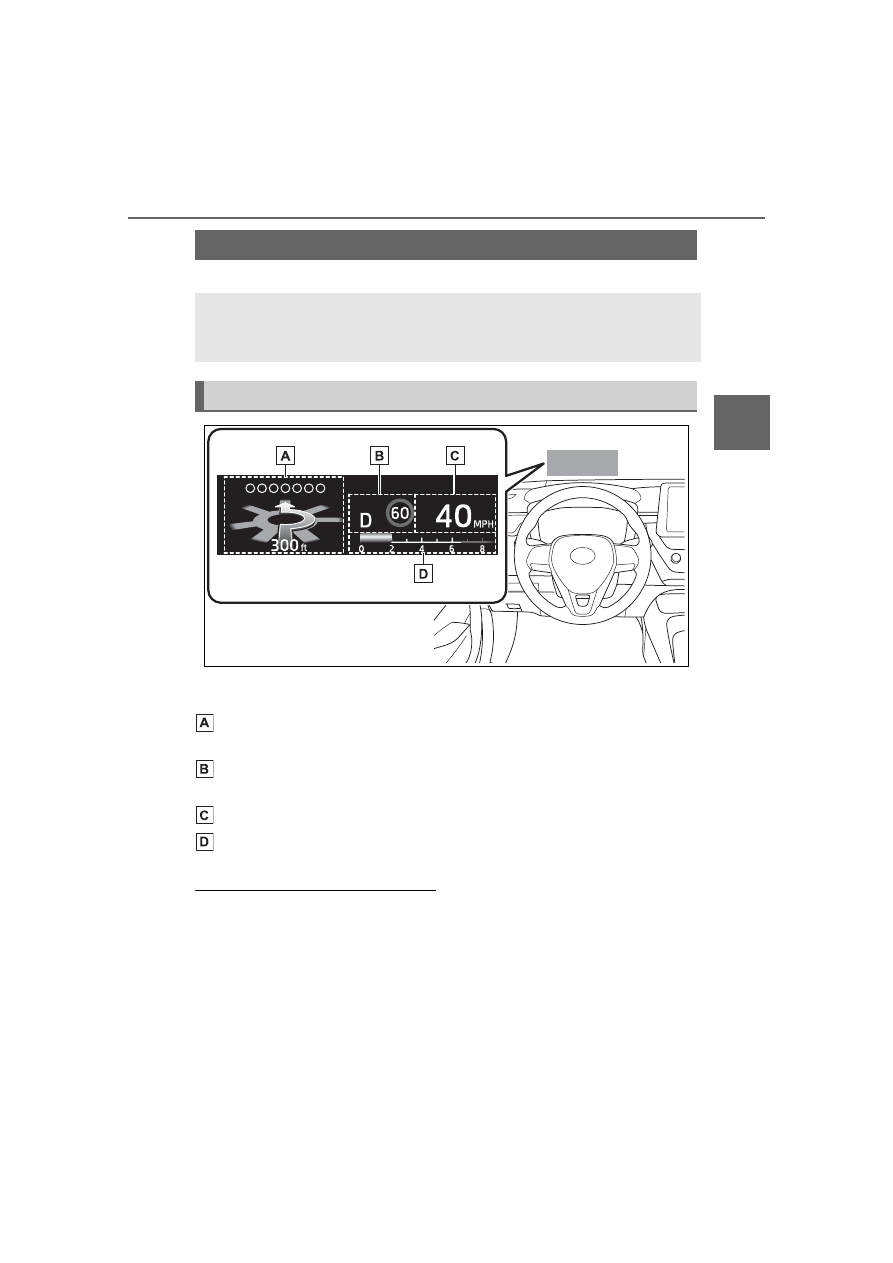

7-inch display

Driving assist system status
display area

Displays an image when the follow-
ing systems are operating and a
menu icon other than

selected:
• LTA (Lane Tracing Assist) (if

equipped)

• LDA (Lane Departure Alert with

steering control) (if equipped)

• Dynamic radar cruise control (if

equipped)

• Dynamic radar cruise control with

full-speed range (if equipped)

• RSA (Road Sign Assist) (if

equipped) (



P.221)

Content display area

■

Menu icons

The menu icons will be dis-

played by pressing the

meter control switch.

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

The multi-information display is

Driving information display
(



P.84)

Driving support system
information display
(



P.86)

Audio system-linked dis-
play (

P.86)

Vehicle information dis-
play (

P.86)

Settings display (



Warning message display
(



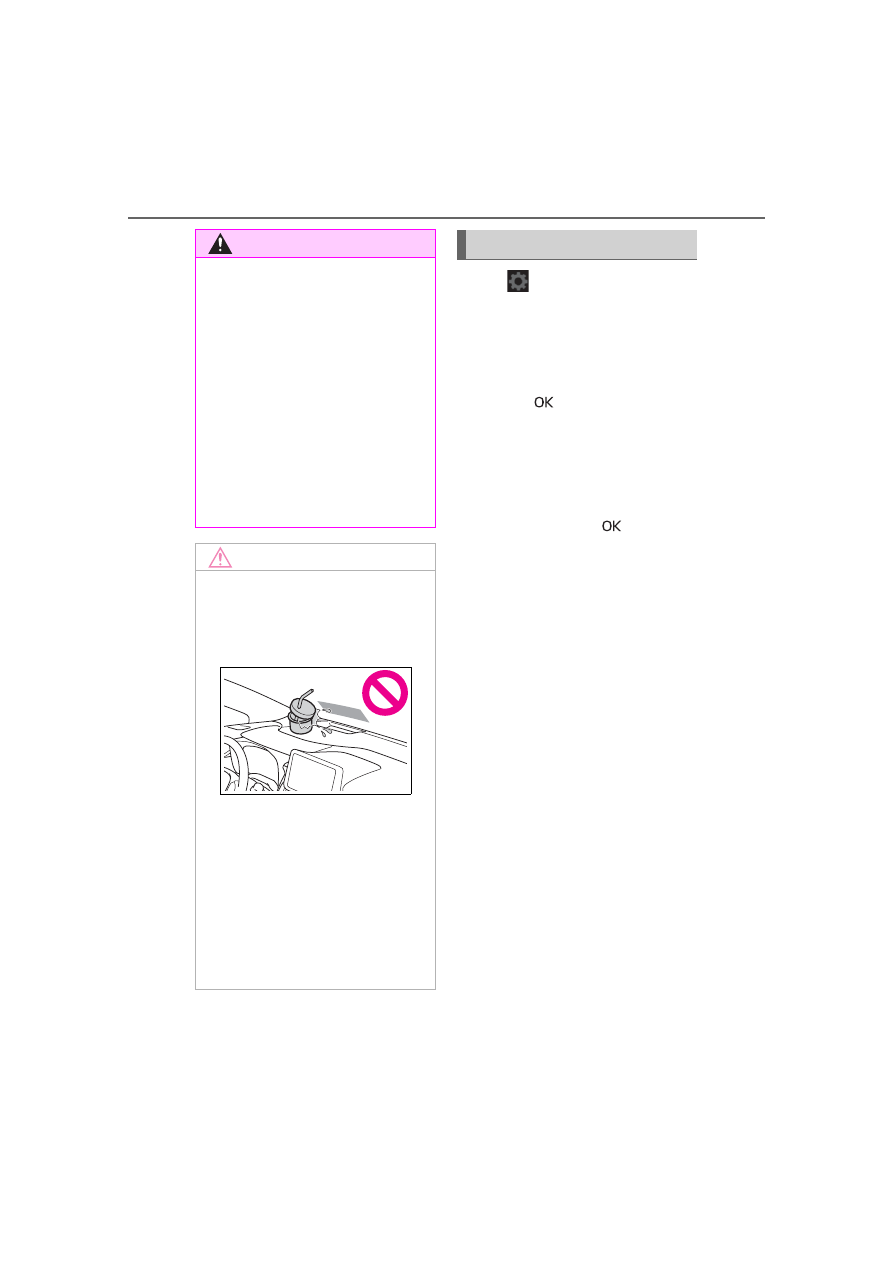

WARNING

■

Caution for use while driving

●

When operating the multi-infor-

mation display while driving,

pay extra attention to the safety

of the area around the vehicle.

●

Do not look continuously at the

multi-information display while

driving as you may fail to see

pedestrians, objects on the

road, etc. ahead of the vehicle.

■

The information display at

low temperatures

P.75, 80

Changing the meter dis-
play

2-1. Instrument cluster

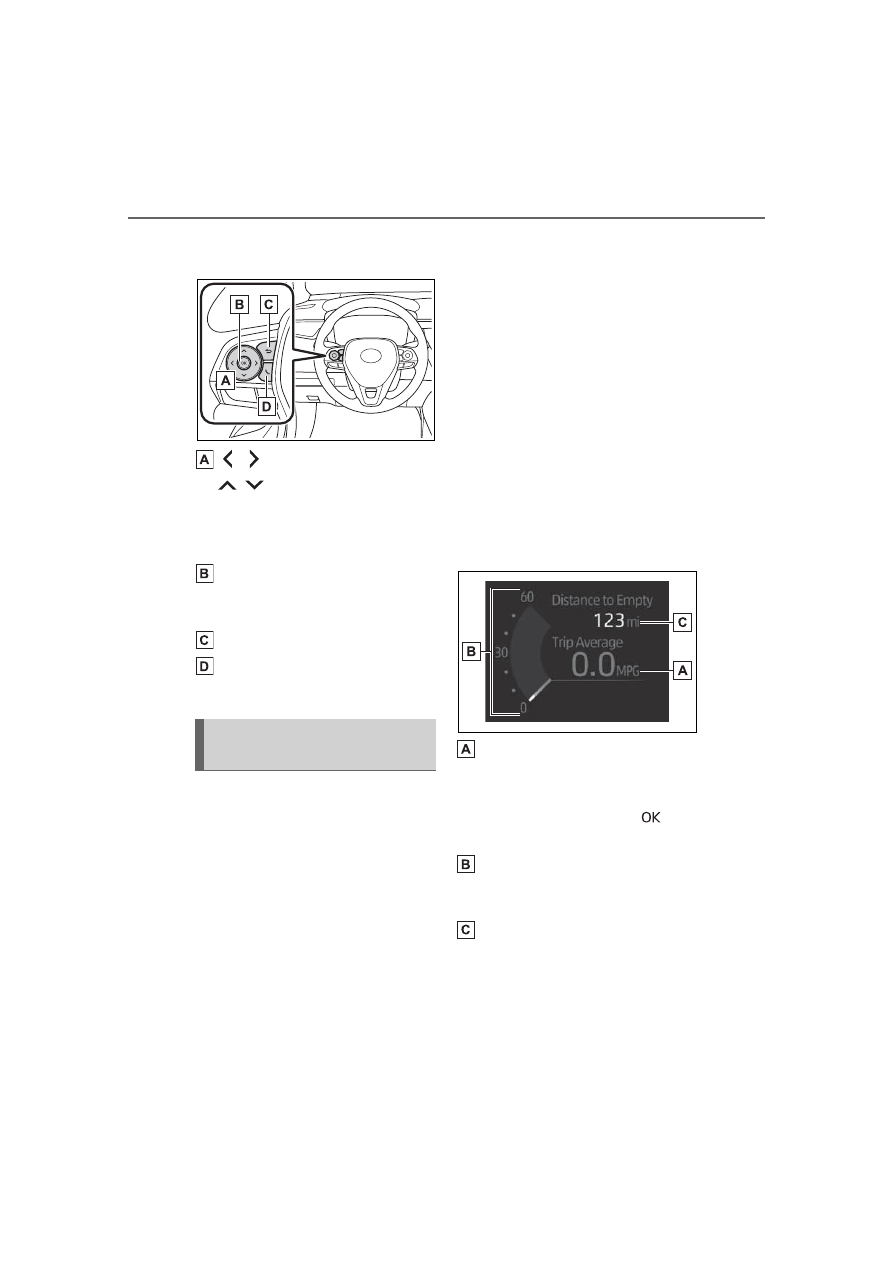

operated using the meter control
switches.

: Select menu icons

: Change displayed

content, scroll up/down the
screen and move the cursor
up/down
Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items
Return to the previous screen
Call sending/receiving and
history display

■

Display items



Speedometer display/Driving
range (4.2-inch display)



Fuel economy



Eco Driving Indicator/Driving
range (if equipped)

■

Speedometer display/Driv-
ing range (4.2-inch display)



Speedometer display



Driving range

Displays driving range with remain-

ing fuel. Use the displayed values
as a reference only.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

■

Fuel economy

Use the displayed values as a ref-
erence only.

Average fuel economy (after
reset)

To reset the average fuel economy

display, press and hold the

meter control switch.

Current fuel consumption

Displays instantaneous current fuel
consumption.

Driving range

Displays driving range with remain-
ing fuel.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that

Content of driving infor-
mation

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

The average fuel economy dis-
play can be changed in

(



Average fuel economy (after
start)

Displays the average fuel con-
sumption since engine start.



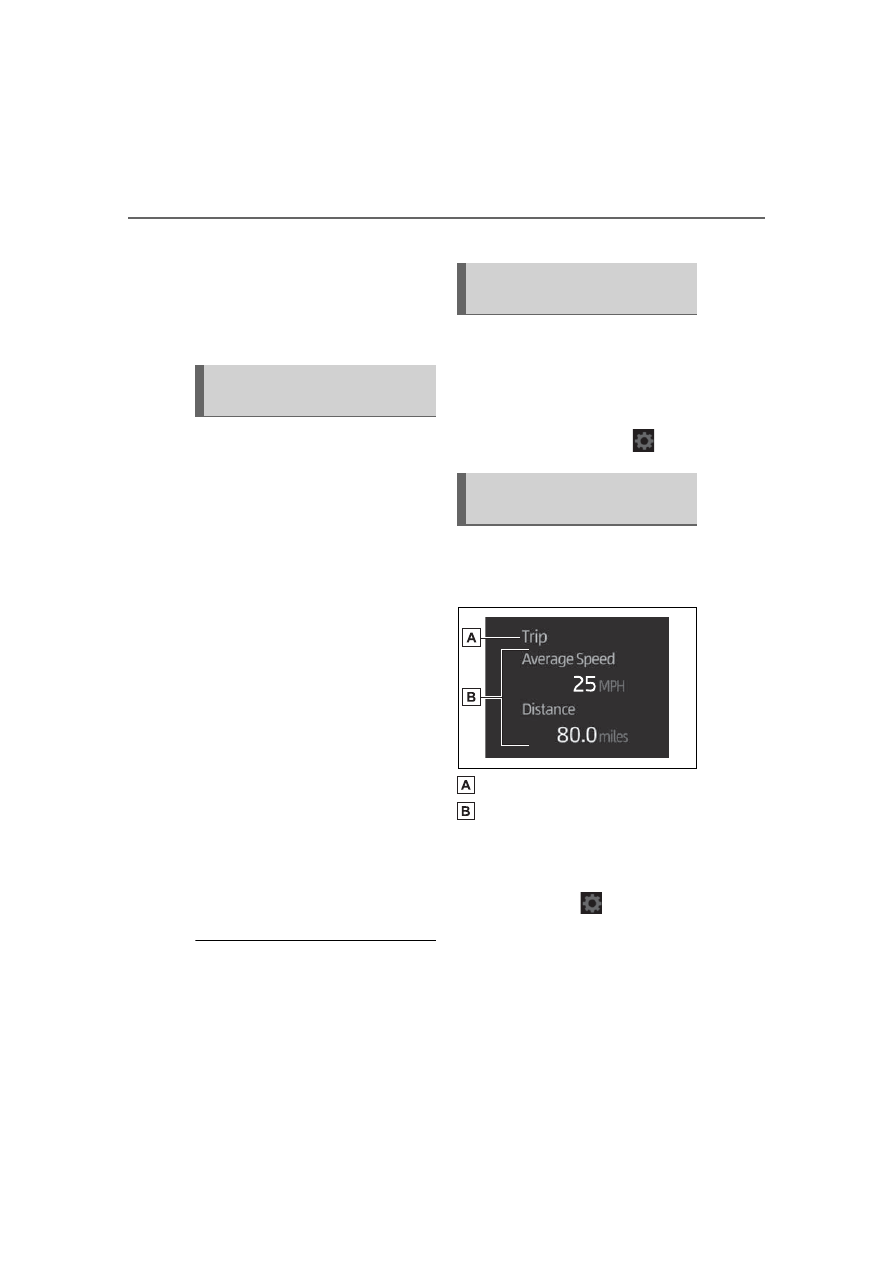

Average fuel economy (after
refuel)

Displays the average fuel con-
sumption since the vehicle was
refueled.

■

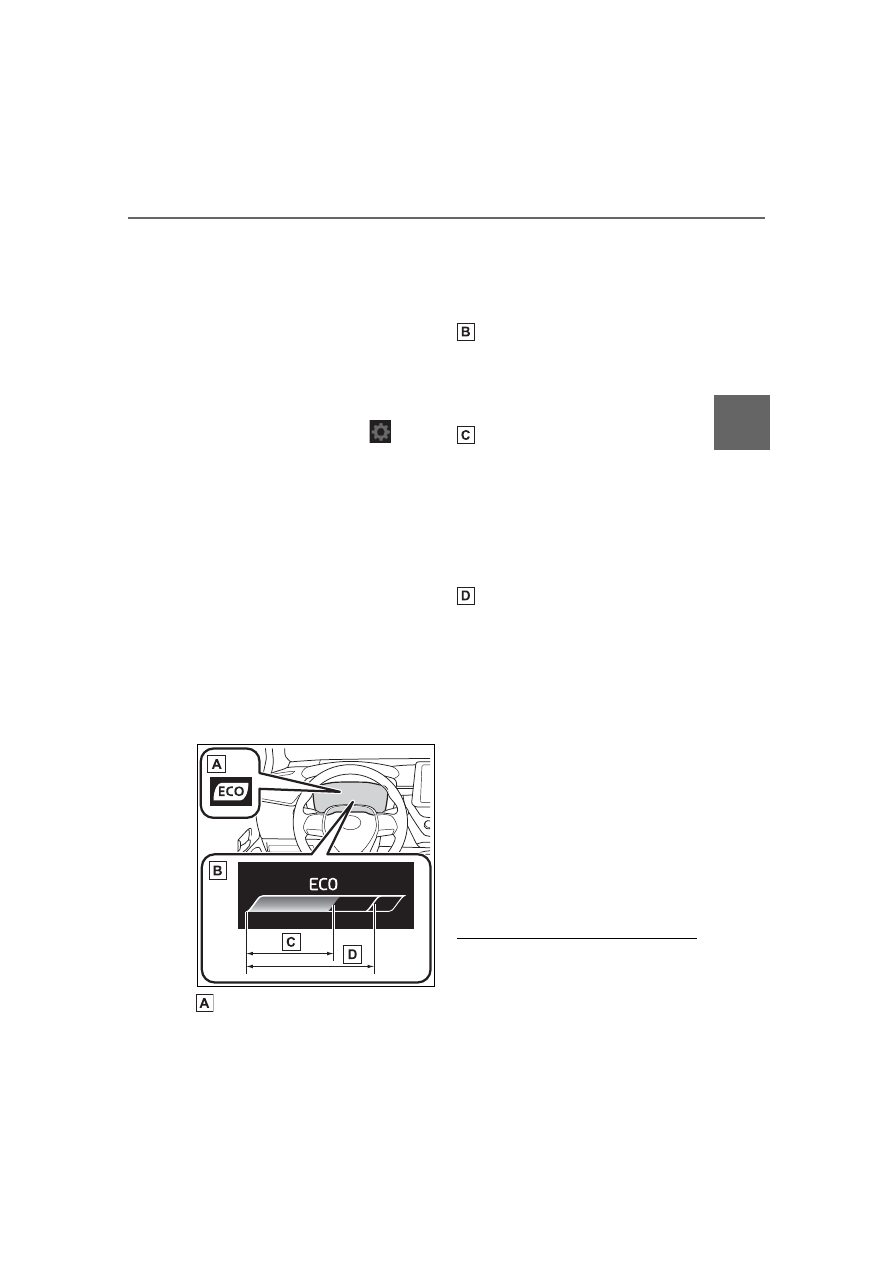

Eco Driving Indicator/Driv-
ing range (if equipped)



Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration

(Eco driving), the Eco Driving Indi-
cator Light will turn on. When the
acceleration exceeds the Zone of
Eco driving, or when the vehicle is
stopped, the light turns off.

Eco Driving Indicator Zone
Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds the
Zone of Eco driving, the right side
of the Eco Driving Indicator Zone
Display will illuminate.
At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving



Driving range

Displays driving range with remain-
ing fuel. Use the displayed values
as a reference only.
This distance is computed based
on your average fuel consumption.
As a result, the actual distance that
can be driven may differ from that
displayed.
When only a small amount of fuel is
added to the tank, the display may
not be updated.
When refueling, turn the engine
switch off. If the vehicle is refueled
without turning the engine switch
off, the display may not be updated.

■

Eco Driving Indicator

Eco Driving Indicator will not oper-

ate under the following conditions:

●

The shift lever is in any position

other than D.

2-1. Instrument cluster

●

A paddle shift switch is operated.

(If equipped)

●

The driving mode is set to sport

mode.

●

The vehicle speed is approxi-

mately 80 mph (130 km/h) or

higher.

■

Driving support system
information

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist) (if
equipped) (

P.182)



LDA (Lane Departure Alert
with steering control) (if
equipped) (

P.192)



Dynamic radar cruise control
(if equipped) (

P.211)



Dynamic radar cruise control
with full-speed range (if
equipped) (

P.200)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation:



Route guidance to destination



Compass display (head-
ing-up display)

■

Route guidance to destination

display

When the route guidance to destina-

tion display is enabled on the

head-up display, it will not be dis-

played on the multi-information dis-

play. (



P.90)

Select to enable selection of an
audio source or track on the
meter using the meter control
switches.

This menu icon can be set to be
displayed/not displayed in

■

Drive information

Displays drive information such as
the following:

Drive information type
Drive information items

Displays the following depend-
ing on which drive information
type and drive information items
were selected in

. (



After start

• Distance: Displays the distance

driven since engine start

• Elapsed time: Displays the

elapsed time since engine start

Driving support system
information display

Audio system-linked dis-
play

Vehicle information dis-
play

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

• Average vehicle speed: Displays

the average vehicle speed since
engine start



After reset

• Distance: Displays the distance

driven since the display was
reset

• Elapsed time: Displays the

elapsed time since the display
was reset

• Average vehicle speed: Displays

the average vehicle speed since
the display was reset

: To reset, display the desired item

and press and hold the

meter control switch.

■

Meter display settings that
can be changed



Language

Select to change the language dis-
played.



Units

Select to change the units of mea-
sure displayed.



Speedometer display (7-inch
display)

Select to set the display of the
speedometer to analog/digital.



Eco Driving Indicator Light (if
equipped)

Select to enable/disable the Eco
Driving Indicator Light.



• Fuel economy display

Select to change the average fuel
consumption display between after
start/after reset. (



P.84)



Select to display/not display the
audio system linked display.



Select to change the displayed con-
tent of the following:
• Drive information type
Select to change the drive informa-
tion type display between after
start/after reset.
• Drive information items
Select to set the first and second
items of the drive information dis-
play to any of the following: aver-
age vehicle
speed/distance/elapsed time.



Pop-up display

Select to enable/disable pop-up
displays for each relevant system.



Multi-information display off

Select to turn the multi-information
display off.
To turn the multi-information display
on again, press any of the following
meter control switches



Default setting

Select to reset the meter display
settings to the default setting.

■

Vehicle functions and set-
tings that can be changed

P.535

Settings display

2-1. Instrument cluster

■

Suspension of the settings dis-

play

●

Some settings cannot be changed

while driving. When changing set-

tings, park the vehicle in a safe

place.

●

If a warning message is displayed,

operation of the settings display

will be suspended.

WARNING

■

Cautions during setting up

the display

If the engine is running when

changing the display settings,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

2-1. Instrument cluster

Vehicle

statu

s information an

d in
dicator

: If equipped

Illustrations used in this text are intended as examples, and may differ from
the image that is actually displayed by the head-up display.

Driving assist system status/navigation system-linked display
area (if equipped) (

P.91)

Shift position display (continuously variable transmission)/RSA
(Road Sign Assist) display area (if equipped) (

P.145, 221)

Vehicle speed display
Tachometer/Eco Driving Indicator (if equipped)/Outside tempera-
ture display area (



P.92)

■

Head-up display will operate

when

The engine switch is in ON.

■

When using the head-up dis-

play

The head-up display may seem

dark or hard to see when viewed

through sunglasses, especially

polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display (vehicles

with a navigation system)

Only street names which are

included in the map data will be dis-

played.

Head-up display

The head-up display projects a variety of driving-related infor-
mation and the operating state of the driving support systems
on the windshield.

System components

2-1. Instrument cluster

Select

on the multi-informa-

tion display (



P.87) and then

“HUD Main”.

■

Enabling/disabling the
head-up display

Press the

meter control

switch to enable/disable the
head-up display.

■

Changing the head-up dis-
play settings

Press and hold the

meter

control switch to change the fol-
lowing settings:



Brightness and vertical posi-
tion of the head-up display

Select to adjust the brightness or
vertical position of the head-up dis-
play.



Display content

Select to change the display
between the following:
• No content
• Eco Driving Indicator (if

equipped)

• Tachometer
Select to enable/disable the follow-
ing items:
• Route guidance to destination (if

equipped)

• Driving support system display
• Compass (heading-up display) (if

equipped)

• Audio system operation status (if

equipped)

WARNING

■

When using the head-up dis-

play

●

Check that the position and

brightness of the head-up dis-

play image does not interfere

with safe driving. Incorrect

adjustment of the image’s posi-

tion or brightness may obstruct

the driver’s view and lead to an

accident, resulting in death or

serious injury.

●

Do not continuously look at the

head-up display while driving as

you may fail to see pedestrians,

objects on the road, etc. ahead

of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near

the head-up display projector. If

the projector gets wet, electrical

malfunctions may result.

●

Do not place anything on or put

stickers onto the head-up dis-

play projector.

Doing so could interrupt

head-up display indications.

●

Do not touch the inside of the

head-up display projector or

thrust sharp edges or the like

into the projector.

Doing so could cause mechani-

cal malfunctions.

Using the head-up display

2-1. Instrument cluster

Vehicle

s information an

d in
dicat



Display angle

Select to adjust the angle of the
head-up display.

■

Enabling/disabling of the

head-up display

If the head-up display is disabled, it

will remain disabled when the

engine switch is turned off then back

to ON.

■

Display brightness

The brightness of the head-up dis-
play can be adjusted on

of the

multi-information display. Also, it is

automatically adjusted according to

the ambient brightness.

■

Driving assist system sta-
tus display

Displays the operational status
of the following systems:



Dynamic radar cruise control
with full-speed range (if
equipped) (



P.200)



Dynamic radar cruise control
(if equipped) (



P.211)



LTA (Lane Tracing Assist) (if
equipped) (



P.182)



LDA (Lane Departure Alert
with steering control) (if
equipped) (



P.192)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

■

Navigation system-linked
display area (if equipped)

Displays the following items
which are linked to the naviga-
tion system:



Street name



Route guidance to destination



Compass (heading-up dis-
play)

Pop-up displays for the following

WARNING

■

Caution for changing settings

of the head-up display

If the engine is running when

changing the display

settings, ensure that the vehicle

is parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

When changing the settings

of the head-up display

To prevent battery discharge,

ensure that the engine is running

while changing the settings of the

head-up display.

Driving assist system sta-
tus/navigation sys-
tem-linked display area (if
equipped)

Pop-up display

2-1. Instrument cluster

systems will be displayed when
necessary:

■

Driving support systems

Displays a warning/sugges-
tion/advice message or the
operating state of a relevant
system.



PCS (Pre-Collision System)
(

P.174)



Brake Override System
(

P.129)



Drive-Start Control (if
equipped) (

P.130)

Details of content displayed on the
head-up display may differ from
that displayed on the multi-informa-
tion display. For details, refer to the
explanation of each system.

■

icon

Displayed when a warning mes-
sage is displayed on the
multi-information display.
(
