Conditions in which the func-

tion may not operate or detect

correctly

In the following situations, RSA

does not operate normally and may

not recognize signs, display the

incorrect sign, etc. However, this

does not indicate a malfunction.

●

The front camera is misaligned

due to a strong impact being

applied to the sensor, etc.

●

Dirt, snow, stickers, etc. are on the

windshield near the front camera.

●

In inclement weather such as

heavy rain, fog, snow or sand

storms.

●

Light from an oncoming vehicle,

the sun, etc. enters the front cam-

era.

●

The sign is dirty, faded, tilted or

bent.

●

The contrast of electronic sign is

low.

●

All or part of the sign is hidden by

the leaves of a tree, a pole, etc.

●

The sign is only visible to the front

camera for a short amount of time.

●

The driving scene (turning, lane

change, etc.) is judged incorrectly.

●

If a sign not appropriate for the

currently traveled lane, but the

sign exists directly after a freeway

branches, or in an adjacent lane

just before merging.

●

Stickers are attached to the rear of

the preceding vehicle.

●

A sign resembling a system com-

patible sign is recognized.

●

Side road speed signs may be

detected and displayed (if posi-

tioned in sight of the front camera)

while the vehicle is traveling on

the main road.

●

Roundabout exit road speed signs

may be detected and displayed (if

positioned in sight of the front

camera) while traveling on a

roundabout.

●

The front of the vehicle is raised or

lowered due to the carried load.

●

The surrounding brightness is not

sufficient or changes suddenly.

●

When a sign intended for trucks,

etc. is recognized.

●

The navigation system map data

is outdated.

●

The navigation system is not oper-

ating.

●

The speed information displayed

on the meter and on the naviga-

tion system may be different due

to the navigation system using

map data.

■

Speed limit sign display

If the engine switch was last turned

off while a speed limit sign was dis-

played on the multi-information dis-

play, the same sign displays again

when the engine switch is turned to

ON.

■

If “RSA Malfunction Visit Your

Dealer” is shown

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

■

Customization

Some functions can be customized.

(Customizable features:



P.521)

272

4-5. Using the driving support systems

*

: If equipped

■

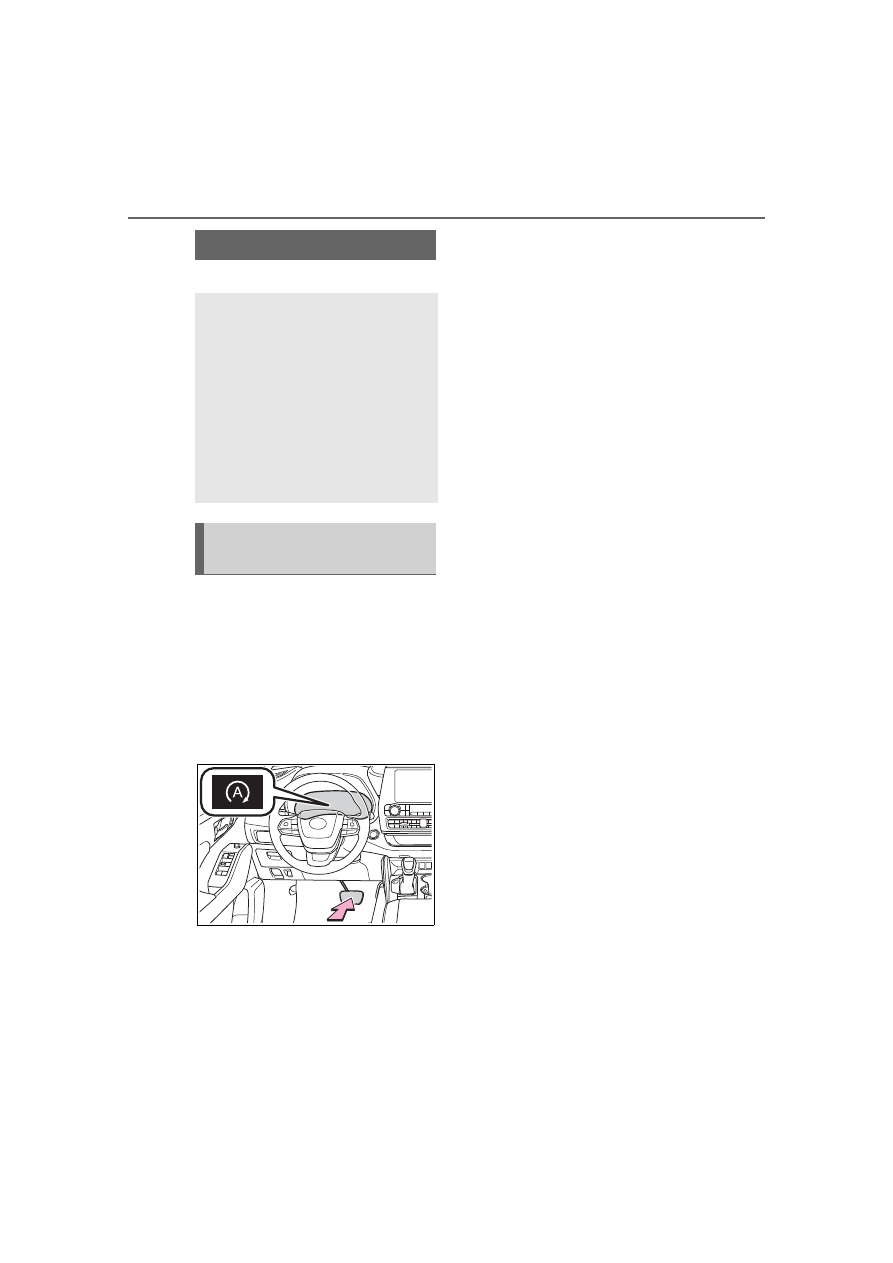

Stopping the engine

While driving with the D shift
position selected, depress the
brake pedal and stop the vehi-
cle. The engine will stop auto-
matically.

When the engine stops, the Stop &
Start indicator will illuminate.

■

Restarting the engine

Release the brake pedal. The
engine will start automatically.

When the engine starts, the Stop &
Start indicator will turn off.

■

When the brake hold sys-
tem is operating



When the engine is stopped
by the Stop & Start system, if
the brake pedal is released
the engine will remain
stopped.



If the accelerator pedal is
depressed while the engine is
stopped by the Stop & Start
system, the engine will
restart.



While the engine is stopped
by the Stop & Start system, if
the engine is restarted, the
brake hold system will con-
tinue to apply the brakes,
unless the operation condi-
tions of the brake hold system
are no longer met. (



P.213)

■

When the dynamic radar
cruise control with
full-speed range is operat-
ing



When the vehicle is stopped
by the dynamic radar cruise
control with full-speed range,
the engine will stop automati-
cally even though the brake
pedal is not depressed.



When the preceding vehicle
starts off, the engine will
restart automatically.



If the engine is restarted by
the Stop & Start system while
the vehicle is stopped by the
dynamic radar cruise control
with full-speed range, the

Stop & Start system

*

The Stop & Start system
stops and starts the engine
according to brake pedal or
shift lever operation when
the vehicle is stopped, such
as at a stoplight, intersec-
tion, etc., in order to
improve fuel economy and
reduce noise pollution
caused by the engine idling.

Stop & Start system oper-
ation

273

4-5. Using the driving support systems

4

Dr

iv

ing

vehicle will remain stopped.

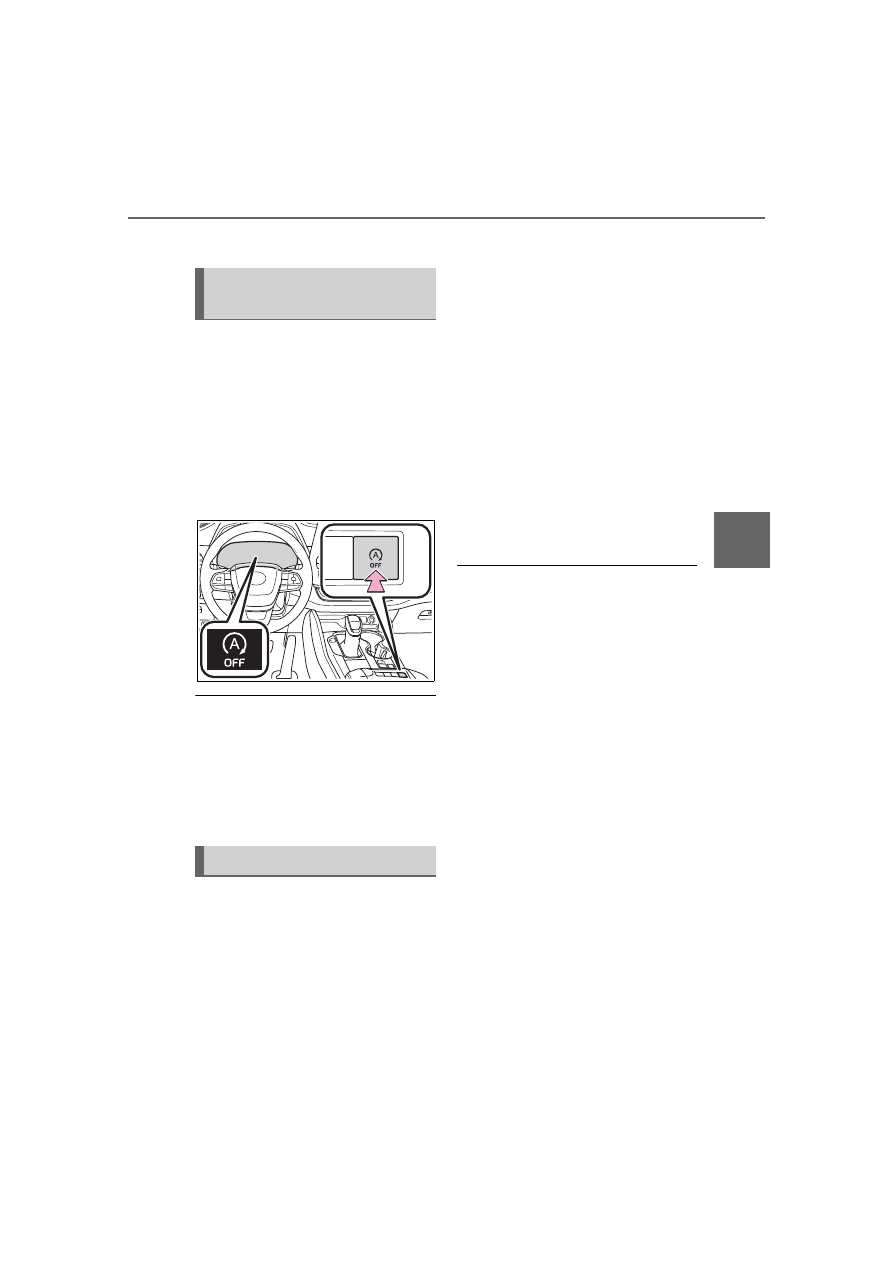

Press the Stop & Start cancel
switch to disable the Stop &
Start system.

The Stop & Start cancel indicator
will illuminate.
Pressing the switch again will
enable the Stop & Start system and
the Stop & Start cancel indicator will
turn off.

■

Automatic enabling of the Stop

& Start system

If the Stop & Start system is dis-

abled using the Stop & Start cancel

switch, it will be automatically

re-enabled once the engine switch

is turned off and then the engine is

started.

When the engine is stopped by
the Stop & Start system when
the vehicle is on an incline,
when the brake pedal is
released, brake force is tempo-
rarily maintained to prevent the
vehicle from rolling backwards
before the engine is restarted

and drive force is generated.
When drive force is generated,
the maintained brake force is
automatically canceled.



This function operates on flat
surfaces as well as steep
inclines.



Sound may be generated
from the brake system, but
this does not indicate a mal-
function.



Brake pedal response may
change and vibration may
occur, but this does not indi-
cate a malfunction.

■

Points for use

●

If the engine switch is pressed

when the engine is stopped by the

Stop & Start system, the engine

will not be able to be restarted by

the automatic engine start func-

tion. In this case, restart the

engine using the normal engine

starting procedure. (



P.202)

●

When the engine is being

restarted by the Stop & Start sys-

tem, the power outlets may be

temporarily unusable, but this

does not indicate a malfunction.

●

Installation and removal of electri-

cal components and wireless

devices may affect the Stop &

Start system. Contact your Toyota

dealer for details.

●

When stopping the vehicle for a

longer period of time, turn the

engine switch off to stop the

engine completely.

●

When the engine is restarted by

the Stop & Start system, the steer-

ing wheel may temporarily feel

heavy.

Disabling the Stop & Start
system

Hill-start assist control

274

4-5. Using the driving support systems

■

Operating conditions

●

The Stop & Start system is opera-

tional when all of the following

conditions are met:

• The vehicle has been driven a cer-

tain amount of time.

• The brake pedal is being

depressed firmly. (Except when

the vehicle is stopped by the

dynamic radar cruise control with

full-speed range when in vehi-

cle-to-vehicle distance control

mode)

• The D shift position is selected.

• The driver’s seat belt is fastened.

• The driver’s door is closed.

• The selected driving mode is

NORMAL or ECO mode.

• The selected driving mode is not

SNOW mode.

• The windshield defogger is off.

(vehicles without a manual air

conditioning system)

• The accelerator pedal is not being

depressed.

• The engine is adequately warmed

up.

• The outside temperature is 23°F

(-5°C ) or higher.

• The hood is closed. (



P.275)

●

In the following situations the

engine may not be stopped by the

Stop & Start system. This is not a

malfunction of the Stop & Start

system.

• When the air conditioning system

is being used.

• When the battery is undergoing a

periodic recharge.

• When the battery is not sufficiently

charged, such as if the vehicle

has been parked for a long time

and the battery charge has

decreased, the electric load is

large, the battery fluid tempera-

ture is excessively low or the bat-

tery has deteriorated.

• When the brake booster vacuum

is low.

• When the elapsed time since the

engine was restarted is short.

• When the vehicle is stopped fre-

quently, such as when in a traffic

jam.

• When the engine coolant tem-

perature or transmission fluid tem-

perature is extremely low or high.

• When the vehicle is stopped on a

steep incline.

• When the steering wheel is being

operated.

• When the vehicle is being driven

in a high altitude area.

• When the battery fluid tempera-

ture is extremely low or high.

• For a while after the battery termi-

nals have been disconnected and

reconnected.

●

When the engine is stopped by

the Stop & Start system, the

engine will be restarted automati-

cally if any of the following condi-

tions are met: (To enable the

engine to be stopped by the Stop

& Start system again, drive the

vehicle.)

• The air conditioning system is

turned on. (vehicles without a

manual air conditioning system)

• The windshield defogger is turned

on. (vehicles without a manual air

conditioning system)

• The shift lever is shifted from D or

P.

• The shift lever is shifted from P.

(When the engine is stopped by

the Stop & Start system when the

shift lever is in P.)

• The driver’s seat belt is unfas-

tened.

• The driver’s door is opened.

• The driving mode is changed from

NORMAL or ECO mode to

another mode.

• The driving mode is changed to

SNOW mode.

• The Stop & Start cancel switch is

pressed.

• The steering wheel is operated.

• The accelerator pedal is

depressed.

• The vehicle starts to roll on an

incline.

●

When the engine is stopped by

the Stop & Start system, the

engine may restart automatically

275

4-5. Using the driving support systems

4

Dr

iv

ing

in the following situations: (To

enable the engine to be stopped

by the Stop & Start system again,

drive the vehicle.)

• When the brake pedal is pumped

or strongly depressed.

• When the air conditioning system

is being used.

• When a switch of the air condition-

ing system is operated (windshield

defogger switch, etc.).

• If the battery charge becomes low.

■

When the hood is opened

●

If the hood is opened while the

engine is stopped by the Stop &

Start system, the engine will stall

and will not be able to be restarted

by the automatic engine start

function. In this case, restart the

engine using the normal engine

starting procedure. (



P.202)

●

If the hood is closed after the

engine is started with the hood

open, the Stop & Start system will

not operate. Close the hood, turn

the engine switch off, wait 30 sec-

onds or more, and then start the

engine.

■

Air conditioning system opera-

tion while the engine is stopped

by the Stop & Start system

Vehicles with an automatic air con-

ditioning system: When the air con-

ditioning is in automatic mode and

the engine is stopped by the Stop &

Start system, the fan may operate at

a low speed in order to prevent the

temperature in the cabin from

increasing or decreasing or may be

stopped.
To prioritize air conditioning system

performance when the vehicle is

stopped, disable the Stop & Start

system by pressing the Stop & Start

cancel switch.

●

If the windshield is fogged up

Turn the windshield defogger on.
(



P.339)

If the windshield fogs up frequently,
press the Stop & Start cancel switch

to disable the Stop & Start system.

●

If an odor is emitted from the air

conditioning system

• Vehicles with a manual air condi-

tioning system

If the idling stop time setting is set to
“Extended” change it to “Standard”.
If an odor is emitted when the idling
stop time setting is set to “Stan-
dard”, press the Stop & Start cancel
switch to deactivate the Stop & Start
system.
• Vehicles with an automatic air

conditioning system

Press the Stop & Start cancel switch
to deactivate the Stop & Start sys-
tem.

■

Changing the idling stop time

with the air conditioning system

on

The length of time the Stop & Start

system will operate when the air

conditioning system is on can be
changed in

 of the multi-informa-

tion display (



P.89, 98). (The length

of time the Stop & Start system will

operate when the air conditioning

system is off cannot be changed.)

■

Displaying the Stop & Start sys-

tem status



P.89, 98

■

Multi-information display mes-

sages

If the following situations,

 and a

message may be displayed on the

multi-information display.

●

When the engine cannot be

stopped by the Stop & Start sys-

tem

 “Press brake more to activate”

• The brake pedal is not sufficiently

depressed.



 If the brake pedal is depressed

further, the system will operate.

276

4-5. Using the driving support systems

 “Non-Dedicated Battery”

• A battery not designed for use

with a Stop & Start system may

have been installed.



 Have the vehicle inspected by

your Toyota dealer.

 “Battery Charging”

• The battery charge may be low.



 Stopping of the engine is tempo-

rarily prohibited to prioritize charging
of the battery. After the engine runs
for a certain amount of time, the sys-
tem will be enabled.
• A refresh charge may be occur-

ring



 After a refresh charge for up to

an hour completes, the system can
be operated.
• If displayed continuously for a

long time (more than an hour)



 The battery may be deteriorated.

Contact your Toyota dealer for
details.

 “Stop & Start System Unavail-

able”
• The Stop & Start system is tempo-

rarily disabled.



 Allow the engine to run for some

time.
• The engine may have been

started with the hood open.



 Close the hood, turn the engine

switch off, wait for 30 seconds or
more, and then start the engine.

 “In Preparation”

• The vehicle is being driven in a

high altitude area.

• The brake booster vacuum is low.



 When the brake booster vacuum

reaches a predetermined level, the
system will be enabled.

 “For Climate Control”

• The air conditioning system is

being used when the ambient

temperature is high or low.



 If the difference between the set

temperature and cabin temperature
becomes small, the system will be
enabled.
• The windshield defogger is on.

●

When the engine automatically

restarts while stopped by the Stop

& Start system

 “In Preparation”

• The brake pedal has been

depressed further or pumped.



 The system will be enabled after

the engine runs and the brake
booster vacuum reaches a predeter-
mined level.

 “For Climate Control”

• The air conditioning system has

been turned on or is being used.

• The windshield defogger has

been turned on.

 “Battery Charging”

• The battery charge may be low.



 The system will be enabled after

the engine runs to sufficiently
charge the battery.

■

When the buzzer sounds

If the driver’s door is opened when

the engine is stopped by the Stop &

Start system and the shift lever is in

D, a buzzer will sound and the Stop

& Start system indicator will flash. To

stop the buzzer, close the driver’s

door.

■

The Stop & Start system protec-

tion function

●

When the volume of the audio

system is excessively high, sound

output from the audio system may

suddenly be cut off in order to

277

4-5. Using the driving support systems

4

Dr

iv

ing

reduce battery consumption. To

prevent the audio system from

being cut off, keep the volume of

audio system at a moderate level.

If the audio system has been cut

off, turn the engine switch off, wait

for 3 seconds or more and then

turn it to ACC or ON to re-enable

the audio system.

●

The audio system may not be acti-

vated if the battery terminals are

disconnected and then recon-

nected. If this occurs, turn the

engine switch off and then repeat

the following operation twice to

activate the audio system nor-

mally.

• Turn the engine switch to ON and

then to OFF.

■

Replacing the battery



P.492

■

If the Stop & Start cancel indica-

tor flashes continuously

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

■

If “Stop & Start System Mal-

function Visit Your Dealer” is

displayed on the multi-informa-

tion display

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

WARNING

■

When the Stop & Start system

is operating

Make sure to disable the Stop &

Start system while the vehicle is in

a poorly ventilated area. If not dis-

abled, the engine may be auto-

matically restarted unexpectedly,

causing exhaust gases to collect

and enter the vehicle, possibly

resulting in death or a serious

health hazard.

●

Do not leave the vehicle while

the engine is stopped by the

Stop & Start system (while the

Stop & Start indicator is on). An

accident may occur due to the

automatic engine start function.

●

Depress the brake pedal and

apply the parking brake when

necessary while the engine is

stopped by the Stop & Start sys-

tem (while the Stop & Start indi-

cator is on).

NOTICE

■

To ensure the system oper-

ates correctly

If any of the following situations

occur, the Stop & Start system

may not operate correctly. Have

your vehicle inspected by your

Toyota dealer.

●

While the driver’s seat belt is

fastened, the driver’s and front

passenger’s seat belt reminder

light flashes.

●

Even though the driver’s seat

belt is not fastened, the driver’s

and front passenger’s seat belt

reminder light does not illumi-

nate.

●

Even though the driver’s door is

closed, the open door warning

light is illuminated or the interior

light is illuminated when the

interior light switch is in the door

position.

●

Even though the driver’s door is

open, the open door warning

light does not illuminate or the

interior light does not illuminate

when the interior light switch is

in the door position.

278

4-5. Using the driving support systems

*

: If equipped

Meter control switches

Turning the Blind Spot Monitor
on/off.
When the BSM function is disabled,
the BSM OFF indicator illuminates.

Outside rear view mirror indi-
cators

When a vehicle is detected in a
blind spot of the outside rear view
mirrors or approaching rapidly from
behind into a blind spot, the outside
rear view mirror indicator on the
detected side will illuminate. If the
turn signal lever is operated toward
the detected side, the outside rear
view mirror indicator flashes.

■

Outside rear view mirror indica-

tor visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

When “Blind Spot Monitor

Unavailable” is shown on the

multi-information display

Ice, snow, mud, etc., may be

attached to the rear bumper around

the sensors. (



P.280) The system

should return to normal operation

after removing the ice, snow, mud,

etc. from the rear bumper. Addition-

ally, the sensors may not operate

normally when driving in extremely

BSM (Blind Spot Moni-

tor)

*

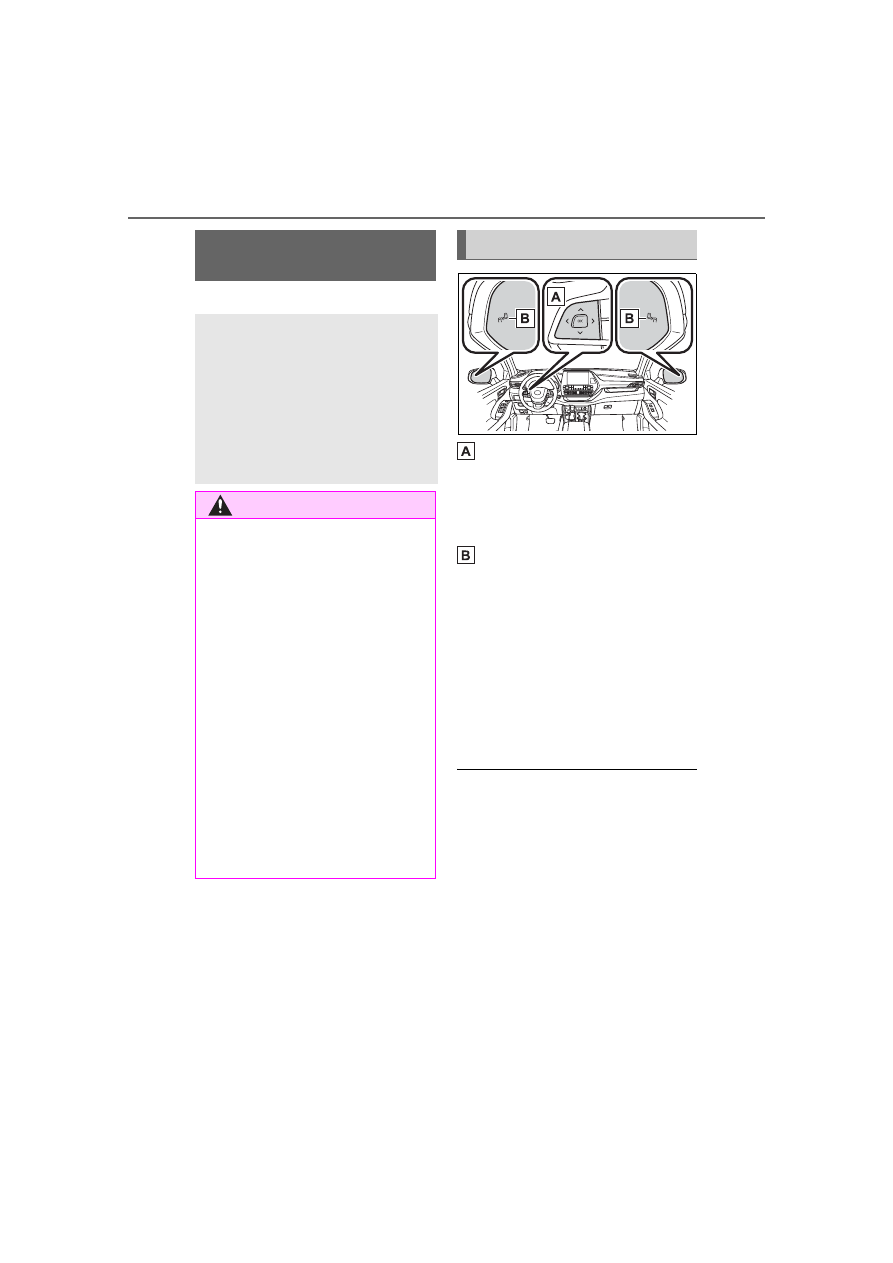

The Blind Spot Monitor is a
system that uses rear side
radar sensors installed on
the inner side of the rear
bumper on the left and right
side to assist the driver in
confirming safety when
changing lanes.

WARNING

■

Cautions regarding the use of

the system

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings.
The Blind Spot Monitor is a sup-

plementary function which alerts

the driver that a vehicle is in a

blind spot of the outside rear view

mirrors or is approaching rapidly

from behind into a blind spot. Do

not overly rely on the Blind Spot

Monitor. As the function cannot

judge if it is safe to change lanes,

over reliance could lead to an

accident resulting in death or seri-

ous injury.
As the system may not function

correctly under certain condi-

tions, the driver’s own visual con-

firmation of safety is necessary.

System components

279

4-5. Using the driving support systems

4

Dr

iv

ing

hot or cold environments.

■

When “Blind Spot Monitor Mal-

function Visit Your Dealer” is

shown on the multi-information

display

There may be a sensor malfunction

of misaligned. Have the vehicle

inspected by your Toyota dealer.

■

Customization

Some functions can be customized.

(



P.521)

■

Certification



For vehicles sold in the U.S.A.



For vehicles sold in Canada

280

4-5. Using the driving support systems

WARNING

■

To ensure the system can

operate properly

Blind Spot Monitor sensors are

installed behind the left and right

sides of the rear bumper respec-

tively. Observe the following to

ensure the Blind Spot Monitor can

operate correctly.

●

Keep the sensors and the sur-

rounding areas on the rear

bumper clean at all times.

If a sensor or its surrounding area
on the rear bumper is dirty or cov-
ered with snow, the Blind Spot
Monitor may not operate and a
warning message (



P.278) will

be displayed. In this situation,
clear off the dirt or snow and drive
the vehicle with the operation con-
ditions of the BSM function
(



P.282) satisfied for approxi-

mately 10 minutes. If the warning
message does not disappear,
have the vehicle inspected by
your Toyota dealer.

281

4-5. Using the driving support systems

4

Dr

iv

ing

Use the meter control switches
to turn on/off the function.



4.2-inch display

1

Press

 or

 of the meter

control switches and select

.

2

Press

 or

 of the meter

control switches to select



and then press

.



7-inch display

1

Press

 or

 of the meter

control switches and select

.

2

Press

 or

 of the meter

control switches to select



and then press

.

■

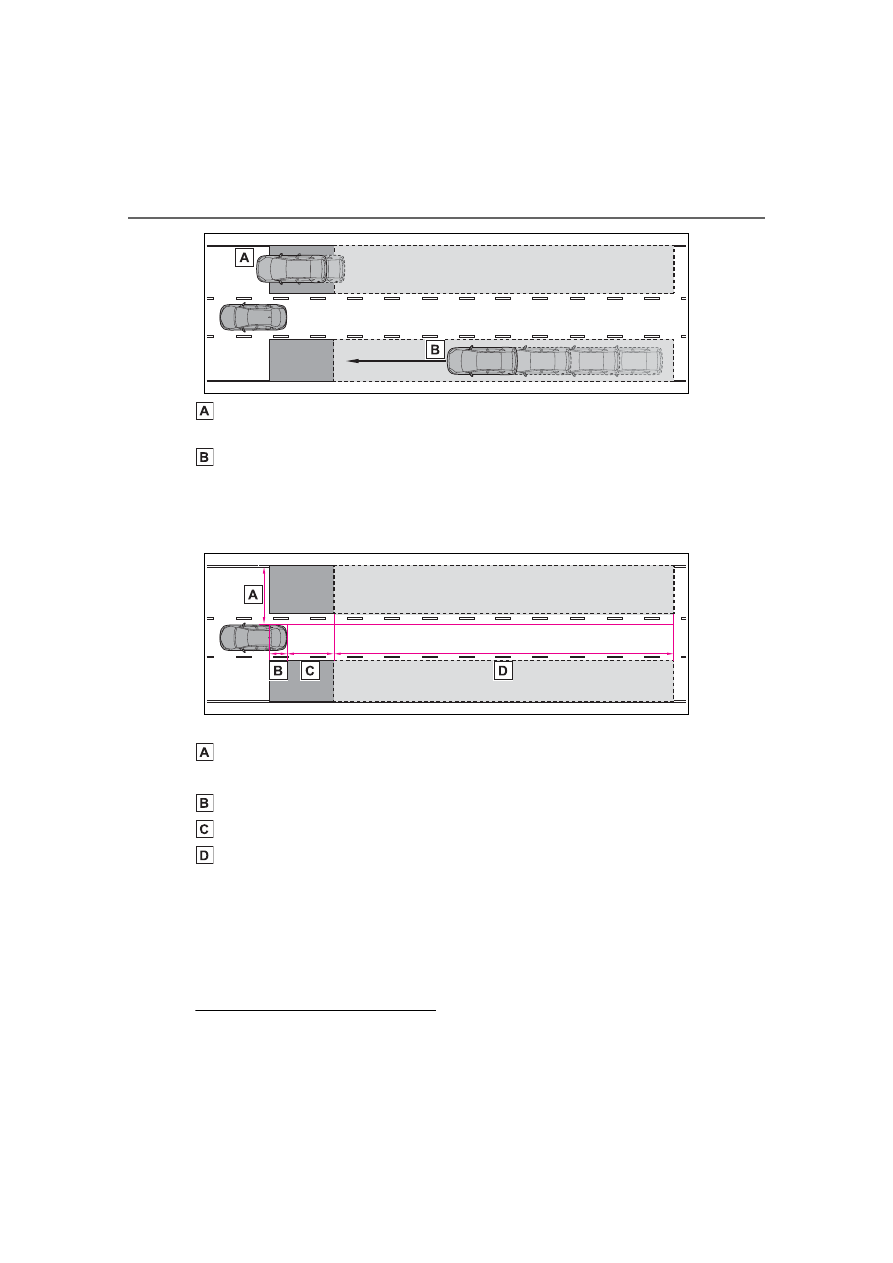

Vehicles that can be detected by the Blind Spot Monitor

The Blind Spot Monitor uses rear side radar sensors to detect the fol-
lowing vehicles traveling in adjacent lanes and advises the driver of
the presence of such vehicles via the indicators on the outside rear
view mirrors.

WARNING

●

Do not attach stickers to the

sensor or surrounding area on

the rear bumper.

●

Do not subject a sensor or its

surrounding area on the rear

bumper to a strong impact.

If a sensor is moved even

slightly off position, the system

may malfunction and vehicles

may not be detected correctly.

In the following situations, have

your vehicle inspected by your

Toyota dealer.

• A sensor or its surrounding area

is subject to a strong impact.

• If the surrounding area of a sen-

sor is scratched or dented, or

part of them has become dis-

connected.

●

Do not disassemble the sensor.

●

Do not modify the sensor or sur-

rounding area on the rear

bumper.

●

If a sensor or the rear bumper

needs to be removed/installed

or replaced, contact your Toyota

dealer.

●

Do not paint the rear bumper

any color other than an official

Toyota color.

Turning the Blind Spot
Monitor on/off

Blind Spot Monitor operation

282

4-5. Using the driving support systems

Vehicles that are traveling in areas that are not visible using the
outside rear view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that
are not visible using the outside rear view mirrors (the blind spots)

■

The Blind Spot Monitor detection areas

The areas that vehicles can be detected in are outlined below.

The range of each detection area is:

Approximately 1.6 ft. (0.5 m) to 11.5 ft. (3.5 m) from either side of
the vehicle

*1

Approximately 3.3 ft. (1 m) forward of the rear bumper
Approximately 9.8 ft. (3 m) from the rear bumper
Approximately 9.8 ft. (3 m) to 197 ft. (60 m) from the rear
bumper

*2

*1

:The area between the side of the vehicle and 1.6 ft. (0.5 m) from the side

of the vehicle cannot be detected.

*2

:The greater the difference in speed between your vehicle and the

detected vehicle is, the farther away the vehicle will be detected, causing
the outside rear view mirror indicator to illuminate or flash.

■

The Blind Spot Monitor is oper-

ational when

The Blind Spot Monitor is opera-

283

4-5. Using the driving support systems

4

Dr

iv

ing

tional when all of the following con-

ditions are met:

●

The Blind Spot Monitor is on.

●

The shift lever is in a position

other than R.

●

The vehicle speed is greater than

approximately 10 mph (16 km/h).

■

The Blind Spot Monitor will

detect a vehicle when

The Blind Spot Monitor will detect a

vehicle present in the detection area

in the following situations:

●

A vehicle in an adjacent lane over-

takes your vehicle.

●

You overtake a vehicle in an adja-

cent lane slowly.

●

Another vehicle enters the detec-

tion area when it changes lanes.

■

Conditions under which the

system will not detect a vehicle

The Blind Spot Monitor is not

designed to detect the following

types of vehicles and/or objects:

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles traveling in the opposite

direction

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Following vehicles that are in the
same lane

*

●

Vehicles traveling 2 lanes away
from your vehicle

*

●

Vehicles which are being over-
taken rapidly by your vehicle

*

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Conditions under which the

system may not function cor-

rectly

●

The Blind Spot Monitor may not

detect vehicles correctly in the fol-

lowing situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering the sensor or sur-

rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap

between each vehicle

• When the distance between your

vehicle and a following vehicle is

short

• When there is a significant differ-

ence in speed between your vehi-

cle and the vehicle that enters the

detection area

• When the difference in speed

between your vehicle and another

vehicle is changing

• When a vehicle enters a detection

area traveling at about the same

speed as your vehicle

• As your vehicle starts from a stop,

a vehicle remains in the detection

area

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When vehicle lanes are wide, or

when driving on the edge of a

lane, and the vehicle in an adja-

cent lane is far away from your

vehicle

• When towing a trailer

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

• Immediately after the Blind Spot

Monitor is turned on

●

Instances of the Blind Spot Moni-

tor unnecessarily detecting a vehi-

cle and/or object may increase in

284

4-5. Using the driving support systems

the following situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When the distance between your

vehicle and a guardrail, wall, etc.

that enters the detection area is

short

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When vehicle lanes are narrow, or

when driving on the edge of a

lane, and a vehicle traveling in a

lane other than the adjacent lanes

enters the detection area

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When the tires are slipping or

spinning

• When the distance between your

vehicle and a following vehicle is

short

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

*

: If equipped

■

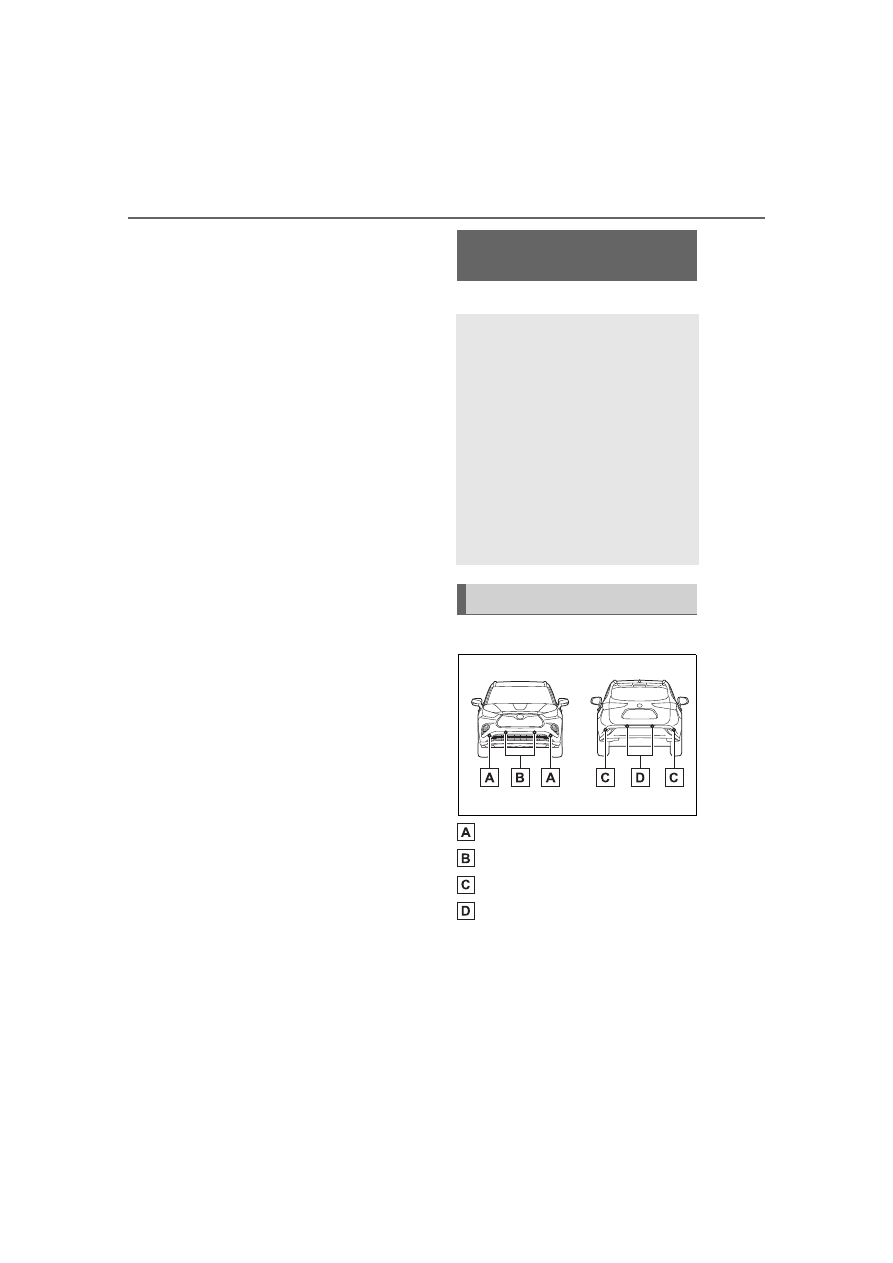

Types of sensors

Front corner sensors
Front center sensors
Rear corner sensors
Rear center sensors

■

Display

When the sensors detect an
object, such as a wall, a graphic
is shown on the multi-informa-
tion display, head-up display (if

Intuitive parking

assist

*

The distance from your
vehicle to objects, such as a
wall, when parallel parking
or maneuvering into a
garage is measured by the
sensors and communicated
via the multi-information
display, head-up display (if
equipped), audio system
screen and a buzzer. Always
check the surrounding area
when using this system.

System components

285

4-5. Using the driving support systems

4

Dr

iv

ing

equipped) and audio system
screen depending on the posi-
tion and distance to the object.



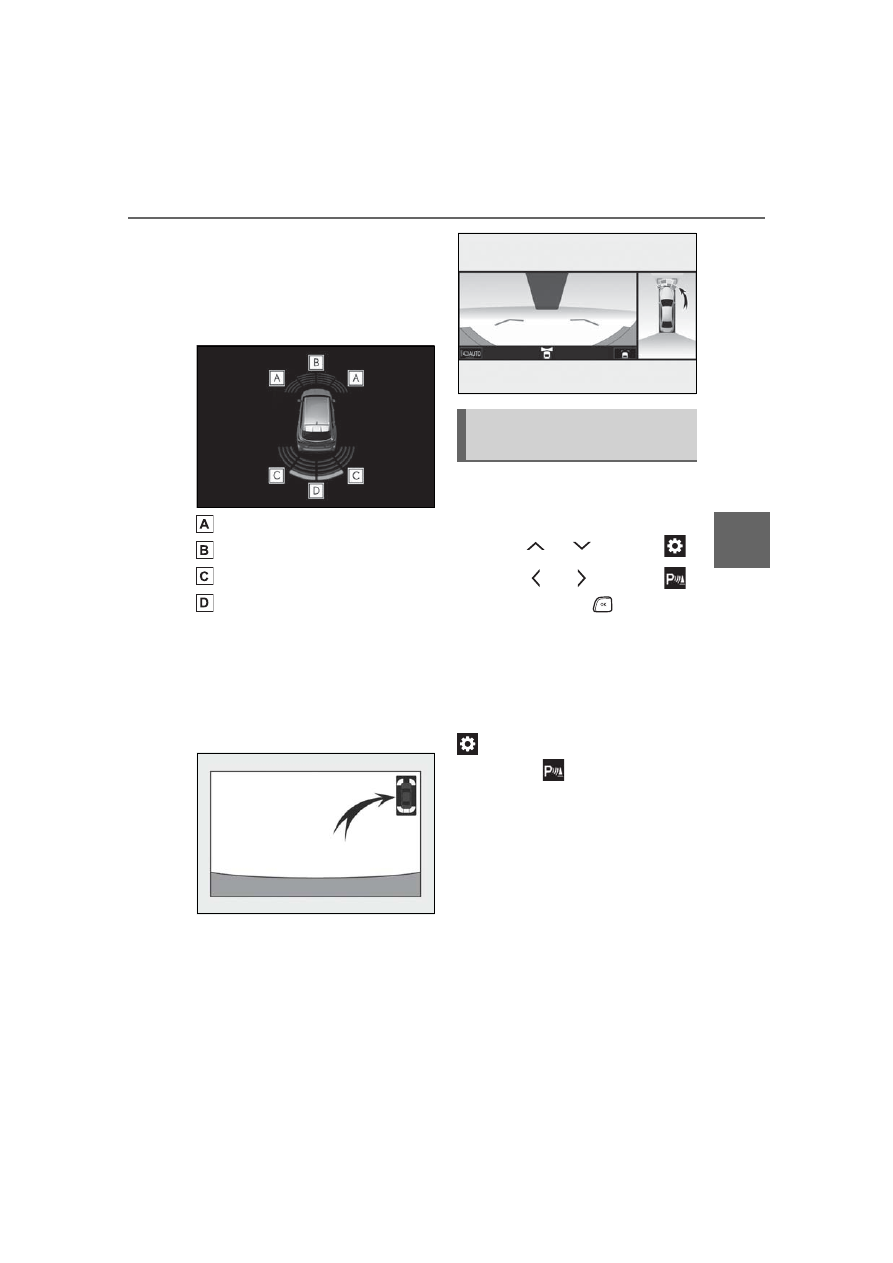

Multi-information display and
head-up display

Front corner sensor detection
Front center sensor detection
Rear corner sensor detection
Rear center sensor detection



Audio system screen (vehi-
cles with a Toyota parking
assist monitor)

When the R shift lever is selected,
a simplified image is displayed on
the audio system screen.



Audio system screen (vehi-
cles with a Panoramic view
monitor)

A graphic will be displayed on the
audio system screen.

Use the meter control switches
to enable/disable the intuitive
parking assist. (



P.98)

1

Press

 or

 to select

.

2

Press

 or

 to select



and then press

.

When the intuitive parking assist
function is disabled, the intuitive
parking assist OFF indicator
(



P.78) illuminates.

To re-enable the system, select

 on the multi-information dis-

play, select

 and turn it on. If

the system is disabled, it will
remain off even if the engine
switch is turned to ON after the
engine switch has been turned
off.

Turning intuitive parking
assist on/off

286

4-5. Using the driving support systems

■

The system can be operated

when

●

The engine switch is in ON.

●

Intuitive parking assist function is

on.

●

The vehicle speed is less than

about 6 mph (10 km/h).

●

A shift lever other than P.

■

If “Parking Assist Unavailable”

is displayed on the multi-infor-

mation display

●

Water may be continuously flow-

ing over the sensor surface, such

as in a heavy rain. When the sys-

tem determines that it is normal,

the system will return to normal.

WARNING

■

Cautions regarding the use of

the system

There is a limit to the degree of

recognition accuracy and control

performance that this system can

provide, do not overly rely on this

system. The driver is always

responsible for paying attention to

the vehicle’ surroundings and

driving safely.

■

To ensure the system can

operate properly

Observe the following precau-

tions.

Failing to do so may result in the

vehicle being unable to be driven

safely and possibly cause an acci-

dent.

●

Do not damage the sensors,

and always keep them clean.

●

Do not attach a sticker or install

an electronic component, such

as a backlit license plate (espe-

cially fluorescent type), fog

lights, fender pole or wireless

antenna near a radar sensor.

●

Do not subject the surrounding

area of the sensor to a strong

impact. If subjected to an

impact, have the vehicle

inspected by your Toyota

dealer. If the front or rear

bumper needs to be

emoved/installed or replaced,

contact your Toyota dealer.

●

Do not modify, disassemble or

paint the sensors.

●

Do not attach a license plate

cover.

●

Keep your tires properly

inflated.

■

When to disable the function

In the following situations, disable

the function as it may operate

even though there is no possibility

of a collision.

●

Failing to observe the warnings

above.

●

A non-genuine Toyota suspen-

sion (lowered suspension, etc.)

is installed.

■

Notes when washing the vehi-

cle

Do not apply intensive bursts of

water or steam to the sensor

area.
Doing so may result in the sensor

malfunctioning.

●

When using a high pressure

washer to wash the vehicle, do

not spray the sensors directly,

as doing so may cause a sensor

to malfunction.

●

When using steam to clean the

vehicle, do not direct steam too

close to the sensors as doing so

may cause a sensor to malfunc-

tion.
