6-3. Using the storage features

Interior

featur

WARNING

●

Do not store items in the tray

that can easily shift or roll out.

●

Do not stack items in the tray

higher than the tray’s edge.

●

Do not put items in the tray that

may protrude over the tray’s

edge.

430

6-4. Other interior features

6-4.Other interior features

The USB charging port are used
to supply 3.0 A of electricity at 5
V to external devices.
The USB charging port are for
charging only. They are not
designed for data transfer or
other purposes.
Depending on the external
device, it may not charge prop-
erly. Refer to the manual
included with the device before
using a USB charging port.

■

Using the USB charging
port

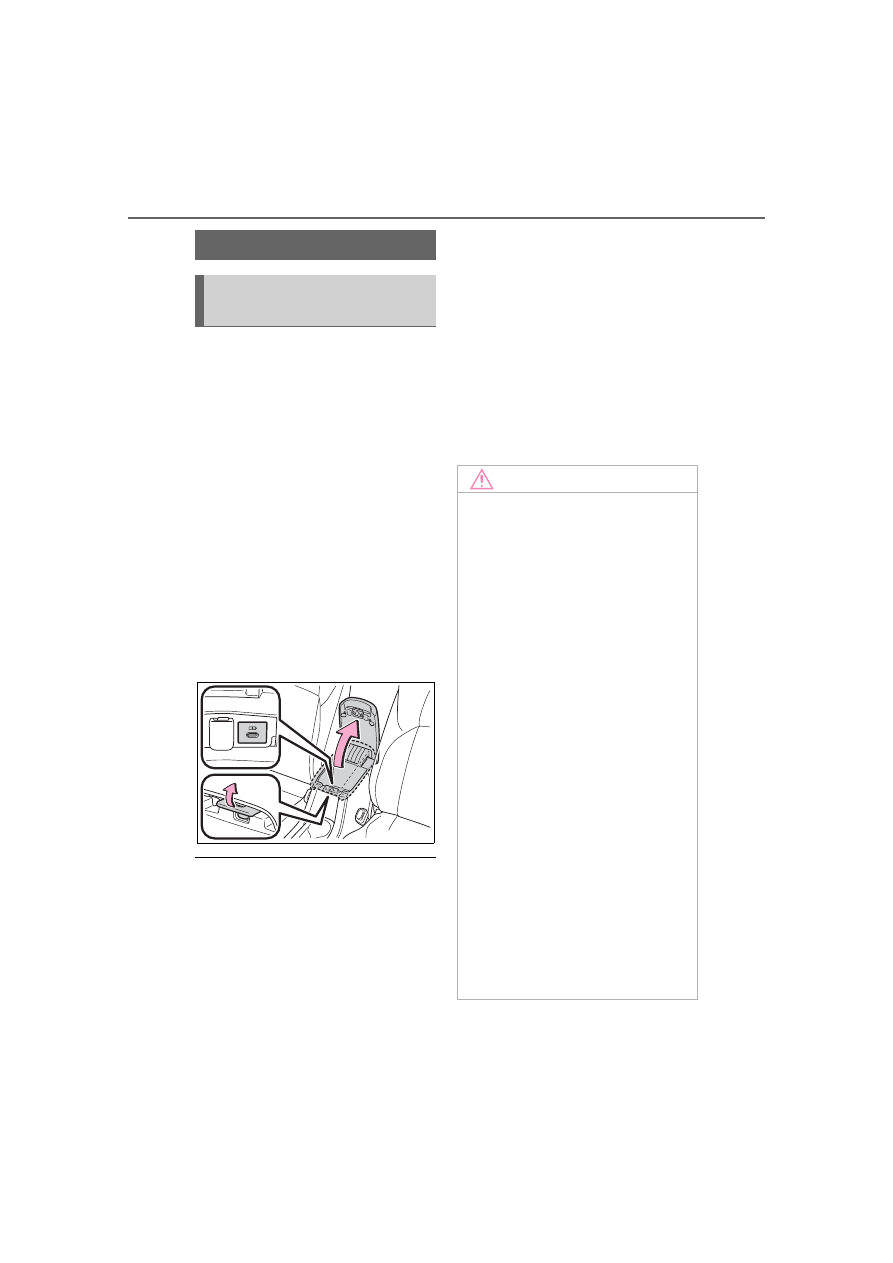

Lift the lid while pulling up the
knob.

■

The USB charging port can be

used when

The engine switch is in ACC or ON.

■

Situations in which the USB

charging port may not operate

correctly

●

If a device which consumes more

than 3.0 A at 5 V is connected

●

If a device designed to communi-

cate with a personal computer,

such as a USB memory device, is

connected

●

If the connected external device is

turned off (depending on device)

●

If the temperature inside the vehi-

cle is high, such as after the vehi-

cle has been parked in the sun

■

About connected external

device

Depending on the connected exter-

nal device, charging may occasion-

ally be suspended and then start

again. This is not a malfunction.

Other interior features

USB charging port (if
equipped)

NOTICE

■

To prevent damage to the

USB charging port

●

Do not insert foreign objects into

the port.

●

Do not spill water or other liq-

uids into the port.

●

Do not apply excessive force to

or impact the USB charging

port.

●

Do not disassemble or modify

the USB charging port.

■

To prevent damage to exter-

nal devices

●

Do not leave external devices in

the vehicle. The temperature

inside the vehicle may become

high, resulting in damage to an

external device.

●

Do not push down on or apply

unnecessary force to an exter-

nal device or the cable of an

external device while it is con-

nected.

■

To prevent battery discharge

Do not use the USB charging port

for a long period of time with the

engine stopped.

431

6-4. Other interior features

Interior

featur

The power outlet can be used
for 12 V accessories that run on
less than 10 A.

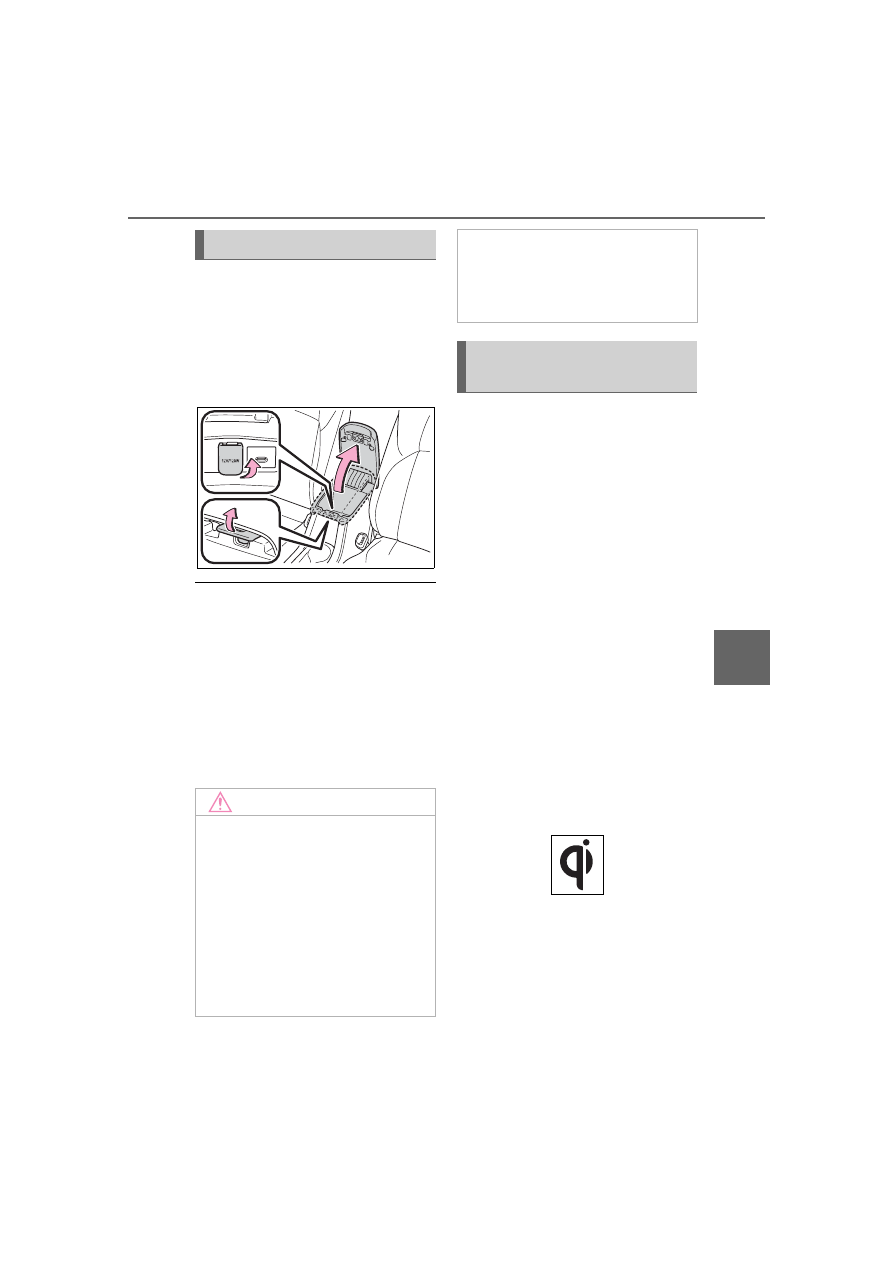

Lift the lid while pulling up the
knob and open the power outlet
lid.

■

The power outlet can be used

when

The engine switch is in ACC or ON.

■

When turning the engine switch

off

Disconnect electrical devices with

charging functions, such as mobile

battery packs.

If such devices are left connected,

the engine switch may not be turned

off normally.

A portable device, such as a
smartphone or mobile battery,
can be charged by just placing it
on the charging area, provided
the device is compatible with the
Qi wireless charging standard
created by the Wireless Power
Consortium.
The wireless charger cannot be
used with a portable device that
is larger than the charging area.
Additionally, depending on the
portable device, the wireless
charger may not operate prop-
erly. Refer to the operation man-
ual of the portable device.

■

The “Qi” symbol

The “Qi” symbol is a trademark
of the Wireless Power Consor-
tium.

Power outlet

NOTICE

■

To prevent the fuse from

being blown

Do not use an accessory that

uses more than 12 V 10 A.

■

To avoid damaging the power

outlet

Close the power outlet lid when

the power outlet is not in use.

Foreign objects or liquids that

enter the power outlet may cause

a short circuit.

■

To prevent the battery from

being discharged

Do not use the power outlet lon-

ger than necessary when the

engine is not running.

Wireless charger (if
equipped)

432

6-4. Other interior features

■

Name for all parts

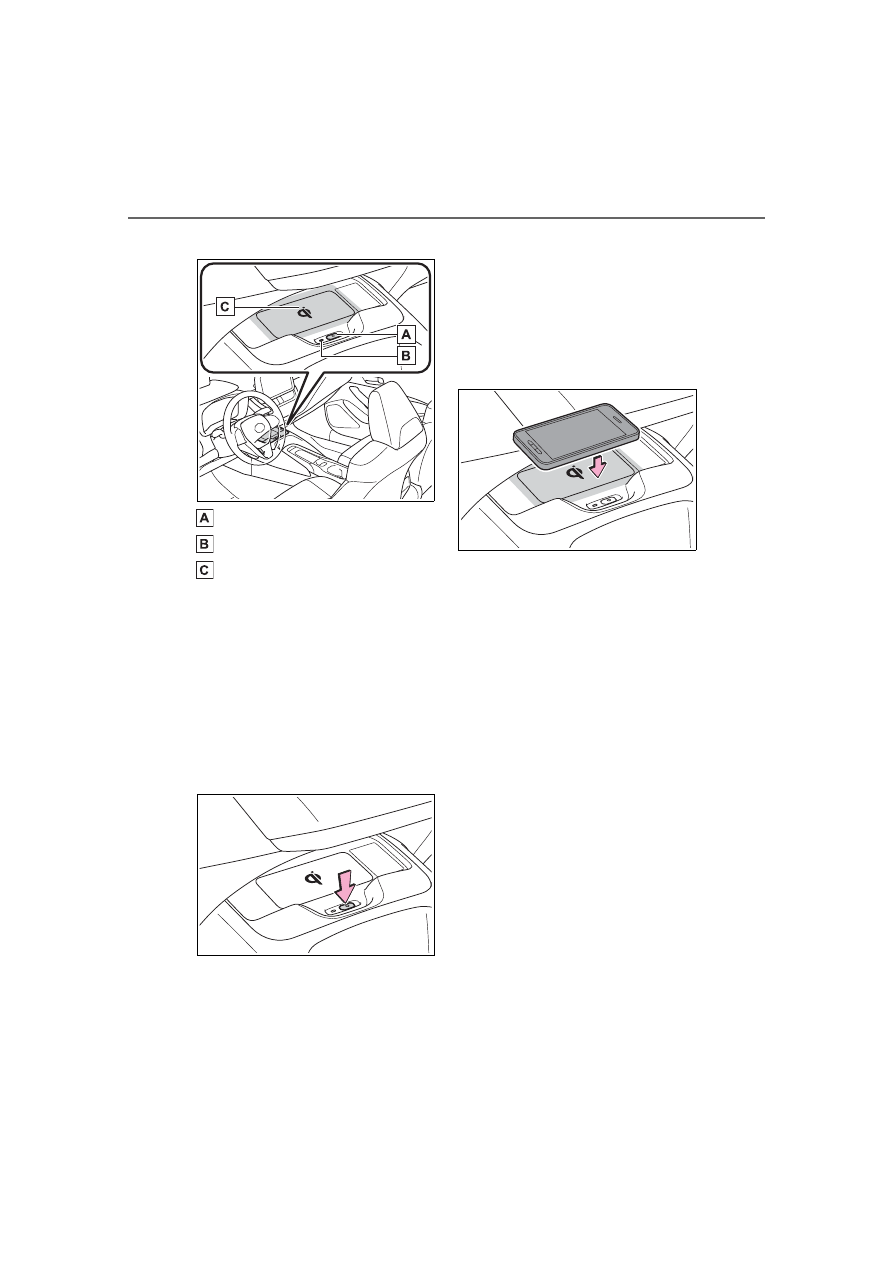

Power supply switch
Operation indicator light
Charge area

■

Using the wireless charger

Press the power supply
switch of the wireless char-
ger.

Pressing the switch again turns the

wireless charger off.

When turned on, the operation indi-

cator light (green) comes on.

When the engine switch is turned

off, the on/off state of the wireless

charger will be memorized.

Place a portable device on
the charging area with its
charging surface facing
down.

While charging, the operation indi-

cator light (orange) will be illumi-

nated.

If charging does not begin, move

the portable device as close to the

center of the charging area as pos-

sible.

When charging is complete, the

operation indicator light (green) will

illuminate.

■

Recharging function



If a certain amount of time has
elapsed since charging com-
pleted and the portable device
has not been moved, the
wireless charger will restart
charging.



If the portable device is
moved within the charging
area, charging will stop tem-
porarily then restart.

433

6-4. Other interior features

Interior

featur

■

Operation indicator light status

: Depending on the portable device, the operation indicator light may stay

illuminated (orange) after charging has completed.



If the operation indicator light blinks

If an error is detected, the operation indicator light will blink (orange). Take
the appropriate measures according to the table below.

■

The wireless charger can be

operated when

The engine switch is in ACC or ON.

■

Portable devices that can be

charged

●

Portable devices compatible with

the Qi wireless charging standard

can be charged by the wireless

charger. However, compatibility

with all devices which meet the Qi

wireless charging standard is not

guaranteed.

●

The wireless charger is designed

to supply low power electricity (5

W or less) to a cellular phone,

smartphone, or other portable

device.

Operation indicator light

State

Off

The Wireless charger is off

Green (illuminated)

Standby (charging is possible)

Charging is complete

Orange (illuminated)

A portable device has been placed on the
charging area (identifying the portable
device)

Charging in progress

Operation indicator light Suspected cause

Measure

Blinks (orange) at a one
second interval continu-
ously

Vehicle to charger com-
munication failure.

Contact your Toyota
dealer.

Blinks (orange) 3 times
repeatedly

A foreign object exists
between the portable
device and charging
area.

Remove the foreign
object.

Portable device is not
positioned properly on
the charging area.

Move the portable
device toward the cen-
ter of the charging area.

Blinks (orange) 4 times
repeatedly

The temperature of the
wireless charger is
excessively high.

Stop charging immedi-
ately and continue
charging after a while.

434

6-4. Other interior features

■

If a cover or accessory is

attached to the portable device

Do not charge a portable device if a

cover or accessory which is not Qi

compatible is attached. Depending

on the type of cover and/or acces-

sory attached, it may not be possi-

ble to charge the portable device. If

the portable device is placed on the

charging area and does not charge,

remove the cover and/or accesso-

ries.

■

If interference is heard in AM

radio broadcasts while

charging

Turn off the wireless charger and

check if the noise is reduced. If

noise is reduced, press and hold the

power supply switch of the wireless

charger for 2 seconds. The fre-

quency of the wireless charger is

changed and noise may be

reduced. When the frequency is

changed, the operation indicator

light will blink (orange) 2 times.

■

Charging precautions

●

If the electronic key cannot be

detected in the cabin, charging

cannot be performed. When a

door is opened and closed,

charging may be temporarily sus-

pended.

●

While charging, the wireless char-

ger and the portable device will

become warm.

This is not a malfunction.If a porta-

ble device becomes warm while

charging and charging stops due

to the protection function of the

portable device, wait until the por-

table device cools down and

charge it again.

■

Sound generated during opera-

tion

When the power supply switch is

turned on or while a portable device

is being identified, operation sounds

may be heard. This is not a malfunc-

tion.

■

Cleaning the wireless charger



P.449

WARNING

■

Caution while driving

When charging a portable device

while driving, for safety reasons,

the driver should not operate the

portable device.

■

Caution regarding interfer-

ence with electronic devices

People with implantable cardiac

pacemakers, cardiac resynchroni-

zation therapy pacemakers or

implantable cardioverter defibrilla-

tors, as well as any other electri-

cal medical device, should consult

their physician about the usage of

the wireless charger.

Operations of the wireless char-

ger may have an affect on medi-

cal devices.

■

To prevent damage or burns

Observe the following precau-

tions.

Failure to do so may result in the

possibility of fire, equipment fail-

ure or damage, or burns due to

heat.

●

Do not put any metallic objects

between the charging area and

the portable device while

charging.

●

Do not attach metallic objects,

such as aluminum stickers, to

the charging area.

●

Do not cover the wireless char-

ger with a cloth or other object

while charging.

●

Do not attempt to charge porta-

ble devices which are not com-

patible with the Qi wireless

charging standard.

435

6-4. Other interior features

Interior

featur

WARNING

●

Do not disassemble, modify or

remove the wireless charger.

●

Do not apply force or impact to

the wireless charger.

NOTICE

■

Conditions in which the wire-

less charger may not operate

correctly

In the following situations, the

wireless charger may not operate

correctly:

●

When a portable device is fully

charged

●

When there is a foreign object

between the charging area and

portable device

●

When a portable device

becomes hot while charging

●

When a portable device is

placed on the wireless area with

its charging surface facing up

●

When a portable device is not

centered on the charging area

●

When the vehicle is near a TV

tower, electric power plant, gas

station, radio station, large dis-

play, airport or other facility that

generates strong radio waves or

electrical noise

●

When the portable device is in

contact with, or is covered by

any of the following metallic

objects:

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alu-

minum foil inside

• Metallic wallets or bags

• Coins

• Metal hand warmers

• Media such as CDs and DVDs

●

When wireless keys (that emit

radio waves) other than those of

your vehicle are being used

nearby.

If in situations other than above
the wireless charger does not
operate properly or the operation
indicator light is blinking, the wire-
less charger may be malfunction-
ing. Contact your Toyota dealer.

■

To prevent failure or damage

to data

●

Do not bring magnetic cards,

such as a credit card, or mag-

netic recording media, close to

the wireless charger while

charging. Otherwise, data may

be erased due to the influence

of magnetism.

Additionally, do not bring preci-

sion instruments such as wrist

watches, close to the wireless

charger, as such objects may

malfunction.

●

Do not leave portable devices in

the cabin. The temperature

inside the cabin may become

high when parked in the sun,

and cause damage to the

device.

■

To prevent battery discharge

Do not use the wireless charger

for a long period of time with the

engine stopped.

436

6-4. Other interior features

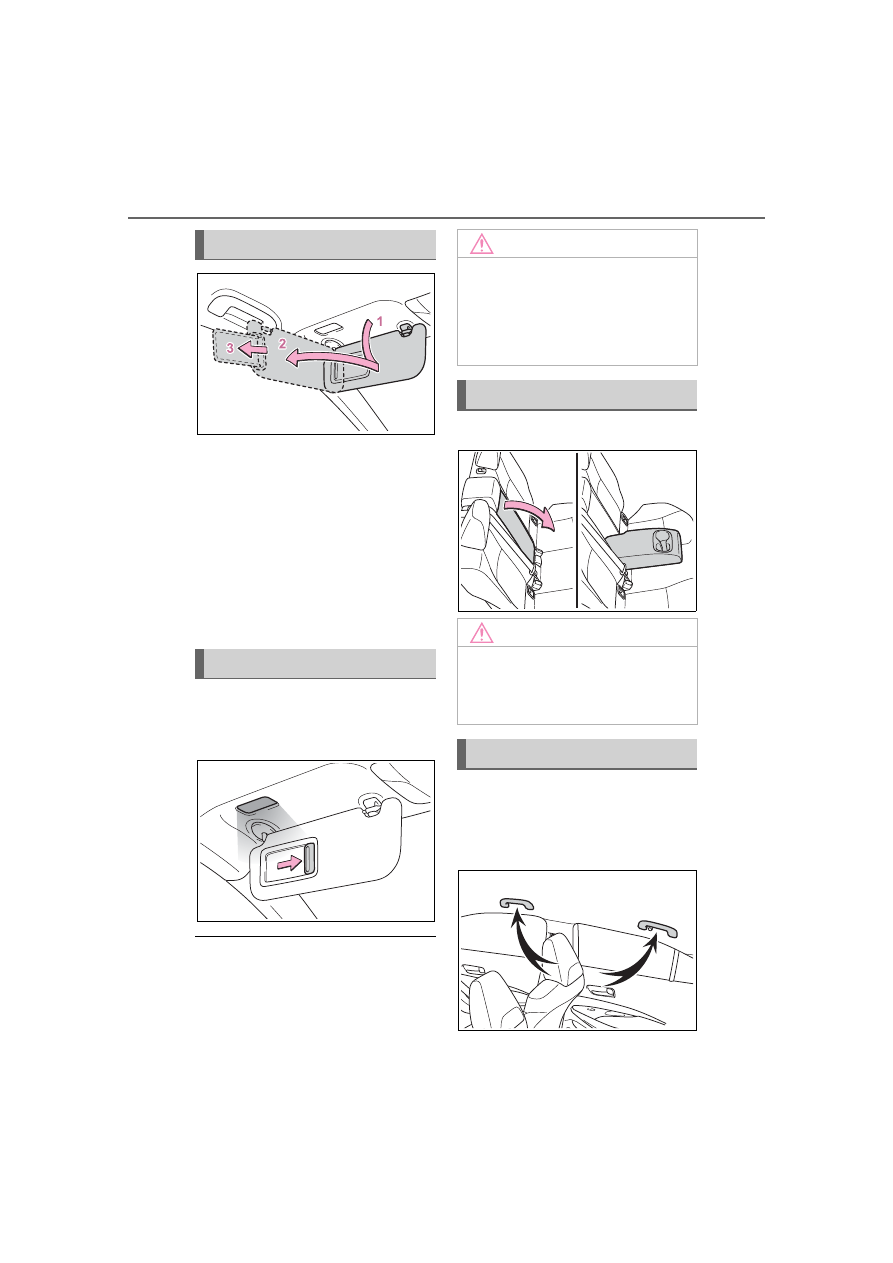

To set the visor in the forward
position, flip it down.

To set the visor in the side
position, flip down, unhook,
and swing it to the side.

To use the side extender,
place the visor in the side
position, then slide it back-
ward. (if equipped)

Slide the cover to open.

The vanity light turns on. (if
equipped)

■

To prevent battery discharge

(vehicles with vanity lights)

If the vanity lights remain on when

the engine switch is OFF, the lights

will go off automatically after 20 min-

utes.

Fold down the armrest for use.

An assist grip installed on the
ceiling can be used to support
your body while sitting on the
seat.

Sun visors

Vanity mirrors

NOTICE

■

To prevent the battery from

being discharged (vehicles

with vanity lights)

Do not leave the vanity lights on

for extended periods while the

engine is stopped.

Armrest (if equipped)

NOTICE

■

To prevent damage to the

armrest

Do not apply too much load on the

armrest.

Assist grips

437

6-4. Other interior features

Interior

featur

The coat hooks are provided
with the rear assist grips.

: If equipped

■

HomeLink

programming pro-

cedure

The programming procedures can

also be found at the following URL.
Website: www.homelink.com/toyota

For support, contact customer sup-

port at the following.
Help Line: 1-800-355-3515

The HomeLink

wireless control

system in your vehicle has 3
buttons which can be pro-
grammed to operate 3 different
devices. Refer to the program-
ming methods on the following
pages to determine the method
which is appropriate for the
device.

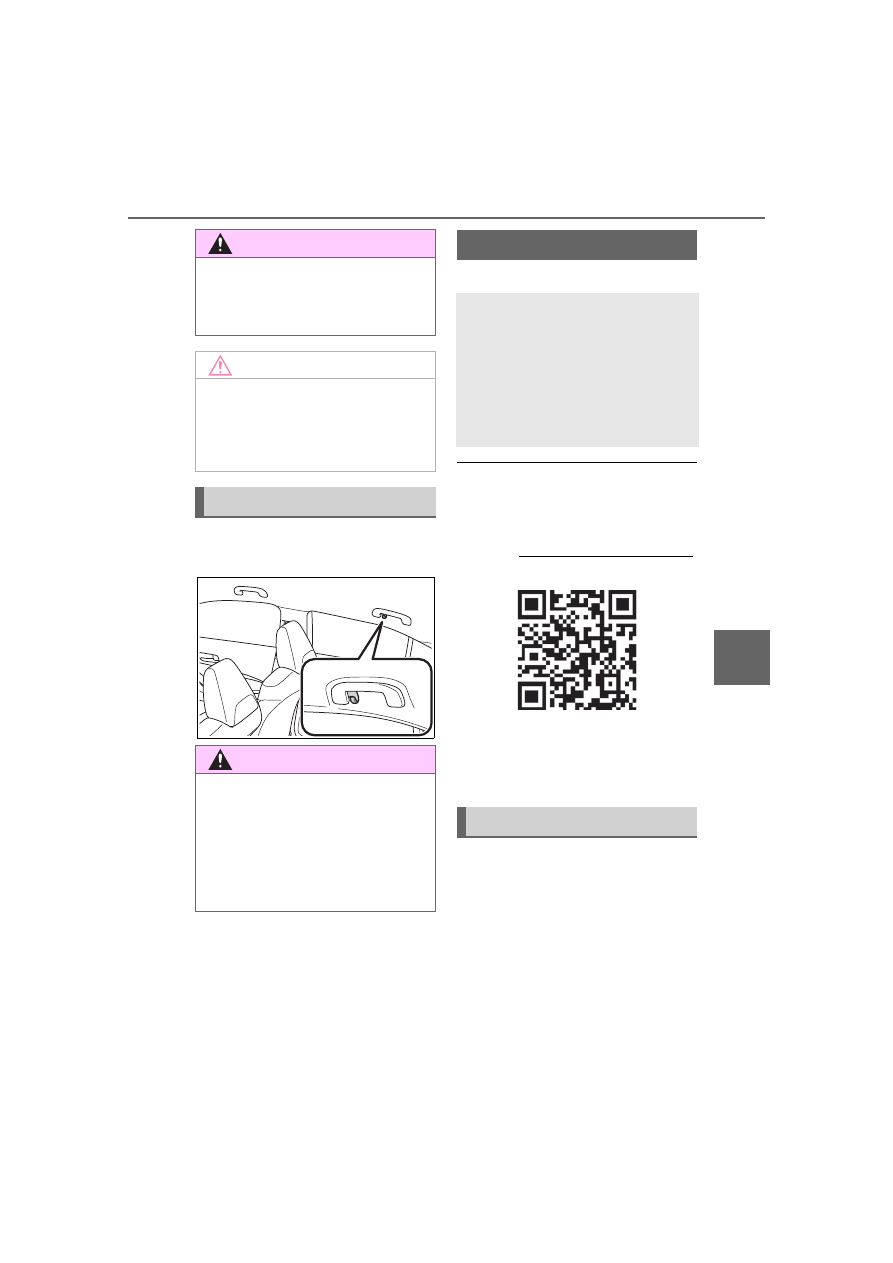

WARNING

■

Assist grip

Do not use the assist grip when

getting in or out of the vehicle or

rising from your seat.

NOTICE

■

To prevent damage to the

assist grip

Do not hang any heavy object or

put a heavy load on the assist

grip.

Coat hooks

WARNING

■

Items that cannot be hung on

the coat hook

Do not hang coat hangers or

other hard or sharp objects on the

hook. If the SRS curtain shield air-

bags deploy, these items may

become projectiles, causing death

or serious injury.

Garage door opener

The garage door opener can
be programmed using the
HomeLink

to operate

garage doors, gates, entry
doors, door locks, home
lighting systems, security
systems, and other devices.

System components

438

6-4. Other interior features

HomeLink

indicator light

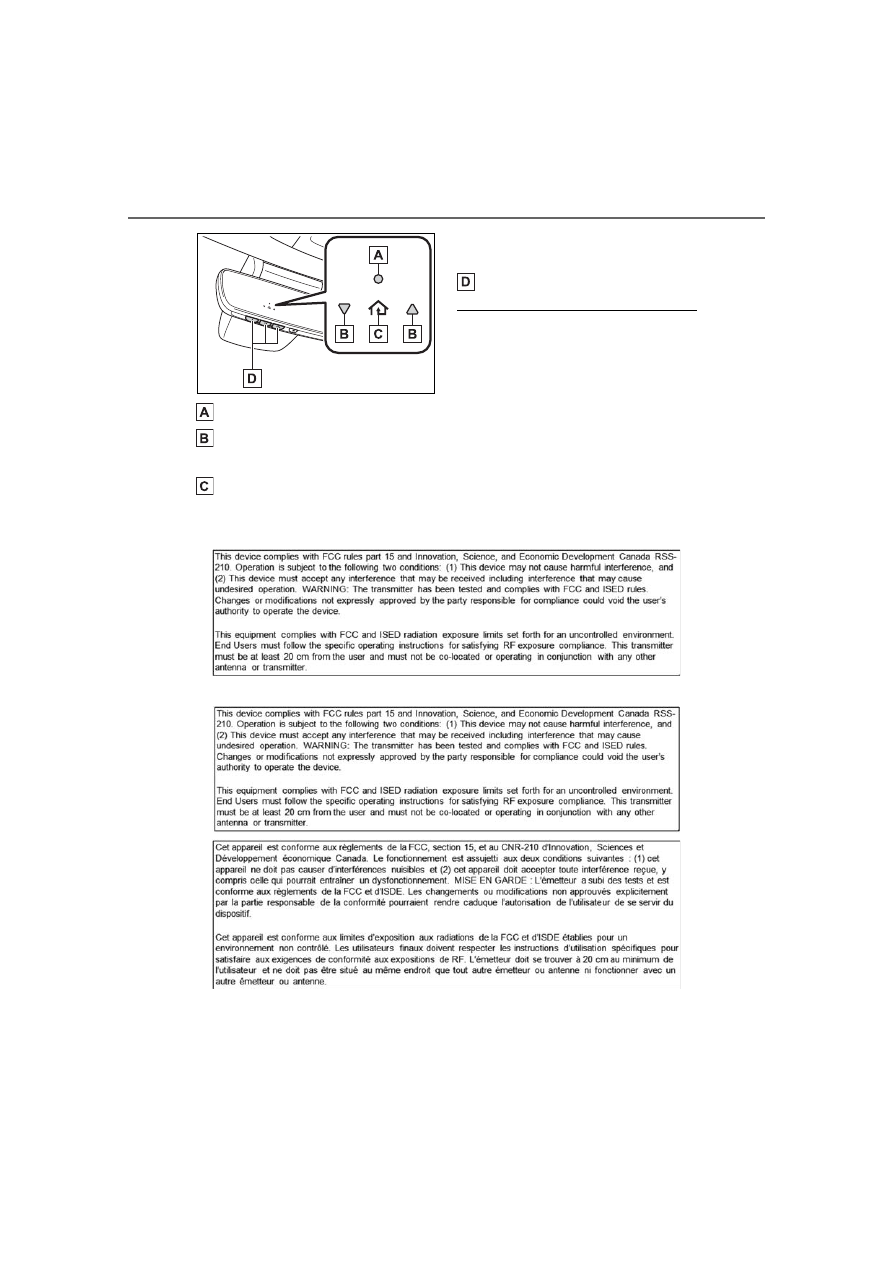

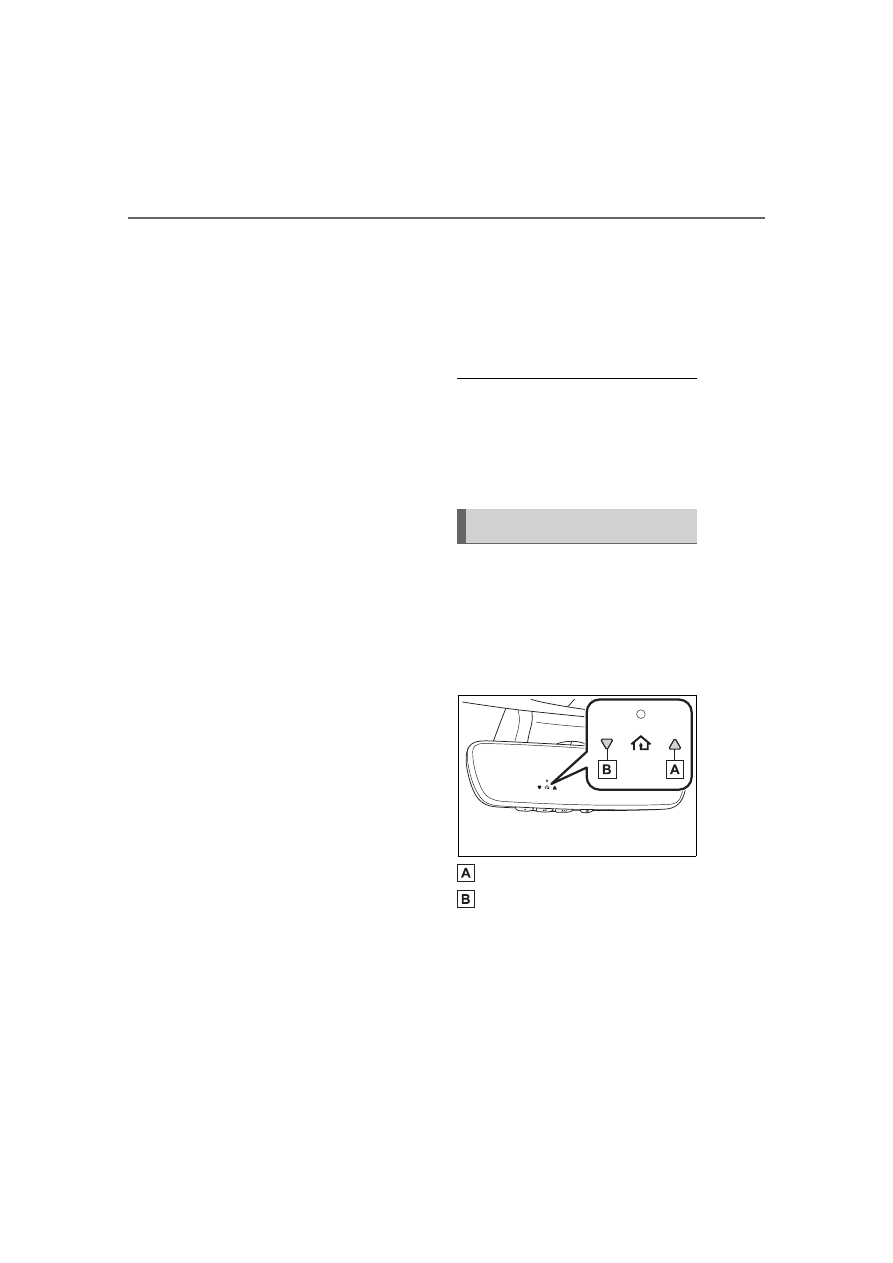

Garage door operation indi-
cators

HomeLink

icon

Illuminates while HomeLink

operating.

Buttons

■

Codes stored in the Home-
Link

memory

●

The registered codes are not

erased even if the battery cable is

disconnected.

●

If learning failed when registering
a different code to a HomeLink

button that already has a code

registered to it, the already regis-

tered code will not be erased.

■

Certification for the garage door opener



Except for vehicles sold in Canada



For vehicles sold in Canada

439

6-4. Other interior features

Interior

featur

■

Before programming Home-
Link



During programming, it is pos-
sible that garage doors,
gates, or other devices may
operate. For this reason,
make sure that people and
objects are clear of the
garage door or other devices
to prevent injury or other
potential harm.



It is recommended that a new

battery be placed in the
remote control transmitter for
more accurate programming.



Garage door opener motors
manufactured after 1995 may
be equipped with rolling code
protection. If this is the case,
you may need a stepladder or
other sturdy, safe device to
reach the “Learn” or “Smart”
button on the garage door
opener motor.

■

Programming HomeLink

Steps

through

must be per-

formed within 60 seconds, oth-
erwise the indicator light will
stop flashing and programming
will not be able to be completed.

Press and release the Home-
Link

button you want to pro-

gram and check that the
HomeLink

indicator light

flashes (orange).

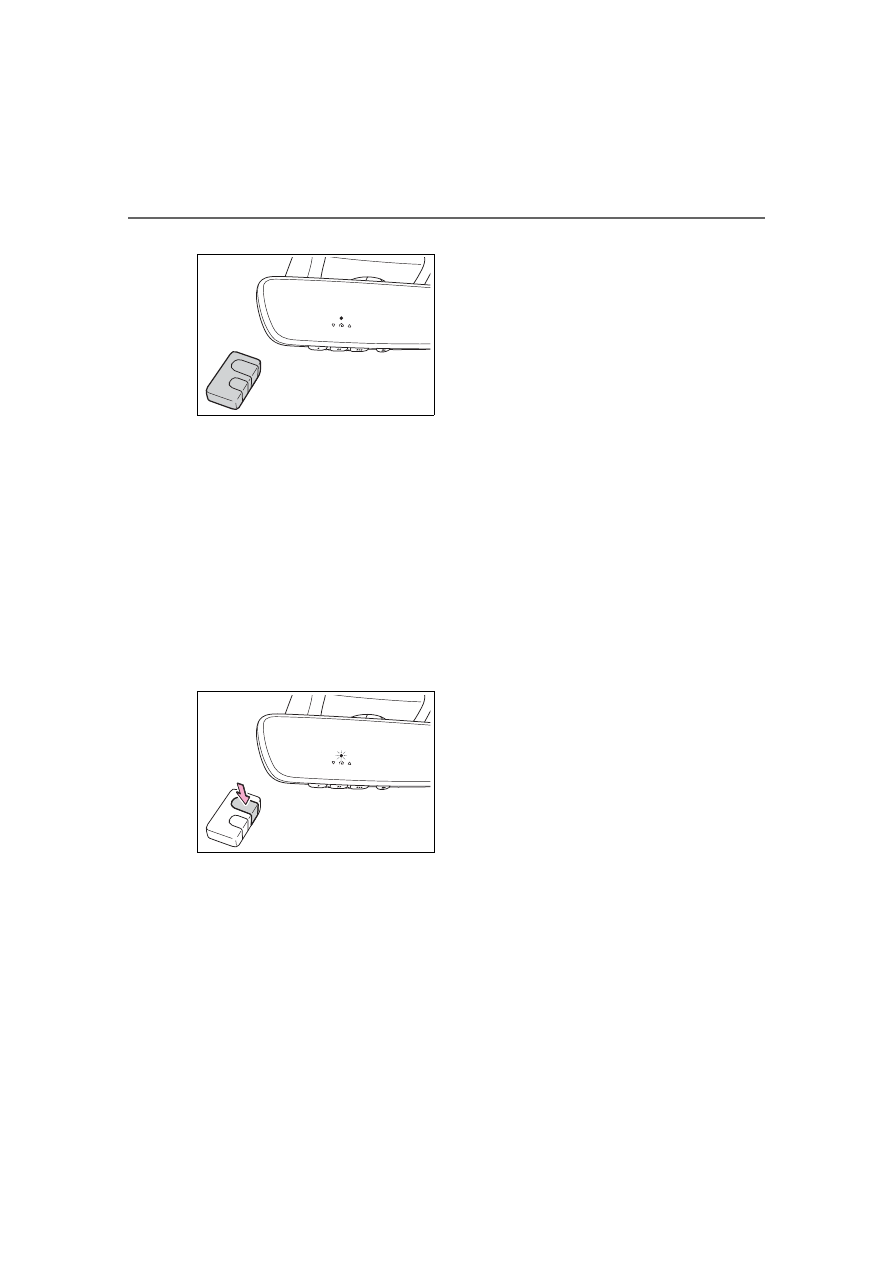

Point the remote control
transmitter for the device at
the rear view mirror, 1 to 3 in.
(25 to 75 mm) from the
HomeLink

buttons.

Keep the HomeLink

indicator light

WARNING

■

When programming a garage

door or other remote control

device

The garage door or other device

may operate, so ensure people

and objects are out of danger to

prevent potential harm.

■

Conforming to federal safety

standards

Do not use the HomeLink

com-

patible transceiver with any

garage door opener or device that

lacks safety stop and reverse fea-

tures as required by federal safety

standards.
This includes any garage door

that cannot detect an interfering

object. A door or device without

these features increases the risk

of death or serious injury.

■

When operating or program-
ming HomeLink

Never allow a child to operate or
play with the HomeLink

buttons.

Programming the Home-
Link

440

6-4. Other interior features

in view while programming.

Program a device.



Programming a device other
than an entry gate (for U.S.A.
owners)

Press and hold the handheld
transmitter button until the
HomeLink

indicator light

changes from slowly flashing
orange to rapidly flashing green
(rolling code) or continuously lit
green (fixed code), then release
the button.



Programming an entry gate
(for U.S.A. owners)/Program-
ming a device in the Cana-
dian market

Press and release the remote
control transmitter button at 2
second intervals, repeatedly,
until the HomeLink

indicator

light changes from slowly flash-
ing (orange) to rapidly flashing
(green) (rolling code) or continu-
ously lit (green) (fixed code).

Test the HomeLink

opera-

tion by pressing the newly
programmed button and
observing the indicator light:



Indicator light illuminates:
Programming of a fixed code
device has completed. The
garage door or other device
should operate when a Home-
Link

button is pressed and

released.



Indicator light flashes rapidly:
The garage door opener
motor or other device is
equipped with a rolling code.
To complete programming,
firmly press and hold the
HomeLink

button for 2 sec-

onds then release it.



If the garage door or other
device does not operate, pro-
ceed to “Programming a roll-
ing code system”.

Repeat the steps above to
program another device for
any of the remaining Home-
Link

buttons.

■

Programming a rolling code
system

2 or more people may be neces-
sary to complete rolling code
programming.

441

6-4. Other interior features

Interior

featur

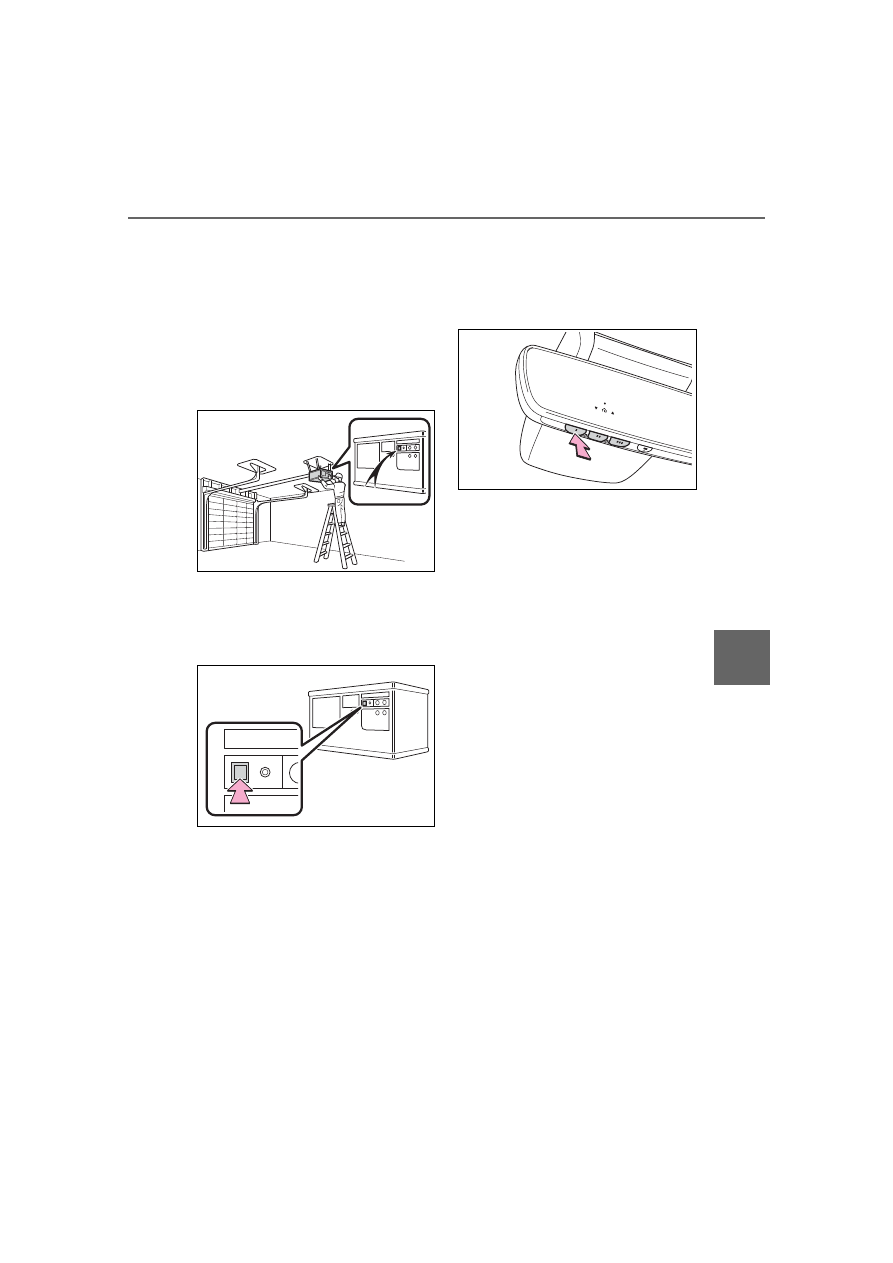

Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.

This button can usually be found

where the hanging antenna wire is

attached to the unit. The name and

color of the button may vary by

manufacturer. Refer to the owner’s

manual supplied with the garage

door opener motor for details.

Press and release the
“Learn” or “Smart” button.

Perform

within 30 seconds after

performing

Press and hold the desired
HomeLink

button (inside the

vehicle) for 2 seconds and
release it. Repeat this
sequence
(press/hold/release) up to 3
times to complete program-
ming.
If the garage door opener
motor operates when the

HomeLink

button is

pressed, the garage door
opener motor recognizes the
HomeLink

signal.

■

Enabling 2-way communi-
cation with a garage door
(only available for compati-
ble devices)

When enabled, 2-way communi-
cation allows you to check the
status of the opening and clos-
ing of a garage door through
indicators in your vehicle.
2-way communication is only
available if the garage door
opener motor used is a compati-
ble device. (To check device
compatibility, refer to
www.homelink.com.)

Within 5 seconds after pro-
gramming the garage door
opener has been completed,
if the garage door opener
motor is trained to Home-
Link

, both garage door

operation indicators will flash
rapidly (green) and the light
on the garage door opener
motor will blink twice, indicat-

442

6-4. Other interior features

ing that 2-way communica-
tion is enabled.

If the indicators do not flash, per-

form

and

within the first 10

presses of the HomeLink

button

after programming has been com-

pleted.

Press a programmed Home-
Link

button to operate a

garage door.

Within 1 minute of pressing
the HomeLink

button, after

the garage door operation
has stopped, press the
“Learn” or “Smart” button on
the garage door opener
motor. Within 5 seconds of
the establishment of 2-way
communication with the
garage door opener, both
garage door operation indica-
tors in the vehicle will flash
rapidly (green) and the light
on the garage door opener
motor will blink twice, indicat-
ing that 2-way communica-
tion is enabled.

■

Reprogramming a single
HomeLink

button

When the following procedure is
performed, buttons which
already have devices registered
to them can be overwritten:

With one hand, press and
hold the desired HomeLink

button.

When the HomeLink

indica-

tor starts flashing (orange),

continue to hold the Home-
Link

button and perform

“Programming HomeLink

”

(it takes 20 seconds for the
HomeLink

indicator to start

flashing).

■

Before programming

●

Install a new battery in the trans-

mitter.

●

The battery side of the transmitter

must be pointed away from the
HomeLink

Press the appropriate Home-
Link

button. The HomeLink

indicator light should turn on.
The status of the opening and
closing of a garage door is
shown by the indicators.

Opening
Closing

This function is only available if the
garage door opener motor used is a
compatible device. (To check
device compatibility, refer to
www.homelink.com.)

Operating HomeLink

443

6-4. Other interior features

Interior

featur

The indicators can operate
within approximately 820 ft. (250
m) of the garage door. However,
if there are obstructions
between the garage door and
the vehicle, such as houses and
trees, feedback signals from the
garage door may not be
received.
To recall the previous door oper-
ation status, press and release

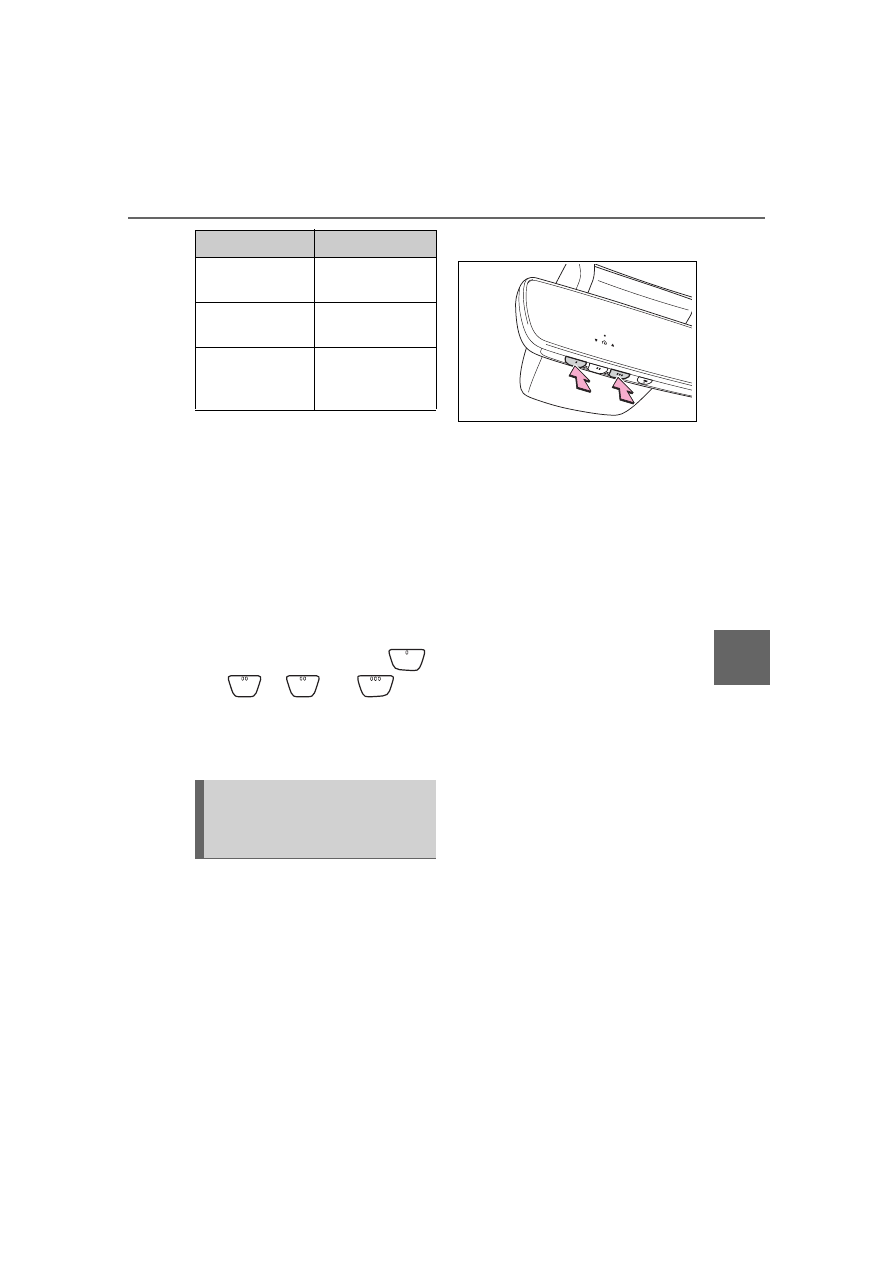

either HomeLink

buttons

and

simultaneously. The last
recorded status will be dis-
played for 3 seconds.

Press and hold the 2 outside
buttons for 10 seconds until the
HomeLink

indicator light

changes from continuously lit
(orange) to rapidly flashing
(green).

If you sell your vehicle, be sure to
erase the programs stored in the

HomeLink

memory.

Color

Status

Orange (flash-

ing)

Currently open-

ing/closing

Green

Opening/closing

has completed

Red (flashing)

Feedback sig-

nals cannot be

received

Erasing the entire Home-
Link

memory (all three

codes)

444

6-4. Other interior features

Content .. 25 26 27 28 ..
