5-7. Media operation



Selecting a registered device

Display the Bluetooth

audio

control screen. (



P.342)

Select “Connect”.

Select the desired device to
be connected.

Check that a confirmation
screen is displayed when the
connection is complete.

If an error message is displayed,

follow the guidance on the screen

to try again.

345

5-8. Audio/visual remote controls

Audio

5-8.Audio/visual remote controls

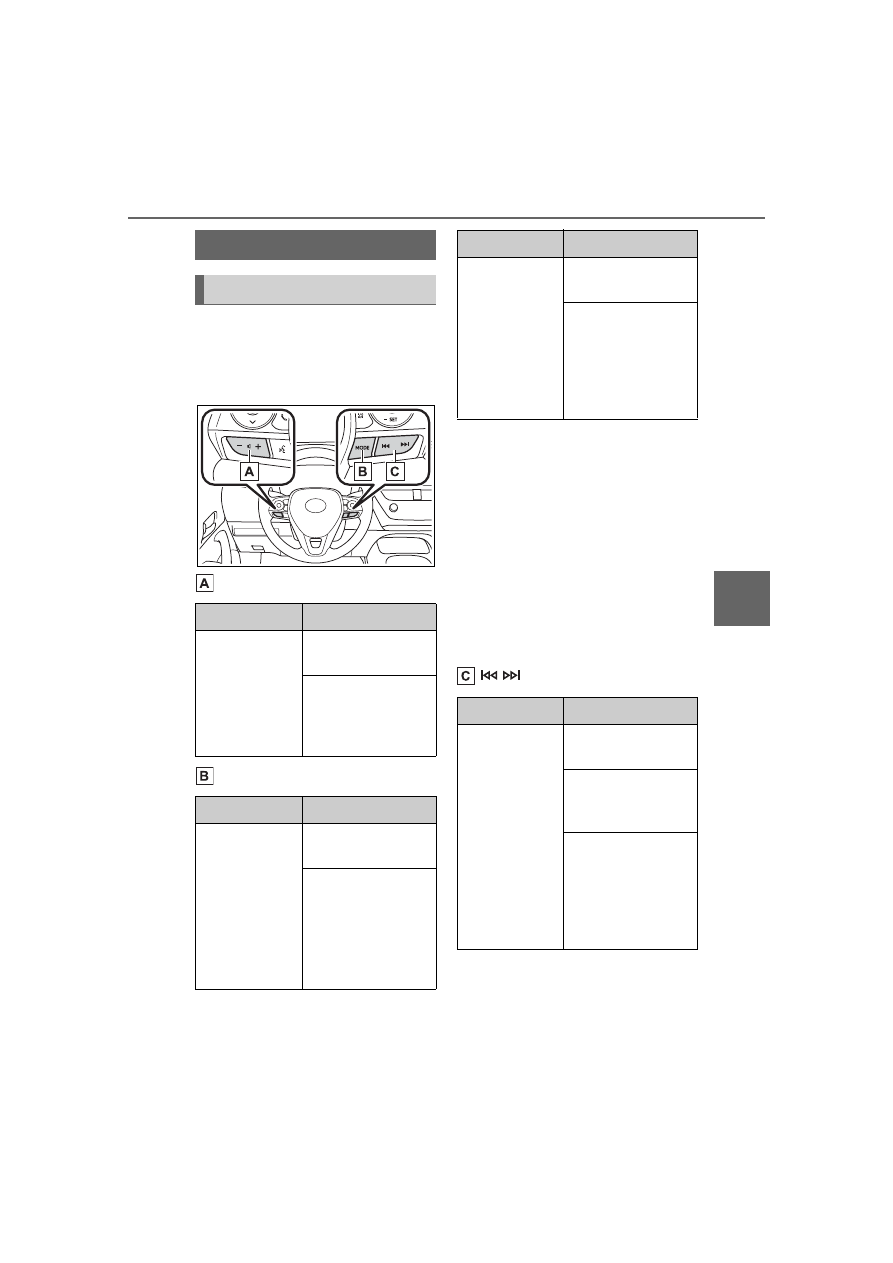

Some parts of the audio/visual
system can be adjusted using
the switches on the steering
wheel.

Volume control switch

“MODE” switch

:If equipped

:If cached radio is enabled, press-

ing and holding the “MODE”
switch pauses the broadcast.
(Press and hold again to play
back the cached radio program.)

:When an Apple CarPlay is estab-

lished, this function will be
unavailable.

:When an Android Auto is estab-

lished, this function will be
unavailable.

switch

Steering switches

Steering switch operation

Mode

Operation/function

All

Press: Volume
up/down

Press and hold
(0.8 sec. or more):
Volume up/down
continuously

Mode

Operation/function

AM/FM/

SXM

Press: Change
audio modes

Press and hold
(0.8 sec. or more):
Mute

(Press and

hold again to
resume the
sound.)

USB

*3, 4

iPod/iPhone

Android

Auto

, Blue-

tooth

audio

*3,

, APPS

*3, 4

Press: Change
audio modes

Press and hold
(0.8 sec. or more):
Pause (Press and
hold again to
resume the play
mode.)

Mode

Operation/function

AM/FM

Press: Preset
channel up/down

Press and hold
(0.8 sec. or more):
Seek up/down

Press and hold
(1.5 sec. or more):
Seek up/down con-
tinuously while the
switch is being
pressed

Mode

Operation/function

346

5-8. Audio/visual remote controls

:If equipped

:When an Apple CarPlay is estab-

lished, this function will be
unavailable.

:When an Android Auto is estab-

lished, this function will be
unavailable.

In the APPS mode, some operation

may be done on the screen depend

on the selected APPS.

SXM

Press: Preset
channel up/down

Press and hold
(0.8 sec. or more):
Seek for stations in
the relevant pro-
gram type/channel
category

Press and hold
(1.5 sec. or more):
Fast channel
up/down

USB

*2, 3

iPod/iPhone

Bluetooth

audio

*2, 3

Press: Track/file
up/down

Press and hold
(0.8 sec. or more):
Fast for-
ward/rewind

Android Auto

Press: Track
up/down

Mode

Operation/function

347

5-9. Audio settings

Audio

5-9.Audio settings

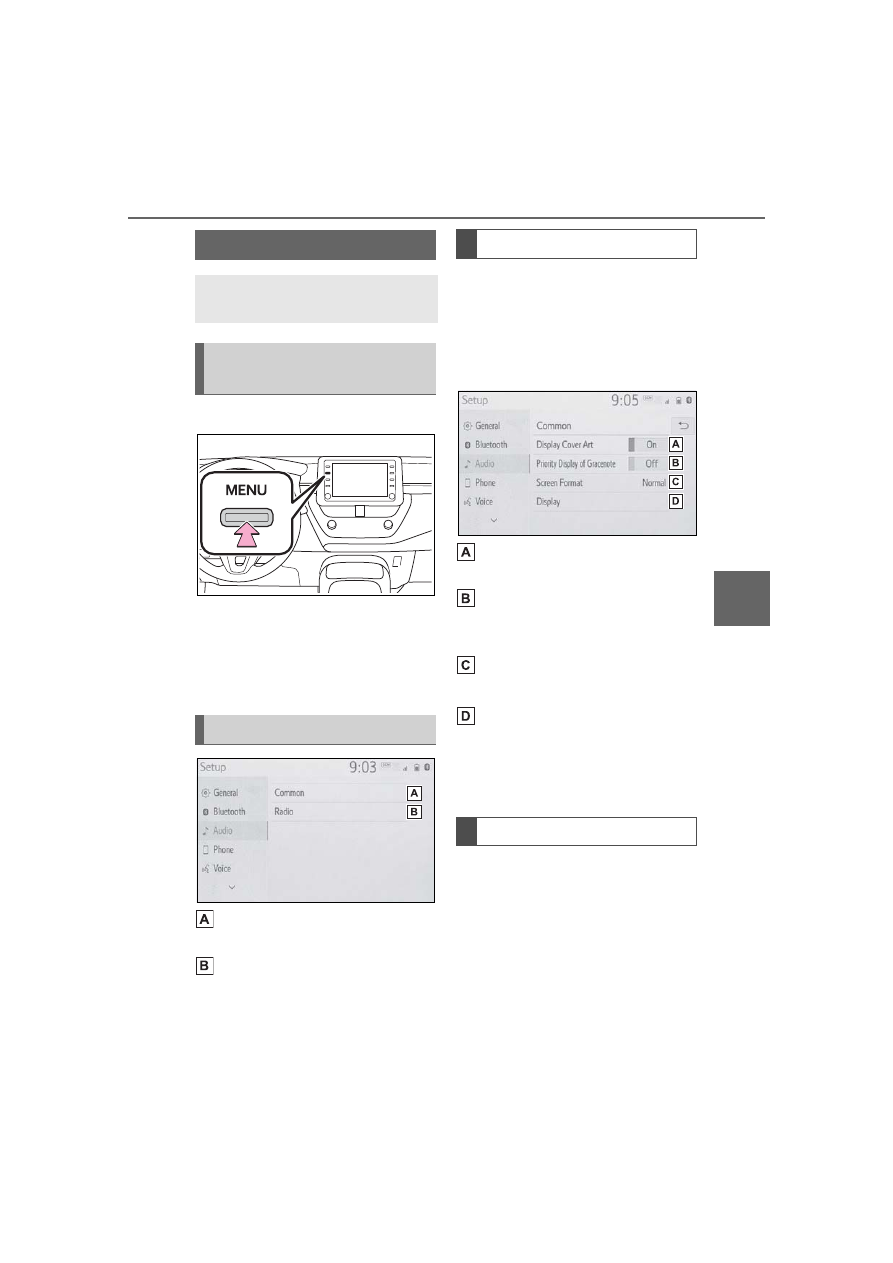

Press the “MENU” button.

Select “Setup”.

Select “Audio”.

Select the desired items to
be set.

Select to set the common
settings. (



P.347)

Select to set the radio set-
tings. (



P.347)

Display the audio settings
screen. (



P.347)

Select “Common”.

Select the desired items to
be set.

Select to set the cover art
display on/off.
Select to prioritize the display
of information from the Gra-
cenote database.
Select to change the screen
size.

(



P.327)

Select to display the image
quality adjustment screen.

(



P.328)

: Only in USB video mode

Display the audio settings
screen. (



P.347)

Select “Radio”.

Select the desired number of
preset radio stations dis-
played on the screen.

Setup

Detailed audio settings can
be programmed.

Displaying the audio set-
tings screen

Audio settings screen

Common settings

Radio settings

348

5-10. Tips for operating the audio/visual system

5-10.Tips for operating the audio/visual system

The use of a cellular phone inside or

near the vehicle may cause a noise

from the speakers of the

audio/visual system which you are

listening to. However, this does not

indicate a malfunction.

Usually, a problem with radio
reception does not mean there
is a problem with the radio



is just the normal result of condi-
tions outside the vehicle.
For example, nearby buildings
and terrain can interfere with FM
reception. Power lines or phone
wires can interfere with AM sig-
nals. And of course, radio sig-
nals have a limited range. The
farther the vehicle is from a sta-
tion, the weaker its signal will
be. In addition, reception condi-
tions change constantly as the
vehicle moves.
Here are some common recep-
tion problems that may not indi-
cate a problem with the radio as
described.

■

Fading and drifting stations:
Generally, the effective range of

FM is about 25 miles (40 km).
Once outside this range, you
may notice fading and drifting,
which increase with the distance
from the radio transmitter. They
are often accompanied by dis-
tortion.
Multi-path: FM signals are
reflective, making it possible for
2 signals to reach the vehicle’s
antenna at the same time. If this
happens, the signals will cancel
each other out, causing a
momentary flutter or loss of
reception.
Static and fluttering: These
occur when signals are blocked
by buildings, trees or other large
objects. Increasing the bass
level may reduce static and flut-
tering.
Station swapping: If the FM sig-
nal being listened to is inter-
rupted or weakened, and there
is another strong station nearby
on the FM band, the radio may
tune in the second station until
the original signal can be picked
up again.

■

Fading: AM broadcasts are
reflected by the upper atmo-
sphere



especially at night.

These reflected signals can
interfere with those received
directly from the radio station,
causing the radio station to
sound alternately strong and
weak.

Operating information

NOTICE

To avoid damage to the

audio/visual system:
Be careful not to spill beverages

over the audio/visual system.

Radio

349

5-10. Tips for operating the audio/visual system

Audio

Station interference: When a
reflected signal and a signal
received directly from a radio
station are very nearly the same
frequency, they can interfere
with each other, making it diffi-
cult to hear the broadcast.
Static: AM is easily affected by
external sources of electrical
noise, such as high tension
power lines, lightening or electri-
cal motors. This results in static.

■

SiriusXM



Cargo loaded on the roof lug-
gage carrier, especially metal
objects, may adversely affect
the reception of SiriusXM Sat-
ellite Radio.



Alternation or modifications
carried out without appropri-
ate authorization may invali-
date the user’s right to
operate the equipment.

■

Certification



Use of the Made for Apple
badge means that an acces-
sory has been designed to
connect specifically to the
Apple product(s) identified in
the badge, and has been cer-
tified by the developer to meet
Apple performance stan-
dards. Apple is not responsi-
ble for the operation of this
device or its compliance with
safety and regulatory stan-
dards. Please note that the
use of this accessory with an
Apple product may affect
wireless performance.



iPhone

, iPod

, iPod clas-

sic

, iPod nano

, iPod

touch

, and Lightning

are

trademarks of Apple Inc., reg-
istered in the U.S. and other
countries.

■

Compatible models

Made for
• iPhone X
• iPhone 8
• iPhone 8 Plus
• iPhone 7
• iPhone 7 Plus
• iPhone SE
• iPhone 6s
• iPhone 6s Plus

iPod

350

5-10. Tips for operating the audio/visual system

• iPhone 6
• iPhone 6 Plus
• iPhone 5s
• iPhone 5c
• iPhone 5
• iPod touch (6th generation)
• iPod touch (5th generation)

●

This system only supports audio

playback.

●

Depending on difference between

models or software versions etc.,

some models might be incompati-

ble with this system.

This device supports high-reso-
lution sound sources.
The definition of high-resolution
is based on the standards of
groups such as the CTA (Con-
sumer Technology Association).
Supported formats and play-
able media are as follows.

■

Supported formats

WAV, FLAC, ALAC, OGG Vorbis

■

Playable media

USB memory

: USB video only

High-resolution sound
source

File information

Compatible USB devices

USB communi-
cation formats

USB 2.0 HS (480
Mbps)

File formats

FAT 16/32

Correspon-
dence class

Mass storage
class

Compatible audio format

Compatible compressed files

Item

USB

Compatible file

format

MP3/WMA/AAC

WAV(LPCM)/FL

AC/ALAC/OGG

Vorbis

MP4/AVI/WMV

Compatible file

format (video)

MP4/AVI/WMV

Folders in the

device

Maximum

3000

Files in the

device

Maximum

9999

Files per folder

Maximum

255

Corresponding sampling fre-
quency

File type

Frequency (kHz)

MP3 files:
MPEG 1 LAYER
3

32/44.1/48

MP3 files:
MPEG 2 LSF
LAYER 3

16/22.05/24

351

5-10. Tips for operating the audio/visual system

Audio

:Only compatible with Windows

Media Audio Standard

:Sound source of 48kHz or more

is down-converted to
48kHz/24bit.

:Variable Bit Rate (VBR) compati-

ble

:Only compatible with Windows

Media Audio Standard



MP3 (MPEG Audio Layer 3),
WMA (Windows Media Audio)

WMA files:
Ver. 7, 8, 9

(9.1/9.2)

32/44.1/48

AAC files:
MPEG4/AAC-LC

11.025/12/16/

22.05/24/32/

44.1/48

WAV (LPCM)
files

8/11.025/12/16/

22.05/24/32/

44.1/48/88.2/
96/176.4/192

FLAC

8/11.025/12/16/

22.05/24/32/

44.1/48/88.2/
96/176.4/192

ALAC

8/11.025/12/16/

22.05/24/32/

44.1/48/64/

88.2/96

OGG Vorbis

8/11.025/16/

22.05/32/44.1/

Corresponding bit rates

File type

Bit rate (kbps)

MP3 files:
MPEG 1 LAYER
3

32 - 320

MP3 files:
MPEG 2 LSF
LAYER 3

8 - 160

File type

Frequency (kHz)

WMA files: Ver.
7, 8

CBR 48 - 192

WMA files:
Ver. 9

(9.1/9.2)

CBR 48 - 320

AAC files:
MPEG4/AAC-LC

8 - 320

OGG Vorbis

32-500

File type

Quantization bit

rate (bit)

WAV (LPCM)
files

16/24

FLAC

ALAC

Compatible channel modes

File type

Channel mode

MP3 files

Stereo, joint ste-
reo, dual chan-
nel and
monaural

WMA files

2ch

AAC files

1ch, 2ch (Dual
channel is not
supported)

WAV (LPCM)/

FLAC/ALAC/

OGG Vorbis

2ch

File type

Bit rate (kbps)

352

5-10. Tips for operating the audio/visual system

and AAC (Advanced Audio
Coding) are audio compres-
sion standards.



This system can play
MP3/WMA/AAC files on USB
memory.



MP4, WMV and AVI files can
use the following resolutions:
128x96, 160x120, 176x144
(QCIF), 320x240 (QVGA),
352x240 (SIF), 352x288
(CIF), 640x480 (VGA),
720x480 (NTSC), 720x576
(PAL)



When naming an
MP3/WMA/AAC file, add an
appropriate file extension
(.mp3/.wma/.m4a).



This system plays back files
with .mp3/.wma/.m4a file
extensions as
MP3/WMA/AAC files respec-
tively. To prevent noise and
playback errors, use the
appropriate file extension.



MP3 files are compatible with
the ID3 Tag Ver. 1.0, Ver. 1.1,
Ver. 2.2 and Ver. 2.3 formats.
This system cannot display
disc title, track title and artist
name in other formats.



WMA/AAC files can contain a
WMA/AAC tag that is used in
the same way as an ID3 tag.
WMA/AAC tags carry infor-
mation such as track title and
artist name.



The emphasis function is

available only when playing
MP3 files.



This system can play back
AAC files encoded by iTunes.



The sound quality of
MP3/WMA files generally
improves with higher bit rates.



m3u playlists are not compati-
ble with the audio player.



MP3i (MP3 interactive) and
MP3PRO formats are not
compatible with the audio
player.



The player is compatible with
VBR (Variable Bit Rate).



When playing back files
recorded as VBR (Variable Bit
Rate) files, the play time will
not be correctly displayed if
the fast forward or reverse
operations are used.



It is not possible to check fold-
ers that do not include
MP3/WMA/AAC files.



MP3/WMA/AAC files in fold-
ers up to 8 levels deep can be
played. However, the start of
playback may be delayed
when using USB memory
containing numerous levels of
folders. For this reason, we
recommend creating USB
memory with no more than 2
levels of folders.

353

5-10. Tips for operating the audio/visual system

Audio



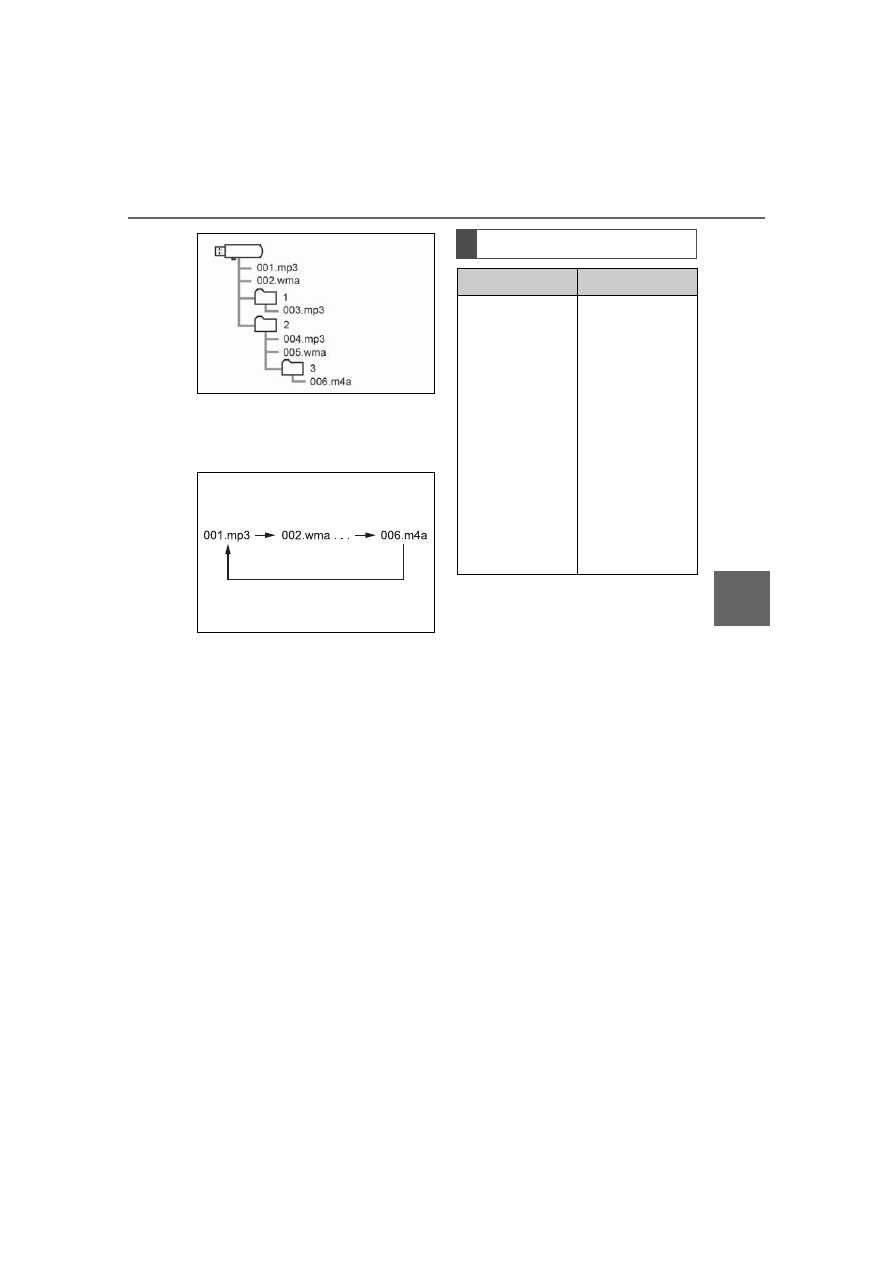

The play order of the USB
memory with the structure
shown above is as follows:



The order changes depending
on the personal computer and
MP3/WMA/AAC encoding
software you use.

Compatible video format

Format

Codec

MPEG-4

Video codec:



H.264/MPEG-4
AVC



MPEG4

Audio codec:



AAC



MP3

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

354

5-10. Tips for operating the audio/visual system

■

ID3 tag

This is a method of embedding

track-related information in an
MP3 file. This embedded infor-
mation can include the track
number, track title, the artist’s
name, the album title, the music
genre, the year of production,
comments, cover art and other
data. The contents can be freely
edited using software with ID3
tag editing functions. Although
the tags are restricted to a num-
ber of characters, the informa-
tion can be viewed when the
track is played back.

■

WMA tag

WMA files can contain a WMA
tag that is used in the same way
as an ID3 tag. WMA tags carry
information such as track title
and artist name.

■

MP3

MP3 is an audio compression
standard determined by a work-
ing group (MPEG) of the ISO
(International Standard Organi-
zation). MP3 compresses audio
data to about 1/10 the size of
that on conventional discs.

■

WMA



WMA (Windows Media Audio)
is an audio compression for-
mat developed by Microsoft

It compresses files into a size
smaller than that of MP3 files.
The decoding formats for
WMA files are Ver. 7, 8 and 9.



This product includes technol-
ogy owned by Microsoft Cor-

AVI Container

Video codec:



H.264/MPEG-4
AVC



MPEG4



WMV9



WMV9
Advanced pro-
file

Audio codec:



AAC



MP3



WMA9.2
(7,8,9.1,9.2)

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

Windows Media
Video

Video codec:



WMV9



WMV9
Advanced pro-
file

Audio codec:



WMA9.2
(7,8,9.1,9.2)

Corresponding
screen size:



MAX
1920



1080

Corresponding
frame rate:



MAX 60i/30p

Terms

Format

Codec

355

5-10. Tips for operating the audio/visual system

Audio

poration and cannot be used
or distributed without a
license from Microsoft Licens-
ing, Inc.

■

AAC

AAC is short for Advanced
Audio Coding and refers to an
audio compression technology
standard used with MPEG2 and
MPEG4.

■

USB

■

iPod

■

Bluetooth

audio

If the malfunction is not rectified:

Take your vehicle to your Toyota

dealer.

Error messages

Message

Explanation

“USB Error”

This indicates a
problem in the
USB memory or
its connection.

“No music files
found.”

This indicates
that no
MP3/WMA/AAC
files are included
in the USB mem-
ory.

“No video files
found.”

This indicates
that no video
files are included
in the USB mem-
ory.

Message

Explanation

“iPod Error”

This indicates a
problem in the
iPod or its con-
nection.

“No music files
found.”

This indicates
that there is no
music data in the
iPod.

“Please check
the iPod firm-
ware version.”

This indicates
that the software
version is not
compatible. Per-
form the iPod
firmware
updates and try
again.

“Unable to
authorize the
iPod.”

This indicates
that it failed to
authorize the
iPod.
Please check
your iPod.

Message

Explanation

“Music tracks not
supported.
Please check
your portable
player.”

This indicates a
problem in the
Bluetooth

device.

360

5-11. Voice command system operation

5-11.Voice command system operation

■

Steering switch

Talk switch



Voice command system

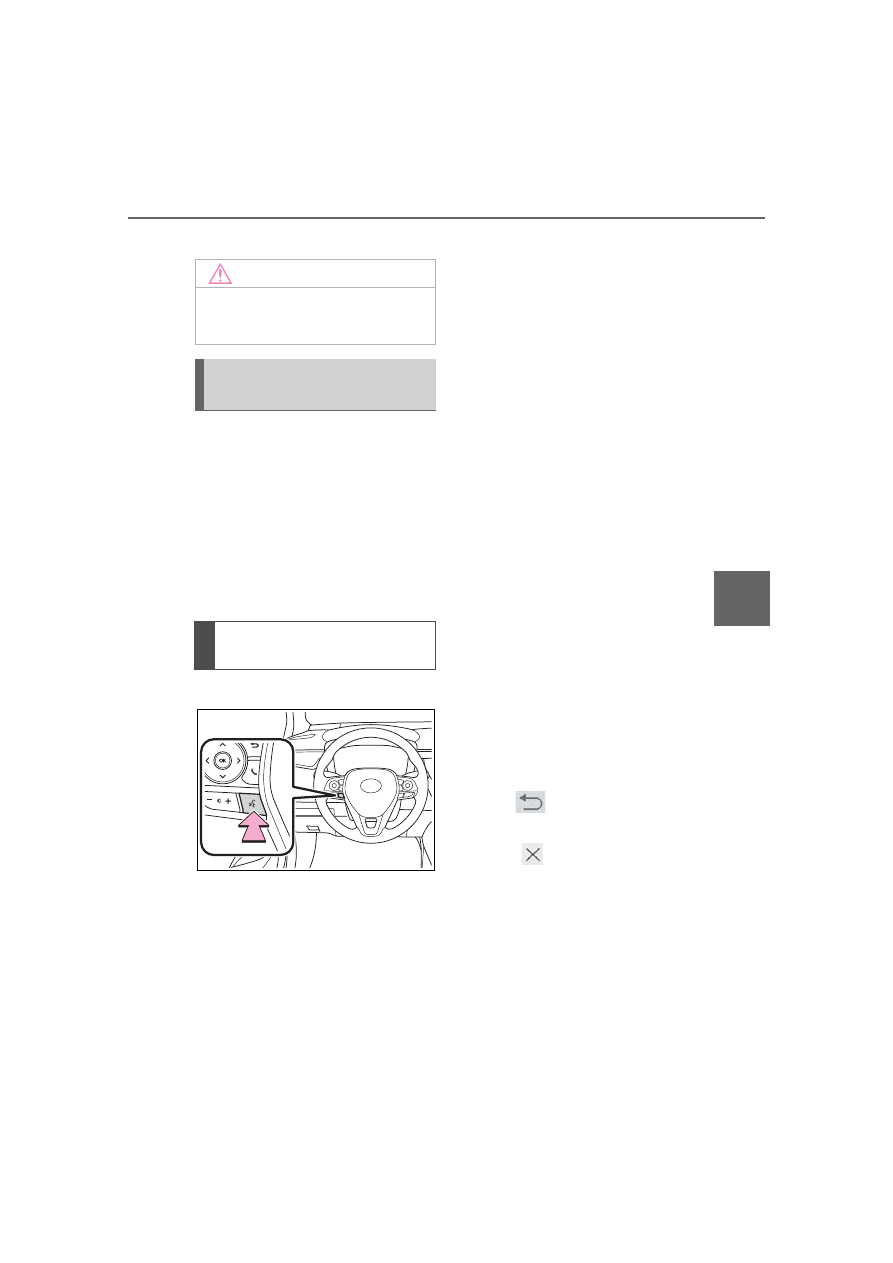

Press the talk switch to start the
voice command system. To can-
cel voice command, press and
hold the talk switch.



When an Apple Car-
Play/Android Auto connec-
tion is established



Press and hold the talk switch
to start Siri/Google Assistant.
To cancel Siri/Google Assis-
tant, press the talk switch.



Press the talk switch to start

the voice command system.

■

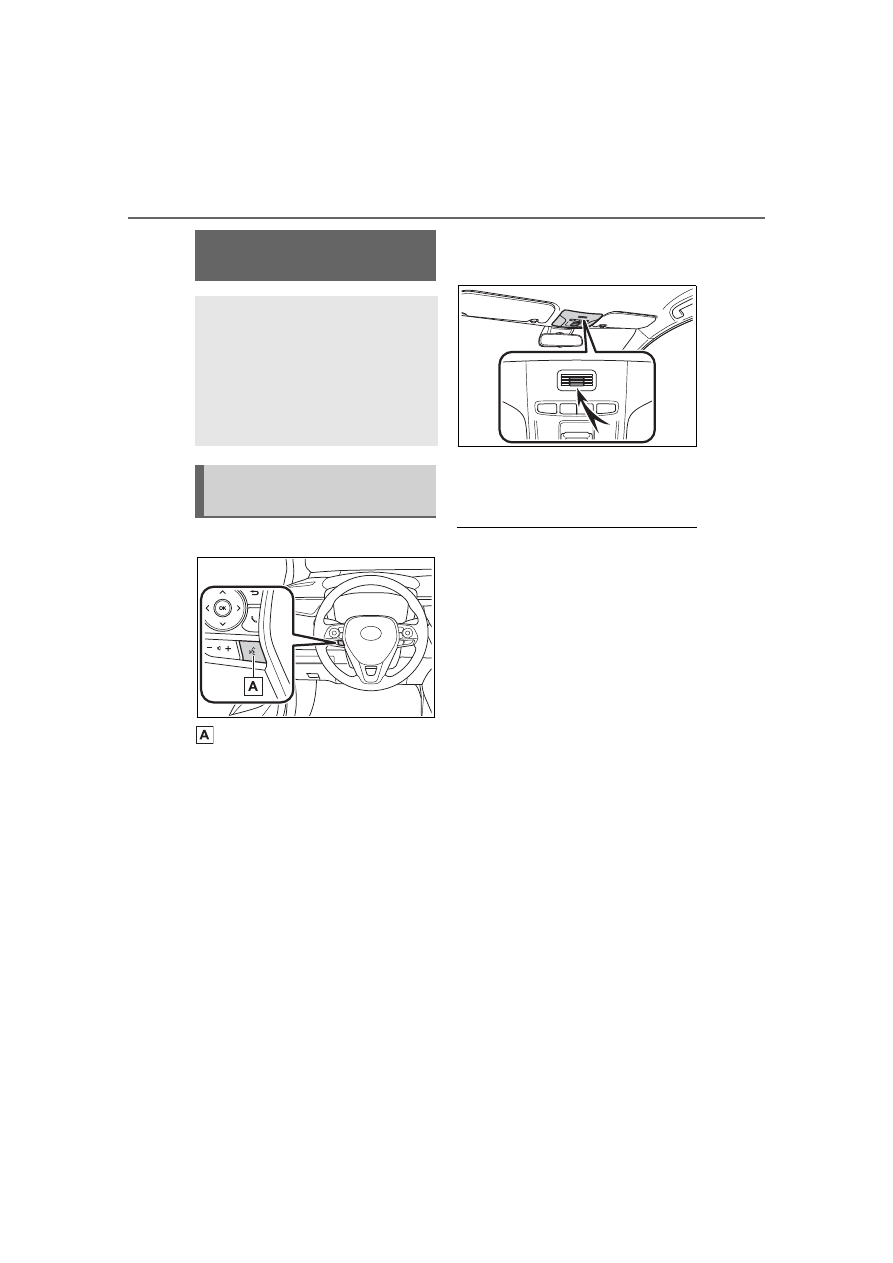

Microphone

It is unnecessary to speak
directly into the microphone
when giving a command.

●

Voice commands may not be rec-

ognized if:

• Spoken too quickly.

• Spoken at a low or high volume.

• The windows are open.

• Passengers are talking while

voice commands are spoken.

• The fan speed of the air condition-

ing system is set at high.

• The air conditioning vents are

turned towards the microphone.

●

In the following conditions, the

system may not recognize the

command properly and using

voice commands may not be pos-

sible:

• The command is incorrect or

unclear. Note that certain words,

accents or speech patterns may

be difficult for the system to recog-

nize.

• There is excessive background

noise, such as wind noise.

●

Normally, it is necessary to wait

for a beep before saying a com-

mand. To enable the ability to talk

over prompts and say commands

before the beep, enable the voice

prompt interrupt function.

(



P.321)

●

This system may not operate

immediately after the engine

Voice command sys-

tem

The voice command sys-
tem enables the radio,
phone dialing, etc. to be
operated using voice com-
mands. Refer to the com-
mand list for samples of
voice commands. (



P.363)

Using the voice command
system

361

5-11. Voice command system operation

switch is in ACC or ON.

The voice command system is
operated by saying commands
which correspond to a sup-
ported function. To display
examples of commands for sup-
ported functions, select a func-
tion button on the screen after
starting the voice command sys-
tem.

Press the talk switch.

Voice guidance for the voice com-

mand system can be skipped by

pressing the talk switch.

If “Getting Started with Voice”
screen is displayed, select
“OK” or press the talk switch.
(



P.362)

After hearing a beep, say a
supported command.



To display sample commands
of the desired function, say
the desired function or select
the desired function button. To
display more commands,
select “More Commands”.



Selecting “Help” or saying
“Help” prompts the voice com-
mand system to offer exam-
ples of commands and
operation methods.



Registered POIs, registered
names in the contacts list etc.,
can be said in the place of the
“<>” next to the commands.
(



P.363)

For example: Say “Find a restau-
rant”, “Call John Smith” etc.



If a desired outcome is not
shown, or if no selections are
available, perform one of the
following to return to the pre-
vious screen:

• Say “Go back”.

• Select



To cancel voice recognition,
select

, say “Cancel”, or

press and hold the talk switch.



To perform the voice com-
mand operation again, select
“Start Over” or say “Start
over”.



To suspend voice command
operation, select “Pause” or
say “Pause”. To resume the

NOTICE

Do not touch and put a sharp

object to the microphone. It may

cause failure.

Voice command system
operation

Operation from the main
menu

362

5-11. Voice command system operation

voice command operation,
select “Resume” or press the
talk switch.

●

If the system does not respond or

the confirmation screen does not

disappear, press the talk switch

and try again.

●

If a voice command cannot be rec-

ognized 3 consecutive times,

voice recognition will be canceled.

●

Voice recognition prompts can be

changed on the voice settings

screen. (



P.321)

This function can be used to cancel

voice guidance by turning the voice

prompts off. When you press the

talk switch while using this setting, a

beep sounds, and then you can

immediately say a command.

●

Some voice guidance can be can-

celed by setting voice prompts to

off. Use this setting when it is

desirable to say a command

immediately after pressing the talk

switch and hearing a beep.

To increase voice recognition
performance, use the “Tutori-
als” and “Voice Training” func-
tions on the “Getting Started
with Voice” screen. These func-
tions are only available when
the vehicle is not moving.
The “Tutorials” and “Voice Train-
ing” functions can also be
started on the voice settings
screen. (



P.321)

Press the talk switch.

Select the desired item to be
set.

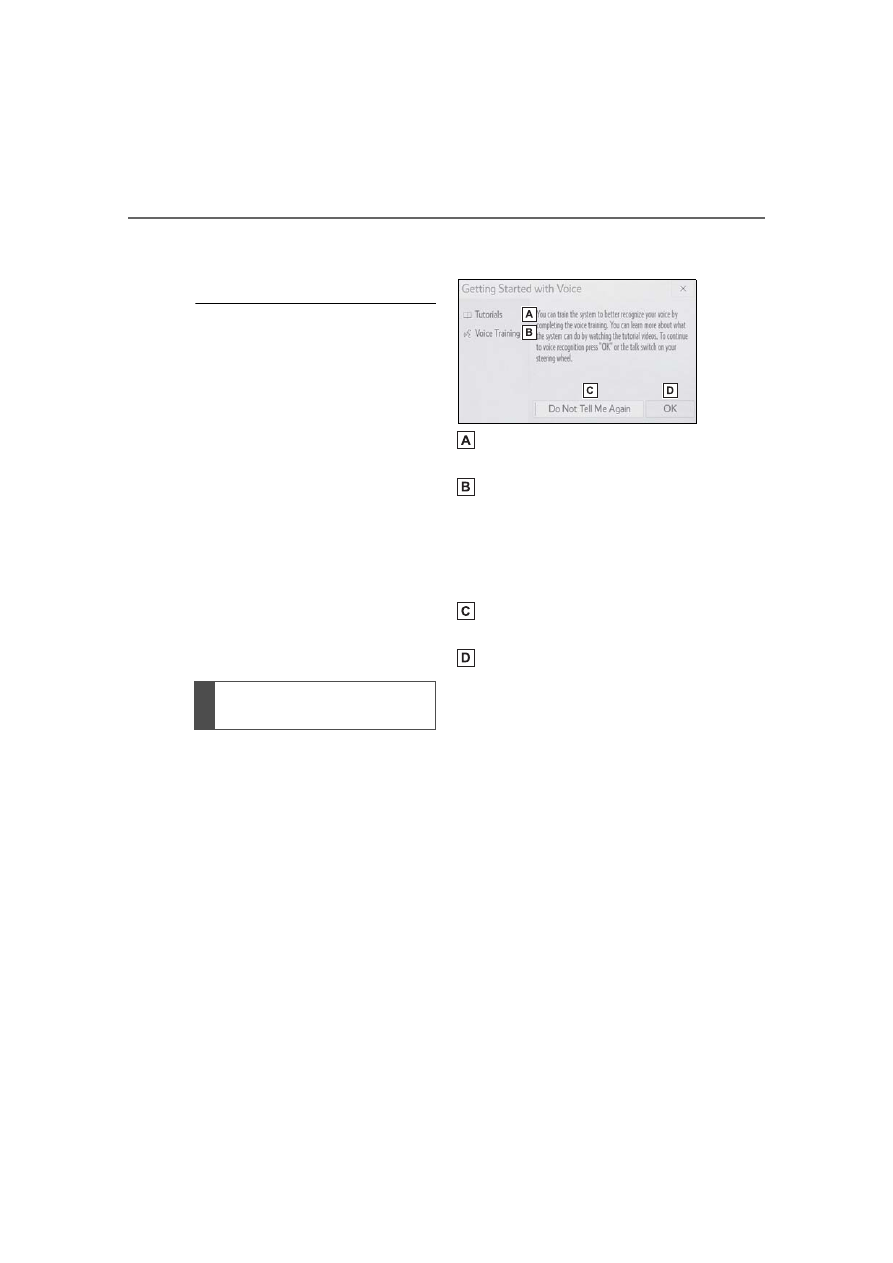

Select to display the voice
command tutorials.
Select to train the voice com-
mand system.

The user will be asked to say 10
sample phrases. This will help the
voice command system adapt to
the user’s accent.

Select to prevent the screen
from being displayed again.
Select to proceed to the
voice command screen.

Increasing the voice rec-
ognition performance

363

5-11. Voice command system operation

Audio

Recognizable voice commands
and their actions are shown
below.



Frequently used commands
are listed in the following
tables.



For devices that are not
installed to the vehicle, com-
mands relating to that device
may not be displayed on the
screen. Also, depending on
other conditions, such as
compatibility, some com-
mands may not be displayed
on the screen.



The functions available may
vary according to the system
installed.



When an Apple Car-
Play/Android Auto connec-
tion is established, some
commands will become
unavailable.



Voice recognition language
can be changed. (



P.317)

■

Common

■

Top menu

: Vehicle must be parked

Command list

Command list overview

Command list

Command

Action

“Help”

Displays exam-
ples of some of
the available
commands

“Go back”

Returns to the
previous screen

“Cancel”

Cancels the
voice command
system

“Start over”

Returns to top
menu screen

“Pause”

Temporarily
pauses a voice
session until it is
resumed by
pressing the talk
switch again.

Command

Action

“Show com-
mand examples
for <menu>”

Displays the
command list of
the selected
menu

“More com-
mands”

Displays more
commonly used
commands

“Voice settings”

Displays Voice
Setting screen

“Train my voice”

Displays Train
Voice Recogni-
tion screen

Toyota Corolla (2022 year). Manual in english - page 22
