7-3. Do-it-yourself maintenance
513
WARNING
Q When replacing wheels
ODo not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
ONever use an inner tube in a leaking wheel which is designed for a tube-
less tire. Doing so may result in an accident, causing death or serious
injury.
Q When installing the wheel nuts
OBe sure to install the wheel nuts with the tapered ends facing inward.
(P. 592) Installing the nuts with the tapered ends facing outward can
cause the wheel to break and eventually cause the wheel to come off
while driving, which could lead to an accident resulting in death or seri-
ous injury.
ONever use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an acci-
dent and resulting in death or serious injury. Remove any oil or grease
from the wheel bolts or wheel nuts.
Q Use of defective wheels prohibited
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an
accident.
7
514
7-3. Do-it-yourself maintenance
Air conditioning filter
The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
Vehicles without smart entry & start system: Turn the engine switch
to the “LOCK” position.
Vehicles with smart entry & start system: Turn the engine switch off.
2

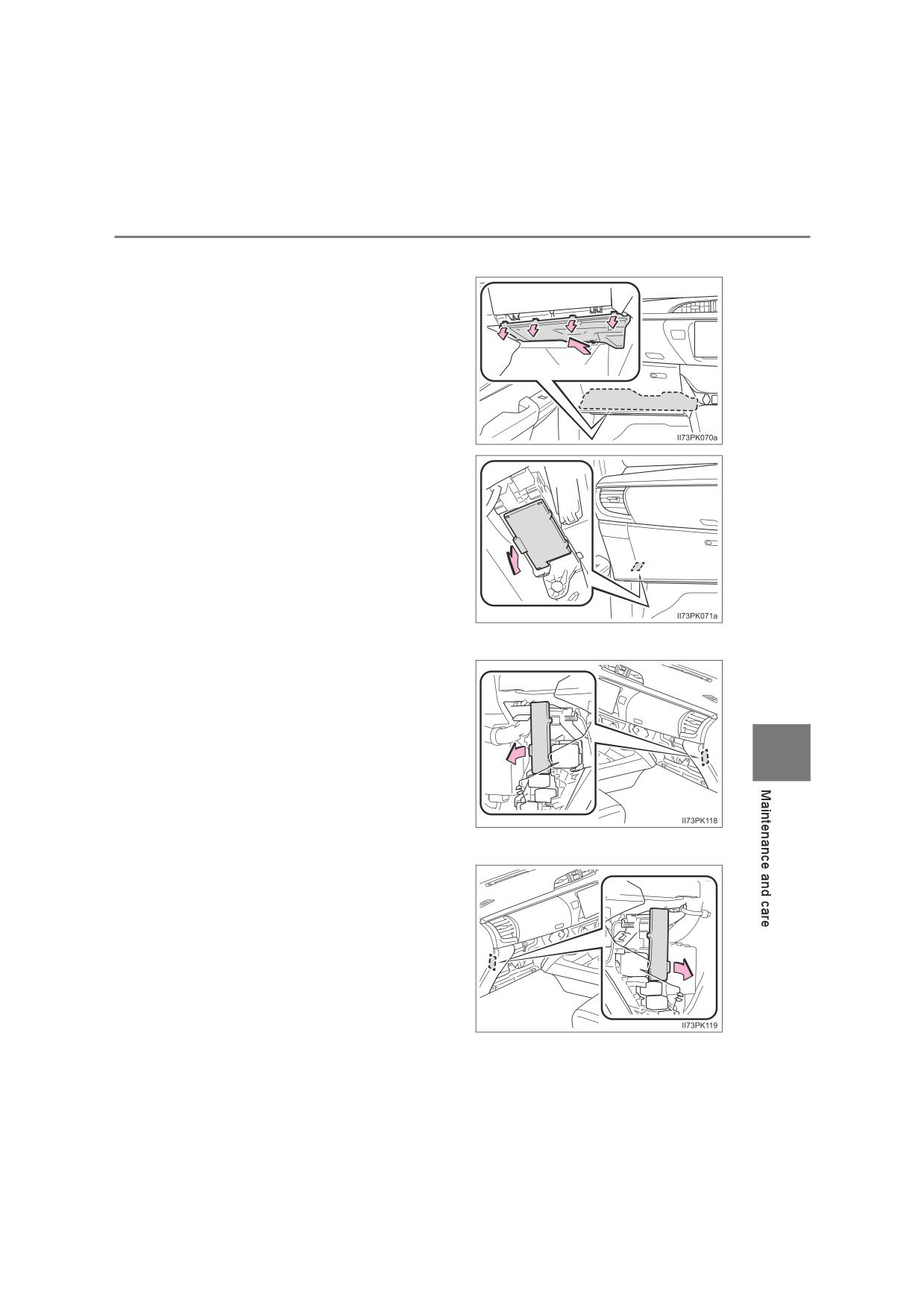

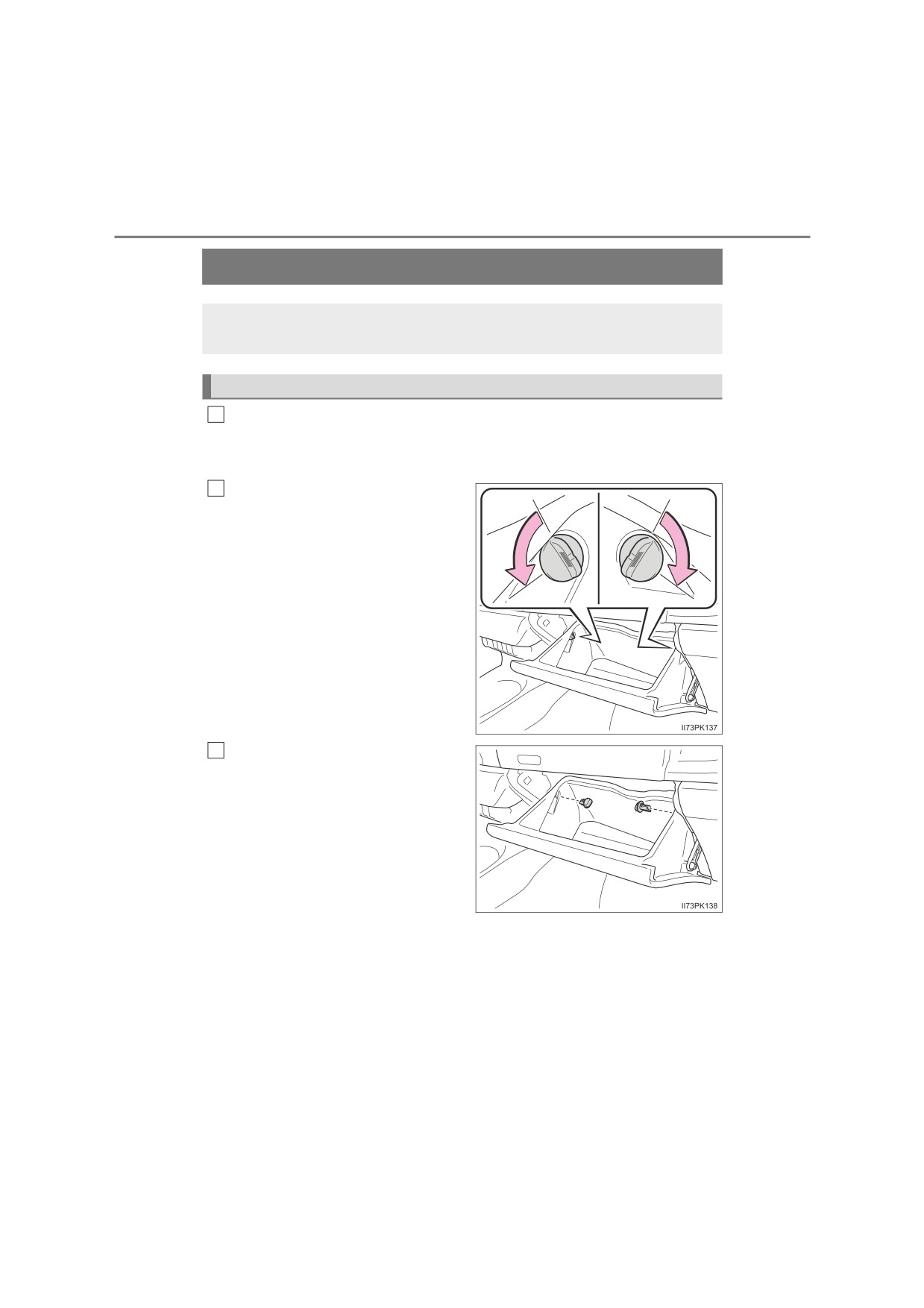

Open the glove box. Turn the
claws as shown in the illustra-
tion.
Pull out the claws.
3
7-3. Do-it-yourself maintenance
515
4
Pull out the damper
(if
equipped) as shown in the illus-
tration, and then remove the
glove box.
Remove the filter cover.
5
6

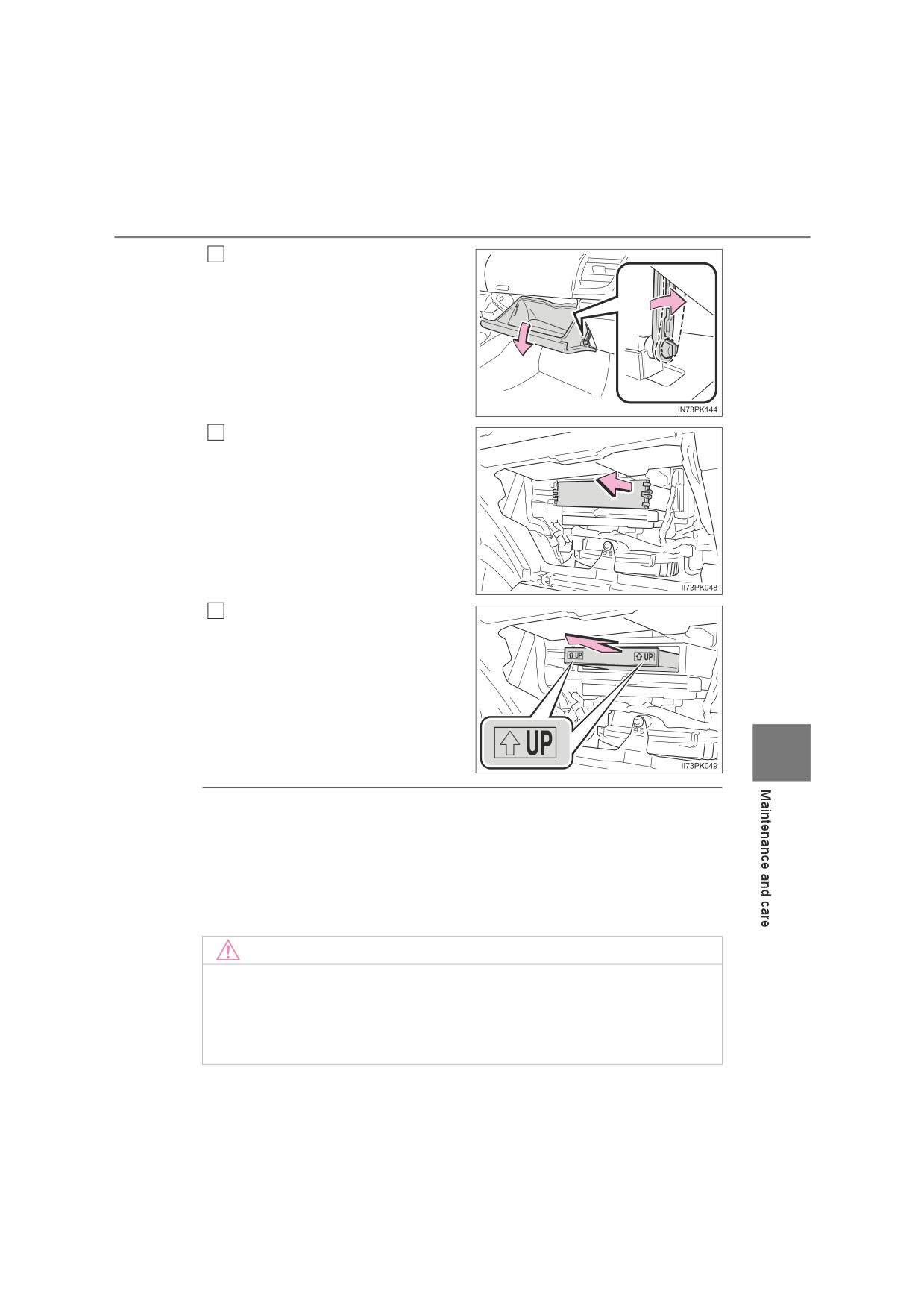

Remove the air conditioning fil-
ter and replace it with a new
one.
The “UP” marks shown on the fil-
ter should be pointing up.
7
Q Changing interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Toyota Service Booklet” or “Toyota Warranty Booklet”.)
Q If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
Q When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.
516
7-3. Do-it-yourself maintenance
Wireless remote control/electronic key
battery
Replace the battery with a new one if it is depleted.
You will need the following items:
O Flathead screwdriver
O Small flathead screwdriver
O Lithium battery
Vehicles without smart entry & start system: CR1620
Vehicles with smart entry & start system: CR2032
Replacing the battery
Vehicles without smart entry & start system

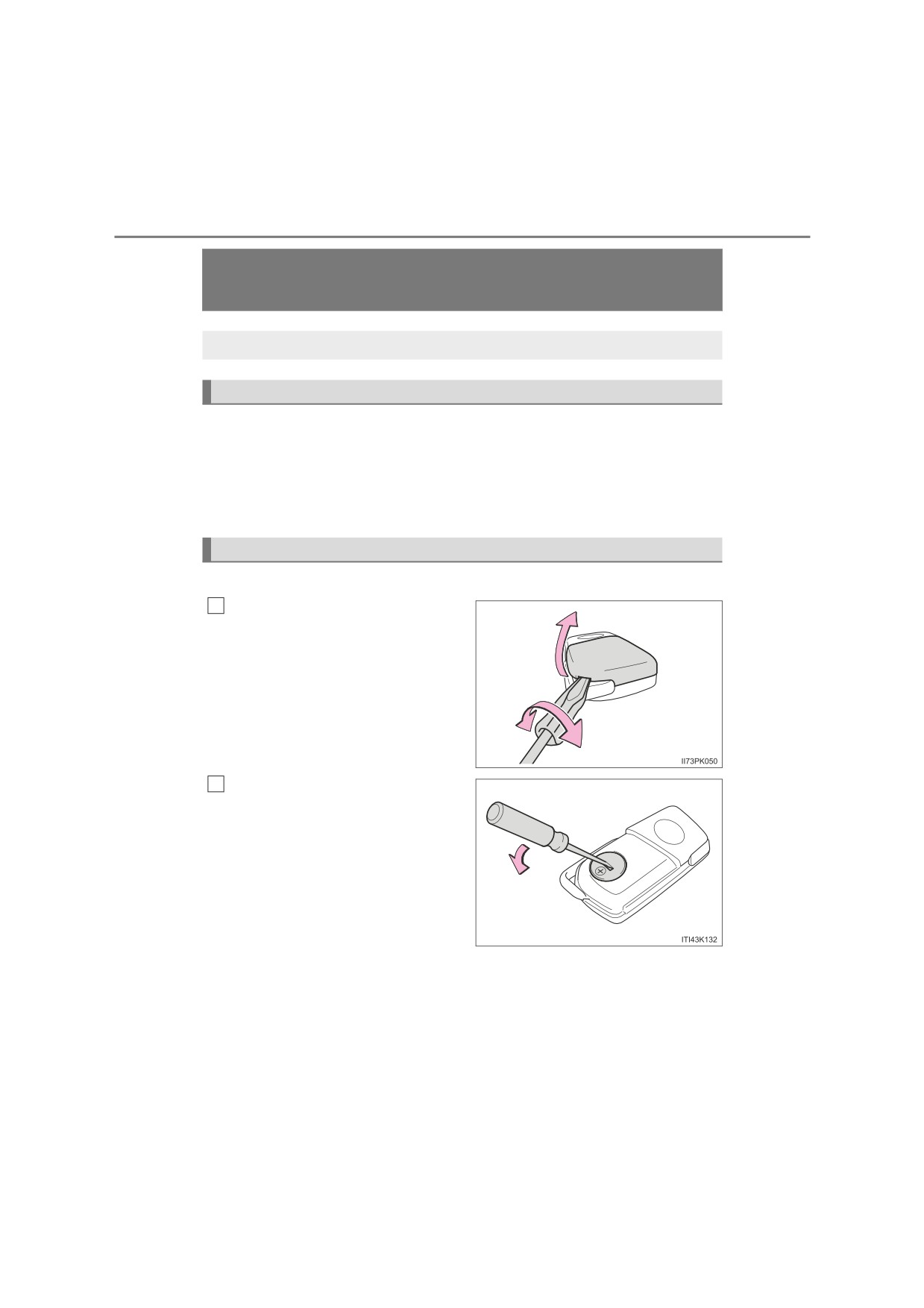

1
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the battery cover.
2
: If equipped
7-3. Do-it-yourself maintenance
517
3
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.

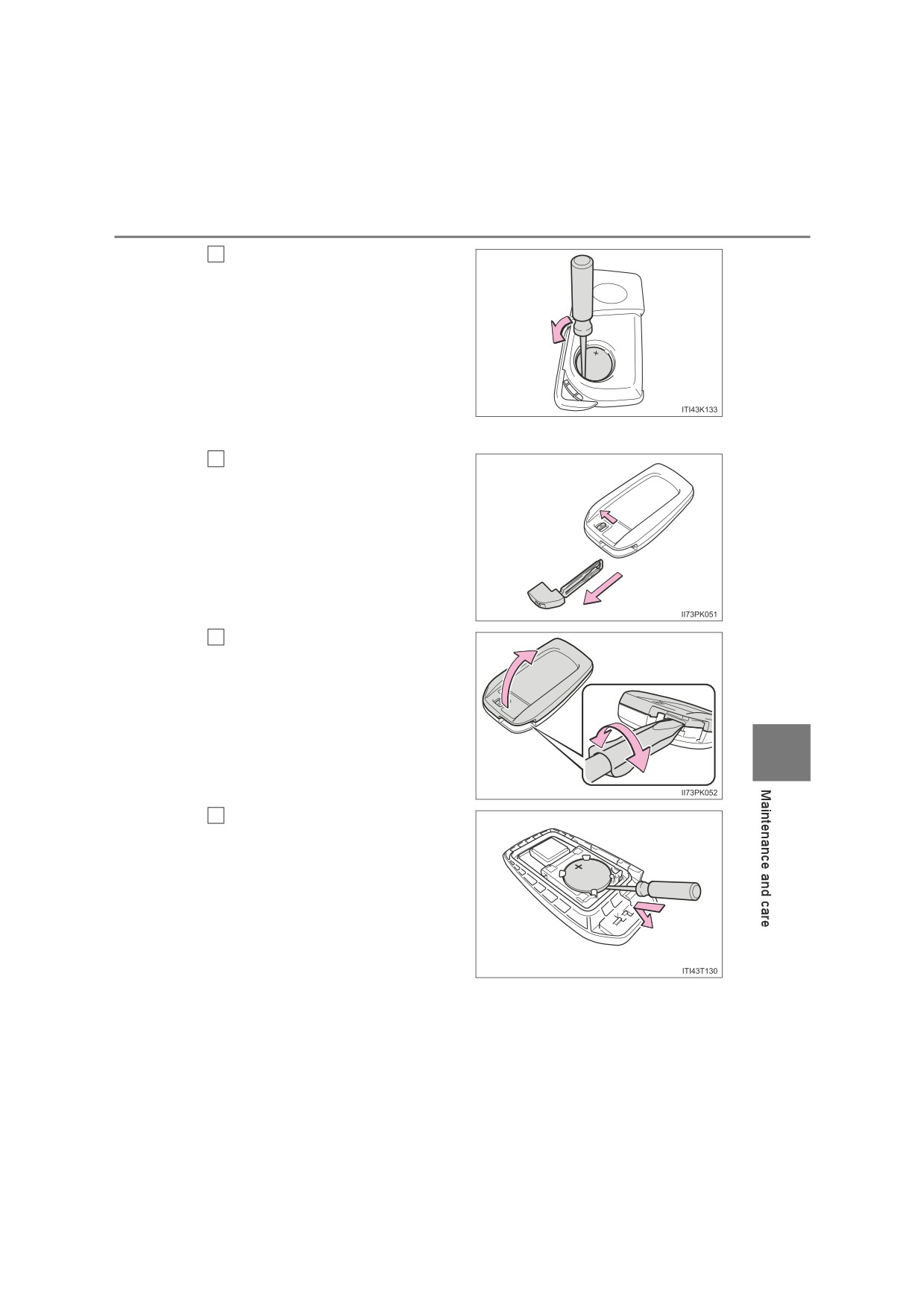

Vehicles with smart entry & start system
1
Take out the mechanical key.
Remove the cover.
2
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
7
Remove the depleted battery.
3
Insert a new battery with the “+”
terminal facing up.
518
7-3. Do-it-yourself maintenance
Q Use a lithium battery
Vehicles without smart entry & start system: CR1620
Vehicles with smart entry & start system: CR2032
O Batteries can be purchased at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer, local electrical appliance shops
or camera stores.
O Replace only with the same or equivalent type recommended by the manu-
facturer.
O Dispose of used batteries according to local laws.
Q If the key battery is depleted
The following symptoms may occur:
O The smart entry & start system (if equipped) and wireless remote control will
not function properly.
O The operational range will be reduced.
WARNING
Q Battery precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
ODo not swallow the battery. Doing so may cause chemical burns.
O A coin battery or button battery is used in the electronic key. If a battery
is swallowed, it may cause severe chemical burns in as little as 2 hours
and may result in death or serious injury.
OKeep away new and removed batteries from children.
OIf the cover cannot be firmly closed, stop using the electronic key and
stow the key in the place where children cannot reach, and then contact
any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.
OIf you accidentally swallow a battery or put a battery into a part of your
body, get emergency medical attention immediately.
Q To prevent battery explosion or leakage of flammable liquid or gas
OReplace the battery with a new battery of the same type. If a wrong type
of battery is used, it may explode.
ODo not expose batteries to extremely low pressure due to high altitude or
extremely high temperatures.
ODo not burn, break or cut a battery.
7-3. Do-it-yourself maintenance
519
NOTICE
Q For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
O Always work with dry hands.
Moisture may cause the battery to rust.
ODo not touch or move any other component inside the remote control.
ODo not bend either of the battery terminals.
7
520
7-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
Vehicles without smart entry & start system:
1
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the engine switch off.

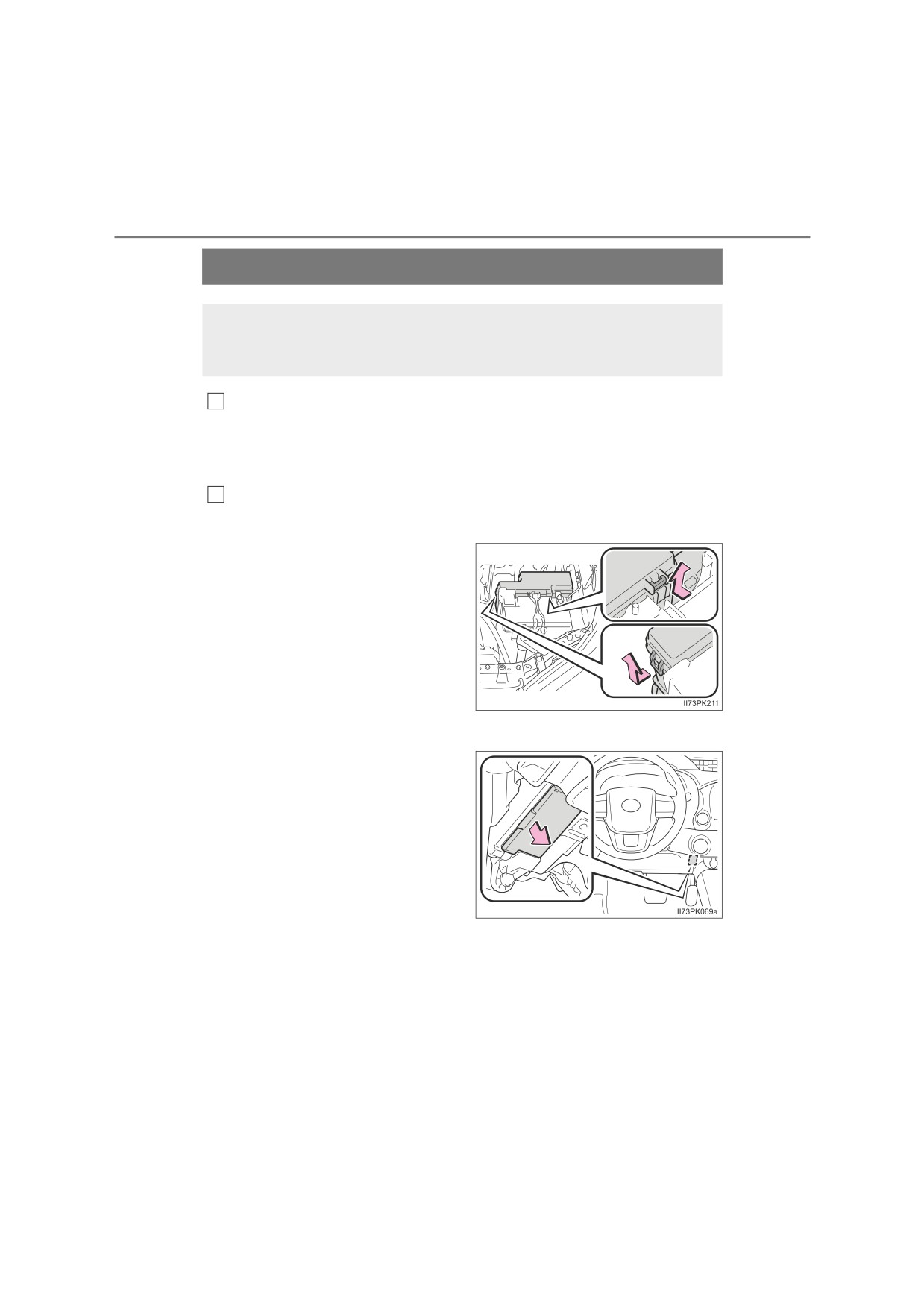

Open the fuse box cover.
2
In the engine compartment
Push the tab in and pull the lock
release, and lift the lid off.
Under the instrument panel (left-hand drive vehicles)
Remove the lid.
7-3. Do-it-yourself maintenance
521
Under the instrument panel (right-hand
drive vehicles)
Remove the cover
(if
equipped).
Remove the lid.
Behind the instrument panel (left-hand drive vehicles)
Remove the glove box
(P. 514), and remove the lid.
7
Behind the instrument panel (right-hand drive vehicles)
Remove the glove box
(P. 514), and remove the lid.
522
7-3. Do-it-yourself maintenance

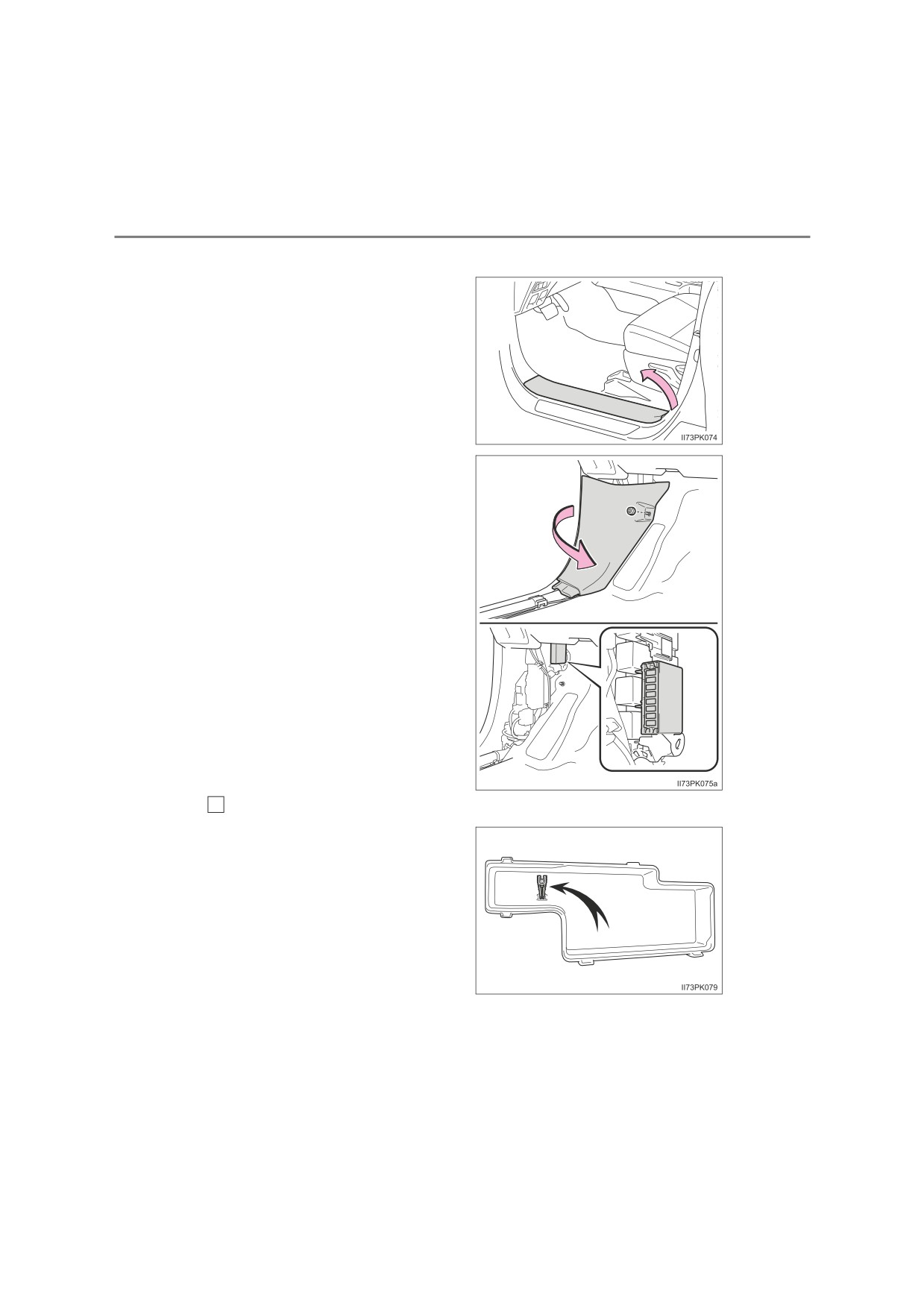

Behind the cowl side panel
Remove the driver’s door scuff
plate (left-hand drive vehicles)
or the front passenger’s door
scuff plate
(right-hand drive
vehicles).
Remove the nut and the cowl
side panel.
Remove the fuse.
3
Only type A fuse can be
removed using the pullout tool.
7-3. Do-it-yourself maintenance
523
4

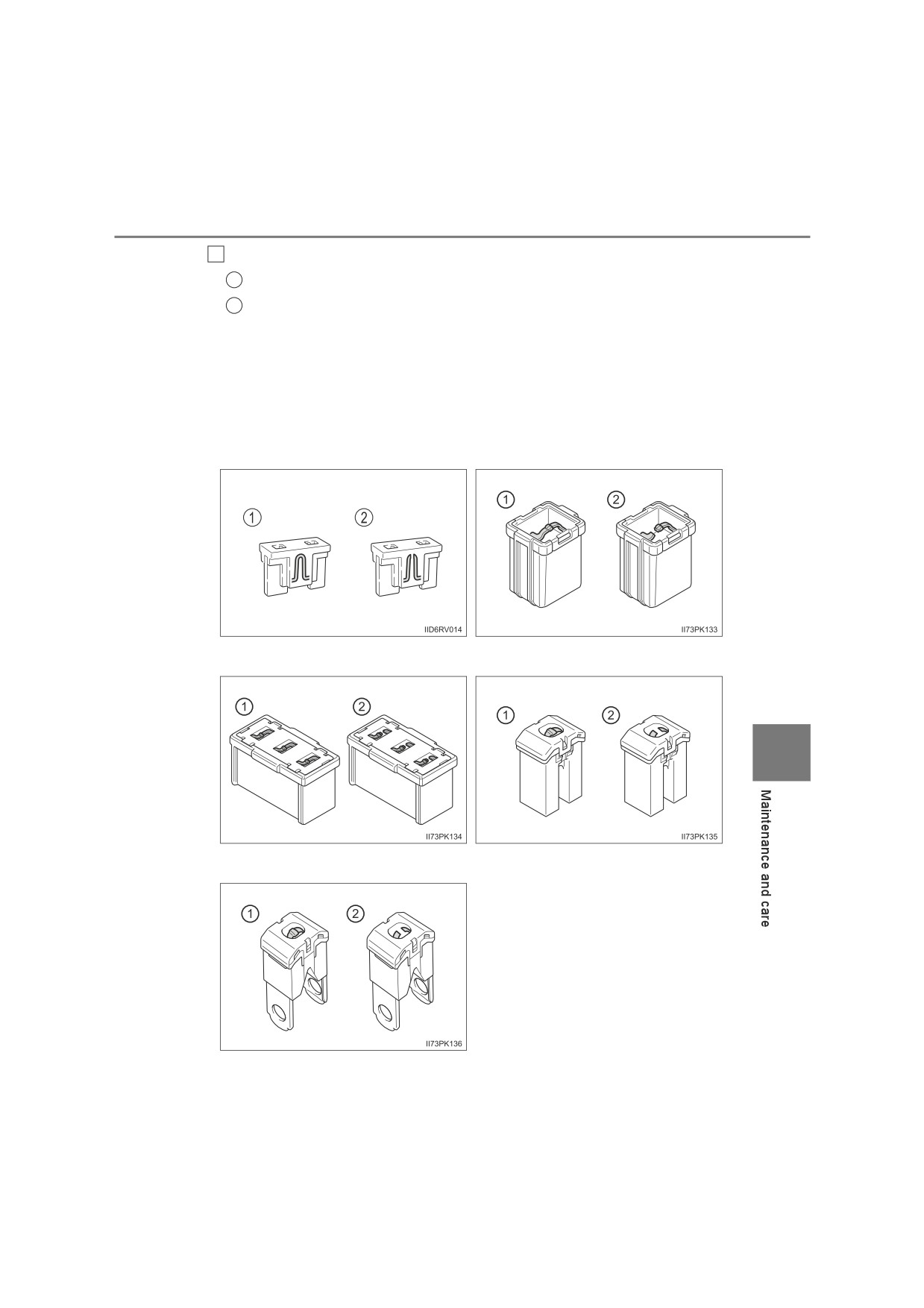

Check if the fuse is blown.
1
Normal fuse
2
Blown fuse
Type A, B, C and D:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type E:
Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
Type A
Type B
Type C
Type D
7
Type E
524
7-3. Do-it-yourself maintenance
Q After a fuse is replaced
O If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 525)
O If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
Q If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
Q To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
ONever use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
OAlways use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
ODo not modify the fuses or fuse boxes.
NOTICE
Q Before replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
7-3. Do-it-yourself maintenance
525
Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 642)
Bulb locations

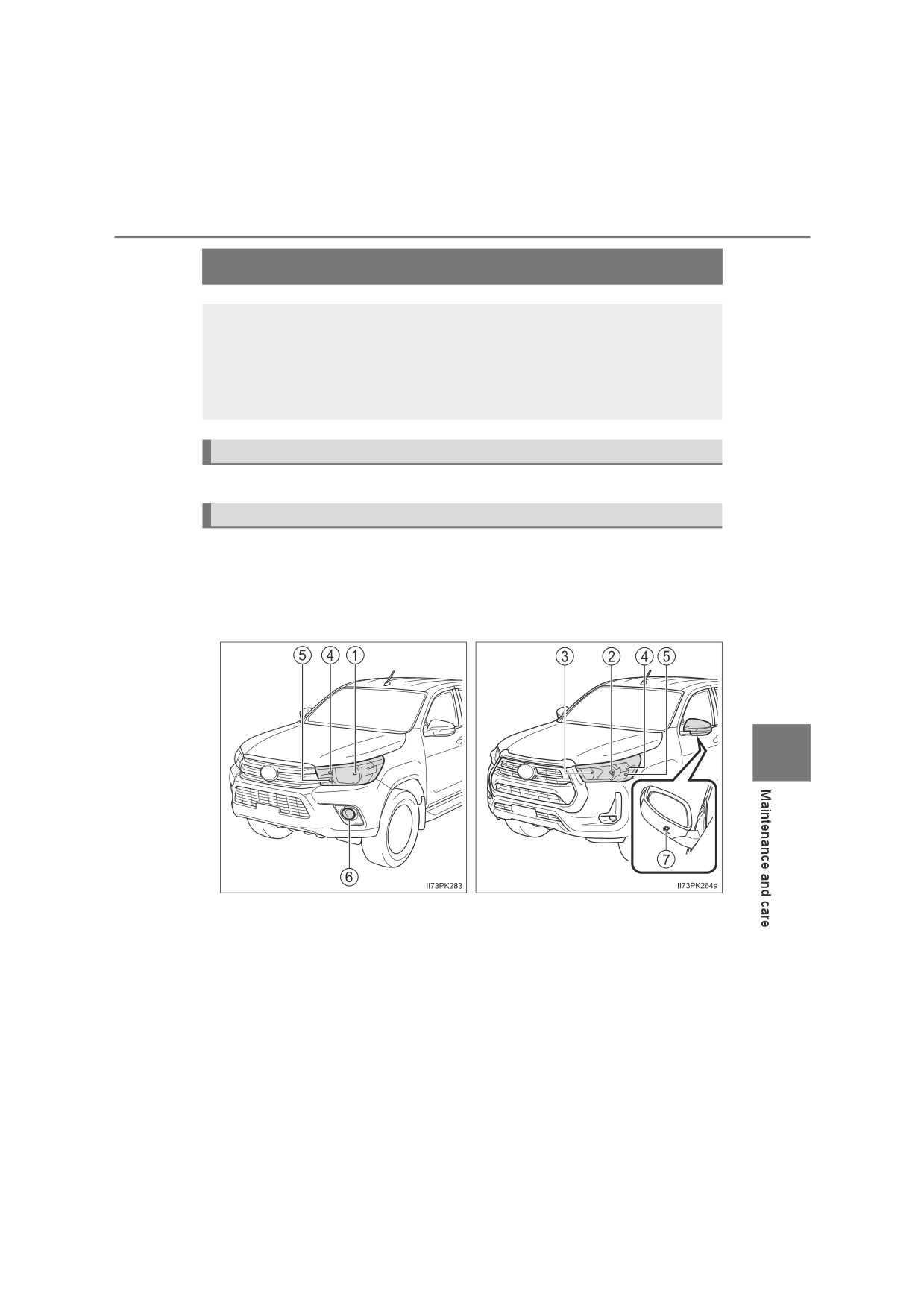

The shape of the exterior lights may differ depending on the grade,
etc.
Q Front
Halogen headlights type A
Halogen headlights type B
7
526
7-3. Do-it-yourself maintenance
LED headlights

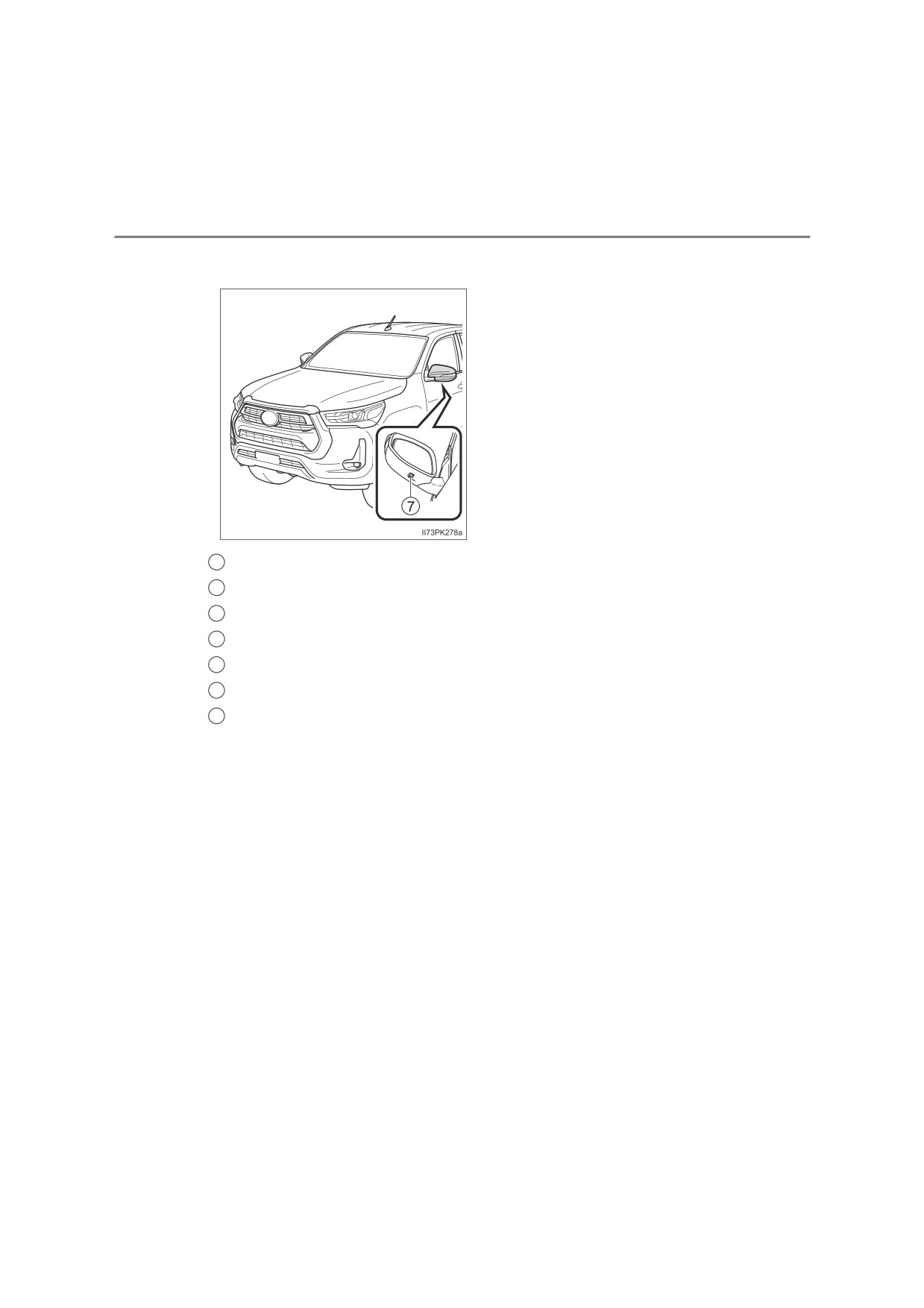

1
Headlight (high/low beams) (if equipped)
2
Headlight (low beam) (if equipped)
3
Headlight (high beam) (if equipped)
4
Front position light/daytime running light (if equipped)
5
Front turn signal light (if equipped)
6
Halogen front fog light (if equipped)
7
Outer foot light (if equipped)
7-3. Do-it-yourself maintenance
527

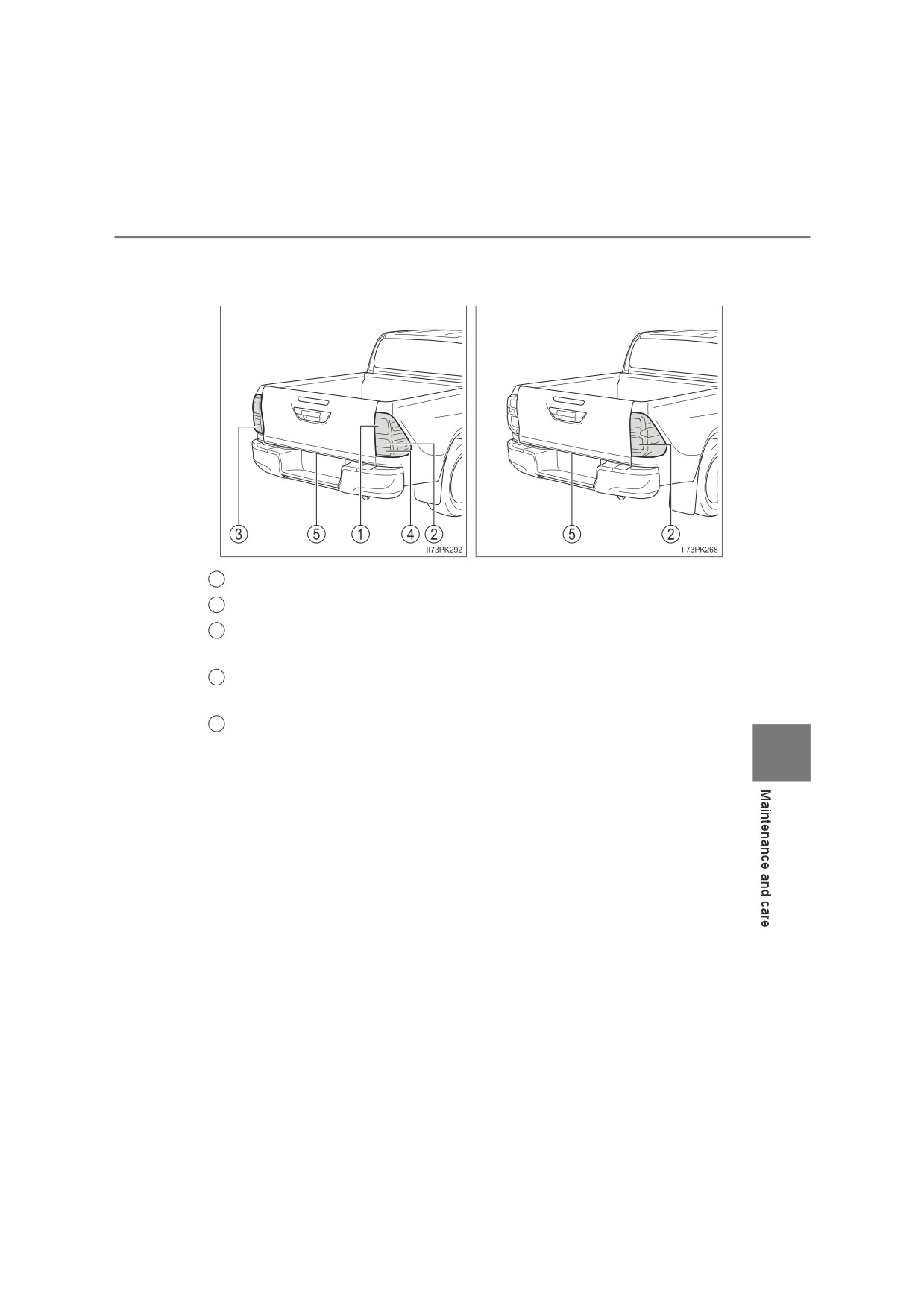

Q Rear
Without LED stop lights
With LED stop lights
1
Stop/tail light (if equipped)
2
Rear turn signal light
3
Rear fog light (if equipped) (left-hand drive vehicles) or back-up
light (if equipped)
4
Rear fog light (if equipped) (right-hand drive vehicles) or back-up
light (if equipped)
5
License plate light
7
528
7-3. Do-it-yourself maintenance
Replacing light bulbs

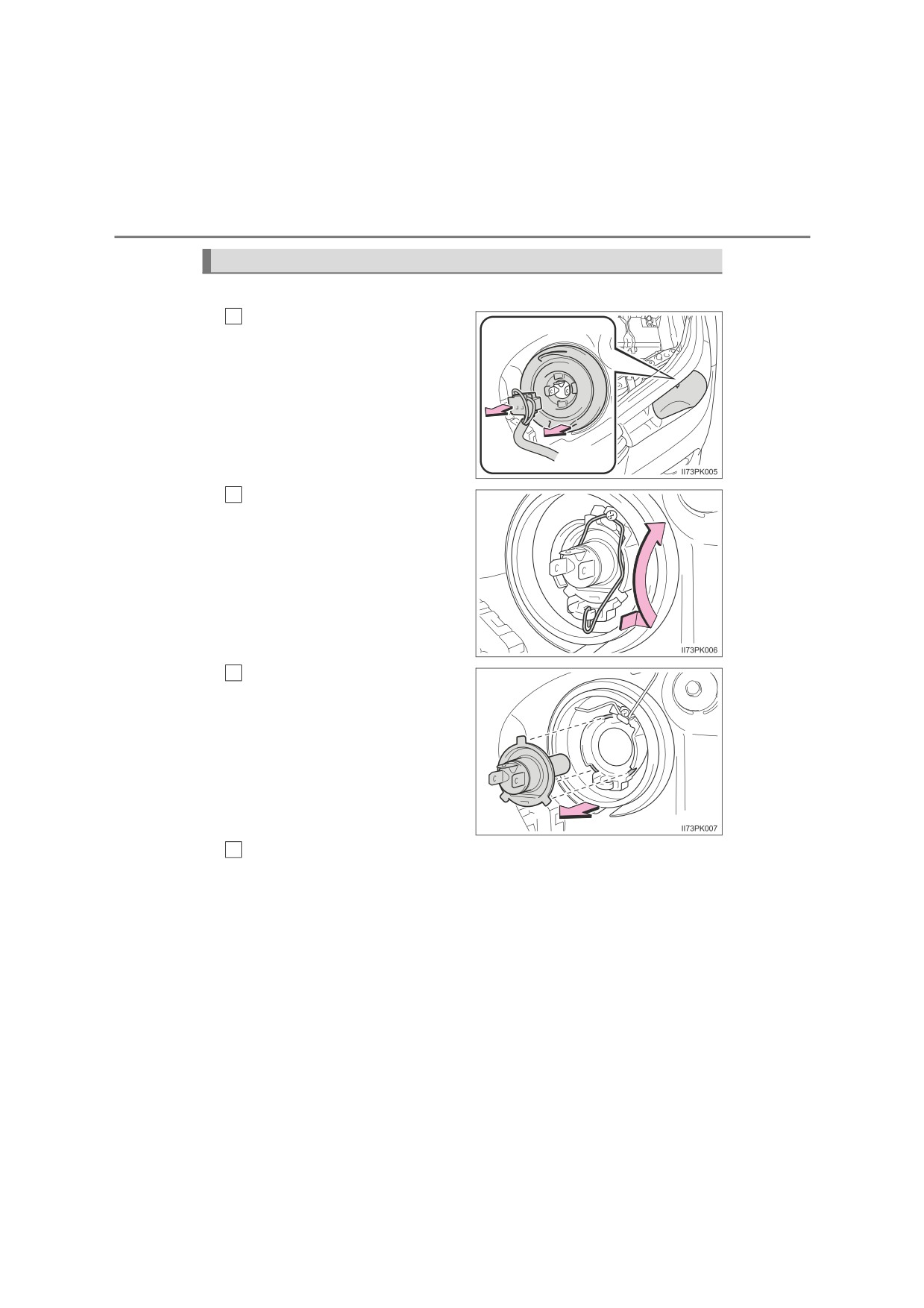

Q Headlight (high/low beams) (halogen headlights type A)
1

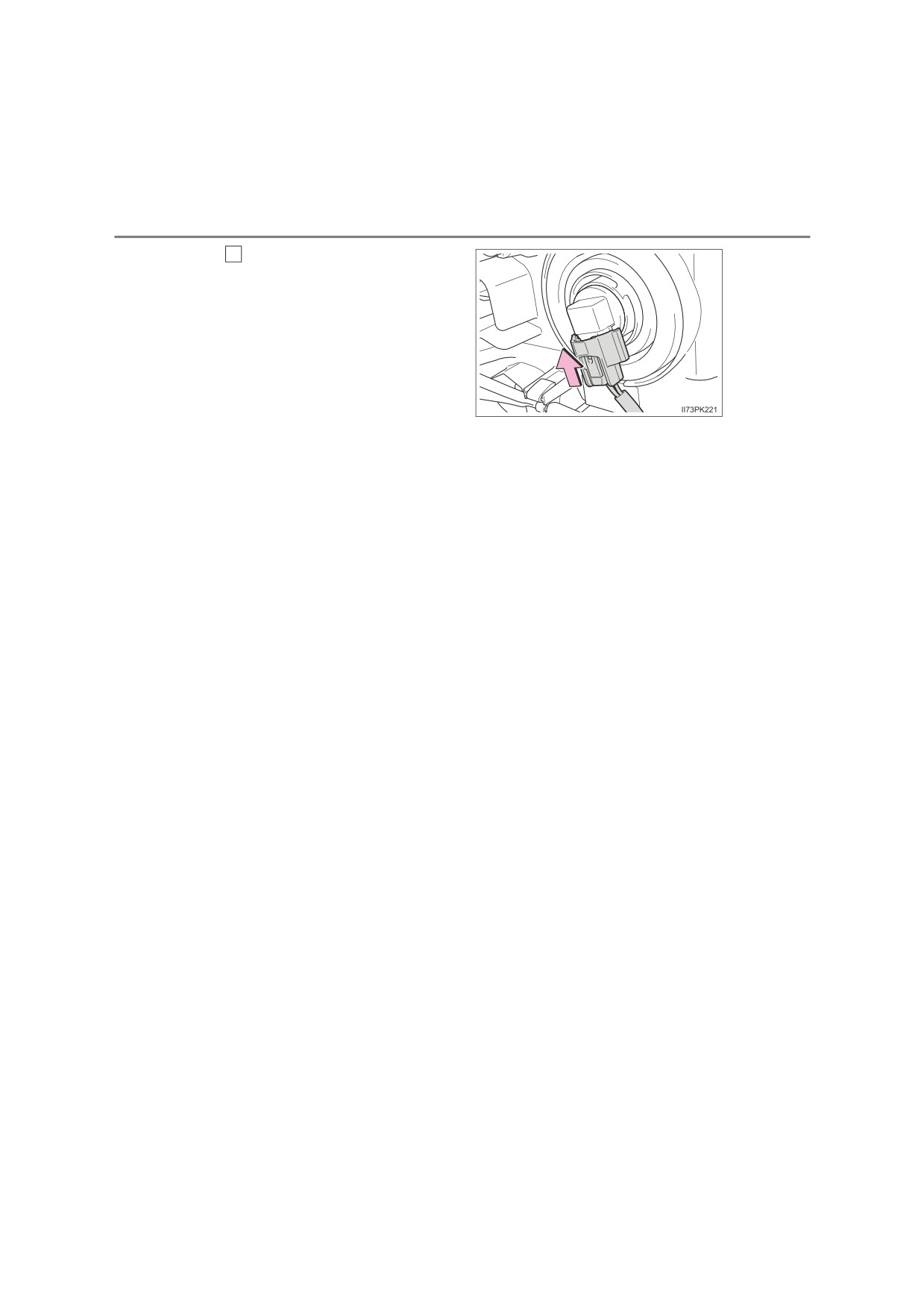

Unplug the connector and
remove the rubber cover.
2
Release the bulb retaining
spring.
Remove the bulb.
3
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
When installing, reverse the steps listed.
4
7-3. Do-it-yourself maintenance
529

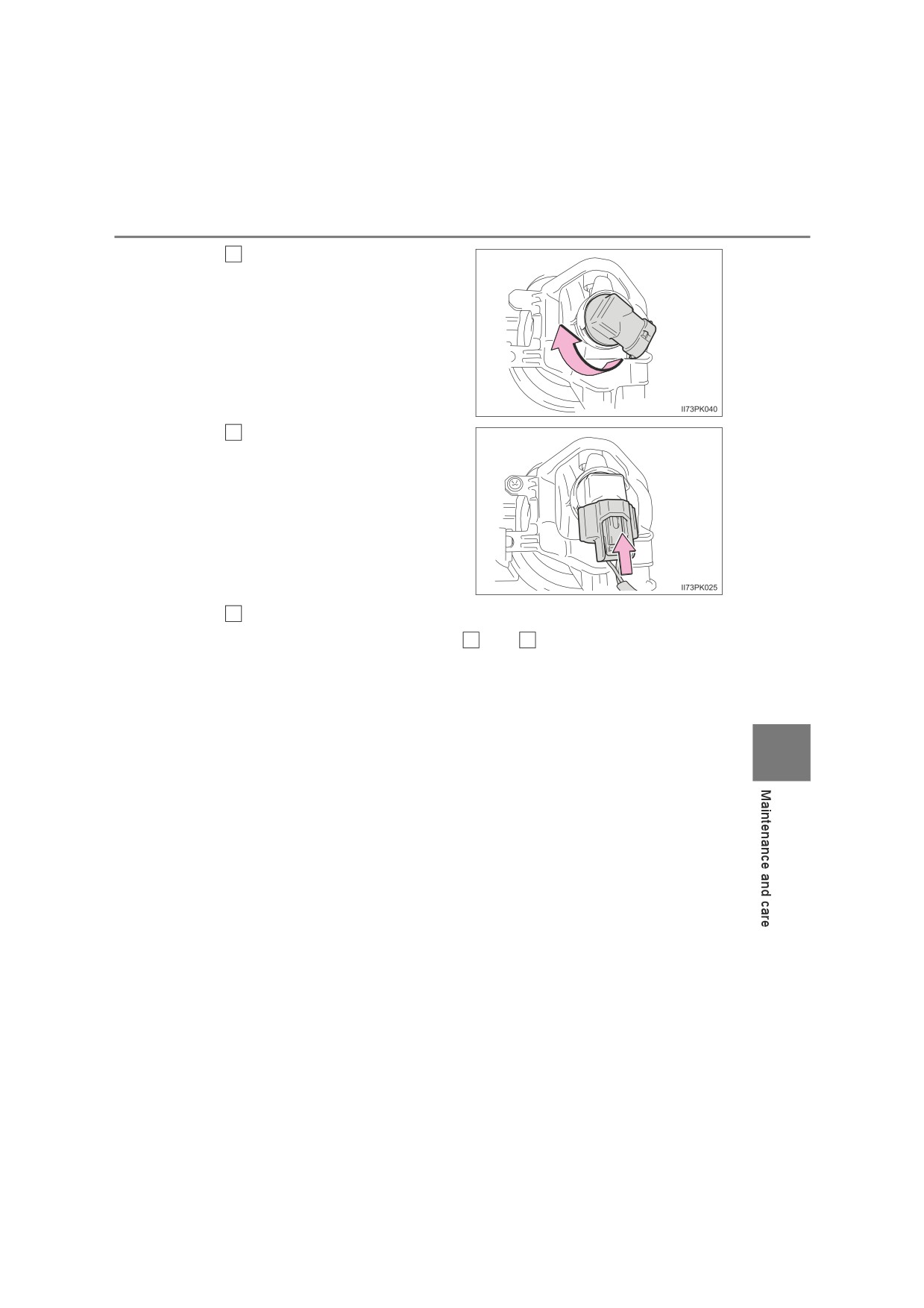

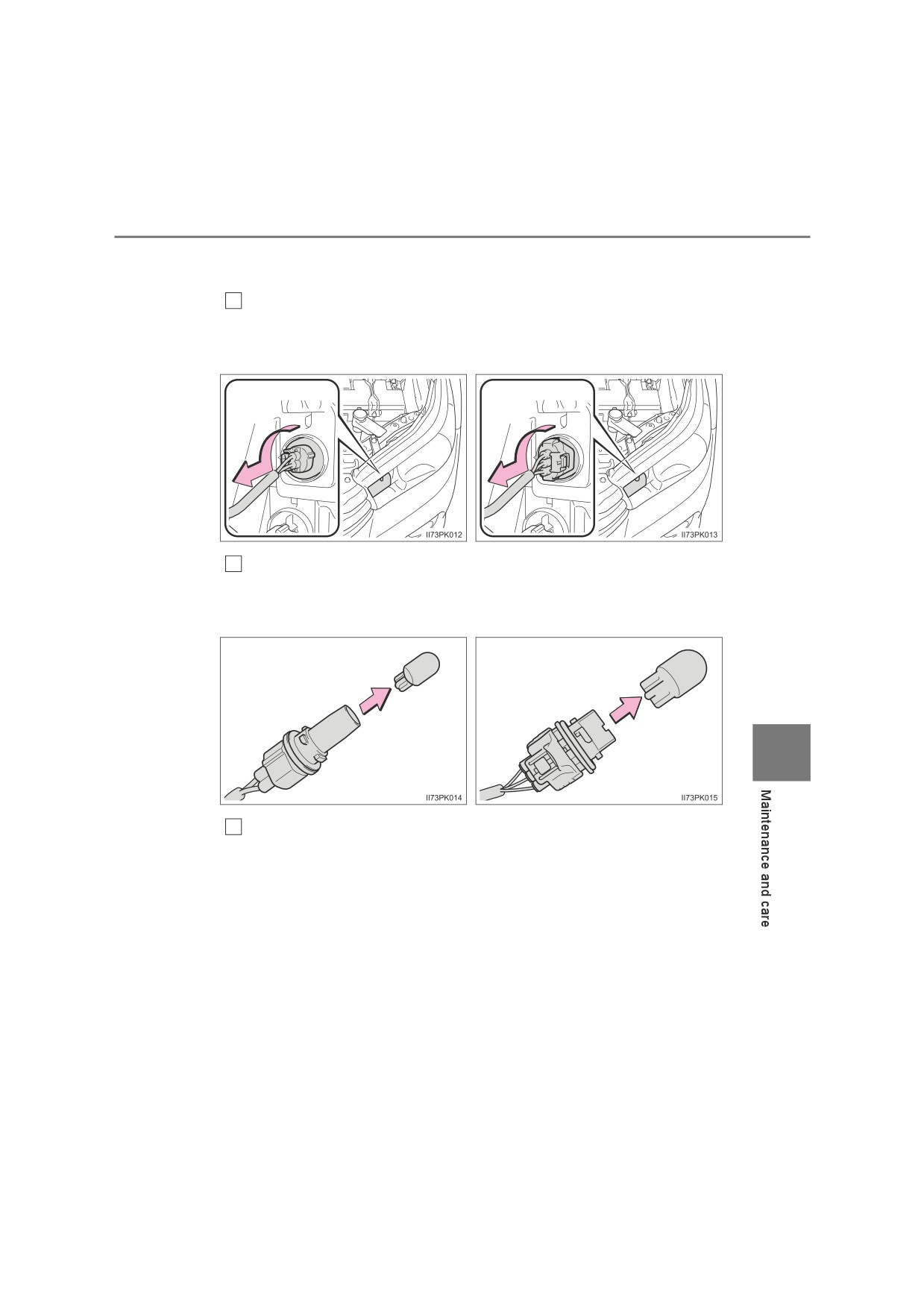

Q Headlight (low beams) (halogen headlights type B)

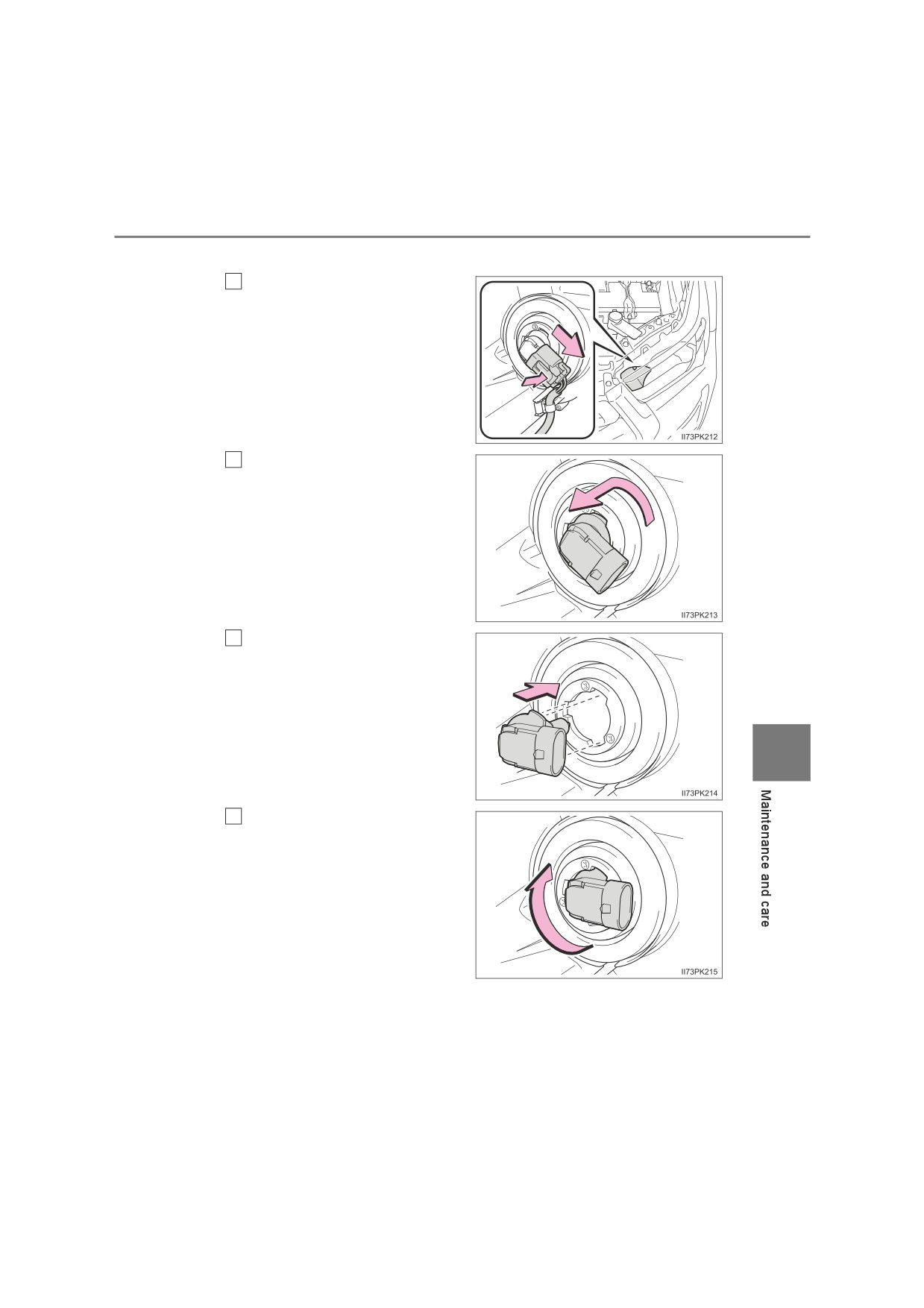

1

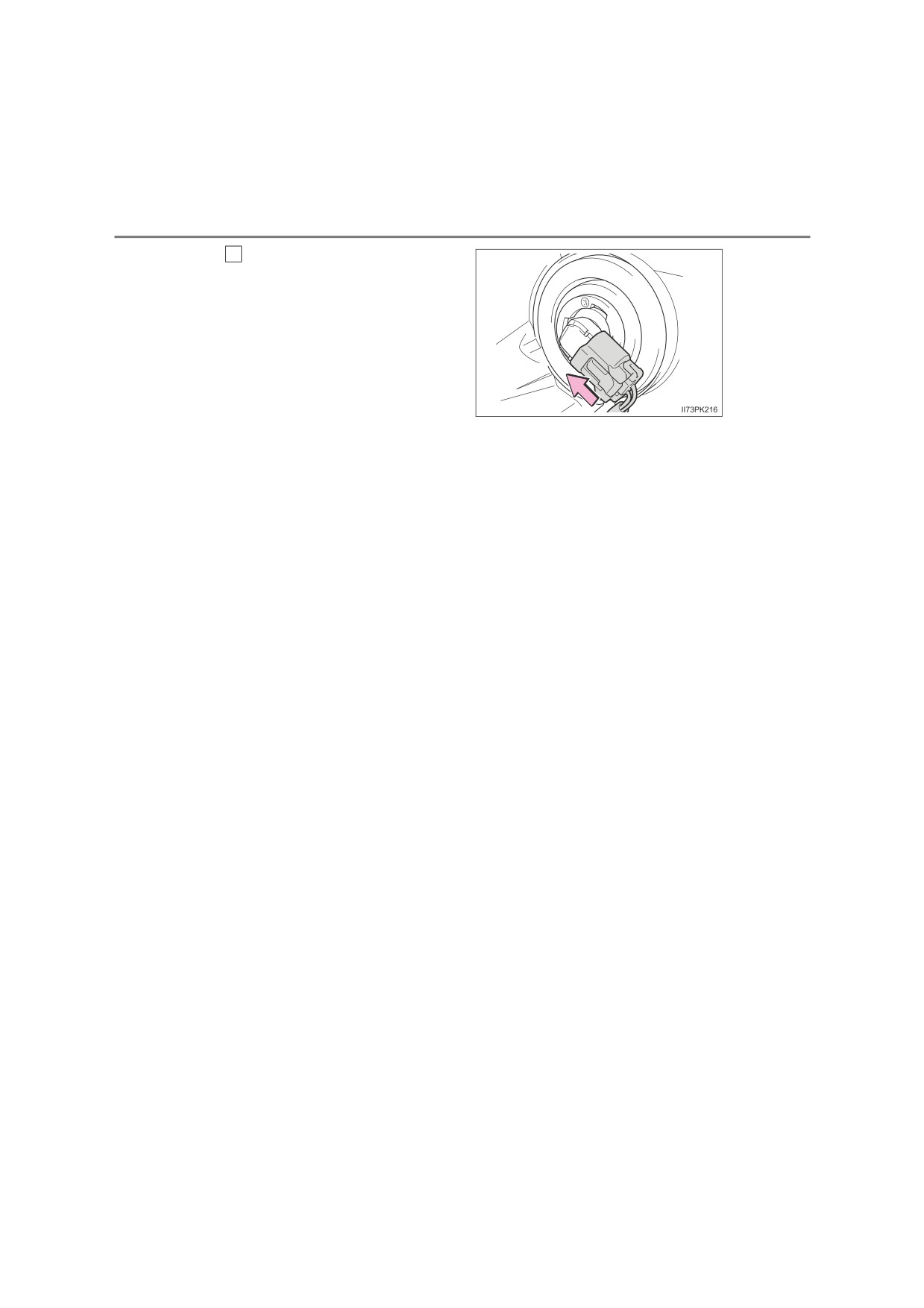

Unplug the connector while
depressing the lock release.
2
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
3
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
7
4
Turn and secure the bulb
base.
530
7-3. Do-it-yourself maintenance
5
Install the connector
Shake the bulb base gently to
check that it is not loose, turn
the headlight low beams on
once and visually confirm that
no light is leaking through the
mounting.
7-3. Do-it-yourself maintenance
531

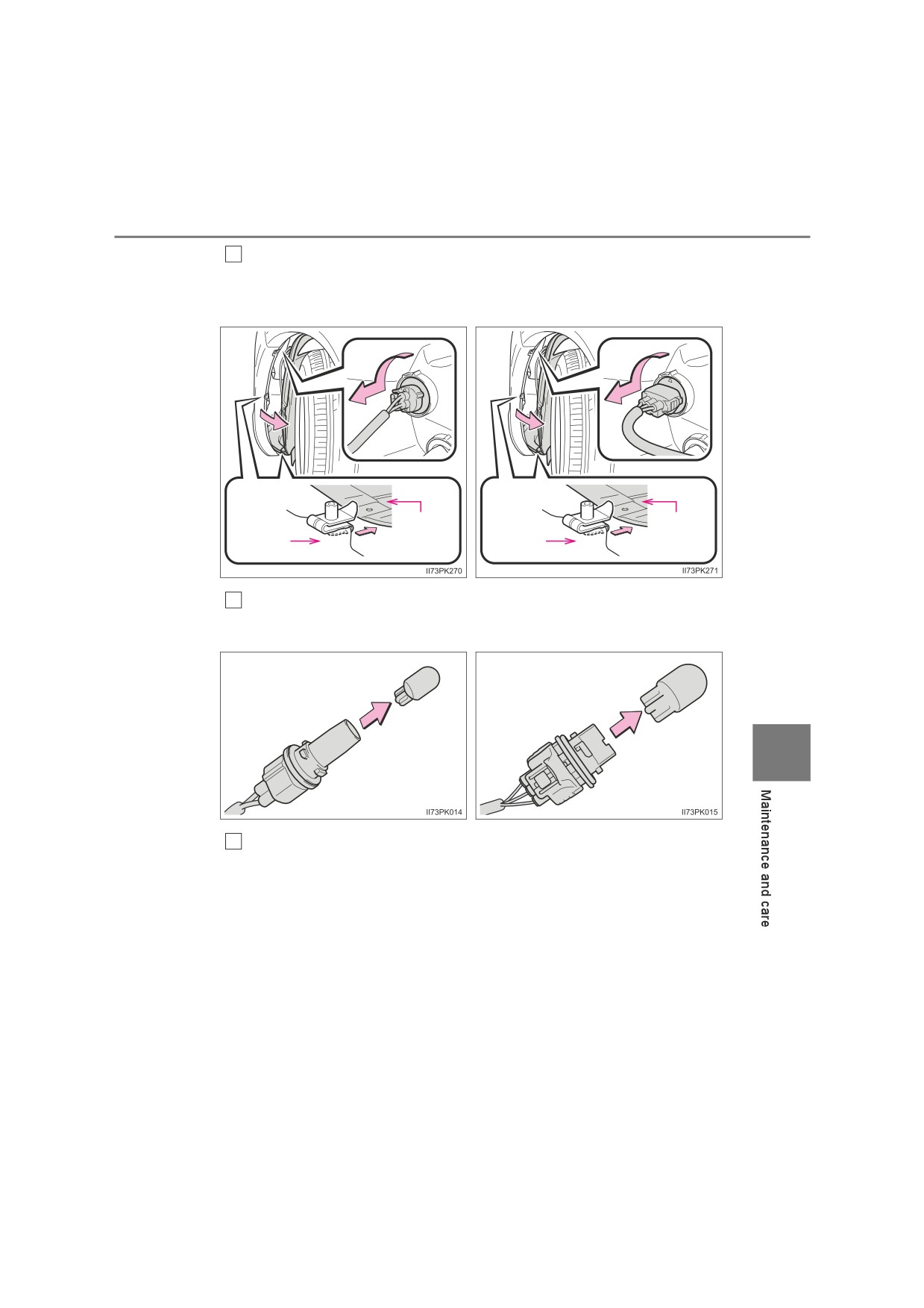

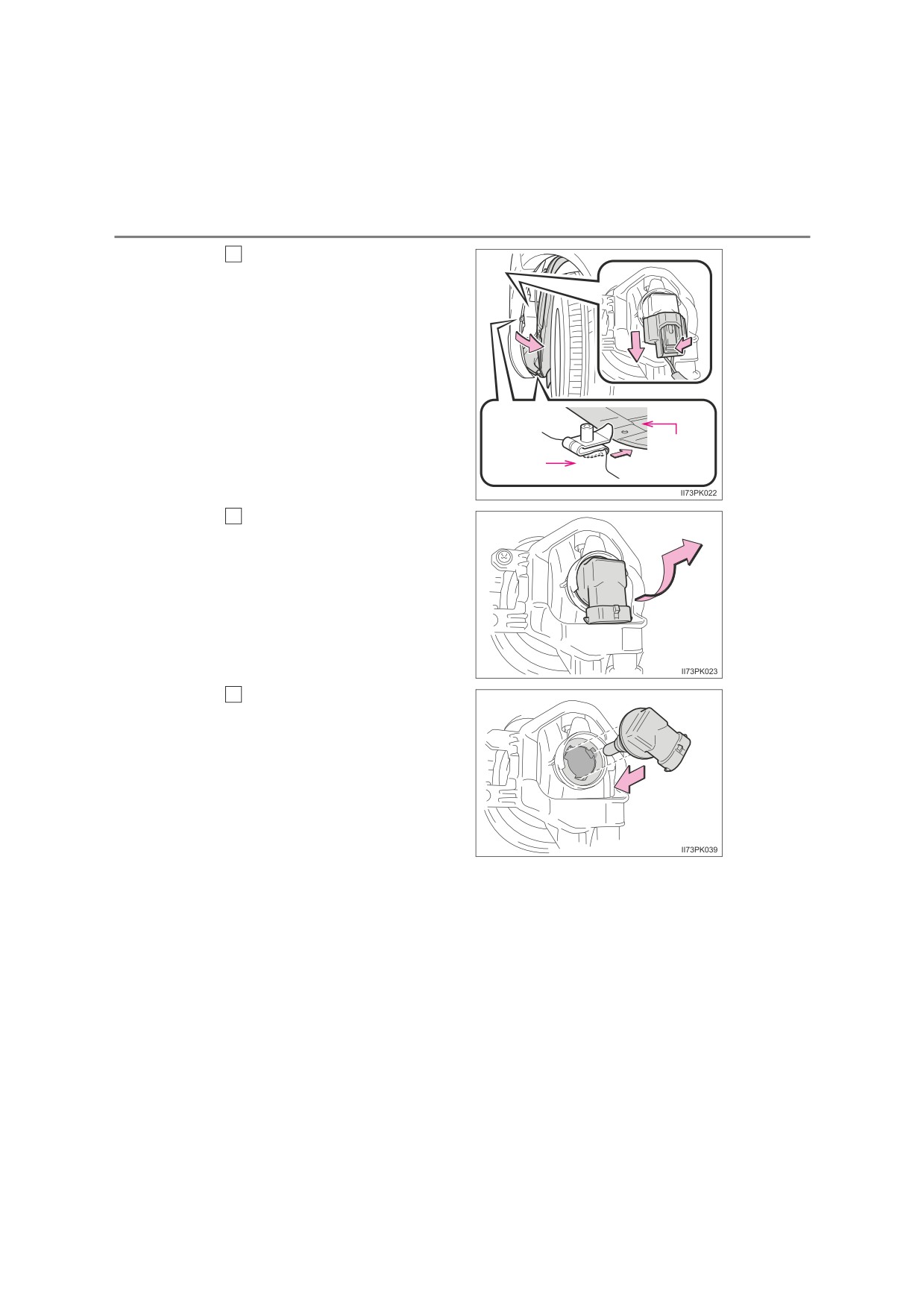

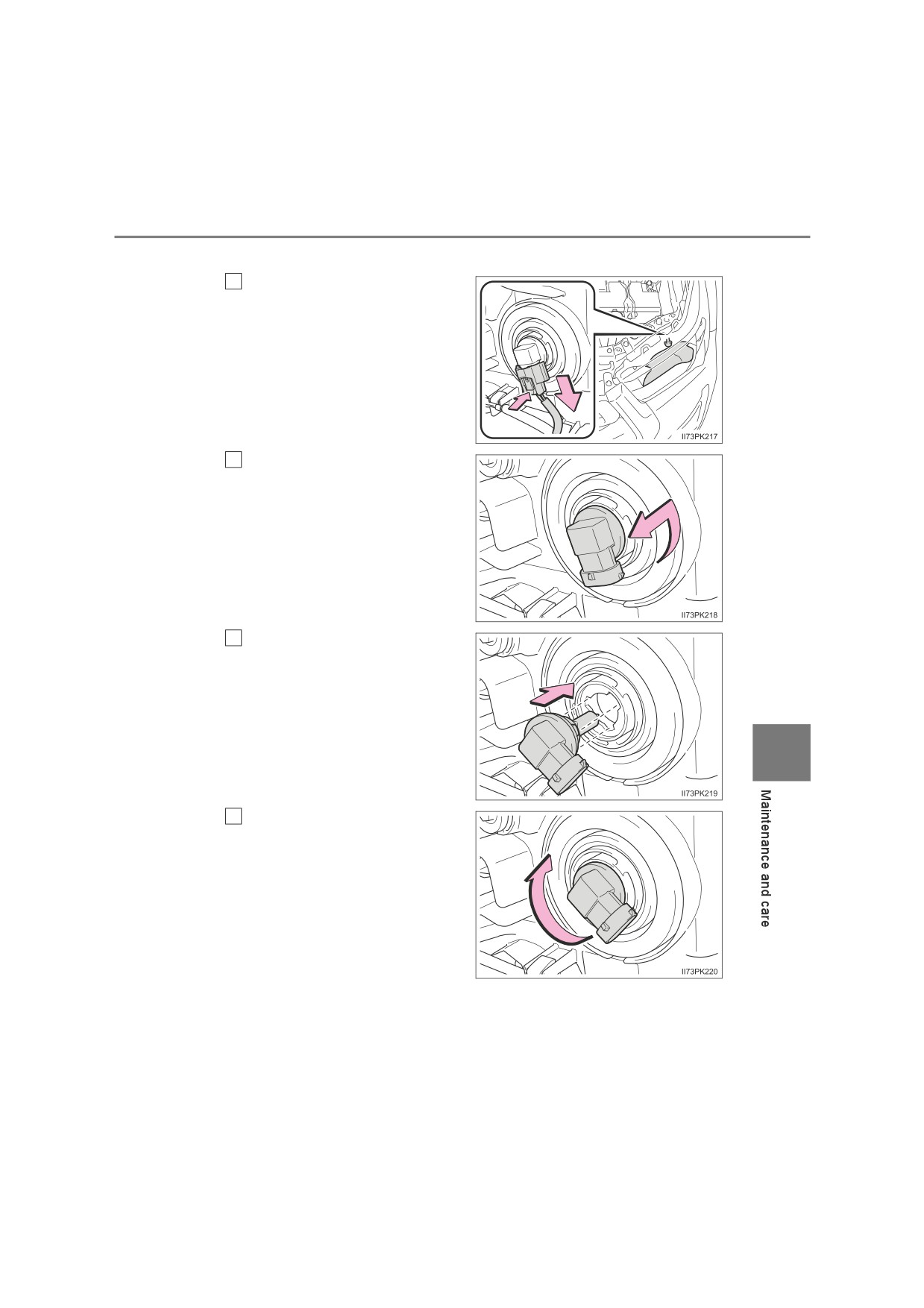

Q Headlight (high beams) (halogen headlights type B)
1
Unplug the connector while
depressing the lock release.
2
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
3
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
7
4
Turn and secure the bulb
base.
532
7-3. Do-it-yourself maintenance
5
Install the connector
Shake the bulb base gently to
check that it is not loose, turn
the headlight high beams on
once and visually confirm that
no light is leaking through the
mounting.
7-3. Do-it-yourself maintenance
533

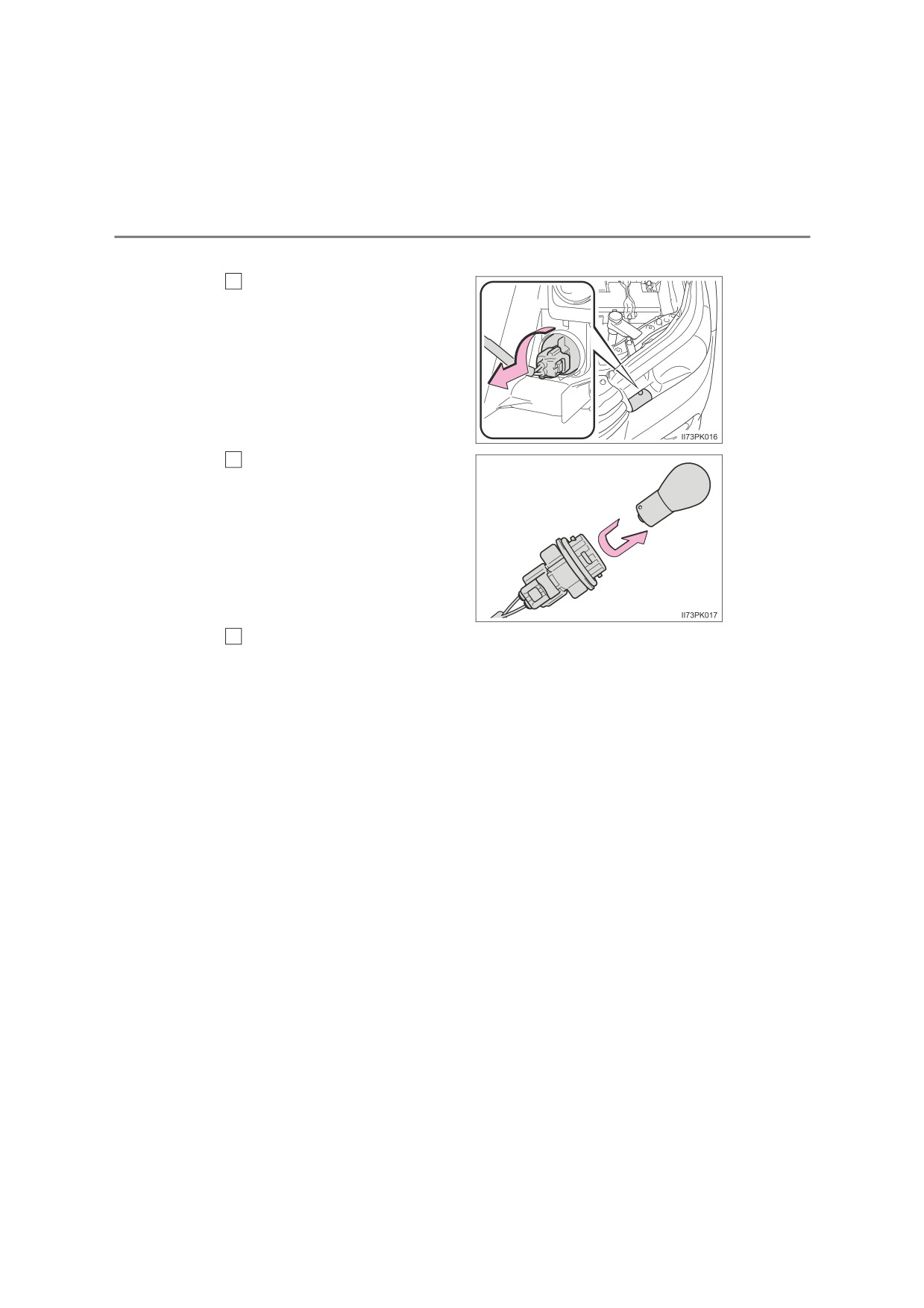

Q Front position lights/daytime running lights (if equipped)
(halogen headlights type A)
1
Turn the bulb base counterclockwise.
Vehicles without daytime run-
Vehicles with daytime
running
ning lights
lights
2
Remove the light bulb.
Vehicles without daytime run-
Vehicles with daytime running
ning lights
lights
7
When installing, reverse the steps listed.
3
534
7-3. Do-it-yourself maintenance

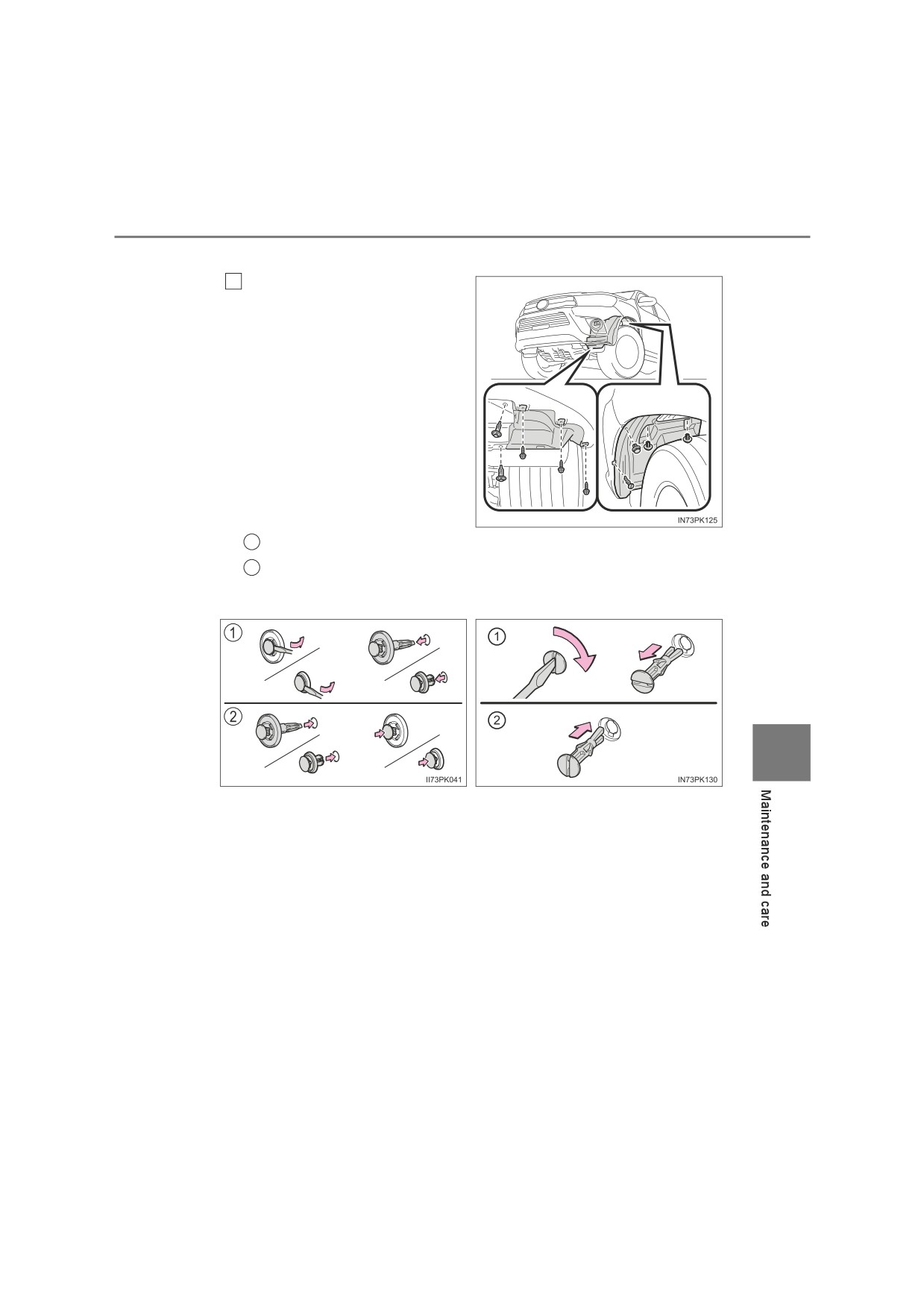

Q Front position lights/daytime running lights (if equipped) (halo-
gen headlight type B)
To allow enough working
1
space, turn the steering
wheel to the opposite side
where the bulb to be
replaced is located.
Remove the screws and
clips.
1
Removing the clip
2
Installing the clip
Type A
Type B
7-3. Do-it-yourself maintenance
535
2
Partly remove the fender liner and turn the bulb base counter-
clockwise.
Without daytime running lights
With daytime running lights
Fender
Fender
Bumper
liner
Bumper
liner
3
Remove the light bulb.
Without daytime running lights
With daytime running lights
7
When installing, reverse the steps listed.
4
536
7-3. Do-it-yourself maintenance

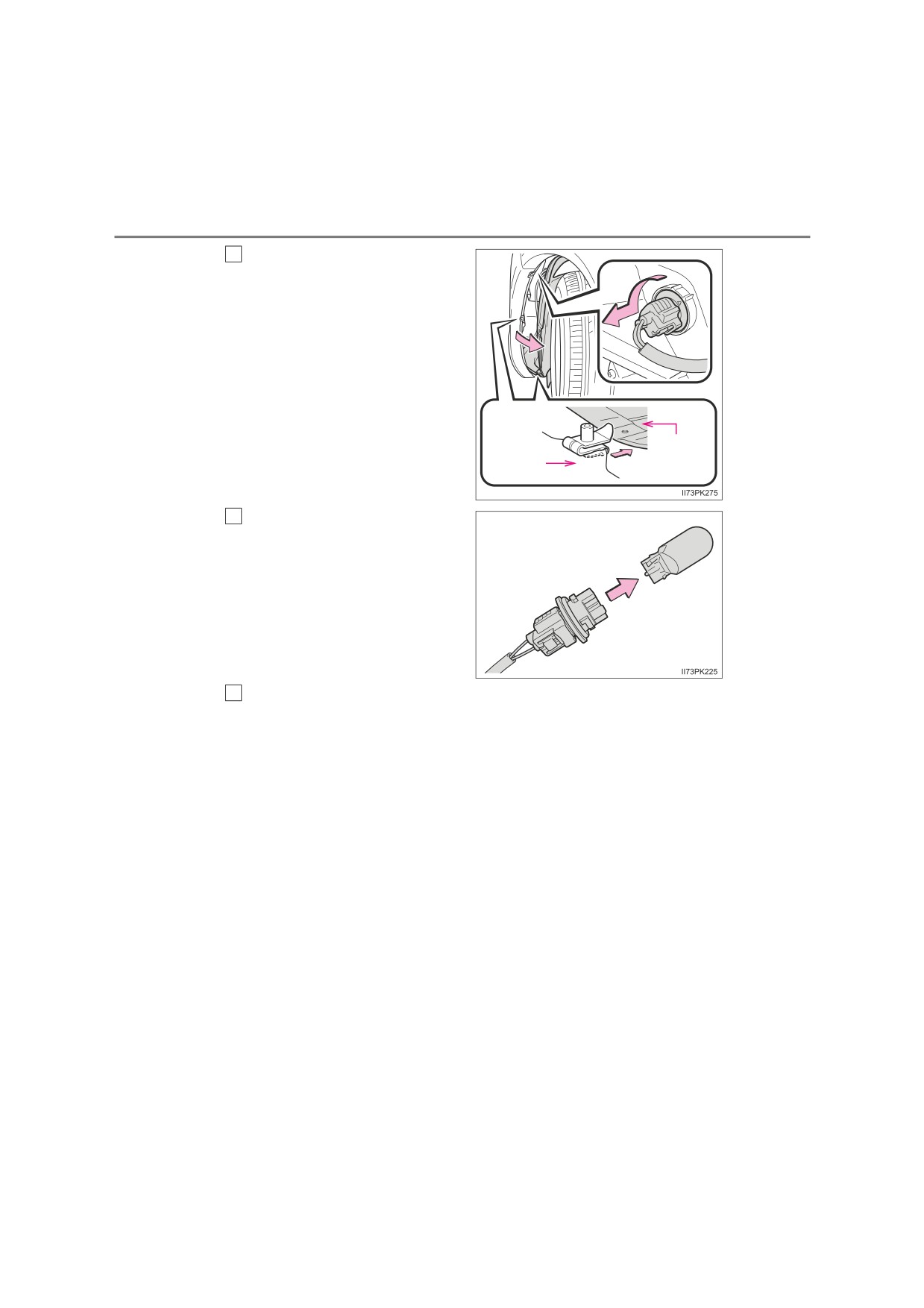

Q Front turn signal lights (halogen headlights type A)
1
Turn the bulb base counter-
clockwise.
2
Remove the light bulb.
3
When installing, reverse the steps listed.
7-3. Do-it-yourself maintenance
537

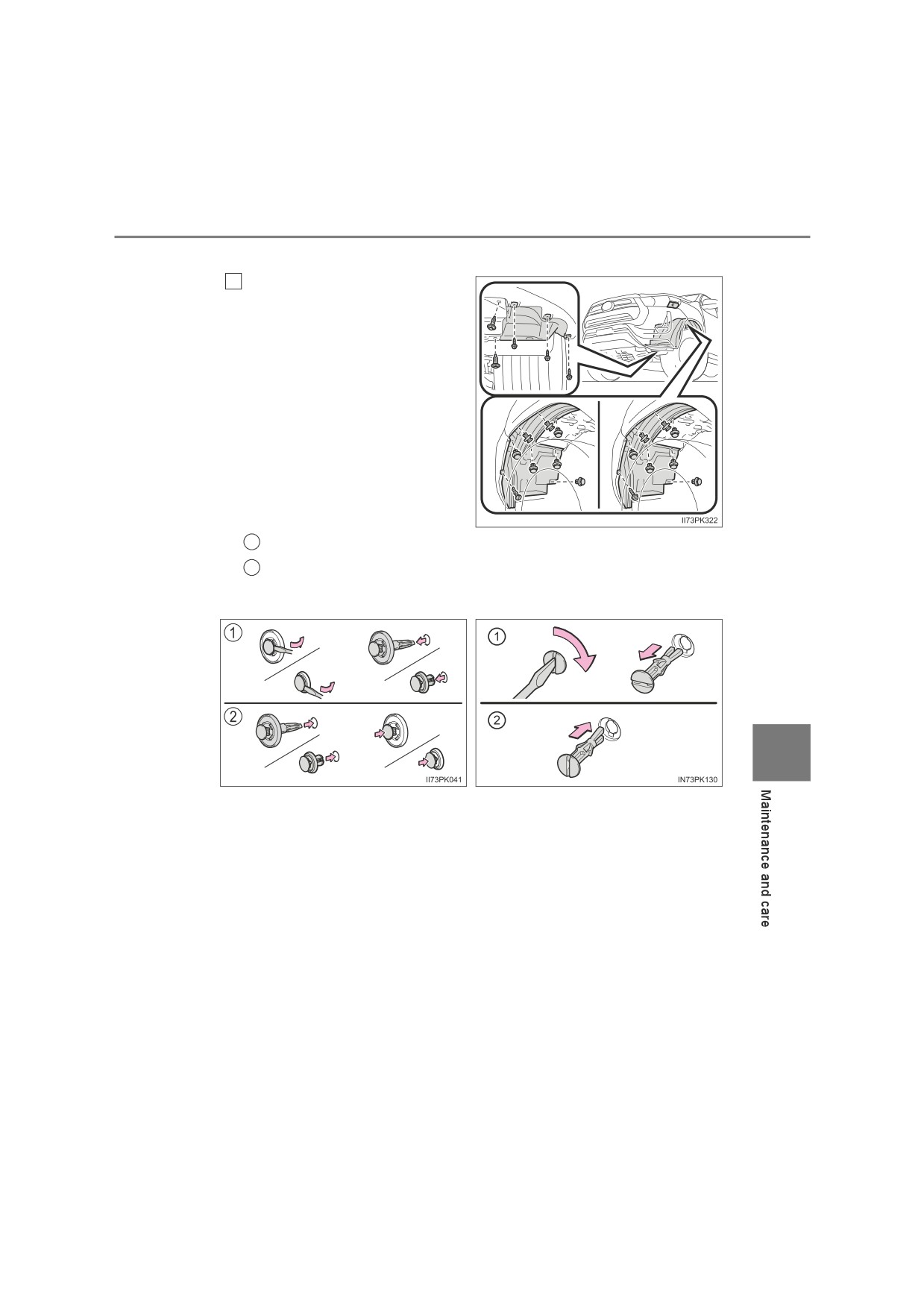

Q Front turn signal lights (halogen headlights type B)
To allow enough working
1
space, turn the steering
wheel to the opposite side
where the bulb to be
replaced is located.
Remove the screws and
clips.
1
Removing the clip
2
Installing the clip
Type A
Type B
7
538
7-3. Do-it-yourself maintenance
2
Partly remove the fender
liner and turn the bulb base
counterclockwise.
Fender
Bumper
liner
Remove the light bulb.
3
When installing, reverse the steps listed.
4
7-3. Do-it-yourself maintenance
539

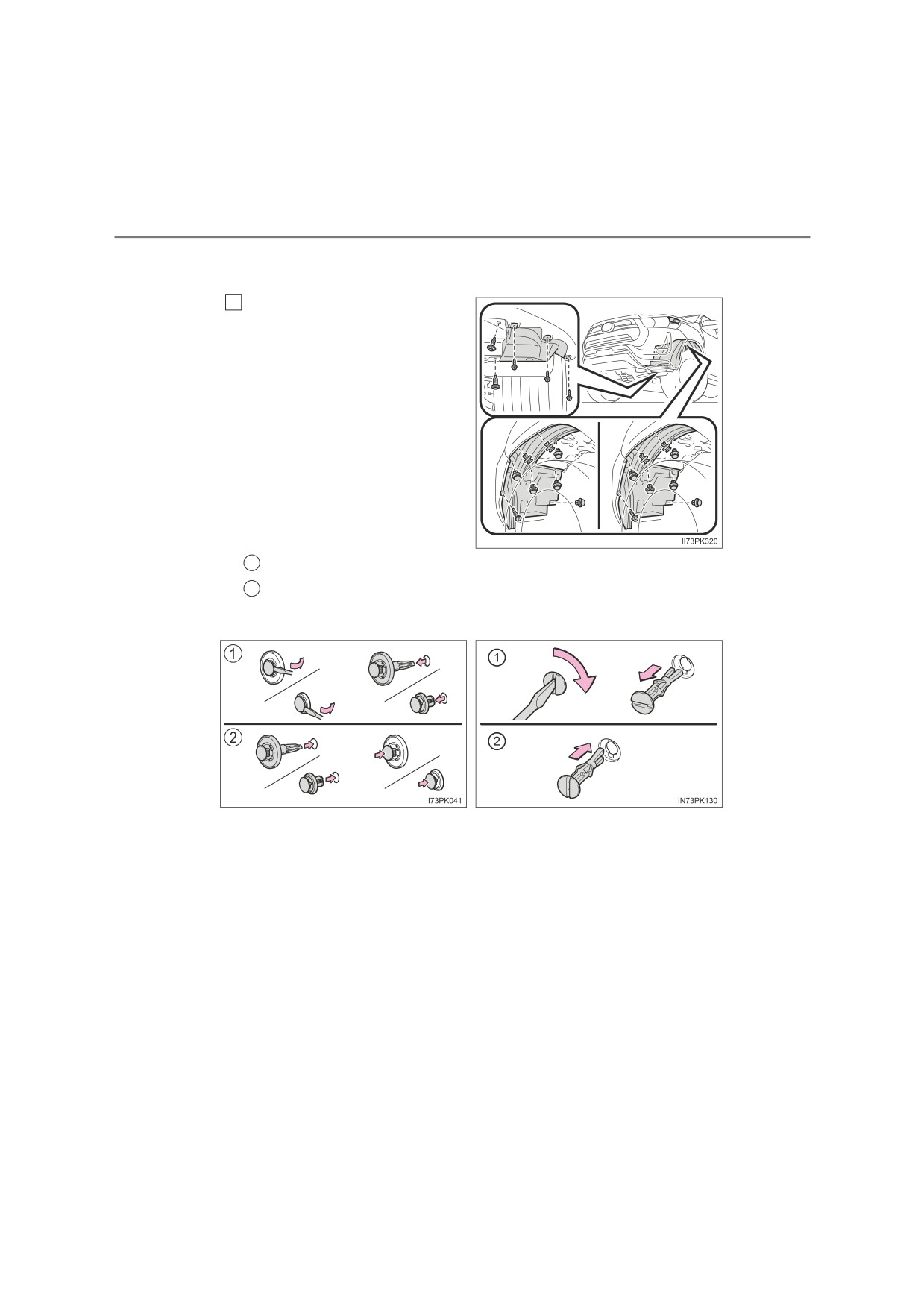

Q Halogen front fog lights (if equipped)
To allow enough working
1
space, turn the steering
wheel to the opposite side
where the bulb to be
replaced is located.
Remove the screws and
clips.
1
Removing the clip
2
Installing the clip
Type A
Type B
7
540
7-3. Do-it-yourself maintenance
2
Partly remove the fender
liner and unplug the connec-
tor while pressing the lock
release.
Fender
Bumper
liner
3
Turn the bulb base counter-
clockwise.
Replace the light bulb, and
4
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
7-3. Do-it-yourself maintenance
541
5
Turn and secure the bulb
base.
Install the connector.
6
Shake the bulb base gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
7
When installing the fender liner, screws and clips, reverse the
removing procedure in steps
1
and
2
7
542
7-3. Do-it-yourself maintenance

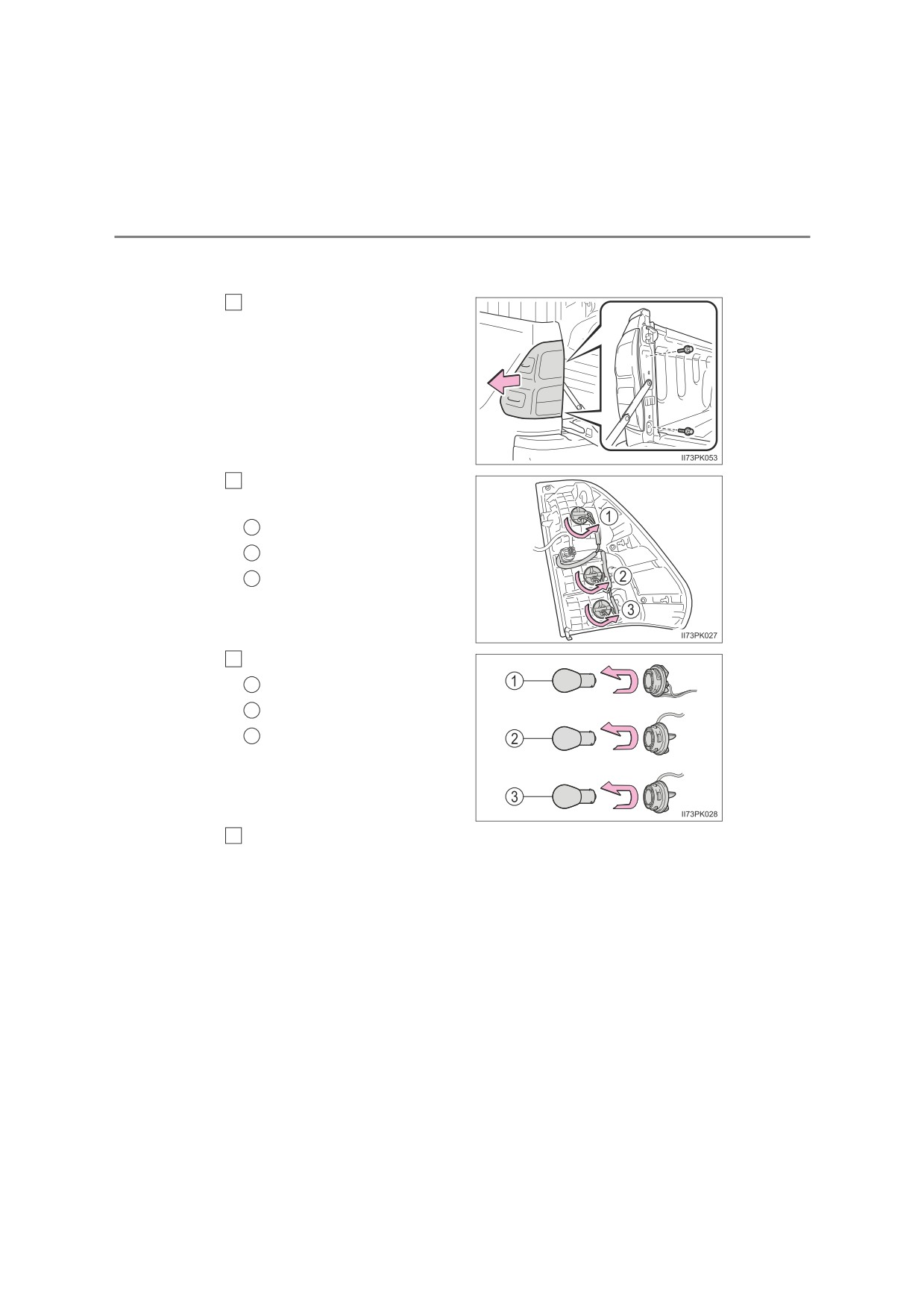

Q Stop/tail lights, rear turn signal lights, back-up lights and rear
fog light (if equipped) (without LED stop lights)
1
Remove the securing bolts
and pull the unit sideways to
remove.
2
Turn the bulb base counter-
clockwise.
1
Stop/tail light
2
Rear turn signal light
3
Back-up light or rear fog
light
3
Remove the light bulb.
1
Stop/tail light
2
Rear turn signal light
3
Back-up light or rear fog
light
When installing, reverse the steps listed.
4
