Toyota Tundra (2020 year). Manual in english - part 2

80

1-2. Emergency assistance

■

Services

Subscribers have the following Safety Connect services available:

●

Automatic Collision Notification*
Helps drivers receive necessary response from emergency ser-
vice providers. (



P. 82)

*: U.S. Patent No. 7,508,298 B2

●

Stolen Vehicle Location
Helps drivers in the event of vehicle theft. (



P. 82)

●

Emergency Assistance Button (“SOS”)
Connects drivers to response-center support. (



P. 82)

●

Enhanced Roadside Assistance
Provides drivers various on-road assistance. (



P. 83)

■

Subscription

After you have signed the Telematics Subscription Service Agree-
ment and are enrolled, you can begin receiving services. A variety
of subscription terms are available for purchase. Contact your Toy-
ota dealer, call the following appropriate Customer Experience cen-
ter or push the “SOS” button in your vehicle for further subscription
details.

• The United States

1-800-331-4331

•  Canada

1-888-869-6828

•  Puerto Rico

1-877-855-8377

81

1-2. Emergency assistance

1

For safet

y and s

ecurity

■

Safety Connect Services Information

●

Phone calls using the vehicle’s Bluetooth

®

 technology will not be possible

when Safety Connect is active and in use.

●

Safety Connect is available beginning Fall 2009 on select Toyota models (in
the  contiguous  United  States  only).  Contact  with  the  Safety  Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which  can  limit  the  ability  to  reach  the  response  center  or  receive  emer-
gency  service  support.  Enrollment  and  Telematics  Subscription  Service
Agreement  are  required.  A  variety  of  subscription  terms  are  available;
charges vary by subscription term selected and location.

●

Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location  are  available  in  the  United  States,  including  Hawaii  and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.

●

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands. For
vehicles first sold in the U.S. Virgin Islands, no Safety Connect services will
function in or outside the U.S. Virgin Islands.

●

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

■

Languages

The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.

■

When contacting the response center

You may be unable to contact the response center if the network is busy.

When the engine switch is turned to ON, the red indicator light comes

on  for  2  seconds  then  turns  off. Afterward,  the  green  indicator  light

comes on, indicating that the service is active.
The  following  indicator  light  patterns  indicate  specific  system  usage

conditions:

●

Green indicator light on = Active service

●

Green indicator light flashing = Safety Connect call in process

●

Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)

●

No indicator light (off) = Safety Connect service not active

Safety Connect LED light Indicators

82

1-2. Emergency assistance

■

Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding  agent  receives  the  vehicle’s  location  and  attempts  to
speak with the vehicle occupants to assess the level of emergency.
If  the  occupants  are  unable  to  communicate,  the  agent  automati-
cally  treats the call  as  an  emergency,  contacts  the  nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Customer Experience Center at 1-800-331-
4331 in the United States, 1-877-855-8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow the prompts for Safety Connect to
initiate this service.
In  addition  to assisting law enforcement with  recovery of  a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain  circumstances,  be  shared  with  third  parties  to  locate  your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

■

Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to
reach  the  Safety  Connect  response  center.  The  answering  agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If  you  accidentally  press  the  “SOS”  button,  tell  the  response-center
agent that you are not experiencing an emergency.

Safety Connect LED light Indicators

83

1-2. Emergency assistance

1

For safet

y and s

ecurity

■

Enhanced Roadside Assistance

Enhanced  Roadside  Assistance  adds  GPS  data  to  the  already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced  Roadside  Assistance  services  and  their  limitations,
please  see  the  Safety  Connect  Terms  and  Conditions,  which  are
available  at  Toyota.com  in  the  United  States,  Toyotapr.com  in
Puerto Rico and Toyota.ca in Canada.

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August  1996,  the  Federal  Communications  Commission  (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards  previously  set  by  the  following  U.S.  and  international
standards bodies.

●

ANSI (American National Standards Institute) C95.1 [1992]

●

NCRP (National  Council  on  Radiation  Protection  and Measure-
ment) Report 86 [1986]

●

ICNIRP  (International  Commission  on  Non-Ionizing  Radiation
Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers,  and  physicians  from  universities,  and  government  health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

84

1-2. Emergency assistance

■

Certification for Safety Connect

85

1-3. Theft deterrent system

1

For safet

y and s

ecurity

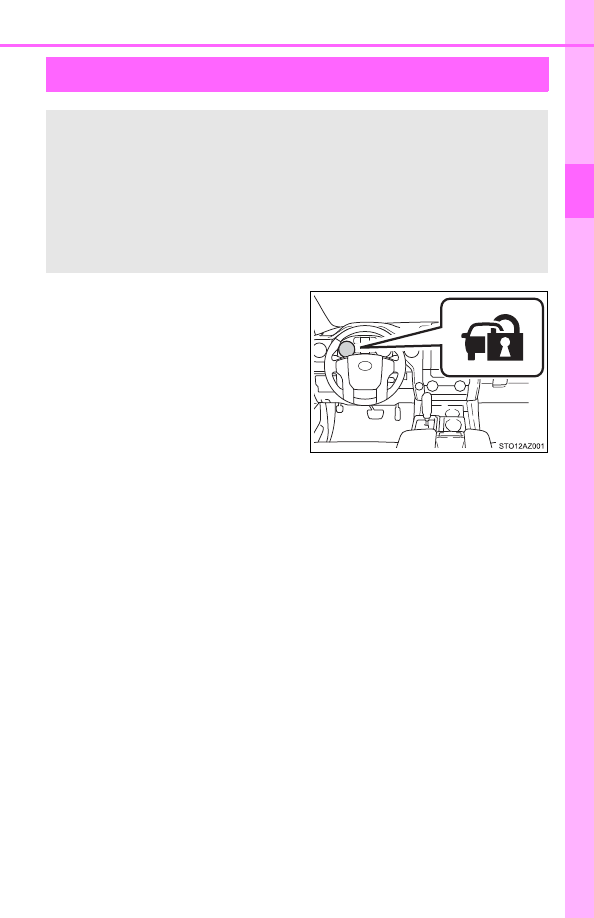

Engine immobilizer system

Vehicles without a smart key sys-
tem:
The  indicator  light  flashes  after
the  key  has  been  removed  from
the  engine  switch  to  indicate  that
the system is operating.
The  indicator  light  stops  flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The  indicator  light  stops  flashing  after  the  engine  switch  has  been
turned to ACC or ON to indicate that the system has been canceled.

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

86

1-3. Theft deterrent system

■

System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

■

Certifications for the engine immobilizer system



For vehicles sold in the U.S.A.

FCC ID: MOZRI-42BTY
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence,  and  (2)  this  device  must  accept  any  interference  received,  including
interference that may cause undesired operation.



For vehicles sold in Canada

This device complied with RSS-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.

87

1-3. Theft deterrent system

1

For safet

y and s

ecurity



For vehicles sold in New Caledonia

88

1-3. Theft deterrent system

89

1-3. Theft deterrent system

1

For safet

y and s

ecurity

90

1-3. Theft deterrent system

91

1-3. Theft deterrent system

1

For safet

y and s

ecurity

92

1-3. Theft deterrent system

93

1-3. Theft deterrent system

1

For safet

y and s

ecurity

94

1-3. Theft deterrent system

WARNING

■

Certifications for the immobilizer system

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

95

1-3. Theft deterrent system

1

For safet

y and s

ecurity

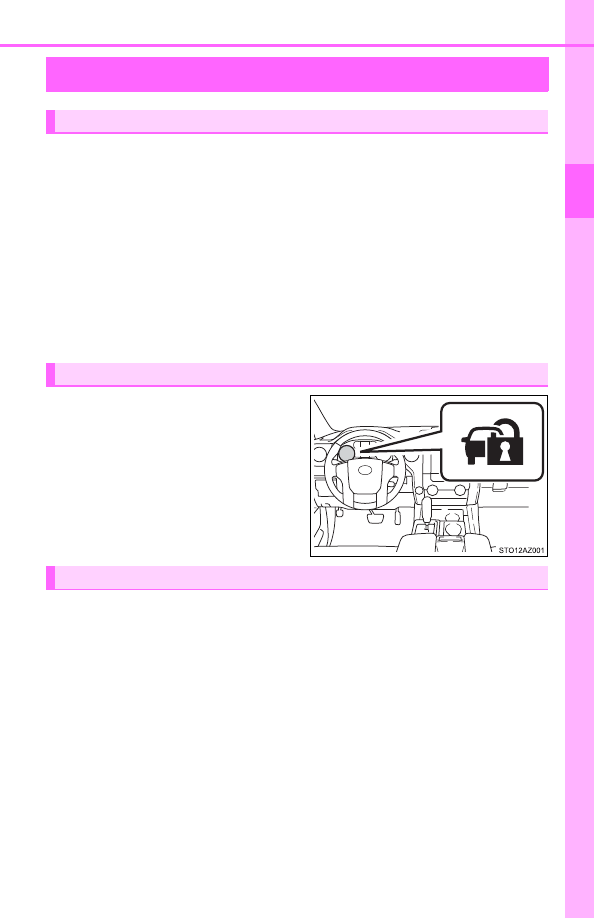

Alarm



The alarm uses light and sound to give an alert when an intrusion is
detected.
The  alarm  is  triggered  in  the  following  situations  when  the  alarm  is
set:

●

A locked door is unlocked or opened in any way other than using a
key or wireless remote control. (The doors will lock again automati-
cally.)

●

The hood is opened.

●

Vehicles  with  the  glass  breakage  sensor:  The  side  windows  are
tapped or broken.

Close  the  doors  and  hood,  and
lock all the doors. The system will
be set automatically after 30 sec-
onds.

The  indicator  light  changes  from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stop the alarms:

●

Unlock the doors.

●

Turn the engine switch to the ACC or ON, or start the engine. (The
alarm will be deactivated or stopped after a few seconds.)



: If equipped

The alarm

Setting the alarm system

Deactivating or stopping the alarm

96

1-3. Theft deterrent system

■

System maintenance

The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

●

Nobody is in the vehicle.

●

The windows and moon roof (if equipped) are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

■

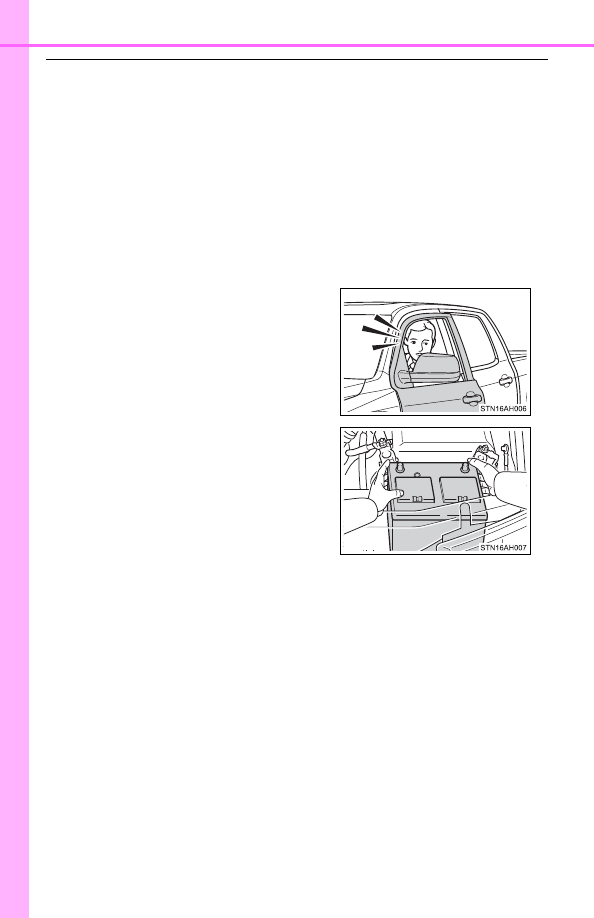

Triggering of the alarm

The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

●

A person inside the vehicle opens a door
or hood.

●

The  battery  is  recharged  or  replaced
when the vehicle is locked.

97

1-3. Theft deterrent system

1

For safet

y and s

ecurity

■

Alarm-operated door lock

In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

When a person remaining in the vehicle locks the door and the alarm is acti-
vated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

●

When recharging or replacing the battery.

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

98

1-3. Theft deterrent system

99

Instrument cluster

2

2.

Instrument cluster

Warning lights and

indicators ........................ 100

Gauges and meters .......... 105
Multi-information display ... 110
Fuel consumption

information ...................... 117

100

2. Instrument cluster

 Warning lights and indicators

The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.

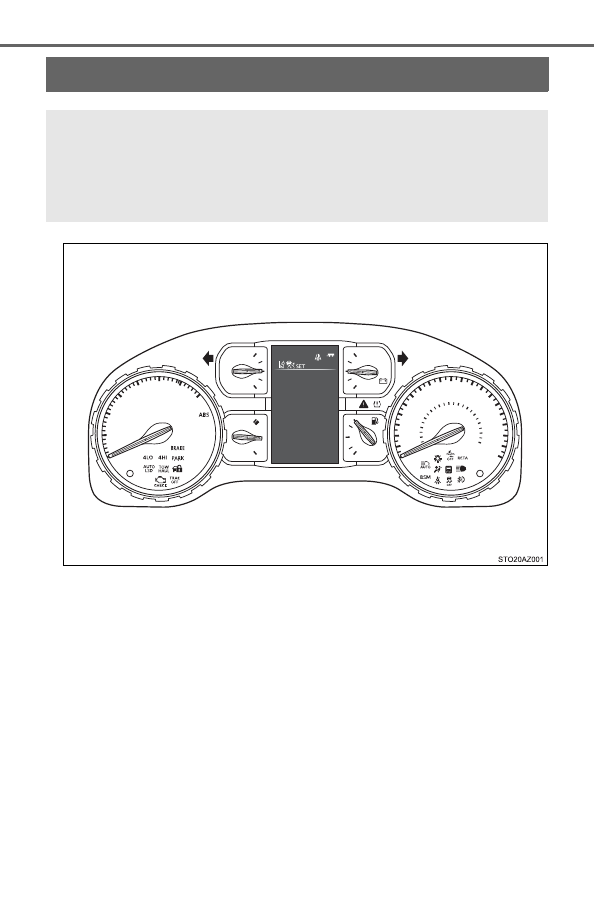

For  the  purpose  of  explanation,  the  following  illustration  dis-
plays all warning lights and indicators illuminated.

101

2. Instrument cluster

2

Instrument cluster

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

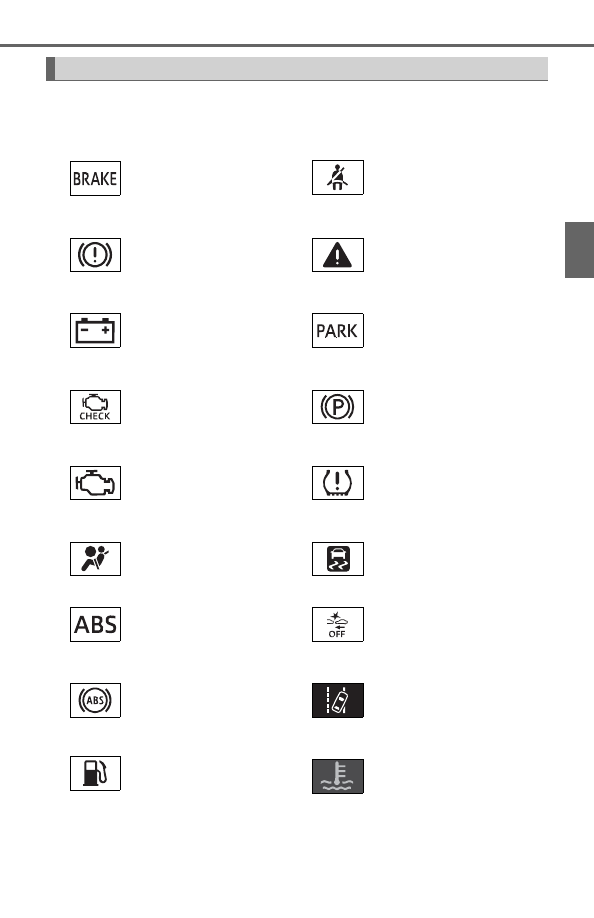

Warning lights

*

1

(U.S.A.)

Brake  system  warning
light (



P. 483)

Seat  belt  reminder  light
(



P. 484)

*

1

(Canada)

Brake  system  warning
light (



P. 483)

*

1

Master  warning  light
(



P. 484)

*

1

Charging  system  warn-
ing light (



P. 483)

*

1, 3

(U.S.A.)

Parking  brake  warning
light (



P. 484)

*

1

(U.S.A.)

Malfunction

indicator

lamp (



P. 483)

*

1, 3

(Canada)

Parking  brake  warning
light (



P. 484)

*

1

(Canada)

Malfunction

indicator

lamp (



P. 483)

*

1

Tire  pressure  warning
light (



P. 485)

*

1

SRS warning light
(



P. 483)

*

1, 2

Slip indicator (



P. 485)

*

1

(U.S.A.)

ABS warning light
(



P. 484)

*

1, 5

PCS warning light
(



P. 486)

*

1

(Canada)

ABS warning light
(



P. 484)

*

2, 4, 5

(Yellow)

LDA indicator (



P. 486)

Low  fuel  level  warning
light (



P. 484)

*

4

High engine coolant tem-
perature warning light
(



P. 492)

102

2. Instrument cluster

*

1

: These lights turn on when the engine switch is turned to ON to indicate that

a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or if the lights do not turn off. Have the vehicle
inspected by your Toyota dealer for details.

*

2

: The light comes on to indicate a malfunction.

*

3

: The light flashes to indicate a malfunction.

*

4

: The light illuminates on the multi-information display.

*

5

: If equipped

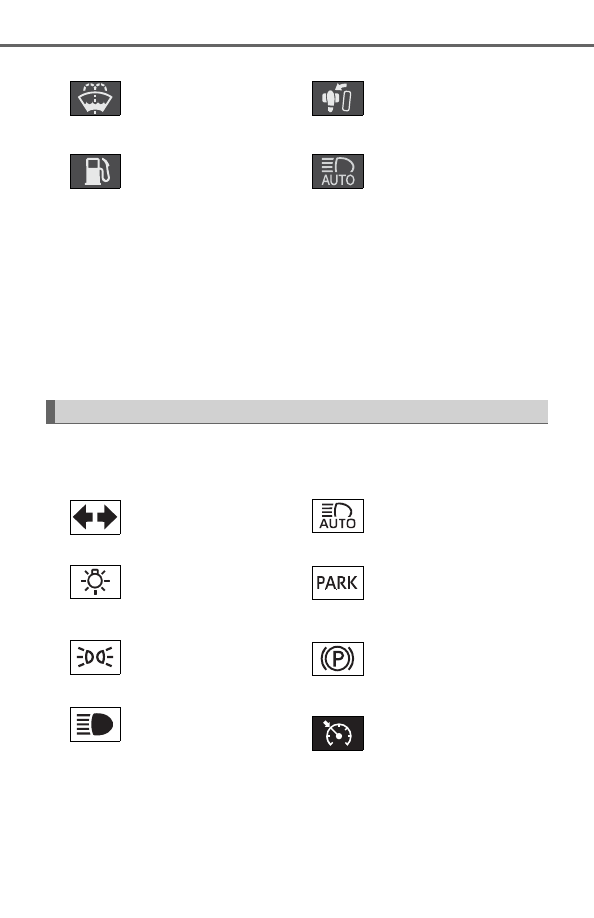

The indicators inform the driver of the operating state of the vehicle’s
various systems.

*

4

Low  windshield  washer
fluid warning light
(



P. 493)

*

4

Brake  Override  System/
Drive-Start Control warn-
ing light (



P. 494, 497)

*

4

Low  fuel  level  warning
light (



P. 493)

*

4, 5

Automatic  High  Beam
indicator (



P. 497)

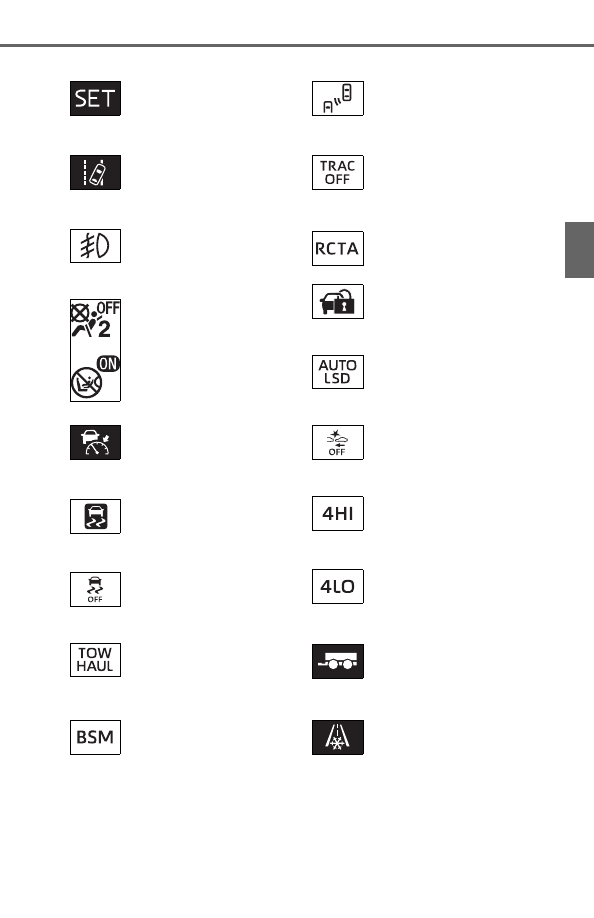

Indicators

Turn signal indicator
(



P. 232)

*

9

Automatic  High  Beam
indicator (



P. 239)

(U.S.A.)

Headlight indicator
(



P. 234)

*

1

(U.S.A.)

Parking  brake  indicator
(



P. 233)

(Canada)

Tail light indicator
(



P. 234)

*

1

(Canada)

Parking  brake  indicator
(



P. 233)

Headlight  high  beam
indicator (



P. 235)

*

6, 9

Cruise control indicator
(



P. 289, 294)

103

2. Instrument cluster

2

Instrument cluster

*

6

Cruise  control  “SET”
indicator (



P. 289, 294)

*

3, 4, 9

BSM  outside  rear  view
mirror indicator
(



P. 305)

*

6, 9

(Green)

LDA indicator (



P. 275)

*

1

“TRAC OFF” indicator
(



P. 321)

Front  fog  light  indicator
(



P. 244)

*

9

“RCTA” indicator
(



P. 305)

*

1, 5

“AIR BAG ON” and
“AIR BAG OFF”
indicators (



P. 53)

Security indicator
(



P. 85, 95)

*

1

“AUTO  LSD”  indicator
(



P. 318, 321)

*

6, 9

Dynamic  radar  cruise
control indicator
(



P. 280)

*

1, 8, 9

PCS warning light
(



P. 263)

*

1, 2

Slip indicator
(



P. 321)

(4WD models)

“4HI” indicator (



P. 315)

*

1

VSC off indicator
(



P. 318, 321)

(4WD models)

“4LO” indicator (



P. 315)

“TOW HAUL” indicator
(



P. 228)

*

6

(Green)

Trailer connection
indicator (



P. 327)

*

9

“BSM” indicator
(



P. 305)

*

6, 7

Low outside temperature
indicator

104

2. Instrument cluster

*

1

: These lights turn on when the engine switch is turned to ON to indicate that

a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or if the lights do not turn off. Have the vehicle
inspected by your Toyota dealer for details.

*

2

: The light flashes to indicate that the system is operating.

*

3

: In order to confirm operation, the BSM outside rear view mirror indicators

illuminate in the following situations:

• When the engine switch is turned to ON, the BSM function is enabled on

the

 screen of the multi-information display.

• When the BSM function is enabled on the

 screen of the multi-infor-

mation display, the engine switch is turned to ON.

If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Toyota dealer.

*

4

: The light illuminates on the outside rear view mirrors.

*

5

: The light illuminates on the center panel.

*

6

: The light illuminates on the multi-information display.

*

7

: When  the  outside  temperature  is  approximately  37°F  (3°C)  or  lower,  the

indicator will flash for 10 times, then comes on.

*

8

: The light comes on when the system is turned off.

*

9

: If equipped

WARNING

■

If a safety system warning light does not come on

Should a  safety  system light  such as  the ABS and  SRS  warning  light  not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

105

2. Instrument cluster

2

Instrument cluster

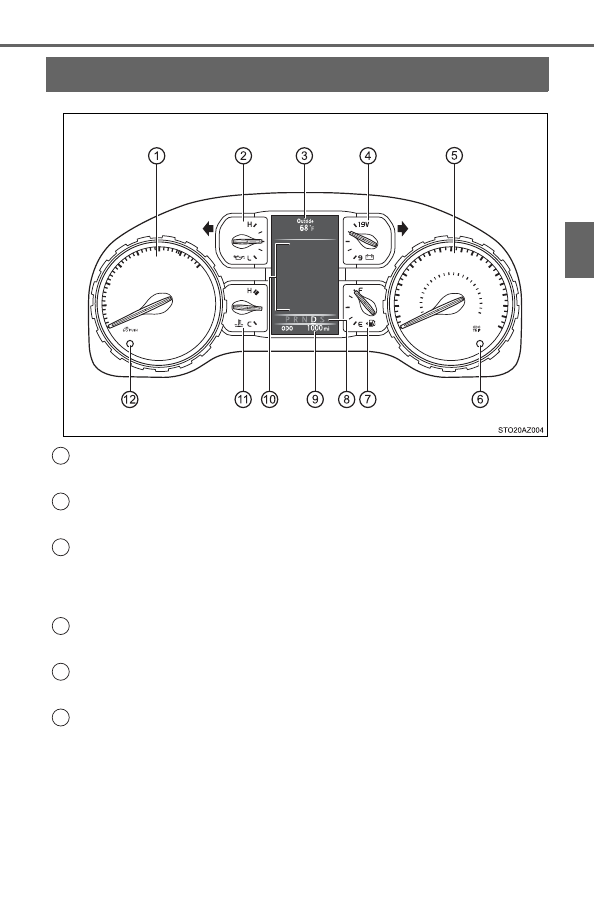

Gauges and meters

Tachometer

Displays the engine speed in revolutions per minute

Engine oil pressure gauge

Displays the engine oil pressure

Outside temperature display

Displays  the  outside  temperature  within  the  range  of  -40°F  (-40°C)  to
122°F  (50°C).  Low  outside  temperature  indicator  comes  on  when  the
ambient temperature is 37°F (3°C) or lower.

Voltmeter

Displays the charge state

Speedometer

Displays the vehicle speed

Odometer/Trip meter switching and trip meter resetting button

Switches between odometer and trip meter displays. Pushing and holding
the button will reset the trip meter when the trip meter is being displayed.

1

2

3

4

5

6

106

2. Instrument cluster

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Shift position and shift range display

Displays the selected shift position or selected shift range. (



P. 225)

Odometer and trip meter display

Displays the following items.
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.

Multi-information display

Presents the driver with a variety of driving-related data. (



P. 111)

Displays warning messages in case of a malfunction. (



P. 491)

Engine coolant temperature gauge

Displays the engine coolant temperature.

Instrument panel light control button

7

8

9

10

11

12

107

2. Instrument cluster

2

Instrument cluster

Pressing  the  button  switches
between odometer and trip meter.

■

Odometer

Displays the total distance the vehicle has been driven.

■

Trip meter A*/trip meter B*

Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

*

: Press and hold the display change button to reset.

The brightness of the instrument panel lights can be adjusted.
Pressing  the  button  will  adjust
brightness of the instrument panel
light.

The  brightness  of  the  instrument
panel  lights  can  be  adjusted  by
pressing the button.
Short  press:  1  step  change  of
brightness level.
Long  press:  continues  change  of
brightness level until released.

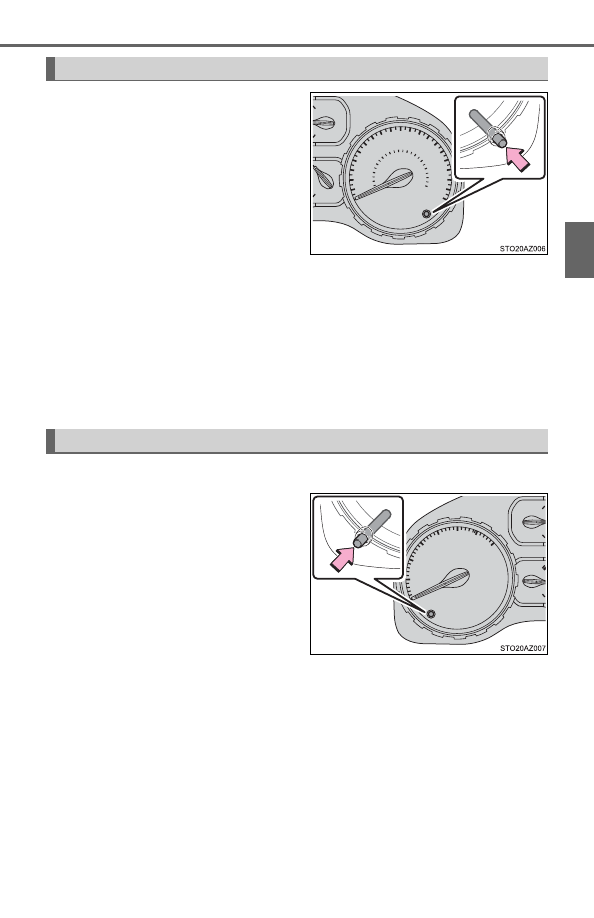

Changing the odometer/trip meter display

Instrument panel light control

108

2. Instrument cluster

■

The multi-information display illuminate when

The engine switch is in ON.

■

The brightness of the instrument panel lights

When  the  tail  lights  are  turned  on,  the  display’s  brightness  will  be  reduced
slightly  unless  the  meter  brightness  level  adjustment  is  set  to  the  brightest
setting.

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/

exit of a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

WARNING

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in personal death or injury.

109

2. Instrument cluster

2

Instrument cluster

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is
in  the  red  zone  (H).  In  this  case,  immediately  stop  the  vehicle  in  a  safe
place, and check the engine after it has cooled completely. (



P. 527)

■

Voltmeter

When the voltmeter indicates 19 V or higher or 9 V or lower while the engine
is running, there may be a battery or charging system malfunction. Have the
vehicle inspected at your Toyota dealer.

■

Engine oil pressure gauge

When the value of the engine oil pressure gauge drops while the engine is
running, stop the vehicle in a safe place immediately and check the amount
of engine oil. (



P. 416)

When  the  oil  pressure  drops  even  though  the  engine  oil  amount  has  not
decreased,  or  if  the  oil  pressure  does  not  increase  when  engine  oil  is
added, contact your Toyota dealer, as there may be a problem with the lubri-
cation system.

110

2. Instrument cluster

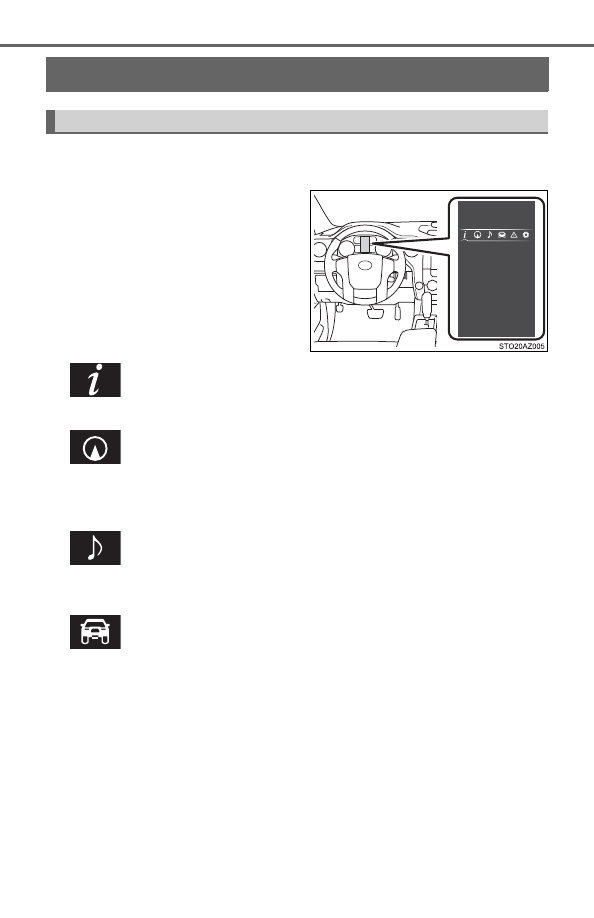

Multi-information display

The multi-information display presents the driver with a variety of vehi-
cle data.

●

Menu icons
Displays  the  following  informa-
tion when an icon is selected.
Some of the information may be
displayed

automatically

depending on the situation.

Drive information

Select to display various drive data. (



P. 111)

Navigation system-linked display

*

Select to display the following navigation system-linked information.

• Route guidance
• Compass display (north-up display/heading-up display)

Audio system-linked display

Select to enable selection of an audio source or track on the meter
using the meter control switches.

Vehicle information

Select to display the operational status of the following systems:

• LDA (Lane Departure Alert)

*

 (



P. 272)

• Dynamic radar cruise control

*

 (



P. 280)

• Tire inflation pressure (



P. 427)

• Trailer brake controller

*

(



P. 327)

Display contents

111

2. Instrument cluster

2

Instrument cluster

Warning message display

Select to display warning messages and measures to be taken if a
malfunction is detected. (



P. 491)

Settings display

Select to change the meter display settings. (



P. 112)

*

: If equipped

■

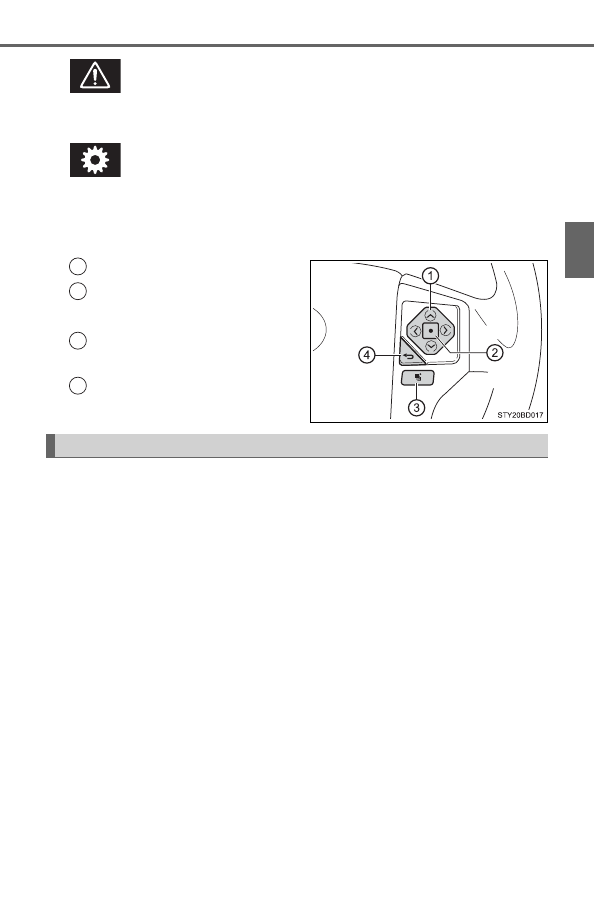

Operating the meter control switches

Select an item/change pages
Press: Enters/Sets
Press and hold: Resets
Switch  menu/Displays  the
top screen
Returns  to  the  previous
screen

●

Total Average

*

/Tank Average/Trip Average

Displays  the  average  fuel  consumption  since  the  function  was
reset, the vehicle was refueled, or the engine was started, respec-
tively

Use the displayed average fuel consumption as a reference.

●

Range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining, the distance driven after the engine
was  started  or  the  distance  since  the  function  was  reset,  respec-
tively.

• This distance is computed based on your average fuel consumption. As

a result, the actual distance that can be driven may differ from that dis-
played.

• When only a small amount of fuel is added to the tank, the display may

not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.

1

2

3

4

Drive information

112

2. Instrument cluster

●

Current
Displays the current rate of fuel consumption

●

Average Speed

*

/Trip Average Speed

Displays the average since engine was started or the average since
the function was reset, respectively

●

Total Time

*

/Trip Time

Displays the engine was started or the elapsed time since the func-
tion was reset, respectively

●

Trip distance
Displays the distance since the engine was started

●

Digital speedometer

●

Display off
A blank screen is displayed

*

: Resetting procedures:

• Select  a  function  to  be  reset  using  the  meter  control  switch  and  then

press and hold the center button to reset.

• If there is more than one function that can be reset, check boxes will be

displayed next to the functions.

The settings of the following items can be changed, refer to P. 562.

For  functions  that  can  be  enabled  or  disabled,  the  function  switches
between on and off each time is

 pressed.

●

LDA (Lane Departure Alert)

*

1

 (→P. 565)

• LDA Sensitivity

Select to set up the LDA (Lane Departure Alert) sensitivity.

• Sway warning

Select to enable/disable the Sway warning function.

• Sway warning sensitivity

Select to set up the sway warning sensitivity.

●

PCS (Pre-Collision System)

*

1

 (→P. 565)

• PCS

Select to enable/disable the PCS (Pre-Collision System) function.

• Sensitivity

Select to set up the PCS (Pre-Collision System) sensitivity.

Settings display

113

2. Instrument cluster

2

Instrument cluster

●

BSM (Blind Spot Monitor)

*

1

 (→P. 565)

Select to enable/disable the Blind Spot Monitor function.

●

RCTA (Rear Cross Traffic Alert)

*

1

 (→P. 565)

Select to enable/disable the Rear Cross Traffic Alert function.

●

Vehicle Settings

• BSM Brightness

*

1

 (



P. 565)

Select to set up the BSM (Blind Spot Monitor) outside rear view mirror
indicators brightness.

• RCTA volume

*

1

 (



P. 565)

Select to set up the RCTA (Rear Cross Traffic Alert) warning buzzer vol-
ume.

• TBC Trailer Type

*

1

 (



P. 566)

Select to set up the trailer brake type.

• Maintenance reset

*

2

 (



P. 407)

Select  to  reset  the  message  after  the  required  maintenance  is  per-
formed.

114

2. Instrument cluster

●

Meter setting

• Language

Select to change the language on the display.

• Units

Select to change the unit of measure for fuel consumption and tempera-
ture.

• Switch settings

You can register 1 screen as the top screen. To register, press and hold

 while the desired screen is displayed.

There are also screens that cannot be setup as the Top Screen.

• Drive information 1 and 2

Select to select up to 2 items that will be displayed on a Drive informa-
tion screen, up to 2 Drive information screens can be set.

• Pop-up display

Select to set the following pop-up displays, which may appear in some
situations, on/off.

• Route  guidance  display  of  the  navigation  system-linked  system  (if

equipped)

• Incoming call display of the hands-free phone system
• Instrument panel brightness adjustment display

• Accent color

Select  to  change  the  accent  colors  on  the  screen,  such  as  the  menu
icon color.

• Default settings

Registered or changed meter settings will be deleted or returned to their
default setting.

*

1

: If equipped

*

2

: For vehicles sold in the U.S.A.

115

2. Instrument cluster

2

Instrument cluster

■

Setting items

●

“Vehicle  Settings”  and  “Meter  Settings”  setting  items  are  not  selectable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the following situations.
• When a warning message appears.
• When the vehicle begins to move.

●

Settings for functions not equipped to the vehicle are not displayed.

●

When a function is turned off, the related settings for that function are not
selectable.

■

Pop-up display

In some situations, such as when a switch operation is performed, a pop-up
display will be temporarily displayed on the multi-information display.

■

When disconnecting and reconnecting battery terminals

The drive information will be reset.

■

Trip summary display

When the engine switch is turned off, each of the following will be displayed
on  the  multi-information  display,  and  will  clear  after  approximately  30  sec-
onds.

●

Distance traveled

●

Average fuel consumption

●

Driving range

■

Tire inflation pressure

●

It  may  take  a  few  minutes  to  display  the  tire  inflation  pressure  after  the
engine switch is turned to ON. It may also take a few minutes to display the
tire inflation pressure after inflation pressure has been adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

116

2. Instrument cluster

WARNING

■

Caution for use while driving

●

When  operating  the  multi-information  display  while  driving,  pay  extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you  may  fail  to  see  pedestrians,  objects  on  the  road,  etc.  ahead  of  the
vehicle.

■

Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may  collect  and  enter  the  vehicle.  This  may  lead  to  death  or  a  serious
health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure that the engine is running while setting
up the display features.

117

2. Instrument cluster

2

Instrument cluster

Fuel consumption information





Audio

Press the “TRUCK” button.



Premium Audio and Audio Plus

Press the “APPS” button, and then select “Eco” on the screen.

■

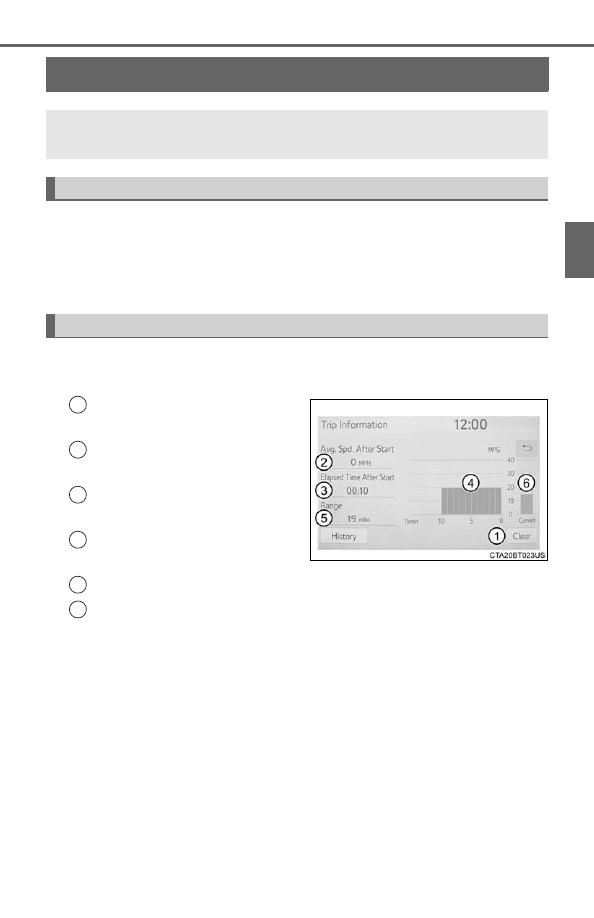

Trip information

If the “Past Record” screen is displayed, select “Trip Information”.

Resetting  the  consumption
data
Average vehicle speed since
the engine was started
Elapsed  time  since  the
engine was started
Fuel consumption in the past
15 minutes
Cruising range (



P. 118)

Current fuel consumption

Average  fuel  consumption  for  the  past  15  minutes  is  divided  by
color  into  past  averages  and  averages  attained  since  the  engine
switch was last turned to ON. Use the displayed average fuel con-
sumption as a reference.

These images are examples only.



: If equipped

The  fuel  consumption  information  can  be  displayed  on Audio,
Premium Audio and Audio Plus screen.

Display the trip information or past record screen

Fuel consumption

1

2

3

4

5

6

118

2. Instrument cluster

■

Past record

If the “Trip Information” screen is displayed, select “Past Record”.

Resetting  the  past  record
data
Best recorded fuel consump-
tion
Average fuel consumption (if
equipped)
Previous  fuel  consumption
record
Update the average fuel consumption data

The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.

These images are examples only.

■

Resetting the data

The fuel consumption data can be deleted by selecting “Clear”.

■

Updating the past record data

Update the average fuel consumption by selecting “Update” to measure the
current fuel consumption again.

■

Cruising range

Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This  distance  is  computed  based  on  your  average  fuel  consumption. As  a
result, the actual distance that can be driven may differ from that displayed.

1

2

3

4

5

119

3

Operation of

each component

3-1. Key information

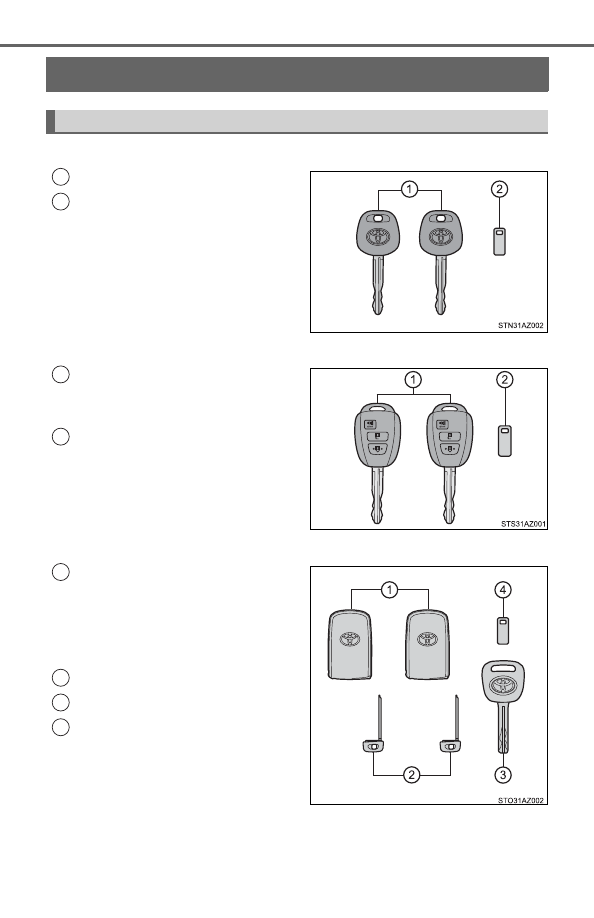

Keys .................................. 120

3-2. Opening, closing and

locking the doors

Side doors ......................... 127
Tailgate ............................. 133
Smart key system.............. 138

3-3. Adjusting the seats

Front seats ........................ 147
Rear seats......................... 150
Driving position memory

(driver’s seat) .................. 152

Head restraints.................. 157

3-4. Adjusting the steering

wheel and mirrors

Steering wheel .................. 161
Inside rear view mirror....... 164
Outside rear view

mirrors............................. 167

3-5. Opening, closing the

windows and moon roof

Power windows ................. 172
Back window ..................... 175
Power back window .......... 176
Moon roof.......................... 179

120

3-1. Key information

Keys



Type A

Keys
Key number plate



Type B

Keys

Operating the wireless remote con-
trol function

Key number plate



Type C

Electronic keys

• Operating the smart key sys-

tem (



P. 138)

• Operating

the

wireless

remote control function

Key number plate
Key
Key number plate

The keys

1

2

1

2

1

2

3

4

121

3-1. Key information

3

Opera

tion of e

ach compon

ent



Type B

Locks all the doors (



P. 127)

Unlocks all the doors (



P. 127)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Sounds  the  alarm  (press  and
hold) (



P. 122)



Type C

Locks all the doors (



P. 127)

Unlocks all the doors (



P. 127)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Sounds  the  alarm  (press  and
hold) (



P. 122)

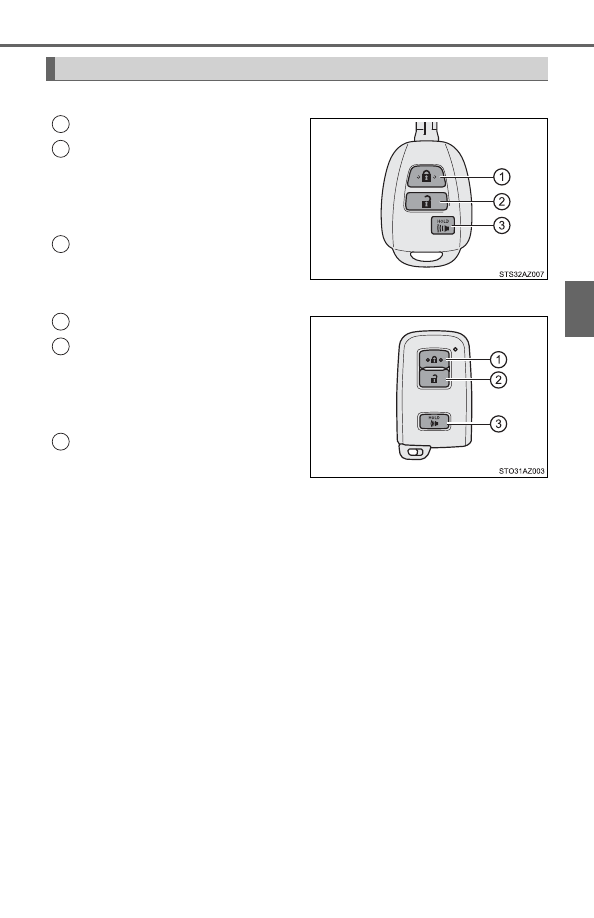

Wireless remote control (type B or type C)

1

2

3

1

2

3

122

3-1. Key information

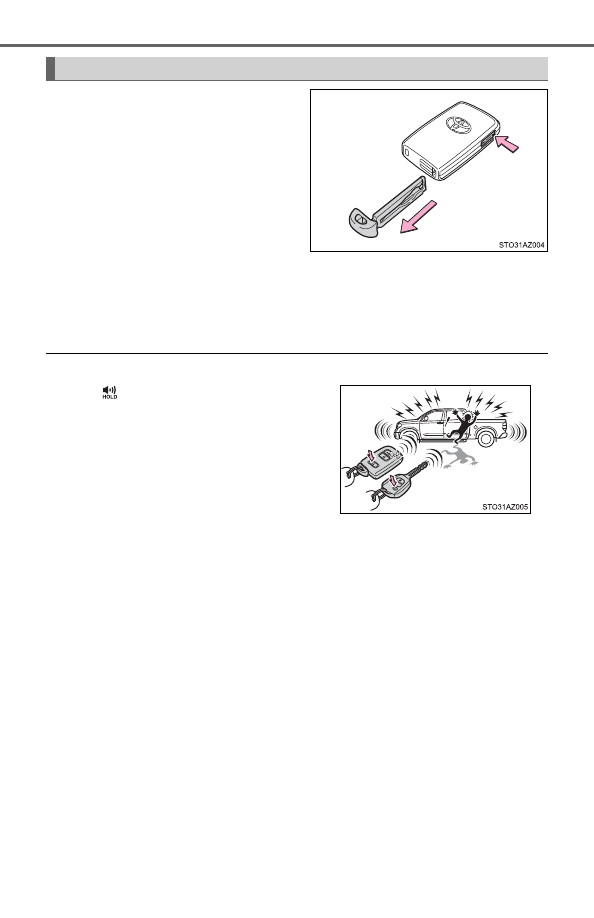

To  take  out  the  mechanical  key,
push the release button and take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock cylinder, turn it over and reat-
tempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key
battery is depleted or the entry function does not operate properly, you
will need the mechanical key. (



P. 521)

■

Panic mode (type B or type C)

■

When required to leave the vehicle’s key with a parking attendant (type
C)

Lock the glove box as circumstances demand. (



P. 362)

Remove the mechanical key for your own use and provide the attendant with
the electronic key only.

Using the mechanical key (type C)

When

 is pressed for longer than about

1  second,  an  alarm  will  sound  intermit-
tently  and  the  vehicle  lights  will  flash  to
deter any person from trying to break into
or damage your vehicle.
To stop the alarm, press any button on the
key  (with  a  wireless  remote  control  func-
tion) or electronic key.

123

3-1. Key information

3

Opera

tion of e

ach compon

ent

■

If you lose your keys



Type A and B

New genuine key can be made by your Toyota dealer using the other key and
the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.



Type C

New genuine key can be made by your Toyota dealer.
The following are necessary when making new keys.
Mechanical key:
The key number for the mechanical key stamped on the number plate and the
other key.
Key:
The key number for key stamped on the key number plate.
Keep the plates in a safe place such as your wallet, not in the vehicle.
There  are  key  number  plates  for  the  mechanical  key  and  key  respectively.
When storing them, keep them in a safe place in a manner to distinguish one
from the other (such as markings, etc.).

■

When riding in an aircraft (type B or type C)

When bringing an wireless remote control function onto an aircraft, make sure
you do not press any button on the key while inside the aircraft cabin. If you
are carrying the key in your bag, etc., ensure that the buttons are not likely to
be pressed accidentally. Pressing a button may cause the key to emit radio
waves that could interfere with the operation of the aircraft.

■

Conditions affecting operation (type B or type C)



Type B

The wireless remote control function may not operate normally in the following
situations.

●

Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves

●

When carrying a portable radio, cellular phone or other wireless communi-
cation device

●

When multiple wireless keys are in the vicinity

●

When the wireless key has come into contact with, or is covered by a metal-
lic object

●

When a wireless key (that emits radio waves) is being used nearby

●

When the wireless key has been left near an electrical appliance such as a
personal computer



Type C



P. 142

124

3-1. Key information

■

Key battery depletion (type B or type C)



Type B

If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (



P. 449)



Type C

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (



P. 501)

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate  that  the  electronic  key  battery  may  be  depleted.  Replace  the  battery
when necessary. (



P. 449)

• The smart key system or the wireless remote control does not oper-

ate.

• The detection area becomes smaller.

• The LED indicator on the key surface does not turn on.

●

To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic field:
• TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

• Table lamps

• Induction cookers

■

Replacing the battery (type B or type C)



P. 449

■

Confirmation of the registered key number

The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.

■

Customization (type B or type C)

Settings (e.g. wireless remote control system) can be changed.
(Customizable features:



P. 562)

125

3-1. Key information

3

Opera

tion of e

ach compon

ent

■

Certification for wireless remote control (type B)



For vehicles sold in the U.S.A.

FCC ID: GQ4-52T
FCC ID: GQ4-49R
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence,  and  (2)  this  device  must  accept  any  interference  received,  including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
<For 52T>
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.



For vehicles sold in Canada

NOTE:
This device  complies with Industry Canada’s  license-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference;  and  (2)  This  device  must  accept  any  interference,  including
interference that may cause undesired operation of the device.
<For 52T>
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.
NOTE:
Le  présent  appareil  est  conforme  aux  CNR  d’Industrie  Canada  applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:(1) l’appareil ne doit pas produire de brouillage; (2) l’util-
isateur de l’appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en compromettre le fonctionnement.
<Pour 52T>
L’identification  FCC/Ie  numéro  d’accréditation  IC  est  apposé(e)  à  l’intérieur
de l’appareil.

■

Certification for wireless remote control (type C)



P. 145

126

3-1. Key information

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer, etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the key.

●

Do not place the keys near objects that produce magnetic fields, such as
TVs,  audio  systems  and  induction  cookers,  or  medical  electrical  equip-
ment, such as low-frequency therapy equipment.

■

Carrying the electronic key on your person (type C)

Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances  that  are  turned  on.  Radio  waves  emitted  from  electric  appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart key system malfunction or other key-related prob-
lems (type C)

Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.

■

When an electronic key is lost (type C)

If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly.  Visit  your  Toyota  dealer  immediately  with  all  remaining  electronic
keys that was provided with your vehicle.

127

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

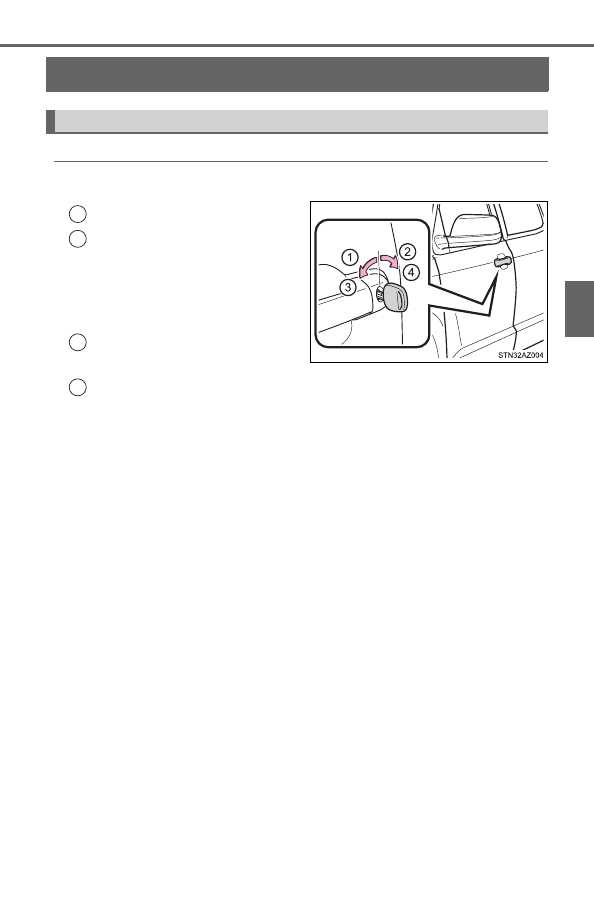

Side doors

◆

Key



Vehicles without a smart key system

Locks all the doors
Unlocks all the doors

Turning  the  key  unlocks  the
driver’s  door.  Turning  the  key
again unlocks the other doors.

Vehicles with moon roof:

Closes  the  moon  roof  (turn
and hold)
Opens the moon roof (turn and hold)



Vehicles with a smart key system
The  doors  can  also  be  locked  and  unlocked  with  the  mechanical
key. (



P. 521)

Unlocking and locking the doors from the outside

1

2

3

4

128

3-2. Opening, closing and locking the doors

◆

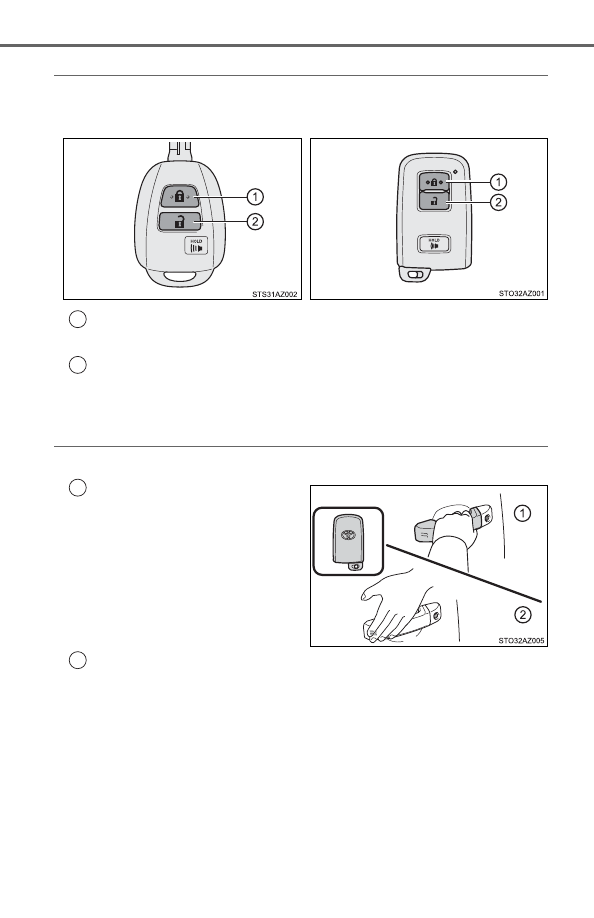

Wireless remote control (if equipped)

Locks all the doors

Check that the door is securely locked.

Unlocks all the doors

Pressing the button unlocks the driver’s door. Pressing the button again
within 3 seconds unlocks the other doors.

◆

Smart key system (if equipped)

Carry the electronic key to enable this function.

Grip the driver’s door handle
to  unlock  the  door.  Grip  the
passenger’s  door  handle  to
unlock all the doors.

Make  sure  to  touch  the  sensor
on the back of the handle.
The  doors  cannot  be  unlocked
for 3 seconds after the doors are
locked.

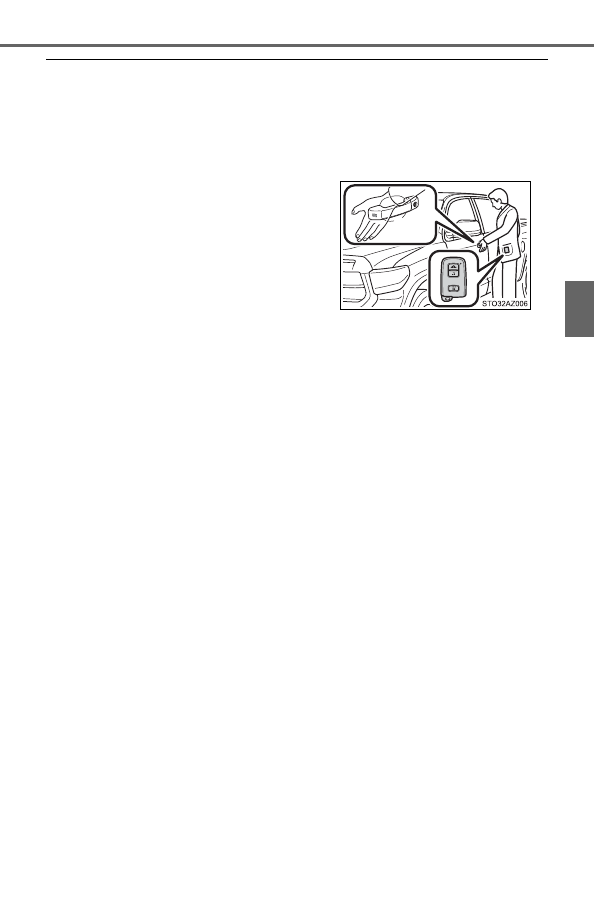

Touch  the  lock  sensor  (the  indentation  on  the  side  of  the  door
handle) to lock the doors.

Check that the door is securely locked.



Vehicles  without  a  smart  key
system



Vehicles with a smart key sys-
tem

1

2

1

2

129

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

Operation signals (vehicles with a wireless remote control or smart key
system)

A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)

■

When the door cannot be locked by the lock sensor on the surface of the
door handle (vehicles with a smart key system)

■

Door lock buzzer (vehicles with a wireless remote control or smart key
system)

If  an  attempt  to  lock  the  doors  is  made  when  a  door  is  not  fully  closed,  a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.

■

Security  feature  (vehicles  with  a  wireless  remote  control  or  smart  key
system)

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

■

Alarm (if equipped)

Using the wireless remote control to lock the doors will set the alarm system.
(



P. 95)

■

If the smart key system or the wireless remote control does not operate
properly (if equipped)

Use the mechanical key to lock and unlock the doors. (



P. 521)

Replace the battery with a new one if it is depleted. (



P. 449)

When  the  door  cannot  be  locked  even  if
the lock sensor on the surface of the door
handle  is  touched  by  a  finger,  touch  the
lock sensor with the palm.
When gloves are being worn, remove the
gloves.

130

3-2. Opening, closing and locking the doors

■

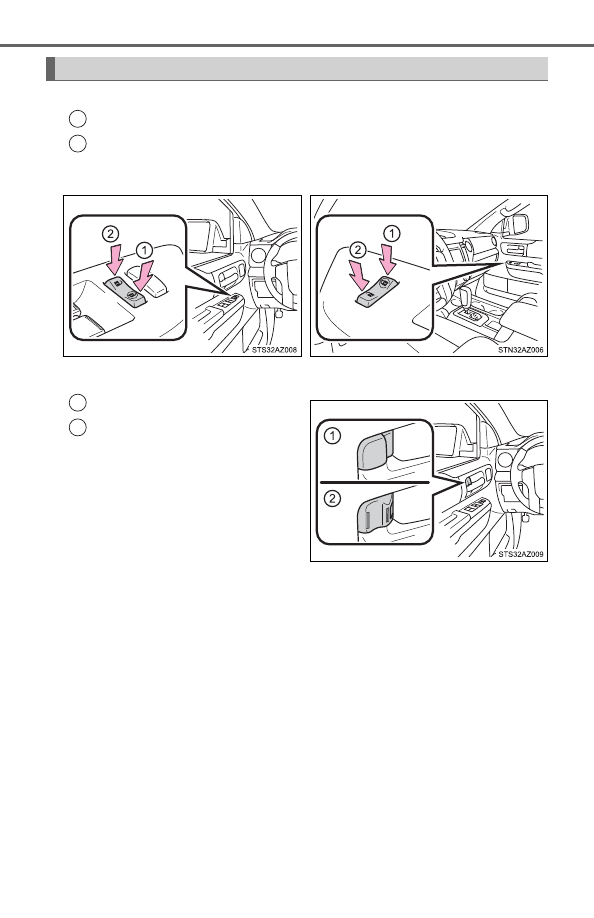

Door lock switch

Locks all the doors
Unlocks all the doors

■

Inside lock buttons

Locks the door
Unlocks the door

The  front  doors  can  be  opened
by  pulling  the  inside  handle
even  if  the  lock  buttons  are  in
the lock position.

Unlocking and locking the doors from the inside

1

2



Driver’s door lock switch



Passenger’s door lock switch

1

2

131

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent



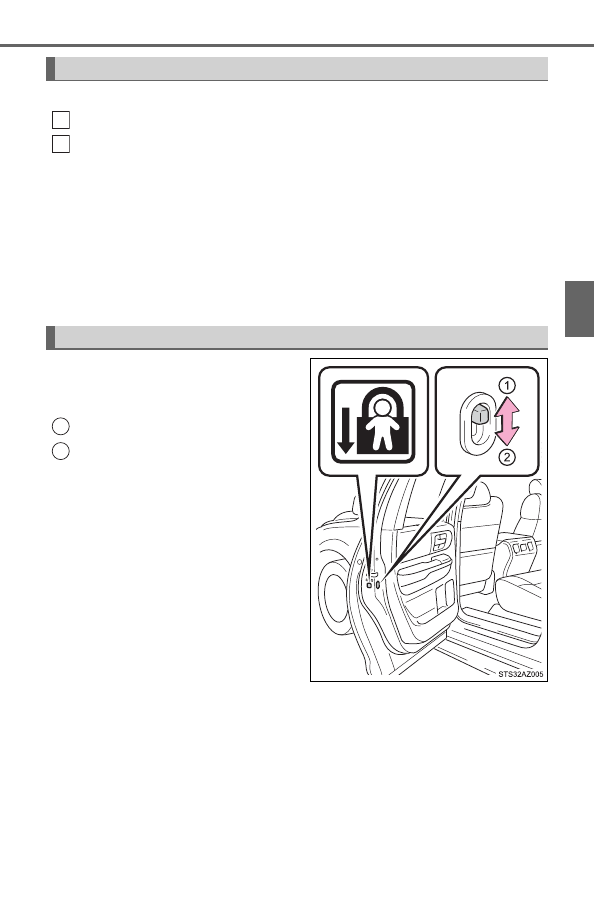

Vehicles without a smart key system
Move the inside lock button to the lock position.
Close the door.

Vehicles with power door lock system:
The door cannot be locked if either of the front doors is open and the
key is in the engine switch.



Vehicles with a smart key system

The door cannot be locked if the engine switch is in ACC or ON, or the
electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

The door cannot be opened from
inside the vehicle when the lock is
set.

Unlock
Lock

These locks can be set to prevent
children  from  opening  the  rear
doors.  Push  down  on  each  rear
door switch to lock both rear doors.

Locking the front doors from the outside without a key

Rear door child-protector lock

1

2

1

2

132

3-2. Opening, closing and locking the doors

The following functions can be set or canceled:

■

Customization that can be configured at Toyota dealer

Settings (e.g. unlocking function using a key) can be changed.
(Customizable features:



P. 562)

Automatic door locking and unlocking systems

Function

Operation

Shift  position  linked  door  locking
function

Shifting the shift lever out of P locks
all the doors.

Shift  position  linked  door  unlocking
function

Shifting  the  shift  lever  to  P  unlocks
all the doors.

Speed linked door locking function

All  the  doors  are  locked  when  the
vehicle speed is approximately 12 mph
(20 km/h) or higher.

Driver’s  door  linked  door  unlocking
function

All  the  doors  are  unlocked  when  the
driver’s door is opened within 10 sec-
onds after turning the engine switch to
OFF.

WARNING

■

To prevent an accident

Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.

●

Ensure that all doors are properly closed and locked.

●

Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.

●

Double Cab and CrewMax models: Set the rear door child-protector locks
when children are seated in the rear seats.

133

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

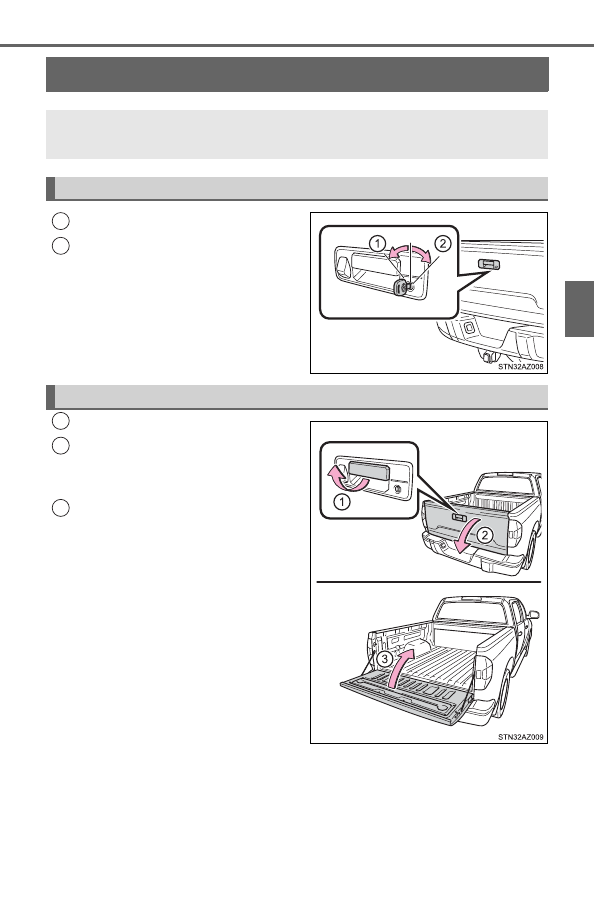

Tailgate

Unlock the tailgate
Lock the tailgate

Pull the handle
Open the tailgate slowly

The  support  cables  will  hold  the
tailgate horizontal.

Lift and close the tailgate

After closing the tailgate, try pulling
it  toward  you  to  make  sure  it  is
securely locked.

The  tailgate  can  be  opened  using  the  tailgate  handle.  The  tail-
gate can be locked/unlocked using a key.

Locking/unlocking the tailgate

1

2

Opening/closing the tailgate

1

2

3

134

3-2. Opening, closing and locking the doors

■

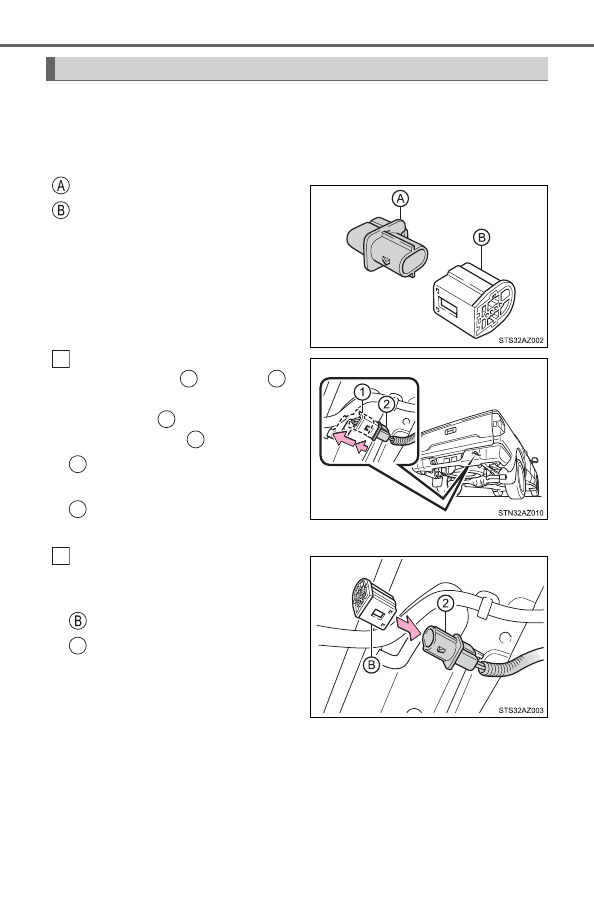

Before removing the tailgate

These  connector  covers  are  used  when  removing  the  tailgate,  to
prevent  the  back-up  camera  wire  harness  connectors  from  being
contaminated.
Connector cover (Gray)
Connector cover (White)

Store  the  connector  covers  in  the
glove box in a plastic bag when not
using.

To disconnect the wire harness
connectors  (

  and

),

depress  small  plastic  tab  on
connector

  and  pull  apart

from connector

.

Tailgate  wire  harness  con-
nector (White)
Frame wire harness connec-
tor (Gray)

Attach  the  connector  cover
(White)  to  the  frame  wire  har-
ness connector (Gray).

Connector cover (White)
Frame wire harness connec-
tor (Gray)

Removing the tailgate

1

1

2

1

2

1

2

2

2

135

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

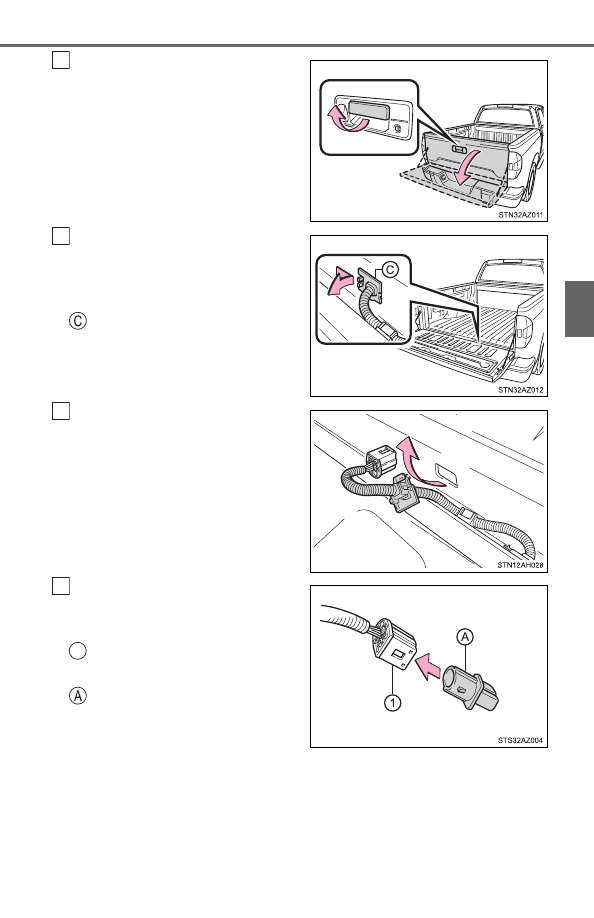

Open the tailgate.

Pull out the plastic wire protec-
tor located in the vehicle bed by
pressing  the  tabs  and  pulling
the protector.

Plastic wire protector

Pull  out  the  wire  harness  from
the vehicle bed.

Attach  the  connector  cover
(Gray)  to  the  tailgate  wire  har-
ness connector (White).

Tailgate  wire  harness  con-
nector (White)
Connector cover (Gray)

3

4

5

6

1

136

3-2. Opening, closing and locking the doors

■

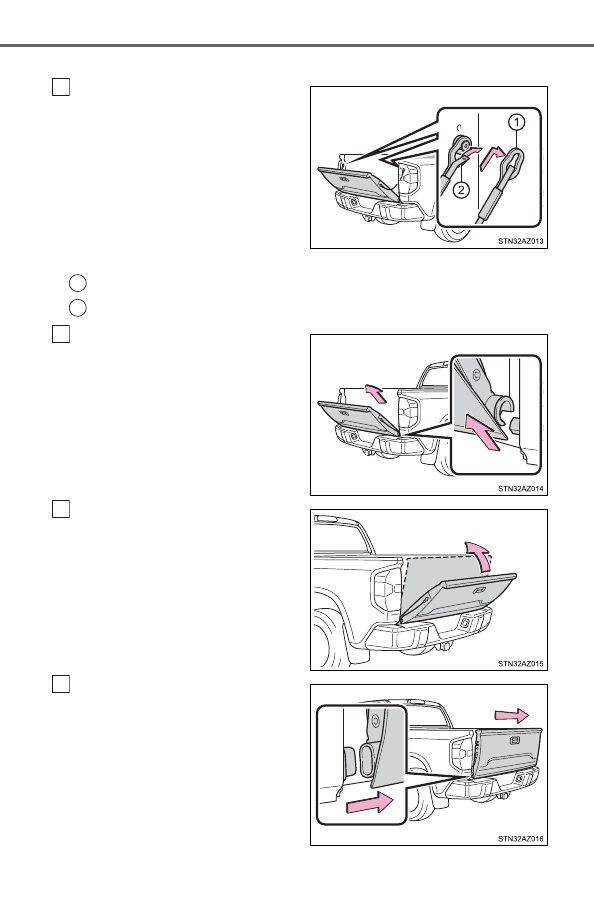

Removing the tailgate

Open  the  tailgate  to  the  angle
where  you  can  release  the
brackets on the support cables
from the lugs on both sides.
Lift  the  support  cable  bracket
up and slide it off.

To  unhook  the  support  cable
bracket, keep pulling up the clip on
the  bracket  and  unhook  the
bracket.

Support cable bracket
Clip

Tilt  the  tailgate  to  about  45°
from  vertical  and  pull  up  the
right  side  of  the  tailgate  to
unhook the right side.

Tilt the tailgate up to 15°.

Slide  the  tailgate  a  little  to  the
right to unhook the left side.

To  attach  the  tailgate,  follow  the
removal  procedure  in  reverse
order.

1

1

2

2

3

4

137

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

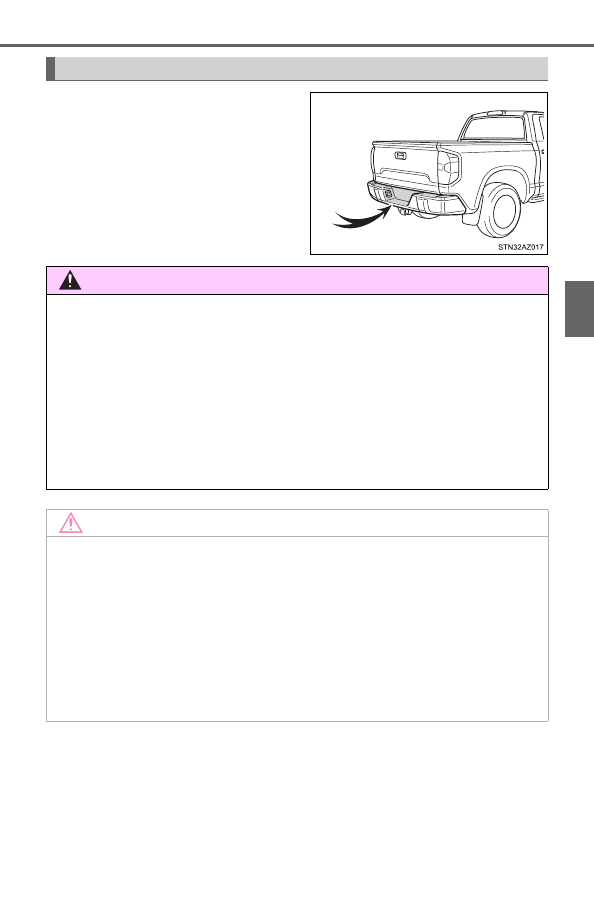

For rear end protection and easier
step-up loading.

To  get  on  the  rear  step  bumper,
use the shaded area in the illustra-
tion.

Rear step bumper

WARNING

■

Before removing the tailgate

Disconnect the wire harness between the back-up camera and the vehicle.
Failure to do so may result in serious personal injury or damage to the vehi-
cle components.

■

Caution while driving

Observe the following precautions.
Failure to do so may result in death or serious personal injury.

●

Do not drive with the tailgate open.

●

Do not allow others to get on the rear step bumper.

NOTICE

■

To prevent damage to the tailgate wire harness

Do not pull out all of the tailgate wire harness before opening the tailgate.

■

To prevent damage to the camera lens

Store the removed tailgate with the back-up camera lens facing upward.

■

After closing the tailgate

Try pulling it toward you to make sure it is securely locked.

■

To prevent damage to the rear step bumper

Do not allow more than one person to get on the rear step bumper at a time.

138

3-2. Opening, closing and locking the doors

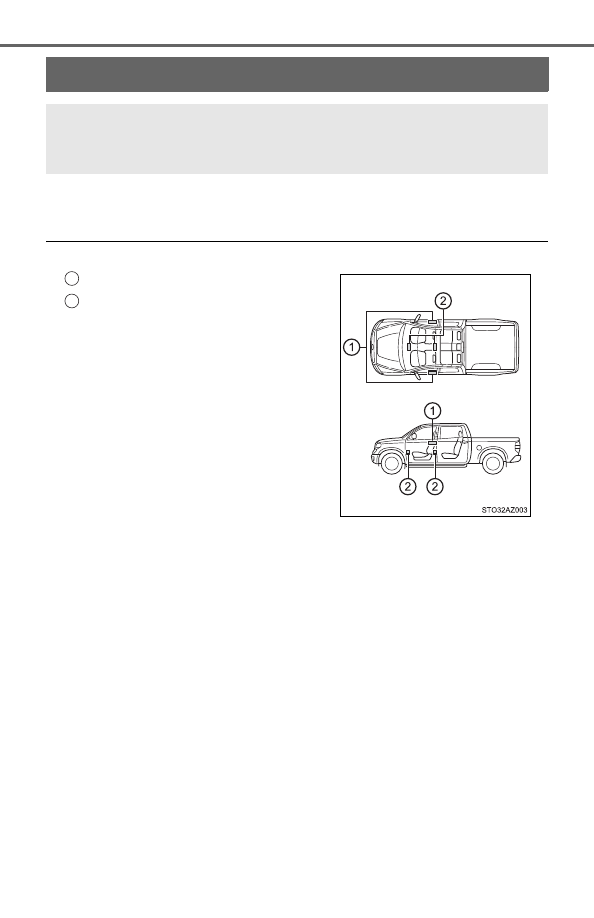

Smart key system



●

Locks and unlocks the doors (



P. 128)

●

Starts the engine (



P. 219)

■

Antenna location



: If equipped

The  following  operations  can  be  performed  simply  by  carrying
the electronic key on your person, for example in your pocket.
The driver should always carry the electronic key.

Antennas outside the cabin
Antennas inside the cabin

1

2

139

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

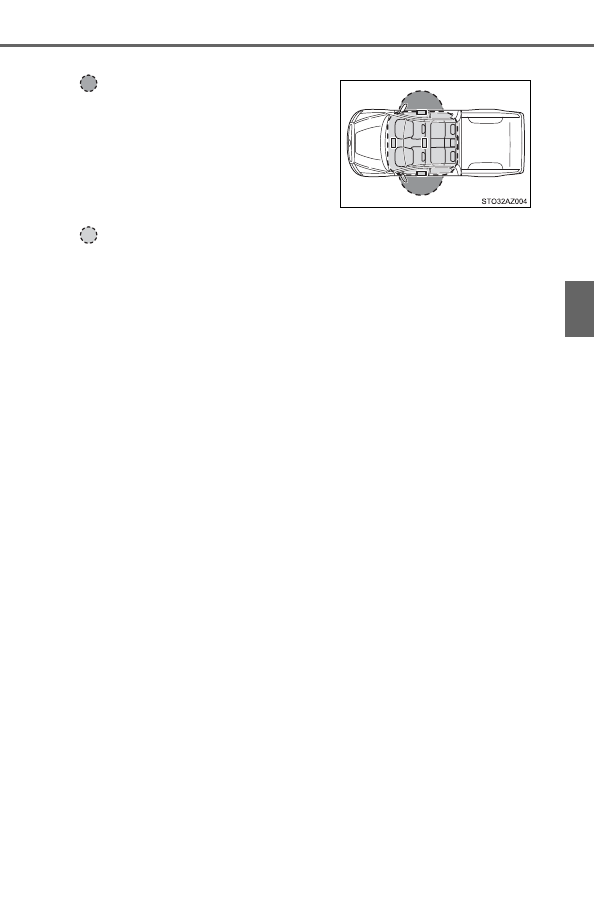

Effective range (areas within which the electronic key is detected)

■

Alarms and warning indicators

A combination of  exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehicle
and  accidents  resulting  from  erroneous  operation.  Take  appropriate  mea-
sures in response to any warning message on the multi-information display.
(



P. 491)

The following table describes circumstances and correction procedures when
only alarms are sounded.

When locking or unlocking the
doors

The  system  can  be  operated
when  the  electronic  key  is  within
about 2.3 ft. (0.7 m) of the driver’s
door  handle.  (Only  the  door
detecting  the  key  can  be  oper-
ated.)

When starting the engine or changing engine switch modes

The system can be operated when the electronic key is inside the
vehicle.

140

3-2. Opening, closing and locking the doors

Alarm

Situation

Correction procedure

Exterior  alarm  sounds
once for 5 seconds

An  attempt  was  made
to lock the vehicle while
a door was open.

Close  all  of  the  doors
and  lock  the  doors
again.

An  attempt  was  made
to  lock  the doors  using
the  smart  key  system
while the electronic key
was still inside the vehi-
cle.

Retrieve  the  electronic
key  from  the  vehicle
and  lock  the  doors
again.

An  attempt  was  made
to lock either front door
by  opening  a  door  and
putting  the  inside  lock
button  into  the  lock
position,  then  closing
the  door  by  pulling  on
the outside door handle
with  the  electronic  key
still inside the vehicle.

Interior  alarm  sounds
continuously

An  attempt  was  made
to  open  the  door  and
exit  the  vehicle  when
the  shift  lever  was  not
in P.

Shift the shift lever to P.

The engine  switch was
turned to ACC while the
driver’s  door  was  open
(or  the  driver’s  door
was  opened  while  the
engine  switch  was  in
ACC).

Turn  the  engine  switch
off  and  close  the
driver’s door.

141

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

■

Battery-saving function

The battery-saving function will be activated in order to prevent the electronic
key battery and the battery from being discharged while the vehicle is not in
operation for a long time.

●

In  the  following  situations,  the  smart  key  system  may  take  some  time  to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of

the outside of the vehicle for 10 minutes or longer.

• The smart key system has not been used for 5 days or longer.

●

If the smart key system has not been used for 14 days or longer, the doors
cannot be unlocked at any door except the driver’s door. In this case, take
hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.

The system will resume operation when

●

The vehicle is locked using the door handle lock switch when carrying the
electronic key on your person.

●

The vehicle is locked/unlocked using the wireless remote control. (



P. 128)

●

The vehicle is locked/unlocked using the mechanical key. (



P. 521)

■

Electronic Key Battery-Saving Function

When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.

Press

  twice  while  pressing  and

holding

. Confirm that the electronic

key indicator flashes 4 times.
While the battery-saving mode is set, the
smart  key  system  cannot  be  used.  To
cancel the function, press any of the elec-
tronic key buttons.

142

3-2. Opening, closing and locking the doors

■

Conditions affecting operation

The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system, wireless remote control and engine immobi-
lizer system from operating properly. (Ways of coping:



P. 521)

●

When the electronic key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When  carrying  a  portable  radio,  cellular  phone,  cordless  phone  or  other
wireless communication device

●

When  the  electronic  key  is  in  contact  with,  or  is  covered  by  the  following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When multiple electronic keys are in the vicinity

●

When other wireless keys (that emit radio waves) are being used nearby

●

When  carrying  the  electronic  key  together  with  the  following  devices  that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems

●

If window tint with a metallic content or metallic objects are attached to the
back window

●

When  the  electronic  key  is  placed  near  a  battery  charger  or  electronic
devices

■

Note for the entry function

●

Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near

the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is on the instrument panel or floor, or in the console

box or glove box when the engine is started or engine switch modes are
changed.

143

3-2. Opening, closing and locking the doors

3

Opera

tion of e

ach compon

ent

●

Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.

●

As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.

●

Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.

●

The  doors may unlock or lock  if a  large  amount  of water  splashes on  the
door handle, such as in the rain or in a car wash, when the electronic key is
within  the  effective  range.  (The  doors  will  automatically  be  locked  after
approximately 60 seconds if the doors are not opened and closed.)

●

If the wireless remote control is used to lock the doors when the electronic
key  is  near  the  vehicle,  there  is  a  possibility  that  the  door  may  not  be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)

●

Touching the door lock or unlock sensor while wearing gloves may prevent
lock  or  unlock  operation.  Remove  the  gloves  and  touch  the  lock  sensor
again.

●

When the lock operation is performed using the lock sensor, recognition sig-
nals  will  be  shown  up  to  two  consecutive  times. After  this,  no  recognition
signals will be given.

●

If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the

vehicle. (Take care to ensure that the key is not stolen.)

• Set  the  electronic  key  to  battery-saving  mode  to  disable  the  smart  key

system. (



P. 141)

●

If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.

●

The  lock  sensor  may  not  work  properly  if  it  comes  into  contact  with  ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again, or
use the lock sensor on the lower part of the door handle.
