Toyota Tundra (2020 year). Manual in english - part 1

16

Pictorial index

Pictorial index

■

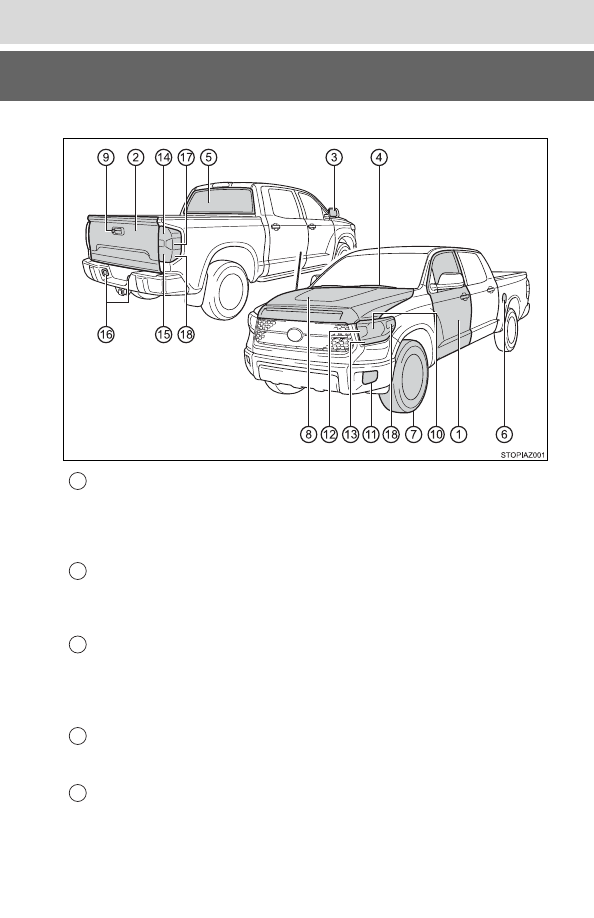

Exterior

Side doors  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127

Locking/unlocking  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 127
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 172
Locking/unlocking by using the mechanical key

*

1

. . . . . . . . . . P. 521

Warning messages  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 492

Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133

Locking/unlocking  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133
Opening/closing the tailgate  . . . . . . . . . . . . . . . . . . . . . . . . . . P. 133
Removing the tailgate  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 134

Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167

Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Driving position memory

*

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152

Defogging the mirrors

*

3

. . . . . . . . . . . . . . . . . . . . . . . . . . P. 342, 349

Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245

Precautions against winter season  . . . . . . . . . . . . . . . . . . . . . P. 331
To prevent freezing (windshield wiper de-icer)

*

3

. . . . . . . P. 343, 350

Back window  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 175, 176

1

2

3

4

5

17

Pictorial index

Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248

Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 540

Tires  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 426

Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 331
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 426
Coping with flat tires  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504

Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414

Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 527

Camera

*

4

Headlights  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234

Fog lights

*

3

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244

Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232

Parking lights/daytime running lights . . . . . . . . . . . . . . . . . P. 234

Rear turn signal lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232

Tail lights  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234

License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234

Back-up lights

Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225

Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234

6

7

8

9

Light bulbs of the exterior lights for driving

(Replacing method: P. 455, Watts: P. 548)

*

1

: Vehicles with a smart key system

*

2

: If equipped on CrewMax models

*

3

: If equipped

*

4

: Refer to the “NAVIGATION AND MULTIMEDIA

SYSTEM OWNER’S MANUAL”.

10

11

12

13

14

15

16

17

18

18

Pictorial index

■

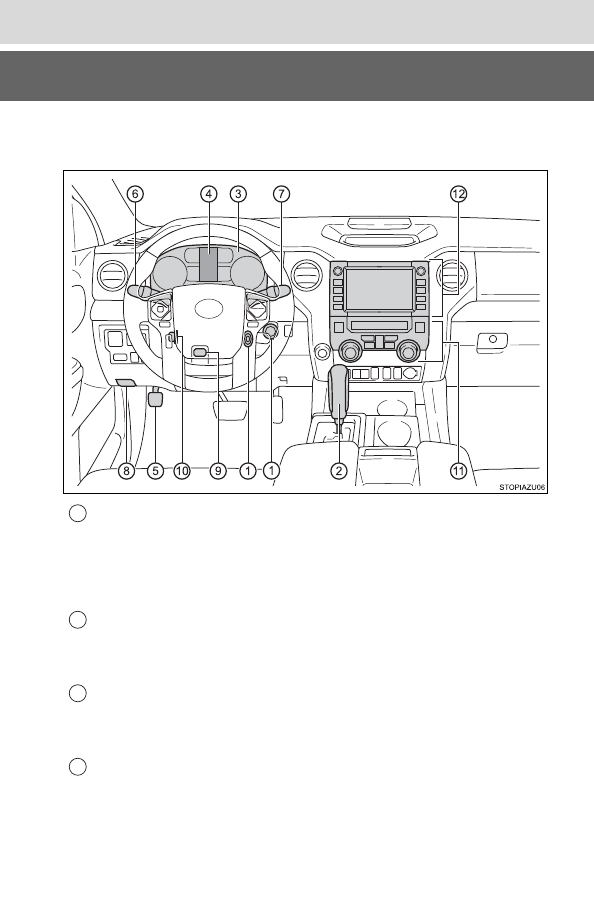

Instrument panel



Front separated type seats

Engine switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217

Starting the engine/changing the positions

*

1

 . . . . . . . . . . . . . P. 217

Starting the engine/changing the modes

*

2

 . . . . . . . . . . . . . . . P. 220

Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 519
Warning message

*

2

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500

Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225

Changing the shift position  . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 476
When the shift lever does not move  . . . . . . . . . . . . . . . . . . . . P. 229

Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 105

Reading the meters/adjusting the instrument panel light. . . . . P. 105
Warning lights/indicator lights  . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 483

Multi-information display  . . . . . . . . . . . . . . . . . . . . . . . . . . .  P. 110

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  P. 110
When the warning messages are displayed  . . . . . . . . . . . . . . P. 491

1

2

3

4

19

Pictorial index

Parking brake pedal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233

Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Precautions against winter season  . . . . . . . . . . . . . . . . . . . . . P. 332
Warning buzzer/message  . . . . . . . . . . . . . . . . . . . . . . . . P. 484, 493

Turn signal lever  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232

Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
Headlights/parking lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
Fog lights

*

3

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244

Windshield wiper and washer switch  . . . . . . . . . . . . . . . . . P. 245

Usage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Warning messages  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 493

Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414

Tilt and telescopic steering lock release lever

*

4

 . . . . . . . . P. 161

Tilt and telescopic steering control switch

*

5

 . . . . . . . . . . . P. 162

Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162
Driving position memory  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152

Manual air conditioning system

*

3

 . . . . . . . . . . . . . . . . . . . . P. 340

Automatic air conditioning system

*

3

 . . . . . . . . . . . . . . . . . P. 347

Usage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340, 347
Back window defogger

*

6

. . . . . . . . . . . . . . . . . . . . . . . . . P. 342, 349

Windshield wiper de-icer

*

3

 . . . . . . . . . . . . . . . . . . . . . . . P. 343, 350

Multimedia system

*

7

*

1

: Vehicles without a smart key system

*

2

: Vehicles with a smart key system

*

3

: If equipped

*

4

: Vehicles without driving position memory

*

5

: Vehicles with driving position memory

*

6

: For CrewMax models

*

7

: Refer to the “NAVIGATION AND MULTIMEDIA

SYSTEM OWNER’S MANUAL”.

5

6

7

8

9

10

11

12

20

Pictorial index



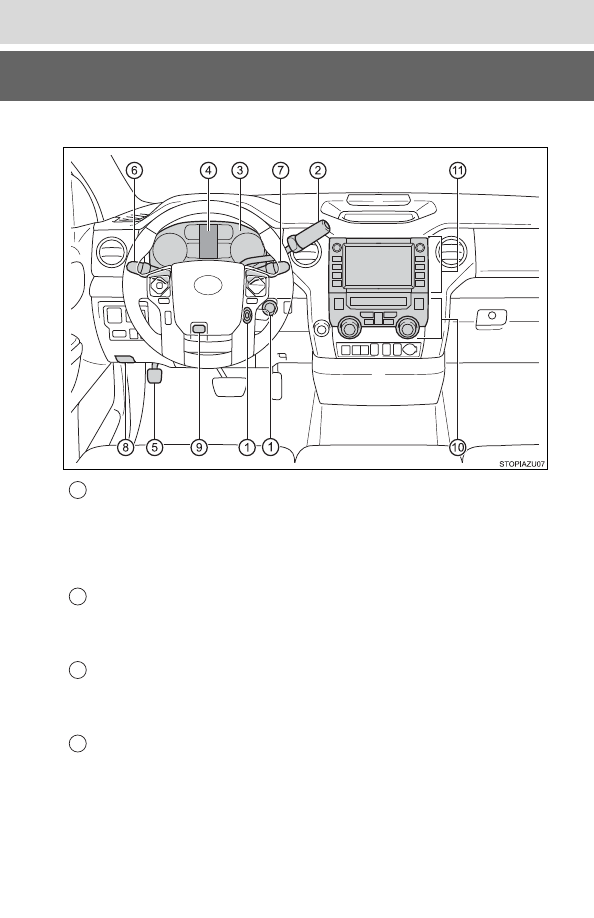

Front bench type seat

Engine switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217

Starting the engine/changing the positions

*

1

 . . . . . . . . . . . . . P. 217

Starting the engine/changing the modes

*

2

 . . . . . . . . . . . . . . . P. 220

Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 519
Warning message

*

2

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 500

Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225

Changing the shift position  . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 476
When the shift lever does not move  . . . . . . . . . . . . . . . . . . . . P. 229

Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 105

Reading the meters/adjusting the instrument panel light. . . . . P. 105
Warning lights/indicator lights  . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 483

Multi-information display  . . . . . . . . . . . . . . . . . . . . . . . . . . .  P. 110

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  P. 110
When the warning messages are displayed  . . . . . . . . . . . . . . P. 491

1

2

3

4

21

Pictorial index

Parking brake pedal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233

Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Precautions against winter season  . . . . . . . . . . . . . . . . . . . . . P. 332
Warning buzzer/message  . . . . . . . . . . . . . . . . . . . . . . . . P. 484, 493

Turn signal lever  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232

Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
Headlights/parking lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 234
Fog lights

*

3

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244

Windshield wiper and washer switch  . . . . . . . . . . . . . . . . . P. 245

Usage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 245
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Warning lights/warning messages . . . . . . . . . . . . . . . . . . . . . . P. 493

Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414

Tilt steering lock release lever . . . . . . . . . . . . . . . . . . . . . . . P. 161

Manual air conditioning system

*

3

 . . . . . . . . . . . . . . . . . . . . P. 340

Automatic air conditioning system

*

3

 . . . . . . . . . . . . . . . . . P. 347

Usage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 340, 347
Back window defogger

*

4

. . . . . . . . . . . . . . . . . . . . . . . . . P. 342, 349

Windshield wiper de-icer

*

3

 . . . . . . . . . . . . . . . . . . . . . . . P. 343, 350

Audio

*

3,5

Audio Plus

*

3,5

Premium Audio

*

3,5

Clock

*

5

*

1

: Vehicles without a smart key system

*

2

: Vehicles with a smart key system

*

3

: If equipped

*

4

: For CrewMax models

*

5

: Refer to the “NAVIGATION AND MULTIMEDIA

SYSTEM OWNER’S MANUAL”.

5

6

7

8

9

10

11

22

Pictorial index

■

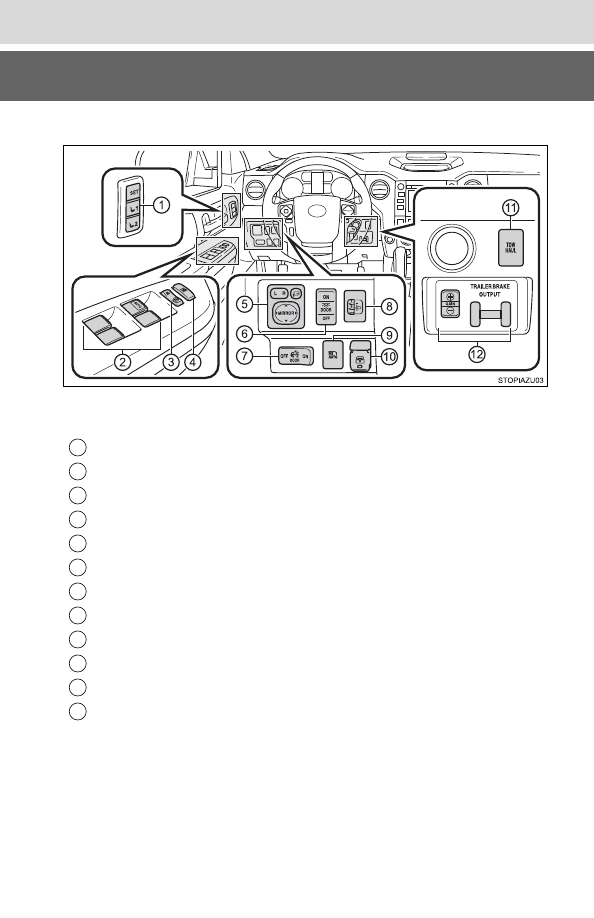

Switches

The illustration represents the instrument panel for the front separated type
seat.

Driving position memory switches

*

1

. . . . . . . . . . . . . . . . . . P. 153

Power window switches

*

1

 . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172

Door lock switch

*

1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130

Window lock switch

*

1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 172

Outside rear view mirror switches

*

1

 . . . . . . . . . . . . . . . . . . P. 167

Personal/interior lights main switch  . . . . . . . . . . . . . . . . . . P. 357

Cargo lamp main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 359

Manual headlight leveling dial . . . . . . . . . . . . . . . . . . . . . . . P. 236

Automatic High Beam switch

*

1

 . . . . . . . . . . . . . . . . . . . . . . P. 239

Power back window switch

*

2

. . . . . . . . . . . . . . . . . . . . . . . . P. 176

TOW/HAUL switch

*

1

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228

Trailer brake controller

*

1

 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 327

1

2

3

4

5

6

7

8

9

10

11

12

23

Pictorial index

Meter control switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  P. 111

Vehicle-to-vehicle distance switch

*

1

. . . . . . . . . . . . . . . . . . P. 287

Cruise control switch

Cruise control

*

1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 294

Dynamic radar cruise control

*

1

 . . . . . . . . . . . . . . . . . . . . . . . . P. 280

LDA (Lane Departure Alert) switch

*

1

. . . . . . . . . . . . . . . . . . P. 275

Telephone switches

*

3

Tilt and telescopic steering control switch

*

1

 . . . . . . . . . . . P. 162

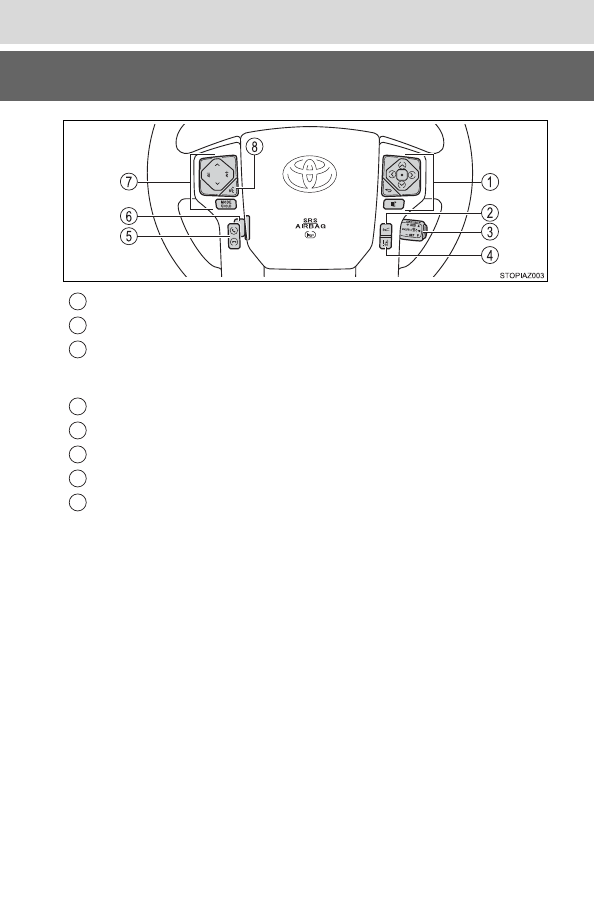

Audio remote control switches

*

3

Talk switch

*

3

*

1

: If equipped

*

2

: For CrewMax models and if equipped on Double Cab models

*

3

: Refer to the “NAVIGATION AND MULTIMEDIA

SYSTEM OWNER

’

S MANUAL”.

1

2

3

4

5

6

7

8

24

Pictorial index

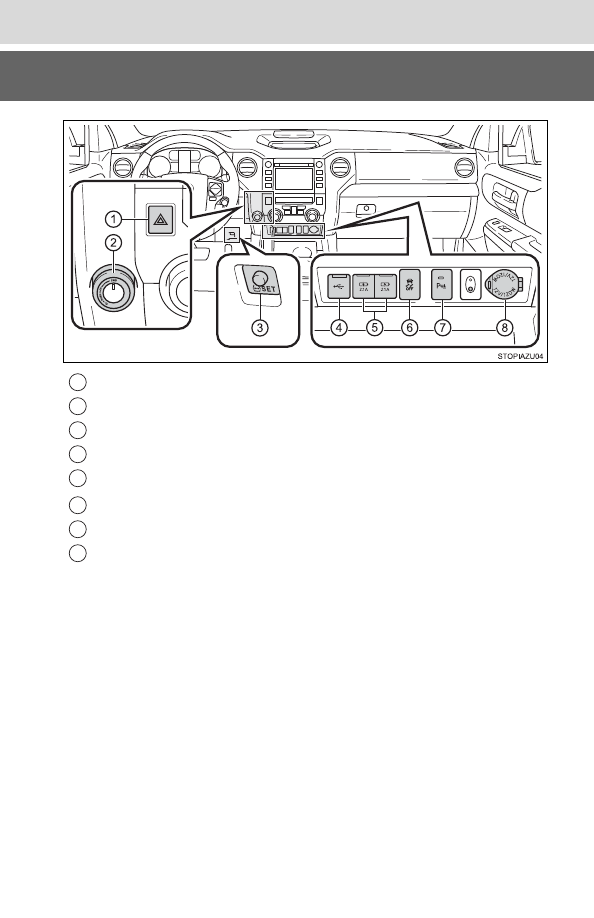

Emergency flasher switch  . . . . . . . . . . . . . . . . . . . . . . . . . . P. 472

Front-wheel drive control switch

*

 . . . . . . . . . . . . . . . . . . . . P. 315

Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 428

USB port

*

2

USB charging ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 382

VSC off switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318, 323

Intuitive parking assist switch

*

1

 . . . . . . . . . . . . . . . . . . . . . P. 298

Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 379

*

1

: If equipped

*

2

: Refer to the “NAVIGATION AND MULTIMEDIA

SYSTEM OWNER’S MANUAL”.

1

2

3

4

5

6

7

8

25

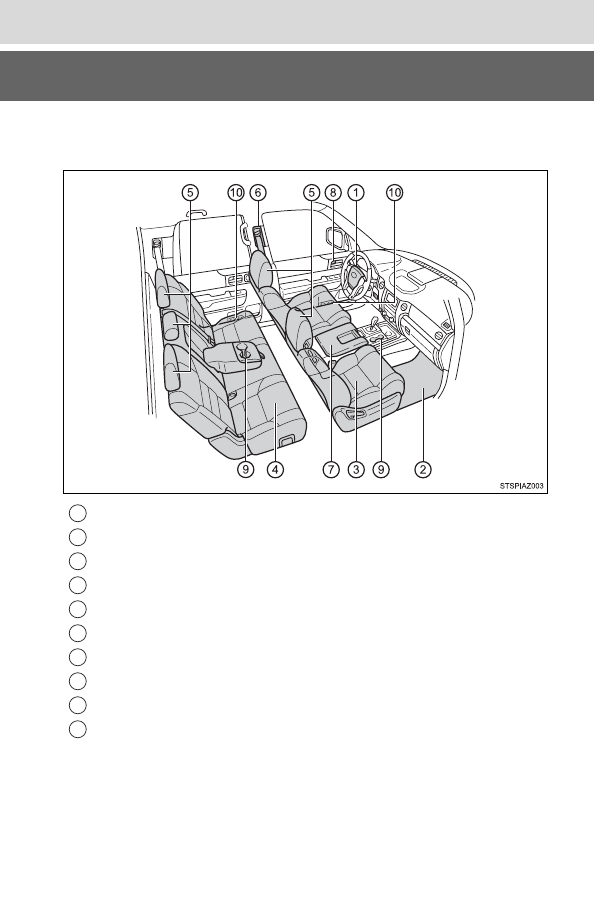

Pictorial index

■

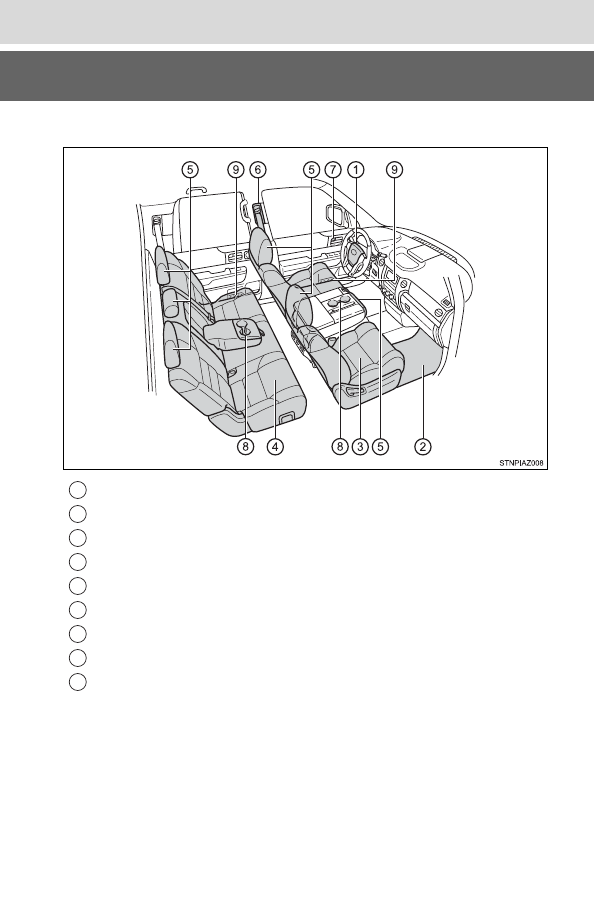

Interior



Front separated type seats

SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 40

Floor mats  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30

Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 147

Rear seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 150

Head restraints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 157

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34

Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 363

Inside lock buttons  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130

Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 370

Bottle holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 372

1

2

3

4

5

6

7

8

9

10

26

Pictorial index



Front bench type seat

SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 40

Floor mats  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 30

Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 147

Rear seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 150

Head restraints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 157

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 34

Inside lock buttons  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 130

Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 370

Bottle holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 372

1

2

3

4

5

6

7

8

9

27

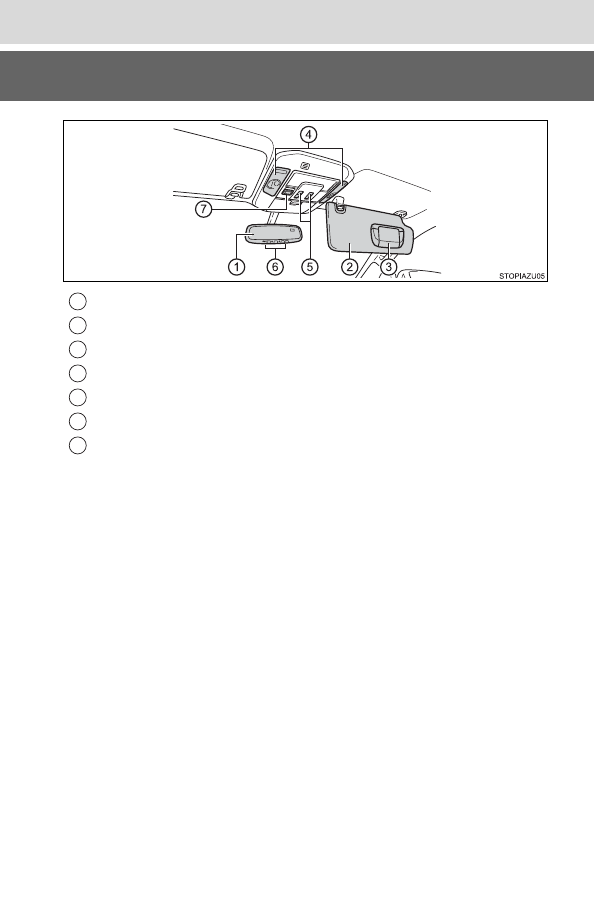

Pictorial index

Inside rear view mirror  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164

Sun visors  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378

Vanity mirrors

*

1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378

Personal/interior lights

*

2

 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 358

Moon roof switches

*

1

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179

Garage door opener switches

*

1

. . . . . . . . . . . . . . . . . . . . . . P. 385

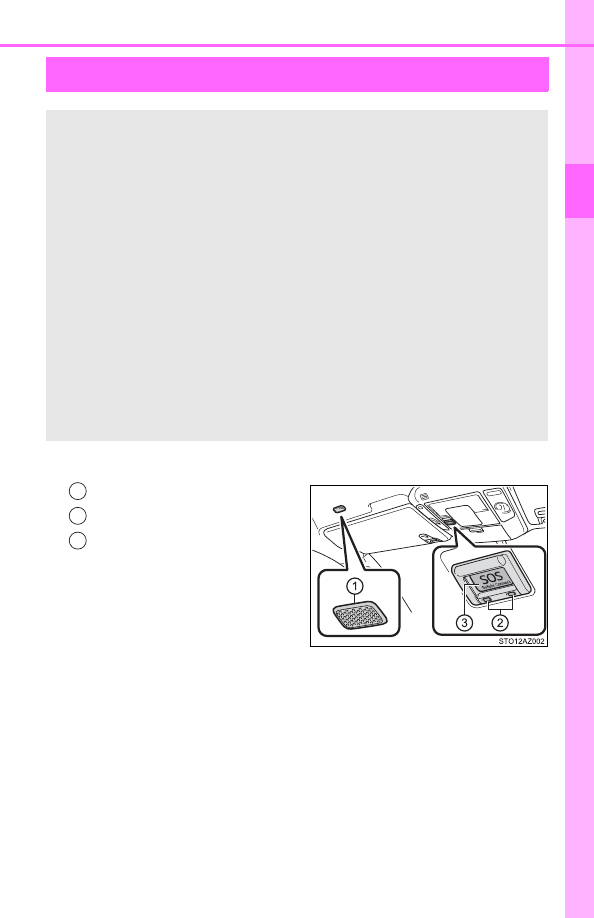

“SOS” button

*

1

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 79

*

1

: If equipped

*

2

: The illustration shows the front, but they are also equipped in the rear.

1

2

3

4

5

6

7

28

Pictorial index

29

For safety and security

1

1-1. For safe use

Before driving...................... 30
For safe driving ................... 32
Seat belts ............................ 34
SRS airbags........................ 40
Front passenger occupant

classification system ......... 53

Safety information

for children ........................ 58

Child restraint systems........ 59
Installing child restraints...... 63
Exhaust gas precautions..... 78

1-2. Emergency assistance

Safety Connect ................... 79

1-3. Theft deterrent system

Engine immobilizer

system .............................. 85

Alarm................................... 95

30

1-1. For safe use

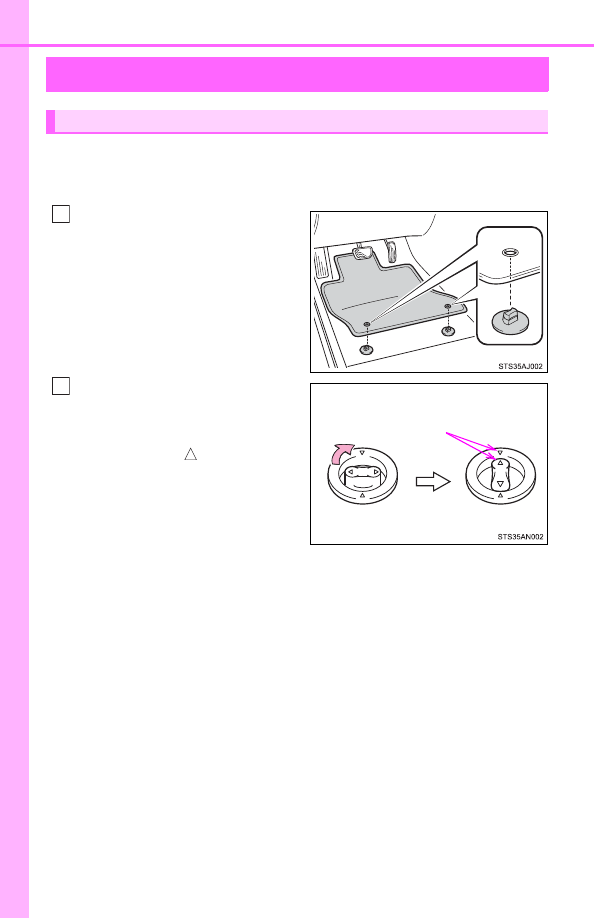

Before driving

Use  only  floor  mats  designed  specifically  for  vehicles  of  the  same
model  and  model  year  as  your  vehicle.  Fix  them  securely  in  place
onto the carpet.

Insert the retaining hooks (clips)
into the floor mat eyelets.

Turn  the  upper  knob  of  each
retaining  hook  (clip)  to  secure
the floor mats in place.

*

: Always align the   marks.

The shape of the retaining hooks (clips) may differ from that shown in the
illustration.

Floor mat

1

*

2

31

1-1. For safe use

1

For safet

y and s

ecurity

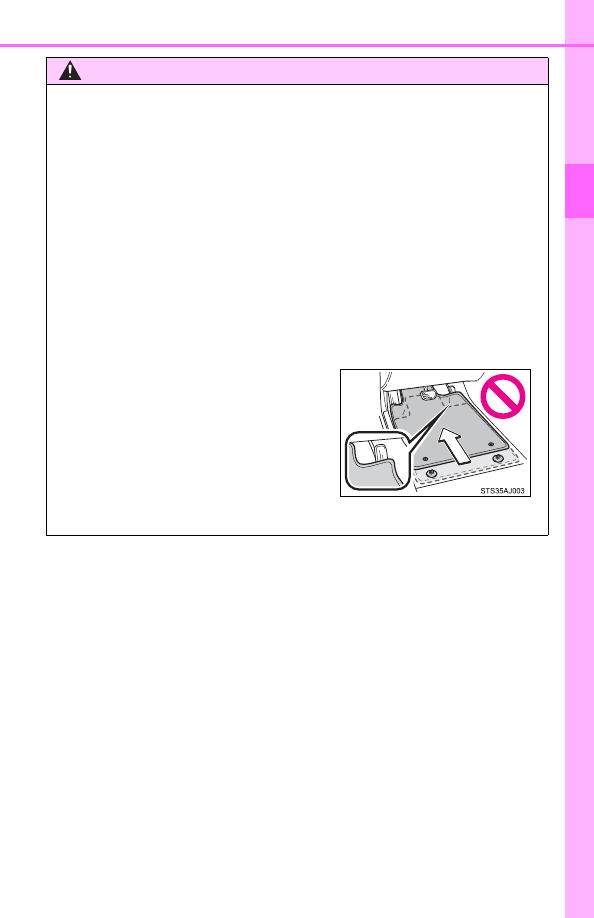

WARNING

Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.

■

When installing the driver’s floor mat

●

Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.

●

Only use floor mats designed for the driver’s seat.

●

Always install the floor mat securely using the retaining hooks (clips) pro-
vided.

●

Do not use two or more floor mats on top of each other.

●

Do not place the floor mat bottom-side up or upside-down.

■

Before driving

●

Check  that  the  floor  mat  is  securely
fixed  in  the  correct  place  with  all  the
provided  retaining  hooks  (clips).  Be
especially careful to perform this check
after cleaning the floor.

●

With  the  engine  stopped  and  the  shift
lever  in  P,  fully  depress  each  pedal  to
the floor to make sure it does not inter-
fere with the floor mat.

32

1-1. For safe use

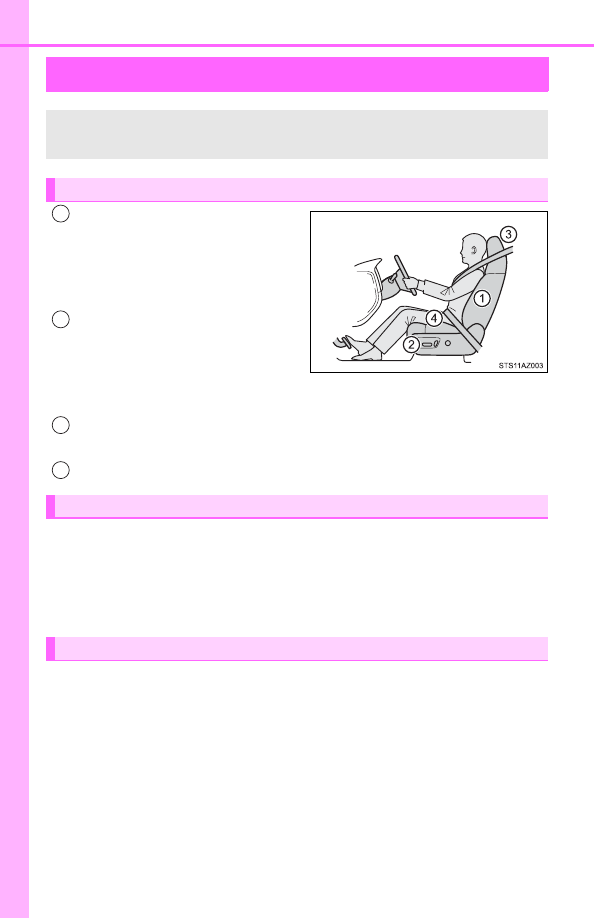

For safe driving

Adjust  the  angle  of  the  seat-
back  so  that  you  are  sitting
straight  up  and  so  that  you  do
not  have  to  lean  forward  to
steer. (



P. 147)

Adjust the seat so that you can
depress the pedals fully and so
that  your  arms  bend  slightly  at
the  elbow  when  gripping  the
steering wheel. (



P. 147)

Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. (



P. 157)

Wear the seat belt correctly. (



P. 34)

Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (



P. 34)

Use  a  child  restraint  system  appropriate  for  the  child  until  the  child
becomes large enough to properly wear the vehicle’s seat belt.
(



P. 59)

Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (



P. 164, 167)

For  safe  driving,  adjust  the  seat  and  mirror  to  an  appropriate
position before driving.

Correct driving posture

1

2

Correct use of the seat belts

Adjusting the mirrors

3

4

33

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.

●

Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint.

●

Do not place anything under the front seats.
Objects  placed  under  the  front  seats  may  become  jammed  in  the  seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent and the adjustment mechanism may also be damaged.

●

Always observe the legal speed limit when driving on public roads.

●

When driving over long distances, take regular breaks before you start to
feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.

34

1-1. For safe use

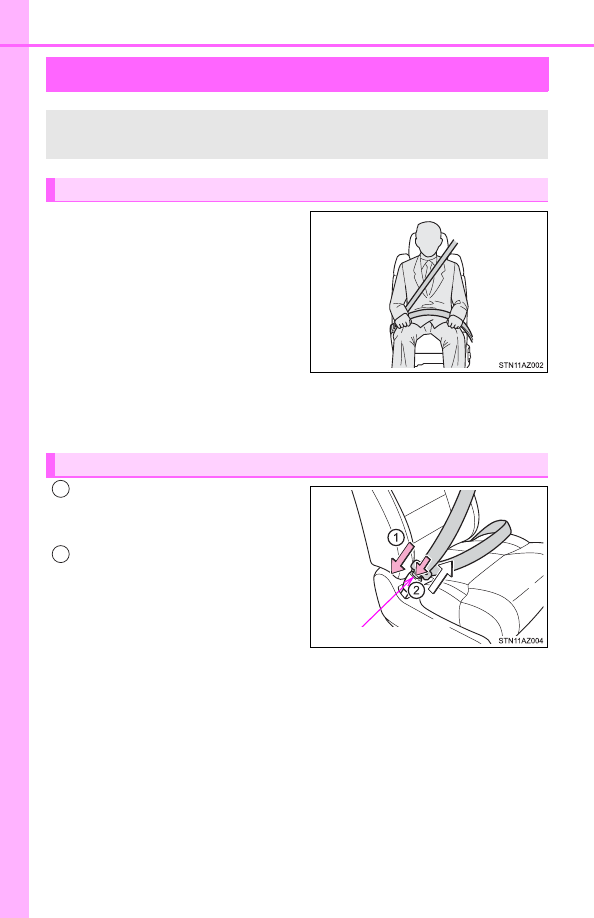

Seat belts

●

Extend the shoulder belt so that
it comes fully over the shoulder,
but does not come into contact
with  the  neck  or  slide  off  the
shoulder.

●

Position  the  lap  belt  as  low  as
possible over the hips.

●

Adjust  the  position  of  the  seat-
back.  Sit  up  straight  and  well
back in the seat.

●

Do not twist the seat belt.

To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To  release  the  seat  belt,  press
the release button.

Make sure that all occupants are wearing their seat belts before
driving the vehicle.

Correct use of the seat belts

Fastening and releasing the seat belt

Release button

1

2

35

1-1. For safe use

1

For safet

y and s

ecurity

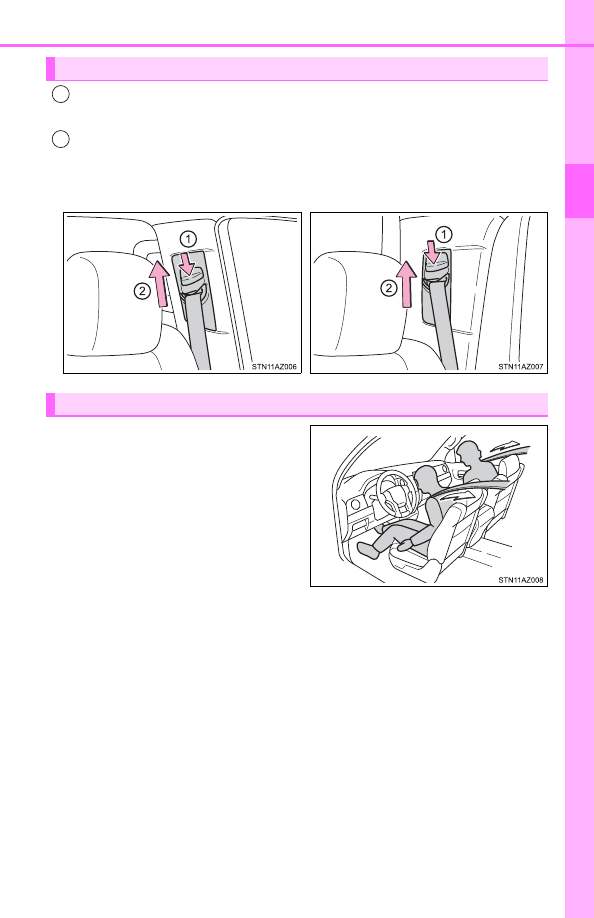

Push the seat belt shoulder anchor down while pressing the release
button.
Push the seat belt shoulder anchor up.

Move the height adjuster up and down as needed until you hear a click.

The  pretensioners  help  the  seat
belts to quickly restrain  the occu-
pants  by  retracting  the  seat  belts
when  the  vehicle  is  subjected  to
certain  types  of  severe  frontal  or
side collision or a vehicle rollover.

The  pretensioners  do  not  activate
in  the  event  of  a  minor  frontal
impact,  a  minor  side  impact  or  a
rear impact.

Adjusting the seat belt shoulder anchor height

1

2



Front seats



Rear seats (CrewMax models)

Seat belt pretensioners (front seats)

36

1-1. For safe use

■

Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.

■

Automatic locking retractor (ALR)

When a passenger’s shoulder belt is completely extended and then retracted
even slightly, the belt is locked in that position and cannot be extended. This
feature is used to hold the child restraint system (CRS) firmly. To free the belt
again, fully retract the belt and then pull the belt out once more. (



P. 63)

■

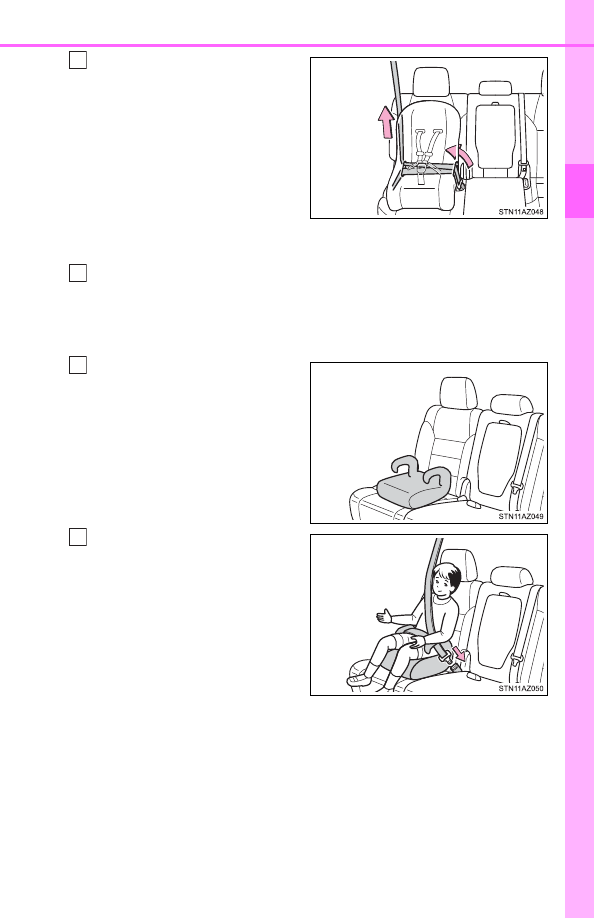

Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult
size.

●

Use  a  child  restraint  system  appropriate  for  the  child,  until  the  child
becomes large enough to properly wear the vehicle’s seat belt. (



P. 59)

●

When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. (



P. 34)

■

Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for
the first collision, but will not activate for the second or subsequent collisions.

■

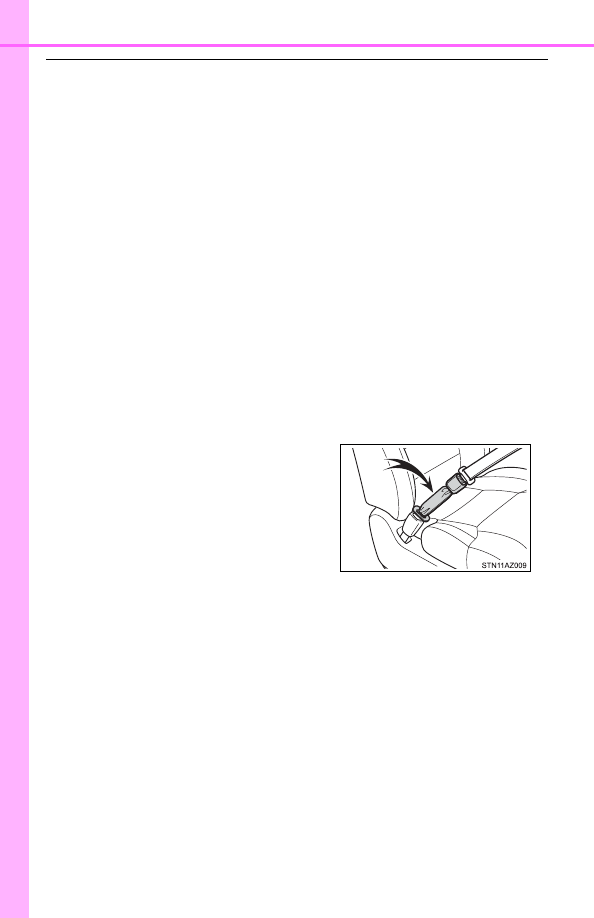

Seat belt extender

If  your  seat  belts  cannot  be  fastened
securely  because  they  are  not  long
enough, a personalized seat belt extender
is  available  from  your Toyota  dealer  free
of charge.

37

1-1. For safe use

1

For safet

y and s

ecurity

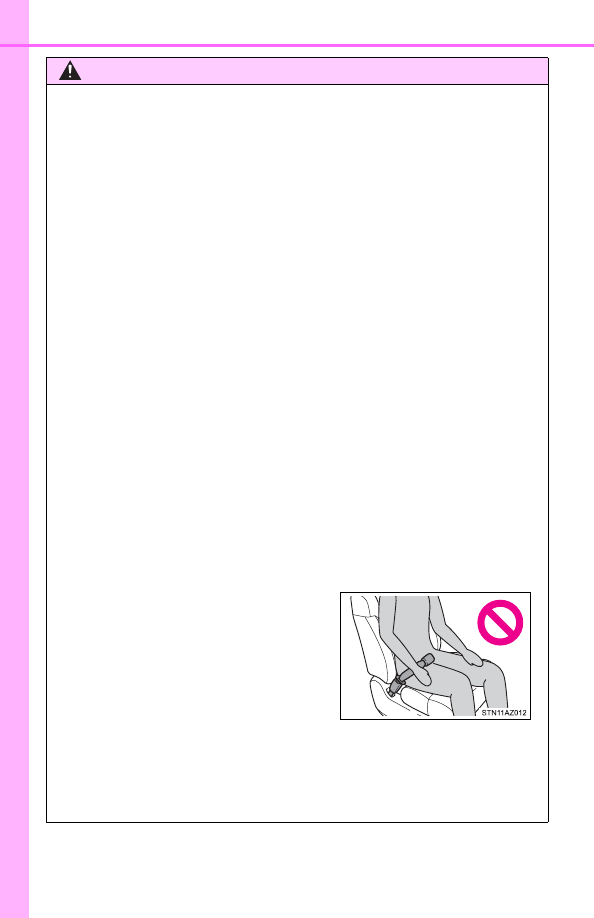

WARNING

Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.

■

Wearing a seat belt

●

Ensure that all passengers wear a seat belt.

●

Always wear a seat belt properly.

●

Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.

●

Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.

●

To  achieve  a  proper  seating  position,  do  not  recline  the  seat  more  than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.

●

Do not wear the shoulder belt under your arm.

●

Always wear your seat belt low and snug across your hips.

■

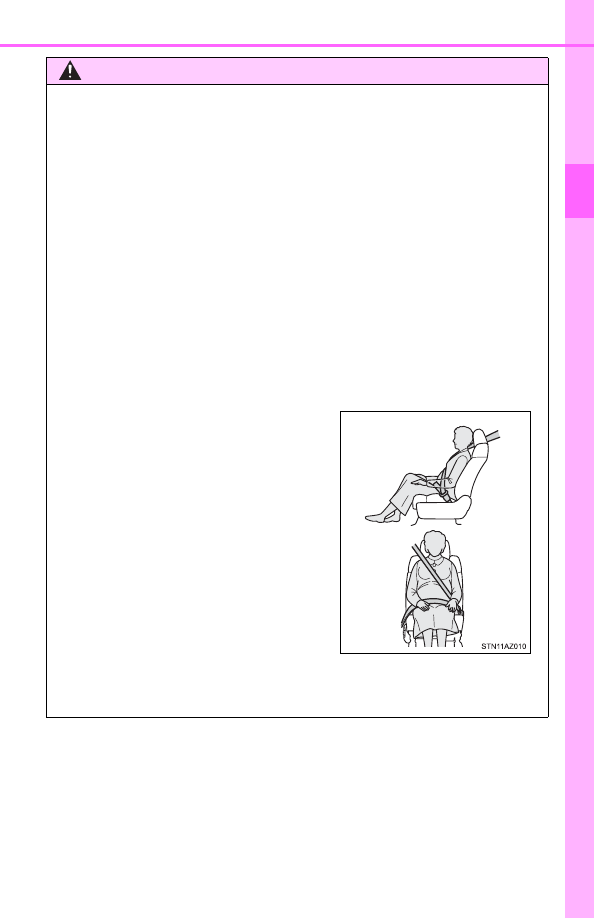

Pregnant women

■

People suffering illness

Obtain medical advice and wear the seat belt in the proper way. (



P. 34)

Obtain medical advice and wear the seat
belt in the proper way. (



P. 34)

Women  who  are  pregnant  should  posi-
tion the lap belt as low as possible over
the  hips  in  the  same  manner  as  other
occupants,  extending  the  shoulder  belt
completely over the shoulder and avoid-
ing  belt  contact  with  the  rounding  of  the
abdominal area.
If  the  seat  belt  is  not  worn  properly,  not
only  the  pregnant  woman,  but  also  the
fetus could suffer death or serious injury
as  a  result  of  sudden  braking  or  a  colli-
sion.

38

1-1. For safe use

WARNING

■

When children are in the vehicle

Do  not  allow  children  to  play  with  the  seat  belt.  If  the  seat  belt  becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.

■

Seat belt pretensioners

●

Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the seat belt
pretensioner for the front passenger’s seat may not activate in the event of
a collision.

●

If the pretensioner has activated, the SRS warning light will come on. In
that  case,  the  seat  belt  cannot  be  used  again  and  must  be  replaced  at
your Toyota dealer.

■

Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your
shoulder. The belt should be kept away from your neck, but not falling off
your shoulder. Failure to do so could reduce the amount of protection in an
accident and cause death or serious injuries in the event of a sudden stop,
sudden swerve or an accident. (



P. 35)

■

Seat belt damage and wear

●

Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.

●

Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant from death or serious injury.

●

Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.

●

Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.

●

Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling of the pretensioner may prevent it from operating
properly, resulting in death or serious injury.

39

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

Using a seat belt extender

●

Do not wear the seat belt extender if you can fasten the seat belt without
the extender.

●

Do not use the seat belt extender when installing a child restraint system
because the belt will not securely hold the child restraint system, increas-
ing the risk of death or serious injury in the event of an accident.

●

The  personalized  extender  may  not  be  safe  on  another  vehicle,  when
used by another person, or at a different seating position other than the
one originally intended.

NOTICE

■

When using a seat belt extender

When  releasing  the  seat  belt,  press  on  the  buckle  release  button  on  the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

40

1-1. For safe use

SRS airbags

The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce
the risk of death or serious injury.

41

1-1. For safe use

1

For safet

y and s

ecurity

◆

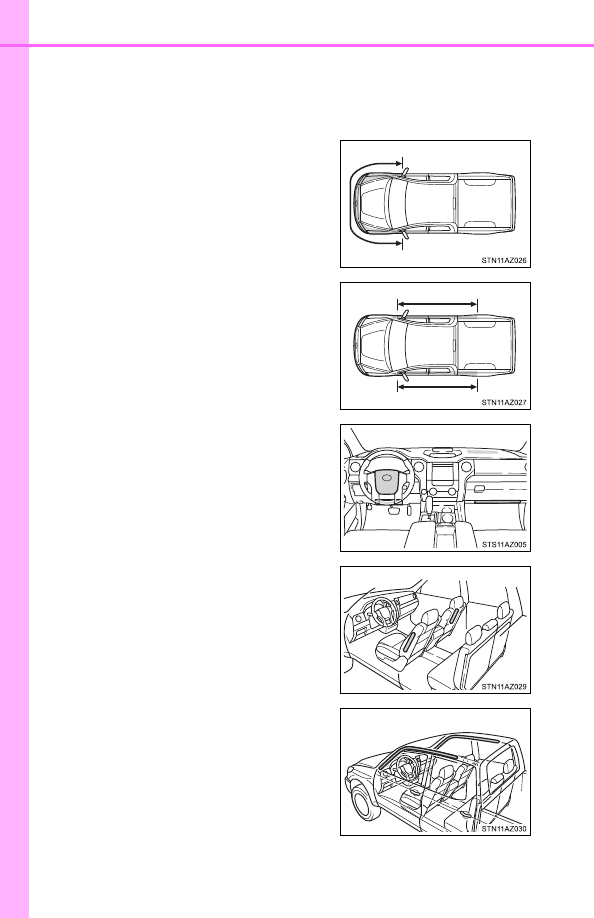

SRS front airbags

SRS driver airbag/front passenger airbag
Can  help  protect  the  head  and  chest  of  the  driver  and  right  front
passenger from impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection

◆

SRS side and curtain shield airbags

SRS side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags

●

Can  help  protect  primarily  the  head  of  occupants  in  the  outer
seats

●

Can help prevent the occupants from being thrown from the vehi-
cle in the event of vehicle rollover

1

2

3

4

42

1-1. For safe use

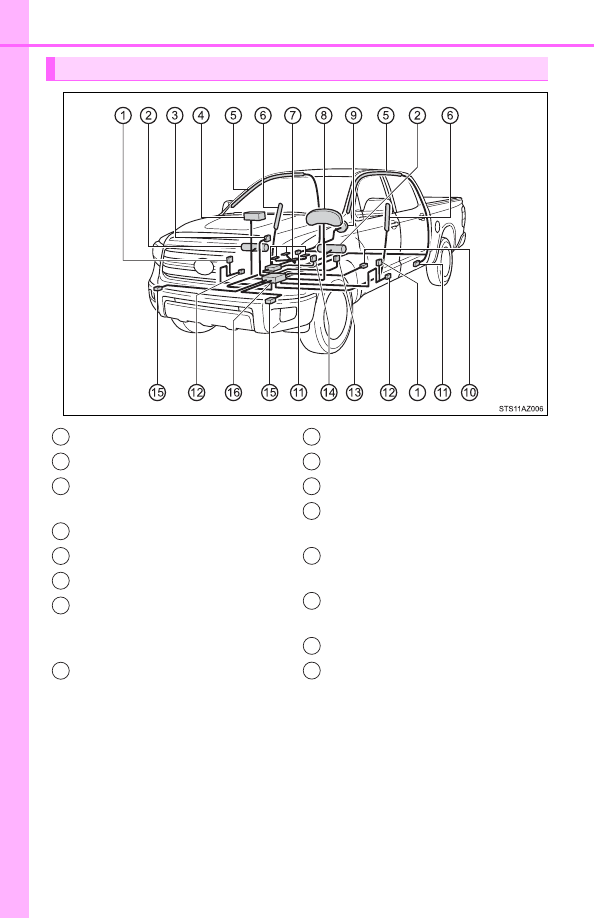

SRS airbag system components

Seat belt pretensioners
Knee airbags
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Front passenger airbag
Curtain shield airbags
Side airbags (front seats)
Front  passenger  occupant
classification  system  (ECU
and sensors)
SRS warning light

Driver airbag
Driver’s seat position sensor
Side impact sensors (rear)
Side  impact  sensors  (front
door)
Driver’s  seat  belt  buckle
switch
Front  passenger’s  seat  belt
buckle switch
Front impact sensors
Airbag sensor assembly

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

43

1-1. For safe use

1

For safet

y and s

ecurity

Your vehicle is equipped with ADVANCED AIRBAGS designed based
on  the  US  motor  vehicle  safety  standards  (FMVSS208). The  airbag
sensor  assembly  (ECU)  controls  airbag  deployment  based  on  infor-
mation obtained from the sensors  etc. shown in the system compo-
nents  diagram  above.  This  information  includes  crash  severity  and
occupant  information. As  the  airbags  deploy,  a  chemical  reaction  in
the inflators quickly fills the airbags with non-toxic gas to help restrain
the motion of the occupants.
Front bench type seat: The SRS airbags are designed to protect the
driver and right front passenger, and they are not designed to protect
an occupant in the front center seating position.

44

1-1. For safe use

WARNING

■

SRS airbag precautions

Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.

●

The  driver  and  all  passengers  in  the  vehicle  must  wear  their  seat  belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.

●

The  SRS  driver  airbag  deploys  with  considerable  force,  and  can  cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm)
of inflation, placing yourself 10 in. (250 mm) from your driver airbag pro-
vides you with a clear margin of safety. This distance is measured from
the center of the steering wheel to your breastbone. If you sit less than
10 in. (250 mm) away now, you can change your driving position in sev-
eral ways:
• Move your seat to the rear as far as you can while still reaching the ped-

als comfortably.

• Slightly recline the back of the seat.

Although  vehicle  designs  vary,  many  drivers  can  achieve  the  10  in.
(250 mm) distance, even with the driver seat all the way forward, simply
by reclining the back of the seat somewhat. If reclining the back of your
seat makes it hard to see the road, raise yourself by using a firm, non-
slippery cushion, or raise the seat if your vehicle has that feature.

• If your steering wheel is adjustable, tilt it downward. This points the air-

bag toward your chest instead of your head and neck.

The seat should be adjusted as recommended  by NHTSA above, while
still maintaining control of the foot pedals, steering wheel, and your view
of the instrument panel controls.

●

If the seat belt extender has been con-
nected to the front seat belt buckles but
the seat belt extender has not also been
fastened  to  the  latch  plate  of  the  seat
belt,  the  SRS  front  airbags  will  judge
that the driver and front passenger are
wearing  the  seat  belt  even  though  the
seat  belt  has  not  been  connected.  In
this  case,  the  SRS  front  airbags  may
not  activate  correctly  in  a  collision,
resulting in death or serious injury in the
event of a collision. Be sure to wear the
seat belt with the seat belt extender.

45

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

SRS airbag precautions

●

The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air-
bag  as  possible  with  the  seatback  adjusted,  so  the  front  passenger  sits
upright.

●

Improperly seated and/or restrained infants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys-
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
safer for infants and children than the front passenger seat. (



P. 59)

●

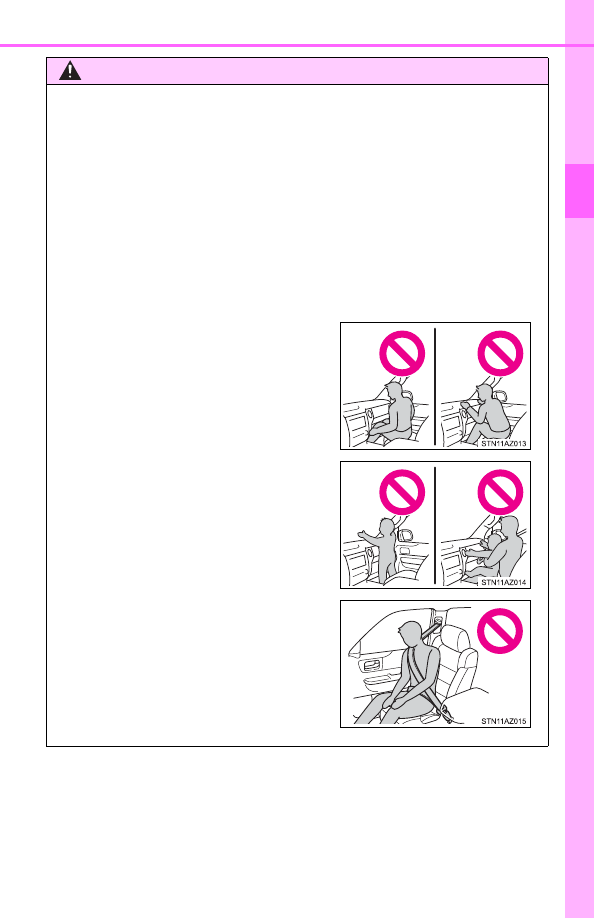

Do  not  sit  on  the  edge  of  the  seat  or
lean against the dashboard.

●

Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.

●

Do not allow the front seat occupants to
hold items on their knees.

●

Do  not  lean  against  the  door,  the  roof
side  rail  or  the  front,  side  and  rear  pil-
lars.

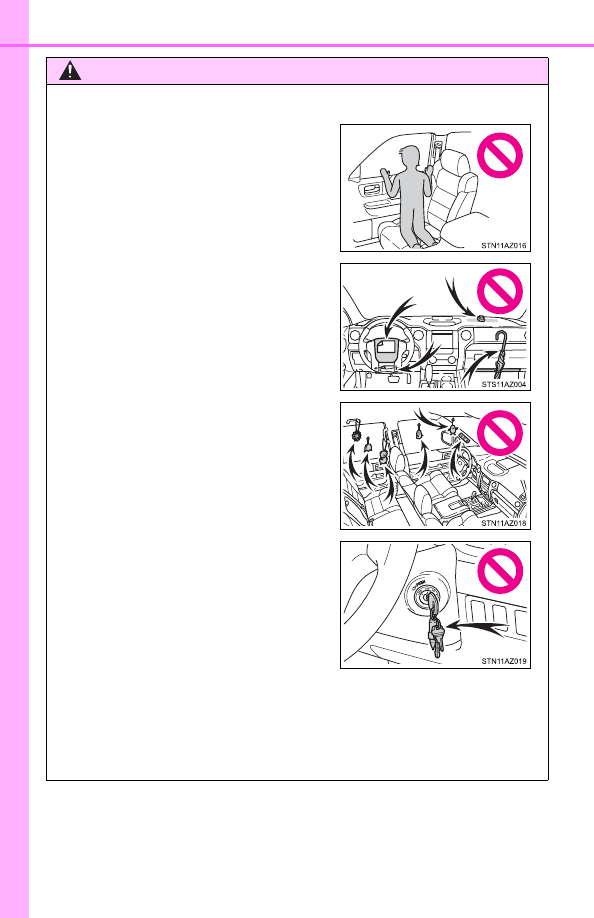

46

1-1. For safe use

WARNING

■

SRS airbag precautions

●

Do not hang coat hangers or other hard objects on the coat hooks. All of
these  items  could  become  projectiles  and  may  cause  death  or  serious
injury, should the SRS curtain shield airbags deploy.

●

If a vinyl cover is put on the area where the SRS knee airbag will deploy,
be sure to remove it.

●

Do  not  allow  anyone  to  kneel  on  the
passenger seats toward the door or put
their head or hands outside the vehicle.

●

Do  not  attach  anything  to  or  lean  any-
thing  against  areas  such  as  the  dash-
board,  steering  wheel  pad  and  lower
portion of the instrument panel.
These  items  can  become  projectiles
when  the  SRS  driver,  front  passenger
and knee airbags deploy.

●

Do not attach anything to areas such as
a  door,  windshield  glass,  side  door
glass,  front  or  rear  pillar,  roof  side  rail
and assist grip.

●

Do not attach any heavy, sharp or hard
objects  such  as  keys  and  accessories
to the key. The objects may restrict the
SRS  knee  airbag  inflation  or  be  thrust
into  the  driver’s  seat  area  by  the  force
of the deploying airbag, thus causing a
danger.

47

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

SRS airbag precautions

●

Do  not use  seat accessories  which  cover  the parts where  the  SRS  side
airbags  inflate  as  they  may  interfere  with  inflation  of  the  airbags.  Such
accessories may prevent the side airbags from activating correctly, disable
the  system  or  cause  the  side  airbags  to  inflate  accidentally,  resulting  in
death or serious injury.

●

Do not strike or apply significant levels of force to the area of the SRS air-
bag components.
Doing so can cause the SRS airbags to malfunction.

●

Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.

●

If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.

●

If the areas where the SRS airbags are stored, such as the steering wheel
pad  and  front  and  rear  pillar  garnishes,  are  damaged  or  cracked,  have
them replaced by your Toyota dealer.

●

Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which prevents the sensor
from detecting the passenger’s weight properly. As a result, the SRS front
airbags for the front passenger may not deploy in the event of a collision.

■

Modification and disposal of SRS airbag system components

Do not dispose of your vehicle or perform any of the following modifications
without consulting your Toyota dealer. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.

●

Installation, removal, disassembly and repair of the SRS airbags

●

Repairs,  modifications,  removal  or  replacement  of  the  steering  wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails

●

Repairs  or  modifications  of  the  front  fender,  front  bumper,  or  side  of  the
occupant compartment

●

Installation  of  a  grille  guard  (bull  bars,  kangaroo  bar,  etc.),  snow  plows,
winches or roof luggage carrier

●

Modifications to the vehicle’s suspension system

●

Installation of electronic devices such as mobile two-way radios and CD
players

●

Modifications to your vehicle for a person with a physical disability

48

1-1. For safe use

■

If the SRS airbags deploy (inflate)

●

Slight abrasions, burns, bruising etc., may be sustained from SRS airbags,
due to the extremely high speed deployment (inflation) by hot gases.

●

A loud noise and white powder will be emitted.

●

Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front and rear pillars and roof side rails,
may be hot for several minutes. The airbag itself may also be hot.

●

The windshield may crack.

●

The emergency flashers will turn on automatically. (→P. 472)

●

For Safety Connect subscribers, if the SRS airbags deploy or in the event of
a severe rear-end collision, the system is designed to send an emergency
call to the response center, notifying them of the vehicle’s location (without
needing to push the “SOS” button) and an agent will attempt to speak with
the occupants to ascertain the level of emergency and assistance required.
If the occupants are unable to communicate, the agent automatically treats
the call as an emergency and helps to dispatch the necessary emergency
services. (→P. 79)

• An SRS airbag is deployed.
• A seat belt pretensioner is activated.
• The vehicle is involved in a severe rear-end collision.

49

1-1. For safe use

1

For safet

y and s

ecurity

■

SRS airbag deployment conditions (SRS front airbags)

●

The SRS front airbags will deploy in the event of an impact that exceeds the
set  threshold  level  (the  level  of  force  corresponding  to  an  approximately
12 - 18  mph  [20 - 30  km/h]  frontal  collision  with  a  fixed  wall  that  does  not
move or deform).
However, this threshold velocity will be considerably higher in the following
situations:

• If the vehicle strikes an object, such as a parked vehicle or sign pole, which

can move or deform on impact

• If  the  vehicle  is  involved  in  an  underride  collision,  such  as  a  collision  in

which the front of the vehicle “underrides”, or goes under, the bed of a truck

●

Depending on the type of collision, it is possible that only the seat belt pre-
tensioners will activate.

●

The SRS front airbags for the front passenger will not activate if there is no
passenger sitting in the right front passenger seat. However, the SRS front
airbags  for  the  front  passenger  may  deploy  if  luggage  is  put  in  the  seat,
even if the seat is unoccupied. (



P. 53)

■

SRS airbag deployment conditions (SRS side and curtain shield airbags)

●

The  SRS  side  and  curtain  shield  airbags  will  deploy  in  the  event  of  an
impact that exceeds the set threshold level (the level of force corresponding
to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle
colliding with the vehicle cabin from a direction perpendicular to the vehicle
orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).

●

The SRS curtain shield airbags will deploy in the event of vehicle rollover.

●

The  SRS  curtain  shield  airbags  may  also  deploy  in  the  event  of a  severe
frontal collision.

50

1-1. For safe use

■

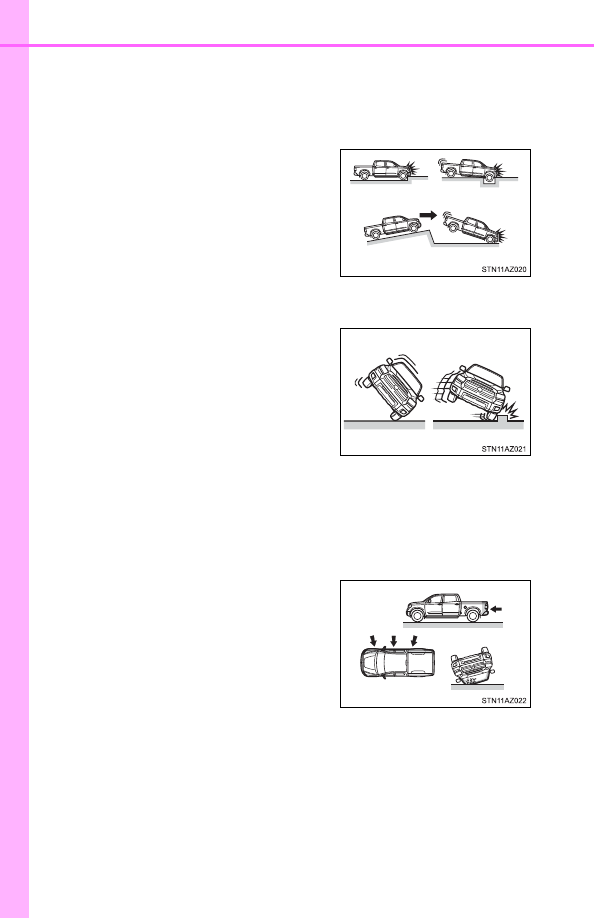

Conditions under which the SRS airbags may deploy (inflate), other than
a collision

The SRS front airbags and SRS curtain shield airbags may also deploy if a
serious impact occurs to the underside of your vehicle. Some examples are
shown in the illustration.

The SRS curtain shield airbags may also deploy under the situation shown in
the illustration.

■

Types of collisions that may not deploy the SRS airbags (SRS front air-
bags)

The SRS front airbags do not generally inflate if the vehicle is involved in a
side or rear collision, if it rolls over, or if it is involved in a low-speed frontal
collision.  But,  whenever  a  collision  of  any  type  causes  sufficient  forward
deceleration of the vehicle, deployment of the SRS front airbags may occur.

●

Hitting a curb, edge of pavement or hard
surface

●

Falling into or jumping over a deep hole

●

Landing hard or vehicle falling

●

The angle of vehicle tip-up is marginal.

●

The vehicle skids and hits a curb stone.

●

Collision from the side

●

Collision from the rear

●

Vehicle rollover

51

1-1. For safe use

1

For safet

y and s

ecurity

■

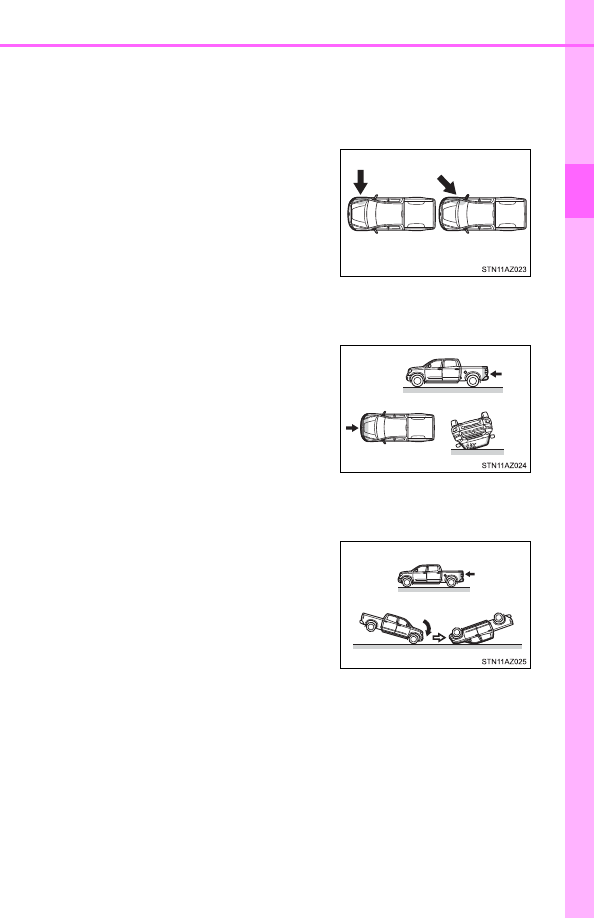

Types of collisions that may not deploy the SRS airbags
(SRS side and curtain shield airbags)

The  SRS  side  and  curtain  shield  airbags  may  not  activate  if  the  vehicle  is
subjected to a collision from the side at certain angles, or a collision to the
side of the vehicle body other than the passenger compartment.

The SRS side airbags do not generally inflate if the vehicle is involved in a
frontal or rear collision, if it rolls over, or if it is involved in a low-speed side
collision.

The  SRS  curtain  shield  airbags  do  not  generally  inflate  if  the  vehicle  is
involved in a rear collision, if it pitches end over end, or if it is involved in a
low-speed side or low-speed frontal collision.

●

Collision  from  the  side  to  the  vehicle
body other than the passenger compart-
ment

●

Collision from the side at an angle

●

Collision from the front

●

Collision from the rear

●

Vehicle rollover

●

Collision from the rear

●

Pitching end over end

52

1-1. For safe use

■

When to contact your Toyota dealer

In the following cases, the vehicle will require inspection and/or repair. Con-
tact your Toyota dealer as soon as possible.

●

Any of the SRS airbags have been inflated.

●

The  front  of  the  vehicle  is  damaged  or
deformed,  or  was  involved  in  an  acci-
dent  that  was  not  severe  enough  to
cause the SRS front airbags to inflate.

●

A  portion  of  a  door  or  its  surrounding
area  is  damaged  or  deformed,  or  the
vehicle was involved in an accident that
was  not  severe  enough  to  cause  the
SRS  side  and  curtain  shield  airbags  to
inflate.

●

The  pad  section  of  the  steering  wheel,
dashboard near the front passenger air-
bag  or  lower  portion  of  the  instrument
panel  is  scratched,  cracked,  or  other-
wise damaged.

●

The  surface  of  the  seats  with  the  side
airbag  is  scratched,  cracked,  or  other-
wise damaged.

●

The  portion  of  the  front  pillars,  rear  pil-
lars or roof side rail garnishes (padding)
containing  the  curtain  shield  airbags
inside  is  scratched,  cracked,  or  other-
wise damaged.

53

1-1. For safe use

1

For safet

y and s

ecurity

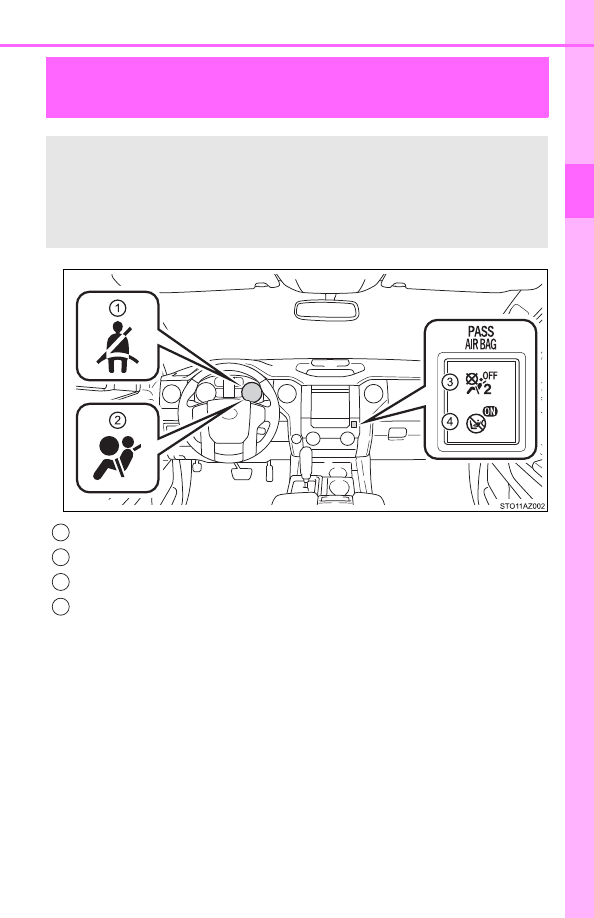

Front passenger occupant classification

system

Your vehicle is equipped with a front passenger occupant classi-
fication system. This system detects the conditions of the front
passenger seat and activates or deactivates the front passenger
airbag, front passenger knee airbag and front passenger’s seat
belt pretensioner.

Seat belt reminder light
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light

1

2

3

4

54

1-1. For safe use

■

Adult

*

1

■

Child

*

4

 or child restraint system

*

5

Condition and operation in the front passenger occupant classi-
fication system

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG ON”

SRS warning light

Off

Front passenger’s seat belt reminder light

Off

*

2



or

flashing

*

3

Devices

Front passenger airbag

Activated

Front passenger knee airbag

Front passenger’s seat belt pretensioner

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG

OFF”

*

6

SRS warning light

Off

Front passenger’s seat belt reminder light

Off

*

2



or

flashing

*

3

Devices

Front passenger airbag

Deactivated

Front passenger knee airbag

Front passenger’s seat belt pretensioner

Activated

55

1-1. For safe use

1

For safet

y and s

ecurity

■

Unoccupied

■

There is a malfunction in the system

*

1

: The system judges a person of adult size as an adult. When a smaller

adult sits in the front passenger seat, the system may recognize him/her
as a child depending on his/her physique and posture.

*

2

: In the event the front passenger is wearing a seat belt

*

3

: In the event the front passenger does not wear a seat belt

*

4

: When a larger child who has outgrown a child restraint system sits in the

front  passenger  seat,  the  system  may  recognize  him/her  as  an  adult
depending on his/her physique or posture.

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

Not illuminated

SRS warning light

Off

Front passenger’s seat belt reminder light

Devices

Front passenger airbag

Deactivated

Front passenger knee airbag

Front passenger’s seat belt pretensioner

Activated

*

7



or

deactivated

*

8

Indicator/

warning light

“AIR BAG ON” and “AIR BAG OFF”

indicator lights

“AIR BAG OFF”

SRS warning light

On

Front passenger’s seat belt reminder light

Devices

Front passenger airbag

Deactivated

Front passenger knee airbag

Front passenger’s seat belt pretensioner

Activated

56

1-1. For safe use

*

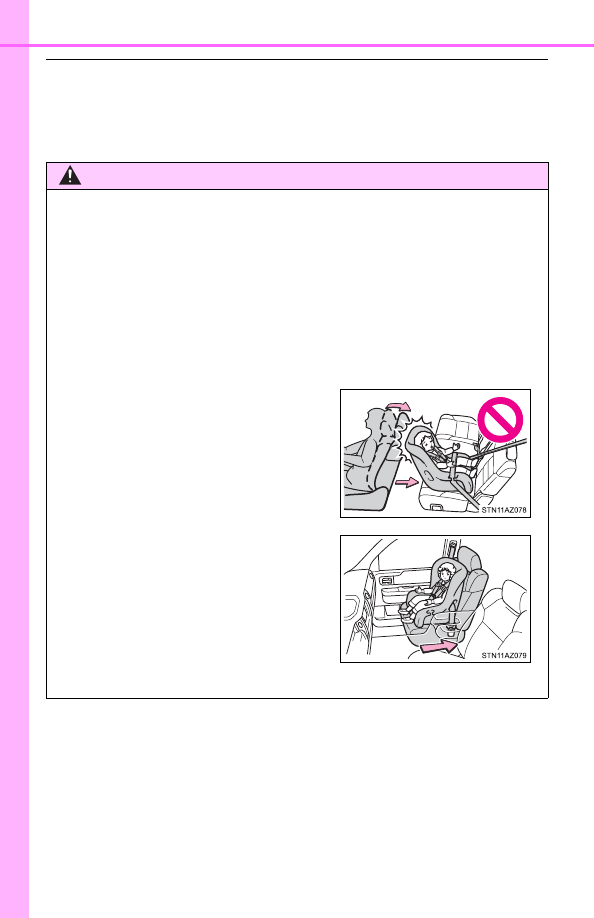

5

: Never install a rear-facing child restraint system on the front passenger

seat. A forward-facing child restraint system should only be installed on
the front passenger seat when it is unavoidable. (



P. 59)

*

6

: In case the indicator light is not illuminated, consult this manual on how

to install the child restraint system properly. (



P. 63)

*

7

: In the event of a side collision.

*

8

: In the event of a frontal collision or rollover.

WARNING

■

Front passenger occupant classification system precautions

Observe the following precautions regarding the front passenger occupant
classification system.
Failure to do so may cause death or serious injury.

●

Wear the seat belt properly.

●

Make sure the front passenger’s seat belt plate has not been left inserted
into the buckle before someone sits in the front passenger seat.

●

Make sure the “AIR BAG OFF” indicator light is not illuminated when using
the seat belt extender for the right front passenger seat. If the “AIR BAG
OFF”  indicator  light  is  illuminated,  disconnect  the  extender  tongue  from
the seat belt buckle, and reconnect the seat belt. Reconnect the seat belt
extender after making sure the “AIR BAG ON” indicator light is illuminated.
If you use the seat belt extender while the “AIR BAG OFF” indicator light is
illuminated,  the  SRS  airbags  for  the  front  passenger  will  not  activate,
which could cause death or serious injury in the event of a collision.

●

Do not apply a heavy load to the front passenger seat or equipment (e.g.
seatback pockets).

●

Do  not  put  weight  on  the  front  passenger  seat  by  putting  your  hands  or
feet on the front passenger seat seatback from the rear passenger seat.

●

Do not let a rear passenger lift the front passenger seat with their feet or
press on the seatback with their legs.

●

Do not put objects under the front passenger seat.

57

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

Front passenger occupant classification system precautions

●

Do not recline the front passenger seatback so far that it touches a rear
seat. This may cause the “AIR BAG OFF” indicator light to be illuminated,
which indicates that the SRS airbags for the front passenger will not acti-
vate  in  the  event  of  a  severe  accident.  If  the  seatback  touches  the  rear
seat,  return  the  seatback  to  a  position  where  it  does  not  touch  the  rear
seat. Keep the front passenger seatback as upright as possible when the
vehicle  is  moving.  Reclining  the  seatback  excessively  may  lessen  the
effectiveness of the seat belt system.

●

If  an  adult  sits  in  the  front  passenger  seat,  the  “AIR  BAG  ON”  indicator
light is illuminated. If the “AIR BAG OFF” indicator is illuminated, ask the
passenger to sit up straight, well back in the seat, feet on the floor, and
with  the  seat  belt  worn  correctly.  If  the  “AIR  BAG  OFF”  indicator  still
remains illuminated, either ask the passenger to move to the rear seat, or
if that is not possible, move the front passenger seat fully rearward.

●

When it is unavoidable to install a forward-facing child restraint system on
the front passenger seat, install the child restraint system on the front pas-
senger seat in the proper order. (



P. 63)

●

Do not modify or remove the front seats.

●

Do not kick the front passenger seat or subject it to severe impact. Other-
wise, the SRS warning light may come on to indicate a malfunction of the
front passenger occupant classification system. In this case, contact your
Toyota dealer immediately.

●

Child  restraint  systems  installed  on  the  rear  seat  should  not  contact  the
front seatbacks.

●

Do not use a seat accessory, such as a cushion and seat cover, that cov-
ers the seat cushion surface.

●

Do not attach a commercial seatback table or other heavy item to the back
of the front passenger seat.

●

Do not modify or replace the upholstery of the front seat.

58

1-1. For safe use

Safety information for children

●

Double Cab and CrewMax models: It is recommended that children
sit in the rear seats to avoid accidental contact with the shift lever,
wiper lever, etc.

●

Use the rear door child-protector lock or the window lock switch (if
equipped) to avoid children opening the door while driving or oper-
ating the power window accidentally.

●

Do  not  let  small  children  operate  equipment  which  may  catch  or
pinch body parts, such as the power window, hood, tailgate, seats,
etc.

Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.

WARNING

Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children  may  be  able  to  start  the  vehicle  or  shift  the  vehicle  into  neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof or other features of the vehicle. In addition, heat
build-up or extremely cold  temperatures  inside the vehicle can be fatal  to
children.

59

1-1. For safe use

1

For safet

y and s

ecurity

Child restraint systems

Studies have shown that installing a child restraint on a rear seat is
much safer than installing one on the front passenger seat.

●

Choose a child restraint system that suits your vehicle and is appro-
priate to the age and size of the child.

●

For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual.
(



P. 63)

A child restraint system for a small child or baby must itself be
properly  restrained  on  the  seat  with  the  lap  portion  of  the  lap/
shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require
the use of child restraint systems.

Points to remember

60

1-1. For safe use

Child  restraint  systems  are  classified  into  the  following  3  types
according to the age and size of the child:

■

Selecting an appropriate child restraint system

●

Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.

●

If the child is too large for a child restraint system, sit the child on a rear seat
and use the vehicle’s seat belt. (



P. 34)

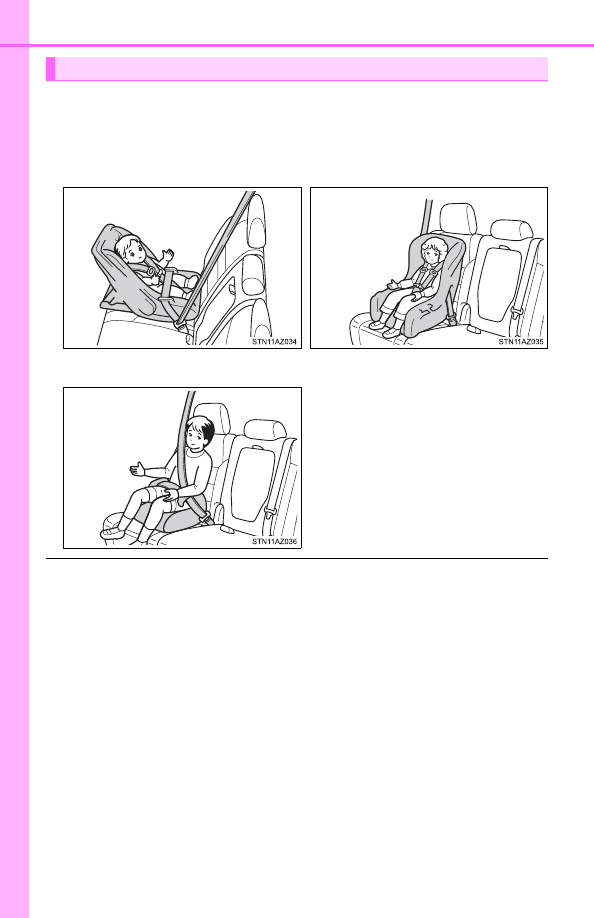

Types of child restraints



Rear  facing



  Infant  seat/con-

vertible seat



Forward facing



 Convertible

seat



Booster seat

61

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

Child restraint precautions

●

For effective protection in automobile accidents and sudden stops, a child
must  be  properly  restrained,  using  a  seat  belt  or  child  restraint  system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.

●

Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.

●

Never  install  a  rear-facing  child  restraint  system  on  the  front  passenger
seat even if the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child if the rear-fac-
ing child restraint system is installed on the front passenger seat.

●

A forward-facing child restraint system may be installed on the front pas-
senger  seat  only  when  it  is  unavoidable.  A  child  restraint  system  that
requires a top tether strap should not be used in the front passenger seat
since  there  is  no  top  tether  strap  anchor  for  the  front  passenger  seat.
Adjust the seatback as upright as possible and always move the seat as
far  back  as  possible  even  if  the  “AIR  BAG  OFF”  indicator  light  is  illumi-
nated, because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.

62

1-1. For safe use

WARNING

■

Child restraint precautions

●

Do not use the seat belt extender when installing a child restraint system
on  the  front  or  rear  passenger  seat.  If  installing  a  child  restraint  system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or seri-
ous injury to the child or other passengers in the event of an accident.

●

Do  not  allow  the  child  to  lean  his/her  head  or  any  part  of  his/her  body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the  SRS  side  airbags  and  curtain  shield  airbags  inflate,  and  the  impact
could cause death or serious injury to the child.

●

Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop or an accident.

■

When children are in the vehicle

Do  not  allow  children  to  play  with  the  seat  belt.  If  the  seat  belt  becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.

■

When the child restraint system is not in use

●

Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.

●

If it is necessary to detach the child restraint system, remove it from the
vehicle. This will prevent it from injuring passengers in the event of a sud-
den stop or an accident.

63

1-1. For safe use

1

For safet

y and s

ecurity

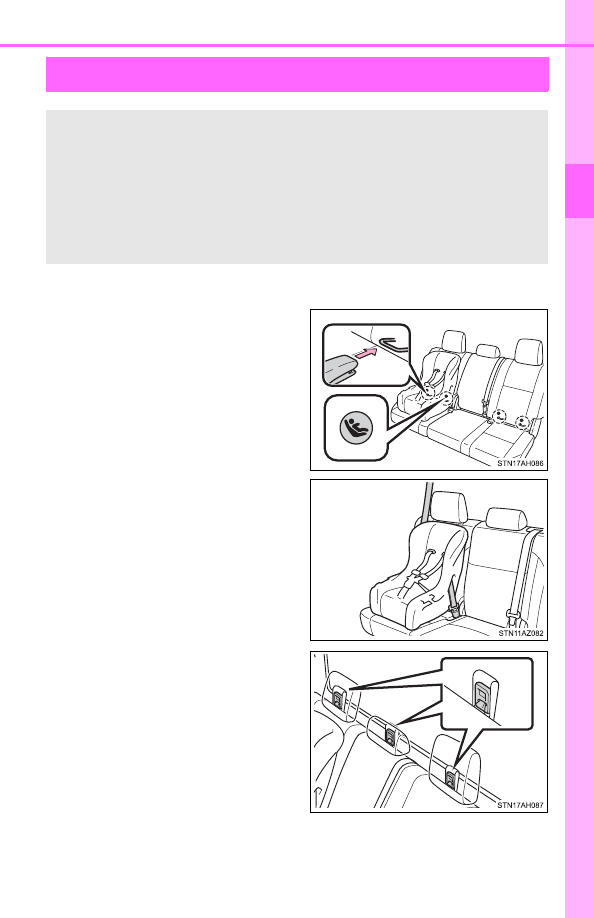

Installing child restraints



Double Cab models

Child restraint LATCH anchors

LATCH  anchors  are  provided  for
the  outer  rear  seats.  (Buttons  dis-
playing the location of the anchors
are attached to the seats.)

Seat  belts  equipped  with  a  child
restraint

locking

mechanism

(ALR/ELR  belts  except  driver’s
seat belt) (



P. 36)

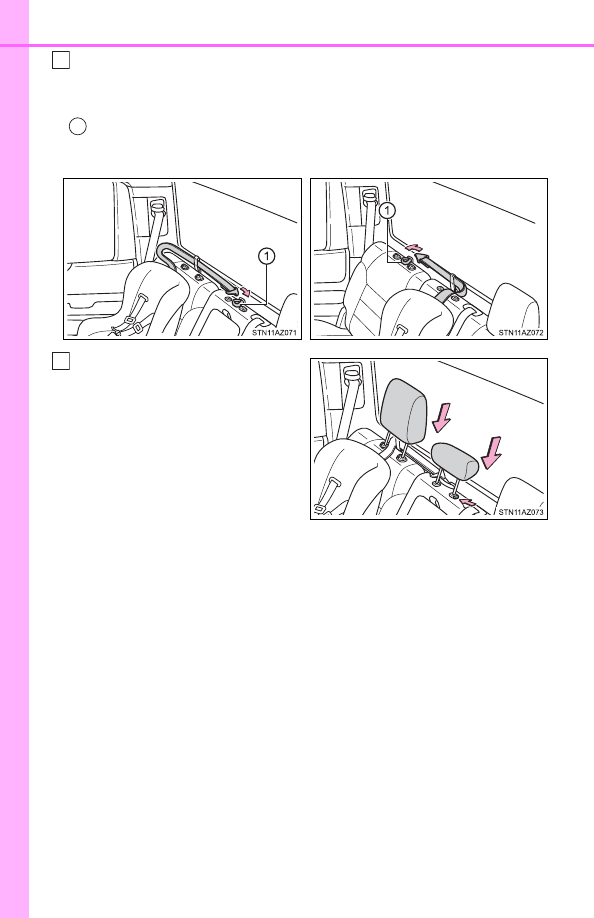

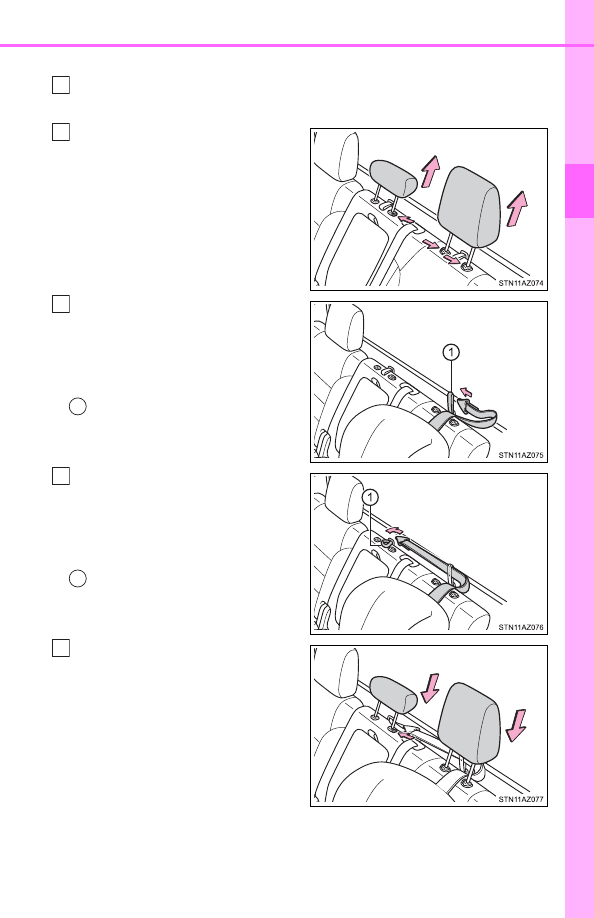

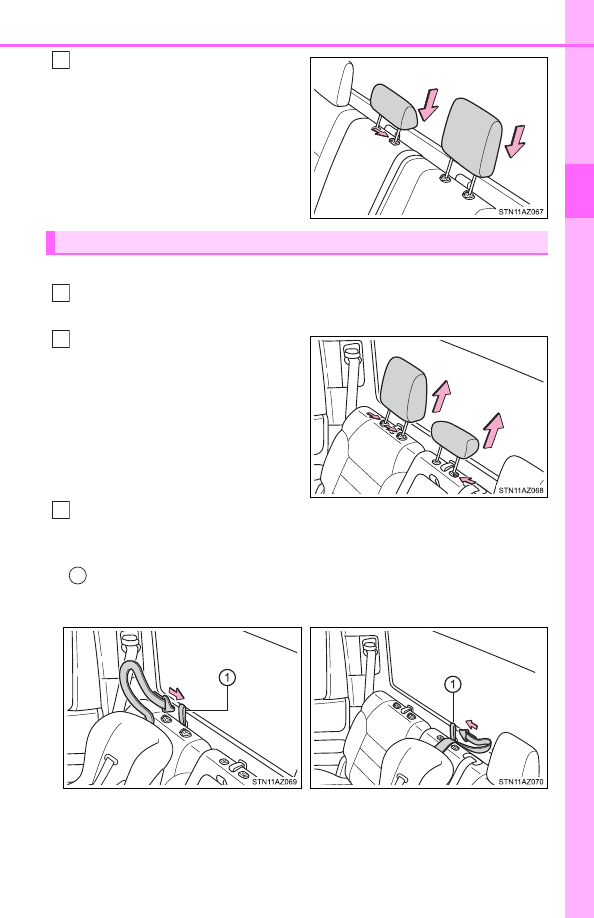

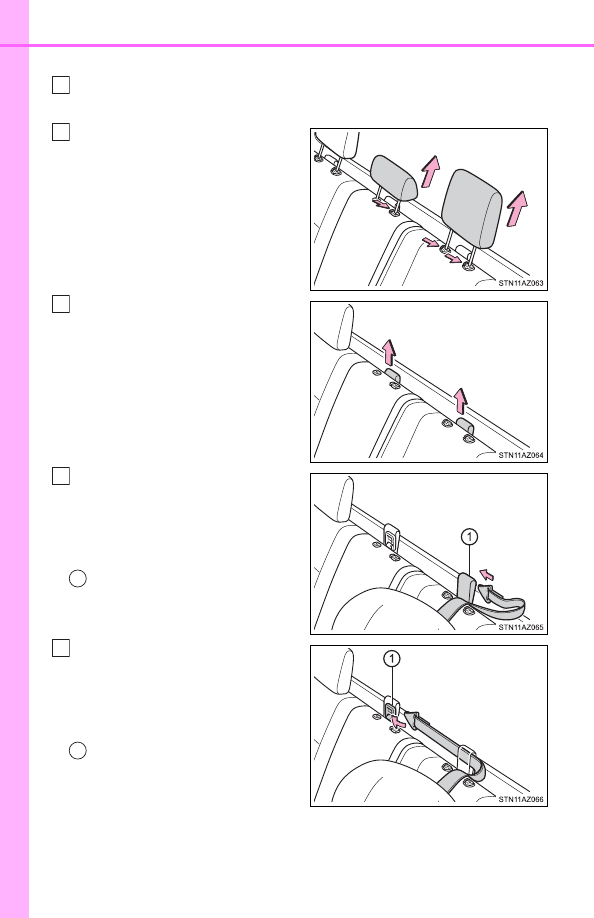

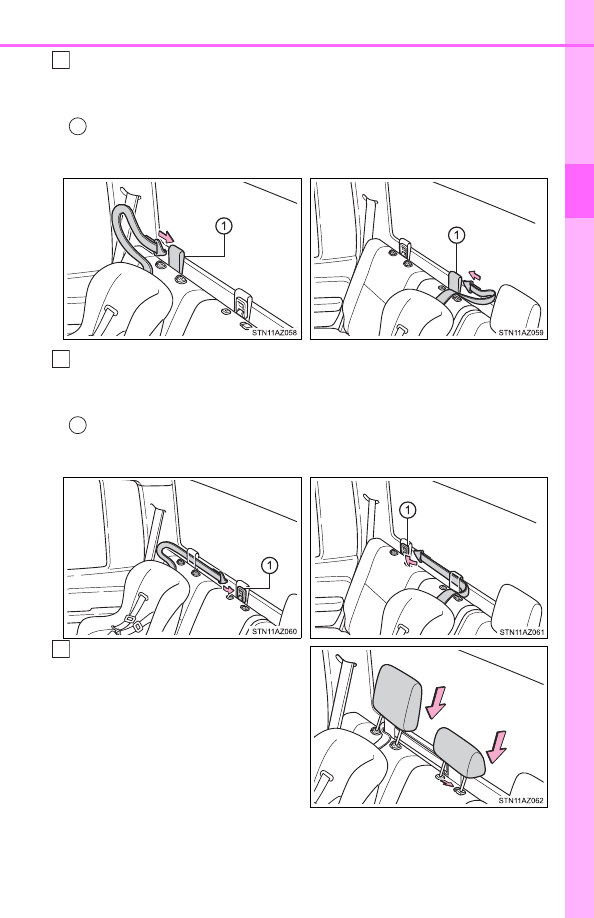

Anchor  bracket  (for  top  tether
strap)

An  anchor  bracket  is  provided  on
each rear seat.

Follow  the  child  restraint  system  manufacturer’s  instructions.
Firmly  secure  child  restraints  to  the  seats  using  the  LATCH
anchors or a seat belt. Attach the top tether strap when installing
a child restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.

64

1-1. For safe use



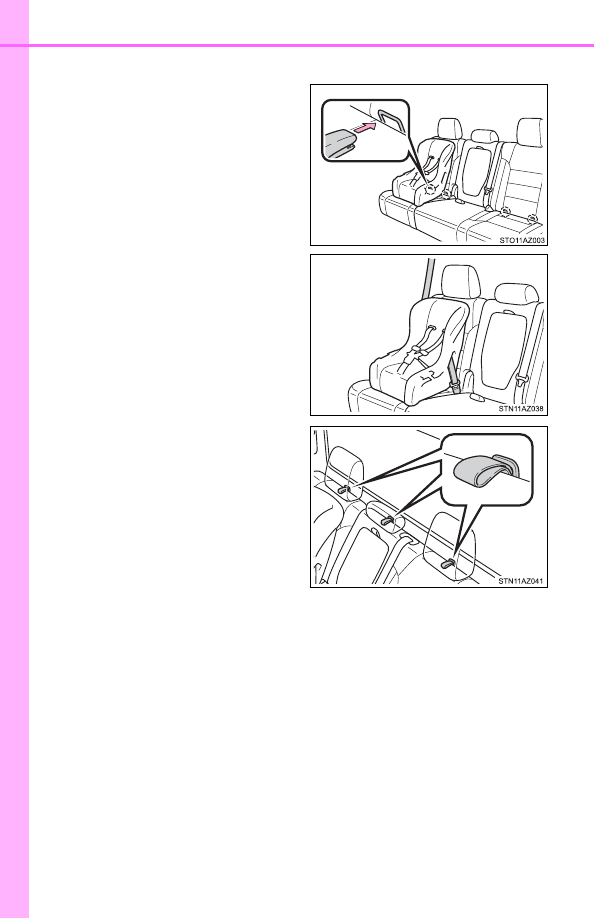

CrewMax models

Child restraint LATCH anchors

LATCH  anchors  are  provided  for
the outer rear seats.

Seat  belts  equipped  with  a  child
restraint

locking

mechanism

(ALR/ELR  belts  except  driver’s
seat belt) (



P. 36)

Anchor  bracket  (for  top  tether
strap)

An  anchor  bracket  is  provided  on
each rear seat.

65

1-1. For safe use

1

For safet

y and s

ecurity



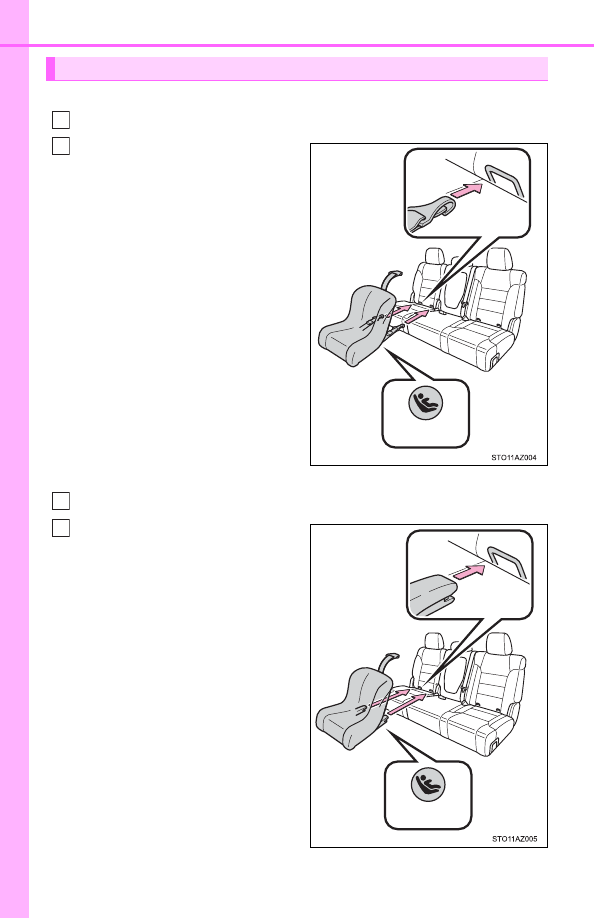

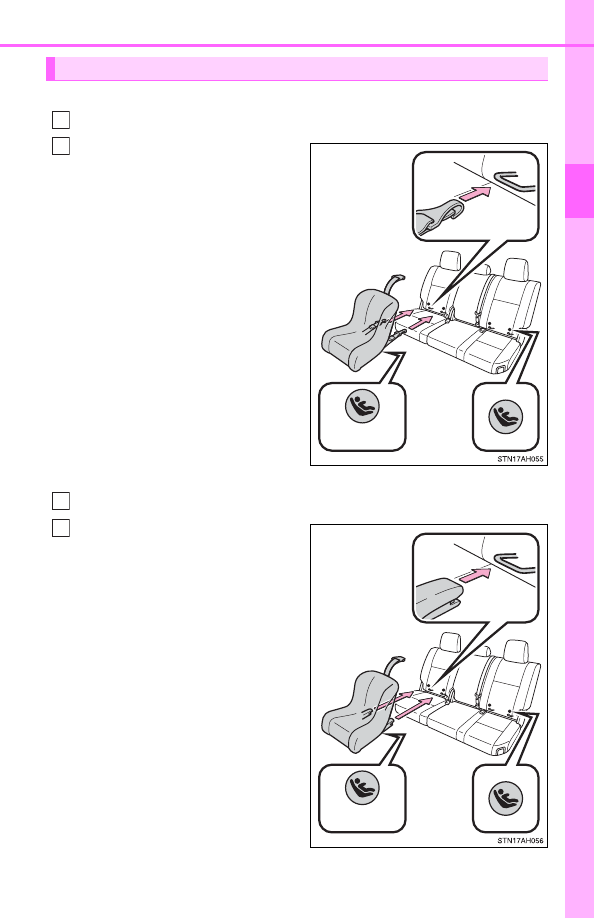

Type A
Widen the gap between the seat cushion and seatback slightly.
Latch  the  hooks  of  the  lower
straps

onto

the

LATCH

anchors.  If  the  child  restraint
has  a  top  tether  strap,  the  top
tether  strap  should  be  latched
onto the top tether strap anchor.

For owners in Canada:
The  symbol  on  a  child  restraint
system indicates the presence of a
lower connector system.



Type B
Widen the gap between the seat cushion and seatback slightly.
Latch  the  buckles  onto  the
LATCH  anchors.  If  the  child
restraint has a top tether strap,
the  top  tether  strap  should  be
latched onto the top tether strap
anchor.

For owners in Canada:
The  symbol  on  a  child  restraint
system indicates the presence of a
lower connector system.

Installation with LATCH system (Double Cab models)

1

Canada only

2

1

Canada only

2

66

1-1. For safe use



Type A
Widen the gap between the seat cushion and seatback slightly.
Latch  the  hooks  of  the  lower
straps

onto

the

LATCH

anchors.  If  the  child  restraint
has  a  top  tether  strap,  the  top
tether  strap  should  be  latched
onto the top tether strap anchor.

For owners in Canada:
The  symbol  on  a  child  restraint
system indicates the presence of a
lower connector system.



Type B
Widen the gap between the seat cushion and seatback slightly.
Latch  the  buckles  onto  the
LATCH  anchors.  If  the  child
restraint has a top tether strap,
the  top  tether  strap  should  be
latched onto the top tether strap
anchor.

For owners in Canada:
The  symbol  on  a  child  restraint
system indicates the presence of a
lower connector system.

Installation with LATCH system (CrewMax models)

1

Canada only

2

1

Canada only

2

67

1-1. For safe use

1

For safet

y and s

ecurity

■

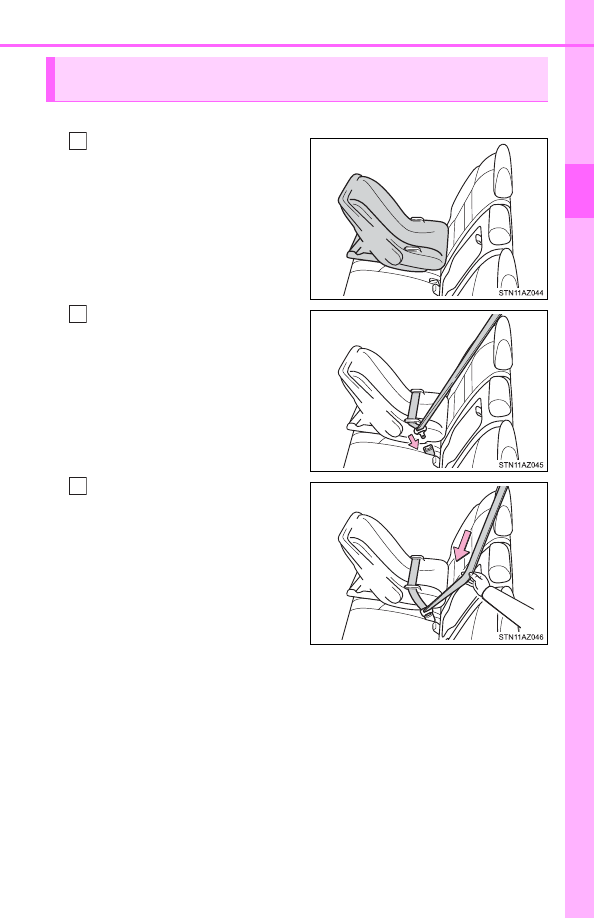

Rear-facing



 Infant seat/convertible seat

Place the child  restraint sys-
tem  on  the  seat  facing  the
rear of the vehicle.

Run the seat belt through the
child  restraint  system  and
insert  the  plate  into  the
buckle.  Make  sure  that  the
belt is not twisted.

Fully extend the shoulder belt
and allow it to retract to put it
in  lock  mode.  In  lock  mode,
the belt cannot be extended.

Installing  child  restraints  using  a  seat  belt  (child  restraint  lock
function belt)

1

2

3

68

1-1. For safe use

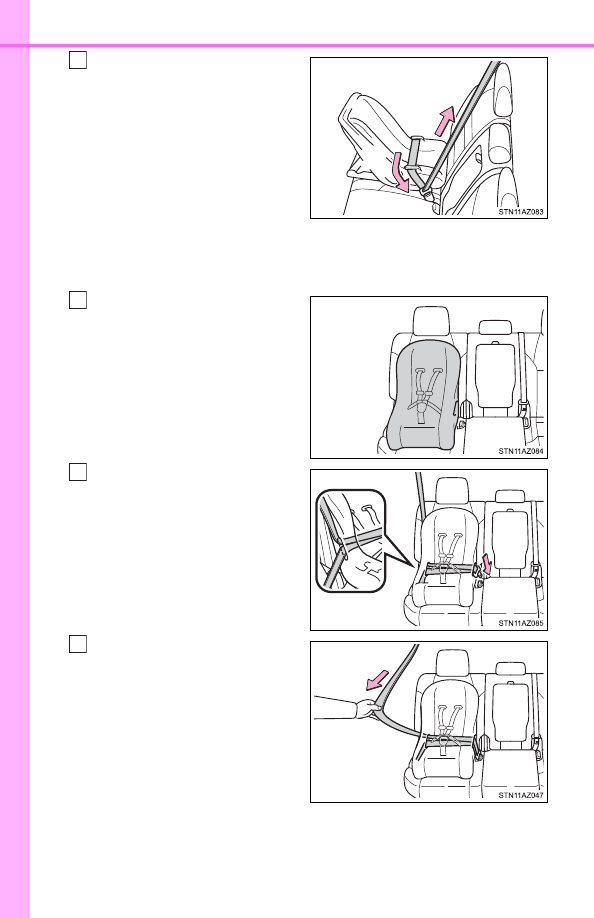

While  pushing  the  child
restraint  system  down  into
the  rear  seat,  allow  the
shoulder  belt  to  retract  until
the  child  restraint  system  is
securely in place.

After  the  shoulder  belt  has
retracted to a point where there
is  no  slack  in  the  belt,  pull  the
belt  to  check  that  it  cannot  be
extended.

■

Forward-facing



Convertible seat

Place the child  restraint sys-
tem  on  the  seat  facing  the
front of the vehicle.

Run the seat belt through the
child  restraint  system  and
insert  the  plate  into  the
buckle.  Make  sure  that  the
belt is not twisted.

Fully extend the shoulder belt
and allow it to retract to put it
in  lock  mode.  In  lock  mode,
the belt cannot be extended.

4

1

2

3

69

1-1. For safe use

1

For safet

y and s

ecurity

While  pushing  the  child
restraint system into the rear
seat,  allow  the  shoulder  belt
to  retract  until  the  child
restraint  system  is  securely
in place.

After  the  shoulder  belt  has
retracted to a point where there
is  no  slack  in  the  belt,  pull  the
belt  to  check  that  it  cannot  be
extended.

If  the  child  restraint  has  a  top  tether  strap,  the  top  tether  strap
should be latched onto the top tether strap anchor.
(



P. 70, 73)

■

Booster seat

Place the child  restraint sys-
tem  on  the  seat  facing  the
front of the vehicle.

Sit  the  child  in  the  child
restraint system. Fit the seat
belt to the child restraint sys-
tem  according  to  the  manu-
facturer’s  instructions  and
insert  the  plate  into  the
buckle.  Make  sure  that  the
belt is not twisted.

Check  that  the  shoulder  belt  is  correctly  positioned  over  the  child’s
shoulder and that the lap belt is as low as possible. (



P. 34)

4

5

1

2

70

1-1. For safe use

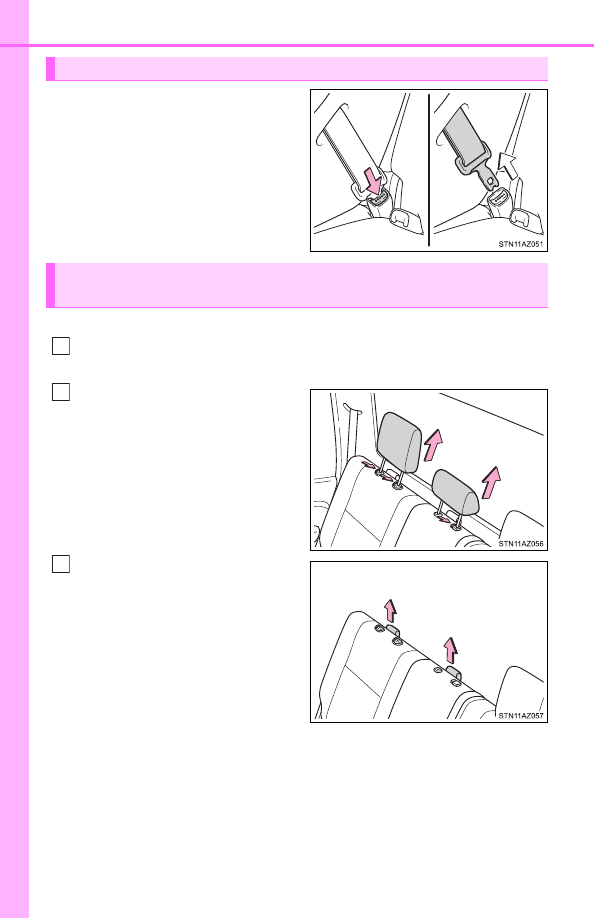

Push  the  buckle  release  button
and fully retract the seat belt.

■

Right rear seat or center rear seat

Secure  the  child  restraint  system  using  a  seat  belt  or  the  lower
anchors.
Remove  the  head  restraints  of
right  and  center  rear  seats.
(



P. 158)

Pull  up  the  straps  of  right  and
center seats.

Removing a child restraint installed with a seat belt

Child restraint systems with a top tether strap (Double Cab mod-
els)

1

2

3

71

1-1. For safe use

1

For safet

y and s

ecurity

Route the top tether strap through the anchor strap router as shown
in the illustration.

Make sure the top tether strap is not twisted.

Anchor strap router

Latch the hook onto the anchor strap ring and tighten the top tether
strap.

Make sure the top tether strap is securely latched.

Anchor strap ring

Replace  the  head  restraints  of
right  and  center  rear  seats.
(



P. 159)

4

1



Right rear seat



Center rear seat

5

1



Right rear seat



Center rear seat

6

72

1-1. For safe use

■

Left rear seat

Secure  the  child  restraint  system  using  a  seat  belt  or  the  lower
anchors.
Remove  the  head  restraints  of
center and left rear seats.
(



P. 158)

Pull up the straps of center and
left seats.

Route  the  top  tether  strap
through the anchor strap router
as shown in the illustration.

Make  sure  the  top  tether  strap  is
not twisted.

Anchor strap router

Latch the hook onto the anchor
strap  ring  and  tighten  the  top
tether strap.

Make  sure  the  top  tether  strap  is
securely latched.

Anchor strap ring

1

2

3

4

1

5

1

73

1-1. For safe use

1

For safet

y and s

ecurity

Replace  the  head  restraints  of
center and left seats. (



P. 159)

■

Right rear seat or center rear seat

Secure  the  child  restraint  system  using  a  seat  belt  or  the  lower
anchors.
Remove  the  head  restraints  of
the right and center rear seats.
(



P. 158)

Route the top tether strap through the anchor strap belt as shown in
the illustration.

Make sure the top tether strap is not twisted.

Anchor strap belt

6

Child restraint systems with a top tether strap (CrewMax models)

1

2

3

1



Right rear seat



Center rear seat

74

1-1. For safe use

Latch the hook onto the anchor strap belt and tighten the top tether
strap.

Make sure the top tether strap is securely latched.

Anchor strap belt

Replace  the  head  restraints  of
right  and  center  rear  seats.
(



P. 159)

4

1



Right rear seat



Center rear seat

5

75

1-1. For safe use

1

For safet

y and s

ecurity

■

Left seat

Secure  the  child  restraint  system  using  a  seat  belt  or  the  lower
anchors.
Remove  the  head  restraints  of
the  center  and  left  rear  seats.
(



P. 158)

Route  the  top  tether  strap
through the anchor strap belt as
shown in the illustration.

Make  sure  the  top  tether  strap  is
not twisted.

Anchor strap belt

Latch the hook onto the anchor
strap  belt  and  tighten  the  top
tether strap.

Make  sure  the  top  tether  strap  is
securely latched.

Anchor strap belt

Replace  the  head  restraints  of
center and left rear seats.
(



P. 159)

1

2

3

1

4

1

5

76

1-1. For safe use

■

Laws and regulations pertaining to anchorages

The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child  restraint  systems  conforming  to  FMVSS213  or  CMVSS213  specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.

WARNING

■

When installing a booster seat

To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (



P. 36)

■

When installing a child restraint system

Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking or an accident.

●

If  the  driver’s  seat  interferes  with  the
child  restraint  system  and  prevents  it
from being attached correctly, attach the
child  restraint  system  to  the  right-hand
rear seat.

●

Adjust the front passenger seat so that
it  does  not  interfere  with  the  child
restraint system.

●

Only put a forward-facing child restraint
system on the front seat when unavoid-
able.  When  installing  a  forward-facing
child  restraint  system  on the  front  pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator  light  is  illuminated.  Failure  to
do  so  may  result  in  death  or  serious
injury if the airbags deploy (inflate).

77

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

■

When installing a child restraint system

●

When a booster seat is installed, always ensure that the shoulder belt is
positioned  across  the  center  of  the  child’s  shoulder.  The  belt  should  be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failure to do so may result in death or serious injury in the event
of an accident or a sudden braking.

●

Ensure that the belt and plate are securely locked and the seat belt is not
twisted.

●

Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.

●

After securing a child restraint system, never adjust the seat.

●

Follow  all  installation  instructions  provided  by  the  child  restraint  system
manufacturer.

●

When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it  does  not,  or  if  it  interferes  with  the  child  restraint,  move  to  a  different
position. Failure to do so may result in death or serious injury.

■

Do not use a seat belt extender

If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a sud-
den braking, sudden swerving or an accident.

■

To correctly attach a child restraint system to the anchors

When using the LATCH anchors, be sure that there are no foreign objects
around  the  anchors  and  that  the  seat  belt  is  not  caught  behind  the  child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of a sudden braking or an accident.

78

1-1. For safe use

Exhaust gas precautions

Harmful  substance  to  the  human  body  is  included  in  exhaust
gases if inhale.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases to enter the vehicle and may lead
to an accident caused by light-headedness, or may lead to death or a serious
health hazard.

■

Important points while driving

●

Double Cab and CrewMax models: Keep the back window closed.

●

Double Cab and CrewMax models: If you smell exhaust gases in the vehi-
cle even when the back window is closed, open the windows and have the
vehicle inspected at your Toyota dealer as soon as possible.

●

Toyota does not recommend occupying the rear cargo area when it is fitted
with a slide-in camper, camper shell or other type cover while the engine is
running. This caution applies to both driving and stopped or parked situa-
tions with the engine running. Particular care should be taken to prevent
exhaust gases from entering camper bodies, trailers or other enclosures
on  or  around  your  vehicle.  If  exhaust  fumes  are  detected,  open  all  win-
dows and thoroughly ventilate the area.

■

When parking

●

If  the  vehicle  is  in  a  poorly  ventilated  area  or  a  closed  area,  such  as  a
garage, stop the engine.

●

Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.

●

Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.

■

Exhaust pipe

The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.

79

1-2. Emergency assistance

1

For safet

y and s

ecurity

Safety Connect



■

System components

Microphone
LED light indicators
“SOS” button

Safety  Connect  is  a  subscription-based  telematics  service  that
uses Global Positioning System (GPS) data and embedded cel-
lular technology to provide safety and security features to sub-
scribers.  Safety  Connect  is  supported  by  Toyota’s  designated
response  center,  which  operates  24  hours  per  day,  7  days  per
week.
Safety  Connect  service  is  available  by  subscription  on  select,
telematics hardware-equipped vehicles.
By  using  the  Safety  Connect  service,  you  are  agreeing  to  be
bound  by  the  Telematics  Subscription  Service Agreement  and
its Terms and Conditions, as in effect and amended from time to
time, a current copy of which is available at Toyota.com in the
United  States,  Toyotapr.com  in  Puerto  Rico  and  Toyota.ca  in
Canada. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.



: If equipped

1

2

3
