5-5. Using the driving support systems

be displayed in an overlapping
stack under the current speed
limit sign.

The following types of road
signs, including electronic signs
and blinking signs, are recog-
nized.

A non-official or a recently intro-
duced traffic sign may not be recog-
nized.

In the following situations, the
RSA system will notify the
driver.



When the vehicle speed
exceeds the speed notifica-
tion threshold of the speed
limit sign displayed, the sign
display will be emphasized
and a buzzer will sound.



When the RSA system recog-

nizes a do not enter sign and
determines that your vehicle
has entered a no-entry area,
the displayed sign will flash
and a buzzer will sound.

Depending on the situation, a
notification function may not
operate properly.

■

Setting procedure



P.177

■

Automatic turn-off of RSA sign

display

In the following situations, a dis-

played speed limit sign and/or do

not enter sign will stop being dis-

played automatically:

●

No sign has been recognized for a

certain distance.

●

The road changes due to a left or

right turn, etc.

In the following situations, stop and

yield signs will stop being displayed

automatically:

●

The system determines that your

vehicle has passed the sign.

●

The road changes due to a left or

right turn, etc.

■

Conditions in which the func-

tion may not operate or detect

correctly

In the following situations, RSA

does not operate normally and may

not recognize signs, display the

incorrect sign, etc. However, this

does not indicate a malfunction.

●

The front camera is misaligned

due to a strong impact being

applied to the sensor, etc.

●

Dirt, snow, stickers, etc. are on the

windshield near the front camera.

●

In inclement weather such as

heavy rain, fog, snow or sand

storms.

●

Light from an oncoming vehicle,

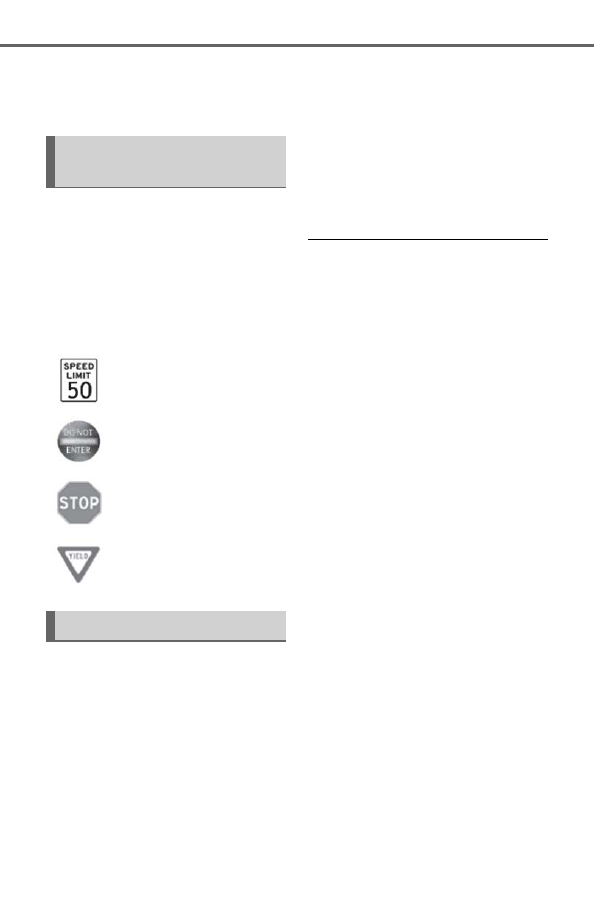

Supported types of road
signs

Speed limit

Do Not Enter

Stop

Yield

Notification function

335

5-5. Using the driving support systems

5

Driving

the sun, etc. enters the front cam-

era.

●

The sign is dirty, faded, tilted or

bent.

●

The contrast of electronic sign is

low.

●

All or part of the sign is hidden by

the leaves of a tree, a pole, etc.

●

The sign is only visible to the front

camera for a short amount of time.

●

The driving scene (turning, lane

change, etc.) is judged incorrectly.

●

If a sign not appropriate for the

currently traveled lane, but the

sign exists directly after a freeway

branches, or in an adjacent lane

just before merging.

●

Stickers are attached to the rear

of the preceding vehicle.

●

A sign resembling a system com-

patible sign is recognized.

●

Side road speed signs may be

detected and displayed (if posi-

tioned in sight of the front camera)

while the vehicle is traveling on

the main road.

●

Roundabout exit road speed signs

may be detected and displayed (if

positioned in sight of the front

camera) while traveling on a

roundabout.

●

The front of the vehicle is raised or

lowered due to the carried load.

●

The surrounding brightness is not

sufficient or changes suddenly.

●

When a sign intended for trucks,

etc. is recognized.

●

The speed information displayed

on the meter and on the naviga-

tion system may be different due

to the navigation system using

map data.

■

Speed limit sign display

If the power switch was last turned

off while a speed limit sign was dis-

played on the multi-information dis-

play, the same sign displays again

when the power switch is turned to

ON.

■

If “RSA Malfunction Visit Your

Dealer” is shown

The system may be malfunctioning.

Have the vehicle inspected by your

Toyota dealer.

■

Customization

Some functions can be customized.

(Customizable features:



P.177)

336

5-5. Using the driving support systems

■

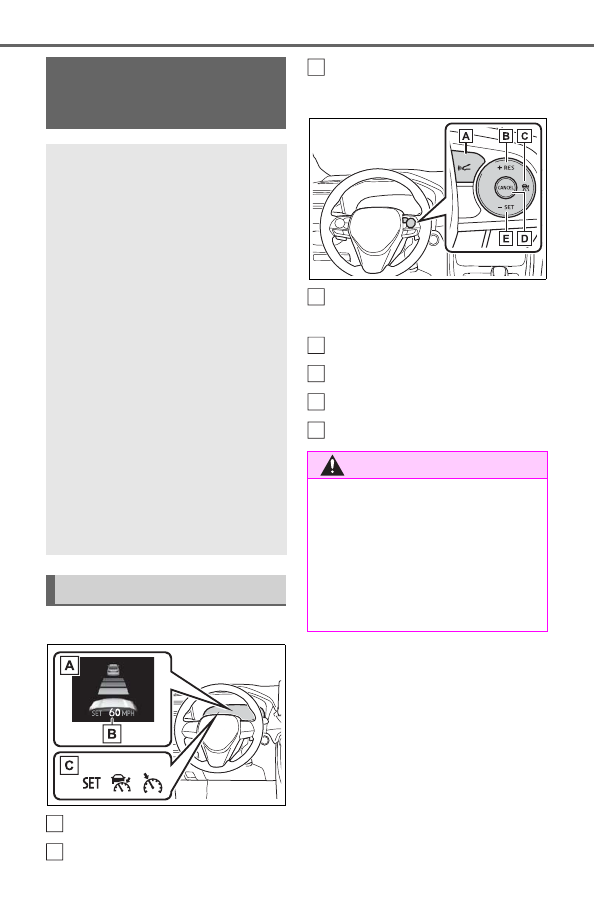

Meter display

Multi-information display

Set speed

Indicators

■

Operation switches

Vehicle-to-vehicle distance
switch

“+RES” switch

Cruise control main switch

Cancel switch

“-SET” switch

Dynamic radar cruise

control with full-speed

range

In vehicle-to-vehicle dis-
tance control mode, the
vehicle automatically accel-
erates, decelerates and
stops to match the speed
changes of the preceding
vehicle even if the accelera-
tor pedal is not depressed.
In constant speed control
mode, the vehicle runs at a
fixed speed.
Use the dynamic radar
cruise control with full-
speed range on freeways
and highways.



Vehicle-to-vehicle distance
control mode (



P.339)



Constant speed control
mode (



P.343)

System Components

A

B

WARNING

■

Before using dynamic radar

cruise control with full-speed

range

●

Driving safely is the sole

responsibility of the driver. Do

not rely solely on the system,

and drive safely by always pay-

ing careful attention to your sur-

roundings.

C

A

B

C

D

E

337

5-5. Using the driving support systems

5

Driving

WARNING

●

The dynamic radar cruise con-

trol with full-speed range pro-

vides driving assistance to

reduce the driver’s burden.

However, there are limitations

to the assistance provided.

Read the following conditions
carefully. Do not overly rely on
this system and always drive
carefully.
• When the sensor may not be

correctly detecting the vehicle

ahead:



P.345

• Conditions under which the

vehicle-to-vehicle distance con-

trol mode may not function cor-

rectly:



P.346

●

Set the speed appropriately

depending on the speed limit,

traffic flow, road conditions,

weather conditions, etc. The

driver is responsible for check-

ing the set speed.

●

Even when the system is func-

tioning normally, the condition

of the preceding vehicle as

detected by the system may dif-

fer from the condition observed

by the driver. Therefore, the

driver must always remain alert,

assess the danger of each situ-

ation and drive safely. Relying

solely on this system or assum-

ing the system ensures safety

while driving can lead to an

accident, resulting in death or

serious injury.

●

Switch the dynamic radar cruise

control with full-speed range

setting to off, using the cruise

control main switch when not in

use.

■

Cautions regarding the driv-

ing assist systems

Observe the following precau-

tions, as there are limitations to

the assistance provided by the

system. Failure to do so may

cause an accident resulting in

death or serious injury.

●

Assisting the driver to measure

following distance

The dynamic radar cruise control
with full-speed range is only
intended to help the driver in
determining the following distance
between the driver’s own vehicle
and a designated vehicle traveling
ahead. It is not a mechanism that
allows careless or inattentive driv-
ing, and it is not a system that can
assist the driver in low-visibility
conditions.
It is still necessary for driver to
pay close attention to the vehi-
cle’s surroundings.

●

Assisting the driver to judge

proper following distance

The dynamic radar cruise control
with full-speed range determines
whether the following distance
between the driver’s own vehicle
and a designated vehicle traveling
ahead is within a set range. It is
not capable of making any other
type of judgement. Therefore, it is
absolutely necessary for the
driver to remain vigilant and to
determine whether or not there is
a possibility of danger in any
given situation.

338

5-5. Using the driving support systems

WARNING

●

Assisting the driver to operate

the vehicle

The dynamic radar cruise control
with full-speed range does not
include functions which will pre-
vent or avoid collisions with vehi-
cles ahead of your vehicle.
Therefore, if there is ever any
possibility of danger, the driver
must take immediate and direct
control of the vehicle and act
appropriately in order to ensure
the safety of all involved.

■

Situations unsuitable for

dynamic radar cruise control

with full-speed range

Do not use dynamic radar cruise

control with full-speed range in

any of the following situations.

Doing so may result in inappropri-

ate speed control and could

cause an accident resulting in

death or serious injury.

●

Roads where there are pedes-

trians, cyclists, etc.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as

those covered with rain, ice or

snow

●

On steep downhills, or where

there are sudden changes

between sharp up and down

gradients

Vehicle speed may exceed the

set speed when driving down a

steep hill.

●

At entrances to freeways and

highways

●

When weather conditions are

bad enough that they may pre-

vent the sensors from detecting

correctly (fog, snow, sandstorm,

heavy rain, etc.)

●

When there is rain, snow, etc.

on the front surface of the radar

or front camera

●

In traffic conditions that require

frequent repeated acceleration

and deceleration

●

When your vehicle is towing a

trailer or during emergency tow-

ing

●

When an approach warning

buzzer is heard often

339

5-5. Using the driving support systems

5

Driving

This mode employs a radar to detect the presence of vehicles up to
approximately 328 ft. (100 m) ahead, determines the current vehicle-
to-vehicle following distance, and operates to maintain a suitable fol-
lowing distance from the vehicle ahead. The desired vehicle-to-vehi-
cle distance can also be set by operating the vehicle-to-vehicle
distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may
become shorter.

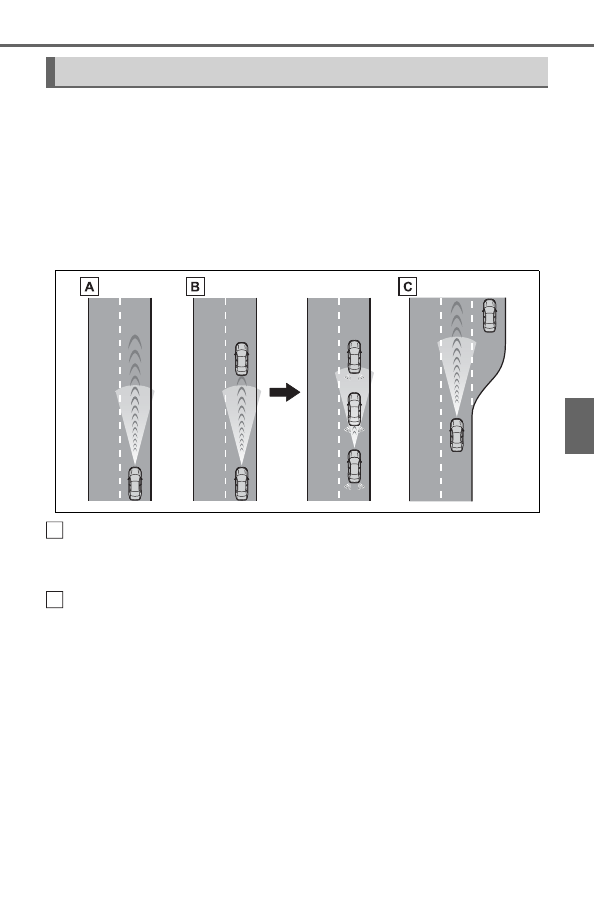

Example of constant speed cruising
When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

Example of deceleration cruising and follow-up cruising
When a preceding vehicle driving slower than the set speed
appears

When a vehicle is detected running ahead of you, the system automatically
decelerates your vehicle. When a greater reduction in vehicle speed is nec-
essary, the system applies the brakes (the stop lights will come on at this
time). The system will respond to changes in the speed of the vehicle
ahead in order to maintain the vehicle-to-vehicle distance set by the driver.
Approach warning warns you when the system cannot decelerate suffi-
ciently to prevent your vehicle from closing in on the vehicle ahead.
When the vehicle ahead of you stops, your vehicle will also stop (vehicle is

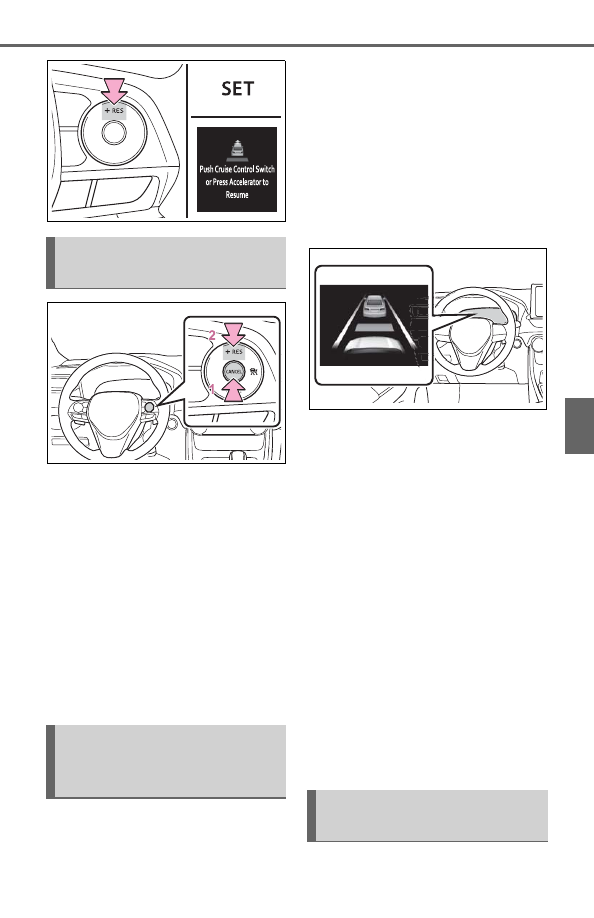

stopped by system control). After the vehicle ahead starts off, pressing the
“+RES” switch or depressing the accelerator pedal (start-off operation) will
resume follow-up cruising. If the start-off operation is not performed, system

Driving in vehicle-to-vehicle distance control mode

A

B

340

5-5. Using the driving support systems

control continues to keep your vehicle stopped.
When the turn signal lever is operated and your vehicle moves to an over-
taking lane while driving at 50 mph (80 km/h) or more, the vehicle will accel-
erate to help to overtake a passing vehicle.
The system’s identification of what is an overtaking lane may be deter-
mined solely based on the location of the steering wheel in the vehicle (left
side driver position versus right side driver position.) If the vehicle is driven
to a region where the overtaking lane is on a different side from where the
vehicle is normally driven, the vehicle may accelerate when the turn signal
lever is operated in the opposite direction to the overtaking lane (e.g., if the
driver normally operates the vehicle in a region where the overtaking lane is
to the right but then drives to a region where the overtaking lane is to the
left, the vehicle may accelerate when the right turn signal is activated).

Example of acceleration
When there are no longer any preceding vehicles driving slower
than the set speed

The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.

1

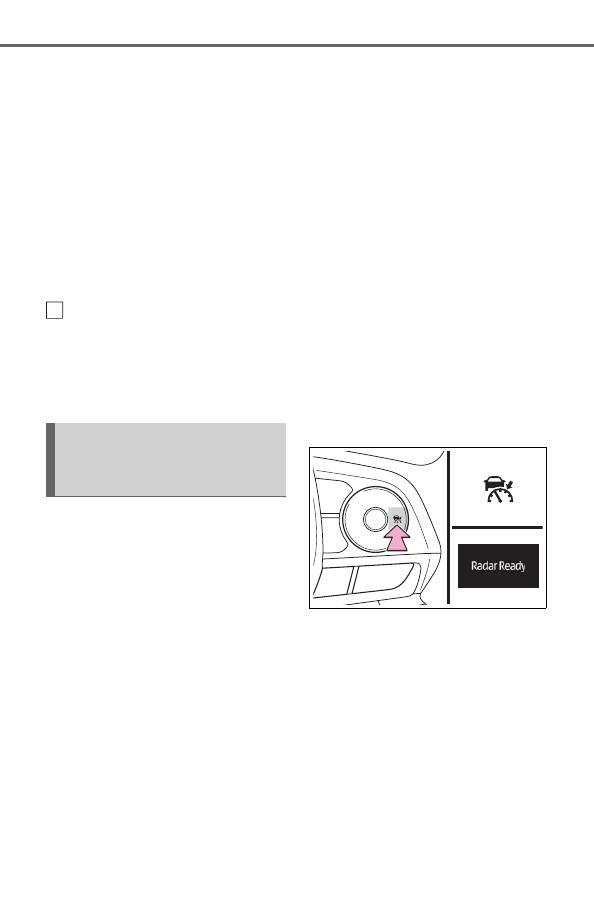

Press the cruise control main
switch to activate the cruise
control.

Dynamic radar cruise control indi-

cator will come on and a message

will be displayed on the multi-infor-

mation display. Press the switch

again to deactivate the cruise con-

trol.
If the cruise control main switch is

pressed and held for 1.5 seconds

or more, the system turns on in

constant speed control mode.

(



P.343)

2

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired vehicle
speed (at or above approxi-
mately 20 mph [30 km/h])
and press the “-SET” switch
to set the speed.

Cruise control “SET” indicator will

come on.
The vehicle speed at the moment

the switch is released becomes the

C

Setting the vehicle speed
(vehicle-to-vehicle dis-
tance control mode)

341

5-5. Using the driving support systems

5

Driving

set speed.



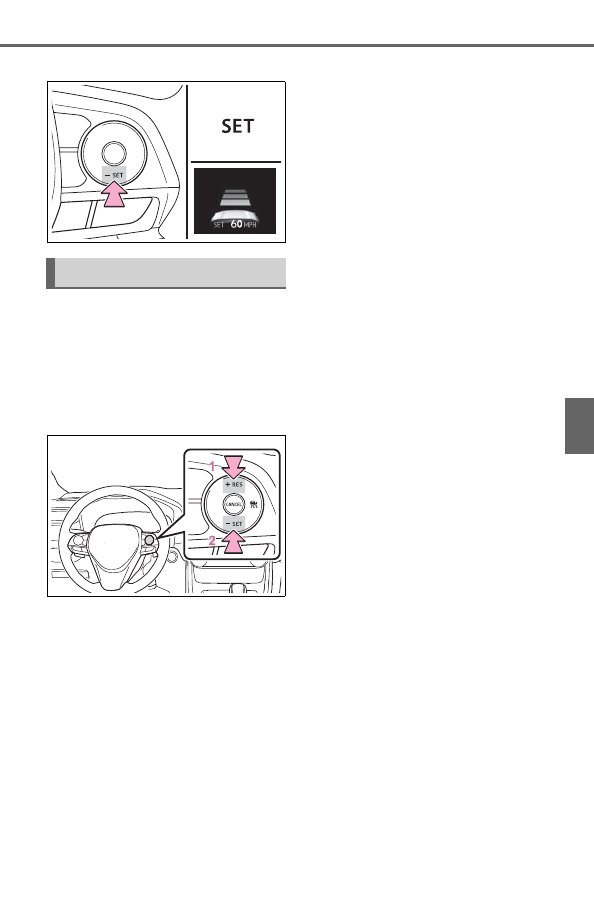

Adjusting the set speed by the
switch

To change the set speed, press
the “+RES” or “-SET” switch
until the desired set speed is
displayed.

1

Increases the speed (Except
when the vehicle has been
stopped by system control in
vehicle-to-vehicle distance
control mode)

2

Decreases the speed

Fine adjustment: Press the switch.
Large adjustment: Press and hold
the switch to change the speed,
and release when the desired
speed is reached.

In the vehicle-to-vehicle dis-
tance control mode, the set

speed will be increased or
decreased as follows:



For the U.S. mainland and
Hawaii

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: Increases or
decreases in 1 mph (1.6 km/h)

*1

 or

1 km/h (0.6 mph)

*2

 increments for

as long as the switch is held



Except for the U.S. mainland
and Hawaii

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: Increases or
decreases in 5 mph (8 km/h)

*1

 or 5

km/h (3.1 mph)

*2

 increments for as

long as the switch is held

In the constant speed control
mode (



P.343), the set speed

will be increased or decreased
as follows:

Fine adjustment: By 1 mph (1.6
km/h)

*1

 or 1 km/h (0.6 mph)

*2

 each

time the switch is pressed
Large adjustment: The speed will
continue to change while the switch
is held.

*1

:When the set speed is shown in

“MPH”

*2

:When the set speed is shown in

“km/h”



Increasing the set speed by
the accelerator pedal

Adjusting the set speed

342

5-5. Using the driving support systems

1

Accelerate with accelerator
pedal operation to the
desired vehicle speed

2

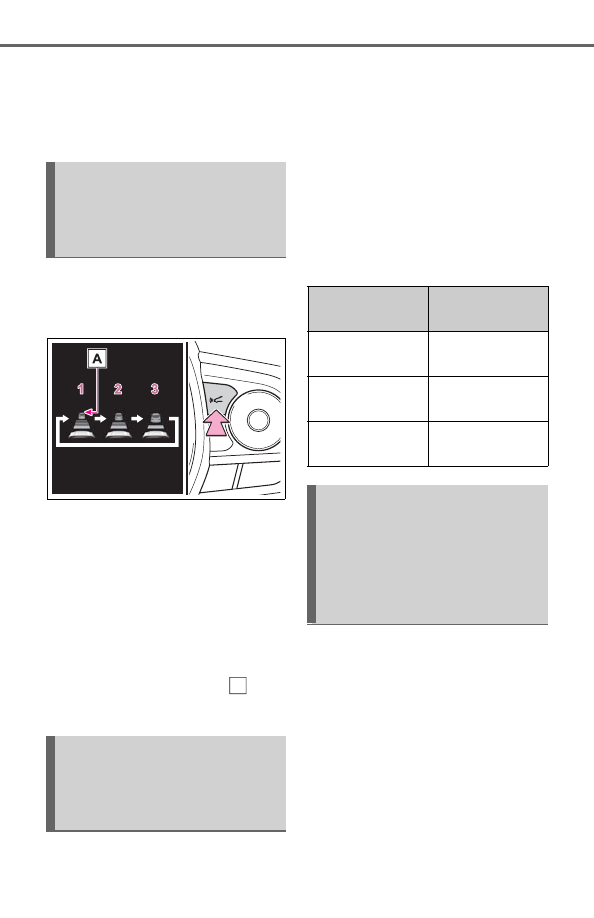

Press the “-SET” switch

Pressing the switch changes the
vehicle-to-vehicle distance as
follows:

1

Long

2

Medium

3

Short

The vehicle-to-vehicle distance is
set automatically to long mode
when the power switch is turned to
ON.
If a vehicle is running ahead of you,
the preceding vehicle mark

 will

also be displayed.

Select a distance from the table

below. Note that the distances
shown correspond to a vehicle
speed of 50 mph (80 km/h).
Vehicle-to-vehicle distance
increases/decreases in accor-
dance with vehicle speed. When
the vehicle is stopped by system
control, the vehicle stops at a
certain vehicle-to-vehicle dis-
tance depending on the situa-
tion.

After the vehicle ahead of you
starts off, press the “+RES”
switch.
Your vehicle will also resume
follow-up cruising if the acceler-
ator pedal is depressed after the
vehicle ahead of you starts off.

Changing the vehicle-to-
vehicle distance (vehicle-
to-vehicle distance con-
trol mode)

Vehicle-to-vehicle dis-
tance settings (vehicle-to-
vehicle distance control
mode)

A

Distance options

Vehicle-to-vehi-

cle distance

Long

Approximately

160 ft. (50 m)

Medium

Approximately

130 ft. (40 m)

Short

Approximately

100 ft. (30 m)

Resuming follow-up
cruising when the vehicle
has been stopped by sys-
tem control (vehicle-to-
vehicle distance control
mode)

343

5-5. Using the driving support systems

5

Driving

1

Pressing the cancel switch
cancels the speed control.

The speed control is also canceled
when the brake pedal is depressed.
(When the vehicle has been
stopped by system control,
depressing the brake pedal does
not cancel the setting.)

2

Pressing the “+RES” switch
resumes the cruise control
and returns vehicle speed to
the set speed.

When your vehicle is too close
to a vehicle ahead, and suffi-
cient automatic deceleration via

the cruise control is not possi-
ble, the display will flash and the
buzzer will sound to alert the
driver. An example of this would
be if another driver cuts in front
of you while you are following a
vehicle. Depress the brake
pedal to ensure an appropriate
vehicle-to-vehicle distance.

■

Warnings may not occur
when

In the following instances, warn-
ings may not occur even when
the vehicle-to-vehicle distance is
small.



When the speed of the pre-
ceding vehicle matches or
exceeds your vehicle speed



When the preceding vehicle is
traveling at an extremely slow
speed



Immediately after the cruise
control speed was set



When depressing the acceler-
ator pedal

When constant speed control

Canceling and resuming
the speed control

Approach warning (vehi-
cle-to-vehicle distance
control mode)

Selecting constant speed
control mode

344

5-5. Using the driving support systems

mode is selected, your vehicle
will maintain a set speed without
controlling the vehicle-to-vehi-
cle distance. Select this mode
only when vehicle-to-vehicle dis-
tance control mode does not
function correctly due to a dirty
radar, etc.

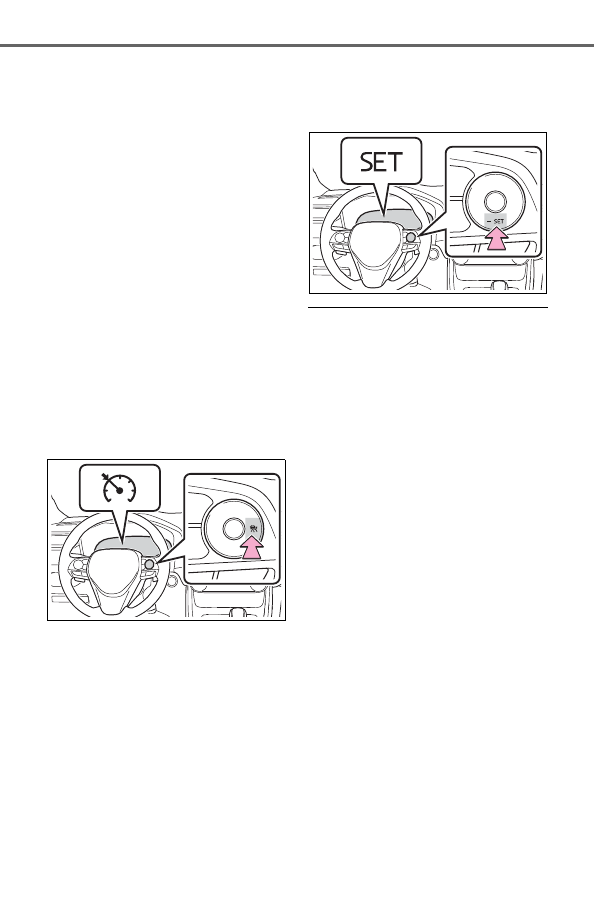

1

With the cruise control off,
press and hold the cruise
control main switch for 1.5
seconds or more.

Immediately after the switch is

pressed, the dynamic radar cruise

control indicator will come on. After-

wards, it switches to the cruise con-

trol indicator.
Switching to constant speed control

mode is only possible when operat-

ing the switch with the cruise con-

trol off.

2

Accelerate or decelerate,
with accelerator pedal opera-
tion, to the desired vehicle
speed (at or above approxi-
mately 20 mph [30 km/h])
and press the “-SET” switch
to set the speed.

Cruise control “SET” indicator will

come on.
The vehicle speed at the moment

the switch is released becomes the

set speed.

Adjusting the speed setting:



P.341

Canceling and resuming the speed

setting:



P.343

■

Dynamic radar cruise control

with full-speed range can be set

when

●

The shift lever is in D.

●

The desired set speed can be set

when the vehicle speed is approx-

imately 20 mph (30 km/h) or more.

(However, when the vehicle speed

is set while driving at below

approximately 20 mph [30 km/h],

the set speed will be set to

approximately 20 mph [30 km/h].)

■

Accelerating after setting the

vehicle speed

The vehicle can accelerate by oper-

ating the accelerator pedal. After

accelerating, the set speed

resumes. However, during vehicle-

to-vehicle distance control mode,

the vehicle speed may decrease

below the set speed in order to

maintain the distance to the preced-

ing vehicle.

■

When the vehicle stops while

follow-up cruising

●

Pressing the “+RES” switch while

the vehicle ahead stops will

resume follow-up cruising if the

vehicle ahead starts off within

approximately 3 seconds after the

switch is pressed.

●

If the vehicle ahead starts off

within 3 seconds after your vehicle

stops, follow-up cruising will be

345

5-5. Using the driving support systems

5

Driving

resumed.

■

Automatic cancelation of vehi-

cle-to-vehicle distance control

mode

Vehicle-to-vehicle distance control

mode is automatically canceled in

the following situations.

●

VSC is activated.

●

TRAC is activated for a period of

time.

●

When the VSC or TRAC system is

turned off.

●

The sensor cannot detect cor-

rectly because it is covered in

some way.

●

Pre-collision braking is activated.

●

The parking brake is operated.

●

The vehicle is stopped by system

control on a steep incline.

●

The following are detected when

the vehicle has been stopped by

system control:

• The driver is not wearing a seat

belt.

• The driver’s door is opened.

• The vehicle has been stopped for

about 3 minutes

If vehicle-to-vehicle distance control
mode is automatically canceled for
any reasons other than the above,
there may be a malfunction in the
system. Contact your Toyota dealer.

■

Automatic cancelation of con-

stant speed control mode

Constant speed control mode is

automatically canceled in the follow-

ing situations:

●

Actual vehicle speed is more than

approximately 10 mph (16 km/h)

below the set vehicle speed.

●

Actual vehicle speed falls below

approximately 20 mph (30 km/h).

●

VSC is activated.

●

TRAC is activated for a period of

time.

●

When the VSC or TRAC system is

turned off.

●

Pre-collision braking is activated.

●

The parking brake is operated.

If constant speed control mode is
automatically canceled for any rea-
sons other than the above, there
may be a malfunction in the system.
Contact your Toyota dealer.

■

Brake operation

A brake operation sound may be

heard and the brake pedal response

may change, but these are not mal-

functions.

■

Warning messages and buzzers

for dynamic radar cruise con-

trol with full-speed range

Warning messages and buzzers are

used to indicate a system malfunc-

tion or to inform the driver of the

need for caution while driving. If a

warning message is shown on the

multi-information display, read the

message and follow the instructions.

(



P.313, 523)

■

When the sensor may not be

correctly detecting the vehicle

ahead

In the case of the following and

depending on the conditions, oper-

ate the brake pedal when decelera-

tion of the system is insufficient or

operate the accelerator pedal when

acceleration is required.
As the sensor may not be able to

correctly detect these types of vehi-

cles, the approach warning

(



P.343) may not be activated.

●

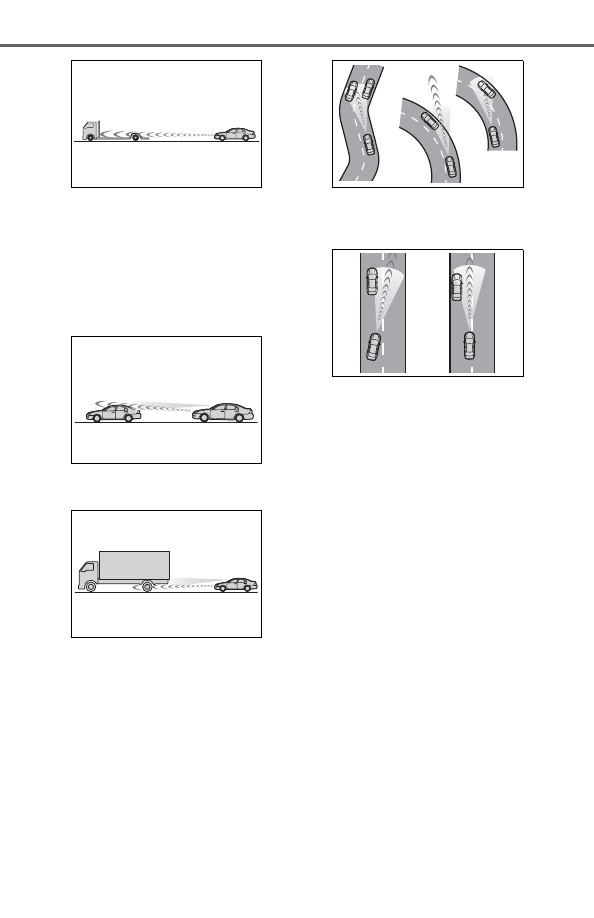

Vehicles that cut in suddenly

●

Vehicles traveling at low speeds

●

Vehicles that are not moving in

the same lane

●

Vehicles with small rear ends

(trailers with no load on board,

etc.)

346

5-5. Using the driving support systems

●

Motorcycles traveling in the same

lane

●

When water or snow thrown up by

the surrounding vehicles hinders

the detecting of the sensor

●

When your vehicle is pointing

upwards (caused by a heavy load

in the luggage compartment, etc.)

●

Preceding vehicle has an

extremely high ground clearance

■

Conditions under which the

vehicle-to-vehicle distance con-

trol mode may not function cor-

rectly

In the case of the following condi-

tions, operate the brake pedal (or

accelerator pedal, depending on the

situation) as necessary.
As the sensor may not be able to

correctly detect vehicles ahead, the

system may not operate properly.

●

When the road curves or when the

lanes are narrow

●

When steering wheel operation or

your position in the lane is unsta-

ble

●

When the vehicle ahead of you

decelerates suddenly

●

When driving on a road sur-

rounded by a structure, such as in

a tunnel or on a bridge

●

While the vehicle speed is

decreasing to the set speed after

the vehicle accelerates by

depressing the accelerator pedal

347

5-5. Using the driving support systems

5

Driving

Multi-information display

Turning the BSM function/RCTA
function on/off.

Outside rear view mirror indi-
cators

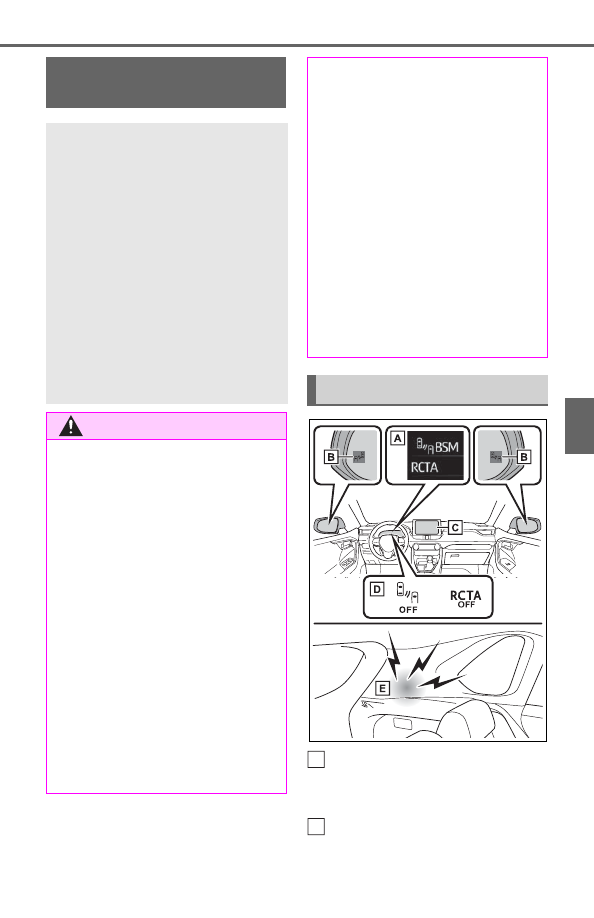

BSM (Blind Spot Moni-

tor)

The Blind Spot Monitor is a
system that has 2 functions:



The BSM (Blind Spot Moni-
tor) function

Assists the driver in making a
decision when changing lanes



The RCTA (Rear Cross
Traffic Alert) function

Assists the driver when back-
ing up

These functions use the
same sensors.

WARNING

■

Cautions regarding the use of

the BSM function

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings.

The BSM function is a supple-

mentary function which alerts the

driver that a vehicle is in a blind

spot of the outside rear view mir-

rors or is approaching rapidly from

behind into a blind spot. Do not

overly rely on the BSM function.

As the function cannot judge if it is

safe to change lanes, over reli-

ance could lead to an accident

resulting in death or serious

injury.
As the system may not function

correctly under certain condi-

tions, the driver’s own visual con-

firmation of safety is necessary.

■

Cautions regarding the use of

the RCTA function

The driver is solely responsible for

safe driving. Always drive safely,

taking care to observe your sur-

roundings.
The RCTA function is only a sup-

plementary function which alerts

the driver that a vehicle is

approaching from the right or left

at the rear of the vehicle. As the

RCTA function may not function

correctly under certain condi-

tions, the driver’s own visual con-

firmation of safety is necessary.
Over reliance on this function may

lead to an accident resulting

death or serious injury.

System components

A

B

348

5-5. Using the driving support systems

BSM function:
When a vehicle is detected in a
blind spot of the outside rear view
mirrors or approaching rapidly from
behind into a blind spot, the outside
rear view mirror indicator on the
detected side will illuminate. If the
turn signal lever is operated toward
the detected side, the outside rear
view mirror indicator will flash.
RCTA function:
When a vehicle approaching from
the right or left at the rear of the
vehicle is detected, both outside
rear view mirror indicators will flash.

Monitor screen display
(RCTA function only)

If a vehicle approaching from the
right or left at the rear of the vehicle
is detected, the RCTA icon
(



P.353) for the detected side will

be displayed.

BSM OFF indicator/RCTA
OFF indicator

When the Blind Spot Monitor is dis-
abled, the BSM OFF indicator illu-
minates.
When the RCTA function is dis-
abled, the RCTA OFF indicator illu-
minates.

RCTA buzzer (RCTA func-
tion only)

If a vehicle approaching from the
right or left at the rear of the vehicle
is detected, a buzzer will sound
from behind the rear seat.

The BSM function and the

RCTA function can be
enabled/disabled on the



screen of the multi-information
display. (



P.177)

The BSM function/RCTA function
will be enabled each time the power
switch is turned to ON.

■

Outside rear view mirror indica-

tors visibility

In strong sunlight, the outside rear

view mirror indicator may be difficult

to see.

■

Hearing the RCTA buzzer

The RCTA buzzer may be difficult to

hear over loud noises such as high

audio volume.

■

When “Blind Spot Monitor

Unavailable” or “Rear Cross

Traffic Alert Unavailable” is

shown on the multi-information

display

The sensor voltage has become

abnormal, or water, snow, mud,

etc., may be built up in the vicinity of

the sensor area of the rear bumper.

(



P.350)

Removing the water, snow, mud,

etc., from the vicinity of the sensor

area should return it to normal.

Also, the sensor may not function

normally when used in extremely

hot or cold weather.

■

When “Blind Spot Monitor Mal-

function Visit Your Dealer” or

“Rear Cross Traffic Alert Mal-

function Visit Your Dealer” is

shown on the multi-information

display

There may be a sensor malfunction

or misaligned. Have the vehicle

inspected at a Toyota dealer.

■

Customization

Some functions can be customized.

(



P.177)

Turning the BSM func-
tion/RCTA function on/off

C

D

E

349

5-5. Using the driving support systems

5

Driving

■

Certification for the Blind Spot Monitor



For vehicles sold in the U.S.A. and Hawaii



For vehicles sold in Canada

350

5-5. Using the driving support systems

■

Vehicles that can be
detected by the Blind Spot
Monitor

The BSM function uses radar
sensors to detect the following
vehicles traveling in adjacent
lanes and advises the driver of
the presence of such vehicles
via the indicators on the outside
rear view mirrors.

WARNING

■

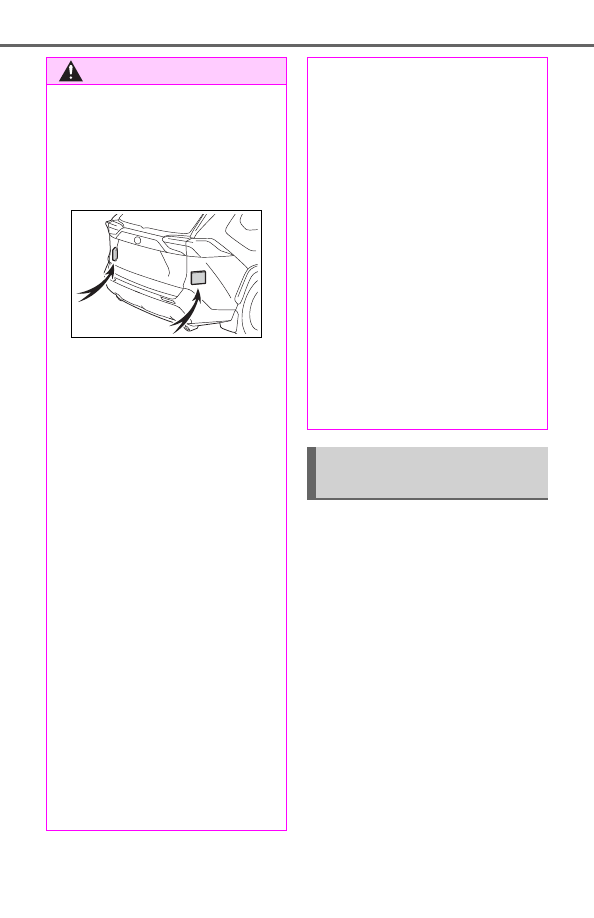

Handling the radar sensor

Blind Spot Monitor sensors are

installed inside the left and right

sides of the rear bumper respec-

tively. Observe the following to

ensure the Blind Spot Monitor can

function correctly.

●

Keep the sensors and the sur-

rounding areas on the rear

bumper clean at all times.

If a sensor or its surrounding

area on the rear bumper is dirty

or covered with snow, the Blind

Spot Monitor may not operate

and a warning message

(



P.348) will be displayed. In

this situation, clear off the dirt or

snow and drive the vehicle with

the operation conditions of the

BSM function (



P.352) satis-

fied for approximately 10 min-

utes. If the warning message

does not disappear, have the

vehicle inspected by your

Toyota dealer.

●

Do not subject a sensor or its

surrounding area on the rear

bumper to a strong impact.

If a sensor is moved even

slightly off position, the system

may malfunction and vehicles

may not be detected correctly.

In the following situations, have

your vehicle inspected by your

Toyota dealer.

• A sensor or its surrounding area

is subject to a strong impact.

• If the surrounding area of a sen-

sor is scratched or dented, or

part of them has become dis-

connected.

●

Do not disassemble the sensor.

●

Do not attach accessories,

stickers (including transparent

stickers), aluminum tape, etc. to

a sensor or its surrounding area

on the rear bumper.

●

Do not modify the sensor or sur-

rounding area on the rear

bumper.

●

If a sensor or the rear bumper

needs to be removed/installed

or replaced, contact your

Toyota dealer.

●

Do not paint the rear bumper

any color other than an official

Toyota color.

The Blind Spot Monitor
function

351

5-5. Using the driving support systems

5

Driving

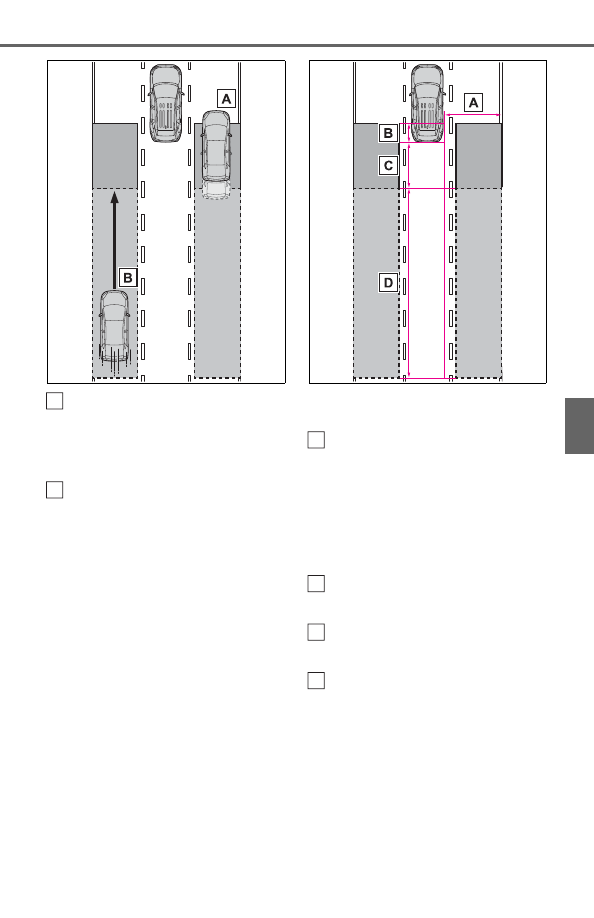

Vehicles that are traveling in
areas that are not visible
using the outside rear view
mirrors (the blind spots)

Vehicles that are approach-
ing rapidly from behind in
areas that are not visible
using the outside rear view
mirrors (the blind spots)

■

The BSM function detection
areas

The areas that vehicles can be
detected in are outlined below.

The range of each detection area
is:

Approximately 1.6 ft. (0.5 m)
to 11.5 ft. (3.5 m) from either
side of the vehicle

The area between the side of the
vehicle and 1.6 ft. (0.5 m) from the
side of the vehicle cannot be
detected.

Approximately 3.3 ft. (1 m)
forward of the rear bumper

Approximately 9.8 ft. (3 m)
from the rear bumper

Approximately 9.8 ft. (3 m) to
197 ft. (60 m) from the rear
bumper

The greater the difference in speed
between your vehicle and the
detected vehicle is, the farther
away the vehicle will be detected,
causing the outside rear view mirror
indicator to illuminate or flash.

A

B

A

B

C

D

352

5-5. Using the driving support systems

■

The BSM function is operational

when

The BSM function is operational

when all of the following conditions

are met:

●

The BSM function is on.

●

The shift lever is in a position

other than R.

●

The vehicle speed is greater than

approximately 10 mph (16 km/h).

■

The BSM function will detect a

vehicle when

The BSM function will detect a vehi-

cle present in the detection area in

the following situations:

●

A vehicle in an adjacent lane over-

takes your vehicle.

●

You overtake a vehicle in an adja-

cent lane slowly.

●

Another vehicle enters the detec-

tion area when it changes lanes.

■

Conditions under which the

BSM function will not detect a

vehicle

The BSM function is not designed to

detect the following types of vehi-

cles and/or objects:

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles traveling in the opposite

direction

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Following vehicles that are in the
same lane

*

●

Vehicles traveling 2 lanes away
from your vehicle

*

●

Vehicles which are being over-

taken rapidly by your vehicle

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Conditions under which the

BSM function may not function

correctly

●

The BSM function may not detect

vehicles correctly in the following

situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering the sensor or sur-

rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap

between each vehicle

• When the distance between your

vehicle and a following vehicle is

short

• When there is a significant differ-

ence in speed between your vehi-

cle and the vehicle that enters the

detection area

• When the difference in speed

between your vehicle and another

vehicle is changing

• When a vehicle enters a detection

area traveling at about the same

speed as your vehicle

• As your vehicle starts from a stop,

a vehicle remains in the detection

area

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When vehicle lanes are wide, or

353

5-5. Using the driving support systems

5

Driving

when driving on the edge of a

lane, and the vehicle in an adja-

cent lane is far away from your

vehicle

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When there is a significant differ-

ence in height between your vehi-

cle and the vehicle that enters the

detection area

• Immediately after the BSM func-

tion/RCTA function are turned on

• When towing a trailer

●

Instances of the BSM function

unnecessarily detecting a vehicle

and/or object may increase in the

following situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When the distance between your

vehicle and a guardrail, wall, etc.

that enters the detection area is

short

• When driving up and down con-

secutive steep inclines, such as

hills, dips in the road, etc.

• When vehicle lanes are narrow, or

when driving on the edge of a

lane, and a vehicle traveling in a

lane other than the adjacent lanes

enters the detection area

• When driving on roads with sharp

bends, consecutive curves, or

uneven surfaces

• When the tires are slipping or

spinning

• When the distance between your

vehicle and a following vehicle is

short

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When the vehicle throws up water

or snow behind.

■

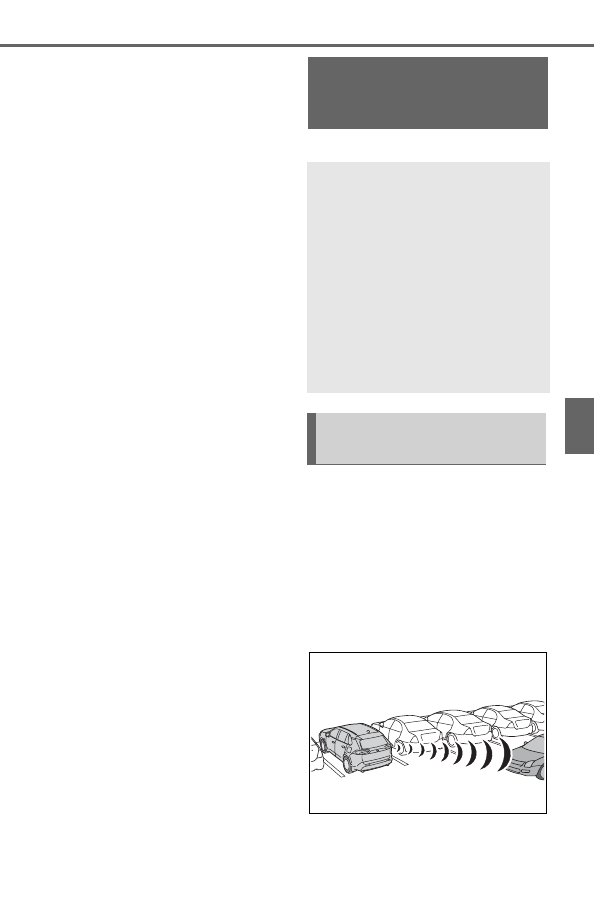

Operation of the RCTA
function

The RCTA function uses radar
sensors to detect vehicles
approaching from the right or left
at the rear of the vehicle and
alerts the driver of the presence
of such vehicles by flashing the
outside rear view mirror indica-
tors and sounding a buzzer.

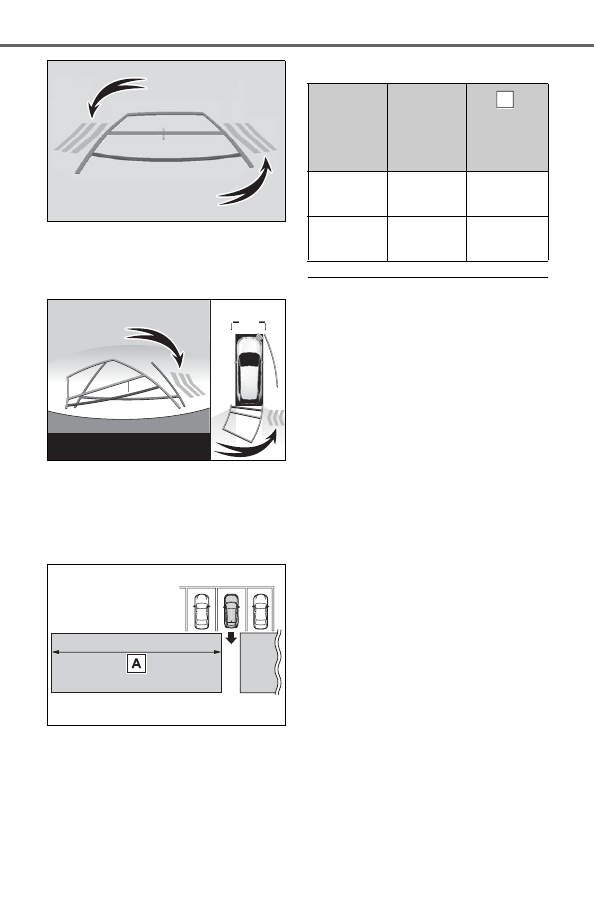

Approaching vehicles

Detection areas

■

RCTA icon display

When a vehicle approaching
from the right or left at the rear
of the vehicle is detected, the
following will be displayed on
the navigation system (if
equipped) or multimedia sys-
tem (if equipped) screen.



When the Toyota parking
assist monitor (if equipped) is
displayed

The Rear Cross Traffic
Alert function

A

B

354

5-5. Using the driving support systems



When the panoramic view
monitor (if equipped) is dis-
played

■

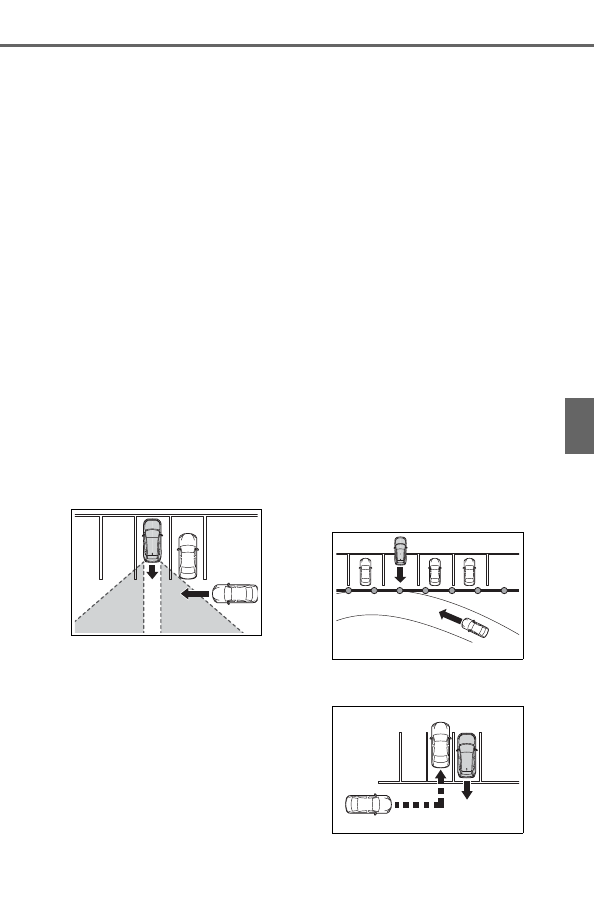

The RCTA function detec-
tion areas

The areas that vehicles can be
detected in are outlined below.

The buzzer can alert the driver of
faster vehicles approaching from
farther away.

Example:

■

The RCTA function is opera-

tional when

The RCTA function operates when

all of the following conditions are

met:

●

The RCTA function is on.

●

The shift lever is in R.

●

The vehicle speed is less than

approximately 5 mph (8 km/h).

●

The approaching vehicle speed is

between approximately 5 mph (8

km/h) and 18 mph (28 km/h).

■

Setting the buzzer volume

The buzzer volume can be adjusted

on the multi-information display.

(



P.177)

■

Conditions under which the

RCTA function will not detect a

vehicle

The RCTA function is not designed

to detect the following types of vehi-

cles and/or objects.

●

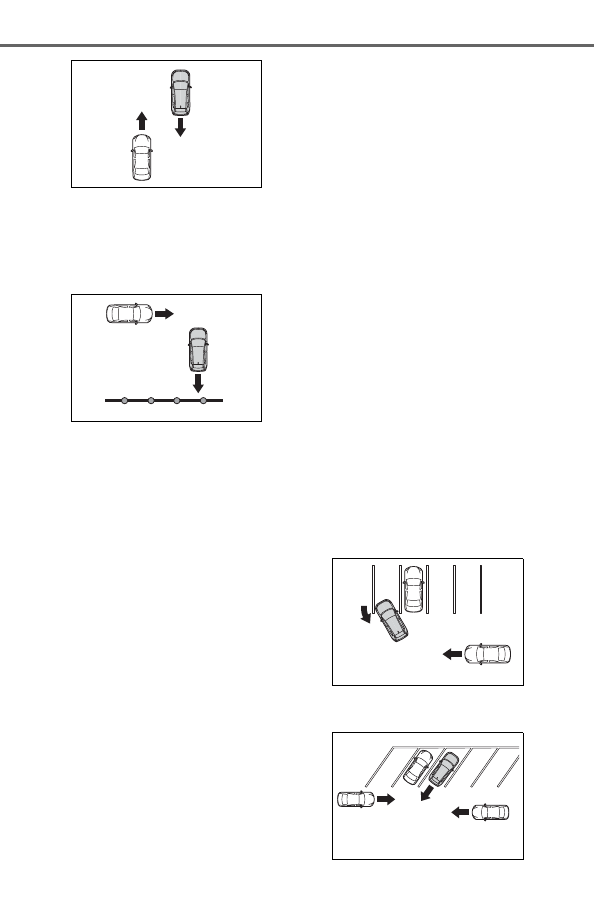

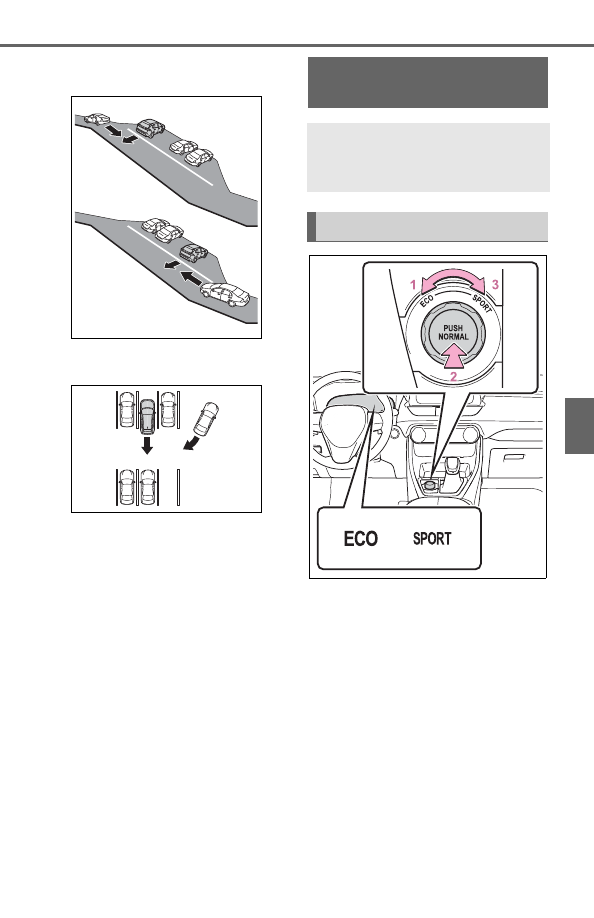

Vehicles approaching from

directly behind

●

Vehicles backing up in a parking

space next to your vehicle

●

Vehicles that the sensors cannot

detect due to obstructions

Approach-

ing vehicle

Speed



Approxi-

mate alert

distance

Fast

18 mph

(28 km/h)

65 ft. (20

m)

Slow

5 mph (8

km/h)

18 ft. (5.5

m)

A

355

5-5. Using the driving support systems

5

Driving

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles moving away from your

vehicle

●

Vehicles approaching from the

parking spaces next to your vehi-
cle

*

*

: Depending on conditions, detec-

tion of a vehicle and/or object may
occur.

■

Conditions under which the

RCTA function may not func-

tion correctly

●

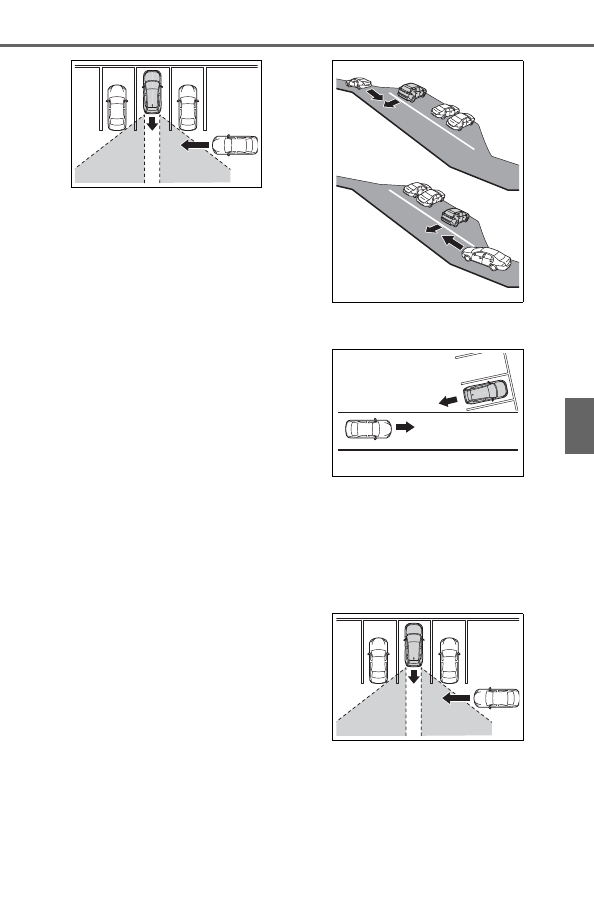

The RCTA function may not

detect vehicles correctly in the fol-

lowing situations:

• When the sensor is misaligned

due to a strong impact to the sen-

sor or its surrounding area

• When mud, snow, ice, a sticker,

etc. is covering the sensor or sur-

rounding area on the rear bumper

• When driving on a road surface

that is wet with standing water

during bad weather, such as

heavy rain, snow, or fog

• When multiple vehicles are

approaching with only a small gap

between each vehicle

• When a vehicle is approaching at

high speed

• When parking on a steep incline,

such as hills, a dip in the road, etc.

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

• When backing up on a slope with

a sharp change in grade

• When backing out of a shallow

angle parking spot

• Immediately after the RCTA func-

tion is turned on

• Immediately after the hybrid sys-

tem is started with the RCTA func-

tion on

• When towing a trailer

• When the sensors cannot detect a

vehicle due to obstructions

●

Instances of the RCTA function

unnecessary detecting a vehicle

and/or object may increase in the

following situations:

• When a vehicle passes by the

side of your vehicle

• When the parking space faces a

street and vehicles are being

356

5-5. Using the driving support systems

driven on the street

• When the distance between your

vehicle and metal objects, such as

a guardrail, wall, sign, or parked

vehicle, which may reflect electri-

cal waves toward the rear of the

vehicle, is short

• When an accessory (such as a

bicycle carrier) is installed to the

rear of the vehicle

*

: If equipped

■

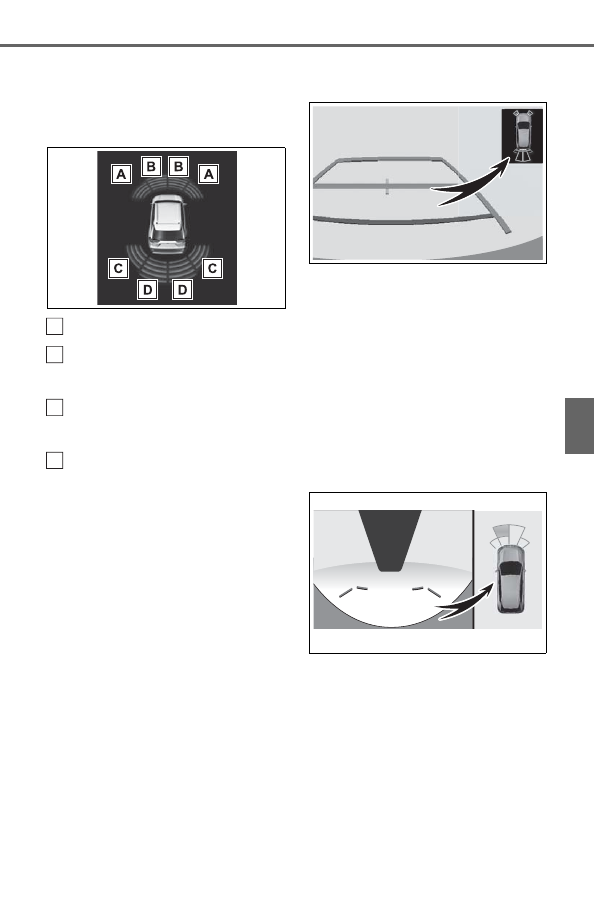

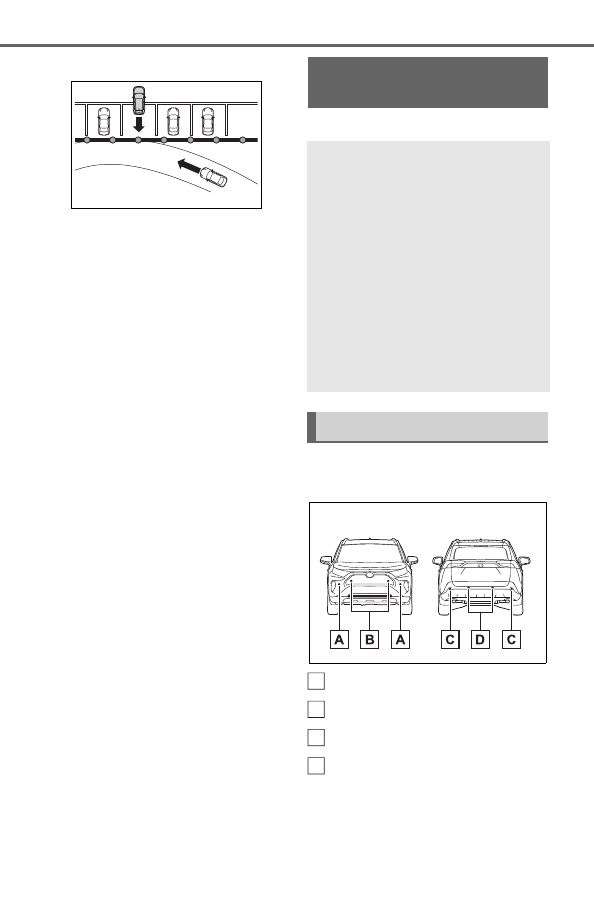

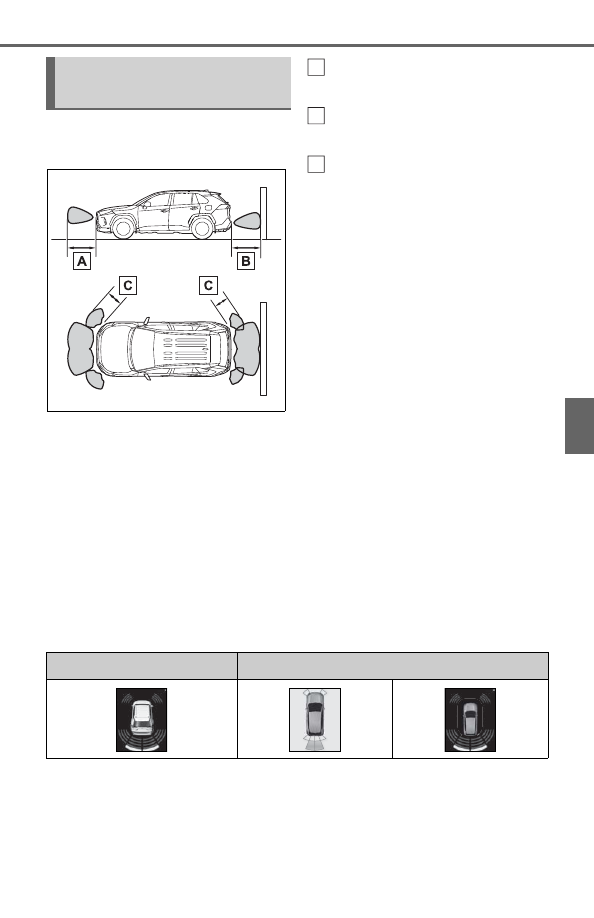

Location and types of sen-
sors

Front corner sensors

Front center sensors

Rear corner sensors

Rear center sensors

■

Display (Multi-information
display)

When the sensors detect an
object, such as a wall, a graphic

Intuitive parking

assist

*

The distance from your
vehicle to objects, such as a
wall, when parallel parking
or maneuvering into a
garage is measured by the
sensors and communicated
via the multi-information
display, navigation system
or multimedia system
screen and a buzzer. Always
check the surrounding area
when using this system.

System components

A

B

C

D

357

5-5. Using the driving support systems

5

Driving

is shown on the multi-informa-
tion display depending on the
position and distance to the
object.

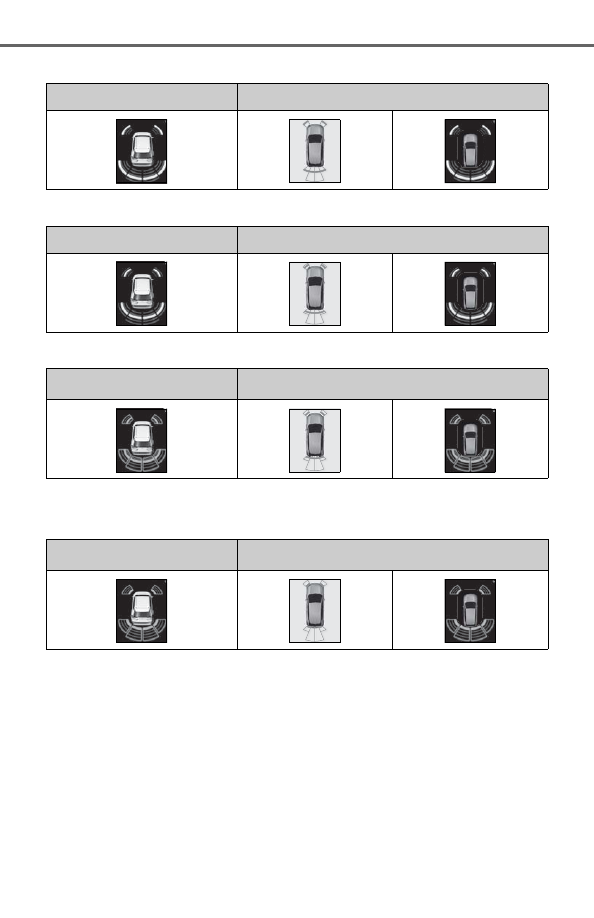

Front corner sensor detection

Front center sensor detec-
tion

*1

Rear corner sensor detec-
tion

*2

Rear center sensor detec-
tion

*2

*1

:Displayed when the shift lever is

in a driving position

*2

:Displayed when the shift lever is

in R

■

Display (Audio system
screen)

When the sensors detect an
object, such as a wall, a graphic
is shown on the navigation sys-
tem (if equipped) or multimedia
system (if equipped) screen
depending on the position and
distance to the object.



When the Toyota parking
assist monitor (if equipped) is
displayed

A simplified image is displayed on

the upper corner of the screen
when an obstacle is detected.



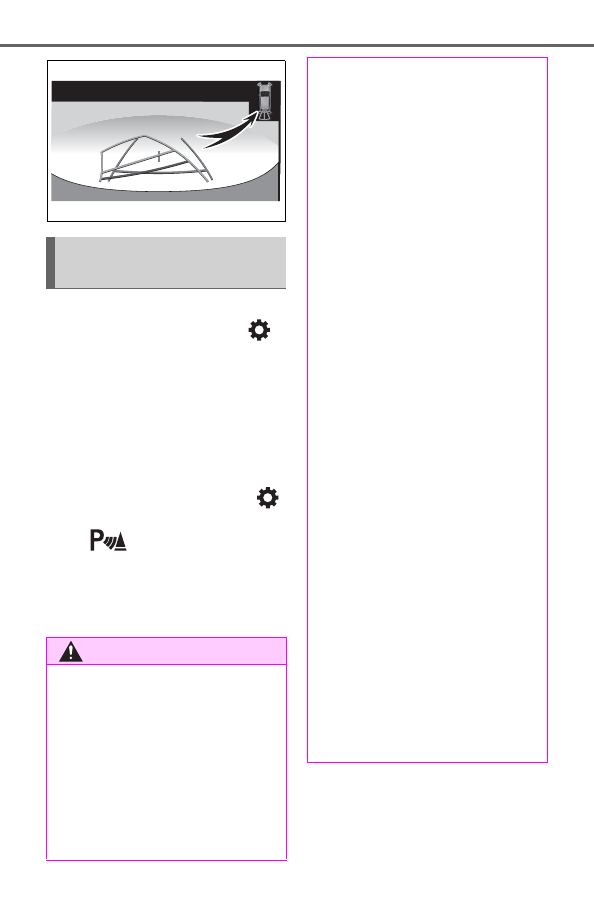

When the panoramic view
monitor (if equipped) is dis-
played



Panoramic view

*

A graphic is shown when the pan-
oramic view monitor is displayed.

*

: A simplified image is displayed on

the upper corner of the screen
when an obstacle is detected
while magnified display is shown.



Except panoramic view

A simplified image is displayed on
the upper corner of the screen
when an obstacle is detected.

A

B

C

D

358

5-5. Using the driving support systems

The Intuitive parking assist can
be enabled/disabled on the



screen of the multi-information
display. (



P.177)

When the intuitive parking assist
function is disabled, the intuitive
parking assist OFF indicator
(



P.163) illuminates on the multi-

information display.

To re-enable the system, select



on the multi-information display,
select

 and turn it on.

If the system is disabled, it will
remain off even if the power switch
is turned to ON after the power
switch has been turned off.

Turning intuitive parking
assist on/off

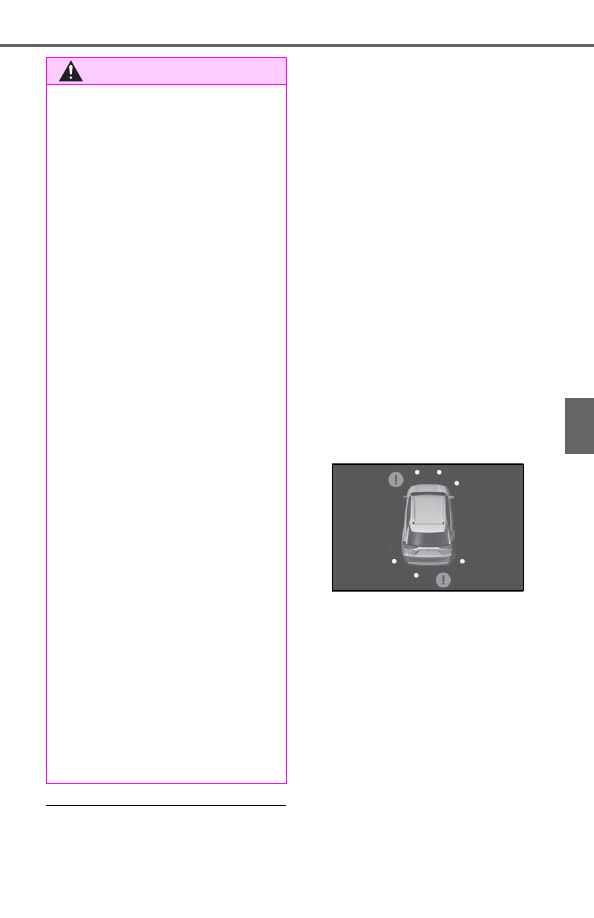

WARNING

■

Intuitive parking assist pre-

cautions

Observe the following precau-

tions.

Failing to do so may result in the

vehicle being unable to be driven

safely and possibly cause an acci-

dent.

●

Do not use the sensor at

speeds in excess of 6 mph (10

km/h).

●

The sensors’ detection areas

and reaction times are limited.

When moving forward or revers-

ing, check the areas surround-

ing the vehicle (especially the

sides of the vehicle) for safety,

and drive slowly, using the

brake to control the vehicle’s

speed.

●

Do not install accessories near

the bumpers as those areas are

within the sensors’ detection

areas.

●

The area directly under the

bumpers is not detected.

Thin posts or objects lower than

the sensor may not be detected

when approached, even if they

have been detected once.

■

When to disable the function

In the following situations, disable

the function as it may operate

even though there is no possibility

of a collision.

●

The vehicle is equipped with a

commercial fender pole, wire-

less antenna or fog lights.

●

The front or rear bumper or a

sensor receives a strong

impact.

●

A non-genuine Toyota suspen-

sion (lowered suspension, etc.)

is installed.

●

Towing eyelets (if equipped) are

installed.

●

A backlit license plate is

installed.

●

When using an automatic car

wash

359

5-5. Using the driving support systems

5

Driving

■

The system can be operated

when

●

The power switch is in ON.

●

Intuitive parking assist function is

on.

●

The vehicle speed is less than

about 6 mph (10 km/h).

●

The shift lever is in a position

other than P.

■

If “Clean Parking Assist Sen-

sor” is displayed on the multi-

information display

A sensor may be covered with ice,

snow, dirt, etc. Remove the ice,

snow, dirt, etc., from the sensor to

return the system to normal.
Also, due to ice forming on a sensor

at low temperatures, a warning

message may be displayed or the

sensor may not be able to detect an

object. Once the ice melts, the sys-

tem will return to normal.
If a warning message is displayed

even if the sensor is clean, there

may be a sensor malfunction. Have

the vehicle inspected by your

Toyota dealer.

■

If “Parking Assist Unavailable”

is displayed on the multi-infor-

mation display

Water may be continuously flowing

over the sensor surface, such as in

a heavy rain. When the system

determines that it is normal, the sys-

tem will return to normal.

■

Sensor detection information

●

The sensor’s detection areas are

limited to the areas around the

vehicle’s front and rear bumpers.

●

The following situations may occur

during use.

• Depending on the shape of the

object and other factors, the

WARNING

■

When using the intuitive park-

ing assist

In the following situations, the

system may not function correctly

due to a sensor malfunction, etc.

Have the vehicle checked by your

Toyota dealer.

●

The intuitive parking assist

operation display flashes or

shows continuously, and a

buzzer sounds when no objects

are detected.

●

If the area around a sensor col-

lides with something, or is sub-

jected to strong impact.

●

If the bumper or grille collides

with something.

●

If the display flashes or is dis-

played continuously and a

buzzer does not sound, except

when the mute function has

been turned on.

■

Notes when washing the vehi-

cle

Do not apply intensive bursts of

water or steam to the sensor

area.
Doing so may result in the sensor

malfunctioning.

●

When using a high pressure

washer to wash the vehicle, do

not spray the sensors directly,

as doing so may cause a sensor

to malfunction.

●

When using steam to clean the

vehicle, do not direct steam too

close to the sensors as doing so

may cause a sensor to malfunc-

tion.

360

5-5. Using the driving support systems

detection distance may shorten,

or detection may be impossible.

• Detection may be impossible if

static objects draw too close to the

sensor.

• There will be a short delay

between static object detection

and display (warning buzzer

sounds). Even at low speeds,

there is a possibility that the object

will come within 9.8 in. (25 cm)

before the display is shown and

the warning buzzer sounds.

• It might be difficult to hear the

buzzer due to the volume of the

audio system or air flow noise of

the air conditioning system.

• It may be difficult to hear the

sound of this system due to the

buzzers of other systems.

■

Conditions under which the

function may not function cor-

rectly

Certain vehicle conditions and the

surrounding environment may affect

the ability of a sensor to correctly

detect objects. Particular instances

where this may occur are listed

below.

●

There is dirt, snow or ice on a sen-

sor. (Cleaning the sensors will

resolve this problem.)

●

A sensor is frozen. (Thawing the

area will resolve this problem.)

In especially cold weather, if a

sensor is frozen the sensor dis-

play may be displayed abnor-

mally, or objects, such as a wall,

may not be detected.

●

A sensor is covered in any way.

●

When a sensor or the area around

a sensor is extremely hot or cold.

●

On an extremely bumpy road, on

an incline, on gravel, or on grass.

●

The vicinity of the vehicle is noisy

due to vehicle horns, motorcycle

engines, air brakes of large vehi-

cles, or other loud noises produc-

ing ultrasonic waves.

●

There is another vehicle equipped

with parking assist sensors in the

vicinity.

●

A sensor is coated with a sheet of

spray or heavy rain.

●

If a sensor is hit by a large amount

of water, such as when driving on

a flooded road.

●

If the vehicle is significantly tilted.

●

The vehicle is approaching a tall

or curved curb.

●

If objects draw too close to the

sensor.

■

Objects which may not be prop-

erly detected

The shape of the object may pre-

vent the sensor from detecting it.

Pay particular attention to the fol-

lowing objects:

●

Wires, fences, ropes, etc.

●

Cotton, snow and other materials

that absorb sound waves

●

Sharply-angled objects

●

Low objects

●

Tall objects with upper sections

projecting outwards in the direc-

tion of your vehicle

People may not be detected if they

are wearing certain types of cloth-

ing.

■

Certification (Canada only)

This ISM device complies with

Canadian ICES-001.

361

5-5. Using the driving support systems

5

Driving

■

Detection range of the sen-
sors

Approximately 3.3 ft. (100
cm)

Approximately 4.9 ft. (150
cm)

Approximately 2.0 ft. (60 cm)

The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect objects that
are extremely close to the vehicle.
The range of the sensors may
change depending on the shape of
the object, etc.

■

Distance display

When an object is detected by a sensor, the approximate distance to
the object will be displayed on the multi-information display, naviga-
tion system (if equipped) or multimedia system (if equipped) screen.
(As the distance to the object becomes short, the distance segments
may blink.)

The images may differ from that shown in the illustrations.



Approximate distance to object

• Front center sensor: 3.3 ft. (100 cm) to 2.0 ft. (60 cm)
• Rear center sensor: 4.9 ft. (150 cm) to 2.0 ft. (60 cm)

Sensor detection display,
object distance

A

B

C

Multi-information display

Navigation or multimedia system screen

362

5-5. Using the driving support systems



Approximate distance to object: 2.0 ft. (60 cm) to 1.5 ft. (45 cm)



Approximate distance to object: 1.5 ft. (45 cm) to 1.0 ft. (30 cm)



Approximate distance to object: 1.0 ft. (30 cm) to 0.5 ft. (15 cm)

*

: The distance segments will blink slowly.



Approximate distance to object: Less than 0.5 ft. (15 cm)

*

: The distance segments will blink rapidly.

■

Buzzer operation and dis-
tance to an object

A buzzer sounds when the sen-
sors are operating.



The buzzer beeps faster as
the vehicle approaches an
object.
When the vehicle comes

within approximately 1.0 ft.
(30 cm) of the object, the
buzzer sounds continuously.



When 2 or more sensors
simultaneously detect a static
object, the buzzer sounds for
the nearest object.



Even when the sensors are

Multi-information display

Navigation or multimedia system screen

Multi-information display

Navigation or multimedia system screen

Multi-information display

*

Navigation or multimedia system screen

Multi-information display

*

Navigation or multimedia system screen

363

5-5. Using the driving support systems

5

Driving

operating, the buzzer will be
muted in some situations.
(automatic buzzer mute func-
tion)

■

Muting the buzzer sound

●

Automatic buzzer mute function

Even when the sensors are operat-
ing, the buzzer will be muted in the
following situations:
• The distance between the vehicle

and the detected object does not

become shorter (except when the

distance between the vehicle and

object is 1.0 ft. [30 cm] or less).

• Your vehicle is moving away from

the object.

• There are no detectable objects

entering the path of your vehicle.

However, if another object is
detected or the situation changes
while the buzzer is muted, the
buzzer begins sounding again.

●

To mute the buzzer sound

The buzzer can be temporarily
muted by pressing

 of the meter

control switches while a suggestion
that says mute is available is shown
on the multi-information display.

●

When the mute is canceled

Mute will be automatically canceled
in the following situations.
• When the shift position is changed

• When the vehicle speed has

reached or exceeded a certain

speed

• When the Intuitive parking assist

is turned off once and turned on

again

• When the power switch is turned

off once and turned to ON again

■

Customization

The buzzer volume can be adjusted

on the multi-information display.

(



P.177)

*

: If equipped

■

Parking Support Brake
function (static objects)



P.368

■

Parking Support Brake
function (rear-crossing
vehicles)



P.373

PKSB (Parking Sup-

port Brake)

*

The Parking Support Brake
system consists of the fol-
lowing functions that oper-
ate when driving at a low
speed or backing up, such
as when parking. When the
system determines that the
possibility of a collision
with a detected object is
high, a warning operates to
urge the driver to take eva-
sive action. If the system
determines that the possi-
bility of a collision with a
detected object is extremely
high, the brakes are auto-
matically applied to help
avoid the collision or help
reduce the impact of the
collision.

PKSB (Parking Support
Brake) system

364

5-5. Using the driving support systems

The Parking Support Brake can
be enabled/disabled on the



screen of the multi-information
display. All of the Parking Sup-
port Brake functions (static
objects and rear-crossing vehi-
cles) are enabled/disabled
simultaneously. (



P.177)

When the Parking Support Brake is
disabled, the PKSB OFF indicator
(



P.163) illuminates on the multi-

information display.

To re-enable the system, select



on the multi-information display,
select

 and turn it on.

If the system is disabled, it will
remain off even if the power switch
is turned to ON after the power
switch has been turned off.

WARNING

■

Limitations of the Parking

Support Brake system

Do not overly rely on the system,

as doing so may lead to an acci-

dent.
Always drive while checking the

safety of the surroundings of the

vehicle.

Depending on the vehicle and

road conditions, weather, etc., the

system may not operate.

The detection capabilities of sen-

sors and radars are limited.

Always drive while checking the

safety of the surroundings of the

vehicle.

●

The driver is solely responsible

for safe driving. Always drive

carefully, taking care to observe

your surroundings. The Parking

Support Brake system is

designed to provide support to

lessen the severity of collisions.

However, it may not operate in

some situations.

●

The Parking Support Brake sys-

tem is not designed to stop the

vehicle completely. Addition-

ally, even if the system has

stopped the vehicle, it is neces-

sary to depress the brake pedal

immediately as brake control

will be canceled after approxi-

mately 2 seconds.

●

Do not attempt to test the oper-

ation of the Parking Support

Brake system yourself such as

intentionally driving to a vehicle

or wall.

Depending on the situations,

the system may not operate

properly, possibly leading to an

accident.

NOTICE

■

If “Parking Support Brake

Unavailable” is displayed on

the multi-information display

and the PKSB OFF indicator

illuminates

If this message is displayed

immediately after the power

switch is changed to ON, operate

the vehicle carefully, paying atten-

tion to your surroundings. It may

be necessary to drive the vehicle

for a certain amount of time

before the system returns to nor-

mal. (If the system does not return

to normal after driving for a while,

clean the sensors and their sur-

rounding area on the bumpers.)

Enabling/Disabling the
Parking Support Brake

365

5-5. Using the driving support systems

5

Driving

If the hybrid system output
restriction control or brake con-
trol operates, a buzzer will
sound and a message will be
displayed on the multi-informa-
tion display, head-up display (if
equipped), navigation system (if
equipped) or multimedia sys-
tem (if equipped) screen, to alert
the driver.

Depending on the situation, hybrid
system output restriction control will
operate to either limit acceleration
or restrict output as much as possi-
ble.



Hybrid system output restric-
tion control is operating
(acceleration restriction)

Acceleration greater than a certain
amount is restricted by the system.
Multi-information display and head-
up display: “Object Detected Accel-
eration Reduced” (no warning dis-
played on the head-up display)
Navigation system or multimedia
system screen: No warning dis-
played
PKSB OFF indicator: Not illumi-
nated
Buzzer: Does not sound



Hybrid system output restric-
tion control is operating (out-
put restricted as much as
possible)

The system has determined that
stronger-than-normal brake opera-
tion is necessary.
Multi-information display and head-
up display: “BRAKE!”
Navigation system or multimedia
system screen: “BRAKE!”
PKSB OFF indicator: Not illumi-
nated
Buzzer: Short beep



Brake control is operating

The system determined that emer-
gency braking is necessary.
Multi-information display and head-
up display: “BRAKE!”
Navigation system or multimedia
system screen: “BRAKE!”
PKSB OFF indicator: Illuminated
Buzzer: Short beep



Vehicle stopped by system
operation

The vehicle has been stopped by
brake control operation.
Multi-information display and head-
up display: “Switch to Brake” (If the
accelerator pedal is not depressed,
“Press Brake Pedal” will be dis-
played.)
Navigation system or multimedia
system screen: “Press Brake
Pedal”
PKSB OFF indicator: Illuminated (If
the accelerator pedal is not
depressed, the indicator is not illu-
minated.)
Buzzer: Short beep

Display and buzzer for
hybrid system output
restriction control and
brake control

366

5-5. Using the driving support systems

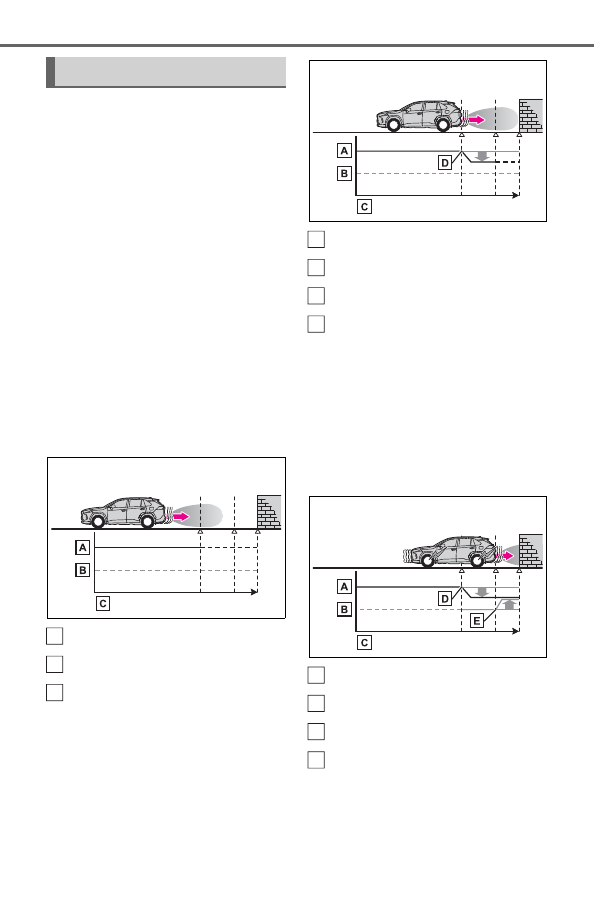

If the Parking Support Brake
determines that a collision with a
detected object is possible, the
hybrid system output will be
restricted to restrain any
increase in the vehicle speed.
(Hybrid system output restriction
control: See figure 2.)
Additionally, if the accelerator
pedal continues to be
depressed, the brakes will be
applied automatically to reduce
the vehicle speed. (Brake con-
trol: See figure 3.)



Figure 1: When the PKSB
(Parking Support Brake) is not
operating

Hybrid system output

Braking force

Time



Figure 2: When hybrid system
output restriction control oper-
ates

Hybrid system output

Braking force

Time

Hybrid system output restric-
tion control begins operating
(System determines that pos-
sibility of collision with
detected object is high)



Figure 3: When hybrid system
output restriction control and
brake control operates

Hybrid system output

Braking force

Time

Hybrid system output restric-
tion control begins operating
(System determines that pos-
sibility of collision with
detected object is high)

System overview

A

B

C

A

B

C

D

A

B

C

D

367

5-5. Using the driving support systems

5

Driving

Brake control begins operat-
ing (System determines that
possibility of collision with
detected object is extremely
high)

■

If the Parking Support Brake

has operated

If the vehicle is stopped due to oper-

ation of the Parking Support Brake,

the Parking Support Brake will be

disabled and the PKSB OFF indica-

tor will illuminate. If the Parking Sup-

port Brake operates unnecessarily,

brake control can be canceled by

depressing the brake pedal or wait-

ing for approximately 2 seconds for

it to automatically be canceled.

Then, the vehicle can be operated

by depressing the accelerator pedal.

■

Re-enabling the Parking Sup-

port Brake

To re-enable the Parking Support

Brake when it is disabled due to

operation of the Parking Support

Brake, either enable the system

again (



P.364), or turn the power

switch off and then back to ON.

Additionally, if the object becomes

no longer in the traveling direction of

the vehicle or if the traveling direc-

tion of the vehicle changes (such as

changing from moving forward to

backing up, or from backing up to

moving forward), the system will be

re-enabled automatically.

■

If “Parking Support Brake

Unavailable” is displayed on

the multi-information display

and the PKSB OFF indicator

illuminates

●

If “Clean Parking Assist Sensor” is

displayed simultaneously, a sen-

sor may be covered with ice,

snow, dirt, etc. In this case,

remove the ice, snow, dirt, etc.,

from the sensor to return the sys-

tem to normal. If this message is

shown even after removing dirt

from the sensor, or shown when

the sensor was not dirty to begin

with, have the vehicle inspected at

your Toyota dealer.

●

If “Parking Assist Unavailable” is

displayed simultaneously, water

may be continuously flowing over

the sensor surface, such as in a

heavy rain. When the system

determines that it is normal, the

system will return to normal.

E

368

5-5. Using the driving support systems

*

: If equipped

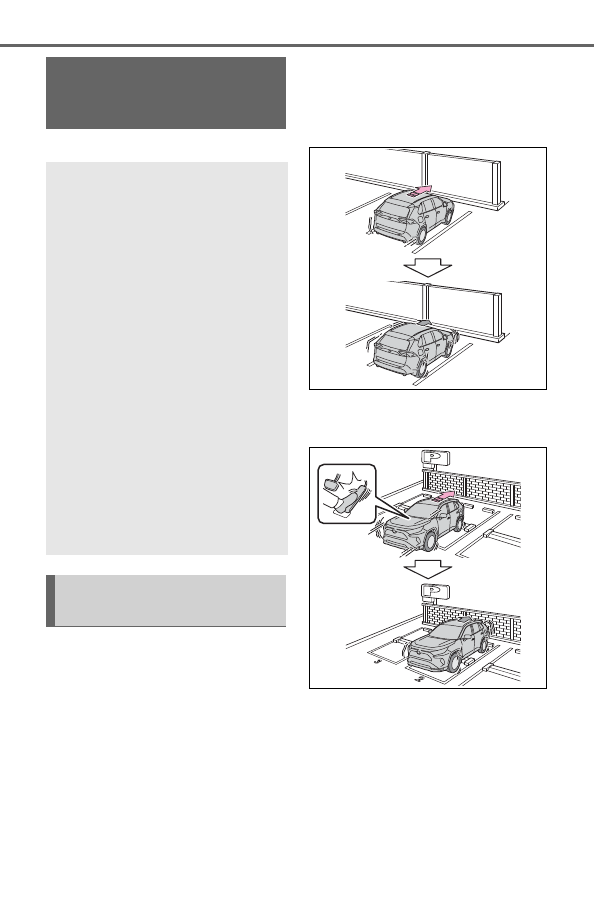

This function will operate in situ-
ations such as the following if an
object is detected in the travel-
ing direction of the vehicle.

■

When traveling at a low
speed and the brake pedal
is not depressed, or is
depressed late

■

When the accelerator pedal
is depressed excessively

Parking Support Brake

function (static

objects)

*

If the sensors detect a static
object, such as a wall, in the
traveling direction of the
vehicle and the system
determines that a collision
may occur due to the vehi-
cle suddenly moving for-
ward due to an accidental
accelerator pedal opera-
tion, the vehicle moving the
unintended direction due to
the wrong shift position
being selected, or while
parking or traveling at low
speeds, the system will
operate to lessen the impact
with the detected static
object and reduce the
resulting damage.

Examples of function
operation

369

5-5. Using the driving support systems

5

Driving

■

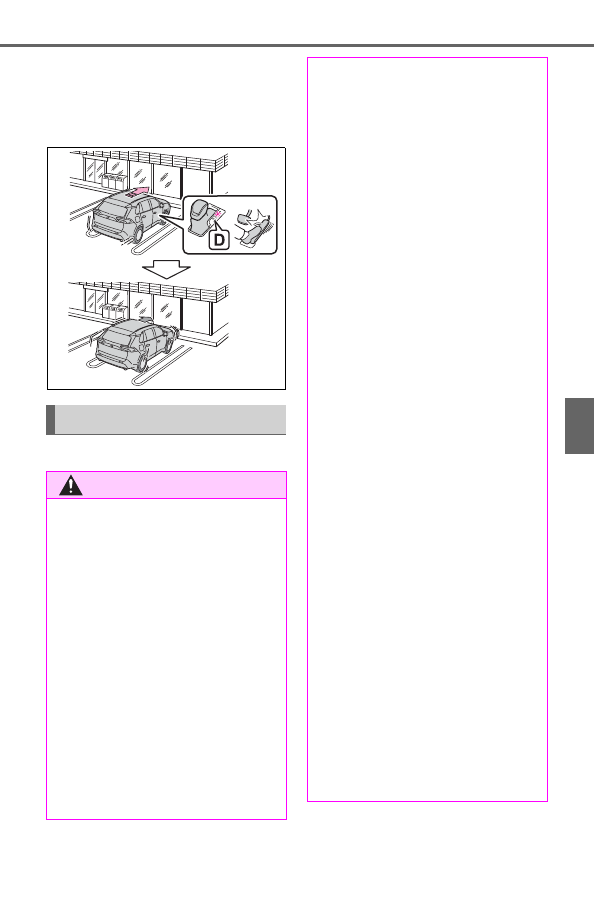

When the vehicle moves in
the unintended direction
due to the wrong shift posi-
tion being selected



P.356

Types of sensors

WARNING

■

To ensure the Parking Sup-

port Brake can operate prop-

erly

Observe the following precautions

regarding the sensors (



P.356).

Failure to do so may cause a sen-

sor to not operate properly, and

may cause an accident.

●

Do not modify, disassemble or

paint the sensors.

●

Do not replace a sensor with a

part other than a genuine part.

●

Do not subject a sensor or its

surrounding area to a strong

impact.

●

Do not damage the sensors,

and always keep them clean.

●

If the area around a radar sen-

sor is subjected to an impact,

the system may not operate

properly due to a sensor mal-

function. Have the vehicle

inspected by your Toyota

dealer.

■

Handling the suspension

Do not modify the suspension, as

changes to the height or inclina-

tion of the vehicle may prevent

the sensors from detecting

objects correctly or cause the sys-

tem to not operate or operate

unnecessarily.

■

If the Parking Support Brake

function (static objects) oper-

ates unnecessarily, such as

at a railroad crossing

In the event that the Parking Sup-

port Brake function (static objects)

operates unnecessarily, such as

at a railroad crossing, brake con-

trol will be canceled after approxi-

mately 2 seconds, allowing you to

proceed forward and leave the

area, brake control can also be

canceled by depressing the brake

pedal. Depressing the accelera-

tor pedal after brake control is

canceled will allow you to proceed

forward and leave the area.

■

Notes when washing the vehi-

cle

Do not apply intensive bursts of

water or steam to the sensor

area.
Doing so may result in the sensor

malfunctioning.

●

When using a high pressure

washer to wash the vehicle, do

not spray the sensors directly,

as doing so may cause a sensor

to malfunction.

370

5-5. Using the driving support systems

■

The Parking Support Brake

function (static object) will

operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated (



P.161, 163) and all of the

following conditions are met:

●

Hybrid system output restriction

control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

mately 9 mph (15 km/h) or less.

• There is a static object in the trav-

eling direction of the vehicle and

approximately 6 to 13 ft. (2 to 4 m)

away.

• The Parking Support Brake deter-

mines that a stronger-than-nor-

mal brake operation is necessary

to avoid a collision.

●

Brake control

• Hybrid system output restriction

control is operating

• The Parking Support Brake deter-

mines that an immediate brake

operation is necessary to avoid a

collision.

■

The Parking Support Brake

function (static objects) will

stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Hybrid system output restriction

control

• The Parking Support Brake is dis-

abled.

• The system determines that the

collision has become avoidable

with normal brake operation.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• The static object is no longer

approximately 6 to 13 ft. (2 to 4 m)

away from the vehicle or in the

traveling direction of the vehicle.

■

Detection range of the Parking

Support Brake function (static

objects)

The detection range of the Parking

WARNING

●

When using steam to clean the

vehicle, do not direct steam too

close to the sensors as doing so

may cause a sensor to malfunc-

tion.

■

When to disable the Parking

Support Brake

In the following situations, disable

the Parking Support Brake as the

system may operate even though

there is no possibility of a colli-

sion.

●

When inspecting the vehicle

using a chassis roller, chassis

dynamo or free roller

●

When loading the vehicle onto a

boat, truck or other transport

vessel

●

If the suspension has been

modified or tires of a size other

than specified are installed

●

If the front of the vehicle is

raised or lowered due to the

carried load

●

When equipment that may

obstruct a sensor is installed,

such as a towing eyelet, bumper

protector (an additional trim

strip, etc.), bicycle carrier, or

snow plow

●

When using an automatic car

wash

371

5-5. Using the driving support systems

5

Driving

Support Brake function (static

objects) differs from the detection

range of the intuitive parking assist.

(



P.361) Therefore, even if the

intuitive parking assist detects an

object and provides a warning, the

Parking Support Brake function

(static objects) may not start operat-

ing.

■

Objects that the Parking Sup-

port Brake function (static

objects) may not detect

The sensors may not be able to

detect certain objects, such as the

following:

●

Pedestrian

●

Cotton, snow, and other materials

that are poor reflectors of sonic

waves

●

Objects which are not perpendicu-

lar to the ground, are not perpen-

dicular to the traveling direction of

the vehicle, are uneven or are

waving

●

Low objects

●

Thin objects such as wires,

fences, ropes and signposts

●

Objects that are extremely close

to the bumper

●

Sharply-angled objects

●

Tall objects with upper sections

projecting outwards in the direc-

tion of your vehicle

■

Situations in which the Parking

Support Brake function (static

objects) may not operate

When the shift lever is in N

■

Intuitive parking assist buzzer

Regardless of whether the intuitive

parking assist system is enabled or

not (



P.358), if the Parking Support

Brake function (static objects) is

enabled (



P.364), the front or rear

sensors detect an object and brake

control and hybrid system output

restriction control are performed, the

intuitive parking assist buzzer will

sound to notify the driver of the

approximate distance to the object.

■

Situations in which the Parking

Support Brake function (static

objects) may operate even if

there is no possibility of a colli-

sion

In some situations, such as the fol-

lowing, the Parking Support Brake

function (static objects) may operate

even though there is no possibility of

a collision.

●

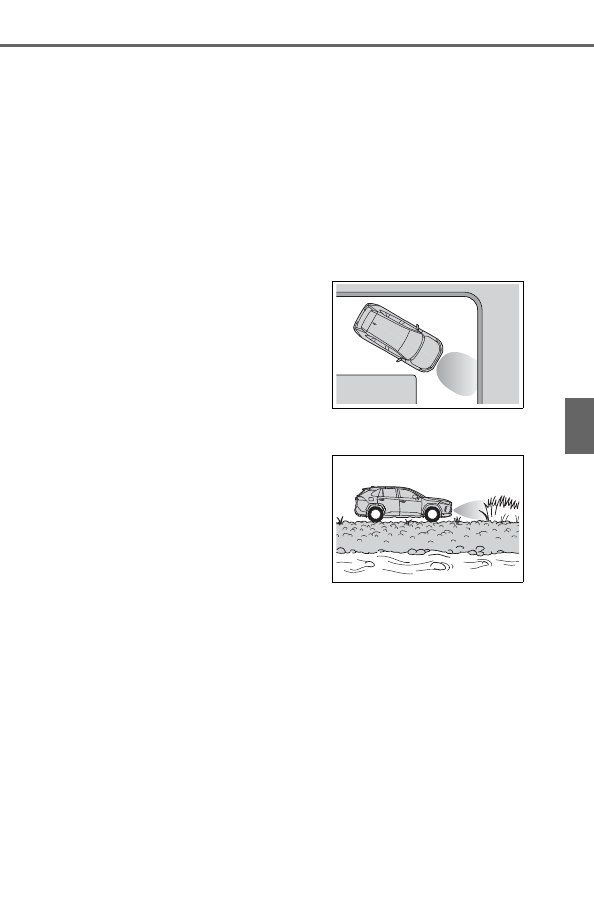

Vehicle surroundings

• When driving on a narrow road

• When driving on a gravel road or

in an area with tall grass

• When driving toward a banner,

flag, low-hanging branch or boom

barrier (such as those used at rail-

road crossings, toll gates and

parking lots)

• When there is a structure on the

roadside (such as when driving in

a narrow tunnel, on a narrow

bridge or on a narrow road)

• When parallel parking

• When there is a rut or hole in the

surface of the road

• When driving on a metal cover

(grating), such as those used for

drainage ditches

• When driving up or down a steep

slope

• If a sensor is hit by a large amount

372

5-5. Using the driving support systems

of water, such as when driving on

a flooded road

• When loaded on ships or trucks

• Moving type automatic car wash

• Lift type parking area or multi-

story parking lot

• Underground parking area

• Structures on the ground (speed

bumps, cat’s eyes, etc.)

• Differences in height

• When moving straight ahead or

turning right

• Snow-melting pipes

• Devices for detecting vehicles,

such as traffic lights, devices for

detecting traffic congestion, or

devices for detecting empty

spaces in parking areas

• Railroad tracks

• H-shaped steel

• When there are vehicles on both

sides, or there is a vehicle that

resembles this vehicle

●

Weather

• If a sensor is covered with ice,

snow, dirt, etc. (when cleared, the

system will return to normal)

• If heavy rain or water strikes a

sensor

• When driving in inclement weather

such as fog, snow or a sandstorm

• Strong wind is blowing

●

Other sonic wave sources

• When vehicle horns, vehicle

detectors, motorcycle engines, air

brakes of large vehicles, the clear-

ance sonar of other vehicles or

other devices which produce ultra-

sonic waves are near the vehicle

• If a sticker or an electronic compo-

nent, such as a backlit license

plate (especially fluorescent type),

fog lights, fender pole or wireless

antenna is installed near a sensor

●

Changes in the vehicle posture

• If the vehicle is significantly tilted

• If the front of the vehicle is raised

or lowered due to the carried load

• If the orientation of a sensor has

been changed due to a collision or

other impact

■

Situations in which the Parking

Support Brake function (static

objects) may not operate prop-

erly

In some situations, such as the fol-

lowing, this function may not oper-

ate properly.

●

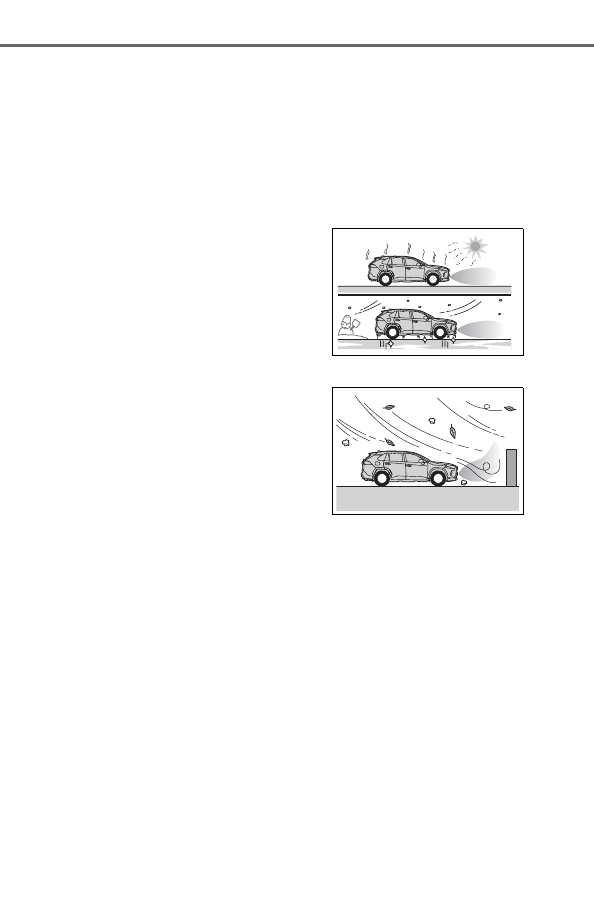

Weather

• When a sensor or the area around

a sensor is extremely hot or cold

• When strong winds are blowing

• If a sensor is covered with ice,

snow, dirt, etc. (when cleared, the

system will return to normal)

• If heavy rain or water strikes a

sensor

• When driving in inclement weather

such as fog, snow or a sandstorm

• A sensor is frozen. (Thawing the

area will resolve this problem.)

●

Vehicle surroundings

• When an object that cannot be

detected is between the vehicle

and a detected object

• If an object such as a vehicle,

motorcycle, bicycle or pedestrian

cuts in front of the vehicle or runs

out from the side of the vehicle

• The vehicle is approaching a tall

or curved curb.

• On an extremely bumpy road, on

an incline, on gravel, or on grass.

• The objects draw too close to the

sensor.

373

5-5. Using the driving support systems

5

Driving

●

Other sonic waves sources

• When vehicle horns, vehicle

detectors, motorcycle engines, air

brakes of large vehicles, the clear-

ance sonar of other vehicles or

other devices which produce ultra-

sonic waves are near the vehicle

• If a sticker or an electronic compo-

nent, such as a backlit license

plate (especially fluorescent type),

fog lights, fender pole or wireless

antenna is installed near a sensor

●

Changes in the vehicle

• If the vehicle is significantly tilted

• If the front of the vehicle is raised

or lowered due to the carried load

• If the orientation of a sensor has

been changed due to a collision or

other impact

• When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

• If the suspension has been modi-

fied or tires of a size other than

specified are installed

• If paint or a sticker is applied to

the sensor

*

: If equipped

This function will operate in situ-
ations such as the following if a
vehicle is detected in the travel-
ing direction of the vehicle.

■

When reversing, a vehicle is
approaching and the brake
pedal is not depressed, or
is depressed late

Parking Support Brake

function (rear-crossing

vehicles)

*

If a rear radar sensor
detects a vehicle approach-
ing from the right or left at
the rear of the vehicle and
the system determines that
the possibility of a collision
is high, this function will
perform brake control to
reduce the likelihood of an
impact with the approach-
ing vehicle.

Examples of function
operation

374

5-5. Using the driving support systems



P.350

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will operate when

The function will operate when the

PKSB OFF indicator is not illumi-

nated (



P.161, 163) and all of the

following conditions are met:

●

Hybrid system output restriction

control

• The Parking Support Brake is

enabled.

• The vehicle speed is approxi-

mately 9 mph (15 km/h) or less.

• Vehicles are approaching from the

right or left at the rear of the vehi-

cle at a traveling speed of more

than approximately 5 mph (8

km/h)

• The shift lever is in R.

• The Parking Support Brake deter-

mines that a stronger than normal

brake operation is necessary to

avoid a collision with an approach-

ing vehicle.

●

Brake control

• Hybrid system output restriction

control is operating

• The Parking Support Brake deter-

mines that an emergency brake

operation is necessary to avoid a

collision with an approaching vehi-

cle.

■

The Parking Support Brake

function (rear-crossing vehi-

cles) will stop operating when

The function will stop operating if

any of the following conditions are

met:

●

Hybrid system output restriction

control

• The Parking Support Brake is dis-

abled.

• The collision becomes avoidable

with normal brake operation.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

●

Brake control

• The Parking Support Brake is dis-

abled.

• Approximately 2 seconds have

elapsed since the vehicle was

stopped by brake control.

• The brake pedal is depressed

after the vehicle is stopped by

brake control.

• A vehicle is no longer approaching

from the right or left at the rear of

the vehicle.

Types of sensors

WARNING

■

To ensure the Parking Sup-

port Brake (rear-crossing

vehicles) can operate prop-

erly

Observe the following precautions

regarding the rear radar sensors

(



P.350). Failure to do so may

cause a sensor to not operate

properly, and may cause an acci-

dent.

●

Do not modify, disassemble or

paint the sensors.

●

Do not replace a rear radar sen-

sor with a part other than a gen-

uine part.

●

Do not damage the rear radar

sensors, and always keep the

radar sensors and their sur-

rounding area on the bumper

clean.

●

If the area around a rear radar

sensor is subjected to an

impact, the system may not

operate properly due to a sen-

sor malfunction. Have the vehi-

cle inspected by your Toyota

dealer.

●

Observe the rear radar sensor

handling precautions. (



P.350)

375

5-5. Using the driving support systems

5

Driving

■

Detection area of the Parking

Support Brake function (rear-

crossing vehicles)

The detection area of the Parking

Support Brake function (rear-cross-

ing vehicles) differs from the detec-

tion area of the RCTA function

(



P.354). Therefore, even if the

RCTA function detects a vehicle

and provides an alert, the Parking

Support Brake function (rear-cross-

ing vehicles) may not start operat-

ing.

■

Conditions under which the

Parking Support Brake func-

tion (rear-crossing vehicles)

will not detect a vehicle

The Parking Support Brake function

(rear-crossing vehicles) is not

designed to detect the following

types of vehicles and/or objects:

●

Vehicles approaching from

directly behind

●

Vehicles backing up in a parking

space next to your vehicle

●

Vehicles that the sensors cannot

detect due to obstructions

●

Vehicles which suddenly acceler-

ate or decelerate near your vehi-

cle

●

Guardrails, walls, signs, parked

vehicles and similar stationary
objects

*

●

Small motorcycles, bicycles,
pedestrians, etc.

*

●

Vehicles moving away from your

vehicle

●

Vehicles approaching from the

parking spaces next to your vehi-

cle

*

●

Objects which are extremely close
to a radar sensor

*

●

Vehicles which are approaching

from the right or left at the rear of

the vehicle at a traveling speed of

less than approximately 5 mph (8

km/h)

●

Vehicles which are approaching

from the right or left at the rear of

the vehicle at a traveling speed of

more than approximately 15 mph

(24 km/h)

*

: Depending on the conditions,

detection of a vehicle and/or
object may occur.

■

Situations in which the system

may operate even though there

is no possibility of a collision

In some situations such as the fol-

lowing, the Parking Support Brake

function (rear-crossing vehicles)

may operate even though there is

no possibility of a collision.

●

When the parking space faces a

street and vehicles are being

driven on the street

●

When a detected vehicle turns

while approaching the vehicle

●

When a vehicle passes by the

side of your vehicle

376

5-5. Using the driving support systems

●

When the distance between your

vehicle and metal objects, such as

a guardrail, wall, sign, or parked

vehicle, which may reflect electri-

cal waves toward the rear of the

vehicle, is short

●

When there are spinning objects

near your vehicle such as the fan

of an air conditioning unit

●

When water is splashed or

sprayed toward the rear bumper,

such as from a sprinkler

■

Situations in which the Parking

Support Brake function (rear-

crossing vehicles) may not

operate properly

In some situations, such as the fol-

lowing, the radar sensors may not

detect an object and this function

may not operate properly

●

Stationary objects

●

When a sensor or the area around

a sensor is extremely hot or cold

●

If the rear bumper is covered with

ice, snow, dirt, etc.

●

When it is raining heavily or water

strikes the vehicle

●

When the detection area of a

radar sensor is obstructed by an

adjacent vehicle

●

If the vehicle is significantly tilted

●

When equipment that may

obstruct a sensor is installed, such

as a towing eyelet, bumper pro-

tector (an additional trim strip,

etc.), bicycle carrier, or snow plow

●

If the suspension has been modi-

fied or tires of a size other than

specified are installed

●

If the front of the vehicle is raised

or lowered due to the carried load

●

If a sticker or an electronic compo-

nent, such as a backlit license

plate (especially fluorescent type),

fog lights, fender pole or wireless

antenna is installed near a radar

sensor

●

If the orientation of a radar sensor

has been changed

●

When multiple vehicles are

approaching with only a small gap

between each vehicle

●

If a vehicle is approaching the rear

of your vehicle rapidly

●

Situations in which the radar sen-

sor may not detect a vehicle

• When a vehicle approaches from

the right or left at the rear of the

vehicle while you are turning while

backing up

• When turning while backing up

• When backing out of a shallow

angle parking spot

377

5-5. Using the driving support systems

5

Driving

• When backing up on a slope with

a sharp change in grade

• When a vehicle turns into the

detection area

1

Eco drive mode

Suitable for driving to improve fuel
economy by more smoothly gener-
ating torque in response to acceler-
ator pedal operations compared to
normal mode and restraining air
conditioning system operations
(heating/cooling).
When the switch is turned to the left
while not in Eco drive mode, the
system switches to Eco drive mode
and the Eco drive mode indicator
illuminates on the multi-information
display.

2

Normal mode

Driving mode select

switch

The driving modes can be
selected to suit the driving
and usage conditions.

Selecting a driving mode

378

5-5. Using the driving support systems

Suitable for normal driving.
The driving mode returns to normal
mode if the switch is pressed while
in Eco drive mode or sport mode.

3

Sport mode

Controls the steering feeling and
hybrid system to create an acceler-
ation response that is suitable for
sporty driving. Suitable for when
crisp handling is desired, such as
when driving on mountainous
roads.
When the switch is turned to the
right while not in sport mode, the
system switches to sport mode and
the sport mode indicator illuminates
on the multi-information display.

■

When changing to a driving

mode other than normal mode

●

The background color of the multi-

information display changes

according to the selected driving

mode.

●

When the speedometer is set to

analog display, the speedometer

display color also changes.

●

The color of the switch changes

according to the selected driving

mode. (On some models)

■

Air conditioning system opera-

tion in Eco drive mode

In Eco drive mode, heating/cooling

operations and the fan speed is con-

trolled to improve fuel efficiency.

Perform the following procedures to

increase the air conditioning perfor-

mance.

●

Turn eco air conditioning mode off

(



P.397)

●

Adjust the fan speed (



P.397)

●

Cancel Eco drive mode

■

Canceling a driving mode

●

Sport mode is automatically can-

celed and the driving mode

returns to normal mode when the

power switch is turned off.

●

Normal mode and Eco drive mode

are not canceled until another

driving mode is selected. (Even if

the power switch is turned off, nor-

mal mode and Eco drive mode will

not be automatically canceled).

379

5-5. Using the driving support systems

5

Driving

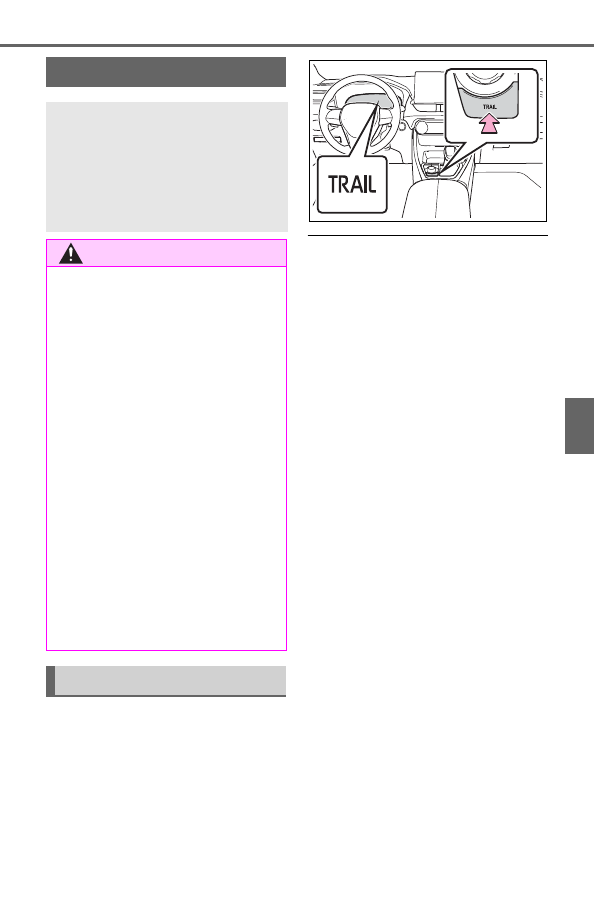

Press the Trail Mode switch

When the switch is pressed, Trail
Mode turns on and the Trail Mode
indicator illuminates on the multi-
information display.
When the switch is pressed again,
the Trail Mode indicator turns off.

■

Trail Mode

●

Trail Mode is intended for use

when driving on bumpy rough

roads. Do not turn the switch on in

other situations.

●

Trail Mode controls the vehicle so

that it can use the maximum

amount of drive force when driving

on bumpy roads.

●

If Trail Mode is continuously used

for a long period of time, the load

on related parts increases and the

system may be unable to operate

effectively.

■

When Trail Mode is canceled

In the following situations, Trail

Mode is automatically canceled

even if it is turned on.

●

When the driving mode is

changed (



P.377)

●

When the power switch is turned

off

■

During Trail Mode operation

The following types of situations

may occur, but they are not mal-

functions.

●

Vibrations may be felt throughout

the vehicle or steering wheel

●

Operating noise may be heard

from the engine compartment

■

When an inspection at your

Toyota dealer is necessary

In the following situations, the sys-

tem may be malfunctioning. Have

the vehicle inspected by your

Toyota dealer immediately.

Trail Mode

Trail Mode is a system that
performs integrated control
for the AWD, brake and
drive force control systems
to assist the drive power on
bumpy roads, etc.

WARNING

■

Before using Trail Mode

Make sure to observe the follow-

ing precautions. Failure to

observe these precautions may

result in an unexpected accident.

●

Check that the Trail Mode indi-

cator is illuminated before driv-

ing. Trail Mode will not operate

when the indicator is off.

●

Trail Mode is not intended to

expand the limits of the vehicle.

Thoroughly check the road con-

ditions and drive with caution.

●

Thoroughly check the road con-

ditions before driving. As Trail

Mode is suitable for driving on

bumpy roads, such as those

where the tire on one side

spins, there is a chance that

Trail Mode may not be the most

appropriate for other road con-

ditions.

Turning Trail Mode on

380

5-5. Using the driving support systems

●

When the slip indicator light illumi-

nates while Trail Mode is on

●

When the Trail Mode indicator

does not illuminate even though

the Trail Mode switch is pressed

■

ECB (Electronically Con-
trolled Brake System)

The electronically controlled
system generates braking force
corresponding to the brake
operation

■

ABS (Anti-lock Brake Sys-
tem)

Helps to prevent wheel lock
when the brakes are applied
suddenly, or if the brakes are
applied while driving on a slip-
pery road surface

■

Brake assist

Generates an increased level of
braking force after the brake
pedal is depressed when the
system detects a panic stop sit-
uation

Driving assist systems

To keep driving safety and
performance, the following
systems operate automati-
cally in response to various
driving situations. Be
aware, however, that these
systems are supplementary
and should not be relied
upon too heavily when oper-
ating the vehicle.

Summary of the driving
assist systems

381

5-5. Using the driving support systems

5

Driving

■

VSC (Vehicle Stability Con-
trol)

Helps the driver to control skid-
ding when swerving suddenly or
turning on slippery road sur-
faces.

■

Enhanced VSC (Enhanced
Vehicle Stability Control)

Provides cooperative control of
the ABS, TRAC, VSC and EPS.
Helps to maintain directional
stability when swerving on slip-
pery road surfaces by con-
trolling steering performance.

■

Trailer Sway Control

Helps the driver to control trailer
sway by selectively applying
brake pressure for individual
wheels and reducing driving
torque when trailer sway is
detected.

■

TRAC (Traction Control)

Helps to maintain drive power
and prevent the drive wheels
from spinning when starting the
vehicle or accelerating on slip-
pery roads

■

Active Cornering Assist
(ACA)

Helps to prevent the vehicle
from drifting to the outer side by
performing inner wheel brake
control when attempting to
accelerate while turning

■

Hill-start assist control

Helps to reduce the backward

movement of the vehicle when
starting on an uphill

■

EPS (Electric Power Steer-
ing)

Employs an electric motor to
reduce the amount of effort
needed to turn the steering
wheel

■

E-Four (Electronic On-
Demand AWD system)

Automatically switches from
front wheel drive to all-wheel
drive (AWD) according to the
driving conditions, helping to
ensure reliable handling and
stability. Examples of condi-
tions where the system will
switch to AWD are when corner-
ing, going uphill, starting off or
accelerating, and when the road
surface is slippery due to snow,
rain, etc.

■

The Secondary Collision
Brake

When the SRS airbag sensor
detects a collision and the sys-
tem operates, the brakes and
brake lights are automatically
controlled to reduce the vehicle
speed and help reduce the pos-
sibility of further damage due to
a secondary collision.

■

When the

TRAC/VSC/ABS/Trailer Sway

Control systems are operating

The slip indicator light will flash

while the TRAC/VSC/ABS/Trailer

Sway Control systems are operat-

ing.

382

5-5. Using the driving support systems

■

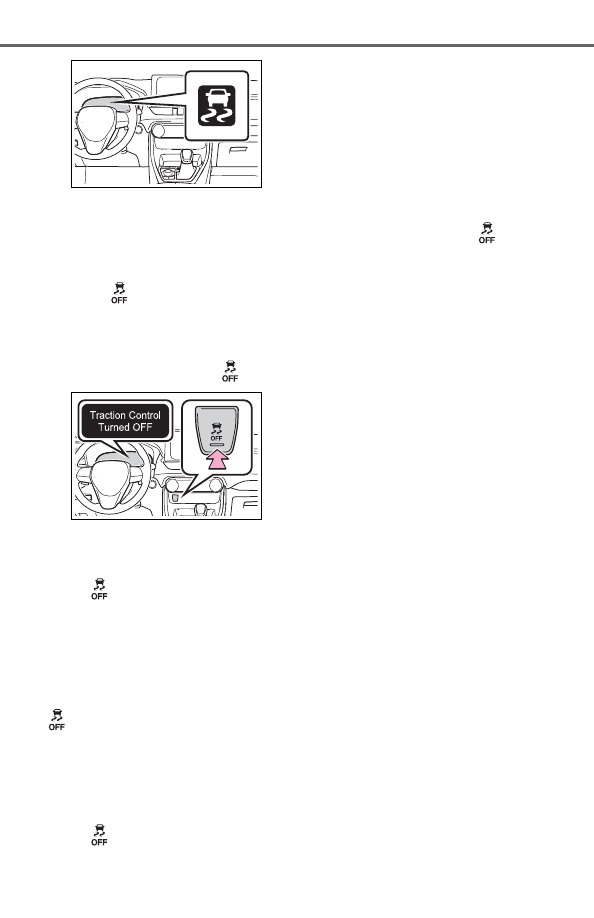

Disabling the TRAC system

If the vehicle gets stuck in mud, dirt

or snow, the TRAC system may

reduce power from the hybrid sys-

tem to the wheels.

Pressing

 to turn the system off

may make it easier for you to rock

the vehicle in order to free it.
To turn the TRAC system off,
quickly press and release

.

“Traction Control Turned OFF” will

be shown on the multi-information

display.

Press

 again to turn the system

back on.

■

Turning off the

TRAC/VSC/Trailer Sway Con-

trol systems

To turn the TRAC/VSC/Trailer Sway

Control systems off, press and hold

 for more than 3 seconds while

the vehicle is stopped.
The VSC OFF indicator light will

come on and the “Traction Control

Turned OFF” will be shown on the
multi-information display.

*

Press

 again to turn the systems

back on.

*

: PCS will also be disabled (only

Pre-Collision warning is avail-
able). The PCS warning light will
come on and a message will be
displayed on the multi-information
display. (



P.322)

■

When the message is dis-

played on the multi-information

display showing that TRAC has
been disabled even if

 has

not been pressed

TRAC is temporary deactivated. If

the information continues to show,

contact your Toyota dealer.

■

Operating conditions of hill-

start assist control

When the following four conditions

are met, the hill-start assist control

will operate:

●

The shift lever is in a position

other than P or N (when starting

off forward/backward on an

upward incline).

●

The vehicle is stopped.

●

The accelerator pedal is not

depressed.

●

The parking brake is not engaged.

■

Automatic system cancelation

of hill-start assist control

The hill-start assist control will turn

off in any of the following situations:

●

The shift lever is shifted to P or N.

●

The accelerator pedal is

depressed.

●

The parking brake is engaged.

●

No more than 2 seconds have

elapsed after the brake pedal is

released.

■

Sounds and vibrations caused

by the ABS, brake assist, VSC,

Trailer Sway Control, TRAC and

hill-start assist control systems

●

A sound may be heard from the

engine compartment when the

brake pedal is depressed repeat-

383

5-5. Using the driving support systems

5

Driving

edly, when the hybrid system is

started or just after the vehicle

begins to move. This sound does

not indicate that a malfunction has

occurred in any of these systems.

●

Any of the following conditions

may occur when the above sys-

tems are operating. None of these

indicates that a malfunction has

occurred.

• Vibrations may be felt through the

vehicle body and steering.

• A motor sound may be heard also

after the vehicle comes to a stop.

■

ECB operating sound

ECB operating sound may be heard

in the following cases, but it does

not indicate that a malfunction has

occurred.

●

Operating sound heard from the

engine compartment when the

brake pedal is operated.

●

Motor sound of the brake system

heard from the front part of the

vehicle when the driver’ door is

opened.

●

Operating sound heard from the

engine compartment when one or

two minutes passed after the stop

of the hybrid system.

■

Active Cornering Assist opera-

tion sounds and vibrations

When the Active Cornering Assist is

operated, operation sounds and

vibrations may be generated from

the brake system, but this is not a

malfunction.

■

EPS operation sound

When the steering wheel is oper-

ated, a motor sound (whirring

sound) may be heard. This does not

indicate a malfunction.

■

Automatic reactivation of

TRAC, Trailer Sway Control and

VSC systems

After turning the TRAC, Trailer

Sway Control and VSC systems off,

the systems will be automatically re-

enabled in the following situations:

●

When the power switch is turned

off.

●

If only the TRAC system is turned

off, the TRAC will turn on when

vehicle speed increases.

If both the TRAC and VSC sys-

tems are turned off, automatic re-

enabling will not occur when vehi-

cle speed increases.

■

Operating conditions of Active

Cornering Assist

The system operates when the fol-

lowing occurs.

●

TRAC/VSC can operate

●

The driver is attempting to accel-

erate while turning

●

The system detects that the vehi-

cle is drifting to the outer side

●

The brake pedal is released

■

Reduced effectiveness of the

EPS system

The effectiveness of the EPS sys-

tem is reduced to prevent the sys-

tem from overheating when there is

frequent steering input over an

extended period of time. The steer-

ing wheel may feel heavy as a

result. Should this occur, refrain

from excessive steering input or

stop the vehicle and turn the hybrid

system off. The EPS system should

return to normal within 10 minutes.

■

Secondary Collision Brake

operating conditions

The system operates when the SRS

airbag sensor detects a collision

while the vehicle is in motion. How-

ever, the system does not operate in

any of the following situations.

●

The vehicle speed is below 6 mph

(10 km/h)

●

Components are damaged

■

Secondary Collision Brake

automatic cancellation

The system is automatically can-

celed in any of the following situa-

tions.

384

5-5. Using the driving support systems

●

The vehicle speed drops below

approximately 6 mph (10 km/h)

●

A certain amount of time elapses

during operation

●

The accelerator pedal is

depressed a large amount

■

If a message about AWD is shown on the multi-information display

Perform the following actions.

Message

Details/Actions

“AWD System Over-

heated Switching to

2WD Mode”

AWD system is overheating.



Drive the vehicle at low speeds and stop the
vehicle in a safe place with the hybrid sys-
tem operating until the message is cleared.

Once the display message on the multi-informa-
tion display turns off, there is no problem continu-
ing to drive.
If the message does not disappear, have your
vehicle checked by your Toyota dealer immedi-
ately.

“AWD System Over-

heated 2WD Mode

Engaged”

The vehicle switched from all-wheel drive (AWD)
to front wheel drive due to overheating.



Drive the vehicle at low speeds and stop the
vehicle in a safe place with the hybrid sys-
tem operating until the message is cleared.

Once the display message on the multi-informa-
tion display turns off, the AWD system returns to
normal.
If the message does not disappear, have your
vehicle checked by your Toyota dealer immedi-
ately.

“AWD System Malfunc-

tion 2WD Mode

Engaged Visit Your

Dealer”

A malfunction occurred in the AWD system.



Have your vehicle checked by your Toyota
dealer immediately.

WARNING

■

The ABS does not operate

effectively when

●

The limits of tire gripping perfor-

mance have been exceeded

(such as excessively worn tires

on a snow covered road).

●

The vehicle hydroplanes while

driving at high speed on wet or

slick roads.

385

5-5. Using the driving support systems

5

Driving

WARNING

■

Stopping distance when the

ABS is operating may exceed

that of normal conditions

The ABS is not designed to

shorten the vehicle’s stopping dis-

tance. Always maintain a safe dis-

tance from the vehicle in front of

you, especially in the following sit-

uations:

●

When driving on dirt, gravel or

snow-covered roads

●

When driving with tire chains

●

When driving over bumps in the

road

●

When driving over roads with

potholes or uneven surfaces

■

TRAC/VSC may not operate

effectively when

Directional control and power may

not be achievable while driving on

slippery road surfaces, even if the

TRAC/VSC system is operating.

Drive the vehicle carefully in con-

ditions where stability and power

may be lost.

■

Active Cornering Assist does

not operate effectively when

●

Do not overly rely on Active

Cornering Assist. Active Corner-

ing Assist may not operate

effectively when accelerating

down slopes or driving on slip-

pery road surfaces.

●

When Active Cornering Assist

frequently operates, Active Cor-

nering Assist may temporarily

stop operating to ensure proper

operation of the brakes, TRAC

and VSC.

■

Hill-start assist control does

not operate effectively when

●

Do not overly rely on hill-start

assist control. Hill-start assist

control may not operate effec-

tively on steep inclines and

roads covered with ice.

●

Unlike the parking brake, hill-

start assist control is not

intended to hold the vehicle sta-

tionary for an extended period

of time. Do not attempt to use

hill-start assist control to hold

the vehicle on an incline, as

doing so may lead to an acci-

dent.

■

When the

TRAC/ABS/VSC/Trailer Sway

Control is activated

The slip indicator light flashes.

Always drive carefully. Reckless

driving may cause an accident.

Exercise particular care when the

indicator light flashes.

■

When the TRAC/VSC/Trailer

Sway Control systems are

turned off

Be especially careful and drive at

a speed appropriate to the road

conditions. As these are the sys-

tems to help ensure vehicle stabil-

ity and driving force, do not turn

the TRAC/VSC/Trailer Sway Con-

trol systems off unless necessary.
Trailer Sway Control is part of the

VSC system and will not operate

if VSC is turned off or experiences

a malfunction.

386

5-5. Using the driving support systems

WARNING

■

Replacing tires

Make sure that all tires are of the

specified size, brand, tread pat-

tern and total load capacity. In

addition, make sure that the tires

are inflated to the recommended

tire inflation pressure level.

The ABS, TRAC and VSC/Trailer

Sway Control systems will not

function correctly if different tires

are installed on the vehicle.

Contact your Toyota dealer for

further information when replacing

tires or wheels.

■

Handling of tires and the sus-

pension

Using tires with any kind of prob-

lem or modifying the suspension

will affect the driving assist sys-

tems, and may cause a system to

malfunction.

■

Trailer Sway Control precau-

tion

The Trailer Sway Control system

is not able to reduce trailer sway

in all situations. Depending on

many factors such as the condi-

tions of the vehicle, trailer, road

surface and driving environment,

the Trailer Sway Control system

may not be effective. Refer to

your trailer owner’s manual for

information on how to tow your

trailer properly.

■

If trailer sway occurs

Observe the following precau-

tions.

Failing to do so may cause death

or serious injury.

●

Firmly grip the steering wheel.

Steer straight ahead. Do not try

to control trailer swaying by

turning the steering wheel.

●

Begin releasing the accelerator

pedal immediately but very

gradually to reduce speed.

Do not increase speed. Do not

apply vehicle brakes.

If you make no extreme correction
with the steering or brakes, your
vehicle and trailer should stabi-
lize. (



P.269)

■

Secondary Collision Brake

Do not rely solely upon the Sec-

ondary Collision Brake. This sys-

tem is designed to help reduce

the possibility of further damage

due to a secondary collision, how-

ever, that effect changes accord-

ing to various conditions. Overly

relying on the system may result

in death or serious injury.

387

5-6. Driving tips

5

Driving

5-6.Driving tips



Use fluids that are appropriate
to the prevailing outside tem-
peratures.

• Engine oil
• Engine coolant
• Power control unit coolant
• Washer fluid



Have a service technician
inspect the condition of the
12-volt battery.



Have the vehicle fitted with
four snow tires or purchase a
set of tire chains for the front
tires.

*

Ensure that all tires are the same
size and brand, and that chains
match the size of the tires.

*

: Tire chains cannot be mounted

on vehicles with 235/55R19 tires.

Winter driving tips

Carry out the necessary
preparations and inspec-
tions before driving the
vehicle in winter. Always
drive the vehicle in a man-
ner appropriate to the pre-
vailing weather conditions.

Pre-winter preparations

WARNING

■

Driving with snow tires

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in a

loss of vehicle control and cause

death or serious injury.

●

Use tires of the specified size.

●

Maintain the recommended

level of air pressure.

●

Do not drive in excess of 75

mph (120 km/h), regardless of

the type of snow tires being

used.

●

Use snow tires on all, not just

some wheels.

■

Driving with tire chains

(except 235/55R19 tires)

Observe the following precautions

to reduce the risk of accidents.

Failure to do so may result in the

vehicle being unable to be driven

safely, and may cause death or

serious injury.

●

Do not drive in excess of the

speed limit specified for the tire

chains being used, or 30 mph

(50 km/h), whichever is lower.

●

Avoid driving on bumpy road

surfaces or over potholes.

●

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

●

Slow down sufficiently before

entering a curve to ensure that

vehicle control is maintained.

●

Do not use LTA (Lane Tracing

Assist) system.

388

5-6. Driving tips

Perform the following according
to the driving conditions:



Do not try to forcibly open a
window or move a wiper that
is frozen. Pour warm water
over the frozen area to melt
the ice. Wipe away the water
immediately to prevent it from
freezing.



To ensure proper operation of
the climate control system
fan, remove any snow that
has accumulated on the air
inlet vents in front of the wind-
shield.



Check for and remove any
excess ice or snow that may
have accumulated on the
exterior lights, vehicle’s roof,
chassis, around the tires or on
the brakes.



Remove any snow or mud
from the bottom of your shoes
before getting in the vehicle.

Accelerate the vehicle slowly,
keep a safe distance between
you and the vehicle ahead, and
drive at a reduced speed suit-
able to road conditions.



Park the vehicle and move
the shift lever to P without set-
ting the parking brake. The
parking brake may freeze up,
preventing it from being
released. If the vehicle is
parked without setting the
parking brake, make sure to
block the wheels.
Failure to do so may be dan-
gerous because it may cause
the vehicle to move unexpect-
edly, possibly leading to an
accident.
When the parking brake is in
automatic mode, release the
parking brake after shifting
the shift lever to P. (



P.290)



If the vehicle is left parked
with the brakes damp in cold
temperatures, there is a pos-
sibility of the brakes freezing.



If the vehicle is parked without
setting the parking brake,
confirm that the shift lever
cannot be moved out of P

*

.

*

: The shift lever will be locked if it is

attempted to be shifted from P to
any other position without

NOTICE

■

Repairing or replacing snow

tires

Request repairs or replacement of

snow tires from your Toyota

dealer or legitimate tire retailers.

This is because the removal and

attachment of snow tires affects

the operation of the tire pressure

warning valves and transmitters.

Before driving the vehicle

When driving the vehicle

When parking the vehicle

389

5-6. Driving tips

5

Driving

depressing the brake pedal. If the
shift lever can be shifted from P,
there may be a problem with the
shift lock system. Have the vehi-
cle inspected by your Toyota
dealer immediately.



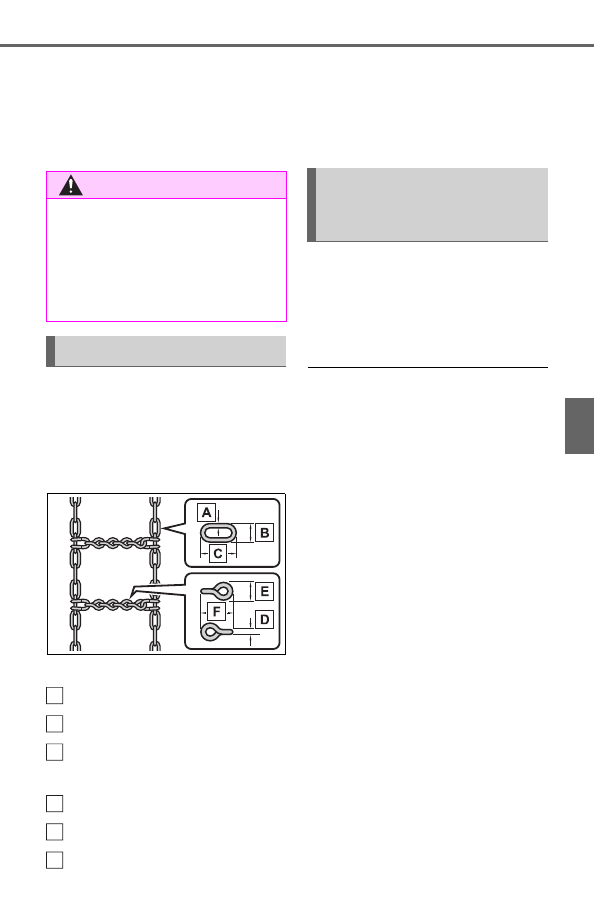

Vehicles with 225/60R18 tires

Use the correct tire chain size
when mounting the tire chains.
Chain size is regulated for each
tire size.

Side chain:

0.12 in. (3 mm) in diameter

0.39 in. (10 mm) in width

1.18 in. (30 mm) in length

Cross chain:

0.16 in. (4 mm) in diameter

0.55 in. (14 mm) in width

0.98 in. (25 mm) in length



Vehicles with 235/55R19 tires

Tire chains cannot be mounted.
Snow tires should be used
instead.

Regulations regarding the use
of tire chains vary depending on
location and type of road.
Always check local regulations
before installing chains.

■

Tire chain installation

Observe the following precautions

when installing and removing

chains:

●

Install and remove tire chains in a

safe location.

●

Install tire chains on the front tires

only. Do not install tire chains on

the rear tires.

●

Install tire chains on front tires as

tightly as possible. Retighten

chains after driving 1/4 - 1/2 mile

(0.5 - 1.0 km).

●

Install tire chains following the

instructions provided with the tire

chains.

■

Consumption of fuel and elec-

tricity

In cold temperatures, resistance of

the parts of a vehicle (transmission,

tires, etc.) generally increases,

resulting in increase of energy con-

sumption. As a result, fuel economy

is likely to decrease.
Consumption of fuel and electricity

of this vehicle is also likely to

become worse in cold temperatures.

WARNING

■

When parking the vehicle

When parking the vehicle without

applying the parking brake, make

sure to chock the wheels. If you

do not chock the wheels, the vehi-

cle may move unexpectedly, pos-

sibly resulting in an accident.

Selecting tire chains

A

B

C

D

E

F

Regulations on the use of
tire chains (except
235/55R19 tires)

390

5-6. Driving tips



Specific design characteris-
tics give it a higher center of
gravity than ordinary passen-
ger cars. This vehicle design
feature causes this type of
vehicle to be more likely to
rollover. And, utility vehicles
have a significantly higher
rollover rate than other types
of vehicles.



An advantage of the higher
ground clearance is a better
view of the road allowing you
to anticipate problems.



It is not designed for corner-
ing at the same speeds as
ordinary passenger cars any
more than low-slung sports
cars are designed to perform
satisfactorily under off-road
conditions. Therefore, sharp
turns at excessive speeds
may cause the vehicle to roll-
over.

NOTICE

■

Fitting tire chains

The tire pressure warning valves

and transmitters may not function

correctly when tire chains are fit-

ted.

Utility vehicle precau-

tions

This vehicle belongs to the
utility vehicle class, which
has higher ground clear-
ance and narrower tread in
relation to the height of its
center of gravity to make it
capable of performing in a
wide variety of off-road
applications.

Utility vehicle feature

391

5-6. Driving tips

5

Driving

When driving your vehicle off-

road, please observe the follow-
ing precautions to ensure your
driving enjoyment and to help
prevent the closure of areas to
off-road vehicles:



Drive your vehicle only in
areas where off-road vehicles
are permitted to travel.



Respect private property. Get
owner’s permission before
entering private property.



Do not enter areas that are
closed. Honor gates, barriers
and signs that restrict travel.



Stay on established roads.
When conditions are wet,
driving techniques should be
changed or travel delayed to
prevent damage to roads.

■

Additional information for off-

road driving



For owners in U.S. mainland,

Hawaii and Puerto Rico:

To obtain additional information per-
taining to driving your vehicle off-
road, consult the following organiza-
tions:

WARNING

■

Utility vehicle precautions

Always observe the following pre-

cautions to minimize the risk of

death, serious injury or damage to

your vehicle:

●

In a rollover crash, an unbelted

person is significantly more

likely to die than a person wear-

ing a seat belt. Therefore, the

driver and all passengers

should always fasten their seat

belts.

●

Avoid sharp turns or abrupt

maneuvers, if at all possible.

Failure to operate this vehicle

correctly may result in loss of

control or vehicle rollover caus-

ing death or serious injury.

●

Loading cargo on the roof lug-

gage carrier (if equipped) will

make the center of the vehicle

gravity higher. Avoid high

speeds, sudden starts, sharp

turns, sudden braking or abrupt

maneuvers, otherwise it may

result in loss of control or vehi-

cle rollover due to failure to

operate this vehicle correctly.

●

Always slow down in gusty

crosswinds. Because of its pro-

file and higher center of gravity,

your vehicle is more sensitive to

side winds than an ordinary

passenger car. Slowing down

will allow you to have better

control.

●

Do not drive horizontally across

steep slopes. Driving straight up

or straight down is preferred.

Your vehicle (or any similar off-

road vehicle) can tip over side-

ways much more easily than

forward or backward.

Off-road driving

392

5-6. Driving tips

• State and Local Parks and Recre-

ation Departments

• State Motor Vehicle Bureau

• Recreational Vehicle Clubs

• U.S. Forest Service and Bureau of

Land Management

WARNING

■

Off-road driving precautions

Always observe the following pre-

cautions to minimize the risk of

death, serious injury or damage to

your vehicle:

●

Drive carefully when off the

road. Do not take unnecessary

risks by driving in dangerous

places.

●

Do not grip the steering wheel

spokes when driving off-road. A

bad bump could jerk the wheel

and injure your hands. Keep

both hands and especially your

thumbs on the outside of the

rim.

●

Always check your brakes for

effectiveness immediately after

driving in sand, mud, water or

snow.

●

After driving through tall grass,

mud, rock, sand, rivers, etc.,

check that there is no grass,

bush, paper, rags, stone, sand,

etc. adhering or trapped on the

underbody. Clear off any such

matter from the underbody. If

the vehicle is used with these

materials trapped or adhering to

the underbody, a breakdown or

fire could occur.

●

When driving off-road or in rug-

ged terrain, do not drive at

excessive speeds, jump, make

sharp turns, strike objects, etc.

This may cause loss of control

or vehicle rollover causing

death or serious injury. You are

also risking expensive damage

to your vehicle’s suspension

and chassis.

NOTICE

■

To prevent the water damage

Take all necessary safety mea-

sures to ensure that water dam-

age to the hybrid battery (traction

battery), hybrid system or other

components does not occur.

●

Water entering the engine com-

partment may cause severe

damage to the hybrid system.

●

Water entering the hybrid trans-

mission will cause deterioration

in transmission quality. The

malfunction indicator may come

on, and the vehicle may not be

drivable.

●

Water can wash the grease

from wheel bearings, causing

rusting and premature failure,

and may also enter the hybrid

transaxle case, reducing the

gear oil’s lubricating qualities.

■

When you drive through

water

If driving through water, such as

when crossing shallow streams,

first check the depth of the water

and the bottom of the riverbed for

firmness. Drive slowly and avoid

deep water.

393

5-6. Driving tips

5

Driving

NOTICE

■

Inspection after off-road driv-

ing

●

Sand and mud that has accu-

mulated around brake discs

may affect braking efficiency

and may damage brake system

components.

●

Always perform a maintenance

inspection after each day of off-

road driving that has taken you

through rough terrain, sand,

mud, or water. For scheduled

maintenance information, refer

to the “Scheduled Maintenance

Guide” or “Owner’s Manual

Supplement”.

394

5-6. Driving tips

395

6

6

In

teri
or f
eatures

Interior features

6-1. Using the air conditioning

system and defogger

Automatic air conditioning

system.......................

396

Remote Air Conditioning

System ......................

405

Heated steering wheel/Front

seat heaters/Front seat
heaters and ventila-
tors/Rear seat heaters

407

6-2. Using the interior lights

Interior lights list ..........

410

6-3. Using the storage features

List of storage features

413

Luggage compartment fea-

tures ..........................

417

6-4. Using the other interior

features

Other interior features .

420

Garage door opener....

435

396

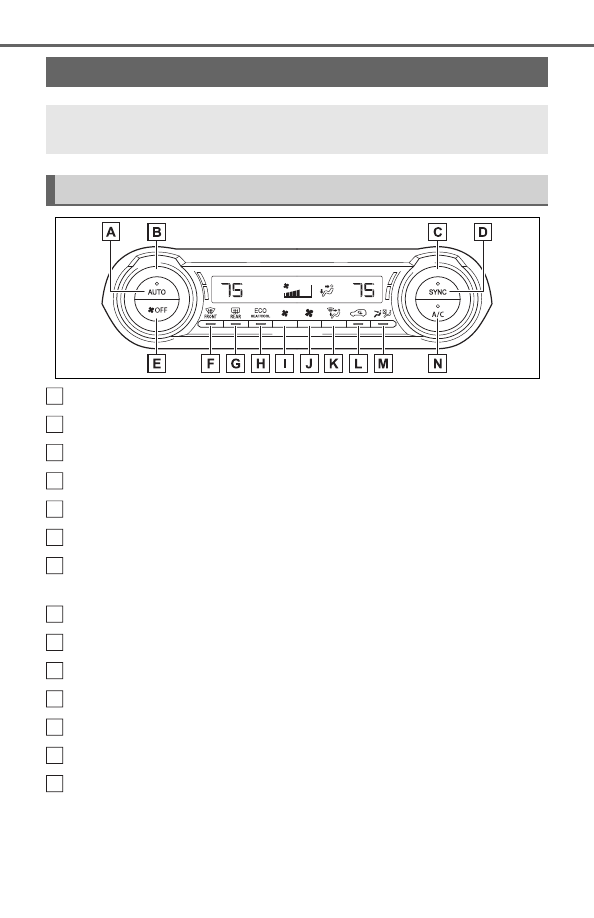

6-1. Using the air conditioning system and defogger

6-1.Using the air conditioning system and defogger

Automatic mode switch

Left-hand side temperature control knob

Right-hand side temperature control knob

“SYNC” switch

“OFF” switch

Windshield defogger switch

Rear window defogger and outside rear view mirror defoggers
switch

Eco air conditioning mode switch

Fan speed decrease switch

Fan speed increase switch

Airflow mode control switch

Outside/recirculated air mode switch

S-FLOW mode switch

“A/C” switch

■

Adjusting the temperature
setting

Turn driver’s side temperature

control dial clockwise to
increases the temperature and
turn the dial counterclockwise to

Automatic air conditioning system

Air outlets and fan speed are automatically adjusted accord-
ing to the temperature setting.

Air conditioning controls

A

B

C

D

E

F

G

H

I

J

K

L

M

N

397

6-1. Using the air conditioning system and defogger

6

In

teri
or f
eatures

decreases the temperature.

The air conditioning system
switches between individual and
simultaneous modes each time the
“SYNC” switch is pressed.
Simultaneous mode (the indicator
on the “SYNC” switch is on):
The driver’s side temperature con-
trol dial can be used to adjust the
temperature for the driver’s and
passenger’s side. At this time,
operate the passenger’s side tem-
perature control dial to enter indi-
vidual mode.
Individual mode (the indicator on
the “SYNC” switch is off):
The temperature for the driver’s
and passenger’s side can be
adjusted separately.

■

Setting the fan speed

Press the fan speed increase
switch to increase the fan speed
and the fan speed decrease
switch to decrease the fan
speed.

Pressing the “OFF” switch turns off
the fan.

■

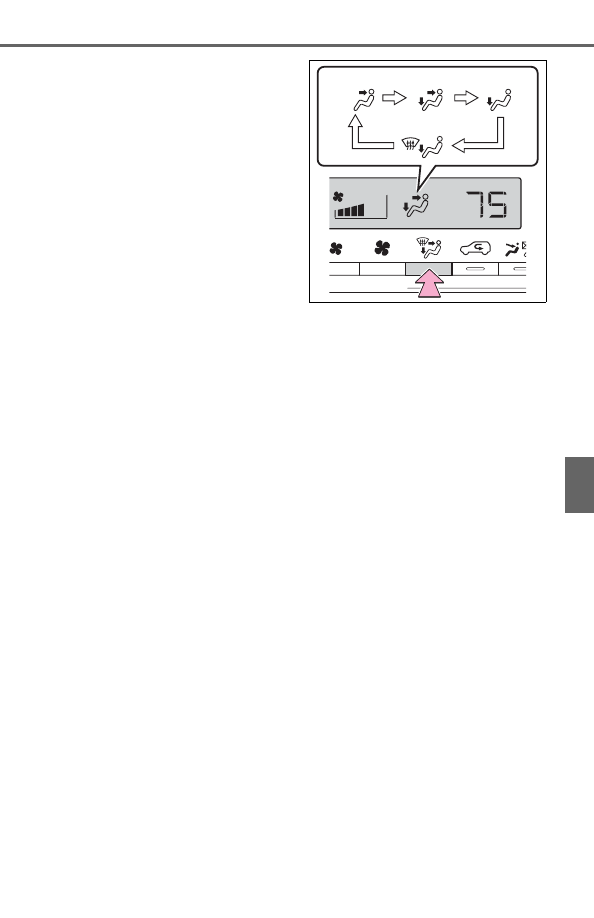

Change the airflow mode

Press the airflow mode control
switch.

The airflow mode changes as fol-
lows each time the switch is
pressed.

1

Upper body

2

Upper body and feet

3

Feet

4

Feet and the windshield
defogger operates

■

Switching between outside
air and recirculated air
modes

Press the outside/recirculated
air mode switch.

The mode switches between out-
side air mode and recirculated air
mode each time the switch is oper-
ated.
When recirculated air mode is
selected, the indicator illuminates
on the outside/recirculated air
mode switch.

■

Set cooling and dehumidifi-
cation function

Press the “A/C” switch.

When the function is on, the indica-
tor illuminates on the “A/C” switch.

■

Eco air conditioning mode

The air conditioning is controlled
with low fuel consumption priori-

1

1

2

2

3

3

4

4
