142

2-2. Charging

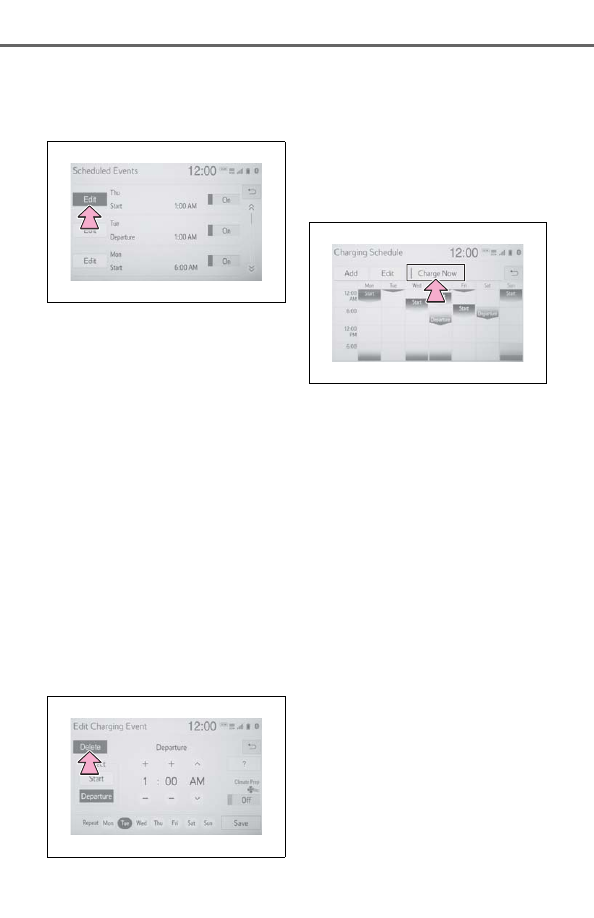

It is also possible to display the

“Edit Charging Event” screen by

pressing the icon of the charging

schedule you wish to change from

those displayed on the calendar.



Changing registered items:

Change the desired settings as
described in step

3

 to step

4

 of the

“Registering the charging schedule”
procedure. (



P.140)

When a setting is changed, its icon
on the calendar also changes.



Deleting registered items:

Press “Delete”.
A deletion confirmation message
will be displayed.
Press “Yes” to delete the selected
charging schedule.
To cancel deletion, press “No” or
the return button.
When a charging schedule is
deleted, its icon is also deleted from
the calendar.

■

Turning “Charge Now” on

1

Display the “Charging Sched-
ule” screen. (



P.139)

2

Press “Charge Now”.

Each time the button is pressed,

“Charge Now” switches between on

and off and the indicator on the but-

ton turns on and off.

After setting operations are
complete, charging starts when
the AC charging cable is con-
nected. (



P.123)

■

Changing Next Event

*

*

: When “Charge Now” is turned on

or when using “My Room Mode”
(



P.144) etc., the registered

Next Event cannot be changed.

1

Display the “Charging Sched-
ule” screen. (



P.139)

Next Event is displayed on the

“Charging Schedule” screen with

an orange icon.

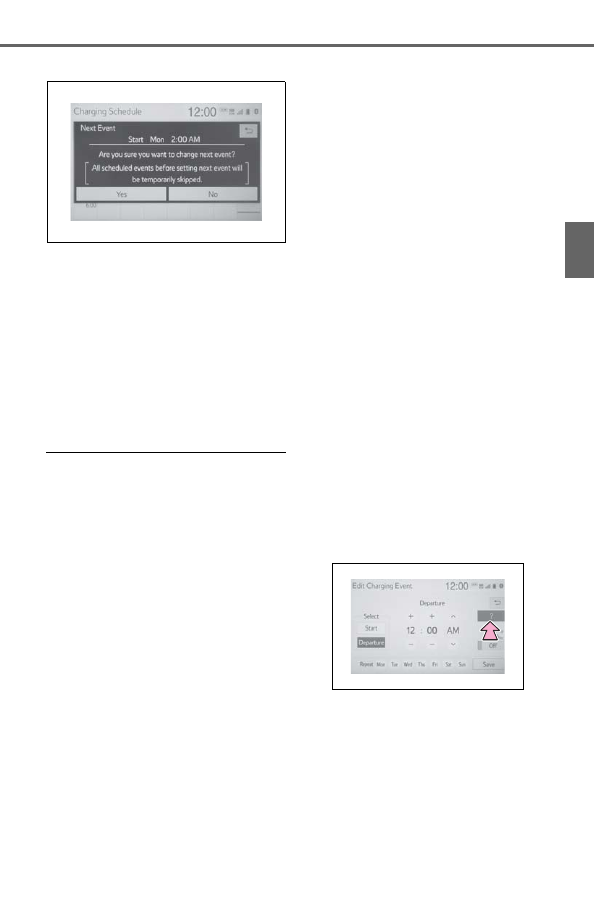

2

Press the orange icon.

A confirmation screen for the

changes will be displayed.

3

Press “Yes”.

The “Scheduled Events” screen will

be displayed on the screen.
To cancel changing, press “No” or

143

2-2. Charging

2

Plug

-in hyb

rid system

the return button.

4

Change the desired settings
as described in step

3

 to step

4

of the “Registering the

charging schedule” proce-
dure. (



P.140)

The charging schedule settings are

saved and icons are added to the

charging schedule.
To cancel changing Next Event,

press the return button.

■

When a charging schedule has

been registered

When all the items in the charging

schedule are turned off, icons are

not displayed on the “Charging

Schedule” screen (calendar dis-

play).
The icons will be displayed when

they are set to on using the “Sched-

uled Events” screen.

■

When charging schedule set-

ting operations are canceled

When the vehicle is in the following

conditions, charging schedule set-

ting operations are canceled.

●

The power switch is turned off

before the settings are confirmed

●

The vehicle starts off

●

A display with a higher priority

than that of the charging schedule

setting is shown

■

Next Event

After charging completes, the Next

Event displayed on the display will

not change until the AC charging

cable is removed, even after

charging is performed according to

the Next Event schedule.

■

To return to original setting

after changing Next Event set-

ting

Turning the setting of “Charge Now”

on and then off can return the set-

ting of Next Event to its original set-

ting.

■

When Next Event is changed

while charging

●

When the charging mode is

“Departure”, the current charging

is interrupted or continued

depending on the remaining time

until the charging is completed.

●

When the charging mode is

“Start”, the current charging is

interrupted, the next charging will

start at the set time.

■

Displaying advice related to

charging schedule settings

When “?” is pressed on the “Edit

Charging Event” screen (



P.141),

an explanation of the setting item on

the “Edit Charging Event” screen

will be displayed.

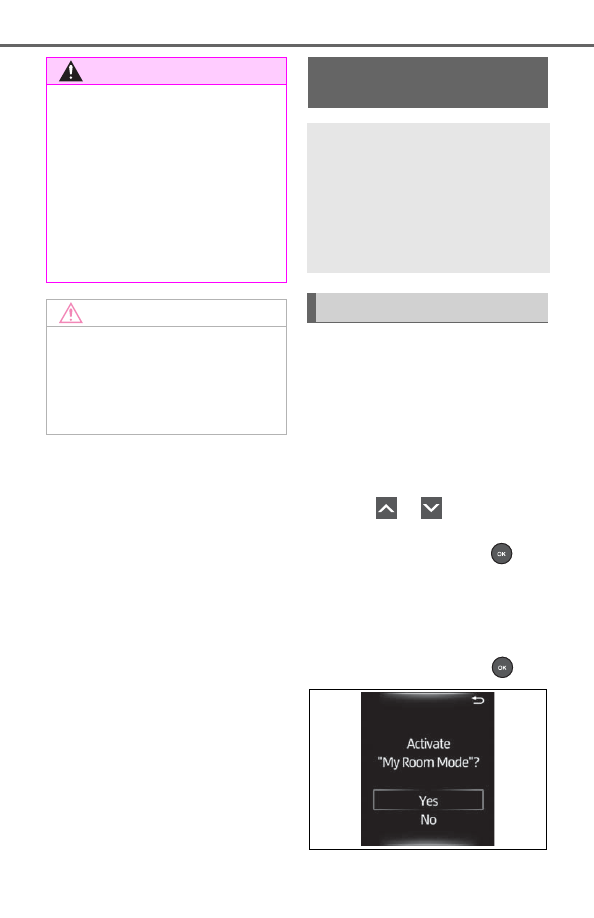

144

2-2. Charging

1

Connect the AC charging
cable to the vehicle and start
charging

2

Turn the power switch on
during charging

The setting screen of “My Room

Mode” is displayed automatically on

the multi-information display.

3

Press

 or

 of the meter

control switches, select
“Yes”, and then press

.

“My Room Mode” starts and sys-

tems such as the air conditioning

system and audio system can be

used inside the vehicle.
When not using “My Room Mode”,
select “No”, and then press

.

WARNING

■

Cautions performing the set-

ting operation

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

While performing the setting

operation

When performing the setting

operation while the hybrid system

is stopped, be careful that the 12-

volt battery will not be discharged.

Using the “My Room

Mode”

When the AC charging cable
is connected to the vehicle,
electrical components such
as the air conditioning sys-
tem or audio system can be
used using the external
power source.

Starting “My Room Mode”

145

2-2. Charging

2

Plug

-in hyb

rid system

To stop “My Room Mode”, turn
the power switch off.

When “My Room Mode” starts,
the remaining charge display
screen for the hybrid battery
(traction battery) is displayed
automatically on the multi-infor-
mation display. The approxi-
mate power balance (balance
between electricity supply and
consumption) while using “My
Room Mode” can be checked
from the color and size of the
arrows.

Discharging status

Charging status

When the electricity supply from the
AC charging cable is larger than the
power consumption inside the vehi-
cle,

 becomes larger. When the

power consumption is larger than
the electricity supply,

 becomes

larger.
When the electricity supply and
consumption are balanced (when

the power balance is judged to be
zero),

 and

 are displayed as

the same size.

■

Meter display during charging

If “My Room Mode” is not turned on

for approximately 100 seconds after

the power switch is turned on during

charging, the power switch will auto-

matically turn off.

■

While using “My Room Mode”

Any of the following may occur.

●

When the remaining charge of the

hybrid battery (traction battery)

reaches the lower limit, the air

conditioning system automatically

turns off.

In this situation, the air condition-

ing system cannot be used until

the remaining charge of the hybrid

battery (traction battery)

increases. Turn the power switch

off and use “My Room Mode” after

the remaining charge of the hybrid

battery (traction battery) is

restored.

●

When the outside temperature is

low, the heater output may be lim-

ited due to the air conditioning

system operation being restricted.

●

Warning lights and indicators such

as electric power steering system

warning light (yellow) and mal-

function indicator lamp may turn

on, but this is not a malfunction.

Also, when the headlight switch is

in the AUTO position and the sur-

rounding area is dark, the head-

lights are turned on. (



P.295)

■

When a charging schedule is

registered

When “My Room Mode” starts while

the charging schedule is on

standby, charging schedules are

ignored and charging starts.

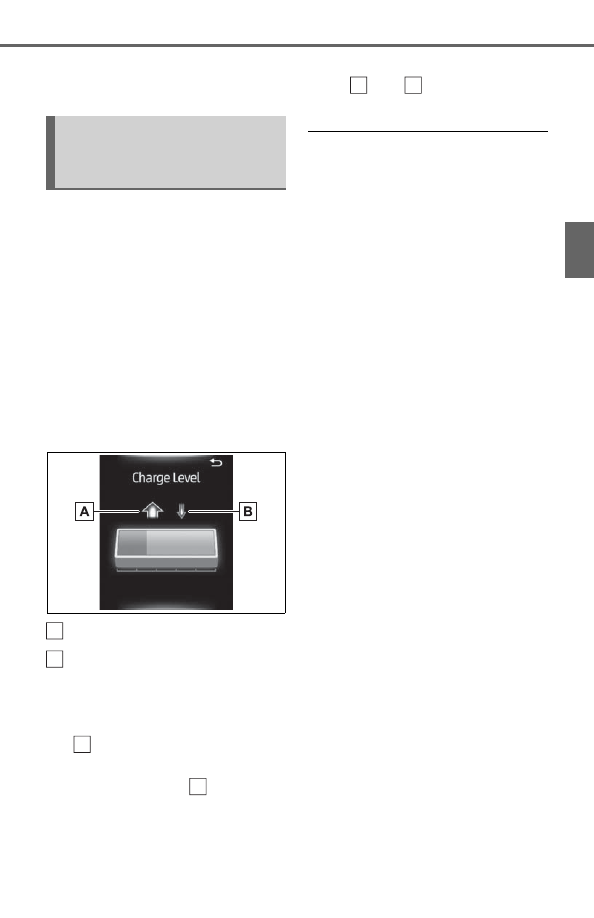

Display of power balance
information while using
“My Room Mode”

A

B

B

A

A

B

146

2-2. Charging

■

When “My Room Mode” is used

while the hybrid battery (trac-

tion battery) is fully charged

When the power switch is turned on

while the hybrid battery (traction

battery) is fully charged and the

charging connector that supplies

power is connected, “Charging Port

Lid is Open” is displayed on the

multi-information display. In this
case, press

 on the meter control

switches to display the setting

screen of “My Room Mode”, and

then select “My Room Mode”.
When “My Room Mode” is used

while the hybrid battery (traction

battery) is fully charged, the electric

power of the hybrid battery (traction

battery) may be consumed. In this

case, charging may be performed

again.

■

When a message related to “My

Room Mode” is displayed

When a message is displayed on

the multi-information display while

using or attempting to start “My

Room Mode”, take the following cor-

rection procedures.

●

“Traction battery is too low for “My

Room Mode””

There is insufficient remaining
charge in the hybrid battery (traction
battery) for starting “My Room
Mode”.
Wait until the charge of the hybrid
battery (traction battery) increases,
then start “My Room Mode”.

●

““My Room Mode” has stopped

due to low traction battery”

The remaining charge in the hybrid
battery (traction battery) is insuffi-
cient.
Stop using “My Room Mode” and
charge the hybrid battery (traction
battery).

●

““My Room Mode” will stop when

traction battery is too low Reduce

power usage to continue using

“My Room Mode””

The power consumption inside the
vehicle is greater than the power
being charged to the hybrid battery
(traction battery), and the remaining
charge of the hybrid battery (traction
battery) is low.

*

• “My Room Mode” will end unless

the power consumption inside the

vehicle is improved.

• To continue using “My Room

Mode”, turn off the power of sys-

tems such as the air conditioning

system and audio system to

increase the remaining charge of

the hybrid battery (traction bat-

tery).

*

: The power balance status during

“My Room Mode” can be checked
from the remaining charge dis-
play screen for the hybrid battery
(traction battery) displayed on the
multi-information display.

WARNING

■

Cautions for using “My Room

Mode”

Make sure to observe the follow-

ing precautions.
Failure to do so may result in seri-

ous health problems or even

death.

●

Do not leave children, people

who need assistance, or pets

inside the vehicle. The system

may turn off automatically and

the interior temperature may

become high or low, resulting in

heat stroke, dehydration or

hypothermia. Devices such as

the wipers can also be used,

which may lead to mistaken

operation and an accident.

●

Check the safety around the

vehicle carefully before use.

147

2-2. Charging

2

Plug

-in hyb

rid system

Refer to the following table and carry out the appropriate correction
procedure.

■

The power source indicator on the CCID (Charging Circuit
Interrupting Device) does not illuminate, even though the
plug is connected to an external power source.

When charging cannot be carried out

When charging does not start, even though the normal proce-
dure is followed, check each of the following items.

If a message is shown on the multi-information display, also refer
to P.152.

When charging cannot be carried out

Likely cause

Correction procedure

Plug is not properly connected to
outlet

Check that the plug is properly con-
nected to the outlet.

Power is out

After power is restored, carry out the
charging procedure again.

Building breaker is tripped and
power is cut off

Check that the breaker is connected
and if there is no malfunction, check
if the vehicle can be charged through
another outlet.
If charging is possible, the first outlet
may have a malfunction. Contact the
building or facility manager, or an
electrician.

Short circuit between CCID
(Charging Circuit Interrupting
Device) and plug

Immediately stop charging and con-
tact your Toyota dealer.

148

2-2. Charging

■

The error warning indicator on the CCID (Charging Circuit
Interrupting Device) flashes.

■

Charging indicator of the charging port does not illuminate,
even though charging connector is connected.

Likely cause

Correction procedure

Electrical leakage detection function
or self-diagnostic function operates
and power is cut off

When the voltage is insufficient, the
error warning indicator may flash
when there is noise interference.
Perform a reset and connect to a
proper power source. (



P.105)

If charging does not start, immedi-
ately stop charging and contact your
Toyota dealer.

Likely cause

Correction procedure

The plug is not properly connected to
the outlet

Check whether the plug is properly
connected to the outlet.

Charging connector is not securely
connected to AC charging inlet

Check the connection status of the
charging connector.



When connecting the charging
connector, make sure not to touch
the latch release button. Insert the
charging connector securely until
you hear a click. The charging con-
nector may not be connected cor-
rectly if the latch release button is
pressed while inserting.



After connecting the charging con-
nector, check that the latch release
button is not pressed and the
charging indicator of the charging
port is turned on.

If the charging indicator of the
charging port does not illuminate,
even though the charging connector
is securely connected, there may be
a malfunction in the system. Immedi-
ately stop charging and contact your
Toyota dealer.

149

2-2. Charging

2

Plug

-in hyb

rid system

■

Charging indicator of the charging port flashes and charging
cannot be carried out.

*

: Refer to P.100 for details regarding charging indicator of the charging port

illumination and flashing.

Refer to the following table and carry out the appropriate correction
procedure.

■

Cannot charge at desired time

Hybrid battery (traction battery) is
already fully charged

When the hybrid battery (traction
battery) is fully charged, charging is
not performed.

The charger does not operate

Please contact the facility manager
when there is a problem with char-
ger.

Likely cause

Correction procedure

When charging indicator of the
charging port flashes

*

: Charging

schedule is registered

When you wish to charge according
to the charging schedule, wait until
the set time.
To start charging, set “Charge Now”
to on. (



P.137, 142)

When charging indicator of the
charging port rapidly flashes

*

: Mal-

function occurred in an external
power source or the vehicle

Start the hybrid system and follow
the instructions displayed by the
message on the multi-information
display. (



P.152)

When charging schedule function does not operate nor-
mally

Likely cause

Correction procedure

Vehicle clock is not properly adjusted

Check the clock settings and adjust it
to the proper time. (



P.169)

The vehicle calendar is not set cor-
rectly.

Check the calendar setting and set it
to the correct date. (



P.177)

Likely cause

Correction procedure

150

2-2. Charging

■

Cannot change charging schedule from smartphone applica-
tion (vehicles with Premium Audio)

*

*

: In order to use the smartphone application, it is necessary to apply to

Toyota Apps. For details about Toyota Apps, refer to
http://www.toyota.com/connectedservices in the United States and
http://www.toyota.ca/connected in Canada.

■

Charging starts, even though charging schedule is registered

AC charging cable is not connected
to vehicle

Before using the charging schedule,
connect the AC charging cable.

Incorrect charging mode selected

Check the charging mode setting.
(



P.130)

When the charging mode is “Start”,
charging starts at the set time, but
when it is “Departure”, charging is
completed by the set time. (The
charging start time is automatically
controlled by the system.)

Likely cause

Correction procedure

Smartphone is outside its coverage
area

Check the signal strength. If the
smartphone is outside its coverage
area, move to a place with a better
signal.

Likely cause

Correction procedure

“Charge Now” is set to on

When charging according to the
charging schedule, set “Charge
Now” to off. (



P.137, 142)

Charging schedule is set to off

Check that charging schedule is not
set to off. (



P.135, 136)

Charging mode is set to “Departure”
and schedule departure time is close
to current time

When the system determines that
there is no time to finish charging by
the set scheduled departure time, it
starts charging. Check the charging
schedules.

Likely cause

Correction procedure

151

2-2. Charging

2

Plug

-in hyb

rid system

■

Charging ends earlier than time set in “Departure”

AC charging cable was removed and
reinserted while charging indicator of
the charging port was flashing

If the AC charging cable is removed
and reinserted while the charging
indicator is flashing, the charging
schedule is canceled (



P.125).

Temporarily remove the AC charging
cable, and then reconnect it.

The Remote Air Conditioning Sys-
tem was operated

When the Remote Air Conditioning
System is operated, the system will
start charging, even if the charging
schedule is registered. To carry out
charging using the charging sched-
ule, stop the Remote Air Condition-
ing System, and then reconnect the
AC charging cable.

“Battery Heater” (



P.115) operated

When the charging mode is set to
“Departure”, “Battery Heater” may
operate before charging starts.
Check the status of the charging
indicator of the charging port.
(



P.100)

Outside temperature is low and
hybrid battery (traction battery)
warming control (



P.116) operated

(Alaska and Canada only)

When hybrid battery (traction bat-
tery) warming control operates, the
charging schedules are ignored and
charging starts. In order to protect
the hybrid battery (traction battery),
allow charging to continue.

Likely cause

Correction procedure

Charging end time does not match
estimated end time due to condition
of power source or outside tempera-
ture

If sudden changes in temperature or
changes in the condition of the
power source occur while charging,
charging may end earlier than the
time estimated by the system.

Likely cause

Correction procedure

152

2-2. Charging

■

Charging is not complete, even though it is time set in
“Departure”

■

Charging does not start, even though it is time set in “Start”

When a door is opened with the
power switch off, after charging,
a message is displayed in the
multi-information display.

When this occurs, follow the
instructions displayed on the
screen.

Likely cause

Correction procedure

“Climate Prep” is set to on

When “Climate Prep” is set to on, the
air conditioning operates until the set
departure time.
Therefore, charging may not com-
plete by the set time due to charging
conditions.
To have the hybrid battery (traction
battery) fully charged, allow charging
to continue.

Charging end time does not match
estimated end time due to condition
of power source or outside tempera-
ture

If sudden changes in temperature or
changes in the condition of the
power source occur while charging,
charging may not end exactly at the
time estimated by the system.

Likely cause

Correction procedure

AC charging cable was connected
after set time

Connect the AC charging cable
before the time set in “Start”.

When charging-related message is displayed

153

2-2. Charging

2

Plug

-in hyb

rid system

■

If “Charging Stopped Due to Pulled Charging Connector” is
shown

*

: Electricity is consumed when operating “Battery Heater” (



P.115), the air

conditioning-linked function (



P.131) or Remote Air Conditioning System

(



P.405).

Likely cause

Correction procedure

Charging connector is removed
while charging

When the charging connector is
removed while charging, charging
stops. If you want to fully charge the
hybrid battery (traction battery),
reconnect the charging connector.

After the hybrid battery (traction bat-
tery) is fully charged, the charging
connector is removed while the
hybrid battery (traction battery) is
being recharged again because
electricity-consuming functions

*

 have

been used and the remaining charge
is now reduced.

Charging connector is not securely
connected

Check the connection status of the
charging connector.



When connecting the charging
connector, make sure not to touch
the latch release button. Insert the
charging connector securely until
you hear a click. The charging con-
nector may not be connected cor-
rectly if the latch release button is
pressed while inserting.



After connecting the charging con-
nector, check that the latch release
button is not pressed and the
charging indicator of the charging
port is turned on.

If charging cannot be carried out,
even though the proper procedures
were followed, have the vehicle
inspected by your Toyota dealer.

Latch release button of charging
connector was pressed while
charging

When the latch release button is
pressed while charging, charging
stops. To continue charging, recon-
nect the charging connector.

154

2-2. Charging

■

If “Charging Complete Limited Due to Battery Temp” is
shown

■

If “Charging Stopped Check Charging Source” is shown (1)

Likely cause

Correction procedure

Charging was stopped to protect the
hybrid battery (traction battery) as it
continued to remain hot for a certain
period of time.

Allow the hybrid battery (traction bat-
tery) to cool down and perform
charging again if the charging
amount has not reached the desired
amount.

Likely cause

Correction procedure

Problem in power supply from exter-
nal power source

Check the following items.



Plug is not disconnected



Power source indicator on the
CCID (Charging Circuit Interrupting
Device) is illuminated



The circuit breaker has tripped

If there is no problem with any of the
above items, there may be a prob-
lem with the outlet of the building.
Contact an electrician and request
an inspection. (Contact the facility
manager of the charging station
when there is a problem with
charging station.)
If charging cannot be carried out,
even though there is no problem with
the power source path, there may be
a malfunction in the system. Have
the vehicle inspected by your Toyota
dealer.
Furthermore, if the error warning
indicator on the CCID (Charging Cir-
cuit Interrupting Device) is flashing,
there may be an electrical leakage.
Consult your Toyota dealer.

155

2-2. Charging

2

Plug

-in hyb

rid system

■

If “Charging Stopped Check Charging Source” is shown (2)

Charger has stopped charging

Charging may be canceled by an
interruption of power supply depend-
ing on specifications of a charger.
Refer to the instructions provided
with the charger.



When charging is stopped using
the charger



Equipment with charging schedule
function



Equipment that is not compatible
with the charging schedule func-
tion of the vehicle

Check if it is possible to charge with
the AC charging cable equipped to
the vehicle.
If charging cannot be carried out,
even when using the genuine AC
charging cable, consult your Toyota
dealer.

Likely cause

Correction procedure

Charger is not compatible with vehi-
cle

Check if it is possible to charge with
the AC charging cable equipped to
the vehicle.
If charging cannot be carried out,
even when using the genuine AC
charging cable, consult your Toyota
dealer.

Charger has stopped charging

Likely cause

Correction procedure

156

2-2. Charging

■

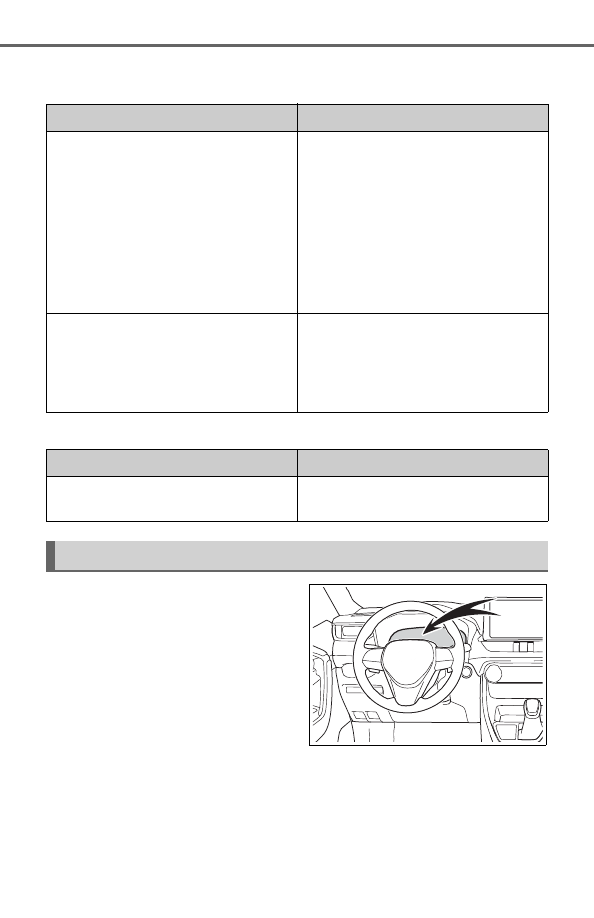

If “Charging Stopped Check Charging Source” is shown (3)

Likely cause

Correction procedure

Problem in power supply from exter-
nal power source

Check the following items.



Plug is securely inserted



Extension cord is not used and
outlet is not overloaded



Connected to a dedicated power
line



Electrical leakage has occurred or
not

If there is no problem with any of the
above items, there may be a prob-
lem with the outlet of the building.
Contact an electrician to request an
inspection.
If charging cannot be carried out,
even though there is no problem with
the power source path, there may be
a malfunction in the system. Have
the vehicle inspected by your Toyota
dealer.

Charger has stopped charging

Check if it is possible to charge with
the AC charging cable equipped to
the vehicle.
If charging cannot be carried out,
even when using the genuine AC
charging cable, consult your Toyota
dealer.

157

2-2. Charging

2

Plug

-in hyb

rid system

■

If “Charging Stopped High Energy Use See Owner’s Manual”
is shown

■

If “Charging System Malfunction See Owner’s Manual” is
shown

■

If “The Traction Battery Temp is low System put priority on
charging to preserve battery condition” is shown (Alaska and
Canada only)

Likely cause

Correction procedure

Power is being consumed by electri-
cal components of vehicle

Check the following items, and then
carry out charging again.



If the headlights and audio are
turned on, turn them off.



Turn the power switch off.

If charging cannot be carried out,
even after performing the above, the
auxiliary battery may not be suffi-
ciently charged. Operate the hybrid
system for approximately 15 minutes
or more to charge the auxiliary bat-
tery.

Likely cause

Correction procedure

Malfunction occurred in charging
system

Have the vehicle inspected by your
Toyota dealer.

Likely cause

Correction procedure

The Hybrid battery (traction battery)
warming control was operated
(



P.116)

When the hybrid battery (traction
battery) warming control operates,
the charging schedule is not used
and charging is performed.
This is a control to protect the hybrid
battery (traction battery), and not a
malfunction.

158

2-2. Charging

159

3

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

Vehicle status informa-

tion and indicators

3-1. Instrument cluster

Warning lights and indica-

tors ............................

160

Gauges and meters ....

165

Multi-information display

..................................

170

Head-up display ..........

182

Energy monitor/consump-

tion screen.................

187

160

3-1. Instrument cluster

3-1.Instrument cluster

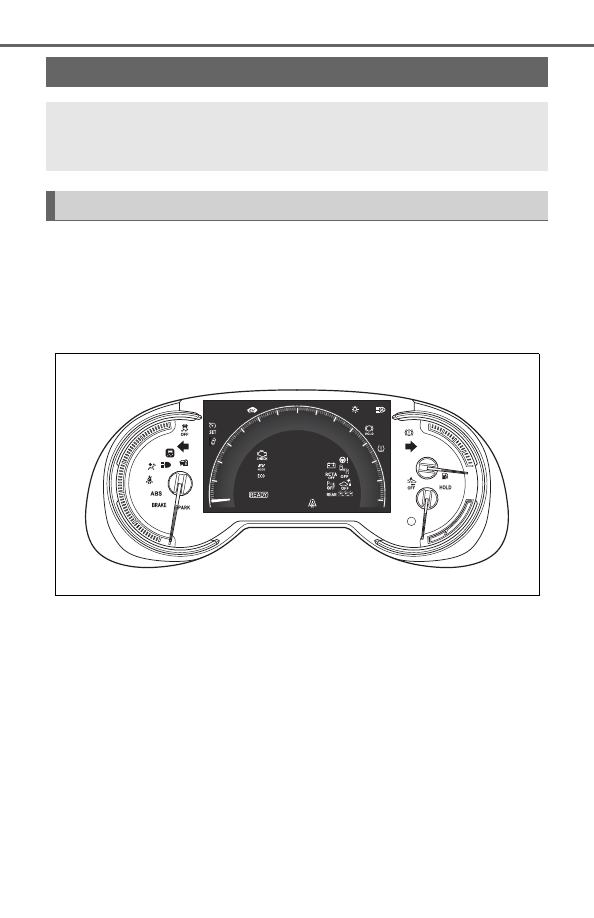

For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.
The display of the speedometer can be selected from two types,
analog or digital. (



P.177)

■

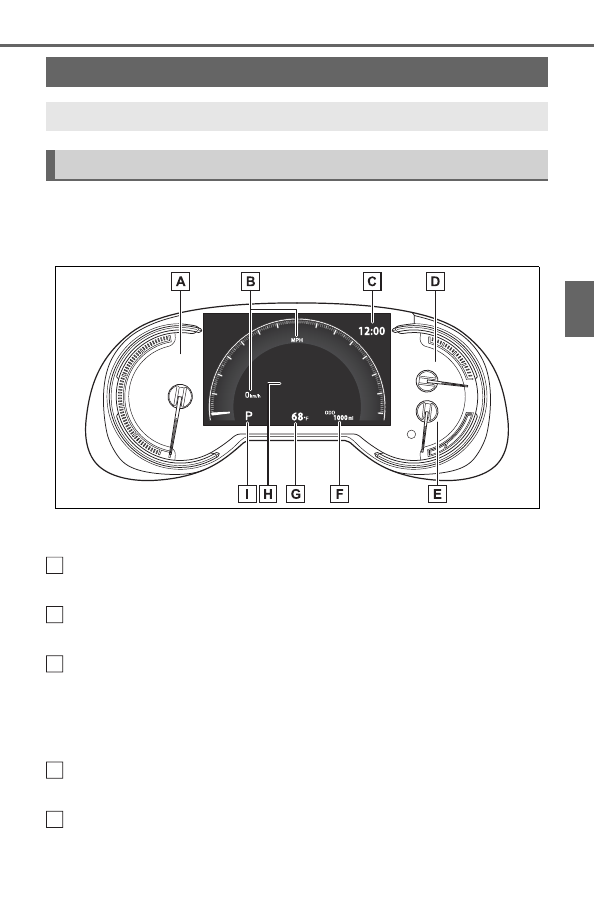

When analog speedometer is displayed

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights and indicators

The warning lights and indicators on the instrument cluster,
center panel and outside rear view mirrors inform the driver
of the status of the vehicle’s various systems.

Instrument cluster

161

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

■

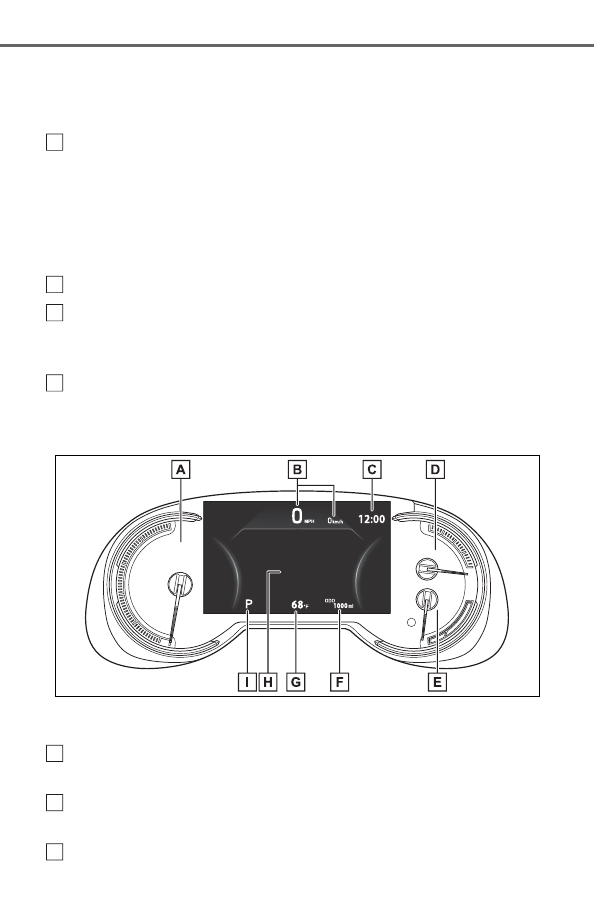

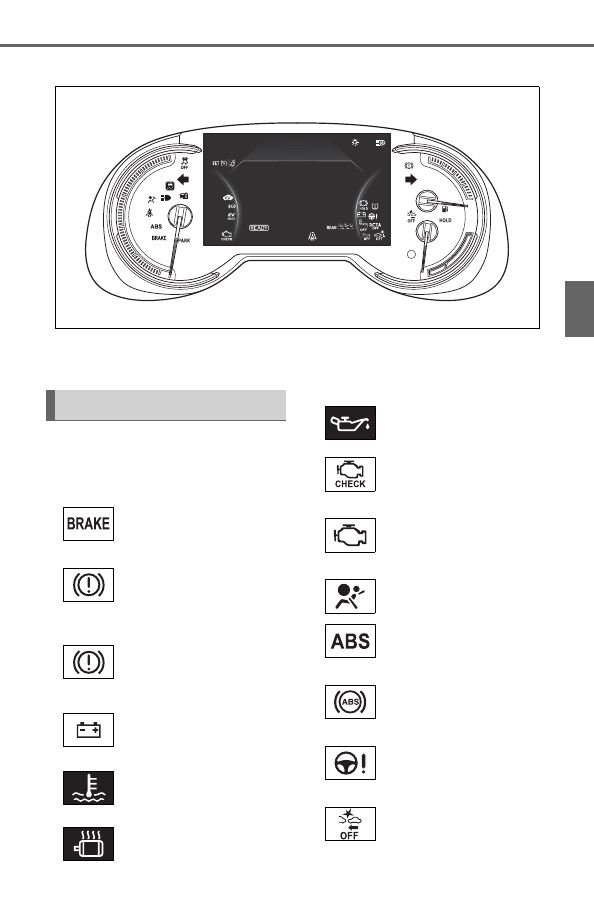

When digital speedometer is displayed

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.

Warning lights

(U.S.A.)

Brake system warn-
ing light

*1

 (



P.511)

(Canada)

(Red)

Brake system warn-
ing light

*1

 (



P.511)

(Yellow)

Brake system warn-
ing light

*1

 (



P.511)

Charging system
warning light

*1



(



P.511)

High coolant tempera-
ture warning light

*2



(



P.512)

Hybrid system over-
heat warning light

*2



(



P.512)

Low engine oil pres-
sure warning light

*2



(



P.512)

(U.S.A.)

Malfunction indicator
lamp

*1

 (



P.512)

(Canada)

Malfunction indicator
lamp

*1

 (



P.512)

SRS warning light

*1



(



P.513)

(U.S.A.)

ABS warning light

*1



(



P.513)

(Canada)

ABS warning light

*1



(



P.513)

(Red/yellow)

Electric power steer-
ing system warning
light

*1

 (



P.513)

(Flashes or

illuminates)

PCS warning light

*1



(



P.514)

162

3-1. Instrument cluster

*1

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the light does not come on,
or turn off. Have the vehicle
inspected by your Toyota dealer.

*2

:This light illuminates on the

multi-information display with a
message.

*3

:Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

(Orange)

LTA indicator
(



P.514)

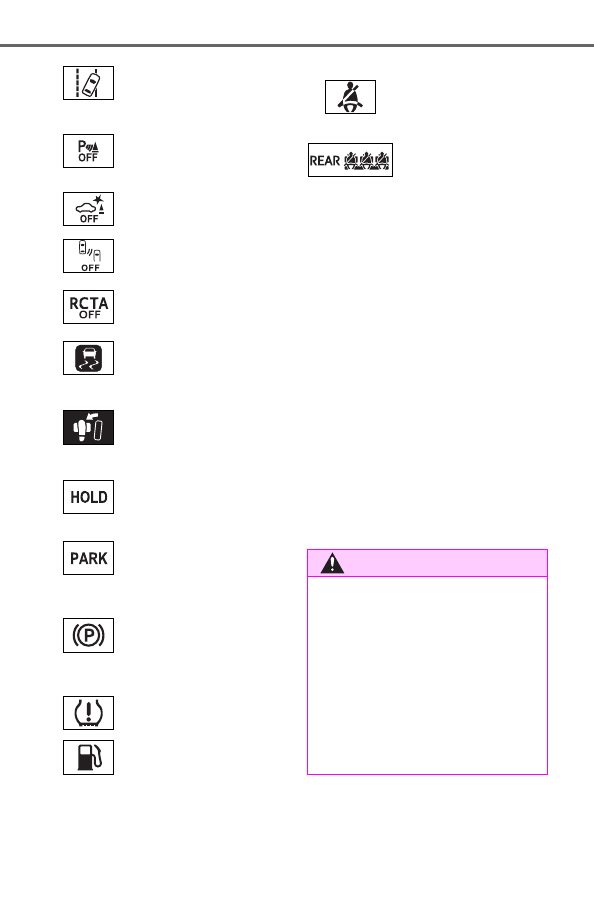

Intuitive parking assist
OFF indicator

*3

 (if

equipped) (



P.515)

PKSB OFF indica-
tor

*1

 (if equipped)

(



P.515)

BSM OFF indicator

*1

(



P.516)

RCTA OFF indica-
tor

*1

 (if equipped)

(



P.516)

Slip indicator light

*1



(



P.516)

Brake Override Sys-
tem/Drive-Start Con-
trol/PKSB (if
equipped) warning
light

*2

 (



P.517)

(Flashes)

Brake hold operated
indicator

*1

 (



P.517)

(U.S.A.)

(Flashes)

Parking brake indica-
tor (



P.517)

(Canada)
(Flashes)

Parking brake indica-
tor (



P.517)

Tire pressure warning
light

*1

 (



P.518)

Low fuel level warn-
ing light (



P.518)

Driver’s and front pas-
senger’s seat belt
reminder light
(



P.518)

Rear passengers’ seat
belt reminder lights (if
equipped) (



P.519)

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

hybrid system, this could mean

that these systems are not avail-

able to help protect you in an acci-

dent, which could result in death

or serious injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

163

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

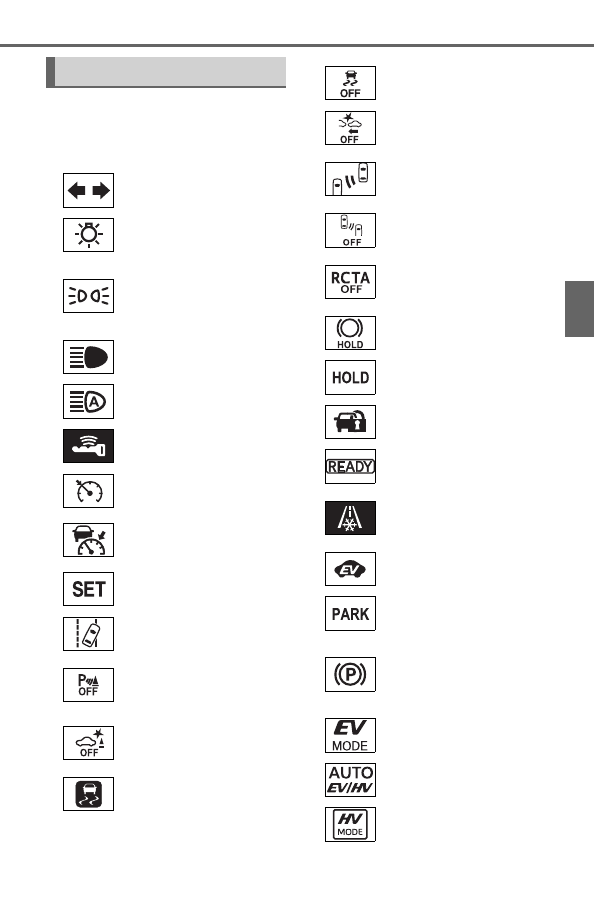

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

Indicators

Turn signal indicator
(



P.289)

(U.S.A.)

Headlight indicator
(



P.295)

(Canada)

Tail light indicator
(



P.295)

Headlight high beam
indicator (



P.297)

Automatic High Beam
indicator (



P.298)

Smart key system
indicator

*1

 (



P.279)

Cruise control indica-
tor (



P.336)

Dynamic radar cruise
control indicator
(



P.336)

Cruise control “SET”
indicator (



P.336)

LTA indicator

*2



(



P.328)

Intuitive parking assist
OFF indicator

*3, 4

 (if

equipped) (



P.358)

PKSB OFF indicator

*3, 5



(if equipped)
(



P.364)

(Flashes)

Slip indicator light

*5



(



P.381)

VSC OFF indicator

*3, 5



(



P.382)

PCS warning light

*3, 5



(



P.317)

BSM outside rear view
mirror indicators

*5, 6



(



P.347)

BSM OFF indicator

*3, 5



(



P.347)

RCTA OFF indicator

*3, 5



(if equipped)
(



P.347)

Brake hold standby
indicator

*5

 (



P.293)

Brake hold operated
indicator

*5

 (



P.293)

Security indicator
(



P.72, 73)

“READY” indicator
(



P.279)

Low outside tempera-
ture indicator

*7



(



P.168)

EV indicator (



P.82)

(U.S.A.)

Parking brake indica-
tor (



P.290)

(Canada)

Parking brake indica-
tor (



P.290)

EV drive mode indica-
tor

*8

 (



P.78)

AUTO EV/HV mode
indicator

*8

 (



P.78)

HV drive mode indica-
tor

*8

 (



P.78)

164

3-1. Instrument cluster

*1

:This light illuminates on the

multi-information display with a
message.

*2

:Depending on the operating con-

dition, the color and illuminat-
ing/flashing state of the light
change.

*3

:The light comes on when the

system is turned off.

*4

:Intuitive parking assist OFF indi-

cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

*5

:These lights turn on when the

power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is on,
or after a few seconds. There
may be a malfunction in a sys-
tem if the lights do not turn on, or
turn off. Have the vehicle
inspected by your Toyota dealer.

*6

:This light illuminates on the out-

side rear view mirrors.

*7

:When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for

approximately 10 seconds, then
stay on.

*8

:The displayed indicator changes

according to the current plug-in
hybrid system operation mode.

*9

:This light illuminates on the cen-

ter panel.

■

BSM (Blind Spot Monitor) out-

side rear view mirror indicators

In order to confirm operation, the

BSM outside rear view mirror indica-

tors illuminate when the power

switch is turned to ON, or when the

BSM function/RCTA function is

enabled while the power switch is in

ON.
If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.
If the BSM outside rear view mirror

indicators do not illuminate or do not

turn off, there may be a malfunction

in the system. If this occurs, have

the vehicle inspected by your

Toyota dealer.

Hybrid battery charge
mode indicator

*8



(



P.79)

Eco drive mode indi-
cator (



P.377)

Sport mode indicator
(



P.377)

Trail Mode indicator
(



P.379)

“AIR BAG ON/OFF”
indicator

*5, 9

 (



P.44)

165

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

The display of the speedometer can be selected from two types,
analog or digital. (



P.177)

■

Analog speedometer

The units used on the meter and display may differ depending on the target
region.

Hybrid System Indicator

Displays the hybrid system output or regeneration level (



P.167)

Speedometer

Displays the vehicle speed

Clock

Automatically adjusts the time by using the GPS time information (GPS
clock).
For details, refer to “Navigation and Multimedia System Owner’s Manual” or
“Multimedia Owner’s Manual”.

Fuel gauge

Displays the quantity of fuel remaining in the tank

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery.

Gauges and meters

The meters display various drive information.

Meter display

A

B

C

D

E

166

3-1. Instrument cluster

When the gauge is in the green zone, EV driving is possible. When the
gauge is in the blue zone, EV driving is no longer possible (in this situation,
the vehicle switches to HV mode). Charge the hybrid battery (traction bat-
tery) to allow EV driving.

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (



P.168)

Multi-information display

Presents the driver with a variety of driving-related data (



P.170)

Displays warning messages if a malfunction occurs (



P.523)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.285)

■

Digital speedometer

The units used on the meter and display may differ depending on the target
region.

Hybrid System Indicator

Displays the hybrid system output or regeneration level (



P.167)

Speedometer

Displays the vehicle speed

Clock

F

G

H

I

A

B

C

167

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

Automatically adjusts the time by using the GPS time information (GPS
clock).
For details, refer to “Navigation and Multimedia System Owner’s Manual” or
“Multimedia Owner’s Manual”.

Fuel gauge

Displays the quantity of fuel remaining in the tank

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery.
When the gauge is in the green zone, EV driving is possible. When the
gauge is in the blue zone, EV driving is no longer possible (in this situation,
the vehicle switches to HV mode). Charge the hybrid battery (traction bat-
tery) to allow EV driving.

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (



P.168)

Multi-information display

Presents the driver with a variety of driving-related data (



P.170)

Displays warning messages if a malfunction occurs (



P.523)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.285)

■

The meters and display illumi-

nate when

The power switch is in ON.

■

When changing driving mode

Speedometer color is changed fol-

lowing the selected driving mode or

when Trail Mode is turned on.

(



P.377, 379)

■

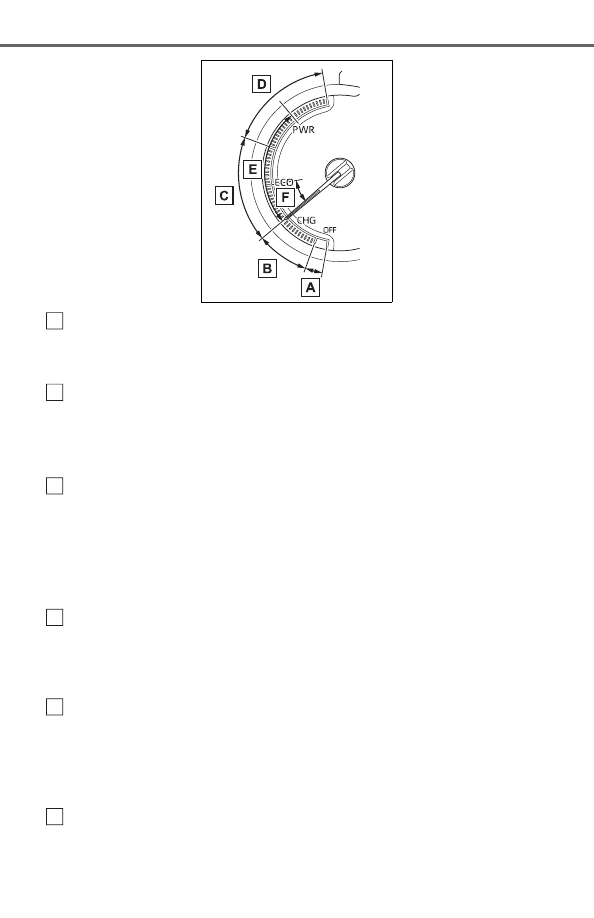

Hybrid System Indicator

The display contents of the Hybrid

System Indicator are different in EV

mode and HV mode.

D

E

F

G

H

I

168

3-1. Instrument cluster

READY OFF area

Shows that the hybrid system is not
operating.

Charge area

Shows regeneration

*

 status. Regen-

erated energy will be used to charge
the hybrid battery (traction battery).

Eco area

Shows that the vehicle is being
driven in an Eco-friendly manner.
By keeping the indicator needle
within Eco area, more Eco-friendly
driving can be achieved.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)

EV driving area (EV mode or
AUTO EV/HV mode)

Shows that the vehicle is driven
using only the electric motor (trac-
tion motor).

Hybrid Eco area (HV mode)

Shows that gasoline engine power
is not being used very often.

The gasoline engine will automati-
cally stop and restart under various
conditions.

*

: When used in this manual, “regen-

eration” refers to the conversion of
energy created by the movement
of the vehicle into electrical
energy.

In the following situation, the Hybrid

System Indicator does not operate.

●

“READY” indicator is not illumi-

nated.

●

The shift lever is in a range other

than D or S.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped (including when

using “My Room Mode”), or driv-

ing at low speeds (less than 12

mph [20 km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

A

B

C

D

E

F

169

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

●

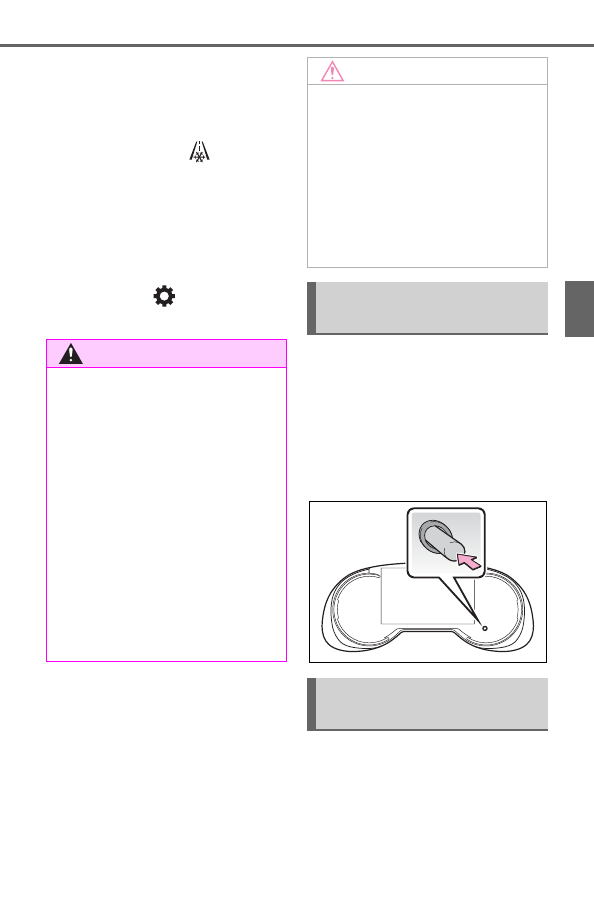

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator

 will flash

for approximately 10 seconds,

then stay on.

■

Liquid crystal display



P.171

■

Customization

Settings (e. g. meter display) can be
changed on the

 screen of the

multi-information display. (



P.177)

Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”
switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

The brightness of the instrument
panel lights can be adjusted by
turning the dial.

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new shift range appearing on

the display. This lag could cause

the driver to downshift again,

causing rapid and excessive

engine braking and possibly an

accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

The engine may be overheating if

“Engine Coolant Temp High Stop

in a Safe Place See Owner’s

Manual” is shown on the multi-

information display. In this case,

immediately stop the vehicle in a

safe place, and check the engine

after it has cooled completely.

(



P.544)

Using the “ODO TRIP”
switch

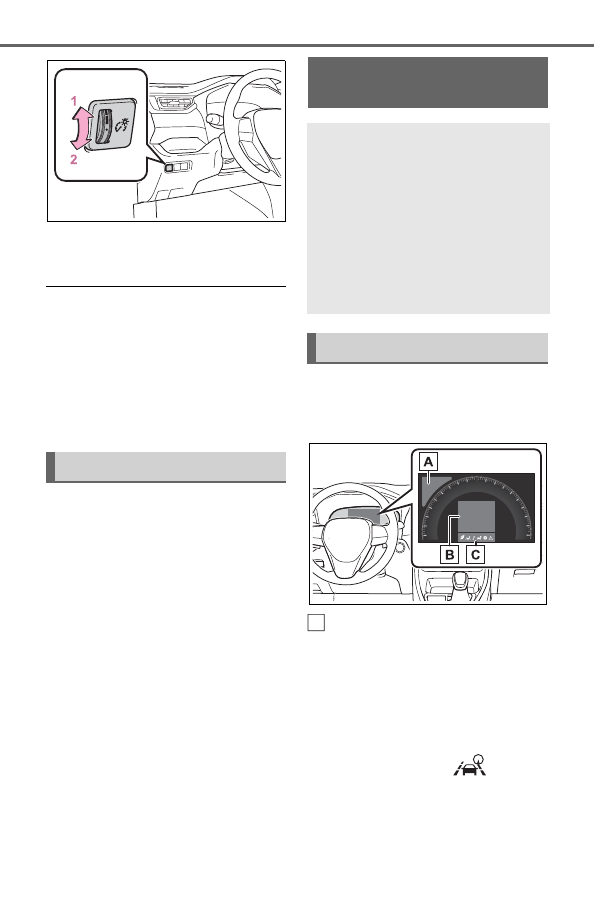

Instrument panel light
control

170

3-1. Instrument cluster

1

Brighter

2

Darker

■

Instrument panel brightness

adjustment

The instrument panel brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument panel brightness.

The clock can be adjusted on
the audio system screen.
Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Following information is dis-
played on the multi-information
display.

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (



P.333)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

 is

selected:
• LTA (Lane Tracing Assist)

(



P.323)

• Dynamic radar cruise control with

full-speed range (



P.336)

Adjusting the clock

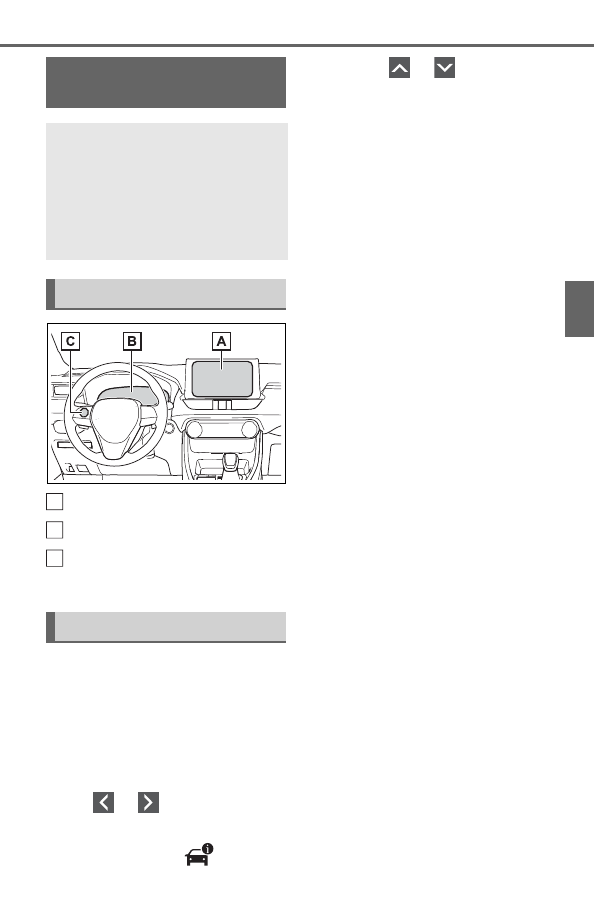

Multi-information dis-

play

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

A

171

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

Menu icons (



P.171)

■

The multi-information display is

displayed when

The power switch is in ON.

■

When changing driving mode

Background color of the multi-infor-

mation display is changed following

the selected driving mode or when

Trail Mode is turned on. (



P.377,

379)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phe-

nomenon is characteristic of liquid

crystal displays, and there is no

problem continuing to use the dis-

play.

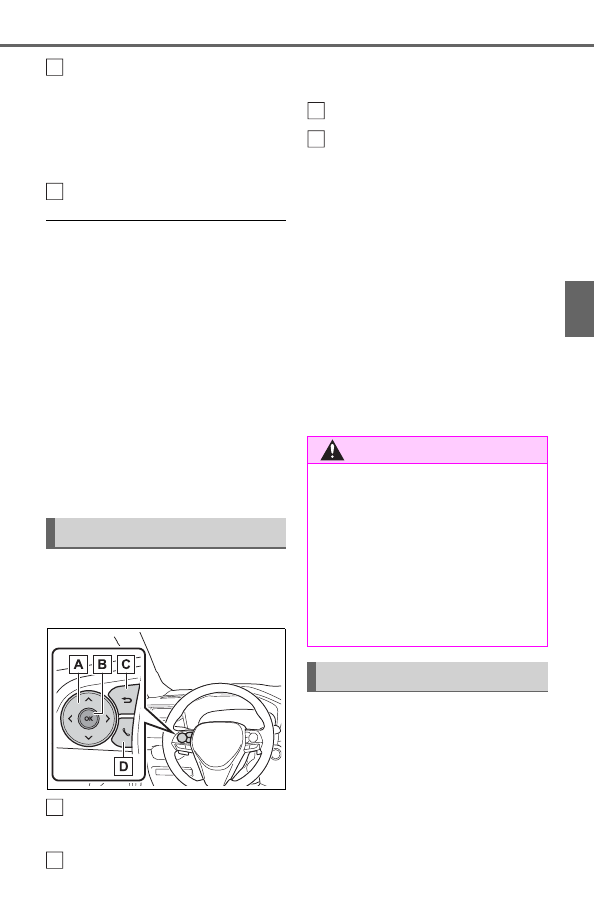

The multi-information display is
operated using the meter control
switches.

Scroll the screen

*

/switch the

display

*

/move the cursor

Press: Enter/Set

Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and
history display (if equipped)
Linked with the hands-free
system, sending or receiving
call is displayed. For details
regarding the hands-free sys-
tem, refer to “NAVIGATION
AND MULTIMEDIA SYS-
TEM OWNER’S MANUAL”.

*

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

Information related to each icon
can be displayed by selecting
the icon with the meter control
switches.

Some of the information may be
displayed automatically depending
on the situation.

Changing the display

B

C

A

B

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switch while driving

as much as possible, and do not

look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switch. Failure to do

so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Menu icons

C

D

172

3-1. Instrument cluster

Select to display fuel consump-
tion data in various forms.

■

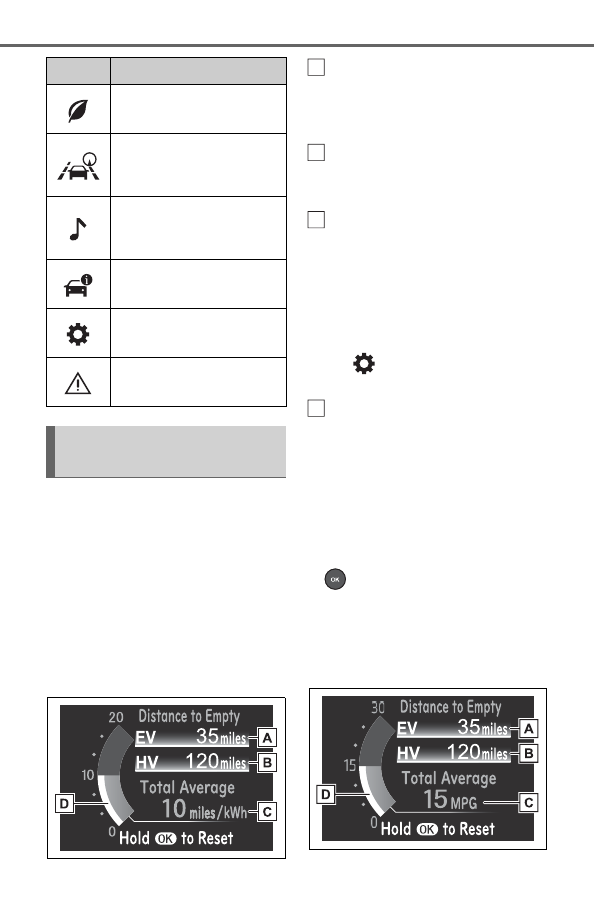

Power Consumption/Fuel
Economy

The display contents are differ-
ent in EV mode or AUTO EV/HV
mode, and HV mode.



EV mode or AUTO EV/HV
mode

EV driving range

Displays the EV driving range with
charge remaining in the hybrid bat-
tery (traction battery). (



P.95)

Distance to empty

Displays the driving range with
remaining fuel. (



P.175)

Average power consumption

Displays the average power con-
sumption since the function was
reset or the average power con-
sumption after starting.

*1, 2, 3

The average power consumption
selected by “Power Consumption”
on the

 screen is displayed.

(



P.177)

Current power consumption

Displays the instantaneous current
power consumption.

*1

:Use the displayed power con-

sumption as a reference only.

*2

:Average power consumption

since the function was reset can
be reset by pressing and holding

.

*3

:Average power consumption

after starting is reset each time
the hybrid system stops.



HV mode

Icon

Display

Driving information dis-
play (



P.172)

Driving support system
information display
(



P.175)

Audio system-linked dis-
play (if equipped)
(



P.175)

Vehicle information dis-
play (



P.176)

Settings display
(



P.177)

Warning message dis-
play (



P.181)

Driving information dis-
play

A

B

C

D

173

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

EV driving range

Displays the EV driving range with
charge remaining in the hybrid bat-
tery (traction battery). (



P.82)

Distance to empty

Displays the driving range with
remaining fuel. (



P.175)

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2, 3

The average fuel economy selected
by “Fuel Economy” on the



screen is displayed. (



P.177)

Current fuel economy

Displays the instantaneous current
fuel economy.

*1

:Use the displayed fuel consump-

tion as a reference only.

*2

:Average fuel economy since the

function was reset can be reset
by pressing and holding

.

*3

:Average fuel economy after

starting is reset each time the
hybrid system stops.

■

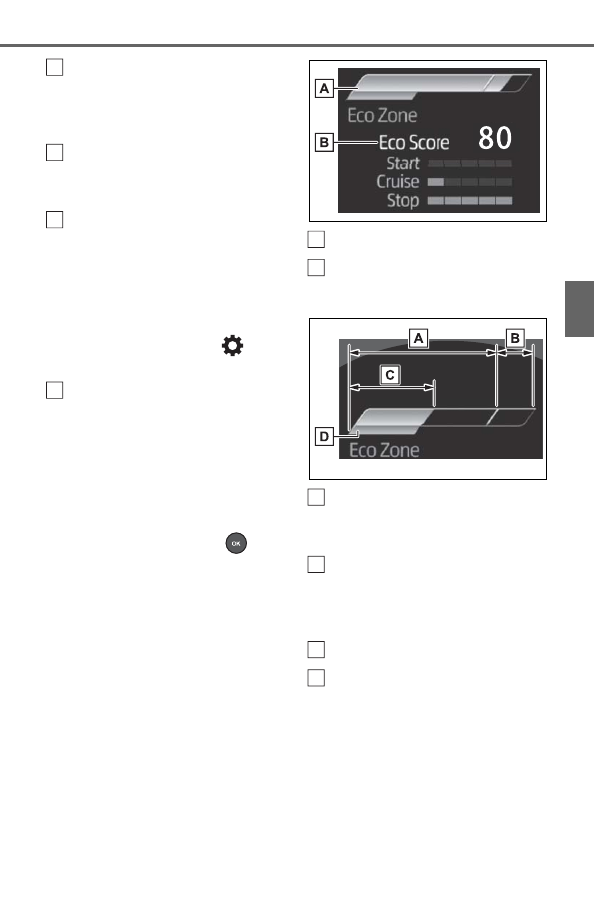

ECO Accelerator Guid-
ance/“Eco Score”

Displays a reference operation
range for using the accelerator
pedal according to driving condi-
tions, and a score result that
evaluates the current driving
status.

ECO Accelerator Guidance

“Eco Score”



ECO Accelerator Guidance

ECO area

Shows that the vehicle is being
driven in an Eco-friendly manner.

Power area

Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.).

Current acceleration

Reference operation range

A zone is displayed in blue under
the Eco area which can be used as
a reference operation range for
using the accelerator pedal accord-
ing to driving conditions such as
starting off and cruising.
The ECO Accelerator Guidance
display changes according to the
driving status, such as when start-

A

B

C

D

A

B

A

B

C

D

174

3-1. Instrument cluster

ing off or cruising.
It is easier to drive in an Eco-
friendly manner by driving accord-
ing to the display showing the
accelerator pedal operations and
staying within the reference opera-
tion range.



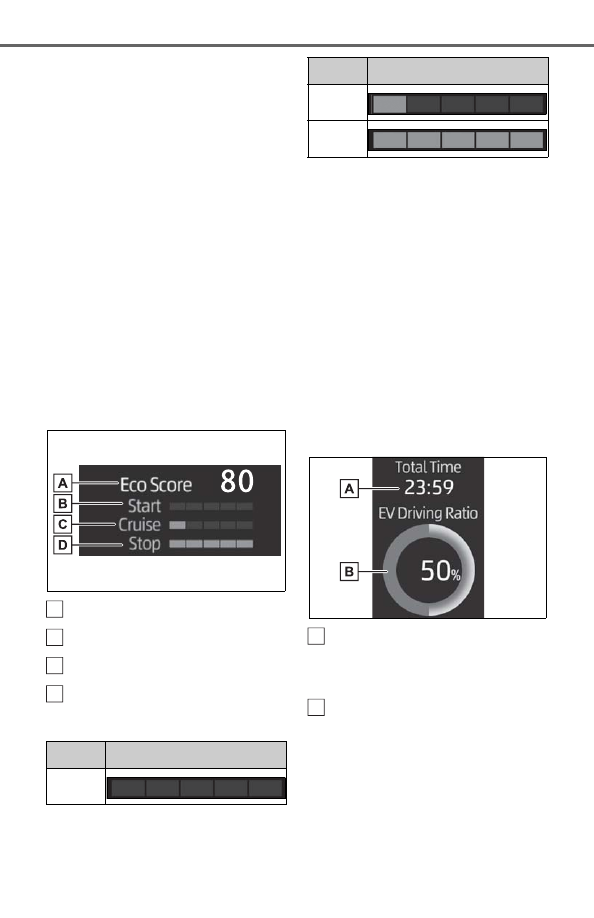

“Eco Score”

The driving status for the follow-
ing 3 situations are evaluated in
5 levels: Smooth start-off accel-
eration (“Start”), driving without
sudden acceleration (“Cruise”)
and smooth stopping (“Stop”).
Each time the vehicle is
stopped, a score result is dis-
played out of a perfect score of
100 points.

Score result

“Start”

“Cruise”

“Stop”

How to read the bar display:

After starting off, “Eco Score” dis-
play does not start until the vehicle
speed exceeds approximately 12
mph (20 km/h).
The “Eco Score” is reset each time
the vehicle starts off to start a new
evaluation.
When the hybrid system stops, the
current total score result is dis-
played.

*

*

: The score result is displayed only

when “Eco Score” is selected for
“Closing Display”. (



P.177)

■

EV Ratio/EV Driving Ratio

Elapsed time after starting

Displays the elapsed time since
hybrid system was started.

*

EV driving ratio after starting

Displays the percentage of EV driv-
ing since the hybrid system was
started.

*

*

: It is reset each time the hybrid

system stops.

Score

Bar display

Unrated

A

B

C

D

Low

High

Score

Bar display

A

B

175

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

■

Electricity consumption

When the unit is set to “MPH”:
Electricity consumption is the con-

sumption rate of the electricity when

EV driving is performed and equiva-

lent to the fuel consumption for the

gasoline vehicles. For this vehicle,

driven distance per kWh of electric-

ity consumed (“miles/kWh”) is dis-

played as electricity consumption on

each screen.
When the unit is set to “km/h”:
Electricity consumption is the con-

sumption rate of the electricity when

EV driving is performed and equiva-

lent to the fuel consumption for the

gasoline vehicles. For this vehicle,

electricity consumed per 100 km

(“kWh/100 km”) is displayed as

electricity consumption on each

screen.

■

EV driving range

●

When the air conditioning system
is operating,

 is displayed next

to the EV driving range and the

EV driving range with the air con-

ditioning system on is displayed.

●

The EV driving range may shorten

even when not driving due to

power consumption by the sys-

tem.

●

For details, refer to “EV driving

range” (



P.95)

■

Distance to empty

●

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may

differ from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the power switch off. If

the vehicle is refueled without

turning the power switch off, the

display may not be updated.

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated.

Refuel immediately.

■

ECO Accelerator Guid-

ance/“Eco Score” will not oper-

ate when

The ECO Accelerator Guid-

ance/“Eco Score” will not operate in

the following situations:

●

The Hybrid System Indicator is not

operating.

●

The vehicle is being driven using

the dynamic radar cruise control

with full-speed range.

■

Driving support system
information display

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.323)



Dynamic radar cruise control
with full-speed range
(



P.336)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation.



Route guidance



Compass display

Select to enable selection of an

Driving support system
information display

Audio system-linked dis-
play (if equipped)

176

3-1. Instrument cluster

audio source or track on the dis-
play.

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information
changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (



P.177)

Use the displayed information as a
reference only.
Following items will be displayed.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since
hybrid system start

*

• “Distance”: Displays the distance

driven since hybrid system start

*

• “Total Time”: Displays the

elapsed time since hybrid system
start

*

*

: These items are reset each time

the hybrid system stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

*

• “Distance”: Displays the distance

driven since the display was
reset

*

• “Total Time”: Displays the

elapsed time since the display
was reset

*

*

: To reset, display the desired item

and press and hold

.

■

Energy monitor



P.187

■

Tire pressure



P.471

■

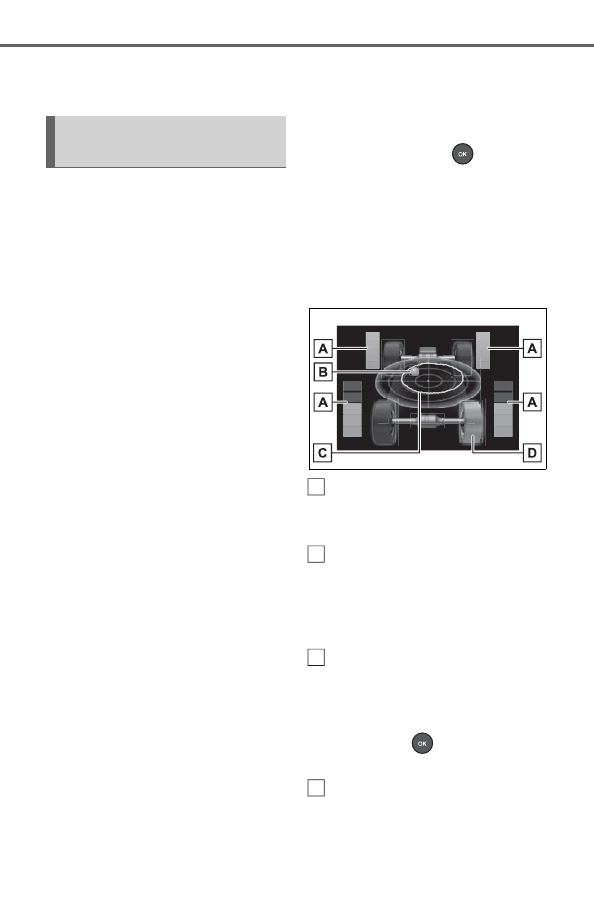

AWD system display

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

*

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

*

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.

Press and hold

 to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

Vehicle information dis-
play

A

B

C

D

177

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

*

: This item is displayed only when

driving mode is set to sport mode.

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure

1

Operate

 or

 of the

meter control switches and
select

.

2

Operate

 or

 of the

meter control switches and
select the desired item.

• If the function is turned on and

off or the volume, etc. is
changed on the setting
screen, the setting is changed
each time

 is pressed.

• For functions that allow oper-

ation contents, display con-
tents, etc., of function to be
selected, the setting screen is
displayed by pressing and
holding

. When the setting

screen is displayed, select the
setting or desired value (time,
etc.) with

.

3

After changing the settings,
press

 of the meter control

switches.

■

 LTA (Lane Tracing

Assist) (



P.323)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane
centering function.



“Steering Assist”

Select to enable/disable steering
wheel assistance.



“Alert”

Select to change each notification
method of the lane departure alert.



“Sensitivity”

Select to set the lane departure
alert sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

 PCS (Pre-Collision Sys-

tem) (



P.315)

Select to set up the following
items.



PCS on/off

Select to enable/disable the pre-
collision system.



“Sensitivity”

Select to change the pre-collision
warning timing.

■

 BSM (Blind Spot Moni-

tor) (



P.347)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off

Select to enable/disable the BSM

Settings display

178

3-1. Instrument cluster

system.



“Brightness”

Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.347)



“Sensitivity”

Select to change the alert timing for
an approaching vehicle.

■

 (Intuitive parking

assist) (if equipped)
(



P.356)

Select to set up the following
items.



Intuitive parking assist on/off

Select to enable/disable the Intui-
tive parking assist.



“Volume”

Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.

■

RCTA (Rear Cross Traffic
Alert) (



P.347)



RCTA (Rear Cross Traffic
Alert) on/off

Select to enable/disable the RCTA
system.



“Volume”

Select to change the RCTA buzzer
volume.

■

 PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.363)

Select to enable/disable the
Parking Support Brake function.

■

“HUD Main” (if equipped)
(



P.182)



HUD on/off

Select to enable/disable the head-
up display.



“HUD Brightness/Position”

Select to adjust the brightness or
vertical position of the head-up dis-
play.



“HUD Driving Support”

Select to change the items dis-
played on the head-up display.



“HUD Rotation”

Select to adjust the angle of the
head-up display.

■

 RSA (Road Sign

Assist) (if equipped)
(



P.333)

Select to set up the following
items.



Road Sign Assist on/off

Select to enable/disable the RSA
system.



“Notification Method”

Select to change each notification
method used to notify the driver
when the system recognizes
excess speed, no overtaking and
no-entry sign.



“Notification Level”

Select to change each notification
level used to notify the driver when
the system recognizes a speed limit
sign.

■

Vehicle Settings



“Charging Settings”

179

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

Select to set up the following items.
• “Charging Schedule”
Select to register or change the
charging schedule. (



P.130)

• “Charging Current”
Select to change the charging cur-
rent. (



P.112)

• “Connector Lock”
Select to change the charging con-
nector lock settings. (



P.109)

• “Battery Heater”
Select to enable/disable the bat-
tery heater. (



P.115)

• “Battery Cooler”
Select to enable/disable the bat-
tery cooler. (



P.116)



 PBD (Power Back Door)

(if equipped) (



P.207)

Select to set up the following items.
• System settings
Select to enable/disable the power
back door system.

• “Hands Free”

*

Select to enable/disable the Hands
Free Power Back Door.
• “Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.

*

: Vehicles with Hands Free Power

Back Door



“TPWS” (Tire Pressure Warn-
ing System) (



P.471)

• “Setting Pressure”
Select to initialize the tire pressure
warning system.
• “Identify Wheel”
Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.
• “Setting Unit”
Select to change the units of mea-
sure displayed.



“Scheduled Maintenance”
(



P.451)

Select to reset the scheduled main-
tenance information (message indi-
cating maintenance is required and
distance until the next mainte-
nance) after all maintenance is per-
formed.



“Rear Seat Reminder”
(



P.200)

Select to enable/disable the rear
seat reminder.

■

 Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

Select to change the units of mea-
sure displayed.



“Meter Type”

Select to change the speedometer
display.



 (EV indicator) (



P.82)

Select to enable/disable the EV
indicator.



 (Driving information dis-

play settings)

180

3-1. Instrument cluster

Select to set up the following items.
• “Hybrid System”
Select to enable/disable the ECO
Accelerator Guidance (



P.173).

• “Fuel Economy”
Select to change the display on
Fuel Economy (



P.172).

• “Power Consumption”
Select to change the display on
Power Consumption (



P.172).



 (Audio settings) (if

equipped)

Select to enable/disable



screen.



 (Vehicle information dis-

play settings)

• “Display Contents”
Select to set up the following items.
“Energy monitor”:
Select to enable/disable the Energy
monitor (



P.187)

“AWD”:
Select to enable/disable the AWD
system display (



P.176).

• “Drive Info Type”
Select to change the drive informa-
tion type display between trip and
total. (



P.176).

• “Drive Info Items”
Select to set the items on the upper
and lower side of the drive informa-
tion screen from three items, aver-
age speed, distance and total time.



“Closing Display”

Select to set the items displayed
when the power switch is turned off.



“Pop-Up Display” (if
equipped)

Select to enable/disable the follow-
ing pop-up displays, which may
appear in some situations.
• Intersection guidance display of

the navigation system-linked sys-
tem (if equipped)

• Incoming call display of the

hands-free phone system (if
equipped)

• Audio operation (if equipped)
• Volume operation (if equipped)
• Voice control (if equipped)



“Calender”

Select to set up the calender.
This can only be set if GPS calibra-
tion of clock is turned off in the mul-
timedia system settings.



“MID OFF”

A blank screen is displayed.



“Default Settings”

Select to reset the meter display
settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

181

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.523)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to enable the
power back door (if
equipped)

If the power back door system is
disabled on the

 screen and

the power back door switch on
the instrument panel is oper-

ated, a suggestion message will
be displayed asking if you wish
to enable the power back door
system. To enable the power
back door system, select “Yes”.

After enabling the power back door
system, press the power back door
switch again to open or close the
power back door.

■

Suggestion to turn on the
headlights

If the headlight switch is in other
than

 or

, and the vehicle

speed is 3 mph (5 km/h) or
higher for a certain amount of
time when the surroundings are
dark, a suggestion message will
be displayed.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
power switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the power switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

The suggestion function can be

turned on/off. (Customizable fea-

WARNING

■

Cautions during setting up

the display

As the hybrid system needs to be

operating during setting up the

display, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while setting

up the display features.

Warning message display

Suggestion function

182

3-1. Instrument cluster

tures:



P.570)

*

: If equipped

Illustrations used in this text are
intended as examples, and may dif-
fer from the image that is actually
displayed by the head-up display.

Driving support system infor-
mation/navigation system-
linked display area (if
equipped) (



P.185)

Shift position display
area/RSA (Road Sign Assist)
display area (if equipped)
(



P.285, 333)

Vehicle speed display

Hybrid System Indica-

Head-up display

*

The head-up display proj-
ects a variety of driving-
related information and the
operating state of the driv-
ing support systems on the
windshield.

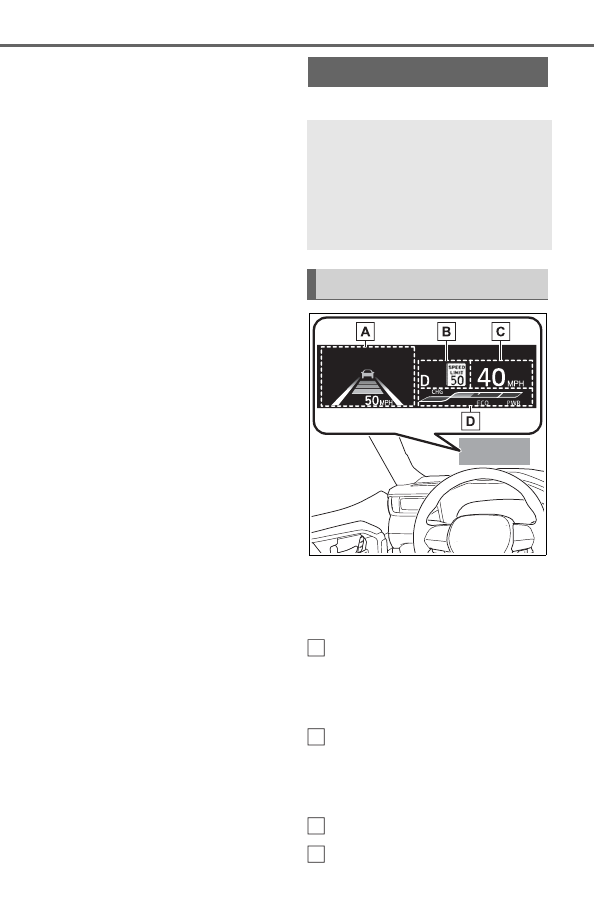

System components

A

B

C

D

183

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

tor/tachometer (



P.186)

■

Head-up display will operate

when

The power switch is in ON.

■

When using the head-up dis-

play

The head-up display may seem

dark or hard to see when viewed

through sunglasses, especially

polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display (vehicles

with navigation system)

Only street names which are

included in the map data will be dis-

played.

WARNING

■

When using the head-up dis-

play

●

Check that the position and

brightness of the head-up dis-

play image does not interfere

with safe driving. Incorrect

adjustment of the image’s posi-

tion or brightness may obstruct

the driver’s view and lead to an

accident, resulting in death or

serious injury.

●

Do not continuously look at the

head-up display while driving as

you may fail to see pedestrians,

objects on the road, etc. ahead

of the vehicle.

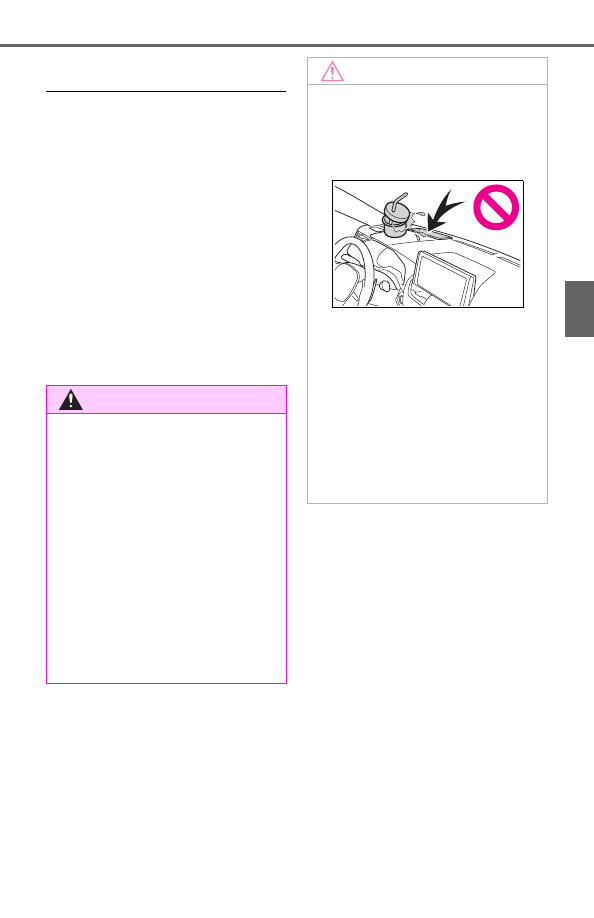

NOTICE

■

Head-up display projector

●

Do not place any drinks near

the head-up display projector. If

the projector gets wet, electrical

malfunctions may result.

●

Do not place anything on or put

stickers onto the head-up dis-

play projector.

Doing so could interrupt head-

up display indications.

●

Do not touch the inside of the

head-up display projector or

thrust sharp edges or the like

into the projector.

Doing so could cause mechani-

cal malfunctions.

184

3-1. Instrument cluster

Vehicle settings and the content
displayed on the head-up dis-
play can be changed by using
the meter control switches.

1

Operate

 or

 of the

meter control switches and
select

 on the multi-infor-

mation display.

2

Operate

 or

 of the

meter control switches and
select “HUD Main” to set up
the following items.

■

Enabling/disabling the
head-up display

Press

 to enable/disable the

head-up display.

■

Changing the head-up dis-
play settings

Press and hold

 to display the

setting screen and change the
following settings:



Brightness and vertical posi-
tion of the head-up display

Select to adjust the brightness or
vertical position of the head-up dis-
play.



Display content

Select to change the display
between the following:
• No content
• Hybrid System Indicator
• Tachometer
Select to enable/disable the follow-
ing items:

• Route guidance to destination (if

equipped)

• Driving support system informa-

tion display

• Compass (if equipped)
• Audio system operation status (if

equipped)



Display angle

Select to adjust the angle of the
head-up display.

■

Enabling/disabling of the head-

up display

If the head-up display is disabled, it

will remain disabled when the power

switch is turned off then back to ON.

■

Display brightness

The brightness of the head-up dis-
play can be adjusted on

 screen

of the multi-information display.

Also, it is automatically adjusted

according to the ambient brightness.

Using the head-up display

WARNING

■

Caution for changing settings

of the head-up display

If the hybrid system is operating

when changing the display set-

tings, ensure that the vehicle is

parked in a place with adequate

ventilation. In a closed area such

as a garage, exhaust gases

including harmful carbon monox-

ide (CO) may collect and enter

the vehicle. This may lead to

death or a serious health hazard.

185

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

■

Driving support system
information display

Displays the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.323)



Dynamic radar cruise control
with full-speed range
(



P.336)

Displayed content is the same as
that displayed on the multi-informa-
tion display. For details, refer to the
explanations of each system.

■

Navigation system-linked
display area (if equipped)

Displays the following items
which are linked to the naviga-
tion system:



Street name



Route guidance to destination



Compass

Pop-up displays for the following

systems will be displayed when
necessary:

■

Driving support systems

Displays a warning/sugges-
tion/advice message or the
operating state of a relevant
system.



PCS (Pre-Collision System)
(



P.315)



Brake Override System
(



P.259)



Drive-Start Control (



P.259)



Parking Support Brake func-
tion (static objects) (if
equipped) (



P.368)

Displayed content is the same as
that displayed on the multi-informa-
tion display. For details, refer to the
explanations of each system.

■

 /

 icons

Displays the following multi-
information display linked icons:

: Master warning icon

Displayed when a warning mes-
sage is displayed on the multi-infor-
mation display.

: Information icon

Displayed when a sugges-
tion/advice pop-up display is dis-
played on the multi-information
display.

■

Warning message

Some warning messages are
displayed when necessary,
according to certain conditions.

Displayed content is the same as

NOTICE

■

When changing the settings

of the head-up display

To prevent 12-volt battery dis-

charge, ensure that the hybrid

system is operating while chang-

ing the settings of the head-up

display.

Driving support system
information/navigation
system-linked display
area (if equipped)

Pop-up display

186

3-1. Instrument cluster

that displayed on the multi-informa-
tion display. For details, refer to the
explanations of each system.

■

Audio system operation
status (if equipped)

Displayed when an audio
remote control switch on the
steering wheel is operated.

■

Hands-free system status
(if equipped)

Displayed when the hands-free
system is operated.

■

Outside temperature dis-
play

Displayed when the power
switch is turned to ON or when
the low outside temperature
indicator is flashing.

■

When a pop-up display is dis-

played

When a pop-up display is displayed,

a current display may no longer be

displayed. In this case, the display

will return after the pop-up display

disappears.

■

Outside temperature display

●

When the ambient temperature is

approximately 3°C (37°F) or
lower,

 will flash for approxi-

mately 10 seconds and the out-

side temperature display will turn

off.

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change:

• When stopped (including when

using “My Room Mode”), or driv-

ing at low speeds (less than 20

km/h [12 mph])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

Display content selected by
“HUD Driving Support” on the

 screen is displayed.

(



P.184)

■

Hybrid System Indicator

Charge area

Hybrid Eco area

Eco area

Power area

Displayed content is the same as
that displayed on the meter (Hybrid
System Indicator).
For details, refer to P.167.

■

Tachometer

Displays the engine speed in
revolutions per minute.

Hybrid System Indica-
tor/Tachometer

A

B

C

D

187

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

Audio system screen

Multi-information display

Meter control switches
(



P.171)

The energy monitor can be used
to check the vehicle drive status,
hybrid system operation status
and energy regeneration status.

■

Display



Multi-information display

Press

 or

 of the meter

control switches on the steering

wheel and select

, and

then press

 or

 to select

the energy monitor display.



Audio or Audio Plus (vehicles
without Data Communication
Module)

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

If a screen other than “Energy mon-

itor” is displayed, select “Energy”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “ECO” on the “Infor-
mation” screen.

If a screen other than “Energy mon-

itor” is displayed, select “Energy”.

■

Reading the display

The arrows will appear in accor-
dance with the energy flow.
When there is no energy flow,
arrows will not be displayed.

The color of the arrows will change
as follows
Green: When the hybrid battery
(traction battery) is regenerated or
charged.
Yellow: When the hybrid battery
(traction battery) is in use.
Red: When the gasoline engine is
in use.

Energy monitor/con-

sumption screen

You can view the status of
your vehicle on the multi-
information display and the
audio system screen

*

.

*

: For navigation system or multi-

media system

System components

Energy monitor

A

B

C

188

3-1. Instrument cluster



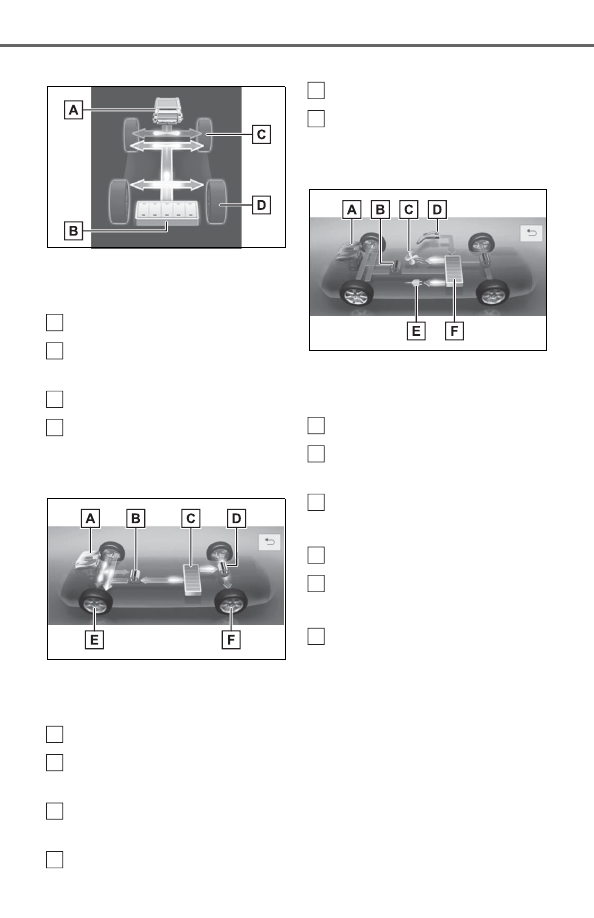

Multi-information display

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Hybrid battery (traction bat-
tery)

Front tire

Rear tire



Audio system screen (except
when charging)

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Front electric motor (traction
motor)

Hybrid battery (traction bat-
tery)

Rear electric motor (traction

motor)

Front tire

Rear tire



Audio system screen (when
charging)

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Front electric motor (traction
motor)

Air conditioning system oper-
ation

*1

Charging connector

Power outlet (120 VAC) (if
equipped)

*2

Hybrid battery (traction bat-
tery)

*1

:The icon is displayed when the

air conditioning system is operat-
ing.

*2

:The icon is displayed when the

power outlet is in use.

A

B

C

D

A

B

C

D

E

F

A

B

C

D

E

F

189

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators



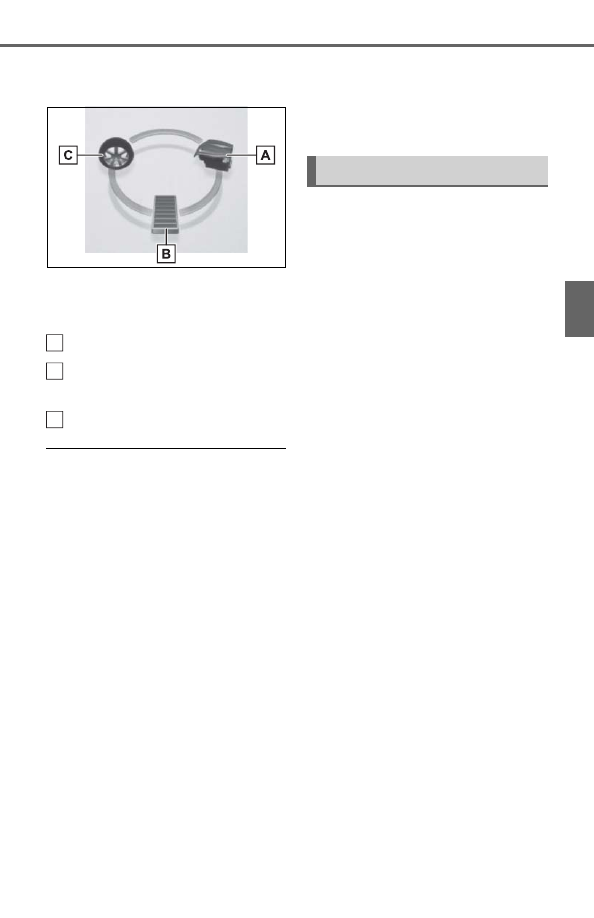

Audio system screen (“Home”
screen)

The image shows all the arrows as
an example. The actual display will
vary depending on conditions.

Gasoline engine

Hybrid battery (traction bat-
tery)

Tire

■

Color of the hybrid battery

(traction battery) on the display

It will be green when the hybrid bat-

tery (traction battery) is being

charged, and yellow when the

hybrid battery (traction battery) is

being used.

■

Remaining charge amount

warning of hybrid battery (trac-

tion battery)

●

The buzzer sounds intermittently

when the hybrid battery (traction

battery) remains without charging

while the shift lever is in N, or the

remaining charge amount drops

below a certain level. If the

remaining charge amount drops

further, the buzzer sounds contin-

uously.

●

When a warning message is

shown on the multi-information

display and the buzzer sounds,

follow the instructions displayed

on the screen to perform trouble-

shooting.

■

Color of the gasoline engine on

the audio system screen

It will be blue when the engine is

warming up, and it will turn to red

when the warming up is finished.

■

Display



Audio or Audio Plus (vehicles
without Data Communication
Module)

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “Trip information” or
“History”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “ECO” on the “Infor-
mation” screen.

4

Select “Trip information” or
“History”.

■

Trip information

If a screen other than “Trip infor-
mation” is displayed, select “Trip
information”.

The image is an example only, and
may vary slightly from actual condi-
tions.

A

B

C

Consumption

190

3-1. Instrument cluster

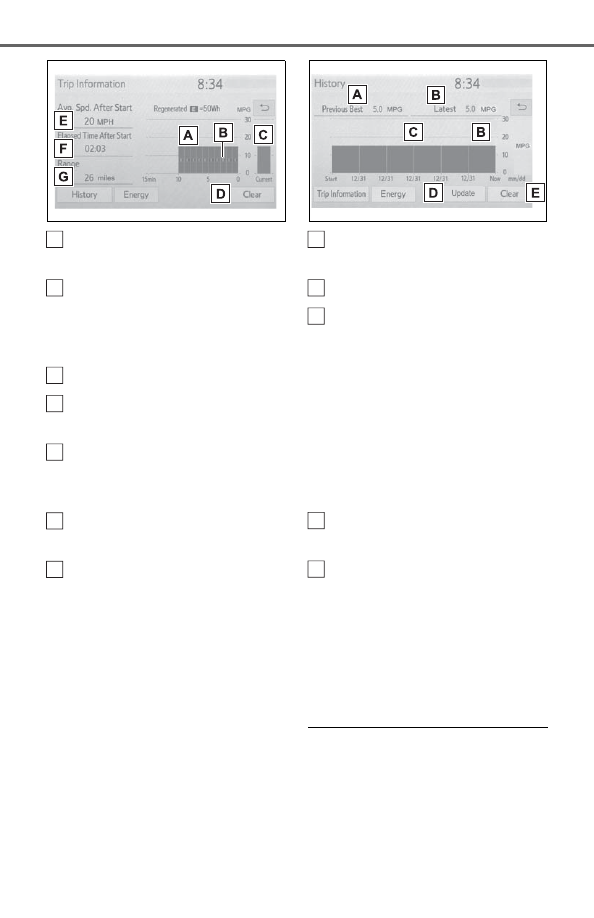

Fuel consumption in the past
15 minutes

Regenerated energy in the
past 15 minutes

One symbol indicates 50 Wh. Up to
5 symbols are shown.

Current fuel consumption

Resetting the consumption
data

Average vehicle speed since
the hybrid system was
started

Elapsed time since the hybrid
system was started

Cruising range (



P.191)

Average fuel consumption for the
past 15 minutes is divided by color
into past averages and averages
attained since the power switch
was last turned to ON. Use the dis-
played average fuel consumption
as a reference.

■

History

If a screen other than “History”
is displayed, select “History”.

The image is an example only, and
may vary slightly from actual condi-
tions.

Best recorded fuel consump-
tion

Latest fuel consumption

Previous fuel consumption
record

• Audio and Audio Plus:
Displays the daily average fuel con-
sumption. (Instead of the date, “Trip
1” through “Trip 5” will be dis-
played.)
• Premium Audio:
Displays the daily average fuel con-
sumption.

Updating the latest fuel con-
sumption data

Resetting the history data

The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last time
updated. Use the displayed aver-
age fuel consumption as a refer-
ence.

■

Updating the history data

Update the latest fuel consumption

by selecting “Update” to measure

the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear”.

A

B

C

D

E

F

G

A

B

C

D

E

191

3-1. Instrument cluster

3

Ve
hicle status in

for

ma
tio

n a

nd indicators

■

Cruising range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
This distance is computed based on

your average fuel consumption. As

a result, the actual distance that can

be driven may differ from that dis-

played.

192

3-1. Instrument cluster

193

4

4

Be
for
e

driv
in

g

Before driving

4-1. Key information

Keys ............................

194

4-2. Opening, closing and

locking the doors

Side doors...................

198

Back door....................

203

Smart key system .......

217

4-3. Adjusting the seats

Front seats ..................

224

Rear seats...................

225

Driving position memory

..................................

227

Head restraints............

230

4-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

232

Inside rear view mirror

233

Digital Rear-view Mirror

234

Outside rear view mirrors

..................................

244

4-5. Opening, closing the win-

dows and moon roof

Power windows ...........

246

Moon roof....................

249

Panoramic moon roof..

252

194

4-1. Key information

4-1.Key information

The following keys are provided
with the vehicle.

Electronic keys

• Operating the smart key system

(



P.217)

• Operating the wireless remote

control function (



P.196)

Mechanical keys

Key number plate

■

When riding in an aircraft

When bringing an electronic key

onto an aircraft, make sure you do

not press any buttons on the elec-

tronic key while inside the aircraft

cabin. If you are carrying an elec-

tronic key in your bag etc., ensure

that the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the electronic key

to emit radio waves that could inter-

fere with the operation of the air-

craft.

■

Electronic key battery depletion

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be displayed on the

multi-information display when the

hybrid system stops.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (



P.218)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

when necessary.

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

You can replace the battery by your-
self (



P.493). However, as there is

a danger that the electronic key may
be damaged, it is recommended
that replacement is carried out by
your Toyota dealer.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Table lamps

• Induction cookers

●

If the electronic key is near the

vehicle for longer than necessary,

even if the smart key system is not

operated, the key battery may

become depleted faster than nor-

mal.

■

If a message regarding the state

of the electronic key or power

switch mode, etc. is shown

To prevent trapping the electronic

key inside the vehicle, leaving the

vehicle carrying the electronic key

Keys

Key types

A

B

C

195

4-1. Key information

4

Be
for
e

driv
in

g

on your person without turning the

power switch to OFF or other pas-

sengers from unintentionally taking

the key out of the vehicle, etc., a

message that prompts the user to

confirm the state of the electronic

key or power switch mode may be

shown on the multi-information dis-

play. In those cases, follow the

instructions on the display immedi-

ately.

■

If “Key Battery Low Replace

Key Battery” is displayed on

the multi-information display

The electronic key has a low bat-

tery. Replace the electronic key bat-

tery. (



P.493)

■

Replacing the battery



P.493

■

Confirmation of the registered

key number

The number of keys already regis-

tered to the vehicle can be con-

firmed. Ask your Toyota dealer for

details.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is displayed on the

multi-information display

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer

to check if an unknown electronic

key (other than those in your pos-

session) has been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer,

etc.

●

Do not attach metallic or mag-

netic materials to the keys or

place the keys close to such

materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or any-

thing else to the surface of the

electronic key.

●

Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers.

●

Do not place the keys near

medical electrical equipment

such as low-frequency therapy

equipment or microwave ther-

apy equipment, and do not

receive medical attention with

the keys on your person.

■

Carrying the electronic key

on your person

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other key-

related problems



P.537

■

When an electronic key is lost



P.536

196

4-1. Key information

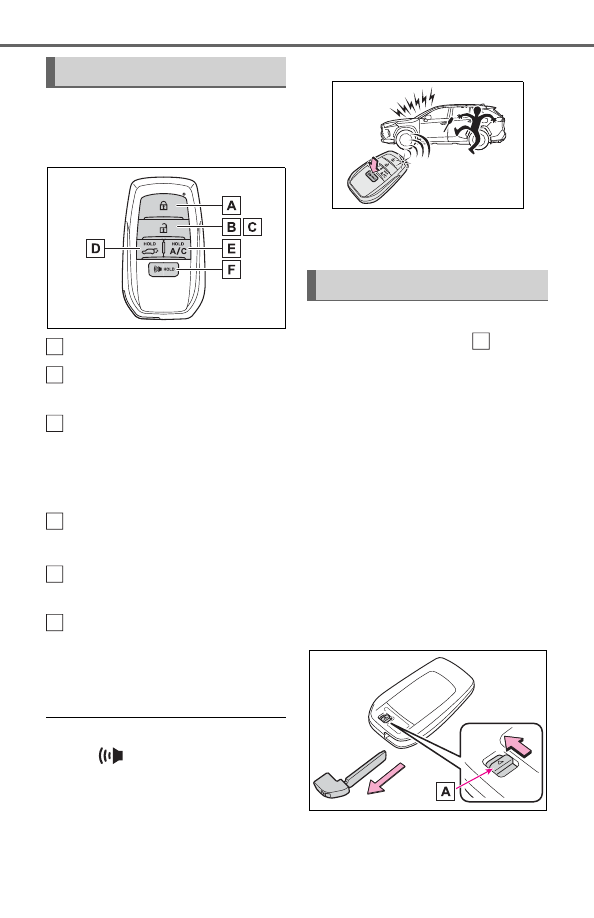

The electronic keys are
equipped with the following
wireless remote control:

Locks all the doors (



P.198)

Unlocks all the doors
(



P.198)

Opens the side windows

*1



and the moon roof

*1, 2

 or

panoramic moon roof

*1, 2



(



P.198)

Opens and closes the power
back door

*2

 (



P.207)

Operates Remote Air Condi-
tioning System (



P.405)

Sounds the alarm (



P.196)

*1

:These settings must be custom-

ized at your Toyota dealer.

*2

:If equipped

■

Theft deterrent panic mode

When

 is pressed for longer

than about 1 second, an alarm will

sound intermittently and the vehicle

lights will flash to deter any person

from trying to break into or damage

your vehicle.
To stop the alarm, press any button

on the electronic key.

■

Conditions affecting operation



P.218

To take out the mechanical key,
slide the release lever

 and

take the key out.

The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cyl-
inder, turn it over and re-attempt to
insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(



P.537)

Wireless remote control

A

B

C

D

E

F

Using the mechanical key

A

197

4-1. Key information

4

Be
for
e

driv
in

g

■

If you lose your mechanical

keys



P.536

■

If a wrong key is used

The key cylinder rotates freely to

isolate inside mechanism.

198

4-2. Opening, closing and locking the doors

4-2.Opening, closing and locking the doors

■

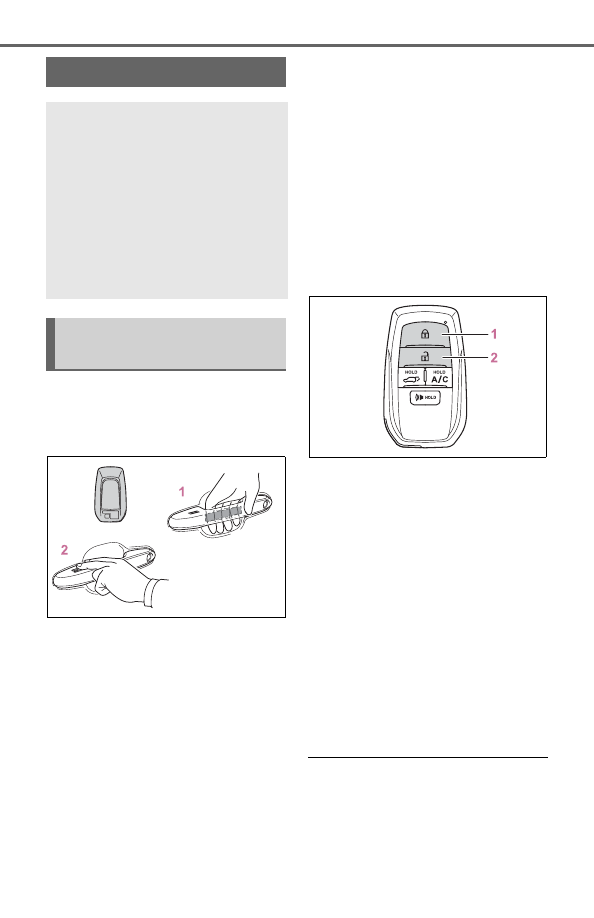

Using the entry function

Carry the electronic key to
enable this function.

1

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors.
Grip the front passenger’s
door handle or rear door han-
dle (some models) to unlock
all the doors

*

.

Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for 3

seconds after the doors are locked.

*

: The door unlock settings can be

changed. (



P.198)

2

Touch the lock sensor (the
indentation on the upper part
of the door handle) to lock
the doors.

Check that the door is securely
locked.

■

Using the wireless remote
control

1

Locks all the doors

Check that the door is securely
locked.

2

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.
Press and hold to open the side
windows and moon roof (if
equipped) or panoramic moon roof
(if equipped).

*

*

: This setting must be customized

at your Toyota dealer.

■

Switching the door unlock func-

tion

It is possible to set which doors the

entry function unlocks using the

wireless remote control. Perform the

switching operation in the vehicle or

Side doors

The vehicle can be locked
and unlocked using the
entry function, wireless
remote control, door lock
switches or inside lock but-
tons.

Charging port lid and charging
connector will also be locked
and unlocked. (



P.107)

Unlocking and locking the
doors from the outside

199

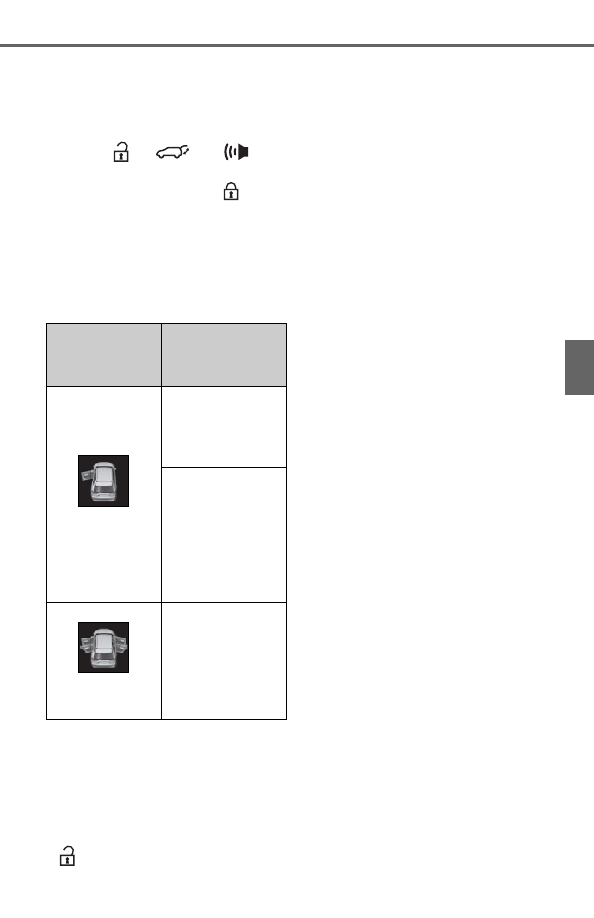

4-2. Opening, closing and locking the doors

4

Be
for
e

driv
in

g

within approximately 3.2 ft. (1 m) of

the vehicle.

1

Turn the power switch to OFF.

2

When the indicator light on the

key surface is not on, press and
hold

,

 or

 for

approximately 5 seconds while
pressing and holding

.

The setting changes each time an
operation is performed, as shown
below. (When changing the setting
continuously, release the buttons,
wait for at least 5 seconds, and
repeat step

2

.)

Vehicles with alarm: To prevent

unintended triggering of the alarm,

unlock the doors using the wireless

remote control and open and close

a door once after the settings have

been changed. (If a door is not

opened within 60 seconds after

 is pressed, the doors will be

locked again and the alarm will

automatically be set.)

In a case that the alarm is triggered,

immediately stop the alarm.

(



P.73)

■

Impact detection door lock

release system

In the event that the vehicle is sub-

ject to a strong impact, all the doors

are unlocked. Depending on the

force of the impact or the type of

accident, however, the system may

not operate.

■

Operation signals

Doors: A buzzer sounds and the

emergency flashers flash to indicate

that the doors have been

locked/unlocked. (Locked: Once;

Unlocked: Twice)
Side windows and moon roof (if

equipped) or panoramic moon roof

(if equipped): A buzzer sounds to

indicate that the side windows and

moon roof or panoramic moon roof

are operating.

■

Security feature

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked, the security fea-

ture automatically locks the vehicle

again. (However, depending on the

location of the electronic key, the

key may be detected as being in the

vehicle. In this case, vehicle may be

unlocked.)

■

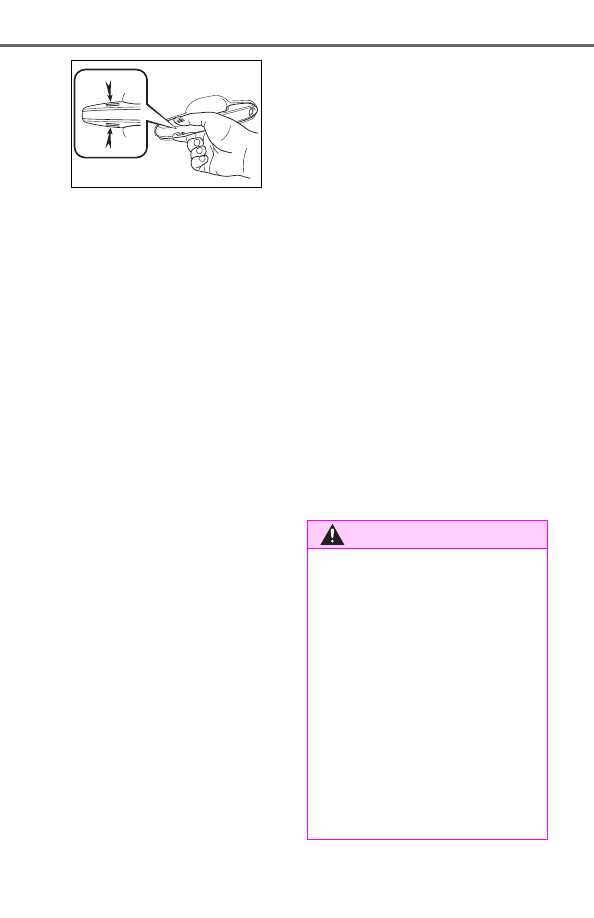

When the door cannot be

locked by the lock sensor on

the upper part of the door han-

dle

If the door will not lock even when

the topside sensor area is touched,

try touching both the topside and

underside sensor areas at the same

time.
When gloves are being worn,

remove the gloves.

Multi-informa-

tion dis-

play/Beep

Unlocking func-

tion

Exterior: Beeps 3

times

Holding the
driver’s door han-
dle unlocks only
the driver’s door.

Holding the pas-
senger’s door
handle or press-
ing the back door
opener switch
unlocks all the
doors.

Exterior: Beeps

twice

Holding a door
handle or press-
ing the back door
opener switch
unlocks all the
doors.

200

4-2. Opening, closing and locking the doors

■

Door lock buzzer

If an attempt to lock the doors using

the smart key system is made when

a door other than the door you are

locking is open, a buzzer sounds

continuously for 5 seconds. Fully

close all the doors, and lock the

vehicle once more.

■

Setting the alarm (if equipped)

Locking the doors will set the alarm

system. (



P.73)

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control



P.218

■

If the smart key system or the

wireless remote control does

not operate properly

●

Use the mechanical key to lock

and unlock the doors. (



P.537)

●

Replace the key battery with a

new one if it is depleted. (



P.493)

■

If the 12-volt battery is dis-

charged

The doors cannot be locked and

unlocked using the smart key sys-

tem or wireless remote control. Lock

or unlock the doors using the

mechanical key. (



P.537)

■

Rear seat reminder function

●

In order to remind you not to for-

get luggage, etc. in the rear seat,

when the power switch is turned to

OFF after any of the following con-

ditions are met, a buzzer will

sound and a message will be dis-

played on the multi-information

display for approximately 6 sec-

onds.

• The hybrid system is started

within 10 minutes after opening

and closing a rear door.

• A rear door has been opened and

closed after the hybrid system

was started.

However, if a rear door is opened
and then closed within approxi-
mately 2 seconds, the rear seat
reminder function may not operate.

●

The rear seat reminder function

determines that luggage, etc. has

been placed in a rear seat based

on opening and closing of a rear

door. Therefore, depending on the

situation, the rear seat reminder

function may not operate and you

may still forget luggage, etc. in the

rear seat, or it may operate unnec-

essarily.

●

The rear seat reminder function

can be enabled/disabled.

(



P.569)

■

Customization

Settings (e.g. unlocking function

using a key) can be changed.

(Customizable features:



P.573)

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

could be thrown out of the vehicle,

resulting in death or serious

injury.

●

Ensure that all doors are prop-

erly closed and locked.

●

Do not pull the inside handle of

the doors while driving.

Be especially careful for the

front doors, as the doors may

be opened even if the inside

lock buttons are in locked posi-

tion.

201

4-2. Opening, closing and locking the doors

4

Be
for
e

driv
in

g

■

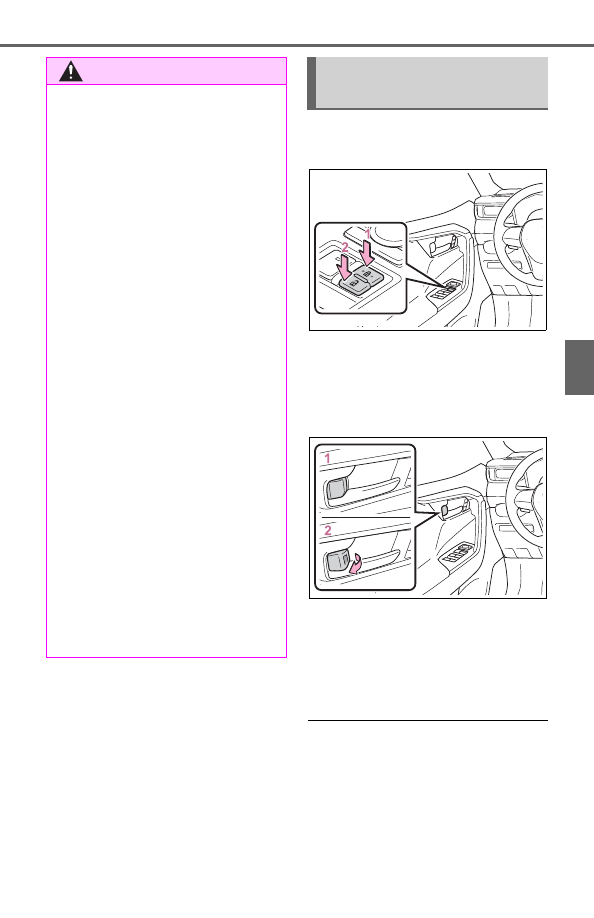

Using the door lock
switches

1

Locks all the doors

2

Unlocks all the doors

■

Using the inside lock but-
tons

1

Locks the door

2

Unlocks the door

The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock position.

■

Locking the front doors from

the outside without a key

1

Move the inside lock button to

the lock position.

2

Close the door.

The door cannot be locked if the

power switch is in ACC or ON, or

the electronic key is left inside the

WARNING

●

Set the rear door child-protector

locks when children are seated

in the rear seats.

■

When opening or closing a

door

Check the surroundings of the

vehicle such as whether the vehi-

cle is on an incline, whether there

is enough space for a door to

open and whether a strong wind

is blowing. When opening or clos-

ing the door, hold the door handle

tightly to prepare for any unpre-

dictable movement.

■

When using the wireless

remote control, key or

mechanical key and operating

the power windows, moon

roof (if equipped) or pan-

oramic moon roof (if

equipped)

Operate the power window, moon

roof or panoramic moon roof after

checking to make sure that there

is no possibility of any passenger

having any of their body parts

caught in the side window, moon

roof or panoramic moon roof.

Also, do not allow children to

operate the wireless remote con-

trol, key or mechanical key. It is

possible for children and other

passengers to get caught in the

side window, moon roof or pan-

oramic moon roof.

Unlocking and locking the
doors from the inside

202

4-2. Opening, closing and locking the doors

vehicle.
Depending on the position of the

electronic key, the key may not be

detected correctly and the door may

be locked.

■

Open door warning buzzer

If the vehicle speed reaches 3 mph

(5 km/h), a buzzer sounds to indi-

cate that the door(s) or the hood is

not fully closed.

The open door(s) or hood is dis-

played on the multi-information dis-

play.

■

When all the doors are locked

with the entry function or wire-

less remote control

●

The doors cannot be unlocked

with the door lock switch.

●

The door lock switches can be

reset by unlocking all the doors

with the entry function or wireless

remote control.

The door cannot be opened
from inside the vehicle when the
lock is set.

1

Unlock

2

Lock

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

The following functions can be
set or canceled:

For instructions on customizing,
refer to P.569.

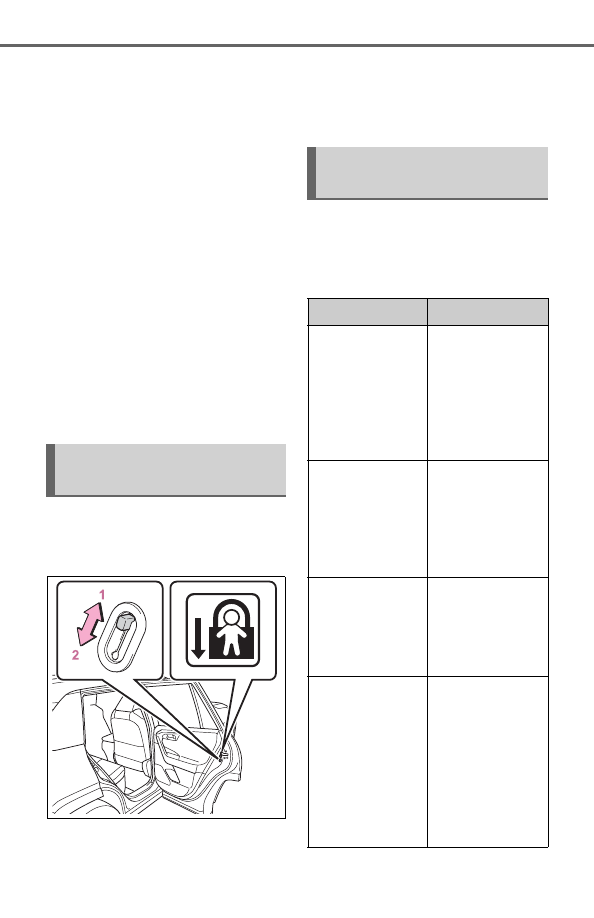

Rear door child-protector
lock

Automatic door locking
and unlocking systems

Function

Operation

Speed linked
door locking
function

All doors are
automatically
locked when
vehicle speed is
approximately
12mph (20 km/h)
or higher.

Shift position
linked door lock-
ing function

All doors are
automatically
locked when
shifting the shift
lever to position
other than P.

Shift position
linked door
unlocking func-
tion

All doors are
automatically
unlocked when
shifting the shift
lever to P.

Driver’s door
linked door
unlocking func-
tion

All doors are
automatically
unlocked when
driver’s door is
opened within
approximately 45
seconds after
turning the power
switch off.

203

4-2. Opening, closing and locking the doors

4

Be
for
e

driv
in

g

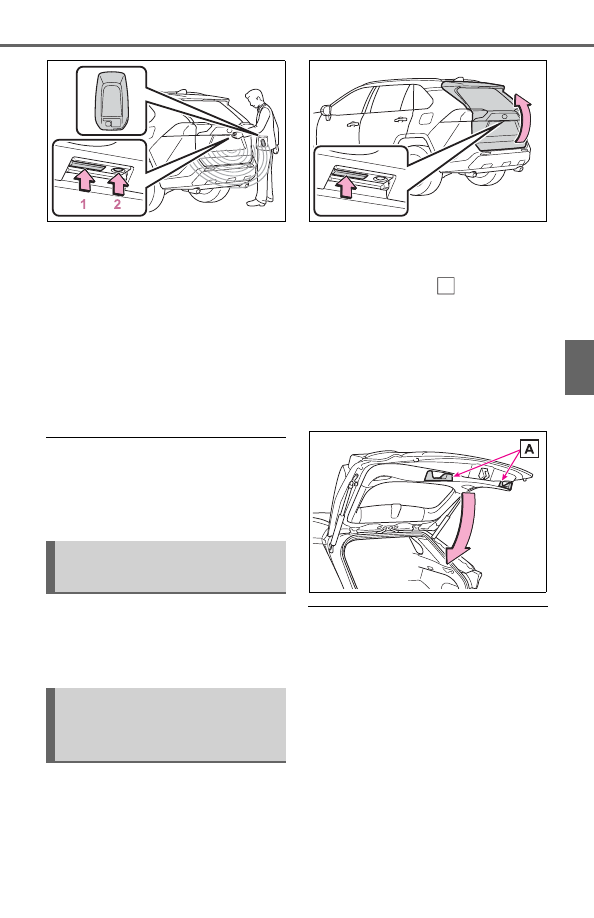

Back door

The back door can be
locked/unlocked and
opened/closed by the fol-
lowing procedures.

Charging port lid and charging
connector will also be locked
and unlocked. (



P.107)

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Before driving

●

Make sure that the back door is

fully closed.

If the back door is not fully

closed, it may open unexpect-

edly while driving and hit near-

by objects or luggage in the lug-

gage compartment may be

thrown out, causing an acci-

dent.

●

Do not allow children to play in

the luggage compartment.

If a child is accidentally locked

in the luggage compartment,

they could get heat exhaustion

or other injuries.

●

Do not allow a child to open or

close the back door.

Doing so may cause the back

door to operate unexpectedly,

or cause the child’s hands,

head, or neck to be caught by

the closing back door.

■

Important points while driving

●

Keep the back door closed

while driving.

If the back door is left open, it

may hit near-by objects or lug-

gage in the luggage compart-

ment may be thrown out,

causing an accident.

●

Never let anyone sit in the lug-

gage compartment.

In the event of sudden braking,

sudden swerving or a collision,

they are susceptible to death or

serious injury.

■

Back door handles

Do not hang any object to the

back door handles.

If any object is hung, the back

door may suddenly shut, causing

parts of the body to be caught,

resulting in death or serious

injury.

■

Operating the back door

Observe the following precau-

tions.

Failure to do so may cause parts

of the body to be caught, resulting

in death or serious injury.

●

Remove any heavy loads, such

as snow and ice, from the back

door before opening it. Failure

to do so may cause the back

door to suddenly shut again

after it is opened.

●

When opening or closing the

back door, thoroughly check to

make sure the surrounding area

is safe.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

Use caution when opening or

closing the back door in windy

weather as it may move

abruptly in strong wind.

204

4-2. Opening, closing and locking the doors

■

Using the entry function

Carry the electronic key to
enable this function.

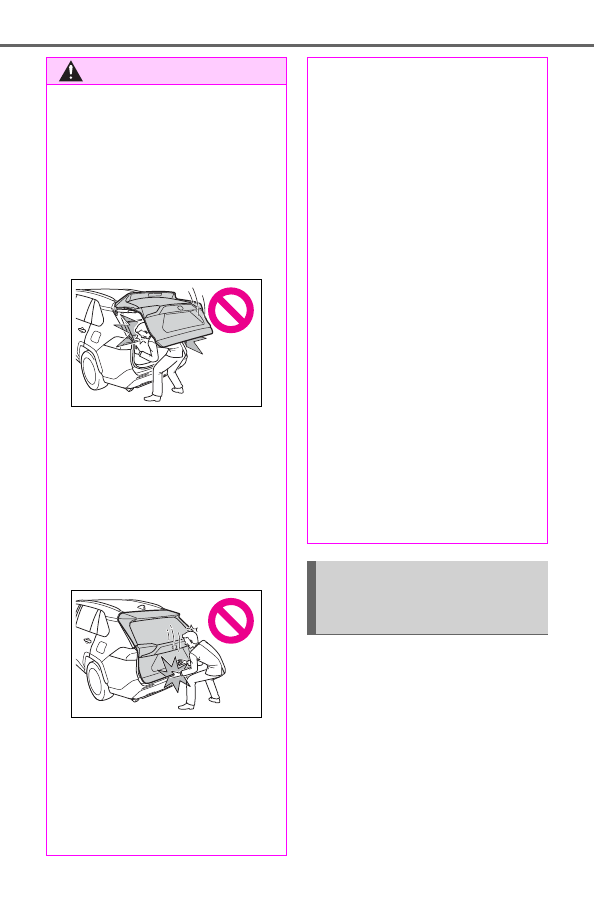

WARNING

●

Vehicles without power back

door: The back door may sud-

denly shut if it is not opened

fully. It is more difficult to open

or close the back door on an

incline than on a level surface,

so beware of the back door

unexpectedly opening or closing

by itself. Make sure that the

back door is fully open and

secure before using the luggage

compartment.

●

Vehicles with power back door:

The back door may suddenly

shut if it is not opened fully,

while on a steep incline. Make

sure that the back door is

secured before using the lug-

gage compartment.

●

When closing the back door,

take extra care to prevent your

fingers, etc. from being caught.

●

Vehicles without power back

door: When closing the back

door, make sure to press it

lightly on its outer surface. If the

back door handle is used to fully

close the back door, it may

result in hands or arms being

caught.

●

Vehicles without power back

door: Do not pull on the back

door damper stay (



P.206) to

close the back door, and do not

hang on the back door damper

stay.

Doing so may cause hands to

be caught or the back door

damper stay to break, causing

an accident.

●

Vehicles with power back door:

Do not pull on the back door

spindle (



P.214) to close the

back door, and do not hang on

the back door spindle.

Doing so may cause hands to

be caught or the back door spin-

dle to break, causing an acci-

dent.

●

Vehicles without power back

door: If a bicycle carrier or simi-

lar heavy object is attached to

the back door, it may suddenly

shut again after being opened,

causing someone’s hands,

head or neck to be caught and

injured. When installing an

accessory part to the back door,

using a genuine Toyota part is

recommended.

Unlocking and locking the
back door from the out-
side

205

4-2. Opening, closing and locking the doors

4

Be
for
e

driv
in

g

1

Unlocks all the doors

The doors cannot be unlocked for 3
seconds after the doors are locked.

2

Locks all the doors

Check that the door is securely
locked.

■

Using the wireless remote
control



P.198

■

Operation signals



P.199

■

Security feature



P.199

■

Using the door lock
switches



P.201

■

Open

Raise the back door while
pressing up the back door
opener switch.

■

Close

Lower the back door using the
back door handle

, and make

sure to push the back door
down from the outside to close
it.

Be careful not to pull the back door
sideways when closing the back
door with the handle.

■

Luggage compartment light

The luggage compartment light

turns on when the back door is

opened with the luggage compart-

ment light switch on.
When the power switch is turned to

OFF, the light will go off automati-

cally after 20 minutes.

Unlocking and locking the
back door from the inside

Opening/closing the back
door (vehicles without
power back door)

A
