142

3-4. Adjusting the steering wheel and mirrors

3-4.Adjusting the steering wheel and mirrors

1

Hold the steering wheel and
push the lever down.

2

Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.

After adjustment, pull the lever up

to secure the steering wheel.

To sound the horn, press on or
close to the

 mark.

Steering wheel

Adjustment procedure

WARNING

■

Caution while driving

Do not adjust the steering wheel

while driving.

Doing so may cause the driver to

mishandle the vehicle and cause

an accident, resulting in death or

serious injury.

■

After adjusting the steering

wheel

Make sure that the steering wheel

is securely locked.

Otherwise, the steering wheel

may move suddenly, possibly

causing an accident, and resulting

in death or serious injury. Also,

the horn may not sound if the

steering wheel is not securely

locked.

Sounding the horn

143

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

*

: If equipped

The height of the rear view mir-
ror can be adjusted to suit your
driving posture.
Adjust the height of the rear
view mirror by moving it up and
down.

Reflected light from the head-
lights of vehicles behind can be
reduced by operating the lever.

1

Normal position

2

Anti-glare position

Responding to the level of
brightness of the headlights of
vehicles behind, the reflected
light is automatically reduced.
Changing automatic anti-glare
function mode on/off

When the automatic anti-glare func-
tion is in ON mode, the indicator



illuminates.
The function will set to ON mode
each time the engine switch is
turned to ON.
Pressing the button turns the func-
tion to OFF mode. (The indicator

 also turns off.)

Inside rear view mir-

ror

*

The rear view mirror’s posi-
tion can be adjusted to
enable sufficient confirma-
tion of the rear view.

Adjusting the height of
rear view mirror

WARNING

■

Caution while driving

Do not adjust the position of the

mirror while driving.

Doing so may lead to mishandling

of the vehicle and cause an acci-

dent, resulting in death or serious

injury.

Anti-glare function (vehi-
cles with manual anti-
glare inside rear view mir-
ror)

Anti-glare function (vehi-
cles with auto anti-glare
inside rear view mirror)

A

A

144

3-4. Adjusting the steering wheel and mirrors



Vehicles without garage door
opener



Vehicles with garage door
opener

■

To prevent sensor error (vehi-

cles with auto anti-glare inside

rear view mirror)

To ensure that the sensors operate

properly, do not touch or cover

them.



Vehicles without garage door

opener



Vehicles with garage door opener

145

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

*

: If equipped

Camera indicator

Indicates that the camera is operat-
ing normally.

Icon display area

Displays icons, adjusting gauge,
etc. (



P.147)

Select button

Press to change the setting of the
item you want to adjust.

Menu button

Press to display the icon display
area and select the item you want
to adjust.

Lever

Operate to change between digital
mirror mode and optical mirror
mode.

Digital Rear-view Mir-

ror

*

The Digital Rear-view Mirror
is a system that uses the
camera on the rear of the
vehicle and displays its
image on the display of the
Digital Rear-view Mirror.
The Digital Rear-view Mirror
can be changed between
optical mirror mode and dig-
ital mirror mode by operat-
ing the lever.
The Digital Rear-view Mirror
allows the driver to see the
rear view despite obstruc-
tions, such as the head
restraints or luggage, ensur-
ing rear visibility. Also, the
rear seats are not displayed
and privacy of the passen-
gers is enhanced.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Before using the Digital Rear-

view Mirror

●

Make sure to adjust the mirror

before driving. (



P.147)

• Change to optical mirror mode

and adjust the position of the

Digital Rear-view Mirror so that

the area behind your vehicle

can be viewed properly.

• Change to digital mirror mode

and adjust the display settings.

●

As the range of the image dis-

played by the Digital Rear-view

Mirror is different from that of

the optical mirror, make sure to

check this difference before

driving.

System components

A

B

C

D

E

146

3-4. Adjusting the steering wheel and mirrors

Operate the lever to change
between digital mirror mode and
optical mirror mode.

1

Digital mirror mode

Displays an image of the area
behind the vehicle.

 will illuminate in this mode.

2

Optical mirror mode

Turns off the display of the Digital
Rear-view Mirror allows it to be
used as an optical mirror.

■

Digital mirror mode operating

condition

The engine switch is turned to ON.
When the engine switch is changed

from ON to OFF or ACC, the image

will disappear after several seconds.

■

When using the Digital Rear-

view Mirror in digital mirror

mode

●

If it is difficult to see the displayed

image due to light reflected off the

Digital Rear-view Mirror, the cam-

era being dirty, or if lights of a

vehicle behind your vehicle or the

displayed image are bothering

you, change to optical mirror

mode.

●

When the back door is open, the

Digital Rear-view Mirror image

may not display properly. Before

driving, make sure the back door

is closed.

●

If the display is difficult to see due

to reflected light, close the sun-

shade for the moon roof (if

equipped) or the electronic sun-

shade for the panoramic moon

roof (if equipped).

●

Any of the following conditions

may occur when driving in the

dark, such as at night. None of

them indicates that a malfunction

has occurred.

• Colors of objects in the displayed

image may differ from their actual

color.

• Depending on the height of the

lights of the vehicle behind, the

area around the vehicle may

appear white and blurry.

• Automatic image adjustment for

brighter surrounding image may

cause flickering.

If it is difficult to see the displayed

image or flickering bothers you,

change to optical mirror mode.

●

The Digital Rear-view Mirror may

become hot while it is in digital

mirror mode.

This is not a malfunction.

●

Depending on your physical con-

dition or age, it may take longer

than usual to focus on the dis-

played image. In this case,

change to optical mirror mode.

●

Do not let passengers stare at the

displayed image when the vehicle

is being driven, as doing so may

cause motion sickness.

■

When the system malfunctions

If the symbol shown in the illustra-

tion is displayed when using the

Digital Rear-view Mirror in digital

mirror mode, the system may be

malfunctioning. The symbol will dis-

appear in a few seconds. Operate

the lever, change to optical mirror

mode and have the vehicle

inspected by your Toyota dealer.

Changing modes

147

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

■

Adjusting the mirror height

The height of the rear view mir-
ror can be adjusted to suit your
driving posture.
Change to optical mirror mode,
adjusting the height of the rear
view mirror by moving it up and
down.

■

Display settings (digital mir-
ror mode)

Settings of the display in the dig-
ital mirror mode, on/off operation
of the automatic anti-glare func-
tion, etc. can be changed.

1

Press the menu button.

The icons will be displayed.

2

Press the menu button
repeatedly and select the
item you want to adjust.

3

Press

 or

 to

change the setting.

The icons will disappear if a button

is not operated for approximately 5

seconds or more.

Adjusting the mirror

Icons

Settings

Select to adjust the bright-
ness of the display.

Select to adjust the area
displayed up/down.

Select to adjust the area
displayed to the left/right.

Select to adjust the angle of
the displayed image.

148

3-4. Adjusting the steering wheel and mirrors

*

: This is a function for the optical

mirror mode, however, the setting
can also be changed while using
the digital mirror mode.

■

Enabling/disabling the
automatic anti-glare func-
tion (optical mirror mode)

The automatic anti-glare func-
tion in the optical mirror mode
can be enabled/disabled. The
setting can be changed in both
the digital mirror mode and the
optical mirror mode.



When using the digital mirror
mode



P.147



When using the optical mirror
mode

1

Press the menu button.

The icons will be displayed.

2

Press the menu button
repeatedly and select

.

The setting display will be dis-

played.

3

Press

 or

 to

enable (ON)/disable (OFF)
the automatic anti-glare func-
tion.

The icons will disappear if a button

is not operated for approximately 5

seconds or more.

■

Adjusting the display (digital

mirror mode)

●

If the displayed image is adjusted,

it may appear distorted. This is not

a malfunction.

●

If the brightness of the Digital

Rear-view Mirror is set too high, it

may cause eye strain. Adjust the

Digital Rear-view Mirror to an

appropriate brightness. If your

eyes become tired, change to

optical mirror mode.

●

The brightness of the Digital Rear-

view Mirror will change automati-

cally according to the brightness

of the area in front of your vehicle.

■

To prevent the light sensors

from malfunctioning

To prevent the light sensors from

malfunctioning, do not touch or

cover them.

Select to zoom in/out the
displayed image.

Select to enable/disable the
automatic anti-glare func-
tion.

*

Responding to the bright-
ness of the headlights of
vehicles behind, the
reflected light is automati-
cally adjusted.
The automatic anti-glare
function is enabled each
time the engine switch is
changed to ON.

Icons

Settings

149

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

■

Cleaning the mirror surface

If the mirror surface is dirty, the
image on the display may be dif-
ficult to see.
Clean the mirror surface gently
using a soft dry cloth.

■

Cleaning the camera

If the camera lens is dirty, the
displayed image may not be
clear. In this case, clean it with a
soft cloth dampened with water
or a swab.

■

The camera

The camera for the Digital Rear-

view Mirror is located as shown.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

While driving

●

Do not adjust the position of the

Digital Rear-view Mirror or

adjust the display settings while

driving.

Stop the vehicle and operate

the Digital Rear-view Mirror

control switches.

Failure to do so may cause a

steering wheel operation error,

resulting in an unexpected acci-

dent.

●

Always pay attention to the

vehicle’s surroundings.

The size of the vehicles and other

objects may look different when in

digital mirror mode and optical

mirror mode.

When backing up, make sure to

directly check the safety of the

area around your vehicle, espe-

cially behind the vehicle.

Additionally, if a vehicle

approaches from the rear in the

dark, such as at night, the sur-

rounding area may appear dim.

■

To prevent causes of fire

If the driver continues using the

Digital Rear-view Mirror while

smoke or odor comes from the

mirror, it may result in fire. Stop

using the system immediately and

contact your Toyota dealer.

Cleaning the Digital Rear-
view Mirror

150

3-4. Adjusting the steering wheel and mirrors

If you notice any of the following symptoms, refer to the following
table for the likely cause and the solution.
If the symptom is not resolved by the solution, have the vehicle
inspected by your Toyota dealer.

NOTICE

■

To prevent the Digital Rear-

view Mirror from malfunction-

ing

●

Do not use detergents, such as

thinner, benzene, and alcohol to

clean the mirror. They may dis-

color, deteriorate or damage the

mirror surface.

●

Do not smoke, use matches,

use cigarette lighters or allow

open flames near the mirror. It

may damage the mirror or

cause a fire.

●

Do not remove, disassemble or

modify the mirror.

■

To prevent the camera from

malfunctioning

●

Observe the following precau-

tions, otherwise the Digital

Rear-view Mirror may not oper-

ate properly.

• Do not strike or hit the camera

or subject it to a strong impact,

as the camera installation posi-

tion and angle may be changed.

• Do not remove, disassemble or

modify the camera.

• Do not allow an organic solvent,

car wax, window cleaner or

glass coating to adhere to the

camera. If this happens, wipe it

off as soon as possible.

• When cleaning the camera lens,

wipe the camera lens with a

damp soft cloth.

Do not strongly rub the camera

lens, as it may be scratched and

will not be able to transmit a

clear image.

• When applying colored film

(including transparent film) to

the rear window glass, do not

apply it to the area in front of the

camera.

If film is applied to the area in

front of the camera, the image

from the camera may not dis-

play properly.

●

Do not subject the camera to a

strong impact as this could

cause a malfunction.

If this happens, have the vehicle

inspected by your Toyota dealer

as soon as possible.

If you notice any symptoms

151

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

Symptom

Likely cause

Solution

The image is difficult to
see.

The mirror surface is
dirty.

Clean the mirror surface
gently, using a soft dry
cloth.

Sunlight or headlights
are shining directly into
the Digital Rear-view
Mirror.

Change to optical mirror
mode.
(If the light is coming
through the moon roof [if
equipped] or panoramic
moon roof [if equipped],
close the sunshade or
electronic sunshade.)

• The vehicle is in a dark

area.

• The vehicle is near a

TV tower, broadcast-
ing station, electric
power plant, or other
location where strong
radio waves or electri-
cal noise may be pres-
ent.

• The temperature

around the camera is
extremely high/low.

• The ambient tempera-

ture is extremely low.

• It is raining or humid.
• Sunlight or headlights

are shining directly into
the camera lens.

• The vehicle is under

fluorescent lights,
sodium lights, mer-
cury lights, etc.

• Exhaust gas is

obstructing the cam-
era.

Change to optical mirror
mode.
(Change back to digital
mirror mode when the
conditions have
improved.)

152

3-4. Adjusting the steering wheel and mirrors

The image is difficult to

see.

The luggage in the lug-
gage compartment is
reflected off the rear win-
dow glass and obstruct-
ing the camera.

• Change to optical mir-

ror mode.

• Move the luggage to a

position where it does
not obstruct the cam-
era or cover it with a
black cloth to reduce
the amount it is
reflected off the rear
window glass.

The rear window glass is
fogged up.

Change to optical mirror
mode.
After defogging the rear
window using the rear
window defogger
(



P.517), use the digi-

tal mirror mode again.

The outside of the rear
window glass is dirty.

Use the rear window
wiper to remove dirt.

The inside of the rear
window glass is dirty.

Wipe the inside of rear
window glass with a
damp soft cloth.

The image is out of
alignment.

The back door is not fully
closed.

Fully close the back
door.

The camera or its sur-
rounding area has
received a strong
impact.

Change to optical mirror
mode and have the vehi-
cle inspected by your
Toyota dealer.

The display is dim and

 is displayed.

The system may be mal-
functioning.

Change to optical mirror
mode and have the vehi-
cle inspected by your
Toyota dealer.

 goes off.

Symptom

Likely cause

Solution

153

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

 is displayed.

The Digital Rear-view
Mirror is extremely hot.
(The display will gradu-
ally become more dim. If
the temperature contin-
ues to increase, the Digi-
tal Rear-view Mirror will
turn off.)

Reducing the cabin tem-
perature is recom-
mended to reduce the
temperature of the mir-
ror.
(

 will disappear when

the mirror becomes
cool.)

If

 does not disap-

pear even though the
mirror is cool, have the
vehicle inspected by
your Toyota dealer.

The lever cannot be
operated properly.

The lever may be mal-
functioning.

Change to optical mirror
mode and have the vehi-
cle inspected by your
Toyota dealer.
(To change to optical
mirror mode, press and
hold the menu button for
approximately 10 sec-
onds.)

Symptom

Likely cause

Solution

154

3-4. Adjusting the steering wheel and mirrors

■

Defogging the mirrors (if

equipped)

The outside rear view mirrors can

be cleared using the mirror defog-

gers. Turn on the rear window

defogger to turn on the outside rear

view mirror defoggers.

(



P.511, 517)

1

To select a mirror to adjust,
press the switch.

Left

Right

2

To adjust the mirror, press
the switch.

Up

Right

Down

Left

■

Mirror angle can be adjusted

when

The engine switch is in ACC or ON.

Push the mirror back in the
direction of the vehicle’s rear.

Outside rear view mir-

rors

The rear view mirror’s posi-
tion can be adjusted to
enable sufficient confirma-
tion of the rear view.

WARNING

■

Important points while driving

Observe the following precautions

while driving.

Failing to do so may result in loss

of control of the vehicle and cause

an accident, resulting in death or

serious injury.

●

Do not adjust the mirrors while

driving.

●

Do not drive with the mirrors

folded.

●

Both the driver and passenger

side mirrors must be extended

and properly adjusted before

driving.

■

When the mirror defoggers

are operating (if equipped)

Do not touch the rear view mirror

surfaces, as they can become

very hot and burn you.

Adjustment procedure

Folding the mirrors

A

B

A

B

C

D

155

3-4. Adjusting the steering wheel and mirrors

3

Before

driving

WARNING

■

When a mirror is moving

To avoid personal injury and mir-

ror malfunction, be careful not to

get your hand caught by the mov-

ing mirror.

156

3-5. Opening, closing the windows and moon roof

3-5.Opening, closing the windows and moon roof

The power windows can be
opened and closed using the
switches.
Operating the switch moves the
side windows as follows:

1

Closing

2

One-touch closing

*

3

Opening

4

One-touch opening

*

*

: To stop the side window partway,

operate the switch in the opposite
direction.

■

The power windows can be

operated when

The engine switch is in ON.

■

Operating the power windows

after turning the engine off

The power windows can be oper-

ated for approximately 45 seconds

even after the engine switch is

turned to ACC or OFF. They cannot,

however, be operated once either

front door is opened.

■

Jam protection function

If an object becomes jammed

between the side window and the

window frame while the side window

is closing, side window movement is

stopped and the side window is

opened slightly.

■

Catch protection function

If an object becomes caught

between the door and side window

while the side window is opening,

side window movement is stopped.

■

When the power window cannot

be opened or closed

When the jam protection function or

catch protection function operates

unusually and the side window can-

not be opened and closed, perform

the following operations with the

power window switch of that door.

●

Stop the vehicle. With the engine

switch in ON, within 4 seconds of

the jam protection function or

catch protection function activat-

ing, continuously operate the

power window switch in the one-

touch closing direction or one-

touch opening direction so that the

side window can be opened and

closed.

●

If the side window cannot be

opened and closed even when

performing the above operations,

perform the following procedure

for function initialization.

1

Turn the engine switch to ON.

2

Pull and hold the power window

switch in the one-touch closing

direction and completely close

the side window.

3

Release the power window

switch for a moment, resume

pulling the switch in the one-

touch closing direction, and hold

it there for approximately 6 sec-

onds or more.

4

Press and hold the power win-

dow switch in the one-touch

opening direction. After the side

window is completely opened,

continue holding the switch for

an additional 1 second or more.

Power windows

Opening and closing the
power windows

157

3-5. Opening, closing the windows and moon roof

3

Before

driving

5

Release the power window

switch for a moment, resume

pushing the switch in the one-

touch opening direction, and

hold it there for approximately 4

seconds or more.

6

Pull and hold the power window

switch in the one-touch closing

direction again. After the side

window is completely closed,

continue holding the switch for a

further 1 second or more.

If you release the switch while the

side window is moving, start again

from the beginning.

If the side window reverses and

cannot be fully closed or opened,

have the vehicle inspected by your

Toyota dealer.

■

Door lock linked power window

operation

●

The power windows can be

opened and closed using the key

(vehicles without smart key sys-

tem) or mechanical key (vehicles
with smart key system).

*

 (



P.109,

654)

●

The power windows can be

opened using the wireless remote
control.

*

 (



P.108)

●

Vehicles with alarm: The alarm

may be triggered if the alarm is set

and the power window is closed

using the door lock linked power

window operation function.

(



P.73)

*

: These settings must be custom-

ized at your Toyota dealer.

■

Power window open reminder

function



Vehicles without smart key system

The buzzer sounds and a message
is shown on the multi-information
display when the key has been
removed from the engine switch and
the driver’s door is opened with the
power windows open.



Vehicles with smart key system

The buzzer sounds and a message
is shown on the multi-information
display when the engine switch is
turned to OFF and the driver’s door
is opened with the power windows
open.

■

Customization

Settings (e.g. linked door lock oper-

ation) can be changed. (Customiz-

able features:



P.693)

WARNING

Observe the following precau-

tions.

Failing to do so may result in

death or serious injury.

■

Closing the power windows

●

The driver is responsible for all

the power window operations,

including the operation for the

passengers. In order to prevent

accidental operation, especially

by a child, do not let a child

operate the power windows. It is

possible for children and other

passengers to have body parts

caught in the power window.

Also, when riding with a child, it

is recommended to use the win-

dow lock switch. (



P.158)

●

Check to make sure that all pas-

sengers do not have any part of

their body in a position where it

could be caught when a power

window is being operated.

158

3-5. Opening, closing the windows and moon roof

This function can be used to
prevent children from acciden-
tally opening or closing a pas-
senger window.
Press the switch.

The indicator

 will come on and

the passenger windows will be
locked.
The passenger windows can still be
opened and closed using the
driver’s switch even if the lock
switch is on.

■

The window lock switch can be

operated when

The engine switch is in ON.

■

When the battery is discon-

nected

The window lock switch is disabled.

If necessary, press the window lock

switch after reconnecting the bat-

tery.

WARNING

●

When using the wireless remote

control, key or mechanical key

and operating the power win-

dows, operate the power win-

dow after checking to make

sure that there is no possibility

of any passenger having any of

their body parts caught in the

side window. Also, do not let a

child operate the power window

by the wireless remote control,

key or mechanical key. It is pos-

sible for children and other pas-

sengers to get caught in the

power window.

●

When exiting the vehicle, turn

the engine switch to OFF, carry

the key and exit the vehicle

along with the child. There may

be accidental operation, due to

mischief, etc., that may possibly

lead to an accident.

■

Jam protection function

●

Never use any part of your body

to intentionally activate the jam

protection function.

●

The jam protection function may

not work if something gets

jammed just before the side

window is fully closed. Be care-

ful not to get any part of your

body jammed in the side win-

dow.

■

Catch protection function

●

Never use any part of your body

or clothing to intentionally acti-

vate the catch protection func-

tion.

●

The catch protection function

may not work if something gets

caught just before the side win-

dow is fully opened. Be careful

not to get any part of your body

or clothing caught in the side

window.

Preventing accidental
operation (window lock
switch)

A

159

3-5. Opening, closing the windows and moon roof

3

Before

driving

*

: If equipped

■

Opening and closing

1

Opens the moon roof

*

The moon roof stops slightly before
the fully open position to reduce
wind noise.
Press the switch again to fully open
the moon roof.

2

Closes the moon roof

*

*

: Lightly press either side of the

moon roof switch to stop the
moon roof partway.

■

Tilting up and down

1

Tilts the moon roof up

*

2

Tilts the moon roof down

*

*

: Lightly press either side of the

moon roof switch to stop the
moon roof partway.

■

The moon roof can be operated

when

The engine switch is in ON.

■

Operating the moon roof after

turning the engine off

The moon roof can be operated for

approximately 45 seconds after the

engine switch is turned to ACC or

OFF. It cannot, however, be oper-

ated once either front door is

opened.

■

Jam protection function

If an object is detected between the

moon roof and the frame while the

moon roof is closing or tilting down,

travel is stopped and the moon roof

opens slightly.

■

Sunshade

The sunshade can be opened and

closed manually. However, the sun-

shade will open automatically when

the moon roof is opened.

■

Door lock linked moon roof

operation

●

The moon roof can be opened

and closed using the mechanical
key.

*

 (



P.654)

●

The moon roof can be opened
using the wireless remote control.

*



(



P.108)

●

Vehicles with alarm: The alarm

may be triggered if the alarm is set

and the moon roof is closed using

the door lock linked moon roof

operation function. (



P.73)

*

: These settings must be custom-

ized at your Toyota dealer.

Moon roof

*

Use the overhead switches
to open and close the moon
roof and tilt it up and down.

Operating the moon roof

160

3-5. Opening, closing the windows and moon roof

■

When the moon roof does not

close normally

Perform the following procedure:

1

Stop the vehicle.

2

Press and hold the “CLOSE”
switch.

*

The moon roof will close, reopen

and pause for approximately 10 sec-

onds. Then it will close again and

stop at the completely closed posi-

tion.

3

Check to make sure that the

moon roof is completely closed

and then release the switch.

*

: If the switch is released at the

incorrect time, the procedure will
have to be performed again from
the beginning.

If the moon roof does not fully close
even after performing the above
procedure correctly, have the vehi-
cle inspected by your Toyota dealer.

■

If the moon roof does not move

normally

If the moon roof does not open or

close normally or the automatic

opening function does not operate,

perform the following initialization

procedure.

1

Stop the vehicle.

2

Press and hold the “DOWN”
switch.

*

The moon roof will stop at the tilt-up

position. After that, it will open,

close, tilt up, tilt down, and stop at

the fully closed position.

3

Confirm that the moon roof has

completely stopped and release

the switch.

*

: If you release the switch while the

moon roof is moving, perform the
procedure again from the begin-
ning.

If, after performing the above proce-
dures correctly, the moon roof still
does not open or close normally or

the automatic opening function does
not operate, have the vehicle
inspected by your Toyota dealer.

■

Moon roof open reminder func-

tion

The buzzer sounds and a message

is shown on the multi-information

display when the engine switch is

turned to OFF and the driver’s door

is opened with the moon roof open.

■

Customization

Settings (e.g. linked door lock oper-

ation) can be changed. (Customiz-

able features:



P.693)

WARNING

Observe the following precau-

tions.

Failure to do so may cause death

or serious injury.

■

Opening the moon roof

●

Do not allow any passengers to

put their hands or head outside

the vehicle while it is moving.

●

Do not sit on top of the moon

roof.

■

Opening and closing the

moon roof

●

The driver is responsible for

moon roof opening and closing

operations.

In order to prevent accidental

operation, especially by a child,

do not let a child operate the

moon roof. It is possible for chil-

dren and other passengers to

have body parts caught in the

moon roof.

161

3-5. Opening, closing the windows and moon roof

3

Before

driving

WARNING

●

Check to make sure that all pas-

sengers do not have any part of

their body in a position where it

could be caught when the moon

roof is being operated.

●

When using the wireless remote

control or mechanical key and

operating the moon roof, oper-

ate the moon roof after checking

to make sure that there is no

possibility of any passenger

having any of their body parts

caught in the moon roof. Also,

do not let a child operate moon

roof by the wireless remote con-

trol or mechanical key. It is pos-

sible for children and other

passengers to get caught in the

moon roof.

●

When exiting the vehicle, turn

the engine switch to OFF, carry

the key and exit the vehicle

along with the child. There may

be accidental operation, due to

mischief, etc., that may possibly

lead to an accident.

■

Jam protection function

●

Never use any part of your body

to intentionally activate the jam

protection function.

●

The jam protection function may

not work if something gets

caught just before the moon

roof is fully closed. Also, the jam

protection function is not

designed to operate while the

switch is being pressed. Take

care so that your fingers, etc. do

not get caught.

162

3-5. Opening, closing the windows and moon roof

*

: If equipped

■

Opening and closing the
electronic sunshade

1

Opens the electronic sun-
shade

*

Slide and hold the

 switch

backward. The electronic sunshade
will fully open automatically.

2

Closes the electronic sun-
shade

*

Slide and hold the

 switch for-

ward. The electronic sunshade will
fully close automatically.
If the panoramic moon roof is not
fully closed, it will close fully before
the electronic sunshade closes.

*

: Quickly slide and release the

 switch in either direction to

stop the electronic sunshade
partway.

■

Tilting the panoramic moon
roof up and down

Press the

 switch to tilt the

panoramic moon roof up.

*

When the panoramic moon roof is
tilted up, the electronic sunshade
will open to the half-open position
of the roof.

*

: Lightly press the

 switch

again to stop the panoramic
moon roof partway.

Press and hold the

 switch

to tilt the panoramic moon roof
down.

The panoramic moon roof can be
tilted down only when it is in the tilt-
up position.

■

Opening and closing the
panoramic moon roof

Opens the panoramic moon
roof

*

Slide and hold the

 switch

Panoramic moon roof

*

Use the overhead switches
to operate the panoramic
moon roof and electronic
sunshade.

Operating the electronic
sunshade and panoramic
moon roof

163

3-5. Opening, closing the windows and moon roof

3

Before

driving

backward. The panoramic moon
roof and electronic sunshade will
open automatically.
The panoramic moon roof can be
opened from the tilt-up position.

*

: Quickly slide and release the

 switch in either direction to

stop the panoramic moon roof
partway.

Closes the panoramic moon
roof

Slide and hold the

 switch for-

ward. The panoramic moon roof will
fully close automatically.

■

The panoramic moon roof can

be operated when

The engine switch is in ON.

■

Operating the panoramic moon

roof after turning the engine off

The panoramic moon roof and elec-

tronic sunshade can be operated for

approximately 45 seconds after the

engine switch is turned to ACC or

OFF. They cannot, however, be

operated once either front door is

opened.

■

Jam protection function

If an object is detected between the

panoramic moon roof and the frame

in the following situations, travel is

stopped and the panoramic moon

roof opens slightly.

●

The panoramic moon roof is clos-

ing or tilting down.

●

The electronic sunshade is clos-

ing.

■

Closing both the panoramic

moon roof and electronic sun-

shade

Slide the

 switch forward.

The electronic sunshade will close

to the half-open position and pause.

The panoramic moon roof will then

fully close. Then the electronic sun-

shade will fully close.

■

Door lock linked panoramic

moon roof operation

●

The panoramic moon roof can be

opened and closed using the
mechanical key.

*

 (



P.654)

●

The panoramic moon roof can be

opened using the wireless remote
control.

*

 (



P.108)

●

Vehicles with alarm: The alarm

may be triggered if the alarm is set

and the panoramic moon roof is

closed using the door lock linked

panoramic moon roof operation

function. (



P.73)

*

: These settings must be custom-

ized at your Toyota dealer.

■

When the panoramic moon roof

or electronic sunshade does

not close normally

Perform the following procedure:

1

Stop the vehicle.

164

3-5. Opening, closing the windows and moon roof

2

Turn the engine switch to ON.

3

Slide and hold the

 switch

or

 switch forward. Continue

sliding and holding the switch for

approximately 10 seconds after

the panoramic moon roof or elec-

tronic sunshade closes and

reopens. The panoramic moon

roof and electronic sunshade will
start to close.

*

4

Check that the panoramic moon

roof and electronic sunshade are

fully closed and release the

switch.

*

: If the switch is released at the

incorrect time, the procedure will
have to be performed again from
the beginning.

If the panoramic moon roof or elec-

tronic sunshade does not fully close

even after performing the above

procedure correctly, have the vehi-

cle inspected by your Toyota dealer.

■

Panoramic moon roof open

reminder function

A buzzer sounds and a message is

shown on the multi-information dis-

play when the engine switch is

turned to OFF and the driver’s door

is opened with the panoramic moon

roof open.

■

Customization

Settings (e.g. linked door lock oper-

ation) can be changed. (Customiz-

able features:



P.693)

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Opening and closing the elec-

tronic sunshade

●

Check to make sure that all pas-

sengers do not have any part of

their body in a position where it

could be caught when the elec-

tronic sunshade is being oper-

ated.

●

Do not let a child operate the

electronic sunshade. Closing

the electronic sunshade on

someone can cause death or

serious injury.

■

Opening the panoramic moon

roof

●

Do not allow any passengers to

put their hands or head outside

the vehicle while it is moving.

●

Do not sit on top of the pan-

oramic moon roof.

■

Opening and closing the pan-

oramic moon roof

●

The driver is responsible for

panoramic moon roof opening

and closing operations.

In order to prevent accidental

operation, especially by a child,

do not let a child operate the

panoramic moon roof. It is pos-

sible for children and other pas-

sengers to have body parts

caught in the panoramic moon

roof.

165

3-5. Opening, closing the windows and moon roof

3

Before

driving

WARNING

●

Check to make sure that all pas-

sengers do not have any part of

their body in a position where it

could be caught when the pan-

oramic moon roof is being oper-

ated.

●

When using the wireless remote

control or mechanical key and

operating the panoramic moon

roof, operate the panoramic

moon roof after checking to

make sure that there is no pos-

sibility of any passenger having

any of their body parts caught in

the panoramic moon roof. Also,

do not let a child operate pan-

oramic moon roof by the wire-

less remote control or

mechanical key. It is possible for

children and other passengers

to get caught in the panoramic

moon roof.

●

When exiting the vehicle, turn

the engine switch to OFF, carry

the key and exit the vehicle

along with the child. There may

be accidental operation, due to

mischief, etc., that may possibly

lead to an accident.

■

Jam protection function

●

Never use any part of your body

to intentionally activate the jam

protection function.

●

The jam protection function may

not work if something gets

caught just before the pan-

oramic moon roof or electronic

sunshade is fully closed. Also,

the jam protection function is

not designed to operate while

the switch is being pressed.

Take care so that your fingers,

etc. do not get caught.

■

To prevent burns or injuries

Do not touch the area between

the underside of the panoramic

moon roof and the electronic sun-

shade. Your hand may get caught

and you could injure yourself.

Also, if the vehicle is left in direct

sunlight for a long time, the under-

side of the panoramic moon roof

could become very hot and could

cause burns.

NOTICE

■

To prevent damage to the

panoramic moon roof

●

Before opening the panoramic

moon roof, make sure that there

are no foreign objects, such as

stones or ice, around the open-

ing.

●

Do not hit the surface or edge of

the panoramic moon roof with

hard objects.

■

After the vehicle has been

washed or rained on

Before opening the panoramic

moon roof, wipe any water off the

panoramic moon roof. Otherwise,

water may enter the cabin when

the panoramic moon roof is

opened.

166

3-5. Opening, closing the windows and moon roof

167

4

4

Dr

iv

ing

Driving

4-1. Before driving

Driving the vehicle.......

169

Cargo and luggage .....

175

Vehicle load limits .......

178

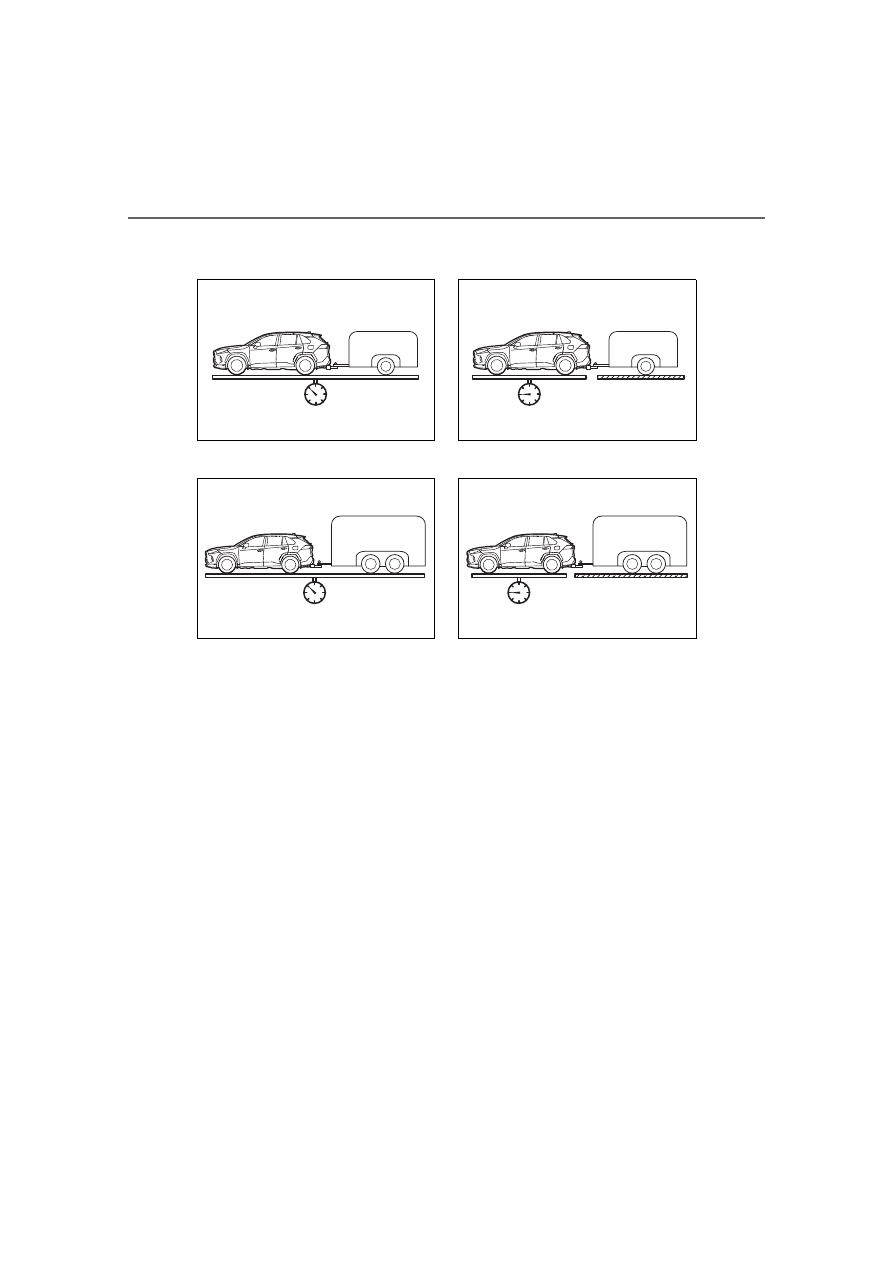

Trailer towing...............

179

Dinghy towing .............

191

4-2. Driving procedures

Engine (ignition) switch

(vehicles without smart key
system)......................

193

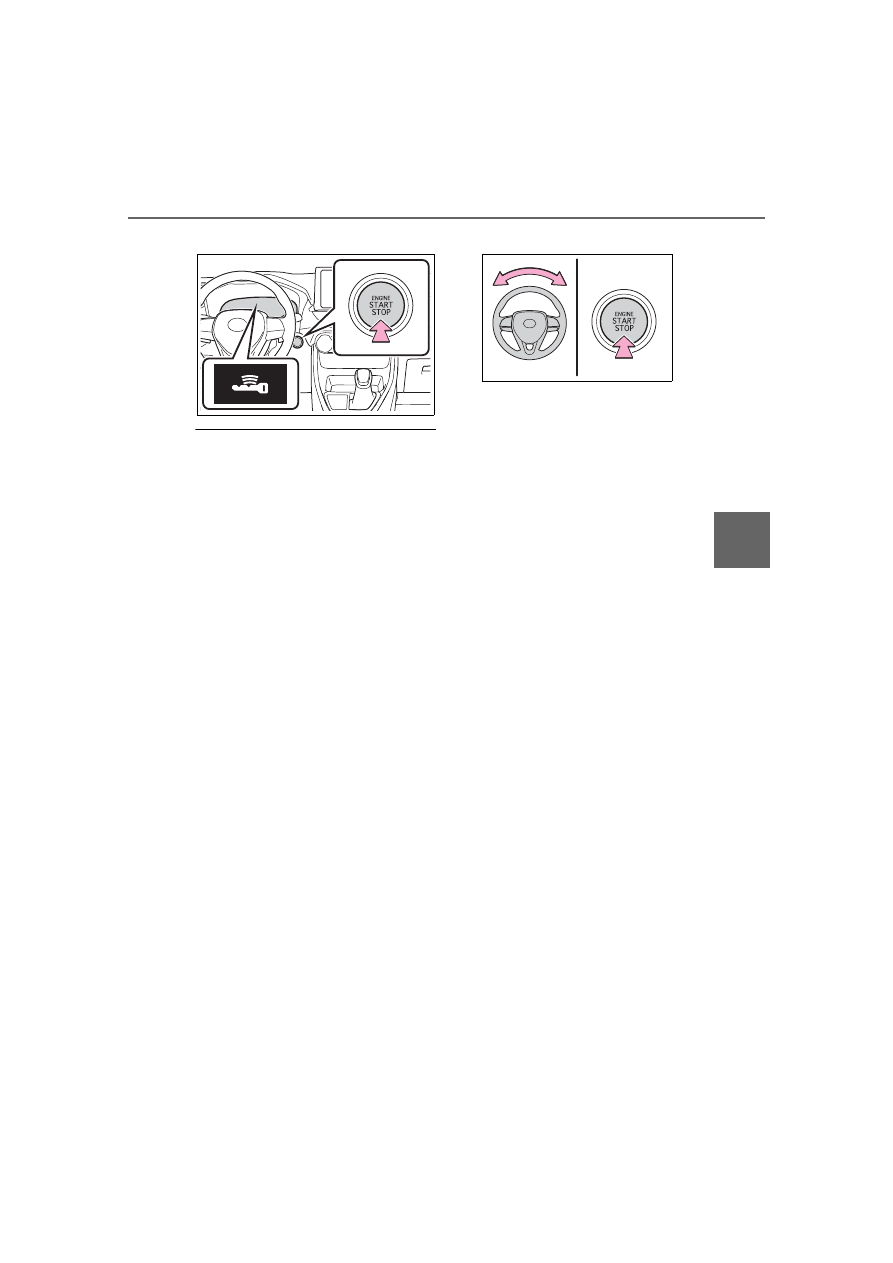

Engine (ignition) switch

(vehicles with smart key
system)......................

194

Automatic transmission

199

Turn signal lever..........

202

Parking brake..............

203

Brake Hold ..................

206

4-3. Operating the lights and

wipers

Headlight switch..........

209

AHB (Automatic High

Beam)........................

212

Fog light switch ...........

215

Windshield wipers and

washer.......................

215

Rear window wiper and

washer.......................

218

4-4. Refueling

Opening the fuel tank cap

..................................

220

4-5. Using the driving support

systems

Toyota Safety Sense 2.0

..................................

223

PCS (Pre-Collision System)

..................................

229

LTA (Lane Tracing Assist)

..................................

237

RSA (Road Sign Assist)

..................................

247

Dynamic radar cruise con-

trol with full-speed range

..................................

250

BSM (Blind Spot Monitor)

..................................

260

Intuitive parking assist.

270

PKSB (Parking Support

Brake)........................

277

Parking Support Brake func-

tion (static objects) ....

282

Parking Support Brake func-

tion (rear-crossing vehi-
cles)...........................

288

Rear view monitor system

..................................

292

Toyota parking assist moni-

tor ..............................

300

Panoramic view monitor

..................................

313

Stop & Start system ....

345

Driving mode select switch

..................................

351

168

Multi-terrain Select (AWD

vehicles) ....................

353

Snow mode switch (AWD

vehicles) ....................

357

Downhill assist control sys-

tem ............................

358

Driving assist systems

360

4-6. Driving tips

Winter driving tips .......

367

Utility vehicle precautions

..................................

370

169

4-1. Before driving

4

Dr

iv

ing

4-1.Before driving

■

Starting the engine



P.193, 194

■

Driving

1

With the brake pedal
depressed, shift the shift
lever to D. (



P.199)

2

Release the parking brake.
(



P.203)

If the parking brake is in automatic

mode, the parking brake is

released automatically when shift-

ing the shift lever to any position

other than P. (



P.204)

3

Gradually release the brake
pedal and gently depress the
accelerator pedal to acceler-
ate the vehicle.

■

Stopping

1

With the shift lever in D,
depress the brake pedal.

2

If necessary, set the parking
brake. (



P.203)

If the vehicle is to be stopped for an

extended period of time, shift the

shift lever to P. (



P.199)

■

Parking the vehicle

1

With the shift lever in D,
depress the brake pedal.

2

Set the parking brake
(



P.203), and shift the shift

lever to P (



P.199).

3

Turn the engine switch to
OFF to stop the engine.

4

Lock the door, making sure
that you have the key on your
person.

If parking on a hill, block the wheels

as needed.

■

Starting off on a steep
uphill

1

With the brake pedal
depressed, shift the shift
lever to D. (



P.199)

2

Pull the parking brake switch
and parking brake is set man-
ually. (



P.203)

3

Release the brake pedal and
gently depress the accelera-
tor pedal to accelerate the
vehicle.

Parking brake automatic release

function (



P.205)

■

When starting off on a uphill

The hill-start assist control will acti-

vate. (



P.360)

■

Driving in the rain

●

Drive carefully when it is raining,

because visibility will be reduced,

the windows may become fogged-

up, and the road could be slippery.

●

Drive carefully when it starts to

rain, as the road surface could be

especially slippery.

●

Refrain from high speeds when

driving on an expressway in the

rain, because there may be a

layer of water between the tires

and the road surface, preventing

Driving the vehicle

The following procedures
should be observed to
ensure safe driving:

Driving procedure

170

4-1. Before driving

the steering and brakes from

operating properly.

■

Engine speed while driving

In the following conditions, the

engine speed may become high

while driving. This is due to auto-

matic up-shifting control or down-

shifting implementation to meet driv-

ing conditions. It does not indicate

sudden acceleration.

●

The vehicle is judged to be driving

uphill or downhill

●

When the accelerator pedal is

released

●

When the brake pedal is

depressed while sport mode is

selected

■

Restraining the engine output

(Brake Override System)

●

When the accelerator and brake

pedals are depressed at the same

time, the engine output may be

restrained.

●

A warning message is displayed

on the multi-information display

while the system is operating.

(



P.633)

■

Restraining sudden start (Drive-

Start Control)

●

When the following unusual oper-

ation is performed, the engine out-

put may be restrained.

• When the shift lever is shifted from

R to D, D to R, N to R, P to D, or P

to R (D includes S) with the accel-

erator pedal depressed, a warning

message appears on the multi-

information display. If a warning

message is shown on the multi-

information display, read the mes-

sage and follow the instructions.

• When the accelerator pedal is

depressed too much while the

vehicle is in reverse.

●

While Drive-Start Control is being

activated, your vehicle may have

trouble escaping from the mud or

fresh snow. In such case, deacti-

vate TRAC (



P.361) to cancel

Drive-Start Control so that the

vehicle may be able to escape

from the mud or fresh snow.

●

Drive-Start Control does not work

when Mud & Sand or Rock & Dirt

mode is selected for Multi-terrain

Select.

■

Breaking in your new Toyota

To extend the life of the vehicle,

observing the following precautions

is recommended:

●

For the first 200 miles (300 km):

Avoid sudden stops.

●

For the first 500 miles (800 km):

Do not tow a trailer.

●

For the first 600 miles (1000 km):

• Do not drive at extremely high

speeds.

• Avoid sudden acceleration.

• Do not drive continuously in low

gears.

• Do not drive at a constant speed

for extended periods.

■

Operating your vehicle in a for-

eign country

Comply with the relevant vehicle

registration laws and confirm the

availability of the correct fuel.

(



P.666)

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

When starting the vehicle

Always keep your foot on the

brake pedal while stopped with

the engine running. This prevents

the vehicle from creeping.

171

4-1. Before driving

4

Dr

iv

ing

WARNING

■

When driving the vehicle

●

Do not drive if you are unfamil-

iar with the location of the brake

and accelerator pedals to avoid

depressing the wrong pedal.

• Accidentally depressing the

accelerator pedal instead of the

brake pedal will result in sudden

acceleration that may lead to an

accident.

• When backing up, you may twist

your body around, leading to a

difficulty in operating the pedals.

Make sure to operate the pedals

properly.

• Make sure to keep a correct

driving posture even when mov-

ing the vehicle only slightly. This

allows you to depress the brake

and accelerator pedals properly.

• Depress the brake pedal using

your right foot. Depressing the

brake pedal using your left foot

may delay response in an emer-

gency, resulting in an accident.

●

Do not drive the vehicle over or

stop the vehicle near flammable

materials such as leaves, paper

or rags.

The exhaust system and

exhaust gases can be

extremely hot. These hot parts

may cause a fire if there is any

flammable material nearby.

●

During normal driving, do not

turn off the engine. Turning the

engine off while driving will not

cause loss of steering or brak-

ing control, but the power assist

to these systems will be lost.

This will make it more difficult to

steer and brake, so you should

pull over and stop the vehicle as

soon as it is safe to do so.

However, in the event of an

emergency, such as if it

becomes impossible to stop the

vehicle in the normal way:



P.618

●

Use engine braking (downshift)

to maintain a safe speed when

driving down a steep hill.

Using the brakes continuously

may cause the brakes to over-

heat and lose effectiveness.

(



P.659)

●

Do not adjust the position of the

steering wheel, the seat, or the

inside or outside rear view mir-

rors while driving.

Doing so may result in a loss of

vehicle control.

●

Always check that all passen-

gers’ arms, head or other parts

of their body are not outside the

vehicle.

●

Do not drive in excess of the

speed limit. Even if the legal

speed limit permits it, do not

drive over 85 mph (140 km/h)

unless your vehicle has high-

speed capability tires. Driving

over 85 mph (140 km/h) may

result in tire failure, loss of con-

trol and possible injury. Be sure

to consult a tire dealer to deter-

mine whether the tires on your

vehicle are high-speed capabil-

ity tires or not before driving at

such speeds.

172

4-1. Before driving

WARNING

■

When driving on slippery

road surfaces

●

Sudden braking, acceleration

and steering may cause tire

slippage and reduce your ability

to control the vehicle.

●

Sudden acceleration, engine

braking due to shifting, or

changes in engine speed could

cause the vehicle to skid.

●

After driving through a puddle,

lightly depress the brake pedal

to make sure that the brakes

are functioning properly. Wet

brake pads may prevent the

brakes from functioning prop-

erly. If the brakes on only one

side are wet and not functioning

properly, steering control may

be affected.

■

When shifting the shift lever

●

Do not let the vehicle roll back-

ward while the shift lever is in a

driving position, or roll forward

while the shift lever is in R.

Doing so may cause the engine

to stall or lead to poor brake and

steering performance, resulting

in an accident or damage to the

vehicle.

●

Do not shift the shift lever to P

while the vehicle is moving.

Doing so can damage the trans-

mission and may result in a loss

of vehicle control.

●

Do not shift the shift lever to R

while the vehicle is moving for-

ward.

Doing so can damage the trans-

mission and may result in a loss

of vehicle control.

●

Do not shift the shift lever to a

driving position while the vehicle

is moving backward.

Doing so can damage the trans-

mission and may result in a loss

of vehicle control.

●

Moving the shift lever to N while

the vehicle is moving will disen-

gage the engine from the trans-

mission. Engine braking is not

available when N is selected.

●

Be careful not to shift the shift

lever with the accelerator pedal

depressed.

Shifting the shift lever to a gear

other than P or N may lead to

unexpected rapid acceleration

of the vehicle that may cause an

accident and result in death or

serious injury. Doing so can

damage the transmission and

may result in a loss of vehicle

control.

■

If you hear a squealing or

scraping noise (brake pad

wear limit indicators)

Have the brake pads checked and

replaced by your Toyota dealer as

soon as possible.

Rotor damage may result if the

pads are not replaced when

needed.

It is dangerous to drive the vehicle

when the wear limits of the brake

pads and/or those of the brake

discs are exceeded.

■

When the vehicle is stopped

●

Do not race the engine.

If the vehicle is in any gear other

than P or N, the vehicle may

accelerate suddenly and unex-

pectedly, causing an accident.

●

In order to prevent accidents

due to the vehicle rolling away,

always keep depressing the

brake pedal while the engine is

running, and apply the parking

brake as necessary.

173

4-1. Before driving

4

Dr

iv

ing

WARNING

●

If the vehicle is stopped on an

incline, in order to prevent acci-

dents caused by the vehicle roll-

ing forward or backward, always

depress the brake pedal and

securely apply the parking

brake as needed.

●

Avoid revving or racing the

engine.

Running the engine at high

speed while the vehicle is

stopped may cause the exhaust

system to overheat, which could

result in a fire if combustible

material is nearby.

■

When the vehicle is parked

●

Do not leave glasses, cigarette

lighters, spray cans, or soft

drink cans in the vehicle when it

is in the sun.

Doing so may result in the fol-

lowing:

• Gas may leak from a cigarette

lighter or spray can, and may

lead to a fire.

• The temperature inside the

vehicle may cause the plastic

lenses and plastic material of

glasses to deform or crack.

• Soft drink cans may fracture,

causing the contents to spray

over the interior of the vehicle,

and may also cause a short cir-

cuit in the vehicle’s electrical

components.

●

Do not leave cigarette lighters in

the vehicle. If a cigarette lighter

is in a place such as the glove

box or on the floor, it may be lit

accidentally when luggage is

loaded or the seat is adjusted,

causing a fire.

●

Do not attach adhesive discs to

the windshield or windows. Do

not place containers such as air

fresheners on the instrument

panel or dashboard. Adhesive

discs or containers may act as

lenses, causing a fire in the

vehicle.

●

Do not leave a door or window

open if the curved glass is

coated with a metallized film

such as a silver-colored one.

Reflected sunlight may cause

the glass to act as a lens, caus-

ing a fire.

●

Always apply the parking brake,

shift the shift lever to P, stop the

engine and lock the vehicle.

Do not leave the vehicle unat-

tended while the engine is run-

ning.

If the vehicle is parked with the

shift lever in P but the parking

brake is not set, the vehicle may

start to move, possibly leading

to an accident.

●

Do not touch the exhaust pipes

while the engine is running or

immediately after turning the

engine off.

Doing so may cause burns.

■

When taking a nap in the vehi-

cle

Always turn the engine off. Other-

wise, if you accidentally move the

shift lever or depress the acceler-

ator pedal, this could cause an

accident or fire due to engine

overheating. Additionally, if the

vehicle is parked in a poorly venti-

lated area, exhaust gases may

collect and enter the vehicle, lead-

ing to death or a serious health

hazard.

174

4-1. Before driving

WARNING

■

When braking

●

When the brakes are wet, drive

more cautiously.

Braking distance increases

when the brakes are wet, and

this may cause one side of the

vehicle to brake differently than

the other side. Also, the parking

brake may not securely hold the

vehicle.

●

If the brake booster device does

not operate, do not follow other

vehicles closely and avoid hills

or sharp turns that require brak-

ing.

In this case, braking is still pos-

sible, but the brake pedal

should be depressed more

firmly than usual. Also, the brak-

ing distance will increase. Have

your brakes fixed immediately.

●

Do not pump the brake pedal if

the engine stalls.

Each push on the brake pedal

uses up the reserve for the

power-assisted brakes.

●

The brake system consists of 2

individual hydraulic systems; if

one of the systems fails, the

other will still operate. In this

case, the brake pedal should be

depressed more firmly than

usual and the braking distance

will increase. Have your brakes

fixed immediately.

■

If the vehicle becomes stuck

(AWD models)

Do not spin the wheels exces-

sively when any of the tires is up

in the air, or the vehicle is stuck in

sand, mud, etc. This may damage

the driveline components or pro-

pel the vehicle forward or back-

ward, causing an accident.

NOTICE

■

When driving the vehicle

●

Do not depress the accelerator

and brake pedals at the same

time during driving, as this may

restrain the engine output.

●

Do not use the accelerator

pedal or depress the accelera-

tor and brake pedals at the

same time to hold the vehicle on

a hill.

■

Avoiding damage to vehicle

parts

●

Do not turn the steering wheel

fully in either direction and hold

it there for an extended period

of time.

Doing so may damage the

power steering motor.

●

When driving over bumps in the

road, drive as slowly as possible

to avoid damaging the wheels,

underside of the vehicle, etc.

■

If you get a flat tire while driv-

ing

A flat or damaged tire may cause

the following situations.

●

It may be difficult to control your

vehicle.

●

The vehicle will make abnormal

sounds or vibrations.

●

The vehicle will lean abnor-

mally.

Hold the steering wheel firmly and

gradually depress the brake pedal

to slow down the vehicle.
Information on what to do in case

of a flat tire (



P.642)

175

4-1. Before driving

4

Dr

iv

ing

NOTICE

■

When encountering flooded

roads

Do not drive on a road that has

flooded after heavy rain, etc.

Doing so may cause the following

serious damage to the vehicle:

●

Engine stalling

●

Short in electrical components

●

Engine damage caused by

water immersion

In the event that you drive on a

flooded road and the vehicle is

flooded, be sure to have your Toy-

ota dealer check the following:

●

Brake function

●

Changes in quantity and quality

of oil and fluid used for the

engine, transaxle, transfer

(AWD vehicles), rear differen-

tial (AWD vehicles), etc.

●

Lubricant condition for the pro-

peller shaft (AWD models),

bearings and suspension joints

(where possible), and the func-

tion of all joints, bearings, etc.

■

When parking the vehicle

Always set the parking brake, and

shift the shift lever to P. Failure to

do so may cause the vehicle to

move or the vehicle may acceler-

ate suddenly if the accelerator

pedal is accidentally depressed.

Cargo and luggage

Take notice of the following
information about storage
precautions, cargo capacity
and load.

WARNING

■

Things that must not be car-

ried in the luggage compart-

ment

The following things may cause a

fire if loaded in the luggage com-

partment:

●

Receptacles containing gaso-

line

●

Aerosol cans

■

Storage precautions

Observe the following precau-

tions.

Failure to do so may prevent the

pedals from being depressed

properly, may block the driver’s

vision, or may result in items hit-

ting the driver or passengers, pos-

sibly causing an accident.

●

Stow cargo and luggage in the

luggage compartment when-

ever possible.

●

Do not stack anything in the lug-

gage compartment higher than

the seatbacks.

●

Do not place cargo or luggage

in or on the following locations.

• At the feet of the driver
• On the front passenger or rear

seats (when stacking items)

• On the luggage cover (if

equipped)

• On the instrument panel
• On the dashboard

176

4-1. Before driving

Cargo capacity depends on the
total weight of the occupants.
(Cargo capacity) = (Total load
capacity) - (Total weight of occu-
pants)

Steps for Determining Cor-
rect Load Limit



(1) Locate the statement “The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined
weight of the driver and passen-
gers that will be riding in your
vehicle.
(3) Subtract the combined
weight of the driver and passen-
gers from XXX kg or XXX lbs.
(4) The resulting figure equals

the available amount of cargo
and luggage load capacity.
For example, if the “XXX”
amount equals 1400 lbs. and
there will be five 150 lb passen-
gers in your vehicle, the amount
of available cargo and luggage
load capacity is 650 lbs. (1400 -
750 (5



 150) = 650 lbs.)

(5) Determine the combined
weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely
exceed the available cargo and
luggage load capacity calcu-
lated in Step 4.
(6) If your vehicle will be towing
a trailer, load from your trailer
will be transferred to your vehi-
cle. Consult this manual to
determine how this reduces the
available cargo and luggage
load capacity of your vehicle.
(



P.178)

WARNING

●

Secure all items in the occupant

compartment.

●

When you fold down the rear

seats, long items should not be

placed directly behind the front

seats.

●

Never allow anyone to ride in

the luggage compartment. It is

not designed for passengers.

They should ride in their seats

with their seat belts properly

fastened. Otherwise, they are

much more likely to suffer death

or serious bodily injury, in the

event of sudden braking, sud-

den swerving or an accident.

Capacity and distribution

WARNING

■

Capacity and distribution

●

Do not exceed the maximum

axle weight rating or the total

vehicle weight rating.

●

Even if the total load of occu-

pant’ weight and the cargo load

is less than the total load capac-

ity, do not apply the load

unevenly. Improper loading may

cause deterioration of steering

or braking control which may

cause death or serious injury.

177

4-1. Before driving

4

Dr

iv

ing

Cargo capacity

Total load capacity (vehicle
capacity weight) (



P.664)

When 2 people with the com-
bined weight of A lb. (kg) are rid-
ing in your vehicle, which has a
total load capacity (vehicle
capacity weight) of B lb. (kg),
the available amount of cargo
and luggage load capacity will
be C lb. (kg) as follows:

B

*2

 lb. (kg) - A

*1

 lb. (kg) = C

*3

 lb.

(kg)

*1

:A = Weight of people

*2

:B = Total load capacity

*3

:C = Available cargo and luggage

load

In this condition, if 3 more passen-
gers with the combined weight of D
lb. (kg) get on, the available cargo
and luggage load will be reduced E
lb. (kg) as follows:

C lb. (kg) - D

*4

 lb. (kg) = E

*5

 lb.

(kg)

*4

:D = Additional weight of people

*5

:E = Available cargo and luggage

load

As shown in the example above,
if the number of occupants
increases, the cargo and lug-
gage load will be reduced by an
amount that equals the
increased weight due to the
additional occupants. In other
words, if an increase in the num-
ber of occupants causes an
excess of the total load capacity
(combined weight of occupants
plus cargo and luggage load),
you must reduce the cargo and
luggage on your vehicle.

Calculation formula for
your vehicle

A

B

WARNING

■

When loading cargo on the

roof luggage carrier (if

equipped)

Observe the following precau-

tions:

●

Place the cargo so that its

weight is distributed evenly

between the front and rear

axles.

●

If loading long or wide cargo,

never exceed the vehicle overall

length or width. (



P.664)

●

Before driving, make sure the

cargo is securely fastened on

the roof luggage carrier.

●

Loading cargo on the roof lug-

gage carrier will make the cen-

ter of gravity of the vehicle

higher. Avoid high speeds, sud-

den starts, sharp turns, sudden

braking or abrupt maneuvers,

otherwise it may result in loss of

control or vehicle rollover due to

failure to operate this vehicle

correctly and result in death or

serious injury.

178

4-1. Before driving

■

Total load capacity and seating

capacity

These details are also described on

the tire and loading information

label. (



P.595)

WARNING

●

If driving for a long distance, on

rough roads, or at high speeds,

stop the vehicle now and then

during the trip to make sure the

cargo remains in its place.

●

Do not exceed 176.4 lb. (80 kg)

cargo weight on the roof lug-

gage carrier.

NOTICE

■

When loading cargo on the

roof luggage carrier (if

equipped)

Be careful not to scratch the sur-

face of the moon roof (if

equipped) or the panoramic moon

roof (if equipped).

Vehicle load limits

Vehicle load limits include
total load capacity, seating
capacity, TWR (Trailer
Weight Rating) and cargo
capacity.



Total load capacity (vehicle
capacity weight):



P.664

Total load capacity means the
combined weight of occu-
pants, cargo and luggage.



Seating capacity: 5 occu-
pants (Front 2, Rear 3)

Seating capacity means the
maximum number of occu-
pants whose estimated aver-
age weight is 150 lb. (68 kg)
per person.



TWR (Trailer Weight Rat-
ing):



P.185, 664

TWR means the maximum
gross trailer weight (trailer
weight plus its cargo weight)
that your vehicle is able to tow.



Cargo capacity

Cargo capacity may increase
or decrease depending on the
weight and the number of
occupants.

179

4-1. Before driving

4

Dr

iv

ing

WARNING

■

Overloading the vehicle

Do not overload the vehicle. It

may not only cause damage to

the tires, but also degrade steer-

ing and braking ability, resulting in

an accident.

Trailer towing

Your vehicle is designed pri-
marily as a passenger-and-
load-carrying vehicle. Tow-
ing a trailer can have an
adverse impact on handling,
performance, braking, dura-
bility, and fuel consumption.
For your safety and the
safety of others, you must
not overload your vehicle or
trailer. You must also
ensure that you are using
appropriate towing equip-
ment, that the towing equip-
ment has been installed
correctly and used prop-
erly, and that you employ
the requisite driving habits.

Vehicle-trailer stability and
braking performance are
affected by trailer stability,
brake performance and set-
ting, trailer brakes, the hitch
and hitch systems (if
equipped).

To tow a trailer safely, use
extreme care and drive the
vehicle in accordance with
your trailer’s characteris-
tics and operating condi-
tions.

180

4-1. Before driving

■

Before towing

Check that the following conditions

are met:

●

Ensure that your vehicle’s tires

are properly inflated. (



P.671)

●

Trailer tires are inflated according

to the trailer manufacturer’s rec-

ommendation.

●

All trailer lights work as required

by law.

●

All lights work each time you con-

nect them.

●

The trailer ball is set at the proper

height for the coupler on the

trailer.

●

The trailer is level when it is

hitched.

Do not drive if the trailer is not

level, and check for improper

tongue weight, overloading, worn

suspension, or other possible

causes.

●

The trailer cargo is securely

loaded.

●

The rear view mirrors conform to

all applicable federal, state/provin-

cial or local regulations. If they do

not, install rear view mirrors

appropriate for towing purposes.

Toyota warranties do not
apply to damage or mal-
function caused by towing a
trailer for commercial pur-
poses.

Contact your Toyota dealer for
further information about addi-
tional requirements such as a
towing kit, etc.

WARNING

■

Trailer towing precautions

To tow a trailer safely, use

extreme care and drive the vehi-

cle in accordance with the trailer’s

characteristics and operating con-

ditions. Failure to do so could

cause an accident resulting in

death or serious injury. Vehicle

stability and braking performance

are affected by trailer stability,

brake setting and performance,

and the hitch. Your vehicle will

handle differently when towing a

trailer.

■

To avoid accident or injury

●

Do not exceed the TWR,

unbraked TWR, GCWR, GVWR

or GAWR.

●

Vehicles with towing package: If

the gross trailer weight is over

2000 lb. (907 kg), a sway con-

trol device with sufficient capac-

ity is required.

●

Adjust the tongue weight within

the appropriate range. Place

heavier loads as close to the

trailer axle as possible.

●

Do not exceed 65 mph (104

km/h), the posted towing speed

limit or the speed limit for your

trailer as set forth in your trailer

owner’s manual, whichever is

lowest. Slow down sufficiently

before making a turn, in cross

winds, on wet or slippery sur-

face, etc. to help avoid an acci-

dent. If you experience a

vehicle-trailer instability from

reducing a certain speed, slow

down and make sure you keep

your vehicle speed under the

speed of which you experience

the instability.

●

Do not make jerky, abrupt or

sharp turns.

181

4-1. Before driving

4

Dr

iv

ing

■

GCWR (Gross Combination
Weight Rating)

The maximum allowable gross
combination weight. The gross
combination weight is the sum
of the total vehicle weight
(including the occupants, cargo
and any optional equipment
installed on the vehicle) and the
weight of the trailer being towed
(including the cargo in the
trailer).

WARNING

●

Do not apply the brakes sud-

denly as you may skid, resulting

in jackknifing and loss of vehicle

control. This is especially true

on wet or slippery surfaces.

●

Do not exceed the trailer hitch

assembly weight, gross vehicle

weight, gross axle weight and

trailer tongue weight capacities.

●

Do not use dynamic radar

cruise control with full-speed

range when towing.

●

Slow down and downshift

before descending steep or long

downhill grades. Do not make

sudden downshifts while

descending steep or long down-

hill grades.

●

Vehicle-trailer instability is more

likely on steep long downhills.

Before descending steep or

long downhill grades, slow

down and downshift. Do not

make sudden downshifts when

descending steep or long down-

hill grades. Avoid holding the

brake pedal down too long or

applying the brakes too fre-

quently. This could cause the

brakes to overheat and result in

reduced braking efficiency.

●

Do not tow a trailer when the

compact spare tire is installed

on your vehicle.

■

When towing a trailer

Toyota recommends trailers with

brakes that conform to any appli-

cable federal and state/provincial

regulations.

●

If the gross trailer weight

exceeds unbraked TWR, trailer

brakes are required. Toyota rec-

ommends trailers with brakes

that conform to all applicable

federal and state/provincial reg-

ulations.

●

Never tap into your vehicle’s

hydraulic system, as this will

lower the vehicle’s braking

effectiveness.

●

Never tow a trailer without using

a safety chain securely attached

to both the trailer and the vehi-

cle. If damage occurs to the

coupling unit or hitch ball, there

is danger of the trailer wander-

ing into another lane.

Towing related terms

182

4-1. Before driving



Vehicles without towing pack-
age



Vehicles with towing package

■

GVWR (Gross Vehicle
Weight Rating)

The maximum allowable gross
vehicle weight. The gross vehi-
cle weight is the total weight of
the vehicle. When towing a
trailer, it is the sum of the vehicle
weight (including the occu-
pants, cargo and any optional
equipment installed on the vehi-
cle) and the tongue weight.



Vehicles without towing pack-
age



Vehicles with towing package

■

GAWR (Gross Axle Weight
Rating)

The maximum allowable gross
axle weight. The gross axle
weight is the load placed on
each axle (front and rear).

183

4-1. Before driving

4

Dr

iv

ing



Vehicles without towing pack-
age

Front GAWR

Rear GAWR



Vehicles with towing package

Front GAWR

Rear GAWR

■

TWR (Trailer Weight Rating)

The maximum allowable gross
trailer weight. The gross trailer
weight is the sum of the trailer
weight and the weight of the

cargo in the trailer.
TWR is calculated assuming
base vehicle with one driver,
one front passenger, towing
package (if available), hitch and
hitch systems (if required).

Additional optional equipment, pas-
sengers and cargo in the vehicle
will reduce the trailer weight rating
so as not to exceed GCWR, GVWR
and GAWR.
Vehicles with towing package: If the
gross trailer weight exceeds 3000
lb. (1360 kg), it is recommended to
use a trailer with 2 or more axles.



Vehicles without towing pack-
age

(With brakes)



Vehicles with towing package

(With brakes)

A

B

A

B

A

A

184

4-1. Before driving

■

Unbraked TWR (Unbraked
Trailer Weight Rating)

The trailer weight rating for tow-
ing a trailer without a trailer ser-
vice brake system.

(Without brakes)

■

Tongue Weight

The load placed on the trailer
hitch ball. (



P.186)



Vehicles without towing pack-
age



Vehicles with towing package



The gross trailer weight must
never exceed the TWR
described below.



Without towing package

1500 lb. (680 kg)



With towing package

3500 lb. (1590 kg)



The gross combination weight
must never exceed the
GCWR described below.



Without towing package

Vehicles without Dynamic Torque
Vectoring AWD system: 6110 lb.
(2770 kg)
Vehicles with Dynamic Torque Vec-
toring AWD system: 6205 lb. (2815
kg)



With towing package

8205 lb. (3725 kg)



The gross vehicle weight
must never exceed the
GVWR indicated on the Certi-
fication Regulation Label.



The gross axle weight on
each axle must never exceed
the GAWR indicated on the
Certification Regulation Label.

A

Weight limits

185

4-1. Before driving

4

Dr

iv

ing



If the gross trailer weight is
over the unbraked TWR,
trailer service brakes are
required.



Vehicles with towing package:
If the gross trailer weight is
over 2000 lb. (907 kg), a sway
control device with sufficient
capacity is required.

Confirm that the gross trailer
weight, gross combination
weight, gross vehicle weight,
gross axle weight and tongue
weight are all within the limits.

■

GCWR

*



Without towing package

Vehicles without Dynamic
Torque Vectoring AWD system:
6110 lb. (2770 kg)
Vehicles with Dynamic Torque
Vectoring AWD system: 6205 lb.
(2815 kg)



With towing package

8205 lb. (3725 kg)

*

: These models meet the tow-vehi-

cle trailering requirement of SAE
International per SAE J2807.

■

TWR

*



Without towing package

1500 lb. (680 kg)



With towing package

3500 lb. (1590 kg)

*

: These models meet the tow-vehi-

cle trailering requirement of SAE
International per SAE J2807.

■

Unbraked TWR

*

1000 lb. (450 kg)

*

: These models meet the tow-vehi-

cle trailering requirement of SAE
International per SAE J2807.



A recommended tongue
weight varies in accordance
with the types of trailers or
towing as described below.



To ensure the recommended
values shown below, the
trailer must be loaded by
referring to the following
instructions.

• Tongue Weight
The gross trailer weight should be
distributed so that the tongue
weight is 9% to 11%.
(Tongue weight /Gross trailer
weight x 100 = 9% to 11%)



Vehicles without towing pack-
age

Gross trailer weight

GCWR, TWR and
Unbraked TWR

Trailer Tongue Weight

A

186

4-1. Before driving

Tongue weight



Vehicles with towing package

Gross trailer weight

Tongue weight

The gross trailer weight, gross
axle weight and tongue weight
can be measured with platform
scales found at a highway
weighing station, building supply
company, trucking company,
junk yard, etc.

Trailer hitch assemblies have
different weight capacities. Toy-
ota recommends the use of Toy-
ota hitch/bracket for your
vehicle. For details, contact your
Toyota dealer.



If you wish to install a trailer
hitch, contact your Toyota
dealer.



Use only a hitch that con-
forms to the gross trailer
weight requirement of your
vehicle.



Follow the directions supplied
by the hitch manufacturer.



Lubricate the hitch ball with a
light coating of grease.



Remove the hitch ball when-
ever you are not towing a
trailer. Remove the trailer
hitch if you do not need it.
After removing the hitch, seal
any mounting holes in the
vehicle body to prevent entry
of any substances into the
vehicle.

Use the correct trailer ball for
your application.

Hitch

B

A

B

WARNING

■

Hitch

Trailer hitch assemblies have dif-

ferent weight capacities estab-

lished by the hitch manufacturer.

Even though the vehicle may be

physically capable of towing a

higher weight, the operator must

determine the maximum weight

rating of the particular hitch

assembly and never exceed the

maximum weight rating specified

for the trailer-hitch. Exceeding the

maximum weight rating set by the

trailer-hitch manufacturer can

cause an accident resulting in

death or serious personal injuries.

NOTICE

■

When installing a trailer hitch

Use only the position recom-

mended by your Toyota dealer.

Do not install the trailer hitch on

the bumper; this may cause body

damage.

Selecting trailer ball (vehi-
cles with towing package)

187

4-1. Before driving

4

Dr

iv

ing

Trailer ball load rating

Matches or exceeds the gross
trailer weight rating of the trailer.

Shank length

Protrudes beyond the bottom of the
lock washer and nut by at least 2
threads.

Shank diameter

Matches the ball mount hole diame-
ter size.

Ball diameter

Matches the size of the trailer cou-
pler. Most couplers are stamped
with the required trailer ball size.

Weight carrying ball position:
43.3 in. (1100 mm)

Hitch receiver pin hole posi-
tion: 38.1 in. (969 mm)

■

Matching trailer ball height to

trailer coupler height

No matter which class of tow hitch

applies, for a more safe trailer

hookup, the trailer ball setup must

be the proper height for the coupler

on the trailer.

Coupler

Trailer ball

Trailer class

Typical trailer

ball size

IV

2 5/16 in.

II and III

2 in.

I

1 7/8 in.

A

B

C

D

Positions for towing hitch
receiver and hitch ball

A

B

A

B

188

4-1. Before driving

Please consult your dealer
when installing trailer lights, as
incorrect installation may cause
damage to the vehicle’s lights.
Please take care to comply with
your state’s laws when install-
ing trailer lights.

Your vehicle will handle differ-
ently when towing a trailer. Help
to avoid an accident, death or
serious injury, keep the following
in mind when towing:



Speed limits for towing a
trailer vary by state or prov-
ince. Do not exceed the
posted towing speed limit.



Toyota recommends that the
vehicle-trailer speed limit is 65
mph (104 km/h) on a flat,
straight, dry road. Do not
exceed this limit, the posted
towing speed limit or the
speed limit for your trailer as
set forth in your trailer owner’s
manual, whichever is lowest.
Instability of the towing vehi-
cle-trailer combination (trailer
sway) increases as speed

increases. Exceeding speed
limits may cause loss of con-
trol.



Before starting out, check the
trailer lights, tires and the
vehicle-trailer connections.
Recheck after driving a short
distance.



Practice turning, stopping and
reversing with the trailer
attached in an area away
from traffic until you become
accustomed to the feel of the
vehicle-trailer combination.



Reversing with a trailer
attached is difficult and
requires practice. Grip the
bottom of the steering wheel
and move your hand to the
left to move the trailer to the
left. Move your hand to the
right to move the trailer to
right. (This is generally oppo-
site to reversing without a
trailer attached.) Avoid sharp
or prolonged turning. Have
someone guide you when
reversing to reduce the risk of
an accident.



As stopping distance is
increased when towing a
trailer, vehicle-to vehicle dis-
tance should be increased.
For each 10 mph (16 km/h) of
speed, allow at least one
vehicle and trailer length.



Avoid sudden braking as you
may skid, resulting in the
trailer jackknifing and a loss of

Connecting trailer lights

NOTICE

■

Do not directly splice trailer

lights

Do not directly splice trailer lights.

Directly splicing trailer lights may

damage your vehicle’s electrical

system and cause a malfunction.

Trailer towing tips

189

4-1. Before driving

4

Dr

iv

ing

vehicle control. This is espe-
cially true on wet or slippery
surfaces.



Avoid jerky starts or sudden
acceleration.



Avoid jerky steering and
sharp turns, and slow down
before making turn.



Note that when making a turn,
the trailer wheels will be
closer than the vehicle wheels
to the inside of the turn. Com-
pensate by making a wider
than normal turning radius.



Slow down before making a
turn, in cross winds, on wet or
slippery surfaces, etc.

Increasing vehicle speed can
destabilize the trailer.



Take care when passing other
vehicles. Passing requires
considerable distance. After
passing a vehicle, do not for-
get the length of your trailer,
and be sure you have plenty
of room before changing
lanes.



To maintain engine braking
efficiency and charging sys-
tem performance when using
engine braking, do not put the
transmission in D. If in the S
mode, the transmission shift
range position must be in 6 or
lower.



Instability happens more fre-
quently when descending
steep or long downhill grades.

Before descending, slow
down and downshift. Do not
make sudden downshifts
while descending steep or
long downhill grades.



Avoid holding the brake pedal
down too long or applying the
brakes too frequently. This
could cause the brakes to
overheat and result in
reduced braking efficiency.



Due to the added load of the
trailer, your vehicle’s engine
may overheat on hot days (at
temperatures over 85°F
[30°C]) when driving up a long
or steep grade. If the engine
coolant temperature gauge
indicates overheating, imme-
diately turn off the air condi-
tioning (if in use), pull your
vehicle off the road and stop
in a safe spot. (



P.659)



Always place wheel blocks
under both the vehicle’s and
the trailer’s wheels when
parking. Apply the parking
brake firmly, and put the
transmission in P. Avoid park-
ing on a slope, but if unavoid-
able, do so only after
performing the following:

1

Apply the brakes and keep
them applied.

2

Have someone place wheel
blocks under both the vehi-
cle’s and trailer’s wheels.

190

4-1. Before driving

3

When the wheel blocks are in
place, release the brakes
slowly until the blocks absorb
the load.

4

Apply the parking brake
firmly.

5

Shift into P and turn off the
engine.



When restarting after parking
on a slope:

1

With the transmission in P,
start the engine. Be sure to
keep the brake pedal
depressed.

2

Shift into a forward gear. If
reversing, shift into R.

3

If the parking brake is in man-
ual mode, release the park-
ing brake. (



P.203)

4

Release the brake pedal, and
slowly pull or back away from
the wheel blocks. Stop and
apply the brakes.

5

Have someone retrieve the
blocks.

■

Break-in schedule

If your vehicle is new or equipped

with any new power train compo-

nents (such as an engine, transmis-

sion, differential or wheel bearing),

Toyota recommends that you do not

tow a trailer until the vehicle has

been driven for over 500 miles (800

km).
After the vehicle has been driven for

over 500 miles (800 km), you can

start towing. However, for the next

500 miles (800 km), drive the vehi-

cle at a speed of less than 45 mph

(72 km/h) when towing a trailer, and

avoid full throttle acceleration.

■

Maintenance

●

If you tow a trailer, your vehicle

will require more frequent mainte-

nance due to the additional load.

(See “Scheduled Maintenance

Guide” or “Owner’s Manual Sup-

plement”.)

●

Retighten the fixing bolts of the

towing ball and bracket after

approximately 600 miles (1000

km) of trailer towing.

■

If trailer sway occurs

One or more factors (crosswinds,

passing vehicles, rough roads, etc.)

can adversely affect handling of

your vehicle and trailer, causing

instability.

●

If trailer swaying occurs:

• Firmly grip the steering wheel.

Steer straight ahead.

Do not try to control trailer sway-

ing by turning the steering wheel.

• Begin releasing the accelerator

pedal immediately but very gradu-

ally to reduce speed.

Do not increase speed. Do not

apply vehicle brakes.

If you make no extreme correction
with the steering or brakes, your
vehicle and trailer should stabilize (if
enabled, Trailer Sway Control can
also help to stabilize the vehicle and
trailer.).

●

After the trailer swaying has

stopped:

• Stop in a safe place. Get all occu-

pants out of the vehicle.

• Check the tires of the vehicle and

the trailer.

• Check the load in the trailer.

Make sure the load has not

shifted.

Make sure the tongue weight is

appropriate, if possible.

• Check the load in the vehicle.

Make sure the vehicle is not over-

loaded after occupants get in.

If you cannot find any problems, the

191

4-1. Before driving

4

Dr

iv

ing

speed at which trailer swaying
occurred is beyond the limit of your
particular vehicle-trailer combina-
tion. Drive at a lower speed to pre-
vent instability. Remember that
swaying of the towing vehicle-trailer
increases as speed increases.

Dinghy towing

Your vehicle is not designed
to be dinghy towed (with 4
wheels on the ground)
behind a motor home.

NOTICE

■

To avoid serious damage to

your vehicle

Do not tow your vehicle with 4

wheels on the ground.

■

To prevent causing serious

damage to the transmission

and AWD system (AWD mod-

els)

2WD models: Never tow this vehi-

cle from the rear with the front

wheels on the ground. This may

cause serious damage to the

transmission.

192

4-1. Before driving

NOTICE

AWD models: Never tow this vehi-

cle with any of the wheels on the

ground. This may cause serious

damage to the transmission and

AWD system.

193

4-2. Driving procedures

4

Dr

iv

ing

4-2.Driving procedures

1

Pull the parking brake switch
to check that the parking
brake is set. (



P.203)

The parking brake indicator will

come on.

2

Check that the shift lever is
set in P.

3

Firmly depress the brake
pedal.

4

Turn the engine switch to
START to start the engine.

■

If the engine does not start

The engine immobilizer system may

not have been deactivated. (



P.70)

Contact your Toyota dealer.

■

When the steering lock cannot

be released

When starting the engine, the

engine switch may seem stuck in

OFF. To free it, turn the key while

turning the steering wheel slightly

left and right.

■

When “Check Fuel Cap” is dis-

played on the multi-information

display



P.221

OFF (“LOCK” position)

The steering wheel is locked and
the key can be removed. (The key
can be removed only when the shift
lever is in P.)

ACC (“ACC” position)

Some electrical components such

Engine (ignition)

switch (vehicles with-

out smart key system)

Starting the engine

WARNING

■

When starting the engine

Always start the engine while sit-

ting in the driver’s seat. Do not

depress the accelerator pedal

while starting the engine under

any circumstances.
Doing so may cause an accident

resulting in death or serious injury.

NOTICE

■

When starting the engine

●

Do not crank the engine for

more than 30 seconds at a time.

This may overheat the starter

and wiring system.

●

Do not race a cold engine.

●

If the engine becomes difficult to

start or stalls frequently, have

your vehicle checked by your

Toyota dealer immediately.

Changing the engine
switch positions

A

B

194

4-2. Driving procedures

as the audio system can be used.

ON (“ON” position)

All electrical components can be
used.

START (“START” position)

For starting the engine.

■

Turning the key from ACC to

OFF

1

Shift the shift lever to P.

2

Push in the key and turn it to

OFF.

■

Key reminder function

A buzzer sounds if the driver’s door

is opened while the engine switch is

in OFF or ACC to remind you to

remove the key.

1

Pull the parking brake switch
to check that the parking
brake is set. (



P.203)

The parking brake indicator will

come on.

2

Check that the shift lever is
set in P.

3

Firmly depress the brake
pedal.

 and a message will be dis-

played on the multi-information dis-

play.
If it is not displayed, the engine

cannot be started.

4

Press the engine switch
shortly and firmly.

When operating the engine switch,

one short, firm press is enough. It is

not necessary to press and hold the

switch.
The engine will crank until it starts

or for up to 30 seconds, whichever

is less.
Continue depressing the brake

pedal until the engine is completely

started.
The engine can be started from any

WARNING

■

Caution when driving

Do not turn the engine switch to

OFF while driving. If, in an emer-

gency and you must turn the

engine off while the vehicle is

moving, turn the engine switch

only to ACC to stop the engine.

An accident may result if the

engine is stopped while driving.

(



P.618)

NOTICE

■

To prevent battery discharge

Do not leave the engine switch in

ACC or ON for long periods of

time without the engine running.

C

D

Engine (ignition)

switch (vehicles with

smart key system)

Performing the following
operations when carrying
the electronic key on your
person starts the engine or
changes engine switch
modes.

Starting the engine

195

4-2. Driving procedures

4

Dr

iv

ing

engine switch mode.

■

If the engine does not start

●

The engine immobilizer system

may not have been deactivated.

(



P.70)

Contact your Toyota dealer.

●

If a message related to start-up is

shown on the multi-information

display, read the message and fol-

low the instructions.

■

If the battery is discharged

The engine cannot be started using

the smart key system. Refer to

P.655 to restart the engine.

■

Electronic key battery depletion



P.102

■

Conditions affecting operation



P.129

■

Note for the entry function



P.130

■

Steering lock function

●

After turning the engine switch to

OFF and opening and closing the

doors, the steering wheel will be

locked due to the steering lock

function. Operating the engine

switch again automatically can-

cels the steering lock.

●

When the steering lock cannot be

released, “Push Engine Switch

while Turning Steering Wheel in

Either Direction” will be displayed

on the multi-information display.

Check that the shift lever is set in

P. Press the engine switch shortly

and firmly while turning the steer-

ing wheel left and right.

●

To prevent the steering lock motor

from overheating, the operation of

motor may be suspended if the

engine is turned on and off repeat-

edly in a short period of time. In

this case, refrain from running the

engine. After about 10 seconds,

the steering lock motor will

resume functioning.

■

If there is a malfunction in the

smart key system

If “Smart Key System Malfunction”

is displayed on the multi-information

display, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer immediately.

■

When “Check Fuel Cap” is dis-

played on the multi-information

display



P.221

■

Electronic key battery



P.604

■

Operation of the engine switch

●

If the switch is not pressed shortly

and firmly, the engine switch

mode may not change or the

engine may not start.

●

If attempting to restart the engine

immediately after turning the

engine switch to OFF, the engine

may not start in some cases. After

turning the engine switch to OFF,

please wait a few seconds before

restarting the engine.

■

Customization

If the smart key system has been

deactivated in a customized setting,

refer to P.654.

196

4-2. Driving procedures

1

Stop the vehicle completely.

2

If the parking brake is in man-
ual mode, set the parking
brake. (



P.203)

Check the parking brake indicator

is illuminated.

3

Shift the shift lever to P.

4

Press the engine switch
shortly and firmly.

The engine will stop, and the meter

display will be extinguished.

5

Release the brake pedal and
check that “ACCESSORY” or
“IGNITION ON” is not shown
on the multi-information dis-
play.

■

Automatic engine shut off fea-

ture

●

The vehicle is equipped with a

feature that automatically shuts off

the engine when the shift lever is

in P with the engine running for an

extended period.

●

The engine will automatically shut

off after approximately 1 hour if it

has been left running while the

shift lever is in P.

●

The timer for the automatic engine

shut off feature will reset if the

brake pedal is depressed or if the

shift lever is in a position other

than P.

●

After the vehicle is parked, if the

door is locked with the door lock

switch (



P.112) from the inside or

the mechanical key (



P.653) from

the outside, the automatic engine

shut off feature will be disabled.

The timer for the automatic engine

shut off feature will be re-enabled

if the driver’s door is opened.

WARNING

■

When starting the engine

Always start the engine while sit-

ting in the driver’s seat. Do not

depress the accelerator pedal

while starting the engine under

any circumstances.

Doing so may cause an accident

resulting in death or serious injury.

■

Caution while driving

If engine failure occurs while the

vehicle is moving, do not lock or

open the doors until the vehicle

reaches a safe and complete

stop. Activation of the steering

lock in this circumstance may lead

to an accident, resulting in death

or serious injury.

NOTICE

■

When starting the engine

●

Do not race a cold engine.

●

If the engine becomes difficult to

start or stalls frequently, have

your vehicle checked by your

Toyota dealer immediately.

■

Symptoms indicating a mal-

function with the engine

switch

If the engine switch seems to be

operating somewhat differently

than usual, such as the switch

sticking slightly, there may be a

malfunction. Contact your Toyota

dealer immediately.

Stopping the engine

197

4-2. Driving procedures

4

Dr

iv

ing

Modes can be changed by
pressing the engine switch with
brake pedal released. (The
mode changes each time the
switch is pressed.)

1

OFF

*

The emergency flashers can be
used.
The multi-information display will
not be displayed.

2

ACC

WARNING

■

Stopping the engine in an

emergency

●

If you want to stop the engine in

an emergency while driving the

vehicle, press and hold the

engine switch for more than 2

seconds, or press it briefly 3

times or more in succession.

(



P.618)

However, do not touch the

engine switch while driving

except in an emergency. Turn-

ing the engine off while driving

will not cause loss of steering or

braking control, but the power

assist to these systems will be

lost. This will make it more diffi-

cult to steer and brake, so you

should pull over and stop the

vehicle as soon as it is safe to

do so.

●

If the engine switch is operated

while the vehicle is running, a

warning message will be shown

on the multi-information display

and a buzzer sounds.

●

When restarting the engine after

an emergency shutdown, shift

the shift lever to N and press the

engine switch shortly and firmly.

■

When parking

Exhaust gases include harmful

carbon monoxide (CO), which is

colorless and odorless. Observe

the following precautions.
Failure to do so may cause

exhaust gases to enter the vehicle

and may lead to an accident

caused by light-headedness, or

may lead to death or a serious

health hazard.

●

If the vehicle is in a poorly venti-

lated area or a closed area,

such as a garage, stop the

engine.

●

Do not leave the vehicle with

the engine running for a long

time. If such a situation cannot

be avoided, park the vehicle in

an open space and ensure that

exhaust fumes do not enter the

vehicle interior.

●

Do not leave the engine running

in an area with snow build-up,

or where it is snowing. If snow-

banks build up around the vehi-

cle while the engine is running,

exhaust gases may collect and

enter the vehicle.

Changing engine switch
modes

198

4-2. Driving procedures

Some electrical components such
as the audio system can be used.
“ACCESSORY” will be displayed
on the multi-information display.

3

ON

All electrical components can be
used.
“IGNITION ON” will be displayed on
the multi-information display.

*

: If the shift lever is in a position

other than P when turning off the
engine, the engine switch will be
turned to ACC, not to OFF.

■

Auto power off function

If the vehicle is left in ACC for more

than 20 minutes or ON (the engine

is not running) for more than an

hour with the shift lever in P, the

engine switch will automatically turn

to OFF. However, this function can-

not entirely prevent battery dis-

charge. Do not leave the vehicle

with the engine switch in ACC or ON

for long periods of time when the

engine is not running.

If the engine is stopped with the
shift lever in a position other

than P, the engine switch will not
be turned to OFF but instead be
turned to ACC. Perform the fol-
lowing procedure to turn the
switch to OFF:

1

Check that the parking brake
is set.

2

Shift the shift lever to P.

3

Check that “ACCESSORY” is
displayed on the multi-infor-
mation display and then
press the engine switch
shortly and firmly.

4

Check that “ACCESSORY”
or “IGNITION ON” on the
multi-information display is
off.

NOTICE

■

To prevent battery discharge

●

Do not leave the engine switch

in ACC or ON for long periods of

time without the engine running.

●

If “ACCESSORY” or “IGNITION

ON” is displayed on the multi-

information display, the engine

switch is not in OFF. Exit the

vehicle after turning the engine

switch to OFF.

When stopping the engine
with the shift lever in a
position other than P

NOTICE

■

To prevent battery discharge

Do not stop the engine when the

shift lever is in a position other

than P. If the engine is stopped in

another shift lever position, the

engine switch will not be turned to

OFF but instead be turned to

ACC. If the vehicle is left in ACC,

battery discharge may occur.

199

4-2. Driving procedures

4

Dr

iv

ing

*1

:Shifting to the D position allows

the system to select a gear suit-
able for the driving conditions.
Setting the shift lever to the D
position is recommended for nor-
mal driving.

*2

:Selecting shift ranges using S

mode restricts the upper limit of
the possible gear ranges, con-
trols engine braking force, and
prevents unnecessary upshifting.

■

When driving with dynamic

radar cruise control with full-

speed range activated

Even when performing the following

actions with the intent of enabling

engine braking, engine braking will

not activate because dynamic radar

cruise control with full-speed range

will not be canceled.

●

While driving in S mode, down-

shifting to 7, 6, 5, or 4. (



P.201)

●

When switching the driving mode

to sport mode while driving in D.

(



P.351)

■

If “High Transmission Fluid

Temp See Owner’s Manual” is

displayed on the multi-informa-

tion display (AWD models)

Make sure to return to D position
driving and reduce speed by easing
off the accelerator pedal. Stop the
vehicle in a safe place, shift the shift
lever to P and let the engine idle
until the warning message goes out.
When the warning message goes
out, the vehicle can be driven again.
If the warning message does not go
out after waiting a while, have your
vehicle inspected by your Toyota
dealer.

■

Restraining sudden start (Drive-

Start Control)



P.170

■

AI-SHIFT

The AI-SHIFT automatically selects

the suitable gear according to driver

performance and driving conditions.

The AI-SHIFT automatically oper-

ates when the shift lever is in D.

(Shifting the shift lever to S cancels

the function.)

Automatic transmis-

sion

Select the shift position
depending on your purpose
and situation.

Shift position purpose
and functions

Shift

position

Objective or function

P

Parking the vehicle/start-

ing the engine

R

Reversing

N

Neutral

D

Normal driving

*1

S

S mode driving

*2

(



P.201)

WARNING

■

When driving on slippery

road surfaces

Do not accelerate or shift gears

suddenly.

Sudden changes in engine brak-

ing may cause the vehicle to spin

or skid, resulting in an accident.

200

4-2. Driving procedures

 While the engine switch

is in ON and the brake pedal
depressed

*

, shift the shift lever

while pushing the shift release
button on the shift knob.

 Shift the shift lever while

pushing the shift release button
on the shift knob.

 Shift the shift lever nor-

mally.

When shifting the shift lever
between P and D, make sure that
the vehicle is completely stopped.

*

: For the vehicle to be able to be

shifted from P, the brake pedal
must be depressed before the
shift release button is pushed. If
the shift release button is pushed

first, the shift lock will not be
released.

■

Shift lock system

The shift lock system is a system to

prevent accidental operation of the

shift lever in starting.

The shift lever can be shifted from P

only when the engine switch is in

ON, the brake pedal is depressed

and the shift release button is

pushed.

■

If the shift lever cannot be

shifted from P

First, check whether the brake pedal

is being depressed.

If the shift lever cannot be shifted

even though the brake pedal is

depressed and the shift release but-

ton is pushed, there may be a prob-

lem with the shift lock system. Have

the vehicle inspected by your Toyota

dealer immediately.

The following steps may be used as

an emergency measure to ensure

that the shift lever can be shifted.
Releasing the shift lock:

1

Pull the parking brake switch to

check that the parking brake is

set. (



P.203)

2

Turn the engine switch to OFF.

3

Depress the brake pedal.

4

Pry the cover up with a flathead

screwdriver or equivalent tool.

To prevent damage to the cover,

cover the tip of the screwdriver

with a rag.

5

Press and hold the shift lock

override button and then push

the button on the shift knob.

Shifting the shift lever

201

4-2. Driving procedures

4

Dr

iv

ing

The shift lever can be shifted

while both buttons are pressed.



P.351, 357

When the shift lever is in the S
position, the shift lever can be
operated as follows:

1

Upshifting

2

Downshifting

The selected shift range, from S1 to
S8 will be displayed on the multi-
information display.

The initial shift range in S mode
is set automatically to 4, 5 or 6
according to vehicle speed.
However, the initial shift range
may be set to 3 if AI-SHIFT has
operated while the shift lever
was in the D position. (



P.199)

■

S mode

●

You can choose from 8 levels of

accelerating force and engine

braking force.

●

A lower shift range will provide

greater accelerating force and

engine braking force than a higher

shift range, and the engine revolu-

tions will also increase.

●

To prevent the engine from over-

revving, upshifting may automati-

cally occur.

●

To protect the automatic transmis-

sion, a function is adopted that

automatically selects a higher shift

range when the fluid temperature

is high.

●

When the shift range is 7 or lower,

holding the shift lever toward “+”

sets the shift range to 8.

WARNING

■

To prevent an accident when

releasing the shift lock

Before pressing the shift lock

override button, make sure to set

the parking brake and depress the

brake pedal.
If the accelerator pedal is acci-

dentally depressed instead of the

brake pedal when the shift lock

override button is pressed and the

shift lever is shifted out of P, the

vehicle may suddenly start, possi-

bly leading to an accident result-

ing in death or serious injury.

Selecting the driving
mode and snow mode (if
equipped)

Changing shift ranges in
S mode

202

4-2. Driving procedures

■

Downshifting restriction warn-

ing buzzer

To help ensure safety and driving

performance, downshifting opera-

tion may sometimes be restricted. In

some circumstances, downshifting

may not be possible even when the

shift lever is operated. (A buzzer will

sound twice.)

■

If the “S” indicator does not

come on or the “D” indicator is

displayed even after shifting the

shift lever to S

This may indicate a malfunction in

the automatic transmission system.

Have the vehicle inspected by your

Toyota dealer immediately. (In this

situation, the transmission will oper-

ate in the same manner as when the

shift lever is in D.)

1

Right turn

2

Lane change to the right
(move the lever partway and
release it)

The right hand signals will flash 3
times.

3

Lane change to the left
(move the lever partway and
release it)

The left hand signals will flash 3
times.

4

Left turn

■

Turn signals can be operated

when

The engine switch is in ON.

■

If the indicator flashes faster

than usual

Check that a light bulb in the front or

rear turn signal lights has not

Turn signal lever

Operating instructions

203

4-2. Driving procedures

4

Dr

iv

ing

burned out.

■

If the turn signals stop flashing

before a lane change has been

performed

Operate the lever again.

■

To discontinue flashing of the

turn signals during a lane

change

Operate the lever in the opposite

direction.

■

Using the manual mode

The parking brake can be set
and released manually.

Parking brake indicator light
(U.S.A.)

Parking brake indicator light
(Canada)

Parking brake switch indica-
tor

1

Pull the switch to set the

Parking brake

The parking brake can be
set or released automati-
cally or manually. In auto-
matic mode, the parking
brake can be set or released
automatically according to
shift lever operation. Also,
even in automatic mode, the
parking brake can be set or
released manually.

Operating instructions

A

B

C

204

4-2. Driving procedures

parking brake.

The parking brake indicator light
and parking brake switch indicator
will turn on.
Pull and hold the parking brake
switch if an emergency occurs and
it is necessary to operate the park-
ing brake while driving.

2

Push the switch to release
the parking brake.

• Operate the parking brake switch

while depressing the brake pedal.

• Parking brake automatic release

function (



P.205)

Make sure that the parking brake
indicator light and parking brake
switch indicator turn off.

If the parking brake indicator
light and parking brake switch
indicator flash, operate the
switch again. (



P.634)

■

Turning the automatic
mode on

While the vehicle is stopped,
pull and hold the parking brake
switch until a buzzer sounds and
a message is shown on the
multi-information display.

When the automatic mode is
turned on, the parking brake
operates as follows.



When the shift position is
shifted from P, the parking
brake will be released, and
the parking brake indicator
light and parking brake switch
indicator will turn off.



When the shift position is
shifted to P, the parking brake
will be set, and the parking
brake indicator light and park-
ing brake switch indicator will
turn on.

Operate the shift lever with the
vehicle stopped and the brake
pedal depressed.

■

Turning the automatic
mode off

While the vehicle is stopped and
depressing the brake pedal,
press and hold the parking
brake switch until a buzzer
sounds and a message is
shown on the multi-information
display.

■

Parking brake operation

●

When the engine switch is not in

ON, the parking brake cannot be

released using the parking brake

switch.

●

When the engine switch is not in

205

4-2. Driving procedures

4

Dr

iv

ing

ON, automatic mode (automatic

brake setting and releasing) is not

available.

■

Parking brake automatic

release function

The parking brake will be released

automatically when the accelerator

pedal is slowly depressed under the

following conditions:

●

The driver’s door is closed

●

The driver is wearing the seat belt

●

The shift lever is in a forward or

reverse position.

●

The malfunction indicator lamp or

brake system warning light is not

illuminated

If the automatic release function
does not operate, release the park-
ing brake manually.

■

If “Parking Brake Temporarily

Unavailable” is displayed on

the multi-information display

If the parking brake is operated

repeatedly over a short period of

time, the system may restrict opera-

tion to prevent overheating. If this

happens, refrain from operating the

parking brake. Normal operation will

return after about 1 minute.

■

If “Parking Brake Unavailable”

is displayed on the multi-infor-

mation display

Operate the parking brake switch. If

the message does not disappear

after operating the switch several

times, the system may be malfunc-

tioning. Have the vehicle inspected

by your Toyota dealer.

■

Parking brake operation sound

When the parking brake operates, a

motor sound (whirring sound) may

be heard. This does not indicate a

malfunction.

■

Parking brake indicator light

●

Depending on the engine switch

position/mode, the parking brake

indicator light will turn on and stay

on as described below:

ON: Comes on until the parking

brake is released.

Not in ON: Stays on for approxi-

mately 15 seconds.

●

When the engine switch is turned

off with the parking brake set, the

parking brake indicator light will

stay on for about 15 seconds. This

does not indicate a malfunction.

■

When the parking brake switch

malfunctions

Automatic mode (automatic brake

setting and releasing) will be turned

on automatically.

■

Parking the vehicle



P.169

■

Parking brake engaged warning

buzzer

A buzzer will sound if the vehicle is

driven with the parking brake

engaged. “Parking Brake ON” is dis-

played on the multi-information dis-

play (with the vehicle reaching a

speed of 5 km/h [3 mph]).

■

If the brake system warning

light comes on



P.628

■

Usage in winter time



P.367

WARNING

■

When parking the vehicle

Do not leave a child in the vehicle

alone. The parking brake may be

released unintentionally by a child

and there is the danger of the

vehicle moving that may lead to

an accident resulting in death or

serious injury.

■

Parking brake switch

Do not set any objects near the

parking brake switch. Objects

may interfere with the switch and

may lead the parking brake to

unexpectedly operate.
