2-1. Instrument cluster

*1

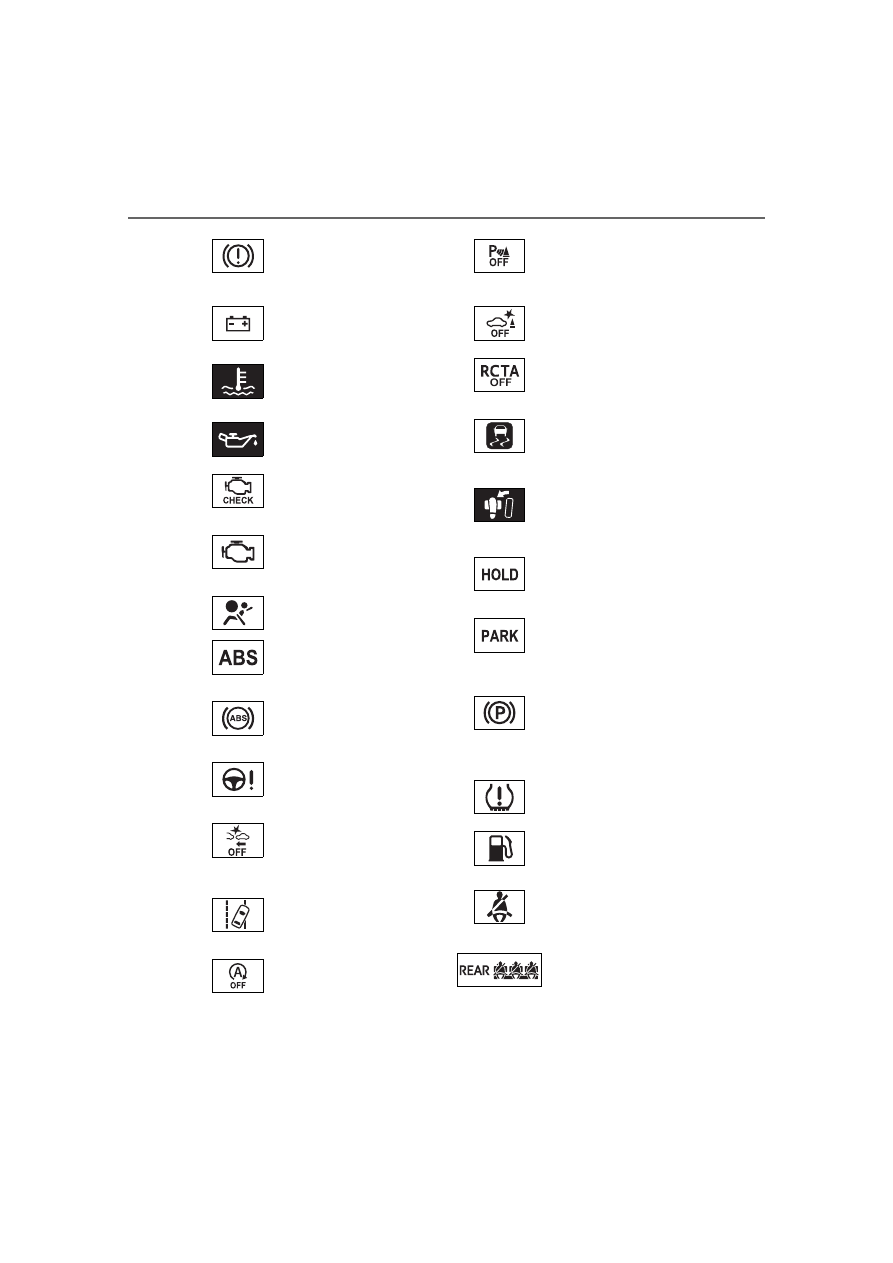

:These lights turn on when the

engine switch is turned to ON to

(Yellow)

Brake system warn-
ing light

*1

 (



P.628)

Charging system
warning light

*1



(



P.628)

High coolant tempera-
ture warning light

*2



(



P.629)

Low engine oil pres-
sure warning light

*2



(



P.629)

(U.S.A.)

Malfunction indicator
lamp

*1

 (



P.629)

(Canada)

Malfunction indicator
lamp

*1

 (



P.629)

SRS warning light

*1



(



P.629)

(U.S.A.)

ABS warning light

*1



(



P.630)

(Canada)

ABS warning light

*1



(



P.630)

(Red/yellow)

Electric power steer-
ing system warning
light

*1

 (



P.630)

(Flashes or

illuminates)

PCS warning light

*1



(



P.630)

(Orange)

LTA indicator
(



P.631)

(Flashes)

Stop & Start cancel
indicator

*1

 (if

equipped) (



P.631)

(Flashes)

Intuitive parking assist
OFF indicator

*3

 (if

equipped) (



P.631)

PKSB OFF indica-
tor

*1

 (if equipped)

(



P.632)

(Flashes)

RCTA OFF indicator

*1



(if equipped) (



P.632)

Slip indicator light

*1



(



P.632)

Brake Override Sys-
tem/Drive-Start Con-
trol/PKSB (if
equipped) warning
light

*2

 (



P.633)

(Flashes)

Brake hold operated
indicator

*1

 (



P.633)

(U.S.A.)

(Flashes)

Parking brake indica-
tor (



P.634)

(Canada)
(Flashes)

Parking brake indica-
tor (



P.634)

Tire pressure warning
light

*1

 (if equipped)

(



P.634)

Low fuel level warn-
ing light (



P.634)

Driver’s and front pas-
senger’s seat belt
reminder light
(



P.635)

Rear passengers’ seat
belt reminder light (if
equipped) (



P.635)

79

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if
the light does not come on, or
turn off. Have the vehicle
inspected by your Toyota dealer.

*2

:This light illuminates on the

multi-information display with a
message.

*3

:Intuitive parking assist OFF indi-

cator turns on when the engine
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

The indicators inform the driver
of the operating state of the
vehicle’s various systems.

WARNING

■

If a safety system warning

light does not come on

Should a safety system light such

as the ABS and SRS warning light

not come on when you start the

engine, this could mean that

these systems are not available to

help protect you in an accident,

which could result in death or seri-

ous injury. Have the vehicle

inspected by your Toyota dealer

immediately if this occurs.

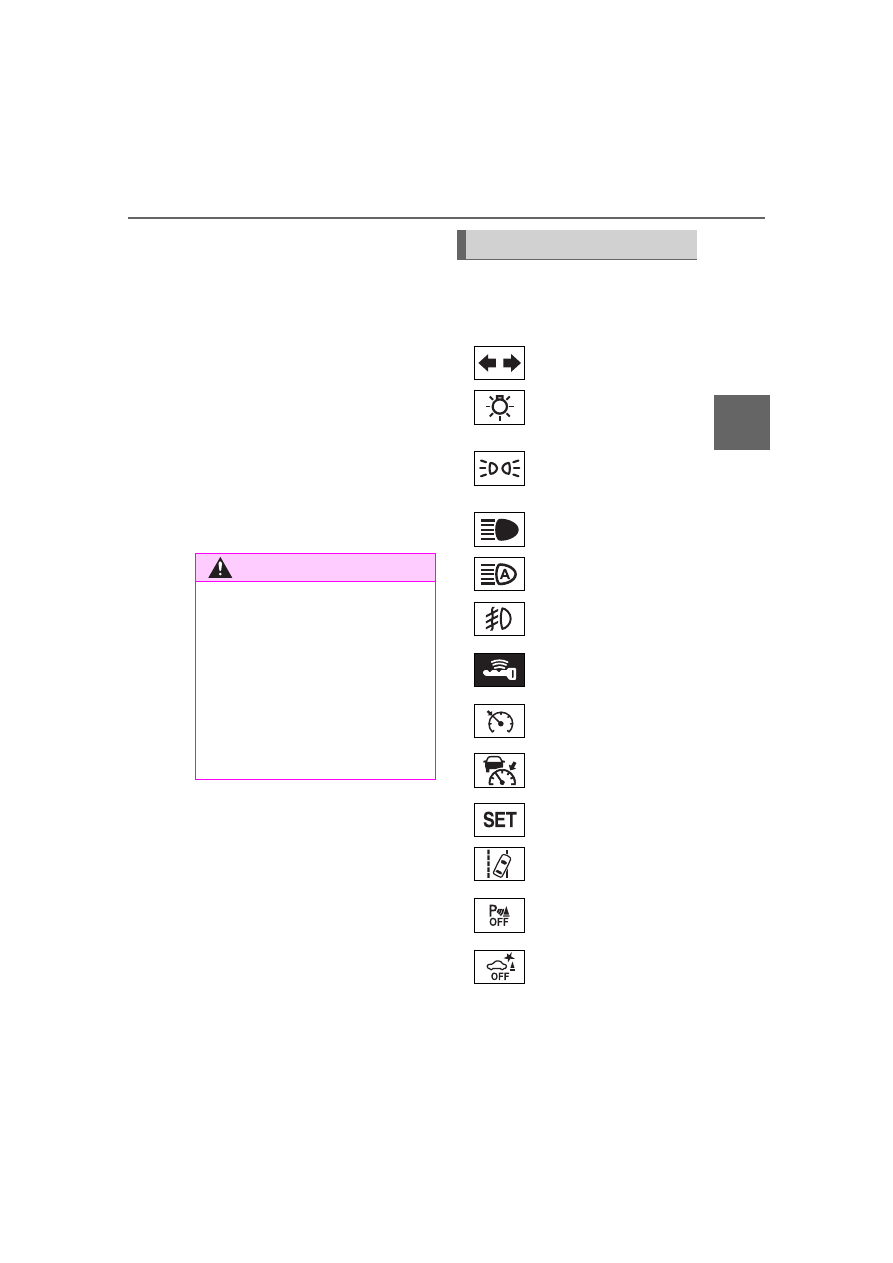

Indicators

Turn signal indicator
(



P.202)

(U.S.A.)

Headlight indicator
(



P.209)

(Canada)

Tail light indicator
(



P.209)

Headlight high beam
indicator (



P.211)

Automatic High Beam
indicator (



P.212)

Fog light indicator (if
equipped) (



P.437)

Smart key system
indicator

*1

 (if

equipped) (



P.194)

Cruise control indica-
tor (



P.250)

Dynamic radar cruise
control indicator
(



P.250)

Cruise control “SET”
indicator (



P.250)

LTA indicator

*2



(



P.242)

Intuitive parking assist
OFF indicator

*3, 4

 (if

equipped) (



P.271)

PKSB OFF indicator

*3, 5



(if equipped) (



P.278)

80

2-1. Instrument cluster

*1

:This light illuminates on the

multi-information display with a
message.

*2

:Depending on the operating con-

ditions of the system, the color
and state (illuminated/blinking) of
the indicator change.

*3

:The light comes on when the

system is turned off.

*4

:Intuitive parking assist OFF indi-

cator turns on when the engine
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.

*5

:These lights turn on when the

engine switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the engine is started, or
after a few seconds. There may
be a malfunction in a system if
the lights do not turn on, or turn
off. Have the vehicle inspected
by your Toyota dealer.

*6

:This light illuminates on the out-

(Flashes)

Slip indicator light

*5



(



P.361)

VSC OFF indicator

*3,

5

 (



P.362)

PCS warning light

*3, 5



(



P.231)

BSM outside rear view
mirror indicators

*5, 6

 (if

equipped) (



P.261)

BSM indicator (if
equipped) (



P.261)

RCTA OFF indicator

*3, 5



(if equipped) (



P.261)

Stop & Start indica-
tor

*5

 (if equipped)

(



P.345)

Stop & Start cancel
indicator

*3, 5

 (if

equipped) (



P.346)

Brake hold standby
indicator

*5

 (



P.206)

Brake hold operated
indicator

*5

 (



P.206)

Security indicator
(



P.70, 73)

Low outside tempera-
ture indicator

*7



(



P.83, 87)

Eco Driving Indicator
Light

*5

 (



P.92)

(U.S.A.)

Parking brake indica-
tor (



P.203)

(Canada)

Parking brake indica-
tor (



P.203)

Eco drive mode indi-
cator (



P.351)

Sport mode indicator
(



P.351)

Mud & sand mode
indicator (if equipped)
(



P.354)

Rock & dirt mode indi-
cator (if equipped)
(



P.354)

Snow mode indicator
(if equipped) (



P.357)

Downhill assist control
system indicator

*5

 (if

equipped) (



P.358)

“AIR BAG ON/OFF”
indicator

*5, 8

 (



P.43)

81

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

side rear view mirrors.

*7

:When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator will flash for
approximately 10 seconds, then
stay on.

*8

:This light illuminates on the cen-

ter panel.

■

BSM (Blind Spot Monitor) out-

side rear view mirror indicators

(if equipped)

In order to confirm operation, the

BSM outside rear view mirror indica-

tors illuminate in the following situa-

tions:

●

When the engine switch is turned

to ON while the BSM function is
enabled on the

 screen of the

multi-information display.

●

When the BSM function is
enabled on the

 screen of the

multi-information display while the

engine switch is in ON.

If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.
If the BSM outside rear view mirror

indicators do not illuminate or do not

turn off, there may be a malfunction

in the system. If this occurs, have

the vehicle inspected by your Toyota

dealer.

82

2-1. Instrument cluster

The units used on the meter and display may differ depending on the target
region.

Tachometer

Displays the engine speed in revolutions per minute

Outside temperature (



P.83)

Clock (



P.84)

Multi-information display

Presents the driver with a variety of driving-related data (



P.89)

Displays warning messages if a malfunction occurs (



P.639)

Speedometer

Displays the vehicle speed

Fuel gauge

Displays the quantity of fuel remaining in the tank

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last

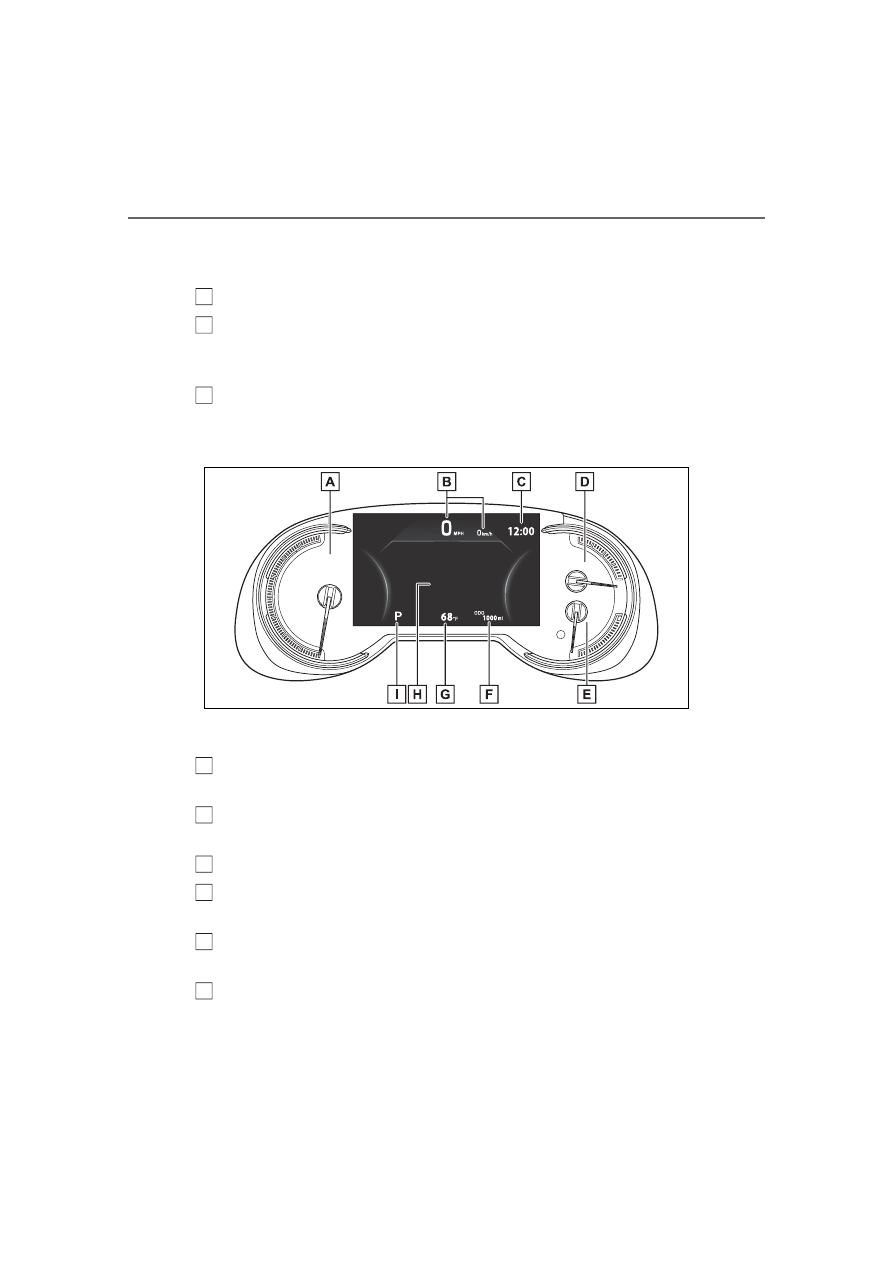

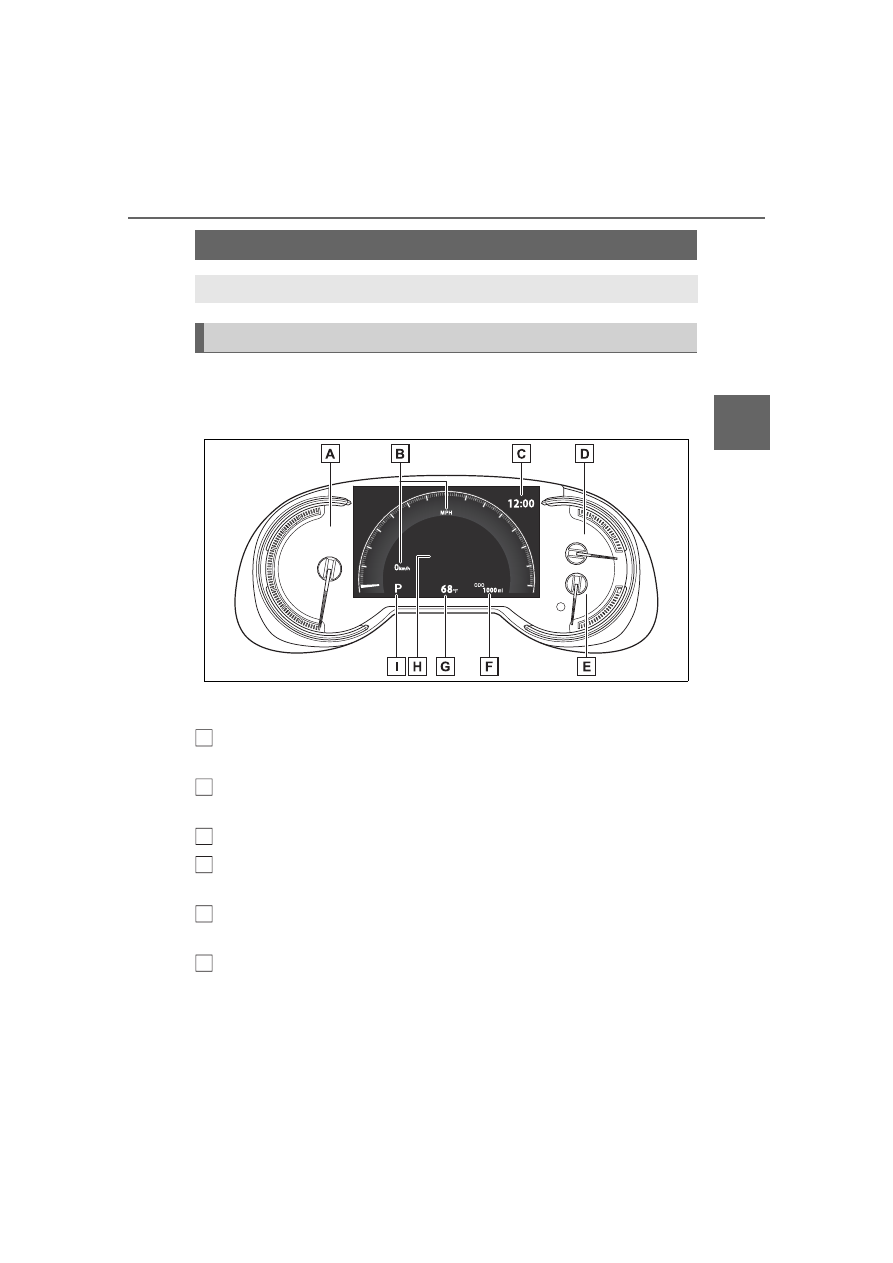

Gauges and meters (with 4.2-inch display)

The meters display various drive information.

Meter display

A

B

C

D

E

F

G

83

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.199)

Engine coolant temperature gauge

Displays the engine coolant temperature

■

The meters and display illumi-

nate when

The engine switch is in ON.

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator

 will flash

for approximately 10 seconds,

then stay on.

■

Liquid crystal display



P.90

H

I

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(“H”). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.659)

84

2-1. Instrument cluster

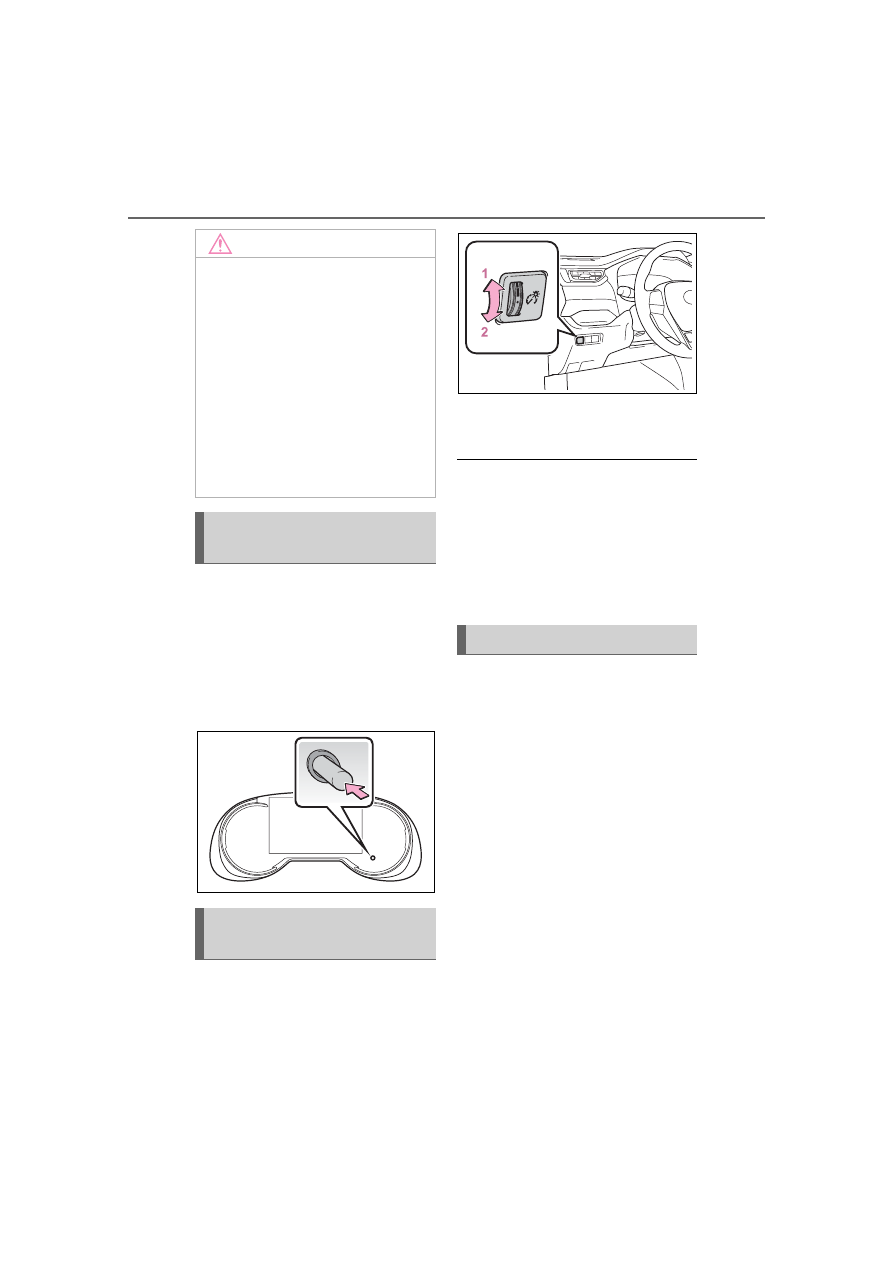

Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”
switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

The brightness of the instrument
panel lights can be adjusted by
turning the dial.

1

Brighter

2

Darker

■

Instrument cluster brightness

adjustment

The instrument cluster brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument cluster brightness.

The clocks can be adjusted on
the audio system screen.



Vehicles with Audio



P.415



Vehicles with Audio Plus or
Premium Audio

Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

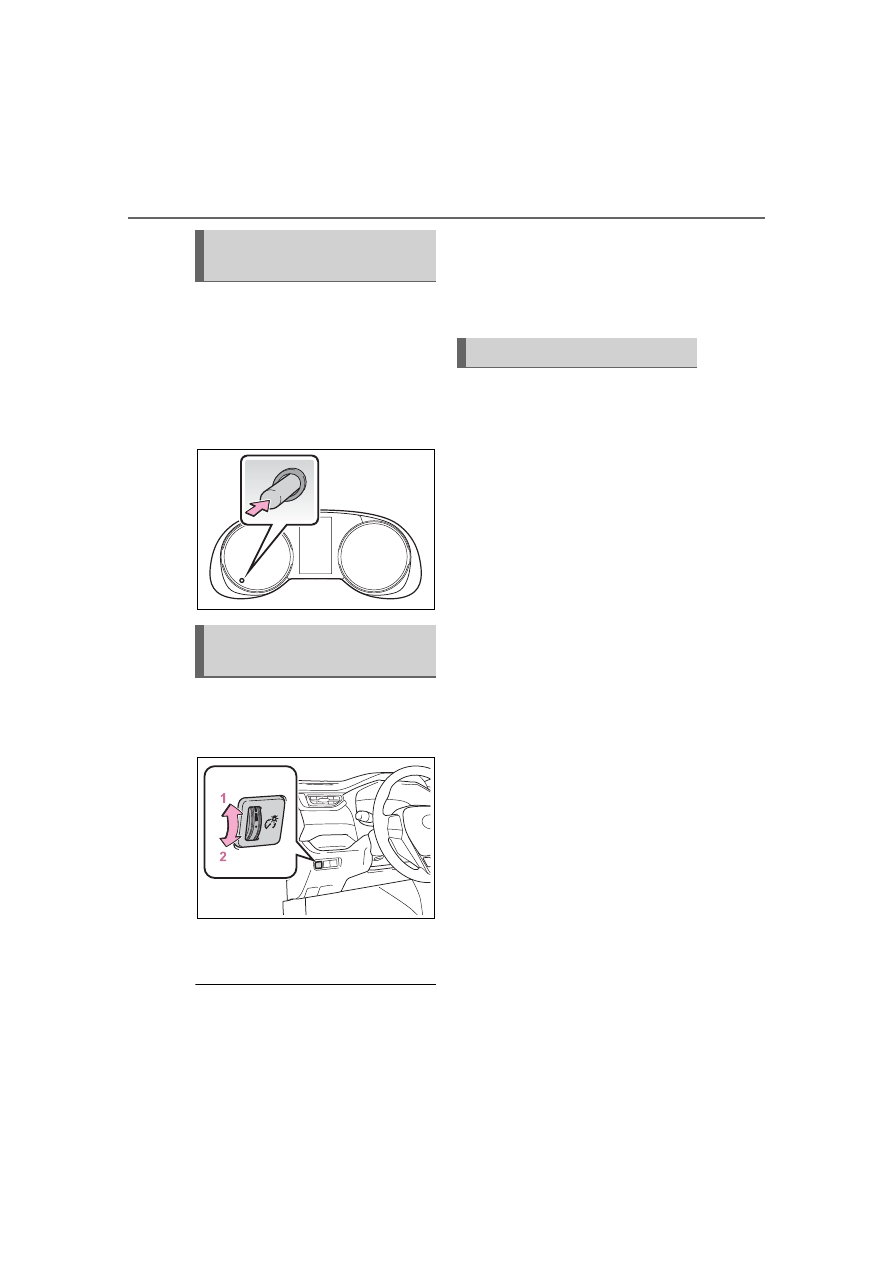

Using the “ODO TRIP”
switch

Instrument panel light
control

Adjusting the clock

85

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

The display of the speedometer can be selected from two types,
analog or digital. (



P.94)



Analog speedometer

The units used on the meter and display may differ depending on the target
region.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Displays the vehicle speed

Clock (



P.88)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven
Trip meter:

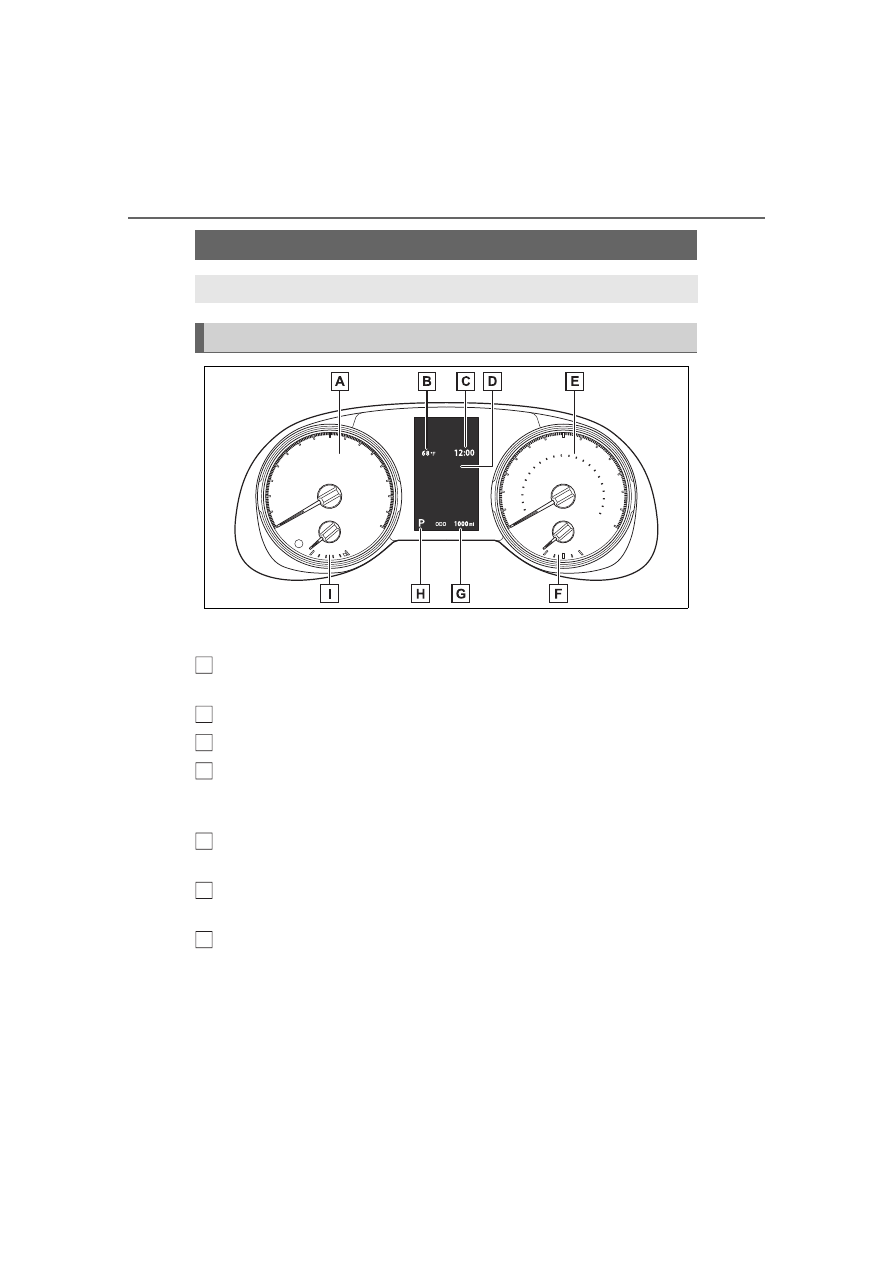

Gauges and meters (with 7-inch display)

The meters display various drive information.

Meter display

A

B

C

D

E

F

86

2-1. Instrument cluster

Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (



P.87)

Multi-information display

Presents the driver with a variety of driving-related data (



P.89)

Displays warning messages if a malfunction occurs (



P.639)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.199)



Digital speedometer

The units used on the meter and display may differ depending on the target
region.

Tachometer

Displays the engine speed in revolutions per minute

Speedometer

Displays the vehicle speed

Clock (



P.88)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter

Odometer:
Displays the total distance that the vehicle has been driven

G

H

I

A

B

C

D

E

F

87

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different
distances independently.

Outside temperature (



P.83)

Multi-information display

Presents the driver with a variety of driving-related data (



P.89)

Displays warning messages if a malfunction occurs (



P.639)

Shift position and shift range indicator

Displays the selected shift position or selected shift range (



P.199)

■

The meters and display illumi-

nate when

The engine switch is in ON.

■

When changing driving mode

●

Speedometer color is changed fol-

lowing the selected driving mode.

(



P.351)

●

AWD models: Speedometer color

is changed following the selected

driving mode or Multi-terrain

Select mode. (



P.351, 353)

■

Outside temperature display

●

In the following situations, the cor-

rect outside temperature may not

be displayed, or the display may

take longer than normal to

change.

• When stopped, or driving at low

speeds (less than 12 mph [20

km/h])

• When the outside temperature

has changed suddenly (at the

entrance/exit of a garage, tunnel,

etc.)

●

When “--” or “E” is displayed, the

system may be malfunctioning.

Take your vehicle to your Toyota

dealer.

●

Displays the outside temperature

within the range of -40°F (-40°C)

to 122°F (50°C).

●

When the outside temperature is

approximately 37°F (3°C) or
lower, the indicator

 will flash

for approximately 10 seconds,

then stay on.

■

Liquid crystal display



P.90

■

Customization

Settings (e. g. meter display) can be
changed on the

 screen of the

multi-information display. (



P.94)

G

H

I

WARNING

■

The information display at

low temperatures

Allow the interior of the vehicle to

warm up before using the liquid

crystal information display. At

extremely low temperatures, the

display monitor may respond

slowly, and display changes may

be delayed.
For example, there is a lag

between the driver’s shifting and

the new gear number appearing

on the display. This lag could

cause the driver to downshift

again, causing rapid and exces-

sive engine braking and possibly

an accident resulting in death or

injury.

88

2-1. Instrument cluster

Switches the items of the odom-
eter, trip meter A and trip meter
B by pressing the “ODO TRIP”
switch.
When the trip meter is dis-
played, pressing and holding the
switch will reset the trip meter.

The brightness of the instrument
panel lights can be adjusted by
turning the dial.

1

Brighter

2

Darker

■

Instrument cluster brightness

adjustment

The instrument cluster brightness

levels when the tail lights are on and

off can be adjusted individually.

However, when the surroundings

are bright (daytime, etc.), turning on

the tail lights will not change the

instrument cluster brightness.

The clocks can be adjusted on
the audio system screen.



Vehicles with Audio



P.415



Vehicles with Audio Plus or
Premium Audio

Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

NOTICE

■

To prevent damage to the

engine and its components

●

Do not let the indicator needle

of the tachometer enter the red

zone, which indicates the maxi-

mum engine speed.

●

The engine may be overheating

if the engine coolant tempera-

ture gauge is in the red zone

(“H”). In this case, immediately

stop the vehicle in a safe place,

and check the engine after it

has cooled completely.

(



P.659)

Using the “ODO TRIP”
switch

Instrument panel light
control

Adjusting the clock

89

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

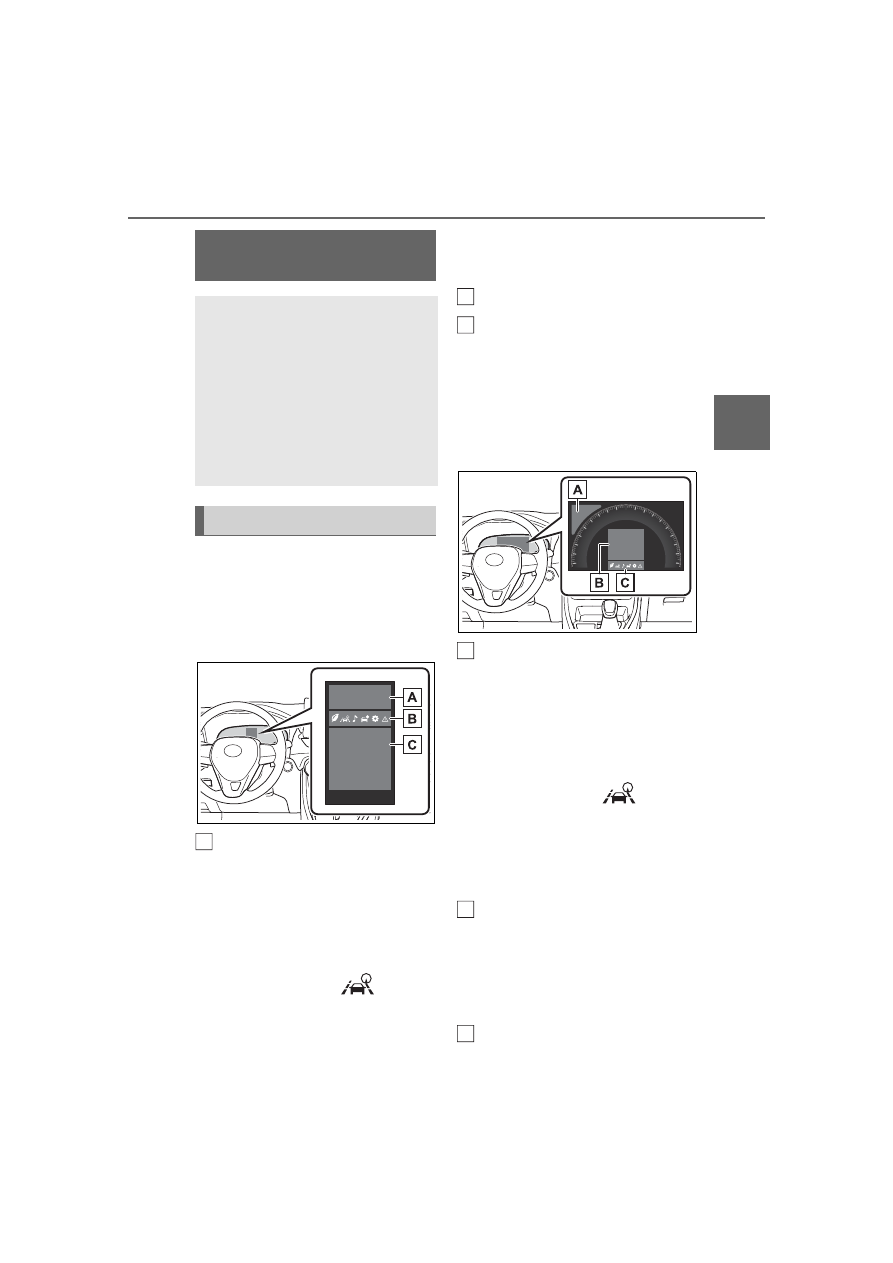

Following information is dis-
played on the multi-information
display.

■

Vehicles with 4.2-inch dis-
play

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (



P.247)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

 is

selected:
• LTA (Lane Tracing Assist)

(



P.237)

• Dynamic radar cruise control with

full-speed range (



P.250)

Menu icons (



P.90)

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

■

Vehicles with 7-inch display

Driving support system infor-
mation

Displays recognized signs while the
RSA system (if equipped) is operat-
ing. (



P.247)

Displays an image when the follow-
ing systems are operating and a
menu icon other than

 is

selected:
• LTA (Lane Tracing Assist)

(



P.237)

• Dynamic radar cruise control with

full-speed range (



P.250)

Information display area

A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be
displayed in some situations.

Menu icons (



P.90)

Multi-information dis-

play

The multi-information dis-
play is used to display fuel
efficiency related informa-
tion and various types of
driving-related information.
The multi-information dis-
play can also be used to
change the display settings
and other settings.

Display contents

A

B

C

A

B

C

90

2-1. Instrument cluster

■

The multi-information display is

displayed when

The engine switch is in ON.

■

When changing driving mode

●

Background color of the multi-

information display is changed fol-

lowing the selected driving mode.

(



P.351)

●

AWD models: Background color of

the multi-information display is

changed following the selected

driving mode or Multi-terrain

Select mode. (



P.351, 353)

■

Liquid crystal display

Small spots or light spots may

appear on the display. This phenom-

enon is characteristic of liquid crys-

tal displays, and there is no problem

continuing to use the display.

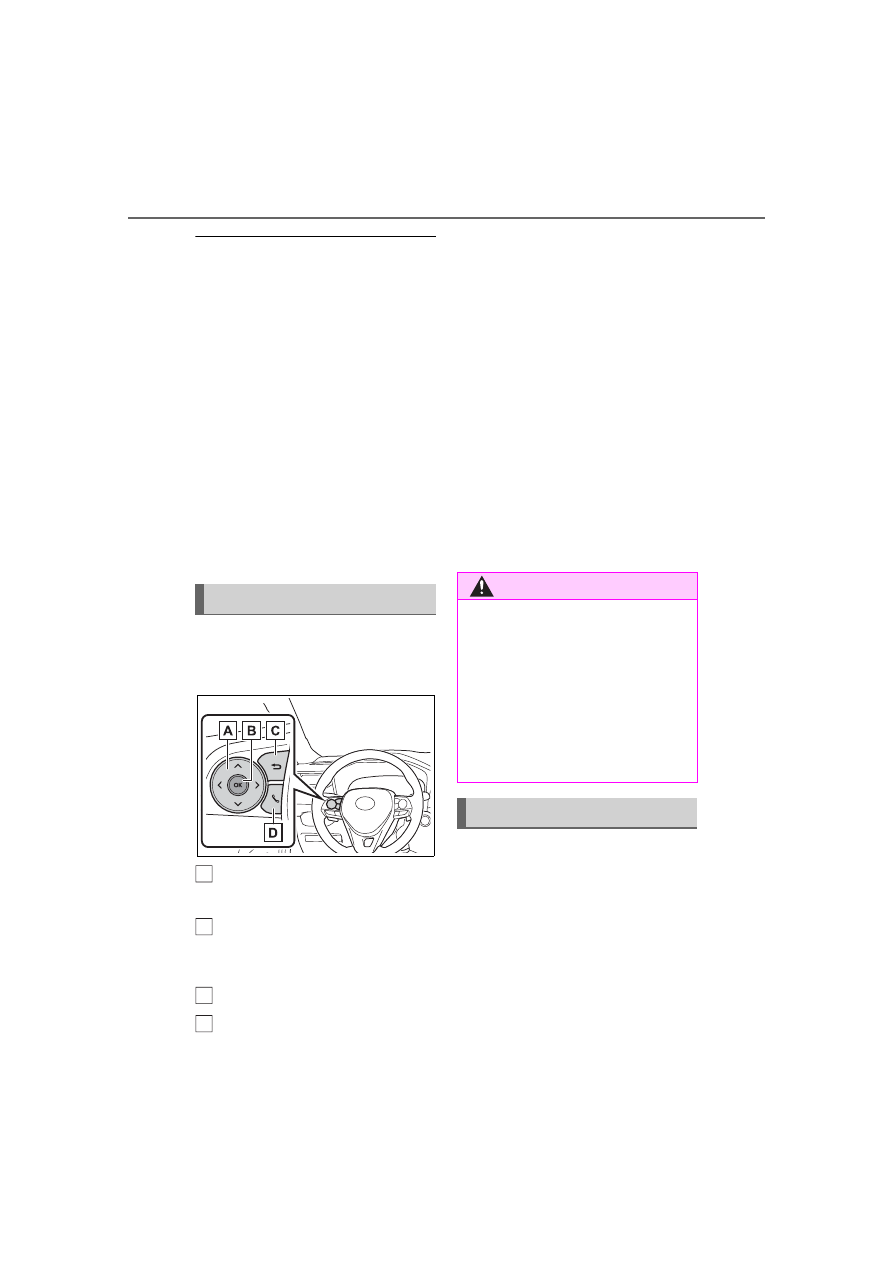

The multi-information display is
operated using the meter control
switches.

Scroll the screen

*

/switch the

display

*

/move the cursor

Press: Enter/Set
Press and hold: Reset/Dis-
play customizable items

Return to the previous screen

Call sending/receiving and

history display (if equipped)
Linked with the hands-free
system, sending or receiving
call is displayed. For details
regarding the hands-free sys-
tem, refer to P.465 (vehicles
with Audio) or “NAVIGATION
AND MULTIMEDIA SYS-
TEM OWNER’S MANUAL”
(vehicles with Audio Plus or
Premium Audio).

*

: On screens where the screen can

be scrolled and the display can
be switched, a scroll bar or a
round icon that shows the num-
ber of registered screens is dis-
played.

Information related to each icon
can be displayed by selecting
the icon with the meter control
switches.

Some of the information may be
displayed automatically depending
on the situation.

Changing the display

A

B

C

D

WARNING

■

Caution for use while driving

For safety, avoid operating the

meter control switch while driving

as much as possible, and do not

look continuously at the multi-

information display while driving.

Stop the vehicle and operate the

meter control switch. Failure to do

so may cause a steering wheel

operation error, resulting in an

unexpected accident.

Menu icons

91

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

Select to display fuel consump-
tion data in various forms.

■

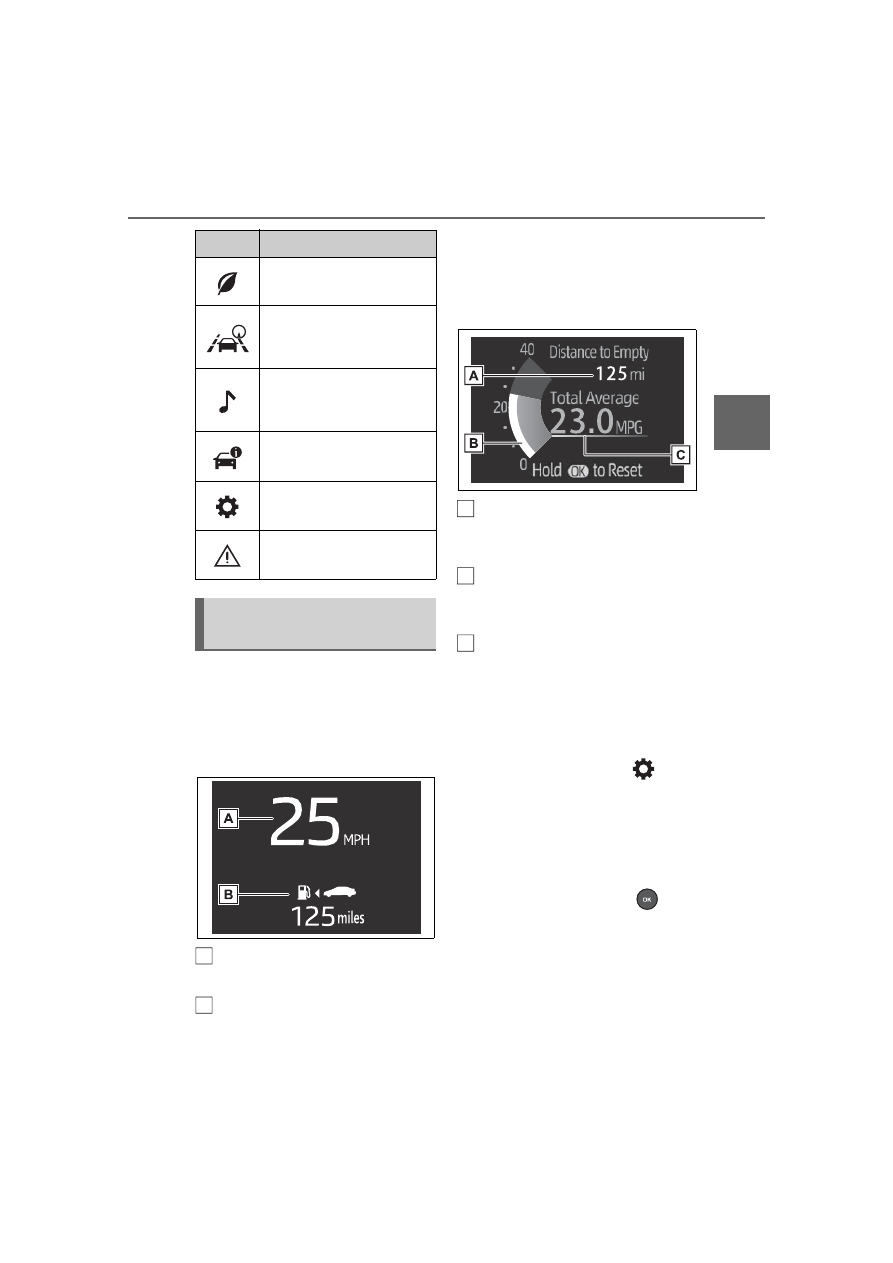

Speedometer display/Dis-
tance to empty (4.2-inch
display)

Speedometer display

Displays the vehicle speed.

Distance to empty

Displays the driving range with

remaining fuel. (



P.92)

■

Fuel Economy

Following information is dis-
played.

Distance to empty

Displays the driving range with
remaining fuel. (



P.92)

Current fuel economy

Displays the instantaneous current
fuel Economy.

Average fuel economy

Displays the average fuel economy
since the function was reset or the
average fuel economy after starting
or refueling.

*1, 2,3

The average fuel economy selected
by “Fuel Economy” on the



screen is displayed. (



P.94)

*1

:Use the displayed fuel consump-

tion as a reference only.

*2

:Average fuel economy since the

function was reset can be reset
by pressing and holding

.

*3

:Average fuel economy after

starting is reset each time the
engine stops.

Icon

Display

Driving information dis-
play (



P.91)

Driving support system
information display
(



P.93)

Audio system-linked dis-
play (if equipped)
(



P.93)

Vehicle information dis-
play (



P.93)

Settings display (



P.94)

Warning message dis-
play (



P.98)

Driving information dis-
play

A

B

A

B

C

92

2-1. Instrument cluster

■

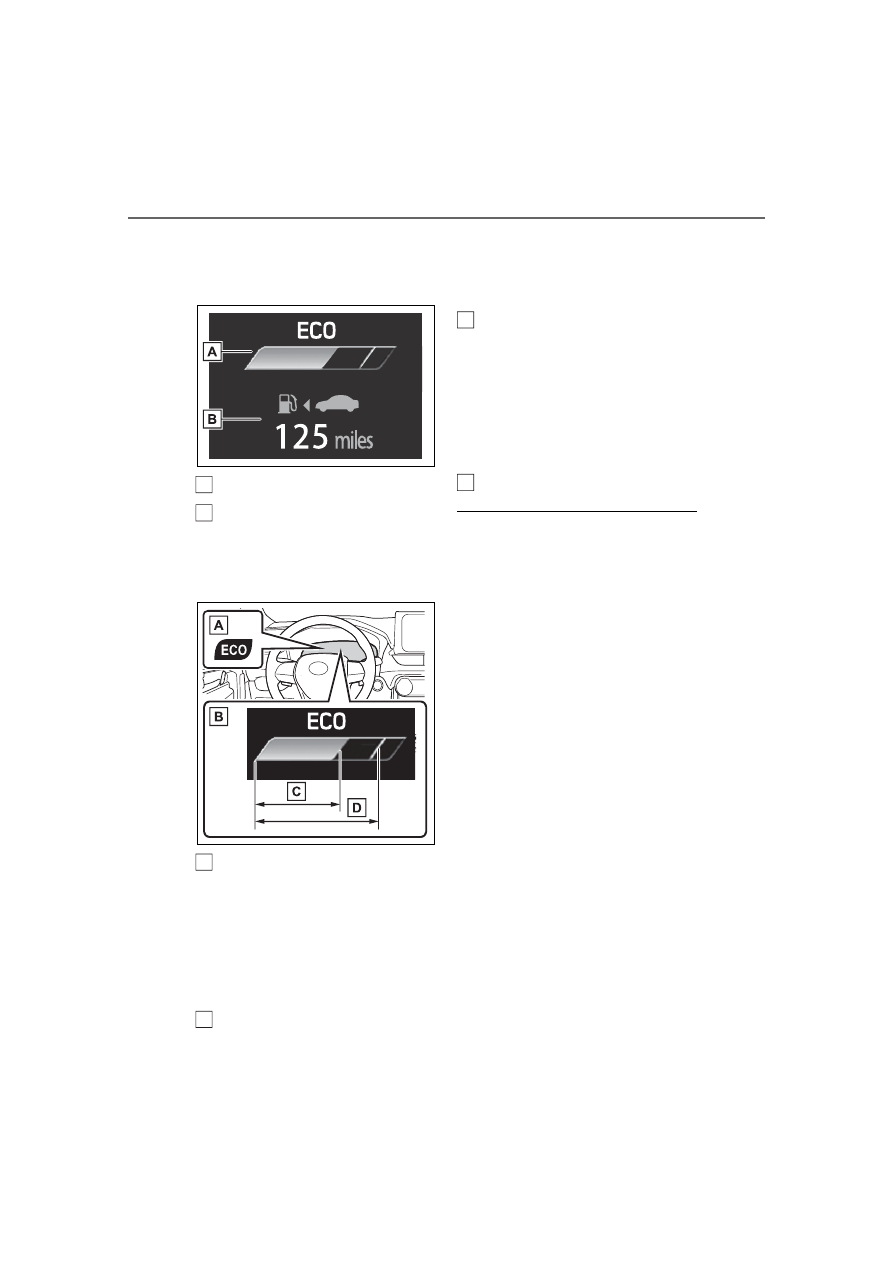

Eco Driving Indicator/Dis-
tance to empty



Display contents

Eco Driving Indicator

Distance to empty

Displays the driving range with
remaining fuel. (



P.92)



Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration
operation (Eco driving), the Eco
Driving Indicator Light will turn on.
When the acceleration exceeds
Zone of Eco driving, or when the
vehicle is stopped, the light turns
off.

Eco Driving Indicator Zone

Display

Suggests the Zone of Eco driving
with current Eco driving ratio based
on acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display will
illuminate.
At this time, the Eco Driving Indica-
tor Light will turn off.

Zone of Eco driving

■

Distance to empty

●

This distance is computed based

on your average fuel consump-

tion. As a result, the actual dis-

tance that can be driven may differ

from that displayed.

●

When only a small amount of fuel

is added to the tank, the display

may not be updated. When refuel-

ing, turn the engine switch off. If

the vehicle is refueled without

turning the engine switch off, the

display may not be updated.

●

When “Refuel” is displayed, the

remaining fuel amount is low and

the distance that can be driven

with the remaining fuel cannot be

calculated.

Refuel immediately.

■

The ECO Driving indicator will

not operate when

Eco Driving Indicator will not oper-

ate in the following conditions:

●

The shift lever is in any position

other than D.

●

Neither normal mode nor Eco

drive mode is selected.

●

The vehicle speed is approxi-

mately 80 mph (130 km/h) or

higher.

A

B

A

B

C

D

93

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

■

Driving support system
information display

Select to display the operational
status of the following systems:



LTA (Lane Tracing Assist)
(



P.237)



Dynamic radar cruise control
with full-speed range
(



P.250)

■

Navigation system-linked
display (if equipped)

Select to display the following
navigation system-linked infor-
mation.



Route guidance



Compass display (north-up
display/heading-up display)

Select to enable selection of an
audio source or track on the dis-
play.

■

Drive information

2 items that are selected using
the “Drive Info Items” setting
(average speed, distance and
total time) can be displayed ver-
tically.
The displayed information

changes according to the “Drive
Info Type” setting (since the sys-
tem was started or between
resets). (



P.94)

Use the displayed information as a
reference only.
Following items will be displayed.



“Trip”

• “Average Speed”: Displays the

average vehicle speed since
engine start

*

• “Distance”: Displays the distance

driven since engine start

*

• “Total Time”: Displays the elapsed

time since engine start

*

*

: These items are reset each time

the engine stops.



“Total”

• “Average Speed”: Displays the

average vehicle speed since the
display was reset

*

• “Distance”: Displays the distance

driven since the display was
reset

*

• “Total Time”: Displays the elapsed

time since the display was reset

*

*

: To reset, display the desired item

and press and hold

.

Driving support system
information display

Audio system-linked dis-
play (if equipped)

Vehicle information dis-
play

94

2-1. Instrument cluster

■

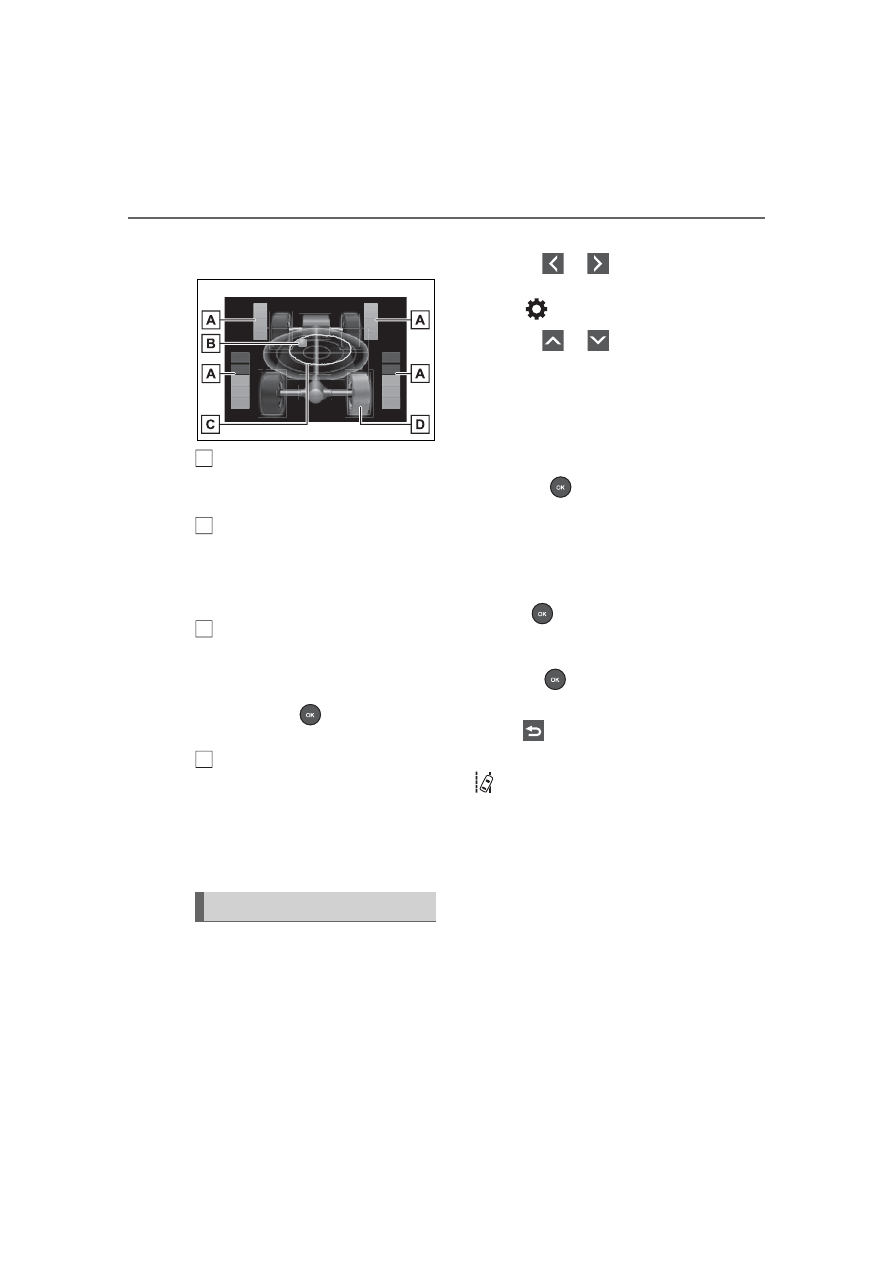

AWD system display (AWD
models)

Torque distribution display

Displays the drive status of each
wheel in 6 steps from 0 to 5.

G-force display

*

Displays the size and direction of
the G-force applied to the vehicle
via changes to the position of the
ball on the display.

Maximum G-force course

*

This item is linked with the G-force
display and the course of the past
movement of the ball is displayed.

Press and hold

 to reset the

record.

Wheel spin display

When a tire is spinning, its icon on
the display changes its color and
blinks.

*

: This item is displayed only when

driving mode is set to sport mode.

Vehicle settings and the content
displayed on the screen can be
changed by using the meter
control switches.

■

Setting procedure

1

Operate

 or

 of the

meter control switches and
select

.

2

Operate

 or

 of the

meter control switches and
select the desired item.

• If the function is turned on and

off or the volume, etc. is
changed on the setting
screen, the setting is changed
each time

 is pressed.

• For functions that allow oper-

ation contents, display con-
tents, etc., of function to be
selected, the setting screen is
displayed by pressing and
holding

. When the setting

screen is displayed, select the
setting or desired value (time,
etc.) with

.

3

After changing the settings,
press

 of the meter control

switches.

■

 LTA (Lane Tracing

Assist) (



P.237)

Select to set up the following
items.



“Lane Center”

Select to enable/disable the lane
centering function.



“Steering Assist”

Select to enable/disable steering
wheel assistance.



“Sensitivity”

Settings display

A

B

C

D

95

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

Select to set the lane departure
alert sensitivity.



“Sway Warning”

Select to enable/disable the vehicle
sway warning.



“Sway Sensitivity”

Select to set the vehicle sway warn-
ing sensitivity.

■

 PCS (Pre-Collision Sys-

tem) (



P.229)

Select to set up the following
items.



PCS on/off

Select to enable/disable the pre-
collision system.



“Sensitivity”

Select to change the pre-collision
warning timing.

■

 BSM (Blind Spot Moni-

tor) (if equipped) (



P.260)

Select to set up the following
items.



BSM (Blind Spot Monitor)
on/off

Select to enable/disable the BSM
system.



“Brightness”

Select to switch the brightness of
the outside rear view mirror indica-
tors. (



P.261)



“Sensitivity”

Select to change the alert timing for
an approaching vehicle.

■

 (Intuitive parking

assist) (if equipped)
(



P.270)

Select to set up the following
items.



Intuitive parking assist on/off

Select to enable/disable the Intui-
tive parking assist.



“Volume”

Select to set the volume of the
buzzer which sounds when the
Intuitive parking assist is operated.

■

RCTA (Rear Cross Traffic
Alert) (if equipped) (



P.260)



RCTA (Rear Cross Traffic
Alert) on/off

Select to enable/disable the RCTA
system.



“Volume”

Select to change the RCTA buzzer
volume.

■

 PKSB (Parking Sup-

port Brake System) (if
equipped) (



P.277)

Select to enable/disable the
Parking Support Brake function.

■

 RSA (Road Sign

Assist) (if equipped)
(



P.247)

Select to set up the following
items.



Road Sign Assist on/off

Select to enable/disable the RSA
system.



“Notification method”

96

2-1. Instrument cluster

Select to change each notification
method used to warn the driver
when the system recognizes
excess speed, no overtaking and
no-entry sign.



“Notification Level”

Select to change each notification
level used to warn the driver when
the system recognizes a speed limit
sign.

■

 Vehicle Settings



 PBD (Power Back Door)

(if equipped) (



P.118)

Select to set up the following items.
• System settings
Select to enable/disable the power
back door system.

• “Kick Sensor”

*

Select to enable/disable the kick
sensor.
• “Opening Adjustment”
Select the open position when
power back door is fully open.
• “Volume”
Select to set the volume of the
buzzer which sounds when the
power back door system operates.

*

: Vehicles with hands free power

back door



 (Stop & Start system) (if

equipped) (



P.345)

Select to set the length of time the
Stop & Start system will operate
when the “A/C” switch of the air
conditioning system is on.



“TPWS” (Tire Pressure Warn-
ing System) (if equipped)

(



P.584)

• “Set Pressure”
Select to initialize the tire pressure
warning system.
• “Change Wheel” (except for mod-

els made in Japan

*

 without tire

inflation pressure display func-
tion)

Select to register the ID codes of
the tire pressure sensors to the tire
pressure warning system.
• “Change Wheel” (for models

made in Japan

*

 without tire infla-

tion pressure display function)

Select to change the tire pressure
warning system sensor ID code set.
To enable this function, a second
set of tire pressure warning system
sensor ID codes must be registered
by a Toyota dealer. For information
regarding changing the registered
ID code set, contact your Toyota
dealer.

*

: The country of production is writ-

ten on the Certification Regula-
tion label. (



P.665)



“Scheduled Maintenance”
(



P.565)

Select to reset the scheduled main-
tenance information (message indi-
cating maintenance is required and
distance until the next mainte-
nance) after all maintenance is per-
formed.

■

 Settings



“Language”

Select to change the language on
the multi-information display.



“Units”

97

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

Select to change the units of mea-
sure displayed.



“Meter Type” (7-inch display)

Select to change the speedometer
display.



 (Eco Driving Indicator

Light) (



P.92)

Select to activate/deactivate the
Eco Driving Indicator Light.



 (Driving information dis-

play settings)

Select to change the display on
Fuel Economy (



P.91).



 (Audio settings) (if

equipped)

Select to enable/disable



screen.



 (Vehicle information dis-

play settings)

• “Display Contents”
Select to enable/disable the AWD
system display (



P.94). (AWD

models)
• “Drive Info Type”
Select to change the drive informa-
tion type display between trip and
total. (



P.93).

• “Drive Info Items”
Select to set the items on the upper
and lower side of the drive informa-
tion screen. from three items, aver-
age speed, distance and total time.



“Pop-Up Display”

Select to enable/disable the follow-
ing pop-up displays, which may
appear in some situations.

• Intersection guidance display of

the navigation system-linked sys-
tem (if equipped)

• Incoming call display of the

hands-free phone system (if
equipped)

• Audio operation (if equipped)
• Volume operation (if equipped)
• Voice control (if equipped)
• Stop & Start system duration (if

equipped)

• Stop & Start system status (if

equipped)



“MID OFF”

A blank screen is displayed



“Default Settings”

Select to reset the meter display
settings.

■

Suspension of the settings dis-

play

●

In the following situations, opera-

tion of the settings display will be

temporarily suspended.

• When a warning message

appears on the multi-information

display

• When the vehicle begins to move

●

Settings for functions not

equipped to the vehicle are not

displayed.

●

When a function is turned off, the

related settings for that function

are not selectable.

98

2-1. Instrument cluster

Select to display warning mes-
sages and measures to be
taken if a malfunction is
detected. (



P.639)

Displays suggestions to the
driver in the following situations.
To select a response to a dis-
played suggestion, use the
meter control switches.

■

Suggestion to turn on the
headlights

If the headlight switch is in other
than

 or

, and the vehicle

speed is 3 mph (5 km/h) or
higher for a certain amount of
time when the surroundings are

dark, a suggestion message will
be displayed.

■

Suggestion to turn off the
headlights

If the headlights are left on for a
certain amount of time after the
engine switch has been turned
off, a suggestion message will
be displayed.
When the headlight switch is in
the AUTO position: The mes-
sage asking if you wish to turn
the headlights off is displayed.
To turn the headlights off, select
“Yes”.

If the driver’s door is opened after
the engine switch is turned off, this
suggestion message will not be dis-
played.

■

Customization

The suggestion function can be

turned on/off. (Customizable fea-

tures:



P.689)

WARNING

■

Cautions during setting up

the display

As the engine needs to be run-

ning during setting up the display,

ensure that the vehicle is parked

in a place with adequate ventila-

tion. In a closed area such as a

garage, exhaust gases including

harmful carbon monoxide (CO)

may collect and enter the vehicle.

This may lead to death or a seri-

ous health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge,

ensure that the engine is running

while setting up the display fea-

tures.

Warning message display

Suggestion function

99

2-1. Instrument cluster

2

Vehicle

 statu

s information an

d in
dicator

s

Audio system screen

■

Trip information



Audio or Audio Plus (vehicles
without Data Communication
Module)

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

If the “History” screen is displayed,

select “Trip information”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “ECO” on the “Infor-
mation” screen.

If the “History” screen is displayed,

select “Trip information”.
The image is an example only, and

may vary slightly from actual condi-

tions.

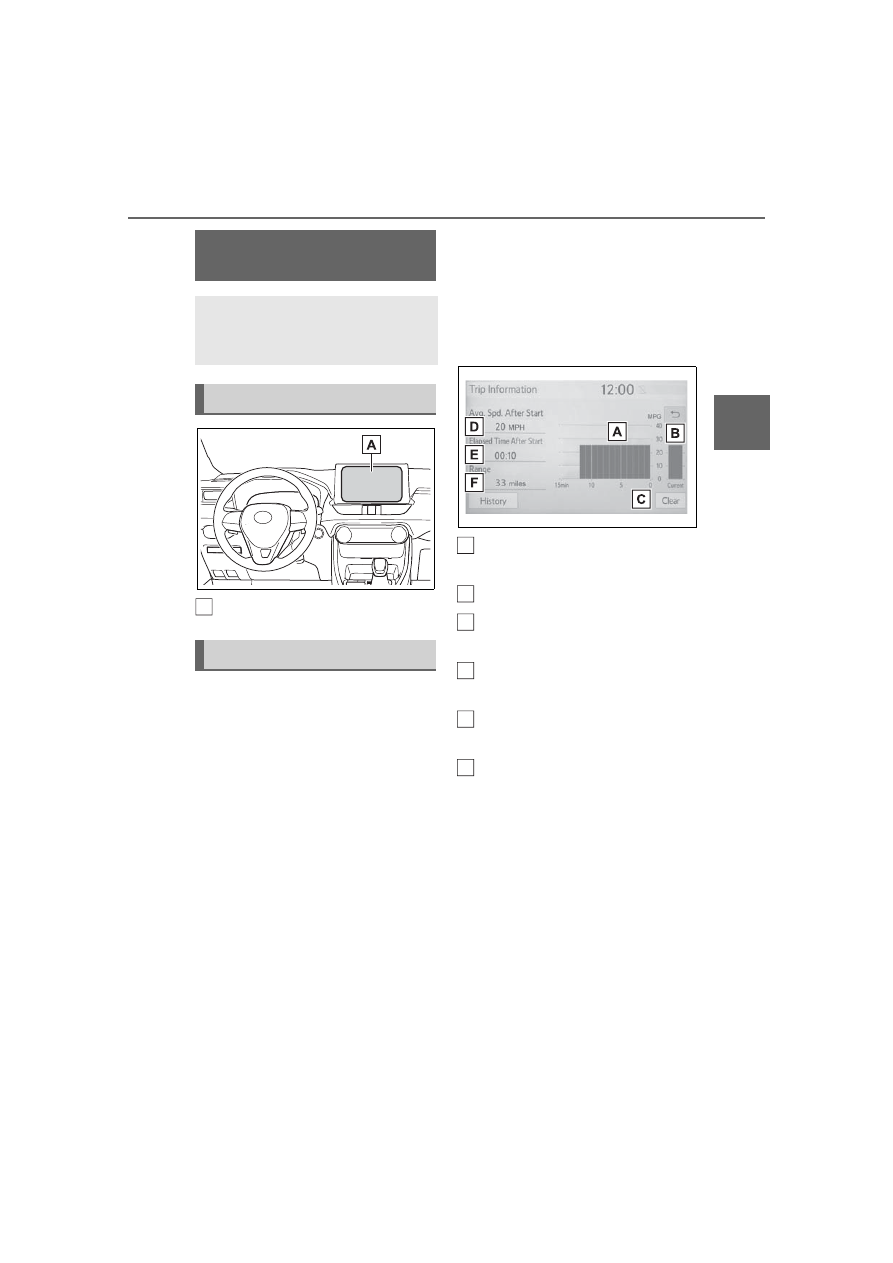

Fuel consumption in the past
15 minutes

Current fuel consumption

Resetting the consumption
data

Average vehicle speed since
the engine was started

Elapsed time since the
engine was started

Cruising range (



P.100)

Average fuel consumption for
the past 15 minutes is divided
by color into past averages and
averages attained since the
engine switch was last turned to
ON. Use the displayed average
fuel consumption as a refer-
ence.

Fuel consumption

information

The fuel consumption infor-
mation can be displayed on
the audio system screen.

System components

Consumption

A

A

B

C

D

E

F

100

2-1. Instrument cluster

■

History



Audio or Audio Plus (vehicles
without Data Communication
Module)

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

If the “Trip Information” screen is
displayed, select “History”.



Audio or Audio Plus (vehicles
with Data Communication
Module)/Premium Audio

1

Press the “MENU” button.

2

Select “Info” on the “Menu”
screen.

3

Select “ECO” on the “Infor-
mation” screen.

If the “Trip Information” screen is

displayed, select “History”.
The image is an example only, and

may vary slightly from actual condi-

tions.

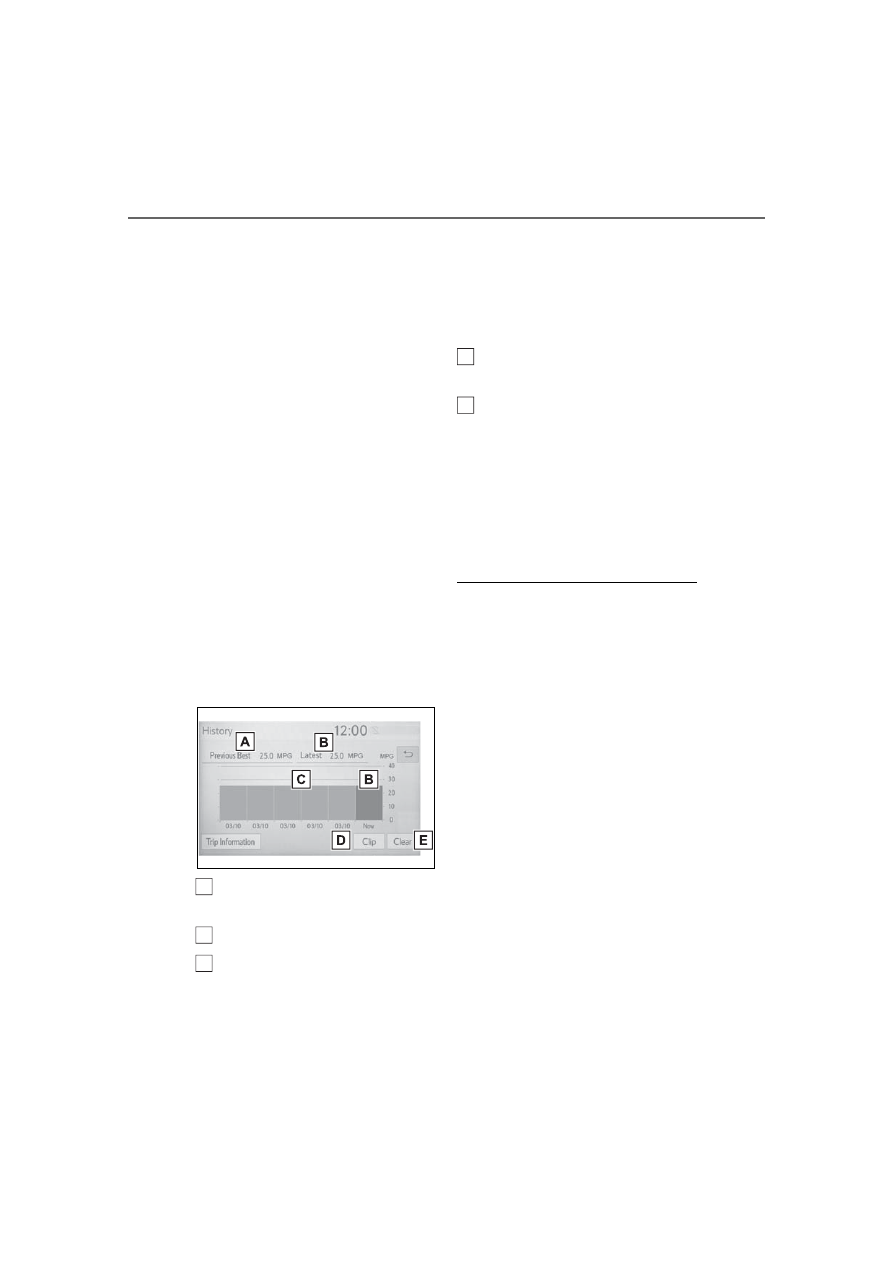

Best recorded fuel consump-
tion

Latest fuel consumption

Previous fuel consumption
record

• Audio and Audio Plus:
Displays the daily average fuel con-

sumption. (Instead of the date, “Trip
1” through “Trip 5” will be dis-
played.)
• Premium Audio:
Displays the daily average fuel con-
sumption.

Updating the latest fuel con-
sumption data

Resetting the history data

The average fuel consumption
history is divided by color into
past averages and the average
fuel consumption since the last
time updated. Use the displayed
average fuel consumption as a
reference.

■

Updating the history data

Update the average fuel consump-

tion by selecting “Clip” to measure

the current fuel consumption again.

■

Resetting the data

The fuel consumption data can be

deleted by selecting “Clear”.

■

Cruising range

Displays the estimated maximum

distance that can be driven with the

quantity of fuel remaining.
This distance is computed based on

your average fuel consumption. As

a result, the actual distance that can

be driven may differ from that dis-

played.

A

B

C

D

E

101

3

3

Before

driving

Before driving

3-1. Key information

Keys ............................

102

3-2. Opening, closing and

locking the doors

Side doors...................

108

Back door....................

114

Smart key system .......

128

3-3. Adjusting the seats

Front seats ..................

134

Rear seats...................

135

Driving position memory

..................................

137

Head restraints............

140

3-4. Adjusting the steering

wheel and mirrors

Steering wheel ............

142

Inside rear view mirror

143

Digital Rear-view Mirror

145

Outside rear view mirrors

..................................

154

3-5. Opening, closing the win-

dows and moon roof

Power windows ...........

156

Moon roof....................

159

Panoramic moon roof..

162

102

3-1. Key information

3-1.Key information

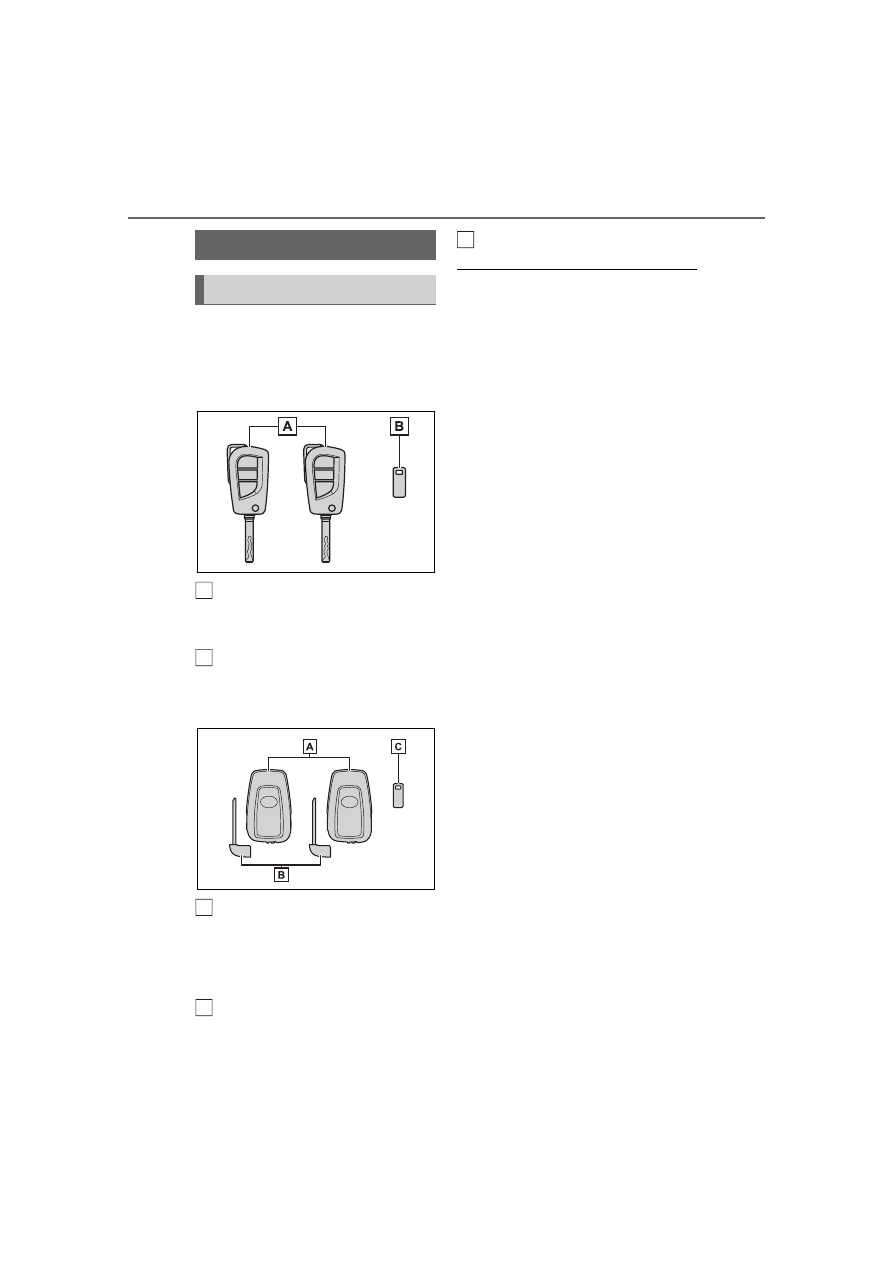

The following keys are provided
with the vehicle.



Vehicles without smart key
system

Master keys

Operating the wireless remote con-
trol function (



P.104)

Key number plate



Vehicles with smart key sys-
tem

Electronic keys

• Operating the smart key system

(



P.128)

• Operating the wireless remote

control function (



P.104)

Mechanical keys

Key number plate

■

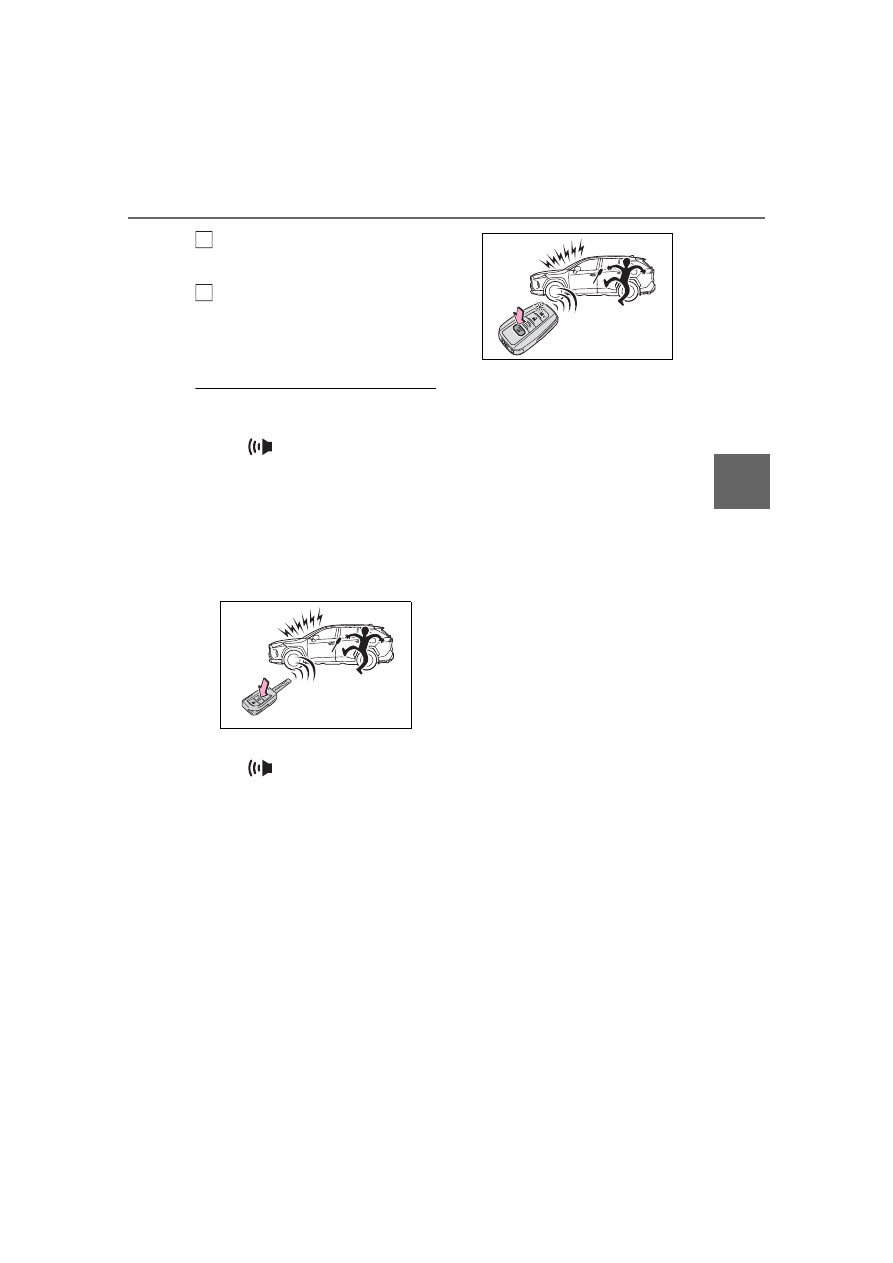

When riding in an aircraft

When bringing a key with wireless

remote control function onto an air-

craft, make sure you do not press

any buttons on the key while inside

the aircraft cabin. If you are carrying

the key in your bag etc., ensure that

the buttons are not likely to be

pressed accidentally. Pressing a

button may cause the key to emit

radio waves that could interfere with

the operation of the aircraft.

■

Key battery depletion



Vehicles without smart key system

●

The standard battery life is 1 to 2

years.

●

The battery will become depleted

even if the wireless key is not

used. The following symptoms

indicate that the wireless key bat-

tery may be depleted. Replace the

battery when necessary. (



P.604)

• The wireless remote control does

not operate.

• The detection area becomes

smaller.



Vehicles with smart key system

●

The standard battery life is 1 to 2

years.

●

If the battery becomes low, an

alarm will sound in the cabin and a

message will be displayed on the

multi-information display when the

engine stops.

●

To reduce key battery depletion

when the electronic key is to not

be used for long periods of time,

set the electronic key to the bat-

tery-saving mode. (



P.129)

●

As the electronic key always

receives radio waves, the battery

will become depleted even if the

electronic key is not used. The fol-

lowing symptoms indicate that the

electronic key battery may be

depleted. Replace the battery

when necessary.

Keys

Key types

A

B

A

B

C

103

3-1. Key information

3

Before

driving

• The smart key system or the wire-

less remote control does not oper-

ate.

• The detection area becomes

smaller.

• The LED indicator on the key sur-

face does not turn on.

You can replace the battery by your-
self (



P.604). However, as there is

a danger that the electronic key may
be damaged, it is recommended
that replacement is carried out by
your Toyota dealer.

●

To avoid serious deterioration, do

not leave the electronic key within

3 ft. (1 m) of the following electri-

cal appliances that produce a

magnetic field:

• TVs

• Personal computers

• Cellular phones, cordless phones

and battery chargers

• Table lamps

• Induction cookers

■

If a message regarding the state

of the electronic key or engine

switch mode, etc. is shown

(vehicles with smart key sys-

tem)

To prevent trapping the electronic

key inside the vehicle, leaving the

vehicle carrying the electronic key

on your person without turning the

engine switch to OFF or other pas-

sengers from unintentionally taking

the key out of the vehicle, etc., a

message that prompts the user to

confirm the state of the electronic

key or engine switch mode may be

shown on the multi-information dis-

play. In those cases, follow the

instructions on the display immedi-

ately.

■

If “Key Battery Low Replace

Key Battery” is displayed on

the multi-information display

(vehicles with smart key sys-

tem)

The electronic key has a low battery.

Replace the electronic key battery.

(



P.604)

■

Replacing the battery



P.604

■

Confirmation of the registered

key number

The number of keys already regis-

tered to the vehicle can be con-

firmed. Ask your Toyota dealer for

details.

■

If “A New Key has been Regis-

tered Contact Your Dealer for

Details” is displayed on the

multi-information display (vehi-

cles with smart key system)

This message will be displayed

each time the driver’s door is

opened when the doors are

unlocked from the outside for

approximately 10 days after a new

electronic key has been registered.

If this message is displayed but you

have not had a new electronic key

registered, ask your Toyota dealer to

check if an unknown electronic key

(other than those in your posses-

sion) has been registered.

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject

them to strong shocks or bend

them.

●

Do not expose the keys to high

temperatures for long periods of

time.

●

Do not get the keys wet or wash

them in an ultrasonic washer,

etc.

●

Do not attach metallic or mag-

netic materials to the keys or

place the keys close to such

materials.

●

Do not disassemble the keys.

104

3-1. Key information

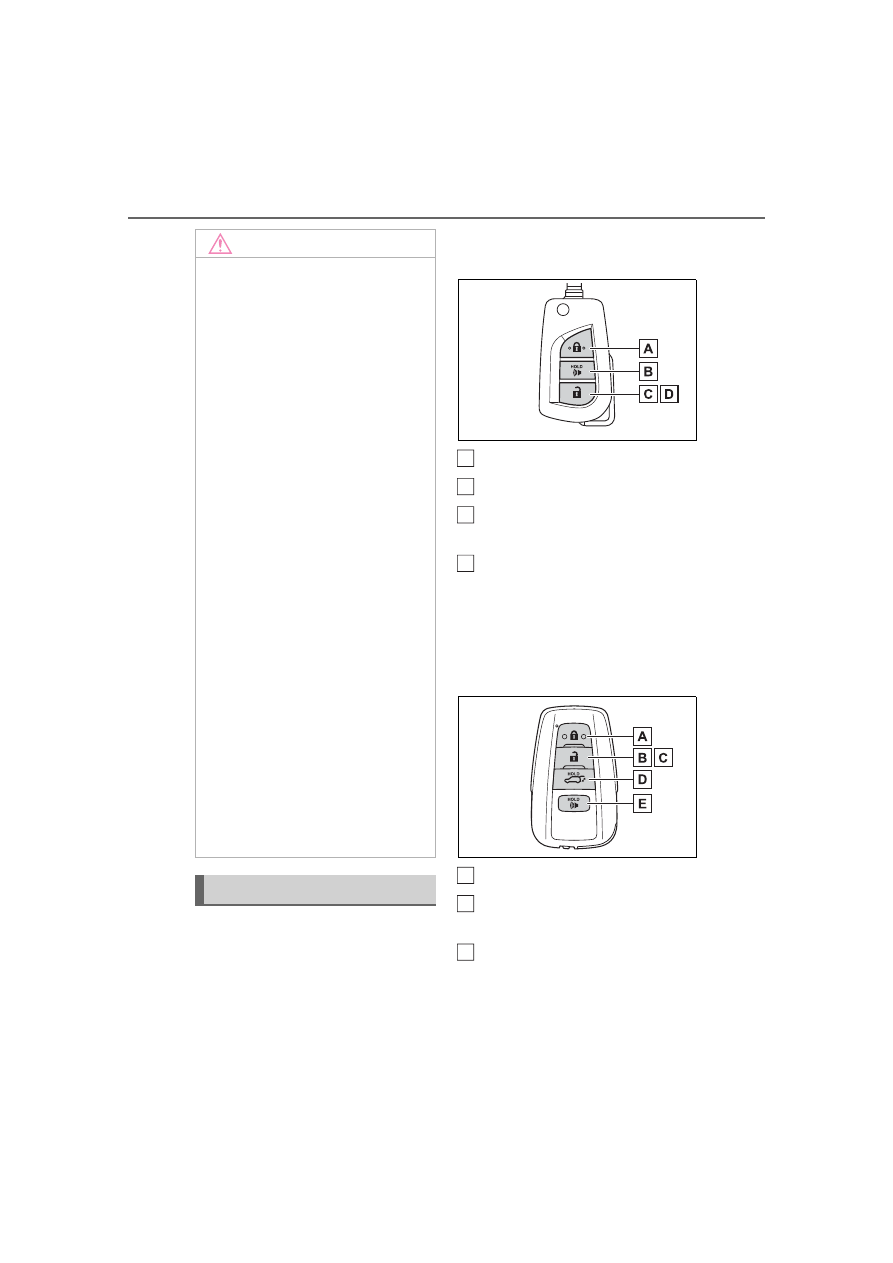

The keys are equipped with the
following wireless remote con-
trol:



Vehicles without smart key
system

Locks all the doors (



P.108)

Sounds the alarm (



P.105)

Unlocks all the doors
(



P.108)

Opens the side windows

*



(



P.108)

*

: This setting must be customized

at your Toyota dealer.



Vehicles with smart key sys-
tem

Locks all the doors (



P.108)

Unlocks all the doors
(



P.108)

Opens the side windows

*1



and the moon roof

*1, 2

 or

panoramic moon roof

*1, 2



(



P.108)

NOTICE

●

Do not attach a sticker or any-

thing else to the surface of the

keys.

●

Do not place the keys near

objects that produce magnetic

fields, such as TVs, audio sys-

tems and induction cookers.

●

Do not place the keys near

medical electrical equipment

such as low-frequency therapy

equipment or microwave ther-

apy equipment, and do not

receive medical attention with

the keys on your person.

■

Carrying the electronic key

on your person (vehicles with

smart key system)

Carry the electronic key 3.9 in.

(10 cm) or more away from elec-

tric appliances that are turned on.

Radio waves emitted from electric

appliances within 3.9 in. (10 cm)

of the electronic key may interfere

with the key, causing the key to

not function properly.

■

In case of a smart key system

malfunction or other key-

related problems (vehicles

with smart key system)



P.653

■

When an electronic key is lost

(vehicles with smart key sys-

tem)



P.653

Wireless remote control

A

B

C

D

A

B

C

105

3-1. Key information

3

Before

driving

Opens and closes the power
back door

*2

 (



P.118)

Sounds the alarm (



P.105)

*1

:These settings must be custom-

ized at your Toyota dealer.

*2

:If equipped

■

Theft deterrent panic mode



Vehicles without smart key system

When

 is pressed for longer

than about 1 second, an alarm will
sound intermittently and the vehicle
lights will flash to deter any person
from trying to break into or damage
your vehicle.
To stop the alarm, press any button
on the key.



Vehicles with smart key system

When

 is pressed for longer

than about 1 second, an alarm will
sound intermittently and the vehicle
lights will flash to deter any person
from trying to break into or damage
your vehicle.
To stop the alarm, press any button
on the electronic key.

■

Conditions affecting operation



Vehicles without smart key system

The wireless remote control function
may not operate normally in the fol-
lowing situations.

●

When the wireless key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When carrying a portable radio,

cellular phone or other wireless

communication device

●

When the wireless key is in con-

tact with, or is covered by a metal-

lic object

●

When other wireless key (that

emits radio waves) is being used

nearby

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window



Vehicles with smart key system



P.129

D

E

106

3-1. Key information

■

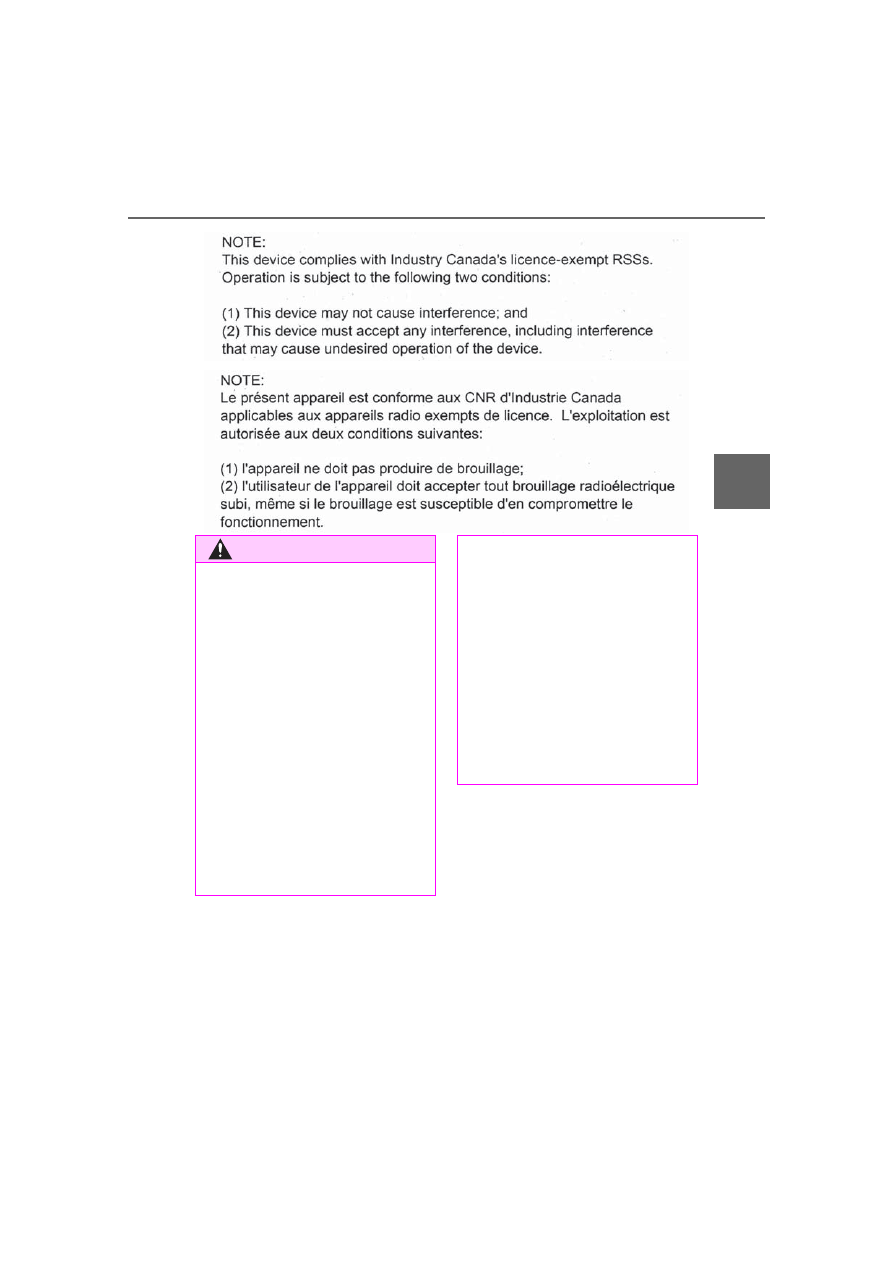

Certification for wireless remote control

107

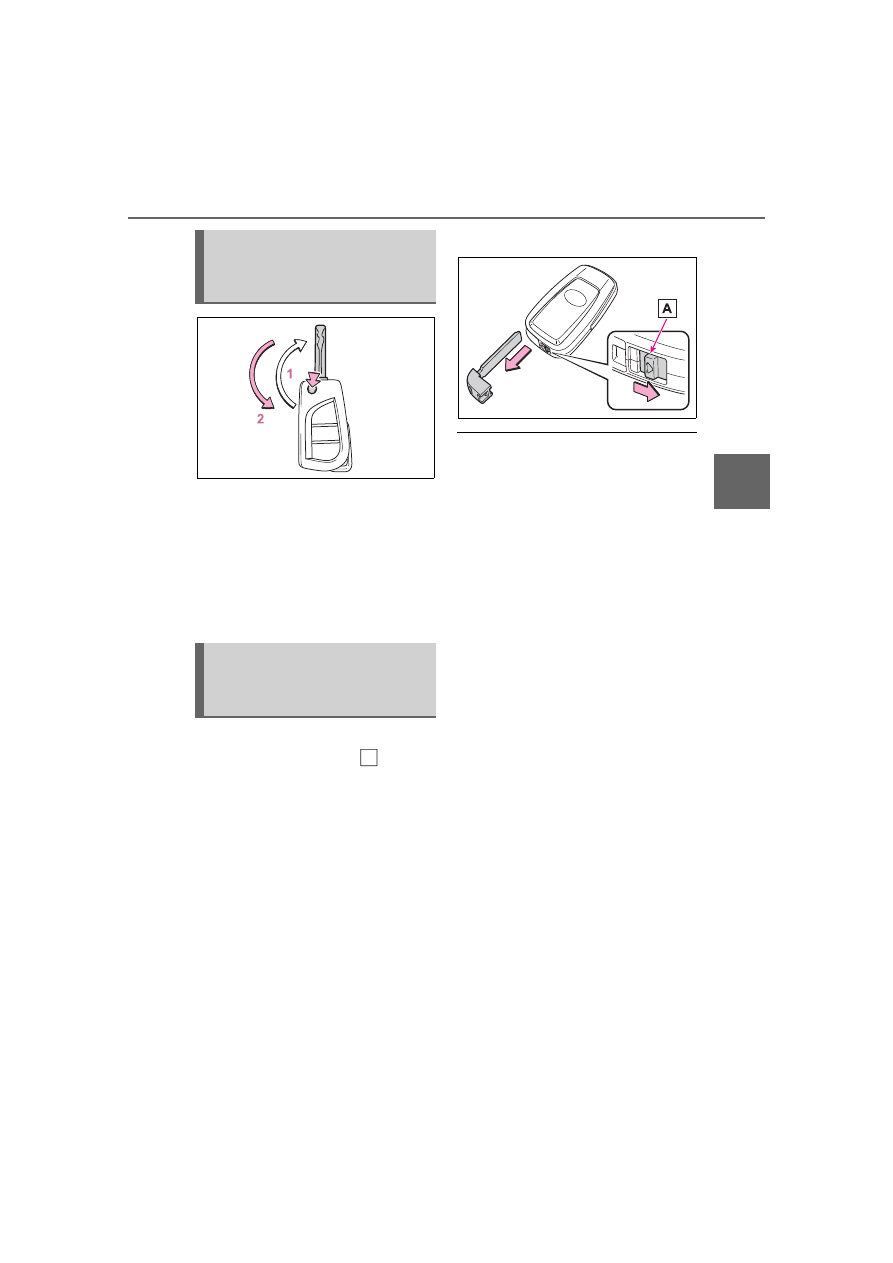

3-1. Key information

3

Before

driving

1

Releasing

To release the key, press the but-
ton.

2

Folding

To stow the key back in its case,
push the key back to the stowed
position while pressing the button.

To take out the mechanical key,
slide the release lever

 and

take the key out.

The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cyl-
inder, turn it over and re-attempt to
insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.

(



P.653)

■

If you lose your keys



P.653

■

If a wrong key is used

The key cylinder rotates freely to

isolate inside mechanism.

Using the master key
(vehicles without smart
key system)

Using the mechanical key
(vehicles with smart key
system)

A

108

3-2. Opening, closing and locking the doors

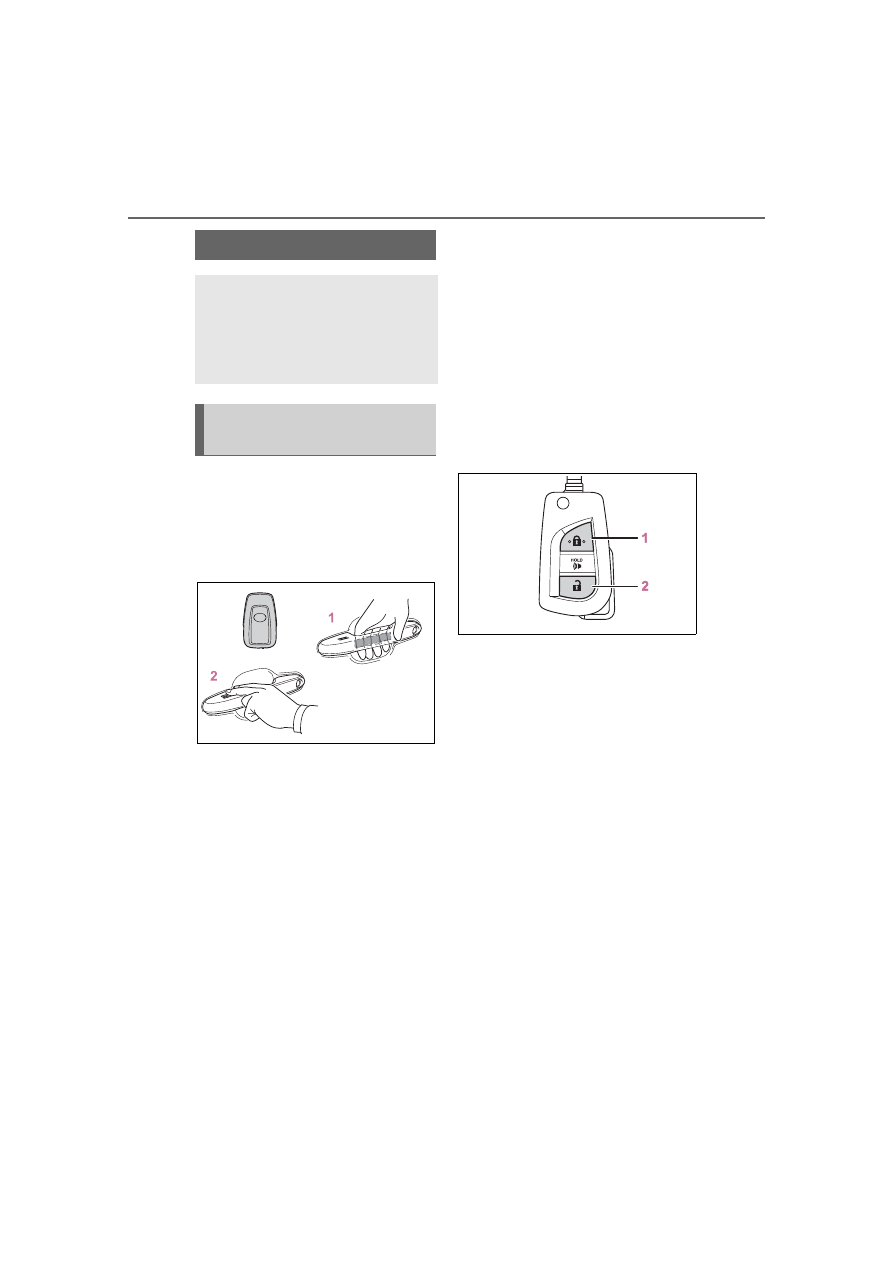

3-2.Opening, closing and locking the doors

■

Using the entry function
(vehicles with smart key
system)

Carry the electronic key to
enable this function.

1

Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors.
Grip the front passenger’s
door handle or rear door han-
dle (some models) to unlock
all the doors

*

.

Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.

*

: The door unlock settings can be

changed. (



P.109)

2

Touch the lock sensor (the
indentation on the upper part
of the door handle) to lock
the doors.

Check that the door is securely
locked.

■

Using the wireless remote
control



Vehicles without smart key
system

1

Locks all the doors

Check that the door is securely
locked.

2

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.
Press and hold to open the side
windows.

*

*

: This setting must be customized

at your Toyota dealer.

Side doors

The vehicle can be locked
and unlocked using the
entry function, wireless
remote control, key or door
lock switch.

Unlocking and locking the
doors from the outside

109

3-2. Opening, closing and locking the doors

3

Before

driving



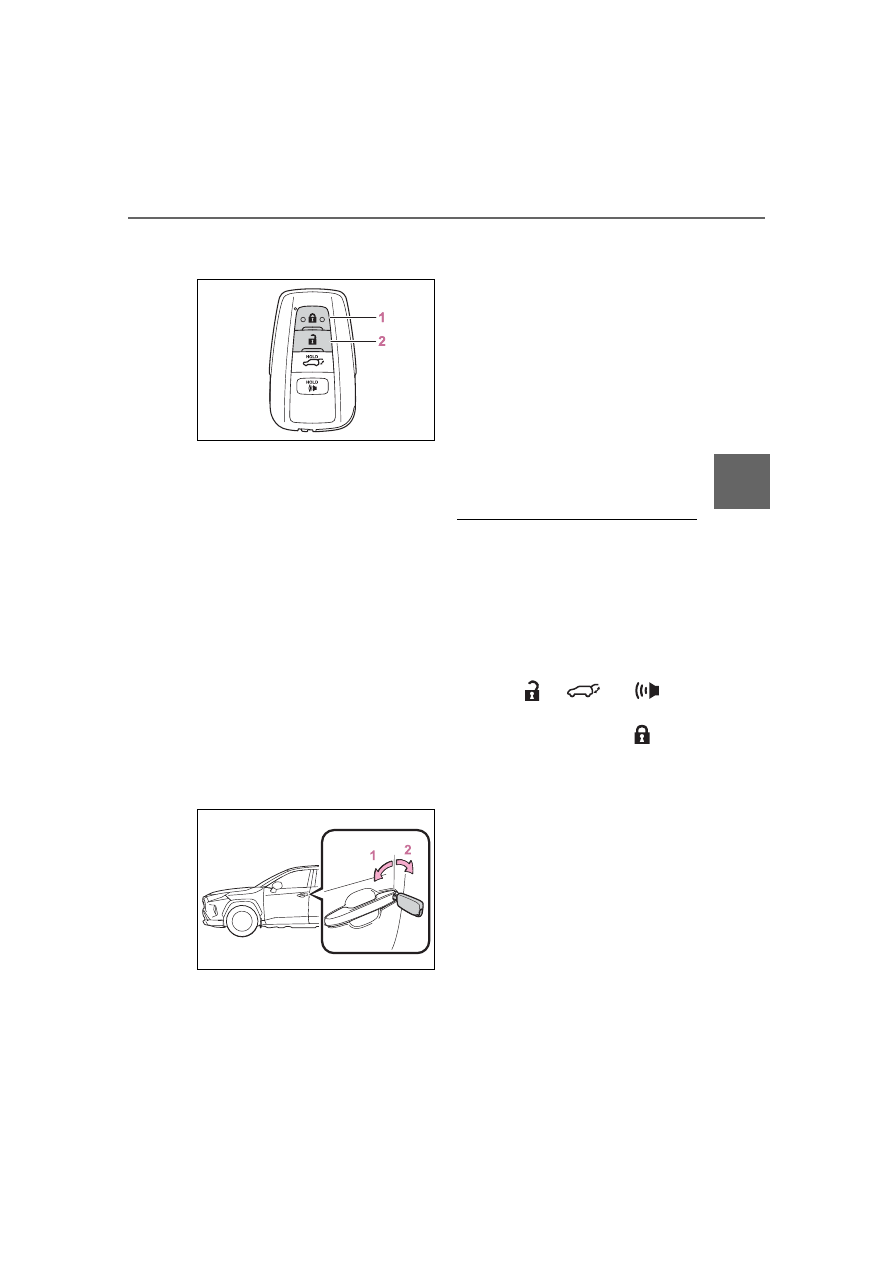

Vehicles with smart key sys-
tem

1

Locks all the doors

Check that the door is securely
locked.

2

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.
Press and hold to open the side
windows and moon roof (if
equipped) or panoramic moon roof
(if equipped).

*

*

: This setting must be customized

at your Toyota dealer.

■

Using the key



Vehicles without smart key
system

1

Locks all the doors

Turn and hold to close the side win-
dows.

*

2

Unlocks all the doors

Turning the key unlocks the driver’s
door. Turning the key again within 5
seconds unlocks the other doors.
Turn and hold to open the side win-
dows.

*

*

: These settings must be custom-

ized at your Toyota dealer.



Vehicles with smart key sys-
tem

The doors can also be locked
and unlocked with the mechani-
cal key. (



P.653)

■

Switching the door unlock func-

tion (vehicles with smart key

system)

It is possible to set which doors the

entry function unlocks using the

wireless remote control.

1

Turn the engine switch to OFF.

2

When the indicator light on the
key surface is not on, press and
hold

,

 or

 for

approximately 5 seconds while
pressing and holding

.

The setting changes each time an
operation is performed, as shown
below. (When changing the setting
continuously, release the buttons,
wait for at least 5 seconds, and
repeat step

2

.)

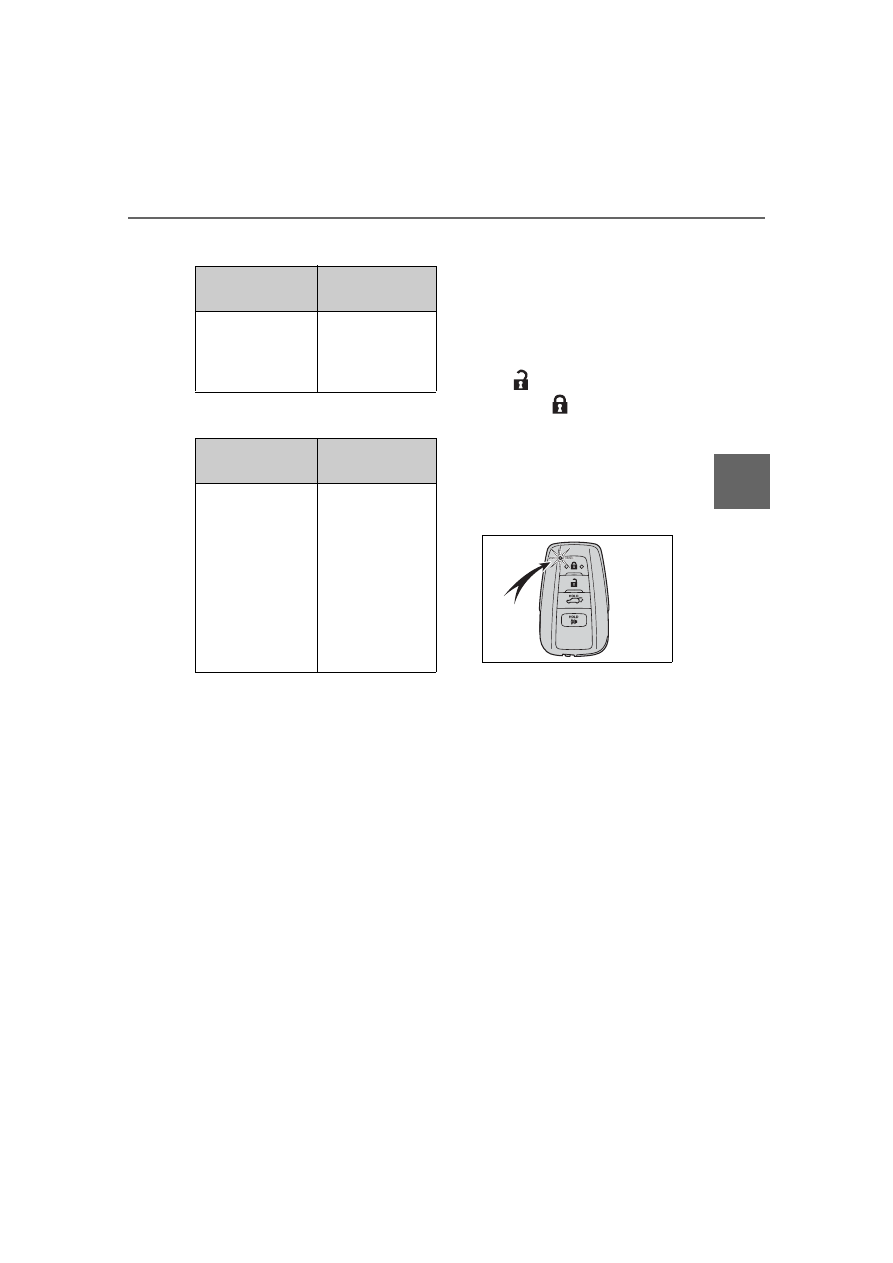

110

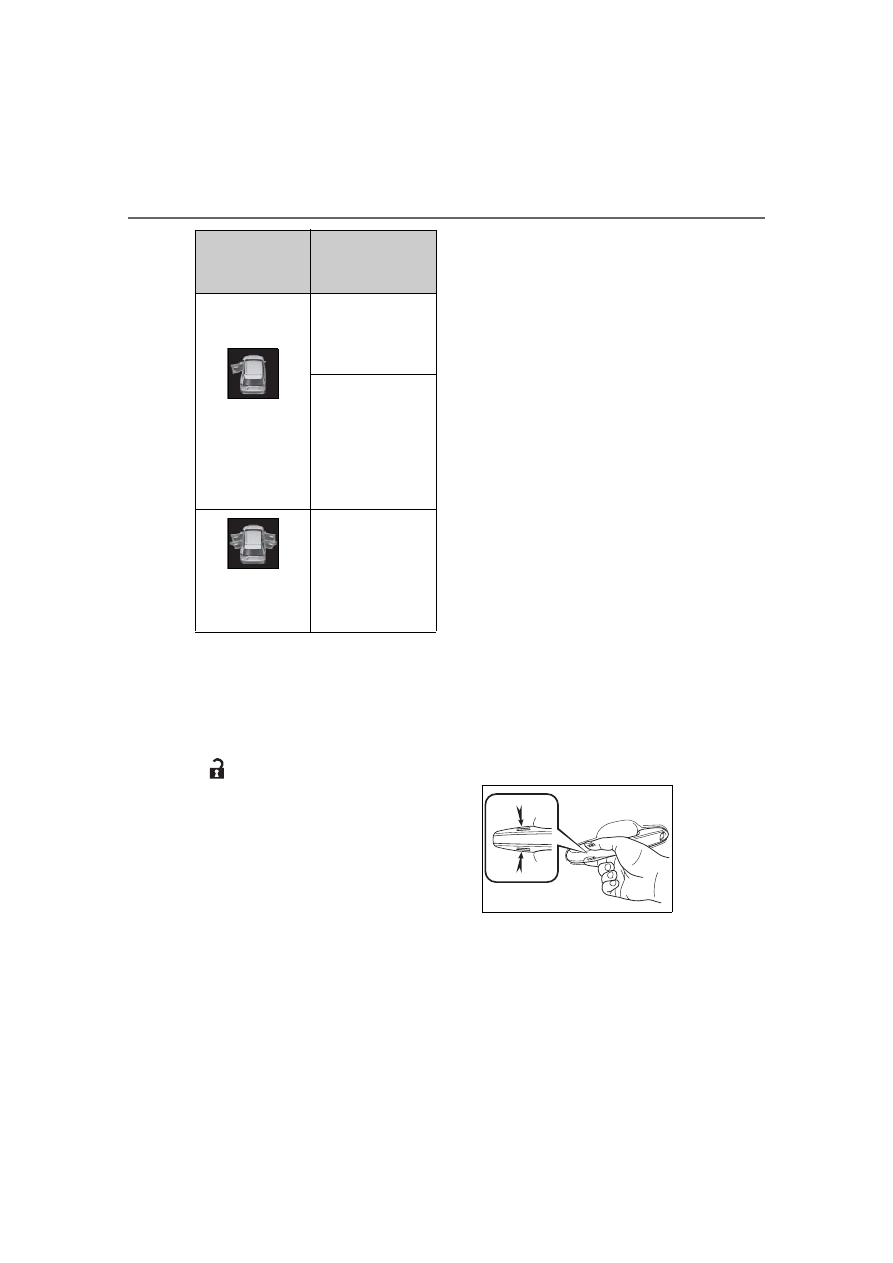

3-2. Opening, closing and locking the doors

Vehicles with alarm: To prevent

unintended triggering of the alarm,

unlock the doors using the wireless

remote control and open and close

a door once after the settings have

been changed. (If a door is not

opened within 60 seconds after

 is pressed, the doors will be

locked again and the alarm will

automatically be set.)

In a case that the alarm is triggered,

immediately stop the alarm. (



P.73)

■

Operation signals

Doors: A buzzer sounds and the

emergency flashers flash to indicate

that the doors have been

locked/unlocked using the entry

function or wireless remote control.

(Locked: Once; Unlocked: Twice)
Side windows and moon roof (if

equipped) or panoramic moon roof

(if equipped): A buzzer sounds to

indicate that the side windows and

moon roof or panoramic moon roof

are operating using the wireless

remote control.

■

Security feature



Vehicles without smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the wire-

less remote control, the security fea-

ture automatically locks the vehicle

again.



Vehicles with smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the entry

function or wireless remote control,

the security feature automatically

locks the vehicle again. (However,

depending on the location of the

electronic key, the key may be

detected as being in the vehicle. In

this case, vehicle may be unlocked.)

■

When the door cannot be

locked by the lock sensor on

the upper part of the door han-

dle (vehicles with smart key

system)

If the door will not lock even when

the topside sensor area is touched,

try touching both the topside and

underside sensor areas at the same

time.
When gloves are being worn,

remove the gloves.

■

Door lock buzzer (vehicles with

smart key system)

If an attempt to lock the doors using

the entry function or wireless remote

control is made when a door is not

fully closed, a buzzer sounds contin-

uously for 5 seconds. Fully close the

door to stop the buzzer, and lock the

Multi-informa-

tion dis-

play/Beep

Unlocking func-

tion

Exterior: Beeps 3

times

Interior: Pings

once

Holding the
driver’s door han-
dle unlocks only
the driver’s door.

Holding the pas-
senger’s door
handle or press-
ing the back door
opener switch
unlocks all the
doors.

Exterior: Beeps

twice

Interior: Pings

once

Holding a door
handle or press-
ing the back door
opener switch
unlocks all the
doors.

111

3-2. Opening, closing and locking the doors

3

Before

driving

vehicle once more.

■

Setting the alarm (if equipped)

Locking the doors will set the alarm

system. (



P.73)

■

Conditions affecting the opera-

tion of the smart key system or

wireless remote control



Vehicles without smart key system



P.105



Vehicles with smart key system



P.129

■

If the smart key system (if

equipped) or the wireless

remote control does not oper-

ate properly

●

Vehicles with smart key system:

Use the mechanical key to lock

and unlock the doors. (



P.653)

●

Replace the key battery with a

new one if it is depleted. (



P.604)

■

If the battery is discharged

The doors cannot be locked and

unlocked using the smart key sys-

tem (if equipped) or wireless remote

control. Lock or unlock the doors

using the key (vehicles without

smart key system) or mechanical

key (vehicles with smart key sys-

tem). (



P.109, 653)

■

Customization

Settings (e.g. unlocking function

using a key) can be changed.

(Customizable features:



P.690)

WARNING

■

To prevent an accident

Observe the following precautions

while driving the vehicle.

Failure to do so may result in a

door opening and an occupant

could be thrown out of the vehicle,

resulting in death or serious injury.

●

Ensure that all doors are prop-

erly closed and locked.

●

Do not pull the inside handle of

the doors while driving.

Be especially careful for the

front doors, as the doors may

be opened even if the inside

lock buttons are in locked posi-

tion.

●

Set the rear door child-protector

locks when children are seated

in the rear seats.

■

When opening or closing a

door

Check the surroundings of the

vehicle such as whether the vehi-

cle is on an incline, whether there

is enough space for a door to

open and whether a strong wind

is blowing. When opening or clos-

ing the door, hold the door handle

tightly to prepare for any unpre-

dictable movement.

■

When using the wireless

remote control, key or

mechanical key and operating

the power windows, moon

roof (if equipped) or pan-

oramic moon roof (if

equipped)

Operate the power window, moon

roof or panoramic moon roof after

checking to make sure that there

is no possibility of any passenger

having any of their body parts

caught in the side window, moon

roof or panoramic moon roof.

Also, do not allow children to

operate the wireless remote con-

trol, key or mechanical key. It is

possible for children and other

passengers to get caught in the

side window, moon roof or pan-

oramic moon roof.

112

3-2. Opening, closing and locking the doors

■

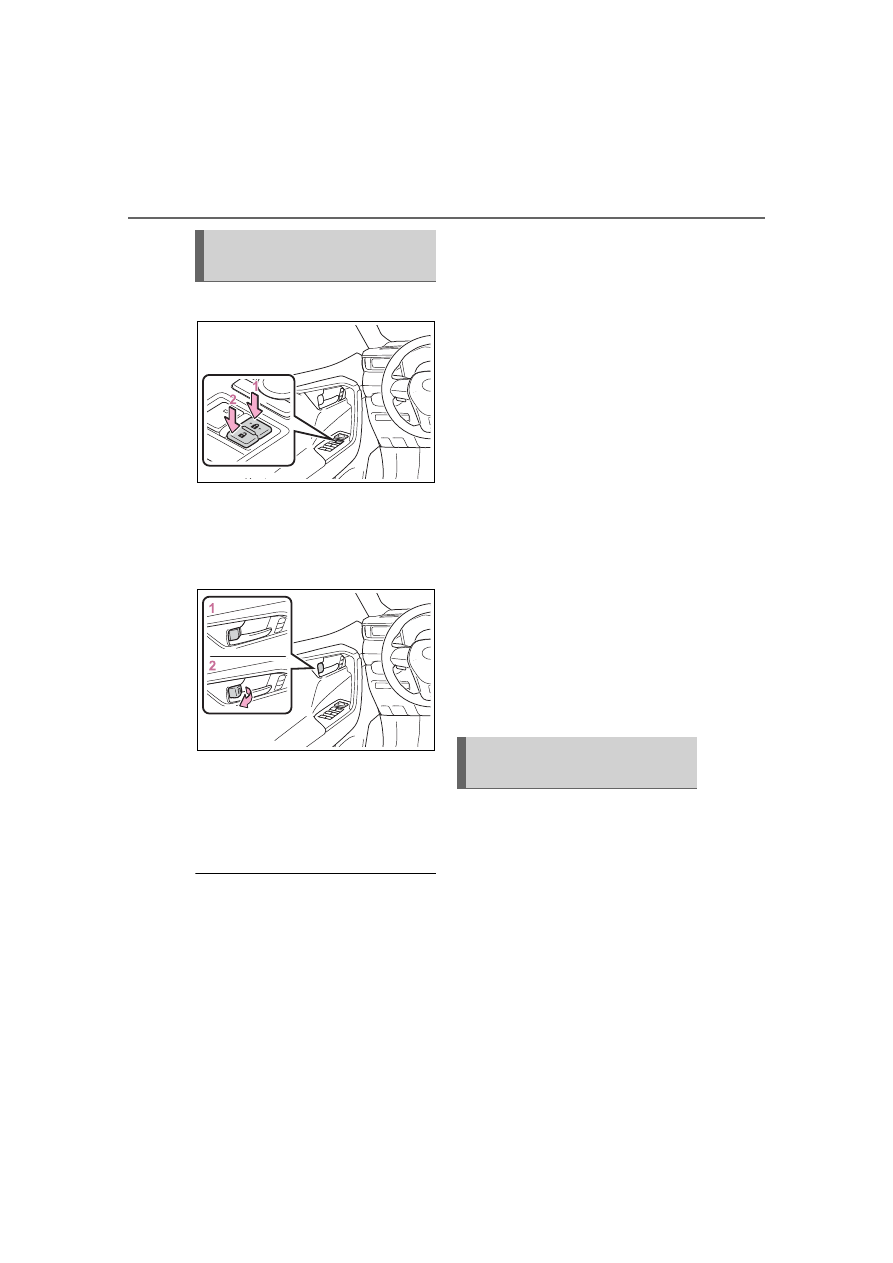

Using the door lock switch

1

Locks all the doors

2

Unlocks all the doors

■

Using the inside lock but-
tons

1

Locks the door

2

Unlocks the door

The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock position.

■

Locking the front doors from

the outside without a key

1

Move the inside lock button to

the lock position.

2

Close the door.



Vehicles without smart key system

The door cannot be locked if the key
is in the engine switch.



Vehicles with smart key system

The door cannot be locked if the
engine switch is in ACC or ON, or
the electronic key is left inside the
vehicle.
Depending on the position of the
electronic key, the key may not be
detected correctly and the door may
be locked.

■

Open door warning buzzer

If the vehicle speed reaches 3 mph

(5 km/h), a buzzer sounds to indi-

cate that the door(s) or the hood is

not fully closed.

The open door(s) or hood is dis-

played on the multi-information dis-

play.

■

When all the doors are locked

with the entry function (vehicles

with smart key system), wire-

less remote control or key

●

The doors cannot be unlocked

with the door lock switch.

●

The door lock switch can be reset

by unlocking all the doors with the

entry function (vehicles with smart

key system), wireless remote con-

trol or key.

The door cannot be opened
from inside the vehicle when the
lock is set.

Unlocking and locking the
doors from the inside

Rear door child-protector
lock

113

3-2. Opening, closing and locking the doors

3

Before

driving

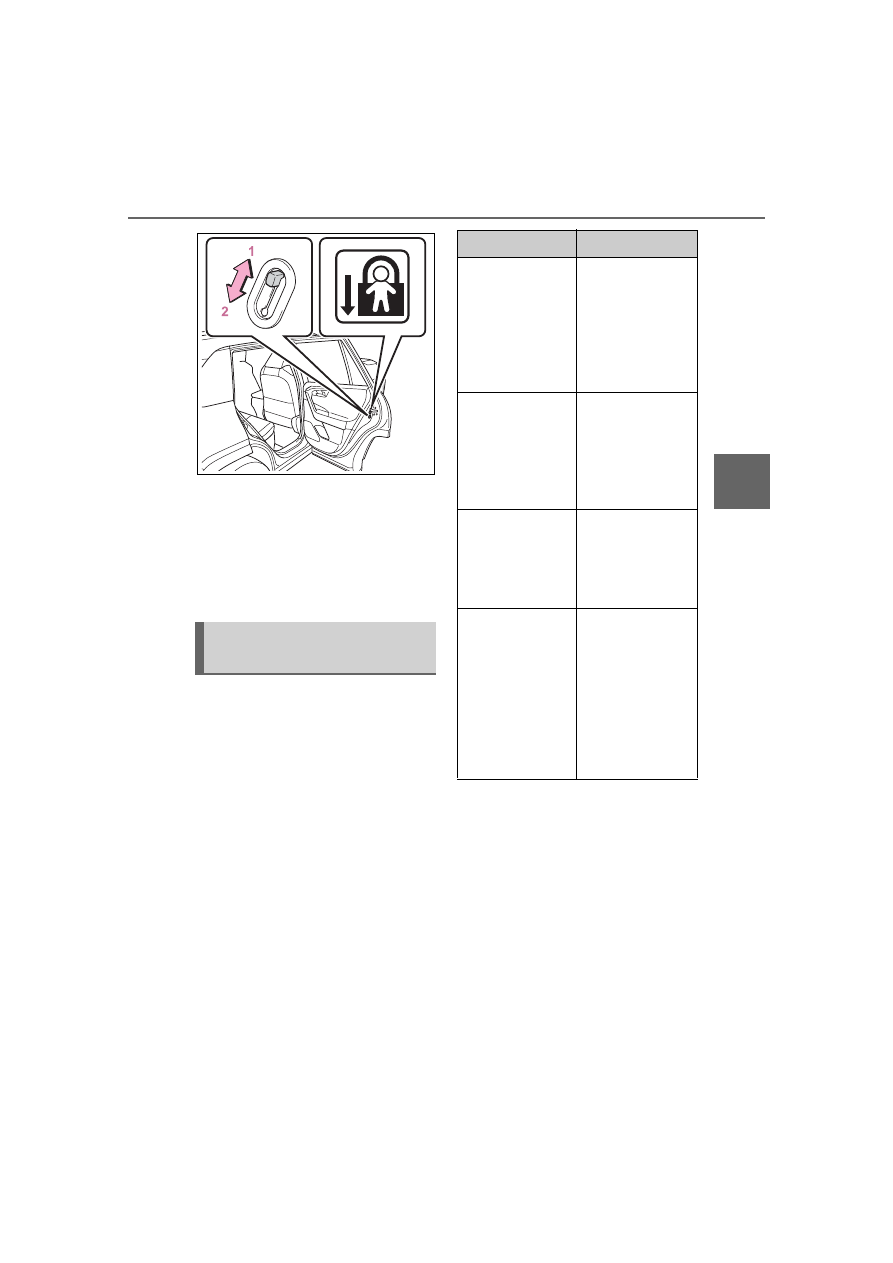

1

Unlock

2

Lock

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

The following functions can be
set or canceled:

For instructions on customizing,
refer to P.688.

Automatic door locking
and unlocking systems

Function

Operation

Speed linked
door locking
function

All doors are
automatically
locked when
vehicle speed is
approximately
12mph (20 km/h)
or higher.

Shift position
linked door lock-
ing function

All doors are
automatically
locked when
shifting the shift
lever to position
other than P.

Shift position
linked door
unlocking func-
tion

All doors are
automatically
unlocked when
shifting the shift
lever to P.

Driver’s door
linked door
unlocking func-
tion

All doors are
automatically
unlocked when
driver’s door is
opened within
approximately 45
seconds after
turning the
engine switch off.

114

3-2. Opening, closing and locking the doors

Back door

The back door can be
locked/unlocked and
opened/closed by the fol-
lowing procedures.

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

■

Before driving

●

Make sure that the back door is

fully closed.

If the back door is not fully

closed, it may open unexpect-

edly while driving and hit near-

by objects or luggage in the lug-

gage compartment may be

thrown out, causing an acci-

dent.

●

Do not allow children to play in

the luggage compartment.

If a child is accidentally locked

in the luggage compartment,

they could get heat exhaustion

or other injuries.

●

Do not allow a child to open or

close the back door.

Doing so may cause the back

door to operate unexpectedly,

or cause the child’s hands,

head, or neck to be caught by

the closing back door.

■

Important points while driving

●

Keep the back door closed

while driving.

If the back door is left open, it

may hit near-by objects or lug-

gage in the luggage compart-

ment may be thrown out,

causing an accident.

●

Never let anyone sit in the lug-

gage compartment.

In the event of sudden braking,

sudden swerving or a collision,

they are susceptible to death or

serious injury.

■

Back door handles

Do not hang any object to the

back door handles.

If any object is hung, the back

door may suddenly shut, causing

parts of the body to be caught,

resulting in death or serious injury.

■

Operating the back door

Observe the following precau-

tions.

Failure to do so may cause parts

of the body to be caught, resulting

in death or serious injury.

●

Remove any heavy loads, such

as snow and ice, from the back

door before opening it. Failure

to do so may cause the back

door to suddenly shut again

after it is opened.

●

When opening or closing the

back door, thoroughly check to

make sure the surrounding area

is safe.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

Use caution when opening or

closing the back door in windy

weather as it may move

abruptly in strong wind.

115

3-2. Opening, closing and locking the doors

3

Before

driving

■

Using the entry function
(vehicles with smart key
system)

Carry the electronic key to
enable this function.

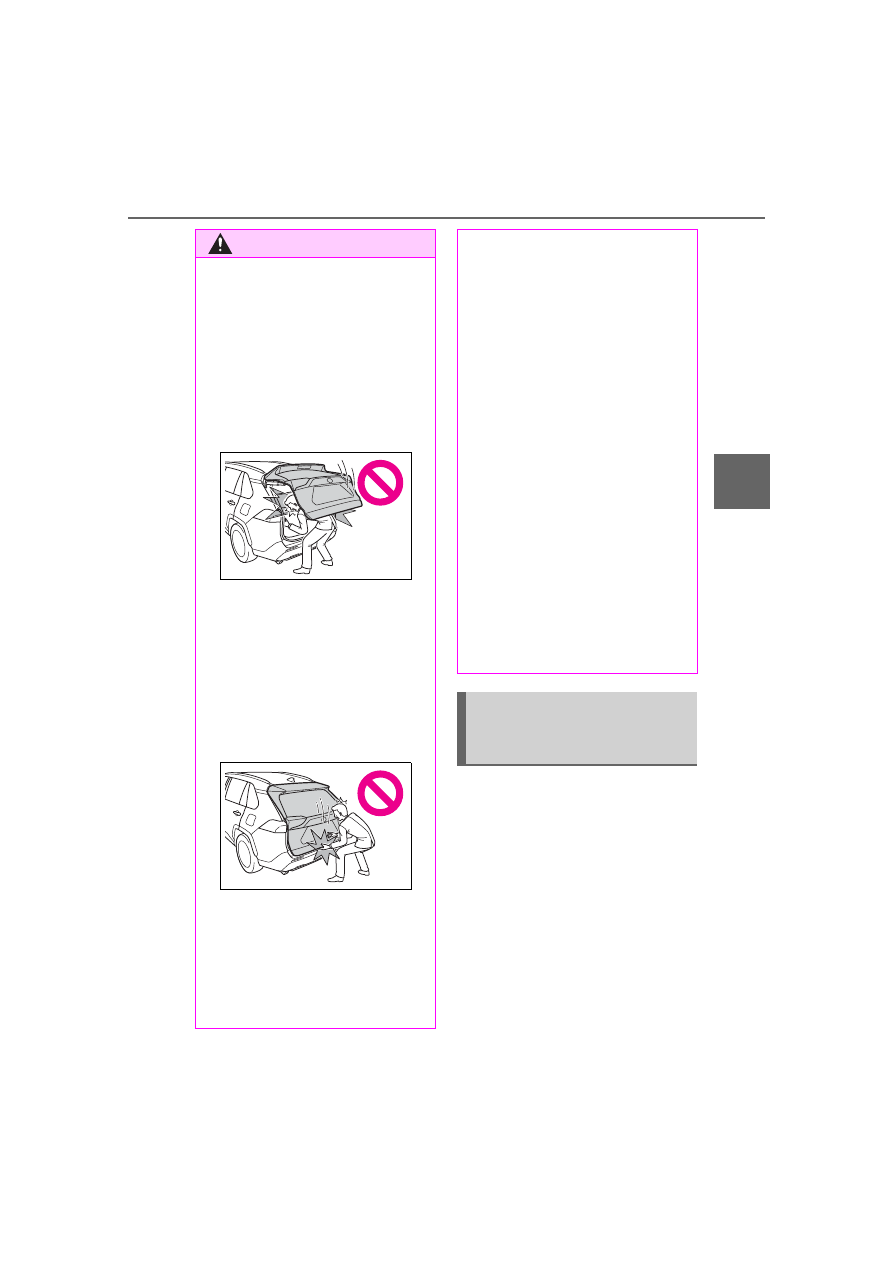

WARNING

●

Vehicles without power back

door: The back door may sud-

denly shut if it is not opened

fully. It is more difficult to open

or close the back door on an

incline than on a level surface,

so beware of the back door

unexpectedly opening or closing

by itself. Make sure that the

back door is fully open and

secure before using the luggage

compartment.

●

Vehicles with power back door:

The back door may suddenly

shut if it is not opened fully,

while on a steep incline. Make

sure that the back door is

secured before using the lug-

gage compartment.

●

When closing the back door,

take extra care to prevent your

fingers, etc. from being caught.

●

Vehicles without power back

door: When closing the back

door, make sure to press it

lightly on its outer surface. If the

back door handle is used to fully

close the back door, it may

result in hands or arms being

caught.

●

Do not pull on the back door

damper stay (vehicles without

power back door) (



P.118) or

back door spindle (vehicles with

power back door) (



P.125) to

close the back door, and do not

hang on the back door damper

stay (vehicles without power

back door) or back door spindle

(vehicles with power back door).

Doing so may cause hands to

be caught or the back door

damper stay (vehicles without

power back door) or back door

spindle (vehicles with power

back door) to break, causing an

accident.

●

Vehicles without power back

door: If a bicycle carrier or simi-

lar heavy object is attached to

the back door, it may suddenly

shut again after being opened,

causing someone’s hands,

head or neck to be caught and

injured. When installing an

accessory part to the back door,

using a genuine Toyota part is

recommended.

Unlocking and locking the
back door from the out-
side

116

3-2. Opening, closing and locking the doors

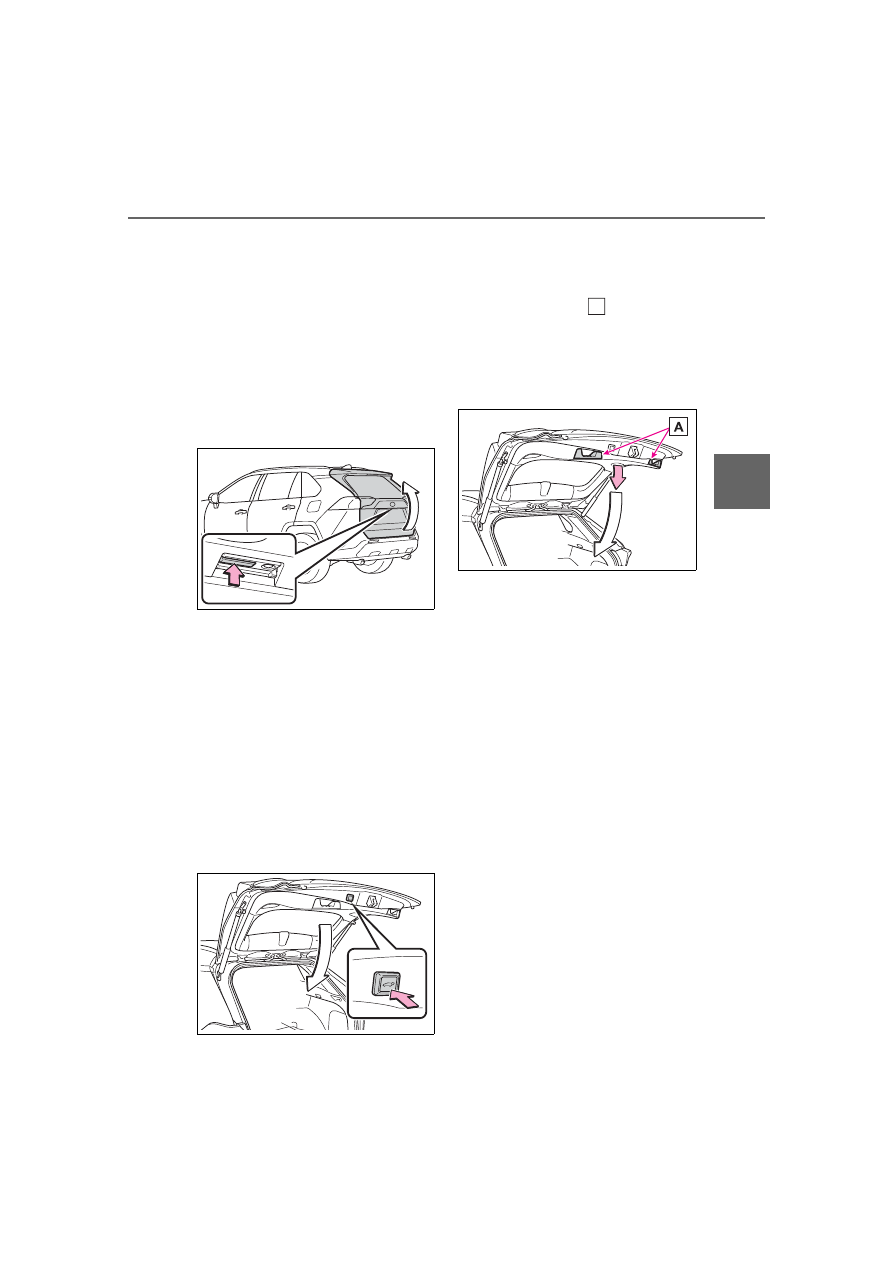

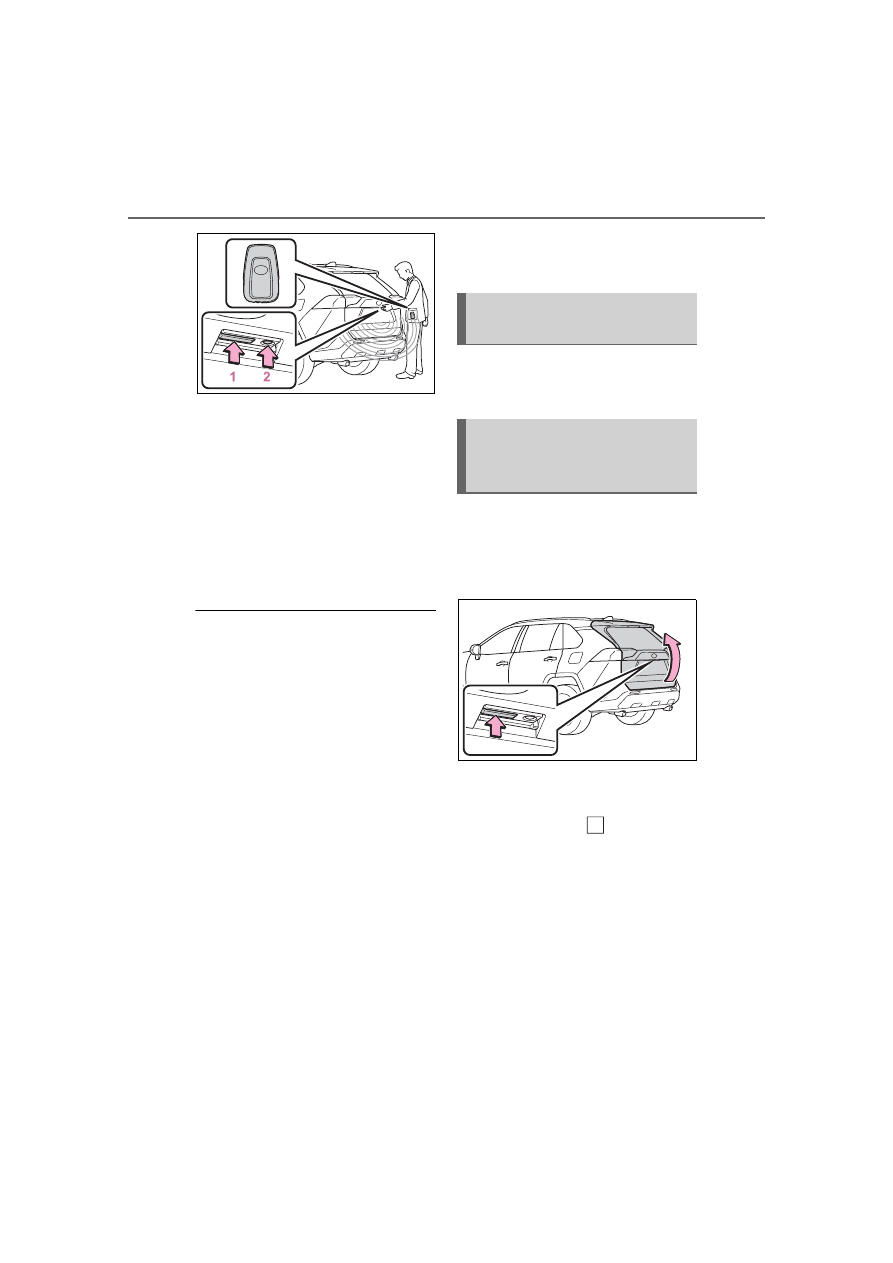

1

Unlocks all the doors

The doors cannot be unlocked for 3
seconds after the doors are locked.

2

Locks all the doors

Check that the door is securely
locked.

■

Using the wireless remote
control



P.108

■

Operation signals

A buzzer sounds and the emer-

gency flashers flash to indicate that

the doors have been

locked/unlocked using the entry

function (if equipped) or wireless

remote control. (Locked: once;

Unlocked: twice)

■

Security feature



Vehicles without smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the wire-

less remote control, the security fea-

ture automatically locks the vehicle

again.



Vehicles with smart key system

If a door is not opened within

approximately 60 seconds after the

vehicle is unlocked using the entry

function or wireless remote control,

the security feature automatically

locks the vehicle again. (However,

depending on the location of the

electronic key, the key may be

detected as being in the vehicle. In

this case, vehicle may be unlocked.)

■

Using the door lock switch



P.112

■

Open

Raise the back door while
pressing up the back door
opener switch.

■

Close

Lower the back door using the
back door handle

, and make

sure to push the back door
down from the outside to close
it.

Be careful not to pull the back door
sideways when closing the back
door with the handle.

Unlocking and locking the
back door from the inside

Opening/closing the back
door (vehicles without
power back door)

A

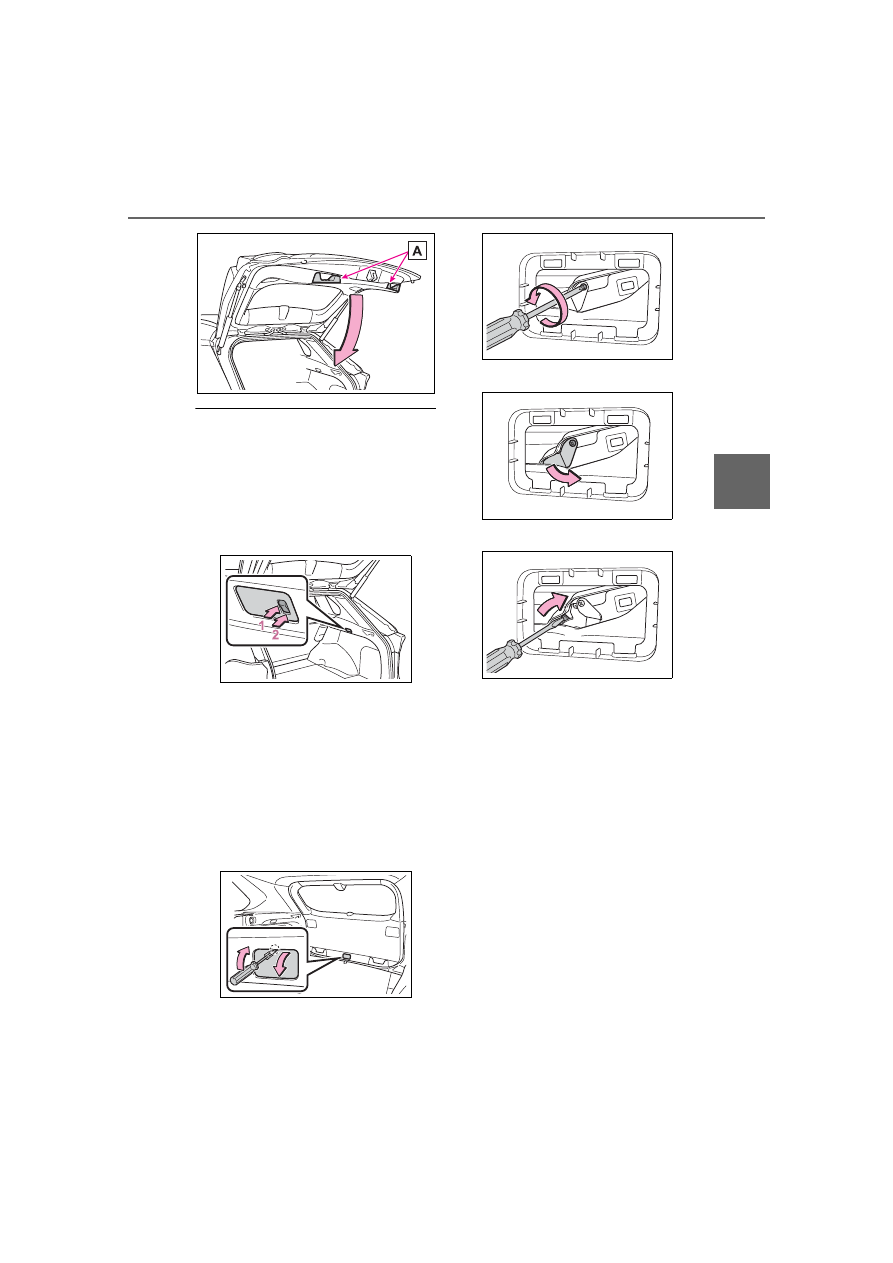

117

3-2. Opening, closing and locking the doors

3

Before

driving

■

Luggage compartment light

The luggage compartment light

turns on when the back door is

opened with the luggage compart-

ment light switch on.
When the engine switch is turned to

OFF, the light will go off automati-

cally after 20 minutes.

1

On

2

Off

■

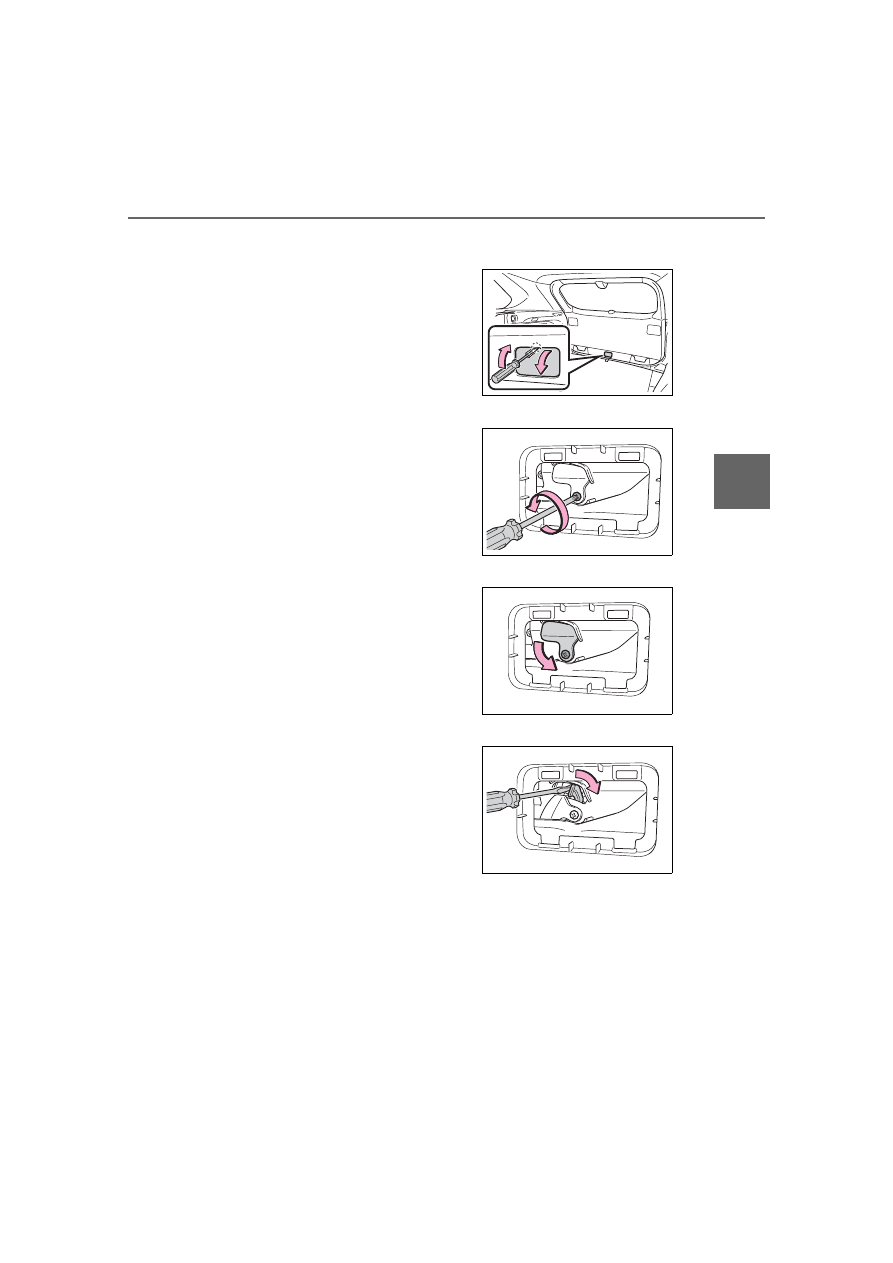

If the back door opener is inop-

erative

The back door can be unlocked

from the inside.

1

Remove the cover.

To prevent damage, cover the tip of

the screwdriver with a rag.

2

Loosen the screw.

3

Turn the cover.

4

Move the lever.

5

When installing, reverse the

steps listed.

■

Open door warning buzzer



P.112

118

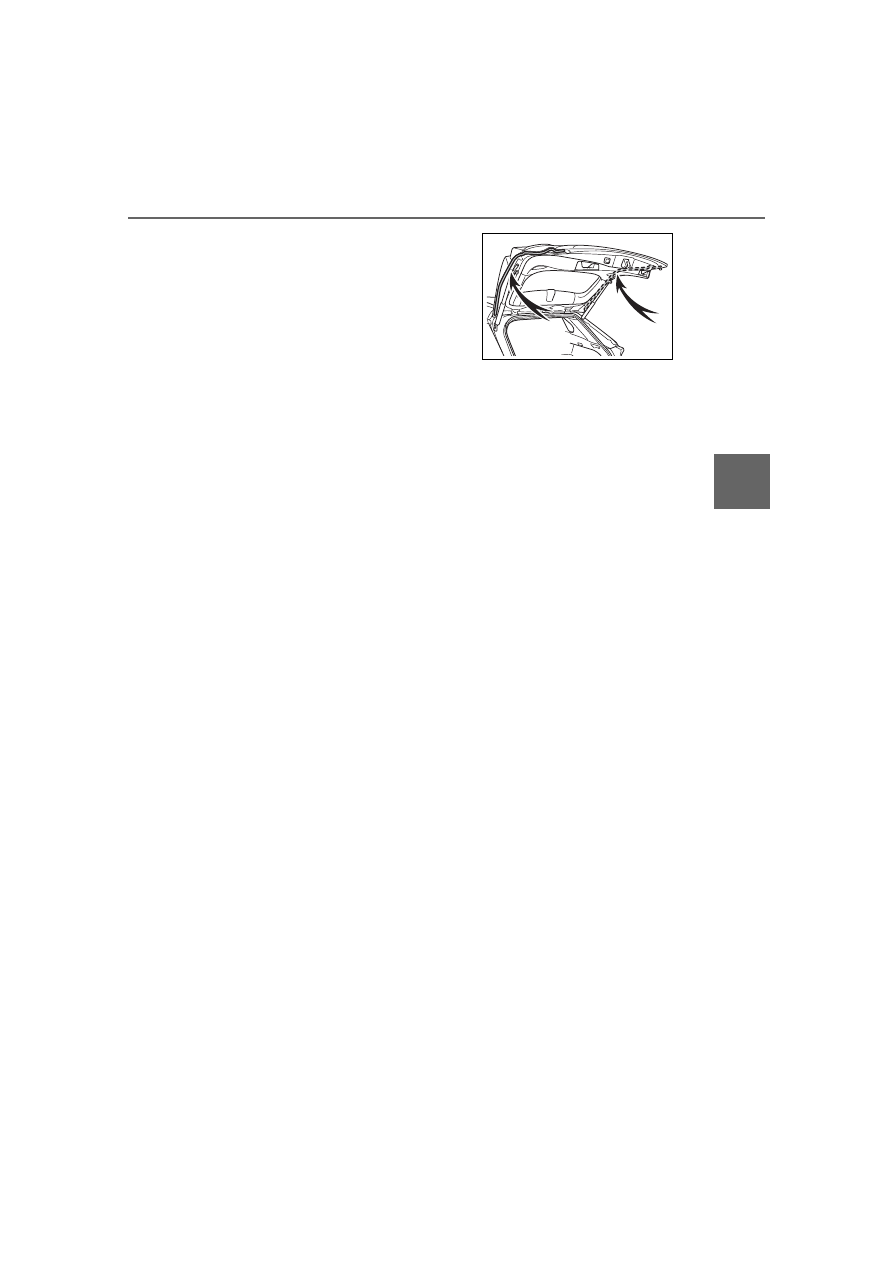

3-2. Opening, closing and locking the doors

■

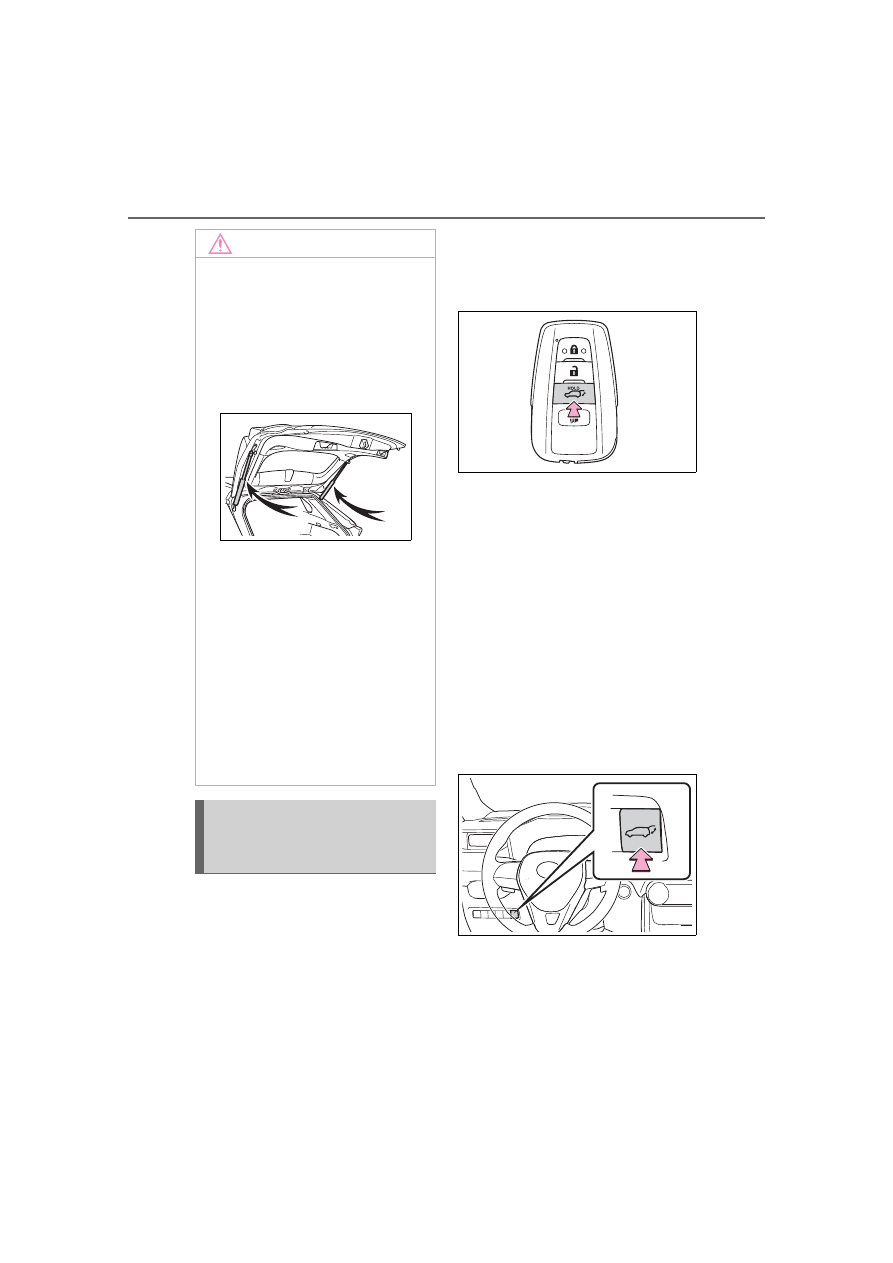

Using the wireless remote
control

Press and hold the switch.

The power back door automatically
opens/closes.
Pressing the switch while the power
back door is opening/closing stops

the operation. When the switch is
pressed again during the halted
operation, the back door will per-
form the reverse operation.

■

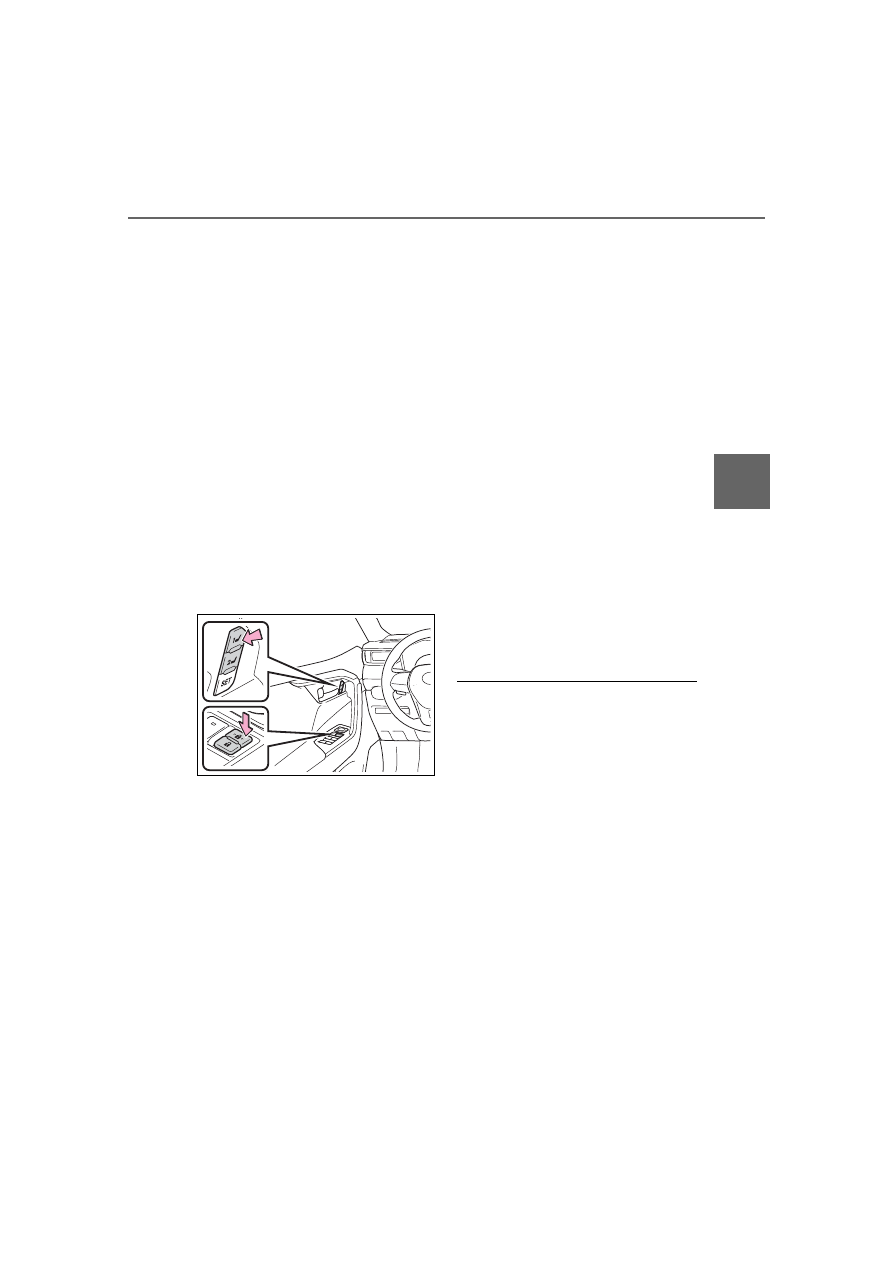

Using the power back door
switch on the instrument
panel

Press and hold the switch.

The power back door automatically
opens/closes.
Unlock the back door before oper-
ating.
Pressing the switch while the power
back door is opening/closing stops
the operation. When the switch is
pressed again during the halted
operation, the back door will per-
form the reverse operation.

■

Using the back door opener
switch

When the back door is
unlocked: Press the back door

NOTICE

■

Back door damper stays

The back door is equipped with

damper stays that hold the back

door in place.

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the back door damper stay,

resulting in malfunction.

●

Do not attach any foreign

objects, such as stickers, plastic

sheets, or adhesives to the

damper stay rod.

●

Do not touch the damper stay

rod with gloves or other fabric

items.

●

Do not attach any accessories

other than genuine Toyota parts

to the back door.

●

Do not place your hand on the

damper stay or apply lateral

forces to it.

Opening/closing the back
door (vehicles with power
back door)

119

3-2. Opening, closing and locking the doors

3

Before

driving

opener switch.
When the back door is locked:
While carrying the electronic key
on your person, press and hold
the back door opener switch.

The power back door automatically
opens.
Pressing the switch while the power
back door is opening/closing stops
the operation.

■

Using the power back door
switch on the back door

Press the switch.

The power back door automatically
closes.
Pressing the switch while the power
back door is operating will stop the
operation.
When the switch is pressed again
during the halted operation, the
back door will perform the reverse
operation.

■

Using the back door han-
dles

Lower the back door using the
back door handle

.

The back door closing assist
(



P.121) will be activated, and the

power back door will fully close
automatically.

■

Using the kick sensor (vehi-
cles with Hands Free Power
Back Door)

The Hands Free Power Back
Door enables automatic opening
and closing of the power back
door by putting your foot near
the lower center part of the rear
bumper and moving it away
from the rear bumper. When
operating the Hands Free
Power Back Door, make sure
that the engine switch is in OFF,
the kick sensor operation is
enabled (



P.94) and you are

carrying an electronic key.

1

While carrying an electronic
key, stand within the smart
key system operation range,
approximately 11.8 to 19.7 in.

A

120

3-2. Opening, closing and locking the doors

(30 to 50 cm) from the rear
bumper.

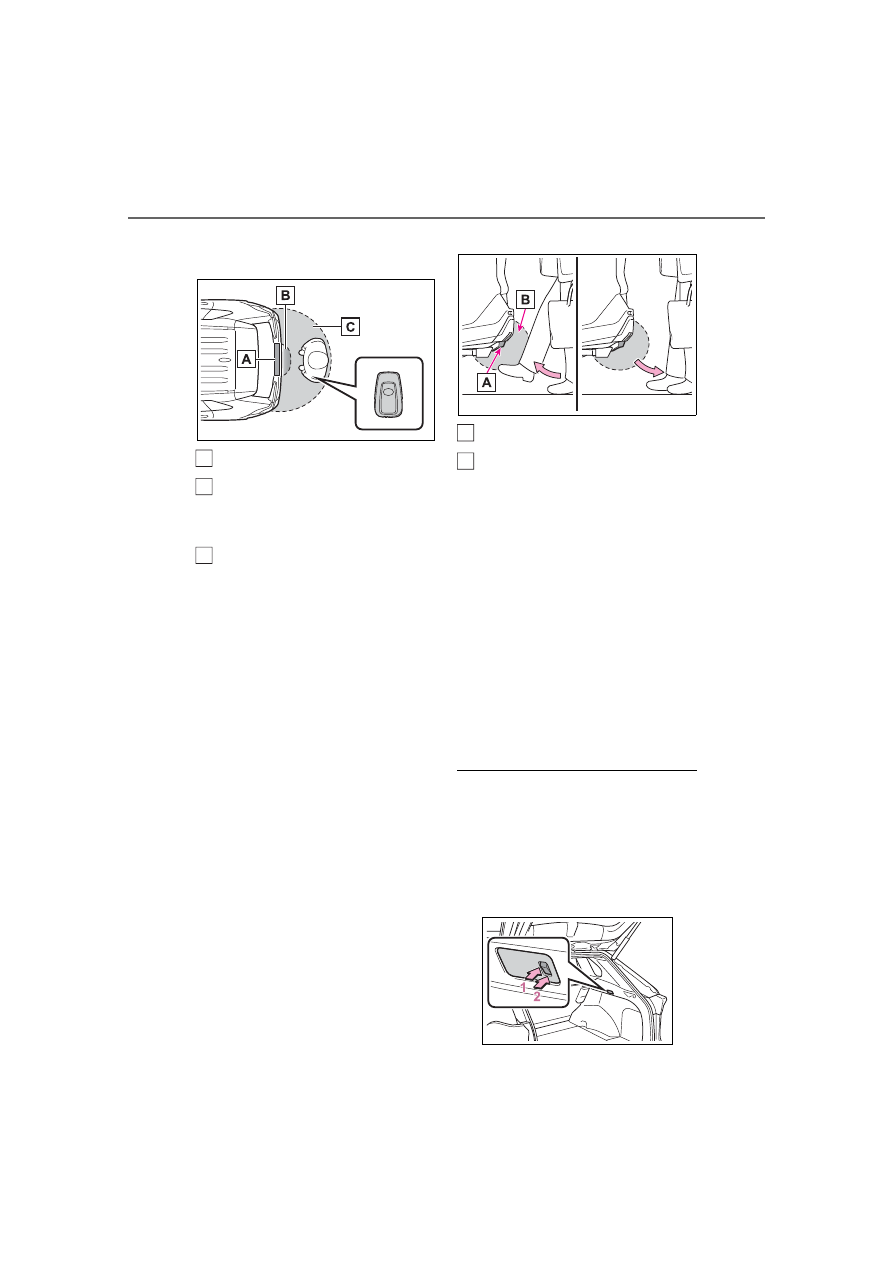

Kick sensor

Hands Free Power Back
Door operation detection
area

Smart key system operation
detection area (



P.128)

2

Perform a kick operation by
moving your foot to within
approximately 3.9 in. (10 cm)
of the rear bumper and then
pulling it back.

Perform the entire kick operation

within 1 second.
The back door will not start operat-

ing while a foot is detected under

the rear bumper.
Operate the Hands Free Power

Back Door without contacting the

rear bumper with your foot.
If another electronic key is in the

cabin or luggage compartment, it

may take slightly longer than nor-

mal for the operation to occur.

Kick sensor

Hands Free Power Back
Door operation detection
area

3

When the kick sensor detects
that your foot is pulled back,
a buzzer will sound and the
back door will automatically
fully open/close.

If a foot is moved under the rear

bumper while the back door is

opening/closing, the back door will

stop moving.
If a foot is moved under the rear

bumper again during the halted

operation, the back door will per-

form the reverse operation.

■

Luggage compartment light

The luggage compartment light

turns on when the back door is

opened with the luggage compart-

ment light switch on.
When the engine switch is turned to

OFF, the light will go off automati-

cally after 20 minutes.

A

B

C

A

B

121

3-2. Opening, closing and locking the doors

3

Before

driving

1

On

2

Off

■

Back door closer

In the event that the back door is left

slightly open, the back door closer

will automatically close it to the fully

closed position.
Whatever the state of the engine

switch, the back door closer oper-

ates.

■

Power back door operating con-

ditions

The power back door can automati-

cally open and close under the fol-

lowing conditions:

●

When the power back door sys-

tem is enabled. (



P.94)

●

When the engine switch is in ON,

in addition to the above for the

opening operations, the back door

operates for any of the following

conditions:

• Parking brake is engaged

• The brake pedal is depressed

• The shift lever is in P.

■

Operation of the power back

door

●

A buzzer sounds and the emer-

gency flashers flash twice to indi-

cate that the back door is

opening/closing.

●

When the power back door sys-

tem is disabled, the power back

door does not operate but it can

be opened and closed by hand.

●

When the power back door auto-

matically opens, if an abnormality

due to people or objects is

detected, operation will stop.

■

Jam protection function

Sensors are equipped on both sides

of the power back door. If anything

obstructs the power back door while

it is closing, the back door will auto-

matically operate in the opposite

direction or stop.

■

Fall-down protection function

While the power back door is open-

ing automatically, applying exces-

sive force to it will stop the opening

operation to prevent the power back

door from suddenly shutting.

■

Back door closing assist

If the back door is lowered manually

when the back door is stopped at an

open position, the back door will

fully close automatically.

■

Back door reserve lock function

This function is a function which

reserves locking of all doors, before-

hand, when the power back door is

open.
When the following procedure is

performed, all the doors except the

power back door are locked and

then power back door will also be

locked at the same time it is closed.

1

Close all doors, except the back

door.

2

During the power back door clos-

ing operation, lock the doors

using the smart key system from

the side doors (



P.108) or the

wireless remote control.

(



P.108)

A buzzer sounds and the emer-

gency flashers flash to indicate that

all the doors have been closed and

locked.

●

If the electronic key is placed

inside the vehicle after starting a

close operation via the door

reserve lock function, the elec-

tronic key may become locked

inside the vehicle.

●

If the power back door does not

fully close due to the operation of

122

3-2. Opening, closing and locking the doors

the jam protection function, etc.,

while the back door is automati-

cally closing after a door reserve

lock operation is performed, the

door reserve lock function is can-

celed and all the doors will unlock.

●

Before leaving the vehicle, make

sure that all the doors are closed

and locked.

■

Kick sensor operating condi-

tions (vehicles with Hands Free

Power Back Door)

The Hands Free Power Back Door

will open/close automatically when

the following conditions are met:

●

The kick sensor operation is

enabled (



P.94)

●

The engine switch is in OFF.

●

The electronic key is within the

operational range. (



P.128)

●

A foot is put near the lower center

part of the rear bumper and

moved away from the rear

bumper.

The power back door may also be

operated by putting a hand, an

elbow, a knee, etc. near the lower

center part of the rear bumper and

moving it away from the rear

bumper. Make sure to put it close

enough to the center part of the

rear bumper.

■

Situations in which the Hands

Free Power Back Door may not

operate properly (vehicles with

Hands Free Power Back Door)

In the following situations, the

Hands Free Power Back Door may

not operate properly:

●

When a foot remains under the

rear bumper

●

If the rear bumper is strongly hit

with a foot or is touched for a while

If the rear bumper has been touched
for a while, wait for a short time
before attempting to operate the
Hands Free Power Back Door
again.

●

When operated while a person is

too close to the rear bumper

●

When an external radio wave

source interferes with the commu-

nication between the electronic

key and the vehicle (



P.129)

●

When the vehicle is parked near

an electrical noise source which

affects the sensitivity of the Hands

Free Power Back Door, such as a

pay parking spot, gas station,

electrically heated road, or fluo-

rescent light

●

When the vehicle is near a TV

tower, electric power plant, radio

station, large display, airport or

other facility that generates strong

radio waves or electrical noise

●

When a large amount of water is

applied to the rear bumper, such

as when the vehicle is being

washed or in heavy rain

●

When mud, snow, ice, etc. is

attached to the rear bumper

●

When the vehicle has been

parked for a while near objects

that may move and contact the

rear bumper, such as plants

●

When an accessory is installed to

the rear bumper

If an accessory has been installed,
turn the Hands Free Power Back
Door (kick sensor) operation setting
off.

■

Preventing unintentional opera-

tion of the Hands Free Power

Back Door (vehicles with Hands

Free Power Back Door)

When an electronic key is in the

operation range, the Hands Free

Power Back Door may operate unin-

tentionally, so be careful in the fol-

lowing situations.

●

When a large amount of water is

applied to the rear bumper, such

as when the vehicle is being

washed or in heavy rain

●

When dirt is wiped off the rear

123

3-2. Opening, closing and locking the doors

3

Before

driving

bumper

●

When a small animal or small

object, such as a ball, moves

under the rear bumper

●

When an object is moved from

under the rear bumper

●

If someone is swinging their legs

while sitting on the rear bumper

●

If the legs or another part of some-

one’s body contacts the rear

bumper while passing by the vehi-

cle

●

When the vehicle is parked near

an electrical noise source which

affects the sensitivity of the Hands

Free Power Back Door, such as a

pay parking spot, gas station,

electrically heated road, or fluo-

rescent light

●

When the vehicle is near a TV

tower, electric power plant, radio

station, large display, airport or

other facility that generates strong

radio waves or electrical noise

●

When the vehicle is parked in a

place where objects such as

plants are near the rear bumper

●

If luggage, etc. is set near the rear

bumper

●

If accessories or a vehicle cover is

installed/removed near the rear

bumper

●

When the vehicle is being towed

To prevent unintentional operation,
turn the Hands Free Power Back
Door (kick sensor) operation setting
off. (



P.94)

■

When reconnecting the battery

To enable the power back door to

operate properly, close the back

door manually.

■

If the back door opener is inop-

erative

The back door can be unlocked

from the inside.

1

Remove the cover.

To prevent damage, cover the tip of

the screwdriver with a rag.

2

Loosen the screw.

3

Turn the cover.

4

Move the lever.

5

When installing, reverse the

steps listed.

■

Customization

Settings (e.g. power back door

opening angle) can be changed.

(Customizable features:



P.692)

124

3-2. Opening, closing and locking the doors

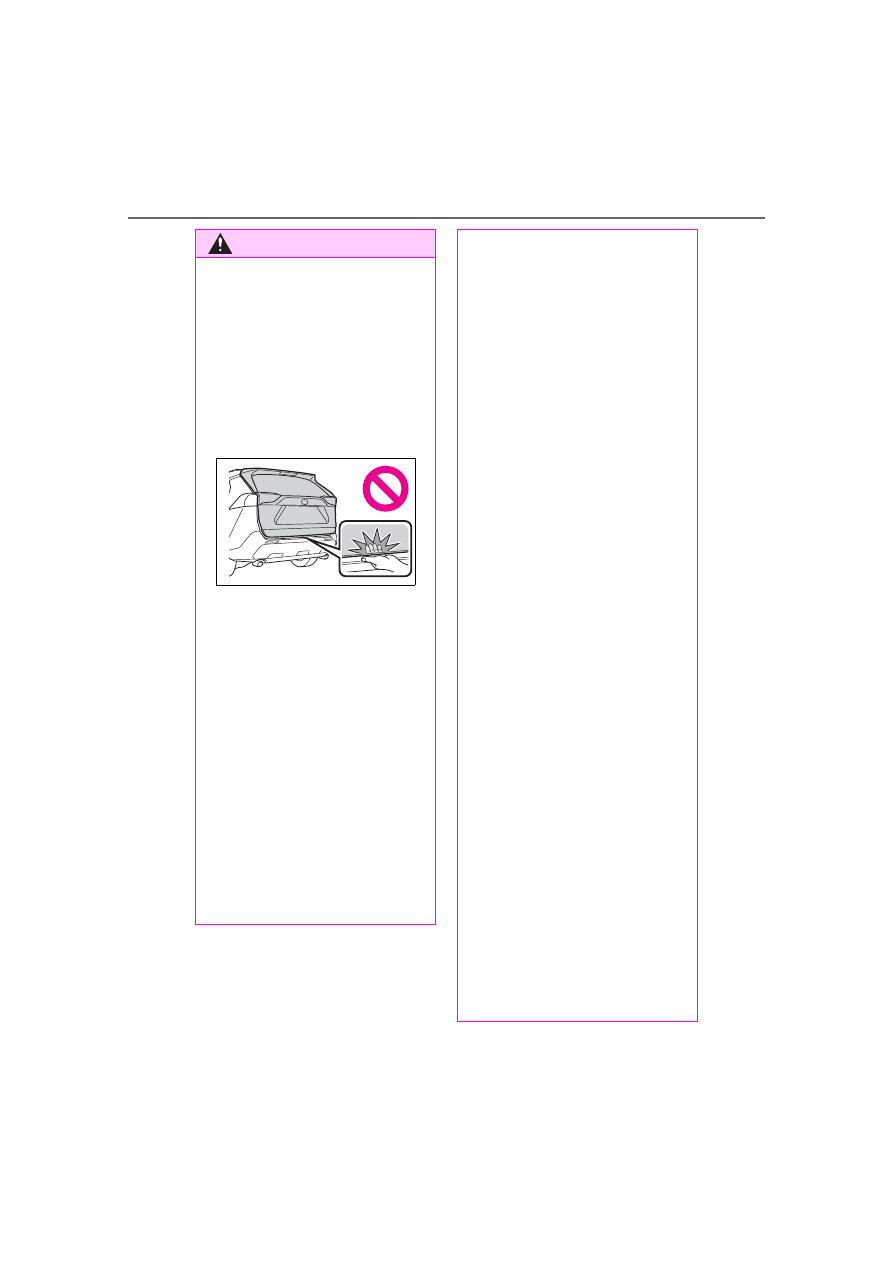

WARNING

■

Back door closer

●

In the event that the back door

is left slightly open, the back

door closer will automatically

close it to the fully closed posi-

tion. It takes several seconds

before the back door closer

begins to operate. Be careful

not to catch fingers or anything

else in the back door, as this

may cause bone fractures or

other serious injuries.

●

Use caution when using the

back door closer as it still oper-

ates when the power back door

system is canceled.

■

Power back door

Observe the following precautions

when operating the power back

door.

Failure to do so may cause death

or serious injury.

●

Check the safety of the sur-

rounding area to make sure

there are no obstacles or any-

thing that could cause any of

your belongings to get caught.

●

If anyone is in the vicinity, make

sure they are safe and let them

know that the back door is

about to open or close.

●

If the power back door system is

turned off while the back door is

operating automatically, the

automatic operation is stopped.

The back door then has to be

operated manually. Take extra

care when on an incline, as the

back door may open or close

unexpectedly.

●

If the operating conditions of the

power back door are no longer

met, a buzzer may sound and

the back door may stop opening

or closing. The back door then

has to be operated manually.

Take extra care when on an

incline, as the back door may

open or close abruptly.

●

On an incline, the back door

may suddenly shut after it

opens. Make sure the back door

is fully open and secure.

●

In the following situations, the

power back door may detect an

abnormality and automatic

operation may be stopped. In

this case, the back door has to

be operated manually. Take

extra care when on an incline,

as the back door may open or

close abruptly.

• When the back door contacts an

obstacle

• When the battery voltage sud-

denly drops, such as when the

engine switch is turned to ON or

the engine is started during

automatic operation

●

If a bicycle carrier or similar

heavy object is attached to the

back door, it may suddenly shut

again after being opened, caus-

ing someone’s hands, head or

neck to be caught and injured.

When installing an accessory

part to the back door, using a

genuine Toyota part is recom-

mended.

125

3-2. Opening, closing and locking the doors

3

Before

driving

WARNING

■

Jam protection function

Observe the following precau-

tions.

Failure to do so may cause death

or serious injury.

●

Never use any part of your body

to intentionally activate the jam

protection function.

●

The jam protection function may

not work if something gets

caught just before the back door

fully closes. Be careful not to

catch fingers or anything else.

●

The jam protection function may

not work depending on the

shape of the object that is

caught. Be careful not to catch

fingers or anything else.

■

Hands Free Power Back Door

(if equipped)

Observe the following precautions

when operating the Hands Free

Power Back Door.

Failure to do so may cause death

or serious injury.

●

Check the safety of the sur-

rounding area to make sure

there are no obstacles or any-

thing that could cause any of

your belongings to get caught.

●

When putting your foot near the

lower center part of the rear

bumper and moving it from the

rear bumper, be careful not to

touch the exhaust pipes until

they have cooled down suffi-

ciently, as touching hot exhaust

pipes can cause burns.

●

Do not leave the electronic key

within the effective range

(detection area) of the luggage

compartment.

NOTICE

■

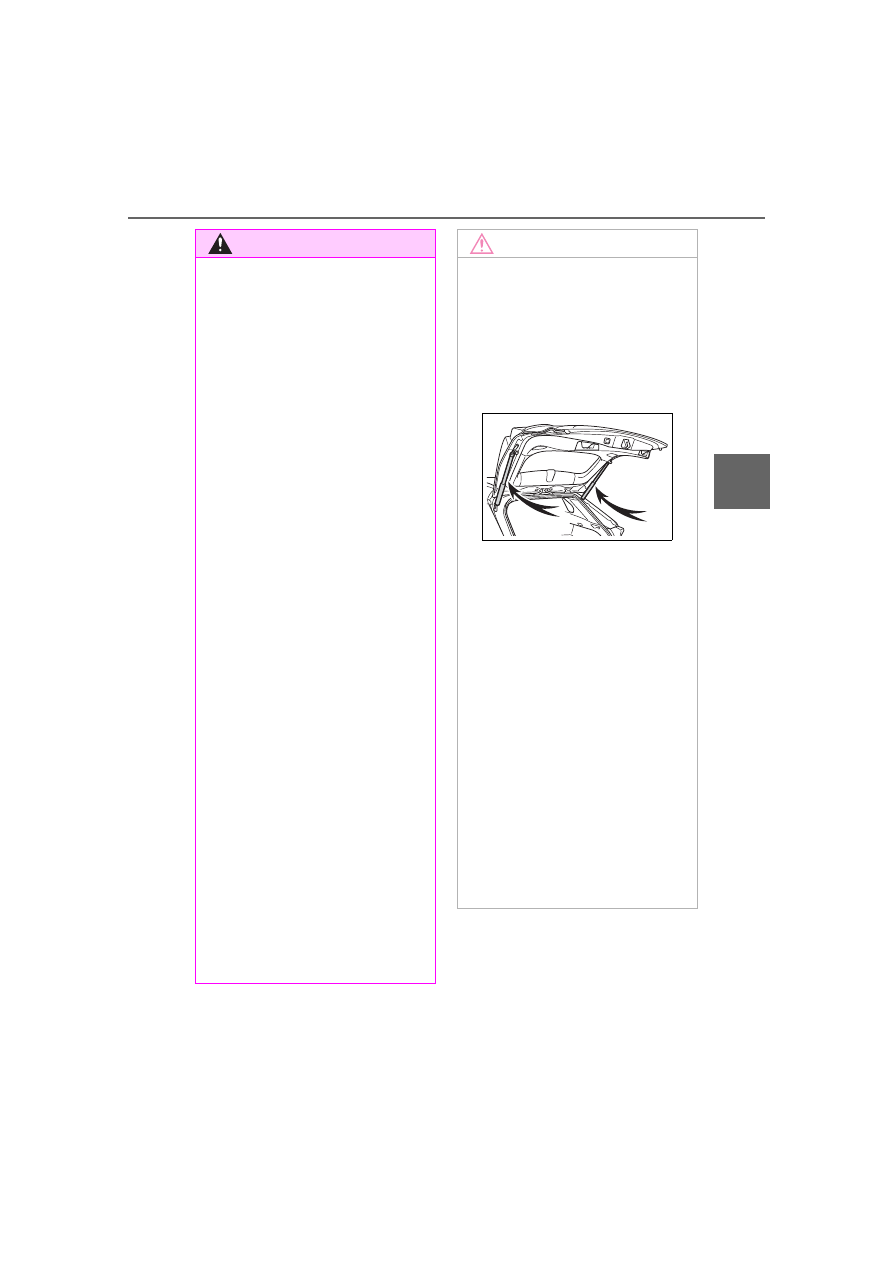

Back door spindles

The back door is equipped with

spindles that hold the back door in

place.

Observe the following precau-

tions.

Failure to do so may cause dam-

age to the back door spindle,

resulting in malfunction.

●

Do not attach any foreign

objects, such as stickers, plastic

sheets, or adhesives to the

spindle rod.

●

Do not touch the spindle rod

with gloves or other fabric items.

●

Do not attach heavy accesso-

ries to the back door. When

attaching, ask your Toyota

dealer for details.

●

Do not place your hand on the

spindle or apply lateral forces to

it.

■

To prevent back door closer

malfunction

Do not apply excessive force to

the back door while the back door

closer is operating. Applying

excessive force may cause the

back door closer to malfunction.

126

3-2. Opening, closing and locking the doors

NOTICE

■

To prevent damage to the

power back door

●

Make sure that there is no ice

between the back door and

frame that would prevent move-

ment of the back door. Operat-

ing the power back door when

excessive load is present on the

back door may cause a mal-

function.

●

Do not apply excessive force to

the back door while the power

back door is operating.

●

Take care not to damage the

sensors (installed on the right

and left edges of the power

back door) with a knife or other

sharp object. If the sensor is

disconnected, the power back

door will not close automatically.

■

Hands Free Power Back Door

precautions (if equipped)

The kick sensor is located behind

lower center part of the rear

bumper. Observe the following to

ensure that the Hands Free

Power Back Door function oper-

ates properly:

●

Keep the lower center part of

the rear bumper clean at all

times.

If the lower center part of the

rear bumper is dirty or covered

with snow, the kick sensor may

not operate. In this situation,

clean off the dirt or snow, move

the vehicle from the current

position and then check if the

kick sensor operates.

If it does not operate, have the

vehicle inspected by your Toy-

ota dealer.

●

Do not apply coatings that have

a rain clearing (hydrophilic)

effect, or other coatings, to the

lower center part of the rear

bumper.

●

Do not park the vehicle near

objects that may move and con-

tact the lower center part of the

rear bumper, such as grass or

trees.

If the vehicle has been parked

for a while near objects that

may move and contact the

lower center part of the rear

bumper, such as grass or trees,

the kick sensor may not oper-

ate. In this situation, move the

vehicle from the current position

and then check if the kick sen-

sor operates. If it does not oper-

ate, have the vehicle inspected

by your Toyota dealer.

●

Do not subject the kick sensor

or its surrounding area to a

strong impact.

If the kick sensor or its sur-

rounding area has been sub-

jected to a strong impact, the

kick sensor may not operate

properly. If the kick sensor does

not operate in the following situ-

ations, have the vehicle

inspected by your Toyota

dealer.

• The kick sensor or its surround-

ing area has been subjected to

a strong impact.

• The lower center part of the rear

bumper is scratched or dam-

aged.

●

Do not disassemble the rear

bumper.

●

Do not attach stickers to the

rear bumper.

●

Do not paint the rear bumper.

●

If a bicycle carrier or similar

heavy object is attached to the

power back door, disable the

kick sensor. (



P.94)

127

3-2. Opening, closing and locking the doors

3

Before

driving

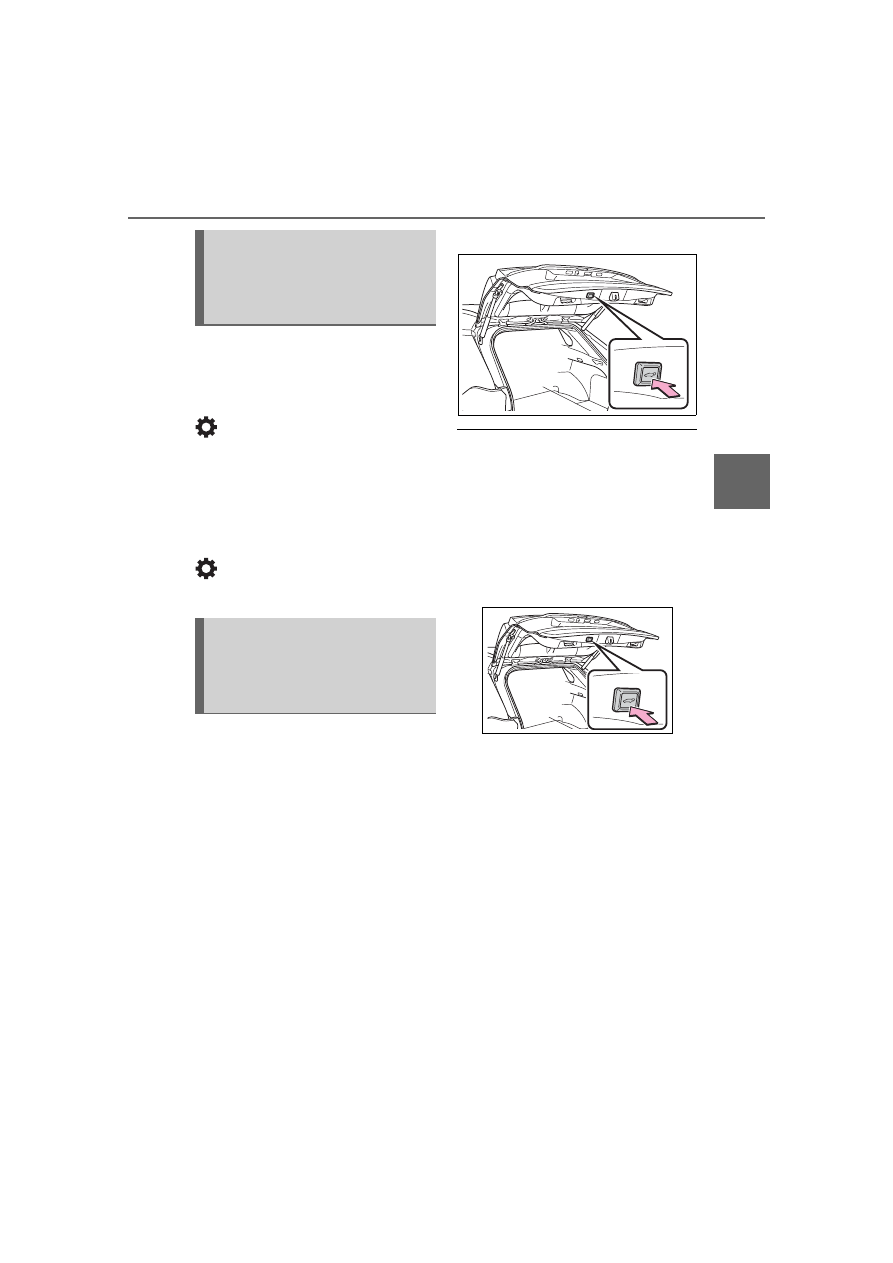

The settings of the power back
door system can be changed by
displaying the “Vehicle Set-
tings” - “PBD” screen from the

 screen of the multi-informa-

tion display. (



P.94)

The changed power back door set-
tings are not reset by turning the
engine switch to OFF. In order to
restore the original settings, they
need to be changed back on the

 screen of the multi-information

display.

The open position of the power
back door can be adjusted.

1

Stop the back door in the
desirable position. (



P.118)

2

Press and hold the power
back door switch on the back
door for approximately 2 sec-
onds.

When the settings are completed,

the buzzer sounds 4 times.
When opening the back door the

next time, the back door will stop at

that position.

■

Canceling the adjusted open

position of the back door

Press and hold the power back door

switch on the back door for approxi-

mately 7 seconds.
After the buzzer sounds 4 times, it

sounds twice more. When the

power back door does the opening

operation the next time, the door will

open to the initial settings position.

■

Customization

The opening position can be set

with the multi-information display.

(



P.94)

Priority for the stop position is given

to the last position set by either the

power back door switch on the back

door or multi-information display.

Changing settings of the
power back door system
(vehicles with power back
door)

Adjusting the open posi-
tion of the back door
(vehicles with power back
door)

128

3-2. Opening, closing and locking the doors

*

: If equipped

■

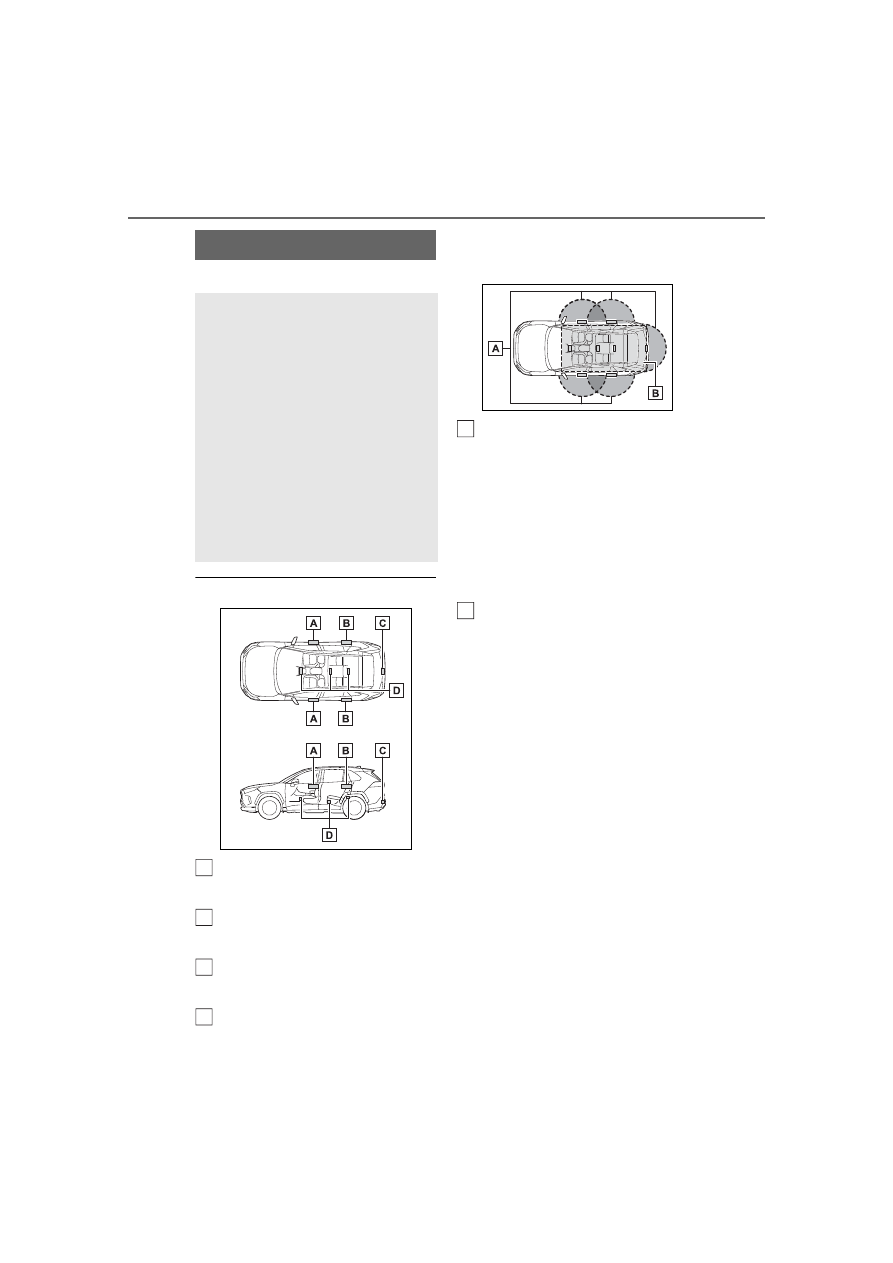

Antenna location

Antennas outside the cabin
(front)

Antennas outside the cabin
(rear) (if equipped)

Antenna outside the luggage
compartment

Antennas inside the cabin

■

Effective range (areas within

which the electronic key is

detected)

When locking or unlocking the
doors

The system can be operated when
the electronic key is within about 2.3
ft. (0.7 m) of the front door handles,
rear door handles (if equipped) and
back door opener switch. (Only the
doors detecting the key can be
operated.)

When starting the engine or
changing engine switch modes

The system can be operated when
the electronic key is inside the vehi-
cle.

■

If an alarm sounds or a warning

message is displayed

An alarm sounds and warning mes-

sage displays shown on the multi-

information display are used to pro-

tect against unexpected accidents

or theft of the vehicle resulting from

erroneous operation. When a warn-

ing message is displayed, take

appropriate measures based on the

displayed message.
When only an alarm sounds, cir-

cumstances and correction proce-

dures are as follows.

Smart key system

*

The following operations
can be performed simply by
carrying the electronic key
on your person, for example
in your pocket. The driver
should always carry the
electronic key.



Locks and unlocks the side
doors (



P.108)



Locks and unlocks the back
door (



P.115)



Starts the engine (



P.194)

A

B

C

D

A

B

129

3-2. Opening, closing and locking the doors

3

Before

driving

●

When an exterior alarm sounds

once for 5 seconds

●

When an interior alarm pings con-

tinuously

■

Battery-saving function

The battery-saving function will be

activated in order to prevent the

electronic key battery and the bat-

tery from being discharged while the

vehicle is not in operation for a long

time.

●

In the following situations, the

smart key system may take some

time to unlock the doors.

• The electronic key has been left in

an area of approximately 6 ft. (2

m) of the outside of the vehicle for

10 minutes or longer.

• The smart key system has not

been used for 5 days or longer.

●

If the smart key system has not

been used for 14 days or longer,

the doors cannot be unlocked at

any doors except the driver’s door.

In this case, take hold of the

driver’s door handle, or use the

wireless remote control or the

mechanical key, to unlock the

doors.

■

Turning an electronic key to

battery-saving mode

●

When battery-saving mode is set,

battery depletion is minimized by

stopping the electronic key from

receiving radio waves.

Press

 twice while pressing

and holding

.

Confirm that the electronic key indi-
cator flashes 4 times.
While the battery-saving mode is
set, the smart key system cannot be
used. To cancel the function, press
any of the electronic key buttons.

●

Electronic keys that will not be

used for long periods of time can

be set to the battery-saving mode

in advance.

■

Conditions affecting operation

The smart key system uses weak

radio waves. In the following situa-

tions, the communication between

the electronic key and the vehicle

may be affected, preventing the

smart key system, wireless remote

control and engine immobilizer sys-

tem from operating properly.

(Ways of coping:



P.653)

●

When the electronic key battery is

depleted

●

Near a TV tower, electric power

plant, gas station, radio station,

large display, airport or other facil-

ity that generates strong radio

waves or electrical noise

●

When the electronic key is in con-

Situation

Correction pro-

cedure

An attempt was
made to lock the
vehicle while a
door was open.

Close all of the
doors and lock
the doors again.

Situation

Correction pro-

cedure

The engine
switch was
turned to ACC
while the driver’s
door was open
(or the driver’s
door was opened
while the engine
switch was in
ACC).

Turn the engine
switch to OFF
and close the
driver’s door.

130

3-2. Opening, closing and locking the doors

tact with, or is covered by the fol-

lowing metallic objects

• Cards to which aluminum foil is

attached

• Cigarette boxes that have alumi-

num foil inside

• Metallic wallets or bags

• Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

●

When other wireless key (that

emits radio waves) is being used

nearby

●

When carrying the electronic key

together with the following devices

that emit radio waves

• Portable radio, cellular phone,

cordless phone or other wireless

communication devices

• Another vehicle’s electronic key or

a wireless key that emits radio

waves

• Personal computers or personal

digital assistants (PDAs)

• Digital audio players

• Portable game systems

●

If window tint with a metallic con-

tent or metallic objects are

attached to the rear window

●

When the electronic key is placed

near a battery charger or elec-

tronic devices

●

When parking in a coin-operated

parking lot (Radio waves used to

detect vehicles may affect the

smart key system.)

■

Note for the entry function

●

Even when the electronic key is

within the effective range (detec-

tion areas), the system may not

operate properly in the following

cases:

• The electronic key is too close to

the window or outside door han-

dle, near the ground, or in a high

place when the doors are locked

or unlocked.

• The electronic key is on the instru-

ment panel, luggage cover or

floor, or in the door pockets or

glove box when the engine is

started or engine switch modes

are changed.

●

Do not leave the electronic key on

top of the instrument panel or near

the door pockets when exiting the

vehicle. Depending on the radio

wave reception conditions, it may

be detected by the antenna out-

side the cabin and the door will

become lockable from the outside,

possibly trapping the electronic

key inside the vehicle.

●

As long as the electronic key is

within the effective range, the

doors may be locked or unlocked

by anyone. However, only the

doors detecting the electronic key

can be used to unlock the vehicle.

●

Even if the electronic key is not

inside the vehicle, it may be possi-

ble to start the engine if the elec-

tronic key is near the window.

●

The doors may unlock if a large

amount of water splashes on the

door handle, such as in the rain or

in a car wash when the electronic

key is within the effective range.

(The doors will automatically be

locked after approximately 60 sec-

onds if the doors are not opened

and closed.)

●

If the wireless remote control is

used to lock the doors when the

electronic key is near the vehicle,

there is a possibility that the door

may not be unlocked by the entry

function. (Use the wireless remote

control to unlock the doors.)

●

Touching the door lock sensor

while wearing gloves may delay or

prevent lock operation. Remove

the gloves and touch the lock sen-

sor again.

●

When the lock operation is per-

formed using the lock sensor, rec-

ognition signals will be shown up

to two consecutive times. After

this, no recognition signals will be

given.

●

If the door handle becomes wet

while the electronic key is within

131

3-2. Opening, closing and locking the doors

3

Before

driving

the effective range, the door may

lock and unlock repeatedly. In that

case, follow the following correc-

tion procedures to wash the vehi-

cle:

• Place the electronic key in a loca-

tion 6 ft. (2 m) or more away from

the vehicle. (Take care to ensure

that the key is not stolen.)

• Set the electronic key to battery-

saving mode to disable the smart

key system. (



P.129)

●

If the electronic key is inside the

vehicle and a door handle

becomes wet during a car wash, a

message may be shown on the

multi-information display and a

buzzer will sound outside the vehi-

cle. To turn off the alarm, lock all

the doors.

●

The lock sensor may not work

properly if it comes into contact

with ice, snow, mud, etc. Clean

the lock sensor and attempt to

operate it again, or use the lock

sensor on the lower part of the

door handle.

●

A sudden approach to the effec-

tive range or door handle may pre-

vent the doors from being

unlocked. In this case, return the

door handle to the original position

and check that the doors unlock

before pulling the door handle

again.

●

If there is another electronic key in

the detection area, it may take

slightly longer to unlock the doors

after the door handle is gripped.

■

When the vehicle is not driven

for extended periods

●

To prevent theft of the vehicle, do

not leave the electronic key within

6 ft. (2 m) of the vehicle.

●

The smart key system can be

deactivated in advance. (



P.691)

●

Battery-saving mode can reduce

the power consumption of elec-

tronic keys. (



P.129)

■

To operate the system properly

Make sure to carry the electronic

key when operating the system. Do

not get the electronic key too close

to the vehicle when operating the

system from the outside of the vehi-

cle.
Depending on the position and hold-

ing condition of the electronic key,

the key may not be detected cor-

rectly and the system may not oper-

ate properly. (The alarm may go off

accidentally, or the door lock pre-

vention may not operate.)

■

If the smart key system does

not operate properly

●

Locking and unlocking the doors:

Use the mechanical key. (



P.653)

●

Starting the engine:



P.654

■

Customization

Settings (e.g. smart key system)

can be changed.

(Customizable features:



P.691)

If the smart key system has been

deactivated in a customized setting,

refer to the explanations for the fol-

lowing operations.

●

Locking and unlocking the doors:

Use the wireless remote control or

mechanical key. (



P.108, 653)

●

Starting the engine and changing

engine switch modes:



P.654

●

Stopping the engine:



P.196

132

3-2. Opening, closing and locking the doors

■

Certification for the smart key system



For vehicles sold in the U.S.A., Hawaii, American Samoa, Guam, Saipan

and Puerto Rico



For vehicles sold in Canada

133

3-2. Opening, closing and locking the doors

3

Before

driving

WARNING

■

Caution regarding interfer-

ence with electronic devices

●

People with implantable car-

diac pacemakers, cardiac

resynchronization therapy-

pacemakers or implantable car-

dioverter defibrillators should

maintain a reasonable distance

between themselves and the

smart key system antennas.

(



P.128)

The radio waves may affect the

operation of such devices. If

necessary, the entry function

can be disabled. Ask your Toy-

ota dealer for details, such as

the frequency of radio waves

and timing of the emitted radio

waves. Then, consult your doc-

tor to see if you should disable

the entry function.

●

Users of any electrical medical

device other than implantable

cardiac pacemakers, cardiac

resynchronization therapy-

pacemakers or implantable car-

dioverter defibrillators should

consult the manufacturer of the

device for information about its

operation under the influence of

radio waves.

Radio waves could have unex-

pected effects on the operation

of such medical devices.

Ask your Toyota dealer for details

on disabling the entry function.

134

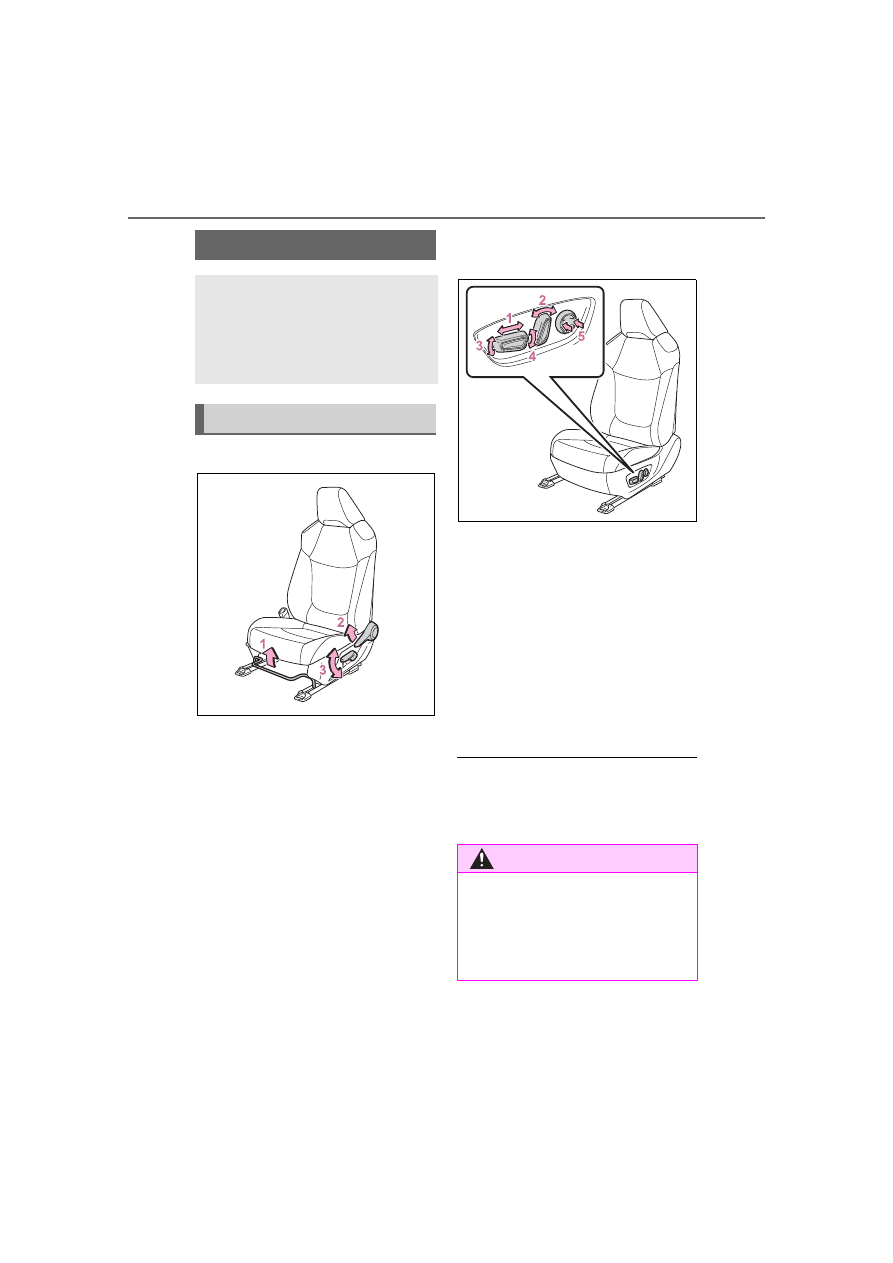

3-3. Adjusting the seats

3-3.Adjusting the seats



Manual seat

1

Seat position adjustment
lever

2

Seatback angle adjustment
lever

3

Vertical height adjustment
lever (driver’s side only)



Power seat (driver’s side
only)

1

Seat position adjustment
switch

2

Seatback angle adjustment
switch

3

Seat cushion (front) angle
adjustment switch

4

Vertical height adjustment
switch

5

Lumbar support adjustment
switch

■

When adjusting the seat

Take care when adjusting the seat

so that the head restraint does not

touch the ceiling.

Front seats

The seats can be adjusted
(longitudinally, vertically,
etc.). Adjust the seat to
ensure the correct driving
posture.

Adjustment procedure

WARNING

■

When adjusting the seat posi-

tion

●

Take care when adjusting the

seat position to ensure that

other passengers are not

injured by the moving seat.

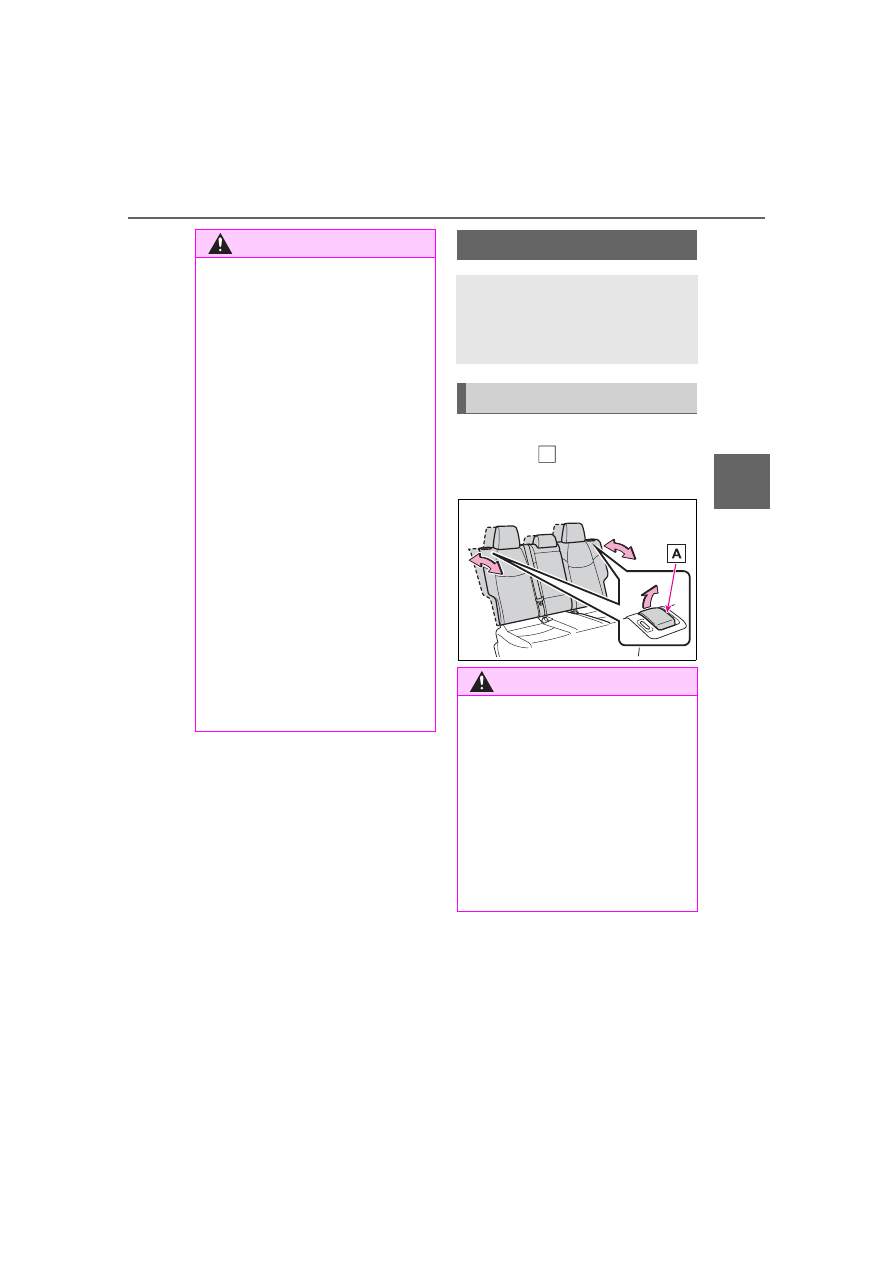

135

3-3. Adjusting the seats

3

Before

driving

Pull the seatback angle adjust-
ment lever

, and adjust the

seatback angle.

WARNING

●

Do not put your hands under the

seat or near the moving parts to

avoid injury.

Fingers or hands may become

jammed in the seat mechanism.

●

Make sure to leave enough

space around the feet so they

do not get stuck.

●

Manual seat only: After adjust-

ing the seat, make sure that the

seat is locked in position.

■

Seat adjustment

To reduce the risk of sliding under

the lap belt during a collision, do

not recline the seat more than

necessary.

If the seat is too reclined, the lap

belt may slide past the hips and

apply restraint forces directly to

the abdomen, or your neck may

contact the shoulder belt, increas-

ing the risk of death or serious

injury in the event of an accident.

Adjustments should not be made

while driving as the seat may

unexpectedly move and cause

the driver to lose control of the

vehicle.

Rear seats

Reclining adjustments and
folding the seatbacks can
be done with lever opera-
tion.

Adjustment procedure

WARNING

■

When operating the seatback

Observe the following precau-

tions.

Failure to do so may cause death

or serious injury.

●

Keep other passengers from

being hit with the seatback.

●

Do not bring your hands close

to the moving parts or between

the seats, as well as do not let

any part of your body get

caught.

A

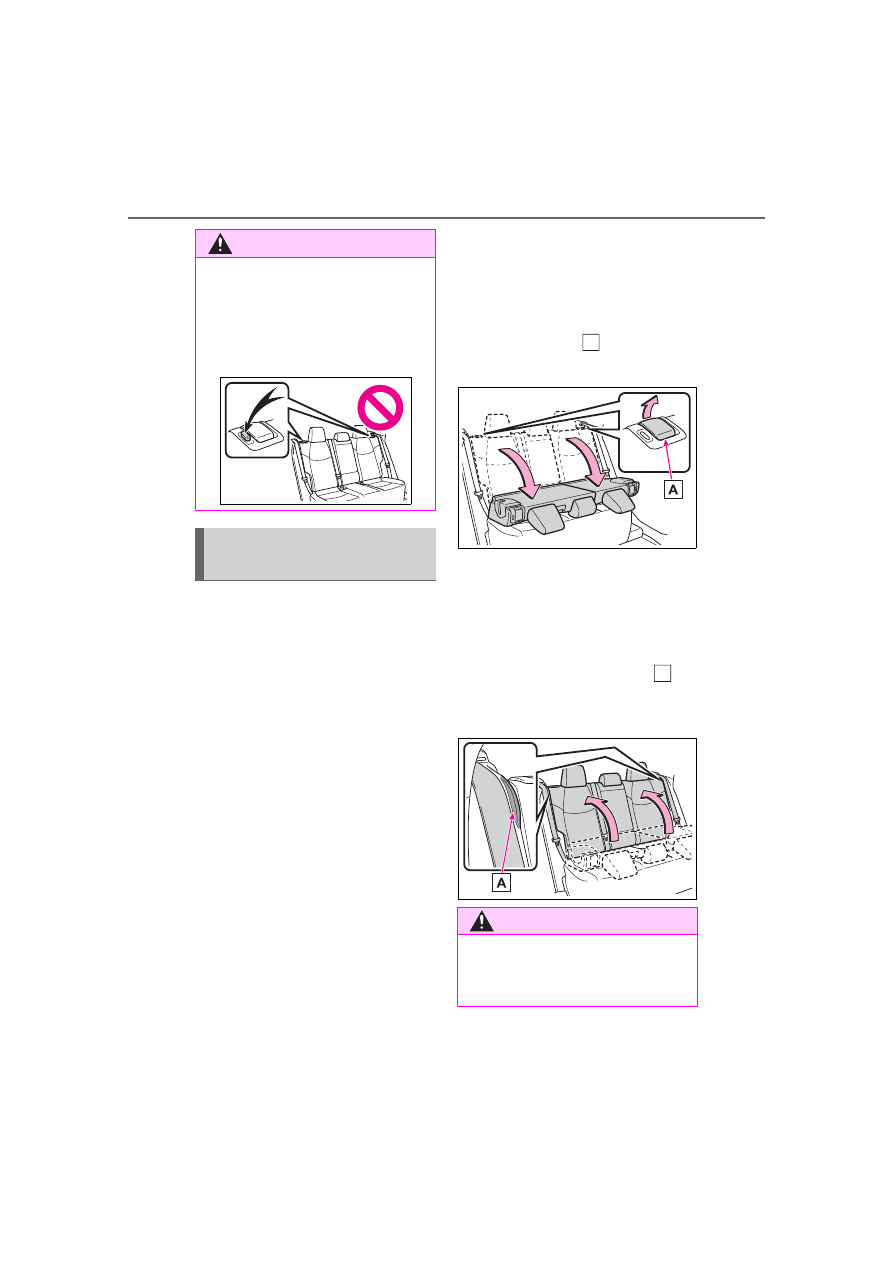

136

3-3. Adjusting the seats

■

Before folding down the
seatbacks

1

Park the vehicle in a safe
place.

Apply the parking brake (



P.203)

and shift the shift lever to P.

(



P.200)

2

Adjust the position of the
front seat and the angle of
the seatback. (



P.134)

Depending on the position of the

front seat, if the seatback is folded

backward, it may interfere with the

operation of the rear seat.

3

Lift up and push down the
head restraints of the rear
outboard seats, and lower
the head restraint of the rear
center seat. (



P.140)

4

Stow the armrest of the rear
seat if it is pulled out.
(



P.547)

This step is not necessary when

operating the left side seat only.

■

Folding down the seat-
backs

While pulling the seatback angle
adjustment lever

, fold the

seatback down.

■

Returning the rear seat-
backs

To avoid trapping the seat belt
between the seat and the inside
of the vehicle, pass the seat belt
outside the seat belt guide



and then return the seatback
securely to the locked position.

WARNING

●

After adjusting the seat, make

sure that the seat is locked in

position.

If the seatback is not securely

locked, the red marking will be

visible. Make sure that the red

marking is not visible.

Folding down the rear
seatbacks

WARNING

Observe the following precau-

tions.

Failure to do so may result in

death or serious injury.

A

A

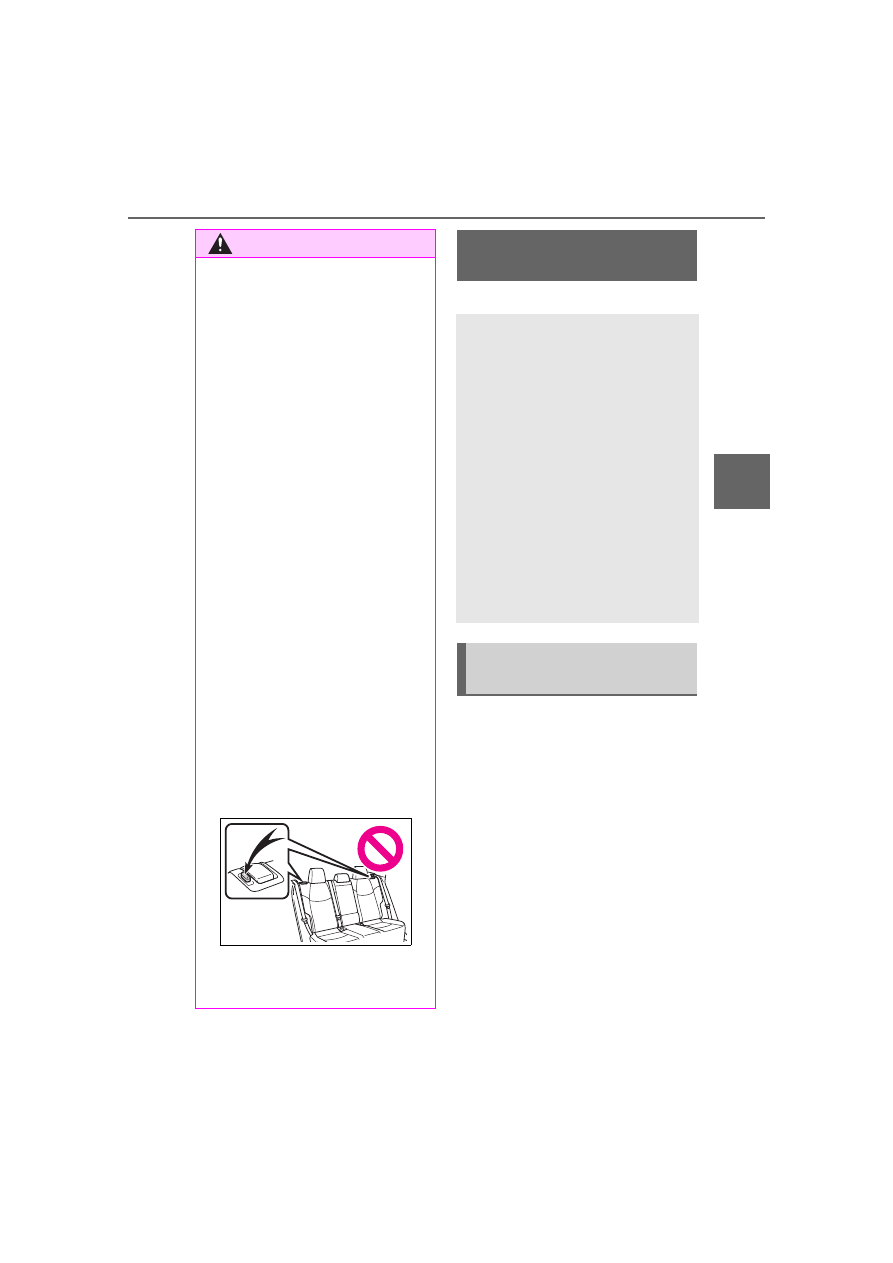

137

3-3. Adjusting the seats

3

Before

driving

*

: If equipped

■

Recording procedure

1

Check that the shift lever is in
P.

2

Turn the engine switch to
ON.

3

Adjust the driver’s seat to the
desired positions.

4

While pressing the “SET” but-
ton, press button “1” or “2”
until the buzzer sounds.

If the selected button has already

been preset, the previously

recorded position will be overwrit-

WARNING

■

When folding the rear seat-

backs down

●

Do not fold the seatbacks down

while driving.

●

Stop the vehicle on level

ground, set the parking brake

and shift the shift lever to P.

●

Do not allow anyone to sit on a

folded seatback or in the lug-

gage compartment while driv-

ing.

●

Do not allow children to enter

the luggage compartment.

●

Do not operate the rear seat if it

is occupied.

●

Be careful not to get feet or

hands caught in the moving

parts or joints of the seats

during operation.

●

Do not allow children to operate

the seat.

■

After returning the rear seat-

back to the upright position

●

Make sure that the seatback is

securely locked in position by

lightly pushing it back and forth.

If the seatback is not securely

locked, the red marking will be

visible. Make sure that the red

marking is not visible.

●

Check that the seat belts are

not twisted or caught in the

seatback.

Driving position mem-

ory

*

This feature automatically
adjusts the driver’s seat to
suit your preferences.
Your preferred driving posi-
tion (the position of the
driver’s seat) can be
recorded and recalled by
pressing a button.
Two different driving posi-
tions can be recorded into
memory.
Each electronic key can be
registered to recall your pre-
ferred driving position.

Recording/recalling a
driving position

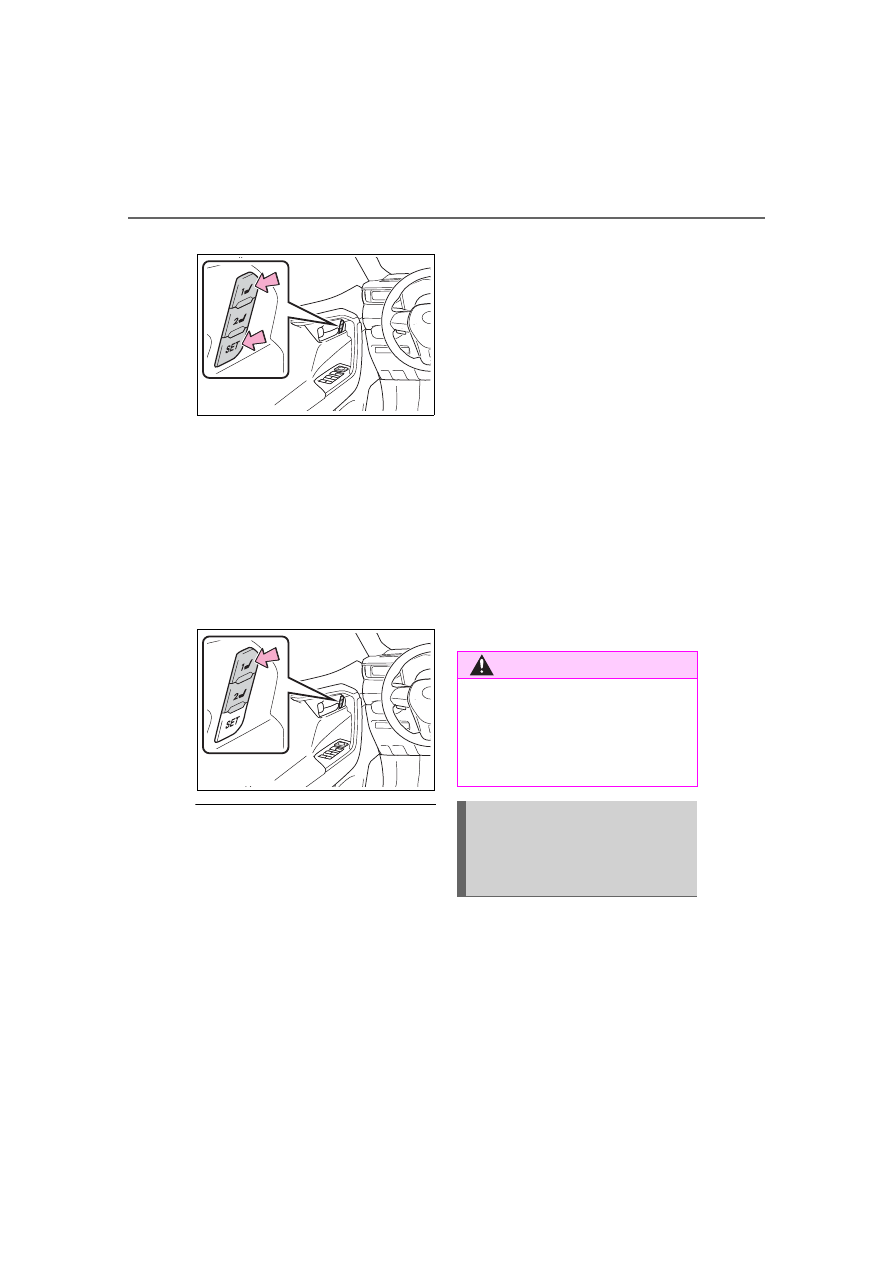

138

3-3. Adjusting the seats

ten.

■

Recall procedure

1

Check that the shift lever is in
P.

2

Turn the engine switch to
ON.

3

Press one of the buttons for
the driving position you want
to recall until the buzzer
sounds.

■

To stop the position recall oper-

ation part-way through

Perform any of the following:

●

Press the “SET” button.

●

Press button “1” or “2”.

●

Operate any of the seat adjust-

ment switches.

■

Seat positions that can be

memorized (



P.134)

The adjusted positions other than

the position adjusted by lumbar sup-

port switch can be recorded.

■

Operating the driving position

memory after turning the

engine switch to OFF

Recorded seat positions can be

activated up to 180 seconds after

the driver’s door is opened and

another 60 seconds after it is closed

again.

■

In order to correctly use the

driving position memory func-

tion

If a seat position is already in the

furthest possible position and the

seat is operated in the same direc-

tion, the recorded position may be

slightly different when it is recalled.

■

When recalling the driving posi-

tion

Take care when recalling the driving

position so that the head restraint

does not touch the ceiling.

■

If the battery is disconnected

The memorized positions are

erased.

■

Registering procedure

Record your driving position to
button “1” or “2” before perform-
ing the following:
Carry only the key you want to
register, and then close the

WARNING

■

Seat adjustment caution

Take care during seat adjustment

so that the seat does not strike

the rear passenger or squeeze

your body against the steering

wheel.

Registering/recall/cancel-
ing a driving position to
an electronic key (mem-
ory recall function)

139

3-3. Adjusting the seats

3

Before

driving

driver’s door.
If 2 or more keys are in the vehi-
cle, the driving position cannot
be recorded properly.

1

Check that the shift lever is in
P.

2

Turn the engine switch to
ON.

3

Recall the driving position
that you want to record.

4

While pressing the recalled
button, press and hold the
door lock switch (either lock
or unlock) until the buzzer
sounds.

If the button could not be regis-

tered, the buzzer sounds continu-

ously for approximately 3 seconds.

■

Recall procedure

Make sure that the doors are
locked before recalling the driv-
ing position.Carry the electronic
key that has been registered to
the driving position, and then
unlock and open the driver’s
door using the smart key system
or wireless remote control.

The driving position will move to the
recorded position.
If the driving position is in a position

that has already been recorded, the
seat will not move.

■

Cancelation procedure

Carry only the key you want to
cancel and then close the
driver’s door.
If 2 or more keys are in the vehi-
cle, the driving position cannot
be canceled properly.

1

Check that the shift lever is in
P.

2

Turn the engine switch to
ON.

3

While pressing the “SET” but-
ton, press and hold the door
lock switch (either lock or
unlock) until the buzzer
sounds twice.

If the button could not be canceled,

the buzzer sounds continuously for

approximately 3 seconds.

■

Recalling the driving position

using the memory recall func-

tion

●

Different driving positions can be

registered for each electronic key.

Therefore, the driving position that

is recalled may be different

depending on the key being car-

ried.

●

If a door other than the driver’s

door is unlocked with smart key

system, the driving position can-

not be recalled. In this case, press

the driving position button which

has been set.

■

Customization

Settings (e.g. the unlock door set-

tings of the memory recall function)

can be customized. (Customizable

features:



P.693)

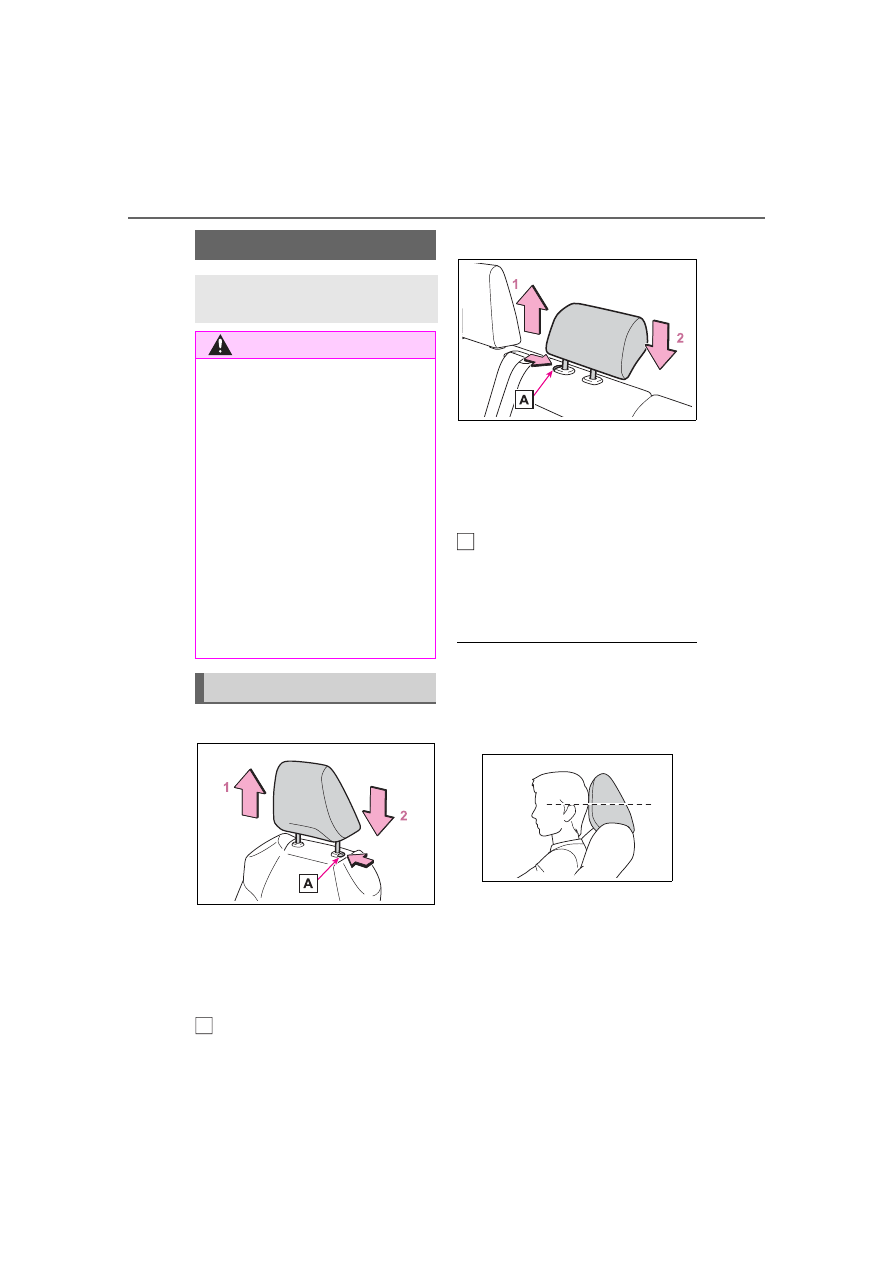

140

3-3. Adjusting the seats

■

Front seats

1

Up

Pull the head restraints up.

2

Down

Push the head restraint down while
pressing the lock release button

.

■

Center rear seat

1

Up

Pull the head restraints up.

2

Down

Push the head restraint down while
pressing the lock release button

.

■

Outboard rear seats

Head restraints cannot be
adjusted.

■

Adjusting the height of the head

restraints (front seats)

Make sure that the head restraints

are adjusted so that the center of

the head restraint is closest to the

top of your ears.

■

Adjusting the center rear seat

head restraint

Always raise the head restraint one

level from the stowed position when

using.

Head restraints

Head restraints are provided
for all seats.

WARNING

■

Head restraint precautions

Observe the following precautions

regarding the head restraints.

Failure to do so may result in

death or serious injury.

●

Use the head restraints

designed for each respective

seat.

●

Adjust the head restraints to the

correct position at all times.

●

After adjusting the head

restraints, push down on them

and make sure they are locked

in position.

●

Do not drive with the head

restraints removed.

Vertical adjustment

A

A

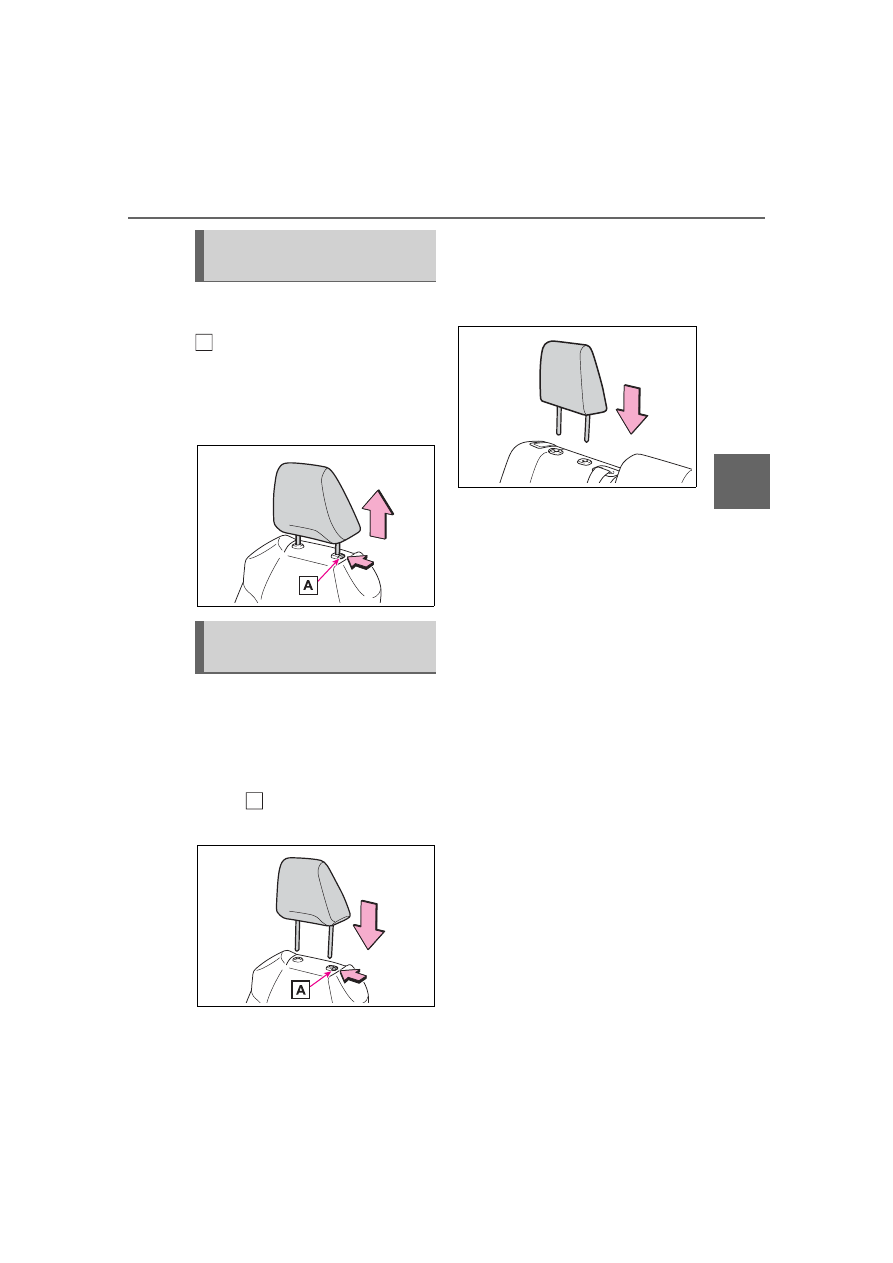

141

3-3. Adjusting the seats

3

Before

driving

Pull the head restraint up while
pressing the lock release button

.

If the head restraint touches the
ceiling, making the removal difficult,
change the seat height or angle.
(



P.134)

■

Front and center rear seats

Align the head restraint with the
installation holes and push it
down to the lock position.
Press and hold the lock release
button

 when lowering the

head restraint.

■

Outboard rear seats

Align the head restraint with the
installation holes and push it
down to the lowest lock position.

Removing the head
restraints

Installing the head
restraints

A

A
